This is the group of double complex functions using the simple user interface.
| int PLASMA_zcgels | ( | PLASMA_enum | trans, |
| int | M, | ||
| int | N, | ||
| int | NRHS, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| PLASMA_Complex64_t * | B, | ||
| int | LDB, | ||
| PLASMA_Complex64_t * | X, | ||
| int | LDX, | ||
| int * | ITER | ||
| ) |
PLASMA_zcgels - Solves overdetermined or underdetermined linear systems involving an M-by-N matrix A using the QR or the LQ factorization of A. It is assumed that A has full rank. The following options are provided:
system, i.e., solve the least squares problem: minimize || B - A*X ||.
system A * X = B.
Several right hand side vectors B and solution vectors X can be handled in a single call; they are stored as the columns of the M-by-NRHS right hand side matrix B and the N-by-NRHS solution matrix X.
PLASMA_zcgels first attempts to factorize the matrix in COMPLEX and use this factorization within an iterative refinement procedure to produce a solution with COMPLEX*16 normwise backward error quality (see below). If the approach fails the method switches to a COMPLEX*16 factorization and solve.
The iterative refinement is not going to be a winning strategy if the ratio COMPLEX performance over COMPLEX*16 performance is too small. A reasonable strategy should take the number of right-hand sides and the size of the matrix into account. This might be done with a call to ILAENV in the future. Up to now, we always try iterative refinement.
The iterative refinement process is stopped if ITER > ITERMAX or for all the RHS we have: RNRM < N*XNRM*ANRM*EPS*BWDMAX where:
Actually, in its current state (PLASMA 2.1.0), the test is slightly relaxed.
The values ITERMAX and BWDMAX are fixed to 30 and 1.0D+00 respectively.
We follow Bjorck's algorithm proposed in "Iterative Refinement of Linear Least Squares solutions I", BIT, 7:257-278, 1967.
| [in] | trans | Intended usage: = PlasmaNoTrans: the linear system involves A; = PlasmaConjTrans: the linear system involves A**H. Currently only PlasmaNoTrans is supported. |
| [in] | M | The number of rows of the matrix A. M >= 0. |
| [in] | N | The number of columns of the matrix A. N >= 0. |
| [in] | NRHS | The number of right hand sides, i.e., the number of columns of the matrices B and X. NRHS >= 0. |
| [in] | A | The M-by-N matrix A. This matrix is not modified. |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,M). |
| [in] | B | The M-by-NRHS matrix B of right hand side vectors, stored columnwise. Not modified. |
| [in] | LDB | The leading dimension of the array B. LDB >= MAX(1,M,N). |
| [out] | X | If return value = 0, the solution vectors, stored columnwise. if M >= N, rows 1 to N of X contain the least squares solution vectors; the residual sum of squares for the solution in each column is given by the sum of squares of the modulus of elements N+1 to M in that column; if M < N, rows 1 to N of X contain the minimum norm solution vectors; |
| [in] | LDX | The leading dimension of the array X. LDX >= MAX(1,M,N). |
| [out] | ITER | The number of the current iteration in the iterative refinement process |
| PLASMA_SUCCESS | successful exit |
| <0 | if -i, the i-th argument had an illegal value |
Definition at line 166 of file zcgels.c.
References max, min, PLASMA_Alloc_Workspace_zgels_Tile(), plasma_context_self(), PLASMA_Dealloc_Handle_Tile(), plasma_desc_init(), plasma_desc_mat_alloc(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, PLASMA_ERR_NOT_SUPPORTED, PLASMA_ERR_OUT_OF_RESOURCES, plasma_error(), plasma_fatal_error(), PLASMA_FUNC_ZCGELS, PLASMA_NB, plasma_parallel_call_5, plasma_pzlapack_to_tile(), plasma_pztile_to_lapack(), PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, plasma_tune(), PLASMA_zcgels_Tile_Async(), PlasmaComplexDouble, and PlasmaNoTrans.
| int PLASMA_zcgesv | ( | int | N, |
| int | NRHS, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| int * | IPIV, | ||
| PLASMA_Complex64_t * | B, | ||
| int | LDB, | ||
| PLASMA_Complex64_t * | X, | ||
| int | LDX, | ||
| int * | ITER | ||
| ) |

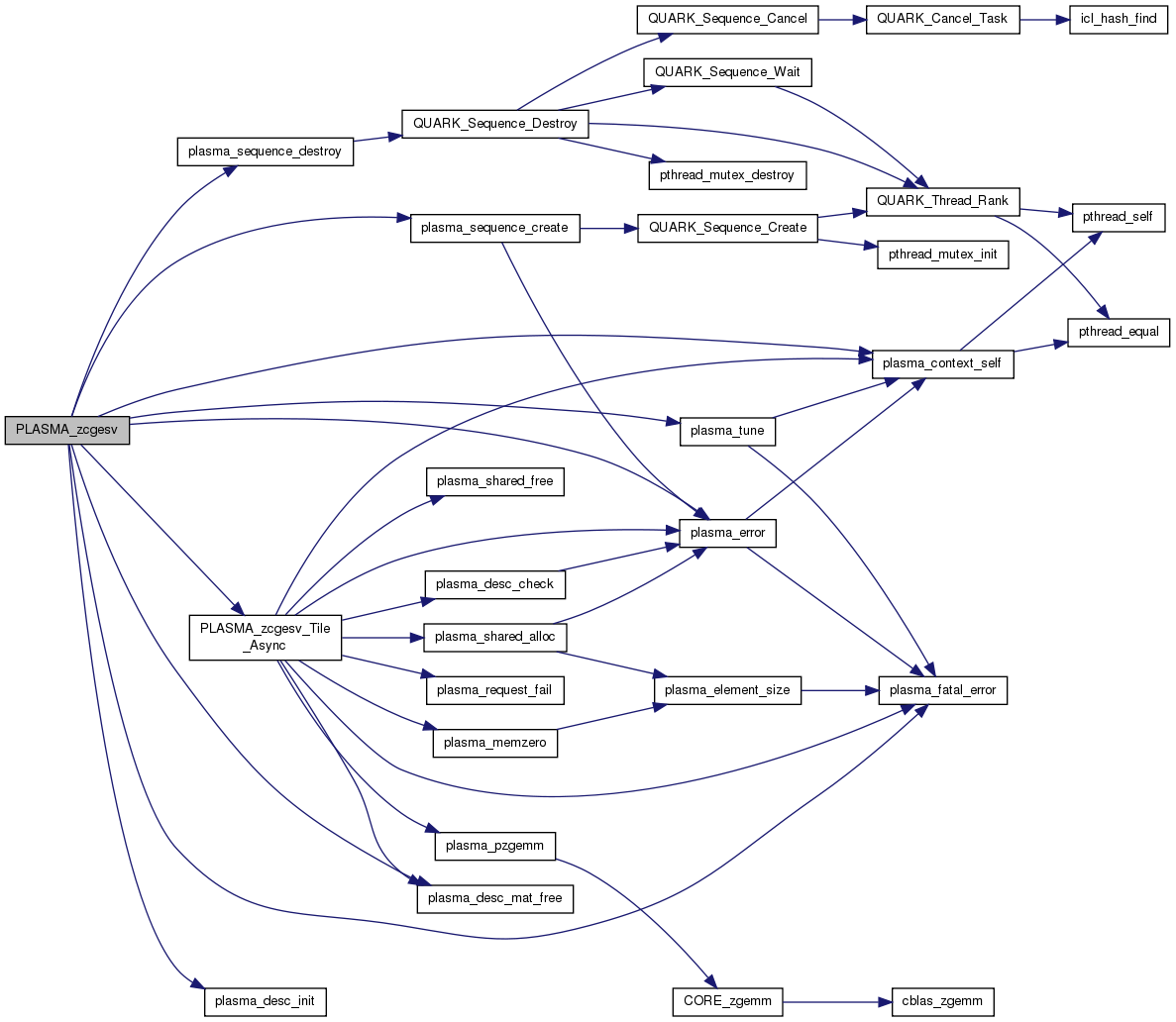

PLASMA_zcgesv - Computes the solution to a system of linear equations A * X = B, where A is an N-by-N matrix and X and B are N-by-NRHS matrices.
PLASMA_zcgesv first attempts to factorize the matrix in COMPLEX and use this factorization within an iterative refinement procedure to produce a solution with COMPLEX*16 normwise backward error quality (see below). If the approach fails the method switches to a COMPLEX*16 factorization and solve.
The iterative refinement is not going to be a winning strategy if the ratio COMPLEX performance over COMPLEX*16 performance is too small. A reasonable strategy should take the number of right-hand sides and the size of the matrix into account. This might be done with a call to ILAENV in the future. Up to now, we always try iterative refinement.
The iterative refinement process is stopped if ITER > ITERMAX or for all the RHS we have: RNRM < N*XNRM*ANRM*EPS*BWDMAX where:
Actually, in its current state (PLASMA 2.1.0), the test is slightly relaxed.
The values ITERMAX and BWDMAX are fixed to 30 and 1.0D+00 respectively.
| [in] | N | The number of linear equations, i.e., the order of the matrix A. N >= 0. |
| [in] | NRHS | The number of right hand sides, i.e., the number of columns of the matrix B. NRHS >= 0. |
| [in] | A | The N-by-N coefficient matrix A. This matrix is not modified. |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,N). |
| [out] | IPIV | On exit, the pivot indices that define the permutations. |
| [in] | B | The N-by-NRHS matrix of right hand side matrix B. |
| [in] | LDB | The leading dimension of the array B. LDB >= max(1,N). |
| [out] | X | If return value = 0, the N-by-NRHS solution matrix X. |
| [in] | LDX | The leading dimension of the array B. LDX >= max(1,N). |
| [out] | ITER | The number of the current iteration in the iterative refinement process |
| PLASMA_SUCCESS | successful exit |
| <0 | if -i, the i-th argument had an illegal value |
| >0 | if i, U(i,i) is exactly zero. The factorization has been completed, but the factor U is exactly singular, so the solution could not be computed. |
Definition at line 227 of file zcgesv.c.
References plasma_desc_t::mat, max, min, plasma_context_self(), plasma_desc_init(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), PLASMA_FUNC_ZCGESV, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), PLASMA_zcgesv_Tile_Async(), plasma_zdesc_alloc, plasma_ziplap2tile, plasma_ziptile2lap, plasma_zooplap2tile, plasma_zooptile2lap, PlasmaComplexDouble, and plasma_sequence_t::status.

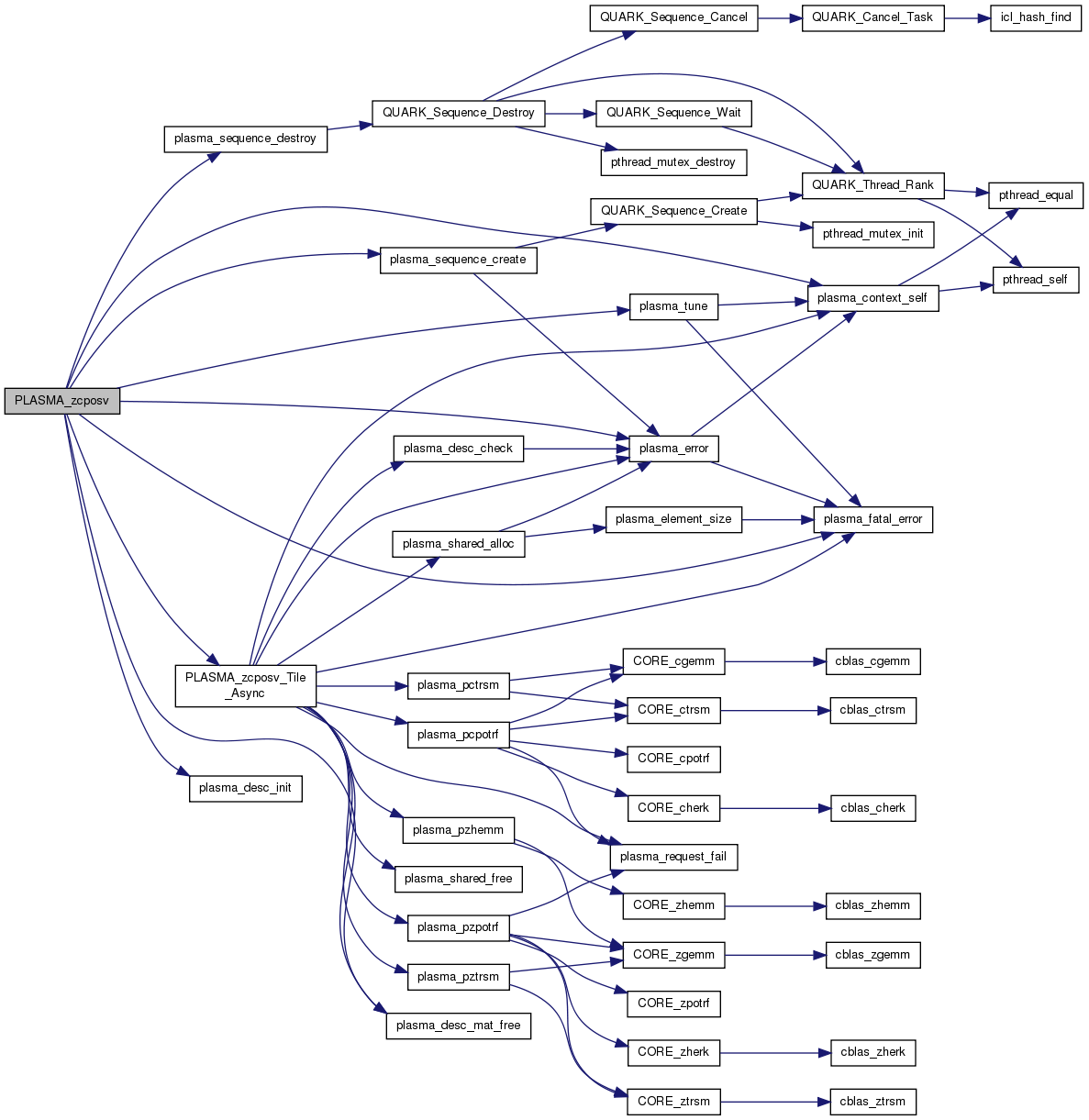

| int PLASMA_zcposv | ( | PLASMA_enum | uplo, |
| int | N, | ||
| int | NRHS, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| PLASMA_Complex64_t * | B, | ||
| int | LDB, | ||
| PLASMA_Complex64_t * | X, | ||
| int | LDX, | ||
| int * | ITER | ||
| ) |
PLASMA_zcposv - Computes the solution to a system of linear equations A * X = B, where A is an N-by-N symmetric positive definite (or Hermitian positive definite in the complex case) matrix and X and B are N-by-NRHS matrices. The Cholesky decomposition is used to factor A as
A = U**H * U, if uplo = PlasmaUpper, or A = L * L**H, if uplo = PlasmaLower,
where U is an upper triangular matrix and L is a lower triangular matrix. The factored form of A is then used to solve the system of equations A * X = B.
PLASMA_zcposv first attempts to factorize the matrix in COMPLEX and use this factorization within an iterative refinement procedure to produce a solution with COMPLEX*16 normwise backward error quality (see below). If the approach fails the method switches to a COMPLEX*16 factorization and solve.
The iterative refinement is not going to be a winning strategy if the ratio COMPLEX performance over COMPLEX*16 performance is too small. A reasonable strategy should take the number of right-hand sides and the size of the matrix into account. This might be done with a call to ILAENV in the future. Up to now, we always try iterative refinement.
The iterative refinement process is stopped if ITER > ITERMAX or for all the RHS we have: RNRM < N*XNRM*ANRM*EPS*BWDMAX where:
Actually, in its current state (PLASMA 2.1.0), the test is slightly relaxed.
The values ITERMAX and BWDMAX are fixed to 30 and 1.0D+00 respectively.
| [in] | uplo | Specifies whether the matrix A is upper triangular or lower triangular: = PlasmaUpper: Upper triangle of A is stored; = PlasmaLower: Lower triangle of A is stored. |
| [in] | N | The number of linear equations, i.e., the order of the matrix A. N >= 0. |
| [in] | NRHS | The number of right hand sides, i.e., the number of columns of the matrix B. NRHS >= 0. |
| [in] | A | The N-by-N symmetric positive definite (or Hermitian) coefficient matrix A. If uplo = PlasmaUpper, the leading N-by-N upper triangular part of A contains the upper triangular part of the matrix A, and the strictly lower triangular part of A is not referenced. If UPLO = 'L', the leading N-by-N lower triangular part of A contains the lower triangular part of the matrix A, and the strictly upper triangular part of A is not referenced. This matrix is not modified. |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,N). |
| [in] | B | The N-by-NRHS matrix of right hand side matrix B. |
| [in] | LDB | The leading dimension of the array B. LDB >= max(1,N). |
| [out] | X | If return value = 0, the N-by-NRHS solution matrix X. |
| [in] | LDX | The leading dimension of the array B. LDX >= max(1,N). |
| [out] | ITER | The number of the current iteration in the iterative refinement process |
| PLASMA_SUCCESS | successful exit |
| <0 | if -i, the i-th argument had an illegal value |
| >0 | if i, the leading minor of order i of A is not positive definite, so the factorization could not be completed, and the solution has not been computed. |
Definition at line 171 of file zcposv.c.
References plasma_desc_t::mat, max, min, plasma_context_self(), plasma_desc_init(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), PLASMA_FUNC_ZCPOSV, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), PLASMA_zcposv_Tile_Async(), plasma_zdesc_alloc, plasma_ziplap2tile, plasma_ziptile2lap, plasma_zooplap2tile, plasma_zooptile2lap, PlasmaComplexDouble, PlasmaLower, PlasmaUpper, and plasma_sequence_t::status.
| int PLASMA_zcungesv | ( | PLASMA_enum | trans, |
| int | N, | ||
| int | NRHS, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| PLASMA_Complex64_t * | B, | ||
| int | LDB, | ||
| PLASMA_Complex64_t * | X, | ||
| int | LDX, | ||
| int * | ITER | ||
| ) |
PLASMA_zcungesv - Solves overdetermined or underdetermined linear systems involving an M-by-N matrix A using the QR or the LQ factorization of A. It is assumed that A has full rank. The following options are provided:
system, i.e., solve the least squares problem: minimize || B - A*X ||.
system A * X = B.
Several right hand side vectors B and solution vectors X can be handled in a single call; they are stored as the columns of the M-by-NRHS right hand side matrix B and the N-by-NRHS solution matrix X.
PLASMA_zcungesv first attempts to factorize the matrix in COMPLEX and use this factorization within an iterative refinement procedure to produce a solution with COMPLEX*16 normwise backward error quality (see below). If the approach fails the method switches to a COMPLEX*16 factorization and solve.
The iterative refinement is not going to be a winning strategy if the ratio COMPLEX performance over COMPLEX*16 performance is too small. A reasonable strategy should take the number of right-hand sides and the size of the matrix into account. This might be done with a call to ILAENV in the future. Up to now, we always try iterative refinement.
The iterative refinement process is stopped if ITER > ITERMAX or for all the RHS we have: RNRM < N*XNRM*ANRM*EPS*BWDMAX where:
Actually, in its current state (PLASMA 2.1.0), the test is slightly relaxed.
The values ITERMAX and BWDMAX are fixed to 30 and 1.0D+00 respectively.
We follow Bjorck's algorithm proposed in "Iterative Refinement of Linear Least Squares solutions I", BIT, 7:257-278, 1967.4
| [in] | trans | Intended usage: = PlasmaNoTrans: the linear system involves A; = PlasmaConjTrans: the linear system involves A**H. Currently only PlasmaNoTrans is supported. |
| [in] | N | The number of columns of the matrix A. N >= 0. |
| [in] | NRHS | The number of right hand sides, i.e., the number of columns of the matrices B and X. NRHS >= 0. |
| [in] | A | The M-by-N matrix A. This matrix is not modified. |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,M). |
| [in] | B | The M-by-NRHS matrix B of right hand side vectors, stored columnwise. Not modified. |
| [in] | LDB | The leading dimension of the array B. LDB >= MAX(1,M,N). |
| [out] | X | If return value = 0, the solution vectors, stored columnwise. if M >= N, rows 1 to N of B contain the least squares solution vectors; the residual sum of squares for the solution in each column is given by the sum of squares of the modulus of elements N+1 to M in that column; if M < N, rows 1 to N of B contain the minimum norm solution vectors; |
| [in] | LDX | The leading dimension of the array B. LDB >= MAX(1,M,N). |
| [out] | ITER | The number of the current iteration in the iterative refinement process |
| PLASMA_SUCCESS | successful exit |
| <0 | if -i, the i-th argument had an illegal value |
Definition at line 163 of file zcungesv.c.
References plasma_desc_t::mat, max, PLASMA_Alloc_Workspace_zgels_Tile(), plasma_context_self(), PLASMA_Dealloc_Handle_Tile(), plasma_desc_init(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, PLASMA_ERR_NOT_SUPPORTED, plasma_error(), plasma_fatal_error(), PLASMA_FUNC_ZCGELS, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), PLASMA_zcungesv_Tile_Async(), plasma_zdesc_alloc, plasma_ziplap2tile, plasma_ziptile2lap, plasma_zooplap2tile, plasma_zooptile2lap, PlasmaComplexDouble, and PlasmaNoTrans.
| int PLASMA_zgebrd | ( | PLASMA_enum | jobu, |
| PLASMA_enum | jobvt, | ||
| int | M, | ||
| int | N, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| double * | D, | ||
| double * | E, | ||
| PLASMA_Complex64_t * | U, | ||
| int | LDU, | ||
| PLASMA_Complex64_t * | VT, | ||
| int | LDVT, | ||
| PLASMA_desc * | descT | ||
| ) |

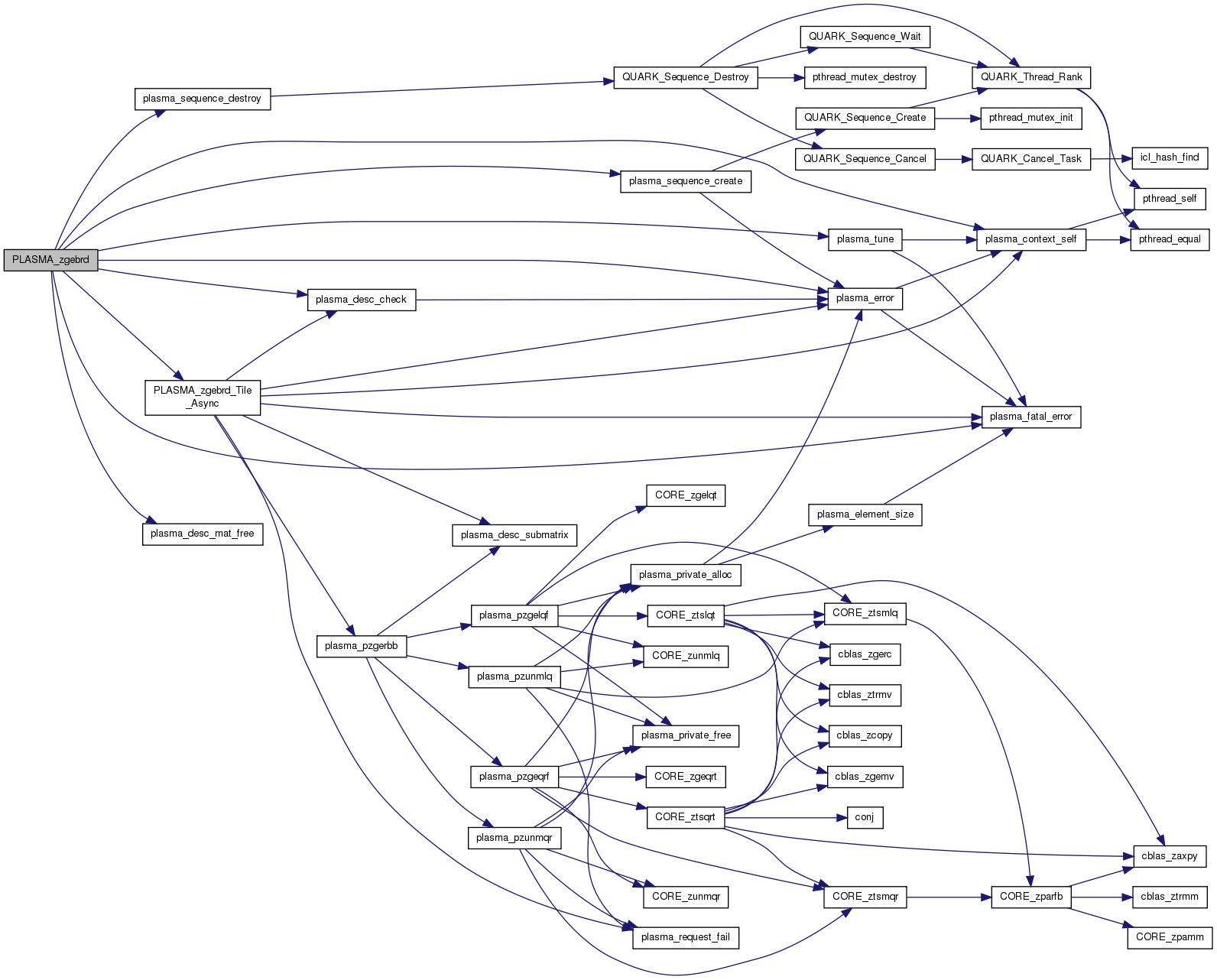

PLASMA_zgebrd - computes the singular value decomposition (SVD) of a complex M-by-N matrix A, optionally computing the left and/or right singular vectors. The SVD is written
A = U * SIGMA * transpose(V)
where SIGMA is an M-by-N matrix which is zero except for its min(m,n) diagonal elements, U is an M-by-M orthogonal matrix, and V is an N-by-N orthogonal matrix. The diagonal elements of SIGMA are the singular values of A; they are real and non-negative, and are returned in descending order. The first min(m,n) columns of U and V are the left and right singular vectors of A.
Note that the routine returns V**T, not V. Not LAPACK Compliant for now! Note: Only PlasmaNoVec supported!
| [in] | jobu | Specifies options for computing all or part of the matrix U. Intended usage: = PlasmaVec: all M columns of U are returned in array U; = PlasmaNoVec: no columns of U (no left singular vectors) are computed. Note: Only PlasmaNoVec supported! |
| [in] | jobvt | Specifies options for computing all or part of the matrix V**H. Intended usage: = PlasmaVec: all M columns of U are returned in array U; = PlasmaNoVec: no columns of U (no left singular vectors) are computed. Note: Only PlasmaNoVec supported! |
| [in] | M | The number of rows of the matrix A. M >= 0. |
| [in] | N | The number of columns of the matrix A. N >= 0. |
| [in,out] | A | On entry, the M-by-N matrix A. On exit, if JOBU = 'O', A is overwritten with the first min(m,n) columns of U (the left singular vectors, stored columnwise); if JOBVT = 'O', A is overwritten with the first min(m,n) rows of V**H (the right singular vectors, stored rowwise); if JOBU .ne. 'O' and JOBVT .ne. 'O', the contents of A are destroyed. |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,M). |
| [out] | S | The double precision singular values of A, sorted so that S(i) >= S(i+1). |
| [out] | U | (LDU,M) if JOBU = 'A' or (LDU,min(M,N)) if JOBU = 'S'. If JOBU = 'A', U contains the M-by-M unitary matrix U; if JOBU = 'S', U contains the first min(m,n) columns of U (the left singular vectors, stored columnwise); if JOBU = 'N' or 'O', U is not referenced. |
| [in] | LDU | The leading dimension of the array U. LDU >= 1; if JOBU = 'S' or 'A', LDU >= M. |
| [out] | VT | If JOBVT = 'A', VT contains the N-by-N unitary matrix V**H; if JOBVT = 'S', VT contains the first min(m,n) rows of V**H (the right singular vectors, stored rowwise); if JOBVT = 'N' or 'O', VT is not referenced. |
| [in] | LDVT | The leading dimension of the array VT. LDVT >= 1; if JOBVT = 'A', LDVT >= N; if JOBVT = 'S', LDVT >= min(M,N). |
| [in,out] | descT | On entry, descriptor as return by PLASMA_Alloc_Workspace_zgesvd On exit, contains auxiliary factorization data. |
| PLASMA_SUCCESS | successful exit |
| <0 | if -i, the i-th argument had an illegal value |
Definition at line 122 of file zgebrd.c.
References plasma_desc_t::m, max, min, plasma_desc_t::n, plasma_context_self(), plasma_desc_check(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), PLASMA_FUNC_ZGEBRD, PLASMA_IB, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), PLASMA_zgebrd_Tile_Async(), plasma_ziplap2tile, plasma_ziptile2lap, plasma_zooplap2tile, plasma_zooptile2lap, PlasmaNoVec, PlasmaVec, and plasma_sequence_t::status.
| int PLASMA_zgelqf | ( | int | M, |
| int | N, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| PLASMA_Complex64_t * | T | ||
| ) |
PLASMA_zgelqf - Computes the tile LQ factorization of a complex M-by-N matrix A: A = L * Q.
| [in] | M | The number of rows of the matrix A. M >= 0. |
| [in] | N | The number of columns of the matrix A. N >= 0. |
| [in,out] | A | On entry, the M-by-N matrix A. On exit, the elements on and below the diagonal of the array contain the m-by-min(M,N) lower trapezoidal matrix L (L is lower triangular if M <= N); the elements above the diagonal represent the unitary matrix Q as a product of elementary reflectors, stored by tiles. |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,M). |
| [out] | T | On exit, auxiliary factorization data, required by PLASMA_zgelqs to solve the system of equations. |
| PLASMA_SUCCESS | successful exit |
| <0 | if -i, the i-th argument had an illegal value |
Definition at line 62 of file zgelqf.c.
References plasma_context_struct::householder, plasma_desc_t::mat, max, min, plasma_context_self(), plasma_desc_init(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), PLASMA_FLAT_HOUSEHOLDER, PLASMA_FUNC_ZGELS, PLASMA_IB, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), PLASMA_zgelqf_Tile_Async(), plasma_ziplap2tile, plasma_ziptile2lap, plasma_zooplap2tile, plasma_zooptile2lap, PlasmaComplexDouble, plasma_sequence_t::status, and T.
| int PLASMA_zgelqs | ( | int | M, |
| int | N, | ||
| int | NRHS, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| PLASMA_Complex64_t * | T, | ||
| PLASMA_Complex64_t * | B, | ||
| int | LDB | ||
| ) |

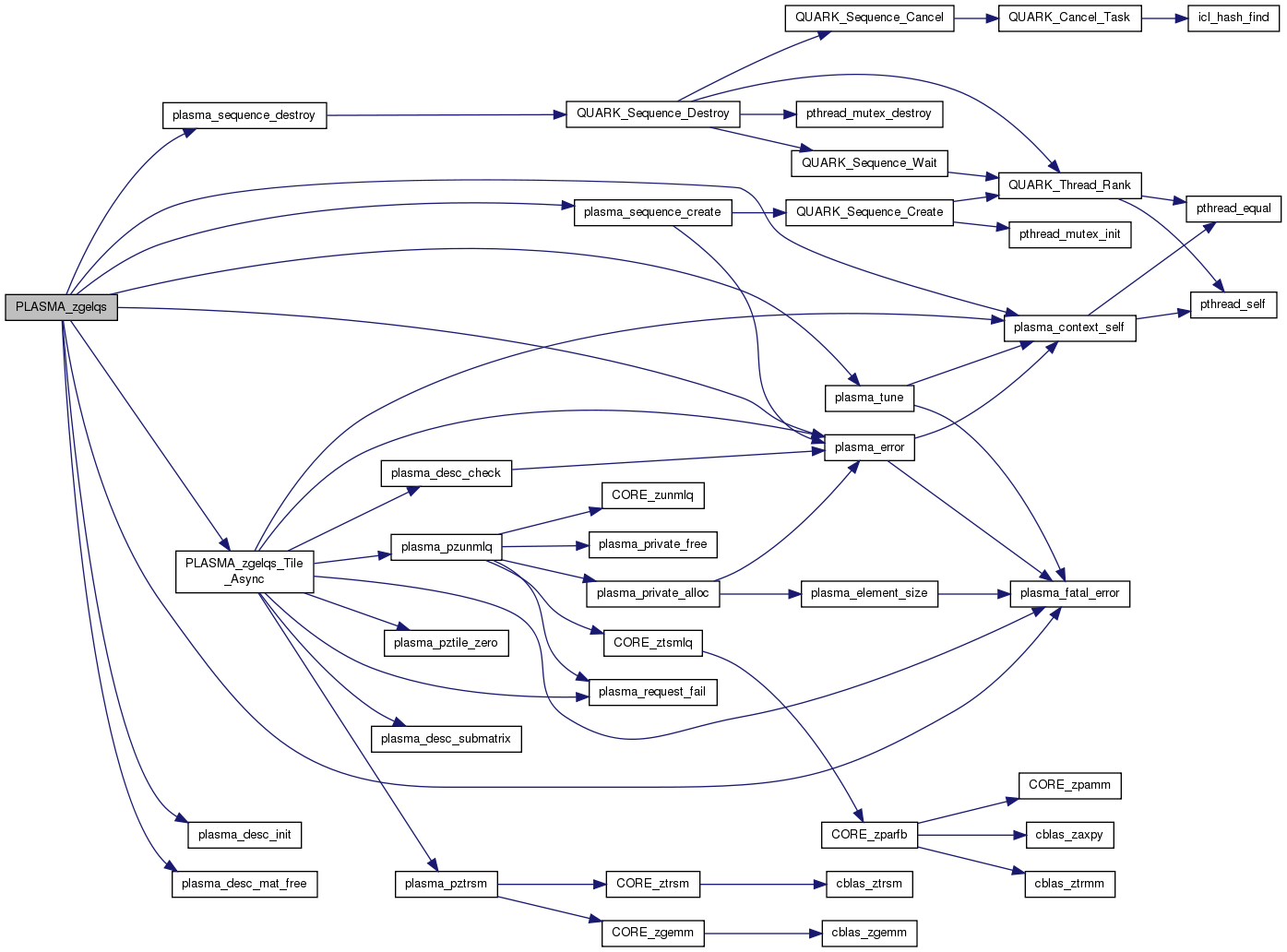

PLASMA_zgelqs - Compute a minimum-norm solution min || A*X - B || using the LQ factorization A = L*Q computed by PLASMA_zgelqf.
| [in] | M | The number of rows of the matrix A. M >= 0. |
| [in] | N | The number of columns of the matrix A. N >= M >= 0. |
| [in] | NRHS | The number of columns of B. NRHS >= 0. |
| [in] | A | Details of the LQ factorization of the original matrix A as returned by PLASMA_zgelqf. |
| [in] | LDA | The leading dimension of the array A. LDA >= M. |
| [in] | T | Auxiliary factorization data, computed by PLASMA_zgelqf. |
| [in,out] | B | On entry, the M-by-NRHS right hand side matrix B. On exit, the N-by-NRHS solution matrix X. |
| [in] | LDB | The leading dimension of the array B. LDB >= N. |
| PLASMA_SUCCESS | successful exit |
| <0 | if -i, the i-th argument had an illegal value |
Definition at line 67 of file zgelqs.c.
References plasma_context_struct::householder, plasma_desc_t::mat, max, min, plasma_context_self(), plasma_desc_init(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), PLASMA_FLAT_HOUSEHOLDER, PLASMA_FUNC_ZGELS, PLASMA_IB, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), PLASMA_zgelqs_Tile_Async(), plasma_ziplap2tile, plasma_ziptile2lap, plasma_zooplap2tile, plasma_zooptile2lap, PlasmaComplexDouble, plasma_sequence_t::status, and T.

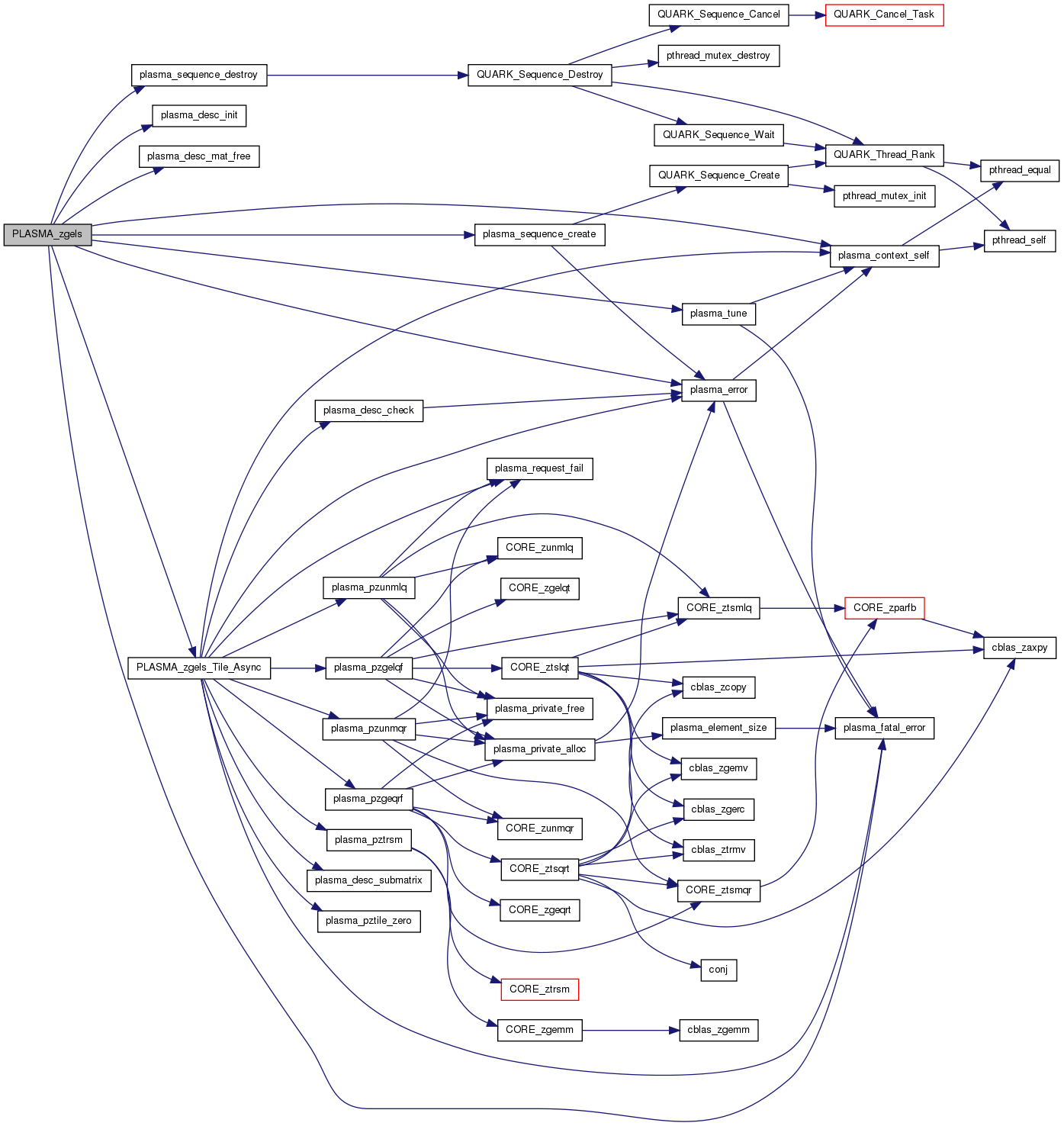

| int PLASMA_zgels | ( | PLASMA_enum | trans, |
| int | M, | ||
| int | N, | ||
| int | NRHS, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| PLASMA_Complex64_t * | T, | ||
| PLASMA_Complex64_t * | B, | ||
| int | LDB | ||
| ) |

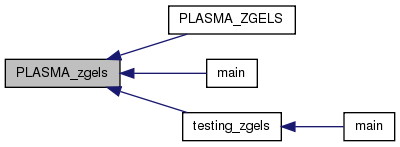

PLASMA_zgels - solves overdetermined or underdetermined linear systems involving an M-by-N matrix A using the QR or the LQ factorization of A. It is assumed that A has full rank. The following options are provided:
system, i.e., solve the least squares problem: minimize || B - A*X ||.
system A * X = B.
Several right hand side vectors B and solution vectors X can be handled in a single call; they are stored as the columns of the M-by-NRHS right hand side matrix B and the N-by-NRHS solution matrix X.
| [in] | trans | Intended usage: = PlasmaNoTrans: the linear system involves A; = PlasmaConjTrans: the linear system involves A**H. Currently only PlasmaNoTrans is supported. |
| [in] | M | The number of rows of the matrix A. M >= 0. |
| [in] | N | The number of columns of the matrix A. N >= 0. |
| [in] | NRHS | The number of right hand sides, i.e., the number of columns of the matrices B and X. NRHS >= 0. |
| [in,out] | A | On entry, the M-by-N matrix A. On exit, if M >= N, A is overwritten by details of its QR factorization as returned by PLASMA_zgeqrf; if M < N, A is overwritten by details of its LQ factorization as returned by PLASMA_zgelqf. |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,M). |
| [out] | T | On exit, auxiliary factorization data. |
| [in,out] | B | On entry, the M-by-NRHS matrix B of right hand side vectors, stored columnwise; On exit, if return value = 0, B is overwritten by the solution vectors, stored columnwise: if M >= N, rows 1 to N of B contain the least squares solution vectors; the residual sum of squares for the solution in each column is given by the sum of squares of the modulus of elements N+1 to M in that column; if M < N, rows 1 to N of B contain the minimum norm solution vectors; |
| [in] | LDB | The leading dimension of the array B. LDB >= MAX(1,M,N). |
| PLASMA_SUCCESS | successful exit |
| <0 | if -i, the i-th argument had an illegal value |
Definition at line 94 of file zgels.c.
References plasma_context_struct::householder, plasma_desc_t::mat, max, min, plasma_context_self(), plasma_desc_init(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, PLASMA_ERR_NOT_SUPPORTED, plasma_error(), plasma_fatal_error(), PLASMA_FLAT_HOUSEHOLDER, PLASMA_FUNC_ZGELS, PLASMA_IB, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), PLASMA_zgels_Tile_Async(), plasma_ziplap2tile, plasma_ziptile2lap, plasma_zooplap2tile, plasma_zooptile2lap, PlasmaComplexDouble, PlasmaNoTrans, plasma_sequence_t::status, and T.
| int PLASMA_zgemm | ( | PLASMA_enum | transA, |
| PLASMA_enum | transB, | ||
| int | M, | ||
| int | N, | ||
| int | K, | ||
| PLASMA_Complex64_t | alpha, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| PLASMA_Complex64_t * | B, | ||
| int | LDB, | ||
| PLASMA_Complex64_t | beta, | ||
| PLASMA_Complex64_t * | C, | ||
| int | LDC | ||
| ) |
PLASMA_zgemm - Performs one of the matrix-matrix operations
![\[ C = \alpha [op( A )\times op( B )] + \beta C \]](form_0.png)
,
where op( X ) is one of
op( X ) = X or op( X ) = X' or op( X ) = conjg( X' )
alpha and beta are scalars, and A, B and C are matrices, with op( A ) an m by k matrix, op( B ) a k by n matrix and C an m by n matrix.
| [in] | transA | Specifies whether the matrix A is transposed, not transposed or conjugate transposed: = PlasmaNoTrans: A is not transposed; = PlasmaTrans: A is transposed; = PlasmaConjTrans: A is conjugate transposed. |
| [in] | transB | Specifies whether the matrix B is transposed, not transposed or conjugate transposed: = PlasmaNoTrans: B is not transposed; = PlasmaTrans: B is transposed; = PlasmaConjTrans: B is conjugate transposed. |
| [in] | M | M specifies the number of rows of the matrix op( A ) and of the matrix C. M >= 0. |
| [in] | N | N specifies the number of columns of the matrix op( B ) and of the matrix C. N >= 0. |
| [in] | K | K specifies the number of columns of the matrix op( A ) and the number of rows of the matrix op( B ). K >= 0. |
| [in] | alpha | alpha specifies the scalar alpha |
| [in] | A | A is a LDA-by-ka matrix, where ka is K when transA = PlasmaNoTrans, and is M otherwise. |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,M). |
| [in] | B | B is a LDB-by-kb matrix, where kb is N when transB = PlasmaNoTrans, and is K otherwise. |
| [in] | LDB | The leading dimension of the array B. LDB >= max(1,N). |
| [in] | beta | beta specifies the scalar beta |
| [in,out] | C | C is a LDC-by-N matrix. On exit, the array is overwritten by the M by N matrix ( alpha*op( A )*op( B ) + beta*C ) |
| [in] | LDC | The leading dimension of the array C. LDC >= max(1,M). |
| PLASMA_SUCCESS | successful exit |
Definition at line 96 of file zgemm.c.
References max, plasma_context_self(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), PLASMA_FUNC_ZGEMM, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), PLASMA_zgemm_Tile_Async(), plasma_ziplap2tile, plasma_ziptile2lap, plasma_zooplap2tile, plasma_zooptile2lap, PlasmaConjTrans, PlasmaNoTrans, PlasmaTrans, and plasma_sequence_t::status.
| int PLASMA_zgeqrf | ( | int | M, |
| int | N, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| PLASMA_Complex64_t * | T | ||
| ) |

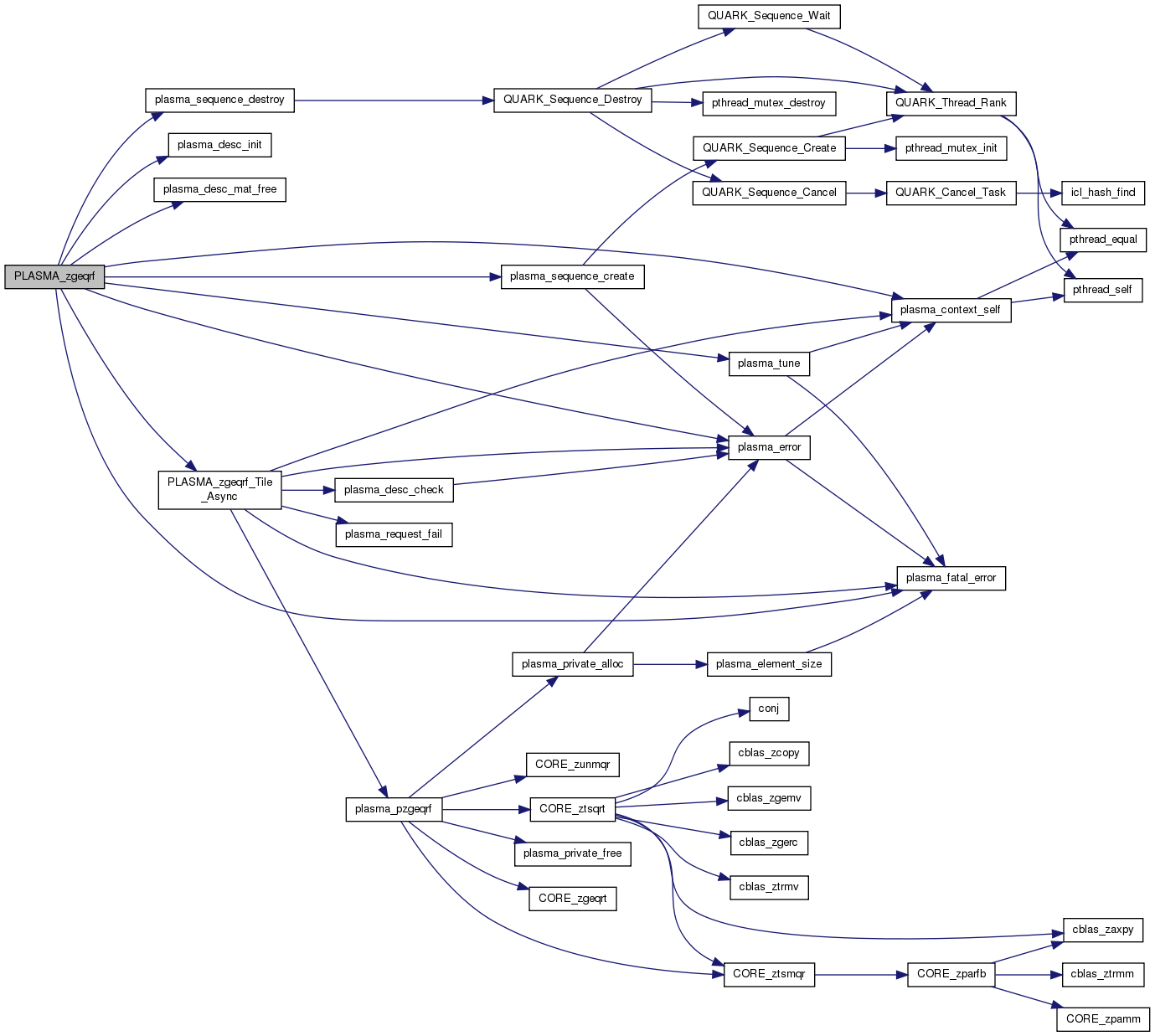

PLASMA_zgeqrf - Computes the tile QR factorization of a complex M-by-N matrix A: A = Q * R.
| [in] | M | The number of rows of the matrix A. M >= 0. |
| [in] | N | The number of columns of the matrix A. N >= 0. |
| [in,out] | A | On entry, the M-by-N matrix A. On exit, the elements on and above the diagonal of the array contain the min(M,N)-by-N upper trapezoidal matrix R (R is upper triangular if M >= N); the elements below the diagonal represent the unitary matrix Q as a product of elementary reflectors stored by tiles. |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,M). |
| [out] | T | On exit, auxiliary factorization data, required by PLASMA_zgeqrs to solve the system of equations. |
| PLASMA_SUCCESS | successful exit |
| <0 | if -i, the i-th argument had an illegal value |
Definition at line 61 of file zgeqrf.c.
References plasma_context_struct::householder, plasma_desc_t::mat, max, min, plasma_context_self(), plasma_desc_init(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), PLASMA_FLAT_HOUSEHOLDER, PLASMA_FUNC_ZGELS, PLASMA_IB, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), PLASMA_zgeqrf_Tile_Async(), plasma_ziplap2tile, plasma_ziptile2lap, plasma_zooplap2tile, plasma_zooptile2lap, PlasmaComplexDouble, plasma_sequence_t::status, and T.

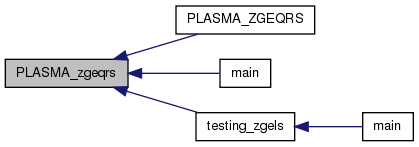

| int PLASMA_zgeqrs | ( | int | M, |
| int | N, | ||
| int | NRHS, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| PLASMA_Complex64_t * | T, | ||
| PLASMA_Complex64_t * | B, | ||
| int | LDB | ||
| ) |
PLASMA_zgeqrs - Compute a minimum-norm solution min || A*X - B || using the RQ factorization A = R*Q computed by PLASMA_zgeqrf.
| [in] | M | The number of rows of the matrix A. M >= 0. |
| [in] | N | The number of columns of the matrix A. N >= M >= 0. |
| [in] | NRHS | The number of columns of B. NRHS >= 0. |
| [in,out] | A | Details of the QR factorization of the original matrix A as returned by PLASMA_zgeqrf. |
| [in] | LDA | The leading dimension of the array A. LDA >= M. |
| [in] | T | Auxiliary factorization data, computed by PLASMA_zgeqrf. |
| [in,out] | B | On entry, the m-by-nrhs right hand side matrix B. On exit, the n-by-nrhs solution matrix X. |
| [in] | LDB | The leading dimension of the array B. LDB >= max(1,N). |
| PLASMA_SUCCESS | successful exit |
| <0 | if -i, the i-th argument had an illegal value |
Definition at line 67 of file zgeqrs.c.
References plasma_context_struct::householder, plasma_desc_t::mat, max, min, plasma_context_self(), plasma_desc_init(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), PLASMA_FLAT_HOUSEHOLDER, PLASMA_FUNC_ZGELS, PLASMA_IB, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), PLASMA_zgeqrs_Tile_Async(), plasma_ziplap2tile, plasma_ziptile2lap, plasma_zooplap2tile, plasma_zooptile2lap, PlasmaComplexDouble, plasma_sequence_t::status, and T.

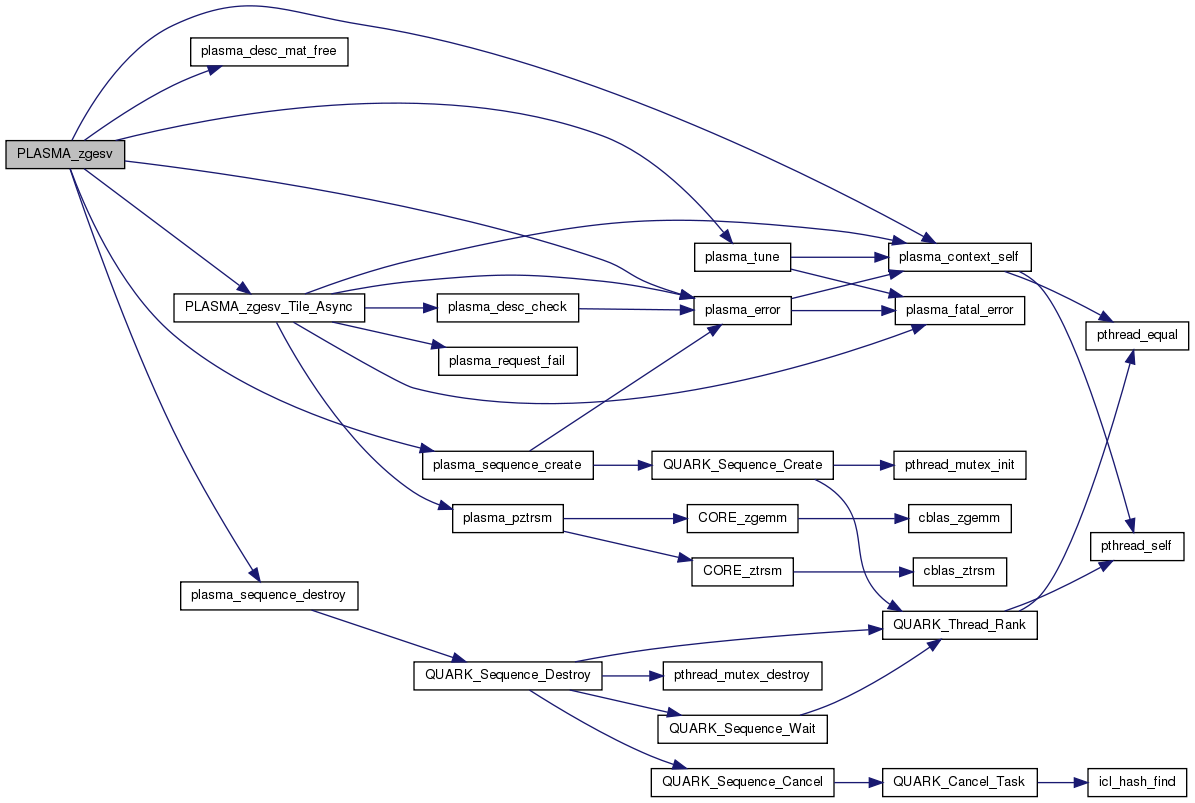

| int PLASMA_zgesv | ( | int | N, |
| int | NRHS, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| int * | IPIV, | ||
| PLASMA_Complex64_t * | B, | ||
| int | LDB | ||
| ) |
PLASMA_zgesv - Computes the solution to a system of linear equations A * X = B, where A is an N-by-N matrix and X and B are N-by-NRHS matrices. The tile LU decomposition with partial tile pivoting and row interchanges is used to factor A. The factored form of A is then used to solve the system of equations A * X = B.
| [in] | N | The number of linear equations, i.e., the order of the matrix A. N >= 0. |
| [in] | NRHS | The number of right hand sides, i.e., the number of columns of the matrix B. NRHS >= 0. |
| [in,out] | A | On entry, the N-by-N coefficient matrix A. On exit, the tile L and U factors from the factorization. |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,N). |
| [out] | IPIV | On exit, the pivot indices that define the permutations. |
| [in,out] | B | On entry, the N-by-NRHS matrix of right hand side matrix B. On exit, if return value = 0, the N-by-NRHS solution matrix X. |
| [in] | LDB | The leading dimension of the array B. LDB >= max(1,N). |
| PLASMA_SUCCESS | successful exit |
| <0 | if -i, the i-th argument had an illegal value |
| >0 | if i, U(i,i) is exactly zero. The factorization has been completed, but the factor U is exactly singular, so the solution could not be computed. |
Definition at line 70 of file zgesv.c.
References max, min, plasma_context_self(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), PLASMA_FUNC_ZGESV, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), PLASMA_zgesv_Tile_Async(), plasma_ziplap2tile, plasma_ziptile2lap, plasma_zooplap2tile, plasma_zooptile2lap, and plasma_sequence_t::status.
| int PLASMA_zgesv_incpiv | ( | int | N, |
| int | NRHS, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| PLASMA_Complex64_t * | L, | ||
| int * | IPIV, | ||
| PLASMA_Complex64_t * | B, | ||
| int | LDB | ||
| ) |

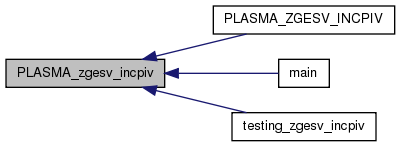

PLASMA_zgesv_incpiv - Computes the solution to a system of linear equations A * X = B, where A is an N-by-N matrix and X and B are N-by-NRHS matrices. The tile LU decomposition with partial tile pivoting and row interchanges is used to factor A. The factored form of A is then used to solve the system of equations A * X = B.
| [in] | N | The number of linear equations, i.e., the order of the matrix A. N >= 0. |
| [in] | NRHS | The number of right hand sides, i.e., the number of columns of the matrix B. NRHS >= 0. |
| [in,out] | A | On entry, the N-by-N coefficient matrix A. On exit, the tile L and U factors from the factorization (not equivalent to LAPACK). |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,N). |
| [out] | L | On exit, auxiliary factorization data, related to the tile L factor, necessary to solve the system of equations. |
| [out] | IPIV | On exit, the pivot indices that define the permutations (not equivalent to LAPACK). |
| [in,out] | B | On entry, the N-by-NRHS matrix of right hand side matrix B. On exit, if return value = 0, the N-by-NRHS solution matrix X. |
| [in] | LDB | The leading dimension of the array B. LDB >= max(1,N). |
| PLASMA_SUCCESS | successful exit |
| <0 | if -i, the i-th argument had an illegal value |
| >0 | if i, U(i,i) is exactly zero. The factorization has been completed, but the factor U is exactly singular, so the solution could not be computed. |
Definition at line 73 of file zgesv_incpiv.c.
References L, plasma_desc_t::mat, max, min, plasma_context_self(), plasma_desc_init(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), PLASMA_FUNC_ZGESV, PLASMA_IB, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), PLASMA_zgesv_incpiv_Tile_Async(), plasma_ziplap2tile, plasma_ziptile2lap, plasma_zooplap2tile, plasma_zooptile2lap, PlasmaComplexDouble, and plasma_sequence_t::status.
| int PLASMA_zgesvd | ( | PLASMA_enum | jobu, |
| PLASMA_enum | jobvt, | ||
| int | M, | ||
| int | N, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| double * | S, | ||
| PLASMA_Complex64_t * | U, | ||
| int | LDU, | ||
| PLASMA_Complex64_t * | VT, | ||
| int | LDVT, | ||
| PLASMA_desc * | descT | ||
| ) |
PLASMA_zgesvd - computes the singular value decomposition (SVD) of a complex M-by-N matrix A, optionally computing the left and/or right singular vectors. The SVD is written
A = U * SIGMA * transpose(V)
where SIGMA is an M-by-N matrix which is zero except for its min(m,n) diagonal elements, U is an M-by-M orthogonal matrix, and V is an N-by-N orthogonal matrix. The diagonal elements of SIGMA are the singular values of A; they are real and non-negative, and are returned in descending order. The first min(m,n) columns of U and V are the left and right singular vectors of A.
Note that the routine returns V**T, not V. Not LAPACK Compliant for now! Note: Only PlasmaNoVec supported!
| [in] | jobu | Specifies options for computing all or part of the matrix U. Intended usage: = PlasmaVec: all M columns of U are returned in array U; = PlasmaNoVec: no columns of U (no left singular vectors) are computed. Note: Only PlasmaNoVec supported! |
| [in] | jobvt | Specifies options for computing all or part of the matrix V**H. Intended usage: = PlasmaVec: all M columns of U are returned in array U; = PlasmaNoVec: no columns of U (no left singular vectors) are computed. Note: Only PlasmaNoVec supported! |
| [in] | M | The number of rows of the matrix A. M >= 0. |
| [in] | N | The number of columns of the matrix A. N >= 0. |
| [in,out] | A | On entry, the M-by-N matrix A. On exit, if JOBU = 'O', A is overwritten with the first min(m,n) columns of U (the left singular vectors, stored columnwise); if JOBVT = 'O', A is overwritten with the first min(m,n) rows of V**H (the right singular vectors, stored rowwise); if JOBU .ne. 'O' and JOBVT .ne. 'O', the contents of A are destroyed. |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,M). |
| [out] | S | The double precision singular values of A, sorted so that S(i) >= S(i+1). |
| [out] | U | (LDU,M) if JOBU = 'A' or (LDU,min(M,N)) if JOBU = 'S'. If JOBU = 'A', U contains the M-by-M unitary matrix U; if JOBU = 'S', U contains the first min(m,n) columns of U (the left singular vectors, stored columnwise); if JOBU = 'N' or 'O', U is not referenced. |
| [in] | LDU | The leading dimension of the array U. LDU >= 1; if JOBU = 'S' or 'A', LDU >= M. |
| [out] | VT | If JOBVT = 'A', VT contains the N-by-N unitary matrix V**H; if JOBVT = 'S', VT contains the first min(m,n) rows of V**H (the right singular vectors, stored rowwise); if JOBVT = 'N' or 'O', VT is not referenced. |
| [in] | LDVT | The leading dimension of the array VT. LDVT >= 1; if JOBVT = 'A', LDVT >= N; if JOBVT = 'S', LDVT >= min(M,N). |
| [in,out] | descT | On entry, descriptor as return by PLASMA_Alloc_Workspace_zgesvd On exit, contains auxiliary factorization data. |
| PLASMA_SUCCESS | successful exit |
| <0 | if -i, the i-th argument had an illegal value |
Definition at line 123 of file zgesvd.c.
References plasma_desc_t::m, max, min, plasma_desc_t::n, plasma_context_self(), plasma_desc_check(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), PLASMA_FUNC_ZGESVD, PLASMA_IB, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), PLASMA_zgesvd_Tile_Async(), plasma_ziplap2tile, plasma_ziptile2lap, plasma_zooplap2tile, plasma_zooptile2lap, PlasmaNoVec, PlasmaVec, and plasma_sequence_t::status.
| int PLASMA_zgetrf | ( | int | M, |
| int | N, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| int * | IPIV | ||
| ) |
PLASMA_zgetrf - Computes an LU factorization of a general M-by-N matrix A using the tile LU algorithm with partial tile pivoting with row interchanges.
| [in] | M | The number of rows of the matrix A. M >= 0. |
| [in] | N | The number of columns of the matrix A. N >= 0. |
| [in,out] | A | On entry, the M-by-N matrix to be factored. On exit, the tile factors L and U from the factorization. |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,M). |
| [out] | IPIV | The pivot indices that define the permutations. |
| PLASMA_SUCCESS | successful exit |
| <0 | if -i, the i-th argument had an illegal value |
| >0 | if i, U(i,i) is exactly zero. The factorization has been completed, but the factor U is exactly singular, and division by zero will occur if it is used to solve a system of equations. |
Definition at line 62 of file zgetrf.c.
References A, plasma_desc_t::mat, max, plasma_desc_t::mb, min, plasma_desc_t::mt, plasma_context_self(), plasma_desc_init(), plasma_dynamic_call_4, plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), PLASMA_FUNC_ZGESV, PLASMA_NB, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, plasma_tune(), PlasmaComplexDouble, and plasma_sequence_t::status.
| int PLASMA_zgetrf_incpiv | ( | int | M, |
| int | N, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| PLASMA_Complex64_t * | L, | ||
| int * | IPIV | ||
| ) |

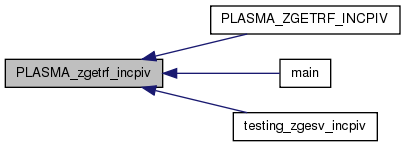

PLASMA_zgetrf_incpiv - Computes an LU factorization of a general M-by-N matrix A using the tile LU algorithm with partial tile pivoting with row interchanges.
| [in] | M | The number of rows of the matrix A. M >= 0. |
| [in] | N | The number of columns of the matrix A. N >= 0. |
| [in,out] | A | On entry, the M-by-N matrix to be factored. On exit, the tile factors L and U from the factorization. |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,M). |
| [out] | L | On exit, auxiliary factorization data, related to the tile L factor, required by PLASMA_zgetrs_incpiv to solve the system of equations. |
| [out] | IPIV | The pivot indices that define the permutations (not equivalent to LAPACK). |
| PLASMA_SUCCESS | successful exit |
| <0 | if -i, the i-th argument had an illegal value |
| >0 | if i, U(i,i) is exactly zero. The factorization has been completed, but the factor U is exactly singular, and division by zero will occur if it is used to solve a system of equations. |
Definition at line 65 of file zgetrf_incpiv.c.
References L, plasma_desc_t::mat, max, min, plasma_context_self(), plasma_desc_init(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), PLASMA_FUNC_ZGESV, PLASMA_IB, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), PLASMA_zgetrf_incpiv_Tile_Async(), plasma_ziplap2tile, plasma_ziptile2lap, plasma_zooplap2tile, plasma_zooptile2lap, PlasmaComplexDouble, and plasma_sequence_t::status.
| int PLASMA_zgetri | ( | int | N, |
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| int * | IPIV | ||
| ) |
PLASMA_zgetri - Computes the inverse of a matrix using the LU factorization computed by PLASMA_zgetrf. This method inverts U and then computes inv(A) by solving the system inv(A)*L = inv(U) for inv(A).
| [in] | N | The order of the matrix A. N >= 0. |
| [in,out] | A | On entry, the triangular factor L or U from the factorization A = P*L*U as computed by PLASMA_zgetrf. On exit, if return value = 0, the inverse of the original matrix A. |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,N). |
| [in] | IPIV | The pivot indices that define the permutations as returned by PLASMA_zgetrf. |
| PLASMA_SUCCESS | successful exit |
| <0 | if -i, the i-th argument had an illegal value |
| >0 | if i, the (i,i) element of the factor U is exactly zero; The matrix is singular and its inverse could not be computed. |
Definition at line 63 of file zgetri.c.
References max, PLASMA_Alloc_Workspace_zgetri_Tile_Async(), plasma_context_self(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), PLASMA_FUNC_ZGESV, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), PLASMA_zgetri_Tile_Async(), plasma_ziplap2tile, plasma_ziptile2lap, plasma_zooplap2tile, plasma_zooptile2lap, and plasma_sequence_t::status.
| int PLASMA_zgetrs | ( | PLASMA_enum | trans, |
| int | N, | ||
| int | NRHS, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| int * | IPIV, | ||
| PLASMA_Complex64_t * | B, | ||
| int | LDB | ||
| ) |
PLASMA_zgetrs - Solves a system of linear equations A * X = B, with a general N-by-N matrix A using the tile LU factorization computed by PLASMA_zgetrf.
| [in] | trans | Intended to specify the the form of the system of equations: = PlasmaNoTrans: A * X = B (No transpose) = PlasmaTrans: A**T * X = B (Transpose) = PlasmaConjTrans: A**H * X = B (Conjugate transpose) |
| [in] | N | The order of the matrix A. N >= 0. |
| [in] | NRHS | The number of right hand sides, i.e., the number of columns of the matrix B. NRHS >= 0. |
| [in] | A | The tile factors L and U from the factorization, computed by PLASMA_zgetrf. |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,N). |
| [in] | IPIV | The pivot indices from PLASMA_zgetrf. |
| [in,out] | B | On entry, the N-by-NRHS matrix of right hand side matrix B. On exit, the solution matrix X. |
| [in] | LDB | The leading dimension of the array B. LDB >= max(1,N). |
| PLASMA_SUCCESS | successful exit |
Definition at line 72 of file zgetrs.c.
References max, min, plasma_context_self(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), PLASMA_FUNC_ZGESV, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), PLASMA_zgetrs_Tile_Async(), plasma_ziplap2tile, plasma_ziptile2lap, plasma_zooplap2tile, plasma_zooptile2lap, PlasmaConjTrans, PlasmaNoTrans, PlasmaTrans, and plasma_sequence_t::status.

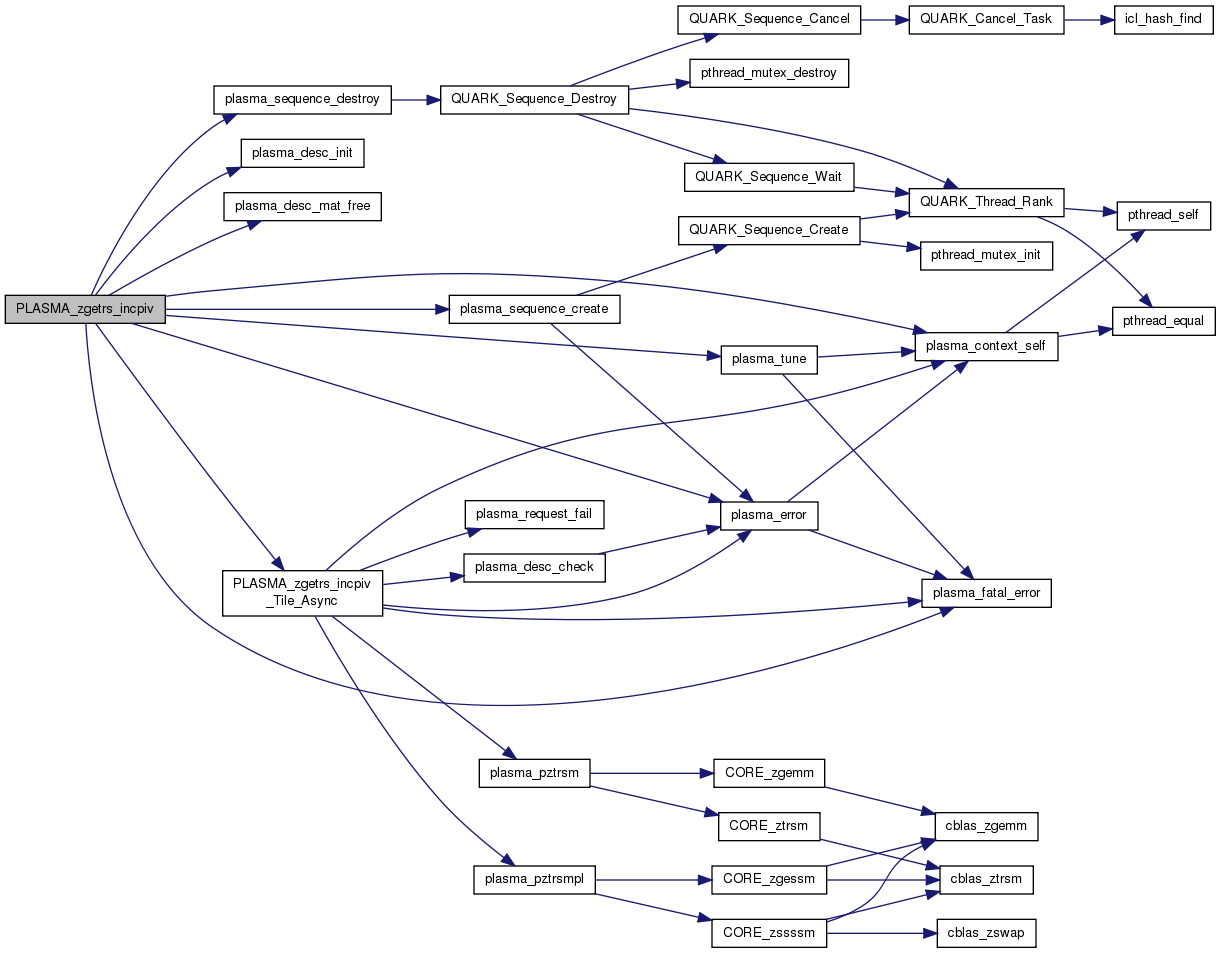

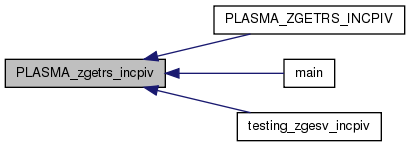

| int PLASMA_zgetrs_incpiv | ( | PLASMA_enum | trans, |
| int | N, | ||
| int | NRHS, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| PLASMA_Complex64_t * | L, | ||
| int * | IPIV, | ||
| PLASMA_Complex64_t * | B, | ||
| int | LDB | ||
| ) |
PLASMA_zgetrs_incpiv - Solves a system of linear equations A * X = B, with a general N-by-N matrix A using the tile LU factorization computed by PLASMA_zgetrf_incpiv.
| [in] | trans | Intended to specify the the form of the system of equations: = PlasmaNoTrans: A * X = B (No transpose) = PlasmaTrans: A**T * X = B (Transpose) = PlasmaConjTrans: A**H * X = B (Conjugate transpose) Currently only PlasmaNoTrans is supported. |
| [in] | N | The order of the matrix A. N >= 0. |
| [in] | NRHS | The number of right hand sides, i.e., the number of columns of the matrix B. NRHS >= 0. |
| [in] | A | The tile factors L and U from the factorization, computed by PLASMA_zgetrf_incpiv. |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,N). |
| [in] | L | Auxiliary factorization data, related to the tile L factor, computed by PLASMA_zgetrf_incpiv. |
| [in] | IPIV | The pivot indices from PLASMA_zgetrf_incpiv (not equivalent to LAPACK). |
| [in,out] | B | On entry, the N-by-NRHS matrix of right hand side matrix B. On exit, the solution matrix X. |
| [in] | LDB | The leading dimension of the array B. LDB >= max(1,N). |
| PLASMA_SUCCESS | successful exit |
Definition at line 75 of file zgetrs_incpiv.c.
References L, plasma_desc_t::mat, max, min, plasma_context_self(), plasma_desc_init(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, PLASMA_ERR_NOT_SUPPORTED, plasma_error(), plasma_fatal_error(), PLASMA_FUNC_ZGESV, PLASMA_IB, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), PLASMA_zgetrs_incpiv_Tile_Async(), plasma_ziplap2tile, plasma_ziptile2lap, plasma_zooplap2tile, plasma_zooptile2lap, PlasmaComplexDouble, PlasmaNoTrans, and plasma_sequence_t::status.

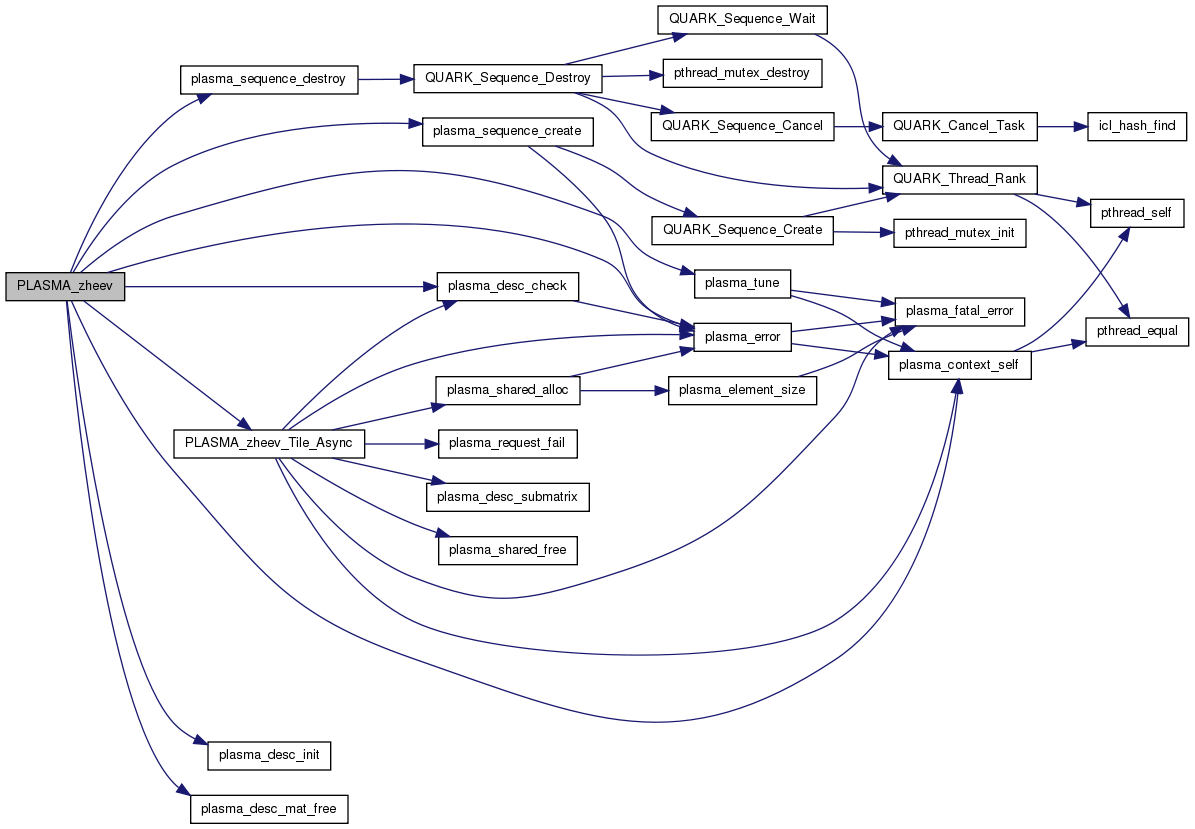

| int PLASMA_zheev | ( | PLASMA_enum | jobz, |
| PLASMA_enum | uplo, | ||
| int | N, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| double * | W, | ||
| PLASMA_desc * | descT, | ||
| PLASMA_Complex64_t * | Q, | ||
| int | LDQ | ||
| ) |
PLASMA_zheev - Computes all eigenvalues and, optionally, eigenvectors of a complex Hermitian matrix A. The matrix A is preliminary reduced to tridiagonal form using a two-stage approach: First stage: reduction to band tridiagonal form; Second stage: reduction from band to tridiagonal form. Note: Only PlasmaNoVec supported!
| [in] | jobz | Intended usage: = PlasmaNoVec: computes eigenvalues only; = PlasmaVec: computes eigenvalues and eigenvectors. Note: Only PlasmaNoVec supported! |
| [in] | uplo | Specifies whether the matrix A is upper triangular or lower triangular: = PlasmaUpper: Upper triangle of A is stored; = PlasmaLower: Lower triangle of A is stored. |
| [in] | N | The order of the matrix A. N >= 0. |
| [in,out] | A | On entry, the symmetric (or Hermitian) matrix A. If uplo = PlasmaUpper, the leading N-by-N upper triangular part of A contains the upper triangular part of the matrix A, and the strictly lower triangular part of A is not referenced. If uplo = PlasmaLower, the leading N-by-N lower triangular part of A contains the lower triangular part of the matrix A, and the strictly upper triangular part of A is not referenced. On exit, the lower triangle (if uplo = PlasmaLower) or the upper triangle (if uplo = PlasmaUpper) of A, including the diagonal, is destroyed. |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,N). |
| [out] | W | On exit, if info = 0, the eigenvalues. |
| [in,out] | descT | On entry, descriptor as return by PLASMA_Alloc_Workspace_zheev On exit, contains auxiliary factorization data. |
| [out] | Q | On exit, if jobz = PlasmaVec and info = 0, the eigenvectors. |
| [in] | LDQ | The leading dimension of the array Q. LDQ >= max(1,N). |
| PLASMA_SUCCESS | successful exit |
| <0 | if -i, the i-th argument had an illegal value |
| >0 | if INFO = i, the algorithm failed to converge; i off-diagonal elements of an intermediate tridiagonal form did not converge to zero. |
Definition at line 96 of file zheev.c.
References plasma_desc_t::m, plasma_desc_t::mat, max, plasma_desc_t::n, plasma_context_self(), plasma_desc_check(), plasma_desc_init(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), PLASMA_FUNC_ZHEEV, PLASMA_IB, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), plasma_zdesc_alloc, PLASMA_zheev_Tile_Async(), plasma_ziplap2tile, plasma_ziptile2lap, plasma_zooplap2tile, plasma_zooptile2lap, PlasmaComplexDouble, PlasmaLower, PlasmaNoVec, PlasmaUpper, PlasmaVec, Q, and plasma_sequence_t::status.
| int PLASMA_zheevd | ( | PLASMA_enum | jobz, |
| PLASMA_enum | uplo, | ||
| int | N, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| double * | W, | ||
| PLASMA_desc * | T, | ||
| PLASMA_Complex64_t * | Q, | ||
| int | LDQ | ||
| ) |

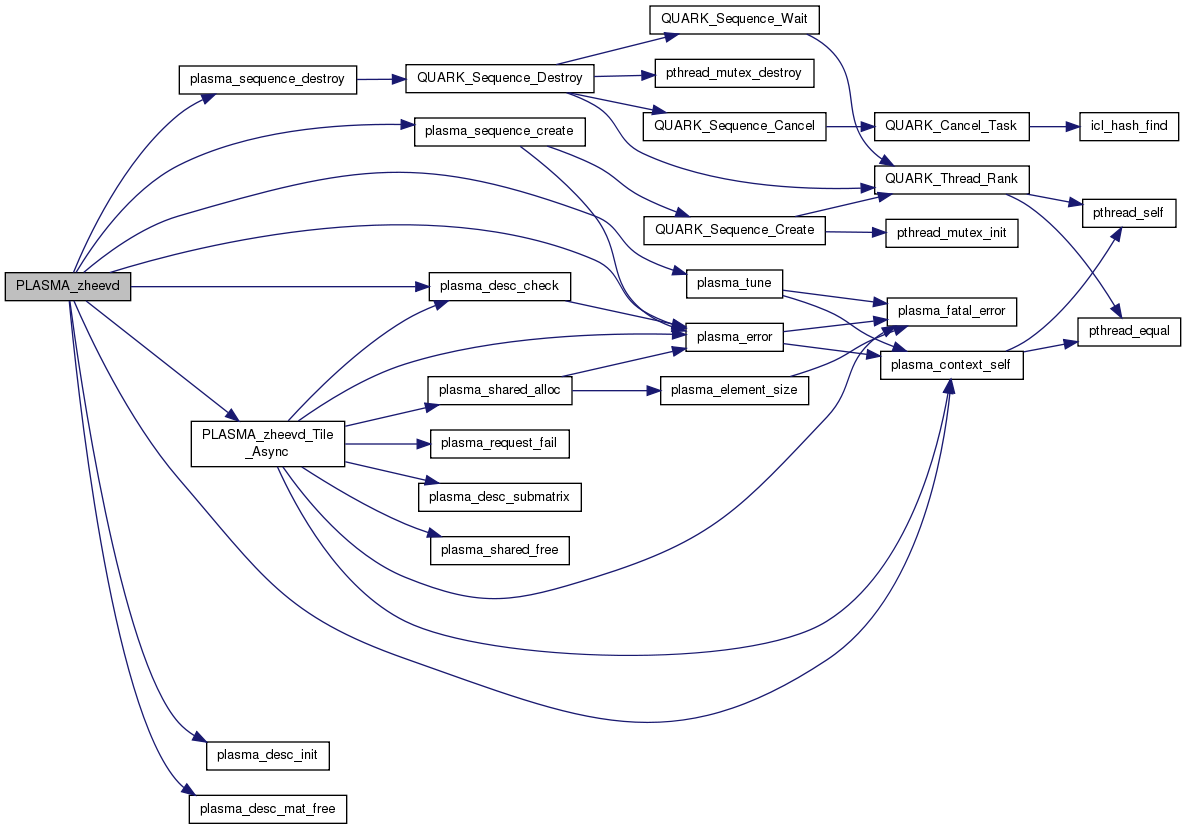

PLASMA_zheevd - Computes all eigenvalues and, optionally, eigenvectors of a complex Hermitian matrix A. The matrix A is preliminary reduced to tridiagonal form using a two-stage approach: First stage: reduction to band tridiagonal form; Second stage: reduction from band to tridiagonal form. Note: Only PlasmaNoVec supported!
| [in] | jobz | Intended usage: = PlasmaNoVec: computes eigenvalues only; = PlasmaVec: computes eigenvalues and eigenvectors. Note: Only PlasmaNoVec supported! |
| [in] | uplo | Specifies whether the matrix A is upper triangular or lower triangular: = PlasmaUpper: Upper triangle of A is stored; = PlasmaLower: Lower triangle of A is stored. |
| [in] | N | The order of the matrix A. N >= 0. |
| [in,out] | A | On entry, the symmetric (or Hermitian) matrix A. If uplo = PlasmaUpper, the leading N-by-N upper triangular part of A contains the upper triangular part of the matrix A, and the strictly lower triangular part of A is not referenced. If uplo = PlasmaLower, the leading N-by-N lower triangular part of A contains the lower triangular part of the matrix A, and the strictly upper triangular part of A is not referenced. On exit, the lower triangle (if uplo = PlasmaLower) or the upper triangle (if uplo = PlasmaUpper) of A, including the diagonal, is destroyed. |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,N). |
| [out] | W | On exit, if info = 0, the eigenvalues. |
| [in,out] | T | On entry, descriptor as return by PLASMA_Alloc_Workspace_zheev On exit, contains auxiliary factorization data. |
| [out] | Q | On exit, if jobz = PlasmaVec and info = 0, the eigenvectors. |
| [in] | LDQ | The leading dimension of the array Q. LDQ >= max(1,N). |
| PLASMA_SUCCESS | successful exit |
| <0 | if -i, the i-th argument had an illegal value |
| >0 | if INFO = i, the algorithm failed to converge; i off-diagonal elements of an intermediate tridiagonal form did not converge to zero. |
Definition at line 97 of file zheevd.c.
References plasma_desc_t::mat, max, plasma_context_self(), plasma_desc_check(), plasma_desc_init(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), PLASMA_FUNC_ZHEEV, PLASMA_IB, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), plasma_zdesc_alloc, PLASMA_zheevd_Tile_Async(), plasma_ziplap2tile, plasma_ziptile2lap, plasma_zooplap2tile, plasma_zooptile2lap, PlasmaComplexDouble, PlasmaLower, PlasmaNoVec, PlasmaUpper, PlasmaVec, Q, and plasma_sequence_t::status.
| int PLASMA_zhegst | ( | PLASMA_enum | itype, |
| PLASMA_enum | uplo, | ||
| int | N, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| PLASMA_Complex64_t * | B, | ||
| int | LDB | ||
| ) |
PLASMA_zhegst - reduces a complex Hermitian-definite generalized eigenproblem to standard form. If PlasmaItype == 1, the problem is A*x = lambda*B*x, and A is overwritten by inv(U**H)*A*inv(U) or inv(L)*A*inv(L**H) If PlasmaItype == 2 or 3, the problem is A*B*x = lambda*x or B*A*x = lambda*x, and A is overwritten by U*A*U**H or L**H*A*L. B must have been previously factorized as U**H*U or L*L**H by PLASMA_ZPOTRF.
| [in] | PlasmaItype | Intended usage: = 1: A*x=(lambda)*B*x = 2: A*Bx=(lambda)*x = 3: B*A*x=(lambda)*x |
| [in] | uplo | Specifies whether the matrix A is upper triangular or lower triangular: = PlasmaUpper: Upper triangle of A is stored; = PlasmaLower: Lower triangle of A is stored. |
| [in] | N | The order of the matrices A and B. N >= 0. |
| [in,out] | A | On entry, the symmetric (or Hermitian) matrix A. If uplo = PlasmaUpper, the leading N-by-N upper triangular part of A contains the upper triangular part of the matrix A, and the strictly lower triangular part of A is not referenced. If uplo = PlasmaLower, the leading N-by-N lower triangular part of A contains the lower triangular part of the matrix A, and the strictly upper triangular part of A is not referenced. On exit, if return value == 0, the transformed matrix, stored in the same format as A. |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,N). |
| [in,out] | B | On entry, the triangular factor from the Cholesky factorization of B, as returned by PLASMA_ZPOTRF. |
| [in] | LDB | The leading dimension of the array B. LDB >= max(1,N). |
| PLASMA_SUCCESS | successful exit |
| <0 | if -i, the i-th argument had an illegal value |
Definition at line 85 of file zhegst.c.
References max, plasma_context_self(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), PLASMA_FUNC_ZHEGST, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), PLASMA_zhegst_Tile_Async(), plasma_ziplap2tile, plasma_ziptile2lap, plasma_zooplap2tile, plasma_zooptile2lap, PlasmaLower, PlasmaUpper, and plasma_sequence_t::status.

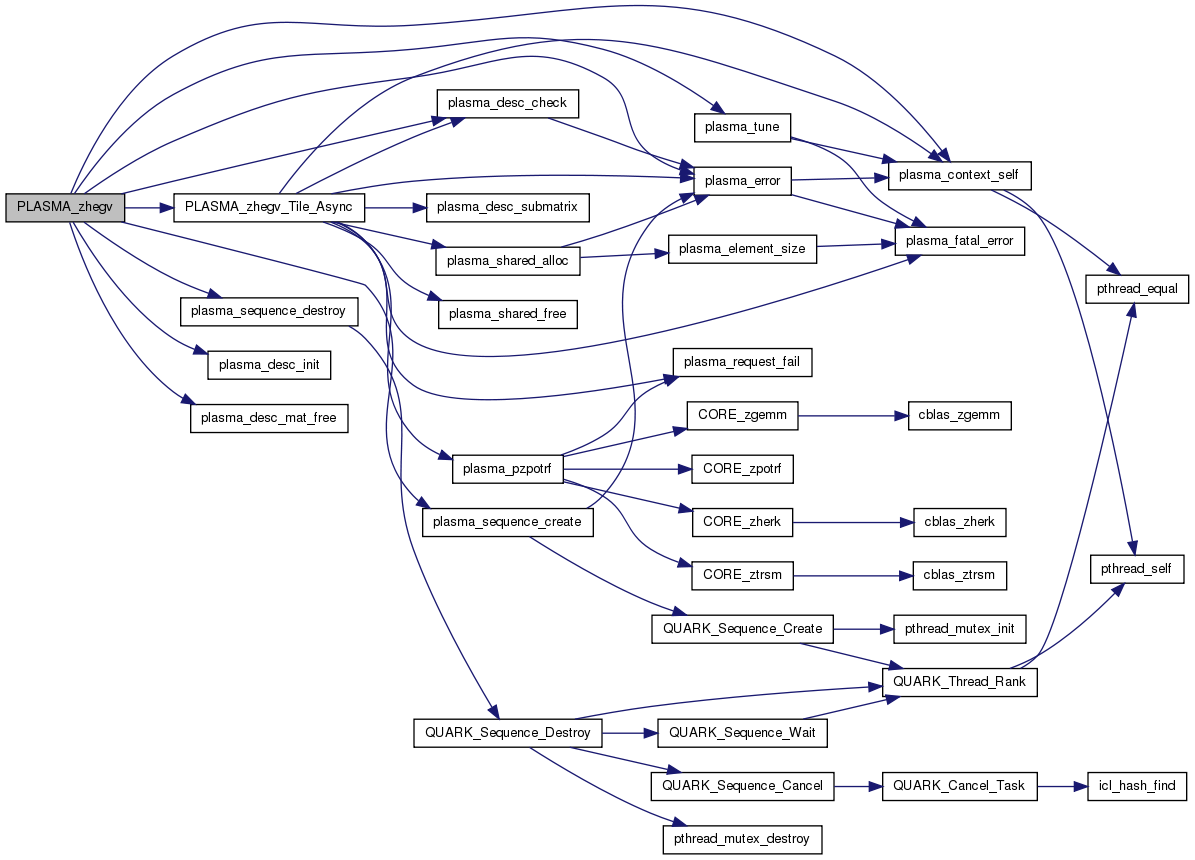

| int PLASMA_zhegv | ( | PLASMA_enum | itype, |
| PLASMA_enum | jobz, | ||
| PLASMA_enum | uplo, | ||
| int | N, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| PLASMA_Complex64_t * | B, | ||
| int | LDB, | ||
| double * | W, | ||
| PLASMA_desc * | descT, | ||
| PLASMA_Complex64_t * | Q, | ||
| int | LDQ | ||
| ) |
PLASMA_zhegv - Computes all eigenvalues and, optionally, eigenvectors of a complex generalized Hermitian-definite eigenproblem of the form: A*x=(lambda)*B*x, A*Bx=(lambda)*x, or B*A*x=(lambda)*x. Here A and B are assumed to be Hermitian and B is also positive definite. Note: Only PlasmaNoVec supported!
| [in] | PlasmaItype | Intended usage: = 1: A*x=(lambda)*B*x = 2: A*Bx=(lambda)*x = 3: B*A*x=(lambda)*x |
| [in] | jobz | Intended usage: = PlasmaNoVec: computes eigenvalues only; = PlasmaVec: computes eigenvalues and eigenvectors. Note: Only PlasmaNoVec supported! |
| [in] | uplo | Specifies whether the matrix A is upper triangular or lower triangular: = PlasmaUpper: Upper triangle of A and B are stored; = PlasmaLower: Lower triangle of A and B are stored. |
| [in] | N | The order of the matrix A. N >= 0. |
| [in,out] | A | On entry, the symmetric (or Hermitian) matrix A. If uplo = PlasmaUpper, the leading N-by-N upper triangular part of A contains the upper triangular part of the matrix A, and the strictly lower triangular part of A is not referenced. If uplo = PlasmaLower, the leading N-by-N lower triangular part of A contains the lower triangular part of the matrix A, and the strictly upper triangular part of A is not referenced. On exit, if jobz = PlasmaVec, then if return value = 0, A contains the matrix Z of eigenvectors. The eigenvectors are normalized as follows: if ITYPE = 1 or 2, Z**H*B*Z = I; if ITYPE = 3, Z**H*inv(B)*Z = I. If jobz = PlasmaNoVec, then on exit the lower triangle (if uplo = PlasmaLower) or the upper triangle (if uplo = PlasmaUpper) of A, including the diagonal, is destroyed. |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,N). |
| [in,out] | B | On entry, the symmetric (or Hermitian) positive definite matrix B. If uplo = PlasmaUpper, the leading N-by-N upper triangular part of B contains the upper triangular part of the matrix B, and the strictly lower triangular part of B is not referenced. If uplo = PlasmaLower, the leading N-by-N lower triangular part of B contains the lower triangular part of the matrix B, and the strictly upper triangular part of B is not referenced. On exit, if return value <= N, the part of B containing the matrix is overwritten by the triangular factor U or L from the Cholesky factorization B = U**H*U or B = L*L**H. |
| [in] | LDB | The leading dimension of the array B. LDA >= max(1,N). |
| [out] | W | On exit, if info = 0, the eigenvalues. |
| [in,out] | descT | On entry, descriptor as return by PLASMA_Alloc_Workspace_zhegv On exit, contains auxiliary factorization data. |
| [out] | Q | On exit, if jobz = PlasmaVec and info = 0, the eigenvectors. |
| [in] | LDQ | The leading dimension of Q. |
| PLASMA_SUCCESS | successful exit |
| <0 | if -i, the i-th argument had an illegal value |
| <=N | if INFO = i, plasma_zhegv failed to converge; i off-diagonal elements of an intermediate tridiagonal form did not converge to zero. |
| >N | if INFO = N + i, for 1 <= i <= N, then the leading minor of order i of B is not positive definite. The factorization of B could not be completed and no eigenvalues or eigenvectors were computed. |
Definition at line 128 of file zhegv.c.
References plasma_desc_t::m, plasma_desc_t::mat, max, plasma_desc_t::n, plasma_context_self(), plasma_desc_check(), plasma_desc_init(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), PLASMA_FUNC_ZHEGV, PLASMA_IB, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), plasma_zdesc_alloc, PLASMA_zhegv_Tile_Async(), plasma_ziplap2tile, plasma_ziptile2lap, plasma_zooplap2tile, plasma_zooptile2lap, PlasmaComplexDouble, PlasmaLower, PlasmaNoVec, PlasmaUpper, PlasmaVec, Q, and plasma_sequence_t::status.
| int PLASMA_zhemm | ( | PLASMA_enum | side, |
| PLASMA_enum | uplo, | ||
| int | M, | ||
| int | N, | ||
| PLASMA_Complex64_t | alpha, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| PLASMA_Complex64_t * | B, | ||
| int | LDB, | ||
| PLASMA_Complex64_t | beta, | ||
| PLASMA_Complex64_t * | C, | ||
| int | LDC | ||
| ) |
PLASMA_zhemm - Performs one of the matrix-matrix operations
![\[ C = \alpha \times A \times B + \beta \times C \]](form_1.png)
or
![\[ C = \alpha \times B \times A + \beta \times C \]](form_2.png)
where alpha and beta are scalars, A is an hermitian matrix and B and C are m by n matrices.
| [in] | side | Specifies whether the hermitian matrix A appears on the left or right in the operation as follows: = PlasmaLeft:
|
| [in] | uplo | Specifies whether the upper or lower triangular part of the hermitian matrix A is to be referenced as follows: = PlasmaLower: Only the lower triangular part of the hermitian matrix A is to be referenced. = PlasmaUpper: Only the upper triangular part of the hermitian matrix A is to be referenced. |
| [in] | M | Specifies the number of rows of the matrix C. M >= 0. |
| [in] | N | Specifies the number of columns of the matrix C. N >= 0. |
| [in] | alpha | Specifies the scalar alpha. |
| [in] | A | A is a LDA-by-ka matrix, where ka is M when side = PlasmaLeft, and is N otherwise. Only the uplo triangular part is referenced. |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,ka). |
| [in] | B | B is a LDB-by-N matrix, where the leading M-by-N part of the array B must contain the matrix B. |
| [in] | LDB | The leading dimension of the array B. LDB >= max(1,M). |
| [in] | beta | Specifies the scalar beta. |
| [in,out] | C | C is a LDC-by-N matrix. On exit, the array is overwritten by the M by N updated matrix. |
| [in] | LDC | The leading dimension of the array C. LDC >= max(1,M). |
| PLASMA_SUCCESS | successful exit |
Definition at line 94 of file zhemm.c.
References max, plasma_context_self(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), PLASMA_FUNC_ZHEMM, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), PLASMA_zhemm_Tile_Async(), plasma_ziplap2tile, plasma_ziptile2lap, plasma_zooplap2tile, plasma_zooptile2lap, PlasmaLeft, PlasmaLower, PlasmaRight, PlasmaUpper, and plasma_sequence_t::status.
| int PLASMA_zher2k | ( | PLASMA_enum | uplo, |
| PLASMA_enum | trans, | ||
| int | N, | ||
| int | K, | ||
| PLASMA_Complex64_t | alpha, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| PLASMA_Complex64_t * | B, | ||
| int | LDB, | ||
| double | beta, | ||
| PLASMA_Complex64_t * | C, | ||
| int | LDC | ||
| ) |
PLASMA_zher2k - Performs one of the hermitian rank 2k operations
![\[ C = \alpha [ op( A ) \times conjg( op( B )' )] + conjg( \alpha ) [ op( B ) \times conjg( op( A )' )] + \beta C \]](form_12.png)
, or
![\[ C = \alpha [ conjg( op( A )' ) \times op( B ) ] + conjg( \alpha ) [ conjg( op( B )' ) \times op( A ) ] + \beta C \]](form_13.png)
,
where op( X ) is one of
op( X ) = X or op( X ) = conjg( X' )
where alpha and beta are real scalars, C is an n-by-n symmetric matrix and A and B are an n-by-k matrices the first case and k-by-n matrices in the second case.
| [in] | uplo | = PlasmaUpper: Upper triangle of C is stored; = PlasmaLower: Lower triangle of C is stored. |
| [in] | trans | Specifies whether the matrix A is transposed or conjugate transposed: = PlasmaNoTrans:
|
| [in] | N | N specifies the order of the matrix C. N must be at least zero. |
| [in] | K | K specifies the number of columns of the A and B matrices with trans = PlasmaNoTrans. K specifies the number of rows of the A and B matrices with trans = PlasmaTrans. |
| [in] | alpha | alpha specifies the scalar alpha. |
| [in] | A | A is a LDA-by-ka matrix, where ka is K when trans = PlasmaNoTrans, and is N otherwise. |
| [in] | LDA | The leading dimension of the array A. LDA must be at least max( 1, N ), otherwise LDA must be at least max( 1, K ). |
| [in] | B | B is a LDB-by-kb matrix, where kb is K when trans = PlasmaNoTrans, and is N otherwise. |
| [in] | LDB | The leading dimension of the array B. LDB must be at least max( 1, N ), otherwise LDB must be at least max( 1, K ). |
| [in] | beta | beta specifies the scalar beta. |
| [in,out] | C | C is a LDC-by-N matrix. On exit, the array uplo part of the matrix is overwritten by the uplo part of the updated matrix. |
| [in] | LDC | The leading dimension of the array C. LDC >= max( 1, N ). |
| PLASMA_SUCCESS | successful exit |
Definition at line 96 of file zher2k.c.
References max, plasma_context_self(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), PLASMA_FUNC_ZHERK, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), PLASMA_zher2k_Tile_Async(), plasma_ziplap2tile, plasma_ziptile2lap, plasma_zooplap2tile, plasma_zooptile2lap, PlasmaConjTrans, PlasmaLower, PlasmaNoTrans, PlasmaUpper, and plasma_sequence_t::status.

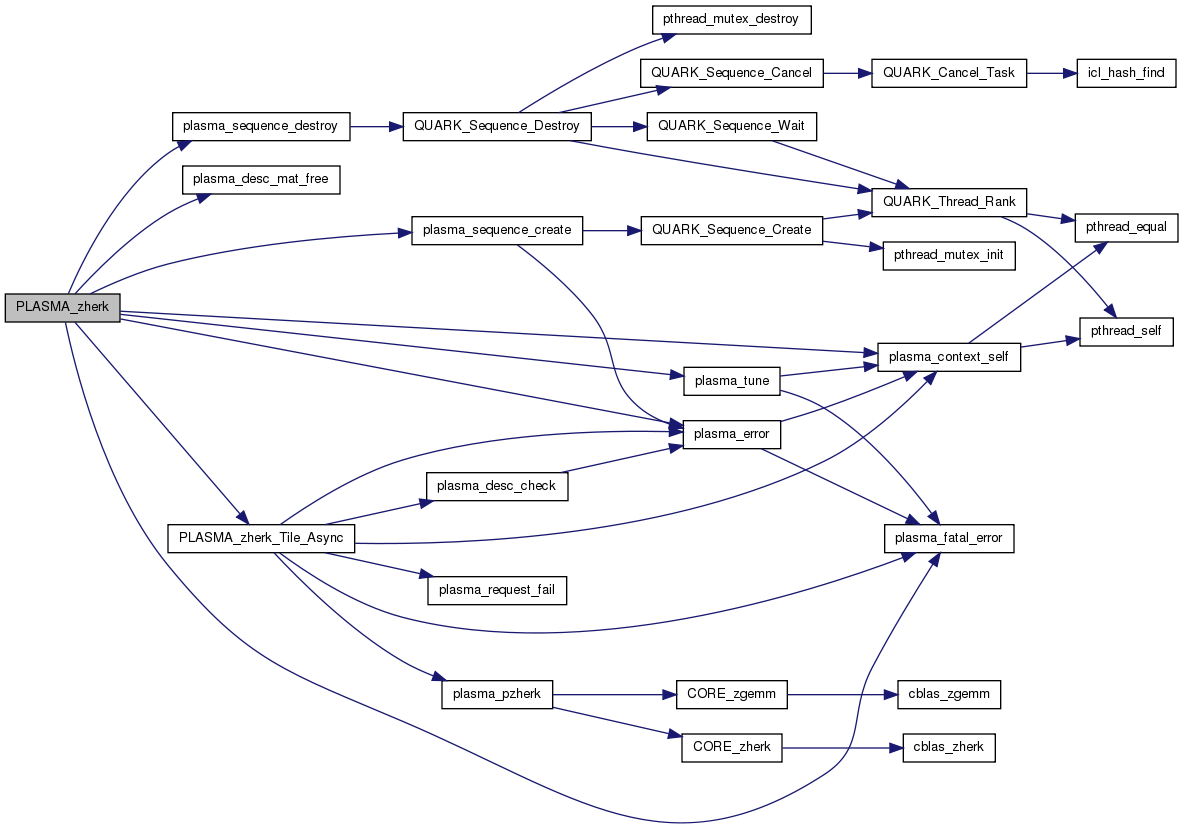

| int PLASMA_zherk | ( | PLASMA_enum | uplo, |
| PLASMA_enum | trans, | ||
| int | N, | ||
| int | K, | ||
| double | alpha, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| double | beta, | ||
| PLASMA_Complex64_t * | C, | ||
| int | LDC | ||
| ) |
PLASMA_zherk - Performs one of the hermitian rank k operations
![\[ C = \alpha [ op( A ) \times conjg( op( A )' )] + \beta C \]](form_14.png)
,
where op( X ) is one of
op( X ) = X or op( X ) = conjg( X' )
where alpha and beta are real scalars, C is an n-by-n hermitian matrix and A is an n-by-k matrix in the first case and a k-by-n matrix in the second case.
| [in] | uplo | = PlasmaUpper: Upper triangle of C is stored; = PlasmaLower: Lower triangle of C is stored. |
| [in] | trans | Specifies whether the matrix A is transposed or conjugate transposed: = PlasmaNoTrans: A is not transposed; = PlasmaConjTrans: A is conjugate transposed. |
| [in] | N | N specifies the order of the matrix C. N must be at least zero. |
| [in] | K | K specifies the number of columns of the matrix op( A ). |
| [in] | alpha | alpha specifies the scalar alpha. |
| [in] | A | A is a LDA-by-ka matrix, where ka is K when trans = PlasmaNoTrans, and is N otherwise. |
| [in] | LDA | The leading dimension of the array A. LDA must be at least max( 1, N ), otherwise LDA must be at least max( 1, K ). |
| [in] | beta | beta specifies the scalar beta |
| [in,out] | C | C is a LDC-by-N matrix. On exit, the array uplo part of the matrix is overwritten by the uplo part of the updated matrix. |
| [in] | LDC | The leading dimension of the array C. LDC >= max( 1, N ). |
| PLASMA_SUCCESS | successful exit |
Definition at line 85 of file zherk.c.
References max, plasma_context_self(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), PLASMA_FUNC_ZHERK, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), PLASMA_zherk_Tile_Async(), plasma_ziplap2tile, plasma_ziptile2lap, plasma_zooplap2tile, plasma_zooptile2lap, PlasmaConjTrans, PlasmaLower, PlasmaNoTrans, PlasmaUpper, and plasma_sequence_t::status.

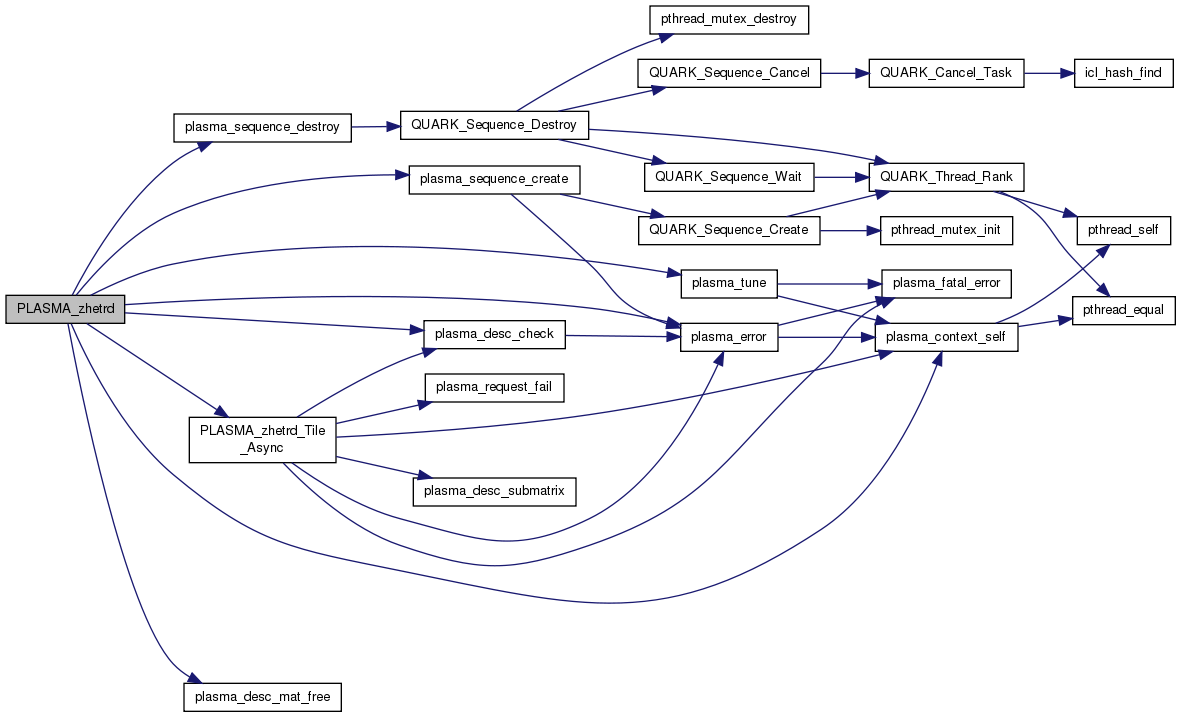

| int PLASMA_zhetrd | ( | PLASMA_enum | jobz, |
| PLASMA_enum | uplo, | ||
| int | N, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| double * | D, | ||
| double * | E, | ||
| PLASMA_desc * | descT, | ||
| PLASMA_Complex64_t * | Q, | ||
| int | LDQ | ||
| ) |
PLASMA_zhetrd - reduces a complex Hermitian matrix A to real symmetric tridiagonal form S using a two-stage approach First stage: reduction to band tridiagonal form (unitary Q1); Second stage: reduction from band to tridiagonal form (unitary Q2). Let Q = Q1 * Q2 be the global unitary transformation; Q**H * A * Q = S. Not LAPACK compliant as A does not contain the T elements Note: Only PlasmaNoVec supported!
| [in] | jobz | Intended usage: = PlasmaNoVec: computes eigenvalues only; = PlasmaVec: computes eigenvalues and eigenvectors. Note: Only PlasmaNoVec supported! |
| [in] | uplo | Specifies whether the matrix A is upper triangular or lower triangular: = PlasmaUpper: Upper triangle of A is stored; = PlasmaLower: Lower triangle of A is stored. |
| [in] | N | The order of the matrix A. N >= 0. |
| [in,out] | A | On entry, the symmetric (or Hermitian) matrix A. If uplo = PlasmaUpper, the leading N-by-N upper triangular part of A contains the upper triangular part of the matrix A, and the strictly lower triangular part of A is not referenced. If uplo = PlasmaLower, the leading N-by-N lower triangular part of A contains the lower triangular part of the matrix A, and the strictly upper triangular part of A is not referenced. On exit, the lower triangle (if uplo = PlasmaLower) or the upper triangle (if uplo = PlasmaUpper) of A, including the diagonal, is destroyed. |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,N). |
| [out] | D | On exit, the diagonal elements of the tridiagonal matrix: D(i) = A(i,i). |
| [out] | E | On exit, he off-diagonal elements of the tridiagonal matrix: E(i) = A(i,i+1) if uplo = PlasmaUpper, E(i) = A(i+1,i) if uplo = PlasmaLower. |
| [in,out] | descT | On entry, descriptor as return by PLASMA_Alloc_Workspace_zheev On exit, contains auxiliary factorization data. |
| [out] | Q | On exit, if jobz = PlasmaVec and info = 0, the eigenvectors. |
| [in] | LDQ | The leading dimension of the array Q. LDQ >= max(1,N). |
| PLASMA_SUCCESS | successful exit |
| <0 | if -i, the i-th argument had an illegal value |
| >0 | if INFO = i, the algorithm failed to converge; i off-diagonal elements of an intermediate tridiagonal form did not converge to zero. |
Definition at line 100 of file zhetrd.c.
References plasma_desc_t::m, max, plasma_desc_t::n, plasma_context_self(), plasma_desc_check(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), PLASMA_FUNC_ZHETRD, PLASMA_IB, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), PLASMA_zhetrd_Tile_Async(), plasma_ziplap2tile, plasma_ziptile2lap, plasma_zooplap2tile, plasma_zooptile2lap, PlasmaLower, PlasmaNoVec, PlasmaUpper, PlasmaVec, and plasma_sequence_t::status.
| int PLASMA_zlacpy | ( | PLASMA_enum | uplo, |
| int | M, | ||
| int | N, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| PLASMA_Complex64_t * | B, | ||
| int | LDB | ||
| ) |
PLASMA_zlacpy copies all or part of a two-dimensional matrix A to another matrix B
| [in] | uplo | Specifies the part of the matrix A to be copied to B. = PlasmaUpperLower: All the matrix A = PlasmaUpper: Upper triangular part = PlasmaLower: Lower triangular part |
| [in] | M | The number of rows of the matrix A. M >= 0. |
| [in] | N | The number of columns of the matrix A. N >= 0. |
| [in] | A | The M-by-N matrix A. If uplo = PlasmaUpper, only the upper trapezium is accessed; if UPLO = PlasmaLower, only the lower trapezium is accessed. |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,M). |
| [out] | B | The M-by-N matrix B. On exit, B = A in the locations specified by UPLO. |
| [in] | LDB | The leading dimension of the array B. LDB >= max(1,M). |
Definition at line 62 of file zlacpy.c.
References max, min, plasma_context_self(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), PLASMA_FUNC_ZGEMM, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), plasma_ziplap2tile, plasma_ziptile2lap, PLASMA_zlacpy_Tile_Async(), plasma_zooplap2tile, plasma_zooptile2lap, PlasmaLower, PlasmaUpper, and PlasmaUpperLower.

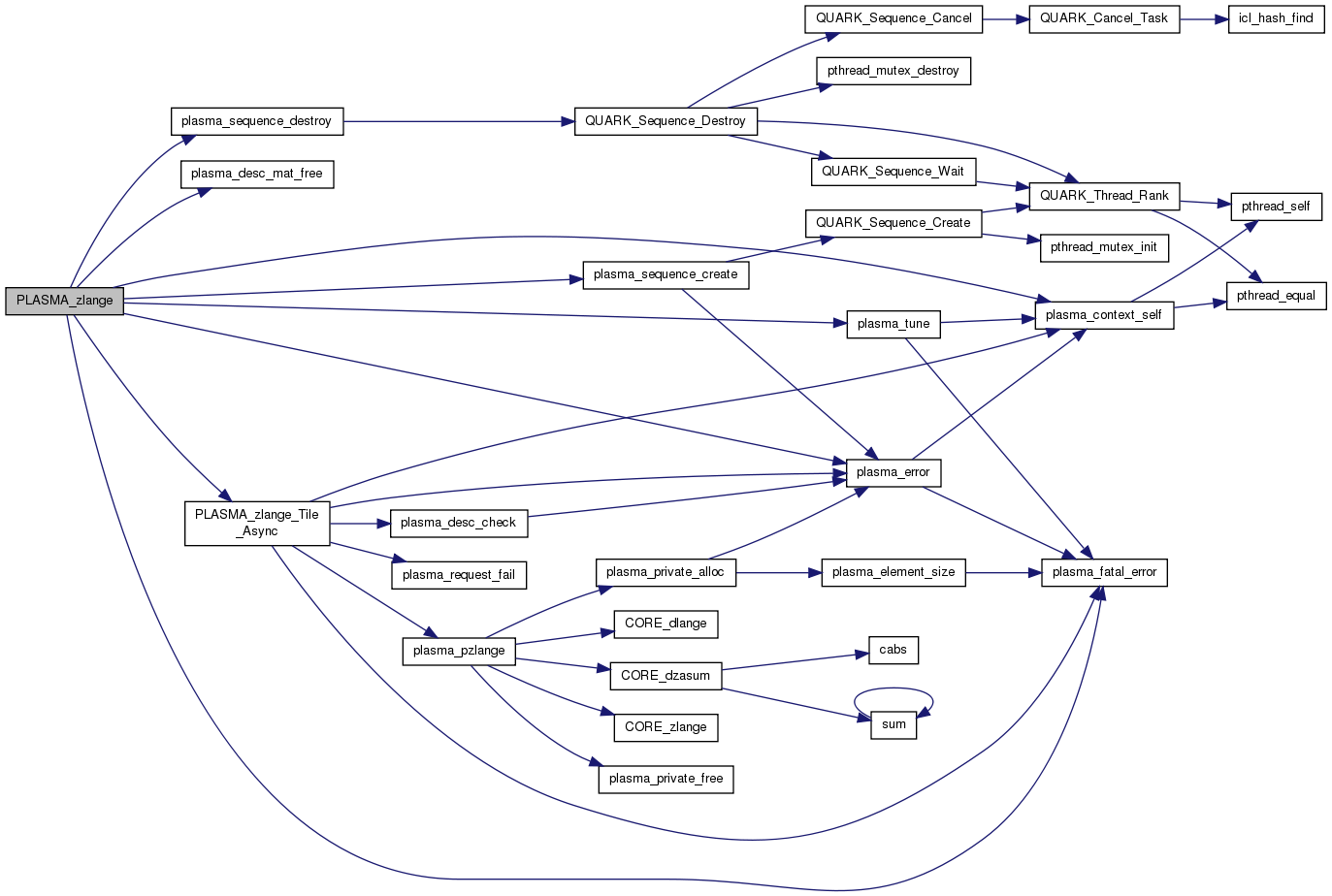

| double PLASMA_zlange | ( | PLASMA_enum | norm, |
| int | M, | ||
| int | N, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| double * | work | ||
| ) |
PLASMA_zlange returns the value
zlange = ( max(abs(A(i,j))), NORM = PlasmaMaxNorm ( ( norm1(A), NORM = PlasmaOneNorm ( ( normI(A), NORM = PlasmaInfNorm ( ( normF(A), NORM = PlasmaFrobeniusNorm
where norm1 denotes the one norm of a matrix (maximum column sum), normI denotes the infinity norm of a matrix (maximum row sum) and normF denotes the Frobenius norm of a matrix (square root of sum of squares). Note that max(abs(A(i,j))) is not a consistent matrix norm.
| [in] | norm | = PlasmaMaxNorm: Max norm = PlasmaOneNorm: One norm = PlasmaInfNorm: Infinity norm = PlasmaFrobeniusNorm: Frobenius norm |
| [in] | M | The number of rows of the matrix A. M >= 0. When M = 0, the returned value is set to zero. |
| [in] | N | The number of columns of the matrix A. N >= 0. When N = 0, the returned value is set to zero. |
| [in] | A | The M-by-N matrix A. |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,M). |
| [in] | work | double precision array of dimension (MAX(1,LWORK)), where LWORK >= M when NORM = PlasmaInfNorm; otherwise, WORK is not referenced. |
| the | norm described above. |
Definition at line 78 of file zlange.c.
References max, min, plasma_context_self(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), PLASMA_FUNC_ZGEMM, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), plasma_ziplap2tile, plasma_ziptile2lap, PLASMA_zlange_Tile_Async(), plasma_zooplap2tile, PlasmaFrobeniusNorm, PlasmaInfNorm, PlasmaMaxNorm, and PlasmaOneNorm.

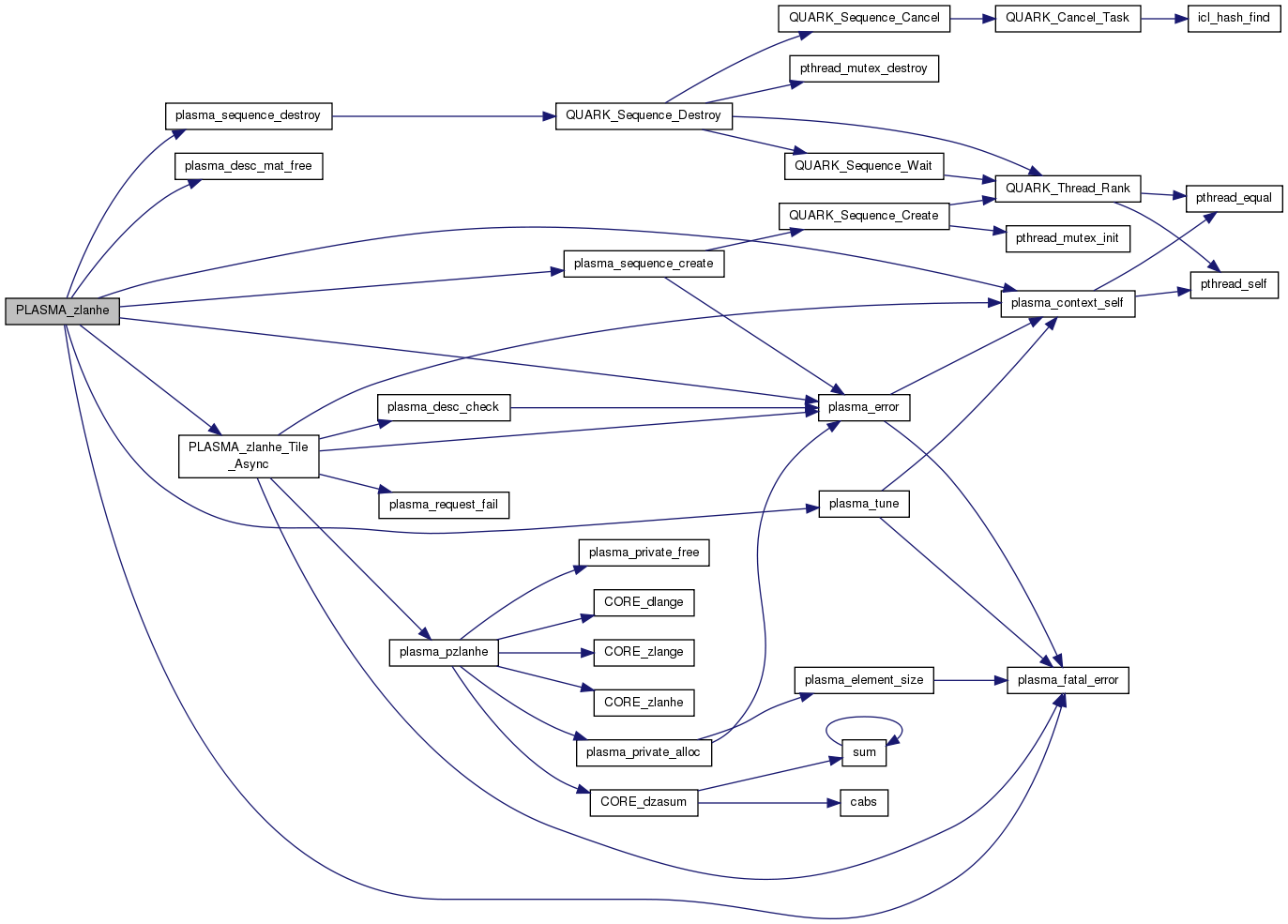

| double PLASMA_zlanhe | ( | PLASMA_enum | norm, |
| PLASMA_enum | uplo, | ||
| int | N, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| double * | work | ||
| ) |
PLASMA_zlanhe returns the value
zlanhe = ( max(abs(A(i,j))), NORM = PlasmaMaxNorm ( ( norm1(A), NORM = PlasmaOneNorm ( ( normI(A), NORM = PlasmaInfNorm ( ( normF(A), NORM = PlasmaFrobeniusNorm
where norm1 denotes the one norm of a matrix (maximum column sum), normI denotes the infinity norm of a matrix (maximum row sum) and normF denotes the Frobenius norm of a matrix (square root of sum of squares). Note that max(abs(A(i,j))) is not a consistent matrix norm.
| [in] | norm | = PlasmaMaxNorm: Max norm = PlasmaOneNorm: One norm = PlasmaInfNorm: Infinity norm = PlasmaFrobeniusNorm: Frobenius norm |
| [in] | uplo | = PlasmaUpper: Upper triangle of A is stored; = PlasmaLower: Lower triangle of A is stored. |
| [in] | N | The number of columns/rows of the matrix A. N >= 0. When N = 0, the returned value is set to zero. |
| [in] | A | The N-by-N matrix A. |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,N). |
| [in] | work | double precision array of dimension PLASMA_SIZE is PLASMA_STATIC_SCHEDULING is used, and NULL otherwise. |
| the | norm described above. |
Definition at line 77 of file zlanhe.c.
References max, plasma_context_self(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), PLASMA_FUNC_ZGEMM, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), plasma_ziplap2tile, plasma_ziptile2lap, PLASMA_zlanhe_Tile_Async(), plasma_zooplap2tile, PlasmaFrobeniusNorm, PlasmaInfNorm, PlasmaLower, PlasmaMaxNorm, PlasmaOneNorm, and PlasmaUpper.
| double PLASMA_zlansy | ( | PLASMA_enum | norm, |
| PLASMA_enum | uplo, | ||
| int | N, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| double * | work | ||
| ) |
PLASMA_zlansy returns the value
zlansy = ( max(abs(A(i,j))), NORM = PlasmaMaxNorm ( ( norm1(A), NORM = PlasmaOneNorm ( ( normI(A), NORM = PlasmaInfNorm ( ( normF(A), NORM = PlasmaFrobeniusNorm
where norm1 denotes the one norm of a matrix (maximum column sum), normI denotes the infinity norm of a matrix (maximum row sum) and normF denotes the Frobenius norm of a matrix (square root of sum of squares). Note that max(abs(A(i,j))) is not a consistent matrix norm.
| [in] | norm | = PlasmaMaxNorm: Max norm = PlasmaOneNorm: One norm = PlasmaInfNorm: Infinity norm = PlasmaFrobeniusNorm: Frobenius norm |
| [in] | uplo | = PlasmaUpper: Upper triangle of A is stored; = PlasmaLower: Lower triangle of A is stored. |
| [in] | N | The number of columns/rows of the matrix A. N >= 0. When N = 0, the returned value is set to zero. |
| [in] | A | The N-by-N matrix A. |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,N). |
| [in] | work | double precision array of dimension PLASMA_SIZE is PLASMA_STATIC_SCHEDULING is used, and NULL otherwise. |
| the | norm described above. |
Definition at line 77 of file zlansy.c.
References max, plasma_context_self(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), PLASMA_FUNC_ZGEMM, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), plasma_ziplap2tile, plasma_ziptile2lap, PLASMA_zlansy_Tile_Async(), plasma_zooplap2tile, PlasmaFrobeniusNorm, PlasmaInfNorm, PlasmaLower, PlasmaMaxNorm, PlasmaOneNorm, and PlasmaUpper.

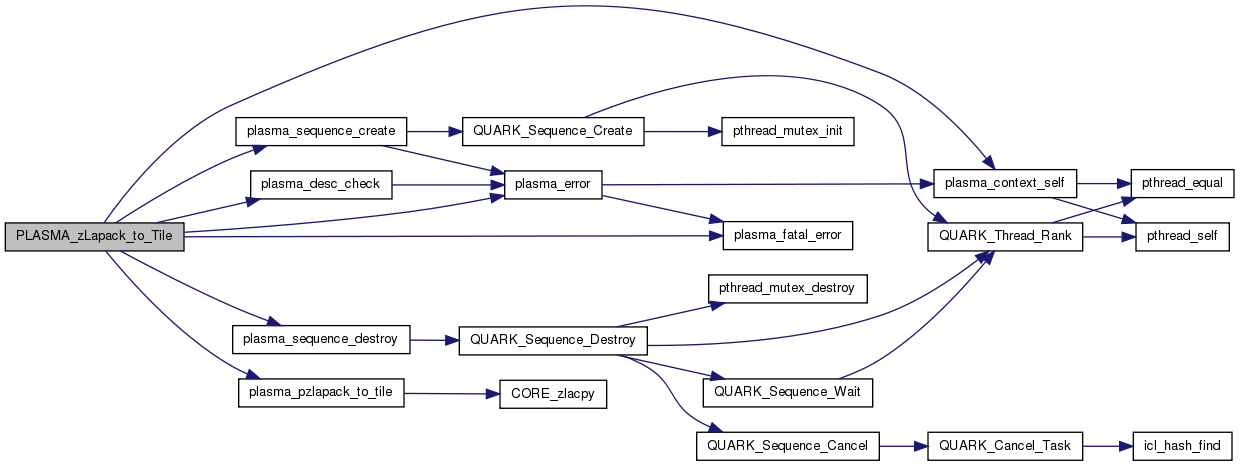

| int PLASMA_zLapack_to_Tile | ( | PLASMA_Complex64_t * | Af77, |
| int | LDA, | ||
| PLASMA_desc * | A | ||
| ) |
PLASMA_zLapack_to_Tile - Conversion from LAPACK layout to tile layout.
| [in] | Af77 | LAPACK matrix. |
| [in] | LDA | The leading dimension of the matrix Af77. |
| [in,out] | A | Descriptor of the PLASMA matrix in tile layout. If PLASMA_TRANSLATION_MODE is set to PLASMA_INPLACE, A->mat is not used and set to Af77 when returns, else if PLASMA_TRANSLATION_MODE is set to PLASMA_OUTOFPLACE, A->mat has to be allocated before. |
| PLASMA_SUCCESS | successful exit |
Definition at line 55 of file ztile.c.
References A, plasma_context_self(), plasma_desc_check(), plasma_dynamic_sync, PLASMA_ERR_ILLEGAL_VALUE, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), plasma_parallel_call_5, plasma_pzlapack_to_tile(), plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, and plasma_sequence_t::status.
| int PLASMA_zlaset | ( | PLASMA_enum | uplo, |
| int | M, | ||
| int | N, | ||
| PLASMA_Complex64_t | alpha, | ||
| PLASMA_Complex64_t | beta, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA | ||
| ) |
PLASMA_zlaset copies all or part of a two-dimensional matrix A to another matrix B
| [in] | uplo | Specifies the part of the matrix A to be copied to B. = PlasmaUpperLower: All the matrix A = PlasmaUpper: Upper triangular part is set. The lower triangle is unchanged. = PlasmaLower: Lower triangular part is set. The upper triangle is unchange. |
| [in] | M | The number of rows of the matrix A. M >= 0. |
| [in] | N | The number of columns of the matrix A. N >= 0. |
| [in] | alpha | All the offdiagonal array elements are set to alpha. |
| [in] | beta | All the diagonal array elements are set to beta. |
| [in,out] | A | On entry, the m by n matrix A. On exit, A(i,j) = ALPHA, 1 <= i <= m, 1 <= j <= n, i.ne.j; A(i,i) = BETA , 1 <= i <= min(m,n) |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,M). |
Definition at line 63 of file zlaset.c.
References max, min, plasma_context_self(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), PLASMA_FUNC_ZGEMM, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), plasma_ziplap2tile, plasma_ziptile2lap, PLASMA_zlaset_Tile_Async(), plasma_zooplap2tile, PlasmaLower, PlasmaUpper, and PlasmaUpperLower.

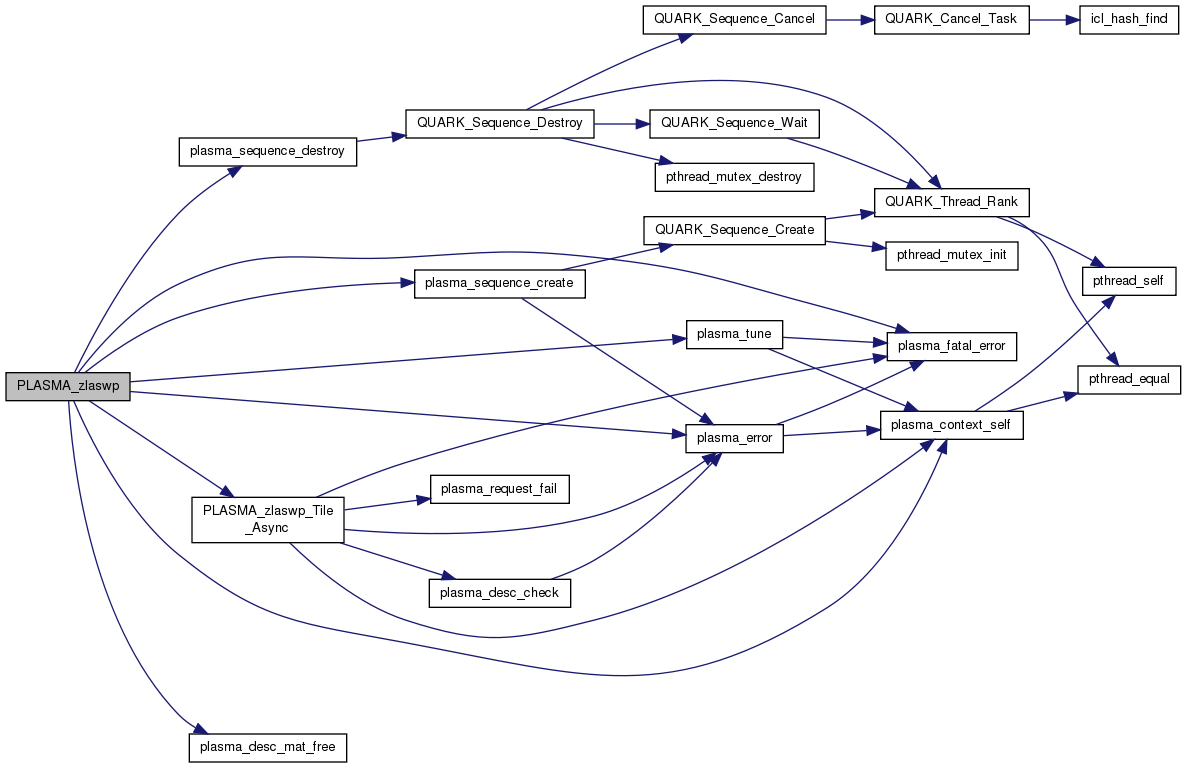

| int PLASMA_zlaswp | ( | int | N, |
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| int | K1, | ||
| int | K2, | ||
| int * | IPIV, | ||
| int | INCX | ||
| ) |
PLASMA_zlaswp - performs a series of row interchanges on the matrix A. One row interchange is initiated for each of rows K1 through K2 of A.
| [in] | N | The order of the matrix A. N >= 0. |
| [in] | A | The tile factors L and U from the factorization, computed by PLASMA_zgetrf. |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,N). |
| [in] | K1 | The first element of IPIV for which a row interchange will be done. |
| [in] | K2 | The last element of IPIV for which a row interchange will be done. |
| [in] | IPIV | The pivot indices from PLASMA_zgetrf. |
| [in] | INCX | The increment between successive values of IPIV. If IPIV is negative, the pivots are applied in reverse order. |
| PLASMA_SUCCESS | successful exit |
Definition at line 66 of file zlaswp.c.
References max, plasma_context_self(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), PLASMA_FUNC_ZGESV, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), plasma_ziplap2tile, plasma_ziptile2lap, PLASMA_zlaswp_Tile_Async(), plasma_zooplap2tile, plasma_zooptile2lap, and plasma_sequence_t::status.
| int PLASMA_zlaswpc | ( | int | N, |
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| int | K1, | ||
| int | K2, | ||
| int * | IPIV, | ||
| int | INCX | ||
| ) |
PLASMA_zlaswpc - performs a series of row interchanges on the matrix A. One row interchange is initiated for each of rows K1 through K2 of A.
| [in] | N | The order of the matrix A. N >= 0. |
| [in] | A | The tile factors L and U from the factorization, computed by PLASMA_zgetrf. |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,N). |
| [in] | K1 | The first element of IPIV for which a row interchange will be done. |
| [in] | K2 | The last element of IPIV for which a row interchange will be done. |
| [in] | IPIV | The pivot indices from PLASMA_zgetrf. |
| [in] | INCX | The increment between successive values of IPIV. If IPIV is negative, the pivots are applied in reverse order. |
| PLASMA_SUCCESS | successful exit |
Definition at line 66 of file zlaswpc.c.
References max, plasma_context_self(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), PLASMA_FUNC_ZGESV, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), plasma_ziplap2tile, plasma_ziptile2lap, PLASMA_zlaswpc_Tile_Async(), plasma_zooplap2tile, plasma_zooptile2lap, and plasma_sequence_t::status.
| int PLASMA_zlauum | ( | PLASMA_enum | uplo, |
| int | N, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA | ||
| ) |
PLASMA_zlauum - Computes the product U * U' or L' * L, where the triangular factor U or L is stored in the upper or lower triangular part of the array A.
If UPLO = 'U' or 'u' then the upper triangle of the result is stored, overwriting the factor U in A. If UPLO = 'L' or 'l' then the lower triangle of the result is stored, overwriting the factor L in A.
| [in] | uplo | = PlasmaUpper: Upper triangle of A is stored; = PlasmaLower: Lower triangle of A is stored. |
| [in] | N | The order of the triangular factor U or L. N >= 0. |
| [in,out] | A | On entry, the triangular factor U or L. On exit, if UPLO = 'U', the upper triangle of A is overwritten with the upper triangle of the product U * U'; if UPLO = 'L', the lower triangle of A is overwritten with the lower triangle of the product L' * L. |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,N). |
| PLASMA_SUCCESS | successful exit |
| <0 | if -i, the i-th argument had an illegal value |
Definition at line 65 of file zlauum.c.
References max, plasma_context_self(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), PLASMA_FUNC_ZPOSV, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), plasma_ziplap2tile, plasma_ziptile2lap, PLASMA_zlauum_Tile_Async(), plasma_zooplap2tile, plasma_zooptile2lap, PlasmaLower, PlasmaUpper, and plasma_sequence_t::status.

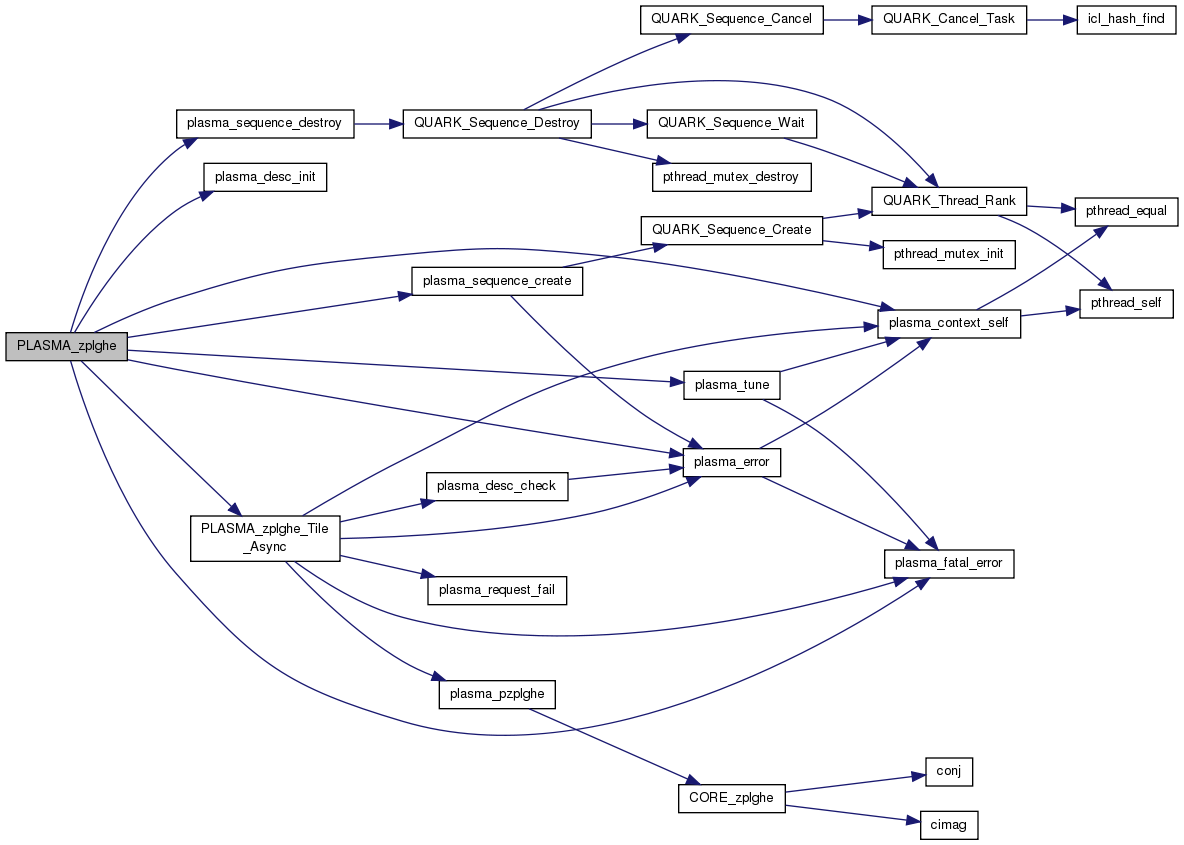

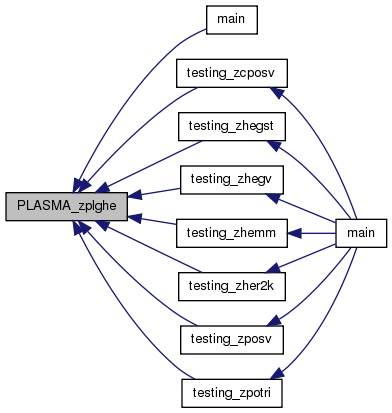

| int PLASMA_zplghe | ( | double | bump, |
| int | N, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| unsigned long long int | seed | ||
| ) |
PLASMA_zplghe - Generate a random hermitian matrix by tiles.
| [in] | bump | The value to add to the diagonal to be sure to have a positive definite matrix. |
| [in] | N | The order of the matrix A. N >= 0. |
| [out] | A | On exit, The random hermitian matrix A generated. |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,M). |
| [in] | seed | The seed used in the random generation. |
| PLASMA_SUCCESS | successful exit |
| <0 | if -i, the i-th argument had an illegal value |
Definition at line 58 of file zplghe.c.
References A, plasma_desc_t::mat, max, plasma_context_self(), plasma_desc_init(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), PLASMA_FUNC_ZGEMM, PLASMA_NB, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, plasma_tune(), plasma_ziptile2lap, PLASMA_zplghe_Tile_Async(), PlasmaComplexDouble, and plasma_sequence_t::status.

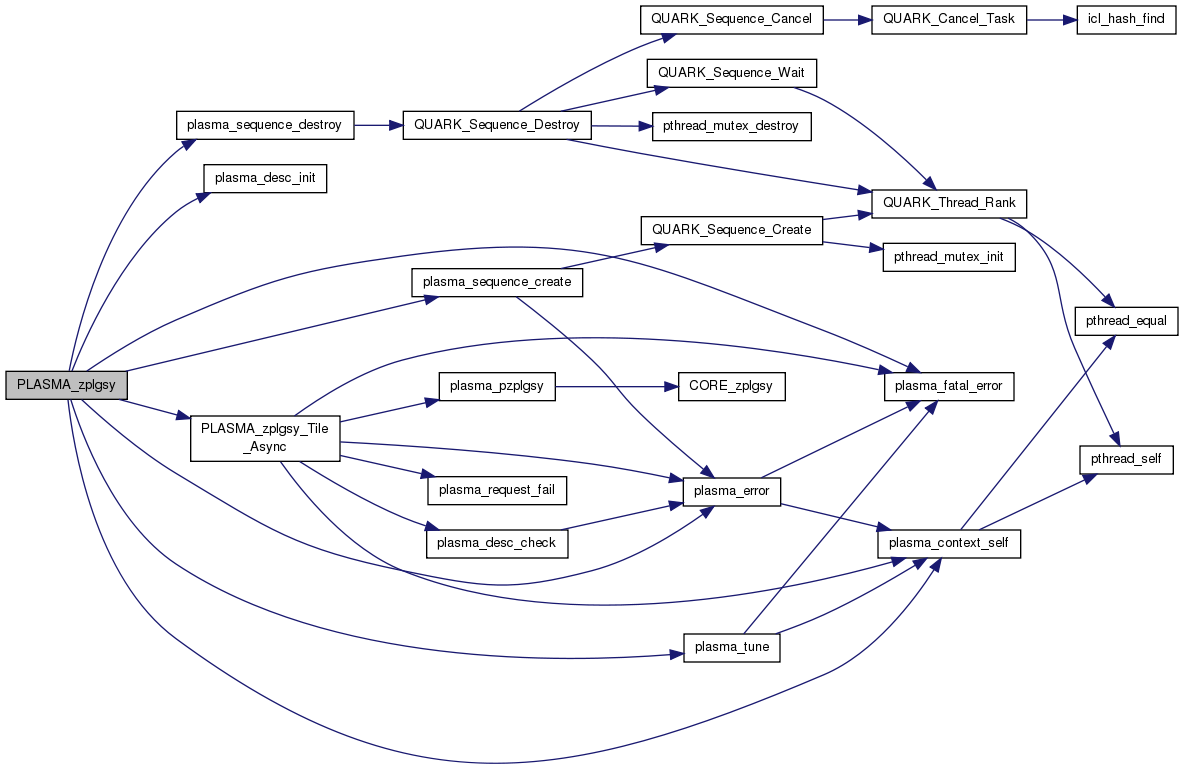

| int PLASMA_zplgsy | ( | PLASMA_Complex64_t | bump, |
| int | N, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| unsigned long long int | seed | ||
| ) |
PLASMA_zplgsy - Generate a random hermitian matrix by tiles.
| [in] | bump | The value to add to the diagonal to be sure to have a positive definite matrix. |
| [in] | N | The order of the matrix A. N >= 0. |
| [out] | A | On exit, The random hermitian matrix A generated. |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,M). |
| [in] | seed | The seed used in the random generation. |
| PLASMA_SUCCESS | successful exit |
| <0 | if -i, the i-th argument had an illegal value |
Definition at line 58 of file zplgsy.c.
References A, plasma_desc_t::mat, max, plasma_context_self(), plasma_desc_init(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), PLASMA_FUNC_ZGEMM, PLASMA_NB, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, plasma_tune(), plasma_ziptile2lap, PLASMA_zplgsy_Tile_Async(), PlasmaComplexDouble, and plasma_sequence_t::status.

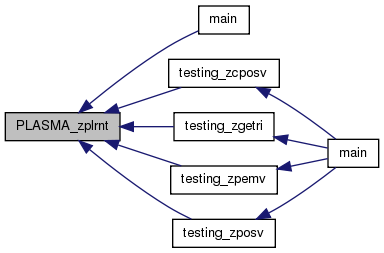

| int PLASMA_zplrnt | ( | int | M, |
| int | N, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| unsigned long long int | seed | ||
| ) |
PLASMA_zplrnt - Generate a random matrix by tiles.
| [in] | M | The number of rows of A. |
| [in] | N | The order of the matrix A. N >= 0. |
| [out] | A | On exit, The random matrix A generated. |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,M). |
| [in] | seed | The seed used in the random generation. |
| PLASMA_SUCCESS | successful exit |
| <0 | if -i, the i-th argument had an illegal value |
Definition at line 57 of file zplrnt.c.
References A, plasma_desc_t::mat, max, min, plasma_context_self(), plasma_desc_init(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), PLASMA_FUNC_ZGEMM, PLASMA_NB, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, plasma_tune(), plasma_ziptile2lap, PLASMA_zplrnt_Tile_Async(), PlasmaComplexDouble, and plasma_sequence_t::status.

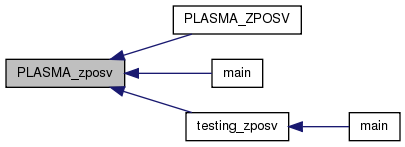

| int PLASMA_zposv | ( | PLASMA_enum | uplo, |
| int | N, | ||
| int | NRHS, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| PLASMA_Complex64_t * | B, | ||
| int | LDB | ||
| ) |
PLASMA_zposv - Computes the solution to a system of linear equations A * X = B, where A is an N-by-N symmetric positive definite (or Hermitian positive definite in the complex case) matrix and X and B are N-by-NRHS matrices. The Cholesky decomposition is used to factor A as
![\[ A = \{_{L\times L^H, if uplo = PlasmaLower}^{U^H\times U, if uplo = PlasmaUpper} \]](form_6.png)
where U is an upper triangular matrix and L is a lower triangular matrix. The factored form of A is then used to solve the system of equations A * X = B.
| [in] | uplo | Specifies whether the matrix A is upper triangular or lower triangular: = PlasmaUpper: Upper triangle of A is stored; = PlasmaLower: Lower triangle of A is stored. |
| [in] | N | The number of linear equations, i.e., the order of the matrix A. N >= 0. |
| [in] | NRHS | The number of right hand sides, i.e., the number of columns of the matrix B. NRHS >= 0. |
| [in,out] | A | On entry, the symmetric positive definite (or Hermitian) matrix A. If uplo = PlasmaUpper, the leading N-by-N upper triangular part of A contains the upper triangular part of the matrix A, and the strictly lower triangular part of A is not referenced. If UPLO = 'L', the leading N-by-N lower triangular part of A contains the lower triangular part of the matrix A, and the strictly upper triangular part of A is not referenced. On exit, if return value = 0, the factor U or L from the Cholesky factorization A = U**H*U or A = L*L**H. |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,N). |
| [in,out] | B | On entry, the N-by-NRHS right hand side matrix B. On exit, if return value = 0, the N-by-NRHS solution matrix X. |
| [in] | LDB | The leading dimension of the array B. LDB >= max(1,N). |
| PLASMA_SUCCESS | successful exit |
| <0 | if -i, the i-th argument had an illegal value |
| >0 | if i, the leading minor of order i of A is not positive definite, so the factorization could not be completed, and the solution has not been computed. |
Definition at line 82 of file zposv.c.
References max, min, plasma_context_self(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), PLASMA_FUNC_ZPOSV, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), plasma_ziplap2tile, plasma_ziptile2lap, plasma_zooplap2tile, plasma_zooptile2lap, PLASMA_zposv_Tile_Async(), PlasmaLower, PlasmaUpper, and plasma_sequence_t::status.
| int PLASMA_zpotrf | ( | PLASMA_enum | uplo, |
| int | N, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA | ||
| ) |
PLASMA_zpotrf - Computes the Cholesky factorization of a symmetric positive definite (or Hermitian positive definite in the complex case) matrix A. The factorization has the form
where U is an upper triangular matrix and L is a lower triangular matrix.
| [in] | uplo | = PlasmaUpper: Upper triangle of A is stored; = PlasmaLower: Lower triangle of A is stored. |
| [in] | N | The order of the matrix A. N >= 0. |
| [in,out] | A | On entry, the symmetric positive definite (or Hermitian) matrix A. If uplo = PlasmaUpper, the leading N-by-N upper triangular part of A contains the upper triangular part of the matrix A, and the strictly lower triangular part of A is not referenced. If UPLO = 'L', the leading N-by-N lower triangular part of A contains the lower triangular part of the matrix A, and the strictly upper triangular part of A is not referenced. On exit, if return value = 0, the factor U or L from the Cholesky factorization A = U**H*U or A = L*L**H. |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,N). |
| PLASMA_SUCCESS | successful exit |
| <0 | if -i, the i-th argument had an illegal value |
| >0 | if i, the leading minor of order i of A is not positive definite, so the factorization could not be completed, and the solution has not been computed. |
Definition at line 70 of file zpotrf.c.
References max, plasma_context_self(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), PLASMA_FUNC_ZPOSV, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), plasma_ziplap2tile, plasma_ziptile2lap, plasma_zooplap2tile, plasma_zooptile2lap, PLASMA_zpotrf_Tile_Async(), PlasmaLower, PlasmaUpper, and plasma_sequence_t::status.
| int PLASMA_zpotri | ( | PLASMA_enum | uplo, |
| int | N, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA | ||
| ) |
PLASMA_zpotri - Computes the inverse of a complex Hermitian positive definite matrix A using the Cholesky factorization A = U**H*U or A = L*L**H computed by PLASMA_zpotrf.
| [in] | uplo | = PlasmaUpper: Upper triangle of A is stored; = PlasmaLower: Lower triangle of A is stored. |
| [in] | N | The order of the matrix A. N >= 0. |
| [in,out] | A | On entry, the triangular factor U or L from the Cholesky factorization A = U**H*U or A = L*L**H, as computed by PLASMA_zpotrf. On exit, the upper or lower triangle of the (Hermitian) inverse of A, overwriting the input factor U or L. |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,N). |
| PLASMA_SUCCESS | successful exit |
| <0 | if -i, the i-th argument had an illegal value |
| >0 | if i, the (i,i) element of the factor U or L is zero, and the inverse could not be computed. |
Definition at line 62 of file zpotri.c.
References max, plasma_context_self(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), PLASMA_FUNC_ZPOSV, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), plasma_ziplap2tile, plasma_ziptile2lap, plasma_zooplap2tile, plasma_zooptile2lap, PLASMA_zpotri_Tile_Async(), PlasmaLower, PlasmaUpper, and plasma_sequence_t::status.
| int PLASMA_zpotrs | ( | PLASMA_enum | uplo, |
| int | N, | ||
| int | NRHS, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| PLASMA_Complex64_t * | B, | ||
| int | LDB | ||
| ) |
PLASMA_zpotrs - Solves a system of linear equations A * X = B with a symmetric positive definite (or Hermitian positive definite in the complex case) matrix A using the Cholesky factorization A = U**H*U or A = L*L**H computed by PLASMA_zpotrf.
| [in] | uplo | = PlasmaUpper: Upper triangle of A is stored; = PlasmaLower: Lower triangle of A is stored. |
| [in] | N | The order of the matrix A. N >= 0. |
| [in] | NRHS | The number of right hand sides, i.e., the number of columns of the matrix B. NRHS >= 0. |
| [in] | A | The triangular factor U or L from the Cholesky factorization A = U**H*U or A = L*L**H, computed by PLASMA_zpotrf. |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,N). |
| [in,out] | B | On entry, the N-by-NRHS right hand side matrix B. On exit, if return value = 0, the N-by-NRHS solution matrix X. |
| [in] | LDB | The leading dimension of the array B. LDB >= max(1,N). |
| PLASMA_SUCCESS | successful exit |
| <0 | if -i, the i-th argument had an illegal value |
Definition at line 67 of file zpotrs.c.
References max, min, plasma_context_self(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), PLASMA_FUNC_ZPOSV, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), plasma_ziplap2tile, plasma_ziptile2lap, plasma_zooplap2tile, plasma_zooptile2lap, PLASMA_zpotrs_Tile_Async(), PlasmaLower, PlasmaUpper, and plasma_sequence_t::status.
| int PLASMA_zsymm | ( | PLASMA_enum | side, |
| PLASMA_enum | uplo, | ||
| int | M, | ||
| int | N, | ||
| PLASMA_Complex64_t | alpha, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| PLASMA_Complex64_t * | B, | ||
| int | LDB, | ||
| PLASMA_Complex64_t | beta, | ||
| PLASMA_Complex64_t * | C, | ||
| int | LDC | ||
| ) |
PLASMA_zsymm - Performs one of the matrix-matrix operations
or
where alpha and beta are scalars, A is an symmetric matrix and B and C are m by n matrices.
| [in] | side | Specifies whether the symmetric matrix A appears on the left or right in the operation as follows: = PlasmaLeft:
|
| [in] | uplo | Specifies whether the upper or lower triangular part of the symmetric matrix A is to be referenced as follows: = PlasmaLower: Only the lower triangular part of the symmetric matrix A is to be referenced. = PlasmaUpper: Only the upper triangular part of the symmetric matrix A is to be referenced. |
| [in] | M | Specifies the number of rows of the matrix C. M >= 0. |
| [in] | N | Specifies the number of columns of the matrix C. N >= 0. |
| [in] | alpha | Specifies the scalar alpha. |
| [in] | A | A is a LDA-by-ka matrix, where ka is M when side = PlasmaLeft, and is N otherwise. Only the uplo triangular part is referenced. |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,ka). |
| [in] | B | B is a LDB-by-N matrix, where the leading M-by-N part of the array B must contain the matrix B. |
| [in] | LDB | The leading dimension of the array B. LDB >= max(1,M). |
| [in] | beta | Specifies the scalar beta. |
| [in,out] | C | C is a LDC-by-N matrix. On exit, the array is overwritten by the M by N updated matrix. |
| [in] | LDC | The leading dimension of the array C. LDC >= max(1,M). |
| PLASMA_SUCCESS | successful exit |
Definition at line 94 of file zsymm.c.
References max, plasma_context_self(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), PLASMA_FUNC_ZSYMM, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), plasma_ziplap2tile, plasma_ziptile2lap, plasma_zooplap2tile, plasma_zooptile2lap, PLASMA_zsymm_Tile_Async(), PlasmaLeft, PlasmaLower, PlasmaRight, PlasmaUpper, and plasma_sequence_t::status.
| int PLASMA_zsyr2k | ( | PLASMA_enum | uplo, |
| PLASMA_enum | trans, | ||
| int | N, | ||
| int | K, | ||
| PLASMA_Complex64_t | alpha, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| PLASMA_Complex64_t * | B, | ||
| int | LDB, | ||
| PLASMA_Complex64_t | beta, | ||
| PLASMA_Complex64_t * | C, | ||
| int | LDC | ||
| ) |
PLASMA_zsyr2k - Performs one of the symmetric rank 2k operations
![\[ C = \alpha [ op( A ) \times conjg( op( B )' )] + \alpha [ op( B ) \times conjg( op( A )' )] + \beta C \]](form_15.png)
, or
![\[ C = \alpha [ conjg( op( A )' ) \times op( B ) ] + \alpha [ conjg( op( B )' ) \times op( A ) ] + \beta C \]](form_16.png)
,
where op( X ) is one of
op( X ) = X or op( X ) = conjg( X' )
where alpha and beta are real scalars, C is an n-by-n symmetric matrix and A and B are an n-by-k matrices the first case and k-by-n matrices in the second case.
| [in] | uplo | = PlasmaUpper: Upper triangle of C is stored; = PlasmaLower: Lower triangle of C is stored. |
| [in] | trans | Specifies whether the matrix A is transposed or conjugate transposed: = PlasmaNoTrans:
|
| [in] | N | N specifies the order of the matrix C. N must be at least zero. |
| [in] | K | K specifies the number of columns of the A and B matrices with trans = PlasmaNoTrans. K specifies the number of rows of the A and B matrices with trans = PlasmaTrans. |
| [in] | alpha | alpha specifies the scalar alpha. |
| [in] | A | A is a LDA-by-ka matrix, where ka is K when trans = PlasmaNoTrans, and is N otherwise. |
| [in] | LDA | The leading dimension of the array A. LDA must be at least max( 1, N ), otherwise LDA must be at least max( 1, K ). |
| [in] | B | B is a LDB-by-kb matrix, where kb is K when trans = PlasmaNoTrans, and is N otherwise. |
| [in] | LDB | The leading dimension of the array B. LDB must be at least max( 1, N ), otherwise LDB must be at least max( 1, K ). |
| [in] | beta | beta specifies the scalar beta. |
| [in,out] | C | C is a LDC-by-N matrix. On exit, the array uplo part of the matrix is overwritten by the uplo part of the updated matrix. |
| [in] | LDC | The leading dimension of the array C. LDC >= max( 1, N ). |
| PLASMA_SUCCESS | successful exit |
Definition at line 96 of file zsyr2k.c.
References max, plasma_context_self(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), PLASMA_FUNC_ZSYRK, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), plasma_ziplap2tile, plasma_ziptile2lap, plasma_zooplap2tile, plasma_zooptile2lap, PLASMA_zsyr2k_Tile_Async(), PlasmaLower, PlasmaNoTrans, PlasmaTrans, PlasmaUpper, and plasma_sequence_t::status.
| int PLASMA_zsyrk | ( | PLASMA_enum | uplo, |
| PLASMA_enum | trans, | ||
| int | N, | ||
| int | K, | ||
| PLASMA_Complex64_t | alpha, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| PLASMA_Complex64_t | beta, | ||
| PLASMA_Complex64_t * | C, | ||
| int | LDC | ||
| ) |
PLASMA_zsyrk - Performs one of the hermitian rank k operations
,
where op( X ) is one of
op( X ) = X or op( X ) = conjg( X' )
where alpha and beta are real scalars, C is an n-by-n hermitian matrix and A is an n-by-k matrix in the first case and a k-by-n matrix in the second case.
| [in] | uplo | = PlasmaUpper: Upper triangle of C is stored; = PlasmaLower: Lower triangle of C is stored. |
| [in] | trans | Specifies whether the matrix A is transposed or conjugate transposed: = PlasmaNoTrans: A is not transposed; = PlasmaTrans : A is transposed. |
| [in] | N | N specifies the order of the matrix C. N must be at least zero. |
| [in] | K | K specifies the number of columns of the matrix op( A ). |
| [in] | alpha | alpha specifies the scalar alpha. |
| [in] | A | A is a LDA-by-ka matrix, where ka is K when trans = PlasmaNoTrans, and is N otherwise. |
| [in] | LDA | The leading dimension of the array A. LDA must be at least max( 1, N ), otherwise LDA must be at least max( 1, K ). |
| [in] | beta | beta specifies the scalar beta |
| [in,out] | C | C is a LDC-by-N matrix. On exit, the array uplo part of the matrix is overwritten by the uplo part of the updated matrix. |
| [in] | LDC | The leading dimension of the array C. LDC >= max( 1, N ). |
| PLASMA_SUCCESS | successful exit |
Definition at line 85 of file zsyrk.c.
References max, plasma_context_self(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), PLASMA_FUNC_ZSYRK, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), plasma_ziplap2tile, plasma_ziptile2lap, plasma_zooplap2tile, plasma_zooptile2lap, PLASMA_zsyrk_Tile_Async(), PlasmaLower, PlasmaNoTrans, PlasmaTrans, PlasmaUpper, and plasma_sequence_t::status.
| int PLASMA_zTile_to_Lapack | ( | PLASMA_desc * | A, |
| PLASMA_Complex64_t * | Af77, | ||
| int | LDA | ||
| ) |
PLASMA_Tile_to_Lapack - Conversion from tile layout to LAPACK layout.
| [in] | A | Descriptor of the PLASMA matrix in tile layout. |
| [in,out] | Af77 | LAPACK matrix. If PLASMA_TRANSLATION_MODE is set to PLASMA_INPLACE, Af77 has to be A->mat, else if PLASMA_TRANSLATION_MODE is set to PLASMA_OUTOFPLACE, Af77 has to be allocated before. |
| [in] | LDA | The leading dimension of the matrix Af77. |
| PLASMA_SUCCESS | successful exit |
Definition at line 191 of file ztile.c.
References A, plasma_context_self(), plasma_desc_check(), plasma_dynamic_sync, PLASMA_ERR_ILLEGAL_VALUE, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), plasma_pztile_to_lapack(), plasma_sequence_create(), plasma_sequence_destroy(), plasma_static_call_5, PLASMA_SUCCESS, and plasma_sequence_t::status.
| int PLASMA_ztrmm | ( | PLASMA_enum | side, |
| PLASMA_enum | uplo, | ||
| PLASMA_enum | transA, | ||
| PLASMA_enum | diag, | ||
| int | N, | ||
| int | NRHS, | ||
| PLASMA_Complex64_t | alpha, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| PLASMA_Complex64_t * | B, | ||
| int | LDB | ||
| ) |
PLASMA_ztrmm - Computes B = alpha*op( A )*B or B = alpha*B*op( A ).
| [in] | side | Specifies whether A appears on the left or on the right of X: = PlasmaLeft: A*X = B = PlasmaRight: X*A = B |
| [in] | uplo | Specifies whether the matrix A is upper triangular or lower triangular: = PlasmaUpper: Upper triangle of A is stored; = PlasmaLower: Lower triangle of A is stored. |
| [in] | transA | Specifies whether the matrix A is transposed, not transposed or conjugate transposed: = PlasmaNoTrans: A is transposed; = PlasmaTrans: A is not transposed; = PlasmaConjTrans: A is conjugate transposed. |
| [in] | diag | Specifies whether or not A is unit triangular: = PlasmaNonUnit: A is non unit; = PlasmaUnit: A us unit. |
| [in] | N | The order of the matrix A. N >= 0. |
| [in] | NRHS | The number of right hand sides, i.e., the number of columns of the matrix B. NRHS >= 0. |
| [in] | alpha | alpha specifies the scalar alpha. |
| [in] | A | The triangular matrix A. If uplo = PlasmaUpper, the leading N-by-N upper triangular part of the array A contains the upper triangular matrix, and the strictly lower triangular part of A is not referenced. If uplo = PlasmaLower, the leading N-by-N lower triangular part of the array A contains the lower triangular matrix, and the strictly upper triangular part of A is not referenced. If diag = PlasmaUnit, the diagonal elements of A are also not referenced and are assumed to be 1. |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,N). |
| [in,out] | B | On entry, the N-by-NRHS right hand side matrix B. On exit, if return value = 0, the N-by-NRHS solution matrix X. |
| [in] | LDB | The leading dimension of the array B. LDB >= max(1,N). |
| PLASMA_SUCCESS | successful exit |
| <0 | if -i, the i-th argument had an illegal value |
Definition at line 88 of file ztrmm.c.
References max, min, plasma_context_self(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), PLASMA_FUNC_ZPOSV, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), plasma_ziplap2tile, plasma_ziptile2lap, plasma_zooplap2tile, plasma_zooptile2lap, PLASMA_ztrmm_Tile_Async(), PlasmaConjTrans, PlasmaLeft, PlasmaLower, PlasmaNonUnit, PlasmaNoTrans, PlasmaRight, PlasmaTrans, PlasmaUnit, PlasmaUpper, and plasma_sequence_t::status.
| int PLASMA_ztrsm | ( | PLASMA_enum | side, |
| PLASMA_enum | uplo, | ||
| PLASMA_enum | transA, | ||
| PLASMA_enum | diag, | ||
| int | N, | ||
| int | NRHS, | ||
| PLASMA_Complex64_t | alpha, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| PLASMA_Complex64_t * | B, | ||
| int | LDB | ||
| ) |
PLASMA_ztrsm - Computes triangular solve A*X = B or X*A = B.
| [in] | side | Specifies whether A appears on the left or on the right of X: = PlasmaLeft: A*X = B = PlasmaRight: X*A = B |
| [in] | uplo | Specifies whether the matrix A is upper triangular or lower triangular: = PlasmaUpper: Upper triangle of A is stored; = PlasmaLower: Lower triangle of A is stored. |
| [in] | transA | Specifies whether the matrix A is transposed, not transposed or conjugate transposed: = PlasmaNoTrans: A is transposed; = PlasmaTrans: A is not transposed; = PlasmaConjTrans: A is conjugate transposed. |
| [in] | diag | Specifies whether or not A is unit triangular: = PlasmaNonUnit: A is non unit; = PlasmaUnit: A us unit. |
| [in] | N | The order of the matrix A. N >= 0. |
| [in] | NRHS | The number of right hand sides, i.e., the number of columns of the matrix B. NRHS >= 0. |
| [in] | alpha | alpha specifies the scalar alpha. |
| [in] | A | The triangular matrix A. If uplo = PlasmaUpper, the leading N-by-N upper triangular part of the array A contains the upper triangular matrix, and the strictly lower triangular part of A is not referenced. If uplo = PlasmaLower, the leading N-by-N lower triangular part of the array A contains the lower triangular matrix, and the strictly upper triangular part of A is not referenced. If diag = PlasmaUnit, the diagonal elements of A are also not referenced and are assumed to be 1. |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,N). |
| [in,out] | B | On entry, the N-by-NRHS right hand side matrix B. On exit, if return value = 0, the N-by-NRHS solution matrix X. |
| [in] | LDB | The leading dimension of the array B. LDB >= max(1,N). |
| PLASMA_SUCCESS | successful exit |
| <0 | if -i, the i-th argument had an illegal value |
Definition at line 88 of file ztrsm.c.
References max, min, plasma_context_self(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), PLASMA_FUNC_ZPOSV, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), plasma_ziplap2tile, plasma_ziptile2lap, plasma_zooplap2tile, plasma_zooptile2lap, PLASMA_ztrsm_Tile_Async(), PlasmaConjTrans, PlasmaLeft, PlasmaLower, PlasmaNonUnit, PlasmaNoTrans, PlasmaRight, PlasmaTrans, PlasmaUnit, PlasmaUpper, and plasma_sequence_t::status.
| int PLASMA_ztrsmpl | ( | int | N, |
| int | NRHS, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| PLASMA_Complex64_t * | L, | ||
| int * | IPIV, | ||
| PLASMA_Complex64_t * | B, | ||
| int | LDB | ||
| ) |
PLASMA_ztrsmpl - Performs the forward substitution step of solving a system of linear equations after the tile LU factorization of the matrix.
| [in] | N | The order of the matrix A. N >= 0. |
| [in] | NRHS | The number of right hand sides, i.e., the number of columns of the matrix B. NRHS >= 0. |
| [in] | A | The tile factor L from the factorization, computed by PLASMA_zgetrf_incpiv. |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,N). |
| [in] | L | Auxiliary factorization data, related to the tile L factor, computed by PLASMA_zgetrf_incpiv. |
| [in] | IPIV | The pivot indices from PLASMA_zgetrf_incpiv (not equivalent to LAPACK). |
| [in,out] | B | On entry, the N-by-NRHS right hand side matrix B. On exit, if return value = 0, the N-by-NRHS solution matrix X. |
| [in] | LDB | The leading dimension of the array B. LDB >= max(1,N). |
| PLASMA_SUCCESS | successful exit |
| <0 | if -i, the i-th argument had an illegal value |
Definition at line 67 of file ztrsmpl.c.
References L, plasma_desc_t::mat, max, min, plasma_context_self(), plasma_desc_init(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), PLASMA_FUNC_ZGESV, PLASMA_IB, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), plasma_ziplap2tile, plasma_ziptile2lap, plasma_zooplap2tile, plasma_zooptile2lap, PLASMA_ztrsmpl_Tile_Async(), PlasmaComplexDouble, and plasma_sequence_t::status.
| int PLASMA_ztrsmrv | ( | PLASMA_enum | side, |
| PLASMA_enum | uplo, | ||
| PLASMA_enum | transA, | ||
| PLASMA_enum | diag, | ||
| int | N, | ||
| int | NRHS, | ||
| PLASMA_Complex64_t | alpha, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| PLASMA_Complex64_t * | B, | ||
| int | LDB | ||
| ) |
PLASMA_ztrsmrv - Computes triangular solve A*X = B or X*A = B.
| [in] | side | Specifies whether A appears on the left or on the right of X: = PlasmaLeft: A*X = B = PlasmaRight: X*A = B |
| [in] | uplo | Specifies whether the matrix A is upper triangular or lower triangular: = PlasmaUpper: Upper triangle of A is stored; = PlasmaLower: Lower triangle of A is stored. |
| [in] | transA | Specifies whether the matrix A is transposed, not transposed or conjugate transposed: = PlasmaNoTrans: A is transposed; = PlasmaTrans: A is not transposed; = PlasmaConjTrans: A is conjugate transposed. |
| [in] | diag | Specifies whether or not A is unit triangular: = PlasmaNonUnit: A is non unit; = PlasmaUnit: A us unit. |
| [in] | N | The order of the matrix A. N >= 0. |
| [in] | NRHS | The number of right hand sides, i.e., the number of columns of the matrix B. NRHS >= 0. |
| [in] | alpha | alpha specifies the scalar alpha. |
| [in] | A | The triangular matrix A. If uplo = PlasmaUpper, the leading N-by-N upper triangular part of the array A contains the upper triangular matrix, and the strictly lower triangular part of A is not referenced. If uplo = PlasmaLower, the leading N-by-N lower triangular part of the array A contains the lower triangular matrix, and the strictly upper triangular part of A is not referenced. If diag = PlasmaUnit, the diagonal elements of A are also not referenced and are assumed to be 1. |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,N). |
| [in,out] | B | On entry, the N-by-NRHS right hand side matrix B. On exit, if return value = 0, the N-by-NRHS solution matrix X. |
| [in] | LDB | The leading dimension of the array B. LDB >= max(1,N). |
| PLASMA_SUCCESS | successful exit |
| <0 | if -i, the i-th argument had an illegal value |
Definition at line 88 of file ztrsmrv.c.
References max, min, plasma_context_self(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), PLASMA_FUNC_ZPOSV, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), plasma_ziplap2tile, plasma_ziptile2lap, plasma_zooplap2tile, plasma_zooptile2lap, PLASMA_ztrsmrv_Tile_Async(), PlasmaConjTrans, PlasmaLeft, PlasmaLower, PlasmaNonUnit, PlasmaNoTrans, PlasmaRight, PlasmaTrans, PlasmaUnit, PlasmaUpper, and plasma_sequence_t::status.
| int PLASMA_ztrtri | ( | PLASMA_enum | uplo, |
| PLASMA_enum | diag, | ||
| int | N, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA | ||
| ) |
PLASMA_ztrtri - Computes the inverse of a complex upper or lower triangular matrix A.
| [in] | uplo | = PlasmaUpper: Upper triangle of A is stored; = PlasmaLower: Lower triangle of A is stored. |
| [in] | diag | = PlasmaNonUnit: A is non-unit triangular; = PlasmaUnit: A is unit triangular. |
| [in] | N | The order of the matrix A. N >= 0. |
| [in,out] | A | On entry, the triangular matrix A. If UPLO = 'U', the leading N-by-N upper triangular part of the array A contains the upper triangular matrix, and the strictly lower triangular part of A is not referenced. If UPLO = 'L', the leading N-by-N lower triangular part of the array A contains the lower triangular matrix, and the strictly upper triangular part of A is not referenced. If DIAG = 'U', the diagonal elements of A are also not referenced and are assumed to be 1. On exit, the (triangular) inverse of the original matrix, in the same storage format. |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,N). |
| PLASMA_SUCCESS | successful exit |
| <0 | if -i, the i-th argument had an illegal value |
| >0 | if i, A(i,i) is exactly zero. The triangular matrix is singular and its inverse can not be computed. |
Definition at line 70 of file ztrtri.c.
References max, plasma_context_self(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), PLASMA_FUNC_ZPOSV, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), plasma_ziplap2tile, plasma_ziptile2lap, plasma_zooplap2tile, plasma_zooptile2lap, PLASMA_ztrtri_Tile_Async(), PlasmaLower, PlasmaNonUnit, PlasmaUnit, PlasmaUpper, and plasma_sequence_t::status.
| int PLASMA_zunglq | ( | int | M, |
| int | N, | ||
| int | K, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| PLASMA_Complex64_t * | T, | ||
| PLASMA_Complex64_t * | Q, | ||
| int | LDQ | ||
| ) |
PLASMA_zunglq - Generates an M-by-N matrix Q with orthonormal rows, which is defined as the first M rows of a product of the elementary reflectors returned by PLASMA_zgelqf.
| [in] | M | The number of rows of the matrix Q. M >= 0. |
| [in] | N | The number of columns of the matrix Q. N >= M. |
| [in] | K | The number of rows of elementary tile reflectors whose product defines the matrix Q. M >= K >= 0. |
| [in] | A | Details of the LQ factorization of the original matrix A as returned by PLASMA_zgelqf. |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,M). |
| [in] | T | Auxiliary factorization data, computed by PLASMA_zgelqf. |
| [out] | Q | On exit, the M-by-N matrix Q. |
| [in] | LDQ | The leading dimension of the array Q. LDQ >= max(1,M). |
| PLASMA_SUCCESS | successful exit |
| PLASMA_SUCCESS | <0 if -i, the i-th argument had an illegal value |
Definition at line 68 of file zunglq.c.
References plasma_context_struct::householder, plasma_desc_t::mat, max, min, plasma_context_self(), plasma_desc_init(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), PLASMA_FLAT_HOUSEHOLDER, PLASMA_FUNC_ZGELS, PLASMA_IB, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), plasma_ziplap2tile, plasma_ziptile2lap, plasma_zooplap2tile, plasma_zooptile2lap, PLASMA_zunglq_Tile_Async(), PlasmaComplexDouble, plasma_sequence_t::status, and T.
| int PLASMA_zungqr | ( | int | M, |
| int | N, | ||
| int | K, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| PLASMA_Complex64_t * | T, | ||
| PLASMA_Complex64_t * | Q, | ||
| int | LDQ | ||
| ) |
PLASMA_zungqr - Generates an M-by-N matrix Q with orthonormal columns, which is defined as the first N columns of a product of the elementary reflectors returned by PLASMA_zgeqrf.
| [in] | M | The number of rows of the matrix Q. M >= 0. |
| [in] | N | The number of columns of the matrix Q. N >= M. |
| [in] | K | The number of columns of elementary tile reflectors whose product defines the matrix Q. M >= K >= 0. |
| [in] | A | Details of the QR factorization of the original matrix A as returned by PLASMA_zgeqrf. |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,M). |
| [in] | T | Auxiliary factorization data, computed by PLASMA_zgeqrf. |
| [out] | Q | On exit, the M-by-N matrix Q. |
| [in] | LDQ | The leading dimension of the array Q. LDQ >= max(1,M). |
| PLASMA_SUCCESS | successful exit |
| <0 | if -i, the i-th argument had an illegal value |
Definition at line 68 of file zungqr.c.
References plasma_context_struct::householder, plasma_desc_t::mat, max, min, plasma_context_self(), plasma_desc_init(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), PLASMA_FLAT_HOUSEHOLDER, PLASMA_FUNC_ZGELS, PLASMA_IB, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), plasma_ziplap2tile, plasma_ziptile2lap, plasma_zooplap2tile, plasma_zooptile2lap, PLASMA_zungqr_Tile_Async(), PlasmaComplexDouble, plasma_sequence_t::status, and T.
| int PLASMA_zunmlq | ( | PLASMA_enum | side, |
| PLASMA_enum | trans, | ||
| int | M, | ||
| int | N, | ||
| int | K, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| PLASMA_Complex64_t * | T, | ||
| PLASMA_Complex64_t * | B, | ||
| int | LDB | ||
| ) |
PLASMA_zunmlq - overwrites the general M-by-N matrix C with Q*C, where Q is an orthogonal matrix (unitary in the complex case) defined as the product of elementary reflectors returned by PLASMA_zgelqf. Q is of order M.
| [in] | side | Intended usage: = PlasmaLeft: apply Q or Q**H from the left; = PlasmaRight: apply Q or Q**H from the right. Currently only PlasmaLeft is supported. |
| [in] | trans | Intended usage: = PlasmaNoTrans: no transpose, apply Q; = PlasmaConjTrans: conjugate transpose, apply Q**H. Currently only PlasmaConjTrans is supported. |
| [in] | M | The number of rows of the matrix C. M >= 0. |
| [in] | N | The number of columns of the matrix C. N >= 0. |
| [in] | K | The number of rows of elementary tile reflectors whose product defines the matrix Q. M >= K >= 0. |
| [in] | A | Details of the LQ factorization of the original matrix A as returned by PLASMA_zgelqf. |
| [in] | LDA | The leading dimension of the array A. LDA >= max(1,K). |
| [in] | T | Auxiliary factorization data, computed by PLASMA_zgelqf. |
| [in,out] | B | On entry, the M-by-N matrix B. On exit, B is overwritten by Q*B or Q**H*B. |
| [in] | LDB | The leading dimension of the array C. LDC >= max(1,M). |
| PLASMA_SUCCESS | successful exit |
| <0 | if -i, the i-th argument had an illegal value |
Definition at line 83 of file zunmlq.c.
References plasma_context_struct::householder, plasma_desc_t::mat, max, min, plasma_context_self(), plasma_desc_init(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), PLASMA_FLAT_HOUSEHOLDER, PLASMA_FUNC_ZGELS, PLASMA_IB, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), plasma_ziplap2tile, plasma_ziptile2lap, plasma_zooplap2tile, plasma_zooptile2lap, PLASMA_zunmlq_Tile_Async(), PlasmaComplexDouble, PlasmaConjTrans, PlasmaLeft, PlasmaNoTrans, PlasmaRight, plasma_sequence_t::status, and T.
| int PLASMA_zunmqr | ( | PLASMA_enum | side, |
| PLASMA_enum | trans, | ||
| int | M, | ||
| int | N, | ||
| int | K, | ||
| PLASMA_Complex64_t * | A, | ||
| int | LDA, | ||
| PLASMA_Complex64_t * | T, | ||
| PLASMA_Complex64_t * | B, | ||
| int | LDB | ||
| ) |
PLASMA_zunmqr - overwrites the general M-by-N matrix C with Q*C, where Q is an orthogonal matrix (unitary in the complex case) defined as the product of elementary reflectors returned by PLASMA_zgeqrf. Q is of order M.
| [in] | side | Intended usage: = PlasmaLeft: apply Q or Q**H from the left; = PlasmaRight: apply Q or Q**H from the right. Currently only PlasmaLeft is supported. |
| [in] | trans | Intended usage: = PlasmaNoTrans: no transpose, apply Q; = PlasmaConjTrans: conjugate transpose, apply Q**H. Currently only PlasmaConjTrans is supported. |
| [in] | M | The number of rows of the matrix C. M >= 0. |
| [in] | N | The number of columns of the matrix C. N >= 0. |
| [in] | K | The number of columns of elementary tile reflectors whose product defines the matrix Q. If side == PlasmaLeft, M >= K >= 0. If side == PlasmaRight, N >= K >= 0. |
| [in] | A | Details of the QR factorization of the original matrix A as returned by PLASMA_zgeqrf. |
| [in] | LDA | The leading dimension of the array A. If side == PlasmaLeft, LDA >= max(1,M). If side == PlasmaRight, LDA >= max(1,N). |
| [in] | T | Auxiliary factorization data, computed by PLASMA_zgeqrf. |
| [in,out] | B | On entry, the M-by-N matrix B. On exit, B is overwritten by Q*B or Q**H*B. |
| [in] | LDB | The leading dimension of the array C. LDC >= max(1,M). |
| PLASMA_SUCCESS | successful exit |
| <0 | if -i, the i-th argument had an illegal value |
Definition at line 85 of file zunmqr.c.
References plasma_context_struct::householder, plasma_desc_t::mat, max, min, plasma_context_self(), plasma_desc_init(), plasma_desc_mat_free(), plasma_dynamic_sync, PLASMA_ERR_NOT_INITIALIZED, plasma_error(), plasma_fatal_error(), PLASMA_FLAT_HOUSEHOLDER, PLASMA_FUNC_ZGELS, PLASMA_IB, PLASMA_NB, PLASMA_OUTOFPLACE, PLASMA_REQUEST_INITIALIZER, plasma_sequence_create(), plasma_sequence_destroy(), PLASMA_SUCCESS, PLASMA_TRANSLATION, plasma_tune(), plasma_ziplap2tile, plasma_ziptile2lap, plasma_zooplap2tile, plasma_zooptile2lap, PLASMA_zunmqr_Tile_Async(), PlasmaComplexDouble, PlasmaConjTrans, PlasmaLeft, PlasmaNoTrans, PlasmaRight, plasma_sequence_t::status, and T.
1.8.1
