#include "common.h"
#include "auxiliary.h"
#include "tile.h"
#include "quark.h"

Include dependency graph for pztile.c:

Macros
#define	AF77(m, n) &(Af77[ ((int64_t)A.nb(int64_t)lda(int64_t)(n)) + (int64_t)(A.mb*(m)) ])
#define	ABDL(m, n) BLKADDR(A, PLASMA_Complex64_t, m, n)

Functions
void	CORE_ztile_zero_quark (Quark *quark)
void	plasma_pzlapack_to_tile (plasma_context_t *plasma)
void	plasma_pzlapack_to_tile_quark (PLASMA_Complex64_t Af77, int lda, PLASMA_desc A, PLASMA_sequence sequence, PLASMA_request *request)
void	plasma_pztile_to_lapack (plasma_context_t *plasma)
void	plasma_pztile_to_lapack_quark (PLASMA_desc A, PLASMA_Complex64_t Af77, int lda, PLASMA_sequence sequence, PLASMA_request *request)
void	plasma_pztile_zero (plasma_context_t *plasma)
void	plasma_pztile_zero_quark (PLASMA_desc A, PLASMA_sequence sequence, PLASMA_request request)

Macro Definition Documentation

#define ABDL	(	m,
		n
	)	BLKADDR(A, PLASMA_Complex64_t, m, n)

Definition at line 22 of file pztile.c.

#define AF77	(	m,
		n
	)	&(Af77[ ((int64_t)A.nb(int64_t)lda(int64_t)(n)) + (int64_t)(A.mb*(m)) ])

Definition at line 21 of file pztile.c.

Function Documentation

void CORE_ztile_zero_quark ( Quark * quark )

Definition at line 321 of file pztile.c.

References A, and quark_unpack_args_6.

{
    int X1;
    int X2;
    int Y1;
    int Y2;
    PLASMA_Complex64_t *A;
    int lda;
    int x, y;
    quark_unpack_args_6(quark, X1, X2, Y1, Y2, A, lda);
    for (x = X1; x < X2; x++)
        for (y = Y1; y < Y2; y++)
            A[lda*x+y] = 0.0;
}

Here is the caller graph for this function:

void plasma_pzlapack_to_tile ( plasma_context_t * plasma )

Conversion from LAPACK F77 matrix layout to tile layout - static scheduling

Definition at line 29 of file pztile.c.

References A, ABDL, AF77, BLKLDD, CORE_zlacpy(), plasma_desc_t::i, plasma_desc_t::j, plasma_desc_t::m, plasma_desc_t::mb, plasma_desc_t::mt, plasma_desc_t::n, plasma_desc_t::nb, plasma_desc_t::nt, PLASMA_RANK, PLASMA_SIZE, PLASMA_SUCCESS, plasma_unpack_args_5, PlasmaUpperLower, and plasma_sequence_t::status.

{
    PLASMA_Complex64_t *Af77;
    int lda;
    PLASMA_desc A;
    PLASMA_sequence *sequence;
    PLASMA_request *request;
    PLASMA_Complex64_t *f77;
    PLASMA_Complex64_t *bdl;
    int X1, Y1;
    int X2, Y2;
    int n, m, ldt;
    int next_m;
    int next_n;
    plasma_unpack_args_5(Af77, lda, A, sequence, request);
    if (sequence->status != PLASMA_SUCCESS)
        return;
    n = 0;
    m = PLASMA_RANK;
    while (m >= A.mt && n < A.nt) {
        n++;
        m = m-A.mt;
    }
    while (n < A.nt) {
        next_m = m;
        next_n = n;
        next_m += PLASMA_SIZE;
        while (next_m >= A.mt && next_n < A.nt) {
            next_n++;
            next_m = next_m-A.mt;
        }
        X1 = n == 0 ? A.j%A.nb : 0;
        X2 = n == A.nt-1 ? (A.j+A.n-1)%A.nb+1 : A.nb;
        Y1 = m == 0 ? A.i%A.mb : 0;
        Y2 = m == A.mt-1 ? (A.i+A.m-1)%A.mb+1 : A.mb;
        f77 = AF77(m, n);
        bdl = ABDL(m, n);
        ldt = BLKLDD(A, m);
        CORE_zlacpy(
            PlasmaUpperLower, (Y2-Y1), (X2-X1),
            &(f77[X1*lda+Y1]), lda,
            &(bdl[X1*lda+Y1]), ldt);

        m = next_m;
        n = next_n;
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

void plasma_pzlapack_to_tile_quark	(	PLASMA_Complex64_t *	Af77,
		int	lda,
		PLASMA_desc	A,
		PLASMA_sequence *	sequence,
		PLASMA_request *	request
	)

Conversion from LAPACK F77 matrix layout to tile layout - dynamic scheduling

Definition at line 88 of file pztile.c.

References ABDL, AF77, BLKLDD, plasma_desc_t::i, plasma_desc_t::j, plasma_desc_t::m, plasma_desc_t::mb, plasma_desc_t::mt, plasma_desc_t::n, plasma_desc_t::nb, plasma_desc_t::nt, plasma_context_self(), PLASMA_SUCCESS, PlasmaUpperLower, plasma_context_struct::quark, QUARK_CORE_zlacpy(), plasma_sequence_t::quark_sequence, QUARK_Task_Flag_Set(), Quark_Task_Flags_Initializer, plasma_sequence_t::status, and TASK_SEQUENCE.

{
    PLASMA_Complex64_t *f77;
    PLASMA_Complex64_t *bdl;
    plasma_context_t *plasma;
    int X1, Y1;
    int X2, Y2;
    int n, m, ldt;
    Quark_Task_Flags task_flags = Quark_Task_Flags_Initializer;
    plasma = plasma_context_self();
    if (sequence->status != PLASMA_SUCCESS)
        return;
    QUARK_Task_Flag_Set(&task_flags, TASK_SEQUENCE, (intptr_t)sequence->quark_sequence);
    for (m = 0; m < A.mt; m++)
    {
        ldt = BLKLDD(A, m);
        for (n = 0; n < A.nt; n++)
        {
            X1 = n == 0 ? A.j%A.nb : 0;
            Y1 = m == 0 ? A.i%A.mb : 0;
            X2 = n == A.nt-1 ? (A.j+A.n-1)%A.nb+1 : A.nb;
            Y2 = m == A.mt-1 ? (A.i+A.m-1)%A.mb+1 : A.mb;
            f77 = AF77(m, n);
            bdl = ABDL(m, n);
            QUARK_CORE_zlacpy(
                plasma->quark, &task_flags,
                PlasmaUpperLower, (Y2-Y1), (X2-X1), A.mb,
                &(f77[X1*lda+Y1]), lda,
                &(bdl[X1*lda+Y1]), ldt);
        }
    }
}

Here is the call graph for this function:

void plasma_pztile_to_lapack ( plasma_context_t * plasma )

Conversion from LAPACK F77 matrix layout to tile layout - static scheduling

Definition at line 128 of file pztile.c.

References A, ABDL, AF77, BLKLDD, CORE_zlacpy(), plasma_desc_t::i, plasma_desc_t::j, plasma_desc_t::m, plasma_desc_t::mb, plasma_desc_t::mt, plasma_desc_t::n, plasma_desc_t::nb, plasma_desc_t::nt, PLASMA_RANK, PLASMA_SIZE, PLASMA_SUCCESS, plasma_unpack_args_5, PlasmaUpperLower, and plasma_sequence_t::status.

{
    PLASMA_desc A;
    PLASMA_Complex64_t *Af77;
    int lda;
    PLASMA_sequence *sequence;
    PLASMA_request *request;
    PLASMA_Complex64_t *f77;
    PLASMA_Complex64_t *bdl;
    int X1, Y1;
    int X2, Y2;
    int n, m, ldt;
    int next_m;
    int next_n;
    plasma_unpack_args_5(A, Af77, lda, sequence, request);
    if (sequence->status != PLASMA_SUCCESS)
        return;
    n = 0;
    m = PLASMA_RANK;
    while (m >= A.mt && n < A.nt) {
        n++;
        m = m-A.mt;
    }
    while (n < A.nt) {
        next_m = m;
        next_n = n;
        next_m += PLASMA_SIZE;
        while (next_m >= A.mt && next_n < A.nt) {
            next_n++;
            next_m = next_m-A.mt;
        }
        X1 = n == 0 ? A.j%A.nb : 0;
        Y1 = m == 0 ? A.i%A.mb : 0;
        X2 = n == A.nt-1 ? (A.j+A.n-1)%A.nb+1 : A.nb;
        Y2 = m == A.mt-1 ? (A.i+A.m-1)%A.mb+1 : A.mb;
        f77 = AF77(m, n);
        bdl = ABDL(m, n);
        ldt = BLKLDD(A, m);
        CORE_zlacpy(
            PlasmaUpperLower, (Y2-Y1), (X2-X1),
            &(bdl[X1*lda+Y1]), ldt,
            &(f77[X1*lda+Y1]), lda);
        m = next_m;
        n = next_n;
    }
}

Here is the call graph for this function:

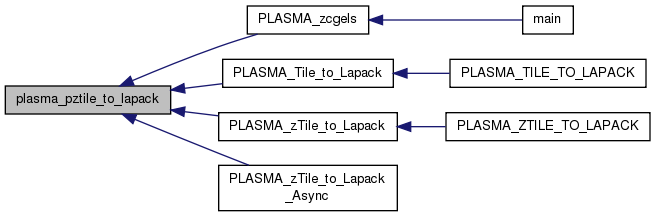

Here is the caller graph for this function:

void plasma_pztile_to_lapack_quark	(	PLASMA_desc	A,
		PLASMA_Complex64_t *	Af77,
		int	lda,
		PLASMA_sequence *	sequence,
		PLASMA_request *	request
	)

Conversion from LAPACK F77 matrix layout to tile layout - dynamic scheduling

Definition at line 187 of file pztile.c.

References ABDL, AF77, BLKLDD, plasma_desc_t::i, plasma_desc_t::j, plasma_desc_t::m, plasma_desc_t::mb, plasma_desc_t::mt, plasma_desc_t::n, plasma_desc_t::nb, plasma_desc_t::nt, plasma_context_self(), PLASMA_SUCCESS, PlasmaUpperLower, plasma_context_struct::quark, QUARK_CORE_zlacpy(), plasma_sequence_t::quark_sequence, QUARK_Task_Flag_Set(), Quark_Task_Flags_Initializer, plasma_sequence_t::status, and TASK_SEQUENCE.

{
    PLASMA_Complex64_t *f77;
    PLASMA_Complex64_t *bdl;
    plasma_context_t *plasma;
    int X1, Y1;
    int X2, Y2;
    int n, m, ldt;
    Quark_Task_Flags task_flags = Quark_Task_Flags_Initializer;
    plasma = plasma_context_self();
    if (sequence->status != PLASMA_SUCCESS)
        return;
    QUARK_Task_Flag_Set(&task_flags, TASK_SEQUENCE, (intptr_t)sequence->quark_sequence);
    for (m = 0; m < A.mt; m++)
    {
        ldt = BLKLDD(A, m);
        for (n = 0; n < A.nt; n++)
        {
            X1 = n == 0 ? A.j%A.nb : 0;
            Y1 = m == 0 ? A.i%A.mb : 0;
            X2 = n == A.nt-1 ? (A.j+A.n-1)%A.nb+1 : A.nb;
            Y2 = m == A.mt-1 ? (A.i+A.m-1)%A.mb+1 : A.mb;
            f77 = AF77(m, n);
            bdl = ABDL(m, n);
            QUARK_CORE_zlacpy(
                plasma->quark, &task_flags,
                PlasmaUpperLower, (Y2-Y1), (X2-X1), A.mb,
                &(bdl[X1*lda+Y1]), ldt,
                &(f77[X1*lda+Y1]), lda);
        }
    }
}

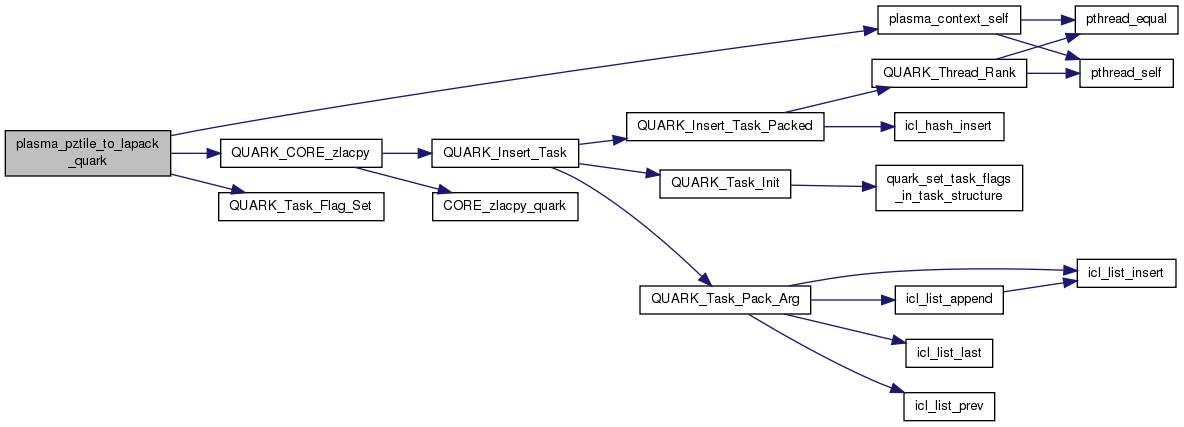

Here is the call graph for this function:

void plasma_pztile_zero ( plasma_context_t * plasma )

Zeroes a submatrix in tile layout - static scheduling

Definition at line 227 of file pztile.c.

References A, ABDL, BLKLDD, plasma_desc_t::i, plasma_desc_t::j, plasma_desc_t::m, plasma_desc_t::mb, plasma_desc_t::mt, plasma_desc_t::n, plasma_desc_t::nb, plasma_desc_t::nt, PLASMA_RANK, PLASMA_SIZE, PLASMA_SUCCESS, plasma_unpack_args_3, and plasma_sequence_t::status.

{
    PLASMA_desc A;
    PLASMA_sequence *sequence;
    PLASMA_request *request;
    PLASMA_Complex64_t *bdl;
    int x, y;
    int X1, Y1;
    int X2, Y2;
    int n, m, ldt;
    int next_m;
    int next_n;
    plasma_unpack_args_3(A, sequence, request);
    if (sequence->status != PLASMA_SUCCESS)
        return;
    n = 0;
    m = PLASMA_RANK;
    while (m >= A.mt && n < A.nt) {
        n++;
        m = m-A.mt;
    }
    while (n < A.nt) {
        next_m = m;
        next_n = n;
        next_m += PLASMA_SIZE;
        while (next_m >= A.mt && next_n < A.nt) {
            next_n++;
            next_m = next_m-A.mt;
        }
        X1 = n == 0 ? A.j%A.nb : 0;
        Y1 = m == 0 ? A.i%A.mb : 0;
        X2 = n == A.nt-1 ? (A.j+A.n-1)%A.nb+1 : A.nb;
        Y2 = m == A.mt-1 ? (A.i+A.m-1)%A.mb+1 : A.mb;
        bdl = ABDL(m, n);
        ldt = BLKLDD(A, m);
        for (x = X1; x < X2; x++)
            for (y = Y1; y < Y2; y++)
                bdl[ldt*x+y] = 0.0;
        m = next_m;
        n = next_n;
    }
}

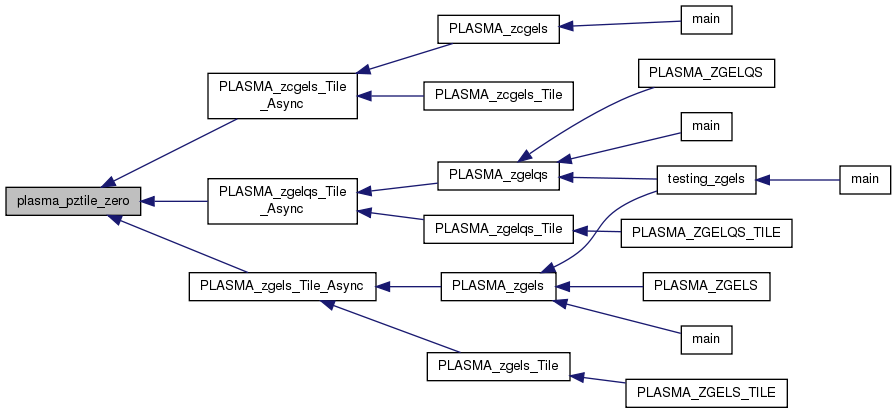

Here is the caller graph for this function:

void plasma_pztile_zero_quark	(	PLASMA_desc	A,
		PLASMA_sequence *	sequence,
		PLASMA_request *	request
	)

Zeroes a submatrix in tile layout - dynamic scheduling

Definition at line 281 of file pztile.c.

References ABDL, BLKLDD, plasma_desc_t::bsiz, CORE_ztile_zero_quark(), plasma_desc_t::i, plasma_desc_t::j, LOCALITY, plasma_desc_t::m, plasma_desc_t::mb, plasma_desc_t::mt, plasma_desc_t::n, plasma_desc_t::nb, plasma_desc_t::nt, OUTPUT, plasma_context_self(), PLASMA_SUCCESS, plasma_context_struct::quark, QUARK_Insert_Task(), plasma_sequence_t::quark_sequence, QUARK_Task_Flag_Set(), Quark_Task_Flags_Initializer, plasma_sequence_t::status, TASK_SEQUENCE, and VALUE.

{
    PLASMA_Complex64_t *bdl;
    plasma_context_t *plasma;
    int X1, Y1;
    int X2, Y2;
    int n, m, ldt;
    Quark_Task_Flags task_flags = Quark_Task_Flags_Initializer;
    plasma = plasma_context_self();
    if (sequence->status != PLASMA_SUCCESS)
        return;
    QUARK_Task_Flag_Set(&task_flags, TASK_SEQUENCE, (intptr_t)sequence->quark_sequence);
    for (m = 0; m < A.mt; m++)
    {
        ldt = BLKLDD(A, m);
        for (n = 0; n < A.nt; n++)
        {
            X1 = n == 0 ? A.j%A.nb : 0;
            Y1 = m == 0 ? A.i%A.mb : 0;
            X2 = n == A.nt-1 ? (A.j+A.n-1)%A.nb+1 : A.nb;
            Y2 = m == A.mt-1 ? (A.i+A.m-1)%A.mb+1 : A.mb;
            bdl = ABDL(m, n);
            QUARK_Insert_Task(plasma->quark, CORE_ztile_zero_quark, &task_flags,
                sizeof(int),                       &X1,  VALUE,
                sizeof(int),                       &X2,  VALUE,
                sizeof(int),                       &Y1,  VALUE,
                sizeof(int),                       &Y2,  VALUE,
                sizeof(PLASMA_Complex64_t)*A.bsiz, bdl,      OUTPUT | LOCALITY,
                sizeof(int),                       &ldt, VALUE,
                0);
        }
    }
}

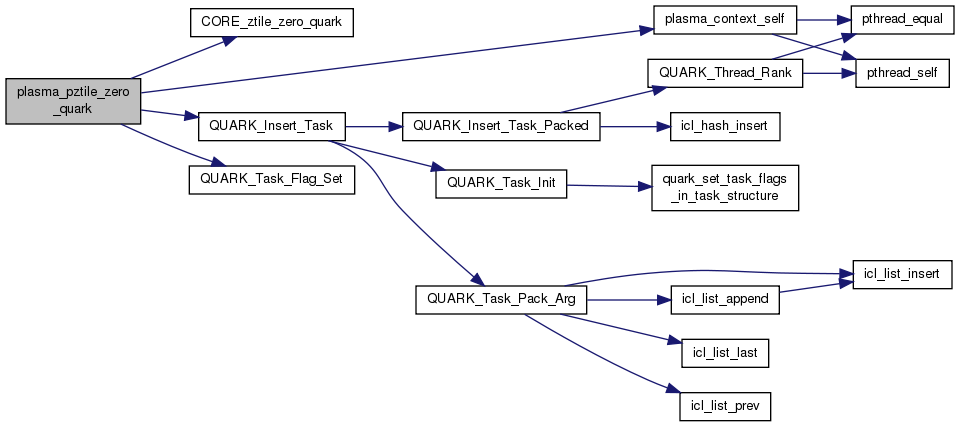

Here is the call graph for this function:
