#include "common.h"
#include "auxiliary.h"
#include "descriptor.h"
#include <stdlib.h>

Include dependency graph for descriptor.c:

Functions
PLASMA_desc	plasma_desc_init (PLASMA_enum dtyp, int mb, int nb, int bsiz, int lm, int ln, int i, int j, int m, int n)
PLASMA_desc	plasma_desc_submatrix (PLASMA_desc descA, int i, int j, int m, int n)
int	plasma_desc_check (PLASMA_desc *desc)
int	plasma_desc_mat_alloc (PLASMA_desc *desc)
int	plasma_desc_mat_free (PLASMA_desc *desc)
int	PLASMA_Desc_Create (PLASMA_desc *desc, void mat, PLASMA_enum dtyp, int mb, int nb, int bsiz, int lm, int ln, int i, int j, int m, int n)
int	PLASMA_Desc_Destroy (PLASMA_desc **desc)

Detailed Description

PLASMA auxiliary routines PLASMA is a software package provided by Univ. of Tennessee, Univ. of California Berkeley and Univ. of Colorado Denver

Version:: 2.4.5

Author:: Jakub Kurzak

Date:: 2010-11-15

Definition in file descriptor.c.

Function Documentation

int plasma_desc_check ( PLASMA_desc * desc )

Check for descriptor correctness

Definition at line 82 of file descriptor.c.

References plasma_desc_t::bsiz, plasma_desc_t::dtyp, plasma_desc_t::i, plasma_desc_t::j, plasma_desc_t::lm, plasma_desc_t::ln, plasma_desc_t::m, plasma_desc_t::mat, plasma_desc_t::mb, plasma_desc_t::n, plasma_desc_t::nb, PLASMA_ERR_ILLEGAL_VALUE, PLASMA_ERR_UNALLOCATED, plasma_error(), PLASMA_SUCCESS, PlasmaComplexDouble, PlasmaComplexFloat, PlasmaRealDouble, and PlasmaRealFloat.

{
    if (desc->mat == NULL) {
        plasma_error("plasma_desc_check", "NULL matrix pointer");
        return PLASMA_ERR_UNALLOCATED;
    }
    if (desc->dtyp != PlasmaRealFloat &&
        desc->dtyp != PlasmaRealDouble &&
        desc->dtyp != PlasmaComplexFloat &&
        desc->dtyp != PlasmaComplexDouble  ) {
        plasma_error("plasma_desc_check", "invalid matrix type");
        return PLASMA_ERR_ILLEGAL_VALUE;
    }
    if (desc->mb <= 0 || desc->nb <= 0) {
        plasma_error("plasma_desc_check", "negative tile dimension");
        return PLASMA_ERR_ILLEGAL_VALUE;
    }
    if (desc->bsiz < desc->mb*desc->nb) {
        plasma_error("plasma_desc_check", "tile memory size smaller than the product of dimensions");
        return PLASMA_ERR_ILLEGAL_VALUE;
    }
    if (desc->lm <= 0 || desc->ln <= 0) {
        plasma_error("plasma_desc_check", "negative matrix dimension");
        return PLASMA_ERR_ILLEGAL_VALUE;
    }
    if (desc->i >= desc->lm || desc->j >= desc->ln) {
        plasma_error("plasma_desc_check", "beginning of the matrix out of scope");
        return PLASMA_ERR_ILLEGAL_VALUE;
    }
    if (desc->i+desc->m > desc->lm || desc->j+desc->n > desc->ln) {
        plasma_error("plasma_desc_check", "submatrix out of scope");
        return PLASMA_ERR_ILLEGAL_VALUE;
    }
    return PLASMA_SUCCESS;
}

Here is the call graph for this function:

int PLASMA_Desc_Create	(	PLASMA_desc **	desc,
		void *	mat,
		PLASMA_enum	dtyp,
		int	mb,
		int	nb,
		int	bsiz,
		int	lm,
		int	ln,
		int	i,
		int	j,
		int	m,
		int	n
	)

PLASMA_Desc_Create - Create matrix descriptor.

Parameters:

[out]	desc	On exit, descriptor of the matrix.
[in]	mat	Memory location of the matrix.
[in]	dtyp	Data type of the matrix: PlasmaRealFloat: single precision real (S), PlasmaRealDouble: double precision real (D), PlasmaComplexFloat: single precision complex (C), PlasmaComplexDouble: double precision complex (Z).
[in]	mb	Number of rows in a tile.
[in]	nb	Number of columns in a tile.
[in]	bsiz	Size in bytes including padding.
[in]	lm	Number of rows of the entire matrix.
[in]	ln	Number of columns of the entire matrix.
[in]	i	Row index to the beginning of the submatrix.
[in]	j	Column indes to the beginning of the submatrix.
[in]	m	Number of rows of the submatrix.
[in]	n	Number of columns of the submatrix.

Returns:

Return values:

PLASMA_SUCCESS successful exit

Definition at line 201 of file descriptor.c.

References plasma_context_self(), plasma_desc_check(), plasma_desc_init(), PLASMA_ERR_NOT_INITIALIZED, PLASMA_ERR_OUT_OF_RESOURCES, plasma_error(), and PLASMA_SUCCESS.

{
    plasma_context_t *plasma;
    int status;
    plasma = plasma_context_self();
    if (plasma == NULL) {
        plasma_error("PLASMA_Desc_Create", "PLASMA not initialized");
        return PLASMA_ERR_NOT_INITIALIZED;
    }
    /* Allocate memory and initialize the descriptor */
    *desc = (PLASMA_desc*)malloc(sizeof(PLASMA_desc));
    if (*desc == NULL) {
        plasma_error("PLASMA_Desc_Create", "malloc() failed");
        return PLASMA_ERR_OUT_OF_RESOURCES;
    }
    **desc = plasma_desc_init(dtyp, mb, nb, bsiz, lm, ln, i, j, m, n);
    (**desc).mat = mat;
    status = plasma_desc_check(*desc);
    if (status != PLASMA_SUCCESS) {
        plasma_error("PLASMA_Desc_Create", "invalid descriptor");
        return status;
    }
    return PLASMA_SUCCESS;
}

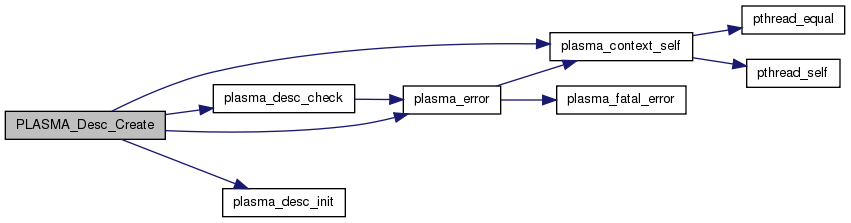

Here is the call graph for this function:

Here is the caller graph for this function:

int PLASMA_Desc_Destroy ( PLASMA_desc ** desc )

PLASMA_Desc_Destroy - Destroys matrix descriptor.

Parameters:

[in] desc Matrix descriptor.

Returns:

Return values:

PLASMA_SUCCESS successful exit

Definition at line 245 of file descriptor.c.

References plasma_context_self(), PLASMA_ERR_NOT_INITIALIZED, PLASMA_ERR_UNALLOCATED, plasma_error(), and PLASMA_SUCCESS.

{
    plasma_context_t *plasma;
    plasma = plasma_context_self();
    if (plasma == NULL) {
        plasma_error("PLASMA_Desc_Destroy", "PLASMA not initialized");
        return PLASMA_ERR_NOT_INITIALIZED;
    }
    if (*desc == NULL) {
        plasma_error("PLASMA_Desc_Destroy", "attempting to destroy a NULL descriptor");
        return PLASMA_ERR_UNALLOCATED;
    }
    free(*desc);
    *desc = NULL;
    return PLASMA_SUCCESS;
}

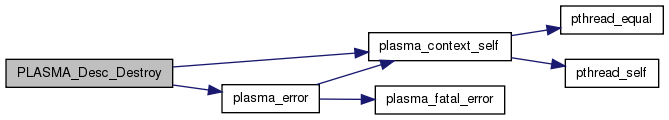

Here is the call graph for this function:

Here is the caller graph for this function:

PLASMA_desc plasma_desc_init	(	PLASMA_enum	dtyp,
		int	mb,
		int	nb,
		int	bsiz,
		int	lm,
		int	ln,
		int	i,
		int	j,
		int	m,
		int	n
	)

Internal static descriptor initializer

Definition at line 22 of file descriptor.c.

References plasma_desc_t::A12, plasma_desc_t::A21, plasma_desc_t::A22, plasma_desc_t::bsiz, plasma_desc_t::dtyp, plasma_desc_t::i, plasma_desc_t::j, plasma_desc_t::lm, plasma_desc_t::lm1, plasma_desc_t::lmt, plasma_desc_t::ln, plasma_desc_t::ln1, plasma_desc_t::lnt, plasma_desc_t::m, plasma_desc_t::mat, plasma_desc_t::mb, plasma_desc_t::mt, plasma_desc_t::n, plasma_desc_t::nb, and plasma_desc_t::nt.

{
    PLASMA_desc desc;
    // Matrix address
    desc.mat = NULL;
    desc.A21 = (lm - lm%mb)*(ln - ln%nb);
    desc.A12 = (     lm%mb)*(ln - ln%nb) + desc.A21;
    desc.A22 = (lm - lm%mb)*(     ln%nb) + desc.A12;
    // Matrix properties
    desc.dtyp = dtyp;
    desc.mb = mb;
    desc.nb = nb;
    desc.bsiz = bsiz;
    // Large matrix parameters
    desc.lm = lm;
    desc.ln = ln;
    // Large matrix derived parameters
    desc.lm1 = (lm/mb);
    desc.ln1 = (ln/nb);
    desc.lmt = (lm%mb==0) ? (lm/mb) : (lm/mb+1);
    desc.lnt = (ln%nb==0) ? (ln/nb) : (ln/nb+1);
    // Submatrix parameters
    desc.i = i;
    desc.j = j;
    desc.m = m;
    desc.n = n;
    // Submatrix derived parameters
    desc.mt = (i+m-1)/mb - i/mb + 1;
    desc.nt = (j+n-1)/nb - j/nb + 1;
    return desc;
}

int plasma_desc_mat_alloc ( PLASMA_desc * desc )

Definition at line 121 of file descriptor.c.

References plasma_desc_t::dtyp, plasma_desc_t::lm, plasma_desc_t::ln, plasma_desc_t::mat, plasma_element_size(), PLASMA_ERR_OUT_OF_RESOURCES, plasma_error(), and PLASMA_SUCCESS.

{
    size_t size;
    size = (size_t)desc->lm * (size_t)desc->ln * (size_t)plasma_element_size(desc->dtyp);
    if ((desc->mat = malloc(size)) == NULL) {
        plasma_error("plasma_desc_mat_alloc", "malloc() failed");
        return PLASMA_ERR_OUT_OF_RESOURCES;
    }
    memset(desc->mat, 0, size );
    return PLASMA_SUCCESS;
}

Here is the call graph for this function:

Here is the caller graph for this function:

int plasma_desc_mat_free ( PLASMA_desc * desc )

Definition at line 138 of file descriptor.c.

References plasma_desc_t::mat, and PLASMA_SUCCESS.

{
    if (desc->mat != NULL) {
        free(desc->mat);
        desc->mat = NULL;
    }
    return PLASMA_SUCCESS;
}

PLASMA_desc plasma_desc_submatrix	(	PLASMA_desc	descA,
		int	i,
		int	j,
		int	m,
		int	n
	)

Internal static descriptor initializer for submatrices

Definition at line 60 of file descriptor.c.

References plasma_desc_t::i, plasma_desc_t::j, plasma_desc_t::m, plasma_desc_t::mb, plasma_desc_t::mt, plasma_desc_t::n, plasma_desc_t::nb, and plasma_desc_t::nt.

{
    PLASMA_desc descB;
    int mb, nb;
    descB = descA;
    mb = descA.mb;
    nb = descA.nb;
    // Submatrix parameters
    descB.i = i;
    descB.j = j;
    descB.m = m;
    descB.n = n;
    // Submatrix derived parameters
    descB.mt = (i+m-1)/mb - i/mb + 1;
    descB.nt = (j+n-1)/nb - j/nb + 1;
    return descB;
}
