perfmon-ia64.c File Reference

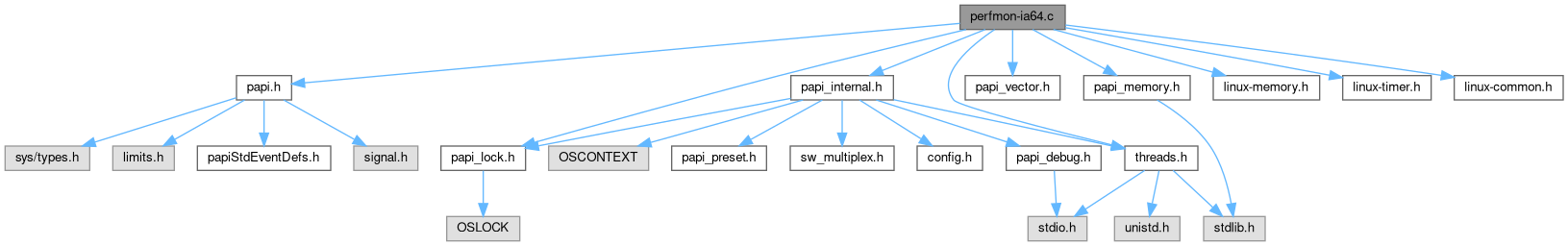

Include dependency graph for perfmon-ia64.c:

Go to the source code of this file.

Macros
#define	OVFL_SIGNAL   SIGPROF
#define	PFMW_PEVT_EVTCOUNT(evt)   (evt->inp.pfp_event_count)
#define	PFMW_PEVT_EVENT(evt, idx)   (evt->inp.pfp_events[idx].event)
#define	PFMW_PEVT_PLM(evt, idx)   (evt->inp.pfp_events[idx].plm)
#define	PFMW_PEVT_DFLPLM(evt)   (evt->inp.pfp_dfl_plm)
#define	PFMW_PEVT_PFPPC(evt)   (evt->pc)
#define	PFMW_PEVT_PFPPD(evt)   (evt->pd)
#define	PFMW_PEVT_PFPPC_COUNT(evt)   (evt->outp.pfp_pmc_count)
#define	PFMW_PEVT_PFPPC_REG_NUM(evt, idx)   (evt->outp.pfp_pmcs[idx].reg_num)
#define	PFMW_PEVT_PFPPC_REG_VAL(evt, idx)   (evt->pc[idx].reg_value)
#define	PFMW_PEVT_PFPPC_REG_FLG(evt, idx)   (evt->pc[idx].reg_flags)
#define	PFMW_ARCH_REG_PMCVAL(reg)   (reg.pmc_val)
#define	PFMW_ARCH_REG_PMDVAL(reg)   (reg.pmd_val)
#define	PFMON_MONT_MAX_IBRS   8
#define	PFMON_MONT_MAX_DBRS   8
#define	PFMON_ITA2_MAX_IBRS   8
#define	PFMON_ITA2_MAX_DBRS   8

Typedefs
typedef pfm_default_smpl_hdr_t	pfmw_smpl_hdr_t
typedef pfm_default_smpl_entry_t	pfmw_smpl_entry_t

Functions
static void	pfmw_start (hwd_context_t *ctx)
static void	pfmw_stop (hwd_context_t *ctx)
static int	pfmw_perfmonctl (pid_t tid, int fd, int cmd, void *arg, int narg)
static int	pfmw_destroy_context (hwd_context_t *thr_ctx)
static int	pfmw_dispatch_events (pfmw_param_t *evt)
static int	pfmw_create_ctx_common (hwd_context_t *ctx)
static int	pfmw_create_context (hwd_context_t *thr_ctx)
static int	set_pmds_to_write (EventSetInfo_t *ESI, int index, unsigned long value)
static int	_pfm_decode_native_event (unsigned int EventCode, unsigned int *event, unsigned int *umask)
static int	pfmw_recreate_context (EventSetInfo_t *ESI, hwd_context_t *thr_ctx, void **smpl_vaddr, int EventIndex)
static int	pfmw_get_event_name (char *name, unsigned int idx)
static void	pfmw_get_event_description (unsigned int idx, char *dest, int len)
static int	pfmw_is_dear (unsigned int i)
static int	pfmw_is_iear (unsigned int i)
static int	pfmw_support_darr (unsigned int i)

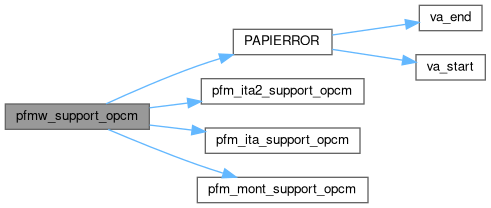

static int	pfmw_support_iarr (unsigned int i)
static int	pfmw_support_opcm (unsigned int i)
static void	check_ibrp_events (hwd_control_state_t *current_state)

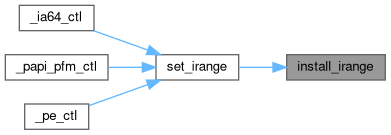

static int	install_irange (hwd_context_t *pctx, hwd_control_state_t *current_state)
static int	install_drange (hwd_context_t *pctx, hwd_control_state_t *current_state)
static int	set_drange (hwd_context_t *ctx, hwd_control_state_t *current_state, _papi_int_option_t *option)

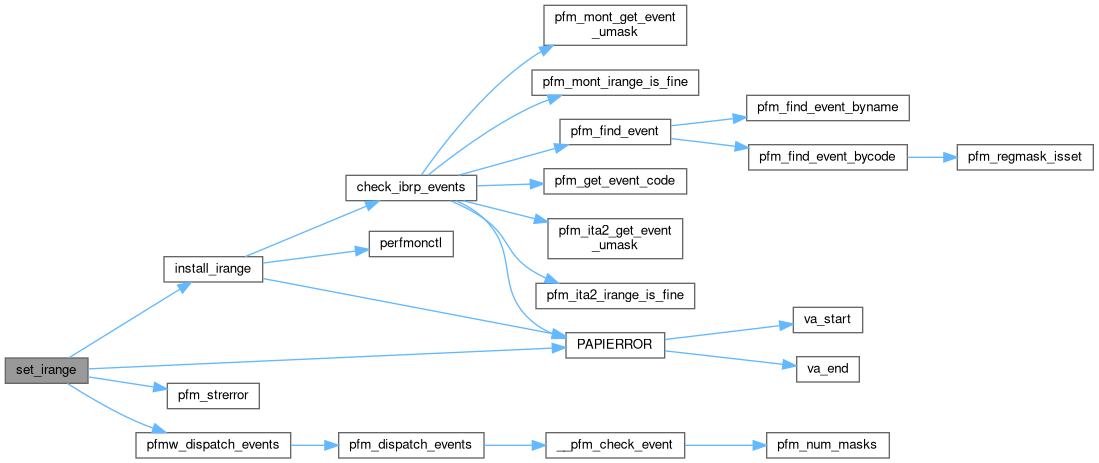

static int	set_irange (hwd_context_t *ctx, hwd_control_state_t *current_state, _papi_int_option_t *option)
static int	pfmw_get_num_counters (int *num)
static int	pfmw_get_num_events (int *num)
static int	_ia64_modify_event (unsigned int event, int modifier)
static int	encode_native_event_raw (unsigned int event, unsigned int mask)

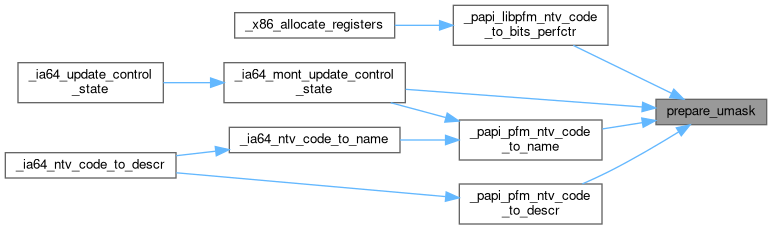

static int	prepare_umask (unsigned int foo, unsigned int *values)
int	_papi_pfm_ntv_enum_events (unsigned int *EventCode, int modifier)

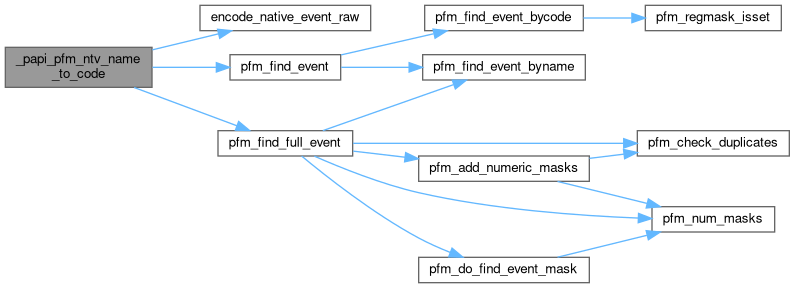

static int	_papi_pfm_ntv_name_to_code (const char *name, unsigned int *event_code)
int	_papi_pfm_ntv_code_to_name (unsigned int EventCode, char *ntv_name, int len)
int	_papi_pfm_ntv_code_to_descr (unsigned int EventCode, char *ntv_descr, int len)
int	generate_preset_search_map (hwi_search_t **maploc, itanium_preset_search_t *oldmap, int num_cnt)
static char *	search_cpu_info (FILE *f, char *search_str, char *line)
int	_ia64_ita_set_domain (hwd_control_state_t *this_state, int domain)
int	_ia64_ita2_set_domain (hwd_control_state_t *this_state, int domain)
int	_ia64_mont_set_domain (hwd_control_state_t *this_state, int domain)
int	_ia64_set_domain (hwd_control_state_t *this_state, int domain)
static int	set_granularity (hwd_control_state_t *this_state, int domain)
int	_ia64_ita_read (hwd_context_t *ctx, hwd_control_state_t *machdep, long long **events, int flags)
int	_ia64_ita23_read (hwd_context_t *ctx, hwd_control_state_t *machdep, long long **events, int flags)
int	_ia64_read (hwd_context_t *ctx, hwd_control_state_t *machdep, long long **events, int flags)
static int	set_inherit (int arg)

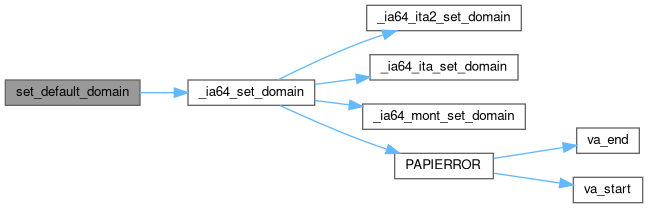

static int	set_default_domain (hwd_control_state_t *this_state, int domain)
static int	set_default_granularity (hwd_control_state_t *this_state, int granularity)
int	_ia64_init_component (int cidx)
int	_ia64_init (hwd_context_t *zero)
int	_ia64_reset (hwd_context_t *ctx, hwd_control_state_t *machdep)
int	_ia64_start (hwd_context_t *ctx, hwd_control_state_t *current_state)
int	_ia64_stop (hwd_context_t *ctx, hwd_control_state_t *zero)
static int	round_requested_ns (int ns)
int	_ia64_ctl (hwd_context_t *zero, int code, _papi_int_option_t *option)
int	_ia64_shutdown (hwd_context_t *ctx)
static int	ia64_ita_process_profile_buffer (ThreadInfo_t *thread, EventSetInfo_t *ESI)

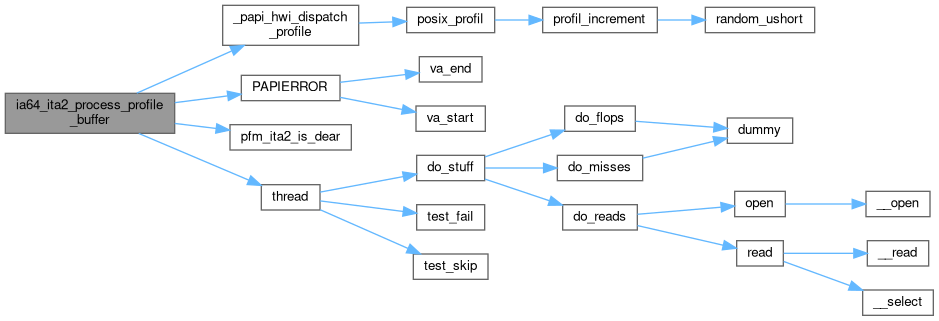

static int	ia64_ita2_process_profile_buffer (ThreadInfo_t *thread, EventSetInfo_t *ESI)
static int	ia64_mont_process_profile_buffer (ThreadInfo_t *thread, EventSetInfo_t *ESI)
static int	ia64_process_profile_buffer (ThreadInfo_t *thread, EventSetInfo_t *ESI)
static void	ia64_dispatch_sigprof (int n, hwd_siginfo_t *info, hwd_ucontext_t *sc)
void	_ia64_dispatch_timer (int signal, hwd_siginfo_t *info, void *context)
static int	set_notify (EventSetInfo_t *ESI, int index, int value)
int	_ia64_stop_profiling (ThreadInfo_t *thread, EventSetInfo_t *ESI)
int	_ia64_set_profile (EventSetInfo_t *ESI, int EventIndex, int threshold)
int	_ia64_set_overflow (EventSetInfo_t *ESI, int EventIndex, int threshold)
int	_ia64_ntv_code_to_name (unsigned int EventCode, char *ntv_name, int len)

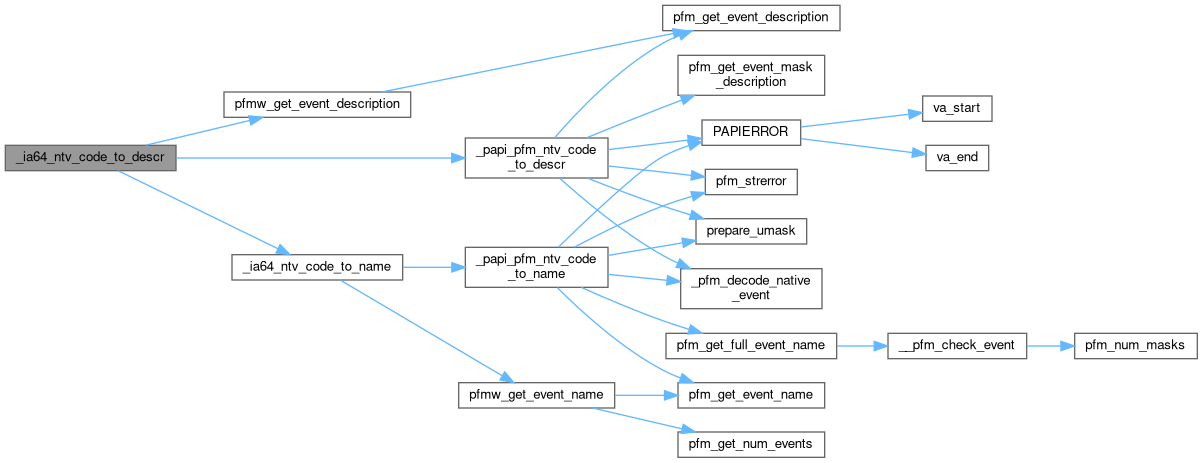

int	_ia64_ntv_code_to_descr (unsigned int EventCode, char *ntv_descr, int len)
int	_ia64_ntv_enum_events (unsigned int *EventCode, int modifier)
int	_ia64_ita_init_control_state (hwd_control_state_t *this_state)
int	_ia64_ita2_init_control_state (hwd_control_state_t *this_state)
int	_ia64_mont_init_control_state (hwd_control_state_t *this_state)
int	_ia64_init_control_state (hwd_control_state_t *this_state)
void	_ia64_remove_native (hwd_control_state_t *this_state, NativeInfo_t *nativeInfo)
int	_ia64_mont_update_control_state (hwd_control_state_t *this_state, NativeInfo_t *native, int count, hwd_context_t *zero)
int	_ia64_ita_update_control_state (hwd_control_state_t *this_state, NativeInfo_t *native, int count, hwd_context_t *zero)
int	_ia64_update_control_state (hwd_control_state_t *this_state, NativeInfo_t *native, int count, hwd_context_t *zero)

Variables
int	_perfmon2_pfm_pmu_type = -1
papi_vector_t	_ia64_vector
hwi_search_t *	preset_search_map
unsigned int	PAPI_NATIVE_EVENT_AND_MASK = 0x000003ff
unsigned int	PAPI_NATIVE_EVENT_SHIFT = 0
unsigned int	PAPI_NATIVE_UMASK_AND_MASK = 0x03fffc00
unsigned int	PAPI_NATIVE_UMASK_MAX = 16
unsigned int	PAPI_NATIVE_UMASK_SHIFT = 10
static itanium_preset_search_t	ia1_preset_search_map []
static itanium_preset_search_t	ia2_preset_search_map []
static itanium_preset_search_t	ia3_preset_search_map []

Macro Definition Documentation

OVFL_SIGNAL

#define OVFL_SIGNAL   SIGPROF

Definition at line 46 of file perfmon-ia64.c.

PFMON_ITA2_MAX_DBRS

#define PFMON_ITA2_MAX_DBRS   8

Definition at line 64 of file perfmon-ia64.c.

PFMON_ITA2_MAX_IBRS

#define PFMON_ITA2_MAX_IBRS   8

Definition at line 63 of file perfmon-ia64.c.

PFMON_MONT_MAX_DBRS

#define PFMON_MONT_MAX_DBRS   8

Definition at line 61 of file perfmon-ia64.c.

PFMON_MONT_MAX_IBRS

#define PFMON_MONT_MAX_IBRS   8

Definition at line 60 of file perfmon-ia64.c.

PFMW_ARCH_REG_PMCVAL

#define PFMW_ARCH_REG_PMCVAL

(

reg

)

(reg.pmc_val)

Definition at line 57 of file perfmon-ia64.c.

PFMW_ARCH_REG_PMDVAL

#define PFMW_ARCH_REG_PMDVAL

(

reg

)

(reg.pmd_val)

Definition at line 58 of file perfmon-ia64.c.

PFMW_PEVT_DFLPLM

#define PFMW_PEVT_DFLPLM

(

evt

)

(evt->inp.pfp_dfl_plm)

Definition at line 50 of file perfmon-ia64.c.

PFMW_PEVT_EVENT

#define PFMW_PEVT_EVENT	(		evt,
			idx
	)		(evt->inp.pfp_events[idx].event)

Definition at line 48 of file perfmon-ia64.c.

PFMW_PEVT_EVTCOUNT

#define PFMW_PEVT_EVTCOUNT

(

evt

)

(evt->inp.pfp_event_count)

Definition at line 47 of file perfmon-ia64.c.

PFMW_PEVT_PFPPC

#define PFMW_PEVT_PFPPC

(

evt

)

(evt->pc)

Definition at line 51 of file perfmon-ia64.c.

PFMW_PEVT_PFPPC_COUNT

#define PFMW_PEVT_PFPPC_COUNT

(

evt

)

(evt->outp.pfp_pmc_count)

Definition at line 53 of file perfmon-ia64.c.

PFMW_PEVT_PFPPC_REG_FLG

#define PFMW_PEVT_PFPPC_REG_FLG	(		evt,
			idx
	)		(evt->pc[idx].reg_flags)

Definition at line 56 of file perfmon-ia64.c.

PFMW_PEVT_PFPPC_REG_NUM

#define PFMW_PEVT_PFPPC_REG_NUM	(		evt,
			idx
	)		(evt->outp.pfp_pmcs[idx].reg_num)

Definition at line 54 of file perfmon-ia64.c.

PFMW_PEVT_PFPPC_REG_VAL

#define PFMW_PEVT_PFPPC_REG_VAL	(		evt,
			idx
	)		(evt->pc[idx].reg_value)

Definition at line 55 of file perfmon-ia64.c.

PFMW_PEVT_PFPPD

#define PFMW_PEVT_PFPPD

(

evt

)

(evt->pd)

Definition at line 52 of file perfmon-ia64.c.

PFMW_PEVT_PLM

#define PFMW_PEVT_PLM	(		evt,
			idx
	)		(evt->inp.pfp_events[idx].plm)

Definition at line 49 of file perfmon-ia64.c.

Typedef Documentation

pfmw_smpl_entry_t

typedef pfm_default_smpl_entry_t pfmw_smpl_entry_t

Definition at line 84 of file perfmon-ia64.c.

pfmw_smpl_hdr_t

typedef pfm_default_smpl_hdr_t pfmw_smpl_hdr_t

Definition at line 83 of file perfmon-ia64.c.

Function Documentation

_ia64_ctl()

int _ia64_ctl	(	hwd_context_t *	zero,
		int	code,
		_papi_int_option_t *	option
	)

Definition at line 2233 of file perfmon-ia64.c.

{
    int ret;
    switch ( code ) {
    case PAPI_DEFDOM:
        return ( set_default_domain( option->domain.ESI->ctl_state,
                                     option->domain.domain ) );
    case PAPI_DOMAIN:
        return ( _ia64_set_domain
                 ( option->domain.ESI->ctl_state, option->domain.domain ) );
    case PAPI_DEFGRN:
        return ( set_default_granularity
                 ( option->granularity.ESI->ctl_state,
                   option->granularity.granularity ) );
    case PAPI_GRANUL:
        return ( set_granularity( option->granularity.ESI->ctl_state,
                                  option->granularity.granularity ) );
#if 0
    case PAPI_INHERIT:
        return ( set_inherit( option->inherit.inherit ) );
#endif
    case PAPI_DATA_ADDRESS:
        ret =
            set_default_domain( option->address_range.ESI->ctl_state,
                                option->address_range.domain );
        if ( ret != PAPI_OK )
            return ( ret );
        set_drange( zero, option->address_range.ESI->ctl_state, option );
        return ( PAPI_OK );
    case PAPI_INSTR_ADDRESS:
        ret =
            set_default_domain( option->address_range.ESI->ctl_state,
                                option->address_range.domain );
        if ( ret != PAPI_OK )
            return ( ret );
        set_irange( zero, option->address_range.ESI->ctl_state, option );
        return ( PAPI_OK );
    case PAPI_DEF_ITIMER:{
        /* flags are currently ignored, eventually the flags will be able
           to specify whether or not we use POSIX itimers (clock_gettimer) */
        if ( ( option->itimer.itimer_num == ITIMER_REAL ) &&
             ( option->itimer.itimer_sig != SIGALRM ) )
            return PAPI_EINVAL;
        if ( ( option->itimer.itimer_num == ITIMER_VIRTUAL ) &&
             ( option->itimer.itimer_sig != SIGVTALRM ) )
            return PAPI_EINVAL;
        if ( ( option->itimer.itimer_num == ITIMER_PROF ) &&
             ( option->itimer.itimer_sig != SIGPROF ) )
            return PAPI_EINVAL;
        if ( option->itimer.ns > 0 )
            option->itimer.ns = round_requested_ns( option->itimer.ns );
        /* At this point, we assume the user knows what he or
           she is doing, they maybe doing something arch specific */
        return PAPI_OK;
    }
    case PAPI_DEF_MPX_NS:{
        option->multiplex.ns = round_requested_ns( option->multiplex.ns );
        return ( PAPI_OK );
    }
    case PAPI_DEF_ITIMER_NS:{
        option->itimer.ns = round_requested_ns( option->itimer.ns );
        return ( PAPI_OK );
    }
    default:
        return ( PAPI_EINVAL );
    }
}

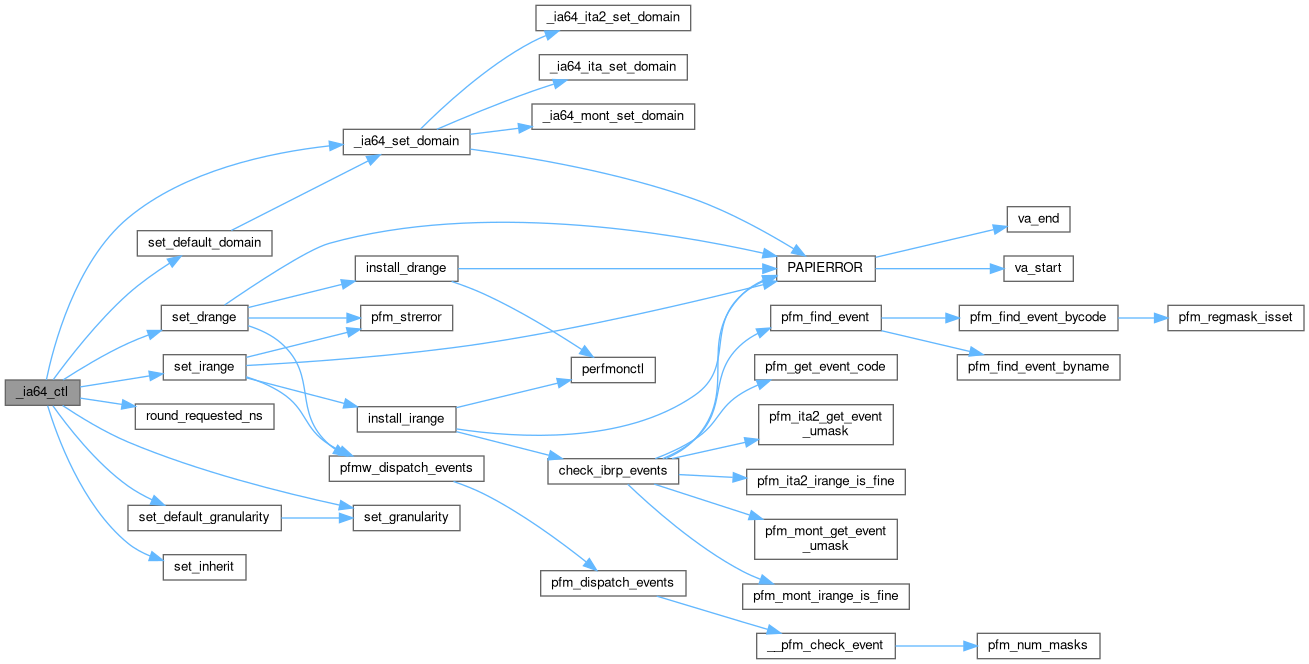

Here is the call graph for this function:

_ia64_dispatch_timer()

void _ia64_dispatch_timer	(	int	signal,
		hwd_siginfo_t *	info,
		void *	context
	)

Definition at line 2666 of file perfmon-ia64.c.

{
    ia64_dispatch_sigprof( signal, info, context );
}

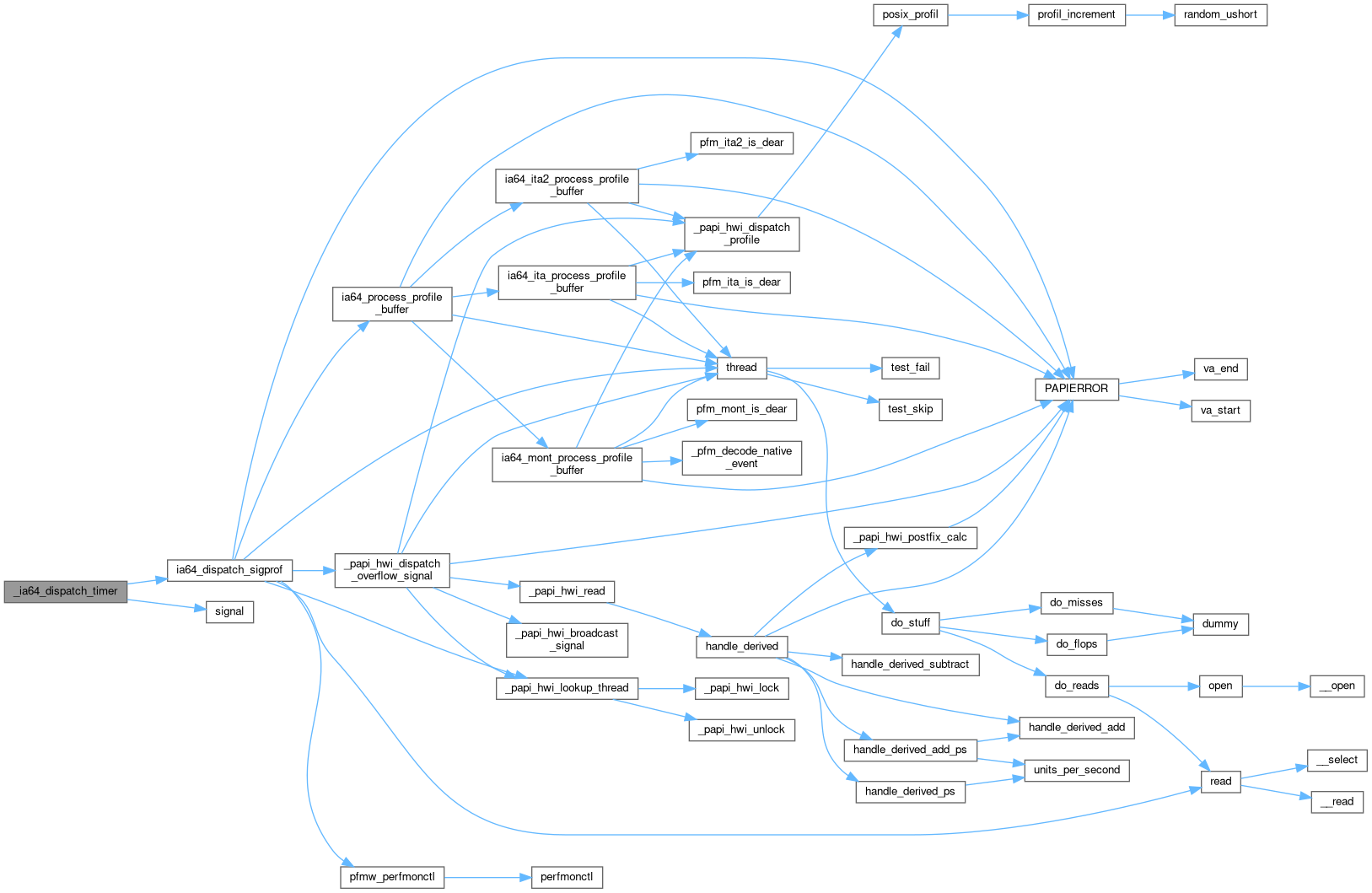

Here is the call graph for this function:

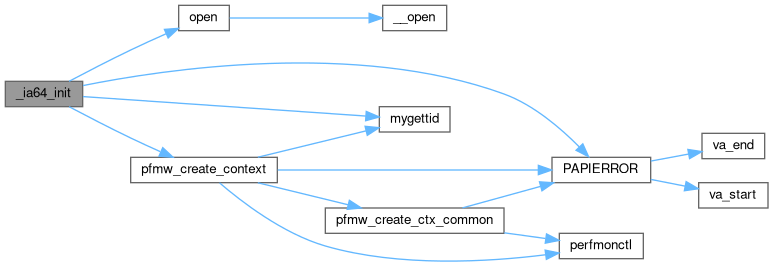

_ia64_init()

int _ia64_init

(

hwd_context_t *

zero

)

Definition at line 2129 of file perfmon-ia64.c.

{
#if defined(USE_PROC_PTTIMER)
    {
        char buf[LINE_MAX];
        int fd;
        sprintf( buf, "/proc/%d/task/%d/stat", getpid(  ), mygettid(  ) );
        fd = open( buf, O_RDONLY );
        if ( fd == -1 ) {
            PAPIERROR( "open(%s)", buf );
            return ( PAPI_ESYS );
        }
        zero->stat_fd = fd;
    }
#endif
    return ( pfmw_create_context( zero ) );
}

Here is the call graph for this function:

_ia64_init_component()

int _ia64_init_component

(

int

cidx

)

Definition at line 2019 of file perfmon-ia64.c.

{
    ( void ) cidx;           /*unused */
    int i, retval, type;
    unsigned int version;
    pfmlib_options_t pfmlib_options;
    itanium_preset_search_t *ia_preset_search_map = NULL;

    /* Always initialize globals dynamically to handle forks properly. */

    preset_search_map = NULL;

    /* Opened once for all threads. */
    if ( pfm_initialize(  ) != PFMLIB_SUCCESS )
        return ( PAPI_ESYS );

    if ( pfm_get_version( &version ) != PFMLIB_SUCCESS )
        return PAPI_ECMP;

    if ( PFM_VERSION_MAJOR( version ) != PFM_VERSION_MAJOR( PFMLIB_VERSION ) ) {
        PAPIERROR( "Version mismatch of libpfm: compiled %#x vs. installed %#x",
                   PFM_VERSION_MAJOR( PFMLIB_VERSION ),
                   PFM_VERSION_MAJOR( version ) );
        return PAPI_ECMP;
    }

    memset( &pfmlib_options, 0, sizeof ( pfmlib_options ) );
#ifdef DEBUG
    if ( ISLEVEL( DEBUG_SUBSTRATE ) ) {
        pfmlib_options.pfm_debug = 1;
        pfmlib_options.pfm_verbose = 1;
    }
#endif

    if ( pfm_set_options( &pfmlib_options ) )
        return ( PAPI_ESYS );

    if ( pfm_get_pmu_type( &type ) != PFMLIB_SUCCESS )
        return ( PAPI_ESYS );

    _perfmon2_pfm_pmu_type = type;

    /* Setup presets */

    switch ( type ) {
    case PFMLIB_ITANIUM_PMU:
        ia_preset_search_map = ia1_preset_search_map;
        break;
    case PFMLIB_ITANIUM2_PMU:
        ia_preset_search_map = ia2_preset_search_map;
        break;
    case PFMLIB_MONTECITO_PMU:
        ia_preset_search_map = ia3_preset_search_map;
        break;
    default:
        PAPIERROR( "PMU type %d is not supported by this component", type );
        return ( PAPI_EBUG );
    }

    int ncnt, nnev;

    retval = pfmw_get_num_events( &nnev );
    if ( retval != PAPI_OK )
        return ( retval );

    retval = pfmw_get_num_counters( &ncnt );
    if ( retval != PAPI_OK )
        return ( retval );

    sprintf( _ia64_vector.cmp_info.support_version,
         "%08x", PFMLIB_VERSION );
    sprintf( _ia64_vector.cmp_info.kernel_version,
         "%08x", 2 << 16 ); /* 2.0 */

    _ia64_vector.cmp_info.num_native_events = nnev;
    _ia64_vector.cmp_info.num_cntrs = ncnt;
    _ia64_vector.cmp_info.num_mpx_cntrs = ncnt;

    _ia64_vector.cmp_info.clock_ticks = sysconf( _SC_CLK_TCK );
    /* Put the signal handler in use to consume PFM_END_MSG's */
    _papi_hwi_start_signal( _ia64_vector.cmp_info.hardware_intr_sig, 1,
                            _ia64_vector.cmp_info.CmpIdx );

    retval = mmtimer_setup();
    if ( retval )
        return ( retval );

    retval =
        generate_preset_search_map( &preset_search_map, ia_preset_search_map,
                                    _ia64_vector.cmp_info.num_cntrs );
    if ( retval )
        return ( retval );

    retval = _papi_hwi_setup_all_presets( preset_search_map, NULL );
    if ( retval )
        return ( retval );

    /* get_memory_info has a CPU model argument that is not used,
     * faking it here with hw_info.model which is not set by this
     * component
     */
    retval = _linux_get_memory_info( &_papi_hwi_system_info.hw_info,
                     _papi_hwi_system_info.hw_info.model );
    if ( retval )
        return ( retval );

    return ( PAPI_OK );
}

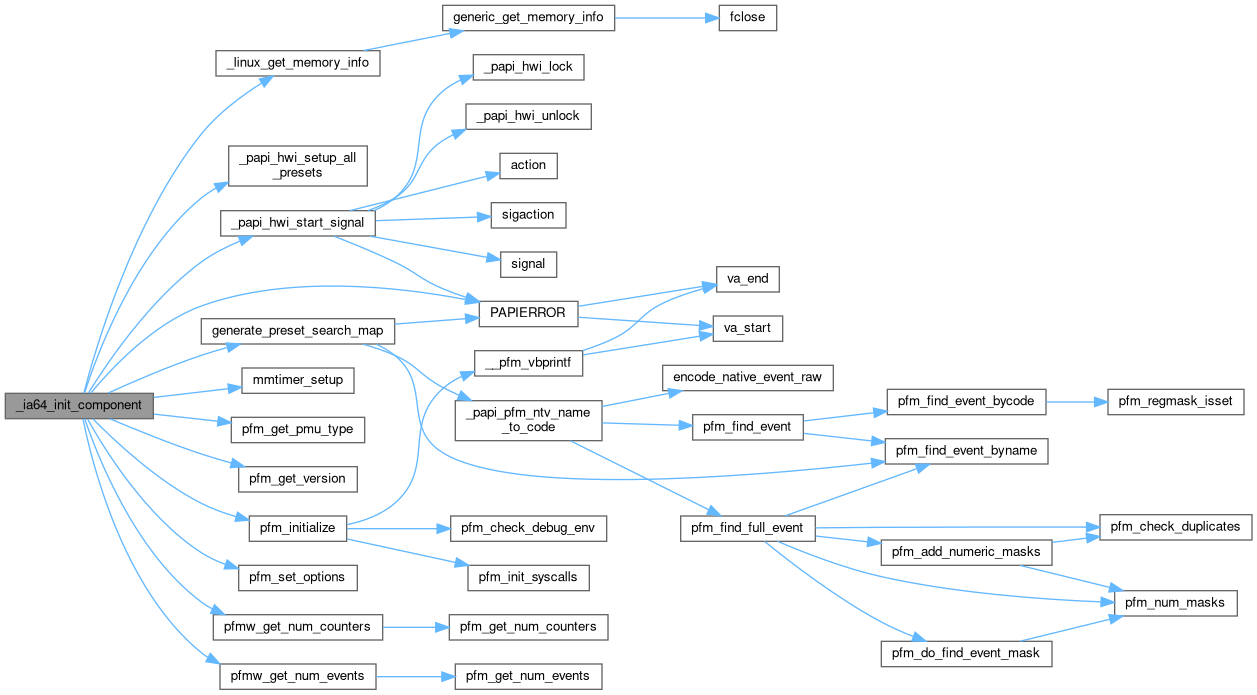

Here is the call graph for this function:

_ia64_init_control_state()

int _ia64_init_control_state

(

hwd_control_state_t *

this_state

)

Definition at line 2932 of file perfmon-ia64.c.

{
    switch ( _perfmon2_pfm_pmu_type ) {
    case PFMLIB_ITANIUM_PMU:
        return ( _ia64_ita_init_control_state( this_state ) );
        break;
    case PFMLIB_ITANIUM2_PMU:
        return ( _ia64_ita2_init_control_state( this_state ) );
        break;
    case PFMLIB_MONTECITO_PMU:
        return ( _ia64_mont_init_control_state( this_state ) );
        break;
    default:
        PAPIERROR( "PMU type %d is not supported by this component",
                   _perfmon2_pfm_pmu_type );
        return ( PAPI_EBUG );
    }
}

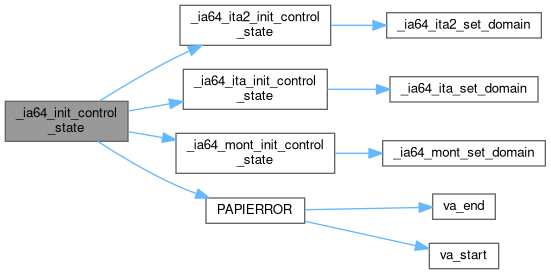

Here is the call graph for this function:

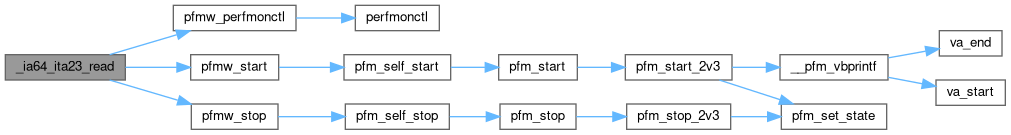

_ia64_ita23_read()

int _ia64_ita23_read	(	hwd_context_t *	ctx,
		hwd_control_state_t *	machdep,
		long long **	events,
		int	flags
	)

Definition at line 1935 of file perfmon-ia64.c.

{
    ( void ) flags;          /*unused */
    int i;
    pfarg_reg_t readem[_ia64_vector.cmp_info.num_cntrs];

    pfmw_stop( ( ia64_context_t * ) ctx );
    memset( readem, 0x0, sizeof readem );

/* read the 4 counters, the high level function will process the
   mapping for papi event to hardware counter
*/
    for ( i = 0; i < _ia64_vector.cmp_info.num_cntrs; i++ ) {
        readem[i].reg_num = PMU_FIRST_COUNTER + i;
    }

    if ( pfmw_perfmonctl
         ( ( ( ia64_context_t * ) ctx )->tid, ( ( ia64_context_t * ) ctx )->fd,
           PFM_READ_PMDS, readem, _ia64_vector.cmp_info.num_cntrs ) == -1 ) {
        SUBDBG( "perfmonctl error READ_PMDS errno %d\n", errno );
        pfmw_start( ( ia64_context_t * ) ctx );
        return PAPI_ESYS;
    }

    for ( i = 0; i < _ia64_vector.cmp_info.num_cntrs; i++ ) {
        ( ( ia64_control_state_t * ) machdep )->counters[i] =
            readem[i].reg_value;
        SUBDBG( "read counters is %ld\n", readem[i].reg_value );
    }

    *events = ( ( ia64_control_state_t * ) machdep )->counters;
    pfmw_start( ( ia64_context_t * ) ctx );
    return PAPI_OK;
}

Here is the call graph for this function:

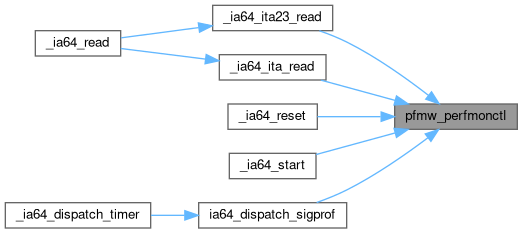

Here is the caller graph for this function:

_ia64_ita2_init_control_state()

int _ia64_ita2_init_control_state

(

hwd_control_state_t *

this_state

)

Definition at line 2888 of file perfmon-ia64.c.

{
    pfmw_param_t *evt;
    pfmw_ita2_param_t *param;
    ia64_control_state_t *ptr;

    ptr = ( ia64_control_state_t * ) this_state;
    evt = &( ptr->evt );

    param = &( ptr->ita_lib_param.ita2_param );
    memset( evt, 0, sizeof ( pfmw_param_t ) );
    memset( param, 0, sizeof ( pfmw_ita2_param_t ) );

    _ia64_ita2_set_domain( this_state, _ia64_vector.cmp_info.default_domain );
/* set library parameter pointer */
    evt->mod_inp = &( param->ita2_input_param );
    evt->mod_outp = &( param->ita2_output_param );

    return ( PAPI_OK );
}

Here is the call graph for this function:

Here is the caller graph for this function:

_ia64_ita2_set_domain()

int _ia64_ita2_set_domain	(	hwd_control_state_t *	this_state,
		int	domain
	)

Definition at line 1764 of file perfmon-ia64.c.

{
    int mode = 0, did = 0, i;
    pfmw_param_t *evt = &this_state->evt;

    if ( domain & PAPI_DOM_USER ) {
        did = 1;
        mode |= PFM_PLM3;
    }

    if ( domain & PAPI_DOM_KERNEL ) {
        did = 1;
        mode |= PFM_PLM0;
    }

    if ( !did )
        return ( PAPI_EINVAL );

    PFMW_PEVT_DFLPLM( evt ) = mode;

    /* Bug fix in case we don't call pfmw_dispatch_events after this code */
    /* Who did this? This sucks, we should always call it here -PJM */

    for ( i = 0; i < _ia64_vector.cmp_info.num_cntrs; i++ ) {
        if ( PFMW_PEVT_PFPPC_REG_NUM( evt, i ) ) {
            pfm_ita2_pmc_reg_t value;
            SUBDBG( "slot %d, register %lud active, config value %#lx\n",
                    i, ( unsigned long ) ( PFMW_PEVT_PFPPC_REG_NUM( evt, i ) ),
                    PFMW_PEVT_PFPPC_REG_VAL( evt, i ) );

            PFMW_ARCH_REG_PMCVAL( value ) = PFMW_PEVT_PFPPC_REG_VAL( evt, i );
            value.pmc_ita2_counter_reg.pmc_plm = mode;
            PFMW_PEVT_PFPPC_REG_VAL( evt, i ) = PFMW_ARCH_REG_PMCVAL( value );

            SUBDBG( "new config value %#lx\n",
                    PFMW_PEVT_PFPPC_REG_VAL( evt, i ) );
        }
    }

    return ( PAPI_OK );
}

Here is the caller graph for this function:

_ia64_ita_init_control_state()

int _ia64_ita_init_control_state

(

hwd_control_state_t *

this_state

)

Definition at line 2868 of file perfmon-ia64.c.

{
    pfmw_param_t *evt;
    pfmw_ita1_param_t *param;
    ia64_control_state_t *ptr;

    ptr = ( ia64_control_state_t * ) this_state;
    evt = &( ptr->evt );

    param = &( ptr->ita_lib_param.ita_param );
    memset( evt, 0, sizeof ( pfmw_param_t ) );
    memset( param, 0, sizeof ( pfmw_ita1_param_t ) );

    _ia64_ita_set_domain( this_state, _ia64_vector.cmp_info.default_domain );
/* set library parameter pointer */

    return ( PAPI_OK );
}

Here is the call graph for this function:

Here is the caller graph for this function:

_ia64_ita_read()

int _ia64_ita_read	(	hwd_context_t *	ctx,
		hwd_control_state_t *	machdep,
		long long **	events,
		int	flags
	)

Definition at line 1888 of file perfmon-ia64.c.

{
    ( void ) flags;          /*unused */
    unsigned int i;
    pfarg_reg_t readem[_ia64_vector.cmp_info.num_cntrs];

    pfmw_stop( ( ia64_context_t * ) ctx );
    memset( readem, 0x0, sizeof readem );

/* read the 4 counters, the high level function will process the
   mapping for papi event to hardware counter
*/
    for ( i = 0; i < ( unsigned int ) _ia64_vector.cmp_info.num_cntrs; i++ ) {
        readem[i].reg_num = PMU_FIRST_COUNTER + i;
    }

    if ( pfmw_perfmonctl
         ( ( ( ia64_context_t * ) ctx )->tid, ( ( ia64_context_t * ) ctx )->fd,
           PFM_READ_PMDS, readem, _ia64_vector.cmp_info.num_cntrs ) == -1 ) {
        SUBDBG( "perfmonctl error READ_PMDS errno %d\n", errno );
        pfmw_start( ( ia64_context_t * ) ctx );
        return PAPI_ESYS;
    }

    for ( i = 0; i < ( unsigned int ) _ia64_vector.cmp_info.num_cntrs; i++ ) {
        ( ( ia64_control_state_t * ) machdep )->counters[i] =
            readem[i].reg_value;
        SUBDBG( "read counters is %ld\n", readem[i].reg_value );
    }

    pfmw_param_t *pevt = &( ( ( ia64_control_state_t * ) machdep )->evt );
    pfm_ita_pmc_reg_t flop_hack;
    /* special case, We need to scale FP_OPS_HI */
    for ( i = 0; i < PFMW_PEVT_EVTCOUNT( pevt ); i++ ) {
        PFMW_ARCH_REG_PMCVAL( flop_hack ) = PFMW_PEVT_PFPPC_REG_VAL( pevt, i );
        if ( flop_hack.pmc_ita_count_reg.pmc_es == 0xa )
            ( ( ia64_control_state_t * ) machdep )->counters[i] *= 4;
    }

    *events = ( ( ia64_control_state_t * ) machdep )->counters;
    pfmw_start( ( ia64_context_t * ) ctx );
    return PAPI_OK;
}

Here is the call graph for this function:

Here is the caller graph for this function:

_ia64_ita_set_domain()

int _ia64_ita_set_domain	(	hwd_control_state_t *	this_state,
		int	domain
	)

Definition at line 1721 of file perfmon-ia64.c.

{
    int mode = 0, did = 0, i;
    pfmw_param_t *evt = &( ( ia64_control_state_t * ) this_state )->evt;

    if ( domain & PAPI_DOM_USER ) {
        did = 1;
        mode |= PFM_PLM3;
    }

    if ( domain & PAPI_DOM_KERNEL ) {
        did = 1;
        mode |= PFM_PLM0;
    }

    if ( !did )
        return ( PAPI_EINVAL );

    PFMW_PEVT_DFLPLM( evt ) = mode;

    /* Bug fix in case we don't call pfmw_dispatch_events after this code */
    /* Who did this? This sucks, we should always call it here -PJM */

    for ( i = 0; i < _ia64_vector.cmp_info.num_cntrs; i++ ) {
        if ( PFMW_PEVT_PFPPC_REG_NUM( evt, i ) ) {
            pfm_ita_pmc_reg_t value;
            SUBDBG( "slot %d, register %lud active, config value %#lx\n",
                    i, ( unsigned long ) ( PFMW_PEVT_PFPPC_REG_NUM( evt, i ) ),
                    PFMW_PEVT_PFPPC_REG_VAL( evt, i ) );

            PFMW_ARCH_REG_PMCVAL( value ) = PFMW_PEVT_PFPPC_REG_VAL( evt, i );
            value.pmc_ita_count_reg.pmc_plm = mode;
            PFMW_PEVT_PFPPC_REG_VAL( evt, i ) = PFMW_ARCH_REG_PMCVAL( value );

            SUBDBG( "new config value %#lx\n",
                    PFMW_PEVT_PFPPC_REG_VAL( evt, i ) );
        }
    }

    return PAPI_OK;
}

Here is the caller graph for this function:

_ia64_ita_update_control_state()

int _ia64_ita_update_control_state	(	hwd_control_state_t *	this_state,
		NativeInfo_t *	native,
		int	count,
		hwd_context_t *	zero
	)

Definition at line 3042 of file perfmon-ia64.c.

{
    ( void ) zero;           /*unused */
    int index, org_cnt;
    unsigned int i;
    pfmw_param_t *evt = &this_state->evt;
    pfmw_param_t copy_evt;

    if ( count == 0 ) {
        for ( i = 0; i < ( unsigned int ) _ia64_vector.cmp_info.num_cntrs; i++ )
            PFMW_PEVT_EVENT( evt, i ) = 0;
        PFMW_PEVT_EVTCOUNT( evt ) = 0;
        memset( PFMW_PEVT_PFPPC( evt ), 0, sizeof ( PFMW_PEVT_PFPPC( evt ) ) );
        memset( &evt->inp.pfp_unavail_pmcs, 0, sizeof ( pfmlib_regmask_t ) );
        return ( PAPI_OK );
    }

/* save the old data */
    org_cnt = PFMW_PEVT_EVTCOUNT( evt );

    memcpy( &copy_evt, evt, sizeof ( pfmw_param_t ) );
    for ( i = 0; i < ( unsigned int ) _ia64_vector.cmp_info.num_cntrs; i++ )
        PFMW_PEVT_EVENT( evt, i ) = 0;
    PFMW_PEVT_EVTCOUNT( evt ) = 0;
    memset( PFMW_PEVT_PFPPC( evt ), 0, sizeof ( PFMW_PEVT_PFPPC( evt ) ) );
    memset( &evt->inp.pfp_unavail_pmcs, 0, sizeof ( pfmlib_regmask_t ) );

    SUBDBG( " original count is %d\n", org_cnt );

/* add new native events to the evt structure */
    for ( i = 0; i < ( unsigned int ) count; i++ ) {
        index = native[i].ni_event & PAPI_NATIVE_AND_MASK;
        PFMW_PEVT_EVENT( evt, i ) = index;
    }
    PFMW_PEVT_EVTCOUNT( evt ) = count;
    /* Recalcuate the pfmlib_param_t structure, may also signal conflict */
    if ( pfmw_dispatch_events( evt ) ) {
        SUBDBG( "pfmw_dispatch_events fail\n" );
        /* recover the old data */
        PFMW_PEVT_EVTCOUNT( evt ) = org_cnt;
        /*for (i = 0; i < _ia64_vector.cmp_info.num_cntrs; i++)
           PFMW_PEVT_EVENT(evt,i) = events[i];
         */
        memcpy( evt, &copy_evt, sizeof ( pfmw_param_t ) );
        return ( PAPI_ECNFLCT );
    }
    SUBDBG( "event_count=%d\n", PFMW_PEVT_EVTCOUNT( evt ) );

    for ( i = 0; i < PFMW_PEVT_EVTCOUNT( evt ); i++ ) {
        native[i].ni_position = PFMW_PEVT_PFPPC_REG_NUM( evt, i )
            - PMU_FIRST_COUNTER;
        SUBDBG( "event_code is %d, reg_num is %d\n",
                native[i].ni_event & PAPI_NATIVE_AND_MASK,
                native[i].ni_position );
    }

    return ( PAPI_OK );
}

Here is the call graph for this function:

Here is the caller graph for this function:

_ia64_modify_event()

static int _ia64_modify_event ( unsigned int  event, int  modifier  )

static

Definition at line 2826 of file perfmon-ia64.c.

{
    switch ( modifier ) {
    case PAPI_NTV_ENUM_IARR:
        return ( pfmw_support_iarr( event ) );
    case PAPI_NTV_ENUM_DARR:
        return ( pfmw_support_darr( event ) );
    case PAPI_NTV_ENUM_OPCM:
        return ( pfmw_support_opcm( event ) );
    case PAPI_NTV_ENUM_DEAR:
        return ( pfmw_is_dear( event ) );
    case PAPI_NTV_ENUM_IEAR:
        return ( pfmw_is_iear( event ) );
    default:
        return ( 1 );
    }
}

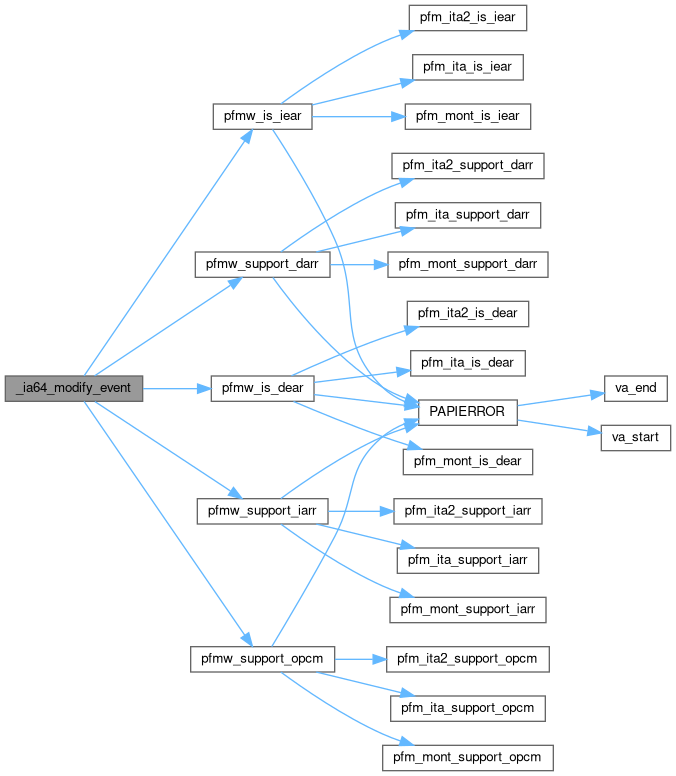

Here is the call graph for this function:

Here is the caller graph for this function:

_ia64_mont_init_control_state()

int _ia64_mont_init_control_state

(

hwd_control_state_t *

this_state

)

Definition at line 2910 of file perfmon-ia64.c.

{
    pfmw_param_t *evt;
    pfmw_mont_param_t *param;
    ia64_control_state_t *ptr;

    ptr = ( ia64_control_state_t * ) this_state;
    evt = &( ptr->evt );

    param = &( ptr->ita_lib_param.mont_param );
    memset( evt, 0, sizeof ( pfmw_param_t ) );
    memset( param, 0, sizeof ( pfmw_mont_param_t ) );

    _ia64_mont_set_domain( this_state, _ia64_vector.cmp_info.default_domain );
/* set library parameter pointer */
    evt->mod_inp = &( param->mont_input_param );
    evt->mod_outp = &( param->mont_output_param );

    return ( PAPI_OK );
}

Here is the call graph for this function:

Here is the caller graph for this function:

_ia64_mont_set_domain()

int _ia64_mont_set_domain	(	hwd_control_state_t *	this_state,
		int	domain
	)

Definition at line 1807 of file perfmon-ia64.c.

{
    int mode = 0, did = 0, i;
    pfmw_param_t *evt = &( ( ia64_control_state_t * ) this_state )->evt;

    if ( domain & PAPI_DOM_USER ) {
        did = 1;
        mode |= PFM_PLM3;
    }

    if ( domain & PAPI_DOM_KERNEL ) {
        did = 1;
        mode |= PFM_PLM0;
    }

    if ( !did )
        return ( PAPI_EINVAL );

    PFMW_PEVT_DFLPLM( evt ) = mode;

    /* Bug fix in case we don't call pfmw_dispatch_events after this code */
    /* Who did this? This sucks, we should always call it here -PJM */

    for ( i = 0; i < _ia64_vector.cmp_info.num_cntrs; i++ ) {
        if ( PFMW_PEVT_PFPPC_REG_NUM( evt, i ) ) {
            pfm_mont_pmc_reg_t value;
            SUBDBG( "slot %d, register %lud active, config value %#lx\n",
                    i, ( unsigned long ) ( PFMW_PEVT_PFPPC_REG_NUM( evt, i ) ),
                    PFMW_PEVT_PFPPC_REG_VAL( evt, i ) );

            PFMW_ARCH_REG_PMCVAL( value ) = PFMW_PEVT_PFPPC_REG_VAL( evt, i );
            value.pmc_mont_counter_reg.pmc_plm = mode;
            PFMW_PEVT_PFPPC_REG_VAL( evt, i ) = PFMW_ARCH_REG_PMCVAL( value );

            SUBDBG( "new config value %#lx\n",
                    PFMW_PEVT_PFPPC_REG_VAL( evt, i ) );
        }
    }

    return ( PAPI_OK );
}

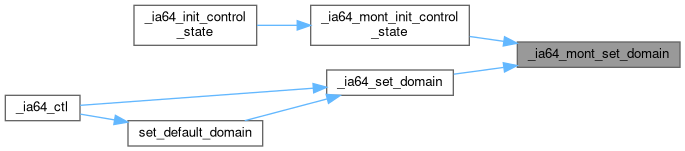

Here is the caller graph for this function:

_ia64_mont_update_control_state()

int _ia64_mont_update_control_state	(	hwd_control_state_t *	this_state,
		NativeInfo_t *	native,
		int	count,
		hwd_context_t *	zero
	)

Definition at line 2961 of file perfmon-ia64.c.

{
    ( void ) zero;           /*unused */
    int org_cnt;
    pfmw_param_t *evt = &this_state->evt;
    pfmw_param_t copy_evt;
    unsigned int i, j, event, umask, EventCode;
    pfmlib_event_t gete;
    char name[128];

    if ( count == 0 ) {
        for ( i = 0; i < ( unsigned int ) _ia64_vector.cmp_info.num_cntrs; i++ )
            PFMW_PEVT_EVENT( evt, i ) = 0;
        PFMW_PEVT_EVTCOUNT( evt ) = 0;
        memset( PFMW_PEVT_PFPPC( evt ), 0, sizeof ( PFMW_PEVT_PFPPC( evt ) ) );
        memset( &evt->inp.pfp_unavail_pmcs, 0, sizeof ( pfmlib_regmask_t ) );
        return ( PAPI_OK );
    }

/* save the old data */
    org_cnt = PFMW_PEVT_EVTCOUNT( evt );

    memcpy( &copy_evt, evt, sizeof ( pfmw_param_t ) );

    for ( i = 0; i < ( unsigned int ) _ia64_vector.cmp_info.num_cntrs; i++ )
        PFMW_PEVT_EVENT( evt, i ) = 0;
    PFMW_PEVT_EVTCOUNT( evt ) = 0;
    memset( PFMW_PEVT_PFPPC( evt ), 0, sizeof ( PFMW_PEVT_PFPPC( evt ) ) );
    memset( &evt->inp.pfp_unavail_pmcs, 0, sizeof ( pfmlib_regmask_t ) );

    SUBDBG( " original count is %d\n", org_cnt );

/* add new native events to the evt structure */
    for ( i = 0; i < ( unsigned int ) count; i++ ) {
        memset( &gete, 0, sizeof ( gete ) );
        EventCode = native[i].ni_event;
        _papi_pfm_ntv_code_to_name( EventCode, name, 128 );
        if ( _pfm_decode_native_event( EventCode, &event, &umask ) != PAPI_OK )
            return ( PAPI_ENOEVNT );

        SUBDBG( " evtcode=%#x evtindex=%d name: %s\n", EventCode, event,
                name );

        PFMW_PEVT_EVENT( evt, i ) = event;
        evt->inp.pfp_events[i].num_masks = 0;
        gete.event = event;
        gete.num_masks = prepare_umask( umask, gete.unit_masks );
        if ( gete.num_masks ) {
            evt->inp.pfp_events[i].num_masks = gete.num_masks;
            for ( j = 0; j < gete.num_masks; j++ )
                evt->inp.pfp_events[i].unit_masks[j] = gete.unit_masks[j];
        }
    }
    PFMW_PEVT_EVTCOUNT( evt ) = count;
    /* Recalcuate the pfmlib_param_t structure, may also signal conflict */
    if ( pfmw_dispatch_events( evt ) ) {
        SUBDBG( "pfmw_dispatch_events fail\n" );
        /* recover the old data */
        PFMW_PEVT_EVTCOUNT( evt ) = org_cnt;
        /*for (i = 0; i < _ia64_vector.cmp_info.num_cntrs; i++)
           PFMW_PEVT_EVENT(evt,i) = events[i];
         */
        memcpy( evt, &copy_evt, sizeof ( pfmw_param_t ) );
        return ( PAPI_ECNFLCT );
    }
    SUBDBG( "event_count=%d\n", PFMW_PEVT_EVTCOUNT( evt ) );

    for ( i = 0; i < PFMW_PEVT_EVTCOUNT( evt ); i++ ) {
        native[i].ni_position = PFMW_PEVT_PFPPC_REG_NUM( evt, i )
            - PMU_FIRST_COUNTER;
        SUBDBG( "event_code is %d, reg_num is %d\n",
                native[i].ni_event & PAPI_NATIVE_AND_MASK,
                native[i].ni_position );
    }

    return ( PAPI_OK );
}

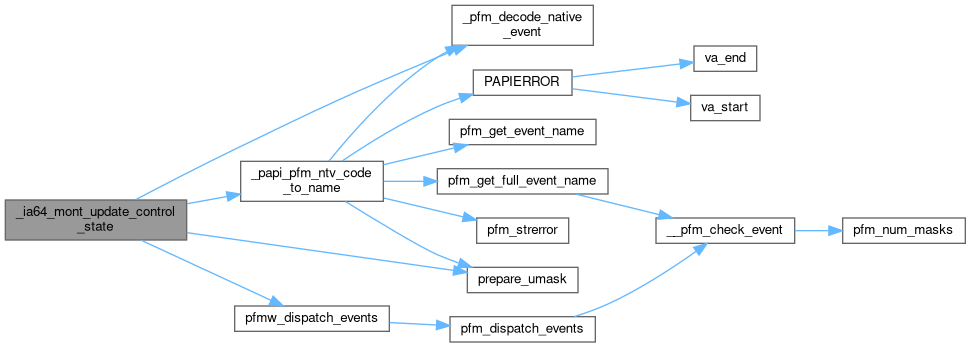

Here is the call graph for this function:

Here is the caller graph for this function:

_ia64_ntv_code_to_descr()

int _ia64_ntv_code_to_descr	(	unsigned int	EventCode,
		char *	ntv_descr,
		int	len
	)

Definition at line 2810 of file perfmon-ia64.c.

{
    if ( _perfmon2_pfm_pmu_type == PFMLIB_MONTECITO_PMU )
        return ( _papi_pfm_ntv_code_to_descr( EventCode, ntv_descr, len ) );
    else {
#if defined(HAVE_PFM_GET_EVENT_DESCRIPTION)
        pfmw_get_event_description( EventCode ^ PAPI_NATIVE_MASK, ntv_descr,
                                    len );
        return ( PAPI_OK );
#else
        return ( _ia64_ntv_code_to_name( EventCode, ntv_descr, len ) );
#endif
    }
}

Here is the call graph for this function:

_ia64_ntv_code_to_name()

int _ia64_ntv_code_to_name	(	unsigned int	EventCode,
		char *	ntv_name,
		int	len
	)

Definition at line 2791 of file perfmon-ia64.c.

{
    if ( _perfmon2_pfm_pmu_type == PFMLIB_MONTECITO_PMU )
        return ( _papi_pfm_ntv_code_to_name( EventCode, ntv_name, len ) );
    else {
        char name[PAPI_MAX_STR_LEN];
        int ret = 0;

        pfmw_get_event_name( name, EventCode ^ PAPI_NATIVE_MASK );

        if ( ret != PAPI_OK )
            return ( PAPI_ENOEVNT );

        strncpy( ntv_name, name, len );
        return ( PAPI_OK );
    }
}

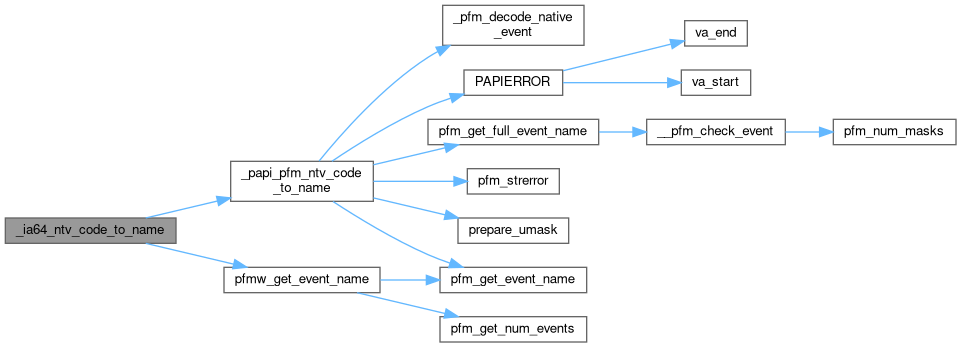

Here is the call graph for this function:

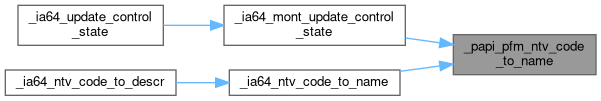

Here is the caller graph for this function:

_ia64_ntv_enum_events()

int _ia64_ntv_enum_events	(	unsigned int *	EventCode,
		int	modifier
	)

Definition at line 2845 of file perfmon-ia64.c.

{
    if ( _perfmon2_pfm_pmu_type == PFMLIB_MONTECITO_PMU )
        return ( _papi_pfm_ntv_enum_events( EventCode, modifier ) );
    else {
        int index = *EventCode & PAPI_NATIVE_AND_MASK;

        if ( modifier == PAPI_ENUM_FIRST ) {
            *EventCode = PAPI_NATIVE_MASK;
            return ( PAPI_OK );
        }

        while ( index++ < _ia64_vector.cmp_info.num_native_events - 1 ) {
            *EventCode += 1;
            if ( _ia64_modify_event
                 ( ( *EventCode ^ PAPI_NATIVE_MASK ), modifier ) )
                return ( PAPI_OK );
        }
        return ( PAPI_ENOEVNT );
    }
}

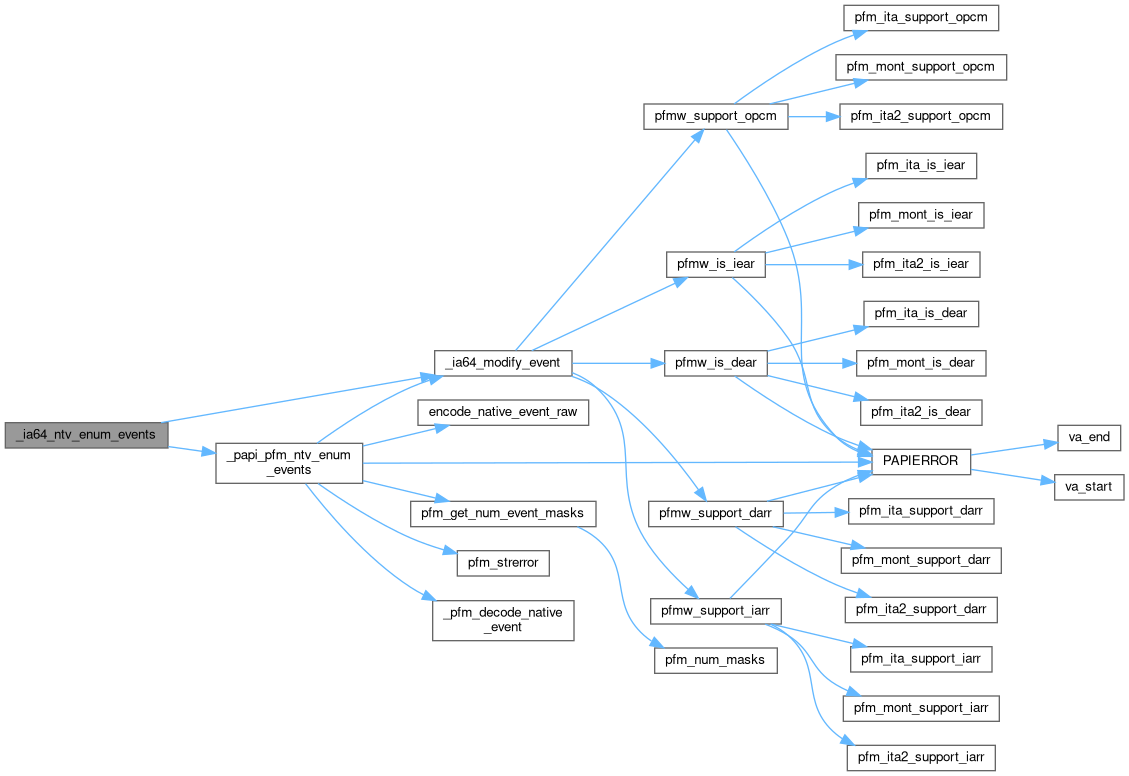

Here is the call graph for this function:

_ia64_read()

int _ia64_read	(	hwd_context_t *	ctx,
		hwd_control_state_t *	machdep,
		long long **	events,
		int	flags
	)

Definition at line 1972 of file perfmon-ia64.c.

{
    switch ( _perfmon2_pfm_pmu_type ) {
    case PFMLIB_ITANIUM_PMU:
        return ( _ia64_ita_read( ctx, machdep, events, flags ) );
        break;
    case PFMLIB_ITANIUM2_PMU:
        return ( _ia64_ita23_read( ctx, machdep, events, flags ) );
        break;
    case PFMLIB_MONTECITO_PMU:
        return ( _ia64_ita23_read( ctx, machdep, events, flags ) );
        break;
    default:
        PAPIERROR( "PMU type %d is not supported by this component",
                   _perfmon2_pfm_pmu_type );
        return ( PAPI_EBUG );
    }
}

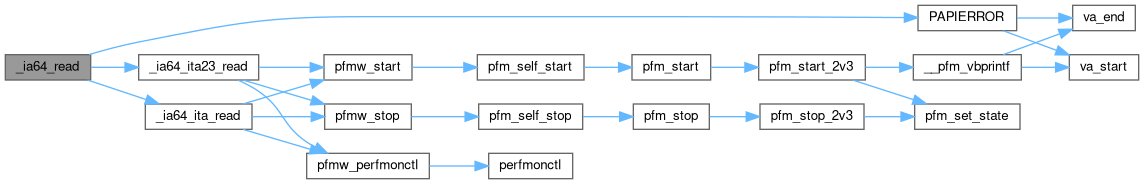

Here is the call graph for this function:

_ia64_remove_native()

void _ia64_remove_native	(	hwd_control_state_t *	this_state,
		NativeInfo_t *	nativeInfo
	)

Definition at line 2952 of file perfmon-ia64.c.

{
    ( void ) this_state;     /*unused */
    ( void ) nativeInfo;     /*unused */
    return;
}

_ia64_reset()

int _ia64_reset	(	hwd_context_t *	ctx,
		hwd_control_state_t *	machdep
	)

Definition at line 2149 of file perfmon-ia64.c.

{
    pfmw_param_t *pevt = &( machdep->evt );
    pfarg_reg_t writeem[MAX_COUNTERS];
    int i;

    pfmw_stop( ctx );
    memset( writeem, 0, sizeof writeem );
    for ( i = 0; i < _ia64_vector.cmp_info.num_cntrs; i++ ) {
        /* Writing doesn't matter, we're just zeroing the counter. */
        writeem[i].reg_num = PMU_FIRST_COUNTER + i;
        if ( PFMW_PEVT_PFPPC_REG_FLG( pevt, i ) & PFM_REGFL_OVFL_NOTIFY )
            writeem[i].reg_value = machdep->pd[i].reg_long_reset;
    }
    if ( pfmw_perfmonctl
         ( ctx->tid, ctx->fd, PFM_WRITE_PMDS, writeem,
           _ia64_vector.cmp_info.num_cntrs ) == -1 ) {
        PAPIERROR( "perfmonctl(PFM_WRITE_PMDS) errno %d", errno );
        return PAPI_ESYS;
    }
    pfmw_start( ctx );
    return ( PAPI_OK );
}

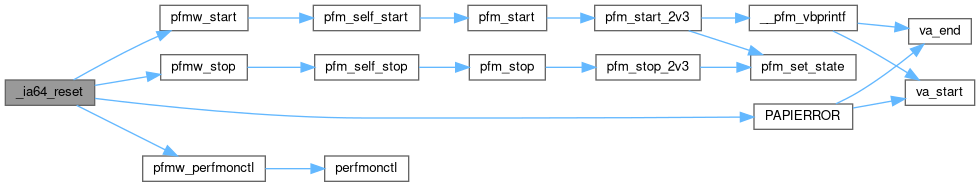

Here is the call graph for this function:

_ia64_set_domain()

int _ia64_set_domain	(	hwd_control_state_t *	this_state,
		int	domain
	)

Definition at line 1850 of file perfmon-ia64.c.

{
    switch ( _perfmon2_pfm_pmu_type ) {
    case PFMLIB_ITANIUM_PMU:
        return ( _ia64_ita_set_domain( this_state, domain ) );
        break;
    case PFMLIB_ITANIUM2_PMU:
        return ( _ia64_ita2_set_domain( this_state, domain ) );
        break;
    case PFMLIB_MONTECITO_PMU:
        return ( _ia64_mont_set_domain( this_state, domain ) );
        break;
    default:
        PAPIERROR( "PMU type %d is not supported by this component",
                   _perfmon2_pfm_pmu_type );
        return ( PAPI_EBUG );
    }
}

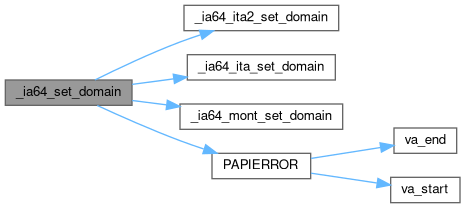

Here is the call graph for this function:

Here is the caller graph for this function:

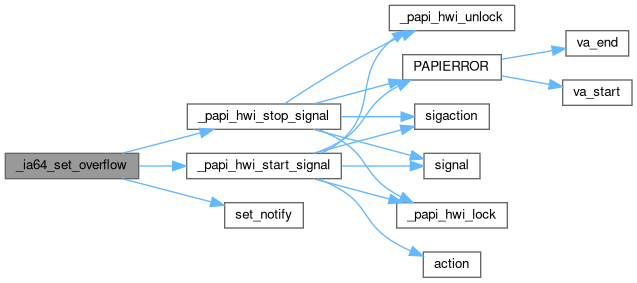

_ia64_set_overflow()

int _ia64_set_overflow	(	EventSetInfo_t *	ESI,
		int	EventIndex,
		int	threshold
	)

Definition at line 2743 of file perfmon-ia64.c.

{
    hwd_control_state_t *this_state = ESI->ctl_state;
    int j, retval = PAPI_OK, *pos;
    int cidx = _ia64_vector.cmp_info.CmpIdx;

    pos = ESI->EventInfoArray[EventIndex].pos;
    j = pos[0];
    SUBDBG( "Hardware counter %d used in overflow, threshold %d\n", j,
            threshold );

    if ( threshold == 0 ) {
        /* Remove the signal handler */

        retval = _papi_hwi_stop_signal( _ia64_vector.cmp_info.hardware_intr_sig );
        if ( retval != PAPI_OK )
            return ( retval );

        /* Remove the overflow notifier on the proper event. */

        set_notify( ESI, EventIndex, 0 );

        this_state->pd[j].reg_value = 0;
        this_state->pd[j].reg_long_reset = 0;
        this_state->pd[j].reg_short_reset = 0;
    } else {
        retval =
            _papi_hwi_start_signal( _ia64_vector.cmp_info.hardware_intr_sig, 1,
                                    cidx );
        if ( retval != PAPI_OK )
            return ( retval );

        /* Set the overflow notifier on the proper event. Remember that selector */

        set_notify( ESI, EventIndex, PFM_REGFL_OVFL_NOTIFY );

        this_state->pd[j].reg_value =
            ( ~0UL ) - ( unsigned long ) threshold + 1;
        this_state->pd[j].reg_short_reset =
            ( ~0UL ) - ( unsigned long ) threshold + 1;
        this_state->pd[j].reg_long_reset =
            ( ~0UL ) - ( unsigned long ) threshold + 1;

    }
    return ( retval );
}

Here is the call graph for this function:

_ia64_set_profile()

int _ia64_set_profile	(	EventSetInfo_t *	ESI,
		int	EventIndex,
		int	threshold
	)

Definition at line 2715 of file perfmon-ia64.c.

{
    int cidx = _ia64_vector.cmp_info.CmpIdx;
    hwd_control_state_t *this_state = ESI->ctl_state;
    hwd_context_t *ctx = ESI->master->context[cidx];
    int ret;

    ret = _ia64_vector.set_overflow( ESI, EventIndex, threshold );
    if ( ret != PAPI_OK )
        return ret;
    ret = pfmw_destroy_context( ctx );
    if ( ret != PAPI_OK )
        return ret;
    if ( threshold == 0 )
        ret = pfmw_create_context( ctx );
    else
        ret =
            pfmw_recreate_context( ESI, ctx, &this_state->smpl_vaddr,
                                   EventIndex );

//#warning "This should be handled in the high level layers"
    ESI->state ^= PAPI_OVERFLOWING;
    ESI->overflow.flags ^= PAPI_OVERFLOW_HARDWARE;

    return ( ret );
}

Here is the call graph for this function:

_ia64_shutdown()

int _ia64_shutdown

(

hwd_context_t *

ctx

)

Definition at line 2302 of file perfmon-ia64.c.

{
#if defined(USE_PROC_PTTIMER)
    close( ctx->stat_fd );
#endif

    return ( pfmw_destroy_context( ctx ) );
}

Here is the call graph for this function:

_ia64_start()

int _ia64_start	(	hwd_context_t *	ctx,
		hwd_control_state_t *	current_state
	)

Definition at line 2174 of file perfmon-ia64.c.

{
    int i;
    pfmw_param_t *pevt = &( current_state->evt );

    pfmw_stop( ctx );

/* write PMCS */
    if ( pfmw_perfmonctl( ctx->tid, ctx->fd, PFM_WRITE_PMCS,
                          PFMW_PEVT_PFPPC( pevt ),
                          PFMW_PEVT_PFPPC_COUNT( pevt ) ) == -1 ) {
        PAPIERROR( "perfmonctl(PFM_WRITE_PMCS) errno %d", errno );
        return ( PAPI_ESYS );
    }
    if ( pfmw_perfmonctl
         ( ctx->tid, ctx->fd, PFM_WRITE_PMDS, PFMW_PEVT_PFPPD( pevt ),
           PFMW_PEVT_EVTCOUNT( pevt ) ) == -1 ) {
        PAPIERROR( "perfmonctl(PFM_WRITE_PMDS) errno %d", errno );
        return ( PAPI_ESYS );
    }

/* set the initial value of the hardware counter , if PAPI_overflow or
  PAPI_profil are called, then the initial value is the threshold
*/
    for ( i = 0; i < _ia64_vector.cmp_info.num_cntrs; i++ )
        current_state->pd[i].reg_num = PMU_FIRST_COUNTER + i;

    if ( pfmw_perfmonctl( ctx->tid, ctx->fd,
                          PFM_WRITE_PMDS, current_state->pd,
                          _ia64_vector.cmp_info.num_cntrs ) == -1 ) {
        PAPIERROR( "perfmonctl(WRITE_PMDS) errno %d", errno );
        return ( PAPI_ESYS );
    }

    pfmw_start( ctx );

    return PAPI_OK;
}

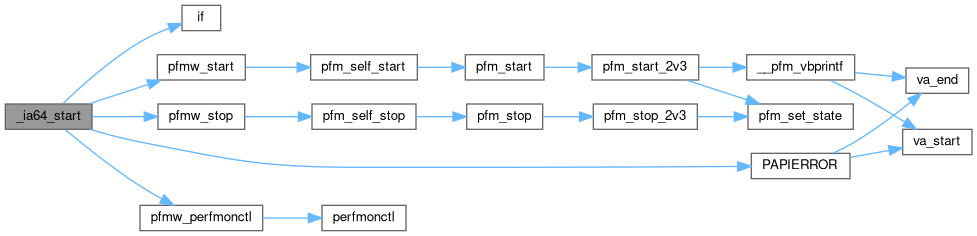

Here is the call graph for this function:

_ia64_stop()

int _ia64_stop	(	hwd_context_t *	ctx,
		hwd_control_state_t *	zero
	)

Definition at line 2214 of file perfmon-ia64.c.

{
    ( void ) zero;           /*unused */
    pfmw_stop( ctx );
    return PAPI_OK;
}

Here is the call graph for this function:

_ia64_stop_profiling()

int _ia64_stop_profiling	(	ThreadInfo_t *	thread,
		EventSetInfo_t *	ESI
	)

Definition at line 2705 of file perfmon-ia64.c.

{
    int cidx = _ia64_vector.cmp_info.CmpIdx;

    pfmw_stop( thread->context[cidx] );
    return ( ia64_process_profile_buffer( thread, ESI ) );
}

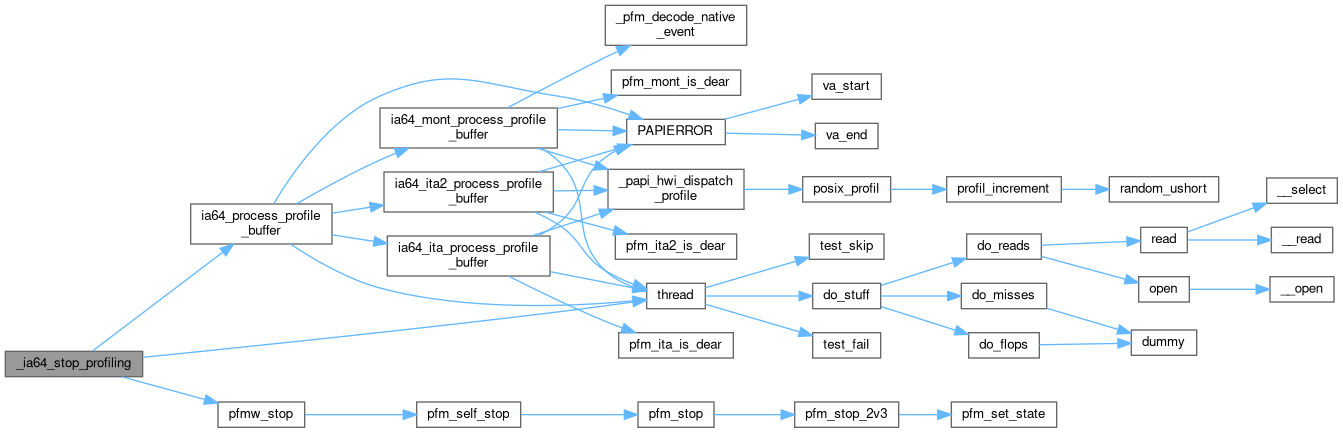

Here is the call graph for this function:

_ia64_update_control_state()

int _ia64_update_control_state	(	hwd_control_state_t *	this_state,
		NativeInfo_t *	native,
		int	count,
		hwd_context_t *	zero
	)

Definition at line 3104 of file perfmon-ia64.c.

{
    switch ( _perfmon2_pfm_pmu_type ) {
    case PFMLIB_ITANIUM_PMU:
        return ( _ia64_ita_update_control_state
                 ( this_state, native, count, zero ) );
        break;
    case PFMLIB_ITANIUM2_PMU:
        return ( _ia64_ita_update_control_state
                 ( this_state, native, count, zero ) );
        break;
    case PFMLIB_MONTECITO_PMU:
        return ( _ia64_mont_update_control_state
                 ( this_state, native, count, zero ) );
        break;
    default:
        PAPIERROR( "PMU type %d is not supported by this component",
                   _perfmon2_pfm_pmu_type );
        return ( PAPI_EBUG );
    }
}

Here is the call graph for this function:

_papi_pfm_ntv_code_to_descr()

int _papi_pfm_ntv_code_to_descr	(	unsigned int	EventCode,
		char *	ntv_descr,
		int	len
	)

Definition at line 1534 of file perfmon-ia64.c.

{
    unsigned int event, umask;
    char *eventd, **maskd, *tmp;
    int i, ret, total_len = 0;
    pfmlib_event_t gete;

    memset( &gete, 0, sizeof ( gete ) );

    if ( _pfm_decode_native_event( EventCode, &event, &umask ) != PAPI_OK )
        return ( PAPI_ENOEVNT );

    ret = pfm_get_event_description( event, &eventd );
    if ( ret != PFMLIB_SUCCESS ) {
        PAPIERROR( "pfm_get_event_description(%d,%p): %s",
                   event, &eventd, pfm_strerror( ret ) );
        return ( PAPI_ENOEVNT );
    }

    if ( ( gete.num_masks = prepare_umask( umask, gete.unit_masks ) ) ) {
        maskd = ( char ** ) malloc( gete.num_masks * sizeof ( char * ) );
        if ( maskd == NULL ) {
            free( eventd );
            return ( PAPI_ENOMEM );
        }
        for ( i = 0; i < ( int ) gete.num_masks; i++ ) {
            ret =
                pfm_get_event_mask_description( event, gete.unit_masks[i],
                                                &maskd[i] );
            if ( ret != PFMLIB_SUCCESS ) {
                PAPIERROR( "pfm_get_event_mask_description(%d,%d,%p): %s",
                           event, umask, &maskd, pfm_strerror( ret ) );
                free( eventd );
                for ( ; i >= 0; i-- )
                    free( maskd[i] );
                free( maskd );
                return ( PAPI_EINVAL );
            }
            total_len += strlen( maskd[i] );
        }
        tmp =
            ( char * ) malloc( strlen( eventd ) + strlen( ", masks:" ) +
                               total_len + gete.num_masks + 1 );
        if ( tmp == NULL ) {
            for ( i = gete.num_masks - 1; i >= 0; i-- )
                free( maskd[i] );
            free( maskd );
            free( eventd );
        }
        tmp[0] = '\0';
        strcat( tmp, eventd );
        strcat( tmp, ", masks:" );
        for ( i = 0; i < ( int ) gete.num_masks; i++ ) {
            if ( i != 0 )
                strcat( tmp, "," );
            strcat( tmp, maskd[i] );
            free( maskd[i] );
        }
        free( maskd );
    } else {
        tmp = ( char * ) malloc( strlen( eventd ) + 1 );
        if ( tmp == NULL ) {
            free( eventd );
            return ( PAPI_ENOMEM );
        }
        tmp[0] = '\0';
        strcat( tmp, eventd );
        free( eventd );
    }
    strncpy( ntv_descr, tmp, len );
    if ( strlen( tmp ) > ( unsigned int ) len - 1 )
        ret = PAPI_EBUF;
    else
        ret = PAPI_OK;
    free( tmp );
    return ( ret );
}

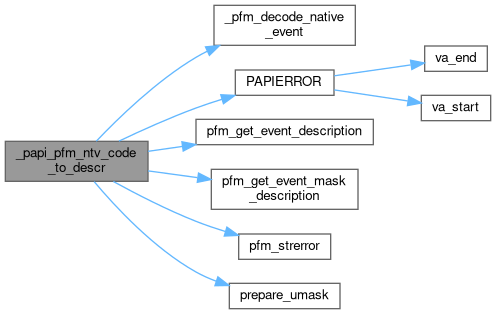

Here is the call graph for this function:

Here is the caller graph for this function:

_papi_pfm_ntv_code_to_name()

int _papi_pfm_ntv_code_to_name	(	unsigned int	EventCode,
		char *	ntv_name,
		int	len
	)

Definition at line 1502 of file perfmon-ia64.c.

{
    int ret;
    unsigned int event, umask;
    pfmlib_event_t gete;

    memset( &gete, 0, sizeof ( gete ) );

    if ( _pfm_decode_native_event( EventCode, &event, &umask ) != PAPI_OK )
        return ( PAPI_ENOEVNT );

    gete.event = event;
    gete.num_masks = prepare_umask( umask, gete.unit_masks );
    if ( gete.num_masks == 0 )
        ret = pfm_get_event_name( gete.event, ntv_name, len );
    else
        ret = pfm_get_full_event_name( &gete, ntv_name, len );
    if ( ret != PFMLIB_SUCCESS ) {
        char tmp[PAPI_2MAX_STR_LEN];
        pfm_get_event_name( gete.event, tmp, sizeof ( tmp ) );
        PAPIERROR
            ( "pfm_get_full_event_name(%p(event %d,%s,%d masks),%p,%d): %d -- %s",
              &gete, gete.event, tmp, gete.num_masks, ntv_name, len, ret,
              pfm_strerror( ret ) );
        if ( ret == PFMLIB_ERR_FULL )
            return PAPI_EBUF;
        return PAPI_ECMP;
    }
    return PAPI_OK;
}

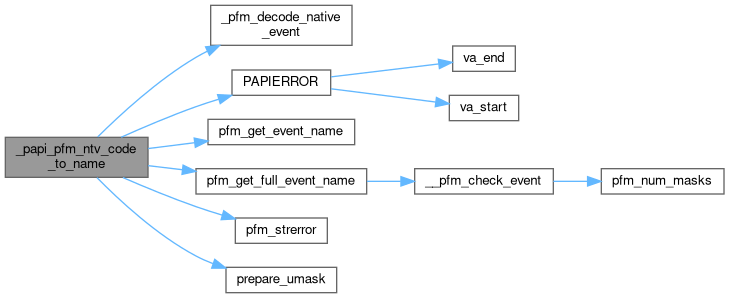

Here is the call graph for this function:

Here is the caller graph for this function:

_papi_pfm_ntv_enum_events()

int _papi_pfm_ntv_enum_events	(	unsigned int *	EventCode,
		int	modifier
	)

Definition at line 1402 of file perfmon-ia64.c.

{
    unsigned int event, umask, num_masks;
    int ret;

    if ( modifier == PAPI_ENUM_FIRST ) {
        *EventCode = PAPI_NATIVE_MASK;  /* assumes first native event is always 0x4000000 */
        return ( PAPI_OK );
    }

    if ( _pfm_decode_native_event( *EventCode, &event, &umask ) != PAPI_OK )
        return ( PAPI_ENOEVNT );

    ret = pfm_get_num_event_masks( event, &num_masks );
    SUBDBG( "pfm_get_num_event_masks: event=%d  num_masks=%d\n", event,
            num_masks );
    if ( ret != PFMLIB_SUCCESS ) {
        PAPIERROR( "pfm_get_num_event_masks(%d,%p): %s", event, &num_masks,
                   pfm_strerror( ret ) );
        return ( PAPI_ENOEVNT );
    }
    if ( num_masks > PAPI_NATIVE_UMASK_MAX )
        num_masks = PAPI_NATIVE_UMASK_MAX;
    SUBDBG( "This is umask %d of %d\n", umask, num_masks );

    if ( modifier == PAPI_ENUM_EVENTS ) {
        if ( event < ( unsigned int ) _ia64_vector.cmp_info.num_native_events - 1 ) {
            *EventCode = encode_native_event_raw( event + 1, 0 );
            return ( PAPI_OK );
        }
        return ( PAPI_ENOEVNT );
    } else if ( modifier == PAPI_NTV_ENUM_UMASK_COMBOS ) {
        if ( umask + 1 < ( unsigned ) ( 1 << num_masks ) ) {
            *EventCode = encode_native_event_raw( event, umask + 1 );
            return ( PAPI_OK );
        }
        return ( PAPI_ENOEVNT );
    } else if ( modifier == PAPI_NTV_ENUM_UMASKS ) {
        int thisbit = ffs( umask );

        SUBDBG( "First bit is %d in %08x\b\n", thisbit - 1, umask );
        thisbit = 1 << thisbit;

        if ( thisbit & ( ( 1 << num_masks ) - 1 ) ) {
            *EventCode = encode_native_event_raw( event, thisbit );
            return ( PAPI_OK );
        }
        return ( PAPI_ENOEVNT );
    } else {
        while ( event++ <
                ( unsigned int ) _ia64_vector.cmp_info.num_native_events - 1 ) {
            *EventCode = encode_native_event_raw( event + 1, 0 );
            if ( _ia64_modify_event( event + 1, modifier ) )
                return ( PAPI_OK );
        }
        return ( PAPI_ENOEVNT );
    }
}

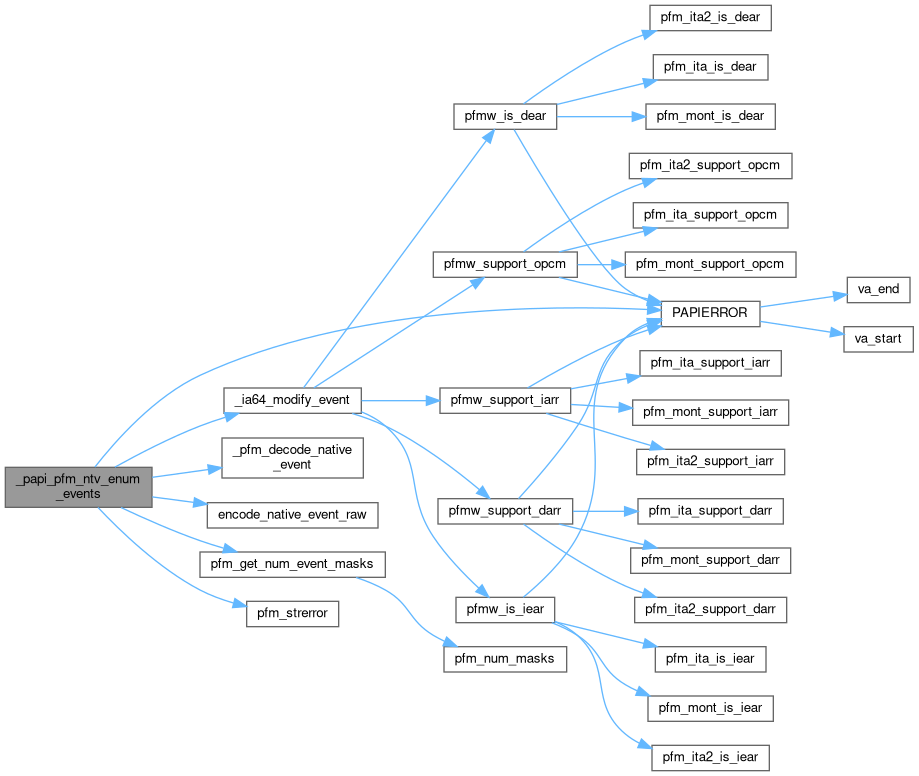

Here is the call graph for this function:

Here is the caller graph for this function:

_papi_pfm_ntv_name_to_code()

static int _papi_pfm_ntv_name_to_code ( const char *  name, unsigned int *  event_code  )

static

Definition at line 1462 of file perfmon-ia64.c.

{
    pfmlib_event_t event;
    unsigned int i, mask = 0;
    int ret;

    SUBDBG( "pfm_find_full_event(%s,%p)\n", name, &event );
    ret = pfm_find_full_event( name, &event );
    if ( ret == PFMLIB_SUCCESS ) {
        /* we can only capture PAPI_NATIVE_UMASK_MAX or fewer masks */
        if ( event.num_masks > PAPI_NATIVE_UMASK_MAX ) {
            SUBDBG( "num_masks (%d) > max masks (%d)\n", event.num_masks,
                    PAPI_NATIVE_UMASK_MAX );
            return ( PAPI_ENOEVNT );
        } else {
            /* no mask index can exceed PAPI_NATIVE_UMASK_MAX */
            for ( i = 0; i < event.num_masks; i++ ) {
                if ( event.unit_masks[i] > PAPI_NATIVE_UMASK_MAX ) {
                    SUBDBG( "mask index (%d) > max masks (%d)\n",
                            event.unit_masks[i], PAPI_NATIVE_UMASK_MAX );
                    return ( PAPI_ENOEVNT );
                }
                mask |= 1 << event.unit_masks[i];
            }
            *event_code = encode_native_event_raw( event.event, mask );
            SUBDBG( "event_code: %#x  event: %d  num_masks: %d\n", *event_code,
                    event.event, event.num_masks );
            return ( PAPI_OK );
        }
    } else if ( ret == PFMLIB_ERR_UMASK ) {
        ret = pfm_find_event( name, &event.event );
        if ( ret == PFMLIB_SUCCESS ) {
            *event_code = encode_native_event_raw( event.event, 0 );
            return ( PAPI_OK );
        }
    }
    return ( PAPI_ENOEVNT );
}

Here is the call graph for this function:

Here is the caller graph for this function:

_pfm_decode_native_event()

static int _pfm_decode_native_event ( unsigned int  EventCode, unsigned int *  event, unsigned int *  umask  )

static

Definition at line 1352 of file perfmon-ia64.c.

{
    unsigned int tevent, major, minor;

    tevent = EventCode & PAPI_NATIVE_AND_MASK;
    major = ( tevent & PAPI_NATIVE_EVENT_AND_MASK ) >> PAPI_NATIVE_EVENT_SHIFT;
    if ( major >= ( unsigned int ) _ia64_vector.cmp_info.num_native_events )
        return ( PAPI_ENOEVNT );

    minor = ( tevent & PAPI_NATIVE_UMASK_AND_MASK ) >> PAPI_NATIVE_UMASK_SHIFT;
    *event = major;
    *umask = minor;
    SUBDBG( "EventCode %#08x is event %d, umask %#x\n", EventCode, major,
            minor );
    return ( PAPI_OK );
}

Here is the caller graph for this function:

check_ibrp_events()

static void check_ibrp_events ( hwd_control_state_t *  current_state )

static

Definition at line 505 of file perfmon-ia64.c.

{
    ia64_control_state_t *this_state = ( ia64_control_state_t * ) current_state;
    pfmw_param_t *evt = &( this_state->evt );
    unsigned long umasks_retired[4];
    unsigned long umask;
    unsigned int j, i, seen_retired, ibrp, idx;
    int code;
    int retired_code, incr;
    pfmlib_ita2_output_param_t *ita2_output_param;
    pfmlib_mont_output_param_t *mont_output_param;

#if defined(PFMLIB_ITANIUM2_PMU) || defined(PFMLIB_MONTECITO_PMU)
char *retired_events[] = {
    "IA64_TAGGED_INST_RETIRED_IBRP0_PMC8",
    "IA64_TAGGED_INST_RETIRED_IBRP1_PMC9",
    "IA64_TAGGED_INST_RETIRED_IBRP2_PMC8",
    "IA64_TAGGED_INST_RETIRED_IBRP3_PMC9",
    NULL
};
#endif

    switch ( _perfmon2_pfm_pmu_type ) {
    case PFMLIB_ITANIUM2_PMU:
        ita2_output_param =
            &( this_state->ita_lib_param.ita2_param.ita2_output_param );
        /*
         * in fine mode, it is enough to use the event
         * which only monitors the first debug register
         * pair. The two pairs making up the range
         * are guaranteed to be consecutive in rr_br[].
         */
        incr = pfm_ita2_irange_is_fine( &evt->outp, ita2_output_param ) ? 4 : 2;

        for ( i = 0; retired_events[i]; i++ ) {
            pfm_find_event( retired_events[i], &idx );
            pfm_ita2_get_event_umask( idx, umasks_retired + i );
        }

        pfm_get_event_code( idx, &retired_code );

        /*
         * print a warning message when the using IA64_TAGGED_INST_RETIRED_IBRP* which does
         * not completely cover the all the debug register pairs used to make up the range.
         * This could otherwise lead to misinterpretation of the results.
         */
        for ( i = 0; i < ita2_output_param->pfp_ita2_irange.rr_nbr_used;
              i += incr ) {

            ibrp = ita2_output_param->pfp_ita2_irange.rr_br[i].reg_num >> 1;

            seen_retired = 0;
            for ( j = 0; j < evt->inp.pfp_event_count; j++ ) {
                pfm_get_event_code( evt->inp.pfp_events[j].event, &code );
                if ( code != retired_code )
                    continue;
                seen_retired = 1;
                pfm_ita2_get_event_umask( evt->inp.pfp_events[j].event,
                                          &umask );
                if ( umask == umasks_retired[ibrp] )
                    break;
            }
            if ( seen_retired && j == evt->inp.pfp_event_count )
                printf
                    ( "warning: code range uses IBR pair %d which is not monitored using %s\n",
                      ibrp, retired_events[ibrp] );
        }

        break;
    case PFMLIB_MONTECITO_PMU:
        mont_output_param =
            &( this_state->ita_lib_param.mont_param.mont_output_param );
        /*
         * in fine mode, it is enough to use the event
         * which only monitors the first debug register
         * pair. The two pairs making up the range
         * are guaranteed to be consecutive in rr_br[].
         */
        incr = pfm_mont_irange_is_fine( &evt->outp, mont_output_param ) ? 4 : 2;

        for ( i = 0; retired_events[i]; i++ ) {
            pfm_find_event( retired_events[i], &idx );
            pfm_mont_get_event_umask( idx, umasks_retired + i );
        }

        pfm_get_event_code( idx, &retired_code );

        /*
         * print a warning message when the using IA64_TAGGED_INST_RETIRED_IBRP* which does
         * not completely cover the all the debug register pairs used to make up the range.
         * This could otherwise lead to misinterpretation of the results.
         */
        for ( i = 0; i < mont_output_param->pfp_mont_irange.rr_nbr_used;
              i += incr ) {

            ibrp = mont_output_param->pfp_mont_irange.rr_br[i].reg_num >> 1;

            seen_retired = 0;
            for ( j = 0; j < evt->inp.pfp_event_count; j++ ) {
                pfm_get_event_code( evt->inp.pfp_events[j].event, &code );
                if ( code != retired_code )
                    continue;
                seen_retired = 1;
                pfm_mont_get_event_umask( evt->inp.pfp_events[j].event,
                                          &umask );
                if ( umask == umasks_retired[ibrp] )
                    break;
            }
            if ( seen_retired && j == evt->inp.pfp_event_count )
                printf
                    ( "warning: code range uses IBR pair %d which is not monitored using %s\n",
                      ibrp, retired_events[ibrp] );
        }
        break;
    default:
        PAPIERROR( "PMU type %d is not supported by this component",
                   _perfmon2_pfm_pmu_type );
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

encode_native_event_raw()

static int encode_native_event_raw ( unsigned int  event, unsigned int  mask  )

static

Definition at line 1374 of file perfmon-ia64.c.

{
    unsigned int tmp = event << PAPI_NATIVE_EVENT_SHIFT;
    SUBDBG( "Old native index was %#08x with %#08x mask\n", tmp, mask );
    tmp = tmp | ( mask << PAPI_NATIVE_UMASK_SHIFT );
    SUBDBG( "New encoding is %#08x\n", tmp | PAPI_NATIVE_MASK );
    return ( tmp | PAPI_NATIVE_MASK );
}

Here is the caller graph for this function:

generate_preset_search_map()

int generate_preset_search_map	(	hwi_search_t **	maploc,
		itanium_preset_search_t *	oldmap,
		int	num_cnt
	)

Definition at line 1629 of file perfmon-ia64.c.

{
    ( void ) num_cnt;        /*unused */
    int pnum, i = 0, cnt;
    char **findme;
    hwi_search_t *psmap;

    /* Count up the presets */
    while ( oldmap[i].preset )
        i++;
    /* Add null entry */
    i++;

    psmap = ( hwi_search_t * ) papi_malloc( i * sizeof ( hwi_search_t ) );
    if ( psmap == NULL )
        return ( PAPI_ENOMEM );
    memset( psmap, 0x0, i * sizeof ( hwi_search_t ) );

    pnum = 0;                /* preset event counter */
    for ( i = 0; i <= PAPI_MAX_PRESET_EVENTS; i++ ) {
        if ( oldmap[i].preset == 0 )
            break;
        pnum++;
        psmap[i].event_code = oldmap[i].preset;
        psmap[i].data.derived = oldmap[i].derived;
        strcpy( psmap[i].data.operation, oldmap[i].operation );
        findme = oldmap[i].findme;
        cnt = 0;
        while ( *findme != NULL ) {
            if ( cnt == MAX_COUNTER_TERMS ) {
                PAPIERROR( "Count (%d) == MAX_COUNTER_TERMS (%d)\n", cnt,
                           MAX_COUNTER_TERMS );
                papi_free( psmap );
                return ( PAPI_EBUG );
            }
            if ( _perfmon2_pfm_pmu_type == PFMLIB_MONTECITO_PMU ) {
                if ( _papi_pfm_ntv_name_to_code
                     ( *findme,
                       ( unsigned int * ) &psmap[i].data.native[cnt] ) !=
                     PAPI_OK ) {
                    PAPIERROR( "_papi_pfm_ntv_name_to_code(%s) failed\n",
                               *findme );
                    papi_free( psmap );
                    return ( PAPI_EBUG );
                } else
                    psmap[i].data.native[cnt] ^= PAPI_NATIVE_MASK;
            } else {
                if ( pfm_find_event_byname
                     ( *findme,
                       ( unsigned int * ) &psmap[i].data.native[cnt] ) !=
                     PFMLIB_SUCCESS ) {
                    PAPIERROR( "pfm_find_event_byname(%s) failed\n", *findme );
                    papi_free( psmap );
                    return ( PAPI_EBUG );
                } else
                    psmap[i].data.native[cnt] ^= PAPI_NATIVE_MASK;
            }

            findme++;
            cnt++;
        }
        psmap[i].data.native[cnt] = PAPI_NULL;
    }

    *maploc = psmap;
    return ( PAPI_OK );
}

Here is the call graph for this function:

Here is the caller graph for this function:

ia64_dispatch_sigprof()

static void ia64_dispatch_sigprof ( int  n, hwd_siginfo_t *  info, hwd_ucontext_t *  sc  )

static

Definition at line 2578 of file perfmon-ia64.c.

{
    ( void ) n;              /*unused */
    _papi_hwi_context_t ctx;
    ThreadInfo_t *thread = _papi_hwi_lookup_thread( 0 );
    vptr_t address;
    int cidx = _ia64_vector.cmp_info.CmpIdx;

#if defined(DEBUG)
    if ( thread == NULL ) {
        PAPIERROR( "thread == NULL in _papi_hwd_dispatch_timer!" );
        return;
    }
#endif

    ctx.si = info;
    ctx.ucontext = sc;
    address = GET_OVERFLOW_ADDRESS( ( ctx ) );

    if ( ( thread == NULL ) || ( thread->running_eventset[cidx] == NULL ) ) {
        SUBDBG( "%p, %p\n", thread, thread->running_eventset[cidx] );
        return;
    }

    if ( thread->running_eventset[cidx]->overflow.
         flags & PAPI_OVERFLOW_FORCE_SW ) {
        _papi_hwi_dispatch_overflow_signal( ( void * ) &ctx, address, NULL, 0,
                                            0, &thread, cidx );
        return;
    }

    pfm_msg_t msg;
    int ret, fd;
    fd = info->si_fd;
  retry:
    ret = read( fd, &msg, sizeof ( msg ) );
    if ( ret == -1 ) {
        if ( errno == EINTR ) {
            SUBDBG( "read(%d) interrupted, retrying\n", fd );
            goto retry;
        } else {
            PAPIERROR( "read(%d): errno %d", fd, errno );
        }
    } else if ( ret != sizeof ( msg ) ) {
        PAPIERROR( "read(%d): short %d vs. %d bytes", fd, ret, sizeof ( msg ) );
        ret = -1;
    }
#if defined(HAVE_PFM_MSG_TYPE)
    if ( msg.type == PFM_MSG_END ) {
        SUBDBG( "PFM_MSG_END\n" );
        return;
    }
    if ( msg.type != PFM_MSG_OVFL ) {
        PAPIERROR( "unexpected msg type %d", msg.type );
        return;
    }
#else
    if ( msg.pfm_gen_msg.msg_type == PFM_MSG_END ) {
        SUBDBG( "PFM_MSG_END\n" );
        return;
    }
    if ( msg.pfm_gen_msg.msg_type != PFM_MSG_OVFL ) {
        PAPIERROR( "unexpected msg type %d", msg.pfm_gen_msg.msg_type );
        return;
    }
#endif
    if ( ret != -1 ) {
        if ( ( thread->running_eventset[cidx]->state & PAPI_PROFILING ) &&
             !( thread->running_eventset[cidx]->profile.
                flags & PAPI_PROFIL_FORCE_SW ) )
            ia64_process_profile_buffer( thread,
                                         thread->running_eventset[cidx] );
        else
            _papi_hwi_dispatch_overflow_signal( ( void * ) &ctx, address,
                                                NULL,
                                                msg.pfm_ovfl_msg.
                                                msg_ovfl_pmds[0] >>
                                                PMU_FIRST_COUNTER, 0,
                                                &thread, cidx );
    }
    if ( pfmw_perfmonctl( 0, fd, PFM_RESTART, 0, 0 ) == -1 ) {
        PAPIERROR( "perfmonctl(PFM_RESTART) errno %d, %s", errno,
                   strerror( errno ) );
        return;
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

ia64_ita2_process_profile_buffer()

static int ia64_ita2_process_profile_buffer ( ThreadInfo_t *  thread, EventSetInfo_t *  ESI  )

static

Definition at line 2393 of file perfmon-ia64.c.

{
    ( void ) thread;         /*unused */
    pfmw_smpl_hdr_t *hdr;
    pfmw_smpl_entry_t *ent;
    unsigned long buf_pos;
    unsigned long entry_size;
    int ret, reg_num, count, pos;
    unsigned int i, EventCode = 0, eventindex, native_index = 0;
    ia64_control_state_t *this_state;
    pfm_ita2_pmd_reg_t *reg;
    unsigned long overflow_vector, pc;


    if ( ( ESI->state & PAPI_PROFILING ) == 0 )
        return ( PAPI_EBUG );

    this_state = ( ia64_control_state_t * ) ( ESI->ctl_state );
    hdr = ( pfmw_smpl_hdr_t * ) ( this_state->smpl_vaddr );

    entry_size = sizeof ( pfmw_smpl_entry_t );

    /*
     * walk through all the entries recorded in the buffer
     */
    buf_pos = ( unsigned long ) ( hdr + 1 );
    for ( i = 0; i < hdr->hdr_count; i++ ) {
        ret = 0;
        ent = ( pfmw_smpl_entry_t * ) buf_pos;
        /* PFM30 only one PMD overflows in each sample */
        overflow_vector = 1 << ent->ovfl_pmd;

        SUBDBG( "Entry %d PID:%d CPU:%d ovfl_vector:%#lx IIP:%#016lx\n",
                i, ent->pid, ent->cpu, overflow_vector, ent->ip );

        while ( overflow_vector ) {
            reg_num = ffs( overflow_vector ) - 1;
            /* find the event code */
            for ( count = 0; count < ESI->profile.event_counter; count++ ) {
                eventindex = ESI->profile.EventIndex[count];
                pos = ESI->EventInfoArray[eventindex].pos[0];
                if ( pos + PMU_FIRST_COUNTER == reg_num ) {
                    EventCode = ESI->profile.EventCode[count];
                    native_index =
                        ESI->NativeInfoArray[pos].
                        ni_event & PAPI_NATIVE_AND_MASK;
                    break;
                }
            }
            /* something is wrong */
            if ( count == ESI->profile.event_counter ) {
                PAPIERROR
                    ( "wrong count: %d vs. ESI->profile.event_counter %d\n",
                      count, ESI->profile.event_counter );
                return ( PAPI_EBUG );
            }

            /* print entry header */
            pc = ent->ip;
            if ( pfm_ita2_is_dear( native_index ) ) {
                reg = ( pfm_ita2_pmd_reg_t * ) ( ent + 1 );
                reg++;
                reg++;
                pc = ( ( reg->pmd17_ita2_reg.dear_iaddr +
                         reg->pmd17_ita2_reg.dear_bn ) << 4 )
                    | reg->pmd17_ita2_reg.dear_slot;

                /* adjust pointer position */
                buf_pos += ( hweight64( DEAR_REGS_MASK ) << 3 );
            }

            _papi_hwi_dispatch_profile( ESI, ( vptr_t ) pc, ( long long ) 0,
                                        count );
            overflow_vector ^= ( unsigned long ) 1 << reg_num;
        }
        /*  move to next entry */
        buf_pos += entry_size;
    }                        /* end of if */
    return ( PAPI_OK );
}

Here is the call graph for this function:

Here is the caller graph for this function:

ia64_ita_process_profile_buffer()

static int ia64_ita_process_profile_buffer ( ThreadInfo_t *  thread, EventSetInfo_t *  ESI  )

static

Definition at line 2312 of file perfmon-ia64.c.

{
    ( void ) thread;         /*unused */
    pfmw_smpl_hdr_t *hdr;
    pfmw_smpl_entry_t *ent;
    unsigned long buf_pos;
    unsigned long entry_size;
    int ret, reg_num, count, pos;
    unsigned int i, EventCode = 0, eventindex, native_index = 0;
    ia64_control_state_t *this_state;
    pfm_ita_pmd_reg_t *reg;
    unsigned long overflow_vector, pc;


    if ( ( ESI->state & PAPI_PROFILING ) == 0 )
        return ( PAPI_EBUG );

    this_state = ( ia64_control_state_t * ) ( ESI->ctl_state );
    hdr = ( pfmw_smpl_hdr_t * ) this_state->smpl_vaddr;

    entry_size = sizeof ( pfmw_smpl_entry_t );

    /*
     * walk through all the entries recorded in the buffer
     */
    buf_pos = ( unsigned long ) ( hdr + 1 );
    for ( i = 0; i < hdr->hdr_count; i++ ) {
        ret = 0;
        ent = ( pfmw_smpl_entry_t * ) buf_pos;
        /* PFM30 only one PMD overflows in each sample */
        overflow_vector = 1 << ent->ovfl_pmd;

        SUBDBG( "Entry %d PID:%d CPU:%d ovfl_vector:%#lx IIP:%#016lx\n",
                i, ent->pid, ent->cpu, overflow_vector, ent->ip );

        while ( overflow_vector ) {
            reg_num = ffs( overflow_vector ) - 1;
            /* find the event code */
            for ( count = 0; count < ESI->profile.event_counter; count++ ) {
                eventindex = ESI->profile.EventIndex[count];
                pos = ESI->EventInfoArray[eventindex].pos[0];
                if ( pos + PMU_FIRST_COUNTER == reg_num ) {
                    EventCode = ESI->profile.EventCode[count];
                    native_index =
                        ESI->NativeInfoArray[pos].
                        ni_event & PAPI_NATIVE_AND_MASK;
                    break;
                }
            }
            /* something is wrong */
            if ( count == ESI->profile.event_counter ) {
                PAPIERROR
                    ( "wrong count: %d vs. ESI->profile.event_counter %d\n",
                      count, ESI->profile.event_counter );
                return ( PAPI_EBUG );
            }

            /* print entry header */
            pc = ent->ip;
            if ( pfm_ita_is_dear( native_index ) ) {
                reg = ( pfm_ita_pmd_reg_t * ) ( ent + 1 );
                reg++;
                reg++;
                pc = ( reg->pmd17_ita_reg.dear_iaddr << 4 ) | ( reg->
                                                                pmd17_ita_reg.
                                                                dear_slot );
                /* adjust pointer position */
                buf_pos += ( hweight64( DEAR_REGS_MASK ) << 3 );
            }

            _papi_hwi_dispatch_profile( ESI, ( vptr_t ) pc, ( long long ) 0,
                                        count );
            overflow_vector ^= ( unsigned long ) 1 << reg_num;
        }
        /*  move to next entry */
        buf_pos += entry_size;
    }                        /* end of if */
    return ( PAPI_OK );
}

Here is the call graph for this function:

Here is the caller graph for this function:

ia64_mont_process_profile_buffer()

static int ia64_mont_process_profile_buffer ( ThreadInfo_t *  thread, EventSetInfo_t *  ESI  )

static

Definition at line 2475 of file perfmon-ia64.c.

{
    ( void ) thread;         /*unused */
    pfmw_smpl_hdr_t *hdr;
    pfmw_smpl_entry_t *ent;
    unsigned long buf_pos;
    unsigned long entry_size;
    int ret, reg_num, count, pos;
    unsigned int i, EventCode = 0, eventindex, native_index = 0;
    ia64_control_state_t *this_state;
    pfm_mont_pmd_reg_t *reg;
    unsigned long overflow_vector, pc;
    unsigned int umask;


    if ( ( ESI->state & PAPI_PROFILING ) == 0 )
        return ( PAPI_EBUG );

    this_state = ( ia64_control_state_t * ) ESI->ctl_state;
    hdr = ( pfmw_smpl_hdr_t * ) this_state->smpl_vaddr;

    entry_size = sizeof ( pfmw_smpl_entry_t );

    /*
     * walk through all the entries recorded in the buffer
     */
    buf_pos = ( unsigned long ) ( hdr + 1 );
    for ( i = 0; i < hdr->hdr_count; i++ ) {
        ret = 0;
        ent = ( pfmw_smpl_entry_t * ) buf_pos;
        /* PFM30 only one PMD overflows in each sample */
        overflow_vector = 1 << ent->ovfl_pmd;

        SUBDBG( "Entry %d PID:%d CPU:%d ovfl_vector:%#lx IIP:%#016lx\n",
                i, ent->pid, ent->cpu, overflow_vector, ent->ip );

        while ( overflow_vector ) {
            reg_num = ffs( overflow_vector ) - 1;
            /* find the event code */
            for ( count = 0; count < ESI->profile.event_counter; count++ ) {
                eventindex = ESI->profile.EventIndex[count];
                pos = ESI->EventInfoArray[eventindex].pos[0];
                if ( pos + PMU_FIRST_COUNTER == reg_num ) {
                    EventCode = ESI->profile.EventCode[count];
                    if ( _pfm_decode_native_event
                         ( ESI->NativeInfoArray[pos].ni_event, &native_index,
                           &umask ) != PAPI_OK )
                        return ( PAPI_ENOEVNT );
                    break;
                }
            }
            /* something is wrong */
            if ( count == ESI->profile.event_counter ) {
                PAPIERROR
                    ( "wrong count: %d vs. ESI->profile.event_counter %d\n",
                      count, ESI->profile.event_counter );
                return ( PAPI_EBUG );
            }

            /* print entry header */
            pc = ent->ip;
            if ( pfm_mont_is_dear( native_index ) ) {
                reg = ( pfm_mont_pmd_reg_t * ) ( ent + 1 );
                reg++;
                reg++;
                pc = ( ( reg->pmd36_mont_reg.dear_iaddr +
                         reg->pmd36_mont_reg.dear_bn ) << 4 )
                    | reg->pmd36_mont_reg.dear_slot;
                /* adjust pointer position */
                buf_pos += ( hweight64( DEAR_REGS_MASK ) << 3 );
            }

            _papi_hwi_dispatch_profile( ESI, ( vptr_t ) pc, ( long long ) 0,
                                        count );
            overflow_vector ^= ( unsigned long ) 1 << reg_num;
        }
        /*  move to next entry */
        buf_pos += entry_size;
    }                        /* end of if */
    return ( PAPI_OK );
}

Here is the call graph for this function:

Here is the caller graph for this function:

ia64_process_profile_buffer()

static int ia64_process_profile_buffer ( ThreadInfo_t *  thread, EventSetInfo_t *  ESI  )

static

Definition at line 2558 of file perfmon-ia64.c.

{
    switch ( _perfmon2_pfm_pmu_type ) {
    case PFMLIB_ITANIUM_PMU:
        return ( ia64_ita_process_profile_buffer( thread, ESI ) );
        break;
    case PFMLIB_ITANIUM2_PMU:
        return ( ia64_ita2_process_profile_buffer( thread, ESI ) );
        break;
    case PFMLIB_MONTECITO_PMU:
        return ( ia64_mont_process_profile_buffer( thread, ESI ) );
        break;
    default:
        PAPIERROR( "PMU type %d is not supported by this component",
                   _perfmon2_pfm_pmu_type );
        return ( PAPI_EBUG );
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

install_drange()

static int install_drange ( hwd_context_t *  pctx, hwd_control_state_t *  current_state  )

static

Definition at line 694 of file perfmon-ia64.c.

{
    ia64_control_state_t *this_state = ( ia64_control_state_t * ) current_state;
    unsigned int i, used_dbr;
    int r;
    int pid = ( ( ia64_context_t * ) pctx )->fd;

    pfmlib_ita2_output_param_t *ita2_output_param;
    pfarg_dbreg_t ita2_dbreg[PFMON_ITA2_MAX_IBRS];
    pfmlib_mont_output_param_t *mont_output_param;
    pfarg_dbreg_t mont_dbreg[PFMON_MONT_MAX_IBRS];

    memset( mont_dbreg, 0, sizeof ( mont_dbreg ) );
    memset( ita2_dbreg, 0, sizeof ( ita2_dbreg ) );

    switch ( _perfmon2_pfm_pmu_type ) {
    case PFMLIB_ITANIUM2_PMU:
        ita2_output_param =
            &( this_state->ita_lib_param.ita2_param.ita2_output_param );
        used_dbr = ita2_output_param->pfp_ita2_drange.rr_nbr_used;

        for ( i = 0; i < used_dbr; i++ ) {
            ita2_dbreg[i].dbreg_num =
                ita2_output_param->pfp_ita2_drange.rr_br[i].reg_num;
            ita2_dbreg[i].dbreg_value =
                ita2_output_param->pfp_ita2_drange.rr_br[i].reg_value;
        }

        r = perfmonctl( pid, PFM_WRITE_DBRS, ita2_dbreg,
                        ita2_output_param->pfp_ita2_drange.rr_nbr_used );
        if ( r == -1 ) {
            SUBDBG( "cannot install data range restriction: %s\n",
                    strerror( errno ) );
            return ( PAPI_ESYS );
        }
        return ( PAPI_OK );
        break;
    case PFMLIB_MONTECITO_PMU:
        mont_output_param =
            &( this_state->ita_lib_param.mont_param.mont_output_param );
        used_dbr = mont_output_param->pfp_mont_drange.rr_nbr_used;

        for ( i = 0; i < used_dbr; i++ ) {
            mont_dbreg[i].dbreg_num =
                mont_output_param->pfp_mont_drange.rr_br[i].reg_num;
            mont_dbreg[i].dbreg_value =
                mont_output_param->pfp_mont_drange.rr_br[i].reg_value;
        }

        r = perfmonctl( pid, PFM_WRITE_DBRS, mont_dbreg,
                        mont_output_param->pfp_mont_drange.rr_nbr_used );
        if ( r == -1 ) {
            SUBDBG( "cannot install data range restriction: %s\n",
                    strerror( errno ) );
            return PAPI_ESYS;
        }
        return PAPI_OK;
        break;
    default:
        PAPIERROR( "PMU type %d is not supported by this component",
                   _perfmon2_pfm_pmu_type );
        return PAPI_ENOIMPL;
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

install_irange()

static int install_irange ( hwd_context_t *  pctx, hwd_control_state_t *  current_state  )

static

Definition at line 626 of file perfmon-ia64.c.

{
    ia64_control_state_t *this_state = ( ia64_control_state_t * ) current_state;
    unsigned int i, used_dbr;
    int r;
    int pid = ( ( ia64_context_t * ) pctx )->fd;

    pfmlib_ita2_output_param_t *ita2_output_param;
    pfarg_dbreg_t ita2_dbreg[PFMON_ITA2_MAX_IBRS];
    pfmlib_mont_output_param_t *mont_output_param;
    pfarg_dbreg_t mont_dbreg[PFMON_MONT_MAX_IBRS];

    memset( mont_dbreg, 0, sizeof ( mont_dbreg ) );
    memset( ita2_dbreg, 0, sizeof ( ita2_dbreg ) );
    check_ibrp_events( current_state );

    switch ( _perfmon2_pfm_pmu_type ) {
    case PFMLIB_ITANIUM2_PMU:
        ita2_output_param =
            &( this_state->ita_lib_param.ita2_param.ita2_output_param );
        used_dbr = ita2_output_param->pfp_ita2_irange.rr_nbr_used;

        for ( i = 0; i < used_dbr; i++ ) {
            ita2_dbreg[i].dbreg_num =
                ita2_output_param->pfp_ita2_irange.rr_br[i].reg_num;
            ita2_dbreg[i].dbreg_value =
                ita2_output_param->pfp_ita2_irange.rr_br[i].reg_value;
        }

        r = perfmonctl( pid, PFM_WRITE_IBRS, ita2_dbreg,
                        ita2_output_param->pfp_ita2_irange.rr_nbr_used );
        if ( r == -1 ) {
            SUBDBG( "cannot install code range restriction: %s\n",
                    strerror( errno ) );
            return ( PAPI_ESYS );
        }
        return ( PAPI_OK );
        break;
    case PFMLIB_MONTECITO_PMU:
        mont_output_param =
            &( this_state->ita_lib_param.mont_param.mont_output_param );

        used_dbr = mont_output_param->pfp_mont_irange.rr_nbr_used;

        for ( i = 0; i < used_dbr; i++ ) {
            mont_dbreg[i].dbreg_num =
                mont_output_param->pfp_mont_irange.rr_br[i].reg_num;
            mont_dbreg[i].dbreg_value =
                mont_output_param->pfp_mont_irange.rr_br[i].reg_value;
        }

        r = perfmonctl( pid, PFM_WRITE_IBRS, mont_dbreg,
                        mont_output_param->pfp_mont_irange.rr_nbr_used );
        if ( r == -1 ) {
            SUBDBG( "cannot install code range restriction: %s\n",
                    strerror( errno ) );
            return ( PAPI_ESYS );
        }
        return ( PAPI_OK );
        break;
    default:
        PAPIERROR( "PMU type %d is not supported by this component",
                   _perfmon2_pfm_pmu_type );
        return PAPI_ENOIMPL;
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

pfmw_create_context()

static int pfmw_create_context ( hwd_context_t *  thr_ctx )

static

Definition at line 233 of file perfmon-ia64.c.

{
    pfarg_context_t ctx;
    memset( &ctx, 0, sizeof ( ctx ) );

    SUBDBG( "PFM_CREATE_CONTEXT on 0\n" );
    if ( perfmonctl( 0, PFM_CREATE_CONTEXT, &ctx, 1 ) == -1 ) {
        PAPIERROR( "perfmonctl(PFM_CREATE_CONTEXT) errno %d", errno );
        return ( PAPI_ESYS );
    }
    ( ( ia64_context_t * ) thr_ctx )->fd = ctx.ctx_fd;
    ( ( ia64_context_t * ) thr_ctx )->tid = mygettid(  );
    SUBDBG( "PFM_CREATE_CONTEXT returns FD %d, TID %d\n",
            ( int ) ( ( ia64_context_t * ) thr_ctx )->fd,
            ( int ) ( ( ia64_context_t * ) thr_ctx )->tid );

    return ( pfmw_create_ctx_common( thr_ctx ) );
}

Here is the call graph for this function:

Here is the caller graph for this function:

pfmw_create_ctx_common()

static int pfmw_create_ctx_common ( hwd_context_t *  ctx )

static

Definition at line 162 of file perfmon-ia64.c.

{
    pfarg_load_t load_args;
    int ret;

    memset( &load_args, 0, sizeof ( load_args ) );
    /*
     * we want to monitor ourself
     */

    load_args.load_pid = ( ( ia64_context_t * ) ctx )->tid;

    SUBDBG( "PFM_LOAD_CONTEXT FD %d, PID %d\n",
            ( ( ia64_context_t * ) ctx )->fd,
            ( ( ia64_context_t * ) ctx )->tid );
    if ( perfmonctl
         ( ( ( ia64_context_t * ) ctx )->fd, PFM_LOAD_CONTEXT, &load_args,
           1 ) == -1 ) {
        PAPIERROR( "perfmonctl(PFM_LOAD_CONTEXT) errno %d", errno );
        return ( PAPI_ESYS );
    }
    /*
     * setup asynchronous notification on the file descriptor
     */
    ret =
        fcntl( ( ( ia64_context_t * ) ctx )->fd, F_SETFL,
               fcntl( ( ( ia64_context_t * ) ctx )->fd, F_GETFL,
                      0 ) | O_ASYNC );
    if ( ret == -1 ) {
        PAPIERROR( "fcntl(%d,F_SETFL,O_ASYNC) errno %d",
                   ( ( ia64_context_t * ) ctx )->fd, errno );
        return ( PAPI_ESYS );
    }

    /*
     * get ownership of the descriptor
     */

    ret =
        fcntl( ( ( ia64_context_t * ) ctx )->fd, F_SETOWN,
               ( ( ia64_context_t * ) ctx )->tid );
    if ( ret == -1 ) {
        PAPIERROR( "fcntl(%d,F_SETOWN) errno %d",
                   ( ( ia64_context_t * ) ctx )->fd, errno );
        return ( PAPI_ESYS );
    }

    ret =
        fcntl( ( ( ia64_context_t * ) ctx )->fd, F_SETSIG,
               _ia64_vector.cmp_info.hardware_intr_sig );
    if ( ret == -1 ) {
        PAPIERROR( "fcntl(%d,F_SETSIG) errno %d",
                   ( ( ia64_context_t * ) ctx )->fd, errno );
        return ( PAPI_ESYS );
    }

    /* set close-on-exec to ensure we will be getting the PFM_END_MSG, i.e.,
     * fd not visible to child. */

    ret = fcntl( ( ( ia64_context_t * ) ctx )->fd, F_SETFD, FD_CLOEXEC );
    if ( ret == -1 ) {
        PAPIERROR( "fcntl(%d,FD_CLOEXEC) errno %d",
                   ( ( ia64_context_t * ) ctx )->fd, errno );
        return ( PAPI_ESYS );
    }

    return ( PAPI_OK );

}

Here is the call graph for this function:

Here is the caller graph for this function:

pfmw_destroy_context()

static int pfmw_destroy_context ( hwd_context_t *  thr_ctx )

static

Definition at line 106 of file perfmon-ia64.c.

{
    int ret;
    ret = close( ( ( ia64_context_t * ) thr_ctx )->fd );
    if ( ret )
        return PAPI_ESYS;
    else
        return PAPI_OK;
}

Here is the call graph for this function:

Here is the caller graph for this function:

pfmw_dispatch_events()

static int pfmw_dispatch_events ( pfmw_param_t *  evt )

static

Definition at line 117 of file perfmon-ia64.c.

{
    int ret;
    unsigned int i;
/*
      PFMW_PEVT_DFLPLM(evt) = PFM_PLM3;
*/
#ifdef PFMLIB_MONTECITO_PMU
    if ( _perfmon2_pfm_pmu_type == PFMLIB_MONTECITO_PMU )
        ret =
            pfm_dispatch_events( &evt->inp,
                                 ( pfmlib_mont_input_param_t * ) evt->mod_inp,
                                 &evt->outp,
                                 ( pfmlib_mont_output_param_t * ) evt->
                                 mod_outp );
    else
#endif
        ret =
            pfm_dispatch_events( &evt->inp,
                                 ( pfmlib_ita2_input_param_t * ) evt->mod_inp,
                                 &evt->outp,
                                 ( pfmlib_ita2_output_param_t * ) evt->
                                 mod_outp );
    if ( ret ) {
        return PAPI_ESYS;
    } else {
        for ( i = 0; i < evt->outp.pfp_pmc_count; i++ ) {
            evt->pc[i].reg_num = evt->outp.pfp_pmcs[i].reg_num;
            evt->pc[i].reg_value = evt->outp.pfp_pmcs[i].reg_value;
        }
#if defined(HAVE_PFMLIB_OUTPUT_PFP_PMD_COUNT)
        for ( i = 0; i < evt->outp.pfp_pmd_count; i++ ) {
            evt->pd[i].reg_num = evt->outp.pfp_pmds[i].reg_num;
        }
#else
        /* This is really broken */
        for ( i = 0; i < evt->inp.pfp_event_count; i++ ) {
            evt->pd[i].reg_num = evt->pc[i].reg_num;
        }
#endif
        return PAPI_OK;
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

pfmw_get_event_description()

static void pfmw_get_event_description ( unsigned int  idx, char *  dest, int  len  )

static

Definition at line 393 of file perfmon-ia64.c.

{
    char *descr;

    if ( pfm_get_event_description( idx, &descr ) == PFMLIB_SUCCESS ) {
        strncpy( dest, descr, len );
        free( descr );
    } else
        *dest = '\0';
}

Here is the call graph for this function:

Here is the caller graph for this function:

pfmw_get_event_name()

static int pfmw_get_event_name ( char *  name, unsigned int  idx  )

static

Definition at line 379 of file perfmon-ia64.c.

{
    unsigned int total;

    pfm_get_num_events( &total );
    if ( idx >= total )
        return PAPI_ENOEVNT;
    if ( pfm_get_event_name( idx, name, PAPI_MAX_STR_LEN ) == PFMLIB_SUCCESS )
        return PAPI_OK;
    else
        return PAPI_ENOEVNT;
}

Here is the call graph for this function:

Here is the caller graph for this function:

pfmw_get_num_counters()

static int pfmw_get_num_counters ( int *  num )

static

Definition at line 1058 of file perfmon-ia64.c.

{
    unsigned int tmp;
    if ( pfm_get_num_counters( &tmp ) != PFMLIB_SUCCESS )
        return ( PAPI_ESYS );
    *num = tmp;
    return ( PAPI_OK );
}

Here is the call graph for this function:

Here is the caller graph for this function:

pfmw_get_num_events()

static int pfmw_get_num_events ( int *  num )

static

Definition at line 1068 of file perfmon-ia64.c.

{
    unsigned int tmp;
    if ( pfm_get_num_events( &tmp ) != PFMLIB_SUCCESS )
        return ( PAPI_ESYS );
    *num = tmp;
    return ( PAPI_OK );
}

Here is the call graph for this function:

Here is the caller graph for this function:

pfmw_is_dear()

static int pfmw_is_dear ( unsigned int  i )

static

Definition at line 405 of file perfmon-ia64.c.

{
    switch ( _perfmon2_pfm_pmu_type ) {
    case PFMLIB_ITANIUM_PMU:
        return ( pfm_ita_is_dear( i ) );
        break;
    case PFMLIB_ITANIUM2_PMU:
        return ( pfm_ita2_is_dear( i ) );
        break;
    case PFMLIB_MONTECITO_PMU:
        return ( pfm_mont_is_dear( i ) );
        break;
    default:
        PAPIERROR( "PMU type %d is not supported by this component",
                   _perfmon2_pfm_pmu_type );
        return ( PAPI_EBUG );
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

pfmw_is_iear()

static int pfmw_is_iear ( unsigned int  i )

static

Definition at line 425 of file perfmon-ia64.c.

{
    switch ( _perfmon2_pfm_pmu_type ) {
    case PFMLIB_ITANIUM_PMU:
        return ( pfm_ita_is_iear( i ) );
        break;
    case PFMLIB_ITANIUM2_PMU:
        return ( pfm_ita2_is_iear( i ) );
        break;
    case PFMLIB_MONTECITO_PMU:
        return ( pfm_mont_is_iear( i ) );
        break;
    default:
        PAPIERROR( "PMU type %d is not supported by this component",
                   _perfmon2_pfm_pmu_type );
        return ( PAPI_EBUG );
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

pfmw_perfmonctl()

static int pfmw_perfmonctl ( pid_t  tid, int  fd, int  cmd, void *  arg, int  narg  )

static

Definition at line 99 of file perfmon-ia64.c.

{
    ( void ) tid;            /*unused */
    return ( perfmonctl( fd, cmd, arg, narg ) );
}

Here is the call graph for this function:

Here is the caller graph for this function:

pfmw_recreate_context()

static int pfmw_recreate_context ( EventSetInfo_t *  ESI, hwd_context_t *  thr_ctx, void **  smpl_vaddr, int  EventIndex  )

static

Definition at line 281 of file perfmon-ia64.c.

{
    pfm_default_smpl_ctx_arg_t ctx;
    pfm_uuid_t buf_fmt_id = PFM_DEFAULT_SMPL_UUID;
    int ctx_fd;
    unsigned int native_index, EventCode;
    int pos;
    //hwd_context_t *thr_ctx = (hwd_context_t *) &ESI->master->context;
#ifdef PFMLIB_MONTECITO_PMU
    unsigned int umask;
#endif

    pos = ESI->EventInfoArray[EventIndex].pos[0];
    EventCode = ESI->EventInfoArray[EventIndex].event_code;
#ifdef PFMLIB_MONTECITO_PMU
    if ( _perfmon2_pfm_pmu_type == PFMLIB_MONTECITO_PMU ) {
        if ( _pfm_decode_native_event
             ( ESI->NativeInfoArray[pos].ni_event, &native_index,
               &umask ) != PAPI_OK )
            return ( PAPI_ENOEVNT );
    } else
#endif
        native_index =
            ESI->NativeInfoArray[pos].ni_event & PAPI_NATIVE_AND_MASK;

    memset( &ctx, 0, sizeof ( ctx ) );
    /*
     * We initialize the format specific information.
     * The format is identified by its UUID which must be copied
     * into the ctx_buf_fmt_id field.
     */
    memcpy( ctx.ctx_arg.ctx_smpl_buf_id, buf_fmt_id, sizeof ( pfm_uuid_t ) );
    /*
     * the size of the buffer is indicated in bytes (not entries).
     * The kernel will record into the buffer up to a certain point.
     * No partial samples are ever recorded.
     */
    ctx.buf_arg.buf_size = 4096;
    /*
     * now create the context for self monitoring/per-task
     */
    SUBDBG( "PFM_CREATE_CONTEXT on 0\n" );
    if ( perfmonctl( 0, PFM_CREATE_CONTEXT, &ctx, 1 ) == -1 ) {
        if ( errno == ENOSYS )
            PAPIERROR
                ( "Your kernel does not have performance monitoring support" );
        else
            PAPIERROR( "perfmonctl(PFM_CREATE_CONTEXT) errno %d", errno );
        return ( PAPI_ESYS );
    }
    /*
     * extract the file descriptor we will use to
     * identify this newly created context
     */
    ctx_fd = ctx.ctx_arg.ctx_fd;
    /* save the fd into the thread context struct */
    ( ( ia64_context_t * ) thr_ctx )->fd = ctx_fd;
    ( ( ia64_context_t * ) thr_ctx )->tid = mygettid(  );
    SUBDBG( "PFM_CREATE_CONTEXT returns FD %d, TID %d\n",
            ( int ) ( ( ia64_context_t * ) thr_ctx )->fd,
            ( int ) ( ( ia64_context_t * ) thr_ctx )->tid );
    /* indicate which PMD to include in the sample */
/* DEAR and BTB events */
    switch ( _perfmon2_pfm_pmu_type ) {
    case PFMLIB_ITANIUM_PMU:
        if ( pfm_ita_is_dear( native_index ) )
            set_pmds_to_write( ESI, EventIndex, DEAR_REGS_MASK );
        else if ( pfm_ita_is_btb( native_index )
                  || EventCode == ( unsigned int ) PAPI_BR_INS )
            set_pmds_to_write( ESI, EventIndex, BTB_REGS_MASK );
        break;
    case PFMLIB_ITANIUM2_PMU:
        if ( pfm_ita2_is_dear( native_index ) )
            set_pmds_to_write( ESI, EventIndex, DEAR_REGS_MASK );
        else if ( pfm_ita2_is_btb( native_index )
                  || EventCode == ( unsigned int ) PAPI_BR_INS )
            set_pmds_to_write( ESI, EventIndex, BTB_REGS_MASK );
        break;
    case PFMLIB_MONTECITO_PMU:
        if ( pfm_mont_is_dear( native_index ) )
            set_pmds_to_write( ESI, EventIndex, MONT_DEAR_REGS_MASK );
        else if ( pfm_mont_is_etb( native_index ) ||
                  EventCode == ( unsigned int ) PAPI_BR_INS )
            set_pmds_to_write( ESI, EventIndex, MONT_ETB_REGS_MASK );
        break;
    default:
        PAPIERROR( "PMU type %d is not supported by this component",
                   _perfmon2_pfm_pmu_type );
        return ( PAPI_EBUG );
    }

    *smpl_vaddr = ctx.ctx_arg.ctx_smpl_vaddr;

    return ( pfmw_create_ctx_common( thr_ctx ) );
}

Here is the call graph for this function:

Here is the caller graph for this function:

pfmw_start()

static void pfmw_start ( hwd_context_t *  ctx )

static

Definition at line 87 of file perfmon-ia64.c.

{
    pfm_self_start( ( ( ia64_context_t * ) ctx )->fd );
}

Here is the call graph for this function:

Here is the caller graph for this function:

pfmw_stop()

static void pfmw_stop ( hwd_context_t *  ctx )

static

Definition at line 93 of file perfmon-ia64.c.

{
    pfm_self_stop( ( ( ia64_context_t * ) ctx )->fd );
}

Here is the call graph for this function:

Here is the caller graph for this function:

pfmw_support_darr()

static int pfmw_support_darr ( unsigned int  i )

static

Definition at line 445 of file perfmon-ia64.c.

{
    switch ( _perfmon2_pfm_pmu_type ) {
    case PFMLIB_ITANIUM_PMU:
        return ( pfm_ita_support_darr( i ) );
        break;
    case PFMLIB_ITANIUM2_PMU:
        return ( pfm_ita2_support_darr( i ) );
        break;
    case PFMLIB_MONTECITO_PMU:
        return ( pfm_mont_support_darr( i ) );
        break;
    default:
        PAPIERROR( "PMU type %d is not supported by this component",
                   _perfmon2_pfm_pmu_type );
        return ( PAPI_EBUG );
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

pfmw_support_iarr()

static int pfmw_support_iarr ( unsigned int  i )

static

Definition at line 465 of file perfmon-ia64.c.

{
    switch ( _perfmon2_pfm_pmu_type ) {
    case PFMLIB_ITANIUM_PMU:
        return ( pfm_ita_support_iarr( i ) );
        break;
    case PFMLIB_ITANIUM2_PMU:
        return ( pfm_ita2_support_iarr( i ) );
        break;
    case PFMLIB_MONTECITO_PMU:
        return ( pfm_mont_support_iarr( i ) );
        break;
    default:
        PAPIERROR( "PMU type %d is not supported by this component",
                   _perfmon2_pfm_pmu_type );
        return ( PAPI_EBUG );
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

pfmw_support_opcm()

static int pfmw_support_opcm ( unsigned int  i )

static

Definition at line 485 of file perfmon-ia64.c.

{
    switch ( _perfmon2_pfm_pmu_type ) {
    case PFMLIB_ITANIUM_PMU:
        return ( pfm_ita_support_opcm( i ) );
        break;
    case PFMLIB_ITANIUM2_PMU:
        return ( pfm_ita2_support_opcm( i ) );
        break;
    case PFMLIB_MONTECITO_PMU:
        return ( pfm_mont_support_opcm( i ) );
        break;
    default:
        PAPIERROR( "PMU type %d is not supported by this component",
                   _perfmon2_pfm_pmu_type );
        return ( PAPI_EBUG );
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

prepare_umask()

static int prepare_umask ( unsigned int  foo, unsigned int *  values  )

static

Definition at line 1385 of file perfmon-ia64.c.

{
    unsigned int tmp = foo, i, j = 0;

    SUBDBG( "umask %#x\n", tmp );
    if ( foo == 0 )
        return 0;
    while ( ( i = ffs( tmp ) ) ) {
        tmp = tmp ^ ( 1 << ( i - 1 ) );
        values[j] = i - 1;
        SUBDBG( "umask %d is %d\n", j, values[j] );
        j++;
    }
    return ( j );
}

Here is the caller graph for this function:

round_requested_ns()

static int round_requested_ns ( int  ns )

static

Definition at line 2222 of file perfmon-ia64.c.

{
    if ( ns < _papi_os_info.itimer_res_ns ) {
        return _papi_os_info.itimer_res_ns;
    } else {
        int leftover_ns = ns % _papi_os_info.itimer_res_ns;
        return ns + leftover_ns;
    }
}

Here is the caller graph for this function:

search_cpu_info()

static char * search_cpu_info ( FILE *  f, char *  search_str, char *  line  )

static

Definition at line 1700 of file perfmon-ia64.c.

{
    /* This code courtesy of our friends in Germany. Thanks Rudolph Berrendorf! */
    /* See the PCL home page for the German version of PAPI. */

    char *s;

    while ( fgets( line, 256, f ) != NULL ) {
        if ( strstr( line, search_str ) != NULL ) {
            /* ignore all characters in line up to : */
            for ( s = line; *s && ( *s != ':' ); ++s );
            if ( *s )
                return ( s );
        }
    }
    return ( NULL );

    /* End stolen code */
}

Here is the call graph for this function:

set_default_domain()

static int set_default_domain ( hwd_control_state_t *  this_state, int  domain  )

static

Definition at line 2004 of file perfmon-ia64.c.

{
    return ( _ia64_set_domain( this_state, domain ) );
}

Here is the call graph for this function:

Here is the caller graph for this function:

set_default_granularity()

static int set_default_granularity ( hwd_control_state_t *  this_state, int  granularity  )

static

Definition at line 2010 of file perfmon-ia64.c.

{
    return ( set_granularity( this_state, granularity ) );
}

Here is the call graph for this function:

Here is the caller graph for this function:

set_drange()

static int set_drange ( hwd_context_t *  ctx, hwd_control_state_t *  current_state, _papi_int_option_t *  option  )

static

Definition at line 767 of file perfmon-ia64.c.

{
    int ret = PAPI_OK;
    ia64_control_state_t *this_state = ( ia64_control_state_t * ) current_state;
    pfmw_param_t *evt = &( this_state->evt );
    pfmlib_input_param_t *inp = &evt->inp;
    pfmlib_ita2_input_param_t *ita2_inp =
        &( this_state->ita_lib_param.ita2_param.ita2_input_param );
    pfmlib_ita2_output_param_t *ita2_outp =
        &( this_state->ita_lib_param.ita2_param.ita2_output_param );
    pfmlib_mont_input_param_t *mont_inp =
        &( this_state->ita_lib_param.mont_param.mont_input_param );
    pfmlib_mont_output_param_t *mont_outp =
        &( this_state->ita_lib_param.mont_param.mont_output_param );

    switch ( _perfmon2_pfm_pmu_type ) {
    case PFMLIB_ITANIUM2_PMU:

        if ( ( unsigned long ) option->address_range.start ==
             ( unsigned long ) option->address_range.end ||
             ( ( unsigned long ) option->address_range.start == 0 &&
               ( unsigned long ) option->address_range.end == 0 ) )
            return ( PAPI_EINVAL );
        /*
         * set the privilege mode:
         *  PFM_PLM3 : user level only
         */
        memset( &ita2_inp->pfp_ita2_drange, 0,
                sizeof ( pfmlib_ita2_input_rr_t ) );
        memset( ita2_outp, 0, sizeof ( pfmlib_ita2_output_param_t ) );
        inp->pfp_dfl_plm = PFM_PLM3;
        ita2_inp->pfp_ita2_drange.rr_used = 1;
        ita2_inp->pfp_ita2_drange.rr_limits[0].rr_start =
            ( unsigned long ) option->address_range.start;
        ita2_inp->pfp_ita2_drange.rr_limits[0].rr_end =
            ( unsigned long ) option->address_range.end;
        SUBDBG
            ( "++++ before data range  : [%#016lx-%#016lx=%ld]: %d pair of debug registers used\n"
              "     start_offset:-%#lx end_offset:+%#lx\n",
              ita2_inp->pfp_ita2_drange.rr_limits[0].rr_start,
              ita2_inp->pfp_ita2_drange.rr_limits[0].rr_end,
              ita2_inp->pfp_ita2_drange.rr_limits[0].rr_end -
              ita2_inp->pfp_ita2_drange.rr_limits[0].rr_start,
              ita2_outp->pfp_ita2_drange.rr_nbr_used >> 1,
              ita2_outp->pfp_ita2_drange.rr_infos[0].rr_soff,
              ita2_outp->pfp_ita2_drange.rr_infos[0].rr_eoff );

        /*
         * let the library figure out the values for the PMCS
         */
        if ( ( ret = pfmw_dispatch_events( evt ) ) != PFMLIB_SUCCESS ) {
            SUBDBG( "cannot configure events: %s\n", pfm_strerror( ret ) );
        }

        SUBDBG
            ( "++++ data range  : [%#016lx-%#016lx=%ld]: %d pair of debug registers used\n"
              "     start_offset:-%#lx end_offset:+%#lx\n",
              ita2_inp->pfp_ita2_drange.rr_limits[0].rr_start,
              ita2_inp->pfp_ita2_drange.rr_limits[0].rr_end,
              ita2_inp->pfp_ita2_drange.rr_limits[0].rr_end -
              ita2_inp->pfp_ita2_drange.rr_limits[0].rr_start,
              ita2_outp->pfp_ita2_drange.rr_nbr_used >> 1,
              ita2_outp->pfp_ita2_drange.rr_infos[0].rr_soff,
              ita2_outp->pfp_ita2_drange.rr_infos[0].rr_eoff );

/*   if(    ita2_inp->pfp_ita2_irange.rr_limits[0].rr_start!=0 ||   ita2_inp->pfp_ita2_irange.rr_limits[0].rr_end!=0 )
   if((ret=install_irange(ctx, current_state)) ==PAPI_OK){
      option->address_range.start_off=ita2_outp->pfp_ita2_irange.rr_infos[0].rr_soff;
      option->address_range.end_off=ita2_outp->pfp_ita2_irange.rr_infos[0].rr_eoff;
   }
*/
        if ( ( ret = install_drange( ctx, current_state ) ) == PAPI_OK ) {
            option->address_range.start_off =
                ita2_outp->pfp_ita2_drange.rr_infos[0].rr_soff;
            option->address_range.end_off =
                ita2_outp->pfp_ita2_drange.rr_infos[0].rr_eoff;
        }
        return ( ret );

        break;
    case PFMLIB_MONTECITO_PMU:

        if ( ( unsigned long ) option->address_range.start ==
             ( unsigned long ) option->address_range.end ||
             ( ( unsigned long ) option->address_range.start == 0 &&
               ( unsigned long ) option->address_range.end == 0 ) )
            return ( PAPI_EINVAL );
        /*
         * set the privilege mode:
         *  PFM_PLM3 : user level only
         */
        memset( &mont_inp->pfp_mont_drange, 0,
                sizeof ( pfmlib_mont_input_rr_t ) );
        memset( mont_outp, 0, sizeof ( pfmlib_mont_output_param_t ) );
        inp->pfp_dfl_plm = PFM_PLM3;
        mont_inp->pfp_mont_drange.rr_used = 1;
        mont_inp->pfp_mont_drange.rr_limits[0].rr_start =
            ( unsigned long ) option->address_range.start;
        mont_inp->pfp_mont_drange.rr_limits[0].rr_end =
            ( unsigned long ) option->address_range.end;
        SUBDBG
            ( "++++ before data range  : [%#016lx-%#016lx=%ld]: %d pair of debug registers used\n"
              "     start_offset:-%#lx end_offset:+%#lx\n",
              mont_inp->pfp_mont_drange.rr_limits[0].rr_start,
              mont_inp->pfp_mont_drange.rr_limits[0].rr_end,
              mont_inp->pfp_mont_drange.rr_limits[0].rr_end -
              mont_inp->pfp_mont_drange.rr_limits[0].rr_start,
              mont_outp->pfp_mont_drange.rr_nbr_used >> 1,
              mont_outp->pfp_mont_drange.rr_infos[0].rr_soff,
              mont_outp->pfp_mont_drange.rr_infos[0].rr_eoff );
        /*
         * let the library figure out the values for the PMCS
         */
        if ( ( ret = pfmw_dispatch_events( evt ) ) != PFMLIB_SUCCESS ) {
            SUBDBG( "cannot configure events: %s\n", pfm_strerror( ret ) );
        }

        SUBDBG
            ( "++++ data range  : [%#016lx-%#016lx=%ld]: %d pair of debug registers used\n"
              "     start_offset:-%#lx end_offset:+%#lx\n",
              mont_inp->pfp_mont_drange.rr_limits[0].rr_start,
              mont_inp->pfp_mont_drange.rr_limits[0].rr_end,
              mont_inp->pfp_mont_drange.rr_limits[0].rr_end -
              mont_inp->pfp_mont_drange.rr_limits[0].rr_start,
              mont_outp->pfp_mont_drange.rr_nbr_used >> 1,
              mont_outp->pfp_mont_drange.rr_infos[0].rr_soff,
              mont_outp->pfp_mont_drange.rr_infos[0].rr_eoff );

/*   if(    ita2_inp->pfp_ita2_irange.rr_limits[0].rr_start!=0 ||   ita2_inp->pfp_ita2_irange.rr_limits[0].rr_end!=0 )
   if((ret=install_irange(ctx, current_state)) ==PAPI_OK){
      option->address_range.start_off=ita2_outp->pfp_ita2_irange.rr_infos[0].rr_soff;
      option->address_range.end_off=ita2_outp->pfp_ita2_irange.rr_infos[0].rr_eoff;
   }
*/
        if ( ( ret = install_drange( ctx, current_state ) ) == PAPI_OK ) {
            option->address_range.start_off =
                mont_outp->pfp_mont_drange.rr_infos[0].rr_soff;
            option->address_range.end_off =
                mont_outp->pfp_mont_drange.rr_infos[0].rr_eoff;
        }
        return ( ret );

        break;
    default:
        PAPIERROR( "PMU type %d is not supported by this component",
                   _perfmon2_pfm_pmu_type );
        return PAPI_ENOIMPL;
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

set_granularity()

static int set_granularity ( hwd_control_state_t *  this_state, int  domain  )

static

Definition at line 1870 of file perfmon-ia64.c.

{
    ( void ) this_state;     /*unused */
    switch ( domain ) {
    case PAPI_GRN_PROCG:
    case PAPI_GRN_SYS:
    case PAPI_GRN_SYS_CPU:
    case PAPI_GRN_PROC:
        return PAPI_ECMP;
    case PAPI_GRN_THR:
        break;
    default:
        return PAPI_EINVAL;
    }
    return PAPI_OK;
}

Here is the caller graph for this function:

set_inherit()

static int set_inherit ( int  arg )

static

Definition at line 1997 of file perfmon-ia64.c.

{
    ( void ) arg;            /*unused */
    return PAPI_ECMP;
}

Here is the caller graph for this function:

set_irange()

static int set_irange ( hwd_context_t *  ctx, hwd_control_state_t *  current_state, _papi_int_option_t *  option  )

static

Definition at line 919 of file perfmon-ia64.c.

{
    int ret = PAPI_OK;
    ia64_control_state_t *this_state = ( ia64_control_state_t * ) current_state;
    pfmw_param_t *evt = &( this_state->evt );
    pfmlib_input_param_t *inp = &evt->inp;
    pfmlib_ita2_input_param_t *ita2_inp =
        &( this_state->ita_lib_param.ita2_param.ita2_input_param );
    pfmlib_ita2_output_param_t *ita2_outp =
        &( this_state->ita_lib_param.ita2_param.ita2_output_param );
    pfmlib_mont_input_param_t *mont_inp =
        &( this_state->ita_lib_param.mont_param.mont_input_param );
    pfmlib_mont_output_param_t *mont_outp =
        &( this_state->ita_lib_param.mont_param.mont_output_param );

    switch ( _perfmon2_pfm_pmu_type ) {
    case PFMLIB_ITANIUM2_PMU:

        if ( ( unsigned long ) option->address_range.start ==
             ( unsigned long ) option->address_range.end ||
             ( ( unsigned long ) option->address_range.start == 0 &&
               ( unsigned long ) option->address_range.end == 0 ) )
            return ( PAPI_EINVAL );
        /*
         * set the privilege mode:
         *    PFM_PLM3 : user level only
         */
        memset( &ita2_inp->pfp_ita2_irange, 0,
                sizeof ( pfmlib_ita2_input_rr_t ) );
        memset( ita2_outp, 0, sizeof ( pfmlib_ita2_output_param_t ) );
        inp->pfp_dfl_plm = PFM_PLM3;
        ita2_inp->pfp_ita2_irange.rr_used = 1;
        ita2_inp->pfp_ita2_irange.rr_limits[0].rr_start =
            ( unsigned long ) option->address_range.start;
        ita2_inp->pfp_ita2_irange.rr_limits[0].rr_end =
            ( unsigned long ) option->address_range.end;
        SUBDBG
            ( "++++ before code range  : [%#016lx-%#016lx=%ld]: %d pair of debug registers used\n"
              "     start_offset:-%#lx end_offset:+%#lx\n",
              ita2_inp->pfp_ita2_irange.rr_limits[0].rr_start,
              ita2_inp->pfp_ita2_irange.rr_limits[0].rr_end,
              ita2_inp->pfp_ita2_irange.rr_limits[0].rr_end -
              ita2_inp->pfp_ita2_irange.rr_limits[0].rr_start,
              ita2_outp->pfp_ita2_irange.rr_nbr_used >> 1,
              ita2_outp->pfp_ita2_irange.rr_infos[0].rr_soff,
              ita2_outp->pfp_ita2_irange.rr_infos[0].rr_eoff );

        /*
         * let the library figure out the values for the PMCS
         */
        if ( ( ret = pfmw_dispatch_events( evt ) ) != PFMLIB_SUCCESS ) {
            SUBDBG( "cannot configure events: %s\n", pfm_strerror( ret ) );
        }

        SUBDBG
            ( "++++ code range  : [%#016lx-%#016lx=%ld]: %d pair of debug registers used\n"
              "     start_offset:-%#lx end_offset:+%#lx\n",
              ita2_inp->pfp_ita2_irange.rr_limits[0].rr_start,
              ita2_inp->pfp_ita2_irange.rr_limits[0].rr_end,
              ita2_inp->pfp_ita2_irange.rr_limits[0].rr_end -
              ita2_inp->pfp_ita2_irange.rr_limits[0].rr_start,
              ita2_outp->pfp_ita2_irange.rr_nbr_used >> 1,
              ita2_outp->pfp_ita2_irange.rr_infos[0].rr_soff,
              ita2_outp->pfp_ita2_irange.rr_infos[0].rr_eoff );
        if ( ( ret = install_irange( ctx, current_state ) ) == PAPI_OK ) {
            option->address_range.start_off =
                ita2_outp->pfp_ita2_irange.rr_infos[0].rr_soff;
            option->address_range.end_off =
                ita2_outp->pfp_ita2_irange.rr_infos[0].rr_eoff;
        }

        break;
    case PFMLIB_MONTECITO_PMU:

        if ( ( unsigned long ) option->address_range.start ==
             ( unsigned long ) option->address_range.end ||
             ( ( unsigned long ) option->address_range.start == 0 &&
               ( unsigned long ) option->address_range.end == 0 ) )
            return ( PAPI_EINVAL );
        /*
         * set the privilege mode:
         *  PFM_PLM3 : user level only
         */
        memset( &mont_inp->pfp_mont_irange, 0,
                sizeof ( pfmlib_mont_input_rr_t ) );
        memset( mont_outp, 0, sizeof ( pfmlib_mont_output_param_t ) );
        inp->pfp_dfl_plm = PFM_PLM3;
        mont_inp->pfp_mont_irange.rr_used = 1;
        mont_inp->pfp_mont_irange.rr_limits[0].rr_start =
            ( unsigned long ) option->address_range.start;
        mont_inp->pfp_mont_irange.rr_limits[0].rr_end =
            ( unsigned long ) option->address_range.end;
        SUBDBG
            ( "++++ before code range  : [%#016lx-%#016lx=%ld]: %d pair of debug registers used\n"
              "     start_offset:-%#lx end_offset:+%#lx\n",
              mont_inp->pfp_mont_irange.rr_limits[0].rr_start,
              mont_inp->pfp_mont_irange.rr_limits[0].rr_end,
              mont_inp->pfp_mont_irange.rr_limits[0].rr_end -
              mont_inp->pfp_mont_irange.rr_limits[0].rr_start,
              mont_outp->pfp_mont_irange.rr_nbr_used >> 1,
              mont_outp->pfp_mont_irange.rr_infos[0].rr_soff,
              mont_outp->pfp_mont_irange.rr_infos[0].rr_eoff );

        /*
         * let the library figure out the values for the PMCS
         */
        if ( ( ret = pfmw_dispatch_events( evt ) ) != PFMLIB_SUCCESS ) {
            SUBDBG( "cannot configure events: %s\n", pfm_strerror( ret ) );
        }

        SUBDBG
            ( "++++ code range  : [%#016lx-%#016lx=%ld]: %d pair of debug registers used\n"
              "     start_offset:-%#lx end_offset:+%#lx\n",
              mont_inp->pfp_mont_irange.rr_limits[0].rr_start,
              mont_inp->pfp_mont_irange.rr_limits[0].rr_end,
              mont_inp->pfp_mont_irange.rr_limits[0].rr_end -
              mont_inp->pfp_mont_irange.rr_limits[0].rr_start,
              mont_outp->pfp_mont_irange.rr_nbr_used >> 1,
              mont_outp->pfp_mont_irange.rr_infos[0].rr_soff,
              mont_outp->pfp_mont_irange.rr_infos[0].rr_eoff );
        if ( ( ret = install_irange( ctx, current_state ) ) == PAPI_OK ) {
            option->address_range.start_off =
                mont_outp->pfp_mont_irange.rr_infos[0].rr_soff;
            option->address_range.end_off =
                mont_outp->pfp_mont_irange.rr_infos[0].rr_eoff;
        }

        break;
    default:
        PAPIERROR( "PMU type %d is not supported by this component",
                   _perfmon2_pfm_pmu_type );
        return PAPI_ENOIMPL;
    }

    return ret;
}

Here is the call graph for this function:

Here is the caller graph for this function:

set_notify()

static int set_notify ( EventSetInfo_t *  ESI, int  index, int  value  )

static

Definition at line 2672 of file perfmon-ia64.c.

{
    int *pos, count, i;
    unsigned int hwcntr;
    pfmw_param_t *pevt =
        &( ( ( ia64_control_state_t * ) ESI->ctl_state )->evt );

    pos = ESI->EventInfoArray[index].pos;
    count = 0;
    while ( pos[count] != -1 && count < _ia64_vector.cmp_info.num_cntrs ) {
        hwcntr = pos[count] + PMU_FIRST_COUNTER;
        for ( i = 0; i < _ia64_vector.cmp_info.num_cntrs; i++ ) {
            if ( PFMW_PEVT_PFPPC_REG_NUM( pevt, i ) == hwcntr ) {
                SUBDBG( "Found hw counter %d in %d, flags %d\n", hwcntr, i,
                        value );
                PFMW_PEVT_PFPPC_REG_FLG( pevt, i ) = value;
/*
         #ifdef PFM30
            if (value)
               pevt->pc[i].reg_reset_pmds[0] = 1UL << pevt->pc[i].reg_num;
            else
               pevt->pc[i].reg_reset_pmds[0] = 0;
         #endif
*/
                break;
            }
        }
        count++;
    }
    return ( PAPI_OK );
}

Here is the caller graph for this function:

set_pmds_to_write()

static int set_pmds_to_write ( EventSetInfo_t *  ESI, int  index, unsigned long  value  )

static

Definition at line 253 of file perfmon-ia64.c.

{
    int *pos, count, i;
    unsigned int hwcntr;
    ia64_control_state_t *this_state =
        ( ia64_control_state_t * ) ESI->ctl_state;
    pfmw_param_t *pevt = &( this_state->evt );

    pos = ESI->EventInfoArray[index].pos;
    count = 0;
    while ( pos[count] != -1 && count < MAX_COUNTERS ) {
        hwcntr = pos[count] + PMU_FIRST_COUNTER;
        for ( i = 0; i < MAX_COUNTERS; i++ ) {
            if ( PFMW_PEVT_PFPPC_REG_NUM( pevt, i ) == hwcntr ) {
                this_state->evt.pc[i].reg_smpl_pmds[0] = value;
                break;
            }
        }
        count++;
    }
    return ( PAPI_OK );
}

Here is the caller graph for this function:

Variable Documentation

_ia64_vector

papi_vector_t _ia64_vector

Definition at line 1081 of file perfmon-ia64.c.

_perfmon2_pfm_pmu_type

int _perfmon2_pfm_pmu_type = -1

Definition at line 1091 of file perfmon-ia64.c.

ia1_preset_search_map

itanium_preset_search_t ia1_preset_search_map[]

static

Definition at line 1121 of file perfmon-ia64.c.

ia2_preset_search_map

itanium_preset_search_t ia2_preset_search_map[]

static

Definition at line 1173 of file perfmon-ia64.c.

ia3_preset_search_map

itanium_preset_search_t ia3_preset_search_map[]

static

Definition at line 1250 of file perfmon-ia64.c.

PAPI_NATIVE_EVENT_AND_MASK

unsigned int PAPI_NATIVE_EVENT_AND_MASK = 0x000003ff

Definition at line 1083 of file perfmon-ia64.c.

PAPI_NATIVE_EVENT_SHIFT

unsigned int PAPI_NATIVE_EVENT_SHIFT = 0

Definition at line 1084 of file perfmon-ia64.c.

PAPI_NATIVE_UMASK_AND_MASK

unsigned int PAPI_NATIVE_UMASK_AND_MASK = 0x03fffc00

Definition at line 1085 of file perfmon-ia64.c.

PAPI_NATIVE_UMASK_MAX

unsigned int PAPI_NATIVE_UMASK_MAX = 16

Definition at line 1086 of file perfmon-ia64.c.

PAPI_NATIVE_UMASK_SHIFT

unsigned int PAPI_NATIVE_UMASK_SHIFT = 10

Definition at line 1087 of file perfmon-ia64.c.

preset_search_map

hwi_search_t* preset_search_map

Definition at line 1080 of file perfmon-ia64.c.
