pfmlib_itanium.h File Reference

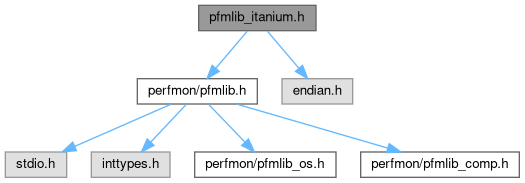

Include dependency graph for pfmlib_itanium.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
union	pfm_ita_pmc_reg_t
union	pfm_ita_pmd_reg_t
struct	pfmlib_ita_counter_t
struct	pfmlib_ita_opcm_t
struct	pfmlib_ita_btb_t
struct	pfmlib_ita_ear_t
struct	pfmlib_ita_input_rr_desc_t
struct	pfmlib_ita_output_rr_desc_t
struct	pfmlib_ita_input_rr_t
struct	pfmlib_ita_output_rr_t
struct	pfmlib_ita_input_param_t
struct	pfmlib_ita_output_param_t

Macros
#define	PMU_ITA_FIRST_COUNTER   4 /* index of first PMC/PMD counter */
#define	PMU_ITA_NUM_COUNTERS   4 /* total numbers of PMC/PMD pairs used as counting monitors */
#define	PMU_ITA_NUM_PMCS   14 /* total number of PMCS defined */
#define	PMU_ITA_NUM_PMDS   18 /* total number of PMDS defined */
#define	PMU_ITA_NUM_BTB   8 /* total number of PMDS in BTB */
#define	PMU_ITA_COUNTER_WIDTH   32 /* hardware counter bit width */
#define	PFMLIB_ITA_FL_EVT_NO_QUALCHECK   0x1 /* don't check qualifier constraints */

Enumerations
enum	pfmlib_ita_ism_t { PFMLIB_ITA_ISM_BOTH =0 , PFMLIB_ITA_ISM_IA32 =1 , PFMLIB_ITA_ISM_IA64 =2 }
enum	pfmlib_ita_ear_mode_t { PFMLIB_ITA_EAR_CACHE_MODE =0 , PFMLIB_ITA_EAR_TLB_MODE =1 }

Functions
int	pfm_ita_is_ear (unsigned int i)
int	pfm_ita_is_dear (unsigned int i)
int	pfm_ita_is_dear_tlb (unsigned int i)
int	pfm_ita_is_dear_cache (unsigned int i)
int	pfm_ita_is_iear (unsigned int i)
int	pfm_ita_is_iear_tlb (unsigned int i)
int	pfm_ita_is_iear_cache (unsigned int i)
int	pfm_ita_is_btb (unsigned int i)
int	pfm_ita_support_opcm (unsigned int i)
int	pfm_ita_support_iarr (unsigned int i)
int	pfm_ita_support_darr (unsigned int i)
int	pfm_ita_get_ear_mode (unsigned int i, pfmlib_ita_ear_mode_t *m)
int	pfm_ita_get_event_maxincr (unsigned int i, unsigned int *maxincr)
int	pfm_ita_get_event_umask (unsigned int i, unsigned long *umask)

Macro Definition Documentation

PFMLIB_ITA_FL_EVT_NO_QUALCHECK

#define PFMLIB_ITA_FL_EVT_NO_QUALCHECK   0x1 /* don't check qualifier constraints */

Definition at line 198 of file pfmlib_itanium.h.

PMU_ITA_COUNTER_WIDTH

#define PMU_ITA_COUNTER_WIDTH   32 /* hardware counter bit width */

Definition at line 43 of file pfmlib_itanium.h.

PMU_ITA_FIRST_COUNTER

#define PMU_ITA_FIRST_COUNTER   4 /* index of first PMC/PMD counter */

Definition at line 38 of file pfmlib_itanium.h.

PMU_ITA_NUM_BTB

#define PMU_ITA_NUM_BTB   8 /* total number of PMDS in BTB */

Definition at line 42 of file pfmlib_itanium.h.

PMU_ITA_NUM_COUNTERS

#define PMU_ITA_NUM_COUNTERS   4 /* total numbers of PMC/PMD pairs used as counting monitors */

Definition at line 39 of file pfmlib_itanium.h.

PMU_ITA_NUM_PMCS

#define PMU_ITA_NUM_PMCS   14 /* total number of PMCS defined */

Definition at line 40 of file pfmlib_itanium.h.

PMU_ITA_NUM_PMDS

#define PMU_ITA_NUM_PMDS   18 /* total number of PMDS defined */

Definition at line 41 of file pfmlib_itanium.h.

Enumeration Type Documentation

pfmlib_ita_ear_mode_t

enum pfmlib_ita_ear_mode_t

Enumerator
PFMLIB_ITA_EAR_CACHE_MODE
PFMLIB_ITA_EAR_TLB_MODE

Definition at line 257 of file pfmlib_itanium.h.

             {
    PFMLIB_ITA_EAR_CACHE_MODE=0,    /* Cache mode : I-EAR and D-EAR */
    PFMLIB_ITA_EAR_TLB_MODE  =1,    /* TLB mode   : I-EAR and D-EAR */
} pfmlib_ita_ear_mode_t;

pfmlib_ita_ism_t

enum pfmlib_ita_ism_t

Enumerator
PFMLIB_ITA_ISM_BOTH
PFMLIB_ITA_ISM_IA32
PFMLIB_ITA_ISM_IA64

Definition at line 183 of file pfmlib_itanium.h.

             {
    PFMLIB_ITA_ISM_BOTH=0,  /* IA-32 and IA-64 (default) */
    PFMLIB_ITA_ISM_IA32=1,  /* IA-32 only */
    PFMLIB_ITA_ISM_IA64=2   /* IA-64 only */
} pfmlib_ita_ism_t;

Function Documentation

pfm_ita_get_ear_mode()

int pfm_ita_get_ear_mode	(	unsigned int	i,
		pfmlib_ita_ear_mode_t *	m
	)

Definition at line 1091 of file pfmlib_itanium.c.

{
    if (!is_ear(i) || m == NULL) return PFMLIB_ERR_INVAL;

    *m = is_ear_tlb(i) ? PFMLIB_ITA_EAR_TLB_MODE : PFMLIB_ITA_EAR_CACHE_MODE;

    return PFMLIB_SUCCESS;
}

Here is the caller graph for this function:

pfm_ita_get_event_maxincr()

int pfm_ita_get_event_maxincr	(	unsigned int	i,
		unsigned int *	maxincr
	)

Definition at line 1015 of file pfmlib_itanium.c.

{
    if (i >= PME_ITA_EVENT_COUNT || maxincr == NULL) return PFMLIB_ERR_INVAL;
    *maxincr = itanium_pe[i].pme_maxincr;
    return PFMLIB_SUCCESS;
}

pfm_ita_get_event_umask()

int pfm_ita_get_event_umask	(	unsigned int	i,
		unsigned long *	umask
	)

Definition at line 1116 of file pfmlib_itanium.c.

{
    if (i >= PME_ITA_EVENT_COUNT || umask == NULL) return PFMLIB_ERR_INVAL;
    *umask = evt_umask(i);
    return PFMLIB_SUCCESS;
}

pfm_ita_is_btb()

int pfm_ita_is_btb

(

unsigned int

i

)

Definition at line 1065 of file pfmlib_itanium.c.

{
    return i >= PME_ITA_EVENT_COUNT || ! is_btb(i) ? 0 : 1;
}

Here is the caller graph for this function:

pfm_ita_is_dear()

int pfm_ita_is_dear

(

unsigned int

i

)

Definition at line 1029 of file pfmlib_itanium.c.

{
    return i >= PME_ITA_EVENT_COUNT || ! is_dear(i) ? 0 : 1;
}

Here is the caller graph for this function:

pfm_ita_is_dear_cache()

int pfm_ita_is_dear_cache

(

unsigned int

i

)

Definition at line 1041 of file pfmlib_itanium.c.

{
    return i >= PME_ITA_EVENT_COUNT || ! (is_dear(i) && !is_ear_tlb(i)) ? 0 : 1;
}

pfm_ita_is_dear_tlb()

int pfm_ita_is_dear_tlb

(

unsigned int

i

)

Definition at line 1035 of file pfmlib_itanium.c.

{
    return i >= PME_ITA_EVENT_COUNT || ! (is_dear(i) && is_ear_tlb(i)) ? 0 : 1;
}

pfm_ita_is_ear()

int pfm_ita_is_ear

(

unsigned int

i

)

Definition at line 1023 of file pfmlib_itanium.c.

{
    return i >= PME_ITA_EVENT_COUNT || ! is_ear(i) ? 0 : 1;
}

pfm_ita_is_iear()

int pfm_ita_is_iear

(

unsigned int

i

)

Definition at line 1047 of file pfmlib_itanium.c.

{
    return i >= PME_ITA_EVENT_COUNT || ! is_iear(i) ? 0 : 1;
}

Here is the caller graph for this function:

pfm_ita_is_iear_cache()

int pfm_ita_is_iear_cache

(

unsigned int

i

)

Definition at line 1059 of file pfmlib_itanium.c.

{
    return i >= PME_ITA_EVENT_COUNT || ! (is_iear(i) && !is_ear_tlb(i)) ? 0 : 1;
}

pfm_ita_is_iear_tlb()

int pfm_ita_is_iear_tlb

(

unsigned int

i

)

Definition at line 1053 of file pfmlib_itanium.c.

{
    return i >= PME_ITA_EVENT_COUNT || ! (is_iear(i) && is_ear_tlb(i)) ? 0 : 1;
}

pfm_ita_support_darr()

int pfm_ita_support_darr

(

unsigned int

i

)

Definition at line 1078 of file pfmlib_itanium.c.

{
    return i >= PME_ITA_EVENT_COUNT || ! has_darr(i) ? 0 : 1;
}

Here is the caller graph for this function:

pfm_ita_support_iarr()

int pfm_ita_support_iarr

(

unsigned int

i

)

Definition at line 1071 of file pfmlib_itanium.c.

{
    return i >= PME_ITA_EVENT_COUNT || ! has_iarr(i) ? 0 : 1;
}

Here is the caller graph for this function:

pfm_ita_support_opcm()

int pfm_ita_support_opcm

(

unsigned int

i

)

Definition at line 1085 of file pfmlib_itanium.c.

{
    return i >= PME_ITA_EVENT_COUNT || ! has_opcm(i) ? 0 : 1;
}

Here is the caller graph for this function:
