pfmlib_itanium.c File Reference

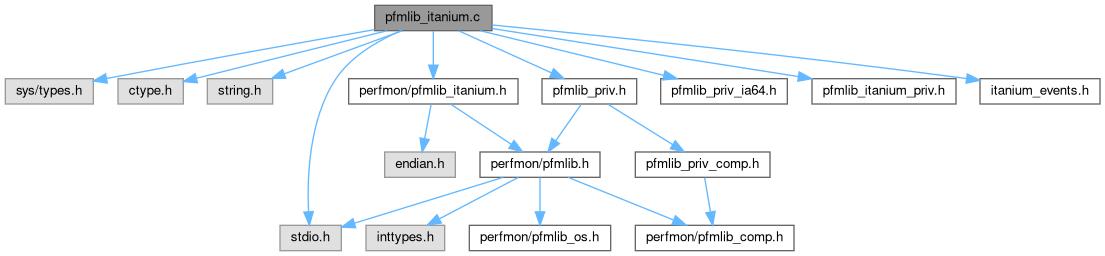

Include dependency graph for pfmlib_itanium.c:

Go to the source code of this file.

Macros
#define	is_ear(i)   event_is_ear(itanium_pe+(i))
#define	is_ear_tlb(i)   event_is_tlb_ear(itanium_pe+(i))
#define	is_iear(i)   event_is_iear(itanium_pe+(i))
#define	is_dear(i)   event_is_dear(itanium_pe+(i))
#define	is_btb(i)   event_is_btb(itanium_pe+(i))
#define	has_opcm(i)   event_opcm_ok(itanium_pe+(i))
#define	has_iarr(i)   event_iarr_ok(itanium_pe+(i))
#define	has_darr(i)   event_darr_ok(itanium_pe+(i))
#define	evt_use_opcm(e)   ((e)->pfp_ita_pmc8.opcm_used != 0 || (e)->pfp_ita_pmc9.opcm_used !=0)
#define	evt_use_irange(e)   ((e)->pfp_ita_irange.rr_used)
#define	evt_use_drange(e)   ((e)->pfp_ita_drange.rr_used)
#define	evt_umask(e)   itanium_pe[(e)].pme_umask
#define	pmc_plm   pmc_ita_count_reg.pmc_plm
#define	pmc_ev   pmc_ita_count_reg.pmc_ev
#define	pmc_oi   pmc_ita_count_reg.pmc_oi
#define	pmc_pm   pmc_ita_count_reg.pmc_pm
#define	pmc_es   pmc_ita_count_reg.pmc_es
#define	pmc_umask   pmc_ita_count_reg.pmc_umask
#define	pmc_thres   pmc_ita_count_reg.pmc_thres
#define	pmc_ism   pmc_ita_count_reg.pmc_ism
#define	PFMLIB_ITA_PMC_BASE   0
#define	has_counter(e, b)   (itanium_pe[e].pme_counters & (1 << (b)) ? (b) : 0)

Functions
static int	pfm_ita_detect (void)
static int	valid_assign (unsigned int *as, pfmlib_regmask_t *r_pmcs, unsigned int cnt)
static int	pfm_ita_dispatch_counters (pfmlib_input_param_t *inp, pfmlib_ita_input_param_t *mod_in, pfmlib_output_param_t *outp)
static int	pfm_dispatch_iear (pfmlib_input_param_t *inp, pfmlib_ita_input_param_t *mod_in, pfmlib_output_param_t *outp)
static int	pfm_dispatch_dear (pfmlib_input_param_t *inp, pfmlib_ita_input_param_t *mod_in, pfmlib_output_param_t *outp)
static int	pfm_dispatch_opcm (pfmlib_input_param_t *inp, pfmlib_ita_input_param_t *mod_in, pfmlib_output_param_t *outp)
static int	pfm_dispatch_btb (pfmlib_input_param_t *inp, pfmlib_ita_input_param_t *mod_in, pfmlib_output_param_t *outp)
static int	check_intervals (pfmlib_ita_input_rr_t *irr, int mode, int *n_intervals)
static void	do_normal_rr (unsigned long start, unsigned long end, pfmlib_reg_t *br, int nbr, int dir, int *idx, int *reg_idx, int plm)
static void	print_one_range (pfmlib_ita_input_rr_desc_t *in_rr, pfmlib_ita_output_rr_desc_t *out_rr, pfmlib_reg_t *dbr, int base_idx, int n_pairs)
static int	compute_normal_rr (pfmlib_ita_input_rr_t *irr, int dfl_plm, int n, int *base_idx, pfmlib_ita_output_rr_t *orr)
static int	pfm_dispatch_irange (pfmlib_input_param_t *inp, pfmlib_ita_input_param_t *mod_in, pfmlib_output_param_t *outp, pfmlib_ita_output_param_t *mod_out)
static int	pfm_dispatch_drange (pfmlib_input_param_t *inp, pfmlib_ita_input_param_t *mod_in, pfmlib_output_param_t *outp, pfmlib_ita_output_param_t *mod_out)
static int	check_qualifier_constraints (pfmlib_input_param_t *inp, pfmlib_ita_input_param_t *mod_in)
static int	check_range_plm (pfmlib_input_param_t *inp, pfmlib_ita_input_param_t *mod_in)
static int	pfm_ita_dispatch_events (pfmlib_input_param_t *inp, void *model_in, pfmlib_output_param_t *outp, void *model_out)
int	pfm_ita_get_event_maxincr (unsigned int i, unsigned int *maxincr)
int	pfm_ita_is_ear (unsigned int i)
int	pfm_ita_is_dear (unsigned int i)
int	pfm_ita_is_dear_tlb (unsigned int i)
int	pfm_ita_is_dear_cache (unsigned int i)
int	pfm_ita_is_iear (unsigned int i)
int	pfm_ita_is_iear_tlb (unsigned int i)
int	pfm_ita_is_iear_cache (unsigned int i)
int	pfm_ita_is_btb (unsigned int i)
int	pfm_ita_support_iarr (unsigned int i)
int	pfm_ita_support_darr (unsigned int i)
int	pfm_ita_support_opcm (unsigned int i)
int	pfm_ita_get_ear_mode (unsigned int i, pfmlib_ita_ear_mode_t *m)
static int	pfm_ita_get_event_code (unsigned int i, unsigned int cnt, int *code)
int	pfm_ita_get_event_umask (unsigned int i, unsigned long *umask)
static char *	pfm_ita_get_event_name (unsigned int i)
static void	pfm_ita_get_event_counters (unsigned int j, pfmlib_regmask_t *counters)
static void	pfm_ita_get_impl_pmcs (pfmlib_regmask_t *impl_pmcs)
static void	pfm_ita_get_impl_pmds (pfmlib_regmask_t *impl_pmds)
static void	pfm_ita_get_impl_counters (pfmlib_regmask_t *impl_counters)
static void	pfm_ita_get_hw_counter_width (unsigned int *width)
static int	pfm_ita_get_cycle_event (pfmlib_event_t *e)
static int	pfm_ita_get_inst_retired (pfmlib_event_t *e)

Variables
pfm_pmu_support_t	itanium_support

Macro Definition Documentation

evt_umask

#define evt_umask

(

e

)

itanium_pe[(e)].pme_umask

Definition at line 51 of file pfmlib_itanium.c.

evt_use_drange

#define evt_use_drange

(

e

)

((e)->pfp_ita_drange.rr_used)

Definition at line 49 of file pfmlib_itanium.c.

evt_use_irange

#define evt_use_irange

(

e

)

((e)->pfp_ita_irange.rr_used)

Definition at line 48 of file pfmlib_itanium.c.

evt_use_opcm

#define evt_use_opcm

(

e

)

((e)->pfp_ita_pmc8.opcm_used != 0 || (e)->pfp_ita_pmc9.opcm_used !=0)

Definition at line 47 of file pfmlib_itanium.c.

has_counter

#define has_counter	(		e,
			b
	)		(itanium_pe[e].pme_counters & (1 << (b)) ? (b) : 0)

has_darr

#define has_darr

(

i

)

event_darr_ok(itanium_pe+(i))

Definition at line 45 of file pfmlib_itanium.c.

has_iarr

#define has_iarr

(

i

)

event_iarr_ok(itanium_pe+(i))

Definition at line 44 of file pfmlib_itanium.c.

has_opcm

#define has_opcm

(

i

)

event_opcm_ok(itanium_pe+(i))

Definition at line 43 of file pfmlib_itanium.c.

is_btb

#define is_btb

(

i

)

event_is_btb(itanium_pe+(i))

Definition at line 42 of file pfmlib_itanium.c.

is_dear

#define is_dear

(

i

)

event_is_dear(itanium_pe+(i))

Definition at line 41 of file pfmlib_itanium.c.

is_ear

#define is_ear

(

i

)

event_is_ear(itanium_pe+(i))

Definition at line 38 of file pfmlib_itanium.c.

is_ear_tlb

#define is_ear_tlb

(

i

)

event_is_tlb_ear(itanium_pe+(i))

Definition at line 39 of file pfmlib_itanium.c.

is_iear

#define is_iear

(

i

)

event_is_iear(itanium_pe+(i))

Definition at line 40 of file pfmlib_itanium.c.

PFMLIB_ITA_PMC_BASE

#define PFMLIB_ITA_PMC_BASE   0

Definition at line 84 of file pfmlib_itanium.c.

pmc_es

#define pmc_es   pmc_ita_count_reg.pmc_es

Definition at line 58 of file pfmlib_itanium.c.

pmc_ev

#define pmc_ev   pmc_ita_count_reg.pmc_ev

Definition at line 55 of file pfmlib_itanium.c.

pmc_ism

#define pmc_ism   pmc_ita_count_reg.pmc_ism

Definition at line 61 of file pfmlib_itanium.c.

pmc_oi

#define pmc_oi   pmc_ita_count_reg.pmc_oi

Definition at line 56 of file pfmlib_itanium.c.

pmc_plm

#define pmc_plm   pmc_ita_count_reg.pmc_plm

Definition at line 54 of file pfmlib_itanium.c.

pmc_pm

#define pmc_pm   pmc_ita_count_reg.pmc_pm

Definition at line 57 of file pfmlib_itanium.c.

pmc_thres

#define pmc_thres   pmc_ita_count_reg.pmc_thres

Definition at line 60 of file pfmlib_itanium.c.

pmc_umask

#define pmc_umask   pmc_ita_count_reg.pmc_umask

Definition at line 59 of file pfmlib_itanium.c.

Function Documentation

check_intervals()

static int check_intervals ( pfmlib_ita_input_rr_t *  irr, int  mode, int *  n_intervals  )

static

Definition at line 580 of file pfmlib_itanium.c.

{
    int i;
    pfmlib_ita_input_rr_desc_t *lim = irr->rr_limits;

    for(i=0; i < 4; i++) {
        /* end marker */
        if (lim[i].rr_start == 0 && lim[i].rr_end == 0) break;

        /* invalid entry */
        if (lim[i].rr_start >= lim[i].rr_end) return PFMLIB_ERR_IRRINVAL;

        if (mode == 0 && (lim[i].rr_start & 0xf || lim[i].rr_end & 0xf))
            return PFMLIB_ERR_IRRALIGN;
    }
    *n_intervals = i;
    return PFMLIB_SUCCESS;
}

Here is the caller graph for this function:

check_qualifier_constraints()

static int check_qualifier_constraints ( pfmlib_input_param_t *  inp, pfmlib_ita_input_param_t *  mod_in  )

static

Definition at line 928 of file pfmlib_itanium.c.

{
    pfmlib_event_t *e = inp->pfp_events;
    unsigned int i, count;

    count = inp->pfp_event_count;
    for(i=0; i < count; i++) {
        /*
         * skip check for counter which requested it. Use at your own risk.
         * No all counters have necessarily been validated for use with
         * qualifiers. Typically the event is counted as if no constraint
         * existed.
         */
        if (mod_in->pfp_ita_counters[i].flags & PFMLIB_ITA_FL_EVT_NO_QUALCHECK) continue;

        if (evt_use_irange(mod_in) && has_iarr(e[i].event) == 0) return PFMLIB_ERR_FEATCOMB;
        if (evt_use_drange(mod_in) && has_darr(e[i].event) == 0) return PFMLIB_ERR_FEATCOMB;
        if (evt_use_opcm(mod_in) && has_opcm(e[i].event) == 0) return PFMLIB_ERR_FEATCOMB;
    }
    return PFMLIB_SUCCESS;
}

Here is the caller graph for this function:

check_range_plm()

static int check_range_plm ( pfmlib_input_param_t *  inp, pfmlib_ita_input_param_t *  mod_in  )

static

Definition at line 951 of file pfmlib_itanium.c.

{
    unsigned int i, count;

    if (mod_in->pfp_ita_drange.rr_used == 0 && mod_in->pfp_ita_irange.rr_used == 0) return PFMLIB_SUCCESS;

    /*
     * range restriction applies to all events, therefore we must have a consistent
     * set of plm and they must match the pfp_dfl_plm which is used to setup the debug
     * registers
     */
    count = inp->pfp_event_count;
    for(i=0; i < count; i++) {
        if (inp->pfp_events[i].plm  && inp->pfp_events[i].plm != inp->pfp_dfl_plm) return PFMLIB_ERR_FEATCOMB;
    }
    return PFMLIB_SUCCESS;
}

Here is the caller graph for this function:

compute_normal_rr()

static int compute_normal_rr ( pfmlib_ita_input_rr_t *  irr, int  dfl_plm, int  n, int *  base_idx, pfmlib_ita_output_rr_t *  orr  )

static

Definition at line 746 of file pfmlib_itanium.c.

{
    pfmlib_ita_input_rr_desc_t *in_rr;
    pfmlib_ita_output_rr_desc_t *out_rr;
    unsigned long r_end;
    pfmlib_reg_t *br;
    dbreg_t d;
    int i, j, br_index, reg_idx, prev_index;

    in_rr     = irr->rr_limits;
    out_rr    = orr->rr_infos;
    br        = orr->rr_br;
    reg_idx   = *base_idx;
    br_index  = 0;

    for (i=0; i < n; i++, in_rr++, out_rr++) {
        /*
         * running out of registers
         */
        if (br_index == 8) break;

        prev_index = br_index;

        do_normal_rr(   in_rr->rr_start,
                in_rr->rr_end,
                br,
                4 - (reg_idx>>1), /* how many pairs available */
                0,
                &br_index,
                &reg_idx, in_rr->rr_plm ? in_rr->rr_plm : dfl_plm);

        DPRINT("br_index=%d reg_idx=%d\n", br_index, reg_idx);
        /*
         * compute offsets
         */
        out_rr->rr_soff = out_rr->rr_eoff = 0;

        for(j=prev_index; j < br_index; j+=2) {

            d.val = br[j+1].reg_value;
            r_end = br[j].reg_value+((~(d.db.db_mask)+1) & ~(0xffUL << 56));

            if (br[j].reg_value <= in_rr->rr_start)
                out_rr->rr_soff = in_rr->rr_start - br[j].reg_value;

            if (r_end >= in_rr->rr_end)
                out_rr->rr_eoff = r_end - in_rr->rr_end;
        }

        if (PFMLIB_VERBOSE()) print_one_range(in_rr, out_rr, br, prev_index, (br_index-prev_index)>>1);


    }

    /* do not have enough registers to cover all the ranges */
    if (br_index == 8 && i < n) return PFMLIB_ERR_TOOMANY;

    orr->rr_nbr_used = br_index;

    return PFMLIB_SUCCESS;
}

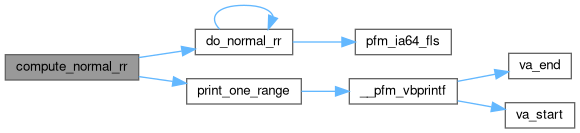

Here is the call graph for this function:

Here is the caller graph for this function:

do_normal_rr()

static void do_normal_rr ( unsigned long  start, unsigned long  end, pfmlib_reg_t *  br, int  nbr, int  dir, int *  idx, int *  reg_idx, int  plm  )

static

Definition at line 600 of file pfmlib_itanium.c.

{
    unsigned long size, l_addr, c;
    unsigned long l_offs = 0, r_offs = 0;
    unsigned long l_size, r_size;
    dbreg_t db;
    int p2;

    if (nbr < 1 || end <= start) return;

    size = end - start;

    DPRINT("start=0x%016lx end=0x%016lx size=0x%lx bytes (%lu bundles) nbr=%d dir=%d\n",
            start, end, size, size >> 4, nbr, dir);

    p2 = pfm_ia64_fls(size);

    c = ALIGN_DOWN(end, p2);

    DPRINT("largest power of two possible: 2^%d=0x%lx, crossing=0x%016lx\n",
                p2,
                1UL << p2, c);

    if ((c - (1UL<<p2)) >= start) {
        l_addr = c - (1UL << p2);
    } else {
        p2--;

        if ((c + (1UL<<p2)) <= end)  {
            l_addr = c;
        } else {
            l_addr = c - (1UL << p2);
        }
    }
    l_size = l_addr - start;
    r_size = end - l_addr-(1UL<<p2);

    DPRINT("largest chunk: 2^%d=0x%lx @0x%016lx-0x%016lx\n", p2, 1UL<<p2, l_addr, l_addr+(1UL<<p2));
    if (l_size) DPRINT("before: 0x%016lx-0x%016lx\n", start, l_addr);
    if (r_size) DPRINT("after : 0x%016lx-0x%016lx\n", l_addr+(1UL<<p2), end);

    if (dir == 0 && l_size != 0 && nbr == 1) {
        p2++;
        l_addr = end - (1UL << p2);
        if (PFMLIB_DEBUG()) {
            l_offs = start - l_addr;
            DPRINT(">>l_offs: 0x%lx\n", l_offs);
        }
    } else if (dir == 1 && r_size != 0 && nbr == 1) {
        p2++;
        l_addr = start;
        if (PFMLIB_DEBUG()) {
            r_offs = l_addr+(1UL<<p2) - end;
            DPRINT(">>r_offs: 0x%lx\n", r_offs);
        }
    }
    l_size = l_addr - start;
    r_size = end - l_addr-(1UL<<p2);

    DPRINT(">>largest chunk: 2^%d @0x%016lx-0x%016lx\n", p2, l_addr, l_addr+(1UL<<p2));
    if (l_size && !l_offs) DPRINT(">>before: 0x%016lx-0x%016lx\n", start, l_addr);
    if (r_size && !r_offs) DPRINT(">>after : 0x%016lx-0x%016lx\n", l_addr+(1UL<<p2), end);

    /*
     * we initialize the mask to full 0 and
     * only update the mask field. the rest is left
     * to zero, except for the plm.
     * in the case of ibr, the x-field must be 0. For dbr
     * the value of r-field and w-field is ignored.
     */

    db.val        = 0;
    db.db.db_mask = ~((1UL << p2)-1);
    /*
     * we always use default privilege level.
     * plm is ignored for DBRs.
     */
    db.db.db_plm  = plm;


    br[*idx].reg_num     = *reg_idx;
    br[*idx].reg_value   = l_addr;
    br[*idx].reg_addr    = *reg_idx;
    br[*idx].reg_alt_addr= *reg_idx;

    br[*idx+1].reg_num   = *reg_idx+1;
    br[*idx+1].reg_value = db.val;
    br[*idx+1].reg_addr  = *reg_idx+1;
    br[*idx+1].reg_alt_addr = *reg_idx+1;

    *idx     += 2;
    *reg_idx += 2;

    nbr--;
    if (nbr) {
        int r_nbr, l_nbr;

        r_nbr = l_nbr = nbr >>1;

        if (nbr & 0x1) {
            /*
             * our simple heuristic is:
             * we assign the largest number of registers to the largest
             * of the two chunks
             */
            if (l_size > r_size) {
                l_nbr++;
            } else {
                r_nbr++;
            }

        }
        do_normal_rr(start, l_addr, br, l_nbr, 0, idx, reg_idx, plm);
        do_normal_rr(l_addr+(1UL<<p2), end, br, r_nbr, 1, idx, reg_idx, plm);
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

pfm_dispatch_btb()

static int pfm_dispatch_btb ( pfmlib_input_param_t *  inp, pfmlib_ita_input_param_t *  mod_in, pfmlib_output_param_t *  outp  )

static

Definition at line 479 of file pfmlib_itanium.c.

{
    pfm_ita_pmc_reg_t reg;
    pfmlib_ita_input_param_t *param = mod_in;
    pfmlib_ita_input_param_t fake_param;
    pfmlib_reg_t *pc, *pd;
    int found_btb=0;
    unsigned int i, count;
    unsigned int  pos1, pos2;

    reg.pmc_val = 0;

    pc = outp->pfp_pmcs;
    pd = outp->pfp_pmds;
    pos1 = outp->pfp_pmc_count;
    pos2 = outp->pfp_pmd_count;

    count = inp->pfp_event_count;
    for (i=0; i < count; i++) {
        if (is_btb(inp->pfp_events[i].event)) found_btb = 1;
    }

    if (param == NULL || param->pfp_ita_btb.btb_used == 0) {

        /*
         * case 3: no BTB event, no param
         */
        if (found_btb  == 0) return PFMLIB_SUCCESS;

        /*
         * case 1: BTB event, no param, capture all branches
         */
        memset(&fake_param, 0, sizeof(fake_param));
        param = &fake_param;

        param->pfp_ita_btb.btb_tar = 0x1;   /* capture TAR  */
        param->pfp_ita_btb.btb_tm  = 0x3;   /* all branches */
        param->pfp_ita_btb.btb_ptm = 0x3;   /* all branches */
        param->pfp_ita_btb.btb_ppm = 0x3;   /* all branches */
        param->pfp_ita_btb.btb_tac = 0x1;   /* capture TAC  */
        param->pfp_ita_btb.btb_bac = 0x1;   /* capture BAC  */

        DPRINT("BTB event with no info\n");
    }

    /*
     * case 2: BTB event, param
     * case 4: no BTB event, param (free running mode)
     */

    /* if plm is 0, then assume not specified per-event and use default */
    reg.pmc12_ita_reg.btbc_plm = param->pfp_ita_btb.btb_plm ? param->pfp_ita_btb.btb_plm : inp->pfp_dfl_plm;
    reg.pmc12_ita_reg.btbc_pm  = inp->pfp_flags & PFMLIB_PFP_SYSTEMWIDE ? 1 : 0;
    reg.pmc12_ita_reg.btbc_tar = param->pfp_ita_btb.btb_tar & 0x1;
    reg.pmc12_ita_reg.btbc_tm  = param->pfp_ita_btb.btb_tm  & 0x3;
    reg.pmc12_ita_reg.btbc_ptm = param->pfp_ita_btb.btb_ptm & 0x3;
    reg.pmc12_ita_reg.btbc_ppm = param->pfp_ita_btb.btb_ppm & 0x3;
    reg.pmc12_ita_reg.btbc_bpt = param->pfp_ita_btb.btb_tac & 0x1;
    reg.pmc12_ita_reg.btbc_bac = param->pfp_ita_btb.btb_bac & 0x1;

    if (pfm_regmask_isset(&inp->pfp_unavail_pmcs, 12))
        return PFMLIB_ERR_NOASSIGN;

    pc[pos1].reg_num   = 12;
    pc[pos1].reg_value = reg.pmc_val;
    pc[pos1].reg_value = 12;
    pos1++;

    __pfm_vbprintf("[PMC12(pmc12)=0x%lx plm=%d pm=%d tar=%d tm=%d ptm=%d ppm=%d bpt=%d bac=%d]\n",
            reg.pmc_val,
            reg.pmc12_ita_reg.btbc_plm,
            reg.pmc12_ita_reg.btbc_pm,
            reg.pmc12_ita_reg.btbc_tar,
            reg.pmc12_ita_reg.btbc_tm,
            reg.pmc12_ita_reg.btbc_ptm,
            reg.pmc12_ita_reg.btbc_ppm,
            reg.pmc12_ita_reg.btbc_bpt,
            reg.pmc12_ita_reg.btbc_bac);

    /*
     * PMD16 is included in list of used PMD
     */
    for(i=8; i < 17; i++, pos2++) {
        pd[pos2].reg_num = i;
        pd[pos2].reg_addr = i;
        pd[pos2].reg_alt_addr = i;
        __pfm_vbprintf("[PMD%u(pmd%u)]\n", pd[pos2].reg_num, pd[pos2].reg_num);
    }

    /* update final number of entries used */
    outp->pfp_pmc_count = pos1;
    outp->pfp_pmd_count = pos2;

    return PFMLIB_SUCCESS;
}

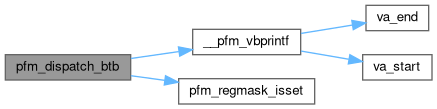

Here is the call graph for this function:

Here is the caller graph for this function:

pfm_dispatch_dear()

static int pfm_dispatch_dear ( pfmlib_input_param_t *  inp, pfmlib_ita_input_param_t *  mod_in, pfmlib_output_param_t *  outp  )

static

Definition at line 323 of file pfmlib_itanium.c.

{
    pfm_ita_pmc_reg_t reg;
    pfmlib_ita_input_param_t *param = mod_in;
    pfmlib_ita_input_param_t fake_param;
    pfmlib_reg_t *pc, *pd;
    unsigned int pos1, pos2;
    int dear_idx = -1;
    unsigned int i, count;

    pc = outp->pfp_pmcs;
    pd = outp->pfp_pmds;
    pos1 = outp->pfp_pmc_count;
    pos2 = outp->pfp_pmd_count;
    count = inp->pfp_event_count;

    for (i=0; i < count; i++) {
        if (is_dear(inp->pfp_events[i].event)) dear_idx = i;
    }

    if (param == NULL || param->pfp_ita_dear.ear_used == 0) {

        /*
         * case 3: no D-EAR event, no (or nothing) in param->pfp_ita2_dear.ear_used
         */
        if (dear_idx == -1) return PFMLIB_SUCCESS;

        memset(&fake_param, 0, sizeof(fake_param));
        param = &fake_param;

        pfm_ita_get_ear_mode(inp->pfp_events[dear_idx].event, &param->pfp_ita_dear.ear_mode);

        param->pfp_ita_dear.ear_umask = evt_umask(inp->pfp_events[dear_idx].event);
        param->pfp_ita_dear.ear_ism   = PFMLIB_ITA_ISM_BOTH; /* force both instruction sets */

        DPRINT("D-EAR event with no info\n");
    }


    /* sanity check on the mode */
    if (param->pfp_ita_dear.ear_mode > 2) return PFMLIB_ERR_INVAL;

    /*
     * case 2: ear_used=1, event is defined, we use the param info as it is more precise
     * case 4: ear_used=1, no event (free running D-EAR), use param info
     */
    reg.pmc_val = 0;

    /* if plm is 0, then assume not specified per-event and use default */
    reg.pmc11_ita_reg.dear_plm   = param->pfp_ita_dear.ear_plm ? param->pfp_ita_dear.ear_plm : inp->pfp_dfl_plm;
    reg.pmc11_ita_reg.dear_pm    = inp->pfp_flags & PFMLIB_PFP_SYSTEMWIDE ? 1 : 0;
    reg.pmc11_ita_reg.dear_tlb   = param->pfp_ita_dear.ear_mode;
    reg.pmc11_ita_reg.dear_ism   = param->pfp_ita_dear.ear_ism;
    reg.pmc11_ita_reg.dear_umask = param->pfp_ita_dear.ear_umask;
    reg.pmc11_ita_reg.dear_pt    = param->pfp_ita_drange.rr_used ? 0: 1;

    if (pfm_regmask_isset(&inp->pfp_unavail_pmcs, 11))
        return PFMLIB_ERR_NOASSIGN;

    pc[pos1].reg_num     = 11;  /* PMC11 is D-EAR config register */
    pc[pos1].reg_value   = reg.pmc_val;
    pc[pos1].reg_addr    = 11;
    pos1++;
    pd[pos2].reg_num     = 2;
    pd[pos2].reg_addr    = 2;
    pd[pos2].reg_alt_addr  = 2;
    pos2++;
    pd[pos2].reg_num     = 3;
    pd[pos2].reg_addr    = 3;
    pd[pos2].reg_alt_addr  = 3;
    pos2++;
    pd[pos2].reg_num     = 17;
    pd[pos2].reg_addr    = 17;
    pd[pos2].reg_alt_addr  = 17;
    pos2++;

    __pfm_vbprintf("[PMC11(pmc11)=0x%lx tlb=%s plm=%d pm=%d ism=0x%x umask=0x%x pt=%d]\n",
            reg.pmc_val,
            reg.pmc11_ita_reg.dear_tlb ? "Yes" : "No",
            reg.pmc11_ita_reg.dear_plm,
            reg.pmc11_ita_reg.dear_pm,
            reg.pmc11_ita_reg.dear_ism,
            reg.pmc11_ita_reg.dear_umask,
            reg.pmc11_ita_reg.dear_pt);
    __pfm_vbprintf("[PMD2(pmd2)]\n[PMD3(pmd3)\nPMD17(pmd17)\n");

    /* update final number of entries used */
    outp->pfp_pmc_count = pos1;
    outp->pfp_pmd_count = pos2;

    return PFMLIB_SUCCESS;
}

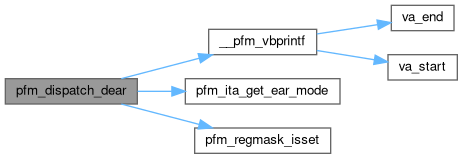

Here is the call graph for this function:

Here is the caller graph for this function:

pfm_dispatch_drange()

static int pfm_dispatch_drange ( pfmlib_input_param_t *  inp, pfmlib_ita_input_param_t *  mod_in, pfmlib_output_param_t *  outp, pfmlib_ita_output_param_t *  mod_out  )

static

Definition at line 860 of file pfmlib_itanium.c.

{
    pfmlib_ita_input_param_t *param = mod_in;
    pfmlib_event_t *e = inp->pfp_events;
    pfmlib_reg_t *pc = outp->pfp_pmcs;
    pfmlib_ita_input_rr_t *irr;
    pfmlib_ita_output_rr_t *orr;
    pfm_ita_pmc_reg_t reg;
    unsigned int i, count;
    int pos = outp->pfp_pmc_count;
    int ret, base_idx = 0;
    int n_intervals;

    if (param == NULL || param->pfp_ita_drange.rr_used == 0) return PFMLIB_SUCCESS;

    if (mod_out == NULL) return PFMLIB_ERR_INVAL;

    irr = &param->pfp_ita_drange;
    orr = &mod_out->pfp_ita_drange;

    ret = check_intervals(irr, 1 , &n_intervals);
    if (ret != PFMLIB_SUCCESS) return ret;

    if (n_intervals < 1) return PFMLIB_ERR_DRRINVAL;

    DPRINT("n_intervals=%d\n", n_intervals);

    ret = compute_normal_rr(irr, inp->pfp_dfl_plm, n_intervals, &base_idx, orr);
    if (ret != PFMLIB_SUCCESS) {
        return ret == PFMLIB_ERR_TOOMANY ? PFMLIB_ERR_DRRTOOMANY : ret;
    }
    count = inp->pfp_event_count;
    for (i=0; i < count; i++) {
        if (is_dear(e[i].event)) return PFMLIB_SUCCESS; /* will be done there */
    }

    reg.pmc_val = 0UL;
    /*
     * here we have no other choice but to use the default priv level as there is no
     * specific D-EAR event provided
     */
    reg.pmc11_ita_reg.dear_plm = inp->pfp_dfl_plm;

    if (pfm_regmask_isset(&inp->pfp_unavail_pmcs, 11))
        return PFMLIB_ERR_NOASSIGN;

    pc[pos].reg_num     = 11;
    pc[pos].reg_value   = reg.pmc_val;
    pc[pos].reg_addr    = 11;
    pc[pos].reg_alt_addr= 11;
    pos++;

    __pfm_vbprintf("[PMC11(pmc11)=0x%lx tlb=%s plm=%d pm=%d ism=0x%x umask=0x%x pt=%d]\n",
            reg.pmc_val,
            reg.pmc11_ita_reg.dear_tlb ? "Yes" : "No",
            reg.pmc11_ita_reg.dear_plm,
            reg.pmc11_ita_reg.dear_pm,
            reg.pmc11_ita_reg.dear_ism,
            reg.pmc11_ita_reg.dear_umask,
            reg.pmc11_ita_reg.dear_pt);


    outp->pfp_pmc_count = pos;

    return PFMLIB_SUCCESS;
}

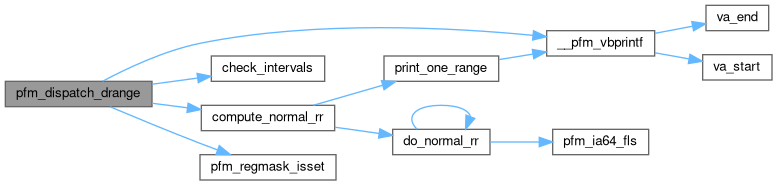

Here is the call graph for this function:

Here is the caller graph for this function:

pfm_dispatch_iear()

static int pfm_dispatch_iear ( pfmlib_input_param_t *  inp, pfmlib_ita_input_param_t *  mod_in, pfmlib_output_param_t *  outp  )

static

Definition at line 235 of file pfmlib_itanium.c.

{
    pfm_ita_pmc_reg_t reg;
    pfmlib_ita_input_param_t *param = mod_in;
    pfmlib_ita_input_param_t fake_param;
    pfmlib_reg_t *pc, *pd;
    unsigned int pos1, pos2;
    int iear_idx = -1;
    unsigned int i, count;

    pc = outp->pfp_pmcs;
    pd = outp->pfp_pmds;
    pos1 = outp->pfp_pmc_count;
    pos2 = outp->pfp_pmd_count;
    count = inp->pfp_event_count;

    for (i=0; i < count; i++) {
        if (is_iear(inp->pfp_events[i].event)) iear_idx = i;
    }

    if (param == NULL || mod_in->pfp_ita_iear.ear_used == 0) {

        /*
         * case 3: no I-EAR event, no (or nothing) in param->pfp_ita2_iear.ear_used
         */
        if (iear_idx == -1) return PFMLIB_SUCCESS;

        memset(&fake_param, 0, sizeof(fake_param));
        param = &fake_param;

        pfm_ita_get_ear_mode(inp->pfp_events[iear_idx].event, &param->pfp_ita_iear.ear_mode);

        param->pfp_ita_iear.ear_umask = evt_umask(inp->pfp_events[iear_idx].event);
        param->pfp_ita_iear.ear_ism   = PFMLIB_ITA_ISM_BOTH; /* force both instruction sets */

        DPRINT("I-EAR event with no info\n");
    }

    /* sanity check on the mode */
    if (param->pfp_ita_iear.ear_mode < 0 || param->pfp_ita_iear.ear_mode > 2) return PFMLIB_ERR_INVAL;

    /*
     * case 2: ear_used=1, event is defined, we use the param info as it is more precise
     * case 4: ear_used=1, no event (free running I-EAR), use param info
     */
    reg.pmc_val = 0;

    /* if plm is 0, then assume not specified per-event and use default */
    reg.pmc10_ita_reg.iear_plm   = param->pfp_ita_iear.ear_plm ? param->pfp_ita_iear.ear_plm : inp->pfp_dfl_plm;
    reg.pmc10_ita_reg.iear_pm    = inp->pfp_flags & PFMLIB_PFP_SYSTEMWIDE ? 1 : 0;
    reg.pmc10_ita_reg.iear_tlb   = param->pfp_ita_iear.ear_mode;
    reg.pmc10_ita_reg.iear_umask = param->pfp_ita_iear.ear_umask;
    reg.pmc10_ita_reg.iear_ism   = param->pfp_ita_iear.ear_ism;

    if (pfm_regmask_isset(&inp->pfp_unavail_pmcs, 10))
        return PFMLIB_ERR_NOASSIGN;

    pc[pos1].reg_num     = 10;  /* PMC10 is I-EAR config register */
    pc[pos1].reg_value   = reg.pmc_val;
    pc[pos1].reg_addr    = 10;
    pc[pos1].reg_alt_addr= 10;
    pos1++;
    pd[pos2].reg_num     = 0;
    pd[pos2].reg_addr    = 0;
    pd[pos2].reg_alt_addr  = 0;
    pos2++;
    pd[pos2].reg_num     = 1;
    pd[pos2].reg_addr    = 1;
    pd[pos2].reg_alt_addr  = 1;
    pos2++;

    __pfm_vbprintf("[PMC10(pmc10)=0x%lx tlb=%s plm=%d pm=%d ism=0x%x umask=0x%x]\n",
            reg.pmc_val,
            reg.pmc10_ita_reg.iear_tlb ? "Yes" : "No",
            reg.pmc10_ita_reg.iear_plm,
            reg.pmc10_ita_reg.iear_pm,
            reg.pmc10_ita_reg.iear_ism,
            reg.pmc10_ita_reg.iear_umask);
    __pfm_vbprintf("[PMD0(pmd0)]\n[PMD1(pmd1)\n");

    /* update final number of entries used */
    outp->pfp_pmc_count = pos1;
    outp->pfp_pmd_count = pos2;

    return PFMLIB_SUCCESS;
}

Here is the call graph for this function:

Here is the caller graph for this function:

pfm_dispatch_irange()

static int pfm_dispatch_irange ( pfmlib_input_param_t *  inp, pfmlib_ita_input_param_t *  mod_in, pfmlib_output_param_t *  outp, pfmlib_ita_output_param_t *  mod_out  )

static

Definition at line 810 of file pfmlib_itanium.c.

{
    pfm_ita_pmc_reg_t reg;
    pfmlib_ita_input_param_t *param = mod_in;
    pfmlib_reg_t *pc = outp->pfp_pmcs;
    pfmlib_ita_input_rr_t *irr;
    pfmlib_ita_output_rr_t *orr;
    int pos = outp->pfp_pmc_count;
    int ret, base_idx = 0;
    int n_intervals;

    if (param == NULL || param->pfp_ita_irange.rr_used == 0) return PFMLIB_SUCCESS;

    if (mod_out == NULL) return PFMLIB_ERR_INVAL;

    irr = &param->pfp_ita_irange;
    orr = &mod_out->pfp_ita_irange;

    ret = check_intervals(irr, 0, &n_intervals);
    if (ret != PFMLIB_SUCCESS) return ret;

    if (n_intervals < 1) return PFMLIB_ERR_IRRINVAL;

    DPRINT("n_intervals=%d\n", n_intervals);

    ret = compute_normal_rr(irr, inp->pfp_dfl_plm, n_intervals, &base_idx, orr);
    if (ret != PFMLIB_SUCCESS) {
        return ret == PFMLIB_ERR_TOOMANY ? PFMLIB_ERR_IRRTOOMANY : ret;
    }
    reg.pmc_val = 0;

    reg.pmc13_ita_reg.irange_ta = 0x0;

    if (pfm_regmask_isset(&inp->pfp_unavail_pmcs, 13))
        return PFMLIB_ERR_NOASSIGN;

    pc[pos].reg_num     = 13;
    pc[pos].reg_value   = reg.pmc_val;
    pc[pos].reg_addr    = 13;
    pc[pos].reg_alt_addr= 13;
    pos++;

    __pfm_vbprintf("[PMC13(pmc13)=0x%lx ta=%d]\n", reg.pmc_val, reg.pmc13_ita_reg.irange_ta);

    outp->pfp_pmc_count = pos;

    return PFMLIB_SUCCESS;
}

Here is the call graph for this function:

Here is the caller graph for this function:

pfm_dispatch_opcm()

static int pfm_dispatch_opcm ( pfmlib_input_param_t *  inp, pfmlib_ita_input_param_t *  mod_in, pfmlib_output_param_t *  outp  )

static

Definition at line 417 of file pfmlib_itanium.c.

{
    pfmlib_ita_input_param_t *param = mod_in;
    pfm_ita_pmc_reg_t reg;
    pfmlib_reg_t *pc = outp->pfp_pmcs;
    int pos = outp->pfp_pmc_count;

    if (param == NULL) return PFMLIB_SUCCESS;

    if (param->pfp_ita_pmc8.opcm_used) {

        reg.pmc_val = param->pfp_ita_pmc8.pmc_val;

        if (pfm_regmask_isset(&inp->pfp_unavail_pmcs, 8))
            return PFMLIB_ERR_NOASSIGN;

        pc[pos].reg_num     = 8;
        pc[pos].reg_value   = reg.pmc_val;
        pc[pos].reg_addr  = 8;
        pc[pos].reg_alt_addr  = 8;
        pos++;


        __pfm_vbprintf("[PMC8(pmc8)=0x%lx m=%d i=%d f=%d b=%d match=0x%x mask=0x%x]\n",
                reg.pmc_val,
                reg.pmc8_9_ita_reg.m,
                reg.pmc8_9_ita_reg.i,
                reg.pmc8_9_ita_reg.f,
                reg.pmc8_9_ita_reg.b,
                reg.pmc8_9_ita_reg.match,
                reg.pmc8_9_ita_reg.mask);
    }

    if (param->pfp_ita_pmc9.opcm_used) {

        reg.pmc_val = param->pfp_ita_pmc9.pmc_val;

        if (pfm_regmask_isset(&inp->pfp_unavail_pmcs, 9))
            return PFMLIB_ERR_NOASSIGN;

        pc[pos].reg_num     = 9;
        pc[pos].reg_value   = reg.pmc_val;
        pc[pos].reg_addr  = 9;
        pc[pos].reg_alt_addr  = 9;
        pos++;


        __pfm_vbprintf("[PMC9(pmc9)=0x%lx m=%d i=%d f=%d b=%d match=0x%x mask=0x%x]\n",
                reg.pmc_val,
                reg.pmc8_9_ita_reg.m,
                reg.pmc8_9_ita_reg.i,
                reg.pmc8_9_ita_reg.f,
                reg.pmc8_9_ita_reg.b,
                reg.pmc8_9_ita_reg.match,
                reg.pmc8_9_ita_reg.mask);
    }
    outp->pfp_pmc_count = pos;
    return PFMLIB_SUCCESS;
}

Here is the call graph for this function:

Here is the caller graph for this function:

pfm_ita_detect()

static int pfm_ita_detect ( void  )

static

Definition at line 88 of file pfmlib_itanium.c.

{
    int ret = PFMLIB_ERR_NOTSUPP;

    /*
     * we support all chips (there is only one!) in the Itanium family
     */
    if (pfm_ia64_get_cpu_family() == 0x07) ret = PFMLIB_SUCCESS;
    return ret;
}

Here is the call graph for this function:

pfm_ita_dispatch_counters()

static int pfm_ita_dispatch_counters ( pfmlib_input_param_t *  inp, pfmlib_ita_input_param_t *  mod_in, pfmlib_output_param_t *  outp  )

static

Definition at line 121 of file pfmlib_itanium.c.

{
#define has_counter(e,b)    (itanium_pe[e].pme_counters & (1 << (b)) ? (b) : 0)
    pfmlib_ita_input_param_t *param = mod_in;
    pfm_ita_pmc_reg_t reg;
    pfmlib_event_t *e;
    pfmlib_reg_t *pc, *pd;
    pfmlib_regmask_t *r_pmcs;
    unsigned int i,j,k,l, m;
    unsigned int max_l0, max_l1, max_l2, max_l3;
    unsigned int assign[PMU_ITA_NUM_COUNTERS];
    unsigned int cnt;

    e      = inp->pfp_events;
    pc     = outp->pfp_pmcs;
    pd     = outp->pfp_pmds;
    cnt    = inp->pfp_event_count;
    r_pmcs = &inp->pfp_unavail_pmcs;

    if (PFMLIB_DEBUG()) {
        for (m=0; m < cnt; m++) {
            DPRINT("ev[%d]=%s counters=0x%lx\n", m, itanium_pe[e[m].event].pme_name,
                itanium_pe[e[m].event].pme_counters);
        }
    }
    if (cnt > PMU_ITA_NUM_COUNTERS) return PFMLIB_ERR_TOOMANY;

    max_l0 = PMU_ITA_FIRST_COUNTER + PMU_ITA_NUM_COUNTERS;
    max_l1 = PMU_ITA_FIRST_COUNTER + PMU_ITA_NUM_COUNTERS*(cnt>1);
    max_l2 = PMU_ITA_FIRST_COUNTER + PMU_ITA_NUM_COUNTERS*(cnt>2);
    max_l3 = PMU_ITA_FIRST_COUNTER + PMU_ITA_NUM_COUNTERS*(cnt>3);

    DPRINT("max_l0=%u max_l1=%u max_l2=%u max_l3=%u\n", max_l0, max_l1, max_l2, max_l3);
    /*
     *  This code needs fixing. It is not very pretty and
     *  won't handle more than 4 counters if more become
     *  available !
     *  For now, worst case in the loop nest: 4! (factorial)
     */
    for (i=PMU_ITA_FIRST_COUNTER; i < max_l0; i++) {

        assign[0]= has_counter(e[0].event,i);

        if (max_l1 == PMU_ITA_FIRST_COUNTER && valid_assign(assign, r_pmcs, cnt) == PFMLIB_SUCCESS) goto done;

        for (j=PMU_ITA_FIRST_COUNTER; j < max_l1; j++) {

            if (j == i) continue;

            assign[1] = has_counter(e[1].event,j);

            if (max_l2 == PMU_ITA_FIRST_COUNTER && valid_assign(assign, r_pmcs, cnt) == PFMLIB_SUCCESS) goto done;

            for (k=PMU_ITA_FIRST_COUNTER; k < max_l2; k++) {

                if(k == i || k == j) continue;

                assign[2] = has_counter(e[2].event,k);

                if (max_l3 == PMU_ITA_FIRST_COUNTER && valid_assign(assign, r_pmcs, cnt) == PFMLIB_SUCCESS) goto done;
                for (l=PMU_ITA_FIRST_COUNTER; l < max_l3; l++) {

                    if(l == i || l == j || l == k) continue;

                    assign[3] = has_counter(e[3].event,l);

                    if (valid_assign(assign, r_pmcs, cnt) == PFMLIB_SUCCESS) goto done;
                }
            }
        }
    }
    /* we cannot satisfy the constraints */
    return PFMLIB_ERR_NOASSIGN;
done:
    for (j=0; j < cnt ; j++ ) {
        reg.pmc_val = 0; /* clear all */
        /* if plm is 0, then assume not specified per-event and use default */
        reg.pmc_plm    = e[j].plm ? e[j].plm : inp->pfp_dfl_plm;
        reg.pmc_oi     = 1; /* overflow interrupt */
        reg.pmc_pm     = inp->pfp_flags & PFMLIB_PFP_SYSTEMWIDE ? 1 : 0;
        reg.pmc_thres  = param ? param->pfp_ita_counters[j].thres: 0;
        reg.pmc_ism    = param ? param->pfp_ita_counters[j].ism : PFMLIB_ITA_ISM_BOTH;
        reg.pmc_umask  = is_ear(e[j].event) ? 0x0 : evt_umask(e[j].event);
        reg.pmc_es     = itanium_pe[e[j].event].pme_code;

        pc[j].reg_num     = assign[j];
        pc[j].reg_value   = reg.pmc_val;
        pc[j].reg_addr    = assign[j];
        pc[j].reg_alt_addr= assign[j];

        pd[j].reg_num = assign[j];
        pd[j].reg_addr = assign[j];
        pd[j].reg_alt_addr = assign[j];

        __pfm_vbprintf("[PMC%u(pmc%u)=0x%06lx thres=%d es=0x%02x plm=%d umask=0x%x pm=%d ism=0x%x oi=%d] %s\n",
                assign[j],
                assign[j],
                reg.pmc_val,
                reg.pmc_thres,
                reg.pmc_es,reg.pmc_plm,
                reg.pmc_umask, reg.pmc_pm,
                reg.pmc_ism,
                reg.pmc_oi,
                itanium_pe[e[j].event].pme_name);
        __pfm_vbprintf("[PMD%u(pmd%u)]\n", pd[j].reg_num, pd[j].reg_num);
    }
    /* number of PMC registers programmed */
    outp->pfp_pmc_count = cnt;
    outp->pfp_pmd_count = cnt;

    return PFMLIB_SUCCESS;
}

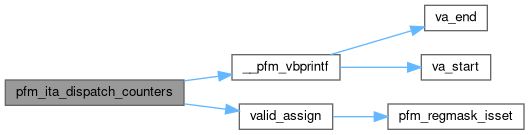

Here is the call graph for this function:

Here is the caller graph for this function:

pfm_ita_dispatch_events()

static int pfm_ita_dispatch_events ( pfmlib_input_param_t *  inp, void *  model_in, pfmlib_output_param_t *  outp, void *  model_out  )

static

Definition at line 970 of file pfmlib_itanium.c.

{
    int ret;
    pfmlib_ita_input_param_t *mod_in  = (pfmlib_ita_input_param_t *)model_in;
    pfmlib_ita_output_param_t *mod_out = (pfmlib_ita_output_param_t *)model_out;

    /*
     * nothing will come out of this combination
     */
    if (mod_out && mod_in == NULL) return PFMLIB_ERR_INVAL;

    /* check opcode match, range restriction qualifiers */
    if (mod_in && check_qualifier_constraints(inp, mod_in) != PFMLIB_SUCCESS) return PFMLIB_ERR_FEATCOMB;

    /* check for problems with raneg restriction and per-event plm */
    if (mod_in && check_range_plm(inp, mod_in) != PFMLIB_SUCCESS) return PFMLIB_ERR_FEATCOMB;

    ret = pfm_ita_dispatch_counters(inp, mod_in, outp);
    if (ret != PFMLIB_SUCCESS) return ret;

    /* now check for I-EAR */
    ret = pfm_dispatch_iear(inp, mod_in, outp);
    if (ret != PFMLIB_SUCCESS) return ret;

    /* now check for D-EAR */
    ret = pfm_dispatch_dear(inp, mod_in, outp);
    if (ret != PFMLIB_SUCCESS) return ret;

    /* now check for Opcode matchers */
    ret = pfm_dispatch_opcm(inp, mod_in, outp);
    if (ret != PFMLIB_SUCCESS) return ret;

    ret = pfm_dispatch_btb(inp, mod_in, outp);
    if (ret != PFMLIB_SUCCESS) return ret;

    ret = pfm_dispatch_irange(inp, mod_in, outp, mod_out);;
    if (ret != PFMLIB_SUCCESS) return ret;

    ret = pfm_dispatch_drange(inp, mod_in, outp, mod_out);;

    return ret;
}

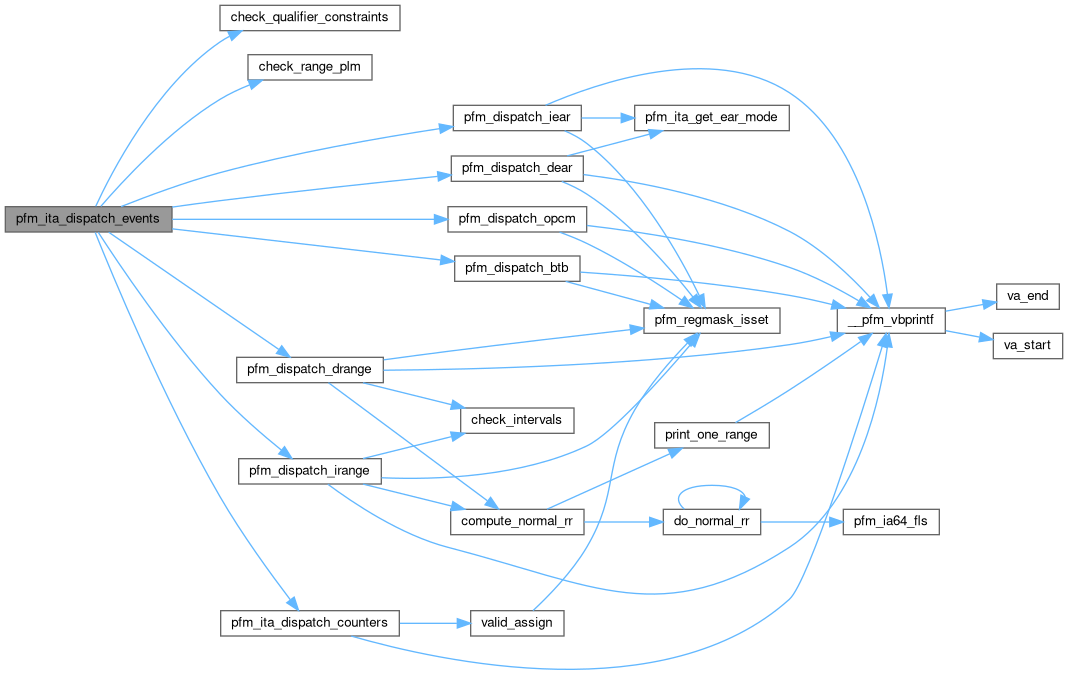

Here is the call graph for this function:

pfm_ita_get_cycle_event()

static int pfm_ita_get_cycle_event ( pfmlib_event_t *  e )

static

Definition at line 1181 of file pfmlib_itanium.c.

{
    e->event = PME_ITA_CPU_CYCLES;
    return PFMLIB_SUCCESS;

}

pfm_ita_get_ear_mode()

int pfm_ita_get_ear_mode	(	unsigned int	i,
		pfmlib_ita_ear_mode_t *	m
	)

Definition at line 1091 of file pfmlib_itanium.c.

{
    if (!is_ear(i) || m == NULL) return PFMLIB_ERR_INVAL;

    *m = is_ear_tlb(i) ? PFMLIB_ITA_EAR_TLB_MODE : PFMLIB_ITA_EAR_CACHE_MODE;

    return PFMLIB_SUCCESS;
}

Here is the caller graph for this function:

pfm_ita_get_event_code()

static int pfm_ita_get_event_code ( unsigned int  i, unsigned int  cnt, int *  code  )

static

Definition at line 1102 of file pfmlib_itanium.c.

{
    if (cnt != PFMLIB_CNT_FIRST && (cnt < 4 || cnt > 7))
        return PFMLIB_ERR_INVAL;

    *code = (int)itanium_pe[i].pme_code;

    return PFMLIB_SUCCESS;
}

pfm_ita_get_event_counters()

static void pfm_ita_get_event_counters ( unsigned int  j, pfmlib_regmask_t *  counters  )

static

Definition at line 1130 of file pfmlib_itanium.c.

{
    unsigned int i;
    unsigned long m;

    memset(counters, 0, sizeof(*counters));

    m =itanium_pe[j].pme_counters;
    for(i=0; m ; i++, m>>=1) {
        if (m & 0x1)
            pfm_regmask_set(counters, i);
    }
}

Here is the call graph for this function:

pfm_ita_get_event_maxincr()

int pfm_ita_get_event_maxincr	(	unsigned int	i,
		unsigned int *	maxincr
	)

Definition at line 1015 of file pfmlib_itanium.c.

{
    if (i >= PME_ITA_EVENT_COUNT || maxincr == NULL) return PFMLIB_ERR_INVAL;
    *maxincr = itanium_pe[i].pme_maxincr;
    return PFMLIB_SUCCESS;
}

pfm_ita_get_event_name()

static char * pfm_ita_get_event_name ( unsigned int  i )

static

Definition at line 1124 of file pfmlib_itanium.c.

{
    return itanium_pe[i].pme_name;
}

pfm_ita_get_event_umask()

int pfm_ita_get_event_umask	(	unsigned int	i,
		unsigned long *	umask
	)

Definition at line 1116 of file pfmlib_itanium.c.

{
    if (i >= PME_ITA_EVENT_COUNT || umask == NULL) return PFMLIB_ERR_INVAL;
    *umask = evt_umask(i);
    return PFMLIB_SUCCESS;
}

pfm_ita_get_hw_counter_width()

static void pfm_ita_get_hw_counter_width ( unsigned int *  width )

static

Definition at line 1175 of file pfmlib_itanium.c.

{
    *width = PMU_ITA_COUNTER_WIDTH;
}

pfm_ita_get_impl_counters()

static void pfm_ita_get_impl_counters ( pfmlib_regmask_t *  impl_counters )

static

Definition at line 1165 of file pfmlib_itanium.c.

{
    unsigned int i = 0;

    /* counting pmds are contiguous */
    for(i=4; i < 8; i++)
        pfm_regmask_set(impl_counters, i);
}

Here is the call graph for this function:

pfm_ita_get_impl_pmcs()

static void pfm_ita_get_impl_pmcs ( pfmlib_regmask_t *  impl_pmcs )

static

Definition at line 1145 of file pfmlib_itanium.c.

{
    unsigned int i = 0;

    /* all pmcs are contiguous */
    for(i=0; i < PMU_ITA_NUM_PMCS; i++)
        pfm_regmask_set(impl_pmcs, i);
}

Here is the call graph for this function:

pfm_ita_get_impl_pmds()

static void pfm_ita_get_impl_pmds ( pfmlib_regmask_t *  impl_pmds )

static

Definition at line 1155 of file pfmlib_itanium.c.

{
    unsigned int i = 0;

    /* all pmds are contiguous */
    for(i=0; i < PMU_ITA_NUM_PMDS; i++)
        pfm_regmask_set(impl_pmds, i);
}

Here is the call graph for this function:

pfm_ita_get_inst_retired()

static int pfm_ita_get_inst_retired ( pfmlib_event_t *  e )

static

Definition at line 1189 of file pfmlib_itanium.c.

{
    e->event = PME_ITA_IA64_INST_RETIRED;
    return PFMLIB_SUCCESS;
}

pfm_ita_is_btb()

int pfm_ita_is_btb

(

unsigned int

i

)

Definition at line 1065 of file pfmlib_itanium.c.

{
    return i >= PME_ITA_EVENT_COUNT || ! is_btb(i) ? 0 : 1;
}

Here is the caller graph for this function:

pfm_ita_is_dear()

int pfm_ita_is_dear

(

unsigned int

i

)

Definition at line 1029 of file pfmlib_itanium.c.

{
    return i >= PME_ITA_EVENT_COUNT || ! is_dear(i) ? 0 : 1;
}

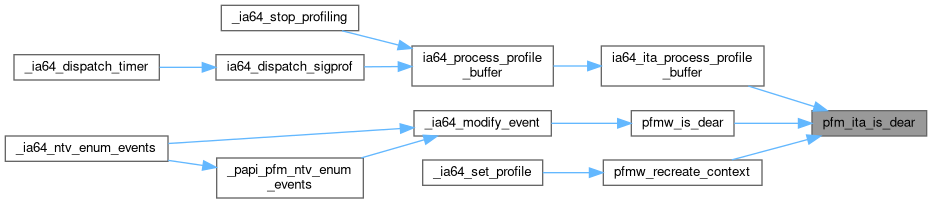

Here is the caller graph for this function:

pfm_ita_is_dear_cache()

int pfm_ita_is_dear_cache

(

unsigned int

i

)

Definition at line 1041 of file pfmlib_itanium.c.

{
    return i >= PME_ITA_EVENT_COUNT || ! (is_dear(i) && !is_ear_tlb(i)) ? 0 : 1;
}

pfm_ita_is_dear_tlb()

int pfm_ita_is_dear_tlb

(

unsigned int

i

)

Definition at line 1035 of file pfmlib_itanium.c.

{
    return i >= PME_ITA_EVENT_COUNT || ! (is_dear(i) && is_ear_tlb(i)) ? 0 : 1;
}

pfm_ita_is_ear()

int pfm_ita_is_ear

(

unsigned int

i

)

Definition at line 1023 of file pfmlib_itanium.c.

{
    return i >= PME_ITA_EVENT_COUNT || ! is_ear(i) ? 0 : 1;
}

pfm_ita_is_iear()

int pfm_ita_is_iear

(

unsigned int

i

)

Definition at line 1047 of file pfmlib_itanium.c.

{
    return i >= PME_ITA_EVENT_COUNT || ! is_iear(i) ? 0 : 1;
}

Here is the caller graph for this function:

pfm_ita_is_iear_cache()

int pfm_ita_is_iear_cache

(

unsigned int

i

)

Definition at line 1059 of file pfmlib_itanium.c.

{
    return i >= PME_ITA_EVENT_COUNT || ! (is_iear(i) && !is_ear_tlb(i)) ? 0 : 1;
}

pfm_ita_is_iear_tlb()

int pfm_ita_is_iear_tlb

(

unsigned int

i

)

Definition at line 1053 of file pfmlib_itanium.c.

{
    return i >= PME_ITA_EVENT_COUNT || ! (is_iear(i) && is_ear_tlb(i)) ? 0 : 1;
}

pfm_ita_support_darr()

int pfm_ita_support_darr

(

unsigned int

i

)

Definition at line 1078 of file pfmlib_itanium.c.

{
    return i >= PME_ITA_EVENT_COUNT || ! has_darr(i) ? 0 : 1;
}

Here is the caller graph for this function:

pfm_ita_support_iarr()

int pfm_ita_support_iarr

(

unsigned int

i

)

Definition at line 1071 of file pfmlib_itanium.c.

{
    return i >= PME_ITA_EVENT_COUNT || ! has_iarr(i) ? 0 : 1;
}

Here is the caller graph for this function:

pfm_ita_support_opcm()

int pfm_ita_support_opcm

(

unsigned int

i

)

Definition at line 1085 of file pfmlib_itanium.c.

{
    return i >= PME_ITA_EVENT_COUNT || ! has_opcm(i) ? 0 : 1;
}

Here is the caller graph for this function:

print_one_range()

static void print_one_range ( pfmlib_ita_input_rr_desc_t *  in_rr, pfmlib_ita_output_rr_desc_t *  out_rr, pfmlib_reg_t *  dbr, int  base_idx, int  n_pairs  )

static

Definition at line 720 of file pfmlib_itanium.c.

{
    int j;
    dbreg_t d;
    unsigned long r_end;

    __pfm_vbprintf("[0x%lx-0x%lx): %d register pair(s)\n", in_rr->rr_start, in_rr->rr_end, n_pairs);
    __pfm_vbprintf("start offset: -0x%lx end_offset: +0x%lx\n", out_rr->rr_soff, out_rr->rr_eoff);

    for (j=0; j < n_pairs; j++, base_idx += 2) {

        d.val = dbr[base_idx+1].reg_value;
        r_end = dbr[base_idx].reg_value+((~(d.db.db_mask)) & ~(0xffUL << 56));

        __pfm_vbprintf("brp%u:  db%u: 0x%016lx db%u: plm=0x%x mask=0x%016lx end=0x%016lx\n",
            dbr[base_idx].reg_num>>1,
            dbr[base_idx].reg_num,
            dbr[base_idx].reg_value,
            dbr[base_idx+1].reg_num,
            d.db.db_plm,
            (unsigned long) d.db.db_mask,
            r_end);
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

valid_assign()

static int valid_assign ( unsigned int *  as, pfmlib_regmask_t *  r_pmcs, unsigned int  cnt  )

static

Definition at line 103 of file pfmlib_itanium.c.

{
    unsigned int i;
    for(i=0; i < cnt; i++) {
        if (as[i]==0) return PFMLIB_ERR_NOASSIGN;
        /*
         * take care of restricted PMC registers
         */
        if (pfm_regmask_isset(r_pmcs, as[i]))
            return PFMLIB_ERR_NOASSIGN;
    }
    return PFMLIB_SUCCESS;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

itanium_support

pfm_pmu_support_t itanium_support

Initial value:

={
    .pmu_name       = "itanium",
    .pmu_type       = PFMLIB_ITANIUM_PMU,
    .pme_count      = PME_ITA_EVENT_COUNT,
    .pmc_count      = PMU_ITA_NUM_PMCS,
    .pmd_count      = PMU_ITA_NUM_PMDS,
    .num_cnt        = PMU_ITA_NUM_COUNTERS,
    .get_event_code     = pfm_ita_get_event_code,
    .get_event_name     = pfm_ita_get_event_name,
    .get_event_counters = pfm_ita_get_event_counters,
    .dispatch_events    = pfm_ita_dispatch_events,
    .pmu_detect     = pfm_ita_detect,
    .get_impl_pmcs      = pfm_ita_get_impl_pmcs,
    .get_impl_pmds      = pfm_ita_get_impl_pmds,
    .get_impl_counters  = pfm_ita_get_impl_counters,
    .get_hw_counter_width   = pfm_ita_get_hw_counter_width,
    .get_cycle_event    = pfm_ita_get_cycle_event,
    .get_inst_retired_event = pfm_ita_get_inst_retired

}

Definition at line 1195 of file pfmlib_itanium.c.
