linux-host_micpower.c File Reference

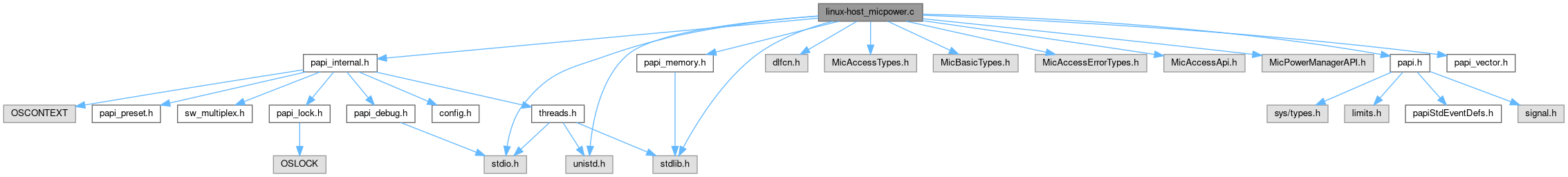

Include dependency graph for linux-host_micpower.c:

Go to the source code of this file.

Data Structures
struct	host_micpower_reg_alloc_t
struct	host_micpower_native_event_entry_t
struct	host_micpower_control_state_t
struct	host_micpower_context_t
struct	powers
union	power_t

Macros
#define	MAX_DEVICES   (32)
	This component wraps the MicAccessAPI to provide hostside power information for attached Intel Xeon Phi (MIC) cards.
#define	EVENTS_PER_DEVICE   10
#define	UPDATEFREQ   500000
#define	MICACCESS_API   __attribute__((weak))

Functions
const char *	MicGetErrorString (U32)
U32 MICACCESS_API	MicCloseAdapter (HANDLE)
U32 MICACCESS_API	MicInitAPI (HANDLE *, ETarget, MicDeviceOnSystem *, U32 *)
U32 MICACCESS_API	MicCloseAPI (HANDLE *)
U32 MICACCESS_API	MicInitAdapter (HANDLE *, MicDeviceOnSystem *)
U32 MICACCESS_API	MicGetPowerUsage (HANDLE, MicPwrUsage *)
static int	loadFunctionPtrs ()
int	_host_micpower_init_component (int cidx)
int	_host_micpower_init_thread (hwd_context_t *ctx)
int	_host_micpower_shutdown_component (void)
int	_host_micpower_shutdown_thread (hwd_context_t *ctx)
int	_host_micpower_init_control_state (hwd_control_state_t *ctl)
int	_host_micpower_update_control_state (hwd_control_state_t *ctl, NativeInfo_t *info, int count, hwd_context_t *ctx)
int	_host_micpower_start (hwd_context_t *ctx, hwd_control_state_t *ctl)
static int	read_power (struct powers *pwr, int which_one)
int	_host_micpower_read (hwd_context_t *ctx, hwd_control_state_t *ctl, long long **events, int flags)
int	_host_micpower_stop (hwd_context_t *ctx, hwd_control_state_t *ctl)
int	_host_micpower_ntv_enum_events (unsigned int *EventCode, int modifier)
int	_host_micpower_ntv_code_to_name (unsigned int EventCode, char *name, int len)
int	_host_micpower_ntv_code_to_descr (unsigned int EventCode, char *name, int len)
int	_host_micpower_ntv_code_to_info (unsigned int EventCode, PAPI_event_info_t *info)
int	_host_micpower_ctl (hwd_context_t *ctx, int code, _papi_int_option_t *option)
int	_host_micpower_set_domain (hwd_control_state_t *ctl, int domain)

Variables
void(*	_dl_non_dynamic_init )(void)
	host_micpower_register_t
static MicDeviceOnSystem	adapters [MAX_DEVICES]
static HANDLE	handles [MAX_DEVICES]
static long long	lastupdate [MAX_DEVICES]
static HANDLE	accessHandle = NULL
static U32	nAdapters = MAX_DEVICES
static void *	mic_access = NULL
static void *	scif_access = NULL
const char *(*	MicGetErrorStringPtr )(U32)
U32(*	MicCloseAdapterPtr )(HANDLE)
U32(*	MicInitAPIPtr )(HANDLE *, ETarget, MicDeviceOnSystem *, U32 *)
U32(*	MicCloseAPIPtr )(HANDLE *)
U32(*	MicInitAdapterPtr )(HANDLE *, MicDeviceOnSystem *)
U32(*	MicGetPowerUsagePtr )(HANDLE, MicPwrUsage *)
static host_micpower_native_event_entry_t *	native_events_table = NULL
static power_t	cached_values [MAX_DEVICES]
papi_vector_t	_host_micpower_vector

Macro Definition Documentation

EVENTS_PER_DEVICE

#define EVENTS_PER_DEVICE   10

Definition at line 14 of file linux-host_micpower.c.

MAX_DEVICES

#define MAX_DEVICES   (32)

linux-host_micpower.c

Author

James Ralph ralph.nosp@m.@icl.nosp@m..utk..nosp@m.edu

Definition at line 13 of file linux-host_micpower.c.

MICACCESS_API

#define MICACCESS_API   __attribute__((weak))

Definition at line 79 of file linux-host_micpower.c.

UPDATEFREQ

#define UPDATEFREQ   500000

Function Documentation

_host_micpower_ctl()

int _host_micpower_ctl	(	hwd_context_t *	ctx,
		int	code,
		_papi_int_option_t *	option
	)

Definition at line 560 of file linux-host_micpower.c.

{
    (void)ctx;
    (void)code;
    (void)option;
    return PAPI_OK;
}

_host_micpower_init_component()

int _host_micpower_init_component

(

int

cidx

)

Definition at line 195 of file linux-host_micpower.c.

{
    int retval = PAPI_OK;
    U32 ret = MIC_ACCESS_API_ERROR_UNKNOWN;
    U32 adapterNum = 0;
    U32 throwaway = 1;

    _host_micpower_vector.cmp_info.CmpIdx = cidx;

    if ( loadFunctionPtrs() ) {
        retval = PAPI_ENOSUPP;
        goto fn_fail;
    }

    memset( lastupdate, 0x0, sizeof(lastupdate));
    memset( cached_values, 0x0, sizeof(struct powers)*MAX_DEVICES );
    ret = MicInitAPIPtr( &accessHandle, eTARGET_SCIF_DRIVER, adapters, &nAdapters );
    if ( MIC_ACCESS_API_SUCCESS != ret ) {
        snprintf( _host_micpower_vector.cmp_info.disabled_reason, PAPI_MAX_STR_LEN, "Failed to init: %s", MicGetErrorStringPtr(ret));
        MicCloseAPIPtr(&accessHandle);
        retval = PAPI_ENOSUPP;
        goto fn_fail;
    }
    /* Sanity check on array size */
    if ( nAdapters >= MAX_DEVICES ) {
        snprintf(_host_micpower_vector.cmp_info.disabled_reason, PAPI_MAX_STR_LEN, "Too many MIC cards [%d] found, bailing.", nAdapters);
        MicCloseAPIPtr(&accessHandle);
        retval = PAPI_ENOSUPP;
        goto fn_fail;
    }

/* XXX: This code initializes a token for each adapter, in testing this appeared to be required/
 *  One has to call MicInitAdapter() before calling into that adapter's entries */
    for (adapterNum=0; adapterNum < nAdapters; adapterNum++) {
            ret = MicInitAPIPtr( &handles[adapterNum], eTARGET_SCIF_DRIVER, adapters, &throwaway );
            throwaway = 1;
            if (MIC_ACCESS_API_SUCCESS != ret) {
                    fprintf(stderr, "%d:MicInitAPI carps: %s\n", __LINE__, MicGetErrorStringPtr(ret));
                    nAdapters = adapterNum;
                    for (adapterNum=0; adapterNum < nAdapters; adapterNum++)
                            MicCloseAdapterPtr( handles[adapterNum] );
                    MicCloseAPIPtr( &accessHandle );
                    snprintf(_host_micpower_vector.cmp_info.disabled_reason, PAPI_MAX_STR_LEN,
                        "Failed to initialize card %d's interface.", nAdapters);
                    retval = PAPI_ENOSUPP;
                    goto fn_fail;
            }
            ret = MicInitAdapterPtr(&handles[adapterNum], &adapters[adapterNum]);
            if (MIC_ACCESS_API_SUCCESS != ret) {
                    fprintf(stderr, "%d:MicInitAdapter carps: %s\n", __LINE__, MicGetErrorStringPtr(ret));
                    nAdapters = adapterNum;
                    for (adapterNum=0; adapterNum < nAdapters; adapterNum++)
                            MicCloseAdapterPtr( handles[adapterNum] );
                    MicCloseAPIPtr( &accessHandle );
                    snprintf(_host_micpower_vector.cmp_info.disabled_reason, PAPI_MAX_STR_LEN,
                        "Failed to initialize card %d's interface.", nAdapters);
                    retval = PAPI_ENOSUPP;
                    goto fn_fail;
            }
    }

    native_events_table = ( host_micpower_native_event_entry_t*)papi_malloc( nAdapters * EVENTS_PER_DEVICE * sizeof(host_micpower_native_event_entry_t));
    if ( NULL == native_events_table ) {
        retval = PAPI_ENOMEM;
        goto fn_fail;
    }
    for (adapterNum=0; adapterNum < nAdapters; adapterNum++) {
        snprintf(native_events_table[adapterNum*EVENTS_PER_DEVICE].name, PAPI_MAX_STR_LEN, "mic%d:tot0", adapterNum);
        snprintf(native_events_table[adapterNum*EVENTS_PER_DEVICE].description, PAPI_MAX_STR_LEN, "Total power utilization, Averaged over Time Window 0 (uWatts)");
        native_events_table[adapterNum*EVENTS_PER_DEVICE].resources.selector = adapterNum*EVENTS_PER_DEVICE + 1;
        snprintf(native_events_table[adapterNum*EVENTS_PER_DEVICE].units, PAPI_MIN_STR_LEN, "uW");

        snprintf(native_events_table[adapterNum*EVENTS_PER_DEVICE + 1].name, PAPI_MAX_STR_LEN, "mic%d:tot1", adapterNum);
        snprintf(native_events_table[adapterNum*EVENTS_PER_DEVICE + 1].description, PAPI_MAX_STR_LEN, "Total power utilization, Averaged over Time Window 1 (uWatts)");
        native_events_table[adapterNum*EVENTS_PER_DEVICE + 1].resources.selector = adapterNum*EVENTS_PER_DEVICE + 2;
        snprintf(native_events_table[adapterNum*EVENTS_PER_DEVICE + 1].units, PAPI_MIN_STR_LEN, "uW");

        snprintf(native_events_table[adapterNum*EVENTS_PER_DEVICE + 2].name, PAPI_MAX_STR_LEN, "mic%d:pcie", adapterNum);
        snprintf(native_events_table[adapterNum*EVENTS_PER_DEVICE + 2].description, PAPI_MAX_STR_LEN, "PCI-E connector power (uWatts)");
        native_events_table[adapterNum*EVENTS_PER_DEVICE + 2].resources.selector = adapterNum*EVENTS_PER_DEVICE + 3;
        snprintf(native_events_table[adapterNum*EVENTS_PER_DEVICE + 2].units, PAPI_MIN_STR_LEN, "uW");

        snprintf(native_events_table[adapterNum*EVENTS_PER_DEVICE + 3].name, PAPI_MAX_STR_LEN, "mic%d:inst", adapterNum);
        snprintf(native_events_table[adapterNum*EVENTS_PER_DEVICE + 3].description, PAPI_MAX_STR_LEN, "Instantaneous power (uWatts)");
        native_events_table[adapterNum*EVENTS_PER_DEVICE + 3].resources.selector = adapterNum*EVENTS_PER_DEVICE + 4;
        snprintf(native_events_table[adapterNum*EVENTS_PER_DEVICE + 3].units, PAPI_MIN_STR_LEN, "uW");

        snprintf(native_events_table[adapterNum*EVENTS_PER_DEVICE + 4].name, PAPI_MAX_STR_LEN, "mic%d:imax", adapterNum);
        snprintf(native_events_table[adapterNum*EVENTS_PER_DEVICE + 4].description, PAPI_MAX_STR_LEN, "Max instantaneous power (uWatts)");
        native_events_table[adapterNum*EVENTS_PER_DEVICE + 4].resources.selector = adapterNum*EVENTS_PER_DEVICE + 5;
        snprintf(native_events_table[adapterNum*EVENTS_PER_DEVICE + 4].units, PAPI_MIN_STR_LEN, "uW");

        snprintf(native_events_table[adapterNum*EVENTS_PER_DEVICE + 5].name, PAPI_MAX_STR_LEN, "mic%d:c2x3", adapterNum);
        snprintf(native_events_table[adapterNum*EVENTS_PER_DEVICE + 5].description, PAPI_MAX_STR_LEN, "2x3 connector power (uWatts)");
        native_events_table[adapterNum*EVENTS_PER_DEVICE + 5].resources.selector = adapterNum*EVENTS_PER_DEVICE + 6;
        snprintf(native_events_table[adapterNum*EVENTS_PER_DEVICE + 5].units, PAPI_MIN_STR_LEN, "uW");

        snprintf(native_events_table[adapterNum*EVENTS_PER_DEVICE + 6].name, PAPI_MAX_STR_LEN, "mic%d:c2x4", adapterNum);
        snprintf(native_events_table[adapterNum*EVENTS_PER_DEVICE + 6].description, PAPI_MAX_STR_LEN, "2x4 connector power (uWatts)");
        native_events_table[adapterNum*EVENTS_PER_DEVICE + 6].resources.selector = adapterNum*EVENTS_PER_DEVICE + 7;
        snprintf(native_events_table[adapterNum*EVENTS_PER_DEVICE + 6].units, PAPI_MIN_STR_LEN, "uW");

        snprintf(native_events_table[adapterNum*EVENTS_PER_DEVICE + 7].name, PAPI_MAX_STR_LEN, "mic%d:vccp", adapterNum);
        snprintf(native_events_table[adapterNum*EVENTS_PER_DEVICE + 7].description, PAPI_MAX_STR_LEN, "Core rail (uVolts)");
        native_events_table[adapterNum*EVENTS_PER_DEVICE + 7].resources.selector = adapterNum*EVENTS_PER_DEVICE + 8;
        snprintf(native_events_table[adapterNum*EVENTS_PER_DEVICE + 7].units, PAPI_MIN_STR_LEN, "uV");

        snprintf(native_events_table[adapterNum*EVENTS_PER_DEVICE + 8].name, PAPI_MAX_STR_LEN, "mic%d:vddg", adapterNum);
        snprintf(native_events_table[adapterNum*EVENTS_PER_DEVICE + 8].description, PAPI_MAX_STR_LEN, "Uncore rail (uVolts)");
        native_events_table[adapterNum*EVENTS_PER_DEVICE + 8].resources.selector = adapterNum*EVENTS_PER_DEVICE + 9;
        snprintf(native_events_table[adapterNum*EVENTS_PER_DEVICE + 8].units, PAPI_MIN_STR_LEN, "uV");

        snprintf(native_events_table[adapterNum*EVENTS_PER_DEVICE + 9].name, PAPI_MAX_STR_LEN, "mic%d:vddq", adapterNum);
        snprintf(native_events_table[adapterNum*EVENTS_PER_DEVICE + 9].description, PAPI_MAX_STR_LEN, "Memory subsystem rail (uVolts)");
        native_events_table[adapterNum*EVENTS_PER_DEVICE + 9].resources.selector = adapterNum*EVENTS_PER_DEVICE + 10;
        snprintf(native_events_table[adapterNum*EVENTS_PER_DEVICE + 9].units, PAPI_MIN_STR_LEN, "uV");
    }

  fn_exit:
    _host_micpower_vector.cmp_info.num_cntrs = EVENTS_PER_DEVICE*nAdapters;
    _host_micpower_vector.cmp_info.num_mpx_cntrs = EVENTS_PER_DEVICE*nAdapters;
    _host_micpower_vector.cmp_info.num_native_events = EVENTS_PER_DEVICE*nAdapters;

    _papi_hwd[cidx]->cmp_info.disabled = retval;
    return retval;

  fn_fail:
    nAdapters = 0;
    goto fn_exit;
}

Here is the call graph for this function:

_host_micpower_init_control_state()

int _host_micpower_init_control_state

(

hwd_control_state_t *

ctl

)

Definition at line 348 of file linux-host_micpower.c.

                                                                   {
    host_micpower_control_state_t *state = (host_micpower_control_state_t*) ctl;
    memset( state, 0, sizeof(host_micpower_control_state_t));

    return PAPI_OK;
}

_host_micpower_init_thread()

int _host_micpower_init_thread

(

hwd_context_t *

ctx

)

Definition at line 326 of file linux-host_micpower.c.

                                                    {
    (void)ctx;
    return PAPI_OK;
}

_host_micpower_ntv_code_to_descr()

int _host_micpower_ntv_code_to_descr	(	unsigned int	EventCode,
		char *	name,
		int	len
	)

Definition at line 536 of file linux-host_micpower.c.

{
    unsigned int code = EventCode & PAPI_NATIVE_AND_MASK;
    if ( code < _host_micpower_vector.cmp_info.num_cntrs ) {
        strncpy( name, native_events_table[code].description, len );
        return PAPI_OK;
    }

    return PAPI_ENOEVNT;
}

_host_micpower_ntv_code_to_info()

int _host_micpower_ntv_code_to_info	(	unsigned int	EventCode,
		PAPI_event_info_t *	info
	)

Definition at line 548 of file linux-host_micpower.c.

{
    unsigned int code = EventCode & PAPI_NATIVE_AND_MASK;
    if ( code >= _host_micpower_vector.cmp_info.num_cntrs)
        return PAPI_ENOEVNT;
    strncpy( info->symbol, native_events_table[code].name, sizeof(info->symbol) );
    strncpy( info->long_descr, native_events_table[code].description, sizeof(info->long_descr) );
    strncpy( info->units, native_events_table[code].units, sizeof(info->units) );
    return PAPI_OK;
}

_host_micpower_ntv_code_to_name()

int _host_micpower_ntv_code_to_name	(	unsigned int	EventCode,
		char *	name,
		int	len
	)

Definition at line 524 of file linux-host_micpower.c.

{
    unsigned int code = EventCode & PAPI_NATIVE_AND_MASK;
    if ( code < _host_micpower_vector.cmp_info.num_cntrs ) {
        strncpy( name, native_events_table[code].name, len);
        return PAPI_OK;
    }

    return PAPI_ENOEVNT;
}

_host_micpower_ntv_enum_events()

int _host_micpower_ntv_enum_events	(	unsigned int *	EventCode,
		int	modifier
	)

Definition at line 499 of file linux-host_micpower.c.

{
    int index;
    switch (modifier) {
        case PAPI_ENUM_FIRST:
            if (0 == _host_micpower_vector.cmp_info.num_cntrs)
                return PAPI_ENOEVNT;
            *EventCode = 0;
            return PAPI_OK;
        case PAPI_ENUM_EVENTS:
            index = *EventCode;
            if ( index < _host_micpower_vector.cmp_info.num_cntrs - 1) {
                *EventCode = *EventCode + 1;
                return PAPI_OK;
            } else {
                return PAPI_ENOEVNT;
            }
            break;
        default:
            return PAPI_EINVAL;
    }
    return PAPI_EINVAL;
}

_host_micpower_read()

int _host_micpower_read	(	hwd_context_t *	ctx,
		hwd_control_state_t *	ctl,
		long long **	events,
		int	flags
	)

Definition at line 418 of file linux-host_micpower.c.

{
    (void)flags;
    (void)events;
    (void)ctx;
    unsigned int i,j;
    int needs_update = 0;
    host_micpower_control_state_t* control = (host_micpower_control_state_t*)ctl;
    long long now = PAPI_get_real_usec();

    for( i=0; i<nAdapters; i++) {
            needs_update = 0;
            for (j=0; j<EVENTS_PER_DEVICE; j++) {
                if ( control->resident[EVENTS_PER_DEVICE*i+j]) {
                        needs_update = 1;
                        break;
                }
            }

            if ( needs_update ) {
                    /* Do the global update */
                    if ( now >= lastupdate[i] + UPDATEFREQ) {
                            read_power( &cached_values[i].power, i );
                            lastupdate[i] = now;
                    }
                    /* update from cached values */
                    if ( control->lastupdate[i] < lastupdate[i]) {
                            control->lastupdate[i] = lastupdate[i];
                    }
                    for (j=0; j<EVENTS_PER_DEVICE; j++) {
                        if ( control->resident[EVENTS_PER_DEVICE*i+j] ) {
                            control->counts[EVENTS_PER_DEVICE*i+j] = (long long)cached_values[i].array[j];
                        }
                    }
            }
    }

    *events = control->counts;
    return PAPI_OK;
}

Here is the call graph for this function:

_host_micpower_set_domain()

int _host_micpower_set_domain	(	hwd_control_state_t *	ctl,
		int	domain
	)

Definition at line 569 of file linux-host_micpower.c.

{
    (void)ctl;
    if ( PAPI_DOM_ALL != domain )
        return PAPI_EINVAL;
    return PAPI_OK;
}

_host_micpower_shutdown_component()

int _host_micpower_shutdown_component

(

void

)

Definition at line 332 of file linux-host_micpower.c.

                                          {
    U32 i = 0;
    for( i=0; i<nAdapters; i++) {
        MicCloseAdapterPtr( handles[i] );
    }

    papi_free(native_events_table);
    return PAPI_OK;
}

_host_micpower_shutdown_thread()

int _host_micpower_shutdown_thread

(

hwd_context_t *

ctx

)

Definition at line 343 of file linux-host_micpower.c.

                                                     {
    (void) ctx;
    return PAPI_OK;
}

_host_micpower_start()

int _host_micpower_start	(	hwd_context_t *	ctx,
		hwd_control_state_t *	ctl
	)

Definition at line 379 of file linux-host_micpower.c.

{
    (void) ctx;
    (void) ctl;
    return PAPI_OK;
}

_host_micpower_stop()

int _host_micpower_stop	(	hwd_context_t *	ctx,
		hwd_control_state_t *	ctl
	)

Definition at line 461 of file linux-host_micpower.c.

{
    (void)ctx;
    int needs_update = 0;
    unsigned int i,j;
    host_micpower_control_state_t* control = (host_micpower_control_state_t*)ctl;
    long long now = PAPI_get_real_usec();

    for( i=0; i<nAdapters; i++) {
            needs_update = 0;
            for (j=0; j<EVENTS_PER_DEVICE; j++) {
                if ( control->resident[EVENTS_PER_DEVICE*i+j]) {
                        needs_update = 1;
                        break;
                }
            }

            if ( needs_update ) {
                    /* Do the global update */
                    if ( now >= lastupdate[i] + UPDATEFREQ) {
                            read_power( &cached_values[i].power, i );
                            lastupdate[i] = now;
                    }
                    /* update from cached values */
                    if ( control->lastupdate[i] < lastupdate[i]) {
                            control->lastupdate[i] = lastupdate[i];
                    }
                    for (j=0; j<EVENTS_PER_DEVICE; j++) {
                        if ( control->resident[EVENTS_PER_DEVICE*i+j] ) {
                            control->counts[EVENTS_PER_DEVICE*i+j] = (long long)cached_values[i].array[j];
                        }
                    }
            }
    }
    return PAPI_OK;

}

Here is the call graph for this function:

_host_micpower_update_control_state()

int _host_micpower_update_control_state	(	hwd_control_state_t *	ctl,
		NativeInfo_t *	info,
		int	count,
		hwd_context_t *	ctx
	)

Definition at line 355 of file linux-host_micpower.c.

                                                             {

    (void) ctx;
    int i, index;

    host_micpower_control_state_t *state = (host_micpower_control_state_t*)ctl;

    for (i=0; i<MAX_DEVICES*EVENTS_PER_DEVICE; i++)
        state->resident[i] = 0;

    for (i=0; i < count; i++) {
        index = info[i].ni_event&PAPI_NATIVE_AND_MASK;
        info[i].ni_position=native_events_table[index].resources.selector-1;
        state->resident[index] = 1;
    }
    state->num_events = count;

    return PAPI_OK;
}

loadFunctionPtrs()

static int loadFunctionPtrs ( )

static

Definition at line 116 of file linux-host_micpower.c.

{
    /* Attempt to guess if we were statically linked to libc, if so bail */
    if ( _dl_non_dynamic_init != NULL ) {
        strncpy(_host_micpower_vector.cmp_info.disabled_reason, "The host_micpower component does not support statically linking of libc.", PAPI_MAX_STR_LEN);
        return PAPI_ENOSUPP;
    }

      /* Need to link in the cuda libraries, if not found disable the component */
    scif_access = dlopen("libscif.so", RTLD_NOW | RTLD_GLOBAL);
    if (NULL == scif_access)
    {
        snprintf(_host_micpower_vector.cmp_info.disabled_reason, PAPI_MAX_STR_LEN, "Problem loading the SCIF library: %s\n", dlerror());
            _host_micpower_vector.cmp_info.disabled = 1;
        return ( PAPI_ENOSUPP );
    }

    mic_access = dlopen("libMicAccessSDK.so", RTLD_NOW | RTLD_GLOBAL);
    if (NULL == mic_access)
    {
        snprintf(_host_micpower_vector.cmp_info.disabled_reason, PAPI_MAX_STR_LEN, "Problem loading libMicAccessSDK.so: %s\n", dlerror());
            _host_micpower_vector.cmp_info.disabled = 1;
        return ( PAPI_ENOSUPP );
    }

    MicGetErrorStringPtr = dlsym(mic_access, "MicGetErrorString");
    if (dlerror() != NULL)
    {
            strncpy(_host_micpower_vector.cmp_info.disabled_reason, "MicAccessSDK function MicGetErrorString not found.",PAPI_MAX_STR_LEN);
            _host_micpower_vector.cmp_info.disabled = 1;
            return ( PAPI_ENOSUPP );
    }
    MicCloseAdapterPtr = dlsym(mic_access, "MicCloseAdapter");
    if (dlerror() != NULL)
    {
            strncpy(_host_micpower_vector.cmp_info.disabled_reason, "MicAccessSDK function MicCloseAdapter not found.",PAPI_MAX_STR_LEN);
            _host_micpower_vector.cmp_info.disabled = 1;
            return ( PAPI_ENOSUPP );
    }
    MicInitAPIPtr = dlsym(mic_access, "MicInitAPI");
    if (dlerror() != NULL)
    {
            strncpy(_host_micpower_vector.cmp_info.disabled_reason, "MicAccessSDK function MicInitAPI not found.",PAPI_MAX_STR_LEN);
            _host_micpower_vector.cmp_info.disabled = 1;
            return ( PAPI_ENOSUPP );
    }
    MicCloseAPIPtr = dlsym(mic_access, "MicCloseAPI");
    if (dlerror() != NULL)
    {
            strncpy(_host_micpower_vector.cmp_info.disabled_reason, "MicAccessSDK function MicCloseAPI not found.",PAPI_MAX_STR_LEN);
            _host_micpower_vector.cmp_info.disabled = 1;
            return ( PAPI_ENOSUPP );
    }
    MicInitAdapterPtr = dlsym(mic_access, "MicInitAdapter");
    if (dlerror() != NULL)
    {
            strncpy(_host_micpower_vector.cmp_info.disabled_reason, "MicAccessSDK function MicInitAdapter not found.",PAPI_MAX_STR_LEN);
            _host_micpower_vector.cmp_info.disabled = 1;
            return ( PAPI_ENOSUPP );
    }

    MicGetPowerUsagePtr = dlsym(mic_access, "MicGetPowerUsage");
    if (dlerror() != NULL)
    {
            strncpy(_host_micpower_vector.cmp_info.disabled_reason, "MicAccessSDK function MicGetPowerUsage not found.",PAPI_MAX_STR_LEN);
            _host_micpower_vector.cmp_info.disabled = 1;
            return ( PAPI_ENOSUPP );
    }

    return 0;
}

Here is the caller graph for this function:

MicCloseAdapter()

U32 MICACCESS_API MicCloseAdapter

(

HANDLE

)

MicCloseAPI()

U32 MICACCESS_API MicCloseAPI

(

HANDLE *

)

MicGetErrorString()

const char * MicGetErrorString

(

U32

)

MicGetPowerUsage()

U32 MICACCESS_API MicGetPowerUsage	(	HANDLE	,
		MicPwrUsage *
	)

MicInitAdapter()

U32 MICACCESS_API MicInitAdapter	(	HANDLE *	,
		MicDeviceOnSystem *
	)

MicInitAPI()

U32 MICACCESS_API MicInitAPI	(	HANDLE *	,
		ETarget	,
		MicDeviceOnSystem *	,
		U32 *
	)

read_power()

static int read_power ( struct powers *  pwr, int  which_one  )

static

Definition at line 387 of file linux-host_micpower.c.

{
    MicPwrUsage power;
    U32 ret = MIC_ACCESS_API_ERROR_UNKNOWN;

    if ( which_one < 0 || which_one > (int)nAdapters )
        return PAPI_ENOEVNT;


    ret = MicGetPowerUsagePtr(handles[which_one], &power);
    if (MIC_ACCESS_API_SUCCESS != ret) {
            fprintf(stderr,"Oops MicGetPowerUsage failed: %s\n",
                            MicGetErrorStringPtr(ret));
            return PAPI_ECMP;
    }

    pwr->total0 = power.total0.prr;
    pwr->total1 = power.total1.prr;
    pwr->inst = power.inst.prr;
    pwr->imax = power.imax.prr;
    pwr->pcie = power.pcie.prr;
    pwr->c2x3 = power.c2x3.prr;
    pwr->c2x4 = power.c2x4.prr;
    pwr->vccp = power.vccp.pwr;
    pwr->vddg = power.vddg.pwr;
    pwr->vddq = power.vddq.pwr;

    return PAPI_OK;
}

Here is the caller graph for this function:

Variable Documentation

_dl_non_dynamic_init

void(* _dl_non_dynamic_init) (void)

(

void

)

Corresponds to counter slot, indexed from 1, 0 has a special meaning

Definition at line 31 of file linux-host_micpower.c.

                                      {
    unsigned int selector;
} host_micpower_register_t;

_host_micpower_vector

papi_vector_t _host_micpower_vector

Definition at line 577 of file linux-host_micpower.c.

accessHandle

HANDLE accessHandle = NULL

static

Definition at line 72 of file linux-host_micpower.c.

adapters

MicDeviceOnSystem adapters[MAX_DEVICES]

static

Definition at line 69 of file linux-host_micpower.c.

cached_values

power_t cached_values[MAX_DEVICES]

static

Definition at line 113 of file linux-host_micpower.c.

handles

HANDLE handles[MAX_DEVICES]

static

Definition at line 70 of file linux-host_micpower.c.

host_micpower_register_t

host_micpower_register_t

Definition at line 41 of file linux-host_micpower.c.

lastupdate

long long lastupdate[MAX_DEVICES]

static

Definition at line 71 of file linux-host_micpower.c.

mic_access

void* mic_access = NULL

static

Definition at line 75 of file linux-host_micpower.c.

MicCloseAdapterPtr

U32(* MicCloseAdapterPtr) (HANDLE)

(

HANDLE

)

Definition at line 88 of file linux-host_micpower.c.

MicCloseAPIPtr

U32(* MicCloseAPIPtr) (HANDLE *)

(

HANDLE *

)

Definition at line 90 of file linux-host_micpower.c.

MicGetErrorStringPtr

const char *(* MicGetErrorStringPtr) (U32)

(

U32

)

Definition at line 87 of file linux-host_micpower.c.

MicGetPowerUsagePtr

U32(* MicGetPowerUsagePtr) (HANDLE, MicPwrUsage *)	(	HANDLE	,
		MicPwrUsage *
	)

Definition at line 92 of file linux-host_micpower.c.

MicInitAdapterPtr

U32(* MicInitAdapterPtr) (HANDLE *, MicDeviceOnSystem *)	(	HANDLE *	,
		MicDeviceOnSystem *
	)

Definition at line 91 of file linux-host_micpower.c.

MicInitAPIPtr

U32(* MicInitAPIPtr) (HANDLE *, ETarget, MicDeviceOnSystem *, U32 *)	(	HANDLE *	,
		ETarget	,
		MicDeviceOnSystem *	,
		U32 *
	)

Definition at line 89 of file linux-host_micpower.c.

nAdapters

U32 nAdapters = MAX_DEVICES

static

Definition at line 73 of file linux-host_micpower.c.

native_events_table

host_micpower_native_event_entry_t* native_events_table = NULL

static

Definition at line 93 of file linux-host_micpower.c.

scif_access

void* scif_access = NULL

static

Definition at line 76 of file linux-host_micpower.c.
