PAPI 7.1.0.0
Loading...
Searching...
No Matches
Macros | Functions | Variables
papi_l1_dca.c File Reference
Include dependency graph for papi_l1_dca.c:

Go to the source code of this file.

Macros

#define NUM_RUNS   100

#define ARRAYSIZE   65536


Functions

int main (int argc, char **argv)


Variables

static double array [ARRAYSIZE]


Macro Definition Documentation

◆ ARRAYSIZE

#define ARRAYSIZE   65536

Definition at line 21 of file papi_l1_dca.c.

◆ NUM_RUNS

#define NUM_RUNS   100

Definition at line 19 of file papi_l1_dca.c.

Function Documentation

◆ main()

int main ( int  argc,
char **  argv
)

Definition at line 25 of file papi_l1_dca.c.

25 {
26
27 int i;
28 int quiet;
29 int eventset=PAPI_NULL;
30
31 int errors=0;
32 int retval;
33 int num_runs=NUM_RUNS;
34 long long high,low,average,expected=ARRAYSIZE;
35 long long count,total;
36 double aSumm = 0.0;
37 double error;
38
39 quiet=tests_quiet(argc,argv);
40
41 if (!quiet) {
42 printf("Testing the PAPI_L1_DCA event\n");
43 }
44
45 /* Init the PAPI library */
46 retval = PAPI_library_init(PAPI_VER_CURRENT);
47 if (retval != PAPI_VER_CURRENT) {
48 test_fail(__FILE__,__LINE__,"PAPI_library_init",retval);
49 }
50
51 retval=PAPI_create_eventset(&eventset);
52 if (retval!=PAPI_OK) {
53 test_fail( __FILE__, __LINE__, "PAPI_create_eventset", retval );
54 }
55
56 retval=PAPI_add_named_event(eventset,"PAPI_L1_DCA");
57 if (retval!=PAPI_OK) {
58 test_skip( __FILE__, __LINE__, "adding PAPI_L1_DCA", retval );
59 }
60
61
62 /*******************************************************************/
63 /* Test if the C compiler uses a sane number of data cache acceess */
64 /* This tests writes to memory. */
65 /*******************************************************************/
66
67 if (!quiet) {
68 printf("Write Test: Initializing an array of %d doubles:\n",
69 ARRAYSIZE);
70 }
71
72 high=0; low=0; total=0;
73
74 for(i=0;i<num_runs;i++) {
75
76 PAPI_reset(eventset);
77 PAPI_start(eventset);
78
79 cache_write_test(array,ARRAYSIZE);
80
81 retval=PAPI_stop(eventset,&count);
82
83 if (retval!=PAPI_OK) {
84 test_fail( __FILE__, __LINE__,
85 "reading PAPI_L1_DCA", retval );
86 }
87
88 if (count>high) high=count;
89 if ((low==0) || (count<low)) low=count;
90 total+=count;
91 }
92
93 average=(total/num_runs);
94
95 error=display_error(average,high,low,expected,quiet);
96
97 if ((error > 1.0) || (error<-1.0)) {
98 if (!quiet) printf("Instruction count off by more than 1%%\n");
99 errors++;
100 }
101
102 if (!quiet) printf("\n");
103
104
105 /*******************************************************************/
106 /* Test if the C compiler uses a sane number of data cache acceess */
107 /* This tests writes to memory. */
108 /*******************************************************************/
109
110 if (!quiet) {
111 printf("Read Test: Summing an array of %d doubles:\n",
112 ARRAYSIZE);
113 }
114
115 high=0; low=0; total=0;
116
117 for(i=0;i<num_runs;i++) {
118
119 PAPI_reset(eventset);
120 PAPI_start(eventset);
121
122
123 aSumm+=cache_read_test(array,ARRAYSIZE);
124
125 retval=PAPI_stop(eventset,&count);
126
127 if (retval!=PAPI_OK) {
128 test_fail( __FILE__, __LINE__,
129 "reading PAPI_L1_DCA", retval );
130 }
131
132 if (count>high) high=count;
133 if ((low==0) || (count<low)) low=count;
134 total+=count;
135 }
136
137 if (!quiet) {
138 printf("\tRead test sim= %lf\n",aSumm);
139 }
140
141 average=(total/num_runs);
142
143 error=display_error(average,high,low,expected,quiet);
144
145 if ((error > 1.0) || (error<-1.0)) {
146 if (!quiet) printf("Instruction count off by more than 1%%\n");
147 errors++;
148 }
149
150 if (!quiet) {
151 printf("\n");
152 }
153
154 if (errors) {
155 test_fail( __FILE__, __LINE__, "Error too high", 1 );
156 }
157
158 test_pass(__FILE__);
159
160 return 0;
161}
i
int i
Definition: PAPI_get_virt_cyc.c:10
cache_write_test
int cache_write_test(double *array, int size)
Definition: cache_testcode.c:6
cache_read_test
double cache_read_test(double *array, int size)
Definition: cache_testcode.c:16
count
static long count
Definition: child_overflow.c:33
PAPI_add_named_event
add PAPI preset or native hardware event by name to an EventSet
PAPI_create_eventset
Create a new empty PAPI EventSet.
PAPI_library_init
initialize the PAPI library.
PAPI_reset
Reset the hardware event counts in an event set.
PAPI_start
Start counting hardware events in an event set.
PAPI_stop
Stop counting hardware events in an event set.
expected
static int expected[NUM_THREADS]
Definition: ctests/overflow_pthreads.c:29
display_error
double display_error(long long average, long long high, long long low, long long expected, int quiet)
Definition: display_error.c:7
PAPI_VER_CURRENT
#define PAPI_VER_CURRENT
Definition: f90papi.h:54
PAPI_OK
#define PAPI_OK
Definition: f90papi.h:73
PAPI_NULL
#define PAPI_NULL
Definition: f90papi.h:78
array
static double array[ARRAYSIZE]
Definition: papi_l1_dca.c:23
ARRAYSIZE
#define ARRAYSIZE
Definition: papi_l1_dca.c:21
NUM_RUNS
#define NUM_RUNS
Definition: papi_l1_dca.c:19
tests_quiet
int tests_quiet(int argc, char **argv)
Definition: test_utils.c:376
test_fail
void PAPI_NORETURN test_fail(const char *file, int line, const char *call, int retval)
Definition: test_utils.c:491
test_pass
void PAPI_NORETURN test_pass(const char *filename)
Definition: test_utils.c:432
test_skip
void PAPI_NORETURN test_skip(const char *file, int line, const char *call, int retval)
Definition: test_utils.c:584
quiet
int quiet
Definition: rapl_overflow.c:19
total
static int total
Definition: rapl_overflow.c:9
retval
int retval
Definition: zero_fork.c:53

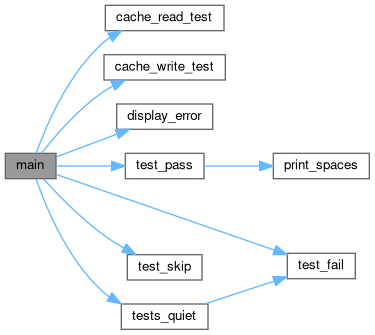

Here is the call graph for this function:

Variable Documentation

◆ array

double array[ARRAYSIZE]
static

Definition at line 23 of file papi_l1_dca.c.
