linux-bgq.c File Reference

This file has the source code for a component that enables PAPI-C to access hardware monitoring counters for BG/Q through the BGPM library. More...

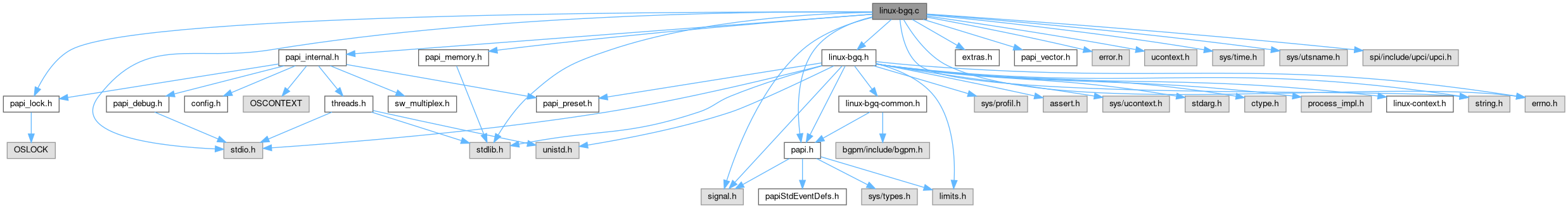

Include dependency graph for linux-bgq.c:

Go to the source code of this file.

Data Structures
struct	bgq_generic_events_t

Macros
#define	get_cycles   GetTimeBase
#define	OPCODE_EVENT_CHUNK   8

Functions
int	_bgq_get_memory_info (PAPI_hw_info_t *pHwInfo, int pCPU_Type)
int	_bgq_get_dmem_info (PAPI_dmem_info_t *pDmemInfo)
void	user_signal_handler (int hEvtSet, uint64_t address, uint64_t ovfVector, const ucontext_t *pContext)
void	_papi_hwd_lock (int lock)
void	_papi_hwd_unlock (int lock)
int	_bgq_get_system_info (papi_mdi_t *mdi)
int	_bgq_init_control_state (hwd_control_state_t *ptr)
int	_bgq_set_domain (hwd_control_state_t *cntrl, int domain)
int	_bgq_init (hwd_context_t *ctx)
int	_bgq_multiplex (hwd_control_state_t *bgq_state)
int	_bgq_allocate_registers (EventSetInfo_t *ESI)
int	_bgq_cleanup_eventset (hwd_control_state_t *ctrl)
int	_bgq_update_control_state (hwd_control_state_t *ptr, NativeInfo_t *native, int count, hwd_context_t *ctx)
int	_bgq_start (hwd_context_t *ctx, hwd_control_state_t *ptr)
int	_bgq_stop (hwd_context_t *ctx, hwd_control_state_t *ptr)
int	_bgq_read (hwd_context_t *ctx, hwd_control_state_t *ptr, long_long **dp, int flags)
int	_bgq_reset (hwd_context_t *ctx, hwd_control_state_t *ptr)
int	_bgq_shutdown (hwd_context_t *ctx)
int	_bgq_write (hwd_context_t *ctx, hwd_control_state_t *cntrl, long_long *from)
void	_bgq_dispatch_timer (int signal, hwd_siginfo_t *info, void *uc)
int	_bgq_set_overflow (EventSetInfo_t *ESI, int EventIndex, int threshold)
int	_bgq_set_profile (EventSetInfo_t *ESI, int EventIndex, int threshold)
int	_bgq_stop_profiling (ThreadInfo_t *master, EventSetInfo_t *ESI)
int	_bgq_ctl (hwd_context_t *ctx, int code, _papi_int_option_t *option)
long long	_bgq_get_real_usec (void)
long long	_bgq_get_real_cycles (void)
long long	_bgq_get_virt_usec (void)
long long	_bgq_get_virt_cycles (void)
int	_bgq_init_component (int cidx)
int	_bgq_ntv_name_to_code (const char *name, unsigned int *event_code)
int	_bgq_ntv_code_to_name (unsigned int EventCode, char *name, int len)
int	_bgq_ntv_code_to_descr (unsigned int EventCode, char *name, int len)
int	_bgq_ntv_code_to_bits (unsigned int EventCode, hwd_register_t *bits)
int	_bgq_ntv_enum_events (unsigned int *EventCode, int modifier)
int	_papi_hwi_init_os (void)

Variables
UPC_Lock_t	thdLocks [PAPI_MAX_LOCK]
papi_vector_t	_bgq_vectors
PAPI_os_info_t	_papi_os_info
static int	allocated_opcode_events = 0
static int	num_opcode_events = 0
static struct bgq_generic_events_t *	GenericEvent
papi_os_vector_t	_papi_os_vector

Detailed Description

Author

Heike Jagode jagod.nosp@m.e@ee.nosp@m.cs.ut.nosp@m.k.ed.nosp@m.u Mods: < your name here > < your email address > Blue Gene/Q CPU component: BGPM / Punit

Tested version of bgpm (early access)

Definition in file linux-bgq.c.

Macro Definition Documentation

get_cycles

#define get_cycles

(

void

)

GetTimeBase

Definition at line 48 of file linux-bgq.c.

OPCODE_EVENT_CHUNK

#define OPCODE_EVENT_CHUNK   8

Definition at line 63 of file linux-bgq.c.

Function Documentation

_bgq_allocate_registers()

int _bgq_allocate_registers

(

EventSetInfo_t *

ESI

)

Definition at line 323 of file linux-bgq.c.

{
#ifdef DEBUG_BGQ
    printf("_bgq_allocate_registers\n");
#endif
    int i, natNum;
    int xEventId;

    /*
     * Start monitoring the events...
     */
    natNum = ESI->NativeCount;

    for ( i = 0; i < natNum; i++ ) {
        xEventId = ( ESI->NativeInfoArray[i].ni_event & PAPI_NATIVE_AND_MASK ) + 1;
        ESI->NativeInfoArray[i].ni_position = i;
    }

    return PAPI_OK;
}

_bgq_cleanup_eventset()

int _bgq_cleanup_eventset

(

hwd_control_state_t *

ctrl

)

Definition at line 351 of file linux-bgq.c.

{
#ifdef DEBUG_BGQ
    printf( "_bgq_cleanup_eventset\n" );
#endif

    // set multiplexing flag to OFF (0)
    ctrl->muxOn = 0;
    // set overflow flag to OFF (0)
    ctrl->overflow = 0;
    ctrl->overflow_count = 0;
    // set BGPM eventGroup flag back to NOT applied yet (0)
    ctrl->bgpm_eventset_applied = 0;

    return ( PAPI_OK );
}

_bgq_ctl()

int _bgq_ctl	(	hwd_context_t *	ctx,
		int	code,
		_papi_int_option_t *	option
	)

Definition at line 895 of file linux-bgq.c.

{
#ifdef DEBUG_BGQ
    printf( "_bgq_ctl\n" );
#endif
    ( void ) ctx;
    int retval;

    switch ( code ) {
        case PAPI_MULTIPLEX:
        {
            hwd_control_state_t * bgq_state = ( ( hwd_control_state_t * ) option->multiplex.ESI->ctl_state );
            bgq_state->muxOn = 1;
            retval = _bgq_multiplex( bgq_state );
            return ( retval );
        }
        default:
            return ( PAPI_OK );
    }
}

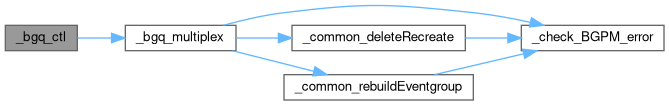

Here is the call graph for this function:

_bgq_dispatch_timer()

void _bgq_dispatch_timer	(	int	signal,
		hwd_siginfo_t *	info,
		void *	uc
	)

Definition at line 663 of file linux-bgq.c.

{
    ( void ) signal;
    ( void ) info;
    ( void ) uc;
#ifdef DEBUG_BGQ
    printf("BEGIN _bgq_dispatch_timer\n");
#endif

    return;
}

Here is the call graph for this function:

_bgq_get_dmem_info()

int _bgq_get_dmem_info

(

PAPI_dmem_info_t *

pDmemInfo

)

Definition at line 53 of file linux-bgq-memory.c.

{
//  pid_t xPID = getpid();
//  prpsinfo_t xInfo;
//  char xFile[256];
//  int xFD;

//  sprintf(xFile, "/proc/%05d", xPID);
//  if ((fd = open(xFile, O_RDONLY)) < 0) {
//     SUBDBG("PAPI_get_dmem_info can't open /proc/%d\n", xPID);
//     return (PAPI_ESYS);
//  }
//  if (ioctl(xFD, PIOCPSINFO, &xInfo) < 0) {
//     return (PAPI_ESYS);
//  }
//  close(xFD);

    pDmemInfo->size = PAPI_EINVAL;
    pDmemInfo->resident = PAPI_EINVAL;
    pDmemInfo->high_water_mark = PAPI_EINVAL;
    pDmemInfo->shared = PAPI_EINVAL;
    pDmemInfo->text = PAPI_EINVAL;
    pDmemInfo->library = PAPI_EINVAL;
    pDmemInfo->heap = PAPI_EINVAL;
    pDmemInfo->locked = PAPI_EINVAL;
    pDmemInfo->stack = PAPI_EINVAL;
    pDmemInfo->pagesize = PAPI_EINVAL;

    return PAPI_OK;
}

_bgq_get_memory_info()

int _bgq_get_memory_info	(	PAPI_hw_info_t *	pHwInfo,
		int	pCPU_Type
	)

Definition at line 33 of file linux-bgq-memory.c.

{
    int retval = 0;

    switch ( pCPU_Type ) {
    default:
        //fprintf(stderr,"Default CPU type in %s (%d)\n",__FUNCTION__,__LINE__);
        retval = init_bgq( &pHwInfo->mem_hierarchy );
        break;
    }

    return retval;
}

Here is the call graph for this function:

Here is the caller graph for this function:

_bgq_get_real_cycles()

long long _bgq_get_real_cycles

(

void

)

Definition at line 942 of file linux-bgq.c.

{
#ifdef DEBUG_BGQ
    printf( "_bgq_get_real_cycles\n" );
#endif

    return ( ( long long ) get_cycles(  ) );

}

Here is the caller graph for this function:

_bgq_get_real_usec()

long long _bgq_get_real_usec

(

void

)

Definition at line 920 of file linux-bgq.c.

{
#ifdef DEBUG_BGQ
    printf( "_bgq_get_real_usec\n" );
#endif

    /*
     * NOTE:  _papi_hwi_system_info.hw_info.mhz is really a representation of unit of time per cycle.
     *        On BG/P, it's value is 8.5e-4.  Therefore, to get cycles per sec, we have to multiply
     *        by 1.0e12.  To then convert to usec, we have to divide by 1.0e-3.
     */
    return ( ( long long ) ( ( ( float ) get_cycles(  ) ) /
                             ( ( _papi_hwi_system_info.hw_info.cpu_max_mhz ) ) ) );

}

Here is the caller graph for this function:

_bgq_get_system_info()

int _bgq_get_system_info

(

papi_mdi_t *

mdi

)

Definition at line 138 of file linux-bgq.c.

{
#ifdef DEBUG_BGQ
    printf( "_bgq_get_system_info\n" );
#endif

    ( void ) mdi;
    Personality_t personality;
    int retval;

    /* Hardware info */
    retval = Kernel_GetPersonality( &personality, sizeof( Personality_t ) );
    if ( retval ) {
        fprintf( stdout, "Kernel_GetPersonality returned %d (sys error=%d).\n"
                "\t%s\n", retval, errno, strerror( errno ) );
        return PAPI_ESYS;
    }

    /* Returns the number of processors that are associated with the currently
     * running process */
    _papi_hwi_system_info.hw_info.ncpu = Kernel_ProcessorCount( );
    // TODO: HJ Those values need to be fixed
    _papi_hwi_system_info.hw_info.nnodes = Kernel_ProcessCount( );
    _papi_hwi_system_info.hw_info.totalcpus = _papi_hwi_system_info.hw_info.ncpu;

    _papi_hwi_system_info.hw_info.cpu_max_mhz = personality.Kernel_Config.FreqMHz;
    _papi_hwi_system_info.hw_info.cpu_min_mhz = personality.Kernel_Config.FreqMHz;

    _papi_hwi_system_info.hw_info.mhz = ( float ) personality.Kernel_Config.FreqMHz;
    SUBDBG( "_bgq_get_system_info:  Detected MHZ is %f\n",
           _papi_hwi_system_info.hw_info.mhz );

    return ( PAPI_OK );
}

Here is the caller graph for this function:

_bgq_get_virt_cycles()

long long _bgq_get_virt_cycles

(

void

)

Definition at line 973 of file linux-bgq.c.

{
#ifdef DEBUG_BGQ
    printf( "_bgq_get_virt_cycles\n" );
#endif

    return _bgq_get_real_cycles(  );
}

Here is the call graph for this function:

_bgq_get_virt_usec()

long long _bgq_get_virt_usec

(

void

)

Definition at line 958 of file linux-bgq.c.

{
#ifdef DEBUG_BGQ
    printf( "_bgq_get_virt_usec\n" );
#endif

    return _bgq_get_real_usec(  );
}

Here is the call graph for this function:

_bgq_init()

int _bgq_init

(

hwd_context_t *

ctx

)

Definition at line 234 of file linux-bgq.c.

{
#ifdef DEBUG_BGQ
    printf( "_bgq_init\n" );
#endif
    ( void ) ctx;
    int retval;

#ifdef DEBUG_BGPM
    Bgpm_PrintOnError(1);
    Bgpm_ExitOnError(0);
#else
    Bgpm_PrintOnError(0);
    // avoid bgpm default of exiting when error occurs - caller will check return code instead.
    Bgpm_ExitOnError(0);
#endif

    retval = Bgpm_Init( BGPM_MODE_SWDISTRIB );
    retval = _check_BGPM_error( retval, "Bgpm_Init" );
    if ( retval < 0 ) return retval;

    //_common_initBgpm();

    return PAPI_OK;
}

Here is the call graph for this function:

_bgq_init_component()

int _bgq_init_component

(

int

cidx

)

Definition at line 990 of file linux-bgq.c.

{
#ifdef DEBUG_BGQ
    printf("_bgq_init_substrate\n");
    //printf("_bgq_init_substrate: 1. BGPM_INITIALIZED = %d \n", BGPM_INITIALIZED);
#endif
    int retval;
    int i;

    /* allocate the opcode event structure */
    GenericEvent = calloc( OPCODE_EVENT_CHUNK, sizeof( struct bgq_generic_events_t ) );
    if ( NULL == GenericEvent ) {
        return PAPI_ENOMEM;
    }

    /* init opcode event stuff */
    allocated_opcode_events = OPCODE_EVENT_CHUNK;
    num_opcode_events = 0;

    _bgq_vectors.cmp_info.CmpIdx = cidx;

    /*
     * Fill in what we can of the papi_system_info
     */
    SUBDBG( "Before _bgq_get_system_info()...\n" );
    retval = _bgq_get_system_info( &_papi_hwi_system_info );
    SUBDBG( "After _bgq_get_system_info(), retval=%d...\n", retval );
    if ( retval != PAPI_OK )
        return ( retval );

    /*
     * Setup memory info
     */

    SUBDBG( "Before _bgq_get_memory_info...\n" );
    retval = _bgq_get_memory_info( &_papi_hwi_system_info.hw_info,
                                  ( int ) _papi_hwi_system_info.hw_info.
                                  model );
    SUBDBG( "After _bgq_get_memory_info, retval=%d...\n", retval );
    if ( retval )
        return ( retval );
#if 1
    /* Setup Locks */
    for ( i = 0; i < PAPI_MAX_LOCK; i++ )
        thdLocks[i] = 0;  // MUTEX_OPEN
#else
    for( i = 0; i < PAPI_MAX_LOCK; i++ ) {
        pthread_mutex_init( &thdLocks[i], NULL );
    }
#endif

    /* Setup presets */
    retval = _papi_load_preset_table( "BGQ", 0, cidx );
    if ( retval ) {
        return retval;
    }


    return ( PAPI_OK );
}

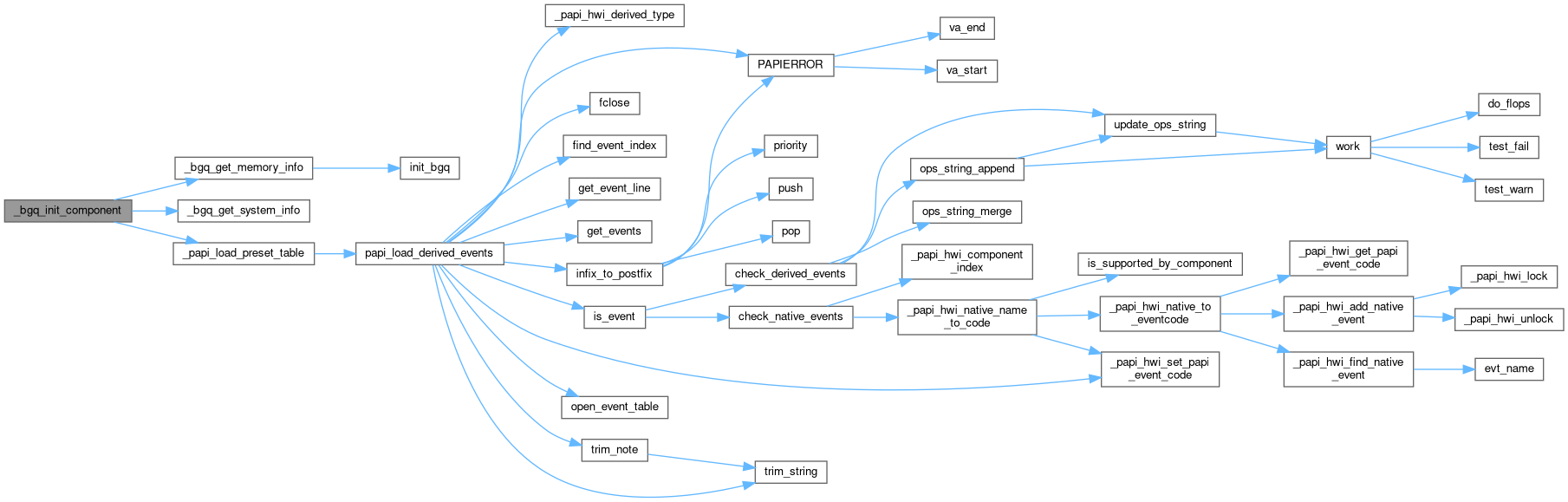

Here is the call graph for this function:

_bgq_init_control_state()

int _bgq_init_control_state

(

hwd_control_state_t *

ptr

)

Definition at line 179 of file linux-bgq.c.

{
#ifdef DEBUG_BGQ
    printf( "_bgq_init_control_state\n" );
#endif
    int retval;

    ptr->EventGroup = Bgpm_CreateEventSet();
    retval = _check_BGPM_error( ptr->EventGroup, "Bgpm_CreateEventSet" );
    if ( retval < 0 ) return retval;

    // initialize multiplexing flag to OFF (0)
    ptr->muxOn = 0;
    // initialize overflow flag to OFF (0)
    ptr->overflow = 0;
    ptr->overflow_count = 0;
    // initialized BGPM eventGroup flag to NOT applied yet (0)
    ptr->bgpm_eventset_applied = 0;

    return PAPI_OK;
}

Here is the call graph for this function:

_bgq_multiplex()

int _bgq_multiplex

(

hwd_control_state_t *

bgq_state

)

Definition at line 262 of file linux-bgq.c.

{
    int retval;
    uint64_t bgpm_period;
    double Sec, Hz;

#ifdef DEBUG_BGQ
    printf("_bgq_multiplex BEGIN: Num of Events = %d (vs %d)\n", Bgpm_NumEvents( bgq_state->EventGroup ), bgq_state->count );
#endif

    // convert Mhz to Hz ( = cycles / sec )
    Hz = (double) _papi_hwi_system_info.hw_info.cpu_max_mhz * 1000 * 1000;
    // convert PAPI multiplex period (in ns) to BGPM period (in cycles)
    Sec = (double) _papi_os_info.itimer_ns / ( 1000 * 1000 * 1000 );
    bgpm_period = Hz * Sec;

    // if EventGroup is not empty -- which is required by BGPM before
    // we can call SetMultiplex() -- then drain the events from the
    // BGPM EventGroup, turn on multiplex flag, and rebuild BGPM EventGroup.
    if ( 0 < bgq_state->count ) {
        // Delete and re-create BGPM eventset
        retval = _common_deleteRecreate( &bgq_state->EventGroup );
        if ( retval < 0 ) return retval;

        // turn on multiplex for BGPM
        retval = Bgpm_SetMultiplex( bgq_state->EventGroup, bgpm_period, BGPM_NORMAL );
        retval = _check_BGPM_error( retval, "Bgpm_SetMultiplex" );
        if ( retval < 0 ) return retval;

        // rebuild BGPM EventGroup
        retval = _common_rebuildEventgroup( bgq_state->count,
                                   bgq_state->EventGroup_local,
                                   &bgq_state->EventGroup );
        if ( retval < 0 ) return retval;
    }
    else {
        // need to pass either BGPM_NORMAL or BGPM_NOTNORMAL
        // BGPM_NORMAL: numbers reported by Bgpm_ReadEvent() are normalized
        // to the maximum time spent in a multiplexed group
        retval = Bgpm_SetMultiplex( bgq_state->EventGroup, bgpm_period, BGPM_NORMAL );
        retval = _check_BGPM_error( retval, "Bgpm_SetMultiplex" );
        if ( retval < 0 ) return retval;
    }

#ifdef DEBUG_BGQ
    printf("_bgq_multiplex END: Num of Events = %d (vs %d) --- retval = %d\n",
           Bgpm_NumEvents( bgq_state->EventGroup ), bgq_state->count, retval );
#endif

    return ( retval );
}

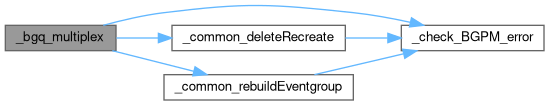

Here is the call graph for this function:

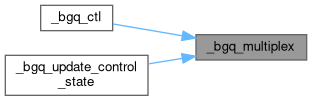

Here is the caller graph for this function:

_bgq_ntv_code_to_bits()

int _bgq_ntv_code_to_bits	(	unsigned int	EventCode,
		hwd_register_t *	bits
	)

Definition at line 1218 of file linux-bgq.c.

{
#ifdef DEBUG_BGQ
    printf( "_bgq_ntv_code_to_bits\n" );
#endif

    ( void ) EventCode;
    ( void ) bits;

    return ( PAPI_OK );
}

_bgq_ntv_code_to_descr()

int _bgq_ntv_code_to_descr	(	unsigned int	EventCode,
		char *	name,
		int	len
	)

Definition at line 1192 of file linux-bgq.c.

{
#ifdef DEBUG_BGQ
    printf( "_bgq_ntv_code_to_descr\n" );
#endif
    int retval;
    int index = ( EventCode & PAPI_NATIVE_AND_MASK ) + 1;

    retval = Bgpm_GetLongDesc( index, name, &len );
    retval = _check_BGPM_error( retval, "Bgpm_GetLongDesc" );
    if ( retval < 0 ) return retval;

    return ( PAPI_OK );
}

Here is the call graph for this function:

_bgq_ntv_code_to_name()

int _bgq_ntv_code_to_name	(	unsigned int	EventCode,
		char *	name,
		int	len
	)

Definition at line 1161 of file linux-bgq.c.

{
#ifdef DEBUG_BGQ
    printf( "_bgq_ntv_code_to_name\n" );
#endif
    int index = ( EventCode & PAPI_NATIVE_AND_MASK ) + 1;

    if ( index >= MAX_COUNTERS )
        return PAPI_ENOEVNT;

    strncpy( name, Bgpm_GetEventIdLabel( index ), len );

    if ( name == NULL ) {
#ifdef DEBUG_BGPM
        printf ("Error: ret value is NULL for BGPM API function Bgpm_GetEventIdLabel.\n" );
#endif
        return PAPI_ENOEVNT;
    }
#ifdef DEBUG_BGQ
    printf( "name = ===%s===\n", name );
#endif

    return ( PAPI_OK );
}

_bgq_ntv_enum_events()

int _bgq_ntv_enum_events	(	unsigned int *	EventCode,
		int	modifier
	)

Definition at line 1235 of file linux-bgq.c.

{
#ifdef DEBUG_BGQ
    printf( "_bgq_ntv_enum_events\n" );
#endif

    switch ( modifier ) {
        case PAPI_ENUM_FIRST:
            *EventCode = PAPI_NATIVE_MASK;

            return ( PAPI_OK );
            break;

        case PAPI_ENUM_EVENTS:
        {
            int index = ( *EventCode & PAPI_NATIVE_AND_MASK ) + 1;

            if ( index < BGQ_PUNIT_MAX_EVENTS ) {
                *EventCode = *EventCode + 1;
                return ( PAPI_OK );
            } else
                return ( PAPI_ENOEVNT );

            break;
        }
        default:
            return ( PAPI_EINVAL );
    }

    return ( PAPI_EINVAL );
}

_bgq_ntv_name_to_code()

int _bgq_ntv_name_to_code	(	const char *	name,
		unsigned int *	event_code
	)

Definition at line 1060 of file linux-bgq.c.

{
#ifdef DEBUG_BGQ
    printf( "_bgq_ntv_name_to_code\n" );
#endif
    int ret;
#ifdef DEBUG_BGQ
    printf( "name = ===%s===\n", name );
#endif

    /* Treat events differently if BGPM Opcodes are used */
    /* Opcode group selection values are "OR"ed together to create a desired
     mask of instruction group events to accumulate in the same counter */
    if ( 0 == strncmp( name, "PEVT_INST_XU_GRP_MASK", strlen( "PEVT_INST_XU_GRP_MASK" ) ) ||
         0 == strncmp( name, "PEVT_INST_QFPU_GRP_MASK", strlen( "PEVT_INST_QFPU_GRP_MASK" ) ) ) {

        char *pcolon;
        pcolon = strchr( name, ':' );

        // Found colon separator
        if ( pcolon != NULL ) {
            int mask_len = pcolon - name;
            strncpy( GenericEvent[num_opcode_events].mask, name,  mask_len  );
            strncpy( GenericEvent[num_opcode_events].opcode, pcolon+1, strlen(name) - 1 - mask_len );
            /* opcode_mask needs to be 'uint64_t',
               hence we use strtoull() which returns an 'unsigned long long int' */
            GenericEvent[num_opcode_events].opcode_mask = strtoull( GenericEvent[num_opcode_events].opcode, (char **)NULL, 16 );
            GenericEvent[num_opcode_events].idx = OPCODE_BUF + num_opcode_events;
            /* Return event id matching the generic XU/QFPU event string */
            GenericEvent[num_opcode_events].eventId = Bgpm_GetEventIdFromLabel( GenericEvent[num_opcode_events].mask );
            if ( GenericEvent[num_opcode_events].eventId <= 0 ) {
#ifdef DEBUG_BGPM
                printf ("Error: ret value is %d for BGPM API function '%s'.\n",
                        ret, "Bgpm_GetEventIdFromLabel" );
#endif
                return PAPI_ENOEVNT;
            }

            *event_code = GenericEvent[num_opcode_events].idx;

            num_opcode_events++;

            /* If there are too many opcode events than allocated, then allocate more room */
            if( num_opcode_events >= allocated_opcode_events ) {

                SUBDBG("Allocating more room for BGPM opcode events (%d %ld)\n",
                       ( allocated_opcode_events + NATIVE_OPCODE_CHUNK ),
                       ( long )sizeof( struct bgq_generic_events_t ) *
                       ( allocated_opcode_events + NATIVE_OPCODE_CHUNK ) );

                GenericEvent = realloc( GenericEvent, sizeof( struct bgq_generic_events_t ) *
                                       ( allocated_opcode_events + OPCODE_EVENT_CHUNK ) );
                if ( NULL == GenericEvent ) {
                    return PAPI_ENOMEM;
                }
                allocated_opcode_events += OPCODE_EVENT_CHUNK;
            }
        }
        else {
            SUBDBG( "Error: Found a generic BGPM event mask without opcode string\n" );
            return PAPI_ENOEVNT;
        }


#ifdef DEBUG_BGQ
        printf(_AT_ " _bgq_ntv_name_to_code: GenericEvent no. %d: \n", num_opcode_events-1 );
        printf( "idx         = %d\n", GenericEvent[num_opcode_events-1].idx);
        printf( "eventId     = %d\n", GenericEvent[num_opcode_events-1].eventId);
        printf( "mask        = %s\n", GenericEvent[num_opcode_events-1].mask);
        printf( "opcode      = %s\n", GenericEvent[num_opcode_events-1].opcode);
        printf( "opcode_mask = %#lX (%lu)\n", GenericEvent[num_opcode_events-1].opcode_mask,
               GenericEvent[num_opcode_events-1].opcode_mask );
#endif
    }
    else {
        /* Return event id matching a given event label string */
        ret = Bgpm_GetEventIdFromLabel ( name );

        if ( ret <= 0 ) {
#ifdef DEBUG_BGPM
            printf ("Error: ret value is %d for BGPM API function '%s'.\n",
                    ret, "Bgpm_GetEventIdFromLabel" );
#endif
            return PAPI_ENOEVNT;
        }
        else if ( ret > BGQ_PUNIT_MAX_EVENTS ) // not a PUnit event
            return PAPI_ENOEVNT;
        else
            *event_code = ( ret - 1 );
    }

    return PAPI_OK;
}

_bgq_read()

int _bgq_read	(	hwd_context_t *	ctx,
		hwd_control_state_t *	ptr,
		long_long **	dp,
		int	flags
	)

Definition at line 556 of file linux-bgq.c.

{
#ifdef DEBUG_BGQ
    printf( "_bgq_read\n" );
#endif
    ( void ) ctx;
    ( void ) flags;
    int i, numEvts;

    numEvts = Bgpm_NumEvents( ptr->EventGroup );
    if ( numEvts == 0 ) {
#ifdef DEBUG_BGPM
        printf ("Error: ret value is %d for BGPM API function Bgpm_NumEvents.\n", numEvts );
        //return ( EXIT_FAILURE );
#endif
    }

    for ( i = 0; i < numEvts; i++ )
        ptr->counters[i] = _common_getEventValue( i, ptr->EventGroup );

    *dp = ptr->counters;

    return ( PAPI_OK );
}

Here is the call graph for this function:

_bgq_reset()

int _bgq_reset	(	hwd_context_t *	ctx,
		hwd_control_state_t *	ptr
	)

Definition at line 588 of file linux-bgq.c.

{
#ifdef DEBUG_BGQ
    printf( "_bgq_reset\n" );
#endif
    ( void ) ctx;
    int retval;

    /* we can't simply call Bgpm_Reset() since PAPI doesn't have the
       restriction that an EventSet has to be stopped before resetting is
       possible. However, BGPM does have this restriction.
       Hence we need to stop, reset and start */
    retval = Bgpm_Stop( ptr->EventGroup );
    retval = _check_BGPM_error( retval, "Bgpm_Stop" );
    if ( retval < 0 ) return retval;

    retval = Bgpm_ResetStart( ptr->EventGroup );
    retval = _check_BGPM_error( retval, "Bgpm_ResetStart" );
    if ( retval < 0 ) return retval;

    return ( PAPI_OK );
}

Here is the call graph for this function:

_bgq_set_domain()

int _bgq_set_domain	(	hwd_control_state_t *	cntrl,
		int	domain
	)

Definition at line 206 of file linux-bgq.c.

{
#ifdef DEBUG_BGQ
    printf( "_bgq_set_domain\n" );
#endif
    int found = 0;
    ( void ) cntrl;

    if ( PAPI_DOM_USER & domain )
        found = 1;

    if ( PAPI_DOM_KERNEL & domain )
        found = 1;

    if ( PAPI_DOM_OTHER & domain )
        found = 1;

    if ( !found )
        return ( PAPI_EINVAL );

    return ( PAPI_OK );
}

_bgq_set_overflow()

int _bgq_set_overflow	(	EventSetInfo_t *	ESI,
		int	EventIndex,
		int	threshold
	)

Definition at line 776 of file linux-bgq.c.

{
#ifdef DEBUG_BGQ
    printf("BEGIN _bgq_set_overflow\n");
#endif
    hwd_control_state_t * this_state = ( hwd_control_state_t * ) ESI->ctl_state;
    int retval;
    int evt_idx;

    /*
     * In case an BGPM eventGroup HAS BEEN applied or attached before
     * overflow is set, delete the eventGroup and create an new empty one,
     * and rebuild as it was prior to deletion
     */
#ifdef DEBUG_BGQ
    printf( "_bgq_set_overflow: bgpm_eventset_applied = %d, threshold = %d\n",
            this_state->bgpm_eventset_applied, threshold );
#endif
    if ( 1 == this_state->bgpm_eventset_applied && 0 != threshold ) {
        retval = _common_deleteRecreate( &this_state->EventGroup );
        if ( retval < 0 ) return retval;

        retval = _common_rebuildEventgroup( this_state->count,
                                   this_state->EventGroup_local,
                                   &this_state->EventGroup );
        if ( retval < 0 ) return retval;

        /* set BGPM eventGroup flag back to NOT applied yet (0)
         * because the eventGroup has been recreated from scratch */
        this_state->bgpm_eventset_applied = 0;
    }


    evt_idx = ESI->EventInfoArray[EventIndex].pos[0];
    //evt_id = ( ESI->NativeInfoArray[EventIndex].ni_event & PAPI_NATIVE_AND_MASK ) + 1;
    SUBDBG( "Hardware counter %d (vs %d) used in overflow, threshold %d\n",
            evt_idx, EventIndex, threshold );
#ifdef DEBUG_BGQ
    printf( "Hardware counter %d (vs %d) used in overflow, threshold %d\n",
            evt_idx, EventIndex, threshold );
#endif

    /* If this counter isn't set to overflow, it's an error */
    if ( threshold == 0 ) {
        /* Remove the signal handler */
        retval = _papi_hwi_stop_signal( _bgq_vectors.cmp_info.hardware_intr_sig );
        if ( retval != PAPI_OK )
            return ( retval );
    }
    else {
        this_state->overflow = 1;
        this_state->overflow_count++;
        this_state->overflow_list[this_state->overflow_count-1].threshold = threshold;
        this_state->overflow_list[this_state->overflow_count-1].EventIndex = evt_idx;

#ifdef DEBUG_BGQ
        printf( "_bgq_set_overflow: Enable the signal handler\n" );
#endif
        /* Enable the signal handler */
        retval = _papi_hwi_start_signal( _bgq_vectors.cmp_info.hardware_intr_sig,
                                         NEED_CONTEXT,
                                         _bgq_vectors.cmp_info.CmpIdx );
        if ( retval != PAPI_OK )
            return ( retval );

        retval = _common_set_overflow_BGPM( this_state->EventGroup,
                                  this_state->overflow_list[this_state->overflow_count-1].EventIndex,
                                  this_state->overflow_list[this_state->overflow_count-1].threshold,
                                  user_signal_handler );
        if ( retval < 0 ) return retval;
    }

    return ( PAPI_OK );
}

Here is the call graph for this function:

_bgq_set_profile()

int _bgq_set_profile	(	EventSetInfo_t *	ESI,
		int	EventIndex,
		int	threshold
	)

Definition at line 858 of file linux-bgq.c.

{
#ifdef DEBUG_BGQ
    printf("BEGIN _bgq_set_profile\n");
#endif

    ( void ) ESI;
    ( void ) EventIndex;
    ( void ) threshold;

    return PAPI_ECMP;
}

_bgq_shutdown()

int _bgq_shutdown

(

hwd_context_t *

ctx

)

Definition at line 620 of file linux-bgq.c.

{
#ifdef DEBUG_BGQ
    printf( "_bgq_shutdown\n" );
#endif
    ( void ) ctx;
    int retval;

    /* Disable BGPM library */
    retval = Bgpm_Disable();
    retval = _check_BGPM_error( retval, "Bgpm_Disable" );
    if ( retval < 0 ) return retval;

    return ( PAPI_OK );
}

Here is the call graph for this function:

_bgq_start()

int _bgq_start	(	hwd_context_t *	ctx,
		hwd_control_state_t *	ptr
	)

Definition at line 499 of file linux-bgq.c.

{
#ifdef DEBUG_BGQ
    printf( "BEGIN _bgq_start\n" );
#endif
    ( void ) ctx;
    int retval;

    retval = Bgpm_Apply( ptr->EventGroup );
    retval = _check_BGPM_error( retval, "Bgpm_Apply" );
    if ( retval < 0 ) return retval;

    // set flag to 1: BGPM eventGroup HAS BEEN applied
    ptr->bgpm_eventset_applied = 1;

#ifdef DEBUG_BGQ
    int i;
    int numEvts = Bgpm_NumEvents( ptr->EventGroup );
    for ( i = 0; i < numEvts; i++ ) {
        printf("%d = %s\n", i, Bgpm_GetEventLabel( ptr->EventGroup, i) );
    }
#endif

    /* Bgpm_Apply() does an implicit reset;
     hence no need to use Bgpm_ResetStart */
    retval = Bgpm_Start( ptr->EventGroup );
    retval = _check_BGPM_error( retval, "Bgpm_Start" );
    if ( retval < 0 ) return retval;

    return ( PAPI_OK );
}

Here is the call graph for this function:

_bgq_stop()

int _bgq_stop	(	hwd_context_t *	ctx,
		hwd_control_state_t *	ptr
	)

Definition at line 535 of file linux-bgq.c.

{
#ifdef DEBUG_BGQ
    printf( "BEGIN _bgq_stop\n" );
#endif
    ( void ) ctx;
    int retval;

    retval = Bgpm_Stop( ptr->EventGroup );
    retval = _check_BGPM_error( retval, "Bgpm_Stop" );
    if ( retval < 0 ) return retval;

    return ( PAPI_OK );
}

Here is the call graph for this function:

_bgq_stop_profiling()

int _bgq_stop_profiling	(	ThreadInfo_t *	master,
		EventSetInfo_t *	ESI
	)

Definition at line 877 of file linux-bgq.c.

{
#ifdef DEBUG_BGQ
    printf("BEGIN _bgq_stop_profiling\n");
#endif

    ( void ) master;
    ( void ) ESI;

    return ( PAPI_OK );
}

_bgq_update_control_state()

int _bgq_update_control_state	(	hwd_control_state_t *	ptr,
		NativeInfo_t *	native,
		int	count,
		hwd_context_t *	ctx
	)

Definition at line 377 of file linux-bgq.c.

{
#ifdef DEBUG_BGQ
    printf( _AT_ " _bgq_update_control_state: count = %d, EventGroup=%d\n", count, ptr->EventGroup );
#endif
    ( void ) ctx;
    int i, j, k, index, retval;
    unsigned evtIdx;

    // Delete and re-create BGPM eventset
    retval = _common_deleteRecreate( &ptr->EventGroup );
    if ( retval < 0 ) return retval;

#ifdef DEBUG_BGQ
    printf( _AT_ " _bgq_update_control_state: EventGroup=%d, muxOn = %d, overflow = %d\n",
           ptr->EventGroup, ptr->muxOn, ptr->overflow );
#endif

    // add the events to the eventset
    for ( i = 0; i < count; i++ ) {
        index = ( native[i].ni_event & PAPI_NATIVE_AND_MASK ) + 1;

        ptr->EventGroup_local[i] = index;

        // we found an opcode event
        if ( index > BGQ_PUNIT_MAX_EVENTS ) {
            for( j = 0; j < num_opcode_events; j++ ) {
#ifdef DEBUG_BGQ
                printf(_AT_ " _bgq_update_control_state: %d out of %d OPCODES\n",
                       j, num_opcode_events );
#endif
#ifdef DEBUG_BGQ
                printf(_AT_ " _bgq_update_control_state: j's idx = %d, index = %d\n",
                       GenericEvent[j].idx, index );
#endif
                if ( GenericEvent[j].idx == ( index - 1) ) {
                    /* Add events to the BGPM eventGroup */
                    retval = Bgpm_AddEvent( ptr->EventGroup, GenericEvent[j].eventId );
                    retval = _check_BGPM_error( retval, "Bgpm_AddEvent" );
                    if ( retval < 0 ) return retval;
#ifdef DEBUG_BGQ
                    printf(_AT_ " _bgq_update_control_state: ADD event: i = %d, eventId = %d\n", i, GenericEvent[j].eventId );
#endif

                    evtIdx = Bgpm_GetEventIndex( ptr->EventGroup,
                                                 GenericEvent[j].eventId,
                                                 i );
#ifdef DEBUG_BGQ
                    printf(_AT_ " _bgq_update_control_state: evtIdx in EventGroup = %d\n",
                           evtIdx );
#endif
                    if ( 0 == strcmp( GenericEvent[j].mask, "PEVT_INST_XU_GRP_MASK" ) ) {
                        retval = Bgpm_SetXuGrpMask( ptr->EventGroup,
                                                    evtIdx,
                                                    GenericEvent[j].opcode_mask );
                        retval = _check_BGPM_error( retval, "Bgpm_SetXuGrpMask" );
                        if ( retval < 0 ) return retval;
#ifdef DEBUG_BGQ
                        printf(_AT_ " _bgq_update_control_state: it's PEVT_INST_XU_GRP_MASK\n" );
#endif
                    } else if ( 0 == strcmp( GenericEvent[j].mask, "PEVT_INST_QFPU_GRP_MASK" ) ) {
                        retval = Bgpm_SetQfpuGrpMask( ptr->EventGroup,
                                                      evtIdx,
                                                      GenericEvent[j].opcode_mask );
                        retval = _check_BGPM_error( retval, "Bgpm_SetQfpuGrpMask" );
                        if ( retval < 0 ) return retval;
#ifdef DEBUG_BGQ
                        printf(_AT_ " _bgq_update_control_state: it's PEVT_INST_QFPU_GRP_MASK\n" );
#endif
                    }
                }
            }
        }
        else {
#ifdef DEBUG_BGQ
            printf(_AT_ " _bgq_update_control_state: no OPCODE\n" );
#endif

            /* Add events to the BGPM eventGroup */
            retval = Bgpm_AddEvent( ptr->EventGroup, index );
            retval = _check_BGPM_error( retval, "Bgpm_AddEvent" );
            if ( retval < 0 ) return retval;
#ifdef DEBUG_BGQ
            printf(_AT_ " _bgq_update_control_state: ADD event: i = %d, index = %d\n", i, index );
#endif

        }
    }

    // store how many events we added to an EventSet
    ptr->count = count;

    // if muxOn and EventGroup is not empty -- which is required by BGPM before
    // we can call SetMultiplex() -- then drain the events from the
    // BGPM EventGroup, turn on multiplex flag, and rebuild BGPM EventGroup.
    if ( 1 == ptr->muxOn ) {
        retval = _bgq_multiplex( ptr );
    }

    // since update_control_state trashes overflow settings, this puts things
    // back into balance for BGPM
    if ( 1 == ptr->overflow ) {
        for ( k = 0; k < ptr->overflow_count; k++ ) {
            retval = _common_set_overflow_BGPM( ptr->EventGroup,
                                       ptr->overflow_list[k].EventIndex,
                                       ptr->overflow_list[k].threshold,
                                       user_signal_handler );
            if ( retval < 0 ) return retval;
        }
    }

    return ( PAPI_OK );
}

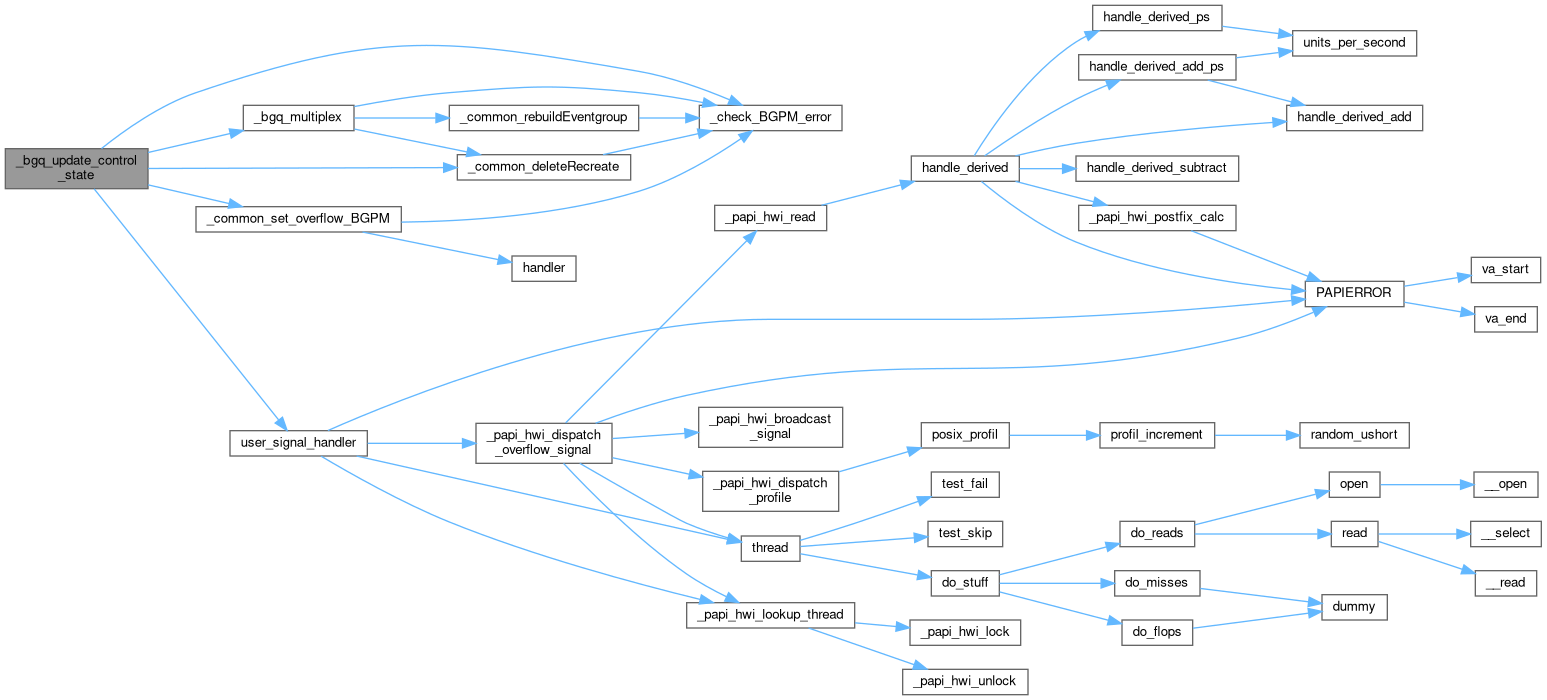

Here is the call graph for this function:

_bgq_write()

int _bgq_write	(	hwd_context_t *	ctx,
		hwd_control_state_t *	cntrl,
		long_long *	from
	)

Definition at line 643 of file linux-bgq.c.

{
#ifdef DEBUG_BGQ
    printf( "_bgq_write\n" );
#endif
    ( void ) ctx;
    ( void ) cntrl;
    ( void ) from;

    return PAPI_ECMP;
}

_papi_hwd_lock()

void _papi_hwd_lock

(

int

lock

)

Definition at line 93 of file linux-bgq.c.

{
#ifdef DEBUG_BGQ
    printf( _AT_ " _papi_hwd_lock %d\n", lock);
#endif
    assert( lock < PAPI_MAX_LOCK );
#if 1
    UPC_Lock( &thdLocks[lock] );
#else
    pthread_mutex_lock( &thdLocks[lock] );
#endif

#ifdef DEBUG_BGQ
    printf( _AT_ " _papi_hwd_lock got lock %d\n", lock );
#endif

    return;
}

_papi_hwd_unlock()

void _papi_hwd_unlock

(

int

lock

)

Definition at line 116 of file linux-bgq.c.

{
#ifdef DEBUG_BGQ
    printf( _AT_ " _papi_hwd_unlock %d\n", lock );
#endif
    assert( lock < PAPI_MAX_LOCK );
#if 1
    UPC_Unlock( &thdLocks[lock] );
#else
    pthread_mutex_unlock( &thdLocks[lock] );
#endif

    return;
}

_papi_hwi_init_os()

int _papi_hwi_init_os

(

void

)

Definition at line 1269 of file linux-bgq.c.

                        {

    struct utsname uname_buffer;

    /* Get the kernel info */
    uname(&uname_buffer);

    strncpy(_papi_os_info.name,uname_buffer.sysname,PAPI_MAX_STR_LEN);

    strncpy(_papi_os_info.version,uname_buffer.release,PAPI_MAX_STR_LEN);

    _papi_os_info.itimer_sig = PAPI_INT_MPX_SIGNAL;
    _papi_os_info.itimer_num = PAPI_INT_ITIMER;
    _papi_os_info.itimer_res_ns = 1;

    return PAPI_OK;
}

user_signal_handler()

void user_signal_handler	(	int	hEvtSet,
		uint64_t	address,
		uint64_t	ovfVector,
		const ucontext_t *	pContext
	)

Definition at line 684 of file linux-bgq.c.

{
#ifdef DEBUG_BGQ
    printf( "user_signal_handler start\n" );
#endif
    ( void ) address;
    int retval;
    unsigned i;
    int isHardware = 1;
    int cidx = _bgq_vectors.cmp_info.CmpIdx;
    long_long overflow_bit = 0;
    vptr_t address1;
    _papi_hwi_context_t ctx;
    ctx.ucontext = ( hwd_ucontext_t * ) pContext;
    ThreadInfo_t *thread = _papi_hwi_lookup_thread( 0 );

    //printf(_AT_ " thread = %p\n", thread);    // <<<<<<<<<<<<<<<<<<

    EventSetInfo_t *ESI;
    ESI = thread->running_eventset[cidx];
    // Get the indices of all events which have overflowed.
    unsigned ovfIdxs[BGPM_MAX_OVERFLOW_EVENTS];
    unsigned len = BGPM_MAX_OVERFLOW_EVENTS;

    retval = Bgpm_GetOverflowEventIndices( hEvtSet, ovfVector, ovfIdxs, &len );

    if ( retval < 0 ) {
#ifdef DEBUG_BGPM
        printf ( "Error: ret value is %d for BGPM API function Bgpm_GetOverflowEventIndices.\n",
                 retval );
#endif
        return;
    }

    if ( thread == NULL ) {
        PAPIERROR( "thread == NULL in user_signal_handler!" );
        return;
    }

    if ( ESI == NULL ) {
        PAPIERROR( "ESI == NULL in user_signal_handler!");
        return;
    }

    if ( ESI->overflow.flags == 0 ) {
        PAPIERROR( "ESI->overflow.flags == 0 in user_signal_handler!");
        return;
    }

    for ( i = 0; i < len; i++ ) {
        uint64_t hProf;
        Bgpm_GetEventUser1( hEvtSet, ovfIdxs[i], &hProf );
        if ( hProf ) {
            overflow_bit ^= 1 << ovfIdxs[i];
            break;
        }

    }

    if ( ESI->overflow.flags & PAPI_OVERFLOW_FORCE_SW ) {
#ifdef DEBUG_BGQ
        printf("OVERFLOW_SOFTWARE\n");
#endif
        address1 = GET_OVERFLOW_ADDRESS( ctx );
        _papi_hwi_dispatch_overflow_signal( ( void * ) &ctx, address1, NULL, 0, 0, &thread, cidx );
        return;
    }
    else if ( ESI->overflow.flags & PAPI_OVERFLOW_HARDWARE ) {
#ifdef DEBUG_BGQ
        printf("OVERFLOW_HARDWARE\n");
#endif
        address1 = GET_OVERFLOW_ADDRESS( ctx );
        _papi_hwi_dispatch_overflow_signal( ( void * ) &ctx, address1, &isHardware, overflow_bit, 0, &thread, cidx );
    }
    else {
#ifdef DEBUG_BGQ
        printf("OVERFLOW_NONE\n");
#endif
        PAPIERROR( "ESI->overflow.flags is set to something other than PAPI_OVERFLOW_HARDWARE or PAPI_OVERFLOW_FORCE_SW (%#x)", thread->running_eventset[cidx]->overflow.flags);
    }
}

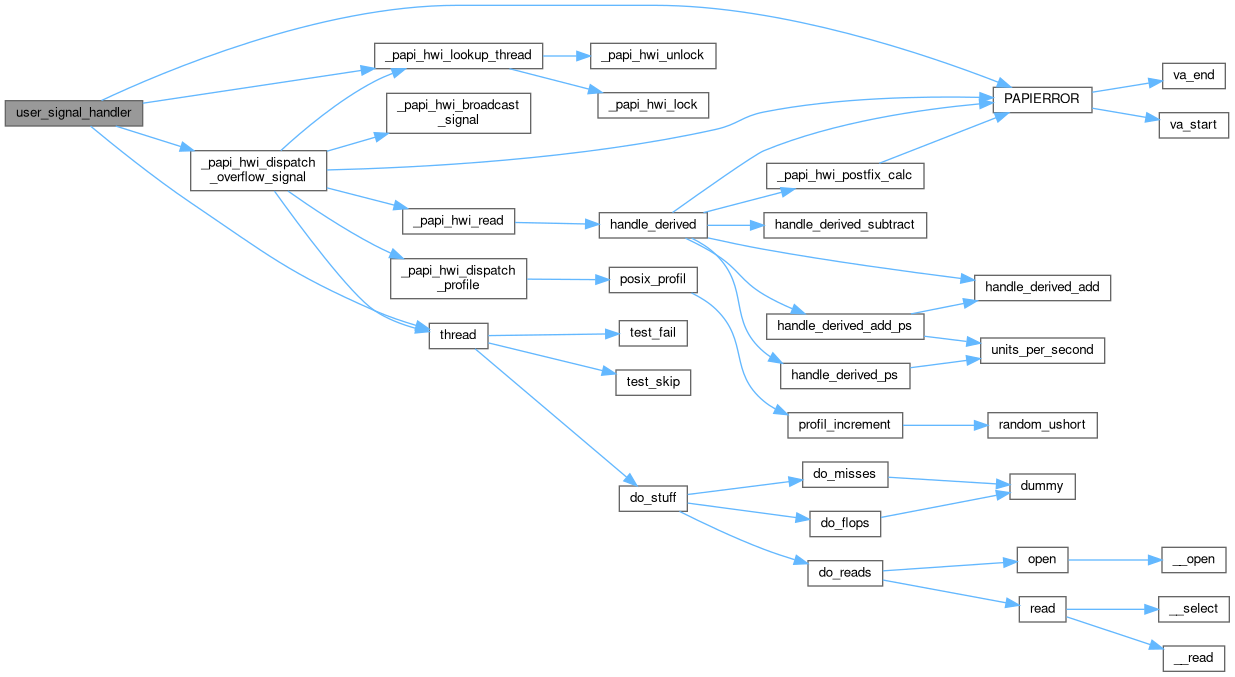

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

_bgq_vectors

papi_vector_t _bgq_vectors

Definition at line 60 of file linux-bgq.c.

_papi_os_info

PAPI_os_info_t _papi_os_info

Definition at line 61 of file linux-bgq.c.

_papi_os_vector

papi_os_vector_t _papi_os_vector

Initial value:

= {
    .get_memory_info = _bgq_get_memory_info,
    .get_dmem_info = _bgq_get_dmem_info,
    .get_real_cycles = _bgq_get_real_cycles,
    .get_real_usec = _bgq_get_real_usec,
    .get_virt_cycles = _bgq_get_virt_cycles,
    .get_virt_usec = _bgq_get_virt_usec,
    .get_system_info = _bgq_get_system_info
}

Definition at line 1351 of file linux-bgq.c.

allocated_opcode_events

int allocated_opcode_events = 0

static

Definition at line 64 of file linux-bgq.c.

GenericEvent

struct bgq_generic_events_t* GenericEvent

static

Definition at line 75 of file linux-bgq.c.

num_opcode_events

int num_opcode_events = 0

static

Definition at line 65 of file linux-bgq.c.

thdLocks

UPC_Lock_t thdLocks[PAPI_MAX_LOCK]

Definition at line 52 of file linux-bgq.c.
