pfmlib_amd64.c File Reference

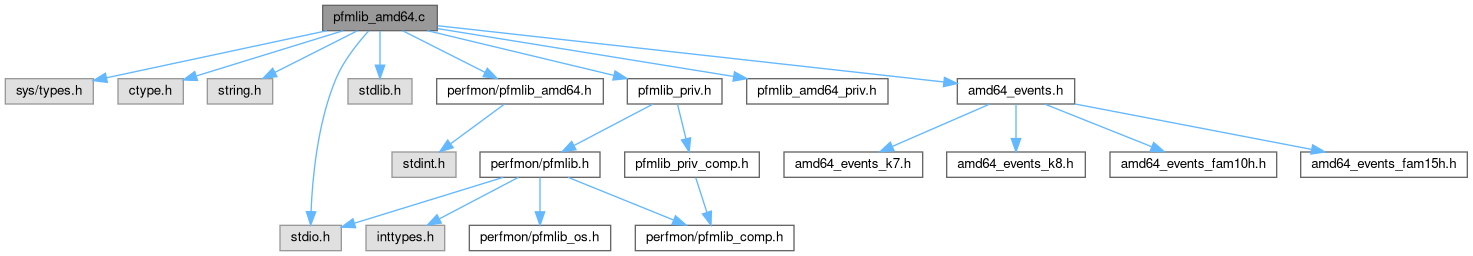

Include dependency graph for pfmlib_amd64.c:

Go to the source code of this file.

Macros
#define	sel_event_mask   perfsel.sel_event_mask
#define	sel_unit_mask   perfsel.sel_unit_mask
#define	sel_usr   perfsel.sel_usr
#define	sel_os   perfsel.sel_os
#define	sel_edge   perfsel.sel_edge
#define	sel_pc   perfsel.sel_pc
#define	sel_int   perfsel.sel_int
#define	sel_en   perfsel.sel_en
#define	sel_inv   perfsel.sel_inv
#define	sel_cnt_mask   perfsel.sel_cnt_mask
#define	sel_event_mask2   perfsel.sel_event_mask2
#define	sel_guest   perfsel.sel_guest
#define	sel_host   perfsel.sel_host
#define	CHECK_AMD_ARCH(reg)    ((reg).sel_event_mask2 || (reg).sel_guest || (reg).sel_host)
#define	PFMLIB_AMD64_HAS_COMBO(_e)    ((pfm_amd64_get_event_entry(_e)->pme_flags & PFMLIB_AMD64_UMASK_COMBO) != 0)
#define	PFMLIB_AMD64_ALL_FLAGS    (PFM_AMD64_SEL_INV|PFM_AMD64_SEL_EDGE|PFM_AMD64_SEL_GUEST|PFM_AMD64_SEL_HOST)
#define	AMD64_SEL_BASE   0xc0010000
#define	AMD64_CTR_BASE   0xc0010004
#define	AMD64_SEL_BASE_F15H   0xc0010200
#define	AMD64_CTR_BASE_F15H   0xc0010201
#define	amd64_revision   amd64_pmu.revision
#define	amd64_event_count   amd64_support.pme_count
#define	amd64_cpu_clks   amd64_pmu.cpu_clks
#define	amd64_ret_inst   amd64_pmu.ret_inst
#define	amd64_events   amd64_pmu.events
#define	amd64_family   amd64_pmu.family
#define	amd64_model   amd64_pmu.model
#define	amd64_stepping   amd64_pmu.stepping
#define	IS_AMD_ARCH()   (amd64_pmu.family >= 0x10)

Functions
static amd64_rev_t	amd64_get_revision (int family, int model, int stepping)
static void	cpuid (unsigned int op, unsigned int *a, unsigned int *b, unsigned int *c, unsigned int *d)
static void	pfm_amd64_setup (amd64_rev_t revision)
static int	pfm_amd64_detect (void)
static void	pfm_amd64_force (void)
static int	pfm_amd64_init (void)
static int	is_valid_rev (unsigned int flags, int revision)
static pme_amd64_entry_t *	pfm_amd64_get_event_entry (unsigned int index)
static int	is_valid_index (unsigned int index)
static int	pfm_amd64_dispatch_counters (pfmlib_input_param_t *inp, pfmlib_amd64_input_param_t *mod_in, pfmlib_output_param_t *outp)
static int	pfm_amd64_dispatch_ibs (pfmlib_input_param_t *inp, pfmlib_amd64_input_param_t *inp_mod, pfmlib_output_param_t *outp, pfmlib_amd64_output_param_t *outp_mod)
static int	pfm_amd64_dispatch_events (pfmlib_input_param_t *inp, void *_inp_mod, pfmlib_output_param_t *outp, void *outp_mod)
static int	pfm_amd64_get_event_code (unsigned int i, unsigned int cnt, int *code)
int	pfm_amd64_get_event_umask (unsigned int i, unsigned long *umask)
static void	pfm_amd64_get_event_counters (unsigned int j, pfmlib_regmask_t *counters)
static void	pfm_amd64_get_impl_perfsel (pfmlib_regmask_t *impl_pmcs)
static void	pfm_amd64_get_impl_perfctr (pfmlib_regmask_t *impl_pmds)
static void	pfm_amd64_get_impl_counters (pfmlib_regmask_t *impl_counters)
static void	pfm_amd64_get_hw_counter_width (unsigned int *width)
static char *	pfm_amd64_get_event_name (unsigned int i)
static int	pfm_amd64_get_event_desc (unsigned int ev, char **str)
static char *	pfm_amd64_get_event_mask_name (unsigned int ev, unsigned int midx)
static int	pfm_amd64_get_event_mask_desc (unsigned int ev, unsigned int midx, char **str)
static unsigned int	pfm_amd64_get_num_event_masks (unsigned int ev)
static int	pfm_amd64_get_event_mask_code (unsigned int ev, unsigned int midx, unsigned int *code)
static int	pfm_amd64_get_cycle_event (pfmlib_event_t *e)
static int	pfm_amd64_get_inst_retired (pfmlib_event_t *e)

Variables
struct {
amd64_rev_t   revision
char *   name
unsigned int   cpu_clks
unsigned int   ret_inst
int   family
int   model
int   stepping
pme_amd64_entry_t *   events
}	amd64_pmu
pme_amd64_entry_t	unsupported_event
pfm_pmu_support_t	amd64_support

Macro Definition Documentation

amd64_cpu_clks

#define amd64_cpu_clks   amd64_pmu.cpu_clks

Definition at line 102 of file pfmlib_amd64.c.

AMD64_CTR_BASE

#define AMD64_CTR_BASE   0xc0010004

Definition at line 76 of file pfmlib_amd64.c.

AMD64_CTR_BASE_F15H

#define AMD64_CTR_BASE_F15H   0xc0010201

Definition at line 78 of file pfmlib_amd64.c.

amd64_event_count

#define amd64_event_count   amd64_support.pme_count

Definition at line 101 of file pfmlib_amd64.c.

amd64_events

#define amd64_events   amd64_pmu.events

Definition at line 104 of file pfmlib_amd64.c.

amd64_family

#define amd64_family   amd64_pmu.family

Definition at line 105 of file pfmlib_amd64.c.

amd64_model

#define amd64_model   amd64_pmu.model

Definition at line 106 of file pfmlib_amd64.c.

amd64_ret_inst

#define amd64_ret_inst   amd64_pmu.ret_inst

Definition at line 103 of file pfmlib_amd64.c.

amd64_revision

#define amd64_revision   amd64_pmu.revision

Definition at line 100 of file pfmlib_amd64.c.

AMD64_SEL_BASE

#define AMD64_SEL_BASE   0xc0010000

Definition at line 75 of file pfmlib_amd64.c.

AMD64_SEL_BASE_F15H

#define AMD64_SEL_BASE_F15H   0xc0010200

Definition at line 77 of file pfmlib_amd64.c.

amd64_stepping

#define amd64_stepping   amd64_pmu.stepping

Definition at line 107 of file pfmlib_amd64.c.

CHECK_AMD_ARCH

#define CHECK_AMD_ARCH

(

reg

)

((reg).sel_event_mask2 || (reg).sel_guest || (reg).sel_host)

Definition at line 54 of file pfmlib_amd64.c.

IS_AMD_ARCH

#define IS_AMD_ARCH

(

)

(amd64_pmu.family >= 0x10)

Definition at line 110 of file pfmlib_amd64.c.

PFMLIB_AMD64_ALL_FLAGS

#define PFMLIB_AMD64_ALL_FLAGS    (PFM_AMD64_SEL_INV|PFM_AMD64_SEL_EDGE|PFM_AMD64_SEL_GUEST|PFM_AMD64_SEL_HOST)

Definition at line 61 of file pfmlib_amd64.c.

PFMLIB_AMD64_HAS_COMBO

#define PFMLIB_AMD64_HAS_COMBO

(

_e

)

((pfm_amd64_get_event_entry(_e)->pme_flags & PFMLIB_AMD64_UMASK_COMBO) != 0)

Definition at line 57 of file pfmlib_amd64.c.

sel_cnt_mask

#define sel_cnt_mask   perfsel.sel_cnt_mask

Definition at line 49 of file pfmlib_amd64.c.

sel_edge

#define sel_edge   perfsel.sel_edge

Definition at line 44 of file pfmlib_amd64.c.

sel_en

#define sel_en   perfsel.sel_en

Definition at line 47 of file pfmlib_amd64.c.

sel_event_mask

#define sel_event_mask   perfsel.sel_event_mask

Definition at line 40 of file pfmlib_amd64.c.

sel_event_mask2

#define sel_event_mask2   perfsel.sel_event_mask2

Definition at line 50 of file pfmlib_amd64.c.

sel_guest

#define sel_guest   perfsel.sel_guest

Definition at line 51 of file pfmlib_amd64.c.

sel_host

#define sel_host   perfsel.sel_host

Definition at line 52 of file pfmlib_amd64.c.

sel_int

#define sel_int   perfsel.sel_int

Definition at line 46 of file pfmlib_amd64.c.

sel_inv

#define sel_inv   perfsel.sel_inv

Definition at line 48 of file pfmlib_amd64.c.

sel_os

#define sel_os   perfsel.sel_os

Definition at line 43 of file pfmlib_amd64.c.

sel_pc

#define sel_pc   perfsel.sel_pc

Definition at line 45 of file pfmlib_amd64.c.

sel_unit_mask

#define sel_unit_mask   perfsel.sel_unit_mask

Definition at line 41 of file pfmlib_amd64.c.

sel_usr

#define sel_usr   perfsel.sel_usr

Definition at line 42 of file pfmlib_amd64.c.

Function Documentation

amd64_get_revision()

static amd64_rev_t amd64_get_revision ( int  family, int  model, int  stepping  )

static

Definition at line 113 of file pfmlib_amd64.c.

{
    switch (family) {
    case 6:
        return AMD64_K7;
    case 0x0f:
        switch (model >> 4) {
        case 0:
            if (model == 5 && stepping < 2)
                return AMD64_K8_REV_B;
            if (model == 4 && stepping == 0)
                return AMD64_K8_REV_B;
            return AMD64_K8_REV_C;
        case 1:
            return AMD64_K8_REV_D;
        case 2:
        case 3:
            return AMD64_K8_REV_E;
        case 4:
        case 5:
        case 0xc:
            return AMD64_K8_REV_F;
        case 6:
        case 7:
        case 8:
            return AMD64_K8_REV_G;
        }
        return AMD64_K8_REV_B;
    case 0x10:
        switch (model) {
        case 4:
        case 5:
        case 6:
            return AMD64_FAM10H_REV_C;
        case 8:
        case 9:
            return AMD64_FAM10H_REV_D;
        case 10:
            return AMD64_FAM10H_REV_E;
        }
        return AMD64_FAM10H_REV_B;
    case 0x15:
        return AMD64_FAM15H_REV_B;
    }

    return AMD64_CPU_UN;
}

Here is the caller graph for this function:

cpuid()

static void cpuid ( unsigned int  op, unsigned int *  a, unsigned int *  b, unsigned int *  c, unsigned int *  d  )

inlinestatic

Definition at line 167 of file pfmlib_amd64.c.

{
  __asm__ __volatile__ (".byte 0x53\n\tcpuid\n\tmovl %%ebx, %%esi\n\t.byte 0x5b"
       : "=a" (*a),
         "=S" (*b),
         "=c" (*c),
         "=d" (*d)
       : "a" (op));
}

Here is the caller graph for this function:

is_valid_index()

static int is_valid_index ( unsigned int  index )

inlinestatic

Definition at line 341 of file pfmlib_amd64.c.

{
    return (pfm_amd64_get_event_entry(index) != &unsupported_event);
}

Here is the call graph for this function:

Here is the caller graph for this function:

is_valid_rev()

static int is_valid_rev ( unsigned int  flags, int  revision  )

static

Definition at line 311 of file pfmlib_amd64.c.

{
    if (revision < from_revision(flags))
        return 0;

    if (revision > till_revision(flags))
        return 0;

    /* no restrictions or matches restrictions */
    return 1;
}

Here is the call graph for this function:

Here is the caller graph for this function:

pfm_amd64_detect()

static int pfm_amd64_detect ( void  )

static

Definition at line 226 of file pfmlib_amd64.c.

{
    unsigned int a, b, c, d;
    char buffer[128];

    cpuid(0, &a, &b, &c, &d);
    strncpy(&buffer[0], (char *)(&b), 4);
    strncpy(&buffer[4], (char *)(&d), 4);
    strncpy(&buffer[8], (char *)(&c), 4);
    buffer[12] = '\0';

    if (strcmp(buffer, "AuthenticAMD"))
        return PFMLIB_ERR_NOTSUPP;

    cpuid(1, &a, &b, &c, &d);
    amd64_family = (a >> 8) & 0x0000000f;  // bits 11 - 8
    amd64_model  = (a >> 4) & 0x0000000f;  // Bits  7 - 4
    if (amd64_family == 0xf) {
        amd64_family += (a >> 20) & 0x000000ff; // Extended family
        amd64_model  |= (a >> 12) & 0x000000f0; // Extended model
    }
    amd64_stepping = a & 0x0000000f;  // bits  3 - 0

    amd64_revision = amd64_get_revision(amd64_family, amd64_model, amd64_stepping);

    if (amd64_revision == AMD64_CPU_UN)
        return PFMLIB_ERR_NOTSUPP;

    return PFMLIB_SUCCESS;
}

Here is the call graph for this function:

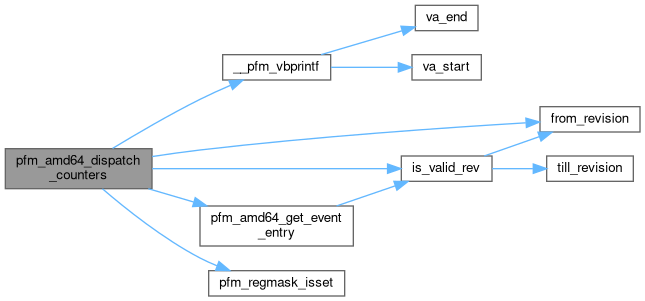

pfm_amd64_dispatch_counters()

static int pfm_amd64_dispatch_counters ( pfmlib_input_param_t *  inp, pfmlib_amd64_input_param_t *  mod_in, pfmlib_output_param_t *  outp  )

static

Definition at line 350 of file pfmlib_amd64.c.

{
    pfmlib_amd64_input_param_t *param = mod_in;
    pfmlib_amd64_counter_t *cntrs;
    pfm_amd64_sel_reg_t reg;
    pfmlib_event_t *e;
    pfmlib_reg_t *pc, *pd;
    pfmlib_regmask_t *r_pmcs;
    unsigned long plm;
    unsigned int i, j, k, cnt, umask;
    unsigned int assign[PMU_AMD64_MAX_COUNTERS];

    e      = inp->pfp_events;
    pc     = outp->pfp_pmcs;
    pd     = outp->pfp_pmds;
    cnt    = inp->pfp_event_count;
    r_pmcs = &inp->pfp_unavail_pmcs;
    cntrs  = param ? param->pfp_amd64_counters : NULL;

    /* priviledge level 1 and 2 are not supported */
    if (inp->pfp_dfl_plm & (PFM_PLM1|PFM_PLM2)) {
        DPRINT("invalid plm=%x\n", inp->pfp_dfl_plm);
        return PFMLIB_ERR_INVAL;
    }

    if (PFMLIB_DEBUG()) {
        for (j=0; j < cnt; j++) {
            DPRINT("ev[%d]=%s\n", j, pfm_amd64_get_event_entry(e[j].event)->pme_name);
        }
    }

    if (cnt > amd64_support.num_cnt) return PFMLIB_ERR_TOOMANY;

    for(i=0, j=0; j < cnt; j++, i++) {
        /*
         * AMD64 only supports two priv levels for perf counters
         */
        if (e[j].plm & (PFM_PLM1|PFM_PLM2)) {
            DPRINT("event=%d invalid plm=%d\n", e[j].event, e[j].plm);
            return PFMLIB_ERR_INVAL;
        }
        /*
         * check illegal unit masks combination
         */
        if (e[j].num_masks > 1 && PFMLIB_AMD64_HAS_COMBO(e[j].event) == 0) {
            DPRINT("event does not supports unit mask combination\n");
            return PFMLIB_ERR_FEATCOMB;
        }

        /*
         * check revision restrictions at the event level
         * (check at the umask level later)
         */
        if (!is_valid_rev(pfm_amd64_get_event_entry(e[i].event)->pme_flags,
                  amd64_revision)) {
            DPRINT("CPU does not have correct revision level\n");
            return PFMLIB_ERR_BADHOST;
        }
        if (cntrs && (cntrs[j].flags & ~PFMLIB_AMD64_ALL_FLAGS)) {
            DPRINT("invalid AMD64 flags\n");
            return PFMLIB_ERR_INVAL;
        }

        if (cntrs && (cntrs[j].cnt_mask >= PMU_AMD64_CNT_MASK_MAX)) {
            DPRINT("event=%d invalid cnt_mask=%d: must be < %u\n",
                e[j].event,
                cntrs[j].cnt_mask,
                PMU_AMD64_CNT_MASK_MAX);
            return PFMLIB_ERR_INVAL;
        }

        /*
         * exclude unavailable registers from assignment
         */
        while(i < amd64_support.num_cnt && pfm_regmask_isset(r_pmcs, i))
            i++;

        if (i == amd64_support.num_cnt)
            return PFMLIB_ERR_NOASSIGN;

        assign[j] = i;
    }

    for (j=0; j < cnt ; j++ ) {
        reg.val = 0; /* assume reserved bits are zerooed */

        /* if plm is 0, then assume not specified per-event and use default */
        plm = e[j].plm ? e[j].plm : inp->pfp_dfl_plm;

        if (!is_valid_rev(pfm_amd64_get_event_entry(e[j].event)->pme_flags,
                    amd64_revision))
            return PFMLIB_ERR_BADHOST;

        reg.sel_event_mask  = pfm_amd64_get_event_entry(e[j].event)->pme_code;
        reg.sel_event_mask2 = pfm_amd64_get_event_entry(e[j].event)->pme_code >> 8;

        umask = 0;
        for(k=0; k < e[j].num_masks; k++) {
            /* check unit mask revision restrictions */
            if (!is_valid_rev(pfm_amd64_get_event_entry(e[j].event)->pme_umasks[e[j].unit_masks[k]].pme_uflags,
                        amd64_revision))
                return PFMLIB_ERR_BADHOST;

            umask |= pfm_amd64_get_event_entry(e[j].event)->pme_umasks[e[j].unit_masks[k]].pme_ucode;
        }
        if (e[j].event == PME_AMD64_IBSOP) {
            ibsopctl_t ibsopctl;

            ibsopctl.val = 0;
            ibsopctl.reg.ibsopen = 1;

            if (umask == 2 && amd64_revision < from_revision(PFMLIB_AMD64_FAM10H_REV_C)) {
                                DPRINT("IBSOP:UOPS available on Rev C and later processors\n");
                                return PFMLIB_ERR_BADHOST;
                        }

            /*
             * 1: cycles
             * 2: uops
             */
            ibsopctl.reg.ibsopcntl = umask == 0x1 ? 0 : 1;

            pc[j].reg_value = ibsopctl.val;
            pc[j].reg_num   = PMU_AMD64_IBSOPCTL_PMC;
            pc[j].reg_addr  = 0xc0011033;

            __pfm_vbprintf("[IBSOPCTL(pmc%u)=0x%llx en=%d uops=%d maxcnt=0x%x]\n",
                    PMU_AMD64_IBSOPCTL_PMD,
                    ibsopctl.val,
                    ibsopctl.reg.ibsopen,
                    ibsopctl.reg.ibsopcntl,
                    ibsopctl.reg.ibsopmaxcnt);

            pd[j].reg_num   = PMU_AMD64_IBSOPCTL_PMD;
            pd[j].reg_addr  = 0xc0011033;
            __pfm_vbprintf("[IBSOPCTL(pmd%u)]\n", PMU_AMD64_IBSOPCTL_PMD);

        } else if (e[j].event == PME_AMD64_IBSFETCH) {
            ibsfetchctl_t ibsfetchctl;

            ibsfetchctl.val = 0;
            ibsfetchctl.reg.ibsfetchen = 1;
            ibsfetchctl.reg.ibsranden = umask == 0x1 ? 1 : 0;

            pc[j].reg_value = ibsfetchctl.val;
            pc[j].reg_num   = PMU_AMD64_IBSFETCHCTL_PMC;
            pc[j].reg_addr  = 0xc0011031;

            pd[j].reg_num   = PMU_AMD64_IBSFETCHCTL_PMD;
            pd[j].reg_addr  = 0xc0011031;

            __pfm_vbprintf("[IBSFETCHCTL(pmc%u)=0x%llx en=%d maxcnt=0x%x rand=%u]\n",
                    PMU_AMD64_IBSFETCHCTL_PMD,
                    ibsfetchctl.val,
                    ibsfetchctl.reg.ibsfetchen,
                    ibsfetchctl.reg.ibsfetchmaxcnt,
                    ibsfetchctl.reg.ibsranden);

            __pfm_vbprintf("[IBSOPFETCH(pmd%u)]\n", PMU_AMD64_IBSFETCHCTL_PMD);

        } else {
            reg.sel_unit_mask  = umask;
            reg.sel_usr        = plm & PFM_PLM3 ? 1 : 0;
            reg.sel_os         = plm & PFM_PLM0 ? 1 : 0;
            reg.sel_en         = 1; /* force enable bit to 1 */
            reg.sel_int        = 1; /* force APIC int to 1 */
            if (cntrs) {
                reg.sel_cnt_mask = cntrs[j].cnt_mask;
                reg.sel_edge     = cntrs[j].flags & PFM_AMD64_SEL_EDGE ? 1 : 0;
                reg.sel_inv      = cntrs[j].flags & PFM_AMD64_SEL_INV ? 1 : 0;
                reg.sel_guest    = cntrs[j].flags & PFM_AMD64_SEL_GUEST ? 1 : 0;
                reg.sel_host     = cntrs[j].flags & PFM_AMD64_SEL_HOST ? 1 : 0;
            }
            pc[j].reg_num   = assign[j];

            if ((CHECK_AMD_ARCH(reg)) && !IS_AMD_ARCH())
                return PFMLIB_ERR_BADHOST;

            if (amd64_support.num_cnt == PMU_AMD64_NUM_COUNTERS_F15H) {
                pc[j].reg_addr = AMD64_SEL_BASE_F15H + (assign[j] << 1);
                pd[j].reg_addr = AMD64_CTR_BASE_F15H + (assign[j] << 1);
            } else {
                pc[j].reg_addr = AMD64_SEL_BASE + assign[j];
                pd[j].reg_addr = AMD64_CTR_BASE + assign[j];
            }

            pc[j].reg_value = reg.val;
            pc[j].reg_alt_addr = pc[j].reg_addr;

            pd[j].reg_num  = assign[j];
            pd[j].reg_alt_addr = assign[j];     /* index to use with RDPMC */

            __pfm_vbprintf("[PERFSEL%u(pmc%u)=0x%llx emask=0x%x umask=0x%x os=%d usr=%d inv=%d en=%d int=%d edge=%d cnt_mask=%d] %s\n",
                    assign[j],
                    assign[j],
                    reg.val,
                    reg.sel_event_mask,
                    reg.sel_unit_mask,
                    reg.sel_os,
                    reg.sel_usr,
                    reg.sel_inv,
                    reg.sel_en,
                    reg.sel_int,
                    reg.sel_edge,
                    reg.sel_cnt_mask,
                    pfm_amd64_get_event_entry(e[j].event)->pme_name);

            __pfm_vbprintf("[PERFCTR%u(pmd%u)]\n", pd[j].reg_num, pd[j].reg_num);
        }

    }
    /* number of evtsel/ctr registers programmed */
    outp->pfp_pmc_count = cnt;
    outp->pfp_pmd_count = cnt;

    return PFMLIB_SUCCESS;
}

Here is the call graph for this function:

Here is the caller graph for this function:

pfm_amd64_dispatch_events()

static int pfm_amd64_dispatch_events ( pfmlib_input_param_t *  inp, void *  _inp_mod, pfmlib_output_param_t *  outp, void *  outp_mod  )

static

Definition at line 651 of file pfmlib_amd64.c.

{
    pfmlib_amd64_input_param_t *inp_mod = _inp_mod;
    int ret = PFMLIB_ERR_INVAL;

    if (!outp)
        return PFMLIB_ERR_INVAL;

    /*
     * At least one of the dispatch function calls must return
     * PFMLIB_SUCCESS
     */

    if (inp && inp->pfp_event_count) {
        ret = pfm_amd64_dispatch_counters(inp, inp_mod, outp);
        if (ret != PFMLIB_SUCCESS)
            return ret;
    }

    if (inp_mod && inp_mod->flags & (PFMLIB_AMD64_USE_IBSOP | PFMLIB_AMD64_USE_IBSFETCH))
        ret = pfm_amd64_dispatch_ibs(inp, inp_mod, outp, outp_mod);

    return ret;
}

Here is the call graph for this function:

pfm_amd64_dispatch_ibs()

static int pfm_amd64_dispatch_ibs ( pfmlib_input_param_t *  inp, pfmlib_amd64_input_param_t *  inp_mod, pfmlib_output_param_t *  outp, pfmlib_amd64_output_param_t *  outp_mod  )

static

Definition at line 568 of file pfmlib_amd64.c.

{
    unsigned int pmc_base, pmd_base;
    ibsfetchctl_t ibsfetchctl;
    ibsopctl_t ibsopctl;

    if (!inp_mod || !outp || !outp_mod)
        return PFMLIB_ERR_INVAL;

    if (!IS_AMD_ARCH())
        return PFMLIB_ERR_BADHOST;

    /* IBS fetch profiling */
    if (inp_mod->flags & PFMLIB_AMD64_USE_IBSFETCH) {

        /* check availability of a PMC and PMD */
        if (outp->pfp_pmc_count >= PFMLIB_MAX_PMCS)
            return PFMLIB_ERR_NOASSIGN;

        if (outp->pfp_pmd_count >= PFMLIB_MAX_PMDS)
            return PFMLIB_ERR_NOASSIGN;

        pmc_base = outp->pfp_pmc_count;
        pmd_base = outp->pfp_pmd_count;

        outp->pfp_pmcs[pmc_base].reg_num = PMU_AMD64_IBSFETCHCTL_PMC;

        ibsfetchctl.val = 0;
        ibsfetchctl.reg.ibsfetchen = 1;
        ibsfetchctl.reg.ibsfetchmaxcnt = inp_mod->ibsfetch.maxcnt >> 4;

        if (inp_mod->ibsfetch.options & IBS_OPTIONS_RANDEN)
            ibsfetchctl.reg.ibsranden = 1;

        outp->pfp_pmcs[pmc_base].reg_value = ibsfetchctl.val;
        outp->pfp_pmds[pmd_base].reg_num = PMU_AMD64_IBSFETCHCTL_PMD;
        outp_mod->ibsfetch_base = pmd_base;

        ++outp->pfp_pmc_count;
        ++outp->pfp_pmd_count;
    }

    /* IBS execution profiling */
    if (inp_mod->flags & PFMLIB_AMD64_USE_IBSOP) {

        /* check availability of a PMC and PMD */
        if (outp->pfp_pmc_count >= PFMLIB_MAX_PMCS)
            return PFMLIB_ERR_NOASSIGN;

        if (outp->pfp_pmd_count >= PFMLIB_MAX_PMDS)
            return PFMLIB_ERR_NOASSIGN;

        pmc_base = outp->pfp_pmc_count;
        pmd_base = outp->pfp_pmd_count;

        outp->pfp_pmcs[pmc_base].reg_num = PMU_AMD64_IBSOPCTL_PMC;

        ibsopctl.val = 0;
        ibsopctl.reg.ibsopen = 1;
        ibsopctl.reg.ibsopmaxcnt = inp_mod->ibsop.maxcnt >> 4;

        if (inp_mod->ibsop.options & IBS_OPTIONS_UOPS) {
            if (amd64_revision < from_revision(PFMLIB_AMD64_FAM10H_REV_C)) {
                                DPRINT("IBSOP:UOPS available on Rev C and later processors\n");
                                return PFMLIB_ERR_BADHOST;
                        }
            ibsopctl.reg.ibsopcntl = 1;
        }
        outp->pfp_pmcs[pmc_base].reg_value = ibsopctl.val;
        outp->pfp_pmds[pmd_base].reg_num = PMU_AMD64_IBSOPCTL_PMD;

        outp_mod->ibsop_base = pmd_base;
        ++outp->pfp_pmc_count;
        ++outp->pfp_pmd_count;
    }

    return PFMLIB_SUCCESS;
}

Here is the call graph for this function:

Here is the caller graph for this function:

pfm_amd64_force()

static void pfm_amd64_force ( void  )

static

Definition at line 258 of file pfmlib_amd64.c.

{
    char *str;
    int pmu_type;

    /* parses LIBPFM_FORCE_PMU=16,<family>,<model>,<stepping> */
    str = getenv("LIBPFM_FORCE_PMU");
    if (!str)
        goto failed;
    pmu_type = strtol(str, &str, 10);
    if (pmu_type != PFMLIB_AMD64_PMU)
        goto failed;
    if (!*str || *str++ != ',')
        goto failed;
    amd64_family = strtol(str, &str, 10);
    if (!*str || *str++ != ',')
        goto failed;
    amd64_model = strtol(str, &str, 10);
    if (!*str || *str++ != ',')
        goto failed;
    amd64_stepping = strtol(str, &str, 10);
    if (!*str)
        goto done;
failed:
    DPRINT("force failed at: %s\n", str ? str : "<NULL>");
    /* force AMD64 =  force to Barcelona */
    amd64_family = 16;
    amd64_model  = 2;
    amd64_stepping = 2;
done:
    amd64_revision = amd64_get_revision(amd64_family, amd64_model,
                        amd64_stepping);
}

Here is the call graph for this function:

Here is the caller graph for this function:

pfm_amd64_get_cycle_event()

static int pfm_amd64_get_cycle_event ( pfmlib_event_t *  e )

static

Definition at line 806 of file pfmlib_amd64.c.

{
    e->event = amd64_cpu_clks;
    return PFMLIB_SUCCESS;

}

pfm_amd64_get_event_code()

static int pfm_amd64_get_event_code ( unsigned int  i, unsigned int  cnt, int *  code  )

static

Definition at line 679 of file pfmlib_amd64.c.

{
    if (cnt != PFMLIB_CNT_FIRST && cnt >= amd64_support.num_cnt)
        return PFMLIB_ERR_INVAL;

    *code = pfm_amd64_get_event_entry(i)->pme_code;

    return PFMLIB_SUCCESS;
}

Here is the call graph for this function:

pfm_amd64_get_event_counters()

static void pfm_amd64_get_event_counters ( unsigned int  j, pfmlib_regmask_t *  counters  )

static

Definition at line 701 of file pfmlib_amd64.c.

{
    unsigned int i;

    memset(counters, 0, sizeof(*counters));

    for(i=0; i < amd64_support.num_cnt; i++)
        pfm_regmask_set(counters, i);
}

Here is the call graph for this function:

pfm_amd64_get_event_desc()

static int pfm_amd64_get_event_desc ( unsigned int  ev, char **  str  )

static

Definition at line 756 of file pfmlib_amd64.c.

{
    char *s;
    s = pfm_amd64_get_event_entry(ev)->pme_desc;
    if (s) {
        *str = strdup(s);
    } else {
        *str = NULL;
    }
    return PFMLIB_SUCCESS;
}

Here is the call graph for this function:

pfm_amd64_get_event_entry()

static pme_amd64_entry_t * pfm_amd64_get_event_entry ( unsigned int  index )

inlinestatic

Definition at line 324 of file pfmlib_amd64.c.

{
    /*
     * Since there are no NULL pointer checks for the return
     * value, &unsupported_event is returned instead. Function
     * is_valid_index() may be used to validate the index.
     */
    pme_amd64_entry_t *event;
    if (index >= amd64_event_count)
        return &unsupported_event;
    event = &amd64_events[index];
    if (!is_valid_rev(event->pme_flags, amd64_revision))
        return &unsupported_event;
    return event;
}

Here is the call graph for this function:

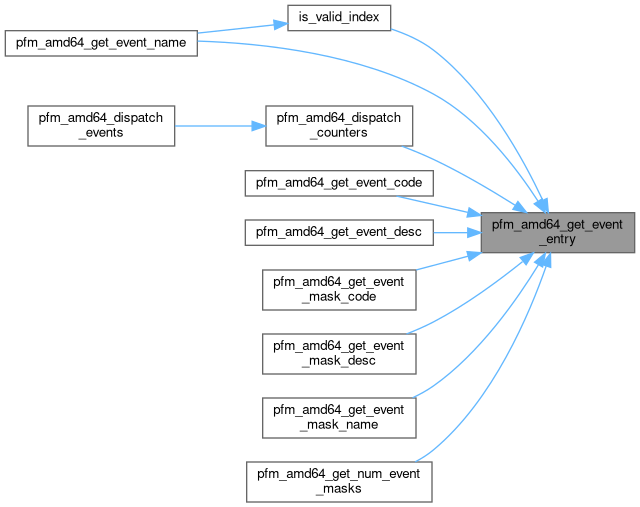

Here is the caller graph for this function:

pfm_amd64_get_event_mask_code()

static int pfm_amd64_get_event_mask_code ( unsigned int  ev, unsigned int  midx, unsigned int *  code  )

static

Definition at line 799 of file pfmlib_amd64.c.

{
    *code = pfm_amd64_get_event_entry(ev)->pme_umasks[midx].pme_ucode;
    return PFMLIB_SUCCESS;
}

Here is the call graph for this function:

pfm_amd64_get_event_mask_desc()

static int pfm_amd64_get_event_mask_desc ( unsigned int  ev, unsigned int  midx, char **  str  )

static

Definition at line 779 of file pfmlib_amd64.c.

{
    char *s;

    s = pfm_amd64_get_event_entry(ev)->pme_umasks[midx].pme_udesc;
    if (s) {
        *str = strdup(s);
    } else {
        *str = NULL;
    }
    return PFMLIB_SUCCESS;
}

Here is the call graph for this function:

pfm_amd64_get_event_mask_name()

static char * pfm_amd64_get_event_mask_name ( unsigned int  ev, unsigned int  midx  )

static

Definition at line 769 of file pfmlib_amd64.c.

{
    pme_amd64_umask_t *umask;
    umask = &pfm_amd64_get_event_entry(ev)->pme_umasks[midx];
    if (!is_valid_rev(umask->pme_uflags, amd64_revision))
        return NULL;
    return umask->pme_uname;
}

Here is the call graph for this function:

pfm_amd64_get_event_name()

static char * pfm_amd64_get_event_name ( unsigned int  i )

static

Definition at line 748 of file pfmlib_amd64.c.

{
    if (!is_valid_index(i))
        return NULL;
    return pfm_amd64_get_event_entry(i)->pme_name;
}

Here is the call graph for this function:

pfm_amd64_get_event_umask()

int pfm_amd64_get_event_umask	(	unsigned int	i,
		unsigned long *	umask
	)

Definition at line 693 of file pfmlib_amd64.c.

{
    if (i >= amd64_event_count || umask == NULL) return PFMLIB_ERR_INVAL;
    *umask = 0; //evt_umask(i);
    return PFMLIB_SUCCESS;
}

pfm_amd64_get_hw_counter_width()

static void pfm_amd64_get_hw_counter_width ( unsigned int *  width )

static

Definition at line 742 of file pfmlib_amd64.c.

{
    *width = PMU_AMD64_COUNTER_WIDTH;
}

pfm_amd64_get_impl_counters()

static void pfm_amd64_get_impl_counters ( pfmlib_regmask_t *  impl_counters )

static

Definition at line 732 of file pfmlib_amd64.c.

{
    unsigned int i = 0;

    /* counting pmds are contiguous */
    for(i=0; i < amd64_support.num_cnt; i++)
        pfm_regmask_set(impl_counters, i);
}

Here is the call graph for this function:

pfm_amd64_get_impl_perfctr()

static void pfm_amd64_get_impl_perfctr ( pfmlib_regmask_t *  impl_pmds )

static

Definition at line 722 of file pfmlib_amd64.c.

{
    unsigned int i = 0;

    /* all pmds are contiguous */
    for(i=0; i < amd64_support.pmd_count; i++)
        pfm_regmask_set(impl_pmds, i);
}

Here is the call graph for this function:

pfm_amd64_get_impl_perfsel()

static void pfm_amd64_get_impl_perfsel ( pfmlib_regmask_t *  impl_pmcs )

static

Definition at line 712 of file pfmlib_amd64.c.

{
    unsigned int i = 0;

    /* all pmcs are contiguous */
    for(i=0; i < amd64_support.pmc_count; i++)
        pfm_regmask_set(impl_pmcs, i);
}

Here is the call graph for this function:

pfm_amd64_get_inst_retired()

static int pfm_amd64_get_inst_retired ( pfmlib_event_t *  e )

static

Definition at line 814 of file pfmlib_amd64.c.

{
    e->event = amd64_ret_inst;
    return PFMLIB_SUCCESS;
}

pfm_amd64_get_num_event_masks()

static unsigned int pfm_amd64_get_num_event_masks ( unsigned int  ev )

static

Definition at line 793 of file pfmlib_amd64.c.

{
    return pfm_amd64_get_event_entry(ev)->pme_numasks;
}

Here is the call graph for this function:

pfm_amd64_init()

static int pfm_amd64_init ( void  )

static

Definition at line 293 of file pfmlib_amd64.c.

{
    if (forced_pmu != PFMLIB_NO_PMU)
        pfm_amd64_force();

    __pfm_vbprintf("AMD family=%d model=0x%x stepping=0x%x rev=%s, %s\n",
               amd64_family,
               amd64_model,
               amd64_stepping,
               amd64_rev_strs[amd64_revision],
               amd64_cpu_strs[amd64_revision]);

    pfm_amd64_setup(amd64_revision);

    return PFMLIB_SUCCESS;
}

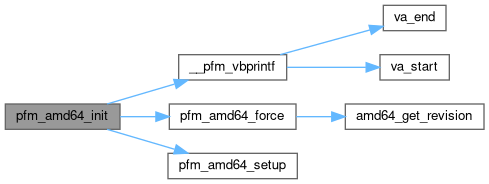

Here is the call graph for this function:

pfm_amd64_setup()

static void pfm_amd64_setup ( amd64_rev_t  revision )

static

Definition at line 179 of file pfmlib_amd64.c.

{
    amd64_pmu.revision = revision;
    amd64_pmu.name = (char *)amd64_cpu_strs[revision];
    amd64_support.pmu_name  = amd64_pmu.name;

    /* K8 (default) */
    amd64_pmu.events    = amd64_k8_table.events;
    amd64_support.pme_count = amd64_k8_table.num;
    amd64_pmu.cpu_clks  = amd64_k8_table.cpu_clks;
    amd64_pmu.ret_inst  = amd64_k8_table.ret_inst;
    amd64_support.pmu_type  = PFMLIB_AMD64_PMU;
    amd64_support.num_cnt   = PMU_AMD64_NUM_COUNTERS;
    amd64_support.pmc_count = PMU_AMD64_NUM_COUNTERS;
    amd64_support.pmd_count = PMU_AMD64_NUM_COUNTERS;

    switch (amd64_pmu.family) {
    case 6:
        /* K7 */
        amd64_pmu.events    = amd64_k7_table.events;
        amd64_support.pme_count = amd64_k7_table.num;
        amd64_pmu.cpu_clks  = amd64_k7_table.cpu_clks;
        amd64_pmu.ret_inst  = amd64_k7_table.ret_inst;
        return;
    case 0x10:
        /* Family 10h */
        amd64_pmu.events    = amd64_fam10h_table.events;
        amd64_support.pme_count = amd64_fam10h_table.num;
        amd64_pmu.cpu_clks  = amd64_fam10h_table.cpu_clks;
        amd64_pmu.ret_inst  = amd64_fam10h_table.ret_inst;
        amd64_support.pmc_count = PMU_AMD64_NUM_PERFSEL;
        amd64_support.pmd_count = PMU_AMD64_NUM_PERFCTR;
        return;
    case 0x15:
        /* Family 15h */
        amd64_pmu.events    = amd64_fam15h_table.events;
        amd64_support.pme_count = amd64_fam15h_table.num;
        amd64_pmu.cpu_clks  = amd64_fam15h_table.cpu_clks;
        amd64_pmu.ret_inst  = amd64_fam15h_table.ret_inst;
        amd64_support.num_cnt   = PMU_AMD64_NUM_COUNTERS_F15H;
        amd64_support.pmc_count = PMU_AMD64_NUM_PERFSEL;
        amd64_support.pmd_count = PMU_AMD64_NUM_PERFCTR;
        return;
    }
}

Here is the caller graph for this function:

Variable Documentation

struct { ... } amd64_pmu

amd64_support

pfm_pmu_support_t amd64_support

Initial value:

= {
    .pmu_name       = "AMD64",
    .pmu_type       = PFMLIB_AMD64_PMU,
    .pme_count      = 0,
    .pmc_count      = PMU_AMD64_NUM_COUNTERS,
    .pmd_count      = PMU_AMD64_NUM_COUNTERS,
    .num_cnt        = PMU_AMD64_NUM_COUNTERS,
    .get_event_code     = pfm_amd64_get_event_code,
    .get_event_name     = pfm_amd64_get_event_name,
    .get_event_counters = pfm_amd64_get_event_counters,
    .dispatch_events    = pfm_amd64_dispatch_events,
    .pmu_detect     = pfm_amd64_detect,
    .pmu_init       = pfm_amd64_init,
    .get_impl_pmcs      = pfm_amd64_get_impl_perfsel,
    .get_impl_pmds      = pfm_amd64_get_impl_perfctr,
    .get_impl_counters  = pfm_amd64_get_impl_counters,
    .get_hw_counter_width   = pfm_amd64_get_hw_counter_width,
    .get_event_desc         = pfm_amd64_get_event_desc,
    .get_num_event_masks    = pfm_amd64_get_num_event_masks,
    .get_event_mask_name    = pfm_amd64_get_event_mask_name,
    .get_event_mask_code    = pfm_amd64_get_event_mask_code,
    .get_event_mask_desc    = pfm_amd64_get_event_mask_desc,
    .get_cycle_event    = pfm_amd64_get_cycle_event,
    .get_inst_retired_event = pfm_amd64_get_inst_retired
}

Definition at line 98 of file pfmlib_amd64.c.

cpu_clks

unsigned int cpu_clks

Definition at line 83 of file pfmlib_amd64.c.

events

pme_amd64_entry_t* events

Definition at line 88 of file pfmlib_amd64.c.

family

int family

Definition at line 85 of file pfmlib_amd64.c.

model

int model

Definition at line 86 of file pfmlib_amd64.c.

name

char* name

Definition at line 82 of file pfmlib_amd64.c.

ret_inst

unsigned int ret_inst

Definition at line 84 of file pfmlib_amd64.c.

revision

amd64_rev_t revision

Definition at line 81 of file pfmlib_amd64.c.

stepping

int stepping

Definition at line 87 of file pfmlib_amd64.c.

unsupported_event

pme_amd64_entry_t unsupported_event

Initial value:

= {
    .pme_name = "<unsupported>",
    .pme_desc = "This event is not supported be this cpu revision.",
    .pme_code = ~0,
    .pme_flags = PFMLIB_AMD64_NOT_SUPP,
}

Definition at line 91 of file pfmlib_amd64.c.
