perfmon2/perfmon.c File Reference

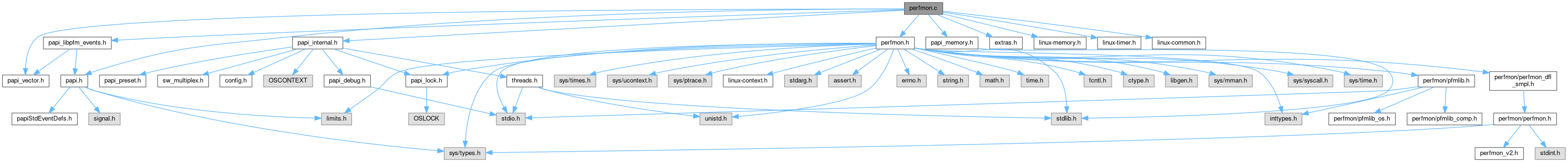

Include dependency graph for perfmon2/perfmon.c:

Go to the source code of this file.

Macros
#define	PFM_MAX_PMCDS   20
#define	BPL   (sizeof(uint64_t)<<3)
#define	LBPL   6

Typedefs
typedef unsigned	uint

Functions

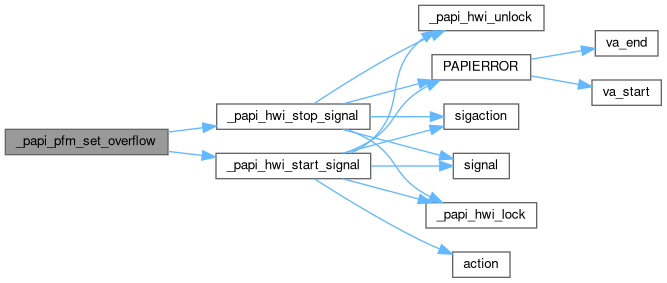

static int	_papi_pfm_set_overflow (EventSetInfo_t *ESI, int EventIndex, int threshold)
static void	dump_smpl_arg (pfm_dfl_smpl_arg_t *arg)
static void	dump_sets (pfarg_setdesc_t *set, int num_sets)

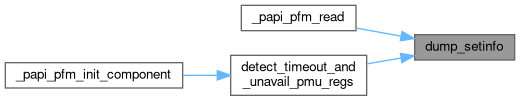

static void	dump_setinfo (pfarg_setinfo_t *setinfo, int num_sets)
static void	dump_pmc (pfm_control_state_t *ctl)
static void	dump_pmd (pfm_control_state_t *ctl)
static void	dump_smpl_hdr (pfm_dfl_smpl_hdr_t *hdr)

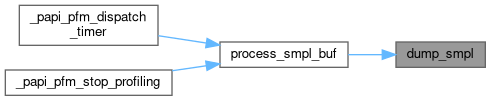

static void	dump_smpl (pfm_dfl_smpl_entry_t *entry)
int	_papi_pfm_write_pmcs (pfm_context_t *ctx, pfm_control_state_t *ctl)

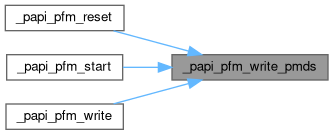

int	_papi_pfm_write_pmds (pfm_context_t *ctx, pfm_control_state_t *ctl)
int	_papi_pfm_read_pmds (pfm_context_t *ctx, pfm_control_state_t *ctl)

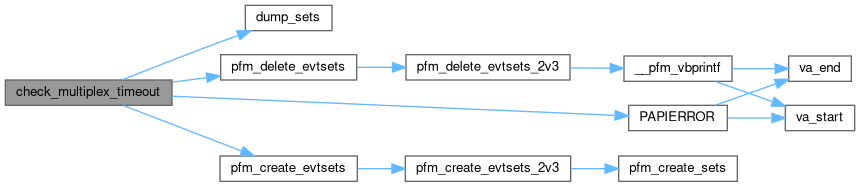

static int	check_multiplex_timeout (int ctx_fd, unsigned long *timeout_ns)
static int	detect_timeout_and_unavail_pmu_regs (pfmlib_regmask_t *r_pmcs, pfmlib_regmask_t *r_pmds, unsigned long *timeout_ns)
static int	compute_kernel_args (hwd_control_state_t *ctl0)
int	tune_up_fd (int ctx_fd)
static int	attach (hwd_control_state_t *ctl, unsigned long tid)
static int	detach (hwd_context_t *ctx, hwd_control_state_t *ctl)
static int	set_domain (hwd_control_state_t *ctl0, int domain)
static int	set_granularity (hwd_control_state_t *this_state, int domain)
static int	set_inherit (int arg)
static int	get_string_from_file (char *file, char *str, int len)
int	_papi_pfm_init_component (int cidx)
int	_papi_pfm_shutdown_component ()
static int	_papi_pfm_init_thread (hwd_context_t *thr_ctx)
int	_papi_pfm_reset (hwd_context_t *ctx, hwd_control_state_t *ctl)
int	_papi_pfm_write (hwd_context_t *ctx, hwd_control_state_t *ctl, long long *from)
int	_papi_pfm_read (hwd_context_t *ctx0, hwd_control_state_t *ctl0, long long **events, int flags)

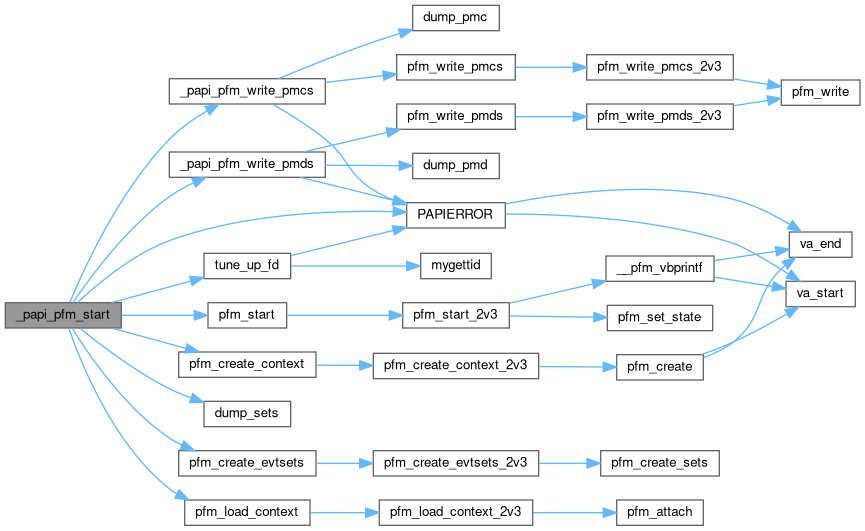

int	_papi_pfm_start (hwd_context_t *ctx0, hwd_control_state_t *ctl0)
int	_papi_pfm_stop (hwd_context_t *ctx0, hwd_control_state_t *ctl0)
static int	round_requested_ns (int ns)
int	_papi_pfm_ctl (hwd_context_t *ctx, int code, _papi_int_option_t *option)
int	_papi_pfm_shutdown (hwd_context_t *ctx0)
static int	find_profile_index (EventSetInfo_t *ESI, int pmd, int *flags, unsigned int *native_index, int *profile_index)
static void	pfm_bv_set (uint64_t *bv, uint16_t rnum)

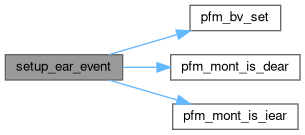

static int	setup_ear_event (unsigned int native_index, pfarg_pmd_t *pd, int flags)
static int	process_smpl_entry (unsigned int native_pfm_index, int flags, pfm_dfl_smpl_entry_t **ent, vptr_t *pc)
static int	process_smpl_buf (int num_smpl_pmds, int entry_size, ThreadInfo_t **thr)
static void	_papi_pfm_dispatch_timer (int n, hwd_siginfo_t *info, void *uc)
static int	_papi_pfm_stop_profiling (ThreadInfo_t *thread, EventSetInfo_t *ESI)
static int	_papi_pfm_set_profile (EventSetInfo_t *ESI, int EventIndex, int threshold)
static int	_papi_pfm_init_control_state (hwd_control_state_t *ctl0)
static int	_papi_pfm_allocate_registers (EventSetInfo_t *ESI)
static int	_papi_pfm_update_control_state (hwd_control_state_t *ctl0, NativeInfo_t *native, int count, hwd_context_t *ctx0)

Variables
papi_vector_t	_perfmon2_vector
static int	_perfmon2_pfm_pmu_type = -1
static pfmlib_regmask_t	_perfmon2_pfm_unavailable_pmcs
static pfmlib_regmask_t	_perfmon2_pfm_unavailable_pmds

Macro Definition Documentation

BPL

#define BPL   (sizeof(uint64_t)<<3)

Definition at line 1398 of file perfmon2/perfmon.c.

LBPL

#define LBPL   6

Definition at line 1399 of file perfmon2/perfmon.c.

PFM_MAX_PMCDS

#define PFM_MAX_PMCDS   20

Definition at line 188 of file perfmon2/perfmon.c.

Typedef Documentation

uint

typedef unsigned uint

Definition at line 40 of file perfmon2/perfmon.c.

Function Documentation

_papi_pfm_allocate_registers()

static int _papi_pfm_allocate_registers ( EventSetInfo_t *  ESI )

static

Definition at line 2117 of file perfmon2/perfmon.c.

{
    int i, j;
    for ( i = 0; i < ESI->NativeCount; i++ ) {
        if ( _papi_libpfm_ntv_code_to_bits
             ( ESI->NativeInfoArray[i].ni_event,
               ESI->NativeInfoArray[i].ni_bits ) != PAPI_OK )
            goto bail;
    }
    return PAPI_OK;
  bail:
    for ( j = 0; j < i; j++ )
        memset( ESI->NativeInfoArray[j].ni_bits, 0x0,
                sizeof ( pfm_register_t ) );
    return PAPI_ECNFLCT;
}

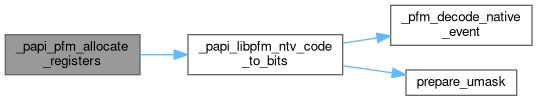

Here is the call graph for this function:

_papi_pfm_ctl()

int _papi_pfm_ctl	(	hwd_context_t *	ctx,
		int	code,
		_papi_int_option_t *	option
	)

Definition at line 1199 of file perfmon2/perfmon.c.

{
    switch ( code ) {
    case PAPI_MULTIPLEX:
    {
        option->multiplex.ns = round_requested_ns( option->multiplex.ns );
        ( ( pfm_control_state_t * ) ( option->multiplex.ESI->ctl_state ) )->
            multiplexed = option->multiplex.ns;
        return ( PAPI_OK );
    }

    case PAPI_ATTACH:
        return ( attach
                 ( ( pfm_control_state_t * ) ( option->attach.ESI->ctl_state ),
                   option->attach.tid ) );
    case PAPI_DETACH:
        return ( detach
                 ( ctx,
                   ( pfm_control_state_t * ) ( option->attach.ESI->
                                               ctl_state ) ) );

    case PAPI_DOMAIN:
        return ( set_domain
                 ( ( pfm_control_state_t * ) ( option->domain.ESI->ctl_state ),
                   option->domain.domain ) );
    case PAPI_GRANUL:
        return ( set_granularity
                 ( ( pfm_control_state_t * ) ( option->granularity.ESI->
                                               ctl_state ),
                   option->granularity.granularity ) );
#if 0
    case PAPI_DATA_ADDRESS:
        ret =
            set_default_domain( ( pfm_control_state_t * ) ( option->
                                                            address_range.ESI->
                                                            ctl_state ),
                                option->address_range.domain );
        if ( ret != PAPI_OK )
            return ( ret );
        set_drange( ctx,
                    ( pfm_control_state_t * ) ( option->address_range.ESI->
                                                ctl_state ), option );
        return ( PAPI_OK );
    case PAPI_INSTR_ADDRESS:
        ret =
            set_default_domain( ( pfm_control_state_t * ) ( option->
                                                            address_range.ESI->
                                                            ctl_state ),
                                option->address_range.domain );
        if ( ret != PAPI_OK )
            return ( ret );
        set_irange( ctx,
                    ( pfm_control_state_t * ) ( option->address_range.ESI->
                                                ctl_state ), option );
        return ( PAPI_OK );
#endif


    case PAPI_DEF_ITIMER:
    {
        /* flags are currently ignored, eventually the flags will be able
           to specify whether or not we use POSIX itimers (clock_gettimer) */
        if ( ( option->itimer.itimer_num == ITIMER_REAL ) &&
             ( option->itimer.itimer_sig != SIGALRM ) )
            return PAPI_EINVAL;
        if ( ( option->itimer.itimer_num == ITIMER_VIRTUAL ) &&
             ( option->itimer.itimer_sig != SIGVTALRM ) )
            return PAPI_EINVAL;
        if ( ( option->itimer.itimer_num == ITIMER_PROF ) &&
             ( option->itimer.itimer_sig != SIGPROF ) )
            return PAPI_EINVAL;
        if ( option->itimer.ns > 0 )
            option->itimer.ns = round_requested_ns( option->itimer.ns );
        /* At this point, we assume the user knows what he or
           she is doing, they maybe doing something arch specific */
        return PAPI_OK;
    }

    case PAPI_DEF_MPX_NS:
    {
        option->multiplex.ns = round_requested_ns( option->multiplex.ns );
        return ( PAPI_OK );
    }
    case PAPI_DEF_ITIMER_NS:
    {
        option->itimer.ns = round_requested_ns( option->itimer.ns );
        return ( PAPI_OK );
    }
    default:
        return ( PAPI_ENOSUPP );
    }
}

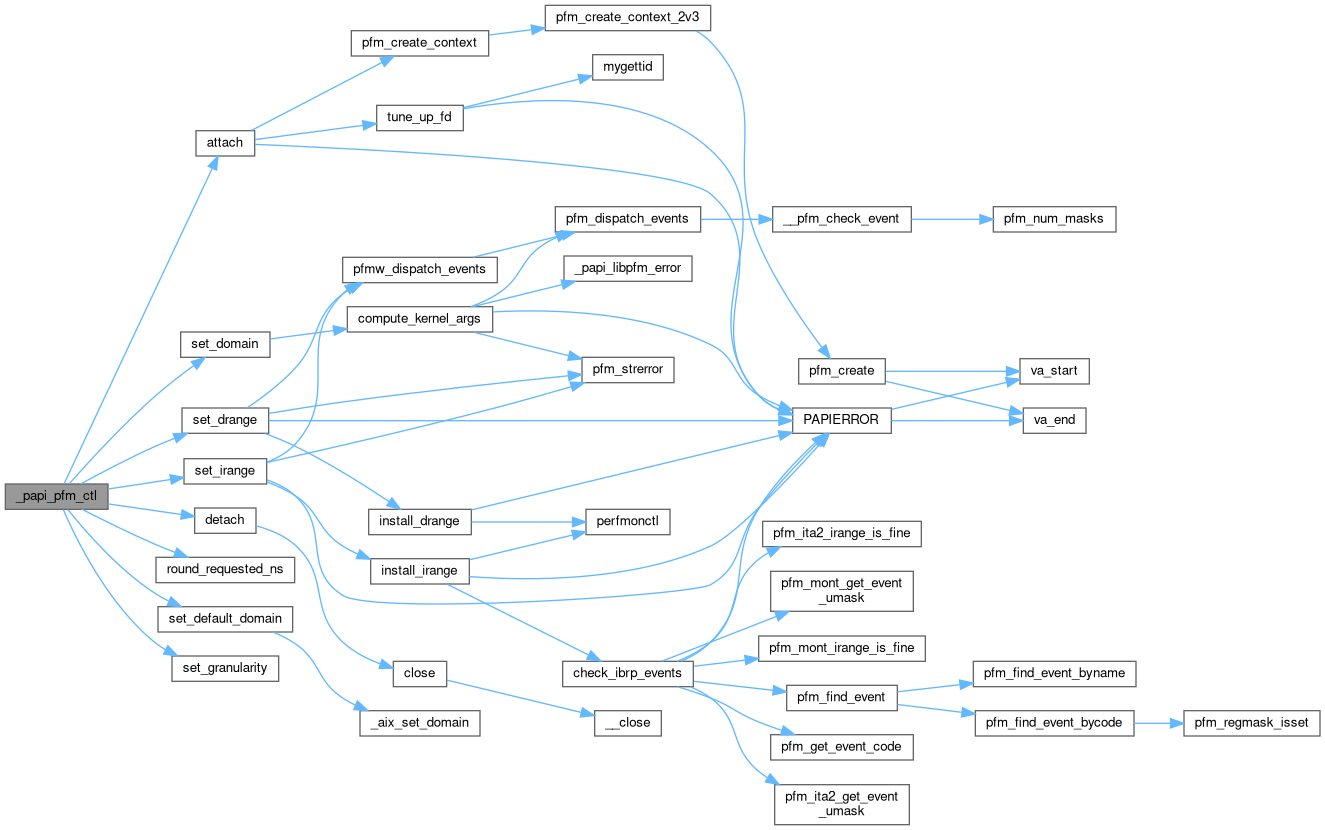

Here is the call graph for this function:

_papi_pfm_dispatch_timer()

static void _papi_pfm_dispatch_timer ( int  n, hwd_siginfo_t *  info, void *  uc  )

static

Definition at line 1739 of file perfmon2/perfmon.c.

{
    _papi_hwi_context_t ctx;
#ifdef HAVE_PFM_MSG_TYPE
    pfm_msg_t msg;
#else
    pfarg_msg_t msg;
#endif
    int ret, wanted_fd, fd = info->si_fd;
    vptr_t address;
    ThreadInfo_t *thread = _papi_hwi_lookup_thread( 0 );
    int cidx = _perfmon2_vector.cmp_info.CmpIdx;

    if ( thread == NULL ) {
        PAPIERROR( "thread == NULL in _papi_pfm_dispatch_timer!" );
        if ( n == _perfmon2_vector.cmp_info.hardware_intr_sig ) {
            ret = read( fd, &msg, sizeof ( msg ) );
            pfm_restart( fd );
        }
        return;
    }

    if ( thread->running_eventset[cidx] == NULL ) {
        PAPIERROR
            ( "thread->running_eventset == NULL in _papi_pfm_dispatch_timer!" );
        if ( n == _perfmon2_vector.cmp_info.hardware_intr_sig ) {
            ret = read( fd, &msg, sizeof ( msg ) );
            pfm_restart( fd );
        }
        return;
    }

    if ( thread->running_eventset[cidx]->overflow.flags == 0 ) {
        PAPIERROR
            ( "thread->running_eventset->overflow.flags == 0 in _papi_pfm_dispatch_timer!" );
        if ( n == _perfmon2_vector.cmp_info.hardware_intr_sig ) {
            ret = read( fd, &msg, sizeof ( msg ) );
            pfm_restart( fd );
        }
        return;
    }

    ctx.si = info;
    ctx.ucontext = ( hwd_ucontext_t * ) uc;

    if ( thread->running_eventset[cidx]->overflow.
         flags & PAPI_OVERFLOW_FORCE_SW ) {
        address = GET_OVERFLOW_ADDRESS( ctx );
        _papi_hwi_dispatch_overflow_signal( ( void * ) &ctx, address, NULL,
                                            0, 0, &thread, cidx );
    } else {
        if ( thread->running_eventset[cidx]->overflow.flags ==
             PAPI_OVERFLOW_HARDWARE ) {
            wanted_fd =
                ( ( pfm_control_state_t * ) ( thread->running_eventset[cidx]->
                                              ctl_state ) )->ctx_fd;
        } else {
            wanted_fd = ( ( pfm_context_t * ) thread->context[cidx] )->ctx_fd;
        }
        if ( wanted_fd != fd ) {
            SUBDBG( "expected fd %d, got %d in _papi_hwi_dispatch_timer!",
                    wanted_fd, fd );
            if ( n == _perfmon2_vector.cmp_info.hardware_intr_sig ) {
                ret = read( fd, &msg, sizeof ( msg ) );
                pfm_restart( fd );
            }
            return;
        }
      retry:
        ret = read( fd, &msg, sizeof ( msg ) );
        if ( ret == -1 ) {
            if ( errno == EINTR ) {
                SUBDBG( "read(%d) interrupted, retrying\n", fd );
                goto retry;
            } else {
                PAPIERROR( "read(%d): errno %d", fd, errno );
            }
        } else if ( ret != sizeof ( msg ) ) {
            PAPIERROR( "read(%d): short %d vs. %d bytes", fd, ret,
                       sizeof ( msg ) );
            ret = -1;
        }

        if ( msg.type != PFM_MSG_OVFL ) {
            PAPIERROR( "unexpected msg type %d", msg.type );
            ret = -1;
        }
#if 0
        if ( msg.pfm_ovfl_msg.msg_ovfl_tid != mygettid(  ) ) {
            PAPIERROR( "unmatched thread id %lx vs. %lx",
                       msg.pfm_ovfl_msg.msg_ovfl_tid, mygettid(  ) );
            ret = -1;
        }
#endif

        if ( ret != -1 ) {
            if ( ( thread->running_eventset[cidx]->state & PAPI_PROFILING ) &&
                 !( thread->running_eventset[cidx]->profile.
                    flags & PAPI_PROFIL_FORCE_SW ) )
                process_smpl_buf( 0, sizeof ( pfm_dfl_smpl_entry_t ), &thread );
            else {
                /* PAPI assumes that the overflow vector contains the register index of the
                   overflowing native event. That is generally true, but Stephane used some
                   tricks to offset the fixed counters on Core2 (Core? i7?) by 16. This hack
                   corrects for that hack in a (hopefully) transparent manner */
                unsigned long i, vector = msg.pfm_ovfl_msg.msg_ovfl_pmds[0];
                pfm_control_state_t *ctl =
                    ( pfm_control_state_t * ) thread->running_eventset[cidx]->
                    ctl_state;
                for ( i = 0; i < ctl->in.pfp_event_count; i++ ) {
                    /* We're only comparing to pmds[0]. A more robust implementation would
                       compare to pmds[0-3]. The bit mask must be converted to an index
                       for the comparison to work */
                    if ( ctl->pd[i].reg_num ==
                         ffsl( msg.pfm_ovfl_msg.msg_ovfl_pmds[0] ) - 1 ) {
                        /* if a match is found, convert the index back to a bitmask */
                        vector = 1 << i;
                        break;
                    }
                }
                _papi_hwi_dispatch_overflow_signal( ( void * ) &ctx,
                                                    ( vptr_t ) ( ( size_t )
                                                                  msg.
                                                                  pfm_ovfl_msg.
                                                                  msg_ovfl_ip ),
                                                    NULL, vector, 0, &thread,
                                                    cidx );
            }
        }

        if ( ( ret = pfm_restart( fd ) ) ) {
            PAPIERROR( "pfm_restart(%d): %s", fd, strerror( ret ) );
        }
    }
}

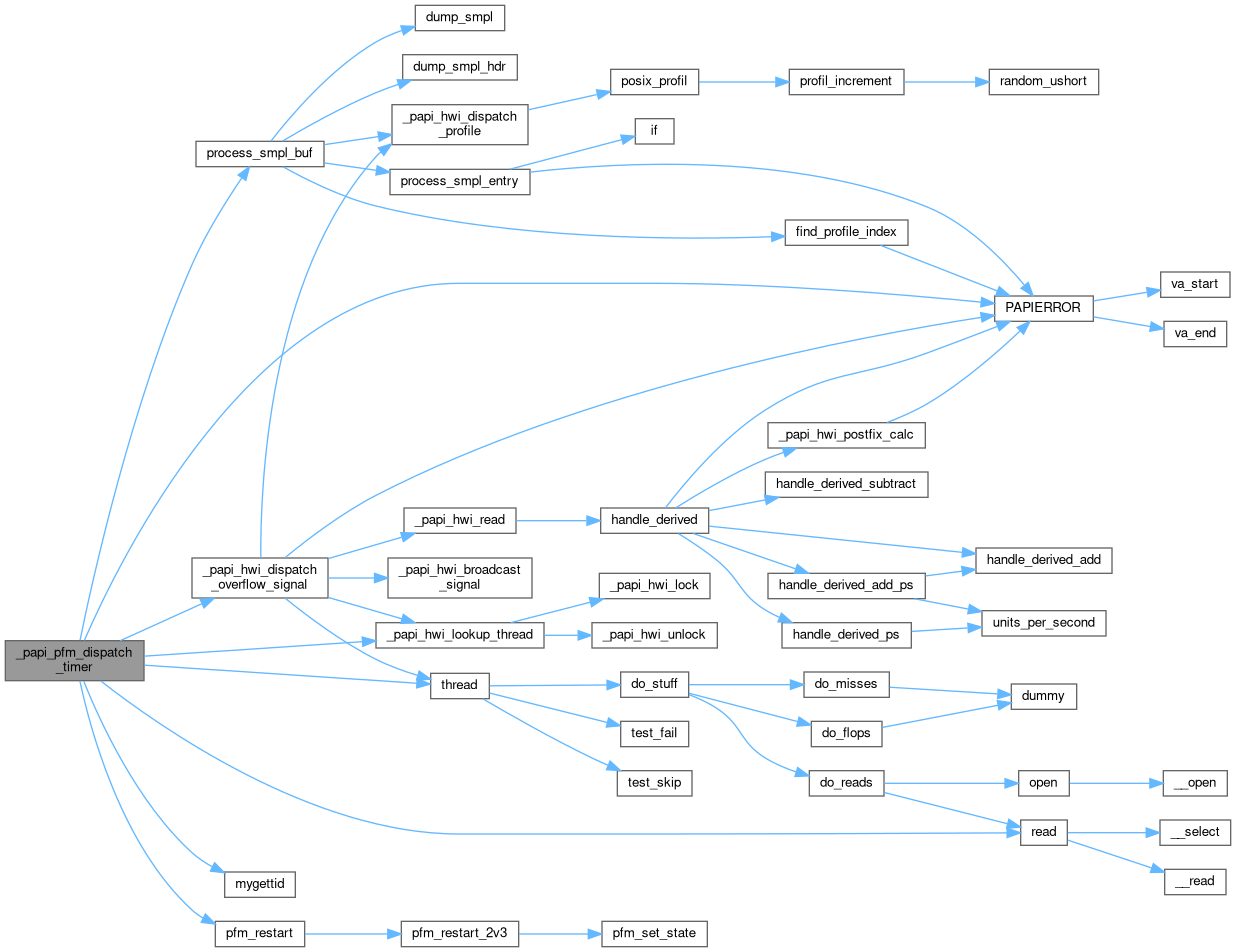

Here is the call graph for this function:

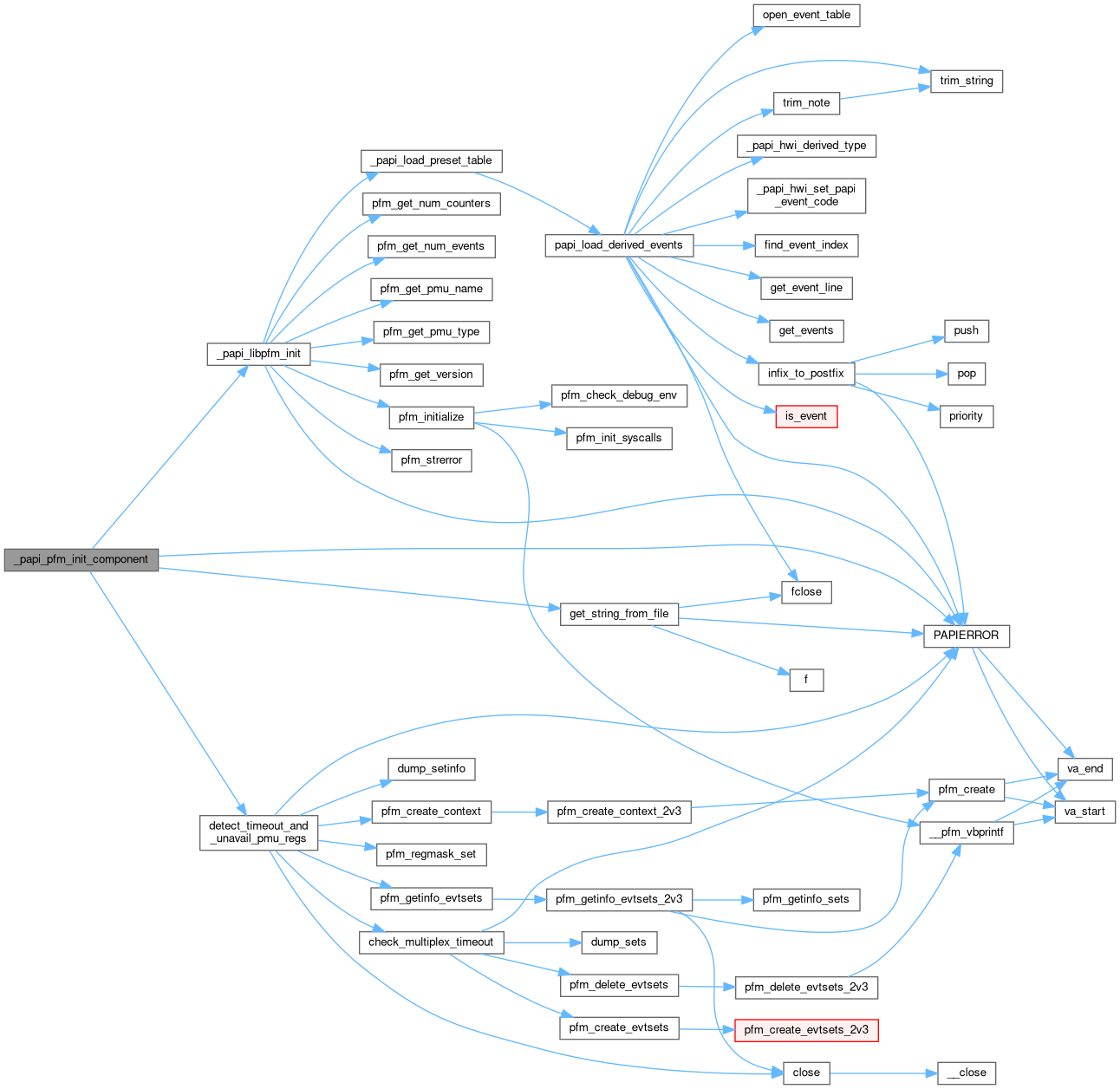

_papi_pfm_init_component()

int _papi_pfm_init_component

(

int

cidx

)

Definition at line 750 of file perfmon2/perfmon.c.

{
   int retval;
   char buf[PAPI_HUGE_STR_LEN];

   /* The following checks the PFMLIB version
      against the perfmon2 kernel version... */
   strncpy( _perfmon2_vector.cmp_info.support_version, buf,
        sizeof ( _perfmon2_vector.cmp_info.support_version ) );

   retval = get_string_from_file( "/sys/kernel/perfmon/version",
                      _perfmon2_vector.cmp_info.kernel_version,
            sizeof ( _perfmon2_vector.cmp_info.kernel_version ) );
   if ( retval != PAPI_OK ) {
      strncpy(_perfmon2_vector.cmp_info.disabled_reason,
         "/sys/kernel/perfmon/version not found",PAPI_MAX_STR_LEN);
      goto fn_fail;
   }

#ifdef PFM_VERSION
   sprintf( buf, "%d.%d", PFM_VERSION_MAJOR( PFM_VERSION ),
              PFM_VERSION_MINOR( PFM_VERSION ) );
   SUBDBG( "Perfmon2 library versions...kernel: %s library: %s\n",
            _perfmon2_vector.cmp_info.kernel_version, buf );
   if ( strcmp( _perfmon2_vector.cmp_info.kernel_version, buf ) != 0 ) {
      /* do a little exception processing; 81 is compatible with 80 */
      if ( !( ( PFM_VERSION_MINOR( PFM_VERSION ) == 81 ) &&
            ( strncmp( _perfmon2_vector.cmp_info.kernel_version, "2.8", 3 ) ==
                     0 ) ) ) {
     PAPIERROR( "Version mismatch of libpfm: compiled %s "
                    "vs. installed %s\n",
            buf, _perfmon2_vector.cmp_info.kernel_version );
     retval = PAPI_ESYS;
     goto fn_fail;
      }
   }
#endif

   _perfmon2_vector.cmp_info.hardware_intr_sig = SIGRTMIN + 2,


   /* Run the libpfm-specific setup */
   retval=_papi_libpfm_init(&_perfmon2_vector, cidx);
   if (retval) goto fn_fail;

   /* Load the module, find out if any PMC's/PMD's are off limits */

   /* Perfmon2 timeouts are based on the clock tick, we need to check
      them otherwise it will complain at us when we multiplex */

   unsigned long min_timeout_ns;

   struct timespec ts;

   if ( syscall( __NR_clock_getres, CLOCK_REALTIME, &ts ) == -1 ) {
      PAPIERROR( "Could not detect proper HZ rate, multiplexing may fail\n" );
      min_timeout_ns = 10000000;
   } else {
      min_timeout_ns = ts.tv_nsec;
   }

   /* This will fail if we've done timeout detection wrong */
   retval=detect_timeout_and_unavail_pmu_regs( &_perfmon2_pfm_unavailable_pmcs,
                           &_perfmon2_pfm_unavailable_pmds,
                           &min_timeout_ns );
   if ( retval != PAPI_OK ) {
       goto fn_fail;
   }

   if ( _papi_hwi_system_info.hw_info.vendor == PAPI_VENDOR_IBM ) {
      /* powerpc */
      _perfmon2_vector.cmp_info.available_domains |= PAPI_DOM_KERNEL |
                                                     PAPI_DOM_SUPERVISOR;
      if (strcmp(_papi_hwi_system_info.hw_info.model_string, "POWER6" ) == 0) {
     _perfmon2_vector.cmp_info.default_domain = PAPI_DOM_USER |
                                                PAPI_DOM_KERNEL |
                                                PAPI_DOM_SUPERVISOR;
      }
   } else {
      _perfmon2_vector.cmp_info.available_domains |= PAPI_DOM_KERNEL;
   }

   if ( _papi_hwi_system_info.hw_info.vendor == PAPI_VENDOR_SUN ) {
      switch ( _perfmon2_pfm_pmu_type ) {
#ifdef PFMLIB_SPARC_ULTRA12_PMU
         case PFMLIB_SPARC_ULTRA12_PMU:
         case PFMLIB_SPARC_ULTRA3_PMU:
         case PFMLIB_SPARC_ULTRA3I_PMU:
         case PFMLIB_SPARC_ULTRA3PLUS_PMU:
         case PFMLIB_SPARC_ULTRA4PLUS_PMU:
          break;
#endif
         default:
           _perfmon2_vector.cmp_info.available_domains |=
                                                      PAPI_DOM_SUPERVISOR;
           break;
      }
   }

   if ( _papi_hwi_system_info.hw_info.vendor == PAPI_VENDOR_CRAY ) {
      _perfmon2_vector.cmp_info.available_domains |= PAPI_DOM_OTHER;
   }

   if ( ( _papi_hwi_system_info.hw_info.vendor == PAPI_VENDOR_INTEL ) ||
    ( _papi_hwi_system_info.hw_info.vendor == PAPI_VENDOR_AMD ) ) {
      _perfmon2_vector.cmp_info.fast_counter_read = 1;
      _perfmon2_vector.cmp_info.fast_real_timer = 1;
      _perfmon2_vector.cmp_info.cntr_umasks = 1;
   }

  fn_exit:
    _papi_hwd[cidx]->cmp_info.disabled = retval;
    return retval;
  fn_fail:
    goto fn_exit;
}

Here is the call graph for this function:

_papi_pfm_init_control_state()

static int _papi_pfm_init_control_state ( hwd_control_state_t *  ctl0 )

static

Definition at line 2092 of file perfmon2/perfmon.c.

{
    pfm_control_state_t *ctl = ( pfm_control_state_t * ) ctl0;
    pfmlib_input_param_t *inp = &ctl->in;
    pfmlib_output_param_t *outp = &ctl->out;
    pfarg_pmd_t *pd = ctl->pd;
    pfarg_pmc_t *pc = ctl->pc;
    pfarg_setdesc_t *set = ctl->set;
    pfarg_setinfo_t *setinfo = ctl->setinfo;

    memset( inp, 0, sizeof ( *inp ) );
    memset( outp, 0, sizeof ( *inp ) );
    memset( pc, 0, sizeof ( ctl->pc ) );
    memset( pd, 0, sizeof ( ctl->pd ) );
    memset( set, 0, sizeof ( ctl->set ) );
    memset( setinfo, 0, sizeof ( ctl->setinfo ) );
    /* Will be filled by update now...until this gets another arg */
    ctl->ctx = NULL;
    ctl->ctx_fd = -1;
    ctl->load = NULL;
    set_domain( ctl, _perfmon2_vector.cmp_info.default_domain );
    return ( PAPI_OK );
}

Here is the call graph for this function:

_papi_pfm_init_thread()

static int _papi_pfm_init_thread ( hwd_context_t *  thr_ctx )

static

Definition at line 874 of file perfmon2/perfmon.c.

{
    pfarg_load_t load_args;
    pfarg_ctx_t newctx;
    int ret, ctx_fd;

#if defined(USE_PROC_PTTIMER)
    ret = init_proc_thread_timer( thr_ctx );
    if ( ret != PAPI_OK )
        return ( ret );
#endif

    memset( &newctx, 0, sizeof ( newctx ) );
    memset( &load_args, 0, sizeof ( load_args ) );

    if ( ( ret = pfm_create_context( &newctx, NULL, NULL, 0 ) ) == -1 ) {
        PAPIERROR( "pfm_create_context(): %s",
                   strerror( errno ) );
        return ( PAPI_ESYS );
    }
    SUBDBG( "PFM_CREATE_CONTEXT returned fd %d\n", ret );
    tune_up_fd( ret );
    ctx_fd = ret;

    memcpy( &( ( pfm_context_t * ) thr_ctx )->ctx, &newctx, sizeof ( newctx ) );
    ( ( pfm_context_t * ) thr_ctx )->ctx_fd = ctx_fd;
    load_args.load_pid = mygettid(  );
    memcpy( &( ( pfm_context_t * ) thr_ctx )->load, &load_args,
            sizeof ( load_args ) );

    return ( PAPI_OK );
}

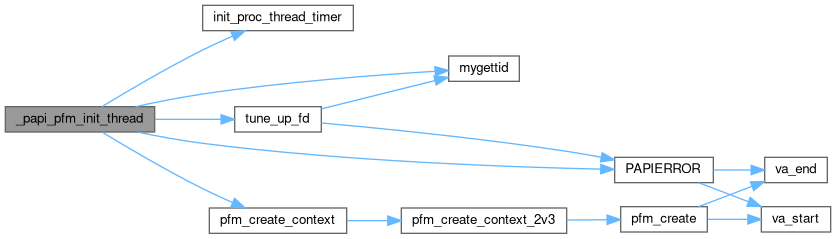

Here is the call graph for this function:

_papi_pfm_read()

int _papi_pfm_read	(	hwd_context_t *	ctx0,
		hwd_control_state_t *	ctl0,
		long long **	events,
		int	flags
	)

Definition at line 965 of file perfmon2/perfmon.c.

{
    ( void ) flags;          /*unused */
    unsigned int i;
    int ret;
    long long tot_runs = 0LL;
    pfm_control_state_t *ctl = ( pfm_control_state_t * ) ctl0;
    pfm_context_t *ctx = ( pfm_context_t * ) ctx0;

    ret = _papi_pfm_read_pmds( ctx, ctl );
    if ( ret != PAPI_OK )
        return PAPI_ESYS;

    /* Copy the values over */

    for ( i = 0; i < ctl->in.pfp_event_count; i++ ) {
        if ( ctl->pd[i].reg_flags & PFM_REGFL_OVFL_NOTIFY )
            ctl->counts[i] = ctl->pd[i].reg_value - ctl->pd[i].reg_long_reset;
        else
            ctl->counts[i] = ctl->pd[i].reg_value;
        SUBDBG( "PMD[%d] = %lld (LLD),%llu (LLU)\n", i,
                ( unsigned long long ) ctl->counts[i],
                ( unsigned long long ) ctl->pd[i].reg_value );
    }
    *events = ctl->counts;

    /* If we're not multiplexing, bail now */

    if ( ctl->num_sets == 1 )
        return ( PAPI_OK );

    /* If we're multiplexing, get the scaling information */

    SUBDBG( "PFM_GETINFO_EVTSETS(%d,%p,%d)\n", ctl->ctx_fd, ctl->setinfo,
            ctl->num_sets );
    if ( ( ret =
           pfm_getinfo_evtsets( ctl->ctx_fd, ctl->setinfo, ctl->num_sets ) ) ) {
        DEBUGCALL( DEBUG_SUBSTRATE,
                   dump_setinfo( ctl->setinfo, ctl->num_sets ) );
        PAPIERROR( "pfm_getinfo_evtsets(%d,%p,%d): %s", ctl->ctx_fd,
                   ctl->setinfo, ctl->num_sets, strerror( ret ) );
        *events = NULL;
        return ( PAPI_ESYS );
    }
    DEBUGCALL( DEBUG_SUBSTRATE, dump_setinfo( ctl->setinfo, ctl->num_sets ) );

    /* Add up the number of total runs */

    for ( i = 0; i < ( unsigned int ) ctl->num_sets; i++ )
        tot_runs += ctl->setinfo[i].set_runs;

    /* Now scale the values */

    for ( i = 0; i < ctl->in.pfp_event_count; i++ ) {
        SUBDBG
            ( "Counter %d is in set %d ran %llu of %llu times, old count %lld.\n",
              i, ctl->pd[i].reg_set,
              ( unsigned long long ) ctl->setinfo[ctl->pd[i].reg_set].set_runs,
              ( unsigned long long ) tot_runs, ctl->counts[i] );
        if ( ctl->setinfo[ctl->pd[i].reg_set].set_runs )
            ctl->counts[i] =
                ( ctl->counts[i] * tot_runs ) /
                ctl->setinfo[ctl->pd[i].reg_set].set_runs;
        else {
            ctl->counts[i] = 0;
            SUBDBG( "Set %lld didn't run!!!!\n",
                    ( unsigned long long ) ctl->pd[i].reg_set );
        }
        SUBDBG( "Counter %d, new count %lld.\n", i, ctl->counts[i] );
    }

    return PAPI_OK;
}

Here is the call graph for this function:

_papi_pfm_read_pmds()

int _papi_pfm_read_pmds	(	pfm_context_t *	ctx,
		pfm_control_state_t *	ctl
	)

Definition at line 266 of file perfmon2/perfmon.c.

{
    ( void ) ctx;            /*unused */
    unsigned int i = 0;
    int ret;

    SUBDBG( "PFM_READ_PMDS(%d,%p,%d)\n", ctl->ctx_fd, ctl->pd,
            ctl->in.pfp_event_count );
    if ( ctl->in.pfp_event_count > PFM_MAX_PMCDS ) {
        for ( i = 0; i < ctl->in.pfp_event_count - PFM_MAX_PMCDS;
              i += PFM_MAX_PMCDS ) {
            if ( ( ret =
                   pfm_read_pmds( ctl->ctx_fd, ctl->pd + i,
                                  PFM_MAX_PMCDS ) ) ) {
                DEBUGCALL( DEBUG_SUBSTRATE, dump_pmd( ctl ) );
                PAPIERROR( "pfm_read_pmds(%d,%p,%d): %s", ctl->ctx_fd, ctl->pd,
                           ctl->in.pfp_event_count, strerror( ret ) );
                return ( ( errno == EBADF ) ? PAPI_ECLOST : PAPI_ESYS );
            }
        }
        DEBUGCALL( DEBUG_SUBSTRATE, dump_pmd( ctl ) );
    }
    if ( ( ret =
           pfm_read_pmds( ctl->ctx_fd, ctl->pd + i,
                          ctl->in.pfp_event_count - i ) ) ) {
        DEBUGCALL( DEBUG_SUBSTRATE, dump_pmd( ctl ) );
        PAPIERROR( "pfm_read_pmds(%d,%p,%d): %s", ctl->ctx_fd, ctl->pd,
                   ctl->in.pfp_event_count, strerror( ret ) );
        return ( ( errno == EBADF ) ? PAPI_ECLOST : PAPI_ESYS );
    }
    DEBUGCALL( DEBUG_SUBSTRATE, dump_pmd( ctl ) );

    return PAPI_OK;
}

Here is the call graph for this function:

Here is the caller graph for this function:

_papi_pfm_reset()

int _papi_pfm_reset	(	hwd_context_t *	ctx,
		hwd_control_state_t *	ctl
	)

Definition at line 909 of file perfmon2/perfmon.c.

{
    unsigned int i;
    int ret;

    /* Read could have clobbered the values */
    for ( i = 0; i < ( ( pfm_control_state_t * ) ctl )->in.pfp_event_count;
          i++ ) {
        if ( ( ( pfm_control_state_t * ) ctl )->pd[i].
             reg_flags & PFM_REGFL_OVFL_NOTIFY )
            ( ( pfm_control_state_t * ) ctl )->pd[i].reg_value =
                ( ( pfm_control_state_t * ) ctl )->pd[i].reg_long_reset;
        else
            ( ( pfm_control_state_t * ) ctl )->pd[i].reg_value = 0ULL;
    }

    ret =
        _papi_pfm_write_pmds( ( pfm_context_t * ) ctx,
                              ( pfm_control_state_t * ) ctl );
    if ( ret != PAPI_OK )
        return PAPI_ESYS;

    return ( PAPI_OK );
}

Here is the call graph for this function:

_papi_pfm_set_overflow()

static int _papi_pfm_set_overflow ( EventSetInfo_t *  ESI, int  EventIndex, int  threshold  )

static

Definition at line 2010 of file perfmon2/perfmon.c.

{
    pfm_control_state_t *this_state =
        ( pfm_control_state_t * ) ( ESI->ctl_state );
    int j, retval = PAPI_OK, *pos;

    /* Which counter are we on, this looks suspicious because of the pos[0],
       but this could be because of derived events. We should do more here
       to figure out exactly what the position is, because the event may
       actually have more than one position. */

    pos = ESI->EventInfoArray[EventIndex].pos;
    j = pos[0];
    SUBDBG( "Hardware counter %d used in overflow, threshold %d\n", j,
            threshold );

    if ( threshold == 0 ) {
        /* If this counter isn't set to overflow */

        if ( ( this_state->pd[j].reg_flags & PFM_REGFL_OVFL_NOTIFY ) == 0 )
            return ( PAPI_EINVAL );

        /* Remove the signal handler */

        retval = _papi_hwi_stop_signal( _perfmon2_vector.cmp_info.hardware_intr_sig );
        if ( retval != PAPI_OK )
            return ( retval );

        /* Disable overflow */

        this_state->pd[j].reg_flags ^= PFM_REGFL_OVFL_NOTIFY;

        /*
         * we may want to reset the other PMDs on
         * every overflow. If we do not set
         * this, the non-overflowed counters
         * will be untouched.

         if (inp.pfp_event_count > 1)
         this_state->pd[j].reg_reset_pmds[0] ^= 1UL << counter_to_reset */

        /* Clear the overflow period */

        this_state->pd[j].reg_value = 0;
        this_state->pd[j].reg_long_reset = 0;
        this_state->pd[j].reg_short_reset = 0;
        this_state->pd[j].reg_random_seed = 0;
        this_state->pd[j].reg_random_mask = 0;
    } else {
        /* Enable the signal handler */

        retval =
            _papi_hwi_start_signal( _perfmon2_vector.cmp_info.hardware_intr_sig, 1,
                                    _perfmon2_vector.cmp_info.CmpIdx );
        if ( retval != PAPI_OK )
            return ( retval );

        /* Set it to overflow */

        this_state->pd[j].reg_flags |= PFM_REGFL_OVFL_NOTIFY;

        /*
         * we may want to reset the other PMDs on
         * every overflow. If we do not set
         * this, the non-overflowed counters
         * will be untouched.

         if (inp.pfp_event_count > 1)
         this_state->pd[j].reg_reset_pmds[0] |= 1UL << counter_to_reset */

        /* Set the overflow period */

        this_state->pd[j].reg_value = -( unsigned long long ) threshold + 1;
        this_state->pd[j].reg_short_reset =
            -( unsigned long long ) threshold + 1;
        this_state->pd[j].reg_long_reset =
            -( unsigned long long ) threshold + 1;
    }
    return ( retval );
}

Here is the call graph for this function:

Here is the caller graph for this function:

_papi_pfm_set_profile()

static int _papi_pfm_set_profile ( EventSetInfo_t *  ESI, int  EventIndex, int  threshold  )

static

Definition at line 1884 of file perfmon2/perfmon.c.

{
    int cidx = _perfmon2_vector.cmp_info.CmpIdx;
    pfm_control_state_t *ctl = ( pfm_control_state_t * ) ( ESI->ctl_state );
    pfm_context_t *ctx = ( pfm_context_t * ) ( ESI->master->context[cidx] );
    pfarg_ctx_t newctx;
    void *buf_addr = NULL;
    pfm_dfl_smpl_arg_t buf_arg;
    pfm_dfl_smpl_hdr_t *hdr;
    int i, ret, ctx_fd;

    memset( &newctx, 0, sizeof ( newctx ) );

    if ( threshold == 0 ) {
        SUBDBG( "MUNMAP(%p,%lld)\n", ctx->smpl_buf,
                ( unsigned long long ) ctx->smpl.buf_size );
        munmap( ctx->smpl_buf, ctx->smpl.buf_size );

        i = close( ctl->ctx_fd );
        SUBDBG( "CLOSE fd %d returned %d\n", ctl->ctx_fd, i );
        (void) i;

        /* Thread has master context */

        ctl->ctx_fd = ctx->ctx_fd;
        ctl->ctx = &ctx->ctx;
        memset( &ctx->smpl, 0, sizeof ( buf_arg ) );
        ctx->smpl_buf = NULL;
        ret = _papi_pfm_set_overflow( ESI, EventIndex, threshold );
//#warning "This should be handled somewhere else"
        ESI->state &= ~( PAPI_OVERFLOWING );
        ESI->overflow.flags &= ~( PAPI_OVERFLOW_HARDWARE );

        return ( ret );
    }

    memset( &buf_arg, 0, sizeof ( buf_arg ) );
    buf_arg.buf_size = 2 * getpagesize(  );

    SUBDBG( "PFM_CREATE_CONTEXT(%p,%s,%p,%d)\n", &newctx, PFM_DFL_SMPL_NAME,
            &buf_arg, ( int ) sizeof ( buf_arg ) );
    if ( ( ret =
           pfm_create_context( &newctx, PFM_DFL_SMPL_NAME, &buf_arg,
                               sizeof ( buf_arg ) ) ) == -1 ) {
        DEBUGCALL( DEBUG_SUBSTRATE, dump_smpl_arg( &buf_arg ) );
        PAPIERROR( "_papi_hwd_set_profile:pfm_create_context(): %s",
                   strerror( errno ) );
        return ( PAPI_ESYS );
    }
    ctx_fd = ret;
    SUBDBG( "PFM_CREATE_CONTEXT returned fd %d\n", ctx_fd );
    tune_up_fd( ret );

    SUBDBG( "MMAP(NULL,%lld,%d,%d,%d,0)\n",
            ( unsigned long long ) buf_arg.buf_size, PROT_READ, MAP_PRIVATE,
            ctx_fd );
    buf_addr =
        mmap( NULL, ( size_t ) buf_arg.buf_size, PROT_READ, MAP_PRIVATE, ctx_fd,
              0 );
    if ( buf_addr == MAP_FAILED ) {
        PAPIERROR( "mmap(NULL,%d,%d,%d,%d,0): %s", buf_arg.buf_size, PROT_READ,
                   MAP_PRIVATE, ctx_fd, strerror( errno ) );
        close( ctx_fd );
        return ( PAPI_ESYS );
    }
    SUBDBG( "Sample buffer is located at %p\n", buf_addr );

    hdr = ( pfm_dfl_smpl_hdr_t * ) buf_addr;
    SUBDBG( "hdr_cur_offs=%llu version=%u.%u\n",
            ( unsigned long long ) hdr->hdr_cur_offs,
            PFM_VERSION_MAJOR( hdr->hdr_version ),
            PFM_VERSION_MINOR( hdr->hdr_version ) );

    if ( PFM_VERSION_MAJOR( hdr->hdr_version ) < 1 ) {
        PAPIERROR( "invalid buffer format version %d",
                   PFM_VERSION_MAJOR( hdr->hdr_version ) );
        munmap( buf_addr, buf_arg.buf_size );
        close( ctx_fd );
        return PAPI_ESYS;
    }

    ret = _papi_pfm_set_overflow( ESI, EventIndex, threshold );
    if ( ret != PAPI_OK ) {
        munmap( buf_addr, buf_arg.buf_size );
        close( ctx_fd );
        return ( ret );
    }

    /* Look up the native event code */

    if ( ESI->profile.flags & ( PAPI_PROFIL_DATA_EAR | PAPI_PROFIL_INST_EAR ) ) {
        pfarg_pmd_t *pd;
        int pos, native_index;
        pd = ctl->pd;
        pos = ESI->EventInfoArray[EventIndex].pos[0];
        native_index =
            ( ( pfm_register_t * ) ( ESI->NativeInfoArray[pos].ni_bits ) )->
            event;
        setup_ear_event( native_index, &pd[pos], ESI->profile.flags );
    }

    if ( ESI->profile.flags & PAPI_PROFIL_RANDOM ) {
        pfarg_pmd_t *pd;
        int pos;
        pd = ctl->pd;
        pos = ESI->EventInfoArray[EventIndex].pos[0];
        pd[pos].reg_random_seed = 5;
        pd[pos].reg_random_mask = 0xff;
    }

    /* Now close our context it is safe */

    // close(ctx->ctx_fd);

    /* Copy the new data to the threads context control block */

    ctl->ctx_fd = ctx_fd;
    memcpy( &ctx->smpl, &buf_arg, sizeof ( buf_arg ) );
    ctx->smpl_buf = buf_addr;

    return ( PAPI_OK );
}

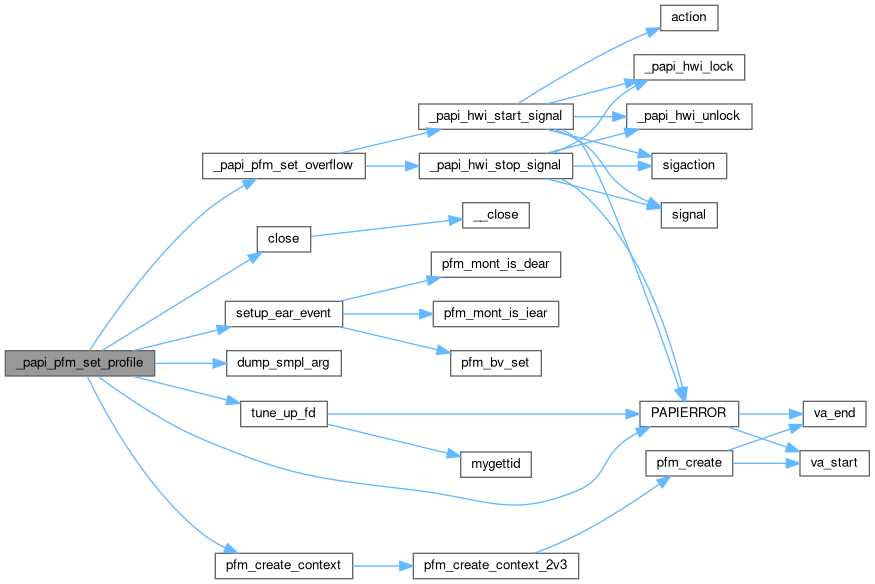

Here is the call graph for this function:

_papi_pfm_shutdown()

int _papi_pfm_shutdown

(

hwd_context_t *

ctx0

)

Definition at line 1293 of file perfmon2/perfmon.c.

{
    pfm_context_t *ctx = ( pfm_context_t * ) ctx0;
    int ret;
#if defined(USE_PROC_PTTIMER)
    close( ctx->stat_fd );
#endif


    ret = close( ctx->ctx_fd );
    SUBDBG( "CLOSE fd %d returned %d\n", ctx->ctx_fd, ret );
    (void) ret;

    return ( PAPI_OK );
}

Here is the call graph for this function:

_papi_pfm_shutdown_component()

int _papi_pfm_shutdown_component

(

)

Definition at line 868 of file perfmon2/perfmon.c.

{
    return PAPI_OK;
}

_papi_pfm_start()

int _papi_pfm_start	(	hwd_context_t *	ctx0,
		hwd_control_state_t *	ctl0
	)

Definition at line 1045 of file perfmon2/perfmon.c.

{
    unsigned int i;
    int ret;
    pfm_control_state_t *ctl = ( pfm_control_state_t * ) ctl0;
    pfm_context_t *ctx = ( pfm_context_t * ) ctx0;

#if defined(__crayxt)
    if ( _papi_hwd_start_create_context ) {
        pfarg_ctx_t tmp;

        memset( &tmp, 0, sizeof ( tmp ) );
        if ( ( ret = pfm_create_context( &tmp, NULL, NULL, 0 ) ) == -1 ) {
            PAPIERROR( "_papi_hwd_init:pfm_create_context(): %s",
                       strerror( errno ) );
            return ( PAPI_ESYS );
        }
        tune_up_fd( ret );
        ctl->ctx_fd = ctx->ctx_fd = ret;
    }
#endif /* XT */

    if ( ctl->num_sets > 1 ) {
        SUBDBG( "PFM_CREATE_EVTSETS(%d,%p,%d)\n", ctl->ctx_fd, ctl->set,
                ctl->num_sets );
        if ( ( ret =
               pfm_create_evtsets( ctl->ctx_fd, ctl->set,
                                   ctl->num_sets ) ) != PFMLIB_SUCCESS ) {
            DEBUGCALL( DEBUG_SUBSTRATE, dump_sets( ctl->set, ctl->num_sets ) );
            PAPIERROR( "pfm_create_evtsets(%d,%p,%d): errno=%d  %s",
                       ctl->ctx_fd, ctl->set, ctl->num_sets, errno,
                       strerror( ret ) );
            perror( "pfm_create_evtsets" );
            return ( PAPI_ESYS );
        }
        DEBUGCALL( DEBUG_SUBSTRATE, dump_sets( ctl->set, ctl->num_sets ) );
    }

    /*
     * Now program the registers
     *
     * We don't use the same variable to indicate the number of elements passed to
     * the kernel because, as we said earlier, pc may contain more elements than
     * the number of events (pmd) we specified, i.e., contains more than counting
     * monitors.
     */

    ret = _papi_pfm_write_pmcs( ctx, ctl );
    if ( ret != PAPI_OK )
        return PAPI_ESYS;

    /* Set counters to zero as per PAPI_start man page, unless it is set to overflow */

    for ( i = 0; i < ctl->in.pfp_event_count; i++ )
        if ( !( ctl->pd[i].reg_flags & PFM_REGFL_OVFL_NOTIFY ) )
            ctl->pd[i].reg_value = 0ULL;

    /*
     * To be read, each PMD must be either written or declared
     * as being part of a sample (reg_smpl_pmds)
     */

    ret = _papi_pfm_write_pmds( ctx, ctl );
    if ( ret != PAPI_OK )
        return PAPI_ESYS;

    SUBDBG( "PFM_LOAD_CONTEXT(%d,%p(%u))\n", ctl->ctx_fd, ctl->load,
            ctl->load->load_pid );
    if ( ( ret = pfm_load_context( ctl->ctx_fd, ctl->load ) ) ) {
        PAPIERROR( "pfm_load_context(%d,%p(%u)): %s", ctl->ctx_fd, ctl->load,
                   ctl->load->load_pid, strerror( ret ) );
        return PAPI_ESYS;
    }

    SUBDBG( "PFM_START(%d,%p)\n", ctl->ctx_fd, NULL );
    if ( ( ret = pfm_start( ctl->ctx_fd, NULL ) ) ) {
        PAPIERROR( "pfm_start(%d): %s", ctl->ctx_fd, strerror( ret ) );
        return ( PAPI_ESYS );
    }
    return PAPI_OK;
}

Here is the call graph for this function:

_papi_pfm_stop()

int _papi_pfm_stop	(	hwd_context_t *	ctx0,
		hwd_control_state_t *	ctl0
	)

Definition at line 1128 of file perfmon2/perfmon.c.

{
    ( void ) ctx0;           /*unused */
    int ret;
    pfm_control_state_t *ctl = ( pfm_control_state_t * ) ctl0;
//  pfm_context_t *ctx = (pfm_context_t *)ctx0;

    SUBDBG( "PFM_STOP(%d)\n", ctl->ctx_fd );
    if ( ( ret = pfm_stop( ctl->ctx_fd ) ) ) {
        /* If this thread is attached to another thread, and that thread
           has exited, we can safely discard the error here. */

        if ( ( ret == PFMLIB_ERR_NOTSUPP ) &&
             ( ctl->load->load_pid != ( unsigned int ) mygettid(  ) ) )
            return ( PAPI_OK );

        PAPIERROR( "pfm_stop(%d): %s", ctl->ctx_fd, strerror( ret ) );
        return ( PAPI_ESYS );
    }

    SUBDBG( "PFM_UNLOAD_CONTEXT(%d) (tid %u)\n", ctl->ctx_fd,
            ctl->load->load_pid );
    if ( ( ret = pfm_unload_context( ctl->ctx_fd ) ) ) {
        PAPIERROR( "pfm_unload_context(%d): %s", ctl->ctx_fd, strerror( ret ) );
        return PAPI_ESYS;
    }

    if ( ctl->num_sets > 1 ) {
        static pfarg_setdesc_t set = { 0, 0, 0, 0, {0, 0, 0, 0, 0, 0} };
        /* Delete the high sets */
        SUBDBG( "PFM_DELETE_EVTSETS(%d,%p,%d)\n", ctl->ctx_fd, &ctl->set[1],
                ctl->num_sets - 1 );
        if ( ( ret =
               pfm_delete_evtsets( ctl->ctx_fd, &ctl->set[1],
                                   ctl->num_sets - 1 ) ) != PFMLIB_SUCCESS ) {
            DEBUGCALL( DEBUG_SUBSTRATE,
                       dump_sets( &ctl->set[1], ctl->num_sets - 1 ) );
            PAPIERROR( "pfm_delete_evtsets(%d,%p,%d): %s", ctl->ctx_fd,
                       &ctl->set[1], ctl->num_sets - 1, strerror( ret ) );
            return ( PAPI_ESYS );
        }
        DEBUGCALL( DEBUG_SUBSTRATE,
                   dump_sets( &ctl->set[1], ctl->num_sets - 1 ) );
        /* Reprogram the 0 set */
        SUBDBG( "PFM_CREATE_EVTSETS(%d,%p,%d)\n", ctl->ctx_fd, &set, 1 );
        if ( ( ret =
               pfm_create_evtsets( ctl->ctx_fd, &set,
                                   1 ) ) != PFMLIB_SUCCESS ) {
            DEBUGCALL( DEBUG_SUBSTRATE, dump_sets( &set, 1 ) );
            PAPIERROR( "pfm_create_evtsets(%d,%p,%d): %s", ctl->ctx_fd, &set,
                       ctl->num_sets, strerror( ret ) );
            return ( PAPI_ESYS );
        }
        DEBUGCALL( DEBUG_SUBSTRATE, dump_sets( &set, 1 ) );
    }

    return PAPI_OK;
}

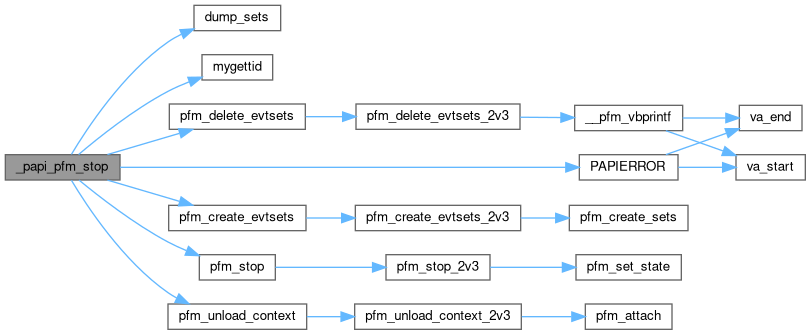

Here is the call graph for this function:

_papi_pfm_stop_profiling()

static int _papi_pfm_stop_profiling ( ThreadInfo_t *  thread, EventSetInfo_t *  ESI  )

static

Definition at line 1876 of file perfmon2/perfmon.c.

{
    ( void ) ESI;            /*unused */
    /* Process any remaining samples in the sample buffer */
    return ( process_smpl_buf( 0, sizeof ( pfm_dfl_smpl_entry_t ), &thread ) );
}

Here is the call graph for this function:

_papi_pfm_update_control_state()

static int _papi_pfm_update_control_state ( hwd_control_state_t *  ctl0, NativeInfo_t *  native, int  count, hwd_context_t *  ctx0  )

static

Definition at line 2139 of file perfmon2/perfmon.c.

{
    pfm_control_state_t *ctl = ( pfm_control_state_t * ) ctl0;
    pfm_context_t *ctx = ( pfm_context_t * ) ctx0;
    int i = 0, ret;
    int last_reg_set = 0, reg_set_done = 0, offset = 0;
    pfmlib_input_param_t tmpin, *inp = &ctl->in;
    pfmlib_output_param_t tmpout, *outp = &ctl->out;
    pfarg_pmd_t *pd = ctl->pd;

    if ( count == 0 ) {
        SUBDBG( "Called with count == 0\n" );
        inp->pfp_event_count = 0;
        outp->pfp_pmc_count = 0;
        memset( inp->pfp_events, 0x0, sizeof ( inp->pfp_events ) );
        return ( PAPI_OK );
    }

    memcpy( &tmpin, inp, sizeof ( tmpin ) );
    memcpy( &tmpout, outp, sizeof ( tmpout ) );

    for ( i = 0; i < count; i++ ) {
        SUBDBG
            ( "Stuffing native event index %d (code %#x) into input structure.\n",
              i, ( ( pfm_register_t * ) native[i].ni_bits )->event );
        memcpy( inp->pfp_events + i, native[i].ni_bits,
                sizeof ( pfmlib_event_t ) );
    }
    inp->pfp_event_count = count;

    /* let the library figure out the values for the PMCS */

    ret = compute_kernel_args( ctl );
    if ( ret != PAPI_OK ) {
        /* Restore values */
        memcpy( inp, &tmpin, sizeof ( tmpin ) );
        memcpy( outp, &tmpout, sizeof ( tmpout ) );
        return ( ret );
    }

    /* Update the native structure, because the allocation is done here. */

    last_reg_set = pd[0].reg_set;
    for ( i = 0; i < count; i++ ) {
        if ( pd[i].reg_set != last_reg_set ) {
            offset += reg_set_done;
            reg_set_done = 0;
        }
        reg_set_done++;

        native[i].ni_position = i;
        SUBDBG( "native event index %d (code %#x) is at PMD offset %d\n", i,
                ( ( pfm_register_t * ) native[i].ni_bits )->event,
                native[i].ni_position );
    }

    /* If structure has not yet been filled with a context, fill it
       from the thread's context. This should happen in init_control_state
       when we give that a *ctx argument */

    if ( ctl->ctx == NULL ) {
        ctl->ctx = &ctx->ctx;
        ctl->ctx_fd = ctx->ctx_fd;
        ctl->load = &ctx->load;
    }

    return ( PAPI_OK );
}

Here is the call graph for this function:

_papi_pfm_write()

int _papi_pfm_write	(	hwd_context_t *	ctx,
		hwd_control_state_t *	ctl,
		long long *	from
	)

Definition at line 936 of file perfmon2/perfmon.c.

{
    unsigned int i;
    int ret;

    /* Read could have clobbered the values */
    for ( i = 0; i < ( ( pfm_control_state_t * ) ctl )->in.pfp_event_count;
          i++ ) {
        if ( ( ( pfm_control_state_t * ) ctl )->pd[i].
             reg_flags & PFM_REGFL_OVFL_NOTIFY )
            ( ( pfm_control_state_t * ) ctl )->pd[i].reg_value =
                from[i] +
                ( ( pfm_control_state_t * ) ctl )->pd[i].reg_long_reset;
        else
            ( ( pfm_control_state_t * ) ctl )->pd[i].reg_value = from[i];
    }

    ret =
        _papi_pfm_write_pmds( ( pfm_context_t * ) ctx,
                              ( pfm_control_state_t * ) ctl );
    if ( ret != PAPI_OK )
        return PAPI_ESYS;


    return ( PAPI_OK );
}

Here is the call graph for this function:

_papi_pfm_write_pmcs()

int _papi_pfm_write_pmcs	(	pfm_context_t *	ctx,
		pfm_control_state_t *	ctl
	)

Definition at line 191 of file perfmon2/perfmon.c.

{
    ( void ) ctx;            /*unused */
    unsigned int i = 0;
    int ret;

    SUBDBG( "PFM_WRITE_PMCS(%d,%p,%d)\n", ctl->ctx_fd, ctl->pc,
            ctl->out.pfp_pmc_count );
    if ( ctl->out.pfp_pmc_count > PFM_MAX_PMCDS ) {
        for ( i = 0; i < ctl->out.pfp_pmc_count - PFM_MAX_PMCDS;
              i += PFM_MAX_PMCDS ) {
            if ( ( ret =
                   pfm_write_pmcs( ctl->ctx_fd, ctl->pc + i,
                                   PFM_MAX_PMCDS ) ) ) {
                DEBUGCALL( DEBUG_SUBSTRATE, dump_pmc( ctl ) );
                PAPIERROR( "pfm_write_pmcs(%d,%p,%d): %s", ctl->ctx_fd, ctl->pc,
                           ctl->out.pfp_pmc_count, strerror( ret ) );
                return ( PAPI_ESYS );
            }
        }
        DEBUGCALL( DEBUG_SUBSTRATE, dump_pmc( ctl ) );
    }
    if ( ( ret =
           pfm_write_pmcs( ctl->ctx_fd, ctl->pc + i,
                           ctl->out.pfp_pmc_count - i ) ) ) {
        DEBUGCALL( DEBUG_SUBSTRATE, dump_pmc( ctl ) );
        PAPIERROR( "pfm_write_pmcs(%d,%p,%d): %s", ctl->ctx_fd, ctl->pc,
                   ctl->out.pfp_pmc_count, strerror( ret ) );
        return ( PAPI_ESYS );
    }
    DEBUGCALL( DEBUG_SUBSTRATE, dump_pmc( ctl ) );

    return PAPI_OK;
}

Here is the call graph for this function:

Here is the caller graph for this function:

_papi_pfm_write_pmds()

int _papi_pfm_write_pmds	(	pfm_context_t *	ctx,
		pfm_control_state_t *	ctl
	)

Definition at line 227 of file perfmon2/perfmon.c.

{
    ( void ) ctx;            /*unused */
    unsigned int i = 0;
    int ret;

    SUBDBG( "PFM_WRITE_PMDS(%d,%p,%d)\n", ctl->ctx_fd, ctl->pd,
            ctl->in.pfp_event_count );
    if ( ctl->in.pfp_event_count > PFM_MAX_PMCDS ) {
        for ( i = 0; i < ctl->in.pfp_event_count - PFM_MAX_PMCDS;
              i += PFM_MAX_PMCDS ) {
            if ( ( ret =
                   pfm_write_pmds( ctl->ctx_fd, ctl->pd + i,
                                   PFM_MAX_PMCDS ) ) ) {
                DEBUGCALL( DEBUG_SUBSTRATE, dump_pmd( ctl ) );
                PAPIERROR( "pfm_write_pmds(%d,%p,%d): errno=%d %s", ctl->ctx_fd,
                           ctl->pd, ctl->in.pfp_event_count, errno,
                           strerror( ret ) );
                perror( "pfm_write_pmds" );
                return ( PAPI_ESYS );
            }
        }
        DEBUGCALL( DEBUG_SUBSTRATE, dump_pmd( ctl ) );
    }
    if ( ( ret =
           pfm_write_pmds( ctl->ctx_fd, ctl->pd + i,
                           ctl->in.pfp_event_count - i ) ) ) {
        DEBUGCALL( DEBUG_SUBSTRATE, dump_pmd( ctl ) );
        PAPIERROR( "pfm_write_pmds(%d,%p,%d): errno=%d %s", ctl->ctx_fd,
                   ctl->pd, ctl->in.pfp_event_count, errno, strerror( ret ) );
        perror( "pfm_write_pmds" );
        return ( PAPI_ESYS );
    }
    DEBUGCALL( DEBUG_SUBSTRATE, dump_pmd( ctl ) );

    return PAPI_OK;
}

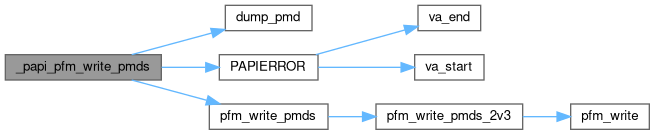

Here is the call graph for this function:

Here is the caller graph for this function:

attach()

static int attach ( hwd_control_state_t *  ctl, unsigned long  tid  )

static

Definition at line 593 of file perfmon2/perfmon.c.

{
    pfarg_ctx_t *newctx = ( pfarg_ctx_t * ) malloc( sizeof ( pfarg_ctx_t ) );
    pfarg_load_t *load_args =
        ( pfarg_load_t * ) malloc( sizeof ( pfarg_load_t ) );
    int ret;

    if ( ( newctx == NULL ) || ( load_args == NULL ) )
        return ( PAPI_ENOMEM );
    memset( newctx, 0x0, sizeof ( *newctx ) );
    memset( load_args, 0, sizeof ( *load_args ) );

    /* Make sure the process exists and is being ptraced() */

    ret = ptrace( PTRACE_ATTACH, tid, NULL, NULL );
    if ( ret == 0 ) {
        ptrace( PTRACE_DETACH, tid, NULL, NULL );
        PAPIERROR( "Process/thread %d is not being ptraced", tid );
        free( newctx );
        free( load_args );
        return ( PAPI_EINVAL );
    }
    /* If we get here, then we should hope that the process is being
       ptraced, if not, then we probably can't attach to it. */

    if ( ( ret == -1 ) && ( errno != EPERM ) ) {
        PAPIERROR( "Process/thread %d cannot be ptraced: %s", tid,
                   strerror( errno ) );
        free( newctx );
        free( load_args );
        return ( PAPI_EINVAL );
    }

    SUBDBG( "PFM_CREATE_CONTEXT(%p,%p,%p,%d)\n", newctx, NULL, NULL, 0 );
    if ( ( ret = pfm_create_context( newctx, NULL, NULL, 0 ) ) == -1 ) {
        PAPIERROR( "attach:pfm_create_context(): %s", strerror( errno ) );
        free( newctx );
        free( load_args );
        return ( PAPI_ESYS );
    }
    SUBDBG( "PFM_CREATE_CONTEXT returned fd %d\n", ret );
    tune_up_fd( ret );

    ( ( pfm_control_state_t * ) ctl )->ctx_fd = ret;
    ( ( pfm_control_state_t * ) ctl )->ctx = newctx;
    load_args->load_pid = tid;
    ( ( pfm_control_state_t * ) ctl )->load = load_args;

    return ( PAPI_OK );
}

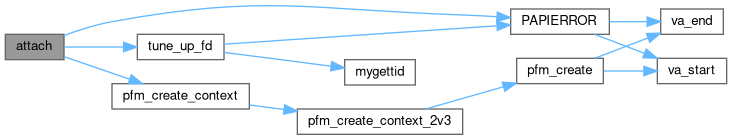

Here is the call graph for this function:

Here is the caller graph for this function:

check_multiplex_timeout()

static int check_multiplex_timeout ( int  ctx_fd, unsigned long *  timeout_ns  )

static

Definition at line 306 of file perfmon2/perfmon.c.

{
    int ret;
    pfarg_setdesc_t set[2];

    memset( set, 0, sizeof ( pfarg_setdesc_t ) * 2 );
    set[1].set_id = 1;
    set[1].set_flags = PFM_SETFL_TIME_SWITCH;
    set[1].set_timeout = *timeout_ns;
    SUBDBG( "Multiplexing interval requested is %llu ns.\n",
            ( unsigned long long ) set[1].set_timeout );

    /* Create a test eventset */

    SUBDBG( "PFM_CREATE_EVTSETS(%d,%p,1)\n", ctx_fd, &set[1] );
    if ( ( ret = pfm_create_evtsets( ctx_fd, &set[1], 1 ) ) != PFMLIB_SUCCESS ) {
        DEBUGCALL( DEBUG_SUBSTRATE, dump_sets( &set[1], 1 ) );
        PAPIERROR( "pfm_create_evtsets(%d,%p,%d): %s", ctx_fd, &set[1], 1,
                   strerror( ret ) );
        return ( PAPI_ESYS );
    }

    SUBDBG( "Multiplexing interval returned is %llu ns.\n",
            ( unsigned long long ) set[1].set_timeout );
    *timeout_ns = set[1].set_timeout;

    /* Delete the second eventset */

    pfm_delete_evtsets( ctx_fd, &set[1], 1 );

    return ( PAPI_OK );
}

Here is the call graph for this function:

Here is the caller graph for this function:

compute_kernel_args()

static int compute_kernel_args ( hwd_control_state_t *  ctl0 )

inlinestatic

Definition at line 400 of file perfmon2/perfmon.c.

{
    pfm_control_state_t *ctl = ( pfm_control_state_t * ) ctl0;
    pfmlib_input_param_t *inp = &ctl->in;
    pfmlib_output_param_t *outp = &ctl->out;
    pfmlib_input_param_t tmpin;
    pfmlib_output_param_t tmpout;
#if 0
    /* This will be used to fixup the overflow and sample args after re-allocation */
    pfarg_pmd_t oldpd;
#endif
    pfarg_pmd_t *pd = ctl->pd;
    pfarg_pmc_t *pc = ctl->pc;
    pfarg_setdesc_t *sets = ctl->set;
    pfarg_setinfo_t *setinfos = ctl->setinfo;
    int *num_sets = &ctl->num_sets;
    unsigned int set = 0;
    int donepc = 0, donepd = 0, ret, j;
    unsigned int i, dispatch_count = inp->pfp_event_count;
    int togo = inp->pfp_event_count, done = 0;

    /* Save old PD array so we can reconstruct certain flags.  */
        /* This can be removed when we have higher level code call */
        /* set_profile,set_overflow etc when there is hardware     */
        /* (component) support, but this change won't happen for PAPI 3.5 */

    SUBDBG
        ( "entry multiplexed %d, pfp_event_count %d, num_cntrs %d, num_sets %d\n",
          ctl->multiplexed, inp->pfp_event_count, _perfmon2_vector.cmp_info.num_cntrs,
          *num_sets );
    if ( ( ctl->multiplexed ) &&
         ( inp->pfp_event_count >
           ( unsigned int ) _perfmon2_vector.cmp_info.num_cntrs ) ) {
        dispatch_count = _perfmon2_vector.cmp_info.num_cntrs;
    }

    while ( togo ) {
      again:
        memset( &tmpin, 0x0, sizeof ( tmpin ) );
        memset( &tmpout, 0x0, sizeof ( tmpout ) );

        SUBDBG( "togo %d, done %d, dispatch_count %d, num_cntrs %d\n", togo,
                done, dispatch_count, _perfmon2_vector.cmp_info.num_cntrs );
        tmpin.pfp_event_count = dispatch_count;
        tmpin.pfp_dfl_plm = inp->pfp_dfl_plm;

        /* Make sure we tell dispatch that these PMC's are not available */
        memcpy( &tmpin.pfp_unavail_pmcs, &_perfmon2_pfm_unavailable_pmcs,
                sizeof ( _perfmon2_pfm_unavailable_pmcs ) );

        for ( i = 0, j = done; i < dispatch_count; i++, j++ ) {
            memcpy( tmpin.pfp_events + i, inp->pfp_events + j,
                    sizeof ( pfmlib_event_t ) );
        }

        if ( ( ret =
               pfm_dispatch_events( &tmpin, NULL, &tmpout,
                                    NULL ) ) != PFMLIB_SUCCESS ) {
            if ( ctl->multiplexed ) {
                dispatch_count--;
                if ( dispatch_count == 0 ) {
                    PAPIERROR( "pfm_dispatch_events(): %s",
                               pfm_strerror( ret ) );
                    return ( _papi_libpfm_error( ret ) );
                }
                SUBDBG
                    ( "Dispatch failed because of counter conflict, trying again with %d counters.\n",
                      dispatch_count );
                goto again;
            }
            PAPIERROR( "pfm_dispatch_events(): %s", pfm_strerror( ret ) );
            return ( _papi_libpfm_error( ret ) );
        }

        /*
         * Now prepare the argument to initialize the PMDs and PMCS.
         * We must pfp_pmc_count to determine the number of PMC to intialize.
         * We must use pfp_event_count to determine the number of PMD to initialize.
         * Some events causes extra PMCs to be used, so  pfp_pmc_count may be >= pfp_event_count.
         *
         * This step is new compared to libpfm-2.x. It is necessary because the library no
         * longer knows about the kernel data structures.
         */

        for ( i = 0; i < tmpout.pfp_pmc_count; i++, donepc++ ) {
            pc[donepc].reg_num = tmpout.pfp_pmcs[i].reg_num;
            pc[donepc].reg_value = tmpout.pfp_pmcs[i].reg_value;
            pc[donepc].reg_set = set;
            SUBDBG( "PC%d (i%d) is reg num %d, value %llx, set %d\n", donepc, i,
                    pc[donepc].reg_num,
                    ( unsigned long long ) pc[donepc].reg_value,
                    pc[donepc].reg_set );
        }

        /* figure out pmd mapping from output pmc */

#if defined(HAVE_PFM_REG_EVT_IDX)
        for ( i = 0, j = 0; i < tmpin.pfp_event_count; i++, donepd++ ) {
            pd[donepd].reg_num = tmpout.pfp_pmcs[j].reg_pmd_num;
            pd[donepd].reg_set = set;
            SUBDBG( "PD%d (i%d,j%d) is reg num %d, set %d\n", donepd, i, j,
                    pd[donepd].reg_num, pd[donepd].reg_set );

            /* Skip over entries that map to the same PMD,
               PIV has 2 PMCS for every PMD */

            for ( ; j < tmpout.pfp_pmc_count; j++ )
                if ( tmpout.pfp_pmcs[j].reg_evt_idx != i )
                    break;
        }
#else
        for ( i = 0; i < tmpout.pfp_pmd_count; i++, donepd++ ) {
            pd[donepd].reg_num = tmpout.pfp_pmds[i].reg_num;
            pd[donepd].reg_set = set;
            SUBDBG( "PD%d (i%d) is reg num %d, set %d\n", donepd, i,
                    pd[donepd].reg_num, pd[donepd].reg_set );
        }
#endif

        togo -= dispatch_count;
        done += dispatch_count;
        if ( togo > _perfmon2_vector.cmp_info.num_cntrs )
            dispatch_count = _perfmon2_vector.cmp_info.num_cntrs;
        else
            dispatch_count = togo;

        setinfos[set].set_id = set;
        sets[set].set_id = set;
        set++;
    }

    *num_sets = set;
    outp->pfp_pmc_count = donepc;

    if ( ctl->multiplexed && ( set > 1 ) ) {
        for ( i = 0; i < set; i++ ) {
            sets[i].set_flags = PFM_SETFL_TIME_SWITCH;
            sets[i].set_timeout = ctl->multiplexed;
        }
    }
    SUBDBG
        ( "exit multiplexed %d (ns switch time), pfp_pmc_count %d, num_sets %d\n",
          ctl->multiplexed, outp->pfp_pmc_count, *num_sets );
    return ( PAPI_OK );
}

Here is the call graph for this function:

Here is the caller graph for this function:

detach()

static int detach ( hwd_context_t *  ctx, hwd_control_state_t *  ctl  )

static

Definition at line 645 of file perfmon2/perfmon.c.

{
    int i;

    i = close( ( ( pfm_control_state_t * ) ctl )->ctx_fd );
    SUBDBG( "CLOSE fd %d returned %d\n",
            ( ( pfm_control_state_t * ) ctl )->ctx_fd, i );
    (void) i;

    /* Restore to main threads context */
    free( ( ( pfm_control_state_t * ) ctl )->ctx );
    ( ( pfm_control_state_t * ) ctl )->ctx = &( ( pfm_context_t * ) ctx )->ctx;
    ( ( pfm_control_state_t * ) ctl )->ctx_fd =
        ( ( pfm_context_t * ) ctx )->ctx_fd;
    free( ( ( pfm_control_state_t * ) ctl )->load );
    ( ( pfm_control_state_t * ) ctl )->load =
        &( ( pfm_context_t * ) ctx )->load;

    return ( PAPI_OK );
}

Here is the call graph for this function:

Here is the caller graph for this function:

detect_timeout_and_unavail_pmu_regs()

static int detect_timeout_and_unavail_pmu_regs ( pfmlib_regmask_t *  r_pmcs, pfmlib_regmask_t *  r_pmds, unsigned long *  timeout_ns  )

static

Definition at line 341 of file perfmon2/perfmon.c.

{
    pfarg_ctx_t ctx;
    pfarg_setinfo_t setf;
    unsigned int i;
    int ret, j, myfd;

    memset( r_pmcs, 0, sizeof ( *r_pmcs ) );
    memset( r_pmds, 0, sizeof ( *r_pmds ) );

    memset( &ctx, 0, sizeof ( ctx ) );
    memset( &setf, 0, sizeof ( setf ) );
    /*
     * if no context descriptor is passed, then create
     * a temporary context
     */
    SUBDBG( "PFM_CREATE_CONTEXT(%p,%p,%p,%d)\n", &ctx, NULL, NULL, 0 );
    myfd = pfm_create_context( &ctx, NULL, NULL, 0 );
    if ( myfd == -1 ) {
        PAPIERROR( "detect_unavail_pmu_regs:pfm_create_context(): %s",
                   strerror( errno ) );
        return ( PAPI_ESYS );
    }
    SUBDBG( "PFM_CREATE_CONTEXT returned fd %d\n", myfd );
    /*
     * retrieve available register bitmasks from set0
     * which is guaranteed to exist for every context
     */
    ret = pfm_getinfo_evtsets( myfd, &setf, 1 );
    if ( ret != PFMLIB_SUCCESS ) {
        PAPIERROR( "pfm_getinfo_evtsets(): %s", strerror( ret ) );
        return ( PAPI_ESYS );
    }
    DEBUGCALL( DEBUG_SUBSTRATE, dump_setinfo( &setf, 1 ) );
    if ( r_pmcs )
        for ( i = 0; i < PFM_PMC_BV; i++ ) {
            for ( j = 0; j < 64; j++ ) {
                if ( ( setf.set_avail_pmcs[i] & ( 1ULL << j ) ) == 0 )
                    pfm_regmask_set( r_pmcs, ( i << 6 ) + j );
            }
        }
    if ( r_pmds )
        for ( i = 0; i < PFM_PMD_BV; i++ ) {
            for ( j = 0; j < 64; j++ ) {
                if ( ( setf.set_avail_pmds[i] & ( 1ULL << j ) ) == 0 )
                    pfm_regmask_set( r_pmds, ( i << 6 ) + j );
            }
        }
    check_multiplex_timeout( myfd, timeout_ns );
    i = close( myfd );
    SUBDBG( "CLOSE fd %d returned %d\n", myfd, i );
    return PAPI_OK;
}

Here is the call graph for this function:

Here is the caller graph for this function:

dump_pmc()

static void dump_pmc ( pfm_control_state_t *  ctl )

static

Definition at line 108 of file perfmon2/perfmon.c.

{
    unsigned int i;
    pfarg_pmc_t *pc = ctl->pc;

    for ( i = 0; i < ctl->out.pfp_pmc_count; i++ ) {
        SUBDBG( "PC[%d]\n", i );
        SUBDBG( "PC[%d].reg_num = %d\n", i, pc[i].reg_num );
        SUBDBG( "PC[%d].reg_set = %d\n", i, pc[i].reg_set );
        SUBDBG( "PC[%d].reg_flags = %#08x\n", i, pc[i].reg_flags );
        SUBDBG( "PC[%d].reg_value = %#016llx\n", i,
                ( unsigned long long ) pc[i].reg_value );
    }
}

Here is the caller graph for this function:

dump_pmd()

static void dump_pmd ( pfm_control_state_t *  ctl )

static

Definition at line 124 of file perfmon2/perfmon.c.

{
    unsigned int i;
    pfarg_pmd_t *pd = ctl->pd;

    for ( i = 0; i < ctl->in.pfp_event_count; i++ ) {
        SUBDBG( "PD[%d]\n", i );
        SUBDBG( "PD[%d].reg_num = %d\n", i, pd[i].reg_num );
        SUBDBG( "PD[%d].reg_set = %d\n", i, pd[i].reg_set );
        SUBDBG( "PD[%d].reg_flags = %#08x\n", i, pd[i].reg_flags );
        SUBDBG( "PD[%d].reg_value = %#016llx\n", i,
                ( unsigned long long ) pd[i].reg_value );
        SUBDBG( "PD[%d].reg_long_reset = %llu\n", i,
                ( unsigned long long ) pd[i].reg_long_reset );
        SUBDBG( "PD[%d].reg_short_reset = %llu\n", i,
                ( unsigned long long ) pd[i].reg_short_reset );
        SUBDBG( "PD[%d].reg_last_reset_val = %llu\n", i,
                ( unsigned long long ) pd[i].reg_last_reset_val );
        SUBDBG( "PD[%d].reg_ovfl_switch_cnt = %llu\n", i,
                ( unsigned long long ) pd[i].reg_ovfl_switch_cnt );
        SUBDBG( "PD[%d].reg_reset_pmds[0] = %#016llx\n", i,
                ( unsigned long long ) pd[i].reg_reset_pmds[0] );
        SUBDBG( "PD[%d].reg_smpl_pmds[0] = %#016llx\n", i,
                ( unsigned long long ) pd[i].reg_smpl_pmds[0] );
        SUBDBG( "PD[%d].reg_smpl_eventid = %llu\n", i,
                ( unsigned long long ) pd[i].reg_smpl_eventid );
        SUBDBG( "PD[%d].reg_random_mask = %llu\n", i,
                ( unsigned long long ) pd[i].reg_random_mask );
        SUBDBG( "PD[%d].reg_random_seed = %d\n", i, pd[i].reg_random_seed );
    }
}

Here is the caller graph for this function:

dump_setinfo()

static void dump_setinfo ( pfarg_setinfo_t *  setinfo, int  num_sets  )

static

Definition at line 82 of file perfmon2/perfmon.c.

{
    int i;

    for ( i = 0; i < num_sets; i++ ) {
        SUBDBG( "SETINFO[%d]\n", i );
        SUBDBG( "SETINFO[%d].set_id = %d\n", i, setinfo[i].set_id );
        // SUBDBG("SETINFO[%d].set_id_next = %d\n",i,setinfo[i].set_id_next);
        SUBDBG( "SETINFO[%d].set_flags = %d\n", i, setinfo[i].set_flags );
        SUBDBG( "SETINFO[%d].set_ovfl_pmds[0] = %#016llx\n", i,
                ( unsigned long long ) setinfo[i].set_ovfl_pmds[0] );
        SUBDBG( "SETINFO[%d].set_runs = %llu\n", i,
                ( unsigned long long ) setinfo[i].set_runs );
        SUBDBG( "SETINFO[%d].set_timeout = %llu\n", i,
                ( unsigned long long ) setinfo[i].set_timeout );
        SUBDBG( "SETINFO[%d].set_act_duration = %llu\n", i,
                ( unsigned long long ) setinfo[i].set_act_duration );
        // SUBDBG("SETINFO[%d].set_mmap_offset = %#016llx\n",i,(unsigned long long)setinfo[i].set_mmap_offset);
        SUBDBG( "SETINFO[%d].set_avail_pmcs[0] = %#016llx\n", i,
                ( unsigned long long ) setinfo[i].set_avail_pmcs[0] );
        SUBDBG( "SETINFO[%d].set_avail_pmds[0] = %#016llx\n", i,
                ( unsigned long long ) setinfo[i].set_avail_pmds[0] );
    }
}

Here is the caller graph for this function:

dump_sets()

static void dump_sets ( pfarg_setdesc_t *  set, int  num_sets  )

static

Definition at line 66 of file perfmon2/perfmon.c.

{
    int i;

    for ( i = 0; i < num_sets; i++ ) {
        SUBDBG( "SET[%d]\n", i );
        SUBDBG( "SET[%d].set_id = %d\n", i, set[i].set_id );
        // SUBDBG("SET[%d].set_id_next = %d\n",i,set[i].set_id_next);
        SUBDBG( "SET[%d].set_flags = %d\n", i, set[i].set_flags );
        SUBDBG( "SET[%d].set_timeout = %llu\n", i,
                ( unsigned long long ) set[i].set_timeout );
        //  SUBDBG("SET[%d].set_mmap_offset = %#016llx\n",i,(unsigned long long)set[i].set_mmap_offset);
    }
}

Here is the caller graph for this function:

dump_smpl()

static void dump_smpl ( pfm_dfl_smpl_entry_t *  entry )

static

Definition at line 174 of file perfmon2/perfmon.c.

{
    SUBDBG( "SMPL.pid = %d\n", entry->pid );
    SUBDBG( "SMPL.ovfl_pmd = %d\n", entry->ovfl_pmd );
    SUBDBG( "SMPL.last_reset_val = %llu\n",
            ( unsigned long long ) entry->last_reset_val );
    SUBDBG( "SMPL.ip = %#llx\n", ( unsigned long long ) entry->ip );
    SUBDBG( "SMPL.tstamp = %llu\n", ( unsigned long long ) entry->tstamp );
    SUBDBG( "SMPL.cpu = %d\n", entry->cpu );
    SUBDBG( "SMPL.set = %d\n", entry->set );
    SUBDBG( "SMPL.tgid = %d\n", entry->tgid );
}

Here is the caller graph for this function:

dump_smpl_arg()

static void dump_smpl_arg ( pfm_dfl_smpl_arg_t *  arg )

static

Definition at line 58 of file perfmon2/perfmon.c.

{
    SUBDBG( "SMPL_ARG.buf_size = %llu\n",
            ( unsigned long long ) arg->buf_size );
    SUBDBG( "SMPL_ARG.buf_flags = %d\n", arg->buf_flags );
}

Here is the caller graph for this function:

dump_smpl_hdr()

static void dump_smpl_hdr ( pfm_dfl_smpl_hdr_t *  hdr )

static

Definition at line 157 of file perfmon2/perfmon.c.

{
    SUBDBG( "SMPL_HDR.hdr_count = %llu\n",
            ( unsigned long long ) hdr->hdr_count );
    SUBDBG( "SMPL_HDR.hdr_cur_offs = %llu\n",
            ( unsigned long long ) hdr->hdr_cur_offs );
    SUBDBG( "SMPL_HDR.hdr_overflows = %llu\n",
            ( unsigned long long ) hdr->hdr_overflows );
    SUBDBG( "SMPL_HDR.hdr_buf_size = %llu\n",
            ( unsigned long long ) hdr->hdr_buf_size );
    SUBDBG( "SMPL_HDR.hdr_min_buf_space = %llu\n",
            ( unsigned long long ) hdr->hdr_min_buf_space );
    SUBDBG( "SMPL_HDR.hdr_version = %d\n", hdr->hdr_version );
    SUBDBG( "SMPL_HDR.hdr_buf_flags = %d\n", hdr->hdr_buf_flags );
}

Here is the caller graph for this function:

find_profile_index()

static int find_profile_index ( EventSetInfo_t *  ESI, int  pmd, int *  flags, unsigned int *  native_index, int *  profile_index  )

inlinestatic

Definition at line 1312 of file perfmon2/perfmon.c.

{
    int pos, esi_index, count;
    pfm_control_state_t *ctl = ( pfm_control_state_t * ) ESI->ctl_state;
    pfarg_pmd_t *pd;
    unsigned int i;

    pd = ctl->pd;

    /* Find virtual PMD index, the one we actually read from the physical PMD number that
       overflowed. This index is the one related to the profile buffer. */

    for ( i = 0; i < ctl->in.pfp_event_count; i++ ) {
        if ( pd[i].reg_num == pmd ) {
            SUBDBG( "Physical PMD %d is Virtual PMD %d\n", pmd, i );
            pmd = i;
            break;
        }
    }


    SUBDBG( "(%p,%d,%p)\n", ESI, pmd, index );

    for ( count = 0; count < ESI->profile.event_counter; count++ ) {
        /* Find offset of PMD that gets read from the kernel */
        esi_index = ESI->profile.EventIndex[count];
        pos = ESI->EventInfoArray[esi_index].pos[0];
        SUBDBG( "Examining event at ESI index %d, PMD position %d\n", esi_index,
                pos );
        // PMU_FIRST_COUNTER
        if ( pos == pmd ) {
            *profile_index = count;
            *native_index =
                ESI->NativeInfoArray[pos].ni_event & PAPI_NATIVE_AND_MASK;
            *flags = ESI->profile.flags;
            SUBDBG( "Native event %d is at profile index %d, flags %d\n",
                    *native_index, *profile_index, *flags );
            return ( PAPI_OK );
        }
    }

    PAPIERROR( "wrong count: %d vs. ESI->profile.event_counter %d", count,
               ESI->profile.event_counter );
    return ( PAPI_EBUG );
}

Here is the call graph for this function:

Here is the caller graph for this function:

get_string_from_file()

static int get_string_from_file ( char *  file, char *  str, int  len  )

static

Definition at line 731 of file perfmon2/perfmon.c.

{
    FILE *f = fopen( file, "r" );
    char buf[PAPI_HUGE_STR_LEN];
    if ( f == NULL ) {
        PAPIERROR( "fopen(%s): %s", file, strerror( errno ) );
        return ( PAPI_ESYS );
    }
    if ( fscanf( f, "%s\n", buf ) != 1 ) {
        PAPIERROR( "fscanf(%s, %%s\\n): Unable to scan 1 token", file );
        fclose( f );
        return PAPI_ESYS;
    }
    strncpy( str, buf, ( len > PAPI_HUGE_STR_LEN ? PAPI_HUGE_STR_LEN : len ) );
    fclose( f );
    return ( PAPI_OK );
}

Here is the call graph for this function:

Here is the caller graph for this function:

pfm_bv_set()

static void pfm_bv_set ( uint64_t *  bv, uint16_t  rnum  )

inlinestatic

Definition at line 1401 of file perfmon2/perfmon.c.

{
    bv[rnum >> LBPL] |= 1UL << ( rnum & ( BPL - 1 ) );
}

Here is the caller graph for this function:

process_smpl_buf()

static int process_smpl_buf ( int  num_smpl_pmds, int  entry_size, ThreadInfo_t **  thr  )

inlinestatic

Definition at line 1690 of file perfmon2/perfmon.c.

{
    ( void ) num_smpl_pmds;  /*unused */
    ( void ) entry_size;     /*unused */
    int cidx = _perfmon2_vector.cmp_info.CmpIdx;
    pfm_dfl_smpl_entry_t *ent;
    uint64_t entry, count;
    pfm_dfl_smpl_hdr_t *hdr =
        ( ( pfm_context_t * ) ( *thr )->context[cidx] )->smpl_buf;
    int ret, profile_index, flags;
    unsigned int native_pfm_index;
    vptr_t pc = NULL;
    long long weight;

    DEBUGCALL( DEBUG_SUBSTRATE, dump_smpl_hdr( hdr ) );
    count = hdr->hdr_count;
    ent = ( pfm_dfl_smpl_entry_t * ) ( hdr + 1 );
    entry = 0;

    SUBDBG( "This buffer has %llu samples in it.\n",
            ( unsigned long long ) count );
    while ( count-- ) {
        SUBDBG( "Processing sample entry %llu\n",
                ( unsigned long long ) entry );
        DEBUGCALL( DEBUG_SUBSTRATE, dump_smpl( ent ) );

        /* Find the index of the profile buffers if we are profiling on many events */

        ret =
            find_profile_index( ( *thr )->running_eventset[cidx], ent->ovfl_pmd,
                                &flags, &native_pfm_index, &profile_index );
        if ( ret != PAPI_OK )
            return ( ret );

        weight = process_smpl_entry( native_pfm_index, flags, &ent, &pc );

        _papi_hwi_dispatch_profile( ( *thr )->running_eventset[cidx], pc,
                                    weight, profile_index );

        entry++;
    }
    return ( PAPI_OK );
}

Here is the call graph for this function:

Here is the caller graph for this function:

process_smpl_entry()

static int process_smpl_entry ( unsigned int  native_pfm_index, int  flags, pfm_dfl_smpl_entry_t **  ent, vptr_t *  pc  )

inlinestatic

Definition at line 1448 of file perfmon2/perfmon.c.

{
#ifndef __ia64__
    ( void ) native_pfm_index;  /*unused */
    ( void ) flags;          /*unused */
#endif
    SUBDBG( "process_smpl_entry(%d,%d,%p,%p)\n", native_pfm_index, flags, ent,
            pc );

#ifdef __ia64__
    /* Fixup EAR stuff here */
    if ( is_montecito_and_dear( native_pfm_index ) ) {
        pfm_mont_pmd_reg_t data_addr;
        pfm_mont_pmd_reg_t latency;
        pfm_mont_pmd_reg_t load_addr;
        unsigned long newent;

        if ( ( flags & ( PAPI_PROFIL_DATA_EAR | PAPI_PROFIL_INST_EAR ) ) == 0 )
            goto safety;

        /* Skip the header */
        ++( *ent );

        // PMD32 has data address on Montecito
        // PMD33 has latency on Montecito
        // PMD36 has instruction address on Montecito
        data_addr = *( pfm_mont_pmd_reg_t * ) * ent;
        latency =
            *( pfm_mont_pmd_reg_t * ) ( ( unsigned long ) *ent +
                                        sizeof ( data_addr ) );
        load_addr =
            *( pfm_mont_pmd_reg_t * ) ( ( unsigned long ) *ent +
                                        sizeof ( data_addr ) +
                                        sizeof ( latency ) );

        SUBDBG( "PMD[32]: %#016llx\n",
                ( unsigned long long ) data_addr.pmd_val );
        SUBDBG( "PMD[33]: %#016llx\n",
                ( unsigned long long ) latency.pmd_val );
        SUBDBG( "PMD[36]: %#016llx\n",
                ( unsigned long long ) load_addr.pmd_val );

        if ( ( !load_addr.pmd36_mont_reg.dear_vl ) ||
             ( !load_addr.pmd33_mont_reg.dear_stat ) ) {
            SUBDBG
                ( "Invalid DEAR sample found, dear_vl = %d, dear_stat = %#x\n",
                  load_addr.pmd36_mont_reg.dear_vl,
                  load_addr.pmd33_mont_reg.dear_stat );
          bail1:
            newent = ( unsigned long ) *ent;
            newent += 3 * sizeof ( pfm_mont_pmd_reg_t );
            *ent = ( pfm_dfl_smpl_entry_t * ) newent;
            return 0;
        }

        if ( flags & PAPI_PROFIL_DATA_EAR )
            *pc = ( vptr_t ) data_addr.pmd_val;
        else if ( flags & PAPI_PROFIL_INST_EAR ) {
            unsigned long tmp =
                ( ( load_addr.pmd36_mont_reg.dear_iaddr +
                    ( unsigned long ) load_addr.pmd36_mont_reg.
                    dear_bn ) << 4 ) | ( unsigned long ) load_addr.
                pmd36_mont_reg.dear_slot;
            *pc = ( vptr_t ) tmp;
        } else {
            PAPIERROR( "BUG!" );
            goto bail1;
        }

        newent = ( unsigned long ) *ent;
        newent += 3 * sizeof ( pfm_mont_pmd_reg_t );
        *ent = ( pfm_dfl_smpl_entry_t * ) newent;
        return 0;
    } else if ( is_montecito_and_iear( native_pfm_index ) ) {
        pfm_mont_pmd_reg_t latency;
        pfm_mont_pmd_reg_t icache_line_addr;
        unsigned long newent;

        if ( ( flags & PAPI_PROFIL_INST_EAR ) == 0 )
            goto safety;

        /* Skip the header */
        ++( *ent );

        // PMD34 has data address on Montecito
        // PMD35 has latency on Montecito
        icache_line_addr = *( pfm_mont_pmd_reg_t * ) * ent;
        latency =
            *( pfm_mont_pmd_reg_t * ) ( ( unsigned long ) *ent +
                                        sizeof ( icache_line_addr ) );

        SUBDBG( "PMD[34]: %#016llx\n",
                ( unsigned long long ) icache_line_addr.pmd_val );
        SUBDBG( "PMD[35]: %#016llx\n",
                ( unsigned long long ) latency.pmd_val );

        if ( ( icache_line_addr.pmd34_mont_reg.iear_stat & 0x1 ) == 0 ) {
            SUBDBG( "Invalid IEAR sample found, iear_stat = %#x\n",
                    icache_line_addr.pmd34_mont_reg.iear_stat );
          bail2:
            newent = ( unsigned long ) *ent;
            newent += 2 * sizeof ( pfm_mont_pmd_reg_t );
            *ent = ( pfm_dfl_smpl_entry_t * ) newent;
            return ( 0 );
        }

        if ( flags & PAPI_PROFIL_INST_EAR ) {
            unsigned long tmp = icache_line_addr.pmd34_mont_reg.iear_iaddr << 5;
            *pc = ( vptr_t ) tmp;
        } else {
            PAPIERROR( "BUG!" );
            goto bail2;
        }

        newent = ( unsigned long ) *ent;
        newent += 2 * sizeof ( pfm_mont_pmd_reg_t );
        *ent = ( pfm_dfl_smpl_entry_t * ) newent;
        return 0;
    } else if ( is_itanium2_and_dear( native_pfm_index ) ) {
        pfm_ita2_pmd_reg_t data_addr;
        pfm_ita2_pmd_reg_t latency;
        pfm_ita2_pmd_reg_t load_addr;
        unsigned long newent;

        if ( ( flags & ( PAPI_PROFIL_DATA_EAR | PAPI_PROFIL_INST_EAR ) ) == 0 )
            goto safety;

        /* Skip the header */
        ++( *ent );

        // PMD2 has data address on Itanium 2
        // PMD3 has latency on Itanium 2
        // PMD17 has instruction address on Itanium 2
        data_addr = *( pfm_ita2_pmd_reg_t * ) * ent;
        latency =
            *( pfm_ita2_pmd_reg_t * ) ( ( unsigned long ) *ent +
                                        sizeof ( data_addr ) );
        load_addr =
            *( pfm_ita2_pmd_reg_t * ) ( ( unsigned long ) *ent +
                                        sizeof ( data_addr ) +
                                        sizeof ( latency ) );

        SUBDBG( "PMD[2]: %#016llx\n",
                ( unsigned long long ) data_addr.pmd_val );
        SUBDBG( "PMD[3]: %#016llx\n", ( unsigned long long ) latency.pmd_val );
        SUBDBG( "PMD[17]: %#016llx\n",
                ( unsigned long long ) load_addr.pmd_val );

        if ( ( !load_addr.pmd17_ita2_reg.dear_vl ) ||
             ( !load_addr.pmd3_ita2_reg.dear_stat ) ) {
            SUBDBG
                ( "Invalid DEAR sample found, dear_vl = %d, dear_stat = %#x\n",
                  load_addr.pmd17_ita2_reg.dear_vl,
                  load_addr.pmd3_ita2_reg.dear_stat );
          bail3:
            newent = ( unsigned long ) *ent;
            newent += 3 * sizeof ( pfm_mont_pmd_reg_t );
            *ent = ( pfm_dfl_smpl_entry_t * ) newent;
            return 0;
        }

        if ( flags & PAPI_PROFIL_DATA_EAR )
            *pc = ( vptr_t ) data_addr.pmd_val;
        else if ( flags & PAPI_PROFIL_INST_EAR ) {
            unsigned long tmp =
                ( ( load_addr.pmd17_ita2_reg.dear_iaddr +
                    ( unsigned long ) load_addr.pmd17_ita2_reg.
                    dear_bn ) << 4 ) | ( unsigned long ) load_addr.
                pmd17_ita2_reg.dear_slot;
            *pc = ( vptr_t ) tmp;
        } else {
            PAPIERROR( "BUG!" );
            goto bail3;
        }

        newent = ( unsigned long ) *ent;
        newent += 3 * sizeof ( pfm_ita2_pmd_reg_t );
        *ent = ( pfm_dfl_smpl_entry_t * ) newent;
        return 0;
    } else if ( is_itanium2_and_iear( native_pfm_index ) ) {
        pfm_ita2_pmd_reg_t latency;
        pfm_ita2_pmd_reg_t icache_line_addr;
        unsigned long newent;

        if ( ( flags & PAPI_PROFIL_INST_EAR ) == 0 )
            goto safety;

        /* Skip the header */
        ++( *ent );

        // PMD0 has address on Itanium 2
        // PMD1 has latency on Itanium 2
        icache_line_addr = *( pfm_ita2_pmd_reg_t * ) * ent;
        latency =
            *( pfm_ita2_pmd_reg_t * ) ( ( unsigned long ) *ent +
                                        sizeof ( icache_line_addr ) );

        SUBDBG( "PMD[0]: %#016llx\n",
                ( unsigned long long ) icache_line_addr.pmd_val );
        SUBDBG( "PMD[1]: %#016llx\n", ( unsigned long long ) latency.pmd_val );

        if ( ( icache_line_addr.pmd0_ita2_reg.iear_stat & 0x1 ) == 0 ) {
            SUBDBG( "Invalid IEAR sample found, iear_stat = %#x\n",
                    icache_line_addr.pmd0_ita2_reg.iear_stat );
          bail4:
            newent = ( unsigned long ) *ent;
            newent += 2 * sizeof ( pfm_mont_pmd_reg_t );
            *ent = ( pfm_dfl_smpl_entry_t * ) newent;
            return ( 0 );
        }

        if ( flags & PAPI_PROFIL_INST_EAR ) {
            unsigned long tmp = icache_line_addr.pmd0_ita2_reg.iear_iaddr << 5;
            *pc = ( vptr_t ) tmp;
        } else {
            PAPIERROR( "BUG!" );
            goto bail4;
        }

        newent = ( unsigned long ) *ent;
        newent += 2 * sizeof ( pfm_ita2_pmd_reg_t );
        *ent = ( pfm_dfl_smpl_entry_t * ) newent;
        return 0;
    }
#if 0
    ( is_btb( native_pfm_index ) ) {
        // PMD48-63,39 on Montecito
        // PMD8-15,16 on Itanium 2
    }
#endif
    else
  safety:
#endif
    {
        *pc = ( vptr_t ) ( ( size_t ) ( ( *ent )->ip ) );
        ++( *ent );
        return ( 0 );
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

round_requested_ns()

static int round_requested_ns ( int  ns )

inlinestatic

Definition at line 1188 of file perfmon2/perfmon.c.

{
    if ( ns <= _papi_os_info.itimer_res_ns ) {
        return _papi_os_info.itimer_res_ns;
    } else {
        int leftover_ns = ns % _papi_os_info.itimer_res_ns;
        return ( ns - leftover_ns + _papi_os_info.itimer_res_ns );
    }
}

Here is the caller graph for this function:

set_domain()

static int set_domain ( hwd_control_state_t *  ctl0, int  domain  )

inlinestatic

Definition at line 667 of file perfmon2/perfmon.c.

{
    pfm_control_state_t *ctl = ( pfm_control_state_t * ) ctl0;
    int mode = 0, did = 0;
    pfmlib_input_param_t *inp = &ctl->in;

    if ( domain & PAPI_DOM_USER ) {
        did = 1;
        mode |= PFM_PLM3;
    }

    if ( domain & PAPI_DOM_KERNEL ) {
        did = 1;
        mode |= PFM_PLM0;
    }

    if ( domain & PAPI_DOM_SUPERVISOR ) {
        did = 1;
        mode |= PFM_PLM1;
    }

    if ( domain & PAPI_DOM_OTHER ) {
        did = 1;
        mode |= PFM_PLM2;
    }

    if ( !did )
        return ( PAPI_EINVAL );

    inp->pfp_dfl_plm = mode;

    return ( compute_kernel_args( ctl ) );
}

Here is the call graph for this function:

Here is the caller graph for this function:

set_granularity()

static int set_granularity ( hwd_control_state_t *  this_state, int  domain  )

inlinestatic

Definition at line 702 of file perfmon2/perfmon.c.

{
    ( void ) this_state;     /*unused */
    switch ( domain ) {
    case PAPI_GRN_PROCG:
    case PAPI_GRN_SYS:
    case PAPI_GRN_SYS_CPU:
    case PAPI_GRN_PROC:
        return PAPI_ECMP;
    case PAPI_GRN_THR:
        break;
    default:
        return PAPI_EINVAL;
    }
    return PAPI_OK;
}

Here is the caller graph for this function:

set_inherit()

static int set_inherit ( int  arg )

inlinestatic

Definition at line 724 of file perfmon2/perfmon.c.

{
    ( void ) arg;            /*unused */
    return PAPI_ECMP;
}

Here is the caller graph for this function:

setup_ear_event()

static int setup_ear_event ( unsigned int  native_index, pfarg_pmd_t *  pd, int  flags  )

inlinestatic

Definition at line 1407 of file perfmon2/perfmon.c.

{
    ( void ) flags;          /*unused */
#if defined(__ia64__)
    if ( _perfmon2_pfm_pmu_type == PFMLIB_MONTECITO_PMU ) {
        if ( pfm_mont_is_dear( native_index ) ) {   /* 2,3,17 */
            pfm_bv_set( pd[0].reg_smpl_pmds, 32 );
            pfm_bv_set( pd[0].reg_smpl_pmds, 33 );
            pfm_bv_set( pd[0].reg_smpl_pmds, 36 );
            pfm_bv_set( pd[0].reg_reset_pmds, 36 );
            return ( 1 );
        } else if ( pfm_mont_is_iear( native_index ) ) {    /* O,1 MK */
            pfm_bv_set( pd[0].reg_smpl_pmds, 34 );
            pfm_bv_set( pd[0].reg_smpl_pmds, 35 );
            pfm_bv_set( pd[0].reg_reset_pmds, 34 );
            return ( 1 );
        }
        return ( 0 );
    } else if ( _perfmon2_pfm_pmu_type == PFMLIB_ITANIUM2_PMU ) {
        if ( pfm_mont_is_dear( native_index ) ) {   /* 2,3,17 */
            pfm_bv_set( pd[0].reg_smpl_pmds, 2 );
            pfm_bv_set( pd[0].reg_smpl_pmds, 3 );
            pfm_bv_set( pd[0].reg_smpl_pmds, 17 );
            pfm_bv_set( pd[0].reg_reset_pmds, 17 );
            return ( 1 );
        } else if ( pfm_mont_is_iear( native_index ) ) {    /* O,1 MK */
            pfm_bv_set( pd[0].reg_smpl_pmds, 0 );
            pfm_bv_set( pd[0].reg_smpl_pmds, 1 );
            pfm_bv_set( pd[0].reg_reset_pmds, 0 );
            return ( 1 );
        }
        return ( 0 );
    }
#else
    ( void ) native_index;   /*unused */
    ( void ) pd;             /*unused */
#endif
    return ( 0 );
}

Here is the call graph for this function:

Here is the caller graph for this function:

tune_up_fd()

int tune_up_fd

(

int

ctx_fd

)

Definition at line 547 of file perfmon2/perfmon.c.

{
    int ret;

    /* set close-on-exec to ensure we will be getting the PFM_END_MSG, i.e.,
     * fd not visible to child. */
    ret = fcntl( ctx_fd, F_SETFD, FD_CLOEXEC );
    if ( ret == -1 ) {
        PAPIERROR( "cannot fcntl(FD_CLOEXEC) on %d: %s", ctx_fd,
                   strerror( errno ) );
        return ( PAPI_ESYS );
    }
    /* setup asynchronous notification on the file descriptor */
    ret = fcntl( ctx_fd, F_SETFL, fcntl( ctx_fd, F_GETFL, 0 ) | O_ASYNC );
    if ( ret == -1 ) {
        PAPIERROR( "cannot fcntl(O_ASYNC) on %d: %s", ctx_fd,
                   strerror( errno ) );
        return ( PAPI_ESYS );
    }
    /* get ownership of the descriptor */
    ret = fcntl( ctx_fd, F_SETOWN, mygettid(  ) );
    if ( ret == -1 ) {
        PAPIERROR( "cannot fcntl(F_SETOWN) on %d: %s", ctx_fd,
                   strerror( errno ) );
        return ( PAPI_ESYS );
    }
    /*
     * when you explicitely declare that you want a particular signal,
     * even with you use the default signal, the kernel will send more
     * information concerning the event to the signal handler.
     *
     * In particular, it will send the file descriptor from which the
     * event is originating which can be quite useful when monitoring
     * multiple tasks from a single thread.
     */
    ret = fcntl( ctx_fd, F_SETSIG, _perfmon2_vector.cmp_info.hardware_intr_sig );
    if ( ret == -1 ) {
        PAPIERROR( "cannot fcntl(F_SETSIG,%d) on %d: %s",
                   _perfmon2_vector.cmp_info.hardware_intr_sig, ctx_fd,
                   strerror( errno ) );
        return ( PAPI_ESYS );
    }
    return ( PAPI_OK );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

_perfmon2_pfm_pmu_type

int _perfmon2_pfm_pmu_type = -1

static

Definition at line 50 of file perfmon2/perfmon.c.

_perfmon2_pfm_unavailable_pmcs

pfmlib_regmask_t _perfmon2_pfm_unavailable_pmcs

static

Definition at line 51 of file perfmon2/perfmon.c.

_perfmon2_pfm_unavailable_pmds

pfmlib_regmask_t _perfmon2_pfm_unavailable_pmds

static

Definition at line 52 of file perfmon2/perfmon.c.

_perfmon2_vector

papi_vector_t _perfmon2_vector

Definition at line 45 of file perfmon2/perfmon.c.
