pe_libpfm4_events.c File Reference

Include dependency graph for pe_libpfm4_events.c:

Go to the source code of this file.

Macros
#define	NATIVE_EVENT_CHUNK   1024

Functions
static int	find_existing_event (const char *name, struct native_event_table_t *event_table)
static int	pmu_is_present_and_right_type (pfm_pmu_info_t *pinfo, int type)
static struct native_event_t *	allocate_native_event (const char *name, int libpfm4_index, int cidx, struct native_event_table_t *event_table)
static int	get_first_event_next_pmu (int pmu_idx, int pmu_type)
int	_pe_libpfm4_ntv_name_to_code (const char *name, unsigned int *event_code, int cidx, struct native_event_table_t *event_table)
int	_pe_libpfm4_ntv_code_to_name (unsigned int EventCode, char *ntv_name, int len, struct native_event_table_t *event_table)
int	_pe_libpfm4_ntv_code_to_descr (unsigned int EventCode, char *ntv_descr, int len, struct native_event_table_t *event_table)
int	_pe_libpfm4_ntv_code_to_info (unsigned int EventCode, PAPI_event_info_t *info, struct native_event_table_t *event_table)
int	_pe_libpfm4_ntv_enum_events (unsigned int *PapiEventCode, int modifier, int cidx, struct native_event_table_t *event_table)
int	_pe_libpfm4_shutdown (papi_vector_t *my_vector, struct native_event_table_t *event_table)
int	_pe_libpfm4_init (papi_vector_t *component, int cidx, struct native_event_table_t *event_table, int pmu_type)
int	_peu_libpfm4_init (papi_vector_t *my_vector, int cidx, struct native_event_table_t *event_table, int pmu_type)

Variables
static int	attr_idx
static int	amd64_fam17h_zen1_present = 0

Macro Definition Documentation

NATIVE_EVENT_CHUNK

#define NATIVE_EVENT_CHUNK   1024

Definition at line 29 of file pe_libpfm4_events.c.

Function Documentation

_pe_libpfm4_init()

int _pe_libpfm4_init	(	papi_vector_t *	component,
		int	cidx,
		struct native_event_table_t *	event_table,
		int	pmu_type
	)

Definition at line 1146 of file pe_libpfm4_events.c.

                         {

    int detected_pmus=0, found_default=0;
    int i;
    int j=0;
    unsigned int ncnt;

    pfm_err_t retval = PFM_SUCCESS;
    pfm_pmu_info_t pinfo;
    unsigned int strSize;

    /* allocate the native event structure */
    event_table->num_native_events=0;
    event_table->pmu_type=pmu_type;

    event_table->native_events=calloc(NATIVE_EVENT_CHUNK,
                    sizeof(struct native_event_t));
    if (event_table->native_events==NULL) {
        return PAPI_ENOMEM;
    }

    event_table->allocated_native_events=NATIVE_EVENT_CHUNK;

    /* Count number of present PMUs */
    detected_pmus=0;
    ncnt=0;

    /* init default pmu */
    /* need to init pinfo or pfmlib might complain */
    memset(&(event_table->default_pmu), 0, sizeof(pfm_pmu_info_t));
    event_table->default_pmu.size = sizeof(pfm_pmu_info_t);
    retval=pfm_get_pmu_info(0, &(event_table->default_pmu));

    SUBDBG("Prescan for aliases.\n");
    /* We have to see if we have aliases in there as separate PMUs, */
    /* we don't want both PMUs with all the events duplicated.      */
    /* For aliases, either is valid alone, but if both are present  */
    /* specify a preference in the code.                            */
    /* Alias: amd64_fam17h_zen1 over amd64_fam17h.                  */
    /* Alias flags are static ints global to this file.             */
    i=0;
    while(1) {
        memset(&pinfo,0,sizeof(pfm_pmu_info_t));
        pinfo.size = sizeof(pfm_pmu_info_t);
        retval=pfm_get_pmu_info(i, &pinfo);

        /* We're done if we hit an invalid PMU entry            */
        /* We can't check against PFM_PMU_MAX as that might not */
        /* match if libpfm4 is dynamically linked               */

        if (retval==PFM_ERR_INVAL) {
            break;
        }

        if ( (retval==PFM_SUCCESS) && (pinfo.name != NULL) &&
            (pmu_is_present_and_right_type(&pinfo,pmu_type)) &&
            (strcmp(pinfo.name,"amd64_fam17h_zen1") == 0) ) {
            amd64_fam17h_zen1_present = 1;
        }
        i++;
    }

    SUBDBG("Detected pmus:\n");
    i=0;
    while(1) {
        memset(&pinfo,0,sizeof(pfm_pmu_info_t));
        pinfo.size = sizeof(pfm_pmu_info_t);
        retval=pfm_get_pmu_info(i, &pinfo);

        /* We're done if we hit an invalid PMU entry        */
        /* We can't check against PFM_PMU_MAX as that might not */
        /* match if libpfm4 is dynamically linked       */

        if (retval==PFM_ERR_INVAL) {
            break;
        }

        if ((retval==PFM_SUCCESS) && (pinfo.name != NULL) &&
            (pmu_is_present_and_right_type(&pinfo,pmu_type))) {

            /* skip if it is amd64_fam17h and zen1 is also present. */
            if (strcmp(pinfo.name,"amd64_fam17h") == 0 && amd64_fam17h_zen1_present) {
                i++;
                continue;
            }

            SUBDBG("\t%d %s %s %d\n",i,
                pinfo.name,pinfo.desc,pinfo.type);

            detected_pmus++;
            ncnt+=pinfo.nevents;

            if (j < PAPI_PMU_MAX) {
                component->cmp_info.pmu_names[j++] =
                            strdup(pinfo.name);
            }

            if (pmu_type & PMU_TYPE_CORE) {

                /* Hack to have "default core" PMU */
                if ( (pinfo.type==PFM_PMU_TYPE_CORE) &&
                    strcmp(pinfo.name,"ix86arch")) {
                        memcpy(&(event_table->default_pmu),
                            &pinfo,sizeof(pfm_pmu_info_t));
                        found_default++;
                }

                /* For ARM processors, */
                if ( (pinfo.type==PFM_PMU_TYPE_CORE) &&
                    ( _papi_hwi_system_info.hw_info.vendor >= PAPI_VENDOR_ARM_ARM)) {
                    if (strlen(_papi_hwi_system_info.hw_info.model_string) == 0) {
                        strSize = sizeof(_papi_hwi_system_info.hw_info.model_string);
                        strncpy( _papi_hwi_system_info.hw_info.model_string, pinfo.desc, strSize - 1);
                    }
                }
            }

            if (pmu_type==PMU_TYPE_UNCORE) {
                /* To avoid confusion, no "default" CPU for uncore */
                found_default=1;
            }
        }
        i++;
    }
    SUBDBG("%d native events detected on %d pmus\n",ncnt,detected_pmus);

    if (detected_pmus==0) {
        SUBDBG("Could not find any PMUs\n");
        return PAPI_ENOSUPP;
    }

    if (!found_default) {
        return PAPI_ECMP;
    }

    if (found_default>1) {
        return PAPI_ECOUNT;
    }

    component->cmp_info.num_native_events = ncnt;

    component->cmp_info.num_cntrs = event_table->default_pmu.num_cntrs+
                event_table->default_pmu.num_fixed_cntrs;

    SUBDBG( "num_counters: %d\n", component->cmp_info.num_cntrs );

    /* Setup presets, only if Component 0 and default core PMU */
    if ((cidx==0) && (found_default)) {
        retval = _papi_load_preset_table( (char *)event_table->default_pmu.name,
                event_table->default_pmu.pmu, cidx );
        if ( retval!=PAPI_OK ) {
            return PAPI_ENOEVNT;
        }
    }

    return PAPI_OK;
}

Here is the call graph for this function:

_pe_libpfm4_ntv_code_to_descr()

int _pe_libpfm4_ntv_code_to_descr	(	unsigned int	EventCode,
		char *	ntv_descr,
		int	len,
		struct native_event_table_t *	event_table
	)

Definition at line 725 of file pe_libpfm4_events.c.

{
    SUBDBG("ENTER: EventCode: %#x, ntv_descr: %p, len: %d: event_table: %p\n", EventCode, ntv_descr, len, event_table);

    int eidx;
    int papi_event_code;
    char *mdesc;
    char *edesc;

    // get the attribute index for this papi event
    papi_event_code = _papi_hwi_get_papi_event_code();

    // a papi event code less than 0 is invalid, return error
    if (papi_event_code <= 0) {
        SUBDBG("EXIT: PAPI_ENOEVNT\n");
        return PAPI_ENOEVNT;
    }

    // find our native event table for this papi event code (search list backwards because it improves chances of finding it quickly)
    for (eidx=event_table->num_native_events-1 ; eidx>=0 ; eidx--) {
        SUBDBG("native_event[%d]: papi_event_code: %#x, libpfm4_idx: %#x\n", eidx, event_table->native_events[eidx].papi_event_code, event_table->native_events[eidx].libpfm4_idx);
        if ((papi_event_code == event_table->native_events[eidx].papi_event_code) && (EventCode == ((unsigned)event_table->native_events[eidx].libpfm4_idx))) {
            break;
        }
    }

    // if we did not find a match, return an error
    if (eidx < 0) {
        // If we did not find a match in our native event table, then the code passed in has not been
        // allocated yet  It should not be possible to get to this code.  The user has to call the papi
        // code_to_name api with a papi event code for a native event.  But the only way to get one of
        // those is to call either name_to_code or enum_cmp_events first.  When one of these calls is
        // done we allocate the event so it should always be there.

        SUBDBG("EXIT: PAPI_ENOEVNT\n");
        return PAPI_ENOEVNT;
    }

    edesc = event_table->native_events[eidx].event_description;

    // if it will not fit, return error
    if (strlen (edesc) >= (unsigned)len) {
        SUBDBG("EXIT: event name %s will not fit in buffer provided\n", edesc);
        return PAPI_EBUF;
    }
    strcpy (ntv_descr, edesc);

    // if this event had masks, also add their descriptions
    mdesc = event_table->native_events[eidx].mask_description;
    if ((mdesc != NULL)  &&  (strlen(mdesc) > 0)) {
        if ((strlen(edesc) + 8 + strlen(mdesc)) >= (unsigned)len) {
            SUBDBG("EXIT: Not enough room for event and mask descriptions: need: %u, have: %u", (unsigned)(strlen(edesc) + 8 + strlen(mdesc)), (unsigned)len);
            return PAPI_EBUF;
        }
        strcat (ntv_descr, ", masks:");
        strcat (ntv_descr, mdesc);
    }

    SUBDBG("EXIT: event description: %s\n", ntv_descr);
    return PAPI_OK;
}

Here is the call graph for this function:

_pe_libpfm4_ntv_code_to_info()

int _pe_libpfm4_ntv_code_to_info	(	unsigned int	EventCode,
		PAPI_event_info_t *	info,
		struct native_event_table_t *	event_table
	)

Definition at line 791 of file pe_libpfm4_events.c.

{
    SUBDBG("ENTER: EventCode: %#x, info: %p, event_table: %p\n", EventCode, info, event_table);

    int ret;

    // get the event name first
    if ((ret = _pe_libpfm4_ntv_code_to_name(EventCode, info->symbol, sizeof(info->symbol), event_table)) != PAPI_OK) {
        SUBDBG("EXIT: _pe_libpfm4_ntv_code_to_name returned: %d\n", ret);
        return PAPI_ENOEVNT;
    }

    if ((ret = _pe_libpfm4_ntv_code_to_descr(EventCode, info->long_descr, sizeof(info->long_descr), event_table)) != PAPI_OK) {
        SUBDBG("EXIT: _pe_libpfm4_ntv_code_to_descr returned: %d\n", ret);
        return PAPI_ENOEVNT;
    }

    SUBDBG("EXIT: EventCode: %#x, name: %s, desc: %s\n", EventCode, info->symbol, info->long_descr);
    return PAPI_OK;
}

Here is the caller graph for this function:

_pe_libpfm4_ntv_code_to_name()

int _pe_libpfm4_ntv_code_to_name	(	unsigned int	EventCode,
		char *	ntv_name,
		int	len,
		struct native_event_table_t *	event_table
	)

Definition at line 632 of file pe_libpfm4_events.c.

{
    SUBDBG("ENTER: EventCode: %#x, ntv_name: %p, len: %d, event_table: %p\n", EventCode, ntv_name, len, event_table);

    int eidx;
    int papi_event_code;

    // get the attribute index for this papi event
    papi_event_code = _papi_hwi_get_papi_event_code();

    // a papi event code less than 0 is invalid, return error
    if (papi_event_code <= 0) {
        SUBDBG("EXIT: PAPI_ENOEVNT\n");
        return PAPI_ENOEVNT;
    }

    // find our native event table for this papi event code (search list backwards because it improves chances of finding it quickly)
    for (eidx=event_table->num_native_events-1 ; eidx>=0 ; eidx--) {
        if ((papi_event_code == event_table->native_events[eidx].papi_event_code) && (EventCode == ((unsigned)event_table->native_events[eidx].libpfm4_idx))) {
            SUBDBG("Found native_event[%d]: papi_event_code: %#x, libpfm4_idx: %#x\n", eidx, event_table->native_events[eidx].papi_event_code, event_table->native_events[eidx].libpfm4_idx);
            break;
        }
    }

    // if we did not find a match, return an error
    if (eidx < 0) {
        // If we did not find a match in our native event table, then the code passed in has not been
        // allocated yet  It should not be possible to get to this code.  The user has to call the papi
        // code_to_name api with a papi event code for a native event.  But the only way to get one of
        // those is to call either name_to_code or enum_cmp_events first.  When one of these calls is
        // done we allocate the event so it should always be there.

        SUBDBG("EXIT: PAPI_ENOEVNT\n");
        return PAPI_ENOEVNT;
    }

    // if this event is defined by the default pmu, then use only the event name
    // if it is not defined by the default pmu, then use both the pmu name and event name
    char *ename;
    if ((event_table->default_pmu.name) && (strcmp(event_table->default_pmu.name, event_table->native_events[eidx].pmu) == 0)) {
        ename = event_table->native_events[eidx].base_name;
    } else {
        ename = event_table->native_events[eidx].pmu_plus_name;
    }

    // if it will not fit, return error
    if (strlen (ename) >= (unsigned)len) {
        SUBDBG("EXIT: event name %s will not fit in buffer provided\n", ename);
        return PAPI_EBUF;
    }
    strcpy (ntv_name, ename);

    // if this event had masks, also add their names
    char *mname = event_table->native_events[eidx].mask_string;
    if ((mname != NULL)  &&  (strlen(mname) > 0)) {
        if ((strlen(ename) + 8 + strlen(mname)) >= (unsigned)len) {
            SUBDBG("EXIT: Not enough room for event and mask descriptions: need: %u, have: %u", (unsigned)(strlen(ename) + 8 + strlen(mname)), (unsigned)len);
            return PAPI_EBUF;
        }
        strcat (ntv_name, ":");
        strcat (ntv_name, mname);
    }

    SUBDBG("EXIT: event name: %s\n", ntv_name);
    return PAPI_OK;
}

Here is the call graph for this function:

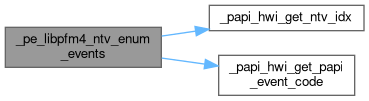

_pe_libpfm4_ntv_enum_events()

int _pe_libpfm4_ntv_enum_events	(	unsigned int *	PapiEventCode,
		int	modifier,
		int	cidx,
		struct native_event_table_t *	event_table
	)

Definition at line 832 of file pe_libpfm4_events.c.

                                                             {

    SUBDBG("ENTER: PapiEventCode: %p, *PapiEventCode: %#x, modifier: %d, event_table: %p\n", PapiEventCode, *PapiEventCode, modifier, event_table);

    int code,ret, pnum;
    int max_umasks;
    char event_string[BUFSIZ];
    pfm_pmu_info_t pinfo;
    pfm_event_info_t einfo;
    struct native_event_t *our_event;

    /* return first event if so specified */
    if ( modifier == PAPI_ENUM_FIRST ) {
        attr_idx = 0;   // set so if they want attribute information, it will start with the first attribute
        code=get_first_event_next_pmu(-1, event_table->pmu_type);
       if (code < 0 ) {
           SUBDBG("EXIT: Invalid component first event code: %d\n", code);
          return code;
       }

        // get the event information from libpfm4 (must zero structure)
        memset( &einfo, 0, sizeof( pfm_event_info_t ));
        einfo.size = sizeof(pfm_event_info_t);
        if ((ret = pfm_get_event_info(code, PFM_OS_PERF_EVENT_EXT, &einfo)) != PFM_SUCCESS) {
            SUBDBG("EXIT: pfm_get_event_info returned: %d\n", ret);
            return PAPI_ENOIMPL;
        }

        // get the pmu information from libpfm4 (must zero structure)
        memset( &pinfo, 0, sizeof(pfm_pmu_info_t) );
        pinfo.size = sizeof(pfm_pmu_info_t);
        ret=pfm_get_pmu_info(einfo.pmu, &pinfo);
        if (ret!=PFM_SUCCESS) {
            SUBDBG("EXIT: pfm_get_pmu_info returned: %d\n", ret);
            return ret;
        }

        // build full event name
        sprintf (event_string, "%s::%s", pinfo.name, einfo.name);
        SUBDBG("code: %#x, pmu: %s, event: %s, event_string: %s\n", code, pinfo.name, einfo.name, event_string);

        // go allocate this event, need to create tables used by the get event info call that will probably follow
        if ((our_event = allocate_native_event(event_string, code, cidx, event_table)) == NULL) {
            // allocate may have created the event table but returned NULL to tell the caller the event string was invalid (attempt to encode it failed).
            // if the caller wants to use this event to count something, it will report an error
            // but if the caller is just interested in listing the event, then we need an event table with an event name and libpfm4 index
            int evt_idx;
            if ((evt_idx = find_existing_event(event_string, event_table)) < 0) {
                SUBDBG("EXIT: Allocating event: '%s' failed\n", event_string);
                return PAPI_ENOEVNT;
            }

            // give back the new event code
            *PapiEventCode = event_table->native_events[evt_idx].libpfm4_idx;
            SUBDBG("EXIT: event code: %#x\n", *PapiEventCode);
            return PAPI_OK;
        }

        *PapiEventCode = our_event->libpfm4_idx;

        SUBDBG("EXIT: *PapiEventCode: %#x\n", *PapiEventCode);
        return PAPI_OK;
    }

    /* Handle looking for the next event */
    if ( modifier == PAPI_ENUM_EVENTS ) {
        attr_idx = 0;   // set so if they want attribute information, it will start with the first attribute

        // get the next event code from libpfm4, if there are no more in this pmu find first event in next pmu
        if ((code = pfm_get_event_next(*PapiEventCode)) < 0) {

            // get this events information from libpfm4, we need the pmu number of the last event we processed (table must be cleared)
            memset( &einfo, 0, sizeof( pfm_event_info_t ));
            einfo.size = sizeof(pfm_event_info_t);
            if ((ret = pfm_get_event_info(*PapiEventCode, PFM_OS_PERF_EVENT_EXT, &einfo)) != PFM_SUCCESS) {
                SUBDBG("EXIT: pfm_get_event_info returned: %d\n", ret);
                return PAPI_ENOIMPL;
            }
            SUBDBG("*PapiEventCode: %#x, event: %s\n", *PapiEventCode, einfo.name);

            // get the pmu number of the last event
            pnum = einfo.pmu;

            SUBDBG("pnum: %d\n", pnum);
            code=get_first_event_next_pmu(pnum, event_table->pmu_type);
            if (code < 0) {
                SUBDBG("EXIT: No more PMUs to list, returning: %d\n", code);
                return code;
            }
        }


        // get the event information from libpfm4 (must zero structure)
        memset( &einfo, 0, sizeof( pfm_event_info_t ));
        einfo.size = sizeof(pfm_event_info_t);
        if ((ret = pfm_get_event_info(code, PFM_OS_PERF_EVENT_EXT, &einfo)) != PFM_SUCCESS) {
            SUBDBG("EXIT: pfm_get_event_info returned: %d\n", ret);
            return PAPI_ENOIMPL;
        }

        // get the pmu information from libpfm4 (must zero structure)
        memset( &pinfo, 0, sizeof(pfm_pmu_info_t) );
        pinfo.size = sizeof(pfm_pmu_info_t);
        ret=pfm_get_pmu_info(einfo.pmu, &pinfo);
        if (ret!=PFM_SUCCESS) {
            SUBDBG("EXIT: pfm_get_pmu_info returned: %d\n", ret);
            return ret;
        }

        // build full event name
        sprintf (event_string, "%s::%s", pinfo.name, einfo.name);
        SUBDBG("code: %#x, pmu: %s, event: %s, event_string: %s\n", code, pinfo.name, einfo.name, event_string);

        // go allocate this event, need to create tables used by the get event info call that will follow
        if ((our_event = allocate_native_event(event_string, code, cidx, event_table)) == NULL) {
            // allocate may have created the event table but returned NULL to tell the caller the event string was invalid (attempt to encode it failed).
            // if the caller wants to use this event to count something, it will report an error
            // but if the caller is just interested in listing the event, then we need an event table with an event name and libpfm4 index
            int evt_idx;
            if ((evt_idx = find_existing_event(event_string, event_table)) < 0) {
                SUBDBG("EXIT: Allocating event: '%s' failed\n", event_string);
                return PAPI_ENOEVNT;
            }

            // give back the new event code
            *PapiEventCode = event_table->native_events[evt_idx].libpfm4_idx;
            SUBDBG("EXIT: event code: %#x\n", *PapiEventCode);
            return PAPI_OK;
        }

        // give back the new event code
        *PapiEventCode = our_event->libpfm4_idx;

        SUBDBG("EXIT: *PapiEventCode: %#x\n", *PapiEventCode);
        return PAPI_OK;
    }

    /* We don't handle PAPI_NTV_ENUM_UMASK_COMBOS */
    if ( modifier == PAPI_NTV_ENUM_UMASK_COMBOS ) {
        SUBDBG("EXIT: do not support umask combos yet\n");
        return PAPI_ENOIMPL;
    }

    /* Enumerate PAPI_NTV_ENUM_UMASKS (umasks on an event) */
    if ( modifier == PAPI_NTV_ENUM_UMASKS ) {
        // get this events information from libpfm4, we need the number of masks this event knows about (table must be cleared)
        memset( &einfo, 0, sizeof( pfm_event_info_t ));
        einfo.size = sizeof(pfm_event_info_t);
        if ((ret = pfm_get_event_info(*PapiEventCode, PFM_OS_PERF_EVENT_EXT, &einfo)) != PFM_SUCCESS) {
            SUBDBG("EXIT: pfm_get_event_info returned: %d\n", ret);
            return PAPI_ENOIMPL;
        }
//      SUBDBG("*PapiEventCode: %#x, einfo.name: %s, einfo.code: %#x, einfo.nattrs: %d\n", *PapiEventCode, einfo.name, einfo.code, einfo.nattrs);

        // set max number of masks
        max_umasks = einfo.nattrs;

        // if we reached last attribute, return error to show we are done with this events masks
        if (attr_idx == max_umasks) {
            SUBDBG("EXIT: already processed all umasks: attr_idx: %d\n", attr_idx);
            return PAPI_ENOEVNT;
        }

        // find the event table for this event, we need the pmu name and event name without any masks
        int ntv_idx = _papi_hwi_get_ntv_idx(_papi_hwi_get_papi_event_code());
        if (ntv_idx < 0) {
            SUBDBG("EXIT: _papi_hwi_get_ntv_idx returned: %d\n", ntv_idx);
            return ntv_idx;
        }
        char *ename = event_table->native_events[ntv_idx].pmu_plus_name;
        if ((ename == NULL)  ||  (strlen(ename) >= sizeof(event_string))) {
            SUBDBG("EXIT: Event name will not fit into buffer\n");
            return PAPI_EBUF;
        }
        strcpy (event_string, ename);
        SUBDBG("event_string: %s\n", event_string);

        // go get the attribute information for this event
        // libpfm4 likes the table cleared
        pfm_event_attr_info_t ainfo;
        memset (&ainfo, 0, sizeof(pfm_event_attr_info_t));
        ainfo.size = sizeof(pfm_event_attr_info_t);
        ret = pfm_get_event_attr_info(*PapiEventCode, attr_idx, PFM_OS_PERF_EVENT_EXT, &ainfo);
        if (ret != PFM_SUCCESS) {
            SUBDBG("EXIT: Attribute info not found, EventCode: %#x, attr_idx: %d, ret: %d\n", *PapiEventCode, attr_idx, _papi_libpfm4_error(ret));
            return _papi_libpfm4_error(ret);
        }
        SUBDBG("*PapiEventCode: %#x, attr_idx: %d, type: %d, name: %s, description: %s\n", *PapiEventCode, attr_idx, ainfo.type, ainfo.name, ainfo.desc);

        if (strlen(event_string) + strlen(ainfo.name) + 35 > sizeof(event_string)) {
            SUBDBG("EXIT: Event name and mask will not fit into buffer\n");
            return PAPI_EBUF;
        }

        strcat (event_string, ":");
        strcat (event_string, ainfo.name);
        switch (ainfo.type) {
            case PFM_ATTR_UMASK:
                break;
            case PFM_ATTR_MOD_BOOL:
            case PFM_ATTR_MOD_INTEGER:
                // a few attributes require a non-zero value to encode correctly (most would accept zero here)
                strcat(event_string,"=0");
                break;
            default:
                SUBDBG("EXIT: Unsupported attribute type: %d", ainfo.type);
                return PAPI_EATTR;
        }

        // go allocate this event, need to create tables used by the get event info call that will follow
        if ((our_event = allocate_native_event(event_string, *PapiEventCode, cidx, event_table)) == NULL) {
            // allocate may have created the event table but returned NULL to tell the caller the event string was invalid.
            // if the caller wants to use this event to count something, it must report the error
            // but if the caller is just interested in listing the event (like this code), then find the table that was created and return its libpfm4 index
            int evt_idx;
            if ((evt_idx = find_existing_event(event_string, event_table)) < 0) {
                SUBDBG("EXIT: Allocating event: '%s' failed\n", event_string);
                return PAPI_ENOEVNT;
            }
            // bump so next time we will use next attribute
            attr_idx++;
            // give back the new event code
            *PapiEventCode = event_table->native_events[evt_idx].libpfm4_idx;
            SUBDBG("EXIT: event code: %#x\n", *PapiEventCode);
            return PAPI_OK;
        }

        // bump so next time we will use next attribute
        attr_idx++;

        // give back the new event code
        *PapiEventCode = our_event->libpfm4_idx;

        SUBDBG("EXIT: event code: %#x\n", *PapiEventCode);
        return PAPI_OK;
    }

    /* Enumerate PAPI_NTV_ENUM_GROUPS (groups on an event) */
    if ( modifier == PAPI_NTV_ENUM_GROUPS ) {
        SUBDBG("EXIT: do not support enumerating groups in this component\n");
        return PAPI_ENOIMPL;
    }

    /* An unknown enumeration method was indicated */

    SUBDBG("EXIT: Invalid modifier argument provided\n");
    return PAPI_ENOIMPL;
}

Here is the call graph for this function:

_pe_libpfm4_ntv_name_to_code()

int _pe_libpfm4_ntv_name_to_code	(	const char *	name,
		unsigned int *	event_code,
		int	cidx,
		struct native_event_table_t *	event_table
	)

Definition at line 582 of file pe_libpfm4_events.c.

{
  SUBDBG( "ENTER: name: %s, event_code: %p, *event_code: %#x, event_table: %p\n", name, event_code, *event_code, event_table);

  struct native_event_t *our_event;
  int event_num;

  // if we already know this event name, just return its native code
  event_num=find_existing_event(name, event_table);
  if (event_num >= 0) {
         *event_code=event_table->native_events[event_num].libpfm4_idx;
         // the following call needs to happen to prevent the internal layer from creating a new papi native event table
         _papi_hwi_set_papi_event_code(event_table->native_events[event_num].papi_event_code, 1);
         SUBDBG("EXIT: Found papi_event_code: %#x, libpfm4_idx: %#x\n", event_table->native_events[event_num].papi_event_code, event_table->native_events[event_num].libpfm4_idx);
         return PAPI_OK;
  }

     // Try to allocate this event to see if it is known by libpfm4, if allocate fails tell the caller it is not valid
     our_event=allocate_native_event(name, -1, cidx, event_table);
     if (our_event==NULL) {
         SUBDBG("EXIT: Allocating event: '%s' failed\n", name);
         return PAPI_ENOEVNT;
     }

     *event_code = our_event->libpfm4_idx;
     SUBDBG("EXIT: Found code: %#x\n",*event_code);
     return PAPI_OK;
}

Here is the call graph for this function:

_pe_libpfm4_shutdown()

int _pe_libpfm4_shutdown	(	papi_vector_t *	my_vector,
		struct native_event_table_t *	event_table
	)

Definition at line 1095 of file pe_libpfm4_events.c.

                                                  {
  SUBDBG("ENTER: event_table: %p\n", event_table);

  int i;

  for (i=0 ; i<PAPI_PMU_MAX ; i++) {
      if (my_vector->cmp_info.pmu_names[i] != NULL) {
          free (my_vector->cmp_info.pmu_names[i]);
      }
  }

  /* clean out and free the native events structure */
  _papi_hwi_lock( NAMELIB_LOCK );

  /* free memory allocated with strdup or malloc */
  for( i=0; i<event_table->num_native_events; i++) {
     free(event_table->native_events[i].base_name);
     free(event_table->native_events[i].pmu_plus_name);
     free(event_table->native_events[i].pmu);
     free(event_table->native_events[i].allocated_name);
     free(event_table->native_events[i].mask_string);
     free(event_table->native_events[i].event_description);
     if (event_table->native_events[i].mask_description != NULL) {
          free(event_table->native_events[i].mask_description);
     }
  }

  free(event_table->native_events);

  _papi_hwi_unlock( NAMELIB_LOCK );

  SUBDBG("EXIT: PAPI_OK\n");
  return PAPI_OK;
}

Here is the call graph for this function:

_peu_libpfm4_init()

int _peu_libpfm4_init	(	papi_vector_t *	my_vector,
		int	cidx,
		struct native_event_table_t *	event_table,
		int	pmu_type
	)

Definition at line 1318 of file pe_libpfm4_events.c.

                         {

   int detected_pmus=0;
   int i;
   int j=0;
   pfm_err_t retval = PFM_SUCCESS;
   unsigned int ncnt;
   pfm_pmu_info_t pinfo;

    (void)cidx;

   /* allocate the native event structure */

   event_table->num_native_events=0;
   event_table->pmu_type=pmu_type;

   event_table->native_events=calloc(NATIVE_EVENT_CHUNK,
                       sizeof(struct native_event_t));
   if (event_table->native_events==NULL) {
      return PAPI_ENOMEM;
   }
   event_table->allocated_native_events=NATIVE_EVENT_CHUNK;

   /* Count number of present PMUs */
   detected_pmus=0;
   ncnt=0;

   my_vector->cmp_info.num_cntrs=0;

   SUBDBG("Detected pmus:\n");
    i=0;
    while(1) {
      memset(&pinfo,0,sizeof(pfm_pmu_info_t));
      pinfo.size = sizeof(pfm_pmu_info_t);
      retval=pfm_get_pmu_info(i, &pinfo);

    /* We're done if we hit an invalid PMU entry                    */
    /* We can't check against PFM_PMU_MAX                           */
    /* as that might not match if libpfm4 is dynamically linked     */

    if (retval==PFM_ERR_INVAL) {
        break;
    }

    if ((retval==PFM_SUCCESS) && (pinfo.name != NULL) &&
        (pmu_is_present_and_right_type(&pinfo,pmu_type))) {

     SUBDBG("\t%d %s %s %d\n",i,pinfo.name,pinfo.desc,pinfo.type);

         detected_pmus++;
     ncnt+=pinfo.nevents;

     if ((j < PAPI_PMU_MAX) && (pinfo.name != NULL)) {
         my_vector->cmp_info.pmu_names[j++] = strdup(pinfo.name);
     }
         my_vector->cmp_info.num_cntrs += pinfo.num_cntrs+
                                   pinfo.num_fixed_cntrs;
      }
    i++;
   }
   SUBDBG("%d native events detected on %d pmus\n",ncnt,detected_pmus);

   my_vector->cmp_info.num_native_events = ncnt;

   SUBDBG( "num_counters: %d\n", my_vector->cmp_info.num_cntrs );

   return PAPI_OK;
}

Here is the call graph for this function:

allocate_native_event()

static struct native_event_t * allocate_native_event ( const char *  name, int  libpfm4_index, int  cidx, struct native_event_table_t *  event_table  )

static

Definition at line 130 of file pe_libpfm4_events.c.

                                                  {

    SUBDBG("ENTER: name: %s, libpfm4_index: %#x, event_table: %p, "
        "event_table->pmu_type: %d\n",
        name, libpfm4_index, event_table, event_table->pmu_type);

    int nevt_idx;
    int event_num;
    int encode_failed=0;

    pfm_err_t ret;
    char *event_string=NULL;
    char *pmu_name;
    char *event;
    char *masks;
    char fullname[BUFSIZ];
    struct native_event_t *ntv_evt;

    pfm_perf_encode_arg_t perf_arg;
    pfm_event_info_t einfo;
    pfm_event_attr_info_t ainfo;
    pfm_pmu_info_t pinfo;

    // if no place to put native events, report that allocate failed
    if (event_table->native_events==NULL) {
        SUBDBG("EXIT: no place to put native events\n");
        return NULL;
    }

    // find out if this event is already known
    event_num=find_existing_event(name, event_table);

    /* add the event to our event table */
    _papi_hwi_lock( NAMELIB_LOCK );

    // if we already know this event name,
    // it was created as part of setting up the preset tables
    // we need to use the event table which is already created
    if (event_num >= 0) {
        nevt_idx = event_num;
        ntv_evt = &(event_table->native_events[event_num]);
    } else {
        // set to use a new event table
        // (count of used events not bumped
        // until we are sure setting it up does not get an errror)
        nevt_idx = event_table->num_native_events;
        ntv_evt = &(event_table->native_events[nevt_idx]);
    }

    SUBDBG("event_num: %d, nevt_idx: %d, ntv_evt: %p\n",
        event_num, nevt_idx, ntv_evt);

    /* clear the argument and attribute structures */
    memset(&perf_arg,0,sizeof(pfm_perf_encode_arg_t));
    memset(&(ntv_evt->attr),0,sizeof(struct perf_event_attr));

    // set argument structure fields so the encode
    // function can give us what we need
    perf_arg.attr=&ntv_evt->attr;
    perf_arg.fstr=&event_string;

    // set the size of the perf attr struct before getting pfm encoding
    ntv_evt->attr.size = sizeof(struct perf_event_attr);

    /* use user provided name of the event to get the */
    /* perf_event encoding and a fully qualified event string */
    ret = pfm_get_os_event_encoding(name,
                    PFM_PLM0 | PFM_PLM3,
                    PFM_OS_PERF_EVENT_EXT,
                    &perf_arg);

    // If the encode function failed, skip processing of the event_string
    if ((ret != PFM_SUCCESS) || (event_string == NULL)) {
        SUBDBG("encode failed for event: %s, returned: %d\n",
            name, ret);

        // we need to remember that this event encoding failed
        // but still create the native event table
        // the event table is used by the list so we put what we
        // can get into it
        // but the failure doing the encode causes us to
        // return null to our caller
        encode_failed = 1;

        // Noting the encode_failed error in the attr.config allows
        // any later validate attempts to return an error value

        // ??? .config is 64-bits? --vmw
        ntv_evt->attr.config = 0xFFFFFF;

        // we also want to make it look like a cpu number
        // was not provided as an event mask
        perf_arg.cpu = -1;

        // Why don't we just return NULL here? --vmw
        //return NULL;
    }

    // free string allocated by pfm_get_os_event_encoding
    free(*(perf_arg.fstr));
    // get a copy of the event name and break it up into its parts
    event_string = strdup(name);

    SUBDBG("event_string: %s\n", event_string);

    // get the pmu name, event name and mask list pointers
    // from the event string
    event = strstr (event_string, "::");
    if (event != NULL) {
        *event = 0;     // null terminate pmu name
        event += 2;     // event name follows '::'
        pmu_name = strdup(event_string);
    } else {
        // no pmu name in event string
        pmu_name = malloc(2);
        pmu_name[0] = 0;
        event = event_string;
    }
    masks = strstr (event, ":");
    if (masks != NULL) {
        *masks = 0;     // null terminate event name
        masks += 1;     // masks follow :
    } else {
        masks = "";
    }

    // build event name to find, put a pmu name on it if we have one
    if (strlen(pmu_name) == 0) {
        sprintf(fullname,"%s", event);
    } else {
        sprintf(fullname,"%s::%s", pmu_name, event);
    }

    SUBDBG("pmu_name: %s, event: %s, masks: %s, fullname: %s\n",
        pmu_name, event, masks, fullname);

    // if the libpfm4 index was not provided,
    // try to get one based on the event name passed in.

    /* This may return a value for a disabled PMU */
    if (libpfm4_index == -1) {
        libpfm4_index = pfm_find_event(fullname);
        if (libpfm4_index < 0) {
            free(event_string);
            free(pmu_name);
            _papi_hwi_unlock( NAMELIB_LOCK );
            SUBDBG("EXIT: error from libpfm4 find event\n");
            return NULL;
        }
        SUBDBG("libpfm4_index: %#x\n", libpfm4_index);
    }

    // get this events information from libpfm4,
    // if unavailable return event not found (structure be zeroed)
    memset( &einfo, 0, sizeof( pfm_event_info_t ));
    einfo.size = sizeof(pfm_event_info_t);
    if ((ret = pfm_get_event_info(libpfm4_index,
            PFM_OS_PERF_EVENT_EXT, &einfo)) != PFM_SUCCESS) {
        free(event_string);
        free(pmu_name);
        _papi_hwi_unlock( NAMELIB_LOCK );
        SUBDBG("EXIT: pfm_get_event_info failed with %d\n", ret);
        return NULL;
    }

    // if pmu type is not one supported by this component,
    // return event not found (structure be zeroed)
    memset(&pinfo,0,sizeof(pfm_pmu_info_t));
    pinfo.size = sizeof(pfm_pmu_info_t);
    pfm_get_pmu_info(einfo.pmu, &pinfo);
    if (pmu_is_present_and_right_type(&pinfo, event_table->pmu_type) == 0) {
        free(event_string);
        free(pmu_name);
        _papi_hwi_unlock( NAMELIB_LOCK );
        SUBDBG("EXIT: PMU not supported by this component: einfo.pmu: %d, PFM_PMU_TYPE_CORE: %d\n", einfo.pmu, PFM_PMU_TYPE_CORE);
        return NULL;
    }

    ntv_evt->allocated_name=strdup(name);
    ntv_evt->mask_string=strdup(masks);
    ntv_evt->component=cidx;
    ntv_evt->pmu=pmu_name;
    ntv_evt->base_name=strdup(event);
    ntv_evt->pmu_plus_name=strdup(fullname);
    ntv_evt->libpfm4_idx=libpfm4_index;
    ntv_evt->event_description=strdup(einfo.desc);
    ntv_evt->users=0;      /* is this needed? */
    ntv_evt->cpu=perf_arg.cpu;

    SUBDBG("ntv_evt->mask_string: %p (%s)\n",
        ntv_evt->mask_string, ntv_evt->mask_string);
    char *msk_ptr = strdup(masks);      // get a work copy of the mask string before we free the space it was in
    free(event_string);

    char mask_desc[PAPI_HUGE_STR_LEN] = "";

    // if there is any mask data, collect their descriptions
    if ((msk_ptr != NULL)  &&  (strlen(msk_ptr) > 0)) {
        // go get the descriptions for each of the
        // masks provided with this event
        char *ptr = msk_ptr;
        SUBDBG("ptr: %p (%s)\n", ptr, ptr);
        while (ptr != NULL) {
            char *ptrm = strstr(ptr, ":");
            if (ptrm != NULL) {
                *ptrm = '\0';
                ptrm++;
            }

            // get the length of the mask name
            char *wrk = strchr(ptr, '=');
            unsigned int msk_name_len;
            if (wrk != NULL) {
                msk_name_len = wrk - ptr;
                SUBDBG("Found =, length=%d\n",msk_name_len);
            } else {
                msk_name_len = strlen (ptr);
                SUBDBG("No =, length=%d\n",msk_name_len);
            }

            int i, mask_found=0;
            for (i=0 ; i<einfo.nattrs ; i++) {
                // get this events attribute information
                // from libpfm4, if unavailable return
                // event not found (table must be cleared)
                memset (&ainfo, 0,
                    sizeof(pfm_event_attr_info_t));
                ainfo.size = sizeof(pfm_event_attr_info_t);
                ret = pfm_get_event_attr_info(libpfm4_index,
                    i, PFM_OS_PERF_EVENT_EXT, &ainfo);
                if (ret != PFM_SUCCESS) {
               free (msk_ptr);
               free(pmu_name);
                    SUBDBG("EXIT: error libpfm4 find event: Attribute info not found, libpfm4_index: %#x, ret: %d\n", libpfm4_index, _papi_libpfm4_error(ret));
               _papi_hwi_unlock( NAMELIB_LOCK );
                    return NULL;
                }

                // if this is the one we want,
                // append its description
                if ((msk_name_len == strlen(ainfo.name))  &&
                    (strncmp(ptr, ainfo.name, msk_name_len) == 0)) {
                    mask_found=1;
                    SUBDBG("Found mask: libpfm4=%s -- matches %s --  i: %d, %d %zu\n",
                        ainfo.name, ptr, i, msk_name_len, strlen(ainfo.name));
                    // find out how much space is left in the mask description work buffer we are building
                    unsigned int mskleft = sizeof(mask_desc) - strlen(mask_desc);
                    // if no space left, just discard this mask description
                    if (mskleft <= 1) {
                        SUBDBG("EXIT: Attribute description discarded: %s\n", ainfo.desc);
                        break;
                    }
                    // if description buffer is not empty, put in mask description separator
                    if (strlen(mask_desc) > 0) {
                        strcat (mask_desc, ":");
                        mskleft--;
                    }
                    // if new description will not all fit in buffer, report truncation
                    if (mskleft < (strlen(ainfo.desc) + 1)) {
                        SUBDBG("EXIT: Attribute description truncated: %s\n", ainfo.desc);
                    }
                    // move as much of this description as will fit
                    strncat (mask_desc, ainfo.desc, mskleft-1);
                    mask_desc[mskleft-1] = '\0';
                    break;
                }
            }

            /* See if we had a mask that wasn't found */
            if (!mask_found) {
            free(msk_ptr);
            free(pmu_name);
            SUBDBG("EXIT: error libpfm4 find event: Mask not found: %s.\n", ptr);
            _papi_hwi_unlock( NAMELIB_LOCK );
                return NULL;
            }

            // if we have filled the work buffer, we can quit now
            if ( (sizeof(mask_desc) - strlen(mask_desc))  <= 1) {
                break;
            }
            ptr = ptrm;
        }
    }
    ntv_evt->mask_description=strdup(mask_desc);
    SUBDBG("ntv_evt->mask_description: %p (%s)\n", ntv_evt->mask_description, ntv_evt->mask_description);

    // give back space if we got any
    if (msk_ptr != NULL) {
        free (msk_ptr);
    }

    // create a papi table for this native event, put the index into the event sets array of native events into the papi table
    int new_event_code = _papi_hwi_native_to_eventcode(cidx, libpfm4_index, nevt_idx, ntv_evt->allocated_name);
    _papi_hwi_set_papi_event_string((const char *)ntv_evt->allocated_name);
    _papi_hwi_set_papi_event_code(new_event_code, 1);

    ntv_evt->papi_event_code=new_event_code;

    SUBDBG("Using %#x as index for %s\n", ntv_evt->libpfm4_idx, fullname);
    SUBDBG("num_native_events: %d, allocated_native_events: %d\n", event_table->num_native_events, event_table->allocated_native_events);
    SUBDBG("Native Event: papi_event_code: %#x, libpfm4_idx: %#x, pmu: %s, base_name: %s, mask_string: %s, allocated_name: %s\n",
            ntv_evt->papi_event_code, ntv_evt->libpfm4_idx, ntv_evt->pmu, ntv_evt->base_name, ntv_evt->mask_string, ntv_evt->allocated_name);
    SUBDBG("event_table->native_events[%d]: %p, cpu: %d, attr.config: 0x%"PRIx64", attr.config1: 0x%"PRIx64", attr.config2: 0x%"PRIx64", attr.type: 0x%"PRIx32", attr.exclude_user: %d, attr.exclude_kernel: %d, attr.exclude_guest: %d\n",
        nevt_idx, &(event_table->native_events[nevt_idx]), ntv_evt->cpu, ntv_evt->attr.config,
        ntv_evt->attr.config1, ntv_evt->attr.config2, ntv_evt->attr.type,
        ntv_evt->attr.exclude_user, ntv_evt->attr.exclude_kernel, ntv_evt->attr.exclude_guest);

    /* If we've used all of the allocated native events, */
    /* then allocate more room */
    if (event_table->num_native_events >=
                event_table->allocated_native_events-1) {

        SUBDBG("Allocating more room for native events (%d %ld)\n",
            (event_table->allocated_native_events+NATIVE_EVENT_CHUNK),
            (long)sizeof(struct native_event_t) *
            (event_table->allocated_native_events+NATIVE_EVENT_CHUNK));

        event_table->native_events=realloc(event_table->native_events,
                sizeof(struct native_event_t) *
                (event_table->allocated_native_events+NATIVE_EVENT_CHUNK));

        event_table->allocated_native_events+=NATIVE_EVENT_CHUNK;

        // we got new space so we need to reset
        // the pointer to the correct native event in the new space
        ntv_evt = &(event_table->native_events[nevt_idx]);
    }


    // if getting more space for native events failed,
    // report that allocate failed
    if (event_table->native_events==NULL) {
        SUBDBG("EXIT: attempt to get more space for "
            "native events failed\n");
        return NULL;
    }

    // if we created a new event, bump the number used
    if (event_num < 0) {
        event_table->num_native_events++;
    }

    _papi_hwi_unlock( NAMELIB_LOCK );

    if (encode_failed != 0) {
        SUBDBG("EXIT: encoding event failed\n");
        return NULL;
    }

    SUBDBG("EXIT: new_event: %p\n", ntv_evt);
    return ntv_evt;
}

Here is the call graph for this function:

find_existing_event()

static int find_existing_event ( const char *  name, struct native_event_table_t *  event_table  )

static

Definition at line 49 of file pe_libpfm4_events.c.

                                                                         {
  SUBDBG("Entry: name: %s, event_table: %p, num_native_events: %d\n", name, event_table, event_table->num_native_events);

  int i,event=PAPI_ENOEVNT;

  _papi_hwi_lock( NAMELIB_LOCK );

  for(i=0;i<event_table->num_native_events;i++) {
    // Most names passed in will contain the pmu name, so first we compare to the allocated name (it has pmu name on front)
    if (!strcmp(name,event_table->native_events[i].allocated_name)) {
      SUBDBG("Found allocated_name: %s, libpfm4_idx: %#x, papi_event_code: %#x\n",
         event_table->native_events[i].allocated_name, event_table->native_events[i].libpfm4_idx, event_table->native_events[i].papi_event_code);
      event=i;
      break;
    }
    // some callers have an event name without the pmu name on the front, so we also compare to the base name (just the event name part)
    if (!strcmp(name,event_table->native_events[i].base_name)) {
      int nameLen = strlen(event_table->native_events[i].base_name);
      // the name we are looking for must be the same length as this event table entry name for them to match
      if (strlen(name) != nameLen + strlen(event_table->native_events[i].mask_string) + 1) {
        continue;
      }
      if(!strcmp(name+nameLen+1, event_table->native_events[i].mask_string)) {
          SUBDBG("Found base_name: %s, mask_string: %s, libpfm4_idx: %#x, papi_event_code: %#x\n",
            event_table->native_events[i].base_name, event_table->native_events[i].mask_string , event_table->native_events[i].libpfm4_idx, event_table->native_events[i].papi_event_code);
          event=i;
          break;
      }
    }
  }
  _papi_hwi_unlock( NAMELIB_LOCK );

  SUBDBG("EXIT: returned: %#x\n", event);
  return event;
}

Here is the call graph for this function:

get_first_event_next_pmu()

static int get_first_event_next_pmu ( int  pmu_idx, int  pmu_type  )

static

Definition at line 503 of file pe_libpfm4_events.c.

{
    SUBDBG("ENTER: pmu_idx: %d, pmu_type: %d\n", pmu_idx, pmu_type);
  int pidx, ret;

  pfm_pmu_info_t pinfo;

  // start looking at the next pmu in the list
  pmu_idx++;

    /* We loop forever here and exit if pfm_get_pmu_info() fails.   */
    /* Before we only went up to PFM_PMU_MAX but this is set at */
    /* compile time and might not reflect the number of PMUs if */
    /* PAPI is dynamically linked against libpfm4.          */
  while(1) {

    /* clear the PMU structure (required by libpfm4) */
    memset(&pinfo,0,sizeof(pfm_pmu_info_t));
    pinfo.size = sizeof(pfm_pmu_info_t);
    ret=pfm_get_pmu_info(pmu_idx, &pinfo);

    if (ret==PFM_ERR_INVAL) {
        break;
    }

    if ((ret==PFM_SUCCESS) && amd64_fam17h_zen1_present && strcmp(pinfo.name, "amd64_fam17h") == 0) {
        /* Skip as if invalid; we want the PMU amd64_fam17h_zen1 instead. */
        pmu_idx++;
        continue;
    }

    if ((ret==PFM_SUCCESS) && pmu_is_present_and_right_type(&pinfo,pmu_type)) {

      pidx=pinfo.first_event;
      SUBDBG("First event in pmu: %s is %#x\n", pinfo.name, pidx);

      if (pidx<0) {
    /* For some reason no events available */
    /* despite the PMU being active.       */
        /* This can happen, for example with ix86arch */
    /* inside of VMware                           */
      }
      else {
         SUBDBG("EXIT: pidx: %#x\n", pidx);
         return pidx;
      }
    }

    pmu_idx++;

  }

  SUBDBG("EXIT: PAPI_ENOEVNT\n");
  return PAPI_ENOEVNT;

}

Here is the call graph for this function:

pmu_is_present_and_right_type()

static int pmu_is_present_and_right_type ( pfm_pmu_info_t *  pinfo, int  type  )

static

Definition at line 87 of file pe_libpfm4_events.c.

                                                                          {
    SUBDBG("ENTER: pinfo: %s %p, pinfo->is_present: %d, "
        "pinfo->type: %#x, type: %#x\n",
        pinfo->name, pinfo, pinfo->is_present, pinfo->type, type);
    if (!pinfo->is_present) {
//      SUBDBG("EXIT: not present\n");
        return 0;
    }

    if ((pinfo->type==PFM_PMU_TYPE_UNCORE) && (type&PMU_TYPE_UNCORE)) {
//      SUBDBG("EXIT: found PFM_PMU_TYPE_UNCORE\n");
        return 1;
    }
    if ((pinfo->type==PFM_PMU_TYPE_CORE) && (type&PMU_TYPE_CORE)) {
//      SUBDBG("EXIT: found PFM_PMU_TYPE_CORE\n");
        return 1;
    }
    if ((pinfo->type==PFM_PMU_TYPE_OS_GENERIC) && (type&PMU_TYPE_OS)) {
//      SUBDBG("EXIT: found PFM_PMU_TYPE_OS_GENERIC\n");
        return 1;
    }

//  SUBDBG("EXIT: not right type\n");
    return 0;
}

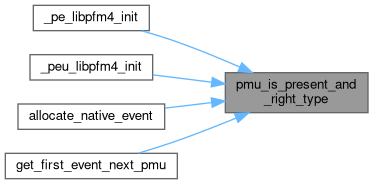

Here is the caller graph for this function:

Variable Documentation

amd64_fam17h_zen1_present

int amd64_fam17h_zen1_present = 0

static

Definition at line 35 of file pe_libpfm4_events.c.

attr_idx

int attr_idx

static

Definition at line 32 of file pe_libpfm4_events.c.
