pfmlib_itanium2.c File Reference

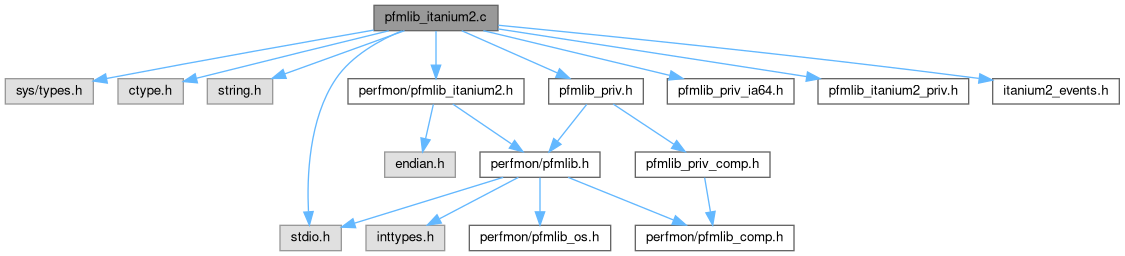

Include dependency graph for pfmlib_itanium2.c:

Go to the source code of this file.

Macros
#define	is_ear(i)   event_is_ear(itanium2_pe+(i))
#define	is_ear_tlb(i)   event_is_ear_tlb(itanium2_pe+(i))
#define	is_ear_alat(i)   event_is_ear_alat(itanium2_pe+(i))
#define	is_ear_cache(i)   event_is_ear_cache(itanium2_pe+(i))
#define	is_iear(i)   event_is_iear(itanium2_pe+(i))
#define	is_dear(i)   event_is_dear(itanium2_pe+(i))
#define	is_btb(i)   event_is_btb(itanium2_pe+(i))
#define	has_opcm(i)   event_opcm_ok(itanium2_pe+(i))
#define	has_iarr(i)   event_iarr_ok(itanium2_pe+(i))
#define	has_darr(i)   event_darr_ok(itanium2_pe+(i))
#define	evt_use_opcm(e)   ((e)->pfp_ita2_pmc8.opcm_used != 0 || (e)->pfp_ita2_pmc9.opcm_used !=0)
#define	evt_use_irange(e)   ((e)->pfp_ita2_irange.rr_used)
#define	evt_use_drange(e)   ((e)->pfp_ita2_drange.rr_used)
#define	evt_grp(e)   (int)itanium2_pe[e].pme_qualifiers.pme_qual.pme_group
#define	evt_set(e)   (int)itanium2_pe[e].pme_qualifiers.pme_qual.pme_set
#define	evt_umask(e)   itanium2_pe[e].pme_umask
#define	FINE_MODE_BOUNDARY_BITS   12
#define	FINE_MODE_MASK   ~((1U<<12)-1)
#define	pmc_plm   pmc_ita2_counter_reg.pmc_plm
#define	pmc_ev   pmc_ita2_counter_reg.pmc_ev
#define	pmc_oi   pmc_ita2_counter_reg.pmc_oi
#define	pmc_pm   pmc_ita2_counter_reg.pmc_pm
#define	pmc_es   pmc_ita2_counter_reg.pmc_es
#define	pmc_umask   pmc_ita2_counter_reg.pmc_umask
#define	pmc_thres   pmc_ita2_counter_reg.pmc_thres
#define	pmc_ism   pmc_ita2_counter_reg.pmc_ism
#define	NPREFETCH_EVENTS   sizeof(prefetch_events)/sizeof(int)
#define	NCANCEL_EVENTS   sizeof(cancel_events)/sizeof(int)
#define	has_counter(e, b)   (itanium2_pe[e].pme_counters & (1 << (b)) ? (b) : 0)
#define	DR_USED   0x1 /* data range is used */
#define	OP_USED   0x2 /* opcode matching is used */
#define	IR_USED   0x4 /* code range is used */

Functions
static char *	pfm_ita2_get_event_name (unsigned int i)
static int	pfm_ita2_detect (void)
static int	check_cross_groups_and_umasks (pfmlib_input_param_t *inp)
static int	check_prefetch_events (pfmlib_input_param_t *inp)
static unsigned int	check_inst_retired_events (pfmlib_input_param_t *inp, unsigned long *retired_mask)
static int	check_fine_mode_possible (pfmlib_ita2_input_rr_t *rr, int n)
static int	check_intervals (pfmlib_ita2_input_rr_t *irr, int mode, unsigned int *n_intervals)
static int	valid_assign (pfmlib_event_t *e, unsigned int *as, pfmlib_regmask_t *r_pmcs, unsigned int cnt)
static int	check_cancel_events (pfmlib_input_param_t *inp)
static int	pfm_ita2_dispatch_counters (pfmlib_input_param_t *inp, pfmlib_ita2_input_param_t *mod_in, pfmlib_output_param_t *outp)
static int	pfm_dispatch_iear (pfmlib_input_param_t *inp, pfmlib_ita2_input_param_t *mod_in, pfmlib_output_param_t *outp)
static int	pfm_dispatch_dear (pfmlib_input_param_t *inp, pfmlib_ita2_input_param_t *mod_in, pfmlib_output_param_t *outp)
static int	pfm_dispatch_opcm (pfmlib_input_param_t *inp, pfmlib_ita2_input_param_t *mod_in, pfmlib_output_param_t *outp, pfmlib_ita2_output_param_t *mod_out)
static int	pfm_dispatch_btb (pfmlib_input_param_t *inp, pfmlib_ita2_input_param_t *mod_in, pfmlib_output_param_t *outp)
static void	do_normal_rr (unsigned long start, unsigned long end, pfmlib_reg_t *br, int nbr, int dir, int *idx, int *reg_idx, int plm)
static void	print_one_range (pfmlib_ita2_input_rr_desc_t *in_rr, pfmlib_ita2_output_rr_desc_t *out_rr, pfmlib_reg_t *dbr, int base_idx, int n_pairs, int fine_mode, unsigned int rr_flags)
static int	compute_fine_rr (pfmlib_ita2_input_rr_t *irr, int dfl_plm, int n, int *base_idx, pfmlib_ita2_output_rr_t *orr)
static int	compute_single_rr (pfmlib_ita2_input_rr_t *irr, int dfl_plm, int *base_idx, pfmlib_ita2_output_rr_t *orr)
static int	compute_normal_rr (pfmlib_ita2_input_rr_t *irr, int dfl_plm, int n, int *base_idx, pfmlib_ita2_output_rr_t *orr)
static int	pfm_dispatch_irange (pfmlib_input_param_t *inp, pfmlib_ita2_input_param_t *mod_in, pfmlib_output_param_t *outp, pfmlib_ita2_output_param_t *mod_out)
static int	pfm_dispatch_drange (pfmlib_input_param_t *inp, pfmlib_ita2_input_param_t *mod_in, pfmlib_output_param_t *outp, pfmlib_ita2_output_param_t *mod_out)
static int	check_qualifier_constraints (pfmlib_input_param_t *inp, pfmlib_ita2_input_param_t *mod_in)
static int	check_range_plm (pfmlib_input_param_t *inp, pfmlib_ita2_input_param_t *mod_in)
static int	pfm_ita2_dispatch_events (pfmlib_input_param_t *inp, void *model_in, pfmlib_output_param_t *outp, void *model_out)
int	pfm_ita2_get_event_maxincr (unsigned int i, unsigned int *maxincr)
int	pfm_ita2_is_ear (unsigned int i)
int	pfm_ita2_is_dear (unsigned int i)
int	pfm_ita2_is_dear_tlb (unsigned int i)
int	pfm_ita2_is_dear_cache (unsigned int i)
int	pfm_ita2_is_dear_alat (unsigned int i)
int	pfm_ita2_is_iear (unsigned int i)
int	pfm_ita2_is_iear_tlb (unsigned int i)
int	pfm_ita2_is_iear_cache (unsigned int i)
int	pfm_ita2_is_btb (unsigned int i)
int	pfm_ita2_support_iarr (unsigned int i)
int	pfm_ita2_support_darr (unsigned int i)
int	pfm_ita2_support_opcm (unsigned int i)
int	pfm_ita2_get_ear_mode (unsigned int i, pfmlib_ita2_ear_mode_t *m)
static int	pfm_ita2_get_event_code (unsigned int i, unsigned int cnt, int *code)
int	pfm_ita2_get_event_umask (unsigned int i, unsigned long *umask)
int	pfm_ita2_get_event_group (unsigned int i, int *grp)
int	pfm_ita2_get_event_set (unsigned int i, int *set)
int	pfm_ita2_irange_is_fine (pfmlib_output_param_t *outp, pfmlib_ita2_output_param_t *mod_out)
static void	pfm_ita2_get_event_counters (unsigned int j, pfmlib_regmask_t *counters)
static void	pfm_ita2_get_impl_pmcs (pfmlib_regmask_t *impl_pmcs)
static void	pfm_ita2_get_impl_pmds (pfmlib_regmask_t *impl_pmds)
static void	pfm_ita2_get_impl_counters (pfmlib_regmask_t *impl_counters)
static void	pfm_ita2_get_hw_counter_width (unsigned int *width)
static int	pfm_ita2_get_event_description (unsigned int ev, char **str)
static int	pfm_ita2_get_cycle_event (pfmlib_event_t *e)
static int	pfm_ita2_get_inst_retired (pfmlib_event_t *e)

Variables
static int	has_fine_mode_bug
static int	prefetch_events []
static int	cancel_events []
static const unsigned long	iod_tab [8]
pfm_pmu_support_t	itanium2_support

Macro Definition Documentation

DR_USED

#define DR_USED   0x1 /* data range is used */

evt_grp

#define evt_grp

(

e

)

(int)itanium2_pe[e].pme_qualifiers.pme_qual.pme_group

Definition at line 53 of file pfmlib_itanium2.c.

evt_set

#define evt_set

(

e

)

(int)itanium2_pe[e].pme_qualifiers.pme_qual.pme_set

Definition at line 54 of file pfmlib_itanium2.c.

evt_umask

#define evt_umask

(

e

)

itanium2_pe[e].pme_umask

Definition at line 55 of file pfmlib_itanium2.c.

evt_use_drange

#define evt_use_drange

(

e

)

((e)->pfp_ita2_drange.rr_used)

Definition at line 51 of file pfmlib_itanium2.c.

evt_use_irange

#define evt_use_irange

(

e

)

((e)->pfp_ita2_irange.rr_used)

Definition at line 50 of file pfmlib_itanium2.c.

evt_use_opcm

#define evt_use_opcm

(

e

)

((e)->pfp_ita2_pmc8.opcm_used != 0 || (e)->pfp_ita2_pmc9.opcm_used !=0)

Definition at line 49 of file pfmlib_itanium2.c.

FINE_MODE_BOUNDARY_BITS

#define FINE_MODE_BOUNDARY_BITS   12

Definition at line 58 of file pfmlib_itanium2.c.

FINE_MODE_MASK

#define FINE_MODE_MASK   ~((1U<<12)-1)

Definition at line 59 of file pfmlib_itanium2.c.

has_counter

#define has_counter	(		e,
			b
	)		(itanium2_pe[e].pme_counters & (1 << (b)) ? (b) : 0)

has_darr

#define has_darr

(

i

)

event_darr_ok(itanium2_pe+(i))

Definition at line 47 of file pfmlib_itanium2.c.

has_iarr

#define has_iarr

(

i

)

event_iarr_ok(itanium2_pe+(i))

Definition at line 46 of file pfmlib_itanium2.c.

has_opcm

#define has_opcm

(

i

)

event_opcm_ok(itanium2_pe+(i))

Definition at line 45 of file pfmlib_itanium2.c.

IR_USED

#define IR_USED   0x4 /* code range is used */

is_btb

#define is_btb

(

i

)

event_is_btb(itanium2_pe+(i))

Definition at line 44 of file pfmlib_itanium2.c.

is_dear

#define is_dear

(

i

)

event_is_dear(itanium2_pe+(i))

Definition at line 43 of file pfmlib_itanium2.c.

is_ear

#define is_ear

(

i

)

event_is_ear(itanium2_pe+(i))

Definition at line 38 of file pfmlib_itanium2.c.

is_ear_alat

#define is_ear_alat

(

i

)

event_is_ear_alat(itanium2_pe+(i))

Definition at line 40 of file pfmlib_itanium2.c.

is_ear_cache

#define is_ear_cache

(

i

)

event_is_ear_cache(itanium2_pe+(i))

Definition at line 41 of file pfmlib_itanium2.c.

is_ear_tlb

#define is_ear_tlb

(

i

)

event_is_ear_tlb(itanium2_pe+(i))

Definition at line 39 of file pfmlib_itanium2.c.

is_iear

#define is_iear

(

i

)

event_is_iear(itanium2_pe+(i))

Definition at line 42 of file pfmlib_itanium2.c.

NCANCEL_EVENTS

#define NCANCEL_EVENTS   sizeof(cancel_events)/sizeof(int)

Definition at line 429 of file pfmlib_itanium2.c.

NPREFETCH_EVENTS

#define NPREFETCH_EVENTS   sizeof(prefetch_events)/sizeof(int)

Definition at line 193 of file pfmlib_itanium2.c.

OP_USED

#define OP_USED   0x2 /* opcode matching is used */

pmc_es

#define pmc_es   pmc_ita2_counter_reg.pmc_es

Definition at line 66 of file pfmlib_itanium2.c.

pmc_ev

#define pmc_ev   pmc_ita2_counter_reg.pmc_ev

Definition at line 63 of file pfmlib_itanium2.c.

pmc_ism

#define pmc_ism   pmc_ita2_counter_reg.pmc_ism

Definition at line 69 of file pfmlib_itanium2.c.

pmc_oi

#define pmc_oi   pmc_ita2_counter_reg.pmc_oi

Definition at line 64 of file pfmlib_itanium2.c.

pmc_plm

#define pmc_plm   pmc_ita2_counter_reg.pmc_plm

Definition at line 62 of file pfmlib_itanium2.c.

pmc_pm

#define pmc_pm   pmc_ita2_counter_reg.pmc_pm

Definition at line 65 of file pfmlib_itanium2.c.

pmc_thres

#define pmc_thres   pmc_ita2_counter_reg.pmc_thres

Definition at line 68 of file pfmlib_itanium2.c.

pmc_umask

#define pmc_umask   pmc_ita2_counter_reg.pmc_umask

Definition at line 67 of file pfmlib_itanium2.c.

Function Documentation

check_cancel_events()

static int check_cancel_events ( pfmlib_input_param_t *  inp )

static

Definition at line 432 of file pfmlib_itanium2.c.

{
    unsigned int i, j, count;
    int code;
    int cancel_codes[NCANCEL_EVENTS];
    int idx = -1;

    for(i=0; i < NCANCEL_EVENTS; i++) {
        pfm_get_event_code(cancel_events[i], &code);
        cancel_codes[i] = code;
    }
    count = inp->pfp_event_count;
    for(i=0; i < count; i++) {
        for (j=0; j < NCANCEL_EVENTS; j++) {
            pfm_get_event_code(inp->pfp_events[i].event, &code);
            if (code == cancel_codes[j]) {
                if (idx != -1) {
                    return PFMLIB_ERR_INVAL;
                }
                idx = inp->pfp_events[i].event;
            }
        }
    }
    return PFMLIB_SUCCESS;
}

Here is the call graph for this function:

Here is the caller graph for this function:

check_cross_groups_and_umasks()

static int check_cross_groups_and_umasks ( pfmlib_input_param_t *  inp )

static

Definition at line 130 of file pfmlib_itanium2.c.

{
    unsigned long ref_umask, umask;
    int g, s;
    unsigned int cnt = inp->pfp_event_count;
    pfmlib_event_t *e = inp->pfp_events;
    unsigned int i, j;

    /*
     * XXX: could possibly be optimized
     */
    for (i=0; i < cnt; i++) {
        g = evt_grp(e[i].event);
        s = evt_set(e[i].event);

        if (g == PFMLIB_ITA2_EVT_NO_GRP) continue;

        ref_umask = evt_umask(e[i].event);

        for (j=i+1; j < cnt; j++) {
            if (evt_grp(e[j].event) != g) continue;
            if (evt_set(e[j].event) != s) return PFMLIB_ERR_EVTSET;

            /* only care about L2 cache group */
            if (g != PFMLIB_ITA2_EVT_L2_CACHE_GRP || (s == 1 || s == 2)) continue;

            umask = evt_umask(e[j].event);
            /*
             * there is no assignement possible if the event in PMC4
             * has a umask (ref_umask) and an event (from the same
             * set) also has a umask AND it is different. For some
             * sets, the umasks are shared, therefore the value
             * programmed into PMC4 determines the umask for all
             * the other events (with umask) from the set.
             */
            if (umask && ref_umask != umask) return PFMLIB_ERR_NOASSIGN;
        }
    }
    return PFMLIB_SUCCESS;
}

Here is the caller graph for this function:

check_fine_mode_possible()

static int check_fine_mode_possible ( pfmlib_ita2_input_rr_t *  rr, int  n  )

static

Definition at line 264 of file pfmlib_itanium2.c.

{
    pfmlib_ita2_input_rr_desc_t *lim = rr->rr_limits;
    int i;

    for(i=0; i < n; i++) {
        if ((lim[i].rr_start & FINE_MODE_MASK) != (lim[i].rr_end & FINE_MODE_MASK))
            return 0;
    }
    return 1;
}

Here is the caller graph for this function:

check_inst_retired_events()

static unsigned int check_inst_retired_events ( pfmlib_input_param_t *  inp, unsigned long *  retired_mask  )

static

Definition at line 229 of file pfmlib_itanium2.c.

{
    int code;
    int c, ret;
    unsigned int i, count, found = 0;
    unsigned long umask, mask;

    pfm_get_event_code(PME_ITA2_IA64_INST_RETIRED_THIS, &code);

    count = inp->pfp_event_count;
    mask  = 0;
    for(i=0; i < count; i++) {
        ret = pfm_get_event_code(inp->pfp_events[i].event, &c);
        if (c == code)  {
            ret = pfm_ita2_get_event_umask(inp->pfp_events[i].event, &umask);
            if (ret != PFMLIB_SUCCESS)
                break;
            switch(umask) {
                case 0: mask |= 1;
                    break;
                case 1: mask |= 2;
                    break;
                case 2: mask |= 4;
                    break;
                case 3: mask |= 8;
                    break;
            }
            found++;
        }
    }
    if (retired_mask) *retired_mask = mask;
    return found;
}

Here is the call graph for this function:

Here is the caller graph for this function:

check_intervals()

static int check_intervals ( pfmlib_ita2_input_rr_t *  irr, int  mode, unsigned int *  n_intervals  )

static

Definition at line 281 of file pfmlib_itanium2.c.

{
    unsigned int i;
    pfmlib_ita2_input_rr_desc_t *lim = irr->rr_limits;

    for(i=0; i < 4; i++) {
        /* end marker */
        if (lim[i].rr_start == 0 && lim[i].rr_end == 0) break;

        /* invalid entry */
        if (lim[i].rr_start >= lim[i].rr_end) return PFMLIB_ERR_IRRINVAL;

        if (mode == 0 && (lim[i].rr_start & 0xf || lim[i].rr_end & 0xf))
            return PFMLIB_ERR_IRRALIGN;
    }
    *n_intervals = i;
    return PFMLIB_SUCCESS;
}

Here is the caller graph for this function:

check_prefetch_events()

static int check_prefetch_events ( pfmlib_input_param_t *  inp )

static

Definition at line 196 of file pfmlib_itanium2.c.

{
    int code;
    int prefetch_codes[NPREFETCH_EVENTS];
    unsigned int i, j, count;
    int c;
    int found = 0;

    for(i=0; i < NPREFETCH_EVENTS; i++) {
        pfm_get_event_code(prefetch_events[i], &code);
        prefetch_codes[i] = code;
    }
    count = inp->pfp_event_count;
    for(i=0; i < count; i++) {
        pfm_get_event_code(inp->pfp_events[i].event, &c);
        for(j=0; j < NPREFETCH_EVENTS; j++) {
            if (c == prefetch_codes[j]) found++;
        }
    }
    return found;
}

Here is the call graph for this function:

Here is the caller graph for this function:

check_qualifier_constraints()

static int check_qualifier_constraints ( pfmlib_input_param_t *  inp, pfmlib_ita2_input_param_t *  mod_in  )

static

Definition at line 1789 of file pfmlib_itanium2.c.

{
    pfmlib_ita2_input_param_t *param = mod_in;
    pfmlib_event_t *e = inp->pfp_events;
    unsigned int i, count;


    count = inp->pfp_event_count;
    for(i=0; i < count; i++) {
        /*
         * skip check for counter which requested it. Use at your own risk.
         * No all counters have necessarily been validated for use with
         * qualifiers. Typically the event is counted as if no constraint
         * existed.
         */
        if (param->pfp_ita2_counters[i].flags & PFMLIB_ITA2_FL_EVT_NO_QUALCHECK) continue;


        if (evt_use_irange(param) && has_iarr(e[i].event) == 0) return PFMLIB_ERR_FEATCOMB;
        if (evt_use_drange(param) && has_darr(e[i].event) == 0) return PFMLIB_ERR_FEATCOMB;
        if (evt_use_opcm(param) && has_opcm(e[i].event) == 0) return PFMLIB_ERR_FEATCOMB;
    }
    return PFMLIB_SUCCESS;
}

Here is the caller graph for this function:

check_range_plm()

static int check_range_plm ( pfmlib_input_param_t *  inp, pfmlib_ita2_input_param_t *  mod_in  )

static

Definition at line 1815 of file pfmlib_itanium2.c.

{
    pfmlib_ita2_input_param_t *param = mod_in;
    unsigned int i, count;

    if (param->pfp_ita2_drange.rr_used == 0 && param->pfp_ita2_irange.rr_used == 0) return PFMLIB_SUCCESS;

    /*
     * range restriction applies to all events, therefore we must have a consistent
     * set of plm and they must match the pfp_dfl_plm which is used to setup the debug
     * registers
     */
    count = inp->pfp_event_count;
    for(i=0; i < count; i++) {
        if (inp->pfp_events[i].plm && inp->pfp_events[i].plm != inp->pfp_dfl_plm) return PFMLIB_ERR_FEATCOMB;
    }
    return PFMLIB_SUCCESS;
}

Here is the caller graph for this function:

compute_fine_rr()

static int compute_fine_rr ( pfmlib_ita2_input_rr_t *  irr, int  dfl_plm, int  n, int *  base_idx, pfmlib_ita2_output_rr_t *  orr  )

static

Definition at line 1229 of file pfmlib_itanium2.c.

{
    int i;
    pfmlib_reg_t *br;
    pfmlib_ita2_input_rr_desc_t *in_rr;
    pfmlib_ita2_output_rr_desc_t *out_rr;
    unsigned long addr;
    int reg_idx;
    dbreg_t db;

    in_rr   = irr->rr_limits;
    out_rr  = orr->rr_infos;
    br      = orr->rr_br+orr->rr_nbr_used;
    reg_idx = *base_idx;

    db.val        = 0;
    db.db.db_mask = FINE_MODE_MASK;

    if (n > 2) return PFMLIB_ERR_IRRTOOMANY;

    for (i=0; i < n; i++, reg_idx += 2, in_rr++, br+= 4) {
        /*
         * setup lower limit pair
         *
         * because of the PMU bug, we must align down to the closest bundle-pair
         * aligned address. 5 => 32-byte aligned address
         */
        addr            = has_fine_mode_bug ? ALIGN_DOWN(in_rr->rr_start, 5) : in_rr->rr_start;
        out_rr->rr_soff = in_rr->rr_start - addr;

        /*
         * adjust plm for each range
         */
        db.db.db_plm    = in_rr->rr_plm ? in_rr->rr_plm : (unsigned long)dfl_plm;

        br[0].reg_num   = reg_idx;
        br[0].reg_value = addr;
        br[0].reg_addr  = br[0].reg_alt_addr = reg_idx;
        br[1].reg_num   = reg_idx+1;
        br[1].reg_value = db.val;
        br[1].reg_addr  = br[1].reg_alt_addr = reg_idx+1;

        /*
         * setup upper limit pair
         *
         *
         * In fine mode, the bundle address stored in the upper limit debug
         * registers is included in the count, so we substract 0x10 to exclude it.
         *
         * because of the PMU bug, we align the (corrected) end to the nearest
         * 32-byte aligned address + 0x10. With this correction and depending
         * on the correction, we may count one
         *
         *
         */

        addr = in_rr->rr_end - 0x10;

        if (has_fine_mode_bug && (addr & 0x1f) == 0) addr += 0x10;
        out_rr->rr_eoff = addr - in_rr->rr_end + 0x10;

        br[2].reg_num   = reg_idx+4;
        br[2].reg_value = addr;
        br[2].reg_addr  = br[2].reg_alt_addr = reg_idx+4;

        br[3].reg_num   = reg_idx+5;
        br[3].reg_value = db.val;
        br[3].reg_addr  = br[3].reg_alt_addr = reg_idx+5;

        if (PFMLIB_VERBOSE()) print_one_range(in_rr, out_rr, br, 0, 2, 1, irr->rr_flags);
    }
    orr->rr_nbr_used += i<<2;

    /* update base_idx, for subsequent calls */
    *base_idx = reg_idx;

    return PFMLIB_SUCCESS;
}

Here is the call graph for this function:

Here is the caller graph for this function:

compute_normal_rr()

static int compute_normal_rr ( pfmlib_ita2_input_rr_t *  irr, int  dfl_plm, int  n, int *  base_idx, pfmlib_ita2_output_rr_t *  orr  )

static

Definition at line 1385 of file pfmlib_itanium2.c.

{
    pfmlib_ita2_input_rr_desc_t *in_rr;
    pfmlib_ita2_output_rr_desc_t *out_rr;
    unsigned long r_end;
    pfmlib_reg_t *br;
    dbreg_t d;
    int i, j;
    int br_index, reg_idx, prev_index;

    in_rr    = irr->rr_limits;
    out_rr   = orr->rr_infos;
    br       = orr->rr_br+orr->rr_nbr_used;
    reg_idx  = *base_idx;
    br_index = 0;

    for (i=0; i < n; i++, in_rr++, out_rr++) {
        /*
         * running out of registers
         */
        if (br_index == 8) break;

        prev_index = br_index;

        do_normal_rr(   in_rr->rr_start,
                in_rr->rr_end,
                br,
                4 - (reg_idx>>1), /* how many pairs available */
                0,
                &br_index,
                &reg_idx, in_rr->rr_plm ? in_rr->rr_plm : dfl_plm);

        DPRINT("br_index=%d reg_idx=%d\n", br_index, reg_idx);

        /*
         * compute offsets
         */
        out_rr->rr_soff = out_rr->rr_eoff = 0;

        for(j=prev_index; j < br_index; j+=2) {

            d.val = br[j+1].reg_value;
            r_end = br[j].reg_value+((~(d.db.db_mask)+1) & ~(0xffUL << 56));

            if (br[j].reg_value <= in_rr->rr_start)
                out_rr->rr_soff = in_rr->rr_start - br[j].reg_value;

            if (r_end >= in_rr->rr_end)
                out_rr->rr_eoff = r_end - in_rr->rr_end;
        }

        if (PFMLIB_VERBOSE()) print_one_range(in_rr, out_rr, br, prev_index, (br_index-prev_index)>>1, 0, irr->rr_flags);
    }

    /* do not have enough registers to cover all the ranges */
    if (br_index == 8 && i < n) return PFMLIB_ERR_TOOMANY;

    orr->rr_nbr_used += br_index;

    /* update base_idx, for subsequent calls */
    *base_idx = reg_idx;

    return PFMLIB_SUCCESS;
}

Here is the call graph for this function:

Here is the caller graph for this function:

compute_single_rr()

static int compute_single_rr ( pfmlib_ita2_input_rr_t *  irr, int  dfl_plm, int *  base_idx, pfmlib_ita2_output_rr_t *  orr  )

static

Definition at line 1312 of file pfmlib_itanium2.c.

{
    unsigned long size, end, start;
    unsigned long p_start, p_end;
    pfmlib_ita2_input_rr_desc_t *in_rr;
    pfmlib_ita2_output_rr_desc_t *out_rr;
    pfmlib_reg_t *br;
    dbreg_t db;
    int reg_idx;
    int l, m;

    in_rr   = irr->rr_limits;
    out_rr  = orr->rr_infos;
    br      = orr->rr_br+orr->rr_nbr_used;
    start   = in_rr->rr_start;
    end     = in_rr->rr_end;
    size    = end - start;
    reg_idx = *base_idx;

    l = pfm_ia64_fls(size);

    m = l;
    if (size & ((1UL << l)-1)) {
        if (l>62) {
            printf("range: [0x%lx-0x%lx] too big\n", start, end);
            return PFMLIB_ERR_IRRTOOBIG;
        }
        m++;
    }

    DPRINT("size=%ld, l=%d m=%d, internal: 0x%lx full: 0x%lx\n",
        size,
        l, m,
        1UL << l,
        1UL << m);

    for (; m < 64; m++) {
        p_start = ALIGN_DOWN(start, m);
        p_end   = p_start+(1UL<<m);
        if (p_end >= end) goto found;
    }
    return PFMLIB_ERR_IRRINVAL;
found:
    DPRINT("m=%d p_start=0x%lx p_end=0x%lx\n", m, p_start,p_end);

    /* when the event is not IA64_INST_RETIRED, then we MUST use ibrp0 */
    br[0].reg_num   = reg_idx;
    br[0].reg_value = p_start;
    br[0].reg_addr  =  br[0].reg_alt_addr = reg_idx;

    db.val        = 0;
    db.db.db_mask = ~((1UL << m)-1);
    db.db.db_plm  = in_rr->rr_plm ? in_rr->rr_plm : (unsigned long)dfl_plm;


    br[1].reg_num   = reg_idx + 1;
    br[1].reg_value = db.val;
    br[1].reg_addr  = br[1].reg_alt_addr = reg_idx + 1;

    out_rr->rr_soff = start - p_start;
    out_rr->rr_eoff = p_end - end;

    if (PFMLIB_VERBOSE()) print_one_range(in_rr, out_rr, br, 0, 1, 0, irr->rr_flags);

    orr->rr_nbr_used += 2;

    /* update base_idx, for subsequent calls */
    *base_idx = reg_idx;

    return PFMLIB_SUCCESS;
}

Here is the call graph for this function:

Here is the caller graph for this function:

do_normal_rr()

static void do_normal_rr ( unsigned long  start, unsigned long  end, pfmlib_reg_t *  br, int  nbr, int  dir, int *  idx, int *  reg_idx, int  plm  )

static

Definition at line 1066 of file pfmlib_itanium2.c.

{
    unsigned long size, l_addr, c;
    unsigned long l_offs = 0, r_offs = 0;
    unsigned long l_size, r_size;
    dbreg_t db;
    int p2;

    if (nbr < 1 || end <= start) return;

    size = end - start;

    DPRINT("start=0x%016lx end=0x%016lx size=0x%lx bytes (%lu bundles) nbr=%d dir=%d\n",
            start, end, size, size >> 4, nbr, dir);

    p2 = pfm_ia64_fls(size);

    c = ALIGN_DOWN(end, p2);

    DPRINT("largest power of two possible: 2^%d=0x%lx, crossing=0x%016lx\n",
                p2,
                1UL << p2, c);

    if ((c - (1UL<<p2)) >= start) {
        l_addr = c - (1UL << p2);
    } else {
        p2--;

        if ((c + (1UL<<p2)) <= end)  {
            l_addr = c;
        } else {
            l_addr = c - (1UL << p2);
        }
    }
    l_size = l_addr - start;
    r_size = end - l_addr-(1UL<<p2);

    if (PFMLIB_DEBUG()) {
        printf("largest chunk: 2^%d=0x%lx @0x%016lx-0x%016lx\n", p2, 1UL<<p2, l_addr, l_addr+(1UL<<p2));
        if (l_size) printf("before: 0x%016lx-0x%016lx\n", start, l_addr);
        if (r_size) printf("after : 0x%016lx-0x%016lx\n", l_addr+(1UL<<p2), end);
    }

    if (dir == 0 && l_size != 0 && nbr == 1) {
        p2++;
        l_addr = end - (1UL << p2);
        if (PFMLIB_DEBUG()) {
            l_offs = start - l_addr;
            printf(">>l_offs: 0x%lx\n", l_offs);
        }
    } else if (dir == 1 && r_size != 0 && nbr == 1) {
        p2++;
        l_addr = start;
        if (PFMLIB_DEBUG()) {
            r_offs = l_addr+(1UL<<p2) - end;
            printf(">>r_offs: 0x%lx\n", r_offs);
        }
    }
    l_size = l_addr - start;
    r_size = end - l_addr-(1UL<<p2);

    if (PFMLIB_DEBUG()) {
        printf(">>largest chunk: 2^%d @0x%016lx-0x%016lx\n", p2, l_addr, l_addr+(1UL<<p2));
        if (l_size && !l_offs) printf(">>before: 0x%016lx-0x%016lx\n", start, l_addr);
        if (r_size && !r_offs) printf(">>after : 0x%016lx-0x%016lx\n", l_addr+(1UL<<p2), end);
    }

    /*
     * we initialize the mask to full 0 and
     * only update the mask field. the rest is left
     * to zero, except for the plm.
     * in the case of ibr, the x-field must be 0. For dbr
     * the value of r-field and w-field is ignored.
     */

    db.val        = 0;
    db.db.db_mask = ~((1UL << p2)-1);
    /*
     * we always use default privilege level.
     * plm is ignored for DBRs.
     */
    db.db.db_plm  = plm;


    br[*idx].reg_num     = *reg_idx;
    br[*idx].reg_value   = l_addr;
    br[*idx].reg_addr    = br[*idx].reg_alt_addr = *reg_idx;

    br[*idx+1].reg_num   = *reg_idx+1;
    br[*idx+1].reg_value = db.val;
    br[*idx+1].reg_addr  = br[*idx+1].reg_alt_addr = *reg_idx+1;

    *idx     += 2;
    *reg_idx += 2;

    nbr--;
    if (nbr) {
        int r_nbr, l_nbr;

        r_nbr = l_nbr = nbr >>1;

        if (nbr & 0x1) {
            /*
             * our simple heuristic is:
             * we assign the largest number of registers to the largest
             * of the two chunks
             */
            if (l_size > r_size) {
                l_nbr++;
            } else {
                r_nbr++;
            }

        }
        do_normal_rr(start, l_addr, br, l_nbr, 0, idx, reg_idx, plm);
        do_normal_rr(l_addr+(1UL<<p2), end, br, r_nbr, 1, idx, reg_idx, plm);
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

pfm_dispatch_btb()

static int pfm_dispatch_btb ( pfmlib_input_param_t *  inp, pfmlib_ita2_input_param_t *  mod_in, pfmlib_output_param_t *  outp  )

static

Definition at line 916 of file pfmlib_itanium2.c.

{
    pfmlib_event_t *e= inp->pfp_events;
    pfm_ita2_pmc_reg_t reg;
    pfmlib_ita2_input_param_t *param = mod_in;
    pfmlib_reg_t *pc, *pd;
    pfmlib_ita2_input_param_t fake_param;
    int found_btb = 0, found_bad_dear = 0;
    int has_btb_param;
    unsigned int i, pos1, pos2;
    unsigned int count;

    pc = outp->pfp_pmcs;
    pd = outp->pfp_pmds;
    pos1 = outp->pfp_pmc_count;
    pos2 = outp->pfp_pmd_count;


    /*
     * explicit BTB settings
     */
    has_btb_param = param && param->pfp_ita2_btb.btb_used;

    reg.pmc_val = 0UL;

    /*
     * we need to scan all events looking for DEAR ALAT/TLB due to incompatibility
     */
    count = inp->pfp_event_count;
    for (i=0; i < count; i++) {

        if (is_btb(e[i].event)) found_btb = 1;

        /*
         * keep track of the first BTB event
         */

        /* look only for DEAR TLB */
        if (is_dear(e[i].event) && (is_ear_tlb(e[i].event) || is_ear_alat(e[i].event))) {
            found_bad_dear = 1;
        }
    }

    DPRINT("found_btb=%d found_bar_dear=%d\n", found_btb, found_bad_dear);

    /*
     * did not find D-EAR TLB/ALAT event, need to check param structure
     */
    if (found_bad_dear == 0 && param && param->pfp_ita2_dear.ear_used == 1) {
        if (   param->pfp_ita2_dear.ear_mode == PFMLIB_ITA2_EAR_TLB_MODE
            || param->pfp_ita2_dear.ear_mode == PFMLIB_ITA2_EAR_ALAT_MODE)
            found_bad_dear = 1;
    }

    /*
     * no explicit BTB event and no special case to deal with (cover part of case 3)
     */
    if (found_btb == 0 && has_btb_param == 0 && found_bad_dear == 0) return PFMLIB_SUCCESS;

    if (has_btb_param == 0) {

        /*
         * case 3: no BTB event, btb_used=0 but found_bad_dear=1, need to cleanup PMC12
         */
         if (found_btb == 0) goto assign_zero;

        /*
         * case 1: we have a BTB event but no param, default setting is to capture
         *         all branches.
         */
        memset(&fake_param, 0, sizeof(fake_param));
        param = &fake_param;

        param->pfp_ita2_btb.btb_ds  = 0;    /* capture branch targets */
        param->pfp_ita2_btb.btb_tm  = 0x3;  /* all branches */
        param->pfp_ita2_btb.btb_ptm = 0x3;  /* all branches */
        param->pfp_ita2_btb.btb_ppm = 0x3;  /* all branches */
        param->pfp_ita2_btb.btb_brt = 0x0;  /* all branches */

        DPRINT("BTB event with no info\n");
    }

    /*
     * case 2: BTB event in the list, param provided
     * case 4: no BTB event, param provided (free running mode)
     */
    reg.pmc12_ita2_reg.btbc_plm = param->pfp_ita2_btb.btb_plm ? param->pfp_ita2_btb.btb_plm : inp->pfp_dfl_plm;
    reg.pmc12_ita2_reg.btbc_pm  = inp->pfp_flags & PFMLIB_PFP_SYSTEMWIDE ? 1 : 0;
    reg.pmc12_ita2_reg.btbc_ds  = param->pfp_ita2_btb.btb_ds & 0x1;
    reg.pmc12_ita2_reg.btbc_tm  = param->pfp_ita2_btb.btb_tm & 0x3;
    reg.pmc12_ita2_reg.btbc_ptm = param->pfp_ita2_btb.btb_ptm & 0x3;
    reg.pmc12_ita2_reg.btbc_ppm = param->pfp_ita2_btb.btb_ppm & 0x3;
    reg.pmc12_ita2_reg.btbc_brt = param->pfp_ita2_btb.btb_brt & 0x3;

    /*
     * if DEAR-ALAT or DEAR-TLB is set then PMC12 must be set to zero (see documentation p. 87)
     *
     * D-EAR ALAT/TLB and BTB cannot be used at the same time.
     * From documentation: PMC12 must be zero in this mode; else the wrong IP for misses
     * coming right after a mispredicted branch.
     *
     * D-EAR cache is fine.
     */
assign_zero:
    if (found_bad_dear && reg.pmc_val != 0UL) return PFMLIB_ERR_EVTINCOMP;

    if (pfm_regmask_isset(&inp->pfp_unavail_pmcs, 12))
        return PFMLIB_ERR_NOASSIGN;

    memset(pc+pos1, 0, sizeof(pfmlib_reg_t));

    pc[pos1].reg_num   = 12;
    pc[pos1].reg_value = reg.pmc_val;
    pc[pos1].reg_addr  = pc[pos1].reg_alt_addr = 12;
    pos1++;

    __pfm_vbprintf("[PMC12(pmc12)=0x%lx plm=%d pm=%d ds=%d tm=%d ptm=%d ppm=%d brt=%d]\n",
                reg.pmc_val,
                reg.pmc12_ita2_reg.btbc_plm,
                reg.pmc12_ita2_reg.btbc_pm,
                reg.pmc12_ita2_reg.btbc_ds,
                reg.pmc12_ita2_reg.btbc_tm,
                reg.pmc12_ita2_reg.btbc_ptm,
                reg.pmc12_ita2_reg.btbc_ppm,
                reg.pmc12_ita2_reg.btbc_brt);
    /*
     * only add BTB PMD when actually using BTB.
     * Not needed when dealing with D-EAR TLB and DEAR-ALAT
     * PMC12 restriction
     */
    if (found_btb || has_btb_param) {
        /*
         * PMD16 is included in list of used PMD
         */
        for(i=8; i < 17; i++, pos2++) {
            pd[pos2].reg_num = i;
            pd[pos2].reg_addr = pd[pos2].reg_alt_addr = i;
            __pfm_vbprintf("[PMD%u(pmd%u)]\n", pd[pos2].reg_num, pd[pos2].reg_num);
        }
    }


    /* update final number of entries used */
    outp->pfp_pmc_count = pos1;
    outp->pfp_pmd_count = pos2;

    return PFMLIB_SUCCESS;
}

Here is the call graph for this function:

Here is the caller graph for this function:

pfm_dispatch_dear()

static int pfm_dispatch_dear ( pfmlib_input_param_t *  inp, pfmlib_ita2_input_param_t *  mod_in, pfmlib_output_param_t *  outp  )

static

Definition at line 687 of file pfmlib_itanium2.c.

{
    pfm_ita2_pmc_reg_t reg;
    pfmlib_ita2_input_param_t *param = mod_in;
    pfmlib_reg_t *pc, *pd;
    pfmlib_ita2_input_param_t fake_param;
    unsigned int pos1, pos2;
    unsigned int i, count;

    pc = outp->pfp_pmcs;
    pd = outp->pfp_pmds;
    pos1 = outp->pfp_pmc_count;
    pos2 = outp->pfp_pmd_count;
    count = inp->pfp_event_count;

    for (i=0; i < count; i++) {
        if (is_dear(inp->pfp_events[i].event)) break;
    }

    if (param == NULL || param->pfp_ita2_dear.ear_used == 0) {

        /*
         * case 3: no D-EAR event, no (or nothing) in param->pfp_ita2_dear.ear_used
         */
        if (i == count) return PFMLIB_SUCCESS;

        memset(&fake_param, 0, sizeof(fake_param));
        param = &fake_param;

        /*
         * case 1: extract all information for event (name)
         */
        pfm_ita2_get_ear_mode(inp->pfp_events[i].event, &param->pfp_ita2_dear.ear_mode);

        param->pfp_ita2_dear.ear_umask = evt_umask(inp->pfp_events[i].event);
        param->pfp_ita2_dear.ear_ism   = PFMLIB_ITA2_ISM_BOTH; /* force both instruction sets */

        DPRINT("D-EAR event with no info\n");
    }

    /* sanity check on the mode */
    if (   param->pfp_ita2_dear.ear_mode != PFMLIB_ITA2_EAR_CACHE_MODE
        && param->pfp_ita2_dear.ear_mode != PFMLIB_ITA2_EAR_TLB_MODE
        && param->pfp_ita2_dear.ear_mode != PFMLIB_ITA2_EAR_ALAT_MODE)
        return PFMLIB_ERR_INVAL;

    /*
     * case 2: ear_used=1, event is defined, we use the param info as it is more precise
     * case 4: ear_used=1, no event (free running D-EAR), use param info
     */
    reg.pmc_val = 0;

    /* if plm is 0, then assume not specified per-event and use default */
    reg.pmc11_ita2_reg.dear_plm   = param->pfp_ita2_dear.ear_plm ? param->pfp_ita2_dear.ear_plm : inp->pfp_dfl_plm;
    reg.pmc11_ita2_reg.dear_pm    = inp->pfp_flags & PFMLIB_PFP_SYSTEMWIDE ? 1 : 0;
    reg.pmc11_ita2_reg.dear_mode  = param->pfp_ita2_dear.ear_mode;
    reg.pmc11_ita2_reg.dear_umask = param->pfp_ita2_dear.ear_umask;
    reg.pmc11_ita2_reg.dear_ism   = param->pfp_ita2_dear.ear_ism;

    if (pfm_regmask_isset(&inp->pfp_unavail_pmcs, 11))
        return PFMLIB_ERR_NOASSIGN;

    pc[pos1].reg_num     = 11;  /* PMC11 is D-EAR config register */
    pc[pos1].reg_value   = reg.pmc_val;
    pc[pos1].reg_addr  = pc[pos1].reg_alt_addr = 11;
    pos1++;
    pd[pos2].reg_num     = 2;
    pd[pos2].reg_addr  = pd[pos2].reg_alt_addr = 2;
    pos2++;
    pd[pos2].reg_num     = 3;
    pd[pos2].reg_addr  = pd[pos2].reg_alt_addr = 3;
    pos2++;
    pd[pos2].reg_num     = 17;
    pd[pos2].reg_addr  = pd[pos2].reg_alt_addr = 17;
    pos2++;

    __pfm_vbprintf("[PMC11(pmc11)=0x%lx mode=%s plm=%d pm=%d ism=0x%x umask=0x%x]\n",
            reg.pmc_val,
            reg.pmc11_ita2_reg.dear_mode == 0 ? "L1D" :
            (reg.pmc11_ita2_reg.dear_mode == 1 ? "L1DTLB" : "ALAT"),
            reg.pmc11_ita2_reg.dear_plm,
            reg.pmc11_ita2_reg.dear_pm,
            reg.pmc11_ita2_reg.dear_ism,
            reg.pmc11_ita2_reg.dear_umask);
    __pfm_vbprintf("[PMD2(pmd2)]\n[PMD3(pmd3)\nPMD17(pmd17)\n");


    /* update final number of entries used */
    outp->pfp_pmc_count = pos1;
    outp->pfp_pmd_count = pos2;

    return PFMLIB_SUCCESS;
}

Here is the call graph for this function:

Here is the caller graph for this function:

pfm_dispatch_drange()

static int pfm_dispatch_drange ( pfmlib_input_param_t *  inp, pfmlib_ita2_input_param_t *  mod_in, pfmlib_output_param_t *  outp, pfmlib_ita2_output_param_t *  mod_out  )

static

Definition at line 1632 of file pfmlib_itanium2.c.

{
    pfmlib_ita2_input_param_t *param = mod_in;
    pfmlib_reg_t *pc = outp->pfp_pmcs;
    pfmlib_ita2_input_rr_t *irr;
    pfmlib_ita2_output_rr_t *orr, *orr2;
    pfm_ita2_pmc_reg_t pmc13;
    pfm_ita2_pmc_reg_t pmc14;
    unsigned int i, pos = outp->pfp_pmc_count;
    int iod_codes[4], dfl_val_pmc8, dfl_val_pmc9;
    unsigned int n_intervals;
    int ret;
    int base_idx = 0;
    int fine_mode = 0;
#define DR_USED 0x1 /* data range is used */
#define OP_USED 0x2 /* opcode matching is used */
#define IR_USED 0x4 /* code range is used */

    if (param == NULL) return PFMLIB_SUCCESS;
    /*
     * if only pmc8/pmc9 opcode matching is used, we do not need to change
     * the default value of pmc13 regardless of the events being measured.
     */
    if (  param->pfp_ita2_drange.rr_used == 0
       && param->pfp_ita2_irange.rr_used == 0) return PFMLIB_SUCCESS;

    /*
     * it seems like the ignored bits need to have special values
     * otherwise this does not work.
     */
    pmc13.pmc_val = 0x2078fefefefe;

    /*
     * initialize iod codes
     */
    iod_codes[0] = iod_codes[1] = iod_codes[2] = iod_codes[3] = 0;

    /*
     * setup default iod value, we need to separate because
     * if drange is used we do not know in advance which DBR will be used
     * therefore we need to apply dfl_val later
     */
    dfl_val_pmc8 = param->pfp_ita2_pmc8.opcm_used ? OP_USED : 0;
    dfl_val_pmc9 = param->pfp_ita2_pmc9.opcm_used ? OP_USED : 0;

    if (param->pfp_ita2_drange.rr_used == 1) {

        if (mod_out == NULL) return PFMLIB_ERR_INVAL;

        irr = &param->pfp_ita2_drange;
        orr = &mod_out->pfp_ita2_drange;

        ret = check_intervals(irr, 1, &n_intervals);
        if (ret != PFMLIB_SUCCESS) return ret;

        if (n_intervals < 1) return PFMLIB_ERR_DRRINVAL;

        ret = compute_normal_rr(irr, inp->pfp_dfl_plm, n_intervals, &base_idx, orr);
        if (ret != PFMLIB_SUCCESS) {
            return ret == PFMLIB_ERR_TOOMANY ? PFMLIB_ERR_DRRTOOMANY : ret;
        }

        /*
         * Update iod_codes to reflect the use of the DBR constraint.
         */
        for (i=0; i < orr->rr_nbr_used; i++) {
            if (orr->rr_br[i].reg_num == 0) iod_codes[0] |= DR_USED | dfl_val_pmc8;
            if (orr->rr_br[i].reg_num == 2) iod_codes[1] |= DR_USED | dfl_val_pmc9;
            if (orr->rr_br[i].reg_num == 4) iod_codes[2] |= DR_USED | dfl_val_pmc8;
            if (orr->rr_br[i].reg_num == 6) iod_codes[3] |= DR_USED | dfl_val_pmc9;
        }

    }

    /*
     * XXX: assume dispatch_irange executed before calling this function
     */
    if (param->pfp_ita2_irange.rr_used == 1) {

        orr2 = &mod_out->pfp_ita2_irange;

        if (mod_out == NULL) return PFMLIB_ERR_INVAL;

        /*
         * we need to find out whether or not the irange is using
         * fine mode. If this is the case, then we only need to
         * program pmc13 for the ibr pairs which designate the lower
         * bounds of a range. For instance, if IBRP0/IBRP2 are used,
         * then we only need to program pmc13.cfg_dbrp0 and pmc13.ena_dbrp0,
         * the PMU will automatically use IBRP2, even though pmc13.ena_dbrp2=0.
         */
        for(i=0; i <= pos; i++) {
            if (pc[i].reg_num == 14) {
                pmc14.pmc_val = pc[i].reg_value;
                if (pmc14.pmc14_ita2_reg.iarc_fine == 1) fine_mode = 1;
                break;
            }
        }

        /*
         * Update to reflect the use of the IBR constraint
         */
        for (i=0; i < orr2->rr_nbr_used; i++) {
            if (orr2->rr_br[i].reg_num == 0) iod_codes[0] |= IR_USED | dfl_val_pmc8;
            if (orr2->rr_br[i].reg_num == 2) iod_codes[1] |= IR_USED | dfl_val_pmc9;
            if (fine_mode == 0 && orr2->rr_br[i].reg_num == 4) iod_codes[2] |= IR_USED | dfl_val_pmc8;
            if (fine_mode == 0 && orr2->rr_br[i].reg_num == 6) iod_codes[3] |= IR_USED | dfl_val_pmc9;
        }
    }

    if (param->pfp_ita2_irange.rr_used == 0 && param->pfp_ita2_drange.rr_used ==0) {
        iod_codes[0] = iod_codes[2] = dfl_val_pmc8;
        iod_codes[1] = iod_codes[3] = dfl_val_pmc9;
    }

    /*
     * update the cfg dbrpX field. If we put a constraint on a cfg dbrp, then
     * we must enable it in the corresponding ena_dbrpX
     */
    pmc13.pmc13_ita2_reg.darc_ena_dbrp0 = iod_codes[0] ? 1 : 0;
    pmc13.pmc13_ita2_reg.darc_cfg_dbrp0 = iod_tab[iod_codes[0]];

    pmc13.pmc13_ita2_reg.darc_ena_dbrp1 = iod_codes[1] ? 1 : 0;
    pmc13.pmc13_ita2_reg.darc_cfg_dbrp1 = iod_tab[iod_codes[1]];

    pmc13.pmc13_ita2_reg.darc_ena_dbrp2 = iod_codes[2] ? 1 : 0;
    pmc13.pmc13_ita2_reg.darc_cfg_dbrp2 = iod_tab[iod_codes[2]];

    pmc13.pmc13_ita2_reg.darc_ena_dbrp3 = iod_codes[3] ? 1 : 0;
    pmc13.pmc13_ita2_reg.darc_cfg_dbrp3 = iod_tab[iod_codes[3]];


    if (pfm_regmask_isset(&inp->pfp_unavail_pmcs, 13))
        return PFMLIB_ERR_NOASSIGN;

    pc[pos].reg_num     = 13;
    pc[pos].reg_value   = pmc13.pmc_val;
    pc[pos].reg_addr  = pc[pos].reg_alt_addr = 13;
    pos++;

    __pfm_vbprintf("[PMC13(pmc13)=0x%lx cfg_dbrp0=%d cfg_dbrp1=%d cfg_dbrp2=%d cfg_dbrp3=%d ena_dbrp0=%d ena_dbrp1=%d ena_dbrp2=%d ena_dbrp3=%d]\n",
            pmc13.pmc_val,
            pmc13.pmc13_ita2_reg.darc_cfg_dbrp0,
            pmc13.pmc13_ita2_reg.darc_cfg_dbrp1,
            pmc13.pmc13_ita2_reg.darc_cfg_dbrp2,
            pmc13.pmc13_ita2_reg.darc_cfg_dbrp3,
            pmc13.pmc13_ita2_reg.darc_ena_dbrp0,
            pmc13.pmc13_ita2_reg.darc_ena_dbrp1,
            pmc13.pmc13_ita2_reg.darc_ena_dbrp2,
            pmc13.pmc13_ita2_reg.darc_ena_dbrp3);

    outp->pfp_pmc_count = pos;

    return PFMLIB_SUCCESS;
}

Here is the call graph for this function:

Here is the caller graph for this function:

pfm_dispatch_iear()

static int pfm_dispatch_iear ( pfmlib_input_param_t *  inp, pfmlib_ita2_input_param_t *  mod_in, pfmlib_output_param_t *  outp  )

static

Definition at line 583 of file pfmlib_itanium2.c.

{
    pfm_ita2_pmc_reg_t reg;
    pfmlib_ita2_input_param_t *param = mod_in;
    pfmlib_reg_t *pc, *pd;
    pfmlib_ita2_input_param_t fake_param;
    unsigned int pos1, pos2;
    unsigned int i, count;

    pc = outp->pfp_pmcs;
    pd = outp->pfp_pmds;
    pos1 = outp->pfp_pmc_count;
    pos2 = outp->pfp_pmd_count;
    count = inp->pfp_event_count;

    for (i=0; i < count; i++) {
        if (is_iear(inp->pfp_events[i].event)) break;
    }

    if (param == NULL || param->pfp_ita2_iear.ear_used == 0) {

        /*
         * case 3: no I-EAR event, no (or nothing) in param->pfp_ita2_iear.ear_used
         */
        if (i == count) return PFMLIB_SUCCESS;

        memset(&fake_param, 0, sizeof(fake_param));
        param = &fake_param;

        /*
         * case 1: extract all information for event (name)
         */
        pfm_ita2_get_ear_mode(inp->pfp_events[i].event, &param->pfp_ita2_iear.ear_mode);

        param->pfp_ita2_iear.ear_umask = evt_umask(inp->pfp_events[i].event);
        param->pfp_ita2_iear.ear_ism   = PFMLIB_ITA2_ISM_BOTH; /* force both instruction sets */

        DPRINT("I-EAR event with no info\n");
    }

    /*
     * case 2: ear_used=1, event is defined, we use the param info as it is more precise
     * case 4: ear_used=1, no event (free running I-EAR), use param info
     */
    reg.pmc_val = 0;

    if (param->pfp_ita2_iear.ear_mode == PFMLIB_ITA2_EAR_TLB_MODE) {
        /* if plm is 0, then assume not specified per-event and use default */
        reg.pmc10_ita2_tlb_reg.iear_plm     = param->pfp_ita2_iear.ear_plm ? param->pfp_ita2_iear.ear_plm : inp->pfp_dfl_plm;
        reg.pmc10_ita2_tlb_reg.iear_pm      = inp->pfp_flags & PFMLIB_PFP_SYSTEMWIDE ? 1 : 0;
        reg.pmc10_ita2_tlb_reg.iear_ct      = 0x0;
        reg.pmc10_ita2_tlb_reg.iear_umask   = param->pfp_ita2_iear.ear_umask;
        reg.pmc10_ita2_tlb_reg.iear_ism     = param->pfp_ita2_iear.ear_ism;
    } else if (param->pfp_ita2_iear.ear_mode == PFMLIB_ITA2_EAR_CACHE_MODE) {
        /* if plm is 0, then assume not specified per-event and use default */
        reg.pmc10_ita2_cache_reg.iear_plm   = param->pfp_ita2_iear.ear_plm ? param->pfp_ita2_iear.ear_plm : inp->pfp_dfl_plm;
        reg.pmc10_ita2_cache_reg.iear_pm    = inp->pfp_flags & PFMLIB_PFP_SYSTEMWIDE ? 1 : 0;
        reg.pmc10_ita2_cache_reg.iear_ct    = 0x1;
        reg.pmc10_ita2_cache_reg.iear_umask = param->pfp_ita2_iear.ear_umask;
        reg.pmc10_ita2_cache_reg.iear_ism   = param->pfp_ita2_iear.ear_ism;
    } else {
        DPRINT("ALAT mode not supported in I-EAR mode\n");
        return PFMLIB_ERR_INVAL;
    }

    if (pfm_regmask_isset(&inp->pfp_unavail_pmcs, 10))
        return PFMLIB_ERR_NOASSIGN;

    pc[pos1].reg_num     = 10; /* PMC10 is I-EAR config register */
    pc[pos1].reg_value   = reg.pmc_val;
    pc[pos1].reg_addr  = pc[pos1].reg_alt_addr = 10;
    pos1++;
    pd[pos2].reg_num     = 0;
    pd[pos2].reg_addr  = pd[pos2].reg_alt_addr= 0;
    pos2++;
    pd[pos2].reg_num     = 1;
    pd[pos2].reg_addr  = pd[pos2].reg_alt_addr = 1;
    pos2++;

    if (param->pfp_ita2_iear.ear_mode == PFMLIB_ITA2_EAR_TLB_MODE) {
        __pfm_vbprintf("[PMC10(pmc10)=0x%lx ctb=tlb plm=%d pm=%d ism=0x%x umask=0x%x]\n",
            reg.pmc_val,
            reg.pmc10_ita2_tlb_reg.iear_plm,
            reg.pmc10_ita2_tlb_reg.iear_pm,
            reg.pmc10_ita2_tlb_reg.iear_ism,
            reg.pmc10_ita2_tlb_reg.iear_umask);
    } else {
        __pfm_vbprintf("[PMC10(pmc10)=0x%lx ctb=cache plm=%d pm=%d ism=0x%x umask=0x%x]\n",
            reg.pmc_val,
            reg.pmc10_ita2_cache_reg.iear_plm,
            reg.pmc10_ita2_cache_reg.iear_pm,
            reg.pmc10_ita2_cache_reg.iear_ism,
            reg.pmc10_ita2_cache_reg.iear_umask);
    }
    __pfm_vbprintf("[PMD0(pmd0)]\n[PMD1(pmd1)\n");

    /* update final number of entries used */
    outp->pfp_pmc_count = pos1;
    outp->pfp_pmd_count = pos2;

    return PFMLIB_SUCCESS;
}

Here is the call graph for this function:

Here is the caller graph for this function:

pfm_dispatch_irange()

static int pfm_dispatch_irange ( pfmlib_input_param_t *  inp, pfmlib_ita2_input_param_t *  mod_in, pfmlib_output_param_t *  outp, pfmlib_ita2_output_param_t *  mod_out  )

static

Definition at line 1452 of file pfmlib_itanium2.c.

{
    pfm_ita2_pmc_reg_t reg;
    pfmlib_ita2_input_param_t *param = mod_in;
    pfmlib_ita2_input_rr_t *irr;
    pfmlib_ita2_output_rr_t *orr;
    pfmlib_reg_t *pc = outp->pfp_pmcs;
    unsigned int i, pos = outp->pfp_pmc_count, count;
    int ret;
    unsigned int retired_only, retired_count, fine_mode, prefetch_count;
    unsigned int n_intervals;
    int base_idx = 0;
    unsigned long retired_mask;

    if (param == NULL) return PFMLIB_SUCCESS;

    if (param->pfp_ita2_irange.rr_used == 0) return PFMLIB_SUCCESS;

    if (mod_out == NULL) return PFMLIB_ERR_INVAL;

    irr = &param->pfp_ita2_irange;
    orr = &mod_out->pfp_ita2_irange;

    ret = check_intervals(irr, 0, &n_intervals);
    if (ret != PFMLIB_SUCCESS) return ret;

    if (n_intervals < 1) return PFMLIB_ERR_IRRINVAL;

    retired_count  = check_inst_retired_events(inp, &retired_mask);
    retired_only   = retired_count == inp->pfp_event_count;
    prefetch_count = check_prefetch_events(inp);
    fine_mode      = irr->rr_flags & PFMLIB_ITA2_RR_NO_FINE_MODE ?
                 0 : check_fine_mode_possible(irr, n_intervals);

    DPRINT("n_intervals=%d retired_only=%d retired_count=%d prefetch_count=%d fine_mode=%d\n",
        n_intervals, retired_only, retired_count, prefetch_count, fine_mode);

    /*
     * On Itanium2, there are more constraints on what can be measured with irange.
     *
     * - The fine mode is the best because you directly set the lower and upper limits of
     *   the range. This uses 2 ibr pairs for range (ibrp0/ibrp2 and ibp1/ibrp3). Therefore
     *   at most 2 fine mode ranges can be defined. There is a limit on the size and alignment
     *   of the range to allow fine mode: the range must be less than 4KB in size AND the lower
     *   and upper limits must NOT cross a 4KB page boundary. The fine mode works will all events.
     *
     * - if the fine mode fails, then for all events, except IA64_TAGGED_INST_RETIRED_*, only
     *   the first pair of ibr is available: ibrp0. This imposes some severe restrictions on the
     *   size and alignement of the range. It can be bigger than 4KB and must be properly aligned
     *   on its size. The library relaxes these constraints by allowing the covered areas to be
     *   larger than the expected range. It may start before and end after. You can determine how
     *   far off the range is in either direction for each range by looking at the rr_soff (start
     *   offset) and rr_eoff (end offset).
     *
     * - if the events include certain prefetch events then only IBRP1 can be used in fine mode
     *   See 10.3.5.1 Exception 1.
     *
     * - Finally, when the events are ONLY IA64_TAGGED_INST_RETIRED_* then all IBR pairs can be used
     *   to cover the range giving us more flexibility to approximate the range when it is not
     *   properly aligned on its size (see 10.3.5.2 Exception 2).
     */

    if (fine_mode == 0 && retired_only == 0 && n_intervals > 1) return PFMLIB_ERR_IRRTOOMANY;

    /* we do not default to non-fine mode to support more ranges */
    if (n_intervals > 2 && fine_mode == 1) return PFMLIB_ERR_IRRTOOMANY;

    if (fine_mode == 0) {
        if (retired_only) {
            ret = compute_normal_rr(irr, inp->pfp_dfl_plm, n_intervals, &base_idx, orr);
        } else {
            /* unless we have only prefetch and instruction retired events,
             * we cannot satisfy the request because the other events cannot
             * be measured on anything but IBRP0.
             */
            if (prefetch_count && (prefetch_count+retired_count) != inp->pfp_event_count)
                return PFMLIB_ERR_FEATCOMB;

            base_idx =  prefetch_count ? 2 : 0;

            ret = compute_single_rr(irr, inp->pfp_dfl_plm, &base_idx, orr);
        }
    } else {
        if (prefetch_count && n_intervals != 1) return PFMLIB_ERR_IRRTOOMANY;

        base_idx = prefetch_count ? 2 : 0;
        ret = compute_fine_rr(irr, inp->pfp_dfl_plm, n_intervals, &base_idx, orr);
    }

    if (ret != PFMLIB_SUCCESS) {
        return ret == PFMLIB_ERR_TOOMANY ? PFMLIB_ERR_IRRTOOMANY : ret;
    }

    reg.pmc_val = 0xdb6; /* default value */

    count = orr->rr_nbr_used;
    for (i=0; i < count; i++) {
        switch(orr->rr_br[i].reg_num) {
            case 0:
                reg.pmc14_ita2_reg.iarc_ibrp0 = 0;
                break;
            case 2:
                reg.pmc14_ita2_reg.iarc_ibrp1 = 0;
                break;
            case 4:
                reg.pmc14_ita2_reg.iarc_ibrp2 = 0;
                break;
            case 6:
                reg.pmc14_ita2_reg.iarc_ibrp3 = 0;
                break;
        }
    }

    if (retired_only && (param->pfp_ita2_pmc8.opcm_used ||param->pfp_ita2_pmc9.opcm_used)) {
        /*
         * PMC8 + IA64_INST_RETIRED only works if irange on IBRP0 and/or IBRP2
         * PMC9 + IA64_INST_RETIRED only works if irange on IBRP1 and/or IBRP3
         */
        count = orr->rr_nbr_used;
        for (i=0; i < count; i++) {
            if (orr->rr_br[i].reg_num == 0 && param->pfp_ita2_pmc9.opcm_used)  return PFMLIB_ERR_FEATCOMB;
            if (orr->rr_br[i].reg_num == 2 && param->pfp_ita2_pmc8.opcm_used)  return PFMLIB_ERR_FEATCOMB;
            if (orr->rr_br[i].reg_num == 4 && param->pfp_ita2_pmc9.opcm_used)  return PFMLIB_ERR_FEATCOMB;
            if (orr->rr_br[i].reg_num == 6 && param->pfp_ita2_pmc8.opcm_used)  return PFMLIB_ERR_FEATCOMB;
        }
    }

    if (fine_mode) {
        reg.pmc14_ita2_reg.iarc_fine = 1;
    } else if (retired_only) {
        /*
         * we need to check that the user provided all the events needed to cover
         * all the ibr pairs used to cover the range
         */
        if ((retired_mask & 0x1) == 0 &&  reg.pmc14_ita2_reg.iarc_ibrp0 == 0) return PFMLIB_ERR_IRRINVAL;
        if ((retired_mask & 0x2) == 0 &&  reg.pmc14_ita2_reg.iarc_ibrp1 == 0) return PFMLIB_ERR_IRRINVAL;
        if ((retired_mask & 0x4) == 0 &&  reg.pmc14_ita2_reg.iarc_ibrp2 == 0) return PFMLIB_ERR_IRRINVAL;
        if ((retired_mask & 0x8) == 0 &&  reg.pmc14_ita2_reg.iarc_ibrp3 == 0) return PFMLIB_ERR_IRRINVAL;
    }

    /* initialize pmc request slot */
    memset(pc+pos, 0, sizeof(pfmlib_reg_t));

    if (pfm_regmask_isset(&inp->pfp_unavail_pmcs, 14))
        return PFMLIB_ERR_NOASSIGN;

    pc[pos].reg_num     = 14;
    pc[pos].reg_value   = reg.pmc_val;
    pc[pos].reg_addr  = pc[pos].reg_alt_addr = 14;
    pos++;

    __pfm_vbprintf("[PMC14(pmc14)=0x%lx ibrp0=%d ibrp1=%d ibrp2=%d ibrp3=%d fine=%d]\n",
            reg.pmc_val,
            reg.pmc14_ita2_reg.iarc_ibrp0,
            reg.pmc14_ita2_reg.iarc_ibrp1,
            reg.pmc14_ita2_reg.iarc_ibrp2,
            reg.pmc14_ita2_reg.iarc_ibrp3,
            reg.pmc14_ita2_reg.iarc_fine);

    outp->pfp_pmc_count = pos;

    return PFMLIB_SUCCESS;
}

Here is the call graph for this function:

Here is the caller graph for this function:

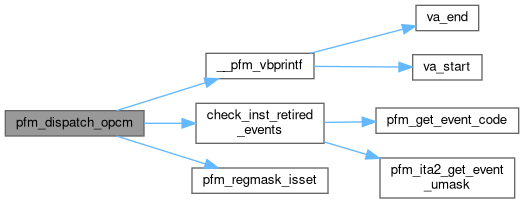

pfm_dispatch_opcm()

static int pfm_dispatch_opcm ( pfmlib_input_param_t *  inp, pfmlib_ita2_input_param_t *  mod_in, pfmlib_output_param_t *  outp, pfmlib_ita2_output_param_t *  mod_out  )

static

Definition at line 782 of file pfmlib_itanium2.c.

{
    pfmlib_ita2_input_param_t *param = mod_in;
    pfmlib_reg_t *pc = outp->pfp_pmcs;
    pfm_ita2_pmc_reg_t reg, pmc15;
    unsigned int i, has_1st_pair, has_2nd_pair, count;
    unsigned int pos = outp->pfp_pmc_count;

    if (param == NULL) return PFMLIB_SUCCESS;

    /* not constrained by PMC8 nor PMC9 */
    pmc15.pmc_val = 0xffffffff; /* XXX: use PAL instead. PAL value is 0xfffffff0 */

    if (param->pfp_ita2_irange.rr_used && mod_out == NULL) return PFMLIB_ERR_INVAL;

    if (param->pfp_ita2_pmc8.opcm_used || (param->pfp_ita2_irange.rr_used && mod_out->pfp_ita2_irange.rr_nbr_used!=0) ) {

        reg.pmc_val = param->pfp_ita2_pmc8.opcm_used ? param->pfp_ita2_pmc8.pmc_val : 0xffffffff3fffffff;

        if (param->pfp_ita2_irange.rr_used) {
            reg.pmc8_9_ita2_reg.opcm_ig_ad = 0;
            reg.pmc8_9_ita2_reg.opcm_inv   = param->pfp_ita2_irange.rr_flags & PFMLIB_ITA2_RR_INV ? 1 : 0;
        } else {
            /* clear range restriction fields when none is used */
            reg.pmc8_9_ita2_reg.opcm_ig_ad = 1;
            reg.pmc8_9_ita2_reg.opcm_inv   = 0;
        }

        /* force bit 2 to 1 */
        reg.pmc8_9_ita2_reg.opcm_bit2 = 1;

        if (pfm_regmask_isset(&inp->pfp_unavail_pmcs, 8))
            return PFMLIB_ERR_NOASSIGN;

        pc[pos].reg_num     = 8;
        pc[pos].reg_value   = reg.pmc_val;
        pc[pos].reg_addr  = pc[pos].reg_alt_addr = 8;
        pos++;

        /*
         * will be constrained by PMC8
         */
        if (param->pfp_ita2_pmc8.opcm_used) {
            has_1st_pair = has_2nd_pair = 0;
            count = inp->pfp_event_count;
            for(i=0; i < count; i++) {
                if (inp->pfp_events[i].event == PME_ITA2_IA64_TAGGED_INST_RETIRED_IBRP0_PMC8) has_1st_pair=1;
                if (inp->pfp_events[i].event == PME_ITA2_IA64_TAGGED_INST_RETIRED_IBRP2_PMC8) has_2nd_pair=1;
            }
            if (has_1st_pair || has_2nd_pair == 0) pmc15.pmc15_ita2_reg.opcmc_ibrp0_pmc8 = 0;
            if (has_2nd_pair || has_1st_pair == 0) pmc15.pmc15_ita2_reg.opcmc_ibrp2_pmc8 = 0;
        }

        __pfm_vbprintf("[PMC8(pmc8)=0x%lx m=%d i=%d f=%d b=%d match=0x%x mask=0x%x inv=%d ig_ad=%d]\n",
                reg.pmc_val,
                reg.pmc8_9_ita2_reg.opcm_m,
                reg.pmc8_9_ita2_reg.opcm_i,
                reg.pmc8_9_ita2_reg.opcm_f,
                reg.pmc8_9_ita2_reg.opcm_b,
                reg.pmc8_9_ita2_reg.opcm_match,
                reg.pmc8_9_ita2_reg.opcm_mask,
                reg.pmc8_9_ita2_reg.opcm_inv,
                reg.pmc8_9_ita2_reg.opcm_ig_ad);
    }

    if (param->pfp_ita2_pmc9.opcm_used) {
        /*
         * PMC9 can only be used to qualify IA64_INST_RETIRED_* events
         */
        if (check_inst_retired_events(inp, NULL) != inp->pfp_event_count) return PFMLIB_ERR_FEATCOMB;

        reg.pmc_val = param->pfp_ita2_pmc9.pmc_val;

        /* ig_ad, inv are ignored for PMC9, to avoid confusion we force default values */
        reg.pmc8_9_ita2_reg.opcm_ig_ad = 1;
        reg.pmc8_9_ita2_reg.opcm_inv   = 0;

        /* force bit 2 to 1 */
        reg.pmc8_9_ita2_reg.opcm_bit2 = 1;

        if (pfm_regmask_isset(&inp->pfp_unavail_pmcs, 9))
            return PFMLIB_ERR_NOASSIGN;

        pc[pos].reg_num    = 9;
        pc[pos].reg_value  = reg.pmc_val;
        pc[pos].reg_addr = pc[pos].reg_alt_addr = 9;
        pos++;

        /*
         * will be constrained by PMC9
         */
        has_1st_pair = has_2nd_pair = 0;

        count = inp->pfp_event_count;
        for(i=0; i < count; i++) {
            if (inp->pfp_events[i].event == PME_ITA2_IA64_TAGGED_INST_RETIRED_IBRP1_PMC9) has_1st_pair=1;
            if (inp->pfp_events[i].event == PME_ITA2_IA64_TAGGED_INST_RETIRED_IBRP3_PMC9) has_2nd_pair=1;
        }
        if (has_1st_pair || has_2nd_pair == 0) pmc15.pmc15_ita2_reg.opcmc_ibrp1_pmc9 = 0;
        if (has_2nd_pair || has_1st_pair == 0) pmc15.pmc15_ita2_reg.opcmc_ibrp3_pmc9 = 0;

        __pfm_vbprintf("[PMC9(pmc9)=0x%lx m=%d i=%d f=%d b=%d match=0x%x mask=0x%x]\n",
                reg.pmc_val,
                reg.pmc8_9_ita2_reg.opcm_m,
                reg.pmc8_9_ita2_reg.opcm_i,
                reg.pmc8_9_ita2_reg.opcm_f,
                reg.pmc8_9_ita2_reg.opcm_b,
                reg.pmc8_9_ita2_reg.opcm_match,
                reg.pmc8_9_ita2_reg.opcm_mask);

    }

    if (pfm_regmask_isset(&inp->pfp_unavail_pmcs, 15))
        return PFMLIB_ERR_NOASSIGN;

    pc[pos].reg_num    = 15;
    pc[pos].reg_value  = pmc15.pmc_val;
    pc[pos].reg_addr = pc[pos].reg_alt_addr = 15;
    pos++;

    __pfm_vbprintf("[PMC15(pmc15)=0x%lx ibrp0_pmc8=%d ibrp1_pmc9=%d ibrp2_pmc8=%d ibrp3_pmc9=%d]\n",
            pmc15.pmc_val,
            pmc15.pmc15_ita2_reg.opcmc_ibrp0_pmc8,
            pmc15.pmc15_ita2_reg.opcmc_ibrp1_pmc9,
            pmc15.pmc15_ita2_reg.opcmc_ibrp2_pmc8,
            pmc15.pmc15_ita2_reg.opcmc_ibrp3_pmc9);

    outp->pfp_pmc_count = pos;

    return PFMLIB_SUCCESS;
}

Here is the call graph for this function:

Here is the caller graph for this function:

pfm_ita2_detect()

static int pfm_ita2_detect ( void  )

static

Definition at line 103 of file pfmlib_itanium2.c.

{
    int tmp;
    int ret = PFMLIB_ERR_NOTSUPP;

    tmp = pfm_ia64_get_cpu_family();
    if (tmp == 0x1f) {
        has_fine_mode_bug = 1;
        ret = PFMLIB_SUCCESS;
    }
    return ret;
}

Here is the call graph for this function:

pfm_ita2_dispatch_counters()

static int pfm_ita2_dispatch_counters ( pfmlib_input_param_t *  inp, pfmlib_ita2_input_param_t *  mod_in, pfmlib_output_param_t *  outp  )

static

Definition at line 463 of file pfmlib_itanium2.c.

{
#define has_counter(e,b)    (itanium2_pe[e].pme_counters & (1 << (b)) ? (b) : 0)
    pfmlib_ita2_input_param_t *param = mod_in;
    pfm_ita2_pmc_reg_t reg;
    pfmlib_event_t *e;
    pfmlib_reg_t *pc, *pd;
    pfmlib_regmask_t *r_pmcs;
    unsigned int i,j,k,l;
    int ret;
    unsigned int max_l0, max_l1, max_l2, max_l3;
    unsigned int assign[PMU_ITA2_NUM_COUNTERS];
    unsigned int m, cnt;

    e      = inp->pfp_events;
    pc     = outp->pfp_pmcs;
    pd     = outp->pfp_pmds;
    cnt    = inp->pfp_event_count;
    r_pmcs = &inp->pfp_unavail_pmcs;

    if (PFMLIB_DEBUG())
        for (m=0; m < cnt; m++) {
            DPRINT("ev[%d]=%s counters=0x%lx\n", m, itanium2_pe[e[m].event].pme_name,
                itanium2_pe[e[m].event].pme_counters);
        }

    if (cnt > PMU_ITA2_NUM_COUNTERS) return PFMLIB_ERR_TOOMANY;

    ret = check_cross_groups_and_umasks(inp);
    if (ret != PFMLIB_SUCCESS) return ret;

    ret = check_cancel_events(inp);
    if (ret != PFMLIB_SUCCESS) return ret;

    max_l0 = PMU_ITA2_FIRST_COUNTER + PMU_ITA2_NUM_COUNTERS;
    max_l1 = PMU_ITA2_FIRST_COUNTER + PMU_ITA2_NUM_COUNTERS*(cnt>1);
    max_l2 = PMU_ITA2_FIRST_COUNTER + PMU_ITA2_NUM_COUNTERS*(cnt>2);
    max_l3 = PMU_ITA2_FIRST_COUNTER + PMU_ITA2_NUM_COUNTERS*(cnt>3);

    DPRINT("max_l0=%u max_l1=%u max_l2=%u max_l3=%u\n", max_l0, max_l1, max_l2, max_l3);
    /*
     *  For now, worst case in the loop nest: 4! (factorial)
     */
    for (i=PMU_ITA2_FIRST_COUNTER; i < max_l0; i++) {

        assign[0] = has_counter(e[0].event,i);

        if (max_l1 == PMU_ITA2_FIRST_COUNTER && valid_assign(e, assign, r_pmcs, cnt) == PFMLIB_SUCCESS) goto done;

        for (j=PMU_ITA2_FIRST_COUNTER; j < max_l1; j++) {

            if (j == i) continue;

            assign[1] = has_counter(e[1].event,j);

            if (max_l2 == PMU_ITA2_FIRST_COUNTER && valid_assign(e, assign, r_pmcs, cnt) == PFMLIB_SUCCESS) goto done;

            for (k=PMU_ITA2_FIRST_COUNTER; k < max_l2; k++) {

                if(k == i || k == j) continue;

                assign[2] = has_counter(e[2].event,k);

                if (max_l3 == PMU_ITA2_FIRST_COUNTER && valid_assign(e, assign, r_pmcs, cnt) == PFMLIB_SUCCESS) goto done;
                for (l=PMU_ITA2_FIRST_COUNTER; l < max_l3; l++) {

                    if(l == i || l == j || l == k) continue;

                    assign[3] = has_counter(e[3].event,l);

                    if (valid_assign(e, assign, r_pmcs, cnt) == PFMLIB_SUCCESS) goto done;
                }
            }
        }
    }
    /* we cannot satisfy the constraints */
    return PFMLIB_ERR_NOASSIGN;
done:
    for (j=0; j < cnt ; j++ ) {
        reg.pmc_val    = 0; /* clear all, bits 26-27 must be zero for proper operations */
        /* if plm is 0, then assume not specified per-event and use default */
        reg.pmc_plm    = inp->pfp_events[j].plm ? inp->pfp_events[j].plm : inp->pfp_dfl_plm;
        reg.pmc_oi     = 1; /* overflow interrupt */
        reg.pmc_pm     = inp->pfp_flags & PFMLIB_PFP_SYSTEMWIDE ? 1 : 0;
        reg.pmc_thres  = param ? param->pfp_ita2_counters[j].thres: 0;
        reg.pmc_ism    = param ? param->pfp_ita2_counters[j].ism : PFMLIB_ITA2_ISM_BOTH;
        reg.pmc_umask  = is_ear(e[j].event) ? 0x0 : itanium2_pe[e[j].event].pme_umask;
        reg.pmc_es     = itanium2_pe[e[j].event].pme_code;

        /*
         * Note that we don't force PMC4.pmc_ena = 1 because the kernel takes care of this for us.
         * This way we don't have to program something in PMC4 even when we don't use it
         */
        pc[j].reg_num     = assign[j];
        pc[j].reg_value   = reg.pmc_val;
        pc[j].reg_addr    = pc[j].reg_alt_addr = assign[j];

        pd[j].reg_num  = assign[j];
        pd[j].reg_addr = pd[j].reg_alt_addr = assign[j];

        __pfm_vbprintf("[PMC%u(pmc%u)=0x%06lx thres=%d es=0x%02x plm=%d umask=0x%x pm=%d ism=0x%x oi=%d] %s\n",
                assign[j],
                assign[j],
                reg.pmc_val,
                reg.pmc_thres,
                reg.pmc_es,reg.pmc_plm,
                reg.pmc_umask, reg.pmc_pm,
                reg.pmc_ism,
                reg.pmc_oi,
                itanium2_pe[e[j].event].pme_name);
        __pfm_vbprintf("[PMD%u(pmd%u)]\n", pd[j].reg_num, pd[j].reg_num);
    }
    /* number of PMC registers programmed */
    outp->pfp_pmc_count = cnt;
    outp->pfp_pmd_count = cnt;

    return PFMLIB_SUCCESS;
}

Here is the call graph for this function:

Here is the caller graph for this function:

pfm_ita2_dispatch_events()

static int pfm_ita2_dispatch_events ( pfmlib_input_param_t *  inp, void *  model_in, pfmlib_output_param_t *  outp, void *  model_out  )

static

Definition at line 1836 of file pfmlib_itanium2.c.

{
    int ret;
    pfmlib_ita2_input_param_t *mod_in  = (pfmlib_ita2_input_param_t *)model_in;
    pfmlib_ita2_output_param_t *mod_out = (pfmlib_ita2_output_param_t *)model_out;

    /*
     * nothing will come out of this combination
     */
    if (mod_out && mod_in == NULL) return PFMLIB_ERR_INVAL;

    /* check opcode match, range restriction qualifiers */
    if (mod_in && check_qualifier_constraints(inp, mod_in) != PFMLIB_SUCCESS) return PFMLIB_ERR_FEATCOMB;

    /* check for problems with raneg restriction and per-event plm */
    if (mod_in && check_range_plm(inp, mod_in) != PFMLIB_SUCCESS) return PFMLIB_ERR_FEATCOMB;

    ret = pfm_ita2_dispatch_counters(inp, mod_in, outp);
    if (ret != PFMLIB_SUCCESS) return ret;

    /* now check for I-EAR */
    ret = pfm_dispatch_iear(inp, mod_in, outp);
    if (ret != PFMLIB_SUCCESS) return ret;

    /* now check for D-EAR */
    ret = pfm_dispatch_dear(inp, mod_in, outp);
    if (ret != PFMLIB_SUCCESS) return ret;

    /* XXX: must be done before dispatch_opcm()  and dispatch_drange() */
    ret = pfm_dispatch_irange(inp, mod_in, outp, mod_out);;
    if (ret != PFMLIB_SUCCESS) return ret;

    ret = pfm_dispatch_drange(inp, mod_in, outp, mod_out);;
    if (ret != PFMLIB_SUCCESS) return ret;

    /* now check for Opcode matchers */
    ret = pfm_dispatch_opcm(inp, mod_in, outp, mod_out);
    if (ret != PFMLIB_SUCCESS) return ret;

    ret = pfm_dispatch_btb(inp, mod_in, outp);

    return ret;
}

Here is the call graph for this function:

pfm_ita2_get_cycle_event()

static int pfm_ita2_get_cycle_event ( pfmlib_event_t *  e )

static

Definition at line 2122 of file pfmlib_itanium2.c.

{
    e->event = PME_ITA2_CPU_CYCLES;
    return PFMLIB_SUCCESS;

}

pfm_ita2_get_ear_mode()

int pfm_ita2_get_ear_mode	(	unsigned int	i,
		pfmlib_ita2_ear_mode_t *	m
	)

Definition at line 1965 of file pfmlib_itanium2.c.

{
    pfmlib_ita2_ear_mode_t r;

    if (!is_ear(i) || m == NULL) return PFMLIB_ERR_INVAL;

    r = PFMLIB_ITA2_EAR_TLB_MODE;
    if (is_ear_tlb(i))  goto done;

    r = PFMLIB_ITA2_EAR_CACHE_MODE;
    if (is_ear_cache(i))  goto done;

    r = PFMLIB_ITA2_EAR_ALAT_MODE;
    if (is_ear_alat(i)) goto done;

    return PFMLIB_ERR_INVAL;
done:
    *m = r;
    return PFMLIB_SUCCESS;
}

Here is the caller graph for this function:

pfm_ita2_get_event_code()

static int pfm_ita2_get_event_code ( unsigned int  i, unsigned int  cnt, int *  code  )

static

Definition at line 1987 of file pfmlib_itanium2.c.

{
    if (cnt != PFMLIB_CNT_FIRST && (cnt < 4 || cnt > 7))
        return PFMLIB_ERR_INVAL;

    *code = (int)itanium2_pe[i].pme_code;

    return PFMLIB_SUCCESS;
}

pfm_ita2_get_event_counters()

static void pfm_ita2_get_event_counters ( unsigned int  j, pfmlib_regmask_t *  counters  )

static

Definition at line 2058 of file pfmlib_itanium2.c.

{
    unsigned int i;
    unsigned long m;

    memset(counters, 0, sizeof(*counters));

    m =itanium2_pe[j].pme_counters;
    for(i=0; m ; i++, m>>=1) {
        if (m & 0x1)
            pfm_regmask_set(counters, i);
    }
}

Here is the call graph for this function:

pfm_ita2_get_event_description()

static int pfm_ita2_get_event_description ( unsigned int  ev, char **  str  )

static

Definition at line 2109 of file pfmlib_itanium2.c.

{
    char *s;
    s = itanium2_pe[ev].pme_desc;
    if (s) {
        *str = strdup(s);
    } else {
        *str = NULL;
    }
    return PFMLIB_SUCCESS;
}

pfm_ita2_get_event_group()

int pfm_ita2_get_event_group	(	unsigned int	i,
		int *	grp
	)

Definition at line 2009 of file pfmlib_itanium2.c.

{
    if (i >= PME_ITA2_EVENT_COUNT || grp == NULL) return PFMLIB_ERR_INVAL;
    *grp = evt_grp(i);
    return PFMLIB_SUCCESS;
}

pfm_ita2_get_event_maxincr()

int pfm_ita2_get_event_maxincr	(	unsigned int	i,
		unsigned int *	maxincr
	)

Definition at line 1883 of file pfmlib_itanium2.c.

{
    if (i >= PME_ITA2_EVENT_COUNT || maxincr == NULL) return PFMLIB_ERR_INVAL;
    *maxincr = itanium2_pe[i].pme_maxincr;
    return PFMLIB_SUCCESS;
}

pfm_ita2_get_event_name()

static char * pfm_ita2_get_event_name ( unsigned int  i )

static

Definition at line 2052 of file pfmlib_itanium2.c.

{
    return itanium2_pe[i].pme_name;
}

Here is the caller graph for this function:

pfm_ita2_get_event_set()

int pfm_ita2_get_event_set	(	unsigned int	i,
		int *	set
	)

Definition at line 2017 of file pfmlib_itanium2.c.

{
    if (i >= PME_ITA2_EVENT_COUNT || set == NULL) return PFMLIB_ERR_INVAL;
    *set = evt_set(i) == 0xf ? PFMLIB_ITA2_EVT_NO_SET : evt_set(i);
    return PFMLIB_SUCCESS;
}

pfm_ita2_get_event_umask()

int pfm_ita2_get_event_umask	(	unsigned int	i,
		unsigned long *	umask
	)

Definition at line 2001 of file pfmlib_itanium2.c.

{
    if (i >= PME_ITA2_EVENT_COUNT || umask == NULL) return PFMLIB_ERR_INVAL;
    *umask = evt_umask(i);
    return PFMLIB_SUCCESS;
}

Here is the caller graph for this function:

pfm_ita2_get_hw_counter_width()

static void pfm_ita2_get_hw_counter_width ( unsigned int *  width )

static

Definition at line 2103 of file pfmlib_itanium2.c.

{
    *width = PMU_ITA2_COUNTER_WIDTH;
}

pfm_ita2_get_impl_counters()

static void pfm_ita2_get_impl_counters ( pfmlib_regmask_t *  impl_counters )

static

Definition at line 2093 of file pfmlib_itanium2.c.

{
    unsigned int i = 0;

    /* counting pmds are contiguous */
    for(i=4; i < 8; i++)
        pfm_regmask_set(impl_counters, i);
}

Here is the call graph for this function:

pfm_ita2_get_impl_pmcs()

static void pfm_ita2_get_impl_pmcs ( pfmlib_regmask_t *  impl_pmcs )

static

Definition at line 2073 of file pfmlib_itanium2.c.

{
    unsigned int i = 0;

    /* all pmcs are contiguous */
    for(i=0; i < PMU_ITA2_NUM_PMCS; i++)
        pfm_regmask_set(impl_pmcs, i);
}

Here is the call graph for this function:

pfm_ita2_get_impl_pmds()

static void pfm_ita2_get_impl_pmds ( pfmlib_regmask_t *  impl_pmds )

static

Definition at line 2083 of file pfmlib_itanium2.c.

{
    unsigned int i = 0;

    /* all pmds are contiguous */
    for(i=0; i < PMU_ITA2_NUM_PMDS; i++)
        pfm_regmask_set(impl_pmds, i);
}

Here is the call graph for this function:

pfm_ita2_get_inst_retired()

static int pfm_ita2_get_inst_retired ( pfmlib_event_t *  e )

static

Definition at line 2130 of file pfmlib_itanium2.c.

{
    e->event = PME_ITA2_IA64_INST_RETIRED;
    return PFMLIB_SUCCESS;
}

pfm_ita2_irange_is_fine()

int pfm_ita2_irange_is_fine	(	pfmlib_output_param_t *	outp,
		pfmlib_ita2_output_param_t *	mod_out
	)

Definition at line 2026 of file pfmlib_itanium2.c.

{
    pfmlib_ita2_output_param_t *param = mod_out;
    pfm_ita2_pmc_reg_t reg;
    unsigned int i, count;

    /* some sanity checks */
    if (outp == NULL || param == NULL) return 0;
    if (outp->pfp_pmc_count >= PFMLIB_MAX_PMCS) return 0;

    if (param->pfp_ita2_irange.rr_nbr_used == 0) return 0;

    /*
     * we look for pmc14 as it contains the bit indicating if fine mode is used
     */
    count = outp->pfp_pmc_count;
    for(i=0; i < count; i++) {
        if (outp->pfp_pmcs[i].reg_num == 14) goto found;
    }
    return 0;
found:
    reg.pmc_val = outp->pfp_pmcs[i].reg_value;
    return reg.pmc14_ita2_reg.iarc_fine ? 1 : 0;
}

Here is the caller graph for this function:

pfm_ita2_is_btb()

int pfm_ita2_is_btb

(

unsigned int

i

)

Definition at line 1939 of file pfmlib_itanium2.c.

{
    return i < PME_ITA2_EVENT_COUNT && is_btb(i);
}

Here is the caller graph for this function:

pfm_ita2_is_dear()

int pfm_ita2_is_dear

(

unsigned int

i

)

Definition at line 1897 of file pfmlib_itanium2.c.

{
    return i < PME_ITA2_EVENT_COUNT && is_dear(i);
}

Here is the caller graph for this function:

pfm_ita2_is_dear_alat()

int pfm_ita2_is_dear_alat

(

unsigned int

i

)

Definition at line 1915 of file pfmlib_itanium2.c.

{
    return i < PME_ITA2_EVENT_COUNT && is_ear_alat(i);
}

pfm_ita2_is_dear_cache()

int pfm_ita2_is_dear_cache

(

unsigned int

i

)

Definition at line 1909 of file pfmlib_itanium2.c.

{
    return i < PME_ITA2_EVENT_COUNT && is_dear(i) && is_ear_cache(i);
}

pfm_ita2_is_dear_tlb()

int pfm_ita2_is_dear_tlb

(

unsigned int

i

)

Definition at line 1903 of file pfmlib_itanium2.c.

{
    return i < PME_ITA2_EVENT_COUNT && is_dear(i) && is_ear_tlb(i);
}

pfm_ita2_is_ear()

int pfm_ita2_is_ear

(

unsigned int

i

)

Definition at line 1891 of file pfmlib_itanium2.c.

{
    return i < PME_ITA2_EVENT_COUNT && is_ear(i);
}

pfm_ita2_is_iear()

int pfm_ita2_is_iear

(

unsigned int

i

)

Definition at line 1921 of file pfmlib_itanium2.c.

{
    return i < PME_ITA2_EVENT_COUNT && is_iear(i);
}

Here is the caller graph for this function:

pfm_ita2_is_iear_cache()

int pfm_ita2_is_iear_cache

(

unsigned int

i

)

Definition at line 1933 of file pfmlib_itanium2.c.

{
    return i < PME_ITA2_EVENT_COUNT && is_iear(i) && is_ear_cache(i);
}

pfm_ita2_is_iear_tlb()

int pfm_ita2_is_iear_tlb

(

unsigned int

i

)

Definition at line 1927 of file pfmlib_itanium2.c.

{
    return i < PME_ITA2_EVENT_COUNT && is_iear(i) && is_ear_tlb(i);
}

pfm_ita2_support_darr()

int pfm_ita2_support_darr

(

unsigned int

i

)

Definition at line 1952 of file pfmlib_itanium2.c.

{
    return i < PME_ITA2_EVENT_COUNT  && has_darr(i);
}

Here is the caller graph for this function:

pfm_ita2_support_iarr()

int pfm_ita2_support_iarr

(

unsigned int

i

)

Definition at line 1945 of file pfmlib_itanium2.c.

{
    return i < PME_ITA2_EVENT_COUNT && has_iarr(i);
}

Here is the caller graph for this function:

pfm_ita2_support_opcm()

int pfm_ita2_support_opcm

(

unsigned int

i

)

Definition at line 1959 of file pfmlib_itanium2.c.

{
    return i < PME_ITA2_EVENT_COUNT && has_opcm(i);
}

Here is the caller graph for this function:

print_one_range()

static void print_one_range ( pfmlib_ita2_input_rr_desc_t *  in_rr, pfmlib_ita2_output_rr_desc_t *  out_rr, pfmlib_reg_t *  dbr, int  base_idx, int  n_pairs, int  fine_mode, unsigned int  rr_flags  )

static

Definition at line 1187 of file pfmlib_itanium2.c.

{
    int j;
    dbreg_t d;
    unsigned long r_end;

    __pfm_vbprintf("[0x%lx-0x%lx): %d register pair(s)%s%s\n",
            in_rr->rr_start, in_rr->rr_end,
            n_pairs,
            fine_mode ? ", fine_mode" : "",
            rr_flags & PFMLIB_ITA2_RR_INV ? ", inversed" : "");

    __pfm_vbprintf("start offset: -0x%lx end_offset: +0x%lx\n", out_rr->rr_soff, out_rr->rr_eoff);

    for (j=0; j < n_pairs; j++, base_idx+=2) {

        d.val = dbr[base_idx+1].reg_value;
        r_end = dbr[base_idx].reg_value+((~(d.db.db_mask)) & ~(0xffUL << 56));

        if (fine_mode)
            __pfm_vbprintf("brp%u:  db%u: 0x%016lx db%u: plm=0x%x mask=0x%016lx\n",
                        dbr[base_idx].reg_num>>1,
                        dbr[base_idx].reg_num,
                        dbr[base_idx].reg_value,
                        dbr[base_idx+1].reg_num,
                        d.db.db_plm, d.db.db_mask);
        else
            __pfm_vbprintf("brp%u:  db%u: 0x%016lx db%u: plm=0x%x mask=0x%016lx end=0x%016lx\n",
                        dbr[base_idx].reg_num>>1,
                        dbr[base_idx].reg_num,
                        dbr[base_idx].reg_value,
                        dbr[base_idx+1].reg_num,
                        d.db.db_plm, d.db.db_mask,
                        r_end);
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

valid_assign()

static int valid_assign ( pfmlib_event_t *  e, unsigned int *  as, pfmlib_regmask_t *  r_pmcs, unsigned int  cnt  )

static

Definition at line 302 of file pfmlib_itanium2.c.

{
    unsigned long pmc4_umask = 0, umask;
    char *name;
    int l1_grp_present = 0, l2_grp_present = 0;
    unsigned int i;
    int c, failure;
    int need_pmc5, need_pmc4;
    int pmc5_evt = -1, pmc4_evt = -1;

    if (PFMLIB_DEBUG()) {
        unsigned int j;
        for(j=0;j<cnt; j++) {
            name = pfm_ita2_get_event_name(e[j].event);
            printf("%-2u (%d,%d): %s\n",
                as[j],
                evt_grp(e[j].event) == PFMLIB_ITA2_EVT_NO_GRP ? -1 : evt_grp(e[j].event),
                evt_set(e[j].event) == 0xf ? -1 : evt_set(e[j].event),
                name);

        }
    }
    failure = 1;
    /*
     * first: check that all events have an assigned counter
     */
    for(i=0; i < cnt; i++) {
        if (as[i]==0) goto do_failure;
        /*
         * take care of restricted PMC registers
         */
        if (pfm_regmask_isset(r_pmcs, as[i]))
            goto do_failure;
    }

    /*
     * second: scan list of events for the presence of groups
     * at this point, we know that there can be no set crossing per group
     * because this has been tested earlier.
     */
    for(i=0; i < cnt; i++) {

        c = e[i].event;

        if (evt_grp(c) == PFMLIB_ITA2_EVT_L1_CACHE_GRP) l1_grp_present = 1;

        if (evt_grp(c) == PFMLIB_ITA2_EVT_L2_CACHE_GRP) l2_grp_present = 1;
    }

    /*
     * third: scan assignements and make sure that there is at least one
     * member of a special group assigned to either PMC4 or PMC5 depending
     * on the constraint for that group
     */
    if (l1_grp_present || l2_grp_present) {

        need_pmc5 = l1_grp_present;
        need_pmc4 = l2_grp_present;

        for(i=0; i < cnt; i++) {

            if (need_pmc5 && as[i] == 5 && evt_grp(e[i].event) == PFMLIB_ITA2_EVT_L1_CACHE_GRP) {
                need_pmc5 = 0;
                pmc5_evt = e[i].event;
            }

            if (need_pmc4 && as[i] == 4 && evt_grp(e[i].event) == PFMLIB_ITA2_EVT_L2_CACHE_GRP) {
                need_pmc4 = 0;
                pmc4_evt = e[i].event;
            }

            if (need_pmc4 == 0 && need_pmc5 == 0) break;
        }
        failure = 2;
        if (need_pmc4) goto do_failure;

        failure = 3;
        if (need_pmc5) goto do_failure;
    }
    /*
     * fourth: for the L2 cache event group, you must make sure that there is no
     * umask conflict, except for sets 1 and 2 which do not suffer from this restriction.
     * The umask in PMC4 determines the umask for all the other events in the same set.
     * It is ignored if the event does no belong to a set or if the event has no
     * umask (don't care umask).
     *
     * XXX: redudant, already checked in check_cross_groups_and_umasks(pfmlib_param_t *evt)
     */
    if (l2_grp_present && evt_set(pmc4_evt) != 1 && evt_set(pmc4_evt) != 2) {

        /*
         * extract the umask of the "key" event
         */
        pmc4_umask = evt_umask(pmc4_evt);

        failure = 4;

        for(i=0; i < cnt; i++) {

            umask = evt_umask(e[i].event);

            DPRINT("pmc4_evt=%d pmc4_umask=0x%lx cnt_list[%d]=%d grp=%d umask=0x%lx\n", pmc4_evt, pmc4_umask, i, e[i].event,evt_grp(e[i].event), umask);

            if (as[i] != 4 && evt_grp(e[i].event) == PFMLIB_ITA2_EVT_L2_CACHE_GRP && umask != 0 && umask != pmc4_umask) break;
        }
        if (i != cnt) goto do_failure;
    }

    return PFMLIB_SUCCESS;
do_failure:
    DPRINT("%s : failure %d\n", __FUNCTION__, failure);
    return PFMLIB_ERR_NOASSIGN;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

cancel_events

int cancel_events[]

static

Initial value:

=
{
    PME_ITA2_L2_OZQ_CANCELS0_ANY,
    PME_ITA2_L2_OZQ_CANCELS1_REL,
    PME_ITA2_L2_OZQ_CANCELS2_ACQ
}

Definition at line 422 of file pfmlib_itanium2.c.

has_fine_mode_bug

int has_fine_mode_bug

static

Definition at line 100 of file pfmlib_itanium2.c.

iod_tab

const unsigned long iod_tab[8]

static

Initial value:

={
        3,
        2,
        3,
        0,
        1,
        0,
        1,
        0
}

Definition at line 1616 of file pfmlib_itanium2.c.

itanium2_support

pfm_pmu_support_t itanium2_support

Initial value:

={
    .pmu_name       = "itanium2",
    .pmu_type       = PFMLIB_ITANIUM2_PMU,
    .pme_count      = PME_ITA2_EVENT_COUNT,
    .pmc_count      = PMU_ITA2_NUM_PMCS,
    .pmd_count      = PMU_ITA2_NUM_PMDS,
    .num_cnt        = PMU_ITA2_NUM_COUNTERS,
    .get_event_code     = pfm_ita2_get_event_code,
    .get_event_name     = pfm_ita2_get_event_name,
    .get_event_counters = pfm_ita2_get_event_counters,
    .dispatch_events    = pfm_ita2_dispatch_events,
    .pmu_detect     = pfm_ita2_detect,
    .get_impl_pmcs      = pfm_ita2_get_impl_pmcs,
    .get_impl_pmds      = pfm_ita2_get_impl_pmds,
    .get_impl_counters  = pfm_ita2_get_impl_counters,
    .get_hw_counter_width   = pfm_ita2_get_hw_counter_width,
    .get_event_desc         = pfm_ita2_get_event_description,
    .get_cycle_event    = pfm_ita2_get_cycle_event,
    .get_inst_retired_event = pfm_ita2_get_inst_retired
}

Definition at line 2136 of file pfmlib_itanium2.c.

prefetch_events

int prefetch_events[]

static

Initial value:

={
    PME_ITA2_L1I_PREFETCHES,
    PME_ITA2_L1I_STRM_PREFETCHES,
    PME_ITA2_L2_INST_PREFETCHES
}

Definition at line 188 of file pfmlib_itanium2.c.
