linux-sensors-ppc.c File Reference

Include dependency graph for linux-sensors-ppc.c:

Go to the source code of this file.

Macros
#define	HANDLE_STRING_ERROR   {fprintf(stderr,"%s:%i unexpected string function error.\n",__FILE__,__LINE__); exit(-1);}
#define	DESC_LINE_SIZE_ALLOWED   66
#define	TO_FP(f)   ((f >> 8) * _pow(10, ((int8_t)(f & 0xFF))))

Functions
static char *	_local_strlcpy (char *dst, const char *src, size_t size)
static void	_space_padding (char *buf, size_t max)
static void	refresh_data (int occ_id, int forced)
	Refresh_data locks in write and update ping and pong at the same time for OCC occ_id. The occ_names array contains constant memory and doesn't need to be updated. Ping and Pong are read outside of the critical path, and only the swap needs to be protected.
static double	_pow (int x, int y)
static long long	read_sensors_ppc_record (int s, int gidx, int midx)
static long long	read_sensors_ppc_counter (int s, int gidx)
static int	_sensors_ppc_is_counter (int index)
static long long	read_sensors_ppc_value (int index)
static int	_sensors_ppc_init_thread (hwd_context_t *ctx)
static int	_sensors_ppc_init_component (int cidx)
static int	_sensors_ppc_init_control_state (hwd_control_state_t *ctl)
static int	_sensors_ppc_start (hwd_context_t *ctx, hwd_control_state_t *ctl)
static int	_sensors_ppc_stop (hwd_context_t *ctx, hwd_control_state_t *ctl)
static int	_sensors_ppc_shutdown_thread (hwd_context_t *ctx)
static int	_sensors_ppc_read (hwd_context_t *ctx, hwd_control_state_t *ctl, long long **events, int flags)
static int	_sensors_ppc_shutdown_component (void)
static int	_sensors_ppc_ctl (hwd_context_t *ctx, int code, _papi_int_option_t *option)
static int	_sensors_ppc_update_control_state (hwd_control_state_t *ctl, NativeInfo_t *native, int count, hwd_context_t *ctx)
static int	_sensors_ppc_set_domain (hwd_control_state_t *ctl, int domain)
static int	_sensors_ppc_reset (hwd_context_t *ctx, hwd_control_state_t *ctl)
static int	_sensors_ppc_ntv_enum_events (unsigned int *EventCode, int modifier)
static int	_sensors_ppc_ntv_code_to_name (unsigned int EventCode, char *name, int len)
static int	_sensors_ppc_ntv_code_to_info (unsigned int EventCode, PAPI_event_info_t *info)

Variables
papi_vector_t	_sensors_ppc_vector

Macro Definition Documentation

DESC_LINE_SIZE_ALLOWED

#define DESC_LINE_SIZE_ALLOWED   66

Definition at line 47 of file linux-sensors-ppc.c.

HANDLE_STRING_ERROR

#define HANDLE_STRING_ERROR   {fprintf(stderr,"%s:%i unexpected string function error.\n",__FILE__,__LINE__); exit(-1);}

Definition at line 29 of file linux-sensors-ppc.c.

TO_FP

#define TO_FP

(

f

)

((f >> 8) * _pow(10, ((int8_t)(f & 0xFF))))

Definition at line 109 of file linux-sensors-ppc.c.

Function Documentation

_local_strlcpy()

static char * _local_strlcpy ( char *  dst, const char *  src, size_t  size  )

static

Definition at line 39 of file linux-sensors-ppc.c.

{
    char *retval = strncpy( dst, src, size );
    if ( size > 0 ) dst[size-1] = '\0';

    return( retval );
}

Here is the caller graph for this function:

_pow()

static double _pow ( int  x, int  y  )

static

Definition at line 99 of file linux-sensors-ppc.c.

{
    if (0 == y)   return 1.;
    if (0 == x)   return 0.;
    if (0  > y)   return 1. / _pow(x, -y);
    if (1 == y)   return 1. * x;
    if (0 == y%2) return _pow(x, y/2) * _pow(x, y/2);
    else          return _pow(x, y/2) * _pow(x, y/2) * x;
}

Here is the call graph for this function:

Here is the caller graph for this function:

_sensors_ppc_ctl()

static int _sensors_ppc_ctl ( hwd_context_t *  ctx, int  code, _papi_int_option_t *  option  )

static

Definition at line 515 of file linux-sensors-ppc.c.

{
    SUBDBG( "Enter: ctx: %p\n", ctx );
    (void) ctx;
    (void) code;
    (void) option;

    return PAPI_OK;
}

_sensors_ppc_init_component()

static int _sensors_ppc_init_component ( int  cidx )

static

Definition at line 244 of file linux-sensors-ppc.c.

{
    int retval = PAPI_OK;
    int s = -1;
    int strErr;
    char events_dir[128];
    char event_path[128];
    char *strCpy;
    DIR *events;

    const PAPI_hw_info_t *hw_info;
    hw_info=&( _papi_hwi_system_info.hw_info );

    if ( PAPI_VENDOR_IBM != hw_info->vendor ) {
        strCpy=strncpy(_sensors_ppc_vector.cmp_info.disabled_reason, "Not an IBM processor", PAPI_MAX_STR_LEN);
        _sensors_ppc_vector.cmp_info.disabled_reason[PAPI_MAX_STR_LEN-1]=0;
        if (strCpy == NULL) HANDLE_STRING_ERROR;
        retval = PAPI_ENOSUPP;
        goto fn_fail;
    }

    int ret = snprintf(events_dir, sizeof(events_dir), "/sys/firmware/opal/exports/");
    if (ret <= 0 || (int)(sizeof(events_dir)) <= ret) HANDLE_STRING_ERROR;
    if (NULL == (events = opendir(events_dir))) {
        strErr=snprintf(_sensors_ppc_vector.cmp_info.disabled_reason, PAPI_MAX_STR_LEN,
          "%s:%i Could not open events_dir='%s'.", __FILE__, __LINE__, events_dir);
        _sensors_ppc_vector.cmp_info.disabled_reason[PAPI_MAX_STR_LEN-1]=0;
        if (strErr > PAPI_MAX_STR_LEN) HANDLE_STRING_ERROR;
        retval = PAPI_ENOSUPP;
        goto fn_fail;
    }

    ret = snprintf(event_path, sizeof(event_path), "%s%s", events_dir, pkg_sys_name);
    if (ret <= 0 || (int)(sizeof(event_path)) <= ret) HANDLE_STRING_ERROR;
    if (-1 == access(event_path, F_OK)) {
        strErr=snprintf(_sensors_ppc_vector.cmp_info.disabled_reason, PAPI_MAX_STR_LEN,
          "%s:%i Could not access event_path='%s'.", __FILE__, __LINE__, event_path);
        _sensors_ppc_vector.cmp_info.disabled_reason[PAPI_MAX_STR_LEN-1]=0;
        if (strErr > PAPI_MAX_STR_LEN) HANDLE_STRING_ERROR;
        retval = PAPI_ENOSUPP;
        goto fn_fail;
    }

    event_fd = open(event_path, pkg_sys_flag);
    if (event_fd < 0) {
        strErr=snprintf(_sensors_ppc_vector.cmp_info.disabled_reason, PAPI_MAX_STR_LEN,
          "%s:%i Could not open event_path='%s'.", __FILE__, __LINE__, event_path);
        _sensors_ppc_vector.cmp_info.disabled_reason[PAPI_MAX_STR_LEN-1]=0;
        if (strErr > PAPI_MAX_STR_LEN) HANDLE_STRING_ERROR;
        retval = PAPI_ENOSUPP;
        goto fn_fail;
    }

    memset(occ_num_events, 0, (MAX_OCCS+1)*sizeof(int));
    num_events = 0;
    for ( s = 0; s < MAX_OCCS; ++s ) {
        void *buf = NULL;
        if (NULL == (buf = malloc(OCC_SENSOR_DATA_BLOCK_SIZE))) {
            strErr=snprintf(_sensors_ppc_vector.cmp_info.disabled_reason, PAPI_MAX_STR_LEN,
            "%s:%i Failed to alloc %i bytes for buf.", __FILE__, __LINE__, OCC_SENSOR_DATA_BLOCK_SIZE);
            _sensors_ppc_vector.cmp_info.disabled_reason[PAPI_MAX_STR_LEN-1]=0;
            if (strErr > PAPI_MAX_STR_LEN) HANDLE_STRING_ERROR;
            retval = PAPI_ENOMEM;
            goto fn_fail;
        }

        occ_hdr[s] = (struct occ_sensor_data_header_s*)buf;

        lseek (event_fd, s * OCC_SENSOR_DATA_BLOCK_SIZE, SEEK_SET);

        int rc, bytes;
        /* copy memory iteratively until the full chunk is saved */
        for (rc = bytes = 0; bytes < OCC_SENSOR_DATA_BLOCK_SIZE; bytes += rc) {
            rc = read(event_fd, buf + bytes, OCC_SENSOR_DATA_BLOCK_SIZE - bytes);
            if (!rc || rc < 0) /* done */ break;
        }

        if (OCC_SENSOR_DATA_BLOCK_SIZE != bytes) {
            /* We are running out of OCCs, let's stop there */
            free(buf);
            num_occs = s;
            s = MAX_OCCS;
            continue;
        }

        occ_sensor_name_t *names = (occ_sensor_name_t*)((uint64_t)buf + be32toh(occ_hdr[s]->names_offset));
        int n_sensors = be16toh(occ_hdr[s]->nr_sensors);

        /* Prepare the double buffering for the ping/pong buffers */
        int ping_off = be32toh(occ_hdr[s]->reading_ping_offset);
        int pong_off = be32toh(occ_hdr[s]->reading_pong_offset);
        /* Ping and pong are both 40kB, and we have a 4kB separator.
         * In theory, the distance between the beginnings of ping and pong is (40+4) kB.
         * But they expose an offset for the pong buffer.
         * So I won't trust the 4kB distance between buffers, and compute the buffer size
         * based on on both offsets ans the size of pong */
        int buff_size = pong_off - ping_off + OCC_PING_DATA_BLOCK_SIZE;

        ping[s] = (uint32_t*)malloc(buff_size);
        if (ping[s] == NULL) {
            strErr=snprintf(_sensors_ppc_vector.cmp_info.disabled_reason, PAPI_MAX_STR_LEN,
            "%s:%i Failed to alloc %i bytes for ping[%i].", __FILE__, __LINE__, buff_size, s);
            _sensors_ppc_vector.cmp_info.disabled_reason[PAPI_MAX_STR_LEN-1]=0;
            if (strErr > PAPI_MAX_STR_LEN) HANDLE_STRING_ERROR;
            retval = PAPI_ENOMEM;
            goto fn_fail;
        }

        double_ping[s] = (uint32_t*)malloc(buff_size);
        if (double_ping[s] == NULL) {
            strErr=snprintf(_sensors_ppc_vector.cmp_info.disabled_reason, PAPI_MAX_STR_LEN,
            "%s:%i Failed to alloc %i bytes for double_ping[%i].", __FILE__, __LINE__, buff_size, s);
            _sensors_ppc_vector.cmp_info.disabled_reason[PAPI_MAX_STR_LEN-1]=0;
            if (strErr > PAPI_MAX_STR_LEN) HANDLE_STRING_ERROR;
            retval = PAPI_ENOMEM;
            goto fn_fail;
        }

        double_pong[s] = double_ping[s];

        refresh_data(s, 1);

        /* Not all events will exist, counter-based evens only have an accumulator to report */
        occ_num_events[s+1] = occ_num_events[s] + (n_sensors * OCC_SENSORS_MASKS);

        num_events += (n_sensors * OCC_SENSORS_MASKS);

        /* occ_names map to read-only information that change only after reboot */
        occ_names[s] = names;
    }

    /* Export the total number of events available */
    _sensors_ppc_vector.cmp_info.num_native_events = num_events;
    _sensors_ppc_vector.cmp_info.num_cntrs = num_events;
    _sensors_ppc_vector.cmp_info.num_mpx_cntrs = num_events;

    /* 0 active events */
    num_events = 0;

    /* Export the component id */
    _sensors_ppc_vector.cmp_info.CmpIdx = cidx;

  fn_exit:
    _papi_hwd[cidx]->cmp_info.disabled = retval;
    return retval;
  fn_fail:
    goto fn_exit;
}

Here is the call graph for this function:

_sensors_ppc_init_control_state()

static int _sensors_ppc_init_control_state ( hwd_control_state_t *  ctl )

static

Definition at line 399 of file linux-sensors-ppc.c.

{
    _sensors_ppc_control_state_t* control = ( _sensors_ppc_control_state_t* ) ctl;

    memset( control, 0, sizeof ( _sensors_ppc_control_state_t ) );

    return PAPI_OK;
}

_sensors_ppc_init_thread()

static int _sensors_ppc_init_thread ( hwd_context_t *  ctx )

static

Definition at line 233 of file linux-sensors-ppc.c.

{
    (void) ctx;

    return PAPI_OK;
}

_sensors_ppc_is_counter()

static int _sensors_ppc_is_counter ( int  index )

static

Definition at line 190 of file linux-sensors-ppc.c.

{
    int s = 0;
    /* get OCC s from index */
    for (; index > occ_num_events[s+1] && s < MAX_OCCS; ++s);

    int ridx = index - occ_num_events[s];
    int gidx = ridx / OCC_SENSORS_MASKS;
    return (OCC_SENSOR_READING_COUNTER == occ_names[s][gidx].structure_type);
}

Here is the caller graph for this function:

_sensors_ppc_ntv_code_to_info()

static int _sensors_ppc_ntv_code_to_info ( unsigned int  EventCode, PAPI_event_info_t *  info  )

static

Definition at line 636 of file linux-sensors-ppc.c.

{
    int index = EventCode;

    if ( index < 0 || index >= occ_num_events[num_occs])
        return PAPI_ENOEVNT;

    int s = 0;
    /* get OCC s from index */
    for (; index > occ_num_events[s+1] && s < MAX_OCCS; ++s);

    int ridx = index - occ_num_events[s];
    int gidx = ridx / OCC_SENSORS_MASKS;
    int midx = ridx % OCC_SENSORS_MASKS;

    /* EventCode maps to a counter */
    /* Counters only expose their accumulator */
    if (_sensors_ppc_is_counter(index) && midx != OCC_SENSORS_ACCUMULATOR_TAG)
        return PAPI_ENOEVNT;

    char buf[512];
    int ret = snprintf(buf, 512, "%s:occ=%d%s", occ_names[s][gidx].name, s, sensors_ppc_fake_qualifiers[midx]);
    if (ret <= 0 || 512 <= ret)
        return PAPI_ENOSUPP;
    _local_strlcpy( info->symbol, buf, sizeof( info->symbol ));
    _local_strlcpy( info->units, occ_names[s][gidx].units, sizeof( info->units ) );
    /* If it ends with:
     * Qw: w-th Quad unit        [0-5]
     * Cxx: xx-th core           [0-23]
     * My: y-th memory channel   [0-8]
     * CHvv: vv-th memory module [0-15]
     * or starts with:
     * GPUz: z-th GPU            [0-2]
     * TEMPGPUz: z-th GPU        [0-2]
     * */
    uint16_t type = be16toh(occ_names[s][gidx].type);
    char *name = strdup(occ_names[s][gidx].name);
    uint32_t freq = be32toh(occ_names[s][gidx].freq);
    int tgt = -1;
    switch(type) {
        /* IPS, STOPDEEPACTCxx, STOPDEEPREQCxx, IPSCxx, NOTBZECxx, NOTFINCxx,
         *   MRDMy, MWRMy, PROCPWRTHROT, PROCOTTHROT, MEMPWRTHROT, MEMOTTHROT,
         *   GPUzHWTHROT, GPUzSWTHROT, GPUzSWOTTHROT, GPUzSWPWRTHROT */
        case OCC_SENSOR_TYPE_PERFORMANCE:
            if (!strncmp(name, "GPU", 3)) {
                char z[] = {name[3], '\0'};
                tgt = atoi(z);
                name[3] = 'z';
                if (!strncmp(name, "GPUzHWTHROT", 11))
                    ret = snprintf(buf, 512, "Total time GPU %d has been throttled by hardware (thermal or power brake)", tgt);
                else if (!strncmp(name, "GPUzSWTHROT", 11))
                    ret = snprintf(buf, 512, "Total time GPU %d has been throttled by software for any reason", tgt);
                else if (!strncmp(name, "GPUzSWOTTHROT", 13))
                    ret = snprintf(buf, 512, "Total time GPU %d has been throttled by software due to thermal", tgt);
                else if (!strncmp(name, "GPUzSWPWRTHROT", 14))
                    ret = snprintf(buf, 512, "Total time GPU %d has been throttled by software due to power", tgt);
                else
                    ret = snprintf(buf, 512, "[PERFORMANCE] Unexpected: GPU-%d %s", tgt, name);
            }
            else if (!strncmp(name, "IPSCxx", 4)) {
                tgt = atoi(name+4);
                ret = snprintf(buf, 512, "Instructions per second for core %d on this Processor", tgt);
            }
            else if (!strncmp(name, "IPS", 3))
                ret = snprintf(buf, 512, "Vector sensor that takes the average of all the cores this Processor");
            else if (!strncmp(name, "STOPDEEPACTCxx", 12)) {
                tgt = atoi(name+12);
                ret = snprintf(buf, 512, "Deepest actual stop state that was fully entered during sample time for core %d", tgt);
            }
            else if (!strncmp(name, "STOPDEEPREQCxx", 12)) {
                tgt = atoi(name+12);
                ret = snprintf(buf, 512, "Deepest stop state that has been requested during sample time for core %d", tgt);
            }
            else if (!strncmp(name, "MEMPWRTHROT", 11))
                ret = snprintf(buf, 512, "Count of memory throttled due to power");
            else if (!strncmp(name, "MEMOTTHROT", 10))
                ret = snprintf(buf, 512, "Count of memory throttled due to memory Over temperature");
            else if (!strncmp(name, "PROCOTTHROT", 11))
                ret = snprintf(buf, 512, "Count of processor throttled for temperature");
            else if (!strncmp(name, "PROCPWRTHROT", 12))
                ret = snprintf(buf, 512, "Count of processor throttled due to power");
            else if (!strncmp(name, "MWRM", 4)) {
                tgt = atoi(name+4);
                ret = snprintf(buf, 512, "Memory write requests per sec for MC %d", tgt);
            }
            else if (!strncmp(name, "MRDM", 4)) {
                tgt = atoi(name+4);
                ret = snprintf(buf, 512, "Memory read requests per sec for MC %d", tgt);
            }
            else
                ret = snprintf(buf, 512, "[PERFORMANCE] Unexpected: %s", name);
            break;

        /* PWRSYS, PWRGPU, PWRAPSSCHvv, PWRPROC, PWRVDD, PWRVDN, PWRMEM */
        case OCC_SENSOR_TYPE_POWER:
            if (!strncmp(name, "PWRSYS", 6))
                ret = snprintf(buf, 512, "Bulk power of the system/node");
            else if (!strncmp(name, "PWRGPU", 6))
                ret = snprintf(buf, 512, "Power consumption for GPUs per socket (OCC) read from APSS");
            else if (!strncmp(name, "PWRPROC", 7))
                ret = snprintf(buf, 512, "Power consumption for this Processor");
            else if (!strncmp(name, "PWRVDD", 6))
                ret = snprintf(buf, 512, "Power consumption for this Processor's Vdd (calculated from AVSBus readings)");
            else if (!strncmp(name, "PWRVDN", 6))
                ret = snprintf(buf, 512, "Power consumption for this Processor's Vdn (nest) (calculated from AVSBus readings)");
            else if (!strncmp(name, "PWRMEM", 6))
                ret = snprintf(buf, 512, "Power consumption for Memory for this Processor read from APSS");
            else if (!strncmp(name, "PWRAPSSCH", 9)) {
                tgt = atoi(name+9);
                ret = snprintf(buf, 512, "Power Provided by APSS channel %d", tgt);
            }
            else
                ret = snprintf(buf, 512, "[POWER] Unexpected: %s", name);
            break;

        /* FREQA, FREQACxx */
        case OCC_SENSOR_TYPE_FREQUENCY:
            if (!strncmp(name, "FREQACxx", 6)) {
                tgt = atoi(name+6);
                ret = snprintf(buf, 512, "Average/actual frequency for this processor, Core %d based on OCA data", tgt);
            }
            else if (!strncmp(name, "FREQA", 5))
                ret = snprintf(buf, 512, "Average of all core frequencies for Processor");
            else
                ret = snprintf(buf, 512, "[FREQUENCY] Unexpected: %s", name);
            break;

        case OCC_SENSOR_TYPE_TIME:
            ret = snprintf(buf, 512, "[TIME] Unexpected: %s", name);
            break;

        /* UTILCxx, UTIL, NUTILCxx, MEMSPSTATMy, MEMSPMy */
        case OCC_SENSOR_TYPE_UTILIZATION:
            if (!strncmp(name, "MEMSPSTATM", 10)) {
                tgt = atoi(name+10);
                ret = snprintf(buf, 512, "Static Memory throttle level setting for MCA %d when not in a memory throttle condition", tgt);
            }
            else if (!strncmp(name, "MEMSPM", 6)) {
                tgt = atoi(name+6);
                ret = snprintf(buf, 512, "Current Memory throttle level setting for MCA %d", tgt);
            }
            else if (!strncmp(name, "NUTILC", 6)) {
                tgt = atoi(name+6);
                ret = snprintf(buf, 512, "Normalized average utilization, rolling average of this Processor's Core %d", tgt);
            }
            else if (!strncmp(name, "UTILC", 5)) {
                tgt = atoi(name+5);
                ret = snprintf(buf, 512, "Utilization of this Processor's Core %d (where 100%% means fully utilized): NOTE: per thread HW counters are combined as appropriate to give this core level utilization sensor", tgt);
            }
            else if (!strncmp(name, "UTIL", 4))
                ret = snprintf(buf, 512, "Average of all Cores UTILC[yy] sensor");
            else
                ret = snprintf(buf, 512, "[UTILIZATION] Unexpected: %s", name);
            break;

        /* TEMPNEST, TEMPPROCTHRMCxx, TEMPVDD, TEMPDIMMvv, TEMPGPUz, TEMPGPUzMEM*/
        case OCC_SENSOR_TYPE_TEMPERATURE:
            if (!strncmp(name, "TEMPNEST", 8))
                ret = snprintf(buf, 512, "Average temperature of nest DTS sensors");
            else if (!strncmp(name, "TEMPVDD", 7))
                ret = snprintf(buf, 512, "VRM Vdd temperature");
            else if (!strncmp(name, "TEMPPROCTHRMCxx", 13)) {
                tgt = atoi(name+13);
                ret = snprintf(buf, 512, "The combined weighted core/quad temperature for processor core %d", tgt);
            }
            else if (!strncmp(name, "TEMPDIMMvv", 8)) {
                tgt = atoi(name+8);
                ret = snprintf(buf, 512, "DIMM temperature for DIMM %d", tgt);
            }
            else if (!strncmp(name, "TEMPGPUz", 7)) {
                char z[] = {name[7], '\0'};
                tgt = atoi(z);
                name[7] = 'z';
                if (!strncmp(name, "TEMPGPUzMEM", 11))
                    ret = snprintf(buf, 512, "GPU %d hottest HBM temperature (individual memory temperatures are not available)", tgt);
                else if (!strncmp(name, "TEMPGPUz", 8))
                    ret = snprintf(buf, 512, "GPU %d board temperature", tgt);
                else
                    ret = snprintf(buf, 512, "[TEMPERATURE] Unexpected: GPU-%d %s", tgt, name);
            }
            else
                ret = snprintf(buf, 512, "[TEMPERATURE] Unexpected: %s", name);
            break;

        /* VOLTVDD, VOLTVDDSENSE, VOLTVDN, VOLTVDNSENSE, VOLTDROOPCNTCx, VOLTDROOPCNTQw */
        case OCC_SENSOR_TYPE_VOLTAGE:
            if (!strncmp(name, "VOLTVDDS", 8))
                ret = snprintf(buf, 512, "Vdn Voltage at the remote sense. (AVS reading adjusted for loadline)");
            else if (!strncmp(name, "VOLTVDNS", 8))
                ret = snprintf(buf, 512, "Vdd Voltage at the remote sense. (AVS reading adjusted for loadline)");
            else if (!strncmp(name, "VOLTVDD", 7))
                ret = snprintf(buf, 512, "Processor Vdd Voltage (read from AVSBus)");
            else if (!strncmp(name, "VOLTVDN", 7))
                ret = snprintf(buf, 512, "Processor Vdn Voltage (read from AVSBus)");
            else if (!strncmp(name, "VOLTDROOPCNTC", 13)) {
                tgt = atoi(name+13);
                ret = snprintf(buf, 512, "Small voltage droop count for core %d", tgt);
            }
            else if (!strncmp(name, "VOLTDROOPCNTQ", 13)) {
                tgt = atoi(name+13);
                ret = snprintf(buf, 512, "Small voltage droop count for core %d", tgt);
            }
            else
                ret = snprintf(buf, 512, "[VOLTAGE] Unexpected: %s", name);
            break;

    /* CURVDD, CURVDN */
        case OCC_SENSOR_TYPE_CURRENT:
            if (!strncmp(name, "CURVDN", 6))
                ret = snprintf(buf, 512, "Processor Vdn Current (read from AVSBus)");
            else if (!strncmp(name, "CURVDD", 6))
                ret = snprintf(buf, 512, "Processor Vdd Current (read from AVSBus)");
            else
                ret = snprintf(buf, 512, "[CURRENT] Unexpected: %s", name);
            break;

        case OCC_SENSOR_TYPE_GENERIC:
        default:
            ret = snprintf(buf, 512, "[GENERIC] Unexpected: %s", name);
            break;
    }

    if (ret <= 0 || 512 <= ret)
        return PAPI_ENOSUPP;
    _space_padding(buf, sizeof(buf));
    ret = snprintf(buf+strlen(buf), 512, "%s", sensors_ppc_fake_qualif_desc[midx]);
    if (ret <= 0 || 512 <= ret)
        return PAPI_ENOSUPP;
    _space_padding(buf, sizeof(buf));
    ret = snprintf(buf+strlen(buf), 512, "Sampling period: %lfs", 1./freq);
    if (ret <= 0 || 512 <= ret)
        return PAPI_ENOSUPP;

    _local_strlcpy( info->long_descr, buf, sizeof(info->long_descr));
    info->data_type = PAPI_DATATYPE_INT64;

    return PAPI_OK;
}

Here is the call graph for this function:

_sensors_ppc_ntv_code_to_name()

static int _sensors_ppc_ntv_code_to_name ( unsigned int  EventCode, char *  name, int  len  )

static

Definition at line 602 of file linux-sensors-ppc.c.

{
    int index = EventCode & PAPI_NATIVE_AND_MASK;

    if ( index < 0 && index >= occ_num_events[num_occs] )
        return PAPI_ENOEVNT;

    int s = 0;
    /* get OCC s from index */
    for (; index > occ_num_events[s+1] && s < MAX_OCCS; ++s);

    int ridx = index - occ_num_events[s];
    int gidx = ridx / OCC_SENSORS_MASKS;
    int midx = ridx % OCC_SENSORS_MASKS;

    /* EventCode maps to a counter */
    /* Counters only expose their accumulator */
    if (_sensors_ppc_is_counter(index) && midx != OCC_SENSORS_ACCUMULATOR_TAG)
        return PAPI_ENOEVNT;

    char buf[512];
    int ret = snprintf(buf, 512, "%s:occ=%d%s", occ_names[s][gidx].name, s, sensors_ppc_fake_qualifiers[midx]);
    if (ret <= 0 || 512 <= ret)
        return PAPI_ENOSUPP;
    _local_strlcpy( name, buf, len);

    return PAPI_OK;
}

Here is the call graph for this function:

_sensors_ppc_ntv_enum_events()

static int _sensors_ppc_ntv_enum_events ( unsigned int *  EventCode, int  modifier  )

static

Definition at line 570 of file linux-sensors-ppc.c.

{
    int index;
    switch (modifier) {

        case PAPI_ENUM_FIRST:
            *EventCode = 0;
            return PAPI_OK;

        case PAPI_ENUM_EVENTS:
            index = *EventCode & PAPI_NATIVE_AND_MASK;
            if (index < occ_num_events[num_occs] - 1) {
                if (_sensors_ppc_is_counter(index+1))
                    /* For counters, exposing only the accumulator,
                     * skips ghost events from _sample to _job_sched_max */
                    *EventCode = *EventCode + OCC_SENSORS_MASKS;
                else
                    *EventCode = *EventCode + 1;
                return PAPI_OK;
            } else {
                return PAPI_ENOEVNT;
            }

        default:
            return PAPI_EINVAL;
    }
}

Here is the call graph for this function:

_sensors_ppc_read()

static int _sensors_ppc_read ( hwd_context_t *  ctx, hwd_control_state_t *  ctl, long long **  events, int  flags  )

static

Definition at line 450 of file linux-sensors-ppc.c.

{
    SUBDBG("Enter _sensors_ppc_read\n");

    (void) flags;
    _sensors_ppc_control_state_t* control = ( _sensors_ppc_control_state_t* ) ctl;
    _sensors_ppc_context_t* context = ( _sensors_ppc_context_t* ) ctx;

    long long start_val = 0;
    long long curr_val = 0;
    int c, i;

    /* c is the index in the dense array of selected counters */
    /* using control->which_counters[c], fetch actual indices in i */
    /* all subsequent methods use "global" indices i */
    for ( c = 0; c < num_events; c++ ) {
        i = control->which_counter[c];
        start_val = context->start_value[c];
        curr_val = read_sensors_ppc_value(i);

        if (start_val) {
            /* Make sure an event is a counter. */
            if (_sensors_ppc_is_counter(i)) {
                /* Wraparound. */
                if(start_val > curr_val) {
                    curr_val += (0x100000000 - start_val);
                }
                /* Normal subtraction. */
                else if (start_val < curr_val) {
                    curr_val -= start_val;
                }
            }
        }
        control->count[c]=curr_val;
    }

    *events = ( ( _sensors_ppc_control_state_t* ) ctl )->count;
    return PAPI_OK;
}

Here is the call graph for this function:

_sensors_ppc_reset()

static int _sensors_ppc_reset ( hwd_context_t *  ctx, hwd_control_state_t *  ctl  )

static

Definition at line 557 of file linux-sensors-ppc.c.

{
    (void) ctx;
    (void) ctl;

    return PAPI_OK;
}

_sensors_ppc_set_domain()

static int _sensors_ppc_set_domain ( hwd_control_state_t *  ctl, int  domain  )

static

Definition at line 548 of file linux-sensors-ppc.c.

{
    (void) ctl;
    if ( PAPI_DOM_ALL != domain )
        return PAPI_EINVAL;
    return PAPI_OK;
}

_sensors_ppc_shutdown_component()

static int _sensors_ppc_shutdown_component ( void  )

static

Definition at line 495 of file linux-sensors-ppc.c.

{
    close(event_fd);

    int s;
    papi_sensors_ppc_lock();
    for (s = 0; s < num_occs; ++s) {
        free(occ_hdr[s]);
        if (ping[s] != NULL) free(ping[s]);
        if (double_ping[s] != NULL) free(double_ping[s]);
    }
    papi_sensors_ppc_unlock();
    return PAPI_OK;
}

Here is the call graph for this function:

_sensors_ppc_shutdown_thread()

static int _sensors_ppc_shutdown_thread ( hwd_context_t *  ctx )

static

Definition at line 441 of file linux-sensors-ppc.c.

{
    (void) ctx;

    return PAPI_OK;
}

_sensors_ppc_start()

static int _sensors_ppc_start ( hwd_context_t *  ctx, hwd_control_state_t *  ctl  )

static

Definition at line 409 of file linux-sensors-ppc.c.

{
    SUBDBG("Enter _sensors_ppc_start\n");

    _sensors_ppc_context_t*       context = ( _sensors_ppc_context_t* ) ctx;
    _sensors_ppc_control_state_t* control = ( _sensors_ppc_control_state_t* ) ctl;

    memset( context->start_value, 0, sizeof(long long) * SENSORS_PPC_MAX_COUNTERS);

    int c, i;
    for( c = 0; c < num_events; c++ ) {
        i = control->which_counter[c];
        if (_sensors_ppc_is_counter(i))
            context->start_value[c] = read_sensors_ppc_value(i);
    }

    /* At the end, ctx->start if full of 0s, except for counter-type sensors */
    return PAPI_OK;
}

Here is the call graph for this function:

_sensors_ppc_stop()

static int _sensors_ppc_stop ( hwd_context_t *  ctx, hwd_control_state_t *  ctl  )

static

Definition at line 430 of file linux-sensors-ppc.c.

{
    (void) ctx;
    (void) ctl;

    /* not sure what the side effect of stop is supposed to be, do a read? */
    return PAPI_OK;
}

_sensors_ppc_update_control_state()

static int _sensors_ppc_update_control_state ( hwd_control_state_t *  ctl, NativeInfo_t *  native, int  count, hwd_context_t *  ctx  )

static

Definition at line 527 of file linux-sensors-ppc.c.

{
    (void) ctx;
    int i, index;
    num_events = count;
    _sensors_ppc_control_state_t* control = ( _sensors_ppc_control_state_t* ) ctl;
    if (count == 0) return PAPI_OK;

    /* control contains a dense array of unsorted events */
    for ( i = 0; i < count; i++ ) {
        index = native[i].ni_event;
        control->which_counter[i]=index;
        native[i].ni_position = i;
    }

    return PAPI_OK;
}

_space_padding()

static void _space_padding ( char *  buf, size_t  max  )

static

Definition at line 49 of file linux-sensors-ppc.c.

{
    size_t len = strlen(buf);
    /* 80 columns - 12 header - 2 footer*/
    size_t nlines = 1+ len / DESC_LINE_SIZE_ALLOWED, c = len;
    /* space_padding */
    for (; c < nlines * DESC_LINE_SIZE_ALLOWED && c < max-1; ++c) buf[c] = ' ';
    buf[c] = '\0';
}

Here is the caller graph for this function:

read_sensors_ppc_counter()

static long long read_sensors_ppc_counter ( int  s, int  gidx  )

static

Definition at line 157 of file linux-sensors-ppc.c.

{
    uint32_t offset = be32toh(occ_names[s][gidx].reading_offset);
    uint32_t scale  = be32toh(occ_names[s][gidx].scale_factor);

    occ_sensor_counter_t *counter = NULL;

    refresh_data(s, 0);

    papi_sensors_ppc_lock();
    occ_sensor_counter_t *sping = (occ_sensor_counter_t *)((uint64_t)ping[s] + offset);
    occ_sensor_counter_t *spong = (occ_sensor_counter_t *)((uint64_t)pong[s] + offset);

    if (*ping && *pong) {
        if (be64toh(sping->timestamp) > be64toh(spong->timestamp))
            counter = sping;
        else
            counter = spong;
    } else if (*ping && !*pong) {
        counter = sping;
    } else if (!*ping && *pong) {
        counter = spong;
    } else if (!*ping && !*pong) {
        return 40;
    }

    uint64_t value = be64toh(counter->accumulator) * TO_FP(scale);
    papi_sensors_ppc_unlock();

    return value;
}

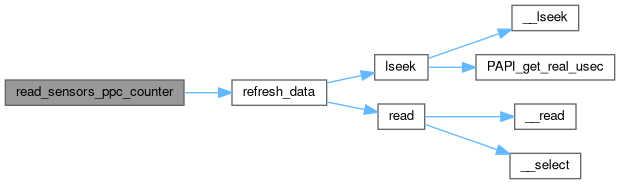

Here is the call graph for this function:

Here is the caller graph for this function:

read_sensors_ppc_record()

static long long read_sensors_ppc_record ( int  s, int  gidx, int  midx  )

static

Definition at line 112 of file linux-sensors-ppc.c.

{
    uint64_t value = 41;
    uint32_t offset = be32toh(occ_names[s][gidx].reading_offset);
    uint32_t scale  = be32toh(occ_names[s][gidx].scale_factor);
    uint32_t freq   = be32toh(occ_names[s][gidx].freq);

    occ_sensor_record_t *record = NULL;
    /* Let's see if the data segment needs a refresh */
    refresh_data(s, 0);

    papi_sensors_ppc_lock();
    occ_sensor_record_t *sping = (occ_sensor_record_t *)((uint64_t)ping[s] + offset);
    occ_sensor_record_t *spong = (occ_sensor_record_t *)((uint64_t)pong[s] + offset);

    if (*ping && *pong) {
        if (be64toh(sping->timestamp) > be64toh(spong->timestamp))
            record = sping;
        else
            record = spong;
    } else if (*ping && !*pong) {
        record = sping;
    } else if (!*ping && *pong) {
        record = spong;
    } else if (!*ping && !*pong) {
        return value;
    }

    switch (midx) {
        case OCC_SENSORS_ACCUMULATOR_TAG:
            /* freq, per sensor, contains freq sampling for the last 500us of accumulation */
            value = (uint64_t)(be64toh(record->accumulator) / TO_FP(freq));
            break;
        default:
            /* That one might upset people
             * All the entries below sample (including it) are uint16_t packed */
            value = (uint64_t)(be16toh((&record->sample)[midx]) * TO_FP(scale));
            break;
    }
    papi_sensors_ppc_unlock();

    return value;
}

Here is the call graph for this function:

Here is the caller graph for this function:

read_sensors_ppc_value()

static long long read_sensors_ppc_value ( int  index )

static

Definition at line 202 of file linux-sensors-ppc.c.

{
    int s = 0;
    /* get OCC s from index */
    for (; index > occ_num_events[s+1] && s < MAX_OCCS; ++s);

    int ridx = index - occ_num_events[s];
    int gidx = ridx / OCC_SENSORS_MASKS;
    int midx = ridx % OCC_SENSORS_MASKS;
    uint8_t structure_type = occ_names[s][gidx].structure_type;

    switch (structure_type) {
        case OCC_SENSOR_READING_FULL:
            return read_sensors_ppc_record(s, gidx, midx);
        case OCC_SENSOR_READING_COUNTER:
            if (OCC_SENSORS_ACCUMULATOR_TAG == midx)
                return read_sensors_ppc_counter(s, gidx);
            /* fall through */
            /* counters only return the accumulator */
        default:
            return 42;
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

refresh_data()

static void refresh_data ( int  occ_id, int  forced  )

static

Definition at line 67 of file linux-sensors-ppc.c.

{
    long long now = PAPI_get_real_nsec();
    if (forced || now > last_refresh[occ_id] + OCC_REFRESH_TIME) {
        void *buf = double_ping[occ_id];

        uint32_t ping_off = be32toh(occ_hdr[occ_id]->reading_ping_offset);
        uint32_t pong_off = be32toh(occ_hdr[occ_id]->reading_pong_offset);

        lseek (event_fd, occ_id * OCC_SENSOR_DATA_BLOCK_SIZE + ping_off, SEEK_SET);

        /* To limit risks of begin desynchronized, we read one chunk */
        /* In memory, ping and pong are 40kB, with a 4kB buffer
         * of nothingness in between */
        int to_read = pong_off - ping_off + OCC_PING_DATA_BLOCK_SIZE;

        int rc, bytes;
        /* copy memory iteratively until the full chunk is saved */
        for (rc = bytes = 0; bytes < to_read; bytes += rc) {
            rc = read(event_fd, buf + bytes, to_read - bytes);
            if (!rc || rc < 0) /* done */ break;
        }

        papi_sensors_ppc_lock();
        double_ping[occ_id] = ping[occ_id];
        ping[occ_id] = buf;
        pong[occ_id] = ping[occ_id] + (pong_off - ping_off);
        last_refresh[occ_id] = now;
        papi_sensors_ppc_unlock();
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

_sensors_ppc_vector

papi_vector_t _sensors_ppc_vector

Definition at line 31 of file linux-sensors-ppc.c.
