#include <stdlib.h>
#include <stdio.h>
#include <string.h>
#include <math.h>
#include <cblas.h>
#include <lapacke.h>
#include <plasma.h>
#include <core_blas.h>
#include "auxiliary.h"

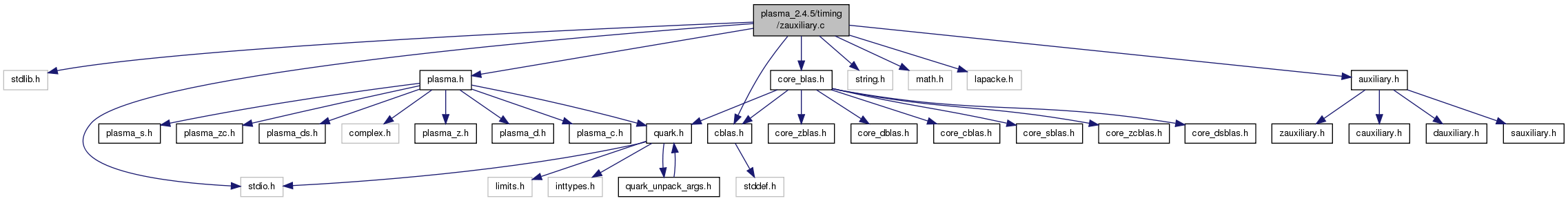

Include dependency graph for zauxiliary.c:

Functions
int	z_check_orthogonality (int M, int N, int LDQ, PLASMA_Complex64_t *Q)
int	z_check_QRfactorization (int M, int N, PLASMA_Complex64_t A1, PLASMA_Complex64_t A2, int LDA, PLASMA_Complex64_t *Q)
int	z_check_LLTfactorization (int N, PLASMA_Complex64_t A1, PLASMA_Complex64_t A2, int LDA, int uplo)
double	z_check_gemm (PLASMA_enum transA, PLASMA_enum transB, int M, int N, int K, PLASMA_Complex64_t alpha, PLASMA_Complex64_t A, int LDA, PLASMA_Complex64_t B, int LDB, PLASMA_Complex64_t beta, PLASMA_Complex64_t Cplasma, PLASMA_Complex64_t Cref, int LDC, double Cinitnorm, double Cplasmanorm, double *Clapacknorm)
double	z_check_trsm (PLASMA_enum side, PLASMA_enum uplo, PLASMA_enum trans, PLASMA_enum diag, int M, int NRHS, PLASMA_Complex64_t alpha, PLASMA_Complex64_t A, int LDA, PLASMA_Complex64_t Bplasma, PLASMA_Complex64_t Bref, int LDB, double Binitnorm, double Bplasmanorm, double Blapacknorm)
double	z_check_solution (int M, int N, int NRHS, PLASMA_Complex64_t A, int LDA, PLASMA_Complex64_t B, PLASMA_Complex64_t X, int LDB, double anorm, double bnorm, double xnorm)

Function Documentation

double z_check_gemm	(	PLASMA_enum	transA,
		PLASMA_enum	transB,
		int	M,
		int	N,
		int	K,
		PLASMA_Complex64_t	alpha,
		PLASMA_Complex64_t *	A,
		int	LDA,
		PLASMA_Complex64_t *	B,
		int	LDB,
		PLASMA_Complex64_t	beta,
		PLASMA_Complex64_t *	Cplasma,
		PLASMA_Complex64_t *	Cref,
		int	LDC,
		double *	Cinitnorm,
		double *	Cplasmanorm,
		double *	Clapacknorm
	)

Definition at line 210 of file zauxiliary.c.

References CBLAS_SADDR, cblas_zaxpy(), cblas_zgemm(), CblasColMajor, and max.

{
    PLASMA_Complex64_t beta_const = -1.0;
    double Rnorm;
    double *work = (double *)malloc(max(K,max(M, N))* sizeof(double));
    *Cinitnorm   = LAPACKE_zlange_work(LAPACK_COL_MAJOR, 'i', M, N, Cref,    LDC, work);
    *Cplasmanorm = LAPACKE_zlange_work(LAPACK_COL_MAJOR, 'i', M, N, Cplasma, LDC, work);
    cblas_zgemm(CblasColMajor, (CBLAS_TRANSPOSE)transA, (CBLAS_TRANSPOSE)transB, M, N, K,
                CBLAS_SADDR(alpha), A, LDA, B, LDB, CBLAS_SADDR(beta), Cref, LDC);
    *Clapacknorm = LAPACKE_zlange_work(LAPACK_COL_MAJOR, 'i', M, N, Cref, LDC, work);
    cblas_zaxpy(LDC * N, CBLAS_SADDR(beta_const), Cplasma, 1, Cref, 1);
    Rnorm = LAPACKE_zlange_work(LAPACK_COL_MAJOR, 'i', M, N, Cref, LDC, work);
    free(work);
    return Rnorm;
}

Here is the call graph for this function:

int z_check_LLTfactorization	(	int	N,
		PLASMA_Complex64_t *	A1,
		PLASMA_Complex64_t *	A2,
		int	LDA,
		int	uplo
	)

Definition at line 147 of file zauxiliary.c.

References CBLAS_SADDR, cblas_ztrmm(), CblasColMajor, CblasConjTrans, CblasLeft, CblasLower, CblasNonUnit, CblasRight, CblasUpper, and PlasmaUpper.

{
    double Anorm, Rnorm;
    PLASMA_Complex64_t alpha;
    int info_factorization;
    int i,j;
    double eps;
    eps = LAPACKE_dlamch_work('e');
    PLASMA_Complex64_t *Residual = (PLASMA_Complex64_t *)malloc(N*N*sizeof(PLASMA_Complex64_t));
    PLASMA_Complex64_t *L1       = (PLASMA_Complex64_t *)malloc(N*N*sizeof(PLASMA_Complex64_t));
    PLASMA_Complex64_t *L2       = (PLASMA_Complex64_t *)malloc(N*N*sizeof(PLASMA_Complex64_t));
    double *work              = (double *)malloc(N*sizeof(double));
    memset((void*)L1, 0, N*N*sizeof(PLASMA_Complex64_t));
    memset((void*)L2, 0, N*N*sizeof(PLASMA_Complex64_t));
    alpha= 1.0;
    LAPACKE_zlacpy_work(LAPACK_COL_MAJOR,' ', N, N, A1, LDA, Residual, N);
    /* Dealing with L'L or U'U  */
    if (uplo == PlasmaUpper){
        LAPACKE_zlacpy_work(LAPACK_COL_MAJOR,'u', N, N, A2, LDA, L1, N);
        LAPACKE_zlacpy_work(LAPACK_COL_MAJOR,'u', N, N, A2, LDA, L2, N);
        cblas_ztrmm(CblasColMajor, CblasLeft, CblasUpper, CblasConjTrans, CblasNonUnit, N, N, CBLAS_SADDR(alpha), L1, N, L2, N);
    }
    else{
        LAPACKE_zlacpy_work(LAPACK_COL_MAJOR,'l', N, N, A2, LDA, L1, N);
        LAPACKE_zlacpy_work(LAPACK_COL_MAJOR,'l', N, N, A2, LDA, L2, N);
        cblas_ztrmm(CblasColMajor, CblasRight, CblasLower, CblasConjTrans, CblasNonUnit, N, N, CBLAS_SADDR(alpha), L1, N, L2, N);
    }
    /* Compute the Residual || A -L'L|| */
    for (i = 0; i < N; i++)
        for (j = 0; j < N; j++)
           Residual[j*N+i] = L2[j*N+i] - Residual[j*N+i];
    Rnorm = LAPACKE_zlange_work(LAPACK_COL_MAJOR, 'i', N, N, Residual, N, work);
    Anorm = LAPACKE_zlange_work(LAPACK_COL_MAJOR, 'i', N, N, A1, LDA, work);
    printf("============\n");
    printf("Checking the Cholesky Factorization \n");
    printf("-- ||L'L-A||_oo/(||A||_oo.N.eps) = %e \n",Rnorm/(Anorm*N*eps));
    if ( isnan(Rnorm/(Anorm*N*eps)) || (Rnorm/(Anorm*N*eps) > 10.0) ){
        printf("-- Factorization is suspicious ! \n");
        info_factorization = 1;
    }
    else{
        printf("-- Factorization is CORRECT ! \n");
        info_factorization = 0;
    }
    free(Residual); free(L1); free(L2); free(work);
    return info_factorization;
}

Here is the call graph for this function:

int z_check_orthogonality	(	int	M,
		int	N,
		int	LDQ,
		PLASMA_Complex64_t *	Q
	)

normal z -> c d s

Definition at line 20 of file zauxiliary.c.

References cblas_zherk(), CblasColMajor, CblasConjTrans, CblasNoTrans, CblasUpper, and min.

{
    double alpha, beta;
    double normQ;
    int info_ortho;
    int i;
    int minMN = min(M, N);
    double eps;
    double *work = (double *)malloc(minMN*sizeof(double));
    eps = LAPACKE_dlamch_work('e');
    alpha = 1.0;
    beta  = -1.0;
    /* Build the idendity matrix USE DLASET?*/
    PLASMA_Complex64_t *Id = (PLASMA_Complex64_t *) malloc(minMN*minMN*sizeof(PLASMA_Complex64_t));
    memset((void*)Id, 0, minMN*minMN*sizeof(PLASMA_Complex64_t));
    for (i = 0; i < minMN; i++)
        Id[i*minMN+i] = (PLASMA_Complex64_t)1.0;
    /* Perform Id - Q'Q */
    if (M >= N)
        cblas_zherk(CblasColMajor, CblasUpper, CblasConjTrans, N, M, alpha, Q, LDQ, beta, Id, N);
    else
        cblas_zherk(CblasColMajor, CblasUpper, CblasNoTrans, M, N, alpha, Q, LDQ, beta, Id, M);
    normQ = LAPACKE_zlansy_work(LAPACK_COL_MAJOR, 'i', 'u', minMN, Id, minMN, work);
    printf("============\n");
    printf("Checking the orthogonality of Q \n");
    printf("||Id-Q'*Q||_oo / (N*eps) = %e \n",normQ/(minMN*eps));
    if ( isnan(normQ / (minMN * eps)) || (normQ / (minMN * eps) > 10.0) ) {
        printf("-- Orthogonality is suspicious ! \n");
        info_ortho=1;
    }
    else {
        printf("-- Orthogonality is CORRECT ! \n");
        info_ortho=0;
    }
    free(work); free(Id);
    return info_ortho;
}

Here is the call graph for this function:

int z_check_QRfactorization	(	int	M,
		int	N,
		PLASMA_Complex64_t *	A1,
		PLASMA_Complex64_t *	A2,
		int	LDA,
		PLASMA_Complex64_t *	Q
	)

Definition at line 70 of file zauxiliary.c.

References CBLAS_SADDR, cblas_zgemm(), CblasColMajor, CblasNoTrans, L, and max.

{
    double Anorm, Rnorm;
    PLASMA_Complex64_t alpha, beta;
    int info_factorization;
    int i,j;
    double eps;
    eps = LAPACKE_dlamch_work('e');
    PLASMA_Complex64_t *Ql       = (PLASMA_Complex64_t *)malloc(M*N*sizeof(PLASMA_Complex64_t));
    PLASMA_Complex64_t *Residual = (PLASMA_Complex64_t *)malloc(M*N*sizeof(PLASMA_Complex64_t));
    double *work              = (double *)malloc(max(M,N)*sizeof(double));
    alpha=1.0;
    beta=0.0;
    if (M >= N) {
        /* Extract the R */
        PLASMA_Complex64_t *R = (PLASMA_Complex64_t *)malloc(N*N*sizeof(PLASMA_Complex64_t));
        memset((void*)R, 0, N*N*sizeof(PLASMA_Complex64_t));
        LAPACKE_zlacpy_work(LAPACK_COL_MAJOR,'u', M, N, A2, LDA, R, N);
        /* Perform Ql=Q*R */
        memset((void*)Ql, 0, M*N*sizeof(PLASMA_Complex64_t));
        cblas_zgemm(CblasColMajor, CblasNoTrans, CblasNoTrans, M, N, N, CBLAS_SADDR(alpha), Q, LDA, R, N, CBLAS_SADDR(beta), Ql, M);
        free(R);
    }
    else {
        /* Extract the L */
        PLASMA_Complex64_t *L = (PLASMA_Complex64_t *)malloc(M*M*sizeof(PLASMA_Complex64_t));
        memset((void*)L, 0, M*M*sizeof(PLASMA_Complex64_t));
        LAPACKE_zlacpy_work(LAPACK_COL_MAJOR,'l', M, N, A2, LDA, L, M);
    /* Perform Ql=LQ */
        memset((void*)Ql, 0, M*N*sizeof(PLASMA_Complex64_t));
        cblas_zgemm(CblasColMajor, CblasNoTrans, CblasNoTrans, M, N, M, CBLAS_SADDR(alpha), L, M, Q, LDA, CBLAS_SADDR(beta), Ql, M);
        free(L);
    }
    /* Compute the Residual */
    for (i = 0; i < M; i++)
        for (j = 0 ; j < N; j++)
            Residual[j*M+i] = A1[j*LDA+i]-Ql[j*M+i];
    Rnorm = LAPACKE_zlange_work(LAPACK_COL_MAJOR, 'i', M, N, Residual, M, work);
    Anorm = LAPACKE_zlange_work(LAPACK_COL_MAJOR, 'i', M, N, A2, LDA, work);
    if (M >= N) {
        printf("============\n");
        printf("Checking the QR Factorization \n");
        printf("-- ||A-QR||_oo/(||A||_oo.N.eps) = %e \n",Rnorm/(Anorm*N*eps));
    }
    else {
        printf("============\n");
        printf("Checking the LQ Factorization \n");
        printf("-- ||A-LQ||_oo/(||A||_oo.N.eps) = %e \n",Rnorm/(Anorm*N*eps));
    }
    if (isnan(Rnorm / (Anorm * N *eps)) || (Rnorm / (Anorm * N * eps) > 10.0) ) {
        printf("-- Factorization is suspicious ! \n");
        info_factorization = 1;
    }
    else {
        printf("-- Factorization is CORRECT ! \n");
        info_factorization = 0;
    }
    free(work); free(Ql); free(Residual);
    return info_factorization;
}

Here is the call graph for this function:

double z_check_solution	(	int	M,
		int	N,
		int	NRHS,
		PLASMA_Complex64_t *	A,
		int	LDA,
		PLASMA_Complex64_t *	B,
		PLASMA_Complex64_t *	X,
		int	LDB,
		double *	anorm,
		double *	bnorm,
		double *	xnorm
	)

Definition at line 276 of file zauxiliary.c.

References CBLAS_SADDR, cblas_zgemm(), CblasColMajor, CblasNoTrans, and max.

{
/*     int info_solution; */
    double Rnorm = -1.00;
    PLASMA_Complex64_t zone  =  1.0;
    PLASMA_Complex64_t mzone = -1.0;
    double *work = (double *)malloc(max(M, N)* sizeof(double));
    *anorm = LAPACKE_zlange_work(LAPACK_COL_MAJOR, 'i', M, N,    A, LDA, work);
    *xnorm = LAPACKE_zlange_work(LAPACK_COL_MAJOR, 'i', M, NRHS, X, LDB, work);
    *bnorm = LAPACKE_zlange_work(LAPACK_COL_MAJOR, 'i', N, NRHS, B, LDB, work);
    cblas_zgemm(CblasColMajor, CblasNoTrans, CblasNoTrans, M, NRHS, N, CBLAS_SADDR(zone), A, LDA, X, LDB, CBLAS_SADDR(mzone), B, LDB);
    Rnorm = LAPACKE_zlange_work(LAPACK_COL_MAJOR, 'i', N, NRHS, B, M, work);
    free(work);
    return Rnorm;
}

Here is the call graph for this function:

double z_check_trsm	(	PLASMA_enum	side,
		PLASMA_enum	uplo,
		PLASMA_enum	trans,
		PLASMA_enum	diag,
		int	M,
		int	NRHS,
		PLASMA_Complex64_t	alpha,
		PLASMA_Complex64_t *	A,
		int	LDA,
		PLASMA_Complex64_t *	Bplasma,
		PLASMA_Complex64_t *	Bref,
		int	LDB,
		double *	Binitnorm,
		double *	Bplasmanorm,
		double *	Blapacknorm
	)

Definition at line 241 of file zauxiliary.c.

References CBLAS_SADDR, cblas_zaxpy(), cblas_ztrsm(), CblasColMajor, and max.

{
    PLASMA_Complex64_t beta_const = -1.0;
    double Rnorm;
    double *work = (double *)malloc(max(M, NRHS)* sizeof(double));
    /*double eps = LAPACKE_dlamch_work('e');*/
    *Binitnorm   = LAPACKE_zlange_work(LAPACK_COL_MAJOR, 'i', M, NRHS, Bref,    LDB, work);
    *Bplasmanorm = LAPACKE_zlange_work(LAPACK_COL_MAJOR, 'm', M, NRHS, Bplasma, LDB, work);
    cblas_ztrsm(CblasColMajor, (CBLAS_SIDE)side, (CBLAS_UPLO)uplo,
                (CBLAS_TRANSPOSE)trans, (CBLAS_DIAG)diag, M, NRHS,
                CBLAS_SADDR(alpha), A, LDA, Bref, LDB);
    *Blapacknorm = LAPACKE_zlange_work(LAPACK_COL_MAJOR, 'm', M, NRHS, Bref, LDB, work);
    cblas_zaxpy(LDB * NRHS, CBLAS_SADDR(beta_const), Bplasma, 1, Bref, 1);
    Rnorm = LAPACKE_zlange_work(LAPACK_COL_MAJOR, 'm', M, NRHS, Bref, LDB, work);
    Rnorm = Rnorm / *Blapacknorm;
    /* max(M,NRHS) * eps);*/
    free(work);
    return Rnorm;
}

Here is the call graph for this function:
