testing_zcgels.c File Reference

Test mixed precision least squares problem with iterative refinement. More...

#include <stdlib.h>
#include <stdio.h>
#include <string.h>
#include <math.h>
#include <plasma.h>
#include <cblas.h>
#include <lapacke.h>
#include <core_blas.h>

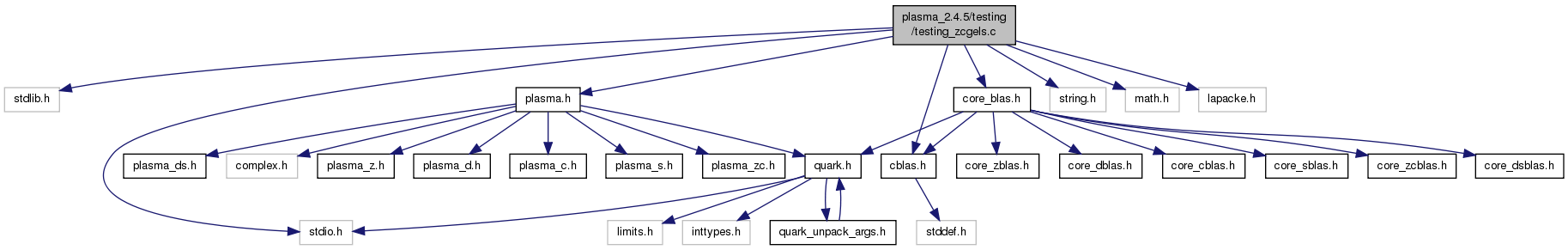

Include dependency graph for testing_zcgels.c:

Go to the source code of this file.

Macros

#define max(a, b)   ((a) > (b) ? (a) : (b))
#define min(a, b)   ((a) < (b) ? (a) : (b))

Functions

int check_orthogonality (int, int, int, PLASMA_Complex64_t *, double)
int check_factorization (int, int, PLASMA_Complex64_t *, PLASMA_Complex64_t *, int, PLASMA_Complex64_t *, double)
int check_solution (int, int, int, PLASMA_Complex64_t *, int, PLASMA_Complex64_t *, PLASMA_Complex64_t *, int, double)
int main (int argc, char **argv)

Variables

int IONE = 1
int ISEED [4] = {0,0,0,1}

Detailed Description

Test mixed precision least squares problem with iterative refinement.

PLASMA testing routines PLASMA is a software package provided by Univ. of Tennessee, Univ. of California Berkeley and Univ. of Colorado Denver

Version:
2.4.5
Author:
Emmanuel Agullo
Date:
2010-11-15 mixed zc -> ds

Definition in file testing_zcgels.c.

Macro Definition Documentation

#define max (   a,
  b
)    ((a) > (b) ? (a) : (b))

Definition at line 28 of file testing_zcgels.c.

#define min (   a,
  b
)    ((a) < (b) ? (a) : (b))

Definition at line 31 of file testing_zcgels.c.

Function Documentation

static int check_factorization ( int  M,
int  N,
PLASMA_Complex64_t *  A1,
PLASMA_Complex64_t *  A2,
int  LDA,
PLASMA_Complex64_t *  Q,
double  eps
)

Definition at line 212 of file testing_zcgels.c.

References CBLAS_SADDR, cblas_zgemm(), CblasColMajor, CblasNoTrans, L, lapack_const, max, and PlasmaInfNorm.

{
double Anorm, Rnorm;
PLASMA_Complex64_t alpha, beta;
int info_factorization;
int i,j;
PLASMA_Complex64_t *Ql = (PLASMA_Complex64_t *)malloc(M*N*sizeof(PLASMA_Complex64_t));
PLASMA_Complex64_t *Residual = (PLASMA_Complex64_t *)malloc(M*N*sizeof(PLASMA_Complex64_t));
double *work = (double *)malloc(max(M,N)*sizeof(double));
alpha=1.0;
beta=0.0;
if (M >= N) {
/* Extract the R */
PLASMA_Complex64_t *R = (PLASMA_Complex64_t *)malloc(N*N*sizeof(PLASMA_Complex64_t));
memset((void*)R, 0, N*N*sizeof(PLASMA_Complex64_t));
LAPACKE_zlacpy_work(LAPACK_COL_MAJOR,'u', M, N, A2, LDA, R, N);
/* Perform Ql=Q*R */
memset((void*)Ql, 0, M*N*sizeof(PLASMA_Complex64_t));
cblas_zgemm(CblasColMajor, CblasNoTrans, CblasNoTrans, M, N, N, CBLAS_SADDR(alpha), Q, LDA, R, N, CBLAS_SADDR(beta), Ql, M);
free(R);
}
else {
/* Extract the L */
PLASMA_Complex64_t *L = (PLASMA_Complex64_t *)malloc(M*M*sizeof(PLASMA_Complex64_t));
memset((void*)L, 0, M*M*sizeof(PLASMA_Complex64_t));
LAPACKE_zlacpy_work(LAPACK_COL_MAJOR,'l', M, N, A2, LDA, L, M);
/* Perform Ql=LQ */
memset((void*)Ql, 0, M*N*sizeof(PLASMA_Complex64_t));
cblas_zgemm(CblasColMajor, CblasNoTrans, CblasNoTrans, M, N, M, CBLAS_SADDR(alpha), L, M, Q, LDA, CBLAS_SADDR(beta), Ql, M);
free(L);
}
/* Compute the Residual */
for (i = 0; i < M; i++)
for (j = 0 ; j < N; j++)
Residual[j*M+i] = A1[j*LDA+i]-Ql[j*M+i];
Rnorm = LAPACKE_zlange_work(LAPACK_COL_MAJOR, lapack_const(PlasmaInfNorm), M, N, Residual, M, work);
Anorm = LAPACKE_zlange_work(LAPACK_COL_MAJOR, lapack_const(PlasmaInfNorm), M, N, A2, LDA, work);
if (M >= N) {
printf("============\n");
printf("Checking the QR Factorization \n");
printf("-- ||A-QR||_oo/(||A||_oo.N.eps) = %e \n",Rnorm/(Anorm*N*eps));
}
else {
printf("============\n");
printf("Checking the LQ Factorization \n");
printf("-- ||A-LQ||_oo/(||A||_oo.N.eps) = %e \n",Rnorm/(Anorm*N*eps));
}
if (isnan(Rnorm / (Anorm * N *eps)) || isinf(Rnorm / (Anorm * N *eps)) || (Rnorm / (Anorm * N * eps) > 60.0) ) {
printf("-- Factorization is suspicious ! \n");
info_factorization = 1;
}
else {
printf("-- Factorization is CORRECT ! \n");
info_factorization = 0;
}
free(work); free(Ql); free(Residual);
return info_factorization;
}

Here is the call graph for this function:

static int check_orthogonality ( int  M,
int  N,
int  LDQ,
PLASMA_Complex64_t *  Q,
double  eps
)

Definition at line 163 of file testing_zcgels.c.

References cblas_zherk(), CblasColMajor, CblasConjTrans, CblasNoTrans, CblasUpper, lapack_const, min, and PlasmaInfNorm.

{
double alpha, beta;
double normQ;
int info_ortho;
int i;
int minMN = min(M, N);
double *work = (double *)malloc(minMN*sizeof(double));
alpha = 1.0;
beta = -1.0;
/* Build the idendity matrix USE DLASET?*/
PLASMA_Complex64_t *Id = (PLASMA_Complex64_t *) malloc(minMN*minMN*sizeof(PLASMA_Complex64_t));
memset((void*)Id, 0, minMN*minMN*sizeof(PLASMA_Complex64_t));
for (i = 0; i < minMN; i++)
Id[i*minMN+i] = (PLASMA_Complex64_t)1.0;
/* Perform Id - Q'Q */
if (M >= N)
cblas_zherk(CblasColMajor, CblasUpper, CblasConjTrans, N, M, alpha, Q, LDQ, beta, Id, N);
else
cblas_zherk(CblasColMajor, CblasUpper, CblasNoTrans, M, N, alpha, Q, LDQ, beta, Id, M);
normQ = LAPACKE_zlansy_work(LAPACK_COL_MAJOR, lapack_const(PlasmaInfNorm), 'u', minMN, Id, minMN, work);
printf("============\n");
printf("Checking the orthogonality of Q \n");
printf("||Id-Q'*Q||_oo / (N*eps) = %e \n",normQ/(minMN*eps));
if ( isnan(normQ / (minMN * eps)) || isinf(normQ / (minMN * eps)) || (normQ / (minMN * eps) > 60.0) ) {
printf("-- Orthogonality is suspicious ! \n");
info_ortho=1;
}
else {
printf("-- Orthogonality is CORRECT ! \n");
info_ortho=0;
}
free(work); free(Id);
return info_ortho;
}

Here is the call graph for this function:

static int check_solution ( int  M,
int  N,
int  NRHS,
PLASMA_Complex64_t *  A1,
int  LDA,
PLASMA_Complex64_t *  B1,
PLASMA_Complex64_t *  B2,
int  LDB,
double  eps
)

Definition at line 286 of file testing_zcgels.c.

References CBLAS_SADDR, cblas_zgemm(), CblasColMajor, CblasConjTrans, CblasNoTrans, lapack_const, max, and PlasmaInfNorm.

{
int info_solution;
double Rnorm, Anorm, Xnorm, Bnorm;
PLASMA_Complex64_t alpha, beta;
double result;
double *work = (double *)malloc(max(M, N)* sizeof(double));
alpha = 1.0;
beta = -1.0;
Anorm = LAPACKE_zlange_work(LAPACK_COL_MAJOR, lapack_const(PlasmaInfNorm), M, N, A1, LDA, work);
Xnorm = LAPACKE_zlange_work(LAPACK_COL_MAJOR, lapack_const(PlasmaInfNorm), M, NRHS, B2, LDB, work);
Bnorm = LAPACKE_zlange_work(LAPACK_COL_MAJOR, lapack_const(PlasmaInfNorm), N, NRHS, B1, LDB, work);
cblas_zgemm(CblasColMajor, CblasNoTrans, CblasNoTrans, M, NRHS, N, CBLAS_SADDR(alpha), A1, LDA, B2, LDB, CBLAS_SADDR(beta), B1, LDB);
if (M >= N) {
PLASMA_Complex64_t *Residual = (PLASMA_Complex64_t *)malloc(M*NRHS*sizeof(PLASMA_Complex64_t));
memset((void*)Residual, 0, M*NRHS*sizeof(PLASMA_Complex64_t));
cblas_zgemm(CblasColMajor, CblasConjTrans, CblasNoTrans, N, NRHS, M, CBLAS_SADDR(alpha), A1, LDA, B1, LDB, CBLAS_SADDR(beta), Residual, M);
Rnorm = LAPACKE_zlange_work(LAPACK_COL_MAJOR, lapack_const(PlasmaInfNorm), M, NRHS, Residual, M, work);
free(Residual);
}
else {
PLASMA_Complex64_t *Residual = (PLASMA_Complex64_t *)malloc(N*NRHS*sizeof(PLASMA_Complex64_t));
memset((void*)Residual, 0, N*NRHS*sizeof(PLASMA_Complex64_t));
cblas_zgemm(CblasColMajor, CblasConjTrans, CblasNoTrans, N, NRHS, M, CBLAS_SADDR(alpha), A1, LDA, B1, LDB, CBLAS_SADDR(beta), Residual, N);
Rnorm = LAPACKE_zlange_work(LAPACK_COL_MAJOR, lapack_const(PlasmaInfNorm), N, NRHS, Residual, N, work);
free(Residual);
}
result = Rnorm / ( (Anorm*Xnorm+Bnorm)*N*eps ) ;
printf("============\n");
printf("Checking the Residual of the solution \n");
printf("-- ||Ax-B||_oo/((||A||_oo||x||_oo+||B||_oo).N.eps) = %e \n", result);
if ( isnan(Xnorm) || isinf(Xnorm) || isnan(result) || isinf(result) || (result > 60.0) ) {
printf("-- The solution is suspicious ! \n");
info_solution = 1;
}
else{
printf("-- The solution is CORRECT ! \n");
info_solution = 0;
}
free(work);
return info_solution;
}

Here is the call graph for this function:

int main ( int  argc,
char **  argv
)

Definition at line 41 of file testing_zcgels.c.

References check_solution(), IONE, ISEED, min, PLASMA_Finalize(), PLASMA_Init(), PLASMA_SUCCESS, PLASMA_zcgels(), PlasmaNoTrans, and Q.

{
/* Check for number of arguments*/
if ( argc != 7){
printf(" Proper Usage is : ./testing_zcgels ncores M N LDA NRHS LDB with \n - ncores : number of cores \n - M : number of rows of the matrix A \n - N : number of columns of the matrix A \n - LDA : leading dimension of the matrix A \n - NRHS : number of RHS \n - LDB : leading dimension of the matrix B\n");
exit(1);
}
int cores = atoi(argv[1]);
int M = atoi(argv[2]);
int N = atoi(argv[3]);
int LDA = atoi(argv[4]);
int NRHS = atoi(argv[5]);
int LDB = atoi(argv[6]);
int LDX = LDB;
int ITER;
int K = min(M, N);
double eps;
int info, info_solution;
/* int info_ortho, info_factorization; */
int i,j;
int LDAxN = LDA*N;
int LDBxNRHS = LDB*NRHS;
PLASMA_Complex64_t *A1 = (PLASMA_Complex64_t *)malloc(LDA*N*sizeof(PLASMA_Complex64_t));
PLASMA_Complex64_t *A2 = (PLASMA_Complex64_t *)malloc(LDA*N*sizeof(PLASMA_Complex64_t));
PLASMA_Complex64_t *B1 = (PLASMA_Complex64_t *)malloc(LDB*NRHS*sizeof(PLASMA_Complex64_t));
PLASMA_Complex64_t *B2 = (PLASMA_Complex64_t *)malloc(LDB*NRHS*sizeof(PLASMA_Complex64_t));
PLASMA_Complex64_t *X = (PLASMA_Complex64_t *)malloc(LDX*NRHS*sizeof(PLASMA_Complex64_t));
PLASMA_Complex64_t *Q = (PLASMA_Complex64_t *)malloc(LDA*N*sizeof(PLASMA_Complex64_t));
/* Check if unable to allocate memory */
if ((!A1)||(!A2)||(!B1)||(!B2)||(!Q)||(!X)){
printf("Out of Memory \n ");
exit(0);
}
/* Plasma Initialization */
PLASMA_Init(cores);
/*
PLASMA_Disable(PLASMA_AUTOTUNING);
PLASMA_Set(PLASMA_TILE_SIZE, 6);
PLASMA_Set(PLASMA_INNER_BLOCK_SIZE, 3);
*/
eps = LAPACKE_dlamch_work('e');
/*----------------------------------------------------------
* TESTING ZCGELS
*/
/* Initialize A1 and A2 */
LAPACKE_zlarnv_work(IONE, ISEED, LDAxN, A1);
for (i = 0; i < M; i++)
for (j = 0; j < N; j++)
A2[LDA*j+i] = A1[LDA*j+i] ;
/* Initialize B1 and B2 */
LAPACKE_zlarnv_work(IONE, ISEED, LDBxNRHS, B1);
for (i = 0; i < M; i++)
for (j = 0; j < NRHS; j++)
B2[LDB*j+i] = B1[LDB*j+i] ;
for (i = 0; i < K; i++)
Q[LDA*i+i] = 1.0;
printf("\n");
printf("------ TESTS FOR PLASMA ZCGELS ROUTINE ------- \n");
printf(" Size of the Matrix %d by %d\n", M, N);
printf("\n");
printf(" The matrix A is randomly generated for each test.\n");
printf("============\n");
printf(" The relative machine precision (eps) is to be %e \n",eps);
printf(" Computational tests pass if scaled residuals are less than 60.\n");
/* PLASMA ZGELS */
info = PLASMA_zcgels(PlasmaNoTrans, M, N, NRHS, A2, LDA, B2, LDB, X, LDX, &ITER);
if (info != PLASMA_SUCCESS ) {
printf("PLASMA_zcgels is not completed: info = %d\n", info);
info_solution = 1;
} else {
printf(" Solution obtained with %d iterations\n", ITER);
/* PLASMA ZGELS */
// if (M >= N)
// /* Building the economy-size Q */
// PLASMA_zungqr(M, N, K, A2, LDA, T, Q, LDA);
//else
// /* Building the economy-size Q */
// PLASMA_zunglq(M, N, K, A2, LDA, T, Q, LDA);
/* Check the orthogonality, factorization and the solution */
//info_ortho = check_orthogonality(M, N, LDA, Q, eps);
//info_factorization = check_factorization(M, N, A1, A2, LDA, Q, eps);
info_solution = check_solution(M, N, NRHS, A1, LDA, B1, X, LDB, eps);
}
//if ((info_solution == 0)&(info_factorization == 0)&(info_ortho == 0)) {
if (info_solution == 0) {
printf("***************************************************\n");
printf(" ---- TESTING ZCGELS ..................... PASSED !\n");
printf("***************************************************\n");
}
else {
printf("************************************************\n");
printf(" - TESTING ZCGELS .. FAILED !\n");
printf("************************************************\n");
}
free(A1); free(A2); free(B1); free(B2); free(X); free(Q);
PLASMA_Finalize();
exit(0);
}

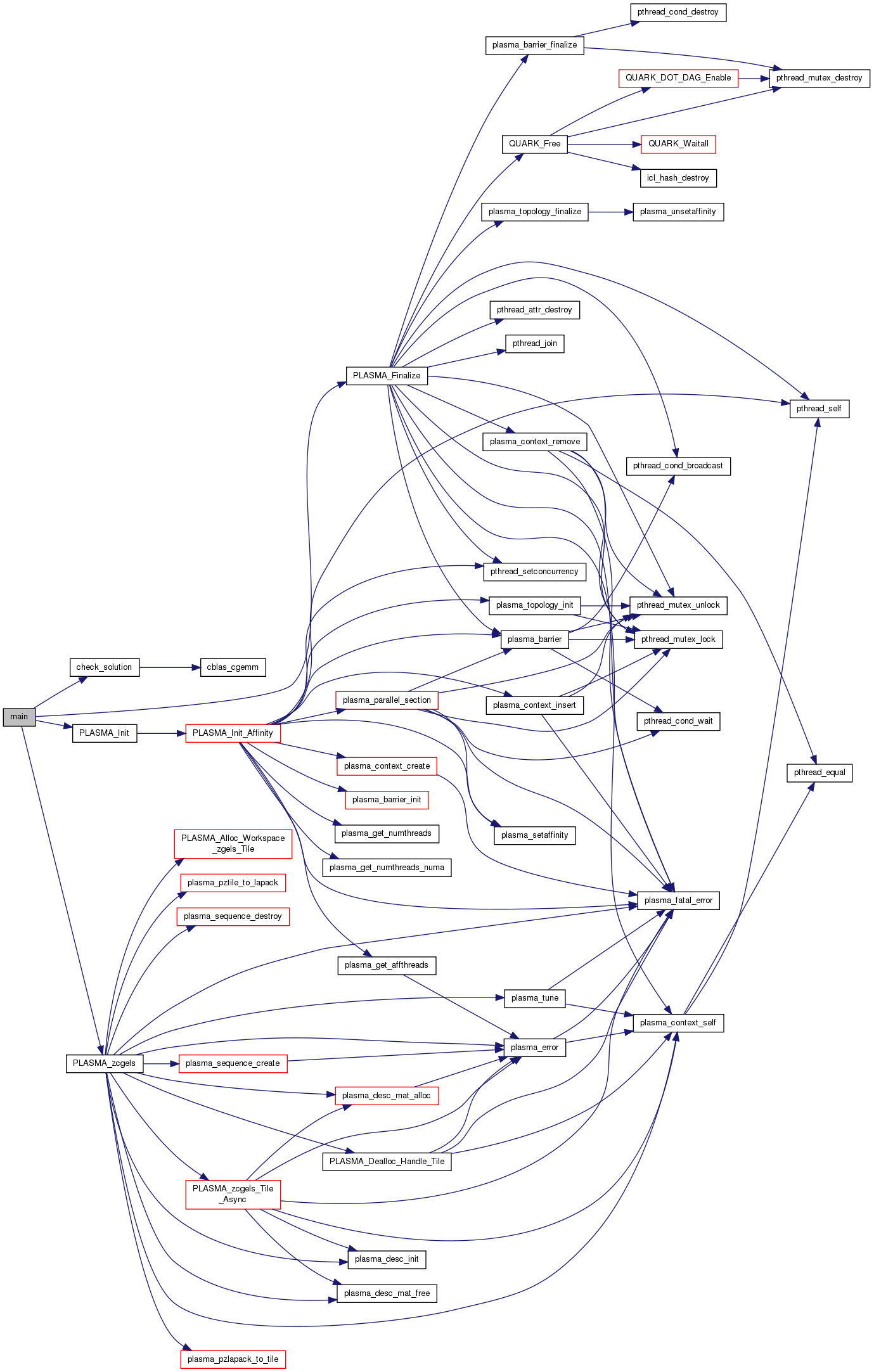

Here is the call graph for this function:

Variable Documentation

int IONE = 1

Definition at line 38 of file testing_zcgels.c.

int ISEED[4] = {0,0,0,1}

Definition at line 39 of file testing_zcgels.c.
