testPCP.c File Reference

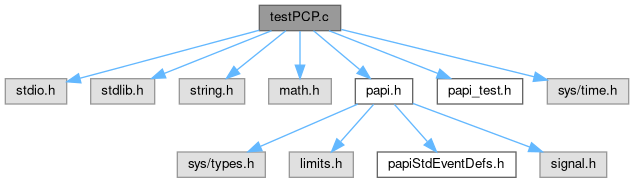

Include dependency graph for testPCP.c:

Go to the source code of this file.

Data Structures

union  convert_64_t


Macros

#define mConvertUsec(timeval_)   ((double) (timeval_.tv_sec*1000000+timeval_.tv_usec)) /* avoid typos, make it a double. */


Functions

unsigned long dummyThreadId (void)

int main (int argc, char **argv)


Variables

static struct timeval t1 t2


Macro Definition Documentation

◆ mConvertUsec

#define mConvertUsec (   timeval_)    ((double) (timeval_.tv_sec*1000000+timeval_.tv_usec)) /* avoid typos, make it a double. */

Definition at line 13 of file testPCP.c.

Function Documentation

◆ dummyThreadId()

unsigned long dummyThreadId ( void  )

Definition at line 16 of file testPCP.c.

16{ return(0); } // dummy return to give a thread id.

◆ main()

int main ( int  argc,
char **  argv
)

Definition at line 31 of file testPCP.c.

31 { // args to allow quiet flags.
32 int i,k,m,code=0;
33 int eventSetCount, ret;
34 PAPI_event_info_t info;
35 int cid=-1; // signal for not found.
36 int EventSet = PAPI_NULL;
37 int quiet=0;
38 char errMsg[1024]; // space for an error message with more info.
39 quiet=tests_quiet( argc, argv ); // From papi_test.h.
40 int firstTime = 1; // some things we want to run once.
41 int retlen;
42
43 gettimeofday(&t1, NULL);
44 ret = PAPI_library_init( PAPI_VER_CURRENT );
45 gettimeofday(&t2, NULL);
46 if (!quiet) fprintf(stderr, "PAPI_Library_init run time = %9.1f uS\n", (mConvertUsec(t2)-mConvertUsec(t1)));
47
48 if (ret != PAPI_VER_CURRENT) { // if we failed,
49 test_fail(__FILE__, __LINE__, "PAPI_library_init failed\n", ret); // report.
50 }
51
52
53 if (!quiet) {
54 fprintf(stderr, "Testing PCP Component with PAPI %d.%d.%d\n",
55 PAPI_VERSION_MAJOR( PAPI_VERSION ),
56 PAPI_VERSION_MINOR( PAPI_VERSION ),
57 PAPI_VERSION_REVISION( PAPI_VERSION ) );
58 }
59
60 // PAPI_init_thread should be run only once, immediately after
61 // library init.
62// ret = PAPI_thread_init(dummyThreadId); // PCP doesn't do anything, but should not err or crash on thread init.
63// if (ret != PAPI_OK) { // If we get an error, this tester needs updating; pcp code has changed.
64// test_fail(__FILE__, __LINE__, "PAPI_thread_init failed; this tester needs to be updated.\n", ret); // report.
65// }
66
67 // Find our component, pcp;
68 PAPI_component_info_t *aComponent;
69 k = PAPI_num_components(); // get number of components.
70 for (i=0; i<k && cid<0; i++) { // while not found,
71 aComponent = (PAPI_component_info_t*) PAPI_get_component_info(i); // get the component info.
72 if (aComponent == NULL) { // if we failed,
73 sprintf(errMsg, "PAPI_get_component_info(%i) failed, "
74 "returned NULL. %i components reported.\n", i,k);
75 test_fail(__FILE__, __LINE__, errMsg, 0);
76
77 }
78
79 if (strcmp("pcp", aComponent->name) == 0) cid=i; // If we found our match, record it.
80 } // end search components.
81
82 if (cid < 0) { // if no PCP component found,
83 sprintf(errMsg, "Failed to find pcp component among %i "
84 "reported components.\n", k);
85 test_fail(__FILE__, __LINE__, errMsg, 0); // report it.
86 }
87
88 if (!quiet) {
89 fprintf(stderr, "Found PCP Component at id %d\n",cid);
90 }
91
92 // If the component is disabled, skip the test.
93 if (aComponent->disabled) {
94 test_skip(__FILE__,__LINE__,"Component pcp is disabled", 0);
95 PAPI_shutdown();
96 return 0;
97 }
98
99 // Library is initialized and pcp component is identified.
100
101 // Set up to exercise the code for _pcp_ctl; it does nothing
102 // but prove it doesn't crash if called. The actual call to
103 // PAPI_set_opt is below; it requires an eventset.
104
105 PAPI_option_t aDomOpt; // make a domain option.
106 aDomOpt.domain.def_cidx = cid; // fill it out.
107 aDomOpt.domain.domain = PAPI_DOM_ALL; // ..
108
109 // Begin enumeration of all events.
110
111 m=PAPI_NATIVE_MASK; // Get the PAPI NATIVE mask.
112 ret=PAPI_enum_cmp_event(&m,PAPI_ENUM_FIRST,cid); // Begin enumeration of ALL papi counters.
113 if (ret != PAPI_OK) fprintf(stderr, "PAPI_enum_cmp_event returned %i [%s].\n", ret, PAPI_strerror(ret));
114 if (ret != PAPI_OK) { // If that failed, report and exit.
115 test_fail(__FILE__, __LINE__, "PAPI_enum_cmp_event failed.\n",
116 ret);
117 }
118
119 //----------------------------------------------
120 // Setups are done, we begin the work work here.
121 //----------------------------------------------
122 int count = 0;
123 if (!quiet) printf("Component Idx, Symbol, Units, Description, HexCode (this run only), Time Scope, PAPI_TYPE, Sample Value\n");
124
125 do{ // Enumerate all events.
126 memset(&info,0,sizeof(PAPI_event_info_t)); // Clear event info.
127 k=m; // Make a copy of current code.
128
129 // enumerate sub-events, with masks. For this test, we do not
130 // have any! But we do this to test our enumeration works as
131 // expected. First time through is guaranteed, of course.
132
133 do{ // enumerate masked events.
134 ret=PAPI_get_event_info(k,&info); // get name of k symbol.
135 if (ret != PAPI_OK) { // If that failed, report and exit.
136 sprintf(errMsg, "PAPI_get_event_info(%i) failed.\n", k); // build message.
137 test_fail(__FILE__, __LINE__, errMsg, ret);
138 }
139
140 // Test creating an event set.
141 ret = PAPI_create_eventset(&EventSet); // Try it.
142 if (ret != PAPI_OK) { // If that failed, report and exit.
143 test_fail(__FILE__, __LINE__, "PAPI_enum_create_eventset failed.\n", ret);
144 }
145
146 // Test adding and removing the event by name.
147 ret=PAPI_add_named_event(EventSet,info.symbol); // Try to add it for counting.
148 if (ret != PAPI_OK) { // If that failed, report it.
149 retlen = snprintf(errMsg, PAPI_MAX_STR_LEN, "PAPI_add_named_event('%s') failed.\n", info.symbol);
150 if (retlen <= 0 || PAPI_MAX_STR_LEN <= retlen)
151 continue;
152 test_fail( __FILE__, __LINE__, errMsg, ret);
153 }
154
155 // test _pcp_ctl function. Just need to do this once.
156
157 if (firstTime) {
158 aDomOpt.domain.eventset = EventSet; // ..
159 ret = PAPI_set_opt(PAPI_DOMAIN, &aDomOpt); // force call to pcp_ctl.
160 if (ret != PAPI_OK) { // If that failed, report and exit.
161 test_fail(__FILE__, __LINE__, "PAPI_set_opt failed.\n",
162 ret);
163 }
164 }
165
166 ret=PAPI_remove_named_event(EventSet,info.symbol); // Try to remove it.
167 if (ret != PAPI_OK) { // If that failed, report it.
168 retlen = snprintf(errMsg, PAPI_MAX_STR_LEN, "PAPI_remove_named_event('%s') failed.\n", info.symbol);
169 if (retlen <= 0 || PAPI_MAX_STR_LEN <= retlen)
170 continue;
171 test_fail( __FILE__, __LINE__, errMsg, ret);
172 }
173
174 // Test getting code for name, consistency with enumeration.
175 ret=PAPI_event_name_to_code(info.symbol, &code); // Try to read the code from the name.
176 if (ret != PAPI_OK) { // If that failed, report it.
177 retlen = snprintf(errMsg, PAPI_MAX_STR_LEN, "PAPI_event_name_to_code('%s') failed.\n", info.symbol);
178 if (retlen <= 0 || PAPI_MAX_STR_LEN <= retlen)
179 continue;
180 test_fail( __FILE__, __LINE__, errMsg, ret);
181 }
182
183 // Papi can report a different code; k incremented by 1.
184 // I am not clear on why it does that.
185 if (code != k && code != (k+1)) { // If code retrieved is not the same, fail and report it.
186 retlen = snprintf(errMsg, PAPI_MAX_STR_LEN, "PAPI_event_name_to_code('%s') "
187 "returned code 0x%08X, expected 0x%08X. failure.\n",
188 info.symbol, code, k);
189 if (retlen <= 0 || PAPI_MAX_STR_LEN <= retlen)
190 continue;
191 test_fail( __FILE__, __LINE__, errMsg, 0); // report and fail.
192 }
193
194 // Test getting name from code, consistency with info.
195 char testName[PAPI_MAX_STR_LEN] = ""; // needed for test.
196 ret=PAPI_event_code_to_name(code, testName); // turn code back into a name.
197 if (ret != PAPI_OK) { // If that failed, report it.
198 retlen = snprintf(errMsg, PAPI_MAX_STR_LEN, "PAPI_event_code_to_name(('0x%08X') failed.\n", code);
199 if (retlen <= 0 || PAPI_MAX_STR_LEN <= retlen)
200 continue;
201 test_fail( __FILE__, __LINE__, errMsg, ret);
202 }
203
204 if (strcmp(info.symbol, testName) != 0) { // If name retrieved is not the same, fail and report it.
205 retlen = snprintf(errMsg, PAPI_MAX_STR_LEN, "PAPI_event_code_to_name(('0x%08X') "
206 "returned name=\"'%s'\", expected \"%s\". failure.\n",
207 code, testName, info.symbol);
208 if (retlen <= 0 || PAPI_MAX_STR_LEN <= retlen)
209 continue;
210 test_fail( __FILE__, __LINE__, errMsg, 0); // Report and exit.
211 }
212
213 ret = PAPI_add_event(EventSet, code); // Try to add the event.
214 if (ret != PAPI_OK) { // If that failed, report it.
215 sprintf(errMsg, "PAPI_add_event('0x%08X') failed.\n", code);
216 test_fail( __FILE__, __LINE__, errMsg, ret); // report and exit.
217 }
218
219 ret = PAPI_start(EventSet); // start counting.
220 if (ret != PAPI_OK) { // If that failed, report it.
221 sprintf(errMsg, "PAPI_start_event('0x%08X') failed.\n", code);
222 test_fail( __FILE__, __LINE__, errMsg, ret); // report and exit.
223 }
224
225 long long *values = NULL; // pointer for us to malloc next.
226
227 eventSetCount = PAPI_num_events(EventSet); // get the number of events in set.
228 if (eventSetCount < 1) {
229 test_fail( __FILE__, __LINE__, "PAPI_num_events(EventSet) failed.\n", ret);
230 }
231
232 values = calloc(eventSetCount, sizeof(long long)); // make zeroed space for it.
233
234 ret = PAPI_read(EventSet, values); // read without a stop.
235 if (ret != PAPI_OK) { // If that failed, report it.
236 free(values);
237 test_fail( __FILE__, __LINE__, "PAPI_read(EventSet) failed.\n", ret);
238 }
239
240 // Test doing something with it.
241 count++; // bump count of items seen and added.
242 if (!quiet) {
243 printf("%i, %s, %s, %s, 0x%08x,",
244 info.component_index, info.symbol,info.units,
245 info.long_descr, info.event_code);
246 convert_64_t cvt;
247 cvt.ll = values[0]; // copy the value returned.
248
249 if (info.timescope == PAPI_TIMESCOPE_SINCE_START) {
250 printf("SINCE START,");
251 } else {
252 printf("POINT,");
253 }
254
255 switch (info.data_type) { // based on type,
256 case PAPI_DATATYPE_INT64:
257 printf("INT64, %lli", cvt.ll);
258 break; // END CASE.
259
260 case PAPI_DATATYPE_UINT64:
261 printf("UINT64, %llu", cvt.ull);
262 break; // END CASE.
263
264 case PAPI_DATATYPE_FP64:
265 printf("FP64, %f", cvt.d);
266 break; // END CASE.
267
268 default:
269 printf("UNKNOWN TYPE, %p", cvt.vp);
270 break; // END CASE.
271 }
272
273 printf("\n");
274 }
275
276 ret = PAPI_reset(EventSet); // Reset the event.
277 if (ret != PAPI_OK) { // If that failed, report and exit.
278 free(values);
279 test_fail( __FILE__, __LINE__, "PAPI_reset_event() failed\n", ret);
280 }
281
282 ret = PAPI_stop(EventSet, values); // stop counting, get final values.
283 if (ret != PAPI_OK) { // If that failed, report it.
284 free(values);
285 test_fail( __FILE__, __LINE__, "PAPI_stop_event(EventSet, values) failed.\n", ret);
286 }
287
288 free(values); // free alloc memory.
289 values = NULL; // prevent double free.
290
291 ret = PAPI_cleanup_eventset(EventSet); // Try a cleanup.
292 if (ret != PAPI_OK) { // If that failed, report it.
293 test_fail( __FILE__, __LINE__, "PAPI_cleanup_eventset(EventSet) failed.\n", ret);
294 }
295
296 ret = PAPI_destroy_eventset(&EventSet); // Deallocate. No memory leaks!
297 if (ret != PAPI_OK) { // If that failed, report it.
298 test_fail( __FILE__, __LINE__, "PAPI_destroy_eventset(EventSet) failed.\n", ret);
299 }
300
301 firstTime = 0; // Don't test the one-time functions again.
302
303 } while(PAPI_enum_cmp_event(&k,PAPI_NTV_ENUM_UMASKS,cid)==PAPI_OK); // Get next umask entry (bits different) (should return PAPI_NOEVNT).
304 } while(PAPI_enum_cmp_event(&m,PAPI_ENUM_EVENTS,cid)==PAPI_OK); // Get next event code.
305
306 // Round 2: Try to load all events into one Event Set.
307
308 // Create an event set.
309 ret = PAPI_create_eventset(&EventSet); // Try it.
310 if (ret != PAPI_OK) { // If that failed, report and exit.
311 test_fail(__FILE__, __LINE__, "PAPI_enum_create_eventset failed.\n", ret);
312 }
313
314 m=PAPI_NATIVE_MASK; // Get the PAPI NATIVE mask.
315 ret=PAPI_enum_cmp_event(&m,PAPI_ENUM_FIRST,cid); // Begin enumeration of ALL papi counters.
316 if (ret != PAPI_OK) { // If that failed, report and exit.
317 test_fail(__FILE__, __LINE__, "PAPI_enum_cmp_event failed.\n",
318 ret);
319 }
320
321 i = 0; // To count successful adds.
322 do{ // Enumerate all events.
323 memset(&info,0,sizeof(PAPI_event_info_t)); // Clear event info.
324 ret=PAPI_get_event_info(m,&info); // get name of k symbol.
325 if (ret != PAPI_OK) { // If that failed, report and exit.
326 retlen = snprintf(errMsg, PAPI_MAX_STR_LEN, "PAPI_get_event_info(%i) failed.\n", k); // build message.
327 if (retlen <= 0 || PAPI_MAX_STR_LEN <= retlen)
328 continue;
329 test_fail(__FILE__, __LINE__, errMsg, ret);
330 }
331
332 // Add it in by name.
333 ret=PAPI_add_named_event(EventSet,info.symbol); // Try to add it for counting.
334 if (ret != PAPI_OK) { // If that failed, report it.
335 retlen = snprintf(errMsg, PAPI_MAX_STR_LEN, "PAPI_add_named_event('%s') failed.\n", info.symbol);
336 if (retlen <= 0 || PAPI_MAX_STR_LEN <= retlen)
337 continue;
338 test_fail( __FILE__, __LINE__, errMsg, ret);
339 } else {
340 i++; // success.
341 }
342 } while(PAPI_enum_cmp_event(&m,PAPI_ENUM_EVENTS,cid)==PAPI_OK); // Get next event code.
343
344
345 if (i != count) { // If we failed to add them all,
346 sprintf(errMsg, "Test should have been able to add all %i events; failed after %i.\n", count, i); // build message.
347 test_fail(__FILE__, __LINE__, errMsg, 0);
348 }
349
350 ret = PAPI_cleanup_eventset(EventSet); // Try a cleanup.
351 if (ret != PAPI_OK) { // If that failed, report it.
352 test_fail( __FILE__, __LINE__, "PAPI_cleanup_eventset(EventSet) failed.\n", ret);
353 }
354
355 ret = PAPI_destroy_eventset(&EventSet); // Deallocate. No memory leaks!
356 if (ret != PAPI_OK) { // If that failed, report it.
357 test_fail( __FILE__, __LINE__, "PAPI_destroy_eventset(EventSet) failed.\n", ret);
358 }
359
360 if (!quiet) fprintf(stderr, "PCP discovered %i events; added " // Say what we learned.
361 "%i.\n", count, i); // ..
362 PAPI_shutdown(); // get out of papi.
363 if (!quiet) fprintf(stderr, "Shutdown completed.\n"); // If we are verbose,
364 test_pass( __FILE__ ); // Note the test passed.
365 return 0; // Exit with all okay.
366} // END main.
i
int i
Definition: PAPI_get_virt_cyc.c:10
count
static long count
Definition: child_overflow.c:33
PAPI_add_event
add PAPI preset or native hardware event to an event set
PAPI_add_named_event
add PAPI preset or native hardware event by name to an EventSet
PAPI_cleanup_eventset
Empty and destroy an EventSet.
PAPI_create_eventset
Create a new empty PAPI EventSet.
PAPI_destroy_eventset
Empty and destroy an EventSet.
PAPI_enum_cmp_event
Enumerate PAPI preset or native events for a given component.
PAPI_event_code_to_name
Convert a numeric hardware event code to a name.
PAPI_event_name_to_code
Convert a name to a numeric hardware event code.
PAPI_get_component_info
get information about a specific software component
PAPI_get_event_info
Get the event's name and description info.
PAPI_library_init
initialize the PAPI library.
PAPI_num_components
Get the number of components available on the system.
PAPI_num_events
Return the number of events in an event set.
PAPI_read
Read hardware counters from an event set.
PAPI_remove_named_event
removes a named hardware event from a PAPI event set.
PAPI_reset
Reset the hardware event counts in an event set.
PAPI_set_opt
Set PAPI library or event set options.
PAPI_shutdown
Finish using PAPI and free all related resources.
PAPI_start
Start counting hardware events in an event set.
PAPI_stop
Stop counting hardware events in an event set.
PAPI_strerror
Returns a string describing the PAPI error code.
t1
volatile double t1
Definition: examples/sprofile.c:27
PAPI_VER_CURRENT
#define PAPI_VER_CURRENT
Definition: f90papi.h:54
PAPI_ENUM_EVENTS
#define PAPI_ENUM_EVENTS
Definition: f90papi.h:224
PAPI_VERSION
#define PAPI_VERSION
Definition: f90papi.h:193
PAPI_OK
#define PAPI_OK
Definition: f90papi.h:73
PAPI_ENUM_FIRST
#define PAPI_ENUM_FIRST
Definition: f90papi.h:85
PAPI_NULL
#define PAPI_NULL
Definition: f90papi.h:78
PAPI_DATATYPE_FP64
#define PAPI_DATATYPE_FP64
Definition: f90papi.h:171
PAPI_MAX_STR_LEN
#define PAPI_MAX_STR_LEN
Definition: f90papi.h:77
PAPI_DATATYPE_UINT64
#define PAPI_DATATYPE_UINT64
Definition: f90papi.h:278
PAPI_DOMAIN
#define PAPI_DOMAIN
Definition: f90papi.h:159
PAPI_NTV_ENUM_UMASKS
#define PAPI_NTV_ENUM_UMASKS
Definition: f90papi.h:66
PAPI_TIMESCOPE_SINCE_START
#define PAPI_TIMESCOPE_SINCE_START
Definition: f90papi.h:124
PAPI_DATATYPE_INT64
#define PAPI_DATATYPE_INT64
Definition: f90papi.h:227
PAPI_DOM_ALL
#define PAPI_DOM_ALL
Definition: f90papi.h:261
EventSet
static int EventSet
Definition: init_fini.c:8
values
static long long values[NUM_EVENTS]
Definition: init_fini.c:10
PAPI_NATIVE_MASK
#define PAPI_NATIVE_MASK
Definition: papiStdEventDefs.h:30
PAPI_VERSION_REVISION
#define PAPI_VERSION_REVISION(x)
Definition: papi.h:221
PAPI_VERSION_MAJOR
#define PAPI_VERSION_MAJOR(x)
Definition: papi.h:219
PAPI_VERSION_MINOR
#define PAPI_VERSION_MINOR(x)
Definition: papi.h:220
stderr
FILE * stderr
tests_quiet
int tests_quiet(int argc, char **argv)
Definition: test_utils.c:376
test_fail
void PAPI_NORETURN test_fail(const char *file, int line, const char *call, int retval)
Definition: test_utils.c:491
test_pass
void PAPI_NORETURN test_pass(const char *filename)
Definition: test_utils.c:432
test_skip
void PAPI_NORETURN test_skip(const char *file, int line, const char *call, int retval)
Definition: test_utils.c:584
quiet
int quiet
Definition: rapl_overflow.c:19
PAPI_component_info_t
Definition: papi.h:626
PAPI_component_info_t::name
char name[PAPI_MAX_STR_LEN]
Definition: papi.h:627
PAPI_component_info_t::disabled
int disabled
Definition: papi.h:635
PAPI_domain_option_t::domain
int domain
Definition: papi.h:607
PAPI_domain_option_t::def_cidx
int def_cidx
Definition: papi.h:605
PAPI_domain_option_t::eventset
int eventset
Definition: papi.h:606
PAPI_event_info_t
Definition: papi.h:957
PAPI_event_info_t::component_index
int component_index
Definition: papi.h:968
PAPI_event_info_t::event_code
unsigned int event_code
Definition: papi.h:958
PAPI_event_info_t::data_type
int data_type
Definition: papi.h:971
PAPI_event_info_t::units
char units[PAPI_MIN_STR_LEN]
Definition: papi.h:969
PAPI_event_info_t::symbol
char symbol[PAPI_HUGE_STR_LEN]
Definition: papi.h:960
PAPI_event_info_t::timescope
int timescope
Definition: papi.h:973
PAPI_event_info_t::long_descr
char long_descr[PAPI_HUGE_STR_LEN]
Definition: papi.h:963
mConvertUsec
#define mConvertUsec(timeval_)
Definition: testPCP.c:13
t2
static struct timeval t1 t2
Definition: testPCP.c:14
PAPI_option_t
A pointer to the following is passed to PAPI_set/get_opt()
Definition: papi.h:843
PAPI_option_t::domain
PAPI_domain_option_t domain
Definition: papi.h:849
convert_64_t
Definition: benchSANVML.c:136
convert_64_t::ull
unsigned long long ull
Definition: benchSANVML.c:138
convert_64_t::vp
void * vp
Definition: benchSANVML.c:140
convert_64_t::ll
long long ll
Definition: benchSANVML.c:137
convert_64_t::d
double d
Definition: benchSANVML.c:139
Here is the call graph for this function:

Variable Documentation

◆ t2

struct timeval t1 t2
static

Definition at line 14 of file testPCP.c.
