perfctr.c File Reference

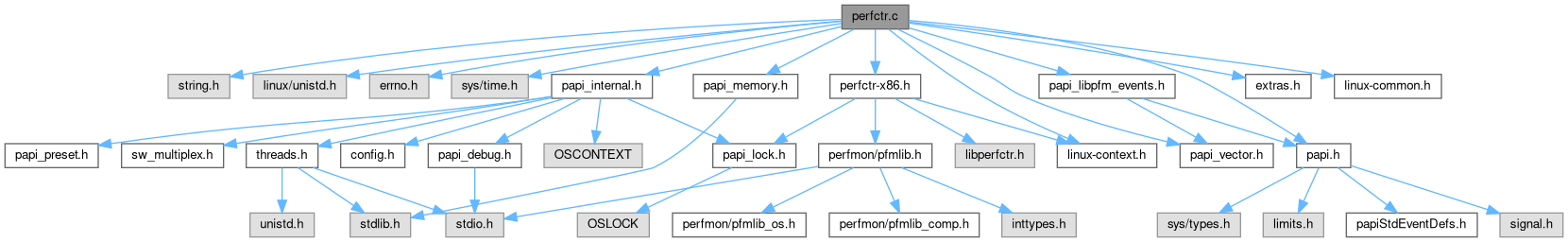

Include dependency graph for perfctr.c:

Go to the source code of this file.

Macros
#define	FOPEN_ERROR   "fopen(%s) returned NULL"
#define	PERFCTR_CPU_NAME   perfctr_cpu_name
#define	PERFCTR_CPU_NRCTRS   perfctr_cpu_nrctrs
#define	OVERFLOW_MASK   si->si_pmc_ovf_mask
#define	GEN_OVERFLOW   0

Functions
static int	xlate_cpu_type_to_vendor (unsigned perfctr_cpu_type)
int	_perfctr_init_component (int cidx)
static int	attach (hwd_control_state_t *ctl, unsigned long tid)
static int	detach (hwd_control_state_t *ctl)
static int	round_requested_ns (int ns)
int	_perfctr_ctl (hwd_context_t *ctx, int code, _papi_int_option_t *option)
void	_perfctr_dispatch_timer (int signal, siginfo_t *si, void *context)
int	_perfctr_init_thread (hwd_context_t *ctx)
int	_perfctr_shutdown_thread (hwd_context_t *ctx)

Variables
papi_vector_t	_perfctr_vector
long long	tb_scale_factor = ( long long ) 1

Macro Definition Documentation

FOPEN_ERROR

#define FOPEN_ERROR   "fopen(%s) returned NULL"

Definition at line 43 of file perfctr.c.

GEN_OVERFLOW

#define GEN_OVERFLOW   0

OVERFLOW_MASK

#define OVERFLOW_MASK   si->si_pmc_ovf_mask

PERFCTR_CPU_NAME

#define PERFCTR_CPU_NAME   perfctr_cpu_name

Definition at line 49 of file perfctr.c.

PERFCTR_CPU_NRCTRS

#define PERFCTR_CPU_NRCTRS   perfctr_cpu_nrctrs

Definition at line 50 of file perfctr.c.

Function Documentation

_perfctr_ctl()

int _perfctr_ctl	(	hwd_context_t *	ctx,
		int	code,
		_papi_int_option_t *	option
	)

Definition at line 295 of file perfctr.c.

{
    ( void ) ctx;            /*unused */
    switch ( code ) {
    case PAPI_DOMAIN:
    case PAPI_DEFDOM:
#if defined(PPC64)
        return ( _perfctr_vector.
                 set_domain( option->domain.ESI, option->domain.domain ) );
#else
        return ( _perfctr_vector.
                 set_domain( option->domain.ESI->ctl_state,
                             option->domain.domain ) );
#endif
    case PAPI_GRANUL:
    case PAPI_DEFGRN:
        return PAPI_ECMP;
    case PAPI_ATTACH:
        return ( attach( option->attach.ESI->ctl_state, option->attach.tid ) );
    case PAPI_DETACH:
        return ( detach( option->attach.ESI->ctl_state ) );
    case PAPI_DEF_ITIMER:
    {
        /* flags are currently ignored, eventually the flags will be able
           to specify whether or not we use POSIX itimers (clock_gettimer) */
        if ( ( option->itimer.itimer_num == ITIMER_REAL ) &&
             ( option->itimer.itimer_sig != SIGALRM ) )
            return PAPI_EINVAL;
        if ( ( option->itimer.itimer_num == ITIMER_VIRTUAL ) &&
             ( option->itimer.itimer_sig != SIGVTALRM ) )
            return PAPI_EINVAL;
        if ( ( option->itimer.itimer_num == ITIMER_PROF ) &&
             ( option->itimer.itimer_sig != SIGPROF ) )
            return PAPI_EINVAL;
        if ( option->itimer.ns > 0 )
            option->itimer.ns = round_requested_ns( option->itimer.ns );
        /* At this point, we assume the user knows what he or
           she is doing, they maybe doing something arch specific */
        return PAPI_OK;
    }
    case PAPI_DEF_MPX_NS:
    {
        option->multiplex.ns =
            ( unsigned long ) round_requested_ns( ( int ) option->multiplex.
                                                  ns );
        return ( PAPI_OK );
    }
    case PAPI_DEF_ITIMER_NS:
    {
        option->itimer.ns = round_requested_ns( option->itimer.ns );
        return ( PAPI_OK );
    }
    default:
        return ( PAPI_ENOSUPP );
    }
}

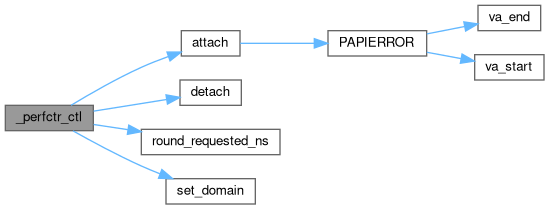

Here is the call graph for this function:

_perfctr_dispatch_timer()

void _perfctr_dispatch_timer	(	int	signal,
		siginfo_t *	si,
		void *	context
	)

Definition at line 353 of file perfctr.c.

{
   ( void ) signal;      /*unused */
   _papi_hwi_context_t ctx;
   ThreadInfo_t *master = NULL;
   int isHardware = 0;
   vptr_t address;
   int cidx = _perfctr_vector.cmp_info.CmpIdx;
   hwd_context_t *our_context;

   ctx.si = si;
   ctx.ucontext = ( ucontext_t * ) context;

#define OVERFLOW_MASK si->si_pmc_ovf_mask
#define GEN_OVERFLOW 0

   address = ( vptr_t ) GET_OVERFLOW_ADDRESS( ( ctx ) );
   _papi_hwi_dispatch_overflow_signal( ( void * ) &ctx, address, &isHardware,
                                OVERFLOW_MASK, GEN_OVERFLOW, &master,
                        _perfctr_vector.cmp_info.CmpIdx );

   /* We are done, resume interrupting counters */
   if ( isHardware ) {
     our_context=(hwd_context_t *) master->context[cidx];
      errno = vperfctr_iresume( our_context->perfctr );
      if ( errno < 0 ) {
     PAPIERROR( "vperfctr_iresume errno %d", errno );
      }
   }
}

Here is the call graph for this function:

_perfctr_init_component()

int _perfctr_init_component

(

int

cidx

)

Definition at line 107 of file perfctr.c.

{
    int retval;
    struct perfctr_info info;
    char abiv[PAPI_MIN_STR_LEN];

#if defined(PERFCTR26)
    int fd;
#else
    struct vperfctr *dev;
#endif

#if defined(PERFCTR26)
    /* Get info from the kernel */
    /* Use lower level calls per Mikael to get the perfctr info
       without actually creating a new kernel-side state.
       Also, close the fd immediately after retrieving the info.
       This is much lighter weight and doesn't reserve the counter
       resources. Also compatible with perfctr 2.6.14.
     */
    fd = _vperfctr_open( 0 );
    if ( fd < 0 ) {
       strncpy(_perfctr_vector.cmp_info.disabled_reason,
          VOPEN_ERROR,PAPI_MAX_STR_LEN);
       retval = PAPI_ESYS;
       goto fn_fail;
    }
    retval = perfctr_info( fd, &info );
    close( fd );
    if ( retval < 0 ) {
       strncpy(_perfctr_vector.cmp_info.disabled_reason,
          VINFO_ERROR,PAPI_MAX_STR_LEN);
       retval = PAPI_ESYS;
       goto fn_fail;
    }

    /* copy tsc multiplier to local variable        */
    /* this field appears in perfctr 2.6 and higher */
    tb_scale_factor = ( long long ) info.tsc_to_cpu_mult;
#else
    /* Opened once for all threads. */
    if ( ( dev = vperfctr_open(  ) ) == NULL ) {
       strncpy(_perfctr_vector.cmp_info.disabled_reason,
          VOPEN_ERROR,PAPI_MAX_STR_LEN);
       retval = PAPI_ESYS;
       goto fn_fail;
    }
    SUBDBG( "_perfctr_init_component vperfctr_open = %p\n", dev );

    /* Get info from the kernel */
    retval = vperfctr_info( dev, &info );
    if ( retval < 0 ) {
       strncpy(_perfctr_vector.cmp_info.disabled_reason,
          VINFO_ERROR,PAPI_MAX_STR_LEN);
       retval = PAPI_ESYS;
       goto fn_fail;
    }
    vperfctr_close( dev );
#endif

    /* Fill in what we can of the papi_system_info. */
    retval = _papi_os_vector.get_system_info( &_papi_hwi_system_info );
    if ( retval != PAPI_OK )
        goto fn_fail;

    /* Setup memory info */
    retval = _papi_os_vector.get_memory_info( &_papi_hwi_system_info.hw_info,
                           ( int ) info.cpu_type );
    if ( retval )
        goto fn_fail;

    strcpy( _perfctr_vector.cmp_info.name,"perfctr.c" );
    strcpy( _perfctr_vector.cmp_info.version, "$Revision$" );
    sprintf( abiv, "0x%08X", info.abi_version );
    strcpy( _perfctr_vector.cmp_info.support_version, abiv );
    strcpy( _perfctr_vector.cmp_info.kernel_version, info.driver_version );
    _perfctr_vector.cmp_info.CmpIdx = cidx;
    _perfctr_vector.cmp_info.num_cntrs = ( int ) PERFCTR_CPU_NRCTRS( &info );
        _perfctr_vector.cmp_info.num_mpx_cntrs=_perfctr_vector.cmp_info.num_cntrs;
    if ( info.cpu_features & PERFCTR_FEATURE_RDPMC )
        _perfctr_vector.cmp_info.fast_counter_read = 1;
    else
        _perfctr_vector.cmp_info.fast_counter_read = 0;
    _perfctr_vector.cmp_info.fast_real_timer = 1;
    _perfctr_vector.cmp_info.fast_virtual_timer = 1;
    _perfctr_vector.cmp_info.attach = 1;
    _perfctr_vector.cmp_info.attach_must_ptrace = 1;
    _perfctr_vector.cmp_info.default_domain = PAPI_DOM_USER;
#if !defined(PPC64)
    /* AMD and Intel ia386 processors all support unit mask bits */
    _perfctr_vector.cmp_info.cntr_umasks = 1;
#endif
#if defined(PPC64)
    _perfctr_vector.cmp_info.available_domains =
        PAPI_DOM_USER | PAPI_DOM_KERNEL | PAPI_DOM_SUPERVISOR;
#else
    _perfctr_vector.cmp_info.available_domains = PAPI_DOM_USER | PAPI_DOM_KERNEL;
#endif
    _perfctr_vector.cmp_info.default_granularity = PAPI_GRN_THR;
    _perfctr_vector.cmp_info.available_granularities = PAPI_GRN_THR;
    if ( info.cpu_features & PERFCTR_FEATURE_PCINT )
        _perfctr_vector.cmp_info.hardware_intr = 1;
    else
        _perfctr_vector.cmp_info.hardware_intr = 0;
    SUBDBG( "Hardware/OS %s support counter generated interrupts\n",
            _perfctr_vector.cmp_info.hardware_intr ? "does" : "does not" );

    strcpy( _papi_hwi_system_info.hw_info.model_string,
            PERFCTR_CPU_NAME( &info ) );
    _papi_hwi_system_info.hw_info.model = ( int ) info.cpu_type;
#if defined(PPC64)
    _papi_hwi_system_info.hw_info.vendor = PAPI_VENDOR_IBM;
    if ( strlen( _papi_hwi_system_info.hw_info.vendor_string ) == 0 )
        strcpy( _papi_hwi_system_info.hw_info.vendor_string, "IBM" );
#else
    _papi_hwi_system_info.hw_info.vendor =
        xlate_cpu_type_to_vendor( info.cpu_type );
#endif

    /* Setup presets last. Some platforms depend on earlier info */
#if !defined(PPC64)
//     retval = setup_p3_vector_table(vtable);
        if ( !retval )
                retval = _papi_libpfm_init(&_perfctr_vector, cidx );
#else
    /* Setup native and preset events */
//  retval = ppc64_setup_vector_table(vtable);
    if ( !retval )
        retval = perfctr_ppc64_setup_native_table(  );
    if ( !retval )
      retval = setup_ppc64_presets( info.cpu_type, cidx );
#endif

  fn_exit:
    _papi_hwd[cidx]->cmp_info.disabled = retval;
    return retval;
  fn_fail:
    goto fn_exit;
}

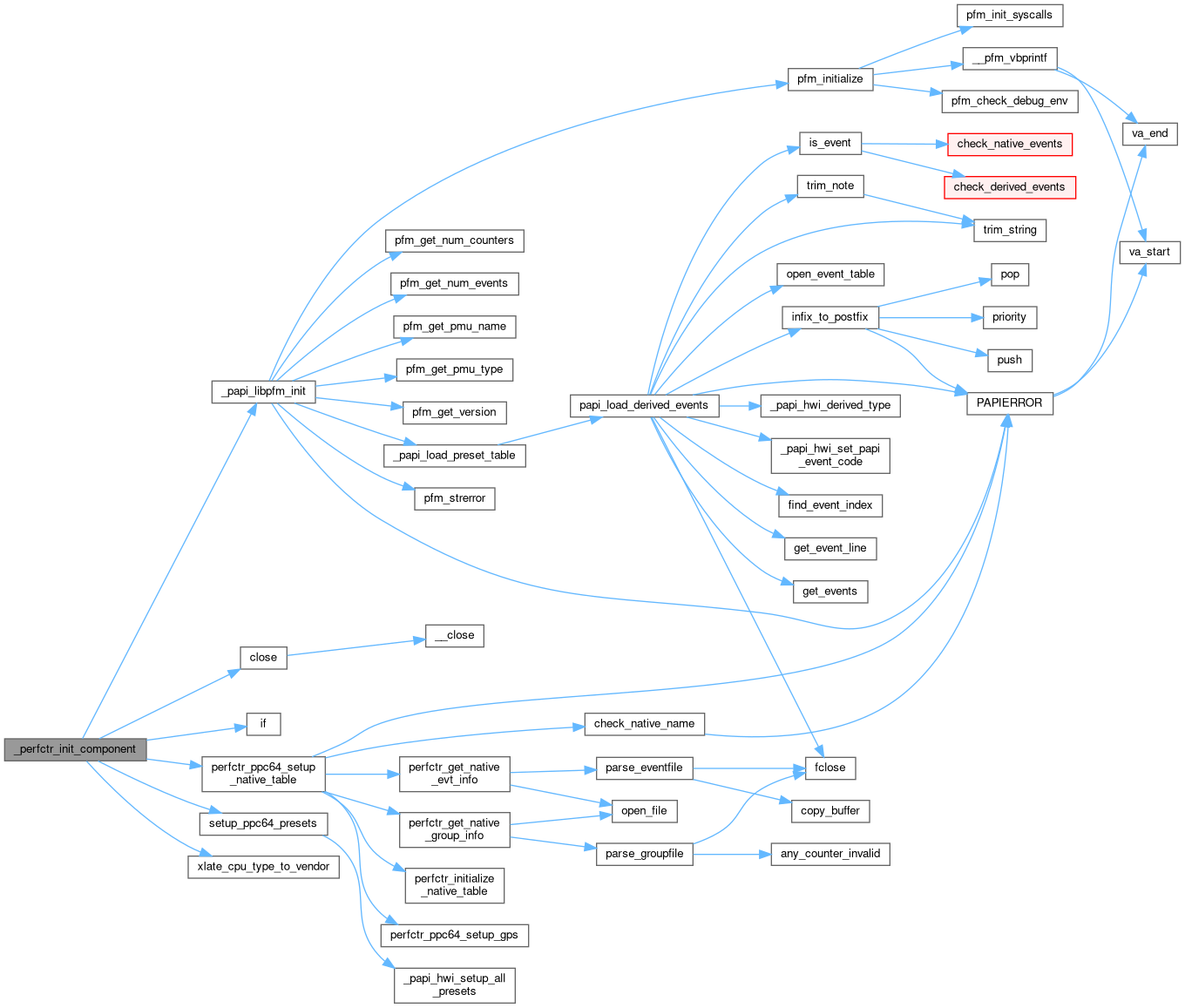

Here is the call graph for this function:

_perfctr_init_thread()

int _perfctr_init_thread

(

hwd_context_t *

ctx

)

Definition at line 386 of file perfctr.c.

{
    struct vperfctr_control tmp;
    int error;

    /* Initialize our thread/process pointer. */
    if ( ( ctx->perfctr = vperfctr_open(  ) ) == NULL ) {
#ifdef VPERFCTR_OPEN_CREAT_EXCL
        /* New versions of perfctr have this, which allows us to
           get a previously created context, i.e. one created after
           a fork and now we're inside a new process that has been exec'd */
        if ( errno ) {
            if ( ( ctx->perfctr = vperfctr_open_mode( 0 ) ) == NULL ) {
               return PAPI_ESYS;
            }
        } else {
            return PAPI_ESYS;
        }
#else
        return PAPI_ESYS;
#endif
    }
    SUBDBG( "_papi_hwd_init vperfctr_open() = %p\n", ctx->perfctr );

    /* Initialize the per thread/process virtualized TSC */
    memset( &tmp, 0x0, sizeof ( tmp ) );
    tmp.cpu_control.tsc_on = 1;

#ifdef VPERFCTR_CONTROL_CLOEXEC
    tmp.flags = VPERFCTR_CONTROL_CLOEXEC;
    SUBDBG( "close on exec\t\t\t%u\n", tmp.flags );
#endif

    /* Start the per thread/process virtualized TSC */
    error = vperfctr_control( ctx->perfctr, &tmp );
    if ( error < 0 ) {
        SUBDBG( "starting virtualized TSC; vperfctr_control returns %d\n",
                error );
        return PAPI_ESYS;
    }

    return PAPI_OK;
}

_perfctr_shutdown_thread()

int _perfctr_shutdown_thread

(

hwd_context_t *

ctx

)

Definition at line 434 of file perfctr.c.

{
#ifdef DEBUG
    int retval = vperfctr_unlink( ctx->perfctr );
    SUBDBG( "_papi_hwd_shutdown vperfctr_unlink(%p) = %d\n", ctx->perfctr,
            retval );
#else
    vperfctr_unlink( ctx->perfctr );
#endif
    vperfctr_close( ctx->perfctr );
    SUBDBG( "_perfctr_shutdown vperfctr_close(%p)\n", ctx->perfctr );
    memset( ctx, 0x0, sizeof ( hwd_context_t ) );
    return ( PAPI_OK );
}

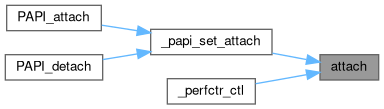

attach()

static int attach ( hwd_control_state_t *  ctl, unsigned long  tid  )

static

Definition at line 248 of file perfctr.c.

{
    struct vperfctr_control tmp;

#ifdef VPERFCTR_CONTROL_CLOEXEC
    tmp.flags = VPERFCTR_CONTROL_CLOEXEC;
#endif

    ctl->rvperfctr = rvperfctr_open( ( int ) tid );
    if ( ctl->rvperfctr == NULL ) {
        PAPIERROR( VOPEN_ERROR );
        return ( PAPI_ESYS );
    }
    SUBDBG( "_papi_hwd_ctl rvperfctr_open() = %p\n", ctl->rvperfctr );

    /* Initialize the per thread/process virtualized TSC */
    memset( &tmp, 0x0, sizeof ( tmp ) );
    tmp.cpu_control.tsc_on = 1;

    /* Start the per thread/process virtualized TSC */
    if ( rvperfctr_control( ctl->rvperfctr, &tmp ) < 0 ) {
        PAPIERROR( RCNTRL_ERROR );
        return ( PAPI_ESYS );
    }

    return ( PAPI_OK );
}                            /* end attach() */

Here is the call graph for this function:

Here is the caller graph for this function:

detach()

static int detach ( hwd_control_state_t *  ctl )

static

Definition at line 277 of file perfctr.c.

{
    rvperfctr_close( ctl->rvperfctr );
    return ( PAPI_OK );
}                            /* end detach() */

Here is the caller graph for this function:

round_requested_ns()

static int round_requested_ns ( int  ns )

inlinestatic

Definition at line 284 of file perfctr.c.

{
    if ( ns < _papi_os_info.itimer_res_ns ) {
        return _papi_os_info.itimer_res_ns;
    } else {
        int leftover_ns = ns % _papi_os_info.itimer_res_ns;
        return ns + leftover_ns;
    }
}

Here is the caller graph for this function:

xlate_cpu_type_to_vendor()

static int xlate_cpu_type_to_vendor ( unsigned  perfctr_cpu_type )

inlinestatic

Definition at line 55 of file perfctr.c.

{
    switch ( perfctr_cpu_type ) {
    case PERFCTR_X86_INTEL_P5:
    case PERFCTR_X86_INTEL_P5MMX:
    case PERFCTR_X86_INTEL_P6:
    case PERFCTR_X86_INTEL_PII:
    case PERFCTR_X86_INTEL_PIII:
    case PERFCTR_X86_INTEL_P4:
    case PERFCTR_X86_INTEL_P4M2:
#ifdef PERFCTR_X86_INTEL_P4M3
    case PERFCTR_X86_INTEL_P4M3:
#endif
#ifdef PERFCTR_X86_INTEL_PENTM
    case PERFCTR_X86_INTEL_PENTM:
#endif
#ifdef PERFCTR_X86_INTEL_CORE
    case PERFCTR_X86_INTEL_CORE:
#endif
#ifdef PERFCTR_X86_INTEL_CORE2
    case PERFCTR_X86_INTEL_CORE2:
#endif
#ifdef PERFCTR_X86_INTEL_ATOM   /* family 6 model 28 */
    case PERFCTR_X86_INTEL_ATOM:
#endif
#ifdef PERFCTR_X86_INTEL_NHLM   /* family 6 model 26 */
    case PERFCTR_X86_INTEL_NHLM:
#endif
#ifdef PERFCTR_X86_INTEL_WSTMR
    case PERFCTR_X86_INTEL_WSTMR:
#endif
        return ( PAPI_VENDOR_INTEL );
#ifdef PERFCTR_X86_AMD_K8
    case PERFCTR_X86_AMD_K8:
#endif
#ifdef PERFCTR_X86_AMD_K8C
    case PERFCTR_X86_AMD_K8C:
#endif
#ifdef PERFCTR_X86_AMD_FAM10 /* this is defined in perfctr 2.6.29 */
    case PERFCTR_X86_AMD_FAM10:
#endif
    case PERFCTR_X86_AMD_K7:
        return ( PAPI_VENDOR_AMD );
    default:
        return ( PAPI_VENDOR_UNKNOWN );
    }
}

Here is the caller graph for this function:

Variable Documentation

_perfctr_vector

papi_vector_t _perfctr_vector

extern

Definition at line 1163 of file perfctr-x86.c.

tb_scale_factor

long long tb_scale_factor = ( long long ) 1

Definition at line 104 of file perfctr.c.
