papi_avail.c File Reference

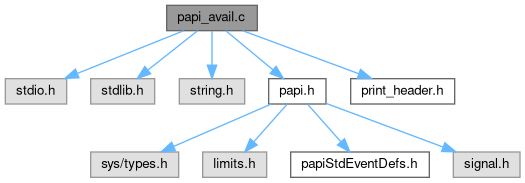

Include dependency graph for papi_avail.c:

Go to the source code of this file.

Functions
static char *	is_derived (PAPI_event_info_t *info)
static void	print_help (char **argv)
static int	parse_unit_masks (PAPI_event_info_t *info)
static int	checkCounter (int eventcode)
int	is_preset_event_available (char *name)
int	main (int argc, char **argv)

Function Documentation

checkCounter()

static int checkCounter ( int  eventcode )

static

Definition at line 249 of file papi_avail.c.

{
    int EventSet = PAPI_NULL;
    if (PAPI_create_eventset(&EventSet) != PAPI_OK)
        return 0;
    if (PAPI_add_event (EventSet, eventcode) != PAPI_OK)
        return 0;
    if (PAPI_cleanup_eventset (EventSet) != PAPI_OK)
        return 0;
    if (PAPI_destroy_eventset (&EventSet) != PAPI_OK)
        return 0;
    return 1;
}

Here is the caller graph for this function:

is_derived()

static char * is_derived ( PAPI_event_info_t *  info )

static

Definition at line 188 of file papi_avail.c.

{
    if ( strlen( info->derived ) == 0 )
        return ( "No" );
    else if ( strcmp( info->derived, "NOT_DERIVED" ) == 0 )
        return ( "No" );
    else if ( strcmp( info->derived, "DERIVED_CMPD" ) == 0 )
        return ( "No" );
    else
        return ( "Yes" );
}

Here is the caller graph for this function:

is_preset_event_available()

int is_preset_event_available

(

char *

name

)

Definition at line 268 of file papi_avail.c.

                                          {

  int  event_code = 0 | PAPI_PRESET_MASK;
  PAPI_event_info_t info;
  int check_counter = 1;


  if (PAPI_enum_event( &event_code, PAPI_ENUM_FIRST ) != PAPI_OK) {
    printf("error!");
    exit(1);
  }

  /* Iterate over all the available preset events and compare them by names. */
  do {
    if ( PAPI_get_event_info( event_code, &info ) == PAPI_OK ) {

      if ( info.count ) {
    if ( (check_counter && checkCounter (event_code)) || !check_counter) {
      if (strcmp(info.symbol, name) == 0)
        return 1;
    }
      }
    }
  } while (PAPI_enum_event( &event_code, PAPI_PRESET_ENUM_AVAIL ) == PAPI_OK);

  return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

main()

int main	(	int	argc,
		char **	argv
	)

Definition at line 299 of file papi_avail.c.

{
   int args, i, j, k;
   int retval;
   unsigned int filter = 0;
   int print_event_info = 0;
   char *name = NULL;
   int print_avail_only = PAPI_ENUM_EVENTS;
   int print_tabular = 1;
   PAPI_event_info_t info;
   const PAPI_hw_info_t *hwinfo = NULL;
   int tot_count = 0;
   int avail_count = 0;
   int deriv_count = 0;
   int check_counter = 0;
   int event_code;

   PAPI_event_info_t n_info;

   /* Parse command line arguments */

   for( args = 1; args < argc; args++ ) {
      if ( strstr( argv[args], "-e" ) ) {
     print_event_info = 1;
         if( (args+1 >= argc) || ( argv[args+1] == NULL ) || ( strlen( argv[args+1] ) == 0 ) ) {
        print_help( argv );
        exit( 1 );
     }
     name = argv[args + 1];
      }
      else if ( strstr( argv[args], "-c" ) || strstr (argv[args], "--check") )
      {
     print_avail_only = PAPI_PRESET_ENUM_AVAIL;
         check_counter = 1;
      }
      else if ( strstr( argv[args], "-a" ))
     print_avail_only = PAPI_PRESET_ENUM_AVAIL;
      else if ( strstr( argv[args], "-d" ) )
     print_tabular = 0;
      else if ( strstr( argv[args], "-h" ) ) {
     print_help( argv );
     exit( 1 );
      } else if ( strstr( argv[args], "--br" ) )
     filter |= PAPI_PRESET_BIT_BR;
      else if ( strstr( argv[args], "--cache" ) )
     filter |= PAPI_PRESET_BIT_CACH;
      else if ( strstr( argv[args], "--cnd" ) )
     filter |= PAPI_PRESET_BIT_CND;
      else if ( strstr( argv[args], "--fp" ) )
     filter |= PAPI_PRESET_BIT_FP;
      else if ( strstr( argv[args], "--ins" ) )
     filter |= PAPI_PRESET_BIT_INS;
      else if ( strstr( argv[args], "--idl" ) )
     filter |= PAPI_PRESET_BIT_IDL;
      else if ( strstr( argv[args], "--l1" ) )
     filter |= PAPI_PRESET_BIT_L1;
      else if ( strstr( argv[args], "--l2" ) )
     filter |= PAPI_PRESET_BIT_L2;
      else if ( strstr( argv[args], "--l3" ) )
     filter |= PAPI_PRESET_BIT_L3;
      else if ( strstr( argv[args], "--mem" ) )
     filter |= PAPI_PRESET_BIT_BR;
      else if ( strstr( argv[args], "--msc" ) )
     filter |= PAPI_PRESET_BIT_MSC;
      else if ( strstr( argv[args], "--tlb" ) )
     filter |= PAPI_PRESET_BIT_TLB;
   }

   if ( filter == 0 ) {
      filter = ( unsigned int ) ( -1 );
   }

   /* Init PAPI */

   retval = PAPI_library_init( PAPI_VER_CURRENT );
   if ( retval != PAPI_VER_CURRENT ) {
    fprintf(stderr,"Error!  PAPI library mismatch!\n");
    return 1;
   }


    retval = PAPI_set_debug( PAPI_VERB_ECONT );
    if ( retval != PAPI_OK ) {
        fprintf(stderr,"Error with PAPI_set debug!\n");
        return 1;
    }

      retval=papi_print_header("Available PAPI preset and user defined events plus hardware information.\n",
                   &hwinfo );
    if ( retval != PAPI_OK ) {
        fprintf(stderr,"Error with PAPI_get_hardware_info!\n");
        return 1;
    }

      /* Code for info on just one event */

      if ( print_event_info ) {

     if ( PAPI_event_name_to_code( name, &event_code ) == PAPI_OK ) {
        if ( PAPI_get_event_info( event_code, &info ) == PAPI_OK ) {

           if ( event_code & PAPI_PRESET_MASK ) {
          printf( "%-30s%s\n%-30s%#-10x\n%-30s%d\n",
              "Event name:", info.symbol, "Event Code:",
              info.event_code, "Number of Native Events:",
              info.count );
          printf( "%-29s|%s|\n%-29s|%s|\n%-29s|%s|\n",
              "Short Description:", info.short_descr,
              "Long Description:", info.long_descr,
              "Developer's Notes:", info.note );
          printf( "%-29s|%s|\n%-29s|%s|\n", "Derived Type:",
              info.derived, "Postfix Processing String:",
              info.postfix );

          for( j = 0; j < ( int ) info.count; j++ ) {
             printf( " Native Code[%d]: %#x |%s|\n", j,
                 info.code[j], info.name[j] );
             PAPI_get_event_info( (int) info.code[j], &n_info );
             printf(" Number of Register Values: %d\n", n_info.count );
             for( k = 0; k < ( int ) n_info.count; k++ ) {
            printf( " Register[%2d]: %#08x |%s|\n", k,
                n_info.code[k], n_info.name[k] );
             }
             printf( " Native Event Description: |%s|\n\n",
                 n_info.long_descr );
          }

          if (!is_preset_event_available(name)) {
            printf("\nPRESET event %s is NOT available on this architecture!\n\n", name);
          }

           } else {  /* must be a native event code */
          printf( "%-30s%s\n%-30s%#-10x\n%-30s%d\n",
              "Event name:", info.symbol, "Event Code:",
              info.event_code, "Number of Register Values:",
              info.count );
          printf( "%-29s|%s|\n", "Description:", info.long_descr );
          for ( k = 0; k < ( int ) info.count; k++ ) {
              printf( " Register[%2d]: %#08x |%s|\n", k,
                  info.code[k], info.name[k] );
          }

          /* if unit masks exist but none are specified, process all */
          if ( !strchr( name, ':' ) ) {
             if ( 1 ) {
            if ( PAPI_enum_event( &event_code, PAPI_NTV_ENUM_UMASKS ) == PAPI_OK ) {
               printf( "\nUnit Masks:\n" );
               do {
                  retval = PAPI_get_event_info(event_code, &info );
                  if ( retval == PAPI_OK ) {
                 if ( parse_unit_masks( &info ) ) {
                    printf( "%-29s|%s|%s|\n",
                        " Mask Info:", info.symbol,
                        info.long_descr );
                    for ( k = 0; k < ( int ) info.count;k++ ) {
                    printf( "  Register[%2d]:  %#08x  |%s|\n",
                        k, info.code[k], info.name[k] );
                    }
                 }
                  }
               } while ( PAPI_enum_event( &event_code,
                      PAPI_NTV_ENUM_UMASKS ) == PAPI_OK );
            }
             }
          }
           }
        }
     } else {
        printf( "Sorry, an event by the name '%s' could not be found.\n"
                    " Is it typed correctly?\n\n", name );
     }
      } else {

     /* Print *ALL* Events */

  for (i=0 ; i<2 ; i++) {
    // set the event code to fetch preset events the first time through loop and user events the second time through the loop
    if (i== 0) {
        event_code = 0 | PAPI_PRESET_MASK;
    } else {
        event_code = 0 | PAPI_UE_MASK;
    }

    /* For consistency, always ASK FOR the first event, if there is not one then nothing to process */
    if (PAPI_enum_event( &event_code, PAPI_ENUM_FIRST ) != PAPI_OK) {
         continue;
    }

    // print heading to show which kind of events follow
    if (i== 0) {
        printf( "================================================================================\n" );
        printf( "  PAPI Preset Events\n" );
        printf( "================================================================================\n" );
    } else {
        printf( "\n");       // put a blank line after the presets before strarting the user events
        printf( "================================================================================\n" );
        printf( "  User Defined Events\n" );
        printf( "================================================================================\n" );
    }

     if ( print_tabular ) {
        printf( "    Name        Code    " );
        if ( !print_avail_only ) {
           printf( "Avail " );
        }
        printf( "Deriv Description (Note)\n" );
     } else {
        printf( "%-13s%-11s%-8s%-16s\n |Long Description|\n"
                    " |Developer's Notes|\n |Derived|\n |PostFix|\n"
                    " Native Code[n]: <hex> |name|\n",
            "Symbol", "Event Code", "Count", "|Short Description|" );
     }
     do {
        if ( PAPI_get_event_info( event_code, &info ) == PAPI_OK ) {
           if ( print_tabular ) {
          // if this is a user defined event or its a preset and matches the preset event filters, display its information
          if ( (i==1) || (filter & info.event_type)) {
             if ( print_avail_only ) {
                if ( info.count ) {
                   if ( (check_counter && checkCounter (event_code)) || !check_counter)
                   {
                      printf( "%-13s%#x  %-5s%s",
                         info.symbol,
                         info.event_code,
                         is_derived( &info ), info.long_descr );
                   }
            }
                if ( info.note[0] ) {
               printf( " (%s)", info.note );
            }
            printf( "\n" );
             } else {
            printf( "%-13s%#x  %-6s%-4s %s",
                info.symbol,
                info.event_code,
                ( info.count ? "Yes" : "No" ),
                is_derived( &info ), info.long_descr );
            if ( info.note[0] ) {
               printf( " (%s)", info.note );
            }
            printf( "\n" );
             }
             tot_count++;
             if ( info.count ) {
                if ((check_counter && checkCounter (event_code)) || !check_counter )
                  avail_count++;
             }
             if ( !strcmp( is_derived( &info ), "Yes" ) ) {
            deriv_count++;
             }
          }
           } else {
          if ( ( print_avail_only && info.count ) ||
               ( print_avail_only == 0 ) )
          {
             if ((check_counter && checkCounter (event_code)) || !check_counter)
             {
               printf( "%s\t%#x\t%d\t|%s|\n |%s|\n"
                 " |%s|\n |%s|\n |%s|\n",
                 info.symbol, info.event_code, info.count,
                 info.short_descr, info.long_descr, info.note,
                 info.derived, info.postfix );
               for ( j = 0; j < ( int ) info.count; j++ ) {
                  printf( " Native Code[%d]: %#x |%s|\n", j,
                  info.code[j], info.name[j] );
               }
             }
          }
          tot_count++;
          if ( info.count ) {
             if ((check_counter && checkCounter (event_code)) || !check_counter )
                avail_count++;
          }
          if ( !strcmp( is_derived( &info ), "Yes" ) ) {
             deriv_count++;
          }
           }
        }
     } while (PAPI_enum_event( &event_code, print_avail_only ) == PAPI_OK);
  }
      }

    printf( "--------------------------------------------------------------------------------\n" );

    if ( !print_event_info ) {
        if ( print_avail_only ) {
            printf( "Of %d available events, %d ", avail_count, deriv_count );
        } else {
            printf( "Of %d possible events, %d are available, of which %d ",
                tot_count, avail_count, deriv_count );
        }
        if ( deriv_count == 1 ) {
            printf( "is derived.\n\n" );
        } else {
            printf( "are derived.\n\n" );
        }

        if (avail_count==0) {
            printf("No events detected!  Check papi_component_avail to find out why.\n");
            printf("\n");
        }
    }

    return 0;

}

Here is the call graph for this function:

parse_unit_masks()

static int parse_unit_masks ( PAPI_event_info_t *  info )

static

Definition at line 231 of file papi_avail.c.

{
    char *pmask;

    if ( ( pmask = strchr( info->symbol, ':' ) ) == NULL ) {
        return ( 0 );
    }
    memmove( info->symbol, pmask, ( strlen( pmask ) + 1 ) * sizeof ( char ) );
    pmask = strchr( info->long_descr, ':' );
    if ( pmask == NULL )
        info->long_descr[0] = 0;
    else
        memmove( info->long_descr, pmask + sizeof ( char ),
                 ( strlen( pmask ) + 1 ) * sizeof ( char ) );
    return 1;
}

Here is the caller graph for this function:

print_help()

static void print_help ( char **  argv )

static

Definition at line 201 of file papi_avail.c.

{
        printf( "This is the PAPI avail program.\n" );
        printf( "It provides availability and details about PAPI Presets and User-defined Events.\n" );
    printf( "PAPI Preset Event filters can be combined in a logical OR.\n" );
    printf( "Usage: %s [options]\n", argv[0] );
    printf( "Options:\n\n" );
    printf( "General command options:\n" );
    printf( "\t-h, --help       Print this help message\n" );
    printf( "\t-a, --avail      Display only available PAPI preset and user defined events\n" );
    printf( "\t-c, --check      Display only available PAPI preset and user defined events after an availability check\n" );
    printf( "\t-d, --detail     Display detailed information about events\n" );
    printf( "\t-e EVENTNAME     Display detail information about specified event\n" );
    printf( "\nEvent filtering options:\n" );
    printf( "\t--br             Display branch related PAPI preset events\n" );
    printf( "\t--cache          Display cache related PAPI preset events\n" );
    printf( "\t--cnd            Display conditional PAPI preset events\n" );
    printf( "\t--fp             Display Floating Point related PAPI preset events\n" );
    printf( "\t--ins            Display instruction related PAPI preset events\n" );
    printf( "\t--idl            Display Stalled or Idle PAPI preset events\n" );
    printf( "\t--l1             Display level 1 cache related PAPI preset events\n" );
    printf( "\t--l2             Display level 2 cache related PAPI preset events\n" );
    printf( "\t--l3             Display level 3 cache related PAPI preset events\n" );
    printf( "\t--mem            Display memory related PAPI preset events\n" );
    printf( "\t--msc            Display miscellaneous PAPI preset events\n" );
    printf( "\t--tlb            Display Translation Lookaside Buffer PAPI preset events\n" );
    printf( "\n" );
}
