arm_cpu_utils.c File Reference

Include dependency graph for arm_cpu_utils.c:

Go to the source code of this file.

Macros
#define	VENDOR_ARM_ARM   65
#define	VENDOR_ARM_BROADCOM   66
#define	VENDOR_ARM_CAVIUM   67
#define	VENDOR_ARM_FUJITSU   70
#define	VENDOR_ARM_HISILICON   72
#define	VENDOR_ARM_APM   80
#define	VENDOR_ARM_QUALCOMM   81
#define	NAMEID_ARM_1176   0xb76
#define	NAMEID_ARM_CORTEX_A7   0xc07
#define	NAMEID_ARM_CORTEX_A8   0xc08
#define	NAMEID_ARM_CORTEX_A9   0xc09
#define	NAMEID_ARM_CORTEX_A15   0xc0f
#define	NAMEID_ARM_CORTEX_A53   0xd03
#define	NAMEID_ARM_CORTEX_A57   0xd07
#define	NAMEID_ARM_CORTEX_A76   0xd0b
#define	NAMEID_ARM_NEOVERSE_N1   0xd0c
#define	NAMEID_ARM_NEOVERSE_N2   0xd49
#define	NAMEID_ARM_NEOVERSE_V1   0xd40
#define	NAMEID_ARM_NEOVERSE_V2   0xd4f
#define	NAMEID_BROADCOM_THUNDERX2   0x516
#define	NAMEID_CAVIUM_THUNDERX2   0x0af
#define	NAMEID_FUJITSU_A64FX   0x001
#define	NAMEID_HISILICON_KUNPENG   0xd01
#define	NAMEID_APM_XGENE   0x000
#define	NAMEID_QUALCOMM_KRAIT   0x040

Functions
static int	get_cache_info (CPU_attr_e attr, int level, int *value)
static int	name_id_arm_cpu_get_name (int name_id, char *name)
static int	name_id_broadcom_cpu_get_name (int name_id, char *name)
static int	name_id_cavium_cpu_get_name (int name_id, char *name)
static int	name_id_fujitsu_cpu_get_name (int name_id, char *name)
static int	name_id_hisilicon_cpu_get_name (int name_id, char *name)
static int	name_id_apm_cpu_get_name (int name_id, char *name)
static int	name_id_qualcomm_cpu_get_name (int name_id, char *name)
int	arm_cpu_init (void)
int	arm_cpu_finalize (void)
int	arm_cpu_get_vendor (char *vendor)
int	arm_cpu_get_name (char *name)
int	arm_cpu_get_attribute (CPU_attr_e attr, int *value)
int	arm_cpu_get_attribute_at (CPU_attr_e attr, int loc, int *value)

Variables
_sysdetect_cache_level_info_t	fujitsu_a64fx_cache_info []

Macro Definition Documentation

NAMEID_APM_XGENE

#define NAMEID_APM_XGENE   0x000

Definition at line 30 of file arm_cpu_utils.c.

NAMEID_ARM_1176

#define NAMEID_ARM_1176   0xb76

Definition at line 14 of file arm_cpu_utils.c.

NAMEID_ARM_CORTEX_A15

#define NAMEID_ARM_CORTEX_A15   0xc0f

Definition at line 18 of file arm_cpu_utils.c.

NAMEID_ARM_CORTEX_A53

#define NAMEID_ARM_CORTEX_A53   0xd03

Definition at line 19 of file arm_cpu_utils.c.

NAMEID_ARM_CORTEX_A57

#define NAMEID_ARM_CORTEX_A57   0xd07

Definition at line 20 of file arm_cpu_utils.c.

NAMEID_ARM_CORTEX_A7

#define NAMEID_ARM_CORTEX_A7   0xc07

Definition at line 15 of file arm_cpu_utils.c.

NAMEID_ARM_CORTEX_A76

#define NAMEID_ARM_CORTEX_A76   0xd0b

Definition at line 21 of file arm_cpu_utils.c.

NAMEID_ARM_CORTEX_A8

#define NAMEID_ARM_CORTEX_A8   0xc08

Definition at line 16 of file arm_cpu_utils.c.

NAMEID_ARM_CORTEX_A9

#define NAMEID_ARM_CORTEX_A9   0xc09

Definition at line 17 of file arm_cpu_utils.c.

NAMEID_ARM_NEOVERSE_N1

#define NAMEID_ARM_NEOVERSE_N1   0xd0c

Definition at line 22 of file arm_cpu_utils.c.

NAMEID_ARM_NEOVERSE_N2

#define NAMEID_ARM_NEOVERSE_N2   0xd49

Definition at line 23 of file arm_cpu_utils.c.

NAMEID_ARM_NEOVERSE_V1

#define NAMEID_ARM_NEOVERSE_V1   0xd40

Definition at line 24 of file arm_cpu_utils.c.

NAMEID_ARM_NEOVERSE_V2

#define NAMEID_ARM_NEOVERSE_V2   0xd4f

Definition at line 25 of file arm_cpu_utils.c.

NAMEID_BROADCOM_THUNDERX2

#define NAMEID_BROADCOM_THUNDERX2   0x516

Definition at line 26 of file arm_cpu_utils.c.

NAMEID_CAVIUM_THUNDERX2

#define NAMEID_CAVIUM_THUNDERX2   0x0af

Definition at line 27 of file arm_cpu_utils.c.

NAMEID_FUJITSU_A64FX

#define NAMEID_FUJITSU_A64FX   0x001

Definition at line 28 of file arm_cpu_utils.c.

NAMEID_HISILICON_KUNPENG

#define NAMEID_HISILICON_KUNPENG   0xd01

Definition at line 29 of file arm_cpu_utils.c.

NAMEID_QUALCOMM_KRAIT

#define NAMEID_QUALCOMM_KRAIT   0x040

Definition at line 31 of file arm_cpu_utils.c.

VENDOR_ARM_APM

#define VENDOR_ARM_APM   80

Definition at line 12 of file arm_cpu_utils.c.

VENDOR_ARM_ARM

#define VENDOR_ARM_ARM   65

Definition at line 7 of file arm_cpu_utils.c.

VENDOR_ARM_BROADCOM

#define VENDOR_ARM_BROADCOM   66

Definition at line 8 of file arm_cpu_utils.c.

VENDOR_ARM_CAVIUM

#define VENDOR_ARM_CAVIUM   67

Definition at line 9 of file arm_cpu_utils.c.

VENDOR_ARM_FUJITSU

#define VENDOR_ARM_FUJITSU   70

Definition at line 10 of file arm_cpu_utils.c.

VENDOR_ARM_HISILICON

#define VENDOR_ARM_HISILICON   72

Definition at line 11 of file arm_cpu_utils.c.

VENDOR_ARM_QUALCOMM

#define VENDOR_ARM_QUALCOMM   81

Definition at line 13 of file arm_cpu_utils.c.

Function Documentation

arm_cpu_finalize()

int arm_cpu_finalize

(

void

)

Definition at line 66 of file arm_cpu_utils.c.

{
    return CPU_SUCCESS;
}

arm_cpu_get_attribute()

int arm_cpu_get_attribute	(	CPU_attr_e	attr,
		int *	value
	)

Definition at line 169 of file arm_cpu_utils.c.

{
    return os_cpu_get_attribute(attr, value);
}

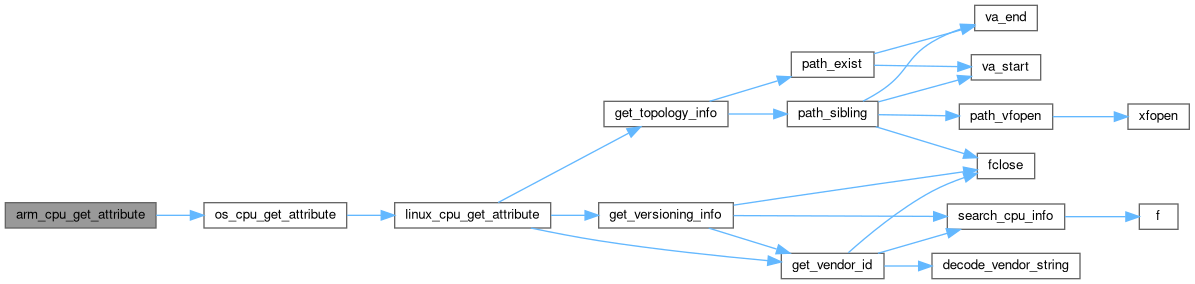

Here is the call graph for this function:

Here is the caller graph for this function:

arm_cpu_get_attribute_at()

int arm_cpu_get_attribute_at	(	CPU_attr_e	attr,
		int	loc,
		int *	value
	)

Definition at line 175 of file arm_cpu_utils.c.

{
    int status = CPU_SUCCESS;

    switch(attr) {
        case CPU_ATTR__CACHE_INST_PRESENT:
            //fall through
        case CPU_ATTR__CACHE_DATA_PRESENT:
            //fall through
        case CPU_ATTR__CACHE_UNIF_PRESENT:
            //fall through
        case CPU_ATTR__CACHE_INST_TOT_SIZE:
            //fall through
        case CPU_ATTR__CACHE_INST_LINE_SIZE:
            //fall through
        case CPU_ATTR__CACHE_INST_NUM_LINES:
            //fall through
        case CPU_ATTR__CACHE_INST_ASSOCIATIVITY:
            //fall through
        case CPU_ATTR__CACHE_DATA_TOT_SIZE:
            //fall through
        case CPU_ATTR__CACHE_DATA_LINE_SIZE:
            //fall through
        case CPU_ATTR__CACHE_DATA_NUM_LINES:
            //fall through
        case CPU_ATTR__CACHE_DATA_ASSOCIATIVITY:
            //fall through
        case CPU_ATTR__CACHE_UNIF_TOT_SIZE:
            //fall through
        case CPU_ATTR__CACHE_UNIF_LINE_SIZE:
            //fall through
        case CPU_ATTR__CACHE_UNIF_NUM_LINES:
            //fall through
        case CPU_ATTR__CACHE_UNIF_ASSOCIATIVITY:
            status = get_cache_info(attr, loc, value);
            break;
        case CPU_ATTR__NUMA_MEM_SIZE:
            //fall through
        case CPU_ATTR__HWTHREAD_NUMA_AFFINITY:
            status = os_cpu_get_attribute_at(attr, loc, value);
            break;
        default:
            status = CPU_ERROR;
    }

    return status;
}

Here is the call graph for this function:

Here is the caller graph for this function:

arm_cpu_get_name()

int arm_cpu_get_name

(

char *

name

)

Definition at line 115 of file arm_cpu_utils.c.

{
    int papi_errno;

    papi_errno = os_cpu_get_name(name);
    if (strlen(name) != 0) {
        return  papi_errno;
    }

    char tmp[PAPI_MAX_STR_LEN];
    papi_errno = os_cpu_get_vendor(tmp);
    if (papi_errno != PAPI_OK) {
        return papi_errno;
    }

    int vendor_id;
    sscanf(tmp, "%x", &vendor_id);

    int name_id;
    papi_errno = os_cpu_get_attribute(CPU_ATTR__CPUID_MODEL, &name_id);
    if (papi_errno != PAPI_OK) {
        return papi_errno;
    }

    switch(vendor_id) {
        case VENDOR_ARM_ARM:
            papi_errno = name_id_arm_cpu_get_name(name_id, name);
            break;
        case VENDOR_ARM_BROADCOM:
            papi_errno = name_id_broadcom_cpu_get_name(name_id, name);
            break;
        case VENDOR_ARM_CAVIUM:
            papi_errno = name_id_cavium_cpu_get_name(name_id, name);
            break;
        case VENDOR_ARM_FUJITSU:
            papi_errno = name_id_fujitsu_cpu_get_name(name_id, name);
            break;
        case VENDOR_ARM_HISILICON:
            papi_errno = name_id_hisilicon_cpu_get_name(name_id, name);
            break;
        case VENDOR_ARM_APM:
            papi_errno = name_id_apm_cpu_get_name(name_id, name);
            break;
        case VENDOR_ARM_QUALCOMM:
            papi_errno = name_id_qualcomm_cpu_get_name(name_id, name);
            break;
        default:
            papi_errno = PAPI_ENOSUPP;
    }

    return papi_errno;
}

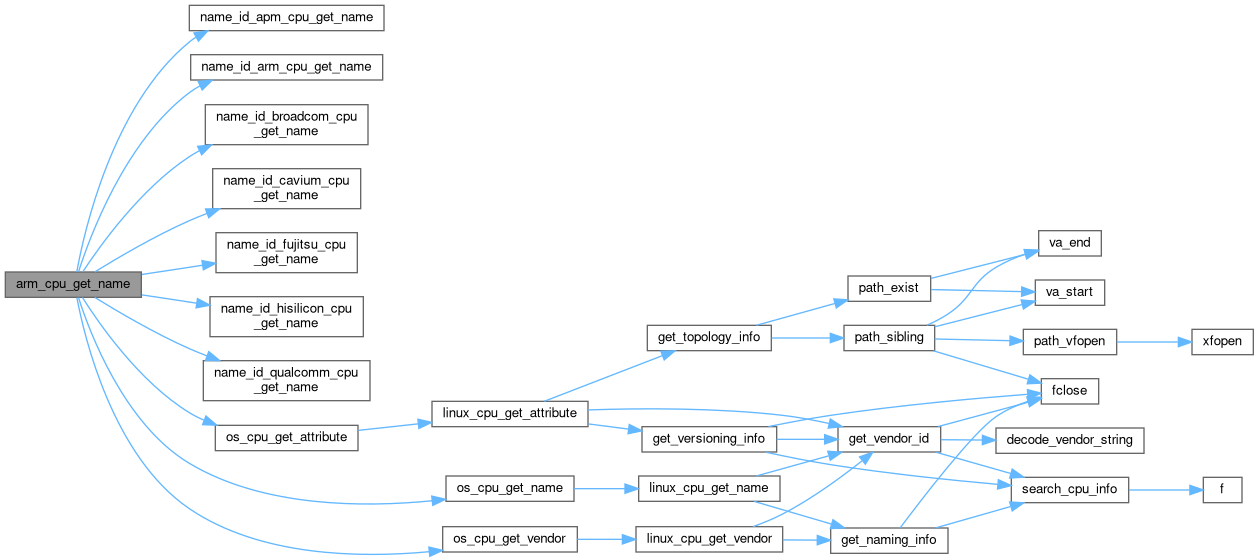

Here is the call graph for this function:

Here is the caller graph for this function:

arm_cpu_get_vendor()

int arm_cpu_get_vendor

(

char *

vendor

)

Definition at line 72 of file arm_cpu_utils.c.

{
    int papi_errno;

    char tmp[PAPI_MAX_STR_LEN];
    papi_errno = os_cpu_get_vendor(tmp);
    if (papi_errno != PAPI_OK) {
        return papi_errno;
    }

    int vendor_id;
    sscanf(tmp, "%x", &vendor_id);

    switch(vendor_id) {
        case VENDOR_ARM_ARM:
            strcpy(vendor, "Arm");
            break;
        case VENDOR_ARM_BROADCOM:
            strcpy(vendor, "Broadcom");
            break;
        case VENDOR_ARM_CAVIUM:
            strcpy(vendor, "Cavium");
            break;
        case VENDOR_ARM_FUJITSU:
            strcpy(vendor, "Fujitsu");
            break;
        case VENDOR_ARM_HISILICON:
            strcpy(vendor, "Hisilicon");
            break;
        case VENDOR_ARM_APM:
            strcpy(vendor, "Apm");
            break;
        case VENDOR_ARM_QUALCOMM:
            strcpy(vendor, "Qualcomm");
            break;
        default:
            papi_errno = PAPI_ENOSUPP;
    }

    return papi_errno;
}

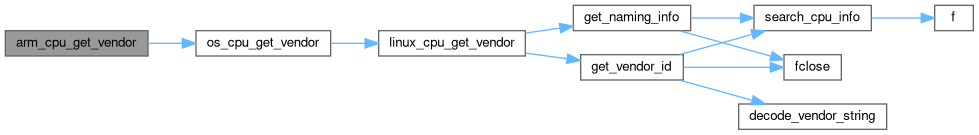

Here is the call graph for this function:

Here is the caller graph for this function:

arm_cpu_init()

int arm_cpu_init

(

void

)

Definition at line 60 of file arm_cpu_utils.c.

{
    return CPU_SUCCESS;
}

get_cache_info()

int get_cache_info ( CPU_attr_e  attr, int  level, int *  value  )

static

Definition at line 369 of file arm_cpu_utils.c.

{
    int impl, part;
    unsigned int implementer, partnum;
    static _sysdetect_cache_level_info_t *clevel_ptr;

    int status;
    status = arm_cpu_get_attribute(CPU_ATTR__VENDOR_ID, &impl);
    if( status != CPU_SUCCESS ) return CPU_ERROR;
    implementer = impl;

    status = arm_cpu_get_attribute(CPU_ATTR__CPUID_MODEL, &part);
    if( status != CPU_SUCCESS ) return CPU_ERROR;
    partnum = part;

    if (clevel_ptr) {
        return cpu_get_cache_info(attr, level, clevel_ptr, value);
    }

    switch ( implementer ) {
        case VENDOR_ARM_FUJITSU:
            if ( NAMEID_FUJITSU_A64FX == partnum ) { /* Fujitsu A64FX */
                clevel_ptr = fujitsu_a64fx_cache_info;
            } else {
                return CPU_ERROR;
            }
            break;
        default:
            return CPU_ERROR;
    }

    return cpu_get_cache_info(attr, level, clevel_ptr, value);
}

Here is the call graph for this function:

Here is the caller graph for this function:

name_id_apm_cpu_get_name()

int name_id_apm_cpu_get_name ( int  name_id, char *  name  )

static

Definition at line 337 of file arm_cpu_utils.c.

{
    int papi_errno = PAPI_OK;

    switch(name_id) {
        case NAMEID_APM_XGENE:
            strcpy(name, "Applied Micro X-Gene");
            break;
        default:
            papi_errno = PAPI_ENOSUPP;
    }

    return papi_errno;
}

Here is the caller graph for this function:

name_id_arm_cpu_get_name()

int name_id_arm_cpu_get_name ( int  name_id, char *  name  )

static

Definition at line 224 of file arm_cpu_utils.c.

{
    int papi_errno = PAPI_OK;

    switch(name_id) {
        case NAMEID_ARM_1176:
            strcpy(name, "ARM1176");
            break;
        case NAMEID_ARM_CORTEX_A7:
            strcpy(name, "ARM Cortex A7");
            break;
        case NAMEID_ARM_CORTEX_A8:
            strcpy(name, "ARM Cortex A8");
            break;
        case NAMEID_ARM_CORTEX_A9:
            strcpy(name, "ARM Cortex A9");
            break;
        case NAMEID_ARM_CORTEX_A15:
            strcpy(name, "ARM Cortex A15");
            break;
        case NAMEID_ARM_CORTEX_A53:
            strcpy(name, "ARM Cortex A53");
            break;
        case NAMEID_ARM_CORTEX_A57:
            strcpy(name, "ARM Cortex A57");
            break;
        case NAMEID_ARM_CORTEX_A76:
            strcpy(name, "ARM Cortex A76");
            break;
        case NAMEID_ARM_NEOVERSE_N1:
            strcpy(name, "ARM Neoverse N1");
            break;
        case NAMEID_ARM_NEOVERSE_N2:
            strcpy(name, "ARM Neoverse N2");
            break;
        case NAMEID_ARM_NEOVERSE_V1:
            strcpy(name, "ARM Neoverse V1");
            break;
        case NAMEID_ARM_NEOVERSE_V2:
            strcpy(name, "ARM Neoverse V2");
            break;
        default:
            papi_errno = PAPI_ENOSUPP;
    }

    return papi_errno;
}

Here is the caller graph for this function:

name_id_broadcom_cpu_get_name()

int name_id_broadcom_cpu_get_name ( int  name_id, char *  name  )

static

Definition at line 273 of file arm_cpu_utils.c.

{
    int papi_errno = PAPI_OK;

    switch(name_id) {
        case NAMEID_BROADCOM_THUNDERX2:
            strcpy(name, "Broadcom ThunderX2");
            break;
        default:
            papi_errno = PAPI_ENOSUPP;
    }

    return papi_errno;
}

Here is the caller graph for this function:

name_id_cavium_cpu_get_name()

int name_id_cavium_cpu_get_name ( int  name_id, char *  name  )

static

Definition at line 289 of file arm_cpu_utils.c.

{
    int papi_errno = PAPI_OK;

    switch(name_id) {
        case NAMEID_CAVIUM_THUNDERX2:
            strcpy(name, "Cavium ThunderX2");
            break;
        default:
            papi_errno = PAPI_ENOSUPP;
    }

    return papi_errno;
}

Here is the caller graph for this function:

name_id_fujitsu_cpu_get_name()

int name_id_fujitsu_cpu_get_name ( int  name_id, char *  name  )

static

Definition at line 305 of file arm_cpu_utils.c.

{
    int papi_errno = PAPI_OK;

    switch(name_id) {
        case NAMEID_FUJITSU_A64FX:
            strcpy(name, "Fujitsu A64FX");
            break;
        default:
            papi_errno = PAPI_ENOSUPP;
    }

    return papi_errno;
}

Here is the caller graph for this function:

name_id_hisilicon_cpu_get_name()

int name_id_hisilicon_cpu_get_name ( int  name_id, char *  name  )

static

Definition at line 321 of file arm_cpu_utils.c.

{
    int papi_errno = PAPI_OK;

    switch(name_id) {
        case NAMEID_HISILICON_KUNPENG:
            strcpy(name, "Hisilicon Kunpeng");
            break;
        default:
            papi_errno = PAPI_ENOSUPP;
    }

    return papi_errno;
}

Here is the caller graph for this function:

name_id_qualcomm_cpu_get_name()

int name_id_qualcomm_cpu_get_name ( int  name_id, char *  name  )

static

Definition at line 353 of file arm_cpu_utils.c.

{
    int papi_errno = PAPI_OK;

    switch(name_id) {
        case NAMEID_QUALCOMM_KRAIT:
            strcpy(name, "ARM Qualcomm Krait");
            break;
        default:
            papi_errno = PAPI_ENOSUPP;
    }

    return papi_errno;
}

Here is the caller graph for this function:

Variable Documentation

fujitsu_a64fx_cache_info

_sysdetect_cache_level_info_t fujitsu_a64fx_cache_info[]

Initial value:

= {
    {
        2,
        {
            {PAPI_MH_TYPE_INST, 65536, 256, 64, 4},
            {PAPI_MH_TYPE_DATA, 65536, 256, 64, 4}
        }
    },
    {
        1,
        {
            {PAPI_MH_TYPE_UNIFIED, 8388608, 256, 2048, 16},
            {PAPI_MH_TYPE_EMPTY, -1, -1, -1, -1}
        }
    },
}

Definition at line 33 of file arm_cpu_utils.c.
