sde.c File Reference

This is the component for supporting Software Defined Events (SDE). It provides an interface for libraries, runtimes, and other software layers to export events to other software layers through PAPI. More...

Include dependency graph for sde.c:

Go to the source code of this file.

Macros
#define	DLSYM_CHECK(name)

Functions
static int	sde_load_sde_ti (void)
static int	_sde_init_component (int cidx)
static int	_sde_init_thread (hwd_context_t *ctx)
static int	_sde_init_control_state (hwd_control_state_t *ctl)
static int	_sde_update_control_state (hwd_control_state_t *ctl, NativeInfo_t *native, int count, hwd_context_t *ctx)
static int	_sde_start (hwd_context_t *ctx, hwd_control_state_t *ctl)
static int	_sde_stop (hwd_context_t *ctx, hwd_control_state_t *ctl)
static int	_sde_read (hwd_context_t *ctx, hwd_control_state_t *ctl, long long **events, int flags)
static int	_sde_write (hwd_context_t *ctx, hwd_control_state_t *ctl, long long *values)
static int	_sde_reset (hwd_context_t *ctx, hwd_control_state_t *ctl)
static int	_sde_shutdown_component (void)
static int	_sde_shutdown_thread (hwd_context_t *ctx)
static int	_sde_ctl (hwd_context_t *ctx, int code, _papi_int_option_t *option)
static int	_sde_set_domain (hwd_control_state_t *cntrl, int domain)
static int	_sde_ntv_enum_events (unsigned int *EventCode, int modifier)
static int	_sde_ntv_code_to_name (unsigned int EventCode, char *name, int len)
static int	_sde_ntv_code_to_descr (unsigned int EventCode, char *descr, int len)
static int	_sde_ntv_name_to_code (const char *event_name, unsigned int *event_code)
static int	_sde_set_overflow (EventSetInfo_t *ESI, int EventIndex, int threshold)
static int	do_set_timer_for_overflow (sde_control_state_t *sde_ctl)
static int	sde_arm_timer (sde_control_state_t *sde_ctl)
void	_sde_dispatch_timer (int n, hwd_siginfo_t *info, void *uc)
static void	invoke_user_handler (uint32_t cntr_uniq_id)
void	__attribute__ ((visibility("default")))

Variables
papi_vector_t	_sde_vector
int	_sde_component_lock
void(*	papi_sde_check_overflow_status_ptr )(uint32_t cntr_id, long long int value) = &papi_sde_check_overflow_status
int(*	papi_sde_set_timer_for_overflow_ptr )(void) = &papi_sde_set_timer_for_overflow

Detailed Description

Author

Anthony Danalis adana.nosp@m.lis@.nosp@m.icl.u.nosp@m.tk.e.nosp@m.du

Definition in file sde.c.

Macro Definition Documentation

DLSYM_CHECK

#define DLSYM_CHECK

(

name

)

Value:

    do {                                                               \
        if ( NULL != (err=dlerror()) ) {                               \
            int strErr=snprintf(_sde_vector.cmp_info.disabled_reason,  \
                PAPI_MAX_STR_LEN,                                      \
                "Function '%s' not found in any dynamic lib",          \
                #name);                                                \
            if (strErr > PAPI_MAX_STR_LEN)                             \
                SUBDBG("Unexpected snprintf error.\n");                \
            name##_ptr = NULL;                                         \
            SUBDBG("sde_load_sde_ti(): Unable to load symbol %s: %s\n", #name, err);\
            return ( PAPI_ECMP );                                      \
        }                                                              \
    } while (0)

Definition at line 24 of file sde.c.

Function Documentation

__attribute__()

void __attribute__

(

(visibility("default"))

)

Definition at line 934 of file sde.c.

                                                                           {
    EventSetInfo_t *ESI;
    int cidx, i, index_in_ESI;
    ThreadInfo_t *thread;
    sde_control_state_t *sde_ctl;

    cidx = _sde_vector.cmp_info.CmpIdx;
    thread = _papi_hwi_lookup_thread( 0 );
    if( NULL == thread )
        return;

    ESI = thread->running_eventset[cidx];
    // Check if there is a running event set and it has some events set to overflow
    if( (NULL == ESI) || !(ESI->overflow.flags & PAPI_OVERFLOW_HARDWARE) )
        return;

    sde_ctl = ( sde_control_state_t * ) ESI->ctl_state;
    int event_counter = ESI->overflow.event_counter;

    // Check all the events that are set to overflow
    index_in_ESI = -1;
    for (i = 0; i < event_counter; i++ ) {
        int papi_index = ESI->overflow.EventIndex[i];
        uint32_t uniq_id = sde_ctl->which_counter[papi_index];
        // If the created counter that we are incrementing corresponds to
        // an event that was set to overflow, read the deadline and threshold.
        if( uniq_id == cntr_uniq_id ){
            index_in_ESI = i;
            break;
        }
    }

    if( index_in_ESI >= 0 ){
        long long deadline, threshold;
        deadline = ESI->overflow.deadline[index_in_ESI];
        threshold = ESI->overflow.threshold[index_in_ESI];

        // If the current value has exceeded the deadline then
        // invoke the user handler and update the deadline.
        if( latest > deadline ){
            // We adjust the deadline in a way that it remains a multiple of threshold
            // so we don't create an additive error.
            ESI->overflow.deadline[index_in_ESI] = threshold*(latest/threshold) + threshold;
            invoke_user_handler(cntr_uniq_id);
        }
    }

    return;
}

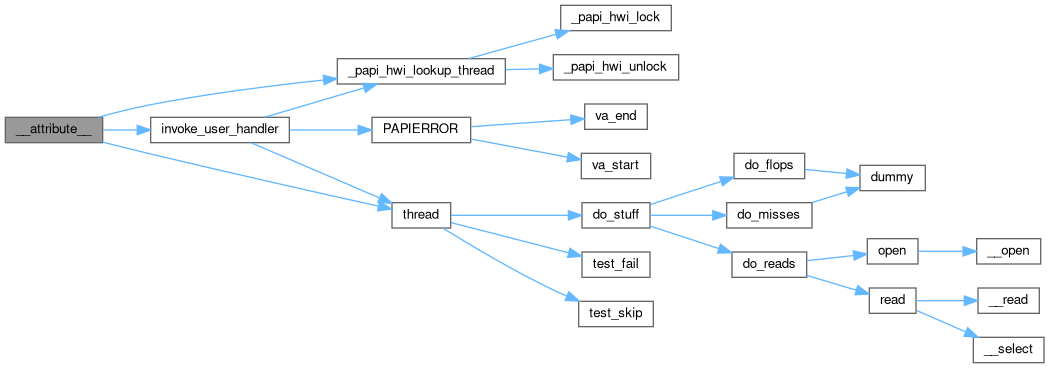

Here is the call graph for this function:

_sde_ctl()

static int _sde_ctl ( hwd_context_t *  ctx, int  code, _papi_int_option_t *  option  )

static

This function sets various options in the component

Parameters

[in]	ctx	– hardware context
[in]	code	valid are PAPI_SET_DEFDOM, PAPI_SET_DOMAIN, PAPI_SETDEFGRN, PAPI_SET_GRANUL and PAPI_SET_INHERIT
[in]	option	– options to be set

Definition at line 415 of file sde.c.

{

    (void) ctx;
    (void) code;
    (void) option;

    SUBDBG( "sde_ctl...\n" );

    return PAPI_OK;
}

_sde_dispatch_timer()

void _sde_dispatch_timer	(	int	n,
		hwd_siginfo_t *	info,
		void *	uc
	)

Definition at line 721 of file sde.c.

                                                                {

    _papi_hwi_context_t hw_context;
    vptr_t address;
    ThreadInfo_t *thread;
    int i, cidx, retval, isHardware, slow_down, speed_up;
    int found_registered_counters, period_has_changed = 0;
    EventSetInfo_t *ESI;
    struct itimerspec its;
    long long overflow_vector = 0;
    sde_control_state_t *sde_ctl;

    (void) n;

    SUBDBG("SDE timer expired. Dispatching (papi internal) overflow handler\n");

    thread = _papi_hwi_lookup_thread( 0 );
    cidx = _sde_vector.cmp_info.CmpIdx;

    ESI = thread->running_eventset[cidx];
    // This holds only the number of events in the eventset that are set to overflow.
    int event_counter = ESI->overflow.event_counter;
    sde_ctl = ( sde_control_state_t * ) ESI->ctl_state;

    retval = _papi_hwi_read( thread->context[cidx], ESI, ESI->sw_stop );
    if ( retval < PAPI_OK )
        return;

    slow_down = 0;
    speed_up = 0;
    found_registered_counters = 0;
    // Reset the deadline of counters which have exceeded the current deadline
    // and check if we need to slow down the frequency of the timer.
    for ( i = 0; i < event_counter; i++ ) {
        int papi_index = ESI->overflow.EventIndex[i];
        long long deadline, threshold, latest, previous, diff;

        uint32_t counter_uniq_id = sde_ctl->which_counter[papi_index];
        if( !sde_ti_is_simple_counter_ptr( counter_uniq_id ) )
            continue;

        found_registered_counters = 1;

        latest = ESI->sw_stop[papi_index];
        deadline = ESI->overflow.deadline[i];
        threshold = ESI->overflow.threshold[i];

        // Find the increment from the previous measurement.
        previous = sde_ctl->previous_value[papi_index];

        // NOTE: The following code assumes that the counters are "long long". No other
        // NOTE: type will work correctly.
        diff = latest-previous;

        // If it's too small we need to slow down the timer, it it's
        // too large we need to speed up the timer.
        if( 30*diff < threshold ){
            slow_down = 1; // I.e., grow the sampling period
        }else if( 10*diff > threshold ){
            speed_up = 1; // I.e., shrink the sampling period
        }

        // Update the "previous" measurement to be the latest one.
        sde_ctl->previous_value[papi_index] = latest;

        // If this counter has exceeded the deadline, add it in the vector.
        if ( latest >= deadline ) {
            // pos[0] holds the first among the native events that compose the given event. If it is a derived event,
            // then it might be made up of multiple native events, but this is a CPU component concept. The SDE component
            // does not have derived events (the groups are first class citizens, they don't have multiple pos[] entries).
            int pos = ESI->EventInfoArray[papi_index].pos[0];
            SUBDBG ( "Event at index %d (and pos %d) has value %lld which exceeds deadline %lld (threshold %lld, accuracy %.2lf)\n",
                     papi_index, pos, latest, deadline, threshold, 100.0*(double)(latest-deadline)/(double)threshold);

            overflow_vector ^= ( long long ) 1 << pos;
            // We adjust the deadline in a way that it remains a multiple of threshold so we don't create an additive error.
            ESI->overflow.deadline[i] = threshold*(latest/threshold) + threshold;
        }
    }

    if( !found_registered_counters && sde_ctl->has_timer ){
        struct itimerspec zero_time;
        memset(&zero_time, 0, sizeof(struct itimerspec));
        if (timer_settime(sde_ctl->timerid, 0, &zero_time, NULL) == -1){
            PAPIERROR("timer_settime");
            timer_delete(sde_ctl->timerid);
            sde_ctl->has_timer = 0;
            return;
        }
        goto no_change_in_period;
    }

    // Since we potentially check multiple counters in the loop above, both conditions could be true (for different counter).
    // In this case, we give speed_up priority.
    if( speed_up )
        slow_down = 0;

    // If neither was set, there is nothing to do here.
    if( !speed_up && !slow_down )
        goto no_change_in_period;

    if( !sde_ctl->has_timer )
        goto no_change_in_period;

    // Get the current value of the timer.
    if( timer_gettime(sde_ctl->timerid, &its) == -1){
        PAPIERROR("timer_gettime() failed. Timer will not be modified.\n");
        goto no_change_in_period;
    }

    period_has_changed = 0;
    // We only reduce the period if it is above 131.6us, so it never drops below 100us.
    if( speed_up && (its.it_interval.tv_nsec > 131607) ){
        double new_val = (double)its.it_interval.tv_nsec;
        new_val /= 1.31607; // sqrt(sqrt(3)) = 1.316074
        its.it_value.tv_nsec = (int)new_val;
        its.it_interval.tv_nsec = its.it_value.tv_nsec;
        period_has_changed = 1;
        SUBDBG ("Timer will be sped up to %ld ns\n", its.it_value.tv_nsec);
    }

    // We only increase the period if it is below 75.9ms, so it never grows above 100ms.
    if( slow_down && (its.it_interval.tv_nsec < 75983800) ){
        double new_val = (double)its.it_interval.tv_nsec;
        new_val *= 1.31607; // sqrt(sqrt(3)) = 1.316074
        its.it_value.tv_nsec = (int)new_val;
        its.it_interval.tv_nsec = its.it_value.tv_nsec;
        period_has_changed = 1;
        SUBDBG ("Timer will be slowed down to %ld ns\n", its.it_value.tv_nsec);
    }

    if( !period_has_changed )
        goto no_change_in_period;

    if (timer_settime(sde_ctl->timerid, 0, &its, NULL) == -1){
        PAPIERROR("timer_settime() failed when modifying PAPI internal timer. This might have broken overflow support for this eventset.\n");
        goto no_change_in_period;
    }

no_change_in_period:

    // If none of the events exceeded their deadline, there is nothing else to do.
    if( 0 == overflow_vector ){
        return;
    }

    if ( (NULL== thread) || (NULL == thread->running_eventset[cidx]) || (0 == thread->running_eventset[cidx]->overflow.flags) ){
        PAPIERROR( "_sde_dispatch_timer(): 'Can not access overflow flags'");
        return;
    }

    hw_context.si = info;
    hw_context.ucontext = ( hwd_ucontext_t * ) uc;

    address = GET_OVERFLOW_ADDRESS( hw_context );

    int genOverflowBit = 0;

    _papi_hwi_dispatch_overflow_signal( ( void * ) &hw_context, address, &isHardware, overflow_vector, genOverflowBit, &thread, cidx );

   return;
}

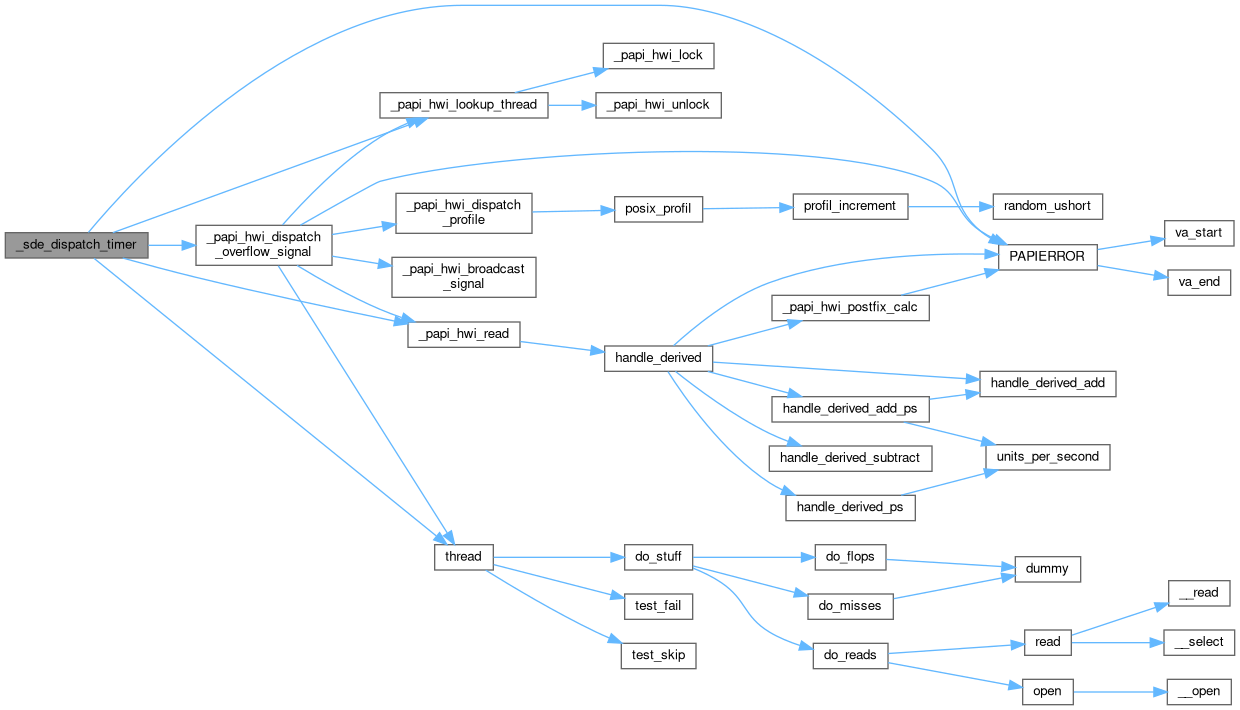

Here is the call graph for this function:

Here is the caller graph for this function:

_sde_init_component()

static int _sde_init_component ( int  cidx )

static

Definition at line 117 of file sde.c.

{
    int ret_val = PAPI_OK;
    SUBDBG("_sde_init_component...\n");

    _sde_vector.cmp_info.num_native_events = 0;
    _sde_vector.cmp_info.CmpIdx = cidx;
    _sde_component_lock = PAPI_NUM_LOCK + NUM_INNER_LOCK + cidx;

    ret_val = sde_load_sde_ti();
    if( PAPI_OK != ret_val ){
        _sde_vector.cmp_info.disabled = ret_val;
        int expect = snprintf(_sde_vector.cmp_info.disabled_reason,
                              PAPI_MAX_STR_LEN, "libsde API not found. No SDEs exist in this executable.");
        if (expect > PAPI_MAX_STR_LEN) {
            SUBDBG("disabled_reason truncated");
        }
    }

    return ret_val;
}

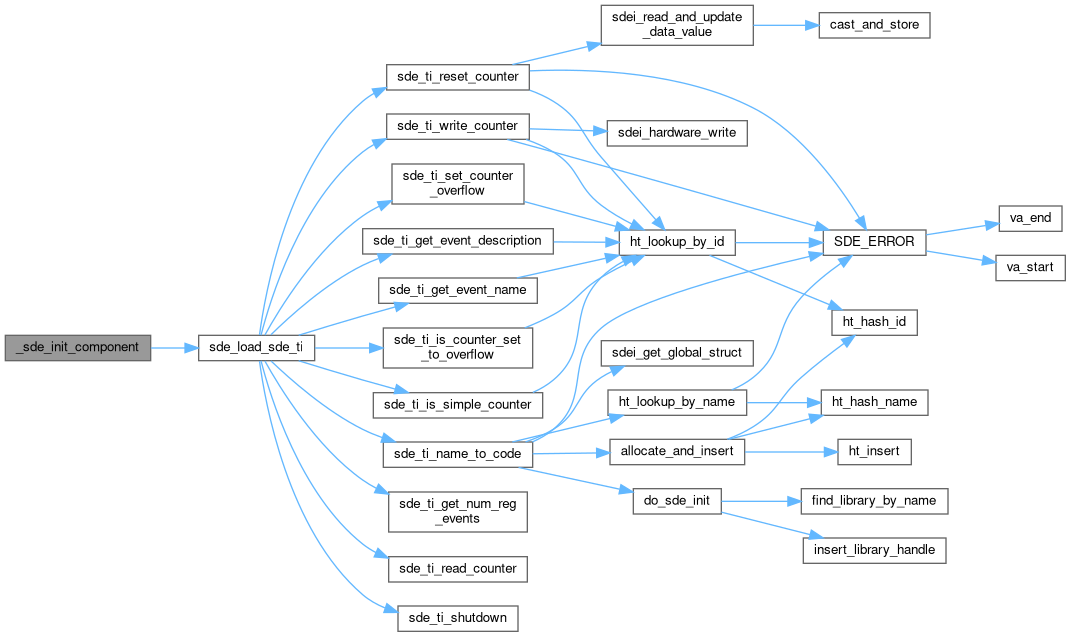

Here is the call graph for this function:

_sde_init_control_state()

static int _sde_init_control_state ( hwd_control_state_t *  ctl )

static

Setup a counter control state. In general a control state holds the hardware info for an EventSet.

Definition at line 158 of file sde.c.

{
    SUBDBG( "sde_init_control_state... %p\n", ctl );

    sde_control_state_t *sde_ctl = ( sde_control_state_t * ) ctl;
    memset( sde_ctl, 0, sizeof ( sde_control_state_t ) );

    return PAPI_OK;
}

_sde_init_thread()

static int _sde_init_thread ( hwd_context_t *  ctx )

static

This is called whenever a thread is initialized

Definition at line 143 of file sde.c.

{
    (void)ctx;
    SUBDBG( "_sde_init_thread %p...\n", ctx );
    return PAPI_OK;
}

_sde_ntv_code_to_descr()

static int _sde_ntv_code_to_descr ( unsigned int  EventCode, char *  descr, int  len  )

static

Takes a native event code and passes back the event description

Parameters

EventCode	is the native event code
descr	is a pointer for the description to be copied to
len	is the size of the descr string

Definition at line 579 of file sde.c.

{
    int ret_val = PAPI_OK;
    unsigned int code = EventCode & PAPI_NATIVE_AND_MASK;

    SUBDBG("_sde_ntv_code_to_descr %u\n", code);

    _papi_hwi_lock(_sde_component_lock);

    char *ev_descr = sde_ti_get_event_description_ptr((uint32_t)code);
    if( NULL == ev_descr ){
        ret_val = PAPI_ENOEVNT;
        goto fnct_exit;
    }
    SUBDBG("Event (code = %d) description: %s\n", code, ev_descr);

    (void)strncpy( descr, ev_descr, len );
    descr[len-1] = '\0';

fnct_exit:
    _papi_hwi_unlock(_sde_component_lock);
    return ret_val;
}

Here is the call graph for this function:

_sde_ntv_code_to_name()

static int _sde_ntv_code_to_name ( unsigned int  EventCode, char *  name, int  len  )

static

Takes a native event code and passes back the name

Parameters

EventCode	is the native event code
name	is a pointer for the name to be copied to
len	is the size of the name string

Definition at line 550 of file sde.c.

{
    int ret_val = PAPI_OK;
    unsigned int code = EventCode & PAPI_NATIVE_AND_MASK;

    SUBDBG("_sde_ntv_code_to_name %u\n", code);

    _papi_hwi_lock(_sde_component_lock);

    char *ev_name = sde_ti_get_event_name_ptr((uint32_t)code);
    if( NULL == ev_name ){
        ret_val = PAPI_ENOEVNT;
        goto fnct_exit;
    }
    SUBDBG("Event name = %s (code = %d)\n", ev_name, code);
    (void)strncpy( name, ev_name, len );
    name[len-1] = '\0';

fnct_exit:
    _papi_hwi_unlock(_sde_component_lock);
    return ret_val;
}

Here is the call graph for this function:

_sde_ntv_enum_events()

static int _sde_ntv_enum_events ( unsigned int *  EventCode, int  modifier  )

static

Enumerate Native Events

Parameters

EventCode	is the event of interest
modifier	is one of PAPI_ENUM_FIRST, PAPI_ENUM_EVENTS If your component has attribute masks then these need to be handled here as well.

Definition at line 479 of file sde.c.

{
    unsigned int curr_code, next_code, num_reg_events;
    int ret_val = PAPI_OK;

    SUBDBG("_sde_ntv_enum_events begin\n\tEventCode=%u modifier=%d\n", *EventCode, modifier);

    switch ( modifier ) {

        /* return EventCode of first event */
        case PAPI_ENUM_FIRST:
            /* return the first event that we support */
            if( sde_ti_get_num_reg_events_ptr() <= 0 ){
                ret_val = PAPI_ENOEVNT;
                break;
            }
            *EventCode = 0;
            ret_val = PAPI_OK;
            break;

        /* return EventCode of next available event */
        case PAPI_ENUM_EVENTS:
            curr_code = *EventCode & PAPI_NATIVE_AND_MASK;

            // Lock before we read num_reg_events and the hash-tables.
            _papi_hwi_lock(_sde_component_lock);

            num_reg_events = (unsigned int)sde_ti_get_num_reg_events_ptr();
            if( curr_code >= num_reg_events-1 ){
                ret_val = PAPI_ENOEVNT;
                goto unlock;
            }

            /*
             * We have to check the events which follow the current one, because unregistering
             * will create sparcity in the global SDE table, so we can't just return the next
             * index.
             */
            next_code = curr_code;
            do{
                next_code++;
                char *ev_name = sde_ti_get_event_name_ptr((uint32_t)next_code);
                if( NULL != ev_name ){
                    *EventCode = next_code;
                    SUBDBG("Event name = %s (code = %d)\n", ev_name, next_code);
                    ret_val = PAPI_OK;
                    goto unlock;
                }
            }while(next_code < num_reg_events);

            // If we make it here it means that we didn't find the event.
            ret_val = PAPI_EINVAL;

unlock:
            _papi_hwi_unlock(_sde_component_lock);
            break;

        default:
            ret_val = PAPI_EINVAL;
            break;
    }

    return ret_val;
}

Here is the call graph for this function:

_sde_ntv_name_to_code()

static int _sde_ntv_name_to_code ( const char *  event_name, unsigned int *  event_code  )

static

Takes a native event name and passes back the code

Parameters

event_name	– a pointer for the name to be copied to
event_code	– the native event code

Definition at line 608 of file sde.c.

{
    int ret_val;

    SUBDBG( "_sde_ntv_name_to_code(%s)\n", event_name );

    ret_val = sde_ti_name_to_code_ptr(event_name, (uint32_t *)event_code);

    return ret_val;
}

_sde_read()

static int _sde_read ( hwd_context_t *  ctx, hwd_control_state_t *  ctl, long long **  events, int  flags  )

static

Triggered by PAPI_read()

Definition at line 300 of file sde.c.

{
    int i;
    int ret_val = PAPI_OK;
    (void) flags;
    (void) ctx;

    SUBDBG( "_sde_read... %p %d\n", ctx, flags );
    sde_control_state_t *sde_ctl = ( sde_control_state_t * ) ctl;

    _papi_hwi_lock(_sde_component_lock);
    for( i = 0; i < sde_ctl->num_events; i++ ) {
        uint32_t counter_uniq_id = sde_ctl->which_counter[i];
        ret_val = sde_ti_read_counter_ptr( counter_uniq_id, &(sde_ctl->counter[i]) );
        if( PAPI_OK != ret_val ){
            PAPIERROR("_sde_read(): Error when reading event at index %d.\n",i);
            goto fnct_exit;
        }

    }
    *events = sde_ctl->counter;

fnct_exit:
    _papi_hwi_unlock(_sde_component_lock);
    return ret_val;
}

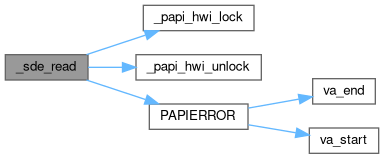

Here is the call graph for this function:

_sde_reset()

static int _sde_reset ( hwd_context_t *  ctx, hwd_control_state_t *  ctl  )

static

Triggered by PAPI_reset() but only if the EventSet is currently running

Definition at line 360 of file sde.c.

{
    int i, ret_val=PAPI_OK;
    (void) ctx;

    SUBDBG( "_sde_reset ctx=%p ctrl=%p...\n", ctx, ctl );
    sde_control_state_t *sde_ctl = ( sde_control_state_t * ) ctl;

    _papi_hwi_lock(_sde_component_lock);
    for( i = 0; i < sde_ctl->num_events; i++ ) {
        uint32_t counter_uniq_id = sde_ctl->which_counter[i];
        ret_val = sde_ti_reset_counter_ptr( counter_uniq_id );
        if( PAPI_OK != ret_val ){
            PAPIERROR("_sde_reset(): Error when reseting event at index %d.\n",i);
            goto fnct_exit;
        }

    }

fnct_exit:
    _papi_hwi_unlock(_sde_component_lock);
    return ret_val;
}

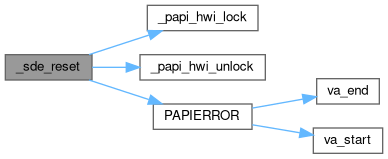

Here is the call graph for this function:

Here is the caller graph for this function:

_sde_set_domain()

static int _sde_set_domain ( hwd_control_state_t *  cntrl, int  domain  )

static

This function has to set the bits needed to count different domains In particular: PAPI_DOM_USER, PAPI_DOM_KERNEL PAPI_DOM_OTHER By default return PAPI_EINVAL if none of those are specified and PAPI_OK with success PAPI_DOM_USER is only user context is counted PAPI_DOM_KERNEL is only the Kernel/OS context is counted PAPI_DOM_OTHER is Exception/transient mode (like user TLB misses) PAPI_DOM_ALL is all of the domains

Definition at line 437 of file sde.c.

{
    (void) cntrl;

    int found = 0;
    SUBDBG( "sde_set_domain...\n" );

    if ( PAPI_DOM_USER & domain ) {
        SUBDBG( " PAPI_DOM_USER\n" );
        found = 1;
    }
    if ( PAPI_DOM_KERNEL & domain ) {
        SUBDBG( " PAPI_DOM_KERNEL\n" );
        found = 1;
    }
    if ( PAPI_DOM_OTHER & domain ) {
        SUBDBG( " PAPI_DOM_OTHER\n" );
        found = 1;
    }
    if ( PAPI_DOM_ALL & domain ) {
        SUBDBG( " PAPI_DOM_ALL\n" );
        found = 1;
    }
    if ( !found )
        return ( PAPI_EINVAL );

    return PAPI_OK;
}

_sde_set_overflow()

static int _sde_set_overflow ( EventSetInfo_t *  ESI, int  EventIndex, int  threshold  )

static

Definition at line 621 of file sde.c.

                                                                       {

    (void)ESI;
    (void)EventIndex;
    (void)threshold;

    SUBDBG("_sde_set_overflow(%d, %d).\n",EventIndex, threshold);

    sde_control_state_t *sde_ctl = ( sde_control_state_t * ) ESI->ctl_state;

    // pos[0] holds the first among the native events that compose the given event. If it is a derived event,
    // then it might be made up of multiple native events, but this is a CPU component concept. The SDE component
    // does not have derived events (the groups are first class citizens, they don't have multiple pos[] entries).
    int pos = ESI->EventInfoArray[EventIndex].pos[0];
    uint32_t counter_uniq_id = sde_ctl->which_counter[pos];

    // If we still don't know what type the counter is, then we are _not_ in r[1-3] so we can't create a timer here,
    // but we still have to tell the calling tool/app that there was no error, because the timer will be set in the future.
    int ret_val = sde_ti_set_counter_overflow_ptr(counter_uniq_id, threshold);
    if( PAPI_OK >= ret_val ){
        return ret_val;
    }

    // A threshold of zero indicates that overflowing is not needed anymore.
    if( 0 == threshold ){
        // If we had a timer (if the counter was created we wouldn't have one) then delete it.
        if( sde_ctl->has_timer )
            timer_delete(sde_ctl->timerid);
        sde_ctl->has_timer = 0;
    }else{
        // If we are here we are in r[1-3] so we can create the timer
        return do_set_timer_for_overflow(sde_ctl);
    }

    return PAPI_OK;
}

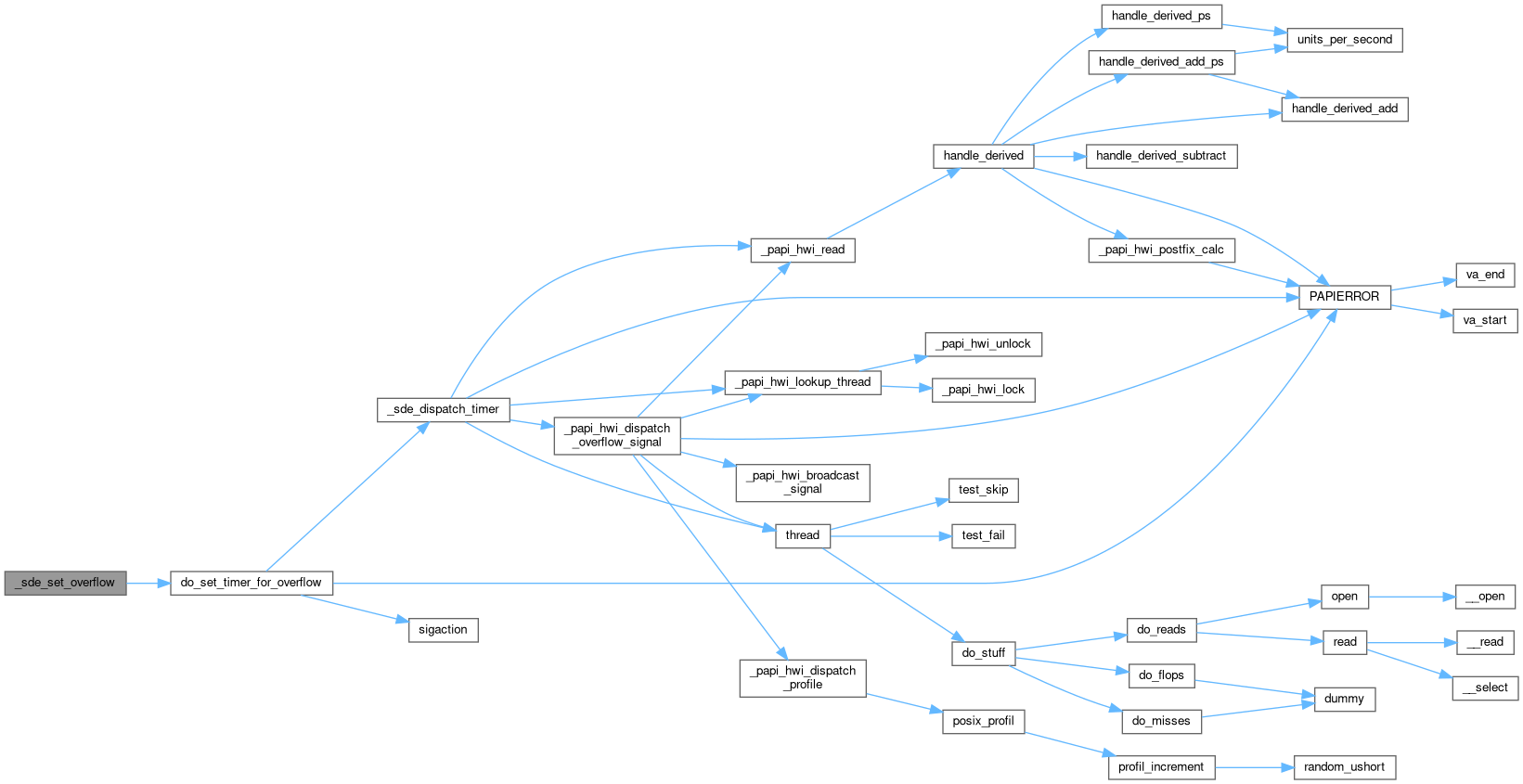

Here is the call graph for this function:

_sde_shutdown_component()

static int _sde_shutdown_component ( void  )

static

Triggered by PAPI_shutdown()

Definition at line 386 of file sde.c.

{
    SUBDBG( "sde_shutdown_component...\n" );
    return sde_ti_shutdown_ptr();
}

_sde_shutdown_thread()

static int _sde_shutdown_thread ( hwd_context_t *  ctx )

static

Called at thread shutdown

Definition at line 394 of file sde.c.

{

    (void) ctx;

    SUBDBG( "sde_shutdown_thread... %p\n", ctx );

    /* Last chance to clean up thread */

    return PAPI_OK;
}

_sde_start()

static int _sde_start ( hwd_context_t *  ctx, hwd_control_state_t *  ctl  )

static

Triggered by PAPI_start()

Definition at line 207 of file sde.c.

{
    int ret_val = PAPI_OK;
    ThreadInfo_t *thread;
    int cidx;
    struct itimerspec its;
    ( void ) ctx;
    ( void ) ctl;

    SUBDBG( "%p %p...\n", ctx, ctl );

    ret_val = _sde_reset(ctx, ctl);

    sde_control_state_t *sde_ctl = ( sde_control_state_t * ) ctl;

    its.it_value.tv_sec = 0;
    // We will start the timer at 100us because we adjust its period in _sde_dispatch_timer()
    // if the counter is not growing fast enough, or growing too slowly.
    its.it_value.tv_nsec = 100*1000; // 100us
    its.it_interval.tv_sec = its.it_value.tv_sec;
    its.it_interval.tv_nsec = its.it_value.tv_nsec;

    cidx = _sde_vector.cmp_info.CmpIdx;
    thread = _papi_hwi_lookup_thread( 0 );

    if ( (NULL != thread) && (NULL != thread->running_eventset[cidx]) && (thread->running_eventset[cidx]->overflow.flags & PAPI_OVERFLOW_HARDWARE) ) {
        if( !(sde_ctl->has_timer) ){
            // No registered counters went through r[1-3]
            int i;
            _papi_hwi_lock(_sde_component_lock);
            for( i = 0; i < sde_ctl->num_events; i++ ) {
                if( sde_ti_is_counter_set_to_overflow_ptr(sde_ctl->which_counter[i]) ){
                    // Registered counters went through r4
                    if( PAPI_OK == do_set_timer_for_overflow(sde_ctl) )
                        break;
                }
            }
            _papi_hwi_unlock(_sde_component_lock);
        }

        // r[1-4]
        if( sde_ctl->has_timer ){
            SUBDBG( "starting SDE internal timer for emulating HARDWARE overflowing\n");
            if (timer_settime(sde_ctl->timerid, 0, &its, NULL) == -1){
                PAPIERROR("timer_settime");
                timer_delete(sde_ctl->timerid);
                sde_ctl->has_timer = 0;
                return PAPI_ECMP;
            }
        }
    }

    return ret_val;
}

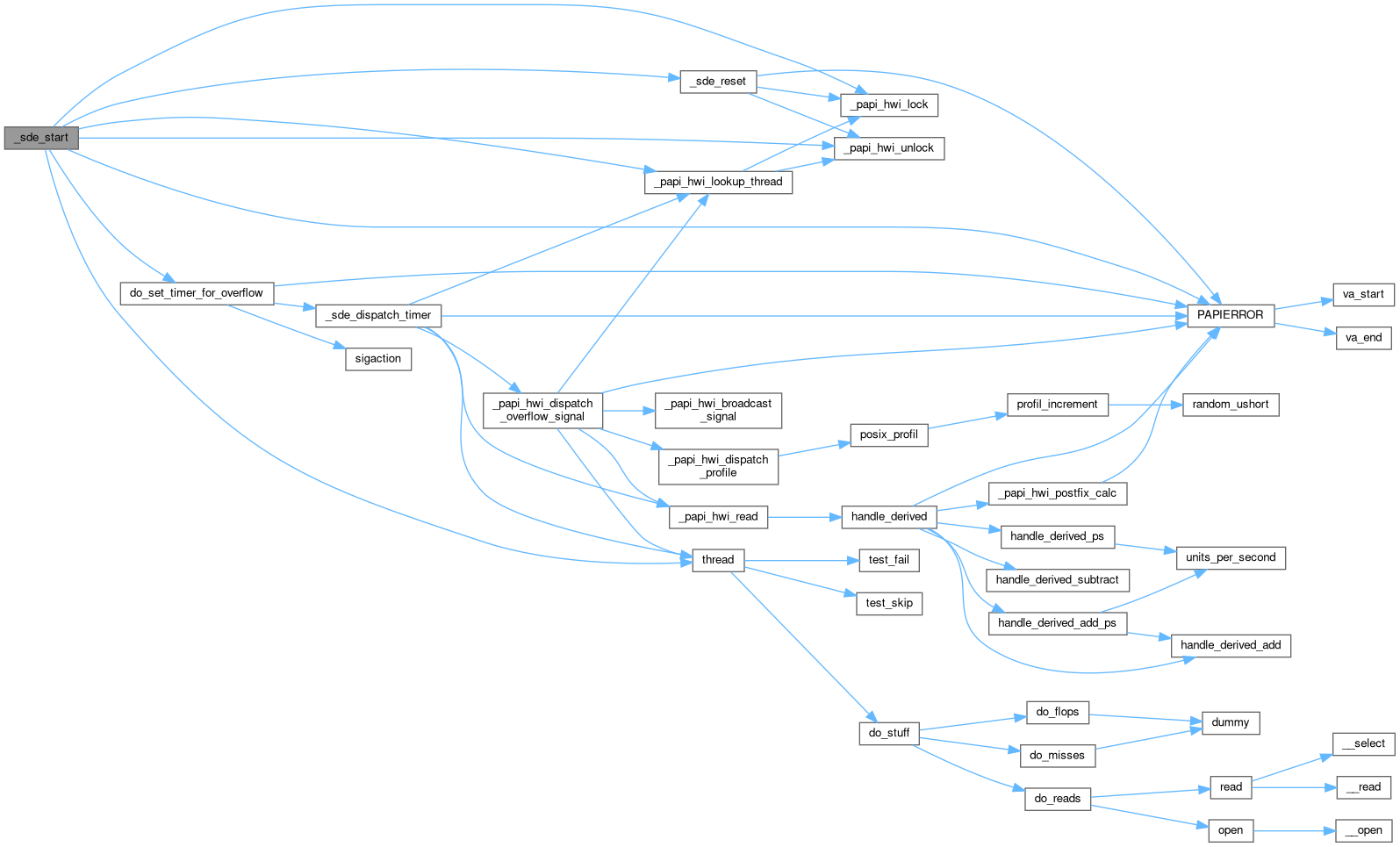

Here is the call graph for this function:

_sde_stop()

static int _sde_stop ( hwd_context_t *  ctx, hwd_control_state_t *  ctl  )

static

Triggered by PAPI_stop()

Definition at line 265 of file sde.c.

{

    (void) ctx;
    (void) ctl;
    ThreadInfo_t *thread;
    int cidx;
    struct itimerspec zero_time;

    SUBDBG( "sde_stop %p %p...\n", ctx, ctl );
    /* anything that would need to be done at counter stop time */

    sde_control_state_t *sde_ctl = ( sde_control_state_t * ) ctl;

    cidx = _sde_vector.cmp_info.CmpIdx;
    thread = _papi_hwi_lookup_thread( 0 );

    if ( (NULL != thread) && (NULL != thread->running_eventset[cidx]) && (thread->running_eventset[cidx]->overflow.flags & PAPI_OVERFLOW_HARDWARE) ) {
        if( sde_ctl->has_timer ){
            SUBDBG( "stopping SDE internal timer\n");
            memset(&zero_time, 0, sizeof(struct itimerspec));
            if (timer_settime(sde_ctl->timerid, 0, &zero_time, NULL) == -1){
                PAPIERROR("timer_settime");
                timer_delete(sde_ctl->timerid);
                sde_ctl->has_timer = 0;
                return PAPI_ECMP;
            }
        }
    }

    return PAPI_OK;
}

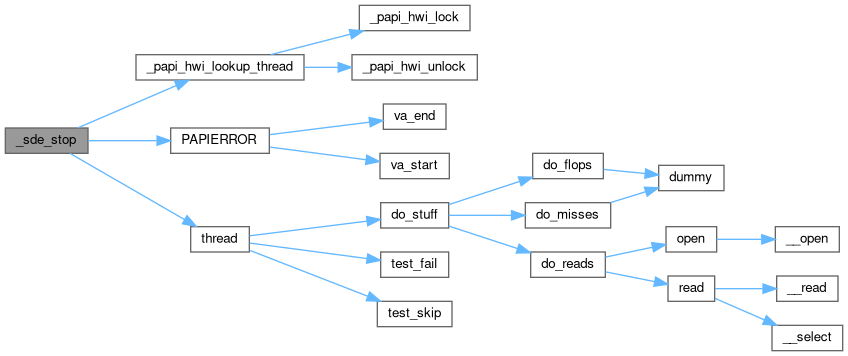

Here is the call graph for this function:

_sde_update_control_state()

static int _sde_update_control_state ( hwd_control_state_t *  ctl, NativeInfo_t *  native, int  count, hwd_context_t *  ctx  )

static

Triggered by eventset operations like add or remove

Definition at line 171 of file sde.c.

{

    (void) ctx;
    int i, index;

    SUBDBG( "_sde_update_control_state %p %p...\n", ctl, ctx );

    sde_control_state_t *sde_ctl = ( sde_control_state_t * ) ctl;

    for( i = 0; i < count; i++ ) {
        index = native[i].ni_event & PAPI_NATIVE_AND_MASK;
        if( index < 0 ){
            PAPIERROR("_sde_update_control_state(): Event at index %d has a negative native event code = %d.\n",i,index);
            return PAPI_EINVAL;
        }
        SUBDBG("_sde_update_control_state: i=%d index=%u\n", i, index );
        sde_ctl->which_counter[i] = (uint32_t)index;
        native[i].ni_position = i;
    }

    // If an event for which overflowing was set is being removed from the eventset, then the
    // framework will turn overflowing off (by calling PAPI_overflow() with threshold=0),
    // so we don't need to do anything here.

    sde_ctl->num_events=count;

    return PAPI_OK;
}

Here is the call graph for this function:

_sde_write()

static int _sde_write ( hwd_context_t *  ctx, hwd_control_state_t *  ctl, long long *  values  )

static

Triggered by PAPI_write(), but only if the counters are running

Definition at line 330 of file sde.c.

{
    int i, ret_val = PAPI_OK;
    (void) ctx;
    (void) ctl;

    SUBDBG( "_sde_write... %p\n", ctx );
    sde_control_state_t *sde_ctl = ( sde_control_state_t * ) ctl;

    // Lock before we access global data structures.
    _papi_hwi_lock(_sde_component_lock);
    for( i = 0; i < sde_ctl->num_events; i++ ) {
        uint32_t counter_uniq_id = sde_ctl->which_counter[i];
        ret_val = sde_ti_write_counter_ptr( counter_uniq_id, values[i] );
        if( PAPI_OK != ret_val ){
            PAPIERROR("_sde_write(): Error when writing event at index %d.\n",i);
            goto fnct_exit;
        }
    }

fnct_exit:
    _papi_hwi_unlock(_sde_component_lock);
    return ret_val;
}

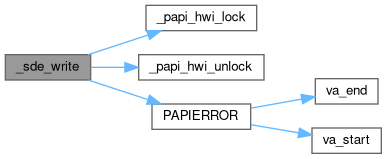

Here is the call graph for this function:

do_set_timer_for_overflow()

static int do_set_timer_for_overflow ( sde_control_state_t *  sde_ctl )

static

This code assumes that it is called ONLY for registered counters, and that is why it sets has_timer to REGISTERED_EVENT_MASK

Definition at line 662 of file sde.c.

                                                                    {
    int signo, sig_offset;
    struct sigevent sigev;
    struct sigaction sa;

    sig_offset = 0;

    // Choose a new real-time signal
    signo = SIGRTMIN+sig_offset;
    if(signo > SIGRTMAX){
        PAPIERROR("do_set_timer_for_overflow(): Unable to create new timer due to large number of existing timers. Overflowing will not be activated for the current event.\n");
        return PAPI_ECMP;
    }

    // setup the signal handler
    sa.sa_flags = SA_SIGINFO;
    sa.sa_sigaction = _sde_dispatch_timer;
    sigemptyset(&sa.sa_mask);
    if (sigaction(signo, &sa, NULL) == -1){
        PAPIERROR("do_set_timer_for_overflow(): sigaction() failed.");
        return PAPI_ECMP;
    }

    // create the timer
    sigev.sigev_notify = SIGEV_SIGNAL;
    sigev.sigev_signo = signo;
    sigev.sigev_value.sival_ptr = &(sde_ctl->timerid);
    if (timer_create(CLOCK_REALTIME, &sigev, &(sde_ctl->timerid)) == -1){
        PAPIERROR("do_set_timer_for_overflow(): timer_create() failed.");
        return PAPI_ECMP;
    }
    sde_ctl->has_timer |= REGISTERED_EVENT_MASK;

    return PAPI_OK;
}

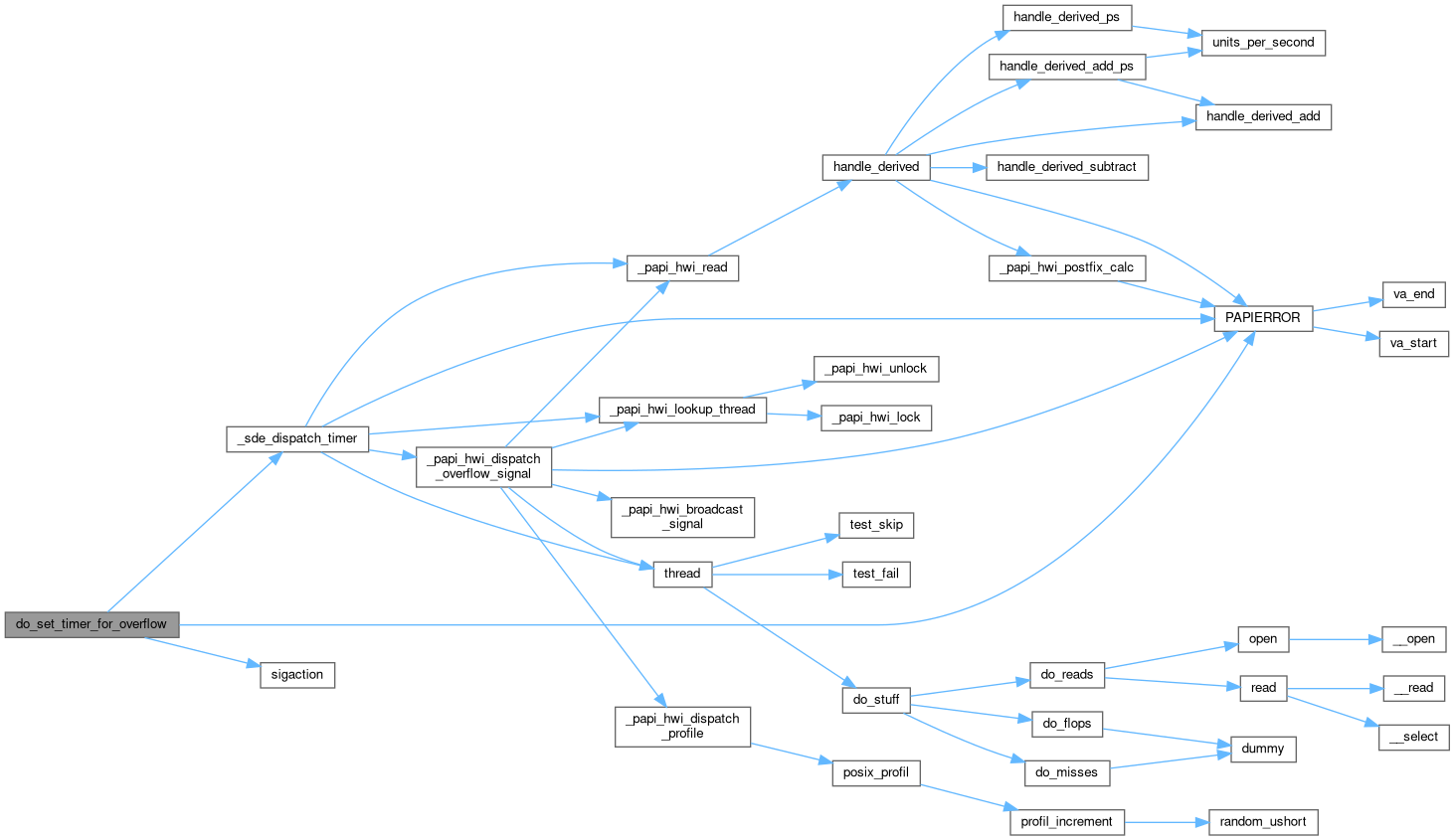

Here is the call graph for this function:

Here is the caller graph for this function:

invoke_user_handler()

static void invoke_user_handler ( uint32_t  cntr_uniq_id )

static

Definition at line 884 of file sde.c.

                                                      {
    EventSetInfo_t *ESI;
    int i, cidx;
    ThreadInfo_t *thread;
    sde_control_state_t *sde_ctl;
    _papi_hwi_context_t hw_context;
    ucontext_t uc;
    vptr_t address;
    long long overflow_vector;

    thread = _papi_hwi_lookup_thread( 0 );
    cidx = _sde_vector.cmp_info.CmpIdx;
    ESI = thread->running_eventset[cidx];

    // checking again, just to be sure.
    if( !(ESI->overflow.flags & PAPI_OVERFLOW_HARDWARE) ) {
        return;
    }

    sde_ctl = ( sde_control_state_t * ) ESI->ctl_state;

    // This path comes from papi_sde_inc_counter() which increment _ONLY_ one counter, so we don't
    // need to check if any others have overflown.
    overflow_vector = 0;
    for( i = 0; i < sde_ctl->num_events; i++ ) {
        uint32_t uniq_id = sde_ctl->which_counter[i];

        if( uniq_id == cntr_uniq_id ){
            // pos[0] holds the first among the native events that compose the given event. If it is a derived event,
            // then it might be made up of multiple native events, but this is a CPU component concept. The SDE component
            // does not have derived events (the groups are first class citizens, they don't have multiple pos[] entries).
            int pos = ESI->EventInfoArray[i].pos[0];
            if( pos == -1 ){
               PAPIERROR( "The PAPI framework considers this event removed from the eventset, but the component does not\n");
               return;
            }
            overflow_vector = ( long long ) 1 << pos;
        }
    }

    getcontext( &uc );
    hw_context.ucontext = &uc;
    hw_context.si = NULL;
    address = GET_OVERFLOW_ADDRESS( hw_context );

    ESI->overflow.handler( ESI->EventSetIndex, ( void * ) address, overflow_vector, hw_context.ucontext );
    return;
}

Here is the call graph for this function:

Here is the caller graph for this function:

sde_arm_timer()

static int sde_arm_timer ( sde_control_state_t *  sde_ctl )

inlinestatic

Definition at line 698 of file sde.c.

                                                             {
    struct itimerspec its;

    // We will start the timer at 100us because we adjust its period in _sde_dispatch_timer()
    // if the counter is not growing fast enough, or growing too slowly.
    its.it_value.tv_sec = 0;
    its.it_value.tv_nsec = 100*1000; // 100us
    its.it_interval.tv_sec = its.it_value.tv_sec;
    its.it_interval.tv_nsec = its.it_value.tv_nsec;

    SUBDBG( "starting SDE internal timer for emulating HARDWARE overflowing\n");
    if (timer_settime(sde_ctl->timerid, 0, &its, NULL) == -1){
        PAPIERROR("timer_settime");
        timer_delete(sde_ctl->timerid);
        sde_ctl->has_timer = 0;

        // If the timer is broken, let the caller know that something internal went wrong.
        return PAPI_ECMP;
    }

    return PAPI_OK;
}

Here is the call graph for this function:

sde_load_sde_ti()

static int sde_load_sde_ti ( void  )

static

Definition at line 46 of file sde.c.

                                  {
    char *err;

    // In case of static linking the function pointers will be automatically set
    // by the linker and the dlopen()/dlsym() would fail at runtime, so we want to
    // check if the linker has done its magic first.
    if( (NULL != sde_ti_reset_counter_ptr) &&
        (NULL != sde_ti_reset_counter_ptr) &&
        (NULL != sde_ti_read_counter_ptr) &&
        (NULL != sde_ti_write_counter_ptr) &&
        (NULL != sde_ti_name_to_code_ptr) &&
        (NULL != sde_ti_is_simple_counter_ptr) &&
        (NULL != sde_ti_is_counter_set_to_overflow_ptr) &&
        (NULL != sde_ti_set_counter_overflow_ptr) &&
        (NULL != sde_ti_get_event_name_ptr) &&
        (NULL != sde_ti_get_event_description_ptr) &&
        (NULL != sde_ti_get_num_reg_events_ptr) &&
        (NULL != sde_ti_shutdown_ptr)
      ){
        return PAPI_OK;
    }

    (void)dlerror(); // Clear the internal string so we can diagnose errors later on.

    void *handle = dlopen(NULL, RTLD_NOW|RTLD_GLOBAL);
    if( NULL != (err = dlerror()) ){
        SUBDBG("sde_load_sde_ti(): %s\n",err);
        return PAPI_ENOSUPP;
    }

    sde_ti_reset_counter_ptr = (int (*)( uint32_t ))dlsym( handle, "sde_ti_reset_counter" );
    DLSYM_CHECK(sde_ti_reset_counter);

    sde_ti_read_counter_ptr = (int (*)( uint32_t, long long int * ))dlsym( handle, "sde_ti_read_counter" );
    DLSYM_CHECK(sde_ti_read_counter);

    sde_ti_write_counter_ptr = (int (*)( uint32_t, long long ))dlsym( handle, "sde_ti_write_counter" );
    DLSYM_CHECK(sde_ti_write_counter);

    sde_ti_name_to_code_ptr = (int (*)( const char *, uint32_t * ))dlsym( handle, "sde_ti_name_to_code" );
    DLSYM_CHECK(sde_ti_name_to_code);

    sde_ti_is_simple_counter_ptr = (int (*)( uint32_t ))dlsym( handle, "sde_ti_is_simple_counter" );
    DLSYM_CHECK(sde_ti_is_simple_counter);

    sde_ti_is_counter_set_to_overflow_ptr = (int (*)( uint32_t ))dlsym( handle, "sde_ti_is_counter_set_to_overflow" );
    DLSYM_CHECK(sde_ti_is_counter_set_to_overflow);

    sde_ti_set_counter_overflow_ptr = (int (*)( uint32_t, int ))dlsym( handle, "sde_ti_set_counter_overflow" );
    DLSYM_CHECK(sde_ti_set_counter_overflow);

    sde_ti_get_event_name_ptr = (char * (*)( int ))dlsym( handle, "sde_ti_get_event_name" );
    DLSYM_CHECK(sde_ti_get_event_name);

    sde_ti_get_event_description_ptr = (char * (*)( int ))dlsym( handle, "sde_ti_get_event_description" );
    DLSYM_CHECK(sde_ti_get_event_description);

    sde_ti_get_num_reg_events_ptr = (int (*)( void ))dlsym( handle, "sde_ti_get_num_reg_events" );
    DLSYM_CHECK(sde_ti_get_num_reg_events);

    sde_ti_shutdown_ptr = (int (*)( void ))dlsym( handle, "sde_ti_shutdown" );
    DLSYM_CHECK(sde_ti_shutdown);

    return PAPI_OK;
}

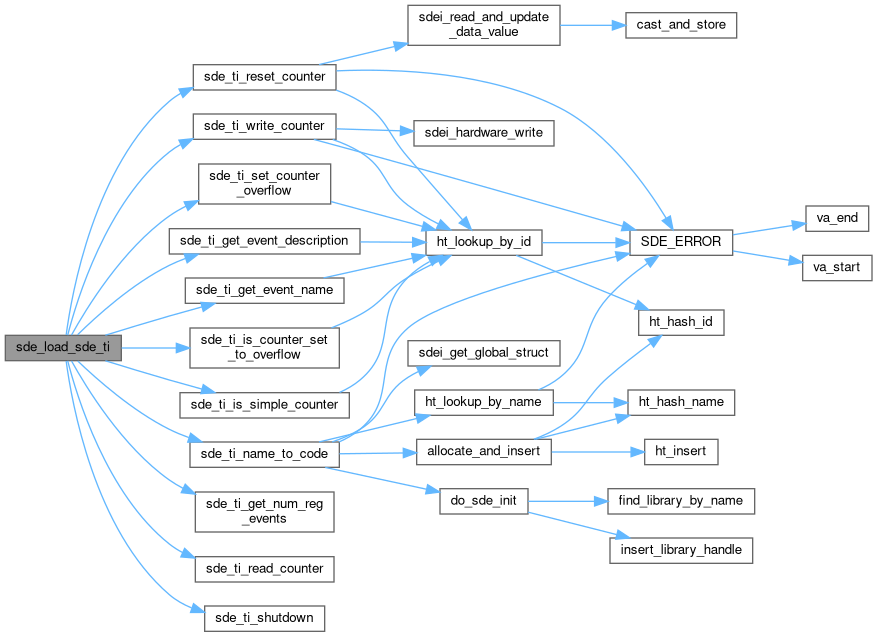

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

_sde_component_lock

int _sde_component_lock

Definition at line 18 of file sde.c.

_sde_vector

papi_vector_t _sde_vector

Vector that points to entry points for our component

Definition at line 17 of file sde.c.

papi_sde_check_overflow_status_ptr

void(* papi_sde_check_overflow_status_ptr) (uint32_t cntr_id, long long int value)	(	uint32_t	cntr_id,
		long long int	value
	)		= &papi_sde_check_overflow_status

Definition at line 21 of file sde.c.

papi_sde_set_timer_for_overflow_ptr

int(* papi_sde_set_timer_for_overflow_ptr) (void)

(

void

)

= &papi_sde_set_timer_for_overflow

Definition at line 22 of file sde.c.
