linux-nvml.c File Reference

This is an NVML component, it demos the component interface and implements a number of counters from the Nvidia Management Library. Please refer to NVML documentation for details about nvmlDeviceGetPowerUsage, nvmlDeviceGetTemperature. Power is reported in mW and temperature in Celcius. The counter descriptions should contain the units that the measurement returns. More...

Include dependency graph for linux-nvml.c:

Go to the source code of this file.

Data Structures
struct	nvml_context_t

Macros
#define	DECLDIR   __attribute__((weak))
#define	NVML_MAX_COUNTERS   100
#define	DO_SOME_CHECKING(vectorp)

Functions
unsigned long long	getClockSpeed (nvmlDevice_t dev, nvmlClockType_t which_one)
unsigned long long	getEccLocalErrors (nvmlDevice_t dev, nvmlEccBitType_t bits, int which_one)
unsigned long long	getFanSpeed (nvmlDevice_t dev)
unsigned long long	getMaxClockSpeed (nvmlDevice_t dev, nvmlClockType_t which_one)
unsigned long long	getMemoryInfo (nvmlDevice_t dev, int which_one)
unsigned long long	getPState (nvmlDevice_t dev)
unsigned long long	getPowerUsage (nvmlDevice_t dev)
unsigned long long	getTemperature (nvmlDevice_t dev)
unsigned long long	getTotalEccErrors (nvmlDevice_t dev, nvmlEccBitType_t bits)
unsigned long long	getUtilization (nvmlDevice_t dev, int which_one)
unsigned long long	getPowerManagementLimit (nvmlDevice_t dev)
static int	_papi_nvml_init_private (void)
static int	_nvml_check_n_initialize (papi_vector_t *vector)
static void	nvml_hardware_reset ()
static int	nvml_hardware_read (long long *value, int which_one)
static int	nvml_hardware_write (long long *value, int which_one)
int	_papi_nvml_init_thread (hwd_context_t *ctx)
static int	detectDevices ()
static void	createNativeEvents ()
int	_papi_nvml_shutdown_component ()
static int	_papi_nvml_init_component (int cidx)
static int	linkCudaLibraries ()
int	_papi_nvml_init_control_state (hwd_control_state_t *ctl)
int	_papi_nvml_update_control_state (hwd_control_state_t *ctl, NativeInfo_t *native, int count, hwd_context_t *ctx)
int	_papi_nvml_start (hwd_context_t *ctx, hwd_control_state_t *ctl)
int	_papi_nvml_stop (hwd_context_t *ctx, hwd_control_state_t *ctl)
int	_papi_nvml_read (hwd_context_t *ctx, hwd_control_state_t *ctl, long long **events, int flags)
int	_papi_nvml_write (hwd_context_t *ctx, hwd_control_state_t *ctl, long long *events)
int	_papi_nvml_reset (hwd_context_t *ctx, hwd_control_state_t *ctl)
int	_papi_nvml_shutdown_thread (hwd_context_t *ctx)
int	_papi_nvml_ctl (hwd_context_t *ctx, int code, _papi_int_option_t *option)
int	_papi_nvml_set_domain (hwd_control_state_t *cntrl, int domain)
int	_papi_nvml_ntv_enum_events (unsigned int *EventCode, int modifier)
int	_papi_nvml_ntv_code_to_name (unsigned int EventCode, char *name, int len)
int	_papi_nvml_ntv_code_to_descr (unsigned int EventCode, char *descr, int len)
int	_papi_nvml_ntv_code_to_info (unsigned int EventCode, PAPI_event_info_t *info)

Variables
void(*	_dl_non_dynamic_init )(void)
	nvml_control_state_t
static nvml_native_event_entry_t *	nvml_native_table = NULL
static int *	nvml_dev_id_table = NULL
static int	device_count = 0
static int	num_events = 0
static nvmlDevice_t *	devices = NULL
static int *	features = NULL
static unsigned int *	power_management_initial_limit = NULL
static unsigned int *	power_management_limit_constraint_min = NULL
static unsigned int *	power_management_limit_constraint_max = NULL
papi_vector_t	_nvml_vector

Detailed Description

Author

Kiran Kumar Kasichayanula kkasi.nosp@m.cha@.nosp@m.utk.e.nosp@m.du

James Ralph ralph.nosp@m.@eec.nosp@m.s.utk.nosp@m..edu

Definition in file linux-nvml.c.

Macro Definition Documentation

DECLDIR

#define DECLDIR   __attribute__((weak))

DO_SOME_CHECKING

#define DO_SOME_CHECKING

(

vectorp

)

Value:

  do {           \
  int err = _nvml_check_n_initialize(vectorp);   \
  if (PAPI_OK != err) return err;                \
} while(0)

Definition at line 411 of file linux-nvml.c.

NVML_MAX_COUNTERS

#define NVML_MAX_COUNTERS   100

Function Documentation

_nvml_check_n_initialize()

static int _nvml_check_n_initialize ( papi_vector_t *  vector )

static

Definition at line 404 of file linux-nvml.c.

{
  if (!vector->cmp_info.initialized)
      return _papi_nvml_init_private();
  return PAPI_OK;
}

Here is the call graph for this function:

_papi_nvml_ctl()

int _papi_nvml_ctl	(	hwd_context_t *	ctx,
		int	code,
		_papi_int_option_t *	option
	)

This function sets various options in the component

Parameters

code	valid are PAPI_SET_DEFDOM, PAPI_SET_DOMAIN, PAPI_SETDEFGRN, PAPI_SET_GRANUL and PAPI_SET_INHERIT

Definition at line 1570 of file linux-nvml.c.

{
    SUBDBG("Enter: ctx: %p, code: %d\n", ctx, code);

    (void) ctx;
    (void) code;
    (void) option;

    /* FIXME.  This should maybe set up more state, such as which counters are active and */
    /*         counter mappings. */

    return PAPI_OK;
}

_papi_nvml_init_component()

static int _papi_nvml_init_component ( int  cidx )

static

Initialize hardware counters, setup the function vector table and get hardware information, this routine is called when the PAPI process is initialized (IE PAPI_library_init)

Definition at line 1105 of file linux-nvml.c.

{
    SUBDBG("Entry: cidx: %d\n", cidx);
    /* Export the total number of events available */
    _nvml_vector.cmp_info.num_native_events = -1;

    /* Export the component id */
    _nvml_vector.cmp_info.CmpIdx = cidx;

    /* Export the number of 'counters' */
    _nvml_vector.cmp_info.num_cntrs = -1;
    _nvml_vector.cmp_info.num_mpx_cntrs = -1;

     sprintf(_nvml_vector.cmp_info.disabled_reason,
             "Not initialized. Access component events to initialize it.");
    _nvml_vector.cmp_info.disabled = PAPI_EDELAY_INIT;

    return PAPI_EDELAY_INIT;
}

_papi_nvml_init_control_state()

int _papi_nvml_init_control_state

(

hwd_control_state_t *

ctl

)

Setup a counter control state. In general a control state holds the hardware info for an EventSet.

Definition at line 1408 of file linux-nvml.c.

{
    SUBDBG("nvml_init_control_state... %p\n", ctl);
    DO_SOME_CHECKING(&_nvml_vector);
    nvml_control_state_t *nvml_ctl = (nvml_control_state_t *) ctl;
    memset(nvml_ctl, 0, sizeof(nvml_control_state_t));

    return PAPI_OK;
}

_papi_nvml_init_private()

int _papi_nvml_init_private ( void  )

static

Definition at line 1125 of file linux-nvml.c.

{
    nvmlReturn_t ret;
    int err = PAPI_OK;
    unsigned int nvml_count = 0;

    PAPI_lock(COMPONENT_LOCK);
    if (_nvml_vector.cmp_info.initialized) goto nvml_init_private_exit;

    SUBDBG("Private init with component idx: %d\n", _nvml_vector.cmp_info.CmpIdx);
    /* link in the NVML libraries and resolve the symbols we need to use */
    if (linkCudaLibraries() != PAPI_OK) {
        SUBDBG("Dynamic link of CUDA libraries failed, component will be disabled.\n");
        SUBDBG("See disable reason in papi_component_avail output for more details.\n");
        _papi_nvml_shutdown_component();                          // clean up any open dynLibs, mallocs, etc.
        err = (PAPI_ENOSUPP);
        goto nvml_init_private_exit;
    }

    ret = (*nvmlInitPtr)();
    if (NVML_SUCCESS != ret) {
        strcpy(_nvml_vector.cmp_info.disabled_reason, "The NVIDIA management library failed to initialize.");
        _papi_nvml_shutdown_component();                          // clean up any open dynLibs, mallocs, etc.
        err = PAPI_ENOSUPP;
        goto nvml_init_private_exit;
    }

    /* Figure out the number of CUDA devices in the system */
    ret = (*nvmlDeviceGetCountPtr)(&nvml_count);
    if (NVML_SUCCESS != ret) {
        strcpy(_nvml_vector.cmp_info.disabled_reason, "Unable to get a count of devices from the NVIDIA management library.");
        _papi_nvml_shutdown_component();                          // clean up any open dynLibs, mallocs, etc.
        err = PAPI_ENOSUPP;
        goto nvml_init_private_exit;
    }

    device_count = nvml_count;
    SUBDBG("Need to setup NVML with %d devices\n", device_count);

    /* A per device representation of what events are present */
    features = (int*)papi_malloc(sizeof(int) * device_count);
    if (features == NULL) {
        snprintf(_nvml_vector.cmp_info.disabled_reason, PAPI_MAX_STR_LEN-2,
                    "%s failed to alloc %lu bytes for features.", __func__, sizeof(int)*device_count);
                    _nvml_vector.cmp_info.disabled_reason[PAPI_MAX_STR_LEN-1]=0;    // force null termination.
        _papi_nvml_shutdown_component();                        // clean up any open dynLibs, mallocs, etc.
        err = PAPI_ENOMEM;
        goto nvml_init_private_exit;
    }

    /* Handles to each device */
    devices = (nvmlDevice_t*)papi_malloc(sizeof(nvmlDevice_t) * device_count);
    if (devices == NULL) {
        snprintf(_nvml_vector.cmp_info.disabled_reason, PAPI_MAX_STR_LEN-2,
                    "%s failed to alloc %lu bytes for features.", __func__, (sizeof(nvmlDevice_t) * device_count));
                    _nvml_vector.cmp_info.disabled_reason[PAPI_MAX_STR_LEN-1]=0;    // force null termination.
        _papi_nvml_shutdown_component();                        // clean up any open dynLibs, mallocs, etc.
        err = PAPI_ENOMEM;
        goto nvml_init_private_exit;
    }

    /* For each device, store the intial power value to enable reset if power is altered */
    power_management_initial_limit = (unsigned int*)papi_malloc(sizeof(unsigned int) * device_count);
    if (power_management_initial_limit == NULL) {
        snprintf(_nvml_vector.cmp_info.disabled_reason, PAPI_MAX_STR_LEN-2,
                    "%s failed to alloc %lu bytes for power_management_initial_limit.", __func__, (sizeof(unsigned int) * device_count));
                    _nvml_vector.cmp_info.disabled_reason[PAPI_MAX_STR_LEN-1]=0;    // force null termination.
        _papi_nvml_shutdown_component();                        // clean up any open dynLibs, mallocs, etc.
        err = PAPI_ENOMEM;
        goto nvml_init_private_exit;
    }
    power_management_limit_constraint_min = (unsigned int*)papi_malloc(sizeof(unsigned int) * device_count);
    if (power_management_limit_constraint_min == NULL) {
        snprintf(_nvml_vector.cmp_info.disabled_reason, PAPI_MAX_STR_LEN-2,
                    "%s failed to alloc %lu bytes for power_management_limit_constraint_min.", __func__, (sizeof(unsigned int) * device_count));
                    _nvml_vector.cmp_info.disabled_reason[PAPI_MAX_STR_LEN-1]=0;    // force null termination.
        _papi_nvml_shutdown_component();                        // clean up any open dynLibs, mallocs, etc.
        err = PAPI_ENOMEM;
        goto nvml_init_private_exit;
    }
    power_management_limit_constraint_max = (unsigned int*)papi_malloc(sizeof(unsigned int) * device_count);
    if (power_management_limit_constraint_max == NULL) {
        snprintf(_nvml_vector.cmp_info.disabled_reason, PAPI_MAX_STR_LEN-2,
                    "%s failed to alloc %lu bytes for power_management_limit_constraint_max.", __func__, (sizeof(unsigned int) * device_count));
                    _nvml_vector.cmp_info.disabled_reason[PAPI_MAX_STR_LEN-1]=0;    // force null termination.
        _papi_nvml_shutdown_component();                        // clean up any open dynLibs, mallocs, etc.
        err = PAPI_ENOMEM;
        goto nvml_init_private_exit;
    }

    /* Figure out what events are supported on each card. */
    if (detectDevices() != PAPI_OK) {
        sprintf(_nvml_vector.cmp_info.disabled_reason, "An error occured in device feature detection, please check your NVIDIA Management Library and CUDA install.");
        _papi_nvml_shutdown_component();                        // clean up any open dynLibs, mallocs, etc.
        err = PAPI_ENOSUPP;
        goto nvml_init_private_exit;
    }

    /* The assumption is that if everything went swimmingly in detectDevices,
        all nvml calls here should be fine. */
    createNativeEvents();

    /* Export the total number of events available */
    _nvml_vector.cmp_info.num_native_events = num_events;

    /* Export the number of 'counters' */
    _nvml_vector.cmp_info.num_cntrs = num_events;
    _nvml_vector.cmp_info.num_mpx_cntrs = num_events;

nvml_init_private_exit:
    _nvml_vector.cmp_info.initialized = 1;
    _nvml_vector.cmp_info.disabled = err;

    PAPI_unlock(COMPONENT_LOCK);

    return err;
}

Here is the call graph for this function:

Here is the caller graph for this function:

_papi_nvml_init_thread()

int _papi_nvml_init_thread

(

hwd_context_t *

ctx

)

This is called whenever a thread is initialized

Definition at line 583 of file linux-nvml.c.

{
    (void) ctx;

    SUBDBG("Enter: ctx: %p\n", ctx);

    return PAPI_OK;
}

_papi_nvml_ntv_code_to_descr()

int _papi_nvml_ntv_code_to_descr	(	unsigned int	EventCode,
		char *	descr,
		int	len
	)

Takes a native event code and passes back the event description

Parameters

EventCode	is the native event code
descr	is a pointer for the description to be copied to
len	is the size of the descr string

Definition at line 1701 of file linux-nvml.c.

{
    int index;
    index = EventCode;

    if (index >= num_events) return PAPI_ENOEVNT;

    strncpy(descr, nvml_native_table[index].description, len);

    return PAPI_OK;
}

_papi_nvml_ntv_code_to_info()

int _papi_nvml_ntv_code_to_info	(	unsigned int	EventCode,
		PAPI_event_info_t *	info
	)

Takes a native event code and passes back the event info

Parameters

EventCode	is the native event code
info	is a pointer for the info to be copied to

Definition at line 1718 of file linux-nvml.c.

{

    int index = EventCode;

    if ((index < 0) || (index >= num_events)) return PAPI_ENOEVNT;

    strncpy(info->symbol, nvml_native_table[index].name, sizeof(info->symbol) - 1);
    info->symbol[sizeof(info->symbol) - 1] = '\0';

    strncpy(info->units, nvml_native_table[index].units, sizeof(info->units) - 1);
    info->units[sizeof(info->units) - 1] = '\0';

    strncpy(info->long_descr, nvml_native_table[index].description, sizeof(info->long_descr) - 1);
    info->long_descr[sizeof(info->long_descr) - 1] = '\0';

//  info->data_type = nvml_native_table[index].return_type;

    return PAPI_OK;
}

_papi_nvml_ntv_code_to_name()

int _papi_nvml_ntv_code_to_name	(	unsigned int	EventCode,
		char *	name,
		int	len
	)

Takes a native event code and passes back the name

Parameters

EventCode	is the native event code
name	is a pointer for the name to be copied to
len	is the size of the name string

Definition at line 1678 of file linux-nvml.c.

{
    SUBDBG("Entry: EventCode: %#x, name: %s, len: %d\n", EventCode, name, len);
    int index;

    DO_SOME_CHECKING(&_nvml_vector);

    index = EventCode;

    /* Make sure we are in range */
    if (index >= num_events) return PAPI_ENOEVNT;

    strncpy(name, nvml_native_table[index].name, len);

    return PAPI_OK;
}

_papi_nvml_ntv_enum_events()

int _papi_nvml_ntv_enum_events	(	unsigned int *	EventCode,
		int	modifier
	)

Enumerate Native Events

Parameters

EventCode	is the event of interest
modifier	is one of PAPI_ENUM_FIRST, PAPI_ENUM_EVENTS If your component has attribute masks then these need to be handled here as well.

Definition at line 1635 of file linux-nvml.c.

{
    int index;

    DO_SOME_CHECKING(&_nvml_vector);

    switch (modifier) {

    /* return EventCode of first event */
    case PAPI_ENUM_FIRST:
        /* return the first event that we support */

        *EventCode = 0;
        return PAPI_OK;

    /* return EventCode of next available event */
    case PAPI_ENUM_EVENTS:
        index = *EventCode;

        /* Make sure we are in range */
        if (index < num_events - 1) {

            /* This assumes a non-sparse mapping of the events */
            *EventCode = *EventCode + 1;
            return PAPI_OK;
        } else {
            return PAPI_ENOEVNT;
        }
        break;

    default:
        return PAPI_EINVAL;
    }

    return PAPI_EINVAL;
}

_papi_nvml_read()

int _papi_nvml_read	(	hwd_context_t *	ctx,
		hwd_control_state_t *	ctl,
		long long **	events,
		int	flags
	)

Triggered by PAPI_read()

Definition at line 1488 of file linux-nvml.c.

{
    SUBDBG("Enter: ctx: %p, flags: %d\n", ctx, flags);

    (void) ctx;
    (void) flags;
    int i;
    int ret;
    nvml_control_state_t* nvml_ctl = (nvml_control_state_t*) ctl;

    for (i = 0; i < nvml_ctl->num_events; i++) {
        if (PAPI_OK !=
                (ret = nvml_hardware_read(&nvml_ctl->counter[i],
                                          nvml_ctl->which_counter[i])))
            return ret;

    }
    /* return pointer to the values we read */
    *events = nvml_ctl->counter;
    return PAPI_OK;
}

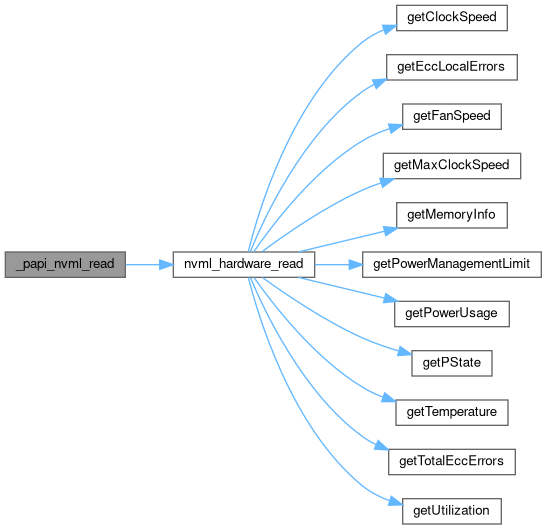

Here is the call graph for this function:

_papi_nvml_reset()

int _papi_nvml_reset	(	hwd_context_t *	ctx,
		hwd_control_state_t *	ctl
	)

Triggered by PAPI_reset() but only if the EventSet is currently running

Definition at line 1540 of file linux-nvml.c.

{
    SUBDBG("Enter: ctx: %p, ctl: %p\n", ctx, ctl);

    (void) ctx;
    (void) ctl;

    /* Reset the hardware */
    nvml_hardware_reset();

    return PAPI_OK;
}

Here is the call graph for this function:

_papi_nvml_set_domain()

int _papi_nvml_set_domain	(	hwd_control_state_t *	cntrl,
		int	domain
	)

This function has to set the bits needed to count different domains In particular: PAPI_DOM_USER, PAPI_DOM_KERNEL PAPI_DOM_OTHER By default return PAPI_EINVAL if none of those are specified and PAPI_OK with success PAPI_DOM_USER is only user context is counted PAPI_DOM_KERNEL is only the Kernel/OS context is counted PAPI_DOM_OTHER is Exception/transient mode (like user TLB misses) PAPI_DOM_ALL is all of the domains

Definition at line 1594 of file linux-nvml.c.

{
    SUBDBG("Enter: cntrl: %p, domain: %d\n", cntrl, domain);

    (void) cntrl;

    int found = 0;

    if (PAPI_DOM_USER & domain) {
        SUBDBG(" PAPI_DOM_USER \n");
        found = 1;
    }
    if (PAPI_DOM_KERNEL & domain) {
        SUBDBG(" PAPI_DOM_KERNEL \n");
        found = 1;
    }
    if (PAPI_DOM_OTHER & domain) {
        SUBDBG(" PAPI_DOM_OTHER \n");
        found = 1;
    }
    if (PAPI_DOM_ALL & domain) {
        SUBDBG(" PAPI_DOM_ALL \n");
        found = 1;
    }
    if (!found)
        return (PAPI_EINVAL);

    return PAPI_OK;
}

_papi_nvml_shutdown_component()

int _papi_nvml_shutdown_component

(

)

Definition at line 1076 of file linux-nvml.c.

{
    SUBDBG("Enter:\n");
    nvml_hardware_reset();
    if (nvml_native_table != NULL) papi_free(nvml_native_table);
    if (nvml_dev_id_table != NULL) papi_free(nvml_dev_id_table);
    if (devices != NULL) papi_free(devices);
    if (features != NULL) papi_free(features);
    if (power_management_initial_limit) papi_free(power_management_initial_limit);
    if (power_management_limit_constraint_min) papi_free(power_management_limit_constraint_min);
    if (power_management_limit_constraint_max) papi_free(power_management_limit_constraint_max);
    if (nvmlShutdownPtr) (*nvmlShutdownPtr)();        // Call nvml shutdown if we got that far.

    device_count = 0;
    num_events = 0;

    // close the dynamic libraries needed by this component (opened in the init component call)
    if (dl3) {dlclose(dl3); dl3=NULL;}

    return PAPI_OK;
}

Here is the call graph for this function:

Here is the caller graph for this function:

_papi_nvml_shutdown_thread()

int _papi_nvml_shutdown_thread

(

hwd_context_t *

ctx

)

Called at thread shutdown

Definition at line 1555 of file linux-nvml.c.

{
    SUBDBG("Enter: ctx: %p\n", ctx);

    (void) ctx;

    /* Last chance to clean up thread */

    return PAPI_OK;
}

_papi_nvml_start()

int _papi_nvml_start	(	hwd_context_t *	ctx,
		hwd_control_state_t *	ctl
	)

Triggered by PAPI_start()

Definition at line 1447 of file linux-nvml.c.

{
    SUBDBG("Enter: ctx: %p, ctl: %p\n", ctx, ctl);

    (void) ctx;
    (void) ctl;

    /* anything that would need to be set at counter start time */

    /* reset */
    /* start the counting */

    return PAPI_OK;
}

_papi_nvml_stop()

int _papi_nvml_stop	(	hwd_context_t *	ctx,
		hwd_control_state_t *	ctl
	)

Triggered by PAPI_stop()

Definition at line 1464 of file linux-nvml.c.

{
    SUBDBG("Enter: ctx: %p, ctl: %p\n", ctx, ctl);

    int i;
    (void) ctx;
    (void) ctl;
    int ret;

    nvml_control_state_t* nvml_ctl = (nvml_control_state_t*) ctl;

    for (i = 0; i < nvml_ctl->num_events; i++) {
        if (PAPI_OK !=
                (ret = nvml_hardware_read(&nvml_ctl->counter[i],
                                          nvml_ctl->which_counter[i])))
            return ret;

    }

    return PAPI_OK;
}

Here is the call graph for this function:

_papi_nvml_update_control_state()

int _papi_nvml_update_control_state	(	hwd_control_state_t *	ctl,
		NativeInfo_t *	native,
		int	count,
		hwd_context_t *	ctx
	)

Triggered by eventset operations like add or remove

Definition at line 1420 of file linux-nvml.c.

{
    SUBDBG("Enter: ctl: %p, ctx: %p\n", ctl, ctx);
    int i, index;

    nvml_control_state_t *nvml_ctl = (nvml_control_state_t *) ctl;
    (void) ctx;

    DO_SOME_CHECKING(&_nvml_vector);
    /* if no events, return */
    if (count == 0) return PAPI_OK;

    for (i = 0; i < count; i++) {
        index = native[i].ni_event;
        nvml_ctl->which_counter[i] = index;
        /* We have no constraints on event position, so any event */
        /* can be in any slot.                                    */
        native[i].ni_position = i;
    }
    nvml_ctl->num_events = count;
    return PAPI_OK;
}

_papi_nvml_write()

int _papi_nvml_write	(	hwd_context_t *	ctx,
		hwd_control_state_t *	ctl,
		long long *	events
	)

Triggered by PAPI_write(), but only if the counters are running

Definition at line 1514 of file linux-nvml.c.

{
    SUBDBG("Enter: ctx: %p, ctl: %p\n", ctx, ctl);
    (void) ctx;
    nvml_control_state_t* nvml_ctl = (nvml_control_state_t*) ctl;
    int i;
    int ret;

    /* You can change ECC mode and compute exclusivity modes on the cards */
    /* But I don't see this as a function of a PAPI component at this time */
    /* All implementation issues aside. */

    // Currently POWER_MANAGEMENT can be written
    for (i = 0; i < nvml_ctl->num_events; i++) {
        if (PAPI_OK != (ret = nvml_hardware_write(&events[i], nvml_ctl->which_counter[i])))
            return ret;
    }

    /* return pointer to the values we read */
    return PAPI_OK;
}

Here is the call graph for this function:

createNativeEvents()

static void createNativeEvents ( void  )

static

Definition at line 751 of file linux-nvml.c.

{
    char name[PAPI_MIN_STR_LEN];
    char sanitized_name[PAPI_MIN_STR_LEN];
    char names[device_count][PAPI_MAX_STR_LEN];

    int i, nameLen = 0, j, devTableIdx = 0;

    nvml_native_event_entry_t* entry;
    nvmlReturn_t ret;

    nvml_native_table = (nvml_native_event_entry_t*) papi_malloc(
                            sizeof(nvml_native_event_entry_t) * num_events);
    memset(nvml_native_table, 0x0, sizeof(nvml_native_event_entry_t) * num_events);
    entry = &nvml_native_table[0];
    nvml_dev_id_table = (int*) papi_malloc(num_events*sizeof(int));

    for (i = 0; i < device_count; i++) {
        memset(names[i], 0x0, PAPI_MAX_STR_LEN);
        ret = (*nvmlDeviceGetNamePtr)(devices[i], name, sizeof(name) - 1);
        if (NVML_SUCCESS != ret) {
            SUBDBG("nvmlDeviceGetName failed \n");
            const char *name_unknown = "deviceNameUnknown";
            strncpy(name, name_unknown, strlen(name_unknown) + 1);
        }

        nameLen = strlen(name);
        strncpy(sanitized_name, name, PAPI_MIN_STR_LEN);

        int retval = snprintf(sanitized_name, sizeof(name), "%s:device_%d", name, i);
        if (retval > (int)sizeof(name)) {
            SUBDBG("Device name is too long %s:device%d", name, i);
            return;
        }
        sanitized_name[sizeof(name) - 1] = '\0';

        for (j = 0; j < nameLen; j++)
            if (' ' == sanitized_name[j])
                sanitized_name[j] = '_';

        if (HAS_FEATURE(features[i], FEATURE_CLOCK_INFO)) {
            sprintf(entry->name, "%s:graphics_clock", sanitized_name);
            strncpy(entry->description, "Graphics clock domain (MHz).", PAPI_MAX_STR_LEN);
            entry->options.clock = NVML_CLOCK_GRAPHICS;
            entry->type = FEATURE_CLOCK_INFO;
            entry++;
            nvml_dev_id_table[devTableIdx] = i;
            devTableIdx++;

            sprintf(entry->name, "%s:sm_clock", sanitized_name);
            strncpy(entry->description, "SM clock domain (MHz).", PAPI_MAX_STR_LEN);
            entry->options.clock = NVML_CLOCK_SM;
            entry->type = FEATURE_CLOCK_INFO;
            entry++;
            nvml_dev_id_table[devTableIdx] = i;
            devTableIdx++;

            sprintf(entry->name, "%s:memory_clock", sanitized_name);
            strncpy(entry->description, "Memory clock domain (MHz).", PAPI_MAX_STR_LEN);
            entry->options.clock = NVML_CLOCK_MEM;
            entry->type = FEATURE_CLOCK_INFO;
            entry++;
            nvml_dev_id_table[devTableIdx] = i;
            devTableIdx++;
        }

        if (HAS_FEATURE(features[i], FEATURE_ECC_LOCAL_ERRORS)) {
            sprintf(entry->name, "%s:l1_single_ecc_errors", sanitized_name);
            strncpy(entry->description, "L1 cache single bit ECC", PAPI_MAX_STR_LEN);
            entry->options.ecc_opts = (struct local_ecc) {
                .bits = NVML_SINGLE_BIT_ECC,
                 .which_one = LOCAL_ECC_L1,
            };
            entry->type = FEATURE_ECC_LOCAL_ERRORS;
            entry++;
            nvml_dev_id_table[devTableIdx] = i;
            devTableIdx++;

            sprintf(entry->name, "%s:l2_single_ecc_errors", sanitized_name);
            strncpy(entry->description, "L2 cache single bit ECC", PAPI_MAX_STR_LEN);
            entry->options.ecc_opts = (struct local_ecc) {
                .bits = NVML_SINGLE_BIT_ECC,
                 .which_one = LOCAL_ECC_L2,
            };
            entry->type = FEATURE_ECC_LOCAL_ERRORS;
            entry++;
            nvml_dev_id_table[devTableIdx] = i;
            devTableIdx++;

            sprintf(entry->name, "%s:memory_single_ecc_errors", sanitized_name);
            strncpy(entry->description, "Device memory single bit ECC", PAPI_MAX_STR_LEN);
            entry->options.ecc_opts = (struct local_ecc) {
                .bits = NVML_SINGLE_BIT_ECC,
                 .which_one = LOCAL_ECC_MEM,
            };
            entry->type = FEATURE_ECC_LOCAL_ERRORS;
            entry++;
            nvml_dev_id_table[devTableIdx] = i;
            devTableIdx++;

            sprintf(entry->name, "%s:regfile_single_ecc_errors", sanitized_name);
            strncpy(entry->description, "Register file single bit ECC", PAPI_MAX_STR_LEN);
            entry->options.ecc_opts = (struct local_ecc) {
                .bits = NVML_SINGLE_BIT_ECC,
                 .which_one = LOCAL_ECC_REGFILE,
            };
            entry->type = FEATURE_ECC_LOCAL_ERRORS;
            entry++;
            nvml_dev_id_table[devTableIdx] = i;
            devTableIdx++;

            sprintf(entry->name, "%s:1l_double_ecc_errors", sanitized_name);
            strncpy(entry->description, "L1 cache double bit ECC", PAPI_MAX_STR_LEN);
            entry->options.ecc_opts = (struct local_ecc) {
                .bits = NVML_DOUBLE_BIT_ECC,
                 .which_one = LOCAL_ECC_L1,
            };
            entry->type = FEATURE_ECC_LOCAL_ERRORS;
            entry++;
            nvml_dev_id_table[devTableIdx] = i;
            devTableIdx++;

            sprintf(entry->name, "%s:l2_double_ecc_errors", sanitized_name);
            strncpy(entry->description, "L2 cache double bit ECC", PAPI_MAX_STR_LEN);
            entry->options.ecc_opts = (struct local_ecc) {
                .bits = NVML_DOUBLE_BIT_ECC,
                 .which_one = LOCAL_ECC_L2,
            };
            entry->type = FEATURE_ECC_LOCAL_ERRORS;
            entry++;
            nvml_dev_id_table[devTableIdx] = i;
            devTableIdx++;

            sprintf(entry->name, "%s:memory_double_ecc_errors", sanitized_name);
            strncpy(entry->description, "Device memory double bit ECC", PAPI_MAX_STR_LEN);
            entry->options.ecc_opts = (struct local_ecc) {
                .bits = NVML_DOUBLE_BIT_ECC,
                 .which_one = LOCAL_ECC_MEM,
            };
            entry->type = FEATURE_ECC_LOCAL_ERRORS;
            entry++;
            nvml_dev_id_table[devTableIdx] = i;
            devTableIdx++;

            sprintf(entry->name, "%s:regfile_double_ecc_errors", sanitized_name);
            strncpy(entry->description, "Register file double bit ECC", PAPI_MAX_STR_LEN);
            entry->options.ecc_opts = (struct local_ecc) {
                .bits = NVML_DOUBLE_BIT_ECC,
                 .which_one = LOCAL_ECC_REGFILE,
            };
            entry->type = FEATURE_ECC_LOCAL_ERRORS;
            entry++;
            nvml_dev_id_table[devTableIdx] = i;
            devTableIdx++;
        }

        if (HAS_FEATURE(features[i], FEATURE_FAN_SPEED)) {
            sprintf(entry->name, "%s:fan_speed", sanitized_name);
            strncpy(entry->description, "The fan speed expressed as a percent of the maximum, i.e. full speed is 100%", PAPI_MAX_STR_LEN);
            entry->type = FEATURE_FAN_SPEED;
            entry++;
            nvml_dev_id_table[devTableIdx] = i;
            devTableIdx++;
        }

        if (HAS_FEATURE(features[i], FEATURE_MAX_CLOCK)) {
            sprintf(entry->name, "%s:graphics_max_clock", sanitized_name);
            strncpy(entry->description, "Maximal Graphics clock domain (MHz).", PAPI_MAX_STR_LEN);
            entry->options.clock = NVML_CLOCK_GRAPHICS;
            entry->type = FEATURE_MAX_CLOCK;
            entry++;
            nvml_dev_id_table[devTableIdx] = i;
            devTableIdx++;

            sprintf(entry->name, "%s:sm_max_clock", sanitized_name);
            strncpy(entry->description, "Maximal SM clock domain (MHz).", PAPI_MAX_STR_LEN);
            entry->options.clock = NVML_CLOCK_SM;
            entry->type = FEATURE_MAX_CLOCK;
            entry++;
            nvml_dev_id_table[devTableIdx] = i;
            devTableIdx++;

            sprintf(entry->name, "%s:memory_max_clock", sanitized_name);
            strncpy(entry->description, "Maximal Memory clock domain (MHz).", PAPI_MAX_STR_LEN);
            entry->options.clock = NVML_CLOCK_MEM;
            entry->type = FEATURE_MAX_CLOCK;
            entry++;
            nvml_dev_id_table[devTableIdx] = i;
            devTableIdx++;
        }

        if (HAS_FEATURE(features[i], FEATURE_MEMORY_INFO)) {
            sprintf(entry->name, "%s:total_memory", sanitized_name);
            strncpy(entry->description, "Total installed FB memory (in bytes).", PAPI_MAX_STR_LEN);
            entry->options.which_one = MEMINFO_TOTAL_MEMORY;
            entry->type = FEATURE_MEMORY_INFO;
            entry++;
            nvml_dev_id_table[devTableIdx] = i;
            devTableIdx++;

            sprintf(entry->name, "%s:unallocated_memory", sanitized_name);
            strncpy(entry->description, "Uncallocated FB memory (in bytes).", PAPI_MAX_STR_LEN);
            entry->options.which_one = MEMINFO_UNALLOCED;
            entry->type = FEATURE_MEMORY_INFO;
            entry++;
            nvml_dev_id_table[devTableIdx] = i;
            devTableIdx++;

            sprintf(entry->name, "%s:allocated_memory", sanitized_name);
            strncpy(entry->description, "Allocated FB memory (in bytes). Note that the driver/GPU always sets aside a small amount of memory for bookkeeping.", PAPI_MAX_STR_LEN);
            entry->options.which_one = MEMINFO_ALLOCED;
            entry->type = FEATURE_MEMORY_INFO;
            entry++;
            nvml_dev_id_table[devTableIdx] = i;
            devTableIdx++;
        }

        if (HAS_FEATURE(features[i], FEATURE_PERF_STATES)) {
            sprintf(entry->name, "%s:pstate", sanitized_name);
            strncpy(entry->description, "The performance state of the device.", PAPI_MAX_STR_LEN);
            entry->type = FEATURE_PERF_STATES;
            entry++;
            nvml_dev_id_table[devTableIdx] = i;
            devTableIdx++;
        }

        if (HAS_FEATURE(features[i], FEATURE_POWER)) {
            sprintf(entry->name, "%s:power", sanitized_name);
            // set the power event units value to "mW" for miliwatts
            strncpy(entry->units, "mW", PAPI_MIN_STR_LEN);
            strncpy(entry->description, "Power usage reading for the device, in miliwatts. This is the power draw (+/-5 watts) for the entire board: GPU, memory, etc.", PAPI_MAX_STR_LEN);
            entry->type = FEATURE_POWER;
            entry++;
            nvml_dev_id_table[devTableIdx] = i;
            devTableIdx++;
        }

        if (HAS_FEATURE(features[i], FEATURE_TEMP)) {
            sprintf(entry->name, "%s:temperature", sanitized_name);
            strncpy(entry->description, "Current temperature readings for the device, in degrees C.", PAPI_MAX_STR_LEN);
            entry->type = FEATURE_TEMP;
            entry++;
            nvml_dev_id_table[devTableIdx] = i;
            devTableIdx++;
        }

        if (HAS_FEATURE(features[i], FEATURE_ECC_TOTAL_ERRORS)) {
            sprintf(entry->name, "%s:total_ecc_errors", sanitized_name);
            strncpy(entry->description, "Total single bit errors.", PAPI_MAX_STR_LEN);
            entry->options.ecc_opts = (struct local_ecc) {
                .bits = NVML_SINGLE_BIT_ECC,
            };
            entry->type = FEATURE_ECC_TOTAL_ERRORS;
            entry++;

            sprintf(entry->name, "%s:total_ecc_errors", sanitized_name);
            strncpy(entry->description, "Total double bit errors.", PAPI_MAX_STR_LEN);
            entry->options.ecc_opts = (struct local_ecc) {
                .bits = NVML_DOUBLE_BIT_ECC,
            };
            entry->type = FEATURE_ECC_TOTAL_ERRORS;
            entry++;
            nvml_dev_id_table[devTableIdx] = i;
            devTableIdx++;
        }

        if (HAS_FEATURE(features[i], FEATURE_UTILIZATION)) {
            sprintf(entry->name, "%s:gpu_utilization", sanitized_name);
            strncpy(entry->description, "Percent of time over the past second during which one or more kernels was executing on the GPU.", PAPI_MAX_STR_LEN);
            entry->options.which_one = GPU_UTILIZATION;
            entry->type = FEATURE_UTILIZATION;
            entry++;
            nvml_dev_id_table[devTableIdx] = i;
            devTableIdx++;

            sprintf(entry->name, "%s:memory_utilization", sanitized_name);
            strncpy(entry->description, "Percent of time over the past second during which global (device) memory was being read or written.", PAPI_MAX_STR_LEN);
            entry->options.which_one = MEMORY_UTILIZATION;
            entry->type = FEATURE_UTILIZATION;
            entry++;
            nvml_dev_id_table[devTableIdx] = i;
            devTableIdx++;
        }

        if (HAS_FEATURE(features[i], FEATURE_POWER_MANAGEMENT)) {
            sprintf(entry->name, "%s:power_management_limit", sanitized_name);
            // set the power event units value to "mW" for milliwatts
            strncpy(entry->units, "mW", PAPI_MIN_STR_LEN);
            strncpy(entry->description, "Power draw upper bound limit (in mW) for the device. Writable (with appropriate privileges) on supported Kepler or later.", PAPI_MAX_STR_LEN - 1);
            entry->description[PAPI_MAX_STR_LEN - 1] = '\0';
            entry->type = FEATURE_POWER_MANAGEMENT;
            entry++;
            nvml_dev_id_table[devTableIdx] = i;
            devTableIdx++;
        }
        if (HAS_FEATURE(features[i], FEATURE_NVML_POWER_MANAGEMENT_LIMIT_CONSTRAINT_MIN)) {
            sprintf(entry->name, "%s:power_management_limit_constraint_min", sanitized_name);
            strncpy(entry->units, "mW", PAPI_MIN_STR_LEN);
            strncpy(entry->description, "The minimum power management limit in milliwatts.", PAPI_MAX_STR_LEN);
            entry->type = FEATURE_NVML_POWER_MANAGEMENT_LIMIT_CONSTRAINT_MIN;
            entry++;
            nvml_dev_id_table[devTableIdx] = i;
            devTableIdx++;
        }

        if (HAS_FEATURE(features[i], FEATURE_NVML_POWER_MANAGEMENT_LIMIT_CONSTRAINT_MAX)) {
            sprintf(entry->name, "%s:power_management_limit_constraint_max", sanitized_name);
            strncpy(entry->units, "mW", PAPI_MIN_STR_LEN);
            strncpy(entry->description, "The maximum power management limit in milliwatts.", PAPI_MAX_STR_LEN);
            entry->type = FEATURE_NVML_POWER_MANAGEMENT_LIMIT_CONSTRAINT_MAX;
            entry++;
            nvml_dev_id_table[devTableIdx] = i;
            devTableIdx++;
        }

        strncpy(names[i], name, sizeof(names[0]) - 1);
        names[i][sizeof(names[0]) - 1] = '\0';
    }
} // create native events.

Here is the caller graph for this function:

detectDevices()

static int detectDevices ( )

static

Definition at line 593 of file linux-nvml.c.

{
    nvmlReturn_t ret;
    nvmlEnableState_t mode        = NVML_FEATURE_DISABLED;
    nvmlEnableState_t pendingmode = NVML_FEATURE_DISABLED;

    char name[64];
    char inforomECC[16];
    char names[device_count][64];

    float ecc_version = 0.0;

    int i = 0;

    unsigned int temp = 0;

    memset(names, 0x0, device_count * 64);

    /* So for each card, check whats querable */
    for (i = 0; i < device_count; i++) {
        features[i] = 0;

        ret = (*nvmlDeviceGetHandleByIndexPtr)(i, &devices[i]);
        if (NVML_SUCCESS != ret) {
            SUBDBG("nvmlDeviceGetHandleByIndex(%d, &devices[%d]) failed.\n", i, i);
            return PAPI_ESYS;
        }

        ret = (*nvmlDeviceGetNamePtr)(devices[i], name, sizeof(name) - 1);
        if (NVML_SUCCESS != ret) {
            SUBDBG("nvmlDeviceGetName failed \n");
            const char *name_unknown = "deviceNameUnknown";
            strncpy(name, name_unknown, strlen(name_unknown) + 1);
        }

        ret = (*nvmlDeviceGetInforomVersionPtr)(devices[i], NVML_INFOROM_ECC, inforomECC, 16);
        if (NVML_SUCCESS != ret) {
            SUBDBG("nvmlGetInforomVersion fails %s\n", (*nvmlErrorStringPtr)(ret));
        } else {
            ecc_version = strtof(inforomECC, NULL);
        }

        if (getClockSpeed(devices[i], NVML_CLOCK_GRAPHICS) != (unsigned long long) - 1) {
            features[i] |= FEATURE_CLOCK_INFO;
            num_events += 3;
        }

        /*  For Tesla and Quadro products from Fermi and Kepler families.
            requires NVML_INFOROM_ECC 2.0 or higher for location-based counts
            requires NVML_INFOROM_ECC 1.0 or higher for all other ECC counts
            requires ECC mode to be enabled. */
        ret = (*nvmlDeviceGetEccModePtr)(devices[i], &mode, &pendingmode);
        if (NVML_SUCCESS == ret) {
            if (NVML_FEATURE_ENABLED == mode) {
                if (ecc_version >= 2.0) {
                    features[i] |= FEATURE_ECC_LOCAL_ERRORS;
                    num_events += 8; /* {single bit, two bit errors} x { reg, l1, l2, memory } */
                }
                if (ecc_version >= 1.0) {
                    features[i] |= FEATURE_ECC_TOTAL_ERRORS;
                    num_events += 2; /* single bit errors, double bit errors */
                }
            }
        } else {
            SUBDBG("nvmlDeviceGetEccMode does not appear to be supported. (nvml return code %d)\n", ret);
        }

        /* Check if fan speed is available */
        if (getFanSpeed(devices[i]) != (unsigned long long) - 1) {
            features[i] |= FEATURE_FAN_SPEED;
            num_events++;
        }

        /* Check if clock data are available */
        if (getMaxClockSpeed(devices[i], NVML_CLOCK_GRAPHICS) != (unsigned long long) - 1) {
            features[i] |= FEATURE_MAX_CLOCK;
            num_events += 3;
        }

        /* For all products */
        features[i] |= FEATURE_MEMORY_INFO;
        num_events += 3; /* total, free, used */

        /* Check if performance state is available */
        if (getPState(devices[i]) != (unsigned long long) - 1) {
            features[i] |= FEATURE_PERF_STATES;
            num_events++;
        }

        /*  For "GF11x" Tesla and Quadro products from the Fermi family
                requires NVML_INFOROM_POWER 3.0 or higher
                For Tesla and Quadro products from the Kepler family
                does not require NVML_INFOROM_POWER */
        /* Just try reading power, if it works, enable it*/
        ret = (*nvmlDeviceGetPowerUsagePtr)(devices[i], &temp);
        if (NVML_SUCCESS == ret) {
            features[i] |= FEATURE_POWER;
            num_events++;
        } else {
            SUBDBG("nvmlDeviceGetPowerUsage does not appear to be supported on this card. (nvml return code %d)\n", ret);
        }

        /* Check if temperature data are available */
        if (getTemperature(devices[i]) != (unsigned long long) - 1) {
            features[i] |= FEATURE_TEMP;
            num_events++;
        }

        // For power_management_limit
        {
            // Just try the call to see if it works
            unsigned int templimit = 0;
            ret = (*nvmlDeviceGetPowerManagementLimitPtr)(devices[i], &templimit);
            if (ret == NVML_SUCCESS && templimit > 0) {
                power_management_initial_limit[i] = templimit;
                features[i] |= FEATURE_POWER_MANAGEMENT;
                num_events += 1;
            } else {
                power_management_initial_limit[i] = 0;
                SUBDBG("nvmlDeviceGetPowerManagementLimit not appear to be supported on this card. (NVML code %d)\n", ret);
            }
        }

        // For power_management_limit_constraints, minimum and maximum
        {
            unsigned int minLimit = 0, maxLimit = 0;
            ret = (*nvmlDeviceGetPowerManagementLimitConstraintsPtr)(devices[i], &minLimit, &maxLimit);
            if (ret == NVML_SUCCESS) {
                power_management_limit_constraint_min[i] = minLimit;
                features[i] |= FEATURE_NVML_POWER_MANAGEMENT_LIMIT_CONSTRAINT_MIN;
                num_events += 1;
                power_management_limit_constraint_max[i] = maxLimit;
                features[i] |= FEATURE_NVML_POWER_MANAGEMENT_LIMIT_CONSTRAINT_MAX;
                num_events += 1;
            } else {
                power_management_limit_constraint_min[i] = 0;
                power_management_limit_constraint_max[i] = INT_MAX;
            }
            SUBDBG("Done nvmlDeviceGetPowerManagementLimitConstraintsPtr\n");
        }

        /* Check if temperature data are available */
        if (getUtilization(devices[i], GPU_UTILIZATION) != (unsigned long long) - 1) {
            features[i] |= FEATURE_UTILIZATION;
            num_events += 2;
        }

        int retval = snprintf(names[i], sizeof(name), "%s:device:%d", name, i);
        if (retval > (int)sizeof(name)) {
            SUBDBG("Device name is too long %s:device%d", name, i);
            return (PAPI_EINVAL);
        }
        names[i][sizeof(name) - 1] = '\0';
    }
    return PAPI_OK;
}

Here is the call graph for this function:

Here is the caller graph for this function:

getClockSpeed()

unsigned long long getClockSpeed	(	nvmlDevice_t	dev,
		nvmlClockType_t	which_one
	)

Definition at line 153 of file linux-nvml.c.

{
    unsigned int ret = 0;
    nvmlReturn_t bad;
    bad = (*nvmlDeviceGetClockInfoPtr)(dev, which_one, &ret);

    if (NVML_SUCCESS != bad) {
        SUBDBG("something went wrong %s\n", (*nvmlErrorStringPtr)(bad));
        return (unsigned long long) - 1;
    }

    return (unsigned long long)ret;
}

Here is the caller graph for this function:

getEccLocalErrors()

unsigned long long getEccLocalErrors	(	nvmlDevice_t	dev,
		nvmlEccBitType_t	bits,
		int	which_one
	)

Definition at line 168 of file linux-nvml.c.

{
    nvmlEccErrorCounts_t counts;

    nvmlReturn_t bad;
    bad = (*nvmlDeviceGetDetailedEccErrorsPtr)(dev, bits, NVML_VOLATILE_ECC , &counts);

    if (NVML_SUCCESS != bad) {
        SUBDBG("something went wrong %s\n", (*nvmlErrorStringPtr)(bad));
        return (unsigned long long) - 1;
    }
    switch (which_one) {
    case LOCAL_ECC_REGFILE:
        return counts.registerFile;
    case LOCAL_ECC_L1:
        return counts.l1Cache;
    case LOCAL_ECC_L2:
        return counts.l2Cache;
    case LOCAL_ECC_MEM:
        return counts.deviceMemory;
    default:
        ;
    }
    return (unsigned long long) - 1;
}

Here is the caller graph for this function:

getFanSpeed()

unsigned long long getFanSpeed

(

nvmlDevice_t

dev

)

Definition at line 195 of file linux-nvml.c.

{
    unsigned int ret = 0;
    nvmlReturn_t bad;
    bad = (*nvmlDeviceGetFanSpeedPtr)(dev, &ret);

    if (NVML_SUCCESS != bad) {
        SUBDBG("something went wrong %s\n", (*nvmlErrorStringPtr)(bad));
        return (unsigned long long) - 1;
    }
    return (unsigned long long)ret;
}

Here is the caller graph for this function:

getMaxClockSpeed()

unsigned long long getMaxClockSpeed	(	nvmlDevice_t	dev,
		nvmlClockType_t	which_one
	)

Definition at line 209 of file linux-nvml.c.

{
    unsigned int ret = 0;
    nvmlReturn_t bad;
    bad = (*nvmlDeviceGetClockInfoPtr)(dev, which_one, &ret);

    if (NVML_SUCCESS != bad) {
        SUBDBG("something went wrong %s\n", (*nvmlErrorStringPtr)(bad));
        return (unsigned long long) - 1;
    }
    return (unsigned long long) ret;
}

Here is the caller graph for this function:

getMemoryInfo()

unsigned long long getMemoryInfo	(	nvmlDevice_t	dev,
		int	which_one
	)

Definition at line 223 of file linux-nvml.c.

{
    nvmlMemory_t meminfo;
    nvmlReturn_t bad;
    bad = (*nvmlDeviceGetMemoryInfoPtr)(dev, &meminfo);

    if (NVML_SUCCESS != bad) {
        SUBDBG("something went wrong %s\n", (*nvmlErrorStringPtr)(bad));
        return (unsigned long long) - 1;
    }

    switch (which_one) {
    case MEMINFO_TOTAL_MEMORY:
        return meminfo.total;
    case MEMINFO_UNALLOCED:
        return meminfo.free;
    case MEMINFO_ALLOCED:
        return meminfo.used;
    default:
        ;
    }
    return (unsigned long long) - 1;
}

Here is the caller graph for this function:

getPowerManagementLimit()

unsigned long long getPowerManagementLimit

(

nvmlDevice_t

dev

)

Definition at line 386 of file linux-nvml.c.

{
    unsigned int limit;
    nvmlReturn_t rv;
    rv = (*nvmlDeviceGetPowerManagementLimitPtr)(dev, &limit);
    if (NVML_SUCCESS != rv) {
        SUBDBG("something went wrong %s\n", (*nvmlErrorStringPtr)(rv));
        return (unsigned long long) 0;
    }
    return (unsigned long long) limit;
}

Here is the caller graph for this function:

getPowerUsage()

unsigned long long getPowerUsage

(

nvmlDevice_t

dev

)

Definition at line 318 of file linux-nvml.c.

{
    unsigned int power;
    nvmlReturn_t bad;
    bad = (*nvmlDeviceGetPowerUsagePtr)(dev, &power);

    if (NVML_SUCCESS != bad) {
        SUBDBG("something went wrong %s\n", (*nvmlErrorStringPtr)(bad));
        return (unsigned long long) - 1;
    }
    return (unsigned long long) power;
}

Here is the caller graph for this function:

getPState()

unsigned long long getPState

(

nvmlDevice_t

dev

)

Definition at line 248 of file linux-nvml.c.

{
    unsigned int ret = 0;
    nvmlPstates_t state = NVML_PSTATE_15;
    nvmlReturn_t bad;
    bad = (*nvmlDeviceGetPerformanceStatePtr)(dev, &state);

    if (NVML_SUCCESS != bad) {
        SUBDBG("something went wrong %s\n", (*nvmlErrorStringPtr)(bad));
        return (unsigned long long) - 1;
    }
    switch (state) {
    case NVML_PSTATE_15:
        ret++;
        // fall through
    case NVML_PSTATE_14:
        ret++;
        // fall through
    case NVML_PSTATE_13:
        ret++;
        // fall through
    case NVML_PSTATE_12:
        ret++;
        // fall through
    case NVML_PSTATE_11:
        ret++;
        // fall through
    case NVML_PSTATE_10:
        ret++;
        // fall through
    case NVML_PSTATE_9:
        ret++;
        // fall through
    case NVML_PSTATE_8:
        ret++;
        // fall through
    case NVML_PSTATE_7:
        ret++;
        // fall through
    case NVML_PSTATE_6:
        ret++;
        // fall through
    case NVML_PSTATE_5:
        ret++;
        // fall through
    case NVML_PSTATE_4:
        ret++;
        // fall through
    case NVML_PSTATE_3:
        ret++;
        // fall through
    case NVML_PSTATE_2:
        ret++;
        // fall through
    case NVML_PSTATE_1:
        ret++;
        // fall through
    case NVML_PSTATE_0:
        break;
        // fall through
    case NVML_PSTATE_UNKNOWN:
    default:
        /* This should never happen?
         * The API docs just state Unknown performance state... */
        return (unsigned long long) - 1;
    }
    return (unsigned long long)ret;
}

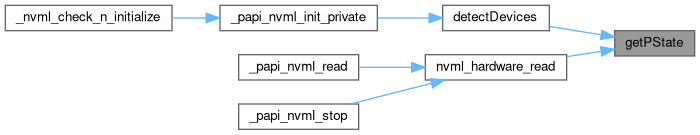

Here is the caller graph for this function:

getTemperature()

unsigned long long getTemperature

(

nvmlDevice_t

dev

)

Definition at line 332 of file linux-nvml.c.

{
    unsigned int ret = 0;
    nvmlReturn_t bad;
    bad = (*nvmlDeviceGetTemperaturePtr)(dev, NVML_TEMPERATURE_GPU, &ret);

    if (NVML_SUCCESS != bad) {
        SUBDBG("something went wrong %s\n", (*nvmlErrorStringPtr)(bad));
        return (unsigned long long) - 1;
    }
    return (unsigned long long)ret;
}

Here is the caller graph for this function:

getTotalEccErrors()

unsigned long long getTotalEccErrors	(	nvmlDevice_t	dev,
		nvmlEccBitType_t	bits
	)

Definition at line 346 of file linux-nvml.c.

{
    unsigned long long counts = 0;
    nvmlReturn_t bad;
    bad = (*nvmlDeviceGetTotalEccErrorsPtr)(dev, bits, NVML_VOLATILE_ECC , &counts);

    if (NVML_SUCCESS != bad) {
        SUBDBG("something went wrong %s\n", (*nvmlErrorStringPtr)(bad));
        return (unsigned long long) - 1;
    }
    return counts;
}

Here is the caller graph for this function:

getUtilization()

unsigned long long getUtilization	(	nvmlDevice_t	dev,
		int	which_one
	)

Definition at line 363 of file linux-nvml.c.

{
    nvmlUtilization_t util;
    nvmlReturn_t bad;
    bad = (*nvmlDeviceGetUtilizationRatesPtr)(dev, &util);

    if (NVML_SUCCESS != bad) {
        SUBDBG("something went wrong %s\n", (*nvmlErrorStringPtr)(bad));
        return (unsigned long long) - 1;
    }

    switch (which_one) {
    case GPU_UTILIZATION:
        return (unsigned long long) util.gpu;
    case MEMORY_UTILIZATION:
        return (unsigned long long) util.memory;
    default:
        ;
    }

    return (unsigned long long) - 1;
}

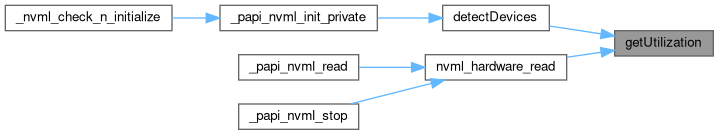

Here is the caller graph for this function:

linkCudaLibraries()

static int linkCudaLibraries ( )

static

Definition at line 1250 of file linux-nvml.c.

{
    char path_lib[1024];
    /* Attempt to guess if we were statically linked to libc, if so bail */
    if (_dl_non_dynamic_init != NULL) {
        strncpy(_nvml_vector.cmp_info.disabled_reason, "NVML component does not support statically linking of libc.", PAPI_MAX_STR_LEN);
        return PAPI_ENOSUPP;
    }

    // Need to link in the NVML libraries, if any not found disable the component.
    // getenv returns NULL if environment variable is not found.
    char *cuda_root = getenv("PAPI_CUDA_ROOT");

    // We need the NVML main library, normally libnvidia-ml.so.
    dl3 = NULL;                                                 // Ensure reset to NULL.

    // Step 1: Process override if given.
    if (strlen(nvml_main) > 0) {                                        // If override given, it MUST work.
        dl3 = dlopen(nvml_main, RTLD_NOW | RTLD_GLOBAL);                // Try to open that path.
        if (dl3 == NULL) {
            snprintf(_nvml_vector.cmp_info.disabled_reason, PAPI_MAX_STR_LEN, "PAPI_NVML_MAIN override '%s' given in Rules.nvml not found.", nvml_main);
            return(PAPI_ENOSUPP);   // Override given but not found.
        }
    }

    // Step 2: Try system paths, will work with Spack, LD_LIBRARY_PATH, default paths.
    if (dl3 == NULL) {                                              // If no override,
        dl3 = dlopen("libnvidia-ml.so", RTLD_NOW | RTLD_GLOBAL);    // Try system paths.
    }

    // Step 3: Try the explicit install default.
    if (dl3 == NULL && cuda_root != NULL) {                                         // If ROOT given, it doesn't HAVE to work.
        snprintf(path_lib, 1024, "%s/lib64/libnvidia-ml.so", cuda_root);            // PAPI Root check.
        dl3 = dlopen(path_lib, RTLD_NOW | RTLD_GLOBAL);                             // Try to open that path.
    }

    // Check for failure.
    if (dl3 == NULL) {
        snprintf(_nvml_vector.cmp_info.disabled_reason, PAPI_MAX_STR_LEN, "libnvidia-ml.so not found.");
        return(PAPI_ENOSUPP);   // Not found on default paths.
    }

    // We have a dl3. (libnvidia-ml.so).

    nvmlDeviceGetClockInfoPtr = dlsym(dl3, "nvmlDeviceGetClockInfo");
    if (dlerror() != NULL) {
        strncpy(_nvml_vector.cmp_info.disabled_reason, "NVML function nvmlDeviceGetClockInfo not found.", PAPI_MAX_STR_LEN);
        return (PAPI_ENOSUPP);
    }
    nvmlErrorStringPtr = dlsym(dl3, "nvmlErrorString");
    if (dlerror() != NULL) {
        strncpy(_nvml_vector.cmp_info.disabled_reason, "NVML function nvmlErrorString not found.", PAPI_MAX_STR_LEN);
        return (PAPI_ENOSUPP);
    }
    nvmlDeviceGetDetailedEccErrorsPtr = dlsym(dl3, "nvmlDeviceGetDetailedEccErrors");
    if (dlerror() != NULL) {
        strncpy(_nvml_vector.cmp_info.disabled_reason, "NVML function nvmlDeviceGetDetailedEccErrors not found.", PAPI_MAX_STR_LEN);
        return (PAPI_ENOSUPP);
    }
    nvmlDeviceGetFanSpeedPtr = dlsym(dl3, "nvmlDeviceGetFanSpeed");
    if (dlerror() != NULL) {
        strncpy(_nvml_vector.cmp_info.disabled_reason, "NVML function nvmlDeviceGetFanSpeed not found.", PAPI_MAX_STR_LEN);
        return (PAPI_ENOSUPP);
    }
    nvmlDeviceGetMemoryInfoPtr = dlsym(dl3, "nvmlDeviceGetMemoryInfo");
    if (dlerror() != NULL) {
        strncpy(_nvml_vector.cmp_info.disabled_reason, "NVML function nvmlDeviceGetMemoryInfo not found.", PAPI_MAX_STR_LEN);
        return (PAPI_ENOSUPP);
    }
    nvmlDeviceGetPerformanceStatePtr = dlsym(dl3, "nvmlDeviceGetPerformanceState");
    if (dlerror() != NULL) {
        strncpy(_nvml_vector.cmp_info.disabled_reason, "NVML function nvmlDeviceGetPerformanceState not found.", PAPI_MAX_STR_LEN);
        return (PAPI_ENOSUPP);
    }
    nvmlDeviceGetPowerUsagePtr = dlsym(dl3, "nvmlDeviceGetPowerUsage");
    if (dlerror() != NULL) {
        strncpy(_nvml_vector.cmp_info.disabled_reason, "NVML function nvmlDeviceGetPowerUsage not found.", PAPI_MAX_STR_LEN);
        return (PAPI_ENOSUPP);
    }
    nvmlDeviceGetTemperaturePtr = dlsym(dl3, "nvmlDeviceGetTemperature");
    if (dlerror() != NULL) {
        strncpy(_nvml_vector.cmp_info.disabled_reason, "NVML function nvmlDeviceGetTemperature not found.", PAPI_MAX_STR_LEN);
        return (PAPI_ENOSUPP);
    }
    nvmlDeviceGetTotalEccErrorsPtr = dlsym(dl3, "nvmlDeviceGetTotalEccErrors");
    if (dlerror() != NULL) {
        strncpy(_nvml_vector.cmp_info.disabled_reason, "NVML function nvmlDeviceGetTotalEccErrors not found.", PAPI_MAX_STR_LEN);
        return (PAPI_ENOSUPP);
    }
    nvmlDeviceGetUtilizationRatesPtr = dlsym(dl3, "nvmlDeviceGetUtilizationRates");
    if (dlerror() != NULL) {
        strncpy(_nvml_vector.cmp_info.disabled_reason, "NVML function nvmlDeviceGetUtilizationRates not found.", PAPI_MAX_STR_LEN);
        return (PAPI_ENOSUPP);
    }
    nvmlDeviceGetHandleByIndexPtr = dlsym(dl3, "nvmlDeviceGetHandleByIndex");
    if (dlerror() != NULL) {
        strncpy(_nvml_vector.cmp_info.disabled_reason, "NVML function nvmlDeviceGetHandleByIndex not found.", PAPI_MAX_STR_LEN);
        return (PAPI_ENOSUPP);
    }
    nvmlDeviceGetPciInfoPtr = dlsym(dl3, "nvmlDeviceGetPciInfo");
    if (dlerror() != NULL) {
        strncpy(_nvml_vector.cmp_info.disabled_reason, "NVML function nvmlDeviceGetPciInfo not found.", PAPI_MAX_STR_LEN);
        return (PAPI_ENOSUPP);
    }
    nvmlDeviceGetNamePtr = dlsym(dl3, "nvmlDeviceGetName");
    if (dlerror() != NULL) {
        strncpy(_nvml_vector.cmp_info.disabled_reason, "NVML function nvmlDeviceGetName not found.", PAPI_MAX_STR_LEN);
        return (PAPI_ENOSUPP);
    }
    nvmlDeviceGetInforomVersionPtr = dlsym(dl3, "nvmlDeviceGetInforomVersion");
    if (dlerror() != NULL) {
        strncpy(_nvml_vector.cmp_info.disabled_reason, "NVML function nvmlDeviceGetInforomVersion not found.", PAPI_MAX_STR_LEN);
        return (PAPI_ENOSUPP);
    }
    nvmlDeviceGetEccModePtr = dlsym(dl3, "nvmlDeviceGetEccMode");
    if (dlerror() != NULL) {
        strncpy(_nvml_vector.cmp_info.disabled_reason, "NVML function nvmlDeviceGetEccMode not found.", PAPI_MAX_STR_LEN);
        return (PAPI_ENOSUPP);
    }
    nvmlInitPtr = dlsym(dl3, "nvmlInit");
    if (dlerror() != NULL) {
        strncpy(_nvml_vector.cmp_info.disabled_reason, "NVML function nvmlInit not found.", PAPI_MAX_STR_LEN);
        return (PAPI_ENOSUPP);
    }
    nvmlDeviceGetCountPtr = dlsym(dl3, "nvmlDeviceGetCount");
    if (dlerror() != NULL) {
        strncpy(_nvml_vector.cmp_info.disabled_reason, "NVML function nvmlDeviceGetCount not found.", PAPI_MAX_STR_LEN);
        return (PAPI_ENOSUPP);
    }
    nvmlShutdownPtr = dlsym(dl3, "nvmlShutdown");
    if (dlerror() != NULL) {
        strncpy(_nvml_vector.cmp_info.disabled_reason, "NVML function nvmlShutdown not found.", PAPI_MAX_STR_LEN);
        return (PAPI_ENOSUPP);
    }
    nvmlDeviceGetPowerManagementLimitPtr = dlsym(dl3, "nvmlDeviceGetPowerManagementLimit");
    if (dlerror() != NULL) {
        strncpy(_nvml_vector.cmp_info.disabled_reason, "NVML function nvmlDeviceGetPowerManagementLimit not found.", PAPI_MAX_STR_LEN);
        return (PAPI_ENOSUPP);
    }
    nvmlDeviceSetPowerManagementLimitPtr = dlsym(dl3, "nvmlDeviceSetPowerManagementLimit");
    if (dlerror() != NULL) {
        strncpy(_nvml_vector.cmp_info.disabled_reason, "NVML function nvmlDeviceSetPowerManagementLimit not found.", PAPI_MAX_STR_LEN);
        return (PAPI_ENOSUPP);
    }
    nvmlDeviceGetPowerManagementLimitConstraintsPtr = dlsym(dl3, "nvmlDeviceGetPowerManagementLimitConstraints");
    if (dlerror() != NULL) {
        strncpy(_nvml_vector.cmp_info.disabled_reason, "NVML function nvmlDeviceGetPowerManagementLimitConstraints not found.", PAPI_MAX_STR_LEN);
        return (PAPI_ENOSUPP);
    }
    return (PAPI_OK);
}

Here is the caller graph for this function:

nvml_hardware_read()

static int nvml_hardware_read ( long long *  value, int  which_one  )

static

Code that reads event values.

Definition at line 450 of file linux-nvml.c.

{
    nvml_native_event_entry_t *entry;
    nvmlDevice_t handle;
    int cudaIdx = -1;

    entry = &nvml_native_table[which_one];
    *value = (long long) - 1;
    /* replace entry->resources with the current cuda_device->nvml device */
    cudaIdx = nvml_dev_id_table[which_one];

    if (cudaIdx < 0 || cudaIdx > device_count)
        return PAPI_EINVAL;

    /* Make sure the device we are running on has the requested event */
    if (!HAS_FEATURE(features[cudaIdx] , entry->type))
        return PAPI_EINVAL;

    handle = devices[cudaIdx];

    switch (entry->type) {
    case FEATURE_CLOCK_INFO:
        *value =  getClockSpeed(handle, (nvmlClockType_t)entry->options.clock);
        break;
    case FEATURE_ECC_LOCAL_ERRORS:
        *value = getEccLocalErrors(handle,
                                   (nvmlEccBitType_t)entry->options.ecc_opts.bits,
                                   (int)entry->options.ecc_opts.which_one);
        break;
    case FEATURE_FAN_SPEED:
        *value = getFanSpeed(handle);
        break;
    case FEATURE_MAX_CLOCK:
        *value = getMaxClockSpeed(handle,
                                  (nvmlClockType_t)entry->options.clock);
        break;
    case FEATURE_MEMORY_INFO:
        *value = getMemoryInfo(handle,
                               (int)entry->options.which_one);
        break;
    case FEATURE_PERF_STATES:
        *value = getPState(handle);
        break;
    case FEATURE_POWER:
        *value = getPowerUsage(handle);
        break;
    case FEATURE_TEMP:
        *value = getTemperature(handle);
        break;
    case FEATURE_ECC_TOTAL_ERRORS:
        *value = getTotalEccErrors(handle,
                                   (nvmlEccBitType_t)entry->options.ecc_opts.bits);
        break;
    case FEATURE_UTILIZATION:
        *value = getUtilization(handle,
                                (int)entry->options.which_one);
        break;
    case FEATURE_POWER_MANAGEMENT:
        *value = getPowerManagementLimit(handle);
        break;

    case FEATURE_NVML_POWER_MANAGEMENT_LIMIT_CONSTRAINT_MIN:
        *value = power_management_limit_constraint_min[cudaIdx];
        break;

    case FEATURE_NVML_POWER_MANAGEMENT_LIMIT_CONSTRAINT_MAX:
        *value = power_management_limit_constraint_max[cudaIdx];
        break;

    default:
        return PAPI_EINVAL;
    }
    if (*value == (long long)(unsigned long long) - 1)
        return PAPI_EINVAL;

    return PAPI_OK;
}

Here is the call graph for this function:

Here is the caller graph for this function:

nvml_hardware_reset()

static void nvml_hardware_reset ( )

static

Definition at line 417 of file linux-nvml.c.

{
    /* nvmlDeviceSet* and nvmlDeviceClear* calls require root/admin access, so while
     * possible to implement a reset on the ECC counters, we pass */
    /*
       for ( i=0; i < device_count; i++ )
       nvmlDeviceClearEccErrorCounts( device[i], NVML_VOLATILE_ECC );
    */
    int i;
    nvmlReturn_t ret;
    unsigned int templimit = 0;
    for (i = 0; i < device_count; i++) {
        if (HAS_FEATURE(features[i], FEATURE_POWER_MANAGEMENT)) {
            // if power management is available
            if (power_management_initial_limit[i] != 0) {
                ret = (*nvmlDeviceGetPowerManagementLimitPtr)(devices[i], &templimit);
                if ((ret == NVML_SUCCESS) && (templimit != power_management_initial_limit[i])) {
                    SUBDBG("Reset power_management_limit on device %d to initial value of %d \n", i, power_management_initial_limit[i]);
                    // if power is not at its initial value
                    // reset to initial value
                    ret = (*nvmlDeviceSetPowerManagementLimitPtr)(devices[i], power_management_initial_limit[i]);
                    if (ret != NVML_SUCCESS)
                        SUBDBG("Unable to reset the NVML power management limit on device %i to %ull (return code %d) \n", i, power_management_initial_limit[i] , ret);
                }
            }
        }
    }
}

Here is the caller graph for this function:

nvml_hardware_write()

static int nvml_hardware_write ( long long *  value, int  which_one  )

static

Code that reads event values.

Definition at line 532 of file linux-nvml.c.

{
    nvml_native_event_entry_t *entry;
    nvmlDevice_t handle;
    int cudaIdx = -1;
    nvmlReturn_t nvret;

    entry = &nvml_native_table[which_one];
    /* replace entry->resources with the current cuda_device->nvml device */
    cudaIdx = nvml_dev_id_table[which_one];

    if (cudaIdx < 0 || cudaIdx > device_count)
        return PAPI_EINVAL;

    /* Make sure the device we are running on has the requested event */
    if (!HAS_FEATURE(features[cudaIdx] , entry->type))
        return PAPI_EINVAL;

    handle = devices[cudaIdx];

    switch (entry->type) {
    case FEATURE_POWER_MANAGEMENT: {
        unsigned int setToPower = (unsigned int) * value;
        if (setToPower < power_management_limit_constraint_min[cudaIdx]) {
            SUBDBG("Error: Desired power %u mW < minimum %u mW on device %d\n", setToPower, power_management_limit_constraint_min[cudaIdx], cudaIdx);
            return PAPI_EINVAL;
        }
        if (setToPower > power_management_limit_constraint_max[cudaIdx]) {
            SUBDBG("Error: Desired power %u mW > maximum %u mW on device %d\n", setToPower, power_management_limit_constraint_max[cudaIdx], cudaIdx);
            return PAPI_EINVAL;
        }
        if ((nvret = (*nvmlDeviceSetPowerManagementLimitPtr)(handle, setToPower)) != NVML_SUCCESS) {
            SUBDBG("Error: %s\n", (*nvmlErrorStringPtr)(nvret));
            return PAPI_EINVAL;
        }
    }
    break;

    default:
        return PAPI_EINVAL;
    }

    return PAPI_OK;
}

Here is the caller graph for this function:

Variable Documentation

_dl_non_dynamic_init

void(* _dl_non_dynamic_init) (void)

(

void

)

Holds control flags. Usually there's one of these per event-set. Usually this is out-of band configuration of the hardware

< Copy of counts, holds results when stopped

Definition at line 46 of file linux-nvml.c.

                                  {
    int num_events;
    int which_counter[NVML_MAX_COUNTERS];
    long long counter[NVML_MAX_COUNTERS];
} nvml_control_state_t;

_nvml_vector

papi_vector_t _nvml_vector

Vector that points to entry points for our component

Definition at line 1740 of file linux-nvml.c.

device_count

int device_count = 0

static

Number of devices detected at component_init time

Definition at line 141 of file linux-nvml.c.

devices

nvmlDevice_t* devices = NULL

static

Definition at line 146 of file linux-nvml.c.

features

int* features = NULL

static

Definition at line 147 of file linux-nvml.c.

num_events

int num_events = 0

static

number of events in the table

Definition at line 144 of file linux-nvml.c.

nvml_control_state_t

nvml_control_state_t

Definition at line 129 of file linux-nvml.c.

nvml_dev_id_table

int* nvml_dev_id_table = NULL

static

Definition at line 138 of file linux-nvml.c.

nvml_native_table

nvml_native_event_entry_t* nvml_native_table = NULL

static

This table contains the native events

Definition at line 137 of file linux-nvml.c.

power_management_initial_limit

unsigned int* power_management_initial_limit = NULL

static

Definition at line 148 of file linux-nvml.c.

power_management_limit_constraint_max

unsigned int* power_management_limit_constraint_max = NULL

static

Definition at line 150 of file linux-nvml.c.

power_management_limit_constraint_min

unsigned int* power_management_limit_constraint_min = NULL

static

Definition at line 149 of file linux-nvml.c.
