pcgetrf_rectil.c File Reference

#include "common.h"

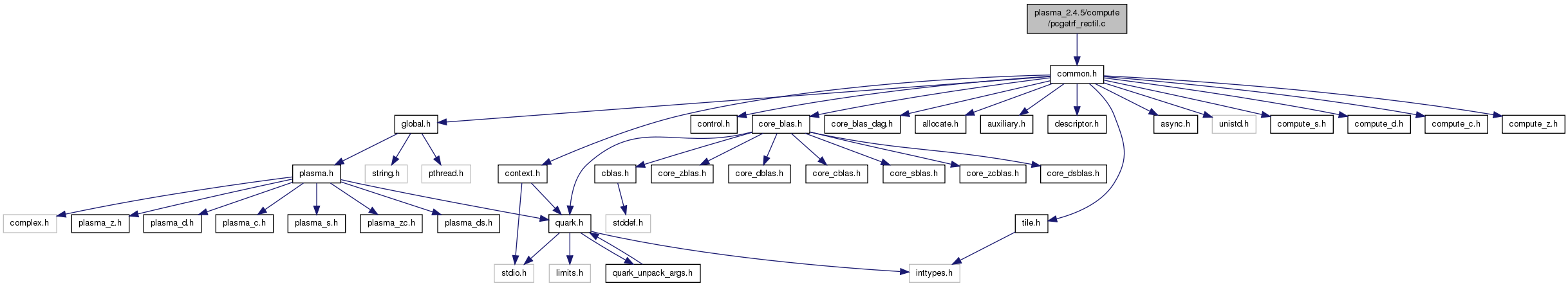

Include dependency graph for pcgetrf_rectil.c:

Go to the source code of this file.

Macros
#define	PARALLEL_KERNEL
#define	A(m, n)   BLKADDR(A, PLASMA_Complex32_t, m, n)
#define	IPIV(k)   &(IPIV[(int64_t)A.mb*(int64_t)(k)])
#define	plasma_pcgetrf_rectil_rl_quark   plasma_pcgetrf_rectil_quark

Functions
void	CORE_cgetrf_rectil_init (void)
void	plasma_pcgetrf_rectil_rl_quark (PLASMA_desc A, int *IPIV, PLASMA_sequence *sequence, PLASMA_request *request)
void	plasma_pcgetrf_tile_ll_quark (PLASMA_desc A, int *IPIV, PLASMA_sequence *sequence, PLASMA_request *request)

---

Detailed Description

PLASMA auxiliary routines PLASMA is a software package provided by Univ. of Tennessee, Univ. of California Berkeley and Univ. of Colorado Denver

LU with Partial pivoting.

Version:

2.4.5

Author:

Mathieu Faverge

Hatem Ltaief

Date:

2009-11-15

c Tue Nov 22 14:35:42 2011

Definition in file pcgetrf_rectil.c.

---

Macro Definition Documentation

#define A	(		m,
			n
	)		BLKADDR(A, PLASMA_Complex32_t, m, n)

Definition at line 24 of file pcgetrf_rectil.c.

#define IPIV

(

k

)

&(IPIV[(int64_t)A.mb*(int64_t)(k)])

Definition at line 25 of file pcgetrf_rectil.c.

#define PARALLEL_KERNEL

Definition at line 23 of file pcgetrf_rectil.c.

#define plasma_pcgetrf_rectil_rl_quark   plasma_pcgetrf_rectil_quark

Definition at line 27 of file pcgetrf_rectil.c.

---

Function Documentation

void CORE_cgetrf_rectil_init

(

void

)

Definition at line 92 of file core_cgetrf_rectil.c.

                              {
    int i;
    for (i = 0; i < AMAX1BUF_SIZE; ++i) CORE_camax1buf[i] = -1.0;
    sfmin =  LAPACKE_slamch_work('S');
}

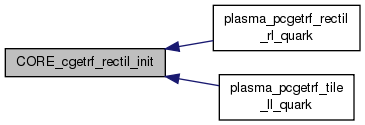

Here is the caller graph for this function:

void plasma_pcgetrf_rectil_rl_quark	(	PLASMA_desc	A,
		int *	IPIV,
		PLASMA_sequence *	sequence,
		PLASMA_request *	request
	)

Parallel tile LU factorization - dynamic scheduling - Right looking

Definition at line 32 of file pcgetrf_rectil.c.

References A, BLKLDD, CORE_cgetrf_rectil_init(), GATHERV, INOUT, INPUT, IPIV, plasma_desc_t::lm, plasma_desc_t::m, max, plasma_desc_t::mb, min, plasma_desc_t::mt, plasma_desc_t::n, plasma_desc_t::nb, plasma_desc_t::nt, plasma_context_self(), plasma_desc_submatrix(), PLASMA_SIZE, PLASMA_SUCCESS, PlasmaNoTrans, plasma_context_struct::quark, QUARK_CORE_cgemm2(), QUARK_CORE_cgemm_f2(), QUARK_CORE_cgetrf_rectil(), QUARK_CORE_claswp_ontile_f2(), QUARK_CORE_cswptr_ontile(), plasma_sequence_t::quark_sequence, QUARK_Task_Flag_Set(), Quark_Task_Flags_Initializer, QUARK_TASK_MAX_PRIORITY, QUARK_TASK_MIN_PRIORITY, plasma_sequence_t::status, TASK_PRIORITY, TASK_SEQUENCE, and TASK_THREAD_COUNT.

{
    int k, m, n;
    plasma_context_t *plasma;
    int tempk, tempm, tempkm, tempkn, tempmm, tempnn;
    int ldak, ldam;
    Quark_Task_Flags task_flagsP = Quark_Task_Flags_Initializer;
    Quark_Task_Flags task_flagsU = Quark_Task_Flags_Initializer;

    PLASMA_Complex32_t zone  = (PLASMA_Complex32_t)1.0;
    PLASMA_Complex32_t mzone = (PLASMA_Complex32_t)-1.0;

    void * fakedep;
     /* How many threads per panel? Probably needs to be adjusted during factorization. */
    int panel_thread_count;

    plasma = plasma_context_self();
    if (sequence->status != PLASMA_SUCCESS)
        return;
    QUARK_Task_Flag_Set(&task_flagsP, TASK_SEQUENCE, (intptr_t)sequence->quark_sequence);
    QUARK_Task_Flag_Set(&task_flagsU, TASK_SEQUENCE, (intptr_t)sequence->quark_sequence);

    /* We start at PLASMA_SIZE-1, to keep the first thread adding task to the queue */
    panel_thread_count = min( max(PLASMA_SIZE, 2)-1, 48); /* kernel doesn't accept more than 48 cores */

    QUARK_Task_Flag_Set(&task_flagsP, TASK_THREAD_COUNT, panel_thread_count );

    CORE_cgetrf_rectil_init();

    for (k = 0; k < min(A.mt, A.nt); k++)
    {
        tempk  = k * A.mb;
        tempm  = A.m - tempk;
        tempkm = k == A.mt-1 ? tempm      : A.mb;
        tempkn = k == A.nt-1 ? A.n-k*A.nb : A.nb;
        ldak = BLKLDD(A, k);

        QUARK_Task_Flag_Set(&task_flagsU, TASK_PRIORITY, QUARK_TASK_MAX_PRIORITY - k );

        while ( ((panel_thread_count * 4 * A.mb) > tempm)
                && (panel_thread_count > 1) ) {
          panel_thread_count--;
          QUARK_Task_Flag_Set(&task_flagsP, TASK_THREAD_COUNT, panel_thread_count );
        }

        QUARK_Task_Flag_Set(&task_flagsP, TASK_PRIORITY, QUARK_TASK_MAX_PRIORITY - k );

        QUARK_CORE_cgetrf_rectil(
            plasma->quark, &task_flagsP,
            plasma_desc_submatrix(A, tempk, k*A.nb, tempm, tempkn),
            A(k, k), A.mb*A.nb, IPIV(k),
            sequence, request, 1, tempk,
            panel_thread_count );

        fakedep = (void *)(intptr_t)(k+1);
        for (n = k+1; n < A.nt; n++)
        {
            QUARK_Task_Flag_Set(&task_flagsU, TASK_PRIORITY, QUARK_TASK_MAX_PRIORITY - n );
            /*
             * Apply row interchange after the panel (work on the panel)
             */
            tempnn = n == A.nt-1 ? A.n-n*A.nb : A.nb;
            QUARK_CORE_cswptr_ontile(
                plasma->quark, &task_flagsU,
                plasma_desc_submatrix(A, tempk, n*A.nb, tempm, tempnn),
                A(k, n), 1, tempkm, IPIV(k), 1,
                A(k, k), ldak);

            m = k+1;
            if ( m < A.mt ) {
                tempmm = m == A.mt-1 ? A.m-m*A.mb : A.mb;
                ldam = BLKLDD(A, m);

                QUARK_CORE_cgemm2(
                    plasma->quark, &task_flagsU,
                    PlasmaNoTrans, PlasmaNoTrans,
                    tempmm, tempnn, A.nb, A.mb,
                    mzone, A(m, k), ldam,
                           A(k, n), ldak,
                    zone,  A(m, n), ldam);

                for (m = k+2; m < A.mt; m++)
                {
                    tempmm = m == A.mt-1 ? A.m-m*A.mb : A.mb;
                    ldam = BLKLDD(A, m);

                    QUARK_CORE_cgemm_f2(
                        plasma->quark, &task_flagsU,
                        PlasmaNoTrans, PlasmaNoTrans,
                        tempmm, tempnn, A.nb, A.mb,
                        mzone, A(m, k), ldam,
                               A(k, n), ldak,
                        zone,  A(m, n), ldam,
                        /* Dependency on next swapa (gemm need to be done before) */
                        A(k+1, n), A.mb*A.nb, INOUT | GATHERV,
                        /* Dependency on next swapb (gemm need to use panel k before it has to be swaped */
                        fakedep,   1,         INPUT );
                }
            }
        }
    }

    for (k = 0; k < min(A.mt, A.nt); k++)
    {
        int mintmp;
        tempk  = k * A.mb;
        tempm  = A.m - tempk;
        tempkm = k == A.mt-1 ? tempm : A.mb;
        tempkn = k == A.nt-1 ? A.n - k * A.nb : A.nb;
        mintmp = min(tempkm, tempkn);
        ldak = BLKLDD(A, k);

        /*
         * Apply row interchange behind the panel (work on the panel)
         */
        QUARK_Task_Flag_Set(&task_flagsU, TASK_PRIORITY, QUARK_TASK_MIN_PRIORITY );
        fakedep = (void*)(intptr_t)k;
        for (n = 0; n < k; n++)
        {
            tempnn = n == A.nt-1 ? A.n-n*A.nb : A.nb;
            QUARK_CORE_claswp_ontile_f2(
                plasma->quark, &task_flagsU,
                plasma_desc_submatrix(A, tempk, n*A.nb, tempm, tempnn),
                A(k, n), 1, mintmp, IPIV(k), 1,
                /* Dependency on previous swapb */
                A(k-1,n), A.lm*A.nb, INPUT,
                /* Dependency on all GEMM from previous step */
                fakedep,  1,         INOUT | GATHERV );
        }
    }
}

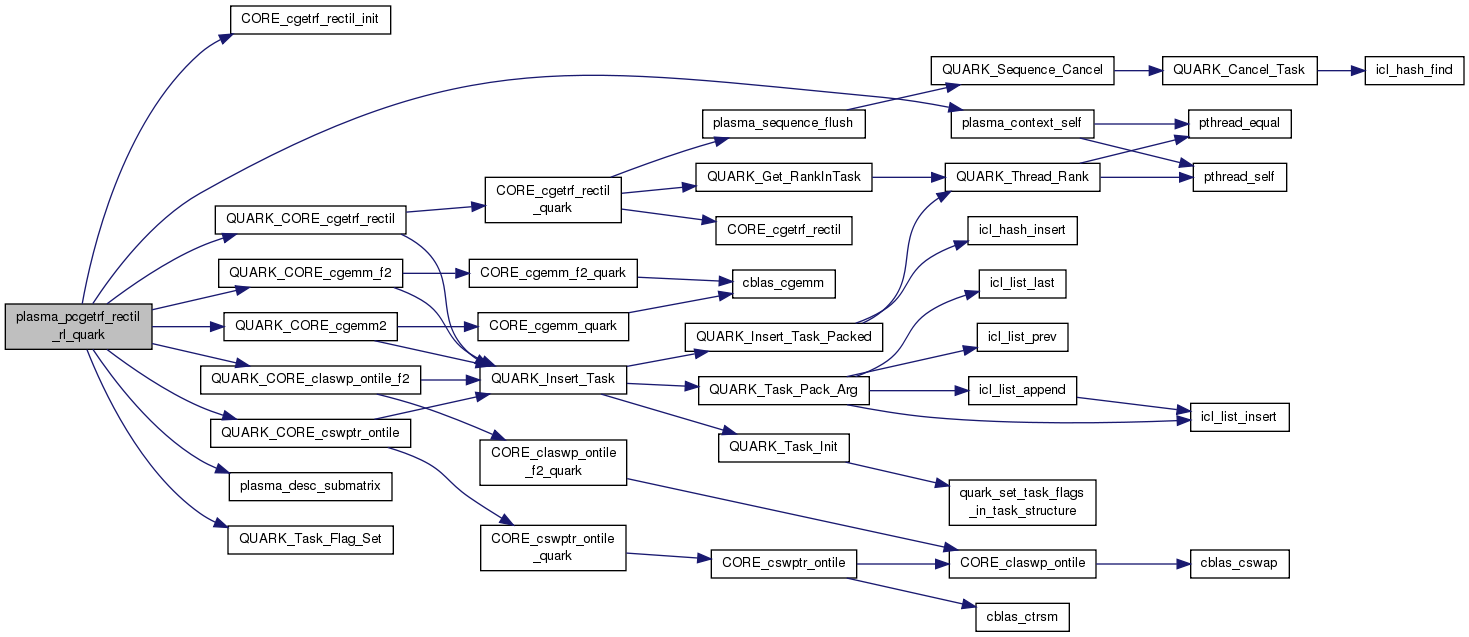

Here is the call graph for this function:

void plasma_pcgetrf_tile_ll_quark	(	PLASMA_desc	A,
		int *	IPIV,
		PLASMA_sequence *	sequence,
		PLASMA_request *	request
	)

Parallel tile LU factorization - dynamic scheduling - Left looking

Definition at line 167 of file pcgetrf_rectil.c.

References A, BLKLDD, CORE_cgetrf_rectil_init(), GATHERV, INOUT, INPUT, IPIV, plasma_desc_t::lm, plasma_desc_t::m, max, plasma_desc_t::mb, min, plasma_desc_t::mt, plasma_desc_t::n, plasma_desc_t::nb, plasma_desc_t::nt, plasma_context_self(), plasma_desc_submatrix(), PLASMA_SIZE, PLASMA_SUCCESS, PlasmaNoTrans, plasma_context_struct::quark, QUARK_CORE_cgemm2(), QUARK_CORE_cgemm_f2(), QUARK_CORE_cgetrf_rectil(), QUARK_CORE_claswp_ontile_f2(), QUARK_CORE_cswptr_ontile(), plasma_sequence_t::quark_sequence, QUARK_Task_Flag_Set(), Quark_Task_Flags_Initializer, QUARK_TASK_MAX_PRIORITY, QUARK_TASK_MIN_PRIORITY, plasma_sequence_t::status, TASK_PRIORITY, TASK_SEQUENCE, and TASK_THREAD_COUNT.

{
    int k, m, n;
    plasma_context_t *plasma;
    int tempkm, tempkn, tempmm, tempnn;
    int tempk, tempm;
    int ldak, ldam;
    Quark_Task_Flags task_flagsP = Quark_Task_Flags_Initializer;
    Quark_Task_Flags task_flagsU = Quark_Task_Flags_Initializer;

    PLASMA_Complex32_t zone  = (PLASMA_Complex32_t)1.0;
    PLASMA_Complex32_t mzone = (PLASMA_Complex32_t)-1.0;

    void * fakedep;
     /* How many threads per panel? Probably needs to be adjusted during factorization. */
    int panel_thread_count;

    plasma = plasma_context_self();
    if (sequence->status != PLASMA_SUCCESS)
        return;
    QUARK_Task_Flag_Set(&task_flagsP, TASK_SEQUENCE, (intptr_t)sequence->quark_sequence);
    QUARK_Task_Flag_Set(&task_flagsU, TASK_SEQUENCE, (intptr_t)sequence->quark_sequence);

    /* We start at PLASMA_SIZE-1, to keep the first thread adding task to the queue */
    panel_thread_count = min( max(PLASMA_SIZE, 2)-1, 48); /* kernel doesn't accept more than 48 cores */

    QUARK_Task_Flag_Set(&task_flagsP, TASK_THREAD_COUNT, panel_thread_count );

    CORE_cgetrf_rectil_init();

    fakedep = (void*)(intptr_t)1;
    for (n = 0; n < A.nt; n++)
    {
        tempnn = n == A.nt-1 ? A.n-n*A.nb : A.nb;

        QUARK_Task_Flag_Set(&task_flagsU, TASK_PRIORITY, QUARK_TASK_MAX_PRIORITY - n );
        QUARK_Task_Flag_Set(&task_flagsP, TASK_PRIORITY, QUARK_TASK_MAX_PRIORITY - n );

        for (k = 0; k < min(A.mt, n); k++)
        {
            tempk  = k * A.mb;
            tempm  = A.m - tempk;
            tempkm = k == A.mt-1 ? tempm : A.mb;
            ldak = BLKLDD(A, k);

            QUARK_CORE_cswptr_ontile(
                plasma->quark, &task_flagsU,
                plasma_desc_submatrix(A, tempk, n*A.nb, tempm, tempnn),
                A(k, n), 1, tempkm, IPIV(k), 1,
                A(k, k), ldak);

            if (k < A.mt-1) {
                m = k+1;
                tempmm = m == A.mt-1 ? A.m-m*A.mb : A.mb;
                ldam = BLKLDD(A, m);

                QUARK_CORE_cgemm2(
                    plasma->quark, &task_flagsU,
                    PlasmaNoTrans, PlasmaNoTrans,
                    tempmm, tempnn, A.nb, A.mb,
                    mzone, A(m, k), ldam,
                           A(k, n), ldak,
                    zone,  A(m, n), ldam);

                fakedep = (void*)(intptr_t)k;
                for (m = k+2; m < A.mt; m++)
                {
                    tempmm = m == A.mt-1 ? A.m-m*A.mb : A.mb;
                    ldam = BLKLDD(A, m);

                    QUARK_CORE_cgemm_f2(
                        plasma->quark, &task_flagsU,
                        PlasmaNoTrans, PlasmaNoTrans,
                        tempmm, tempnn, A.nb, A.mb,
                        mzone, A(m, k), ldam,
                        A(k, n), ldak,
                        zone,  A(m, n), ldam,
                        /* Dependency on next swapa or getrf (gemm need to be done before) */
                        A(k+1, n), A.mb*A.nb, INOUT | GATHERV,
                        /* Dependency on next swapb (gemm need to use panel k before it has to be swaped */
                        fakedep,   1,         INPUT );
                }
            }
        }

        k = n;
        if ( n < A.mt ) {
            tempm  = A.m - k * A.mb;
            tempkn = k == A.nt-1 ? A.n-k*A.nb : A.nb;
            ldak = BLKLDD(A, k);

            while ( ((panel_thread_count * 4 * A.mb) > tempm)
                    && (panel_thread_count > 1) ) {
                panel_thread_count--;
                QUARK_Task_Flag_Set(&task_flagsP, TASK_THREAD_COUNT, panel_thread_count );
            }

            QUARK_CORE_cgetrf_rectil(
                plasma->quark, &task_flagsP,
                plasma_desc_submatrix(A, k*A.mb, k*A.nb, tempm, tempkn), A(k, k), A.mb*A.nb,
                IPIV(k), sequence, request,
                1, A.mb*k, panel_thread_count );
        }
    }

    QUARK_Task_Flag_Set(&task_flagsU, TASK_PRIORITY, QUARK_TASK_MIN_PRIORITY );
    for (k = 0; k < min(A.mt, A.nt); k++)
    {
        tempk  = k * A.mb;
        tempm  = A.m - tempk;
        tempkm = k == A.mt-1 ? tempm : A.mb;
        ldak = BLKLDD(A, k);

        fakedep = (void*)(intptr_t)k;
        for (n = 0; n < k; n++)
        {
            /*
             * Apply row interchange behind the panel (work on the panel)
             */
            tempnn = n == A.nt-1 ? A.n-n*A.nb : A.nb;
            QUARK_CORE_claswp_ontile_f2(
                plasma->quark, &task_flagsU,
                plasma_desc_submatrix(A, tempk, n*A.nb, tempm, tempnn),
                A(k, n), 1, tempkm, IPIV(k), 1,
                /* Dependency on previous swapb */
                A(k-1,n), A.lm*A.nb, INPUT,
                /* Dependency on all GEMM from previous step */
                fakedep,  1,         INOUT | GATHERV );
        }
    }
}

Here is the call graph for this function:
