papi_component_avail.c File Reference

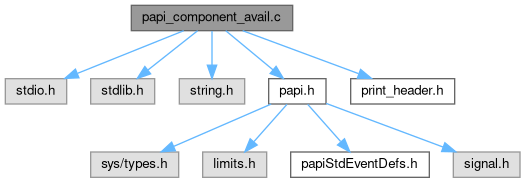

Include dependency graph for papi_component_avail.c:

Go to the source code of this file.

Data Structures
struct	command_flags_t

Macros
#define	EVT_LINE   80

Functions
static void	force_cmp_init (int cid)
static void	print_help (char **argv)
static void	parse_args (int argc, char **argv, command_flags_t *f)
int	main (int argc, char **argv)

Macro Definition Documentation

EVT_LINE

#define EVT_LINE   80

Definition at line 33 of file papi_component_avail.c.

Function Documentation

force_cmp_init()

void force_cmp_init ( int  cid )

static

Definition at line 193 of file papi_component_avail.c.

{
    int nvt_code = 0 | PAPI_NATIVE_MASK;
    PAPI_enum_cmp_event(&nvt_code, PAPI_ENUM_FIRST, cid);
}

Here is the caller graph for this function:

main()

int main	(	int	argc,
		char **	argv
	)

Definition at line 81 of file papi_component_avail.c.

{
    int i;
    int retval;
    const PAPI_hw_info_t *hwinfo = NULL;
    const PAPI_component_info_t* cmpinfo;
    command_flags_t flags;
    int numcmp, cid;

    /* Initialize before parsing the input arguments */
    retval = PAPI_library_init( PAPI_VER_CURRENT );
    if ( retval != PAPI_VER_CURRENT ) {
        fprintf(stderr,"Error!  PAPI_library_init\n");
        return retval;
    }

    parse_args( argc, argv, &flags );

    retval = PAPI_set_debug( PAPI_VERB_ECONT );
    if ( retval != PAPI_OK ) {
        fprintf(stderr,"Error!  PAPI_set_debug\n");
        return retval;
    }

    retval = papi_print_header( "Available components and "
                    "hardware information.\n", &hwinfo );
    if ( retval != PAPI_OK ) {
        fprintf(stderr,"Error! PAPI_get_hardware_info\n");
        return 2;
    }

    /* Compiled-in Components */
    numcmp = PAPI_num_components(  );

    printf("Compiled-in components:\n");
    for ( cid = 0; cid < numcmp; cid++ ) {
      cmpinfo = PAPI_get_component_info( cid );

      printf( "Name:   %-23s %s\n", cmpinfo->name ,cmpinfo->description);

      if (cmpinfo->disabled == PAPI_EDELAY_INIT) {
          force_cmp_init(cid);
      }
      if (cmpinfo->disabled) {
        printf("   \\-> Disabled: %s\n",cmpinfo->disabled_reason);
      }

      if ( flags.details ) {
        printf( "        %-23s Version:\t\t\t%s\n", " ", cmpinfo->version );
        printf( "        %-23s Number of native events:\t%d\n", " ", cmpinfo->num_native_events);
        printf( "        %-23s Number of preset events:\t%d\n", " ", cmpinfo->num_preset_events);
        printf("\n");
      }
    }

    printf("\nActive components:\n");
    numcmp = PAPI_num_components(  );

    for ( cid = 0; cid < numcmp; cid++ ) {
      cmpinfo = PAPI_get_component_info( cid );
      if (cmpinfo->disabled) continue;

      printf( "Name:   %-23s %s\n", cmpinfo->name ,cmpinfo->description);
      printf( "        %-23s Native: %d, Preset: %d, Counters: %d\n",
          " ", cmpinfo->num_native_events, cmpinfo->num_preset_events, cmpinfo->num_cntrs);

     int pmus=0;
     for (i=0; i<PAPI_PMU_MAX; i++) {                          // Count pmus to print.
        if (cmpinfo->pmu_names[i] != NULL) pmus++;             // Non-Null get printed.
     }

     if (pmus) {                                               // If we have any, print.
         printf( "        %-23s PMUs supported: ", " ");
         int line_len = 48, name_len;
         for (i=0 ; i<PAPI_PMU_MAX ; i++) {
            if (cmpinfo->pmu_names[i] == NULL) continue;

            name_len = strlen(cmpinfo->pmu_names[i]);

            if ((line_len + 2 + name_len) > 130) {              // If it would be too long,
               printf("\n        %-23s                 ", " "); // terminate line without printing current name,
               line_len = 48;                                   // reset line length.
            }

            // if it is not the first entry on a line, separate the names
            if (line_len > 48) {
               printf(", ");
               line_len += 2;                                   // account for the separator.
            }
            printf("%s", cmpinfo->pmu_names[i]);
            line_len += name_len;                               // Add the new name to the length.
         }

         printf("\n");
     } // end if we had PMUs to print.

     printf("\n"); // extra line.

      if ( flags.details ) {
        printf( "        %-23s Version:\t\t\t%s\n", " ", cmpinfo->version );
        printf( "        %-23s Fast counter read:\t\t%d\n", " ", cmpinfo->fast_counter_read);
        printf("\n");
      }
    }


    printf
      ( "\n--------------------------------------------------------------------------------\n" );

    return 0;
}

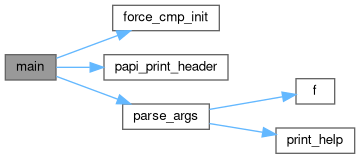

Here is the call graph for this function:

parse_args()

static void parse_args ( int  argc, char **  argv, command_flags_t *  f  )

static

Definition at line 57 of file papi_component_avail.c.

{
    int i;

    /* Look for all currently defined commands */
    memset( f, 0, sizeof ( command_flags_t ) );
    for ( i = 1; i < argc; i++ ) {
        if ( !strcmp( argv[i], "-d" ) ) {
            f->details = 1;
        } else if ( !strcmp( argv[i], "-h" ) || !strcmp( argv[i], "--help" ) )
            f->help = 1;
        else
            printf( "%s is not supported\n", argv[i] );
    }

    /* if help requested, print and bail */
    if ( f->help ) {
        print_help( argv );
        exit( 1 );
    }

}

Here is the call graph for this function:

Here is the caller graph for this function:

print_help()

static void print_help ( char **  argv )

static

Definition at line 46 of file papi_component_avail.c.

{
    printf( "This is the PAPI component avail program.\n" );
    printf( "It provides availability of installed PAPI components.\n" );
    printf( "Usage: %s [options]\n", argv[0] );
    printf( "Options:\n\n" );
    printf( "  --help, -h    print this help message\n" );
    printf( "  -d            print detailed information on each component\n" );
}
