MPI_test_infiniband_events.c File Reference

The test code uses the message passing interface (MPI) to test all interconnect related events available in the infiniband component. It is designed to generate network traffic using MPI routines with the goal to trigger some network counters. The code automatically checks if the infiniband component is enabled and correspondingly adds all available PAPI events in the event set, one at a time. In each invocation, different data sizes are communicated over the network. The event values are recorded in each case, and listed at the completion of the test. Mostly, the event values need to be checked manually for correctness. The code automatically tests expected behavior of the code for transmit (TX)/ receive (RX) event types. More...

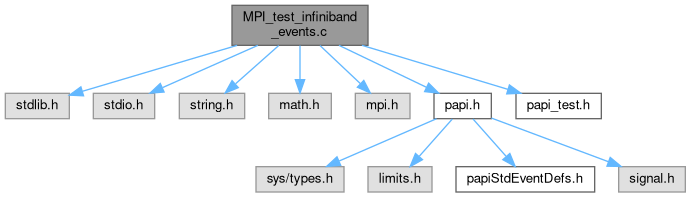

Include dependency graph for MPI_test_infiniband_events.c:

Go to the source code of this file.

Macros
#define	NSIZE_MIN   10000
#define	NSIZE_MAX   100000
#define	NSTEPS   9
#define	MAX_IB_EVENTS   150
#define	EVENT_VAL_DIFF_THRESHOLD   100
#define	NSIZE_PASS_THRESHOLD   90
#define	NSIZE_WARN_THRESHOLD   50
#define	EVENT_PASS_THRESHOLD   90
#define	EVENT_WARN_THRESHOLD   50

Functions
int	main (int argc, char **argv)

Detailed Description

Author

Rizwan Ashraf rizwa.nosp@m.n@ic.nosp@m.l.utk.nosp@m..edu

MPI-based test case for the infiniband component.

In this test, the master process distributes workload to all other processes (NumProcs-1) and then receives the results of the corresponding sub-computations. As far as message transfers is concerned, the expected behavior of this code is as follows:

1. Master TX event ~= Sum of all RX events across all workers (NumProcs-1),
2. Master RX event ~= Sum of all TX events across all workers (NumProcs-1). Usage: mpirun -n <NumProcs> ./MPI_test_infiniband_events

Definition in file MPI_test_infiniband_events.c.

Macro Definition Documentation

EVENT_PASS_THRESHOLD

#define EVENT_PASS_THRESHOLD   90

Definition at line 72 of file MPI_test_infiniband_events.c.

EVENT_VAL_DIFF_THRESHOLD

#define EVENT_VAL_DIFF_THRESHOLD   100

Definition at line 57 of file MPI_test_infiniband_events.c.

EVENT_WARN_THRESHOLD

#define EVENT_WARN_THRESHOLD   50

Definition at line 73 of file MPI_test_infiniband_events.c.

MAX_IB_EVENTS

#define MAX_IB_EVENTS   150

Definition at line 53 of file MPI_test_infiniband_events.c.

NSIZE_MAX

#define NSIZE_MAX   100000

Definition at line 48 of file MPI_test_infiniband_events.c.

NSIZE_MIN

#define NSIZE_MIN   10000

Definition at line 47 of file MPI_test_infiniband_events.c.

NSIZE_PASS_THRESHOLD

#define NSIZE_PASS_THRESHOLD   90

Definition at line 67 of file MPI_test_infiniband_events.c.

NSIZE_WARN_THRESHOLD

#define NSIZE_WARN_THRESHOLD   50

Definition at line 68 of file MPI_test_infiniband_events.c.

NSTEPS

#define NSTEPS   9

Definition at line 51 of file MPI_test_infiniband_events.c.

Function Documentation

main()

int main	(	int	argc,
		char **	argv
	)

Definition at line 75 of file MPI_test_infiniband_events.c.

                                 {

    /* Set TESTS_QUIET variable */
    tests_quiet( argc, argv );

    /*************************  SETUP PAPI ENV *************************************
     *******************************************************************************/
    int retVal, r, code;
    int ComponentID, NumComponents, IB_ID = -1;
    int EventSet = PAPI_NULL;
    int eventCount = 0;  // total events as reported by component info
    int eventNum = 0;    // number of events successfully tested

    /* error reporting */
    int addEventFailCount = 0, codeConvertFailCount = 0, eventInfoFailCount = 0;
    int PAPIstartFailCount = 0, PAPIstopFailCount = 0;
    int failedEventCodes[MAX_IB_EVENTS];
    int failedEventIndex = 0;

    /* Note: these are fixed length arrays */
    char eventNames[MAX_IB_EVENTS][PAPI_MAX_STR_LEN];
    char description[MAX_IB_EVENTS][PAPI_MAX_STR_LEN];
    long long values[NSTEPS][MAX_IB_EVENTS];

    /* these record certain event values for event value testing */
    long long rxCount[NSTEPS], txCount[NSTEPS];

    const PAPI_component_info_t *cmpInfo = NULL;
    PAPI_event_info_t eventInfo;

    /* for timing the test */
    long long startTime, endTime;
    double elapsedTime;

    /* PAPI Initialization */
    retVal = PAPI_library_init( PAPI_VER_CURRENT );
    if ( retVal != PAPI_VER_CURRENT ) {
        test_fail(__FILE__, __LINE__,"PAPI_library_init failed. The test has been terminated.\n",retVal);
    }

    /* Get total number of components detected by PAPI */
    NumComponents = PAPI_num_components();

    /* Check if infiniband component exists */
    for ( ComponentID = 0; ComponentID < NumComponents; ComponentID++ ) {

        if ( (cmpInfo = PAPI_get_component_info(ComponentID)) == NULL ) {
            fprintf(stderr, "WARNING: PAPI_get_component_info failed on one of the components.\n"
                    "\t The test will continue for now, but it will be skipped later on\n"
                    "\t if this error was for a component under test.\n");
            continue;
        }

        if (strcmp(cmpInfo->name, "infiniband") != 0) {
            continue;
        }

        // if we are here, Infiniband component is found
        if (!TESTS_QUIET) {
            printf("INFO: Component %d (%d) - %d events - %s\n",
                    ComponentID, cmpInfo->CmpIdx,
                    cmpInfo->num_native_events, cmpInfo->name);
        }

        if (cmpInfo->disabled) {
            test_skip(__FILE__,__LINE__,"Infiniband Component is disabled. The test has been terminated.\n", 0);
            break;
        }

        eventCount = cmpInfo->num_native_events;
        IB_ID = ComponentID;
        break;
    }

    /* if we did not find any valid events, just skip the test. */
    if (eventCount==0) {
        fprintf(stderr, "FATAL: No events found for the Infiniband component, even though it is enabled.\n"
                "       The test will be skipped.\n");
        test_skip(__FILE__,__LINE__,"No events found for the Infiniband component.\n", 0);
    }

    /*************************  SETUP MPI ENV **************************************
     *******************************************************************************/
    int NumProcs, Rank;

    /* Initialize MPI environment */
    MPI_Init (&argc, &argv);
    MPI_Comm_size (MPI_COMM_WORLD, &NumProcs);
    MPI_Comm_rank (MPI_COMM_WORLD, &Rank);

    if ((!TESTS_QUIET) && (Rank == 0)) {
        printf("INFO: This test should trigger some network events.\n");
    }

    /* data sizes assigned here */
    int Nmax_per_Proc = NSIZE_MAX;
    int Nmin_per_Proc = NSIZE_MIN;
    // fix data size if not appropriately set
    while (Nmax_per_Proc <= Nmin_per_Proc)
        Nmax_per_Proc = Nmin_per_Proc*10;
    int Nmax = Nmax_per_Proc * NumProcs;
    int NstepSize = (Nmax_per_Proc - Nmin_per_Proc)/NSTEPS;

    int i, j, k;  // loop variables
    int memoryAllocateFailure = 0, ALLmemoryAllocateFailure = 0; // error flags

    /* data arrays */
    double *X, *Y, *Out;
    double *Xp, *Yp, *Outp;

    /* Master will initialize data arrays */
    if (Rank == 0) {
        X = (double *) malloc (sizeof(double) * Nmax);
        Y = (double *) malloc (sizeof(double) * Nmax);
        Out = (double *) malloc (sizeof(double) * Nmax);

        // check if memory was successfully allocated.
        // Do NOT quit from here. Need to quit safely.
        if ( (X == NULL) || (Y == NULL) || (Out == NULL) ) {
            fprintf(stderr, "FATAL: Failed to allocate memory on Master Node.\n");
            memoryAllocateFailure = 1;
        }

        if (memoryAllocateFailure == 0) {

            if (!TESTS_QUIET)
                printf("INFO: Master is initializing data.\n");

            for ( i = 0; i < Nmax; i++ ) {
                X[i] = i*0.25;
                Y[i] = i*0.75;
            }

            if (!TESTS_QUIET)
                printf("INFO: Master has successfully initialized arrays.\n");

        }
    }

    // communicate to workers if master was able to successfully allocate memory
    MPI_Bcast (&memoryAllocateFailure, 1, MPI_INT, 0, MPI_COMM_WORLD);
    if (memoryAllocateFailure == 1)
        test_fail(__FILE__,__LINE__,"Could not allocate memory during the test. This is fatal and the test has been terminated.\n", 0);

    memoryAllocateFailure = 0; // re-use flag

    /* allocate memory for all nodes */
    Xp = (double *) malloc (sizeof(double) * Nmax_per_Proc);
    Yp = (double *) malloc (sizeof(double) * Nmax_per_Proc);
    Outp = (double *) malloc (sizeof(double) * Nmax_per_Proc);

    // handle error cases for memory allocation failure for all nodes.
    if ( (Xp == NULL) || (Yp == NULL) || (Outp == NULL) ) {
        fprintf(stderr, "FATAL: Failed to allocate %zu bytes on Rank %d.\n", sizeof(double)*Nmax_per_Proc, Rank);
        memoryAllocateFailure = 1;
    }
    MPI_Allreduce (&memoryAllocateFailure, &ALLmemoryAllocateFailure, 1, MPI_INT, MPI_SUM, MPI_COMM_WORLD);
    if (ALLmemoryAllocateFailure > 0)
        test_fail(__FILE__,__LINE__,"Could not allocate memory during the test. This is fatal and the test has been terminated.\n", 0);

    /* calculate data size for each compute step */
    int Nstep_per_Proc;
    int DataSizes[NSTEPS];
    for (i = 0; i < NSTEPS; i++) {
        Nstep_per_Proc = Nmin_per_Proc + (i * NstepSize);
        //last iteration or when max size is exceeded
        if ((i == (NSTEPS - 1)) || (Nstep_per_Proc > Nmax_per_Proc))
            Nstep_per_Proc = Nmax_per_Proc;
        DataSizes[i] = Nstep_per_Proc;
    }

    /*************************  MAIN TEST CODE *************************************
     *******************************************************************************/
    startTime = PAPI_get_real_nsec();

    /* create an eventSet */
    retVal = PAPI_create_eventset ( &EventSet );
    if (retVal != PAPI_OK) {
        // handle error cases for PAPI_create_eventset()
        // Two outcomes are possible here:
        // 1. PAPI_EINVAL: invalid argument. This should not occur.
        // 2. PAPI_ENOMEM: insufficient memory. If this is the case, then we need to quit the test.
        fprintf(stderr, "FATAL: Could not create an eventSet on MPI Rank %d due to: %s.\n"
                "       Test will not proceed.\n", Rank, PAPI_strerror(retVal));
        test_fail(__FILE__, __LINE__, "PAPI_create_eventset failed. This is fatal and the test has been terminated.\n", retVal);
    } // end -- handle error cases for PAPI_create_eventset()

    /* find the code for first event in component */
    code = PAPI_NATIVE_MASK;
    r = PAPI_enum_cmp_event ( &code, PAPI_ENUM_FIRST, IB_ID );

    /* add each event individually in the eventSet and measure event values. */
    /* for each event, repeat work with different data sizes. */
    while ( r == PAPI_OK ) {

        // attempt to add event to event set
        retVal = PAPI_add_event (EventSet, code);
        if (retVal != PAPI_OK ) {
            // handle error cases for PAPI_add_event()
            if (retVal == PAPI_ENOMEM) {
                fprintf(stderr, "FATAL: Could not add an event to eventSet on MPI Rank %d due to insufficient memory.\n"
                        "       Test will not proceed.\n", Rank);
                test_fail(__FILE__, __LINE__, "PAPI_add_event failed due to fatal error and the test has been terminated.\n", retVal);
            }

            if (retVal == PAPI_ENOEVST) {
                fprintf(stderr, "WARNING: Could not add an event to eventSet on MPI Rank %d since eventSet does not exist.\n"
                        "\t Test will proceed attempting to create a new eventSet\n", Rank);
                EventSet = PAPI_NULL;
                retVal = PAPI_create_eventset ( &EventSet );
                if (retVal != PAPI_OK)
                    test_fail(__FILE__, __LINE__, "PAPI_create_eventset failed while handling failure of PAPI_add_event."
                            " This is fatal and the test has been terminated.\n", retVal);
                continue;
            }

            if (retVal == PAPI_EISRUN) {
                long long tempValue;
                fprintf(stderr, "WARNING: Could not add an event to eventSet on MPI Rank %d since eventSet is already counting.\n"
                        "\t Test will proceed attempting to stop counting and re-attempting to add current event.\n", Rank);
                retVal = PAPI_stop (EventSet, &tempValue);
                if (retVal != PAPI_OK)
                    test_fail(__FILE__,__LINE__,"PAPI_stop failed while handling failure of PAPI_add_event."
                            " This is fatal and the test has been terminated.\n", retVal);
                retVal = PAPI_cleanup_eventset( EventSet );
                if (retVal != PAPI_OK)
                    test_fail(__FILE__,__LINE__,"PAPI_cleanup_eventset failed while handling failure of PAPI_add_event."
                            " This is fatal and the test has been terminated.\n", retVal);
                continue;
            }

            // for all other errors, skip an event
            addEventFailCount++; // error reporting
            failedEventCodes[failedEventIndex] = code;
            failedEventIndex++;
            fprintf(stderr, "WARNING: Could not add an event to eventSet on MPI Rank %d due to: %s.\n"
                    "\t Test will proceed attempting to add other events.\n", Rank, PAPI_strerror(retVal));

            r = PAPI_enum_cmp_event (&code, PAPI_ENUM_EVENTS, IB_ID);

            if (addEventFailCount >= eventCount) // if no event was added successfully
                break;

            continue;
        }  // end -- handle error cases for PAPI_add_event()

        /* get event name of added event */
        retVal = PAPI_event_code_to_name (code, eventNames[eventNum]);
        if (retVal != PAPI_OK ) {
            // handle error cases for PAPI_event_code_to_name().
            codeConvertFailCount++; // error reporting
            fprintf(stderr, "WARNING: PAPI_event_code_to_name failed due to: %s.\n"
                    "\t Test will proceed but an event name will not be available.\n", PAPI_strerror(retVal));
            strncpy(eventNames[eventNum], "ERROR:NOT_AVAILABLE", sizeof(eventNames[0])-1);
            eventNames[eventNum][sizeof(eventNames[0])-1] = '\0';
        } // end -- handle error cases for PAPI_event_code_to_name()

        /* get long description of added event */
        retVal = PAPI_get_event_info (code, &eventInfo);
        if (retVal != PAPI_OK ) {
            // handle error cases for PAPI_get_event_info()
            eventInfoFailCount++;  // error reporting
            fprintf(stderr, "WARNING: PAPI_get_event_info failed due to: %s.\n"
                    "\t Test will proceed but an event description will not be available.\n", PAPI_strerror(retVal));
            strncpy(description[eventNum], "ERROR:NOT_AVAILABLE", sizeof(description[0])-1);
            description[eventNum][sizeof(description[0])-1] = '\0';
        } else {
            strncpy(description[eventNum], eventInfo.long_descr, sizeof(description[0])-1);
            description[eventNum][sizeof(description[0])-1] = '\0';
        }

        /****************** PERFORM WORK (W/ DIFFERENT DATA SIZES) *********************
         *******************************************************************************/
        for (i = 0; i < NSTEPS; i++) {

            /* start recording event value */
            retVal = PAPI_start (EventSet);
            if (retVal != PAPI_OK ) {
                // handle error cases for PAPI_start()
                // we need to skip the current event being counted for all errors,
                // in all cases, errors will be handled later on.

                PAPIstartFailCount++;  // error reporting
                failedEventCodes[failedEventIndex] = code;
                failedEventIndex++;
                fprintf(stderr, "WARNING: PAPI_start failed on Event Number %d (%s) due to: %s.\n"
                        "\t Test will proceed with other events if available.\n",
                        eventNum, eventNames[eventNum], PAPI_strerror(retVal));

                for (k = i; k < NSTEPS; k++)  // fill invalid event values.
                    values[k][eventNum] = (unsigned long long) - 1;

                break;  // try next event
            } // end -- handle error cases for PAPI_start()

            if ((!TESTS_QUIET) && (Rank == 0))
                printf("INFO: Doing MPI communication for %s: min. %ld bytes transferred by each process.\n",
                        eventNames[eventNum], DataSizes[i]*sizeof(double));

            MPI_Scatter (X, DataSizes[i], MPI_DOUBLE, Xp, DataSizes[i], MPI_DOUBLE, 0, MPI_COMM_WORLD);
            MPI_Scatter (Y, DataSizes[i], MPI_DOUBLE, Yp, DataSizes[i], MPI_DOUBLE, 0, MPI_COMM_WORLD);

            /* perform calculation. */
            /* Note: there is redundant computation here. */
            for (j = 0; j < DataSizes[i]; j++)
                Outp [j] = Xp [j] + Yp [j];

            MPI_Gather (Outp, DataSizes[i], MPI_DOUBLE, Out, DataSizes[i], MPI_DOUBLE, 0, MPI_COMM_WORLD);

            /* stop recording and collect event value */
            retVal = PAPI_stop (EventSet, &values[i][eventNum]);
            if (retVal != PAPI_OK ) {
                // handle error cases for PAPI_stop()
                // we need to skip the current event for all errors
                // except one case, as below.
                PAPIstopFailCount++;  // error reporting
                if (retVal == PAPI_ENOTRUN) {
                    fprintf(stderr, "WARNING: PAPI_stop failed on Event Number %d (%s) since eventSet is not running.\n"
                            "\t Test will attempt to restart counting on this eventSet.\n",
                            eventNum, eventNames[eventNum]);
                    if (PAPIstopFailCount < NSTEPS) {
                        i = i - 1; // re-attempt this data size
                        continue;
                    }
                }
                // for all other errors, try next event.
                failedEventCodes[failedEventIndex] = code;
                failedEventIndex++;
                fprintf(stderr, "WARNING: PAPI_stop failed on Event Number %d (%s) due to: %s.\n"
                        "\t Test will proceed with other events if available.\n",
                        eventNum, eventNames[eventNum], PAPI_strerror(retVal));

                for (k = i; k < NSTEPS; k++)   // fill invalid event values
                    values[k][eventNum] = (unsigned long long) - 1;

                break;
            }  // end -- handle error cases for PAPI_stop()

            /* record number of bytes received */
            if (strstr(eventNames[eventNum], ":port_rcv_data")) {
                rxCount[i] = values[i][eventNum] * 4;  // counter value needs to be multiplied by 4 to get total number of bytes
            }
            /* record number of bytes transmitted */
            if (strstr(eventNames[eventNum], ":port_xmit_data")) {
                txCount[i] = values[i][eventNum] * 4;
            }

        }   // end -- work loop

        /* Done, clean up eventSet for next iteration */
        retVal = PAPI_cleanup_eventset( EventSet );
        if (retVal != PAPI_OK) {
            // handle failure cases for PAPI_cleanup_eventset()
            if (retVal == PAPI_ENOEVST) {
                fprintf(stderr, "WARNING: Could not clean up eventSet on MPI Rank %d since eventSet does not exist.\n"
                        "\t Test will proceed attempting to create a new eventSet\n", Rank);
                EventSet = PAPI_NULL;
                retVal = PAPI_create_eventset ( &EventSet );
                if (retVal != PAPI_OK)
                    test_fail(__FILE__, __LINE__, "PAPI_create_eventset failed while handling failure of PAPI_cleanup_eventset.\n"
                            "This is fatal and the test has been terminated.\n", retVal);
            } else if (retVal == PAPI_EISRUN) {
                long long tempValue;
                fprintf(stderr, "WARNING: Could not clean up eventSet on MPI Rank %d since eventSet is already counting.\n"
                        "\t Test will proceed attempting to stop counting and re-attempting to clean up.\n", Rank);
                retVal = PAPI_stop (EventSet, &tempValue);
                if (retVal != PAPI_OK)
                    test_fail(__FILE__,__LINE__,"PAPI_stop failed while handling failure of PAPI_cleanup_eventset."
                            "This is fatal and the test has been terminated.\n", retVal);
                retVal = PAPI_cleanup_eventset( EventSet );
                if (retVal != PAPI_OK)
                    test_fail(__FILE__,__LINE__,"PAPI_cleanup_eventset failed once again while handling failure of PAPI_cleanup_eventset."
                            "This is fatal and the test has been terminated.\n", retVal);
            } else {
                test_fail(__FILE__, __LINE__, "PAPI_cleanup_eventset failed:", retVal);
            }
        } // end -- handle failure cases for PAPI_cleanup_eventset()

        /* get next event */
        eventNum++;
        r = PAPI_enum_cmp_event (&code, PAPI_ENUM_EVENTS, IB_ID);

    } // end -- event loop

    // free memory at all nodes
    free (Xp); free (Yp); free (Outp);

    /* Done, destroy eventSet */
    retVal = PAPI_destroy_eventset( &EventSet );
    if (retVal != PAPI_OK) {
        // handle error cases for PAPI_destroy_eventset()
        if (retVal == PAPI_ENOEVST || retVal == PAPI_EINVAL) {
            fprintf(stderr, "WARNING: Could not destroy eventSet on MPI Rank %d since eventSet does not exist or has invalid value.\n"
                    "\t Test will proceed with other operations.\n", Rank);
        } else if (retVal == PAPI_EISRUN) {
            long long tempValue;
            fprintf(stderr, "WARNING: Could not destroy eventSet on MPI Rank %d since eventSet is already counting.\n"
                    "\t Test will proceed attempting to stop counting and re-attempting to clean up.\n", Rank);
            retVal = PAPI_stop (EventSet, &tempValue);
            if (retVal != PAPI_OK)
                test_fail(__FILE__,__LINE__,"PAPI_stop failed while handling failure of PAPI_destroy_eventset."
                        "This is fatal and the test has been terminated.\n", retVal);
            retVal = PAPI_cleanup_eventset( EventSet );
            if (retVal != PAPI_OK)
                test_fail(__FILE__,__LINE__,"PAPI_cleanup_eventset failed while handling failure of PAPI_destroy_eventset."
                        "This is fatal and the test has been terminated.\n", retVal);
            retVal = PAPI_destroy_eventset(&EventSet);
            if (retVal != PAPI_OK)
                test_fail(__FILE__,__LINE__,"PAPI_destroy_eventset failed once again while handling failure of PAPI_destroy_eventset."
                        " This is fatal and the test has been terminated.\n", retVal);
        } else {
            fprintf(stderr, "WARNING: Could not destroy eventSet on MPI Rank %d since there is an internal bug in PAPI.\n"
                    "\t Please report this to the developers. Test will proceed and operation may be unexpected.\n", Rank);
        }
    }  // end -- handle failure cases for PAPI_destroy_eventset()

    /*************************** SUMMARIZE RESULTS ********************************
     ******************************************************************************/
    endTime = PAPI_get_real_nsec();
    elapsedTime = ((double) (endTime-startTime))/1.0e9;

    /* print results: event values and descriptions */
    if (!TESTS_QUIET) {
        int eventX;
        // print event values at each process/rank
        printf("POST WORK EVENT VALUES (Rank, Event Name, List of Event Values w/ Different Data Sizes)>>>\n");
        for (eventX = 0; eventX < eventNum; eventX++) {
            printf("\tRank %d> %s --> \t\t", Rank, eventNames[eventX]);
            for (i = 0; i < NSTEPS; i++) {
                if (i < NSTEPS-1)
                    printf("%lld, ", values[i][eventX]);
                else
                    printf("%lld.", values[i][eventX]);
            }
            printf("\n");
        }

        // print description of each event
        if (Rank == 0) {
            printf("\n\nTHE DESCRIPTION OF EVENTS IS AS FOLLOWS>>>\n");
            for (eventX = 0; eventX < eventNum; eventX++) {
                printf("\t%s \t\t--> %s \n", eventNames[eventX], description[eventX]);
            }
        }
    }

    /* test summary: 1) sanity check on floating point computation */
    int computeTestPass = 0, computeTestPassCount = 0;
    if (Rank == 0) {
        // check results of computation
        for (i = 0; i < Nmax; i++) {
            if ( fabs(Out[i] - (X[i] + Y[i])) < 0.00001 )
                computeTestPassCount++;
        }
        // summarize results of computation
        if (computeTestPassCount == Nmax)
            computeTestPass = 1;

        // free memory
        free (X); free (Y); free (Out);
    }
    // communicate test results to everyone
    MPI_Bcast (&computeTestPass, 1, MPI_INT, 0, MPI_COMM_WORLD);

    /* test summary: 2) check TX and RX event values, if available */
    long long rxCountSumWorkers[NSTEPS], txCountSumWorkers[NSTEPS];
    long long *allProcessRxEvents, *allProcessTxEvents;
    int txFailedIndex = 0, rxFailedIndex = 0;
    int txFailedDataSizes[NSTEPS], rxFailedDataSizes[NSTEPS];
    int eventValueTestPass = 0;   // for test summary
    if ((txCount[0] > 0) && (rxCount[0] > 0)) {
        if (Rank == 0) {
            allProcessRxEvents = (long long*) malloc(sizeof(long long) * NumProcs * NSTEPS);
            allProcessTxEvents = (long long*) malloc(sizeof(long long) * NumProcs * NSTEPS);
        }
        // get all rxCount/txCount at master. Used to check if rx/tx counts match up.
        MPI_Gather (&rxCount, NSTEPS, MPI_LONG_LONG, allProcessRxEvents, NSTEPS, MPI_LONG_LONG, 0, MPI_COMM_WORLD);
        MPI_Gather (&txCount, NSTEPS, MPI_LONG_LONG, allProcessTxEvents, NSTEPS, MPI_LONG_LONG, 0, MPI_COMM_WORLD);

        // perform event count check at master
        if (Rank == 0) {
            memset (rxCountSumWorkers, 0, sizeof(long long) * NSTEPS);
            memset (txCountSumWorkers, 0, sizeof(long long) * NSTEPS);
            for (i = 0; i < NSTEPS; i++) {
                for (j = 1; j < NumProcs; j++) {
                    rxCountSumWorkers[i] += allProcessRxEvents[j*NSTEPS+i];
                    txCountSumWorkers[i] += allProcessTxEvents[j*NSTEPS+i];
                }
            }

            if (!TESTS_QUIET) printf("\n\n");
            for (i = 0; i < NSTEPS; i++) {
                // check: Master TX event ~= Sum of all RX events across all workers (NumProcs-1)
                // difference threshold may need to be adjusted based on observed values
                if ((llabs(rxCountSumWorkers[i] - txCount[i]) > EVENT_VAL_DIFF_THRESHOLD)) {
                    txFailedDataSizes[txFailedIndex] = DataSizes[i];
                    txFailedIndex++;
                    if (!TESTS_QUIET)
                        printf("WARNING: The transmit event count at Master Node (%lld) is not equal"
                                " to receive event counts at Worker Nodes (%lld) when using %ld bytes!\n"
                                "\t A difference of %lld was recorded.\n", txCount[i], rxCountSumWorkers[i],
                                DataSizes[i]*sizeof(double), llabs(rxCountSumWorkers[i] - txCount[i]));
                } else {
                    if (!TESTS_QUIET)
                        printf("PASSED: The transmit event count at Master Node (%lld) is almost equal"
                                " to receive event counts at Worker Nodes (%lld) when using %ld bytes.\n",
                                txCount[i], rxCountSumWorkers[i], DataSizes[i]*sizeof(double));
                }

                // check: Master RX event ~= Sum of all TX events across all workers (NumProcs-1)
                if ((llabs(txCountSumWorkers[i] - rxCount[i]) > EVENT_VAL_DIFF_THRESHOLD)) {
                    rxFailedDataSizes[rxFailedIndex] = DataSizes[i];
                    rxFailedIndex++;
                    if (!TESTS_QUIET)
                        printf("WARNING: The receive event count at Master Node (%lld) is not equal"
                                " to transmit event counts at Worker Nodes (%lld) when using %ld bytes!\n"
                                " A difference of %lld was recorded.\n", rxCount[i], txCountSumWorkers[i],
                                DataSizes[i]*sizeof(double), llabs(txCountSumWorkers[i] - rxCount[i]));
                } else {
                    if (!TESTS_QUIET)
                        printf("PASSED: The receive event count at Master Node (%lld) is almost equal"
                                " to transmit event counts at Worker Nodes (%lld) when using %ld bytes.\n",
                                rxCount[i], txCountSumWorkers[i], DataSizes[i]*sizeof(double));
                }
            }

            // test evaluation criteria
            if ( (((float) txFailedIndex / NSTEPS) <= (1.0 - (float) NSIZE_PASS_THRESHOLD/100)) &&
                    (((float) rxFailedIndex / NSTEPS) <= (1.0 - (float) NSIZE_PASS_THRESHOLD/100)) )
                eventValueTestPass = 1;  // pass
            else if ( (((float) txFailedIndex / NSTEPS) <= (1.0 - (float) NSIZE_WARN_THRESHOLD/100)) &&
                    (((float) rxFailedIndex / NSTEPS) <= (1.0 - (float) NSIZE_WARN_THRESHOLD/100)) )
                eventValueTestPass = -1; // warning
            else
                eventValueTestPass = 0;  // fail

        }  // end -- check RX/TX counts for all data sizes at Master node.

        // communicate test results to everyone, since only master knows the result
        MPI_Bcast (&eventValueTestPass, 1, MPI_INT, 0, MPI_COMM_WORLD);

    } else {
        eventValueTestPass = -2; // not available
    } // end -- event value test

    /* test summary: 3) number of events added and counted successfully */
    // Note: under some rare circumstances, the number of failed events at each node may be different.
    int eventNumTestPass = 0;
    // test evaluation criteria
    if (((float) failedEventIndex / eventCount) <= (1.0 - (float) EVENT_PASS_THRESHOLD/100) )
        eventNumTestPass = 1;
    else if (((float) failedEventIndex / eventCount) <= (1.0 - (float) EVENT_WARN_THRESHOLD/100) )
        eventNumTestPass = -1;
    else
        eventNumTestPass = 0;


    /* print test summary */
    if ((!TESTS_QUIET) && (Rank == 0)) {

        printf("\n\n************************ TEST SUMMARY (EVENTS) ******************************\n"
                "No. of Events NOT tested successfully: %d (%.1f%%)\n"
                "Note: the above failed event count is for Master node.\n"
                "Total No. of Events reported by component info: %d\n",
                failedEventIndex, ((float) failedEventIndex/eventCount)*100.0, eventCount);

        if (failedEventIndex > 0) {
            printf("\tNames of Events NOT tested: ");
            char failedEventName[PAPI_MAX_STR_LEN];
            for (i = 0; i < failedEventIndex; i++) {
                retVal = PAPI_event_code_to_name (failedEventCodes[i], failedEventName);
                if (retVal != PAPI_OK) {
                    strncpy(failedEventName, "ERROR:NOT_AVAILABLE", sizeof(failedEventName)-1);
                    failedEventName[sizeof(failedEventName)-1] = '\0';
                }
                printf("%s ", failedEventName);
                if ((i > 0) && (i % 2 == 1)) printf("\n   \t\t\t\t");
            }
            printf("\n");

            printf("\tThe error counts for different PAPI routines are as follows:\n"
                    "\t\t\tNo. of PAPI add event errors (major) --> %d\n"
                    "\t\t\tNo. of PAPI code convert errors (minor) --> %d\n"
                    "\t\t\tNo. of PAPI event info errors (minor) --> %d\n"
                    "\t\t\tNo. of PAPI start errors (major) --> %d\n"
                    "\t\t\tNo. of PAPI stop errors (major) --> %d\n",
                    addEventFailCount, codeConvertFailCount, eventInfoFailCount, PAPIstartFailCount, PAPIstopFailCount);
        }
        printf("The PAPI event test has ");
        if (eventNumTestPass == 1) printf("PASSED\n");
        else if (eventNumTestPass == -1) printf("PASSED WITH WARNING\n");
        else printf("FAILED\n");

        // event values
        printf("************************ TEST SUMMARY (EVENT VALUES) ************************\n");
        if ((txCount[0] > 0) && (rxCount[0] > 0)) {
            printf("No. of times transmit event at Master node did NOT match up receive events at worker nodes: %d (%.1f%%)\n"
                    "No. of times receive event at Master node did NOT match up transmit events at worker nodes: %d (%.1f%%)\n"
                    "Total No. of data sizes tested: %d\n"
                    "\tList of Data Sizes tested in bytes:\n\t\t\t",
                    txFailedIndex, ((float) txFailedIndex/NSTEPS)*100.0, rxFailedIndex, ((float) rxFailedIndex/NSTEPS)*100.0, NSTEPS);
            for (i = 0; i < NSTEPS; i++)
                printf("%ld ",DataSizes[i]*sizeof(double));
            printf("\n");
            if (txFailedIndex > 0 || rxFailedIndex > 0) {
                printf("\tList of Data Sizes where transmit count at Master was not equal to sum of all worker receive counts:\n"
                        "\t\t\t");
                for (i = 0; i < txFailedIndex; i++)
                    printf("%ld ", txFailedDataSizes[i]*sizeof(double));
                printf("\n\tList of Data Sizes where receive count at Master was not equal to sum of all worker transmit counts:\n"
                        "\t\t\t");
                for (i = 0; i < rxFailedIndex; i++)
                    printf("%ld ", rxFailedDataSizes[i]*sizeof(double));
                printf("\n");
            }
            printf("The PAPI event value test has ");
            if (eventValueTestPass == 1) printf("PASSED\n");
            else if (eventValueTestPass == -1) printf("PASSED WITH WARNING\n");
            else printf("FAILED\n");
        } else {
            printf("Transmit or receive events were NOT found!\n");
        }

        // compute values
        printf("************************ TEST SUMMARY (COMPUTE VALUES) **********************\n");
        if (computeTestPassCount != Nmax) {
            printf("No. of times sanity check FAILED on the floating point computation: %d (%.1f%%)\n"
                    "Total No. of floating point computations performed: %d \n",
                    Nmax-computeTestPassCount, ((float) (Nmax-computeTestPassCount)/Nmax)*100.0, Nmax);
        } else {
            printf("Sanity check PASSED on all floating point computations.\n"
                    "Note: this may pass even if one event was tested successfully!\n");
        }
        printf("The overall test took %.3f secs.\n\n", elapsedTime);
    } // end -- print summary of test results.

    /* finialize MPI */
    MPI_Finalize();

    /* determine success of overall test based on all tests */
    if (computeTestPass == 1 && eventValueTestPass == 1 && eventNumTestPass == 1) {
        // all has to be good for the test to pass.
        // note: test will generate a warning if tx/rx events are not available.
        test_pass( __FILE__ );
    }
    else if ( (eventValueTestPass < 0 && (eventNumTestPass < 0 || eventNumTestPass == 1) ) ||
            (eventValueTestPass == 1 && eventNumTestPass < 0) ||
            (eventValueTestPass == 1 && eventNumTestPass == 1 && computeTestPass == 0) ) {
        test_warn(__FILE__,__LINE__,"A warning was generated during any PAPI related tests or sanity check on computation failed", 0);
        test_pass(__FILE__);
    }
    else {
        // fail, in case any of eventValueTest and eventNumTest have failed,
        // irrespective of the result of computeTest.
        test_fail(__FILE__, __LINE__,"Any of PAPI event related tests have failed", 0);
    }

} // end main

Here is the call graph for this function:
