sde_lib_misc.c File Reference

This is a collection of internal utility functions that are needed to support SDEs. More...

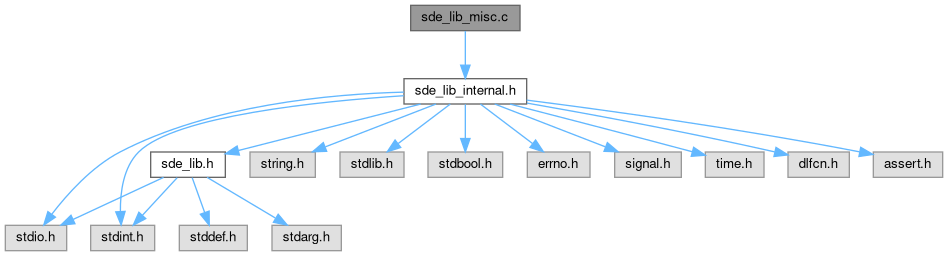

Include dependency graph for sde_lib_misc.c:

Go to the source code of this file.

Macros
#define	_SDE_AGGREGATE(_TYPE, _RSLT_TYPE)

Functions
static int	aggregate_value_in_group (long long int *data, long long int *rslt, int cntr_type, int group_flags)
static int	cast_and_store (void *data, long long int previous_value, void *rslt_ptr, int cntr_type)
static int	free_counter_resources (sde_counter_t *counter)
static papisde_library_desc_t *	find_library_by_name (const char *library_name, papisde_control_t *gctl)
static void	insert_library_handle (papisde_library_desc_t *lib_handle, papisde_control_t *gctl)
papisde_control_t *	sdei_get_global_struct (void)
papi_handle_t	do_sde_init (const char *name_of_library, papisde_control_t *gctl)
sde_counter_t *	allocate_and_insert (papisde_control_t *gctl, papisde_library_desc_t *lib_handle, const char *name, uint32_t uniq_id, int cntr_mode, int cntr_type, enum CNTR_CLASS cntr_class, cntr_class_specific_t cntr_union)
void	sdei_counting_set_to_list (void *cset_handle, cset_list_object_t **list_head)
int	sdei_setup_counter_internals (papi_handle_t handle, const char *event_name, int cntr_mode, int cntr_type, enum CNTR_CLASS cntr_class, cntr_class_specific_t cntr_union)
int	sdei_inc_ref_count (sde_counter_t *counter)
int	sdei_delete_counter (papisde_library_desc_t *lib_handle, const char *name)
int	sdei_read_counter_group (sde_counter_t *counter, long long int *rslt_ptr)
int	sdei_read_and_update_data_value (sde_counter_t *counter, long long int previous_value, long long int *rslt_ptr)
int	sdei_hardware_write (sde_counter_t *counter, long long int new_value)

Variables
int	_sde_be_verbose = 0
int	_sde_debug = 0

Detailed Description

Author

Anthony Danalis adana.nosp@m.lis@.nosp@m.icl.u.nosp@m.tk.e.nosp@m.du

Definition in file sde_lib_misc.c.

Macro Definition Documentation

_SDE_AGGREGATE

#define _SDE_AGGREGATE	(		_TYPE,
			_RSLT_TYPE
	)

Value:

                do{\
                switch(group_flags){\
                    case PAPI_SDE_SUM:\
                        *(_RSLT_TYPE *)rslt = (_RSLT_TYPE)  ((_TYPE)(*(_RSLT_TYPE *)rslt) + (_TYPE)(*((_RSLT_TYPE *)data)) );\
                        break;\
                    case PAPI_SDE_MAX:\
                        if( *(_RSLT_TYPE *)rslt < *((_RSLT_TYPE *)data) )\
                            *(_RSLT_TYPE *)rslt = *((_RSLT_TYPE *)data);\
                        break;\
                    case PAPI_SDE_MIN:\
                        if( *(_RSLT_TYPE *)rslt > *((_RSLT_TYPE *)data) )\
                            *(_RSLT_TYPE *)rslt = *((_RSLT_TYPE *)data);\
                        break;\
                    default:\
                        SDEDBG("Unsupported counter group flag: %d\n",group_flags);\
                        return -1;\
                } \
            }while(0)

Definition at line 448 of file sde_lib_misc.c.

Function Documentation

aggregate_value_in_group()

static int aggregate_value_in_group ( long long int *  data, long long int *  rslt, int  cntr_type, int  group_flags  )

static

Definition at line 467 of file sde_lib_misc.c.

                                                                                                             {
    switch(cntr_type){
        case PAPI_SDE_long_long:
            _SDE_AGGREGATE(long long int, long long int);
            return SDE_OK;
        case PAPI_SDE_int:
            // We need to cast the result to "long long" so it is expanded to 64bit to take up all the space
            _SDE_AGGREGATE(int, long long int);
            return SDE_OK;
        case PAPI_SDE_double:
            _SDE_AGGREGATE(double, double);
            return SDE_OK;
        case PAPI_SDE_float:
            // We need to cast the result to "double" so it is expanded to 64bit to take up all the space
            _SDE_AGGREGATE(float, double);
            return SDE_OK;
        default:
            SDEDBG("Unsupported counter type: %d\n",cntr_type);
            return -1;
    }
}

Here is the caller graph for this function:

allocate_and_insert()

sde_counter_t * allocate_and_insert	(	papisde_control_t *	gctl,
		papisde_library_desc_t *	lib_handle,
		const char *	name,
		uint32_t	uniq_id,
		int	cntr_mode,
		int	cntr_type,
		enum CNTR_CLASS	cntr_class,
		cntr_class_specific_t	cntr_union
	)

Definition at line 112 of file sde_lib_misc.c.

                                                                                                                                                                                                                                 {

    // make sure to calloc() the structure, so all the fields which we do not explicitly set remain zero.
    sde_counter_t *item = (sde_counter_t *)calloc(1, sizeof(sde_counter_t));
    if( NULL == item )
        return NULL;

    item->u = cntr_union;
    item->cntr_class = cntr_class;
    item->cntr_type = cntr_type;
    item->cntr_mode = cntr_mode;
    item->glb_uniq_id = uniq_id;
    item->name = strdup( name );
    item->description = strdup( name );
    item->which_lib = lib_handle;

    (void)ht_insert(lib_handle->lib_counters, ht_hash_name(name), item);
    (void)ht_insert(gctl->all_reg_counters, ht_hash_id(uniq_id), item);

    return item;
}

Here is the call graph for this function:

Here is the caller graph for this function:

cast_and_store()

static int cast_and_store ( void *  data, long long int  previous_value, void *  rslt_ptr, int  cntr_type  )

inlinestatic

Definition at line 524 of file sde_lib_misc.c.

                                                                                       {
    void *tmp_ptr;

    switch(cntr_type){
        case PAPI_SDE_long_long:
            *(long long int *)rslt_ptr = *((long long int *)data) - previous_value;
            SDEDBG(" value LL=%lld (%lld-%lld)\n", *(long long int *)rslt_ptr, *((long long int *)data), previous_value);
            return SDE_OK;
        case PAPI_SDE_int:
            // We need to cast the result to "long long" so it is expanded to 64bit to take up all the space
            *(long long int *)rslt_ptr = (long long int) (*((int *)data) - (int)previous_value);
            SDEDBG(" value LD=%lld (%d-%d)\n", *(long long int *)rslt_ptr, *((int *)data), (int)previous_value);
            return SDE_OK;
        case PAPI_SDE_double:
            tmp_ptr = &previous_value;
            *(double *)rslt_ptr = (*((double *)data) - *((double *)tmp_ptr));
            SDEDBG(" value LF=%lf (%lf-%lf)\n", *(double *)rslt_ptr, *((double *)data), *((double *)tmp_ptr));
            return SDE_OK;
        case PAPI_SDE_float:
            // We need to cast the result to "double" so it is expanded to 64bit to take up all the space
            tmp_ptr = &previous_value;
            *(double *)rslt_ptr = (double)(*((float *)data) - (float)(*((double *)tmp_ptr)) );
            SDEDBG(" value F=%lf (%f-%f)\n", *(double *)rslt_ptr, *((float *)data), (float)(*((double *)tmp_ptr)) );
            return SDE_OK;
        default:
            SDEDBG("Unsupported counter type: %d\n",cntr_type);
            return -1;
    }

}

Here is the caller graph for this function:

do_sde_init()

papi_handle_t do_sde_init	(	const char *	name_of_library,
		papisde_control_t *	gctl
	)

Definition at line 91 of file sde_lib_misc.c.

                                                                               {

    papisde_library_desc_t *tmp_lib;

    SDEDBG("Registering library: '%s'\n",name_of_library);

    // If the library is already initialized, return the handle to it
    tmp_lib = find_library_by_name(name_of_library, gctl);
    if( NULL != tmp_lib ){
        return tmp_lib;
    }

    // If the library is not already initialized, then initialize it.
    tmp_lib = ( papisde_library_desc_t* ) calloc( 1, sizeof( papisde_library_desc_t ) );
    tmp_lib->libraryName = strdup(name_of_library);

    insert_library_handle(tmp_lib, gctl);

    return tmp_lib;
}

Here is the call graph for this function:

Here is the caller graph for this function:

find_library_by_name()

papisde_library_desc_t * find_library_by_name ( const char *  library_name, papisde_control_t *  gctl  )

static

This helper function checks to see if a given library has already been initialized and exists in the global structure of the component.

Parameters

[in]	a	pointer to the global structure.
[in]	a	string containing the name of the library.

Returns

a pointer to the library handle.

Definition at line 53 of file sde_lib_misc.c.

                                                                                               {

    if( (NULL == gctl) || (NULL == library_name) )
        return NULL;

    papisde_library_desc_t *tmp_lib = gctl->lib_list_head;
    // Check to see if this library has already been initialized.
    while(NULL != tmp_lib){
        char *tmp_name = tmp_lib->libraryName;
        SDEDBG("Checking library: '%s' against registered library: '%s'\n", library_name, tmp_lib->libraryName);
        // If we find the same library already registered, we do not create a new entry.
        if( (NULL != tmp_name) && !strcmp(tmp_name, library_name) )
            return tmp_lib;

        tmp_lib = tmp_lib->next;
    }

    return NULL;
}

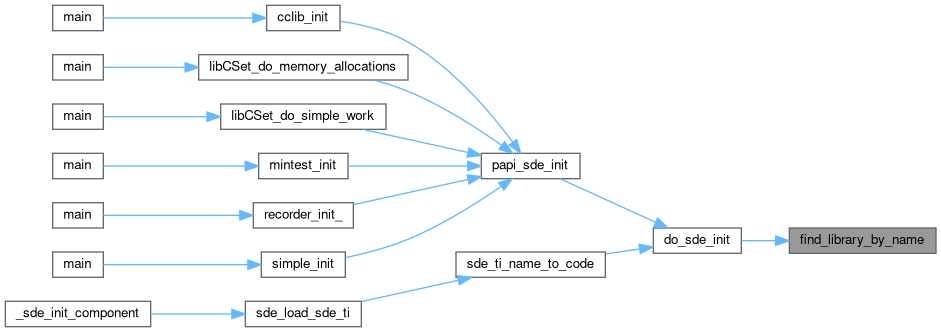

Here is the caller graph for this function:

free_counter_resources()

int free_counter_resources ( sde_counter_t *  counter )

inlinestatic

Definition at line 351 of file sde_lib_misc.c.

                                                  {
    int i, ret_val = SDE_OK;

    if( NULL == counter )
        return SDE_OK;

    if( 0 == counter->ref_count ){
        switch(counter->cntr_class){
            case CNTR_CLASS_CREATED:
                SDEDBG(" + Freeing Created Counter Data.\n");
                free(counter->u.cntr_basic.data);
                break;
            case CNTR_CLASS_RECORDER:
                SDEDBG(" + Freeing Recorder Data.\n");
                free(counter->u.cntr_recorder.data->sorted_buffer);
                for(i=0; i<EXP_CONTAINER_ENTRIES; i++){
                    free(counter->u.cntr_recorder.data->ptr_array[i]);
                }
                free(counter->u.cntr_recorder.data);
                break;
            case CNTR_CLASS_CSET:
                SDEDBG(" + Freeing CountingSet Data.\n");
                ret_val = cset_delete(counter->u.cntr_cset.data);
                break;
        }

        SDEDBG(" -> Freeing Counter '%s'.\n",counter->name);
        free(counter->name);
        free(counter->description);
        free(counter);
    }

    return ret_val;
}

Here is the call graph for this function:

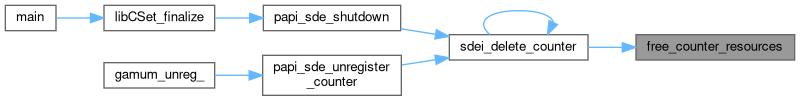

Here is the caller graph for this function:

insert_library_handle()

void insert_library_handle ( papisde_library_desc_t *  lib_handle, papisde_control_t *  gctl  )

static

This helper function simply adds a library handle to the beginning of the list of libraries in the global structure. It's only reason of existence is to hide the structure of the linked list in case we want to change it in the future.

Parameters

[in]	a	pointer to the library handle.
[in]	a	pointer to the global structure.

Definition at line 79 of file sde_lib_misc.c.

                                                                                       {
    SDEDBG("insert_library_handle(): inserting new handle for library: '%s'\n",lib_handle->libraryName);
    lib_handle->next = gctl->lib_list_head;
    gctl->lib_list_head = lib_handle;

    return;
}

Here is the caller graph for this function:

sdei_counting_set_to_list()

void sdei_counting_set_to_list	(	void *	cset_handle,
		cset_list_object_t **	list_head
	)

Definition at line 135 of file sde_lib_misc.c.

{
    sde_counter_t *tmp_cset;

    if( NULL == list_head )
        return;

    tmp_cset = (sde_counter_t *)cset_handle;
    if( (NULL == tmp_cset) || !IS_CNTR_CSET(tmp_cset) || (NULL == tmp_cset->u.cntr_cset.data) ){
        SDE_ERROR("sdei_counting_set_to_list(): 'cset_handle' is clobbered.");
        return;
    }

    *list_head = cset_to_list(tmp_cset->u.cntr_cset.data);

    return;
}

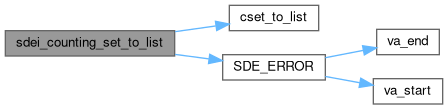

Here is the call graph for this function:

Here is the caller graph for this function:

sdei_delete_counter()

int sdei_delete_counter	(	papisde_library_desc_t *	lib_handle,
		const char *	name
	)

Definition at line 260 of file sde_lib_misc.c.

                                                                              {
    sde_counter_t *tmp_item;
    papisde_control_t *gctl;
    uint32_t item_uniq_id;
    int ret_val = SDE_OK;

    gctl = sdei_get_global_struct();

    // Look for the counter entry in the hash-table of the library
    tmp_item = ht_lookup_by_name(lib_handle->lib_counters, name);
    if( NULL == tmp_item ){
        ret_val = SDE_EINVAL;
        goto fn_exit;
    }

    if( CNTR_CLASS_GROUP == tmp_item->cntr_class ){
        papisde_list_entry_t *curr, *prev;
        // If we are dealing with a goup, then we need to recurse down all its children and
        // delete them (this might mean free them, or just decrement their ref_count).
        curr = tmp_item->u.cntr_group.group_head;
        prev = curr;
        while(NULL != curr){
            int counter_is_dead = 0;
            sde_counter_t *tmp_cntr = curr->item;
            if( NULL == tmp_cntr ){
                ret_val = SDE_EMISC;
                goto fn_exit;
            }

            // If this counter is going to be freed, we need to remove it from this group.
            if( 0 == tmp_cntr->ref_count )
                counter_is_dead = 1;

            // recursively delete all the elements of the group.
            int ret_val = sdei_delete_counter(lib_handle, tmp_cntr->name);
            if( SDE_OK != ret_val )
                goto fn_exit;

            if( counter_is_dead ){
                if( curr == tmp_item->u.cntr_group.group_head ){
                    // if we were removing with the head, change the head, we can't free() it.
                    tmp_item->u.cntr_group.group_head = curr->next;
                    prev = curr->next;
                    curr = curr->next;
                }else{
                    // if we are removing an element, first bridge the previous to the next.
                    prev->next = curr->next;
                    free(curr);
                    curr = prev->next;
                }
            }else{
                // if we are not removing anything, just move the pointers.
                prev = curr;
                curr = curr->next;
            }
        }
    }

    item_uniq_id = tmp_item->glb_uniq_id;

    // If the reference count is not zero, then we don't remove it from the hash tables
    if( 0 == tmp_item->ref_count ){
        // Delete the entry from the library hash-table (which hashes by name)
        tmp_item = ht_delete(lib_handle->lib_counters, ht_hash_name(name), item_uniq_id);
        if( NULL == tmp_item ){
            ret_val = SDE_EMISC;
            goto fn_exit;
        }

        // Delete the entry from the global hash-table (which hashes by id) and free the memory
        // occupied by the counter (not the hash-table entry 'papisde_list_entry_t', the 'sde_counter_t')
        tmp_item = ht_delete(gctl->all_reg_counters, ht_hash_id(item_uniq_id), item_uniq_id);
        if( NULL == tmp_item ){
            ret_val = SDE_EMISC;
            goto fn_exit;
        }

        // We free the counter only once, although it is in two hash-tables,
        // because it is the same structure that is pointed to by both hash-tables.
        free_counter_resources(tmp_item);

        // Decrement the number of live events.
        (gctl->num_live_events)--;
    }else{
        (tmp_item->ref_count)--;
    }

fn_exit:
    return ret_val;
}

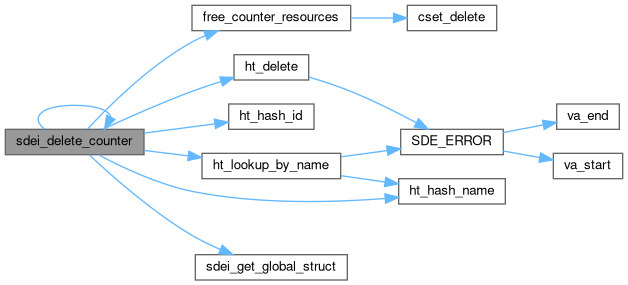

Here is the call graph for this function:

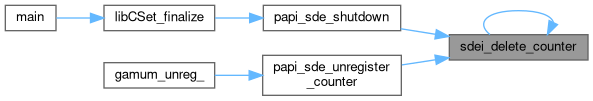

Here is the caller graph for this function:

sdei_get_global_struct()

papisde_control_t * sdei_get_global_struct

(

void

)

sdei_get_global_struct() checks if the global structure has been allocated and allocates it if has not.

Returns

a pointer to the global structure.

Definition at line 34 of file sde_lib_misc.c.

                                               {
    // Allocate the global control structure, unless it has already been allocated by another library
    // or the application code calling PAPI_name_to_code() for an SDE.
    if ( !_papisde_global_control ) {
        SDEDBG("sdei_get_global_struct(): global SDE control struct is being allocated.\n");
        _papisde_global_control = (papisde_control_t *)calloc( 1, sizeof( papisde_control_t ) );
    }
    return _papisde_global_control;
}

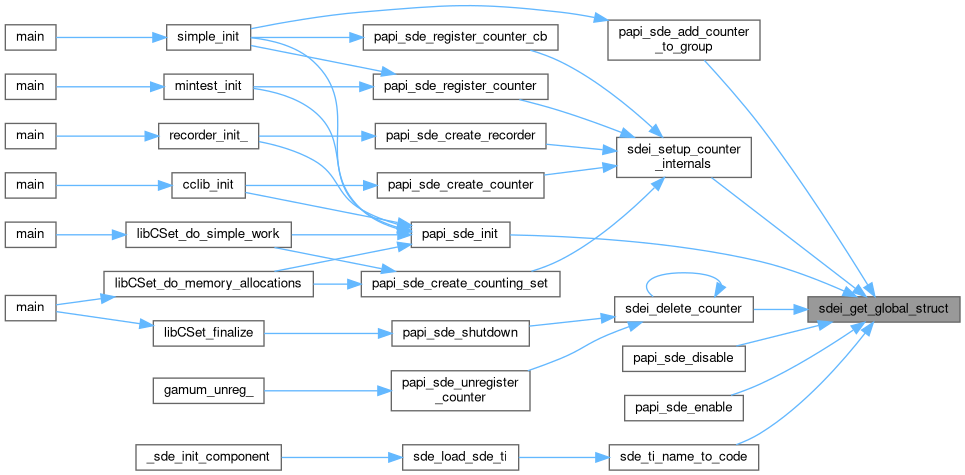

Here is the caller graph for this function:

sdei_hardware_write()

int sdei_hardware_write	(	sde_counter_t *	counter,
		long long int	new_value
	)

Definition at line 556 of file sde_lib_misc.c.

                                                                      {
    double tmp_double;
    void *tmp_ptr;

    switch(counter->cntr_type){
        case PAPI_SDE_long_long:
            *((long long int *)(counter->u.cntr_basic.data)) = new_value;
            break;
        case PAPI_SDE_int:
            *((int *)(counter->u.cntr_basic.data)) = (int)new_value;
            break;
        case PAPI_SDE_double:
            tmp_ptr = &new_value;
            tmp_double = *((double *)tmp_ptr);
            *((double *)(counter->u.cntr_basic.data)) = tmp_double;
            break;
        case PAPI_SDE_float:
            // The pointer has to be 64bit. We can cast the variable to safely convert between bit-widths later on.
            tmp_ptr = &new_value;
            tmp_double = *((double *)tmp_ptr);
            *((float *)(counter->u.cntr_basic.data)) = (float)tmp_double;
            break;
        default:
            SDEDBG("Unsupported counter type: %d\n",counter->cntr_type);
            return -1;
    }

    return SDE_OK;
}

Here is the caller graph for this function:

sdei_inc_ref_count()

int sdei_inc_ref_count

(

sde_counter_t *

counter

)

Definition at line 236 of file sde_lib_misc.c.

                                              {
    papisde_list_entry_t *curr;
    if( NULL == counter )
        return SDE_OK;

    // If the counter is a group, recursivelly increment the ref_count of all its children.
    if(CNTR_CLASS_GROUP == counter->cntr_class){
        curr = counter->u.cntr_group.group_head;
        do{
            sde_counter_t *tmp_cntr = curr->item;
            // recursively increment the ref_count of all the elements in the group.
            int ret_val = sdei_inc_ref_count(tmp_cntr);
            if( SDE_OK != ret_val )
                return ret_val;
            curr = curr->next;
        }while(NULL != curr);
    }

    // Increment the ref_count of the counter itself, INCLUDING the case where the counter is a group.
    (counter->ref_count)++;

    return SDE_OK;
}

Here is the call graph for this function:

Here is the caller graph for this function:

sdei_read_and_update_data_value()

int sdei_read_and_update_data_value	(	sde_counter_t *	counter,
		long long int	previous_value,
		long long int *	rslt_ptr
	)

Definition at line 490 of file sde_lib_misc.c.

                                                                                                                 {
    int ret_val;
    long long int tmp_int;
    void *tmp_data;

    char *event_name = counter->name;

    if( IS_CNTR_BASIC(counter) ){
        SDEDBG("Reading %s by accessing data pointer.\n", event_name);
        tmp_data = counter->u.cntr_basic.data;
    }else if( IS_CNTR_CALLBACK(counter) ){
        SDEDBG("Reading %s by calling registered function pointer.\n", event_name);
        tmp_int = counter->u.cntr_cb.callback(counter->u.cntr_cb.param);
        tmp_data = &tmp_int;
    }else{
        SDEDBG("sdei_read_and_update_data_value(): Event %s has neither a variable nor a function pointer associated with it.\n", event_name);
        return -1;
    }

    if( is_instant(counter->cntr_mode) ){
        /* Instant counter means that we don't subtract the previous value (which we read at PAPI_Start()) */
        previous_value = 0;
    } else if( is_delta(counter->cntr_mode) ){
        /* Do nothing here, this is the default mode */
    } else{
        SDEDBG("Unsupported mode (%d) for event: %s\n",counter->cntr_mode, event_name);
        return -1;
    }

    ret_val = cast_and_store(tmp_data, previous_value, rslt_ptr, counter->cntr_type);
    return ret_val;
}

Here is the call graph for this function:

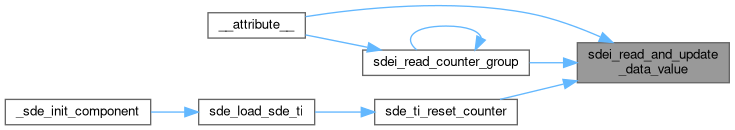

Here is the caller graph for this function:

sdei_read_counter_group()

int sdei_read_counter_group	(	sde_counter_t *	counter,
		long long int *	rslt_ptr
	)

This function assumes that all counters in a group (including recursive subgroups) have the same type.

Definition at line 390 of file sde_lib_misc.c.

                                                                          {
    papisde_list_entry_t *curr;
    long long int final_value = 0;

    if( NULL == counter ){
        SDE_ERROR("sdei_read_counter_group(): Counter parameter is NULL.\n");
        return SDE_EINVAL;
    }

    if( !IS_CNTR_GROUP(counter) ){
        SDE_ERROR("sdei_read_counter_group(): Counter '%s' is not a counter group.\n",counter->name);
        return SDE_EINVAL;
    }
    curr = counter->u.cntr_group.group_head;

    do{
        long long int tmp_value = 0;
        int ret_val;

        sde_counter_t *tmp_cntr = curr->item;
        if( NULL == tmp_cntr ){
            SDE_ERROR("sdei_read_counter_group(): List of counters in counter group '%s' is clobbered.\n",counter->name);
            return SDE_EINVAL;
        }

        int read_succesfully = 1;
        // We can _not_ have a recorder inside a group.
        if( IS_CNTR_RECORDER(tmp_cntr) || IS_CNTR_CSET(tmp_cntr) || IS_CNTR_PLACEHOLDER(tmp_cntr) ){
            SDE_ERROR("sdei_read_counter_group(): Counter group contains counter: %s with class: %d.\n",tmp_cntr->name, tmp_cntr->cntr_class);
        }else{
            // We allow counter groups to contain other counter groups recursively.
            if( IS_CNTR_GROUP(tmp_cntr) ){
                ret_val = sdei_read_counter_group( tmp_cntr, &tmp_value );
                if( ret_val != SDE_OK ){
                    // If something went wrong with one counter group, ignore it silently.
                    read_succesfully = 0;
                }
            }else{ // If we are here it means that we are trying to read a real counter.
                ret_val = sdei_read_and_update_data_value( tmp_cntr, tmp_cntr->previous_data, &tmp_value );
                if( SDE_OK != ret_val ){
                    SDE_ERROR("sdei_read_counter_group(): Error occured when reading counter: %s.\n",tmp_cntr->name);
                    read_succesfully = 0;
                }
            }

            if( read_succesfully )
                aggregate_value_in_group(&tmp_value, &final_value, tmp_cntr->cntr_type, counter->u.cntr_group.group_flags);
        }

        curr = curr->next;
    }while(NULL != curr);

    *rslt_ptr = final_value;
    return SDE_OK;
}

Here is the call graph for this function:

Here is the caller graph for this function:

sdei_setup_counter_internals()

int sdei_setup_counter_internals	(	papi_handle_t	handle,
		const char *	event_name,
		int	cntr_mode,
		int	cntr_type,
		enum CNTR_CLASS	cntr_class,
		cntr_class_specific_t	cntr_union
	)

Definition at line 156 of file sde_lib_misc.c.

{
    papisde_library_desc_t *lib_handle;
    sde_counter_t *tmp_item;
    uint32_t counter_uniq_id;
    char *full_event_name;
    int ret_val = SDE_OK;
    int needs_overflow = 0;

    lib_handle = (papisde_library_desc_t *) handle;
    if( (NULL == lib_handle) || (NULL == lib_handle->libraryName) ){
        SDE_ERROR("sdei_setup_counter_internals(): 'handle' is clobbered. Unable to register counter.");
        return SDE_EINVAL;
    }

    size_t str_len = strlen(lib_handle->libraryName)+strlen(event_name)+2+1; // +2 for "::" and +1 for '\0'
    full_event_name = (char *)malloc(str_len*sizeof(char));
    snprintf(full_event_name, str_len, "%s::%s", lib_handle->libraryName, event_name);

    SDEDBG("%s: Counter: '%s' will be added in library: %s.\n", __FILE__, full_event_name, lib_handle->libraryName);

    if( !is_instant(cntr_mode) && !is_delta(cntr_mode) ){
        SDE_ERROR("Unknown mode %d. SDE counter mode must be either Instant or Delta.",cntr_mode);
        free(full_event_name);
        return SDE_ECMP;
    }

    // Look if the event is already registered.
    tmp_item = ht_lookup_by_name(lib_handle->lib_counters, full_event_name);

    if( NULL != tmp_item ){
        if( !IS_CNTR_PLACEHOLDER(tmp_item) ){
            // If it is registered and it is _not_ a placeholder then ignore it silently.
            SDEDBG("%s: Counter: '%s' was already in library: %s.\n", __FILE__, full_event_name, lib_handle->libraryName);
            free(full_event_name);
            return SDE_OK;
        }
        // If we are here, then it IS a placeholder, so check if we need to start overflowing.
        if( tmp_item->overflow && ( (CNTR_CLASS_REGISTERED == cntr_class) || (CNTR_CLASS_CB == cntr_class) ) ){
            needs_overflow = 1;
        }

        // Since the counter is a placeholder update the mode, the type, and the union that contains the 'data'.
        SDEDBG("%s: Updating placeholder for counter: '%s' in library: %s.\n", __FILE__, full_event_name, lib_handle->libraryName);

        tmp_item->u = cntr_union;
        tmp_item->cntr_class = cntr_class;
        tmp_item->cntr_mode = cntr_mode;
        tmp_item->cntr_type = cntr_type;
        free(full_event_name);

        return SDE_OK;
    }

    // If neither the event, nor a placeholder exists, then use the current
    // number of registered events as the index of the new one, and increment it.
    papisde_control_t *gctl = sdei_get_global_struct();
    counter_uniq_id = gctl->num_reg_events++;
    gctl->num_live_events++;

    SDEDBG("%s: Counter %s has unique ID = %d\n", __FILE__, full_event_name, counter_uniq_id);

    tmp_item = allocate_and_insert( gctl, lib_handle, full_event_name, counter_uniq_id, cntr_mode, cntr_type, cntr_class, cntr_union );

    if(NULL == tmp_item) {
        SDEDBG("%s: Counter not inserted in SDE %s\n", __FILE__, lib_handle->libraryName);
        free(full_event_name);
        return SDE_ECMP;
    }

    free(full_event_name);

    // Check if we need to worry about overflow (cases r[4-6])
    if( needs_overflow ){
        ret_val = sdei_set_timer_for_overflow();
    }

    return ret_val;
}

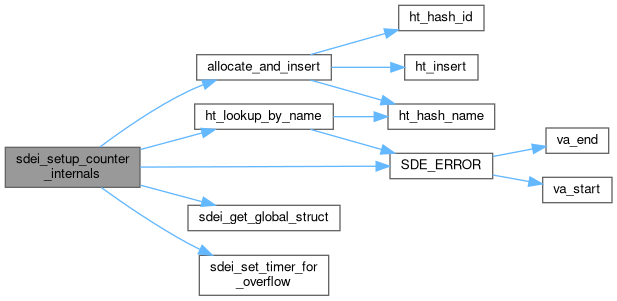

Here is the call graph for this function:

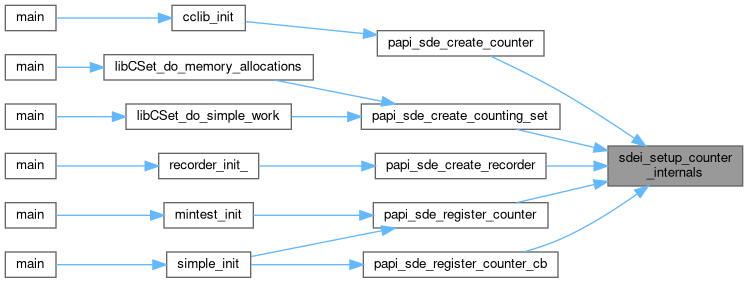

Here is the caller graph for this function:

Variable Documentation

_sde_be_verbose

int _sde_be_verbose = 0

Definition at line 19 of file sde_lib_misc.c.

_sde_debug

int _sde_debug = 0

Definition at line 20 of file sde_lib_misc.c.
