libmsr_write_test.c File Reference

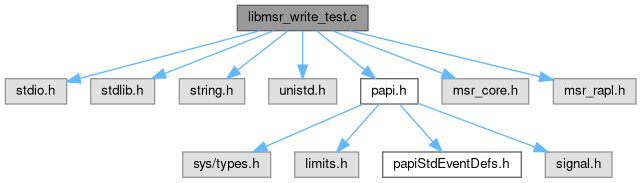

Include dependency graph for libmsr_write_test.c:

Go to the source code of this file.

Macros

#define MAX_EVENTS   128


Functions

int ompcpuloadprimes (int limit)

int main (int argc, char **argv)


Variables

char events [MAX_EVENTS][BUFSIZ]

char filenames [MAX_EVENTS][BUFSIZ]


Macro Definition Documentation

◆ MAX_EVENTS

#define MAX_EVENTS   128
Author
Asim YarKhan (updated)
Vince Weaver (original version)

Definition at line 15 of file libmsr_write_test.c.

Function Documentation

◆ main()

int main ( int  argc,
char **  argv
)

Definition at line 38 of file libmsr_write_test.c.

39{
40 int retval,cid,rapl_cid=-1,numcmp;
41 int EventSet = PAPI_NULL;
42 long long values[MAX_EVENTS];
43 int i,code,enum_retval;
44 const PAPI_component_info_t *cmpinfo = NULL;
45 long long start_time,write_start_time,write_end_time,read_start_time,read_end_time;
46 char event_name[BUFSIZ];
47 union { long long ll; double dbl; } event_value_union;
48 static int num_events=0;
49 FILE *fileout;
50
51 /* PAPI Initialization */
52 retval = PAPI_library_init( PAPI_VER_CURRENT );
53 if ( retval != PAPI_VER_CURRENT ) {
54 fprintf(stderr,"PAPI_library_init failed\n");
55 exit(1);
56 }
57
58 /* Find the libmsr component */
59 numcmp = PAPI_num_components();
60 for(cid=0; cid<numcmp; cid++) {
61 if ( (cmpinfo = PAPI_get_component_info(cid)) == NULL) {
62 fprintf(stderr,"PAPI_get_component_info failed\n");
63 exit(1);
64 }
65 if (strstr(cmpinfo->name,"libmsr")) {
66 rapl_cid=cid;
67 printf("Found libmsr component at cid %d\n", rapl_cid);
68 if (cmpinfo->disabled) {
69 fprintf(stderr,"No libmsr events found: %s\n", cmpinfo->disabled_reason);
70 exit(1);
71 }
72 break;
73 }
74 }
75
76 /* Component not found */
77 if (cid==numcmp) {
78 fprintf(stderr,"No libmsr component found\n");
79 exit(1);
80 }
81
82 /* Find events in the component */
83 code = PAPI_NATIVE_MASK;
84 enum_retval = PAPI_enum_cmp_event( &code, PAPI_ENUM_FIRST, cid );
85 while ( enum_retval == PAPI_OK ) {
86 retval = PAPI_event_code_to_name( code, event_name );
87 if ( retval != PAPI_OK ) {
88 printf("Error translating %#x\n",code);
89 exit(1);
90 }
91 printf("Found: %s\n",event_name);
92 strncpy(events[num_events],event_name,BUFSIZ);
93 sprintf(filenames[num_events],"results.%s",event_name);
94 num_events++;
95 if (num_events==MAX_EVENTS) {
96 printf("Too many events! %d\n",num_events);
97 exit(1);
98 }
99 enum_retval = PAPI_enum_cmp_event( &code, PAPI_ENUM_EVENTS, cid );
100 }
101 if (num_events==0) {
102 printf("Error! No libmsr events found!\n");
103 exit(1);
104 }
105
106 /* Open output file */
107 char fileoutname[]="libmsr_write_test_output.txt";
108 fileout=fopen( fileoutname ,"w" );
109 if ( fileout==NULL) { fprintf( stderr,"Could not open %s\n",fileoutname ); exit(1); }
110
111 /* Create EventSet */
112 retval = PAPI_create_eventset( &EventSet );
113 if (retval != PAPI_OK) {
114 fprintf(stderr,"Error creating eventset!\n");
115 }
116
117 for(i=0;i<num_events;i++) {
118 retval = PAPI_add_named_event( EventSet, events[i] );
119 if (retval != PAPI_OK) fprintf(stderr,"Error adding event %s\n",events[i]);
120 }
121
122 start_time=PAPI_get_real_nsec();
123
124 /* Grab the initial values for the events */
125 retval = PAPI_start( EventSet);
126 if (retval != PAPI_OK) { fprintf(stderr,"PAPI_start() failed\n"); exit(1); }
127 /* Initial checking read */
128 retval = PAPI_read( EventSet, values);
129 if (retval != PAPI_OK) { fprintf(stderr,"PAPI_read() failed\n"); exit(1); }
130
131 /* Write a header line */
132 fprintf( fileout, "ACTION TIME-STAMP TIME-FOR-UNIT-WORK TIME-OVERHEAD-RW\t" );
133 for(i=0; i<num_events; i++)
134 fprintf( fileout, "%s ", events[i]+9 );
135 fprintf( fileout, "\n" );
136
137 /* Read the initial values */
138 retval = PAPI_read( EventSet, values);
139 if (retval != PAPI_OK) { fprintf(stderr,"PAPI_read() failed\n"); exit(1); }
140 fprintf( fileout, "INIT %8.3f %8.3f ", ((double)(PAPI_get_real_nsec()-start_time))/1.0e9, 0.0 );
141 fprintf( fileout, "%8.3e ", 0.0);
142 for(i=0; i<num_events; i++) {
143 event_value_union.ll = values[i];
144 fprintf( fileout, "%8.3f ", event_value_union.dbl );
145 }
146 fprintf( fileout, "\n" );
147
148 int rpt=0;
149 int limit1base=10;
150 int limit2base=10;
151 while(rpt++<200) {
152 //printf("rpt %d\n", rpt);
153
154 if ( rpt % 10 == 0 ) {
155 for (i=0; i<num_events; i++) {
156 event_value_union.ll = values[i];
157 if ( !strcmp( events[i], "libmsr:::PKG_POWER_LIMIT_1:PACKAGE0" )) event_value_union.dbl=limit1base+(rpt/2);
158 else if ( !strcmp( events[i], "libmsr:::PKG_TIME_WINDOW_POWER_LIMIT_1:PACKAGE0" )) event_value_union.dbl=1.0;
159 else if ( !strcmp( events[i], "libmsr:::PKG_POWER_LIMIT_2:PACKAGE0" )) event_value_union.dbl=limit2base+(rpt/2);
160 else if ( !strcmp( events[i], "libmsr:::PKG_TIME_WINDOW_POWER_LIMIT_2:PACKAGE0" )) event_value_union.dbl=1.0;
161 else if ( !strcmp( events[i], "libmsr:::PKG_POWER_LIMIT_1:PACKAGE1" )) event_value_union.dbl=limit1base+(rpt/2);
162 else if ( !strcmp( events[i], "libmsr:::PKG_TIME_WINDOW_POWER_LIMIT_1:PACKAGE1" )) event_value_union.dbl=1.0;
163 else if ( !strcmp( events[i], "libmsr:::PKG_POWER_LIMIT_2:PACKAGE1" )) event_value_union.dbl=limit2base+(rpt/2);
164 else if ( !strcmp( events[i], "libmsr:::PKG_TIME_WINDOW_POWER_LIMIT_2:PACKAGE1" )) event_value_union.dbl=1.0;
165 else event_value_union.dbl=PAPI_NULL;
166 values[i]=event_value_union.ll;
167 }
168
169 write_start_time=PAPI_get_real_nsec();
170 retval = PAPI_write( EventSet, values );
171 write_end_time=PAPI_get_real_nsec();
172 if (retval != PAPI_OK) { fprintf(stderr,"PAPI_write() failed\n"); exit(1); }
173
174 fprintf( fileout, "SET %8.3f %8.3f ", ((double)(PAPI_get_real_nsec()-start_time))/1.0e9, 0.0 );
175 fprintf( fileout, "%8.3e ", ((double)(write_end_time-write_start_time))/1.0e9 );
176 for(i=0; i<num_events; i++) {
177 event_value_union.ll = values[i];
178 fprintf( fileout, "%8.3f ", event_value_union.dbl );
179 }
180 fprintf( fileout, "\n" );
181 }
182
183 /* DO SOME WORK TO USE ENERGY */
184 //usleep(100000);
185 double work_start_time=PAPI_get_real_nsec();
186 ompcpuloadprimes( 100000 );
187 double work_time=PAPI_get_real_nsec()-work_start_time;
188 //printf("primescount %d\n", primescount);
189
190 /* Read and output the values */
191 read_start_time=PAPI_get_real_nsec();
192 retval = PAPI_read( EventSet, values );
193 read_end_time=PAPI_get_real_nsec();
194 if (retval != PAPI_OK) { fprintf(stderr,"PAPI_read() failed\n"); exit(1); }
195 fprintf( fileout, "READ %8.3f %8.3f ", ((double)(PAPI_get_real_nsec()-start_time))/1.0e9, work_time/1.0e9 );
196 fprintf( fileout, "%8.3e ", ((double)(read_end_time-read_start_time))/1.0e9 );
197 for(i=0; i<num_events; i++) {
198 event_value_union.ll = values[i];
199 fprintf( fileout, "%8.3f ", event_value_union.dbl );
200 }
201 fprintf( fileout, "\n" );
202 }
203
204 retval = PAPI_stop( EventSet, values);
205 return 0;
206}
i
int i
Definition: PAPI_get_virt_cyc.c:10
PAPI_add_named_event
add PAPI preset or native hardware event by name to an EventSet
PAPI_create_eventset
Create a new empty PAPI EventSet.
PAPI_enum_cmp_event
Enumerate PAPI preset or native events for a given component.
PAPI_event_code_to_name
Convert a numeric hardware event code to a name.
PAPI_get_component_info
get information about a specific software component
PAPI_get_real_nsec
Get real time counter value in nanoseconds.
PAPI_library_init
initialize the PAPI library.
PAPI_num_components
Get the number of components available on the system.
PAPI_read
Read hardware counters from an event set.
PAPI_start
Start counting hardware events in an event set.
PAPI_stop
Stop counting hardware events in an event set.
PAPI_write
Write counter values into counters.
event_name
char event_name[2][PAPI_MAX_STR_LEN]
Definition: data_range.c:29
PAPI_VER_CURRENT
#define PAPI_VER_CURRENT
Definition: f90papi.h:54
PAPI_ENUM_EVENTS
#define PAPI_ENUM_EVENTS
Definition: f90papi.h:224
PAPI_OK
#define PAPI_OK
Definition: f90papi.h:73
PAPI_ENUM_FIRST
#define PAPI_ENUM_FIRST
Definition: f90papi.h:85
PAPI_NULL
#define PAPI_NULL
Definition: f90papi.h:78
EventSet
static int EventSet
Definition: init_fini.c:8
values
static long long values[NUM_EVENTS]
Definition: init_fini.c:10
events
char events[MAX_EVENTS][BUFSIZ]
Definition: libmsr_write_test.c:17
filenames
char filenames[MAX_EVENTS][BUFSIZ]
Definition: libmsr_write_test.c:18
ompcpuloadprimes
int ompcpuloadprimes(int limit)
Definition: libmsr_write_test.c:20
MAX_EVENTS
#define MAX_EVENTS
Definition: libmsr_write_test.c:15
num_events
static int num_events
Definition: linux-coretemp.c:37
PAPI_NATIVE_MASK
#define PAPI_NATIVE_MASK
Definition: papiStdEventDefs.h:30
stderr
FILE * stderr
if
if(file==NULL) goto out
PAPI_component_info_t
Definition: papi.h:626
PAPI_component_info_t::name
char name[PAPI_MAX_STR_LEN]
Definition: papi.h:627
PAPI_component_info_t::disabled_reason
char disabled_reason[PAPI_HUGE_STR_LEN]
Definition: papi.h:634
PAPI_component_info_t::disabled
int disabled
Definition: papi.h:635
retval
int retval
Definition: zero_fork.c:53
Here is the call graph for this function:

◆ ompcpuloadprimes()

int ompcpuloadprimes ( int  limit)

Definition at line 20 of file libmsr_write_test.c.

21{
22 int num, primes=0;
23#pragma omp parallel for schedule(dynamic) reduction(+ : primes)
24 for (num = 1; num <= limit; num++) {
25 int i = 2;
26 while(i <= num) {
27 if(num % i == 0)
28 break;
29 i++;
30 }
31 if(i == num)
32 primes++;
33 }
34 return primes;
35}
Here is the caller graph for this function:

Variable Documentation

◆ events

char events[MAX_EVENTS][BUFSIZ]

Definition at line 17 of file libmsr_write_test.c.

◆ filenames

char filenames[MAX_EVENTS][BUFSIZ]

Definition at line 18 of file libmsr_write_test.c.
