linux-CNKunit.c File Reference

This file has the source code for a component that enables PAPI-C to access hardware monitoring counters for BG/Q through the bgpm library. More...

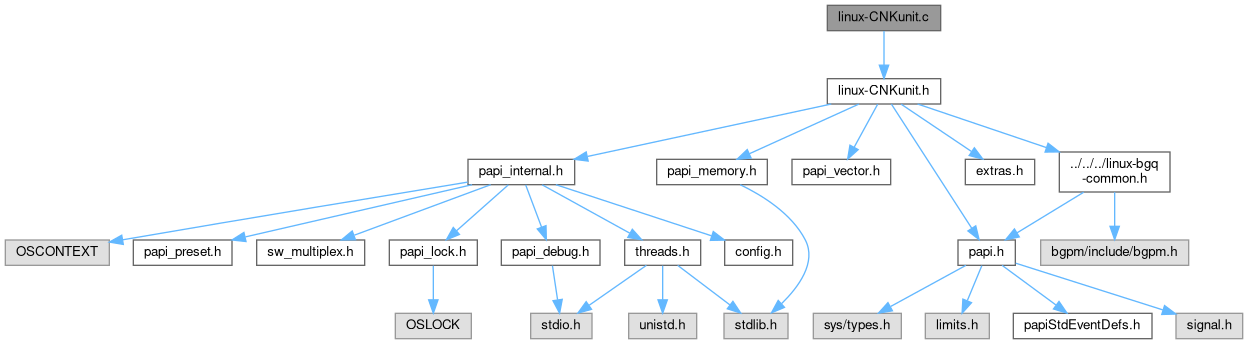

Include dependency graph for linux-CNKunit.c:

Go to the source code of this file.

Functions
int	CNKUNIT_init_thread (hwd_context_t *ctx)
int	CNKUNIT_init_component (int cidx)
int	CNKUNIT_init_control_state (hwd_control_state_t *ptr)
int	CNKUNIT_start (hwd_context_t *ctx, hwd_control_state_t *ptr)
int	CNKUNIT_stop (hwd_context_t *ctx, hwd_control_state_t *ptr)
int	CNKUNIT_read (hwd_context_t *ctx, hwd_control_state_t *ptr, long_long **events, int flags)
int	CNKUNIT_shutdown_thread (hwd_context_t *ctx)
int	CNKUNIT_ctl (hwd_context_t *ctx, int code, _papi_int_option_t *option)
int	CNKUNIT_update_control_state (hwd_control_state_t *ptr, NativeInfo_t *native, int count, hwd_context_t *ctx)
int	CNKUNIT_set_domain (hwd_control_state_t *cntrl, int domain)
int	CNKUNIT_reset (hwd_context_t *ctx, hwd_control_state_t *ptr)
int	CNKUNIT_cleanup_eventset (hwd_control_state_t *ctrl)
int	CNKUNIT_ntv_enum_events (unsigned int *EventCode, int modifier)
int	CNKUNIT_ntv_name_to_code (const char *name, unsigned int *event_code)
int	CNKUNIT_ntv_code_to_name (unsigned int EventCode, char *name, int len)
int	CNKUNIT_ntv_code_to_descr (unsigned int EventCode, char *name, int len)
int	CNKUNIT_ntv_code_to_bits (unsigned int EventCode, hwd_register_t *bits)

Variables
papi_vector_t	_CNKunit_vector

Detailed Description

Author

Heike Jagode jagod.nosp@m.e@ee.nosp@m.cs.ut.nosp@m.k.ed.nosp@m.u Mods: < your name here > < your email address > BGPM / CNKunit component

Tested version of bgpm (early access)

Definition in file linux-CNKunit.c.

Function Documentation

CNKUNIT_cleanup_eventset()

int CNKUNIT_cleanup_eventset

(

hwd_control_state_t *

ctrl

)

Definition at line 307 of file linux-CNKunit.c.

{
#ifdef DEBUG_BGQ
    printf( "CNKUNIT_cleanup_eventset\n" );
#endif
    int retval;

    CNKUNIT_control_state_t * this_state = ( CNKUNIT_control_state_t * ) ctrl;

    // create a new empty bgpm eventset
    // reason: bgpm doesn't permit to remove events from an eventset;
    // hence we delete the old eventset and create a new one
    retval = _common_deleteRecreate( &this_state->EventGroup ); // HJ try to use delete() only
    if ( retval < 0 ) return retval;

    return ( PAPI_OK );
}

Here is the call graph for this function:

CNKUNIT_ctl()

int CNKUNIT_ctl	(	hwd_context_t *	ctx,
		int	code,
		_papi_int_option_t *	option
	)

Definition at line 185 of file linux-CNKunit.c.

{
#ifdef DEBUG_BGQ
    printf( "CNKUNIT_ctl\n" );
#endif
    ( void ) ctx;
    ( void ) code;
    ( void ) option;
    return ( PAPI_OK );
}

CNKUNIT_init_component()

int CNKUNIT_init_component

(

int

cidx

)

Definition at line 49 of file linux-CNKunit.c.

{
#ifdef DEBUG_BGQ
    printf( "CNKUNIT_init_component\n" );
#endif

    _CNKunit_vector.cmp_info.CmpIdx = cidx;
#ifdef DEBUG_BGQ
    printf( "CNKUNIT_init_component cidx = %d\n", cidx );
#endif

    return ( PAPI_OK );
}

CNKUNIT_init_control_state()

int CNKUNIT_init_control_state

(

hwd_control_state_t *

ptr

)

Definition at line 69 of file linux-CNKunit.c.

{
#ifdef DEBUG_BGQ
    printf( "CNKUNIT_init_control_state\n" );
#endif
    int retval;

    CNKUNIT_control_state_t * this_state = ( CNKUNIT_control_state_t * ) ptr;

    this_state->EventGroup = Bgpm_CreateEventSet();
    retval = _check_BGPM_error( this_state->EventGroup, "Bgpm_CreateEventSet" );
    if ( retval < 0 ) return retval;

    return PAPI_OK;
}

Here is the call graph for this function:

CNKUNIT_init_thread()

int CNKUNIT_init_thread

(

hwd_context_t *

ctx

)

Definition at line 33 of file linux-CNKunit.c.

{
#ifdef DEBUG_BGQ
    printf( "CNKUNIT_init_thread\n" );
#endif

    ( void ) ctx;
    return PAPI_OK;
}

CNKUNIT_ntv_code_to_bits()

int CNKUNIT_ntv_code_to_bits	(	unsigned int	EventCode,
		hwd_register_t *	bits
	)

Definition at line 447 of file linux-CNKunit.c.

{
#ifdef DEBUG_BGQ
    printf( "CNKUNIT_ntv_code_to_bits\n" );
#endif
    ( void ) EventCode;
    ( void ) bits;
    return ( PAPI_OK );
}

CNKUNIT_ntv_code_to_descr()

int CNKUNIT_ntv_code_to_descr	(	unsigned int	EventCode,
		char *	name,
		int	len
	)

Definition at line 426 of file linux-CNKunit.c.

{
#ifdef DEBUG_BGQ
    //printf( "CNKUNIT_ntv_code_to_descr\n" );
#endif
    int retval, index;

    index = ( EventCode ) + OFFSET;

    retval = Bgpm_GetLongDesc( index, name, &len );
    retval = _check_BGPM_error( retval, "Bgpm_GetLongDesc" );
    if ( retval < 0 ) return retval;

    return ( PAPI_OK );
}

Here is the call graph for this function:

CNKUNIT_ntv_code_to_name()

int CNKUNIT_ntv_code_to_name	(	unsigned int	EventCode,
		char *	name,
		int	len
	)

Definition at line 396 of file linux-CNKunit.c.

{
#ifdef DEBUG_BGQ
    //printf( "CNKUNIT_ntv_code_to_name\n" );
#endif
    int index;

    index = ( EventCode ) + OFFSET;

    if ( index >= MAX_COUNTERS )
        return PAPI_ENOEVNT;

    strncpy( name, Bgpm_GetEventIdLabel( index ), len );
    //printf("----%s----\n", name);

    if ( name == NULL ) {
#ifdef DEBUG_BGPM
        printf ("Error: ret value is NULL for BGPM API function Bgpm_GetEventIdLabel.\n" );
#endif
        return PAPI_ENOEVNT;
    }

    return ( PAPI_OK );
}

CNKUNIT_ntv_enum_events()

int CNKUNIT_ntv_enum_events	(	unsigned int *	EventCode,
		int	modifier
	)

Definition at line 330 of file linux-CNKunit.c.

{
#ifdef DEBUG_BGQ
//  printf( "CNKUNIT_ntv_enum_events\n" );
#endif

    switch ( modifier ) {
    case PAPI_ENUM_FIRST:
        *EventCode = 0;

        return ( PAPI_OK );
        break;

    case PAPI_ENUM_EVENTS:
    {
        int index = ( *EventCode ) + OFFSET;

        if ( index < CNKUNIT_MAX_COUNTERS ) {
            *EventCode = *EventCode + 1;
            return ( PAPI_OK );
        } else
            return ( PAPI_ENOEVNT );

        break;
    }
    default:
        return ( PAPI_EINVAL );
    }
    return ( PAPI_EINVAL );
}

CNKUNIT_ntv_name_to_code()

int CNKUNIT_ntv_name_to_code	(	const char *	name,
		unsigned int *	event_code
	)

Definition at line 366 of file linux-CNKunit.c.

{
#ifdef DEBUG_BGQ
    printf( "CNKUNIT_ntv_name_to_code\n" );
#endif
    int ret;

    /* Return event id matching a given event label string */
    ret = Bgpm_GetEventIdFromLabel ( name );

    if ( ret <= 0 ) {
#ifdef DEBUG_BGPM
        printf ("Error: ret value is %d for BGPM API function '%s'.\n",
                ret, "Bgpm_GetEventIdFromLabel" );
#endif
        return PAPI_ENOEVNT;
    }
    else if ( ret < OFFSET || ret > CNKUNIT_MAX_COUNTERS ) // not a CNKUnit event
        return PAPI_ENOEVNT;
    else
        *event_code = ( ret - OFFSET ) ;

    return PAPI_OK;
}

CNKUNIT_read()

int CNKUNIT_read	(	hwd_context_t *	ctx,
		hwd_control_state_t *	ptr,
		long_long **	events,
		int	flags
	)

Definition at line 138 of file linux-CNKunit.c.

{
#ifdef DEBUG_BGQ
    printf( "CNKUNIT_read\n" );
#endif
    ( void ) ctx;
    ( void ) flags;
    int i, numEvts;
    CNKUNIT_control_state_t * this_state = ( CNKUNIT_control_state_t * ) ptr;

    numEvts = Bgpm_NumEvents( this_state->EventGroup );
    if ( numEvts == 0 ) {
#ifdef DEBUG_BGPM
        printf ("Error: ret value is %d for BGPM API function Bgpm_NumEvents.\n", numEvts );
#endif
        //return ( EXIT_FAILURE );
    }

    for ( i = 0; i < numEvts; i++ )
        this_state->counts[i] = _common_getEventValue( i, this_state->EventGroup );

    *events = this_state->counts;

    return ( PAPI_OK );
}

Here is the call graph for this function:

CNKUNIT_reset()

int CNKUNIT_reset	(	hwd_context_t *	ctx,
		hwd_control_state_t *	ptr
	)

Definition at line 276 of file linux-CNKunit.c.

{
#ifdef DEBUG_BGQ
    printf( "CNKUNIT_reset\n" );
#endif
    ( void ) ctx;
    int retval;
    CNKUNIT_control_state_t * this_state = ( CNKUNIT_control_state_t * ) ptr;

    /* we can't simply call Bgpm_Reset() since PAPI doesn't have the
     restriction that an EventSet has to be stopped before resetting is
     possible. However, BGPM does have this restriction.
     Hence we need to stop, reset and start */
    retval = Bgpm_Stop( this_state->EventGroup );
    retval = _check_BGPM_error( retval, "Bgpm_Stop" );
    if ( retval < 0 ) return retval;

    retval = Bgpm_ResetStart( this_state->EventGroup );
    retval = _check_BGPM_error( retval, "Bgpm_ResetStart" );
    if ( retval < 0 ) return retval;

    return ( PAPI_OK );
}

Here is the call graph for this function:

CNKUNIT_set_domain()

int CNKUNIT_set_domain	(	hwd_control_state_t *	cntrl,
		int	domain
	)

Definition at line 248 of file linux-CNKunit.c.

{
#ifdef DEBUG_BGQ
    printf( "CNKUNIT_set_domain\n" );
#endif
    int found = 0;
    ( void ) cntrl;

    if ( PAPI_DOM_USER & domain )
        found = 1;

    if ( PAPI_DOM_KERNEL & domain )
        found = 1;

    if ( PAPI_DOM_OTHER & domain )
        found = 1;

    if ( !found )
        return ( PAPI_EINVAL );

    return ( PAPI_OK );
}

CNKUNIT_shutdown_thread()

int CNKUNIT_shutdown_thread

(

hwd_context_t *

ctx

)

Definition at line 170 of file linux-CNKunit.c.

{
#ifdef DEBUG_BGQ
    printf( "CNKUNIT_shutdown_thread\n" );
#endif
    ( void ) ctx;
    return ( PAPI_OK );
}

CNKUNIT_start()

int CNKUNIT_start	(	hwd_context_t *	ctx,
		hwd_control_state_t *	ptr
	)

Definition at line 90 of file linux-CNKunit.c.

{
#ifdef DEBUG_BGQ
    printf( "CNKUNIT_start\n" );
#endif
    ( void ) ctx;
    int retval;
    CNKUNIT_control_state_t * this_state = ( CNKUNIT_control_state_t * ) ptr;

    retval = Bgpm_Apply( this_state->EventGroup );
    retval = _check_BGPM_error( retval, "Bgpm_Apply" );
    if ( retval < 0 ) return retval;

    /* Bgpm_Apply() does an implicit reset;
     hence no need to use Bgpm_ResetStart */
    retval = Bgpm_Start( this_state->EventGroup );
    retval = _check_BGPM_error( retval, "Bgpm_Start" );
    if ( retval < 0 ) return retval;

    return ( PAPI_OK );
}

Here is the call graph for this function:

CNKUNIT_stop()

int CNKUNIT_stop	(	hwd_context_t *	ctx,
		hwd_control_state_t *	ptr
	)

Definition at line 117 of file linux-CNKunit.c.

{
#ifdef DEBUG_BGQ
    printf( "CNKUNIT_stop\n" );
#endif
    ( void ) ctx;
    int retval;
    CNKUNIT_control_state_t * this_state = ( CNKUNIT_control_state_t * ) ptr;

    retval = Bgpm_Stop( this_state->EventGroup );
    retval = _check_BGPM_error( retval, "Bgpm_Stop" );
    if ( retval < 0 ) return retval;

    return ( PAPI_OK );
}

Here is the call graph for this function:

CNKUNIT_update_control_state()

int CNKUNIT_update_control_state	(	hwd_control_state_t *	ptr,
		NativeInfo_t *	native,
		int	count,
		hwd_context_t *	ctx
	)

Definition at line 202 of file linux-CNKunit.c.

{
#ifdef DEBUG_BGQ
    printf( "CNKUNIT_update_control_state: count = %d\n", count );
#endif
    ( void ) ctx;
    int retval, index, i;
    CNKUNIT_control_state_t * this_state = ( CNKUNIT_control_state_t * ) ptr;

    // Delete and re-create BGPM eventset
    retval = _common_deleteRecreate( &this_state->EventGroup );
    if ( retval < 0 ) return retval;

    // otherwise, add the events to the eventset
    for ( i = 0; i < count; i++ ) {
        index = ( native[i].ni_event ) + OFFSET;

        native[i].ni_position = i;

#ifdef DEBUG_BGQ
        printf("CNKUNIT_update_control_state: ADD event: i = %d, index = %d\n", i, index );
#endif

        /* Add events to the BGPM eventGroup */
        retval = Bgpm_AddEvent( this_state->EventGroup, index );
        retval = _check_BGPM_error( retval, "Bgpm_AddEvent" );
        if ( retval < 0 ) return retval;
    }

    return ( PAPI_OK );
}

Here is the call graph for this function:

Variable Documentation

_CNKunit_vector

papi_vector_t _CNKunit_vector

Definition at line 23 of file linux-CNKunit.c.
