multiplex3_pthreads.c File Reference
Include dependency graph for multiplex3_pthreads.c:

Go to the source code of this file.

Macros

#define MAX_TO_ADD   5


Functions

void * thread_fn (void *dummy)

static void mainloop (int arg)

int main (int argc, char **argv)


Macro Definition Documentation

◆ MAX_TO_ADD

#define MAX_TO_ADD   5

Definition at line 23 of file multiplex3_pthreads.c.

Function Documentation

◆ main()

int main ( int  argc,
char **  argv
)

Definition at line 199 of file multiplex3_pthreads.c.

200{
201 int i, rc, retval;
202 pthread_t id[NUM_THREADS];
203 pthread_attr_t attr;
204 int quiet;
205
206 /* Set TESTS_QUIET variable */
207 quiet = tests_quiet( argc, argv );
208
209 if (!quiet) {
210 printf( "%s: Using %d threads\n\n", argv[0], NUM_THREADS );
211 printf( "Does non-threaded multiplexing work "
212 "with extraneous threads present?\n" );
213 }
214
215 /* Create a bunch of unused pthreads, to simulate threads created
216 * by the system that the user doesn't know about.
217 */
218 pthread_attr_init( &attr );
219#ifdef PTHREAD_CREATE_UNDETACHED
220 pthread_attr_setdetachstate( &attr, PTHREAD_CREATE_UNDETACHED );
221#endif
222#ifdef PTHREAD_SCOPE_SYSTEM
223 retval = pthread_attr_setscope( &attr, PTHREAD_SCOPE_SYSTEM );
224 if ( retval != 0 )
225 test_skip( __FILE__, __LINE__, "pthread_attr_setscope", retval );
226#endif
227
228#ifdef PPC64
229 sigset_t sigprof;
230 sigemptyset( &sigprof );
231 sigaddset( &sigprof, SIGPROF );
232 retval = sigprocmask( SIG_BLOCK, &sigprof, NULL );
233 if ( retval != 0 )
234 test_fail( __FILE__, __LINE__, "sigprocmask SIG_BLOCK", retval );
235#endif
236
237 for ( i = 0; i < NUM_THREADS; i++ ) {
238 rc = pthread_create( &id[i], &attr, thread_fn, NULL );
239 if ( rc )
240 test_fail( __FILE__, __LINE__, "pthread_create", rc );
241 }
242 pthread_attr_destroy( &attr );
243
244#ifdef PPC64
245 retval = sigprocmask( SIG_UNBLOCK, &sigprof, NULL );
246 if ( retval != 0 )
247 test_fail( __FILE__, __LINE__, "sigprocmask SIG_UNBLOCK", retval );
248#endif
249
250 mainloop( NUM_ITERS );
251
252 test_pass( __FILE__ );
253
254 return 0;
255
256}
i
int i
Definition: PAPI_get_virt_cyc.c:10
thread_fn
void * thread_fn(void *dummy)
Definition: multiplex3_pthreads.c:29
mainloop
static void mainloop(int arg)
Definition: multiplex3_pthreads.c:41
NUM_ITERS
#define NUM_ITERS
Definition: multiplex.c:19
pthread_t
unsigned long int pthread_t
Definition: papi_fwrappers_.c:1488
sigprocmask
int sigprocmask(int __how, const sigset_t *__restrict __set, sigset_t *__restrict __oset) __attribute__((__nothrow__
tests_quiet
int tests_quiet(int argc, char **argv)
Definition: test_utils.c:376
test_fail
void PAPI_NORETURN test_fail(const char *file, int line, const char *call, int retval)
Definition: test_utils.c:491
test_pass
void PAPI_NORETURN test_pass(const char *filename)
Definition: test_utils.c:432
test_skip
void PAPI_NORETURN test_skip(const char *file, int line, const char *call, int retval)
Definition: test_utils.c:584
rc
rc
Definition: pscanf.h:23
NUM_THREADS
#define NUM_THREADS
Definition: pthread_hl.c:9
quiet
int quiet
Definition: rapl_overflow.c:19
__sigset_t
Definition: papi_fwrappers_.c:1258
pthread_attr_t
Definition: papi_fwrappers_.c:1518
retval
int retval
Definition: zero_fork.c:53
Here is the call graph for this function:

◆ mainloop()

static void mainloop ( int  arg)
static

Definition at line 41 of file multiplex3_pthreads.c.

42{
43 int allvalid;
44 long long *values;
45 int EventSet = PAPI_NULL;
46 int retval, i, j = 2, skipped_counters=0;
47 PAPI_event_info_t pset;
48
49 ( void ) arg;
50
51 /* Initialize the library */
52
53 retval = PAPI_library_init( PAPI_VER_CURRENT );
54 if ( retval != PAPI_VER_CURRENT ) {
55 test_fail( __FILE__, __LINE__, "PAPI_library_init", retval );
56 }
57
58 retval = PAPI_multiplex_init( );
59 if ( retval != PAPI_OK ) {
60 test_fail( __FILE__, __LINE__, "PAPI multiplex init fail\n", retval );
61 }
62
63 retval = PAPI_create_eventset( &EventSet );
64 if ( retval != PAPI_OK ) {
65 test_fail( __FILE__, __LINE__, "PAPI_create_eventset", retval );
66 }
67
68 /* In Component PAPI, EventSets must be assigned a component index
69 before you can fiddle with their internals.
70 0 is always the cpu component */
71 retval = PAPI_assign_eventset_component( EventSet, 0 );
72 if ( retval != PAPI_OK ) {
73 test_fail( __FILE__, __LINE__, "PAPI_assign_eventset_component",
74 retval );
75 }
76
77 retval = PAPI_set_multiplex( EventSet );
78 if ( retval == PAPI_ENOSUPP) {
79 test_skip(__FILE__, __LINE__, "Multiplex not supported", 1);
80 } else if ( retval != PAPI_OK ) {
81 test_fail( __FILE__, __LINE__, "PAPI_set_multiplex", retval );
82 }
83
84 retval = PAPI_thread_init( ( unsigned long ( * )( void ) ) ( pthread_self ) );
85 if (retval != PAPI_OK ) {
86 if ( retval == PAPI_ECMP )
87 test_skip( __FILE__, __LINE__, "PAPI_thread_init", retval );
88 else
89 test_fail( __FILE__, __LINE__, "PAPI_thread_init", retval );
90 }
91
92 retval = PAPI_add_event( EventSet, PAPI_TOT_INS );
93 if ( ( retval != PAPI_OK ) && ( retval != PAPI_ECNFLCT ) ) {
94 if (!TESTS_QUIET) printf("Trouble adding PAPI_TOT_INS\n");
95 test_skip( __FILE__, __LINE__, "PAPI_add_event", retval );
96 }
97
98 if ( !TESTS_QUIET ) {
99 printf( "Added %s\n", "PAPI_TOT_INS" );
100 }
101
102 retval = PAPI_add_event( EventSet, PAPI_TOT_CYC );
103 if ( ( retval != PAPI_OK ) && ( retval != PAPI_ECNFLCT ) )
104 test_fail( __FILE__, __LINE__, "PAPI_add_event", retval );
105 if ( !TESTS_QUIET ) {
106 printf( "Added %s\n", "PAPI_TOT_CYC" );
107 }
108
109 values = ( long long * ) malloc( MAX_TO_ADD * sizeof ( long long ) );
110 if ( values == NULL )
111 test_fail( __FILE__, __LINE__, "malloc", 0 );
112
113 for ( i = 0; i < PAPI_MAX_PRESET_EVENTS; i++ ) {
114 retval = PAPI_get_event_info( i | PAPI_PRESET_MASK, &pset );
115 if ( retval != PAPI_OK )
116 test_fail( __FILE__, __LINE__, "PAPI_get_event_info", retval );
117
118 if ( pset.count ) {
119 if (!TESTS_QUIET) printf( "Adding %s\n", pset.symbol );
120
121 retval = PAPI_add_event( EventSet, ( int ) pset.event_code );
122 if ( ( retval != PAPI_OK ) && ( retval != PAPI_ECNFLCT ) )
123 test_fail( __FILE__, __LINE__, "PAPI_add_event", retval );
124
125 if ( retval == PAPI_OK ) {
126 if (!TESTS_QUIET) printf( "Added %s\n", pset.symbol );
127 } else {
128 if (!TESTS_QUIET) printf( "Could not add %s\n", pset.symbol );
129 }
130
131 do_stuff( );
132
133 if ( retval == PAPI_OK ) {
134 retval = PAPI_start( EventSet );
135 if ( retval != PAPI_OK )
136 test_fail( __FILE__, __LINE__, "PAPI_start", retval );
137
138 do_stuff( );
139
140 retval = PAPI_stop( EventSet, values );
141 if ( retval != PAPI_OK )
142 test_fail( __FILE__, __LINE__, "PAPI_stop", retval );
143
144 if ( values[j] ) {
145 if ( ++j >= MAX_TO_ADD )
146 break;
147 } else {
148 retval =
149 PAPI_remove_event( EventSet, ( int ) pset.event_code );
150 if ( retval == PAPI_OK )
151 if (!TESTS_QUIET) printf( "Removed %s\n", pset.symbol );
152 /* This added because the test */
153 /* can take a long time if mplexing */
154 /* is broken and all values are 0 */
155 skipped_counters++;
156 if (skipped_counters>MAX_TO_ADD) break;
157
158 }
159 }
160 }
161 }
162
163 retval = PAPI_start( EventSet );
164 if ( retval != PAPI_OK )
165 test_fail( __FILE__, __LINE__, "PAPI_start", retval );
166
167 do_stuff( );
168
169 retval = PAPI_stop( EventSet, values );
170 if ( retval != PAPI_OK )
171 test_fail( __FILE__, __LINE__, "PAPI_stop", retval );
172
173 if (!TESTS_QUIET) {
174 test_print_event_header( "multiplex3_pthreads:\n", EventSet );
175 }
176 allvalid = 0;
177 for ( i = 0; i < MAX_TO_ADD; i++ ) {
178 if (!TESTS_QUIET) printf( ONENUM, values[i] );
179 if ( values[i] != 0 )
180 allvalid++;
181 }
182 if (!TESTS_QUIET) printf( "\n" );
183 if ( !allvalid )
184 test_fail( __FILE__, __LINE__, "all counter registered no counts", 1 );
185
186 retval = PAPI_cleanup_eventset( EventSet ); /* JT */
187 if ( retval != PAPI_OK )
188 test_fail( __FILE__, __LINE__, "PAPI_cleanup_eventset", retval );
189
190 retval = PAPI_destroy_eventset( &EventSet );
191 if ( retval != PAPI_OK )
192 test_fail( __FILE__, __LINE__, "PAPI_destroy_eventset", retval );
193
194 free( values );
195 PAPI_shutdown( );
196}
PAPI_add_event
add PAPI preset or native hardware event to an event set
PAPI_assign_eventset_component
Assign a component index to an existing but empty EventSet.
PAPI_cleanup_eventset
Empty and destroy an EventSet.
PAPI_create_eventset
Create a new empty PAPI EventSet.
PAPI_destroy_eventset
Empty and destroy an EventSet.
PAPI_get_event_info
Get the event's name and description info.
PAPI_library_init
initialize the PAPI library.
PAPI_multiplex_init
Initialize multiplex support in the PAPI library.
PAPI_remove_event
removes a hardware event from a PAPI event set.
PAPI_set_multiplex
Convert a standard event set to a multiplexed event set.
PAPI_shutdown
Finish using PAPI and free all related resources.
PAPI_start
Start counting hardware events in an event set.
PAPI_stop
Stop counting hardware events in an event set.
PAPI_thread_init
Initialize thread support in the PAPI library.
do_stuff
void do_stuff(void)
Definition: do_loops.c:256
PAPI_VER_CURRENT
#define PAPI_VER_CURRENT
Definition: f90papi.h:54
PAPI_OK
#define PAPI_OK
Definition: f90papi.h:73
PAPI_NULL
#define PAPI_NULL
Definition: f90papi.h:78
PAPI_TOT_CYC
#define PAPI_TOT_CYC
Definition: f90papi.h:308
PAPI_ECNFLCT
#define PAPI_ECNFLCT
Definition: f90papi.h:234
PAPI_ENOSUPP
#define PAPI_ENOSUPP
Definition: f90papi.h:244
PAPI_ECMP
#define PAPI_ECMP
Definition: f90papi.h:214
PAPI_TOT_INS
#define PAPI_TOT_INS
Definition: f90papi.h:317
EventSet
static int EventSet
Definition: init_fini.c:8
values
static long long values[NUM_EVENTS]
Definition: init_fini.c:10
MAX_TO_ADD
#define MAX_TO_ADD
Definition: multiplex3_pthreads.c:23
TESTS_QUIET
int TESTS_QUIET
Definition: test_utils.c:18
PAPI_PRESET_MASK
#define PAPI_PRESET_MASK
Definition: papiStdEventDefs.h:29
PAPI_MAX_PRESET_EVENTS
#define PAPI_MAX_PRESET_EVENTS
Definition: papiStdEventDefs.h:36
test_print_event_header
void test_print_event_header(const char *call, int evset)
Definition: test_utils.c:605
ONENUM
#define ONENUM
Definition: papi_test.h:97
PAPI_event_info_t
Definition: papi.h:957
PAPI_event_info_t::count
unsigned int count
Definition: papi.h:981
PAPI_event_info_t::event_code
unsigned int event_code
Definition: papi.h:958
PAPI_event_info_t::symbol
char symbol[PAPI_HUGE_STR_LEN]
Definition: papi.h:960
Here is the call graph for this function:
Here is the caller graph for this function:

◆ thread_fn()

void * thread_fn ( void *  dummy)

Definition at line 29 of file multiplex3_pthreads.c.

30{
31 ( void ) dummy;
32 while ( 1 ) {
33 do_stuff( );
34 }
35 return NULL;
36}
dummy
void dummy(void *array)
Definition: do_loops.c:306

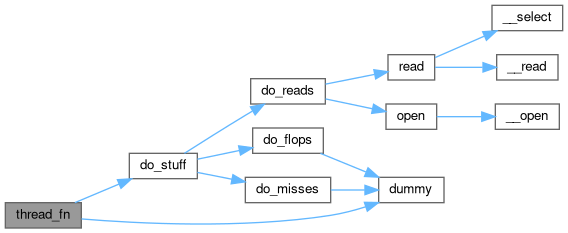

Here is the call graph for this function:
Here is the caller graph for this function:
