example.c File Reference

This is an example component, it demos the component interface and implements three example counters. More...

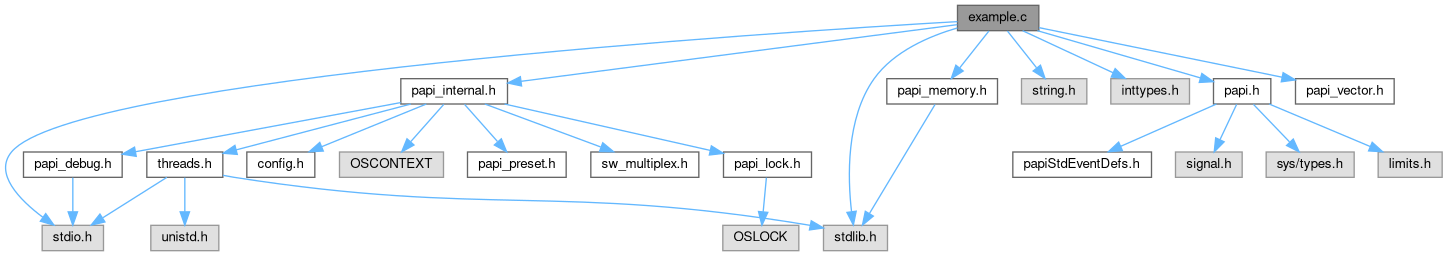

Include dependency graph for example.c:

Go to the source code of this file.

Data Structures
struct	example_register_t
struct	example_native_event_entry_t
struct	example_reg_alloc_t
struct	example_control_state_t
struct	example_context_t

Macros
#define	EXAMPLE_MAX_SIMULTANEOUS_COUNTERS   3
#define	EXAMPLE_MAX_MULTIPLEX_COUNTERS   4
#define	HANDLE_STRING_ERROR   {fprintf(stderr,"%s:%i unexpected string function error.\n",__FILE__,__LINE__); exit(-1);}
#define	EXAMPLE_ZERO_REG   0
#define	EXAMPLE_CONSTANT_REG   1
#define	EXAMPLE_AUTOINC_REG   2
#define	EXAMPLE_GLOBAL_AUTOINC_REG   3
#define	EXAMPLE_TOTAL_EVENTS   4

Functions
static void	example_hardware_reset (example_context_t *ctx)
static long long	example_hardware_read (int which_one, example_context_t *ctx)
static int	example_hardware_write (int which_one, example_context_t *ctx, long long value)
static int	detect_example (void)
static int	_example_init_component (int cidx)
static int	_example_init_thread (hwd_context_t *ctx)
static int	_example_init_control_state (hwd_control_state_t *ctl)
static int	_example_update_control_state (hwd_control_state_t *ctl, NativeInfo_t *native, int count, hwd_context_t *ctx)
static int	_example_start (hwd_context_t *ctx, hwd_control_state_t *ctl)
static int	_example_stop (hwd_context_t *ctx, hwd_control_state_t *ctl)
static int	_example_read (hwd_context_t *ctx, hwd_control_state_t *ctl, long long **events, int flags)
static int	_example_write (hwd_context_t *ctx, hwd_control_state_t *ctl, long long *events)
static int	_example_reset (hwd_context_t *ctx, hwd_control_state_t *ctl)
static int	_example_shutdown_component (void)
static int	_example_shutdown_thread (hwd_context_t *ctx)
static int	_example_ctl (hwd_context_t *ctx, int code, _papi_int_option_t *option)
static int	_example_set_domain (hwd_control_state_t *cntrl, int domain)
static int	_example_ntv_enum_events (unsigned int *EventCode, int modifier)
static int	_example_ntv_code_to_name (unsigned int EventCode, char *name, int len)
static int	_example_ntv_code_to_descr (unsigned int EventCode, char *descr, int len)

Variables
papi_vector_t	_example_vector
static example_native_event_entry_t *	example_native_table
static int	num_events = 0
static long long	example_global_autoinc_value = 0

Detailed Description

Author

Joachim Protze joach.nosp@m.im.p.nosp@m.rotze.nosp@m.@zih.nosp@m..tu-d.nosp@m.resd.nosp@m.en.de

Vince Weaver vweav.nosp@m.er1@.nosp@m.eecs..nosp@m.utk..nosp@m.edu

Definition in file example.c.

Macro Definition Documentation

EXAMPLE_AUTOINC_REG

#define EXAMPLE_AUTOINC_REG   2

Definition at line 104 of file example.c.

EXAMPLE_CONSTANT_REG

#define EXAMPLE_CONSTANT_REG   1

Definition at line 103 of file example.c.

EXAMPLE_GLOBAL_AUTOINC_REG

#define EXAMPLE_GLOBAL_AUTOINC_REG   3

Definition at line 105 of file example.c.

EXAMPLE_MAX_MULTIPLEX_COUNTERS

#define EXAMPLE_MAX_MULTIPLEX_COUNTERS   4

Definition at line 29 of file example.c.

EXAMPLE_MAX_SIMULTANEOUS_COUNTERS

#define EXAMPLE_MAX_SIMULTANEOUS_COUNTERS   3

This driver supports three counters counting at once

Definition at line 28 of file example.c.

EXAMPLE_TOTAL_EVENTS

#define EXAMPLE_TOTAL_EVENTS   4

Definition at line 107 of file example.c.

EXAMPLE_ZERO_REG

#define EXAMPLE_ZERO_REG   0

Definition at line 102 of file example.c.

HANDLE_STRING_ERROR

#define HANDLE_STRING_ERROR   {fprintf(stderr,"%s:%i unexpected string function error.\n",__FILE__,__LINE__); exit(-1);}

Definition at line 34 of file example.c.

Function Documentation

_example_ctl()

static int _example_ctl ( hwd_context_t *  ctx, int  code, _papi_int_option_t *  option  )

static

This function sets various options in the component

Parameters

[in]	ctx	– hardware context
[in]	code	valid are PAPI_SET_DEFDOM, PAPI_SET_DOMAIN, PAPI_SETDEFGRN, PAPI_SET_GRANUL and PAPI_SET_INHERIT
[in]	option	– options to be set

Definition at line 477 of file example.c.

{

        (void) ctx;
    (void) code;
    (void) option;

    SUBDBG( "example_ctl..." );

    return PAPI_OK;
}

_example_init_component()

static int _example_init_component ( int  cidx )

static

Initialize hardware counters, setup the function vector table and get hardware information, this routine is called when the PAPI process is initialized (IE PAPI_library_init)

Definition at line 192 of file example.c.

{
    int retval = PAPI_OK;

    SUBDBG( "_example_init_component..." );

   /* First, detect that our hardware is available */
   if (detect_example()!=PAPI_OK) {
      int strErr=snprintf(_example_vector.cmp_info.disabled_reason, PAPI_MAX_STR_LEN,
         "Example Hardware not present.");
      _example_vector.cmp_info.disabled_reason[PAPI_MAX_STR_LEN-1]=0;    // force null termination.
      if (strErr > PAPI_MAX_STR_LEN) HANDLE_STRING_ERROR;
      retval = PAPI_ENOSUPP;
      goto fn_fail;
   }

    /* we know in advance how many events we want                       */
    /* for actual hardware this might have to be determined dynamically */
    num_events = EXAMPLE_TOTAL_EVENTS;

    /* Allocate memory for the our native event table */
    example_native_table =
        ( example_native_event_entry_t * )
        papi_calloc( num_events, sizeof(example_native_event_entry_t) );
    if ( example_native_table == NULL ) {
      int strErr=snprintf(_example_vector.cmp_info.disabled_reason, PAPI_MAX_STR_LEN,
      "Could not allocate %lu bytes of memory for EXAMPLE device structure.", num_events*sizeof(example_native_event_entry_t));
      _example_vector.cmp_info.disabled_reason[PAPI_MAX_STR_LEN-1]=0;    // force null termination.
      if (strErr > PAPI_MAX_STR_LEN) HANDLE_STRING_ERROR;
        retval = PAPI_ENOMEM;
        goto fn_fail;
    }

    /* fill in the event table parameters */
    /* for complicated components this will be done dynamically */
    /* or by using an external library                          */

    strcpy( example_native_table[0].name, "EXAMPLE_ZERO" );
    strcpy( example_native_table[0].description,
            "This is an example counter, that always returns 0" );
    example_native_table[0].writable = 0;

    strcpy( example_native_table[1].name, "EXAMPLE_CONSTANT" );
    strcpy( example_native_table[1].description,
            "This is an example counter, that always returns a constant value of 42" );
    example_native_table[1].writable = 0;

    strcpy( example_native_table[2].name, "EXAMPLE_AUTOINC" );
    strcpy( example_native_table[2].description,
            "This is an example counter, that reports a per-thread  auto-incrementing value" );
    example_native_table[2].writable = 1;

    strcpy( example_native_table[3].name, "EXAMPLE_GLOBAL_AUTOINC" );
    strcpy( example_native_table[3].description,
            "This is an example counter, that reports a global auto-incrementing value" );
    example_native_table[3].writable = 1;

    /* Export the total number of events available */
    _example_vector.cmp_info.num_native_events = num_events;

    /* Export the component id */
    _example_vector.cmp_info.CmpIdx = cidx;

  fn_exit:
    _papi_hwd[cidx]->cmp_info.disabled = retval;
    return retval;
  fn_fail:
    goto fn_exit;
}

Here is the call graph for this function:

_example_init_control_state()

static int _example_init_control_state ( hwd_control_state_t *  ctl )

static

Setup a counter control state. In general a control state holds the hardware info for an EventSet.

Definition at line 284 of file example.c.

{
   SUBDBG( "example_init_control_state... %p\n", ctl );

   example_control_state_t *example_ctl = ( example_control_state_t * ) ctl;
   memset( example_ctl, 0, sizeof ( example_control_state_t ) );

   return PAPI_OK;
}

_example_init_thread()

static int _example_init_thread ( hwd_context_t *  ctx )

static

This is called whenever a thread is initialized

Definition at line 264 of file example.c.

{

        example_context_t *example_context = (example_context_t *)ctx;

        example_context->autoinc_value=0;

    SUBDBG( "_example_init_thread %p...", ctx );

    return PAPI_OK;
}

_example_ntv_code_to_descr()

static int _example_ntv_code_to_descr ( unsigned int  EventCode, char *  descr, int  len  )

static

Takes a native event code and passes back the event description

Parameters

EventCode	is the native event code
descr	is a pointer for the description to be copied to
len	is the size of the descr string

Definition at line 604 of file example.c.

{
  int index;
  index = EventCode;

  /* make sure event is in range */
  if (index >= 0 && index < num_events) {
     strncpy( descr, example_native_table[index].description, len );
     return PAPI_OK;
  }

  return PAPI_ENOEVNT;
}

_example_ntv_code_to_name()

static int _example_ntv_code_to_name ( unsigned int  EventCode, char *  name, int  len  )

static

Takes a native event code and passes back the name

Parameters

EventCode	is the native event code
name	is a pointer for the name to be copied to
len	is the size of the name string

Definition at line 583 of file example.c.

{
  int index;

  index = EventCode;

  /* Make sure we are in range */
  if (index >= 0 && index < num_events) {
     strncpy( name, example_native_table[index].name, len );
     return PAPI_OK;
  }

  return PAPI_ENOEVNT;
}

_example_ntv_enum_events()

static int _example_ntv_enum_events ( unsigned int *  EventCode, int  modifier  )

static

Enumerate Native Events

Parameters

EventCode	is the event of interest
modifier	is one of PAPI_ENUM_FIRST, PAPI_ENUM_EVENTS If your component has attribute masks then these need to be handled here as well.

Definition at line 541 of file example.c.

{
  int index;


  switch ( modifier ) {

        /* return EventCode of first event */
    case PAPI_ENUM_FIRST:
       /* return the first event that we support */

       *EventCode = 0;
       return PAPI_OK;

        /* return EventCode of next available event */
    case PAPI_ENUM_EVENTS:
       index = *EventCode;

       /* Make sure we have at least 1 more event after us */
       if ( index < num_events - 1 ) {

          /* This assumes a non-sparse mapping of the events */
          *EventCode = *EventCode + 1;
          return PAPI_OK;
       } else {
          return PAPI_ENOEVNT;
       }
       break;

    default:
       return PAPI_EINVAL;
  }

  return PAPI_EINVAL;
}

_example_read()

static int _example_read ( hwd_context_t *  ctx, hwd_control_state_t *  ctl, long long **  events, int  flags  )

static

Triggered by PAPI_read()

Definition at line 372 of file example.c.

{

   (void) flags;

   example_context_t *example_ctx = (example_context_t *) ctx;
   example_control_state_t *example_ctl = ( example_control_state_t *) ctl;

   SUBDBG( "example_read... %p %d", ctx, flags );

   int i;

   /* Read counters into expected slot */
   for(i=0;i<example_ctl->num_events;i++) {
      example_ctl->counter[i] =
        example_hardware_read( example_ctl->which_counter[i],
                       example_ctx );
   }

   /* return pointer to the values we read */
   *events = example_ctl->counter;

   return PAPI_OK;
}

Here is the call graph for this function:

_example_reset()

static int _example_reset ( hwd_context_t *  ctx, hwd_control_state_t *  ctl  )

static

Triggered by PAPI_reset() but only if the EventSet is currently running

Definition at line 427 of file example.c.

{
        example_context_t *event_ctx = (example_context_t *)ctx;
    (void) ctl;

    SUBDBG( "example_reset ctx=%p ctrl=%p...", ctx, ctl );

    /* Reset the hardware */
    example_hardware_reset( event_ctx );

    return PAPI_OK;
}

Here is the call graph for this function:

_example_set_domain()

static int _example_set_domain ( hwd_control_state_t *  cntrl, int  domain  )

static

This function has to set the bits needed to count different domains In particular: PAPI_DOM_USER, PAPI_DOM_KERNEL PAPI_DOM_OTHER By default return PAPI_EINVAL if none of those are specified and PAPI_OK with success PAPI_DOM_USER is only user context is counted PAPI_DOM_KERNEL is only the Kernel/OS context is counted PAPI_DOM_OTHER is Exception/transient mode (like user TLB misses) PAPI_DOM_ALL is all of the domains

Definition at line 499 of file example.c.

{
        (void) cntrl;

    int found = 0;
    SUBDBG( "example_set_domain..." );

    if ( PAPI_DOM_USER & domain ) {
        SUBDBG( " PAPI_DOM_USER " );
        found = 1;
    }
    if ( PAPI_DOM_KERNEL & domain ) {
        SUBDBG( " PAPI_DOM_KERNEL " );
        found = 1;
    }
    if ( PAPI_DOM_OTHER & domain ) {
        SUBDBG( " PAPI_DOM_OTHER " );
        found = 1;
    }
    if ( PAPI_DOM_ALL & domain ) {
        SUBDBG( " PAPI_DOM_ALL " );
        found = 1;
    }
    if ( !found )
        return ( PAPI_EINVAL );

    return PAPI_OK;
}

_example_shutdown_component()

static int _example_shutdown_component ( void  )

static

Triggered by PAPI_shutdown()

Definition at line 442 of file example.c.

{

    SUBDBG( "example_shutdown_component..." );

        /* Free anything we allocated */

    papi_free(example_native_table);

    return PAPI_OK;
}

_example_shutdown_thread()

static int _example_shutdown_thread ( hwd_context_t *  ctx )

static

Called at thread shutdown

Definition at line 456 of file example.c.

{

        (void) ctx;

    SUBDBG( "example_shutdown_thread... %p", ctx );

    /* Last chance to clean up thread */

    return PAPI_OK;
}

_example_start()

static int _example_start ( hwd_context_t *  ctx, hwd_control_state_t *  ctl  )

static

Triggered by PAPI_start()

Definition at line 331 of file example.c.

{

        (void) ctx;
        (void) ctl;

    SUBDBG( "example_start %p %p...", ctx, ctl );

    /* anything that would need to be set at counter start time */

    /* reset counters? */
        /* For hardware that cannot reset counters, store initial        */
        /*     counter state to the ctl and subtract it off at read time */

    /* start the counting ?*/

    return PAPI_OK;
}

_example_stop()

static int _example_stop ( hwd_context_t *  ctx, hwd_control_state_t *  ctl  )

static

Triggered by PAPI_stop()

Definition at line 353 of file example.c.

{

        (void) ctx;
        (void) ctl;

    SUBDBG( "example_stop %p %p...", ctx, ctl );

    /* anything that would need to be done at counter stop time */



    return PAPI_OK;
}

_example_update_control_state()

static int _example_update_control_state ( hwd_control_state_t *  ctl, NativeInfo_t *  native, int  count, hwd_context_t *  ctx  )

static

Triggered by eventset operations like add or remove

Definition at line 297 of file example.c.

{

   (void) ctx;
   int i, index;

   example_control_state_t *example_ctl = ( example_control_state_t * ) ctl;

   SUBDBG( "_example_update_control_state %p %p...", ctl, ctx );

   /* if no events, return */
   if (count==0) return PAPI_OK;

   for( i = 0; i < count; i++ ) {
      index = native[i].ni_event;

      /* Map counter #i to Measure Event "index" */
      example_ctl->which_counter[i]=index;

      /* We have no constraints on event position, so any event */
      /* can be in any slot.                                    */
      native[i].ni_position = i;
   }

   example_ctl->num_events=count;

   return PAPI_OK;
}

_example_write()

static int _example_write ( hwd_context_t *  ctx, hwd_control_state_t *  ctl, long long *  events  )

static

Triggered by PAPI_write(), but only if the counters are running

Definition at line 401 of file example.c.

{

        example_context_t *example_ctx = (example_context_t *) ctx;
        example_control_state_t *example_ctl = ( example_control_state_t *) ctl;

        int i;

    SUBDBG( "example_write... %p %p", ctx, ctl );

        /* Write counters into expected slot */
        for(i=0;i<example_ctl->num_events;i++) {
       example_hardware_write( example_ctl->which_counter[i],
                   example_ctx,
                   events[i] );
    }

    return PAPI_OK;
}

Here is the call graph for this function:

detect_example()

static int detect_example ( void  )

static

Definition at line 177 of file example.c.

                     {

   return PAPI_OK;
}

Here is the caller graph for this function:

example_hardware_read()

static long long example_hardware_read ( int  which_one, example_context_t *  ctx  )

static

Code that reads event values.

Definition at line 126 of file example.c.

{
    long long old_value;

    switch ( which_one ) {
    case EXAMPLE_ZERO_REG:
        return 0;
    case EXAMPLE_CONSTANT_REG:
        return 42;
    case EXAMPLE_AUTOINC_REG:
        old_value = ctx->autoinc_value;
        ctx->autoinc_value++;
        return old_value;
    case EXAMPLE_GLOBAL_AUTOINC_REG:
        old_value = example_global_autoinc_value;
        example_global_autoinc_value++;
        return old_value;
    default:
            fprintf(stderr,"Invalid counter read %#x\n",which_one );
        return -1;
    }

    return 0;
}

Here is the caller graph for this function:

example_hardware_reset()

static void example_hardware_reset ( example_context_t *  ctx )

static

Code that resets the hardware.

Definition at line 113 of file example.c.

{
   /* reset per-thread count */
   ctx->autoinc_value=0;
   /* reset global count */
   example_global_autoinc_value = 0;

}

Here is the caller graph for this function:

example_hardware_write()

static int example_hardware_write ( int  which_one, example_context_t *  ctx, long long  value  )

static

Code that writes event values.

Definition at line 153 of file example.c.

{

    switch ( which_one ) {
    case EXAMPLE_ZERO_REG:
    case EXAMPLE_CONSTANT_REG:
        return PAPI_OK; /* can't be written */
    case EXAMPLE_AUTOINC_REG:
        ctx->autoinc_value=value;
        return PAPI_OK;
    case EXAMPLE_GLOBAL_AUTOINC_REG:
            example_global_autoinc_value=value;
        return PAPI_OK;
    default:
        perror( "Invalid counter write" );
        return -1;
    }

    return 0;
}

Here is the caller graph for this function:

Variable Documentation

_example_vector

papi_vector_t _example_vector

Vector that points to entry points for our component

Definition at line 38 of file example.c.

example_global_autoinc_value

long long example_global_autoinc_value = 0

static

Definition at line 109 of file example.c.

example_native_table

example_native_event_entry_t* example_native_table

static

This table contains the native events

Definition at line 92 of file example.c.

num_events

int num_events = 0

static

number of events in the table

Definition at line 95 of file example.c.
