papi_hybrid_native_avail.c File Reference

Include dependency graph for papi_hybrid_native_avail.c:

Go to the source code of this file.

Data Structures
struct	command_flags_t

Macros
#define	EVT_LINE   80

Functions
static void	print_help (char **argv)
static int	no_str_arg (char *arg)
static void	parse_args (int argc, char **argv, command_flags_t *f)
static void	space_pad (char *str, int spaces)
static void	print_event (PAPI_event_info_t *info, int offset)
static int	parse_unit_masks (PAPI_event_info_t *info)
int	main (int argc, char **argv)

Macro Definition Documentation

EVT_LINE

#define EVT_LINE   80

Definition at line 57 of file papi_hybrid_native_avail.c.

Function Documentation

main()

int main	(	int	argc,
		char **	argv
	)

#pragma offload target(mic: target_idx) if(offload_mode) in(argc, argv) inout(TESTS_QUIET)

Definition at line 252 of file papi_hybrid_native_avail.c.

{
    int i, j = 0, k;
    int retval;
    PAPI_event_info_t info;
    const PAPI_hw_info_t *hwinfo = NULL;
    command_flags_t flags;
    int enum_modifier;
    int numcmp, cid;

    int num_devices = 0;
    int target_idx = 0;
    int offload_mode = 0;
    int target_ok = 0;

    /* Parse the command-line arguments */
    parse_args( argc, argv, &flags );

    if (flags.mic)
    {
       printf("Checking for Intel(R) Xeon Phi(TM) (Target CPU) devices...\n\n");

#ifdef __INTEL_OFFLOAD
       num_devices = _Offload_number_of_devices();
#endif
       printf("Number of Target devices installed: %d\n\n",num_devices);

       if (flags.devidx >= num_devices) {
          // Run in fallback-mode
          printf("Requested device index %d is not available. Specify a device between 0 and %d\n\n",
              flags.devidx, num_devices-1);
          exit(1);
       }
       else {
          offload_mode = 1;
          target_idx = flags.devidx;
          printf("PAPI will list the native events available on device mic%d\n\n", target_idx);
       }
    }

    /* Set enum modifier mask */
    if ( flags.dear )
        enum_modifier = PAPI_NTV_ENUM_DEAR;
    else if ( flags.darr )
        enum_modifier = PAPI_NTV_ENUM_DARR;
    else if ( flags.iear )
        enum_modifier = PAPI_NTV_ENUM_IEAR;
    else if ( flags.iarr )
        enum_modifier = PAPI_NTV_ENUM_IARR;
    else if ( flags.opcm )
        enum_modifier = PAPI_NTV_ENUM_OPCM;
    else
        enum_modifier = PAPI_ENUM_EVENTS;


    /* Initialize before parsing the input arguments */
#ifdef __INTEL_OFFLOAD
    __Offload_report(1);
#endif
    #pragma offload target(mic: target_idx) if(offload_mode)

    retval = PAPI_library_init(PAPI_VER_CURRENT);
    if ( retval != PAPI_VER_CURRENT ) {
        fprintf(stderr,"Error! PAPI_library_init\n");
        exit(retval);
    }


    if ( !TESTS_QUIET ) {
#ifdef __INTEL_OFFLOAD
       __Offload_report(1);
#endif
       #pragma offload target(mic: target_idx) if(offload_mode)
       retval = PAPI_set_debug( PAPI_VERB_ECONT );
       if ( retval != PAPI_OK ) {
          fprintf(stderr,"Error! PAPI_set_debug\n");
        exit(retval);
       }
    }

#ifdef __INTEL_OFFLOAD
    __Offload_report(1);
#endif
    #pragma offload target(mic: target_idx) if(offload_mode) nocopy(hwinfo)
    {
       retval = papi_print_header( "Available native events and hardware information.\n", &hwinfo );
       fflush(stdout);
    }
    if ( retval != PAPI_OK ) {
        fprintf(stderr,"Error! PAPI_get_hardware_info\n");
        exit( 2 );
    }


    /* Do this code if the event name option was specified on the commandline */
    if ( flags.named )
    {
       int papi_ok = 0;
       char *ename = flags.name;
       int elen = 0;
       if (ename)
          elen = strlen(ename) + 1;
#ifdef __INTEL_OFFLOAD
       __Offload_report(1);
#endif
       #pragma offload target(mic: target_idx) if(offload_mode) in(ename:length(elen)) out(i)
       papi_ok = PAPI_event_name_to_code(ename, &i);

       if (papi_ok == PAPI_OK)
       {
#ifdef __INTEL_OFFLOAD
          __Offload_report(1);
#endif
          #pragma offload target(mic: target_idx) if(offload_mode) out(info)
          papi_ok = PAPI_get_event_info(i, &info);
       }

       if (papi_ok == PAPI_OK)
       {
          printf( "%-30s%s\n",
              "Event name:", info.symbol);
          printf( "%-29s|%s|\n", "Description:", info.long_descr );

          /* if unit masks exist but none specified, process all */
          if ( !strchr( flags.name, ':' ) )
          {
#ifdef __INTEL_OFFLOAD
            __Offload_report(1);
#endif
            #pragma offload target(mic: target_idx) if(offload_mode) inout(i)
            papi_ok = PAPI_enum_event( &i, PAPI_NTV_ENUM_UMASKS);
            if (papi_ok == PAPI_OK )
            {
               printf( "\nUnit Masks:\n" );
               do
               {
#ifdef __INTEL_OFFLOAD
                  __Offload_report(1);
#endif
                  #pragma offload target(mic: target_idx) if(offload_mode) inout(i, info)
                  retval = PAPI_get_event_info( i, &info );
                  if ( retval == PAPI_OK ) {
                     if ( parse_unit_masks( &info ) ) {
                        printf( "%-29s|%s|%s|\n", " Mask Info:",
                           info.symbol, info.long_descr );
                     }
                  }
#ifdef __INTEL_OFFLOAD
                  __Offload_report(1);
#endif
                  #pragma offload target(mic: target_idx) if(offload_mode) inout(i, info)
                  papi_ok = PAPI_enum_event(&i, PAPI_NTV_ENUM_UMASKS);
               } while (papi_ok == PAPI_OK);
            }
          }
       } else {
         printf("Sorry, an event by the name '%s' could not be found.\n",
            flags.name);
         printf("Is it typed correctly?\n\n");
         exit( 1 );
       }
    }
    else {

       /* Print *ALL* available events */

#ifdef __INTEL_OFFLOAD
       __Offload_report(1);
#endif
       #pragma offload target(mic: target_idx) if(offload_mode)
       numcmp = PAPI_num_components(  );

       j = 0;

       for ( cid = 0; cid < numcmp; cid++ ) {

           PAPI_component_info_t component;
//         if (offload_mode)  // I must allocate local memory to receive the result
//            component = (PAPI_component_info_t*)malloc(sizeof(PAPI_component_info_t));
//           #pragma offload target(mic: target_idx) if(offload_mode) out(*component:length(sizeof(PAPI_component_info_t)) alloc_if(0) free_if(0))
#ifdef __INTEL_OFFLOAD
           __Offload_report(1);
#endif
           #pragma offload target(mic: target_idx) if(offload_mode) out(component)
           {
              memcpy(&component, PAPI_get_component_info(cid), sizeof(PAPI_component_info_t));
           }

           /* Skip disabled components */
           if (component.disabled) continue;

           printf( "===============================================================================\n" );
           printf( " Native Events in Component: %s\n",component.name);
           printf( "===============================================================================\n" );

           /* Always ASK FOR the first event */
           /* Don't just assume it'll be the first numeric value */
           i = 0 | PAPI_NATIVE_MASK;

#ifdef __INTEL_OFFLOAD
           __Offload_report(1);
#endif
           #pragma offload target(mic: target_idx) if(offload_mode) inout(i)
           retval=PAPI_enum_cmp_event( &i, PAPI_ENUM_FIRST, cid );

           do
           {
              memset( &info, 0, sizeof ( info ) );
#ifdef __INTEL_OFFLOAD
              __Offload_report(1);
#endif
              #pragma offload target(mic: target_idx) if(offload_mode) inout(info)
              retval = PAPI_get_event_info( i, &info );

              /* This event may not exist */
              if ( retval != PAPI_OK )
                 goto endloop;

              /* Bail if event name doesn't contain include string */
              if ( flags.include ) {
                 if ( !strstr( info.symbol, flags.istr ) ) {
                    goto endloop;
                 }
              }

              /* Bail if event name does contain exclude string */
              if ( flags.xclude ) {
                 if ( strstr( info.symbol, flags.xstr ) )
                    goto endloop;
              }

              /* count only events that are actually processed */
              j++;

              print_event( &info, 0 );

              if (flags.details) {
                if (info.units[0]) printf( "|     Units: %-67s|\n",
                               info.units );
              }

/*      modifier = PAPI_NTV_ENUM_GROUPS returns event codes with a
            groups id for each group in which this
            native event lives, in bits 16 - 23 of event code
            terminating with PAPI_ENOEVNT at the end of the list.
*/

              /* This is an IBM Power issue */
              if ( flags.groups ) {
                 int papi_ok = 0;
                 k = i;
#ifdef __INTEL_OFFLOAD
                 __Offload_report(1);
#endif
                 #pragma offload target(mic: target_idx) if(offload_mode) inout(k)
                 papi_ok = PAPI_enum_cmp_event(&k, PAPI_NTV_ENUM_GROUPS, cid);
                 if (papi_ok == PAPI_OK )
                 {
                    printf("Groups: ");
                    do {
                       printf( "%4d", ( ( k & PAPI_NTV_GROUP_AND_MASK ) >>
                              PAPI_NTV_GROUP_SHIFT ) - 1 );
#ifdef __INTEL_OFFLOAD
                       __Offload_report(1);
#endif
                       #pragma offload target(mic: target_idx) if(offload_mode) inout(k)
                       papi_ok = PAPI_enum_cmp_event(&k, PAPI_NTV_ENUM_GROUPS, cid);
                    } while (papi_ok==PAPI_OK );
                    printf( "\n" );
                 }
              }

              /* Print umasks */
              /* components that don't have them can just ignore */

              if ( flags.umask )
              {
                 int papi_ok = 0;
                 k = i;
#ifdef __INTEL_OFFLOAD
                 __Offload_report(1);
#endif
                 #pragma offload target(mic: target_idx) if(offload_mode) inout(k)
                 papi_ok = PAPI_enum_cmp_event(&k, PAPI_NTV_ENUM_UMASKS, cid);
                 if (papi_ok == PAPI_OK )
                 {
                    do {
#ifdef __INTEL_OFFLOAD
                       __Offload_report(1);
#endif
                       #pragma offload target(mic: target_idx) if(offload_mode) inout(info)
                       retval = PAPI_get_event_info(k, &info);
                       if ( retval == PAPI_OK ) {
                          if (parse_unit_masks( &info ))
                             print_event(&info, 2);
                       }
#ifdef __INTEL_OFFLOAD
                       __Offload_report(1);
#endif
                       #pragma offload target(mic: target_idx) if(offload_mode) inout(k)
                       papi_ok = PAPI_enum_cmp_event(&k, PAPI_NTV_ENUM_UMASKS, cid);
                    } while (papi_ok == PAPI_OK);
                 }
              }
              printf( "--------------------------------------------------------------------------------\n" );

endloop:
#ifdef __INTEL_OFFLOAD
              __Offload_report(1);
#endif
              #pragma offload target(mic: target_idx) if(offload_mode) inout(i)
              retval=PAPI_enum_cmp_event(&i, enum_modifier, cid);
           } while (retval == PAPI_OK );
       }

       printf("\n");
       printf( "Total events reported: %d\n", j );
    }

    return 0;
}

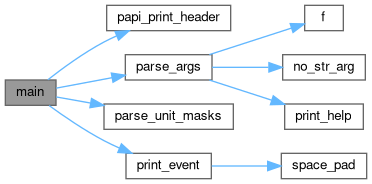

Here is the call graph for this function:

no_str_arg()

static int no_str_arg ( char *  arg )

static

Definition at line 103 of file papi_hybrid_native_avail.c.

{
    return ( ( arg == NULL ) || ( strlen( arg ) == 0 ) || ( arg[0] == '-' ) );
}

Here is the caller graph for this function:

parse_args()

static void parse_args ( int  argc, char **  argv, command_flags_t *  f  )

static

Definition at line 109 of file papi_hybrid_native_avail.c.

{

    int i;

    /* Look for all currently defined commands */
    memset( f, 0, sizeof ( command_flags_t ) );
    f->umask = 1;
    f->groups = 1;

    for ( i = 1; i < argc; i++ ) {
        if ( !strcmp( argv[i], "--darr" ) )
            f->darr = 1;
        else if ( !strcmp( argv[i], "--dear" ) )
            f->dear = 1;
        else if ( !strcmp( argv[i], "--iarr" ) )
            f->iarr = 1;
        else if ( !strcmp( argv[i], "--iear" ) )
            f->iear = 1;
        else if ( !strcmp( argv[i], "--opcm" ) )
            f->opcm = 1;
        else if ( !strcmp( argv[i], "--noumasks" ) )
            f->umask = 0;
        else if ( !strcmp( argv[i], "--nogroups" ) )
            f->groups = 0;
        else if ( !strcmp( argv[i], "-d" ) )
            f->details = 1;
        else if ( !strcmp( argv[i], "--mic" ) )
        {
            f->mic = 1;
            i++;
            if ( i >= argc || no_str_arg( argv[i] ) ) {
                printf( "Specify a device index for --mic\n");
                exit(1);
            }
            f->devidx = strtol(argv[i], 0, 10);
                } else if ( !strcmp( argv[i], "-e" ) ) {
            f->named = 1;
            i++;
            f->name = argv[i];
            if ( i >= argc || no_str_arg( f->name ) ) {
                printf( "Invalid argument for -e\n");
                exit(1);
            }
        } else if ( !strcmp( argv[i], "-i" ) ) {
            f->include = 1;
            i++;
            f->istr = argv[i];
            if ( i >= argc || no_str_arg( f->istr ) ) {
                printf( "Invalid argument for -i\n");
                exit(1);
            }
        } else if ( !strcmp( argv[i], "-x" ) ) {
            f->xclude = 1;
            i++;
            f->xstr = argv[i];
            if ( i >= argc || no_str_arg( f->xstr ) ) {
                printf( "Invalid argument for -x\n");
                exit(1);
            }
        } else if ( !strcmp( argv[i], "-h" ) || !strcmp( argv[i], "--help" ) )
            f->help = 1;
        else {
            printf( "%s is not supported\n", argv[i] );
            exit(1);
        }
    }

    /* if help requested, print and bail */
    if ( f->help ) {
        print_help( argv);
        exit( 1 );
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

parse_unit_masks()

static int parse_unit_masks ( PAPI_event_info_t *  info )

static

Definition at line 222 of file papi_hybrid_native_avail.c.

{
  char *pmask,*ptr;

  /* handle the PAPI component-style events which have a component:::event type */
  if ((ptr=strstr(info->symbol, ":::"))) {
    ptr+=3;
  /* handle libpfm4-style events which have a pmu::event type event name */
  } else if ((ptr=strstr(info->symbol, "::"))) {
    ptr+=2;
  }
  else {
    ptr=info->symbol;
  }

    if ( ( pmask = strchr( ptr, ':' ) ) == NULL ) {
        return ( 0 );
    }
    memmove( info->symbol, pmask, ( strlen( pmask ) + 1 ) * sizeof ( char ) );
    pmask = strchr( info->long_descr, ':' );
    if ( pmask == NULL )
        info->long_descr[0] = 0;
    else
        memmove( info->long_descr, pmask + sizeof ( char ),
                 ( strlen( pmask ) + 1 ) * sizeof ( char ) );
    return ( 1 );
}

Here is the caller graph for this function:

print_event()

static void print_event ( PAPI_event_info_t *  info, int  offset  )

static

Definition at line 192 of file papi_hybrid_native_avail.c.

{
    unsigned int i, j = 0;
    char str[EVT_LINE + EVT_LINE];

    /* indent by offset */
    if ( offset ) {
       printf( "|     %-73s|\n", info->symbol );
    }
    else {
       printf( "| %-77s|\n", info->symbol );
    }

    while ( j <= strlen( info->long_descr ) ) {
       i = EVT_LINE - 12 - 2;
       if ( i > 0 ) {
          str[0] = 0;
          strcat(str,"| " );
          space_pad( str, 11 );
          strncat( str, &info->long_descr[j], i );
          j += i;
          i = ( unsigned int ) strlen( str );
          space_pad( str, EVT_LINE - ( int ) i - 1 );
          strcat( str, "|" );
       }
       printf( "%s\n", str );
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

print_help()

static void print_help ( char **  argv )

static

Definition at line 79 of file papi_hybrid_native_avail.c.

{
    printf( "This is the PAPI native avail program.\n" );
    printf( "It provides availability and detail information for PAPI native events.\n" );
    printf( "Usage: %s [options]\n", argv[0] );
    printf( "\nOptions:\n" );
    printf( "   --help, -h   print this help message\n" );
    printf( "   -d           display detailed information about native events\n" );
    printf( "   -e EVENTNAME display detailed information about named native event\n" );
    printf( "   -i EVENTSTR  include only event names that contain EVENTSTR\n" );
    printf( "   -x EVENTSTR  exclude any event names that contain EVENTSTR\n" );
    printf( "   --noumasks   suppress display of Unit Mask information\n" );
    printf( "\nProcessor-specific options\n");
    printf( "  --darr        display events supporting Data Address Range Restriction\n" );
    printf( "  --dear        display Data Event Address Register events only\n" );
    printf( "  --iarr        display events supporting Instruction Address Range Restriction\n" );
    printf( "  --iear        display Instruction Event Address Register events only\n" );
        printf( "  --opcm        display events supporting OpCode Matching\n" );
    printf( "  --nogroups    suppress display of Event grouping information\n" );
        printf( "  --mic <index> display events on the specified Xeon Phi device\n" );
    printf( "\n" );
}

space_pad()

static void space_pad ( char *  str, int  spaces  )

static

Definition at line 185 of file papi_hybrid_native_avail.c.

{
    while ( spaces-- > 0 )
        strcat( str, " " );
}

Here is the caller graph for this function:
