io_basic.c File Reference

This file is a very simple example test and Makefile that acat as a guideline on how to add tests to components. The papi configure and papi Makefile will take care of the compilation of the component tests (if all tests are added to a directory named 'tests' in the specific component dir). See components/README for more details. More...

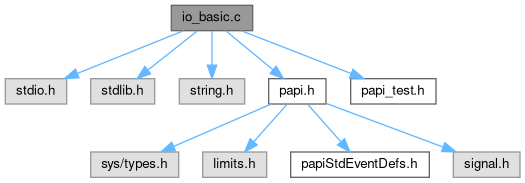

Include dependency graph for io_basic.c:

Go to the source code of this file.

Macros

#define NUM_EVENTS   3


Functions

int main (int argc, char **argv)


Detailed Description

Author
Kevin A. Huck khuck.nosp@m.@uor.nosp@m.egon..nosp@m.edu test case for I/O component

Definition in file io_basic.c.

Macro Definition Documentation

◆ NUM_EVENTS

#define NUM_EVENTS   3

Definition at line 28 of file io_basic.c.

Function Documentation

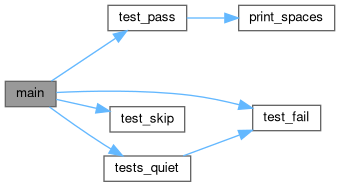

◆ main()

int main ( int  argc,
char **  argv
)

Definition at line 30 of file io_basic.c.

31{
32
33 int retval,i;
34 int EventSet = PAPI_NULL;
35 long long values[NUM_EVENTS];
36 const PAPI_component_info_t *cmpinfo = NULL;
37 int numcmp,cid,example_cid=-1;
38 int code,maximum_code=0;
39 char event_name[PAPI_MAX_STR_LEN];
40 PAPI_event_info_t event_info;
41 int quiet=0;
42
43 /* Set TESTS_QUIET variable */
44 quiet=tests_quiet( argc, argv );
45
46 /* PAPI Initialization */
47 retval = PAPI_library_init( PAPI_VER_CURRENT );
48 if ( retval != PAPI_VER_CURRENT ) {
49 test_fail(__FILE__, __LINE__,"PAPI_library_init failed\n",retval);
50 }
51
52 if (!quiet) {
53 printf( "Testing I/O component with PAPI %d.%d.%d\n",
54 PAPI_VERSION_MAJOR( PAPI_VERSION ),
55 PAPI_VERSION_MINOR( PAPI_VERSION ),
56 PAPI_VERSION_REVISION( PAPI_VERSION ) );
57 }
58
59 /* Find our component */
60
61 numcmp = PAPI_num_components();
62 for( cid=0; cid<numcmp; cid++) {
63 if ( (cmpinfo = PAPI_get_component_info(cid)) == NULL) {
64 test_fail(__FILE__, __LINE__,
65 "PAPI_get_component_info failed\n", 0);
66 }
67 if (!quiet) {
68 printf("\tComponent %d - %d events - %s\n", cid,
69 cmpinfo->num_native_events,
70 cmpinfo->name);
71 }
72 if (strstr(cmpinfo->name,"io")) {
73 /* FOUND! */
74 example_cid=cid;
75 }
76 }
77
78
79 if (example_cid<0) {
80 test_skip(__FILE__, __LINE__,
81 "Example component not found\n", 0);
82 }
83
84 if (!quiet) {
85 printf("\nFound io Component at id %d\n",example_cid);
86 printf("\nListing all events in this component:\n");
87 }
88
89 /**************************************************/
90 /* Listing all available events in this component */
91 /* Along with descriptions */
92 /**************************************************/
93 code = PAPI_NATIVE_MASK;
94
95 retval = PAPI_enum_cmp_event( &code, PAPI_ENUM_FIRST, example_cid );
96
97 while ( retval == PAPI_OK ) {
98 if (PAPI_event_code_to_name( code, event_name )!=PAPI_OK) {
99 printf("Error translating %#x\n",code);
100 test_fail( __FILE__, __LINE__,
101 "PAPI_event_code_to_name", retval );
102 }
103
104 if (PAPI_get_event_info( code, &event_info)!=PAPI_OK) {
105 printf("Error getting info for event %#x\n",code);
106 test_fail( __FILE__, __LINE__,
107 "PAPI_get_event_info()", retval );
108 }
109
110 if (!quiet) {
111 printf("\tEvent %#x: %s -- %s\n",
112 code,event_name,event_info.long_descr);
113 }
114
115 maximum_code=code;
116
117 retval = PAPI_enum_cmp_event( &code, PAPI_ENUM_EVENTS, example_cid );
118
119 }
120 if (!quiet) printf("\n");
121
122 /**********************************/
123 /* Try accessing an invalid event */
124 /**********************************/
125
126 retval=PAPI_event_code_to_name( maximum_code+10, event_name );
127 if (retval!=PAPI_ENOEVNT) {
128 test_fail( __FILE__, __LINE__,
129 "Failed to return PAPI_ENOEVNT on invalid event", retval );
130 }
131
132 /***********************************/
133 /* Test the rchar event */
134 /***********************************/
135
136 retval = PAPI_create_eventset( &EventSet );
137 if ( retval != PAPI_OK ) {
138 test_fail( __FILE__, __LINE__,
139 "PAPI_create_eventset() failed\n", retval );
140 }
141
142 retval = PAPI_event_name_to_code("io:::rchar", &code);
143 if ( retval != PAPI_OK ) {
144 test_fail( __FILE__, __LINE__,
145 "io:::rchar not found\n",retval );
146 }
147
148 retval = PAPI_add_event( EventSet, code);
149 if ( retval != PAPI_OK ) {
150 test_fail( __FILE__, __LINE__,
151 "PAPI_add_events failed\n", retval );
152 }
153
154 retval = PAPI_start( EventSet );
155 if ( retval != PAPI_OK ) {
156 test_fail( __FILE__, __LINE__,
157 "PAPI_start failed\n",retval );
158 }
159
160 retval = PAPI_stop( EventSet, values );
161 if ( retval != PAPI_OK ) {
162 test_fail( __FILE__, __LINE__, "PAPI_stop failed\n", retval);
163 }
164
165 if (!quiet) printf("Testing io:::rchar: %lld\n",values[0]);
166
167 if (values[0]==0) {
168 test_fail( __FILE__, __LINE__, "Result should be != 0!\n", 0);
169 }
170
171 retval = PAPI_cleanup_eventset(EventSet);
172 if (retval != PAPI_OK) {
173 test_fail( __FILE__, __LINE__, "PAPI_cleanup_eventset!\n", retval);
174 }
175
176 retval = PAPI_destroy_eventset(&EventSet);
177 if (retval != PAPI_OK) {
178 test_fail( __FILE__, __LINE__, "PAPI_destroy_eventset!\n", retval);
179 }
180
181 EventSet=PAPI_NULL;
182
183
184 /***********************************/
185 /* Test the wchar event */
186 /***********************************/
187
188 retval = PAPI_create_eventset( &EventSet );
189 if ( retval != PAPI_OK ) {
190 test_fail( __FILE__, __LINE__,
191 "PAPI_create_eventset() failed\n", retval );
192 }
193
194 retval = PAPI_event_name_to_code("io:::wchar", &code);
195 if ( retval != PAPI_OK ) {
196 test_fail( __FILE__, __LINE__,
197 "io:::wchar not found\n",retval );
198 }
199
200 retval = PAPI_add_event( EventSet, code);
201 if ( retval != PAPI_OK ) {
202 test_fail( __FILE__, __LINE__,
203 "PAPI_add_events failed\n", retval );
204 }
205
206 retval = PAPI_start( EventSet );
207 if ( retval != PAPI_OK ) {
208 test_fail( __FILE__, __LINE__,
209 "PAPI_start failed\n",retval );
210 }
211
212 retval = PAPI_stop( EventSet, values );
213 if ( retval != PAPI_OK ) {
214 test_fail( __FILE__, __LINE__, "PAPI_stop failed\n", retval);
215 }
216
217 if (!quiet) printf("Testing io:::wchar: %lld\n",values[0]);
218
219 if (values[0]==0) {
220 test_fail( __FILE__, __LINE__, "Result should be != 0!\n", 0);
221 }
222
223
224 /***********************************/
225 /* Test multiple reads */
226 /***********************************/
227
228 retval = PAPI_start( EventSet );
229 if ( retval != PAPI_OK ) {
230 test_fail( __FILE__, __LINE__,
231 "PAPI_start failed\n",retval );
232 }
233
234 for(i=0;i<10;i++) {
235
236 retval=PAPI_read( EventSet, values);
237 if ( retval != PAPI_OK ) {
238 test_fail( __FILE__, __LINE__, "PAPI_read failed\n", retval);
239 }
240 if (!quiet) printf("%lld ",values[0]);
241 }
242
243 retval = PAPI_stop( EventSet, values );
244 if ( retval != PAPI_OK ) {
245 test_fail( __FILE__, __LINE__, "PAPI_stop failed\n", retval);
246 }
247 if (!quiet) printf("%lld\n",values[0]);
248
249 // if (values[0]!=i) {
250 // test_fail( __FILE__, __LINE__, "Result wrong!\n", 0);
251 //}
252
253 /***********************************/
254 /* Test PAPI_reset() */
255 /***********************************/
256
257 retval = PAPI_reset( EventSet);
258 if ( retval != PAPI_OK ) {
259 test_fail( __FILE__, __LINE__,
260 "PAPI_reset() failed\n",retval );
261 }
262
263 retval = PAPI_start( EventSet );
264 if ( retval != PAPI_OK ) {
265 test_fail( __FILE__, __LINE__,
266 "PAPI_start failed\n",retval );
267 }
268
269 retval = PAPI_reset( EventSet);
270 if ( retval != PAPI_OK ) {
271 test_fail( __FILE__, __LINE__,
272 "PAPI_reset() failed\n",retval );
273 }
274
275 retval = PAPI_stop( EventSet, values );
276 if ( retval != PAPI_OK ) {
277 test_fail( __FILE__, __LINE__, "PAPI_stop failed\n", retval);
278 }
279
280
281 if (!quiet) printf("Testing after PAPI_reset(): %lld\n",
282 values[0]);
283
284 if (values[0]==0) {
285 test_fail( __FILE__, __LINE__, "Result zero!\n", 0);
286 }
287
288 retval = PAPI_cleanup_eventset(EventSet);
289 if (retval != PAPI_OK) {
290 test_fail( __FILE__, __LINE__, "PAPI_cleanup_eventset!\n", retval);
291 }
292
293 retval = PAPI_destroy_eventset(&EventSet);
294 if (retval != PAPI_OK) {
295 test_fail( __FILE__, __LINE__, "PAPI_destroy_eventset!\n", retval);
296 }
297
298 EventSet=PAPI_NULL;
299
300
301 /***********************************/
302 /* Test multiple events */
303 /***********************************/
304
305 if (!quiet) printf("Testing Multiple Events: ");
306
307 retval = PAPI_create_eventset( &EventSet );
308 if ( retval != PAPI_OK ) {
309 test_fail( __FILE__, __LINE__,
310 "PAPI_create_eventset() failed\n", retval );
311 }
312
313 retval = PAPI_event_name_to_code("io:::rchar", &code);
314 if ( retval != PAPI_OK ) {
315 test_fail( __FILE__, __LINE__,
316 "io:::rchar not found\n",retval );
317 }
318
319 retval = PAPI_add_event( EventSet, code);
320 if ( retval != PAPI_OK ) {
321 test_fail( __FILE__, __LINE__,
322 "PAPI_add_events failed\n", retval );
323 }
324
325 retval = PAPI_event_name_to_code("io:::wchar", &code);
326 if ( retval != PAPI_OK ) {
327 test_fail( __FILE__, __LINE__,
328 "io:::wchar not found\n",retval );
329 }
330
331 retval = PAPI_add_event( EventSet, code);
332 if ( retval != PAPI_OK ) {
333 test_fail( __FILE__, __LINE__,
334 "PAPI_add_events failed\n", retval );
335 }
336
337 retval = PAPI_event_name_to_code("io:::read_bytes", &code);
338 if ( retval != PAPI_OK ) {
339 test_fail( __FILE__, __LINE__,
340 "io:::read_bytes not found\n",retval );
341 }
342
343 retval = PAPI_add_event( EventSet, code);
344 if ( retval != PAPI_OK ) {
345 test_fail( __FILE__, __LINE__,
346 "PAPI_add_events failed\n", retval );
347 }
348
349
350 retval = PAPI_start( EventSet );
351 if ( retval != PAPI_OK ) {
352 test_fail( __FILE__, __LINE__,
353 "PAPI_start failed\n",retval );
354 }
355
356 retval = PAPI_stop( EventSet, values );
357 if ( retval != PAPI_OK ) {
358 test_fail( __FILE__, __LINE__, "PAPI_stop failed\n", retval);
359 }
360
361 if (!quiet) {
362 for(i=0;i<3;i++) {
363 printf("%lld ",values[i]);
364 }
365 printf("\n");
366 }
367
368 if (values[0]==0) {
369 test_fail( __FILE__, __LINE__, "Result should be != 0!\n", 0);
370 }
371
372 retval = PAPI_cleanup_eventset(EventSet);
373 if (retval != PAPI_OK) {
374 test_fail( __FILE__, __LINE__, "PAPI_cleanup_eventset!\n", retval);
375 }
376
377 retval = PAPI_destroy_eventset(&EventSet);
378 if (retval != PAPI_OK) {
379 test_fail( __FILE__, __LINE__, "PAPI_destroy_eventset!\n", retval);
380 }
381
382 EventSet=PAPI_NULL;
383
384 /***********************************/
385 /* Test writing to an event */
386 /***********************************/
387
388 if (!quiet) printf("Testing Write\n");
389
390 retval = PAPI_create_eventset( &EventSet );
391 if ( retval != PAPI_OK ) {
392 test_fail( __FILE__, __LINE__,
393 "PAPI_create_eventset() failed\n", retval );
394 }
395
396 retval = PAPI_event_name_to_code("io:::rchar", &code);
397 if ( retval != PAPI_OK ) {
398 test_fail( __FILE__, __LINE__,
399 "io:::rchar not found\n",retval );
400 }
401
402 retval = PAPI_add_event( EventSet, code);
403 if ( retval != PAPI_OK ) {
404 test_fail( __FILE__, __LINE__,
405 "PAPI_add_events failed\n", retval );
406 }
407
408 retval = PAPI_event_name_to_code("io:::read_bytes", &code);
409 if ( retval != PAPI_OK ) {
410 test_fail( __FILE__, __LINE__,
411 "io:::read_bytes not found\n",retval );
412 }
413
414 retval = PAPI_add_event( EventSet, code);
415 if ( retval != PAPI_OK ) {
416 test_fail( __FILE__, __LINE__,
417 "PAPI_add_events failed\n", retval );
418 }
419
420 retval = PAPI_event_name_to_code("io:::wchar", &code);
421 if ( retval != PAPI_OK ) {
422 test_fail( __FILE__, __LINE__,
423 "io:::wchar not found\n",retval );
424 }
425
426 retval = PAPI_add_event( EventSet, code);
427 if ( retval != PAPI_OK ) {
428 test_fail( __FILE__, __LINE__,
429 "PAPI_add_events failed\n", retval );
430 }
431
432
433 retval = PAPI_start( EventSet );
434 if ( retval != PAPI_OK ) {
435 test_fail( __FILE__, __LINE__,
436 "PAPI_start failed\n",retval );
437 }
438
439 retval = PAPI_read ( EventSet, values );
440 if ( retval != PAPI_OK ) {
441 test_fail( __FILE__, __LINE__,
442 "PAPI_read failed\n",retval );
443 }
444
445 if (!quiet) {
446 printf("Before values: ");
447 for(i=0;i<3;i++) {
448 printf("%lld ",values[i]);
449 }
450 printf("\n");
451 }
452
453 values[0]=100;
454 values[1]=200;
455 values[2]=300;
456
457 retval = PAPI_write ( EventSet, values );
458 if ( retval != PAPI_OK ) {
459 test_fail( __FILE__, __LINE__,
460 "PAPI_write failed\n",retval );
461 }
462
463 retval = PAPI_stop( EventSet, values );
464 if ( retval != PAPI_OK ) {
465 test_fail( __FILE__, __LINE__, "PAPI_stop failed\n", retval);
466 }
467
468 if (!quiet) {
469 printf("After values: ");
470 for(i=0;i<3;i++) {
471 printf("%lld ",values[i]);
472 }
473 printf("\n");
474 }
475
476
477 if (values[0]==0) {
478 test_fail( __FILE__, __LINE__, "Result should be != 0!\n", 0);
479 }
480
481 retval = PAPI_cleanup_eventset(EventSet);
482 if (retval != PAPI_OK) {
483 test_fail( __FILE__, __LINE__, "PAPI_cleanup_eventset!\n", retval);
484 }
485
486 retval = PAPI_destroy_eventset(&EventSet);
487 if (retval != PAPI_OK) {
488 test_fail( __FILE__, __LINE__, "PAPI_destroy_eventset!\n", retval);
489 }
490
491 EventSet=PAPI_NULL;
492
493
494 /************/
495 /* All Done */
496 /************/
497
498 if (!quiet) printf("\n");
499
500 test_pass( __FILE__ );
501
502 return 0;
503}
i
int i
Definition: PAPI_get_virt_cyc.c:10
PAPI_add_event
add PAPI preset or native hardware event to an event set
PAPI_cleanup_eventset
Empty and destroy an EventSet.
PAPI_create_eventset
Create a new empty PAPI EventSet.
PAPI_destroy_eventset
Empty and destroy an EventSet.
PAPI_enum_cmp_event
Enumerate PAPI preset or native events for a given component.
PAPI_event_code_to_name
Convert a numeric hardware event code to a name.
PAPI_event_name_to_code
Convert a name to a numeric hardware event code.
PAPI_get_component_info
get information about a specific software component
PAPI_get_event_info
Get the event's name and description info.
PAPI_library_init
initialize the PAPI library.
PAPI_num_components
Get the number of components available on the system.
PAPI_read
Read hardware counters from an event set.
PAPI_reset
Reset the hardware event counts in an event set.
PAPI_start
Start counting hardware events in an event set.
PAPI_stop
Stop counting hardware events in an event set.
PAPI_write
Write counter values into counters.
event_name
char event_name[2][PAPI_MAX_STR_LEN]
Definition: data_range.c:29
PAPI_VER_CURRENT
#define PAPI_VER_CURRENT
Definition: f90papi.h:54
PAPI_ENUM_EVENTS
#define PAPI_ENUM_EVENTS
Definition: f90papi.h:224
PAPI_VERSION
#define PAPI_VERSION
Definition: f90papi.h:193
PAPI_OK
#define PAPI_OK
Definition: f90papi.h:73
PAPI_ENUM_FIRST
#define PAPI_ENUM_FIRST
Definition: f90papi.h:85
PAPI_NULL
#define PAPI_NULL
Definition: f90papi.h:78
PAPI_ENOEVNT
#define PAPI_ENOEVNT
Definition: f90papi.h:139
PAPI_MAX_STR_LEN
#define PAPI_MAX_STR_LEN
Definition: f90papi.h:77
EventSet
static int EventSet
Definition: init_fini.c:8
values
static long long values[NUM_EVENTS]
Definition: init_fini.c:10
NUM_EVENTS
#define NUM_EVENTS
Definition: io_basic.c:28
event_info
static struct counter_info * event_info
Definition: linux-stealtime.c:52
PAPI_NATIVE_MASK
#define PAPI_NATIVE_MASK
Definition: papiStdEventDefs.h:30
PAPI_VERSION_REVISION
#define PAPI_VERSION_REVISION(x)
Definition: papi.h:221
PAPI_VERSION_MAJOR
#define PAPI_VERSION_MAJOR(x)
Definition: papi.h:219
PAPI_VERSION_MINOR
#define PAPI_VERSION_MINOR(x)
Definition: papi.h:220
tests_quiet
int tests_quiet(int argc, char **argv)
Definition: test_utils.c:376
test_fail
void PAPI_NORETURN test_fail(const char *file, int line, const char *call, int retval)
Definition: test_utils.c:491
test_pass
void PAPI_NORETURN test_pass(const char *filename)
Definition: test_utils.c:432
test_skip
void PAPI_NORETURN test_skip(const char *file, int line, const char *call, int retval)
Definition: test_utils.c:584
quiet
int quiet
Definition: rapl_overflow.c:19
PAPI_component_info_t
Definition: papi.h:626
PAPI_component_info_t::num_native_events
int num_native_events
Definition: papi.h:641
PAPI_component_info_t::name
char name[PAPI_MAX_STR_LEN]
Definition: papi.h:627
PAPI_event_info_t
Definition: papi.h:957
retval
int retval
Definition: zero_fork.c:53
Here is the call graph for this function:
