rapl_basic.c File Reference

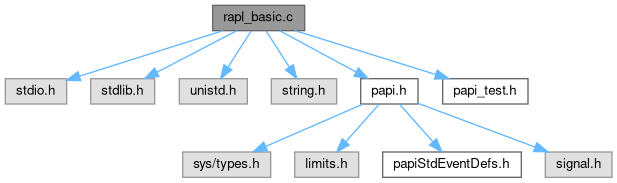

Include dependency graph for rapl_basic.c:

Go to the source code of this file.

Macros
#define	MAX_RAPL_EVENTS   64
	Tests basic functionality of RAPL component.
#define	MATRIX_SIZE   1024

Functions
void	run_test (int quiet)
int	main (int argc, char **argv)

Variables
static double	a [MATRIX_SIZE][MATRIX_SIZE]
static double	b [MATRIX_SIZE][MATRIX_SIZE]
static double	c [MATRIX_SIZE][MATRIX_SIZE]

Macro Definition Documentation

MATRIX_SIZE

#define MATRIX_SIZE   1024

Definition at line 39 of file rapl_basic.c.

MAX_RAPL_EVENTS

#define MAX_RAPL_EVENTS   64

Author

Vince Weaver

test case for RAPL component

Definition at line 22 of file rapl_basic.c.

Function Documentation

main()

int main	(	int	argc,
		char **	argv
	)

Definition at line 84 of file rapl_basic.c.

{

    int retval,cid,rapl_cid=-1,numcmp;
    int EventSet = PAPI_NULL;
    long long *values;
    int num_events=0;
    int code;
    char event_names[MAX_RAPL_EVENTS][PAPI_MAX_STR_LEN];
    char units[MAX_RAPL_EVENTS][PAPI_MIN_STR_LEN];
    int data_type[MAX_RAPL_EVENTS];
    int r,i;
    const PAPI_component_info_t *cmpinfo = NULL;
    PAPI_event_info_t evinfo;
    long long before_time,after_time;
    double elapsed_time;

#ifdef WRAP_TEST

    int do_wrap=0;

    if ( argc > 1 ) {
        if ( strstr( argv[1], "-w" ) ) {
            do_wrap = 1;
        }
    }

#endif

        /* Set TESTS_QUIET variable */
     tests_quiet( argc, argv );

    /* PAPI Initialization */
     retval = PAPI_library_init( PAPI_VER_CURRENT );
     if ( retval != PAPI_VER_CURRENT ) {
    test_fail(__FILE__, __LINE__,"PAPI_library_init failed\n",retval);
     }

     if (!TESTS_QUIET) {
        printf("Trying all RAPL events\n");
     }

     numcmp = PAPI_num_components();

     for(cid=0; cid<numcmp; cid++) {

    if ( (cmpinfo = PAPI_get_component_info(cid)) == NULL) {
       test_fail(__FILE__, __LINE__,"PAPI_get_component_info failed\n", 0);
    }

    if (strstr(cmpinfo->name,"rapl")) {

       rapl_cid=cid;

       if (!TESTS_QUIET) {
          printf("Found rapl component at cid %d\n",rapl_cid);
       }

           if (cmpinfo->disabled) {
          if (!TESTS_QUIET) {
         printf("RAPL component disabled: %s\n",
                        cmpinfo->disabled_reason);
          }
              test_skip(__FILE__,__LINE__,"RAPL component disabled",0);
           }
       break;
    }
     }

     /* Component not found */
     if (cid==numcmp) {
       test_skip(__FILE__,__LINE__,"No rapl component found\n",0);
     }

     /* Create EventSet */
     retval = PAPI_create_eventset( &EventSet );
     if (retval != PAPI_OK) {
    test_fail(__FILE__, __LINE__,
                              "PAPI_create_eventset()",retval);
     }

     /* Add all events */

     code = PAPI_NATIVE_MASK;

     r = PAPI_enum_cmp_event( &code, PAPI_ENUM_FIRST, rapl_cid );

     while ( r == PAPI_OK ) {

        retval = PAPI_event_code_to_name( code, event_names[num_events] );
    if ( retval != PAPI_OK ) {
       printf("Error translating %#x\n",code);
       test_fail( __FILE__, __LINE__,
                            "PAPI_event_code_to_name", retval );
    }

    retval = PAPI_get_event_info(code,&evinfo);
    if (retval != PAPI_OK) {
      test_fail( __FILE__, __LINE__,
             "Error getting event info\n",retval);
    }

    strncpy(units[num_events],evinfo.units,sizeof(units[0]));
    // buffer must be null terminated to safely use strstr operation on it below
    units[num_events][sizeof(units[0])-1] = '\0';

    data_type[num_events] = evinfo.data_type;

        retval = PAPI_add_event( EventSet, code );
        if (retval != PAPI_OK) {
      break; /* We've hit an event limit */
    }
    num_events++;

        r = PAPI_enum_cmp_event( &code, PAPI_ENUM_EVENTS, rapl_cid );
     }

     values=calloc(num_events,sizeof(long long));
     if (values==NULL) {
    test_fail(__FILE__, __LINE__,
                              "No memory",retval);
     }

     if (!TESTS_QUIET) {
    printf("\nStarting measurements...\n\n");
     }

     /* Start Counting */
     before_time=PAPI_get_real_nsec();
     retval = PAPI_start( EventSet);
     if (retval != PAPI_OK) {
    test_fail(__FILE__, __LINE__, "PAPI_start()",retval);
     }

     /* Run test */
     run_test(TESTS_QUIET);

     /* Stop Counting */
     after_time=PAPI_get_real_nsec();
     retval = PAPI_stop( EventSet, values);
     if (retval != PAPI_OK) {
    test_fail(__FILE__, __LINE__, "PAPI_stop()",retval);
     }

     elapsed_time=((double)(after_time-before_time))/1.0e9;

     if (!TESTS_QUIET) {
        printf("\nStopping measurements, took %.3fs, gathering results...\n\n",
           elapsed_time);

        printf("Scaled energy measurements:\n");

        for(i=0;i<num_events;i++) {
           if (strstr(units[i],"nJ")) {

              printf("%-40s%12.6f J\t(Average Power %.1fW)\n",
                event_names[i],
                (double)values[i]/1.0e9,
                ((double)values[i]/1.0e9)/elapsed_time);
           }
        }

        printf("\n");
        printf("Energy measurement counts:\n");

        for(i=0;i<num_events;i++) {
           if (strstr(event_names[i],"ENERGY_CNT")) {
              printf("%-40s%12lld\t%#08llx\n", event_names[i], values[i], values[i]);
           }
        }

        printf("\n");
        printf("Scaled Fixed values:\n");

        for(i=0;i<num_events;i++) {
           if (!strstr(event_names[i],"ENERGY")) {
             if (data_type[i] == PAPI_DATATYPE_FP64) {

                 union {
                   long long ll;
                   double fp;
                 } result;

                result.ll=values[i];
                printf("%-40s%12.3f %s\n", event_names[i], result.fp, units[i]);
              }
           }
        }

        printf("\n");
        printf("Fixed value counts:\n");

        for(i=0;i<num_events;i++) {
           if (!strstr(event_names[i],"ENERGY")) {
              if (data_type[i] == PAPI_DATATYPE_UINT64) {
                printf("%-40s%12lld\t%#08llx\n", event_names[i], values[i], values[i]);
              }
           }
        }

     }

#ifdef WRAP_TEST
    double max_time;
    unsigned long long max_value = 0;
    int repeat;

    for(i=0;i<num_events;i++) {
        if (strstr(event_names[i],"ENERGY_CNT")) {
            if (max_value < (unsigned) values[i]) {
                max_value = values[i];
            }
        }
    }
    max_time = elapsed_time * ( (double)0xffffffff / (double)max_value );
    printf("\n");
    printf ("Approximate time to energy measurement wraparound: %.3f sec or %.3f min.\n",
        max_time, max_time/60);

    if (do_wrap) {
         printf ("Beginning wraparound execution.");
         /* Start Counting */
         before_time=PAPI_get_real_nsec();
         retval = PAPI_start( EventSet);
         if (retval != PAPI_OK) {
            test_fail(__FILE__, __LINE__, "PAPI_start()",retval);
         }

         /* Run test */
        repeat = (int)(max_time/elapsed_time);
        for (i=0;i< repeat;i++) {
            run_test(1);
            printf("."); fflush(stdout);
        }
        printf("\n");

         /* Stop Counting */
         after_time=PAPI_get_real_nsec();
         retval = PAPI_stop( EventSet, values);
         if (retval != PAPI_OK) {
            test_fail(__FILE__, __LINE__, "PAPI_stop()",retval);
         }

        elapsed_time=((double)(after_time-before_time))/1.0e9;
        printf("\nStopping measurements, took %.3fs\n\n", elapsed_time);

        printf("Scaled energy measurements:\n");

        for(i=0;i<num_events;i++) {
           if (strstr(units[i],"nJ")) {

              printf("%-40s%12.6f J\t(Average Power %.1fW)\n",
                event_names[i],
                (double)values[i]/1.0e9,
                ((double)values[i]/1.0e9)/elapsed_time);
           }
        }
        printf("\n");
        printf("Energy measurement counts:\n");

        for(i=0;i<num_events;i++) {
           if (strstr(event_names[i],"ENERGY_CNT")) {
              printf("%-40s%12lld\t%#08llx\n", event_names[i], values[i], values[i]);
           }
        }
    }

#endif

     /* Done, clean up */
     retval = PAPI_cleanup_eventset( EventSet );
     if (retval != PAPI_OK) {
    test_fail(__FILE__, __LINE__,
                              "PAPI_cleanup_eventset()",retval);
     }

     retval = PAPI_destroy_eventset( &EventSet );
     if (retval != PAPI_OK) {
    test_fail(__FILE__, __LINE__,
                              "PAPI_destroy_eventset()",retval);
     }

     test_pass( __FILE__ );

     return 0;
}

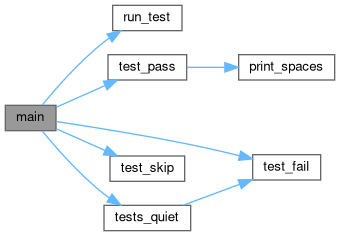

Here is the call graph for this function:

run_test()

void run_test

(

int

quiet

)

Definition at line 46 of file rapl_basic.c.

                         {

       double s;
       int i,j,k;

       if (!quiet) {
            printf("Doing a naive %dx%d MMM...\n",MATRIX_SIZE,MATRIX_SIZE);
       }

       for(i=0;i<MATRIX_SIZE;i++) {
     for(j=0;j<MATRIX_SIZE;j++) {
       a[i][j]=(double)i*(double)j;
       b[i][j]=(double)i/(double)(j+5);
     }
       }

       for(j=0;j<MATRIX_SIZE;j++) {
     for(i=0;i<MATRIX_SIZE;i++) {
       s=0;
       for(k=0;k<MATRIX_SIZE;k++) {
         s+=a[i][k]*b[k][j];
       }
       c[i][j] = s;
     }
       }

       s=0.0;
       for(i=0;i<MATRIX_SIZE;i++) {
        for(j=0;j<MATRIX_SIZE;j++) {
            s+=c[i][j];
        }
       }

       if (!quiet) printf("Matrix multiply sum: s=%lf\n",s);
}

Here is the caller graph for this function:

Variable Documentation

a

double a[MATRIX_SIZE][MATRIX_SIZE]

static

Definition at line 41 of file rapl_basic.c.

b

double b[MATRIX_SIZE][MATRIX_SIZE]

static

Definition at line 42 of file rapl_basic.c.

c

double c[MATRIX_SIZE][MATRIX_SIZE]

static

Definition at line 43 of file rapl_basic.c.
