vmware.c File Reference

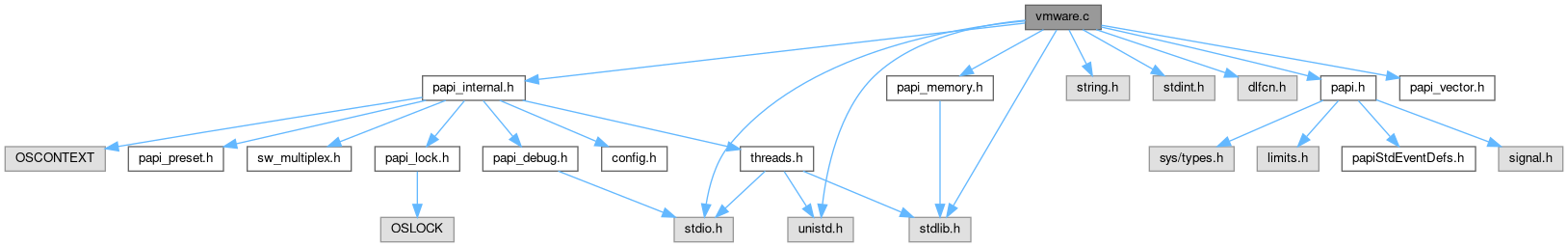

Include dependency graph for vmware.c:

Go to the source code of this file.

Data Structures
struct	_vmware_native_event_entry
struct	_vmware_reg_alloc
struct	_vmware_control_state
struct	_vmware_context

Macros
#define	VMWARE_MAX_COUNTERS   256
#define	VMWARE_CPU_LIMIT_MHZ   0
#define	VMWARE_CPU_RESERVATION_MHZ   1
#define	VMWARE_CPU_SHARES   2
#define	VMWARE_CPU_STOLEN_MS   3
#define	VMWARE_CPU_USED_MS   4
#define	VMWARE_ELAPSED_MS   5
#define	VMWARE_MEM_ACTIVE_MB   6
#define	VMWARE_MEM_BALLOONED_MB   7
#define	VMWARE_MEM_LIMIT_MB   8
#define	VMWARE_MEM_MAPPED_MB   9
#define	VMWARE_MEM_OVERHEAD_MB   10
#define	VMWARE_MEM_RESERVATION_MB   11
#define	VMWARE_MEM_SHARED_MB   12
#define	VMWARE_MEM_SHARES   13
#define	VMWARE_MEM_SWAPPED_MB   14
#define	VMWARE_MEM_TARGET_SIZE_MB   15
#define	VMWARE_MEM_USED_MB   16
#define	VMWARE_HOST_CPU_MHZ   17
#define	VMWARE_HOST_TSC   18
#define	VMWARE_ELAPSED_TIME   19
#define	VMWARE_ELAPSED_APPARENT   20

Functions

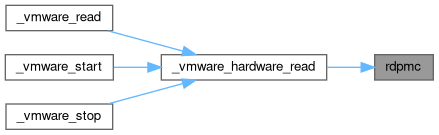

uint64_t	rdpmc (int c)
static int	LoadFunctions (void)
static long long	_vmware_hardware_read (struct _vmware_context *context, int starting)
int	_vmware_init_thread (hwd_context_t *ctx)
int	_vmware_init_component (int cidx)
int	_vmware_init_control_state (hwd_control_state_t *ctl)
int	_vmware_ntv_enum_events (unsigned int *EventCode, int modifier)
int	_vmware_ntv_code_to_info (unsigned int EventCode, PAPI_event_info_t *info)
int	_vmware_ntv_code_to_name (unsigned int EventCode, char *name, int len)
int	_vmware_ntv_code_to_descr (unsigned int EventCode, char *name, int len)
int	_vmware_update_control_state (hwd_control_state_t *ctl, NativeInfo_t *native, int count, hwd_context_t *ctx)
int	_vmware_start (hwd_context_t *ctx, hwd_control_state_t *ctl)
int	_vmware_stop (hwd_context_t *ctx, hwd_control_state_t *ctl)
int	_vmware_read (hwd_context_t *ctx, hwd_control_state_t *ctl, long_long **events, int flags)
int	_vmware_write (hwd_context_t *ctx, hwd_control_state_t *ctrl, long_long events[])
int	_vmware_reset (hwd_context_t *ctx, hwd_control_state_t *ctl)
int	_vmware_shutdown_thread (hwd_context_t *ctx)
int	_vmware_shutdown_component (void)
int	_vmware_ctl (hwd_context_t *ctx, int code, _papi_int_option_t *option)
int	_vmware_set_domain (hwd_control_state_t *ctl, int domain)

Variables
papi_vector_t	_vmware_vector
void(*	_dl_non_dynamic_init )(void)
static struct _vmware_native_event_entry *	_vmware_native_table
static int	num_events = 0
static int	use_pseudo =0
static int	use_guestlib =0

Macro Definition Documentation

VMWARE_CPU_LIMIT_MHZ

#define VMWARE_CPU_LIMIT_MHZ   0

Definition at line 39 of file vmware.c.

VMWARE_CPU_RESERVATION_MHZ

#define VMWARE_CPU_RESERVATION_MHZ   1

Definition at line 40 of file vmware.c.

VMWARE_CPU_SHARES

#define VMWARE_CPU_SHARES   2

Definition at line 41 of file vmware.c.

VMWARE_CPU_STOLEN_MS

#define VMWARE_CPU_STOLEN_MS   3

Definition at line 42 of file vmware.c.

VMWARE_CPU_USED_MS

#define VMWARE_CPU_USED_MS   4

Definition at line 43 of file vmware.c.

VMWARE_ELAPSED_APPARENT

#define VMWARE_ELAPSED_APPARENT   20

Definition at line 64 of file vmware.c.

VMWARE_ELAPSED_MS

#define VMWARE_ELAPSED_MS   5

Definition at line 44 of file vmware.c.

VMWARE_ELAPSED_TIME

#define VMWARE_ELAPSED_TIME   19

Definition at line 63 of file vmware.c.

VMWARE_HOST_CPU_MHZ

#define VMWARE_HOST_CPU_MHZ   17

Definition at line 58 of file vmware.c.

VMWARE_HOST_TSC

#define VMWARE_HOST_TSC   18

Definition at line 62 of file vmware.c.

VMWARE_MAX_COUNTERS

#define VMWARE_MAX_COUNTERS   256

Definition at line 37 of file vmware.c.

VMWARE_MEM_ACTIVE_MB

#define VMWARE_MEM_ACTIVE_MB   6

Definition at line 46 of file vmware.c.

VMWARE_MEM_BALLOONED_MB

#define VMWARE_MEM_BALLOONED_MB   7

Definition at line 47 of file vmware.c.

VMWARE_MEM_LIMIT_MB

#define VMWARE_MEM_LIMIT_MB   8

Definition at line 48 of file vmware.c.

VMWARE_MEM_MAPPED_MB

#define VMWARE_MEM_MAPPED_MB   9

Definition at line 49 of file vmware.c.

VMWARE_MEM_OVERHEAD_MB

#define VMWARE_MEM_OVERHEAD_MB   10

Definition at line 50 of file vmware.c.

VMWARE_MEM_RESERVATION_MB

#define VMWARE_MEM_RESERVATION_MB   11

Definition at line 51 of file vmware.c.

VMWARE_MEM_SHARED_MB

#define VMWARE_MEM_SHARED_MB   12

Definition at line 52 of file vmware.c.

VMWARE_MEM_SHARES

#define VMWARE_MEM_SHARES   13

Definition at line 53 of file vmware.c.

VMWARE_MEM_SWAPPED_MB

#define VMWARE_MEM_SWAPPED_MB   14

Definition at line 54 of file vmware.c.

VMWARE_MEM_TARGET_SIZE_MB

#define VMWARE_MEM_TARGET_SIZE_MB   15

Definition at line 55 of file vmware.c.

VMWARE_MEM_USED_MB

#define VMWARE_MEM_USED_MB   16

Definition at line 56 of file vmware.c.

Function Documentation

_vmware_ctl()

int _vmware_ctl	(	hwd_context_t *	ctx,
		int	code,
		_papi_int_option_t *	option
	)

This function sets various options in the component

Parameters

ctx
code	valid are PAPI_SET_DEFDOM, PAPI_SET_DOMAIN, PAPI_SETDEFGRN, PAPI_SET_GRANUL and PAPI_SET_INHERIT
option

Definition at line 1190 of file vmware.c.

{

    (void) ctx;
    (void) code;
    (void) option;

    SUBDBG( "_vmware_ctl..." );

    return PAPI_OK;
}

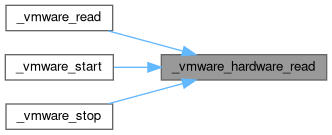

_vmware_hardware_read()

static long long _vmware_hardware_read ( struct _vmware_context *  context, int  starting  )

static

Code that reads event values. You might replace this with code that accesses hardware or reads values from the operatings system.

Definition at line 302 of file vmware.c.

{

  int i;

    if (use_pseudo) {
           context->values[VMWARE_HOST_TSC]=rdpmc(0x10000);
           context->values[VMWARE_ELAPSED_TIME]=rdpmc(0x10001);
           context->values[VMWARE_ELAPSED_APPARENT]=rdpmc(0x10002);
    }


#ifdef VMGUESTLIB
    static VMSessionId sessionId = 0;
    VMSessionId tmpSession;
    uint32_t temp32;
    uint64_t temp64;
    VMGuestLibError glError;

    if (use_guestlib) {

    glError = GuestLib_UpdateInfo(context->glHandle);
    if (glError != VMGUESTLIB_ERROR_SUCCESS) {
       fprintf(stderr,"UpdateInfo failed: %s\n",
           GuestLib_GetErrorText(glError));
           return PAPI_ECMP;
    }

    /* Retrieve and check the session ID */
    glError = GuestLib_GetSessionId(context->glHandle, &tmpSession);
    if (glError != VMGUESTLIB_ERROR_SUCCESS) {
       fprintf(stderr, "Failed to get session ID: %s\n",
           GuestLib_GetErrorText(glError));
       return PAPI_ECMP;
    }

    if (tmpSession == 0) {
       fprintf(stderr, "Error: Got zero sessionId from GuestLib\n");
       return PAPI_ECMP;
    }

    if (sessionId == 0) {
       sessionId = tmpSession;
    } else if (tmpSession != sessionId) {
       sessionId = tmpSession;
    }

    glError = GuestLib_GetCpuLimitMHz(context->glHandle,&temp32);
    context->values[VMWARE_CPU_LIMIT_MHZ]=temp32;
    if (glError != VMGUESTLIB_ERROR_SUCCESS) {
       fprintf(stderr,"Failed to get CPU limit: %s\n",
           GuestLib_GetErrorText(glError));
       return PAPI_ECMP;
    }

    glError = GuestLib_GetCpuReservationMHz(context->glHandle,&temp32);
    context->values[VMWARE_CPU_RESERVATION_MHZ]=temp32;
        if (glError != VMGUESTLIB_ERROR_SUCCESS) {
       fprintf(stderr,"Failed to get CPU reservation: %s\n",
           GuestLib_GetErrorText(glError));
       return PAPI_ECMP;
    }

    glError = GuestLib_GetCpuShares(context->glHandle,&temp32);
    context->values[VMWARE_CPU_SHARES]=temp32;
    if (glError != VMGUESTLIB_ERROR_SUCCESS) {
       fprintf(stderr,"Failed to get cpu shares: %s\n",
           GuestLib_GetErrorText(glError));
       return PAPI_ECMP;
    }

    glError = GuestLib_GetCpuStolenMs(context->glHandle,&temp64);
    context->values[VMWARE_CPU_STOLEN_MS]=temp64;
    if (glError != VMGUESTLIB_ERROR_SUCCESS) {
       if (glError == VMGUESTLIB_ERROR_UNSUPPORTED_VERSION) {
          context->values[VMWARE_CPU_STOLEN_MS]=0;
          fprintf(stderr, "Skipping CPU stolen, not supported...\n");
       } else {
          fprintf(stderr, "Failed to get CPU stolen: %s\n",
              GuestLib_GetErrorText(glError));
          return PAPI_ECMP;
       }
    }

    glError = GuestLib_GetCpuUsedMs(context->glHandle,&temp64);
    context->values[VMWARE_CPU_USED_MS]=temp64;
    if (glError != VMGUESTLIB_ERROR_SUCCESS) {
       fprintf(stderr, "Failed to get used ms: %s\n",
           GuestLib_GetErrorText(glError));
       return PAPI_ECMP;
    }

    glError = GuestLib_GetElapsedMs(context->glHandle, &temp64);
    context->values[VMWARE_ELAPSED_MS]=temp64;
    if (glError != VMGUESTLIB_ERROR_SUCCESS) {
       fprintf(stderr, "Failed to get elapsed ms: %s\n",
           GuestLib_GetErrorText(glError));
       return PAPI_ECMP;
    }

    glError = GuestLib_GetMemActiveMB(context->glHandle, &temp32);
    context->values[VMWARE_MEM_ACTIVE_MB]=temp32;
    if (glError != VMGUESTLIB_ERROR_SUCCESS) {
       fprintf(stderr, "Failed to get active mem: %s\n",
           GuestLib_GetErrorText(glError));
       return PAPI_ECMP;
    }

    glError = GuestLib_GetMemBalloonedMB(context->glHandle, &temp32);
    context->values[VMWARE_MEM_BALLOONED_MB]=temp32;
    if (glError != VMGUESTLIB_ERROR_SUCCESS) {
       fprintf(stderr, "Failed to get ballooned mem: %s\n",
           GuestLib_GetErrorText(glError));
       return PAPI_ECMP;
    }

    glError = GuestLib_GetMemLimitMB(context->glHandle, &temp32);
    context->values[VMWARE_MEM_LIMIT_MB]=temp32;
    if (glError != VMGUESTLIB_ERROR_SUCCESS) {
       fprintf(stderr,"Failed to get mem limit: %s\n",
           GuestLib_GetErrorText(glError));
       return PAPI_ECMP;
    }

        glError = GuestLib_GetMemMappedMB(context->glHandle, &temp32);
    context->values[VMWARE_MEM_MAPPED_MB]=temp32;
    if (glError != VMGUESTLIB_ERROR_SUCCESS) {
       fprintf(stderr, "Failed to get mapped mem: %s\n",
           GuestLib_GetErrorText(glError));
       return PAPI_ECMP;
    }

    glError = GuestLib_GetMemOverheadMB(context->glHandle, &temp32);
    context->values[VMWARE_MEM_OVERHEAD_MB]=temp32;
    if (glError != VMGUESTLIB_ERROR_SUCCESS) {
       fprintf(stderr, "Failed to get overhead mem: %s\n",
           GuestLib_GetErrorText(glError));
       return PAPI_ECMP;
    }

    glError = GuestLib_GetMemReservationMB(context->glHandle, &temp32);
    context->values[VMWARE_MEM_RESERVATION_MB]=temp32;
    if (glError != VMGUESTLIB_ERROR_SUCCESS) {
       fprintf(stderr, "Failed to get mem reservation: %s\n",
           GuestLib_GetErrorText(glError));
       return PAPI_ECMP;
    }

        glError = GuestLib_GetMemSharedMB(context->glHandle, &temp32);
    context->values[VMWARE_MEM_SHARED_MB]=temp32;
    if (glError != VMGUESTLIB_ERROR_SUCCESS) {
       fprintf(stderr, "Failed to get swapped mem: %s\n",
           GuestLib_GetErrorText(glError));
       return PAPI_ECMP;
    }

    glError = GuestLib_GetMemShares(context->glHandle, &temp32);
    context->values[VMWARE_MEM_SHARES]=temp32;
    if (glError != VMGUESTLIB_ERROR_SUCCESS) {
       if (glError == VMGUESTLIB_ERROR_NOT_AVAILABLE) {
          context->values[VMWARE_MEM_SHARES]=0;
          fprintf(stderr, "Skipping mem shares, not supported...\n");
       } else {
          fprintf(stderr, "Failed to get mem shares: %s\n",
              GuestLib_GetErrorText(glError));
          return PAPI_ECMP;
       }
    }

    glError = GuestLib_GetMemSwappedMB(context->glHandle, &temp32);
    context->values[VMWARE_MEM_SWAPPED_MB]=temp32;
    if (glError != VMGUESTLIB_ERROR_SUCCESS) {
       fprintf(stderr, "Failed to get swapped mem: %s\n",
           GuestLib_GetErrorText(glError));
       return PAPI_ECMP;
    }

    glError = GuestLib_GetMemTargetSizeMB(context->glHandle, &temp64);
    context->values[VMWARE_MEM_TARGET_SIZE_MB]=temp64;
        if (glError != VMGUESTLIB_ERROR_SUCCESS) {
       if (glError == VMGUESTLIB_ERROR_UNSUPPORTED_VERSION) {
          context->values[VMWARE_MEM_TARGET_SIZE_MB]=0;
          fprintf(stderr, "Skipping target mem size, not supported...\n");
       } else {
          fprintf(stderr, "Failed to get target mem size: %s\n",
              GuestLib_GetErrorText(glError));
          return PAPI_ECMP;
       }
    }

        glError = GuestLib_GetMemUsedMB(context->glHandle, &temp32);
    context->values[VMWARE_MEM_USED_MB]=temp32;
    if (glError != VMGUESTLIB_ERROR_SUCCESS) {
       fprintf(stderr, "Failed to get swapped mem: %s\n",
           GuestLib_GetErrorText(glError));
       return PAPI_ECMP;
    }

        glError = GuestLib_GetHostProcessorSpeed(context->glHandle, &temp32);
    context->values[VMWARE_HOST_CPU_MHZ]=temp32;
    if (glError != VMGUESTLIB_ERROR_SUCCESS) {
       fprintf(stderr, "Failed to get host proc speed: %s\n",
           GuestLib_GetErrorText(glError));
       return PAPI_ECMP;
    }
    }

#endif

    if (starting) {

      for(i=0;i<VMWARE_MAX_COUNTERS;i++) {
        context->start_values[i]=context->values[i];
      }

    }

    return PAPI_OK;
}

Here is the call graph for this function:

Here is the caller graph for this function:

_vmware_init_component()

int _vmware_init_component

(

int

cidx

)

Initialize hardware counters, setup the function vector table and get hardware information, this routine is called when the PAPI process is initialized (IE PAPI_library_init)

Definition at line 560 of file vmware.c.

{
    int retval = PAPI_OK;
  (void) cidx;

  int result;

    SUBDBG( "_vmware_init_component..." );

    /* Initialize and try to load the VMware library */
    /* Try to load the library. */
    result=LoadFunctions();

    if (result!=PAPI_OK) {
       strncpy(_vmware_vector.cmp_info.disabled_reason,
          "GuestLibTest: Failed to load shared library",
           PAPI_MAX_STR_LEN);
       retval = PAPI_ECMP;
       goto fn_fail;
    }

    /* we know in advance how many events we want                       */
    /* for actual hardware this might have to be determined dynamically */

    /* Allocate memory for the our event table */
    _vmware_native_table = ( struct _vmware_native_event_entry * )
      calloc( VMWARE_MAX_COUNTERS, sizeof ( struct _vmware_native_event_entry ));
    if ( _vmware_native_table == NULL ) {
        retval = PAPI_ENOMEM;
        goto fn_fail;
    }


#ifdef VMGUESTLIB

    /* Detect if GuestLib works */
    {

        VMGuestLibError glError;
        VMGuestLibHandle glHandle;

    use_guestlib=0;

    /* try to open */
    glError = GuestLib_OpenHandle(&glHandle);
    if (glError != VMGUESTLIB_ERROR_SUCCESS) {
       fprintf(stderr,"OpenHandle failed: %s\n",
           GuestLib_GetErrorText(glError));
    }
    else {
       /* open worked, try to update */
       glError = GuestLib_UpdateInfo(glHandle);
       if (glError != VMGUESTLIB_ERROR_SUCCESS) {
          fprintf(stderr,"UpdateInfo failed: %s\n",
              GuestLib_GetErrorText(glError));
       }
       else {
          /* update worked, things work! */
          use_guestlib=1;
       }
       /* shut things down */
       glError = GuestLib_CloseHandle(glHandle);
    }

        }



    if (use_guestlib) {

    /* fill in the event table parameters */
    strcpy( _vmware_native_table[num_events].name,
        "CPU_LIMIT" );
    strncpy( _vmware_native_table[num_events].description,
        "Retrieves the upper limit of processor use in MHz "
        "available to the virtual machine.",
        PAPI_HUGE_STR_LEN);
    strcpy( _vmware_native_table[num_events].units,"MHz");
    _vmware_native_table[num_events].which_counter=
            VMWARE_CPU_LIMIT_MHZ;
    _vmware_native_table[num_events].report_difference=0;
    num_events++;

    strcpy( _vmware_native_table[num_events].name,
        "CPU_RESERVATION" );
    strncpy( _vmware_native_table[num_events].description,
        "Retrieves the minimum processing power in MHz "
        "reserved for the virtual machine.",
        PAPI_HUGE_STR_LEN);
    strcpy( _vmware_native_table[num_events].units,"MHz");
    _vmware_native_table[num_events].which_counter=
            VMWARE_CPU_RESERVATION_MHZ;
    _vmware_native_table[num_events].report_difference=0;
    num_events++;

    strcpy( _vmware_native_table[num_events].name,
        "CPU_SHARES" );
    strncpy( _vmware_native_table[num_events].description,
        "Retrieves the number of CPU shares allocated "
        "to the virtual machine.",
        PAPI_HUGE_STR_LEN);
    strcpy( _vmware_native_table[num_events].units,"shares");
    _vmware_native_table[num_events].which_counter=
            VMWARE_CPU_SHARES;
    _vmware_native_table[num_events].report_difference=0;
    num_events++;

    strcpy( _vmware_native_table[num_events].name,
        "CPU_STOLEN" );
    strncpy( _vmware_native_table[num_events].description,
        "Retrieves the number of milliseconds that the "
        "virtual machine was in a ready state (able to "
        "transition to a run state), but was not scheduled to run.",
        PAPI_HUGE_STR_LEN);
    strcpy( _vmware_native_table[num_events].units,"ms");
    _vmware_native_table[num_events].which_counter=
            VMWARE_CPU_STOLEN_MS;
    _vmware_native_table[num_events].report_difference=0;
    num_events++;

    strcpy( _vmware_native_table[num_events].name,
        "CPU_USED" );
    strncpy( _vmware_native_table[num_events].description,
        "Retrieves the number of milliseconds during which "
        "the virtual machine has used the CPU. This value "
        "includes the time used by the guest operating system "
        "and the time used by virtualization code for tasks for "
        "this virtual machine. You can combine this value with "
        "the elapsed time (VMWARE_ELAPSED) to estimate the "
        "effective virtual machine CPU speed. This value is a "
        "subset of elapsedMs.",
        PAPI_HUGE_STR_LEN );
    strcpy( _vmware_native_table[num_events].units,"ms");
    _vmware_native_table[num_events].which_counter=
            VMWARE_CPU_USED_MS;
    _vmware_native_table[num_events].report_difference=1;
    num_events++;

    strcpy( _vmware_native_table[num_events].name,
        "ELAPSED" );
    strncpy( _vmware_native_table[num_events].description,
        "Retrieves the number of milliseconds that have passed "
        "in the virtual machine since it last started running on "
        "the server. The count of elapsed time restarts each time "
        "the virtual machine is powered on, resumed, or migrated "
        "using VMotion. This value counts milliseconds, regardless "
        "of whether the virtual machine is using processing power "
        "during that time. You can combine this value with the CPU "
        "time used by the virtual machine (VMWARE_CPU_USED) to "
        "estimate the effective virtual machine xCPU speed. "
        "cpuUsedMS is a subset of this value.",
        PAPI_HUGE_STR_LEN );
    strcpy( _vmware_native_table[num_events].units,"ms");
    _vmware_native_table[num_events].which_counter=
            VMWARE_ELAPSED_MS;
    _vmware_native_table[num_events].report_difference=1;
    num_events++;

    strcpy( _vmware_native_table[num_events].name,
        "MEM_ACTIVE" );
    strncpy( _vmware_native_table[num_events].description,
         "Retrieves the amount of memory the virtual machine is "
         "actively using in MB - Its estimated working set size.",
         PAPI_HUGE_STR_LEN );
    strcpy( _vmware_native_table[num_events].units,"MB");
    _vmware_native_table[num_events].which_counter=
                 VMWARE_MEM_ACTIVE_MB;
    _vmware_native_table[num_events].report_difference=0;
    num_events++;

    strcpy( _vmware_native_table[num_events].name,
        "MEM_BALLOONED" );
    strncpy( _vmware_native_table[num_events].description,
        "Retrieves the amount of memory that has been reclaimed "
        "from this virtual machine by the vSphere memory balloon "
        "driver (also referred to as the 'vmemctl' driver) in MB.",
        PAPI_HUGE_STR_LEN );
    strcpy( _vmware_native_table[num_events].units,"MB");
    _vmware_native_table[num_events].which_counter=
            VMWARE_MEM_BALLOONED_MB;
    _vmware_native_table[num_events].report_difference=0;
    num_events++;

    strcpy( _vmware_native_table[num_events].name,
        "MEM_LIMIT" );
    strncpy( _vmware_native_table[num_events].description,
        "Retrieves the upper limit of memory that is available "
        "to the virtual machine in MB.",
        PAPI_HUGE_STR_LEN );
    strcpy( _vmware_native_table[num_events].units,"MB");
    _vmware_native_table[num_events].which_counter=
            VMWARE_MEM_LIMIT_MB;
    _vmware_native_table[num_events].report_difference=0;
    num_events++;

    strcpy( _vmware_native_table[num_events].name,
        "MEM_MAPPED" );
    strncpy( _vmware_native_table[num_events].description,
        "Retrieves the amount of memory that is allocated to "
        "the virtual machine in MB. Memory that is ballooned, "
        "swapped, or has never been accessed is excluded.",
        PAPI_HUGE_STR_LEN );
    strcpy( _vmware_native_table[num_events].units,"MB");
    _vmware_native_table[num_events].which_counter=
            VMWARE_MEM_MAPPED_MB;
    _vmware_native_table[num_events].report_difference=0;
    num_events++;

    strcpy( _vmware_native_table[num_events].name,
        "MEM_OVERHEAD" );
    strncpy( _vmware_native_table[num_events].description,
        "Retrieves the amount of 'overhead' memory associated "
        "with this virtual machine that is currently consumed "
        "on the host system in MB. Overhead memory is additional "
        "memory that is reserved for data structures required by "
        "the virtualization layer.",
        PAPI_HUGE_STR_LEN );
    strcpy( _vmware_native_table[num_events].units,"MB");
    _vmware_native_table[num_events].which_counter=
            VMWARE_MEM_OVERHEAD_MB;
    _vmware_native_table[num_events].report_difference=0;
    num_events++;

    strcpy( _vmware_native_table[num_events].name,
        "MEM_RESERVATION" );
    strncpy( _vmware_native_table[num_events].description,
        "Retrieves the minimum amount of memory that is "
        "reserved for the virtual machine in MB.",
        PAPI_HUGE_STR_LEN );
    strcpy( _vmware_native_table[num_events].units,"MB");
    _vmware_native_table[num_events].which_counter=
            VMWARE_MEM_RESERVATION_MB;
    _vmware_native_table[num_events].report_difference=0;
    num_events++;

    strcpy( _vmware_native_table[num_events].name,
        "MEM_SHARED" );
    strncpy( _vmware_native_table[num_events].description,
        "Retrieves the amount of physical memory associated "
        "with this virtual machine that is copy-on-write (COW) "
        "shared on the host in MB.",
        PAPI_HUGE_STR_LEN );
    strcpy( _vmware_native_table[num_events].units,"MB");
    _vmware_native_table[num_events].which_counter=
            VMWARE_MEM_SHARED_MB;
    _vmware_native_table[num_events].report_difference=0;
    num_events++;

    strcpy( _vmware_native_table[num_events].name,
        "MEM_SHARES" );
    strncpy( _vmware_native_table[num_events].description,
        "Retrieves the number of memory shares allocated to "
        "the virtual machine.",
        PAPI_HUGE_STR_LEN );
    strcpy( _vmware_native_table[num_events].units,"shares");
    _vmware_native_table[num_events].which_counter=
            VMWARE_MEM_SHARES;
    _vmware_native_table[num_events].report_difference=0;
    num_events++;

    strcpy( _vmware_native_table[num_events].name,
        "MEM_SWAPPED" );
    strncpy( _vmware_native_table[num_events].description,
        "Retrieves the amount of memory that has been reclaimed "
        "from this virtual machine by transparently swapping "
        "guest memory to disk in MB.",
        PAPI_HUGE_STR_LEN );
    strcpy( _vmware_native_table[num_events].units,"MB");
    _vmware_native_table[num_events].which_counter=
            VMWARE_MEM_SWAPPED_MB;
    _vmware_native_table[num_events].report_difference=0;
    num_events++;

    strcpy( _vmware_native_table[num_events].name,
        "MEM_TARGET_SIZE" );
    strncpy( _vmware_native_table[num_events].description,
        "Retrieves the size of the target memory allocation "
        "for this virtual machine in MB.",
        PAPI_HUGE_STR_LEN );
    strcpy( _vmware_native_table[num_events].units,"MB");
    _vmware_native_table[num_events].which_counter=
            VMWARE_MEM_TARGET_SIZE_MB;
    _vmware_native_table[num_events].report_difference=0;
    num_events++;

    strcpy( _vmware_native_table[num_events].name,
        "MEM_USED" );
    strncpy( _vmware_native_table[num_events].description,
        "Retrieves the estimated amount of physical host memory "
        "currently consumed for this virtual machine's "
        "physical memory.",
        PAPI_HUGE_STR_LEN );
    strcpy( _vmware_native_table[num_events].units,"MB");
    _vmware_native_table[num_events].which_counter=
            VMWARE_MEM_USED_MB;
    _vmware_native_table[num_events].report_difference=0;
    num_events++;

    strcpy( _vmware_native_table[num_events].name,
        "HOST_CPU" );
    strncpy( _vmware_native_table[num_events].description,
        "Retrieves the speed of the ESX system's physical "
        "CPU in MHz.",
        PAPI_HUGE_STR_LEN );
    strcpy( _vmware_native_table[num_events].units,"MHz");
    _vmware_native_table[num_events].which_counter=
            VMWARE_HOST_CPU_MHZ;
    _vmware_native_table[num_events].report_difference=0;
    num_events++;
    }

#endif

    /* For VMWare Pseudo Performance Counters */
    if ( getenv( "PAPI_VMWARE_PSEUDOPERFORMANCE" ) ) {

            use_pseudo=1;

        strcpy( _vmware_native_table[num_events].name,
            "HOST_TSC" );
        strncpy( _vmware_native_table[num_events].description,
            "Physical host TSC",
            PAPI_HUGE_STR_LEN );
        strcpy( _vmware_native_table[num_events].units,"cycles");
        _vmware_native_table[num_events].which_counter=
                VMWARE_HOST_TSC;
            _vmware_native_table[num_events].report_difference=1;
        num_events++;

        strcpy( _vmware_native_table[num_events].name,
            "ELAPSED_TIME" );
        strncpy( _vmware_native_table[num_events].description,
            "Elapsed real time in ns.",
            PAPI_HUGE_STR_LEN );
            strcpy( _vmware_native_table[num_events].units,"ns");
        _vmware_native_table[num_events].which_counter=
                VMWARE_ELAPSED_TIME;
            _vmware_native_table[num_events].report_difference=1;
        num_events++;

        strcpy( _vmware_native_table[num_events].name,
            "ELAPSED_APPARENT" );
        strncpy( _vmware_native_table[num_events].description,
            "Elapsed apparent time in ns.",
            PAPI_HUGE_STR_LEN );
            strcpy( _vmware_native_table[num_events].units,"ns");
        _vmware_native_table[num_events].which_counter=
                VMWARE_ELAPSED_APPARENT;
            _vmware_native_table[num_events].report_difference=1;
        num_events++;
    }

    if (num_events==0) {
       strncpy(_vmware_vector.cmp_info.disabled_reason,
          "VMware SDK not installed, and PAPI_VMWARE_PSEUDOPERFORMANCE not set",
           PAPI_MAX_STR_LEN);
       retval = PAPI_ECMP;
       goto fn_fail;
    }

    _vmware_vector.cmp_info.num_native_events = num_events;

  fn_exit:
    _papi_hwd[cidx]->cmp_info.disabled = retval;
    return retval;
  fn_fail:
    goto fn_exit;
}

Here is the call graph for this function:

_vmware_init_control_state()

int _vmware_init_control_state

(

hwd_control_state_t *

ctl

)

Setup the counter control structure

Definition at line 931 of file vmware.c.

{
  (void) ctl;

    return PAPI_OK;
}

_vmware_init_thread()

int _vmware_init_thread

(

hwd_context_t *

ctx

)

This is called whenever a thread is initialized

Definition at line 528 of file vmware.c.

{
    (void) ctx;


#ifdef VMGUESTLIB

    struct _vmware_context *context;
    VMGuestLibError glError;

    context=(struct _vmware_context *)ctx;

    if (use_guestlib) {
       glError = GuestLib_OpenHandle(&(context->glHandle));
       if (glError != VMGUESTLIB_ERROR_SUCCESS) {
          fprintf(stderr,"OpenHandle failed: %s\n",
           GuestLib_GetErrorText(glError));
          return PAPI_ECMP;
       }
    }

#endif

    return PAPI_OK;
}

_vmware_ntv_code_to_descr()

int _vmware_ntv_code_to_descr	(	unsigned int	EventCode,
		char *	name,
		int	len
	)

Takes a native event code and passes back the event description

Parameters

EventCode	is the native event code
name	is a pointer for the description to be copied to
len	is the size of the string

Definition at line 1014 of file vmware.c.

{
  int index = EventCode;

    if ( index >= 0 && index < num_events ) {
       strncpy( name, _vmware_native_table[index].description, len );
    }
    return PAPI_OK;
}

_vmware_ntv_code_to_info()

int _vmware_ntv_code_to_info	(	unsigned int	EventCode,
		PAPI_event_info_t *	info
	)

Definition at line 972 of file vmware.c.

{

  int index = EventCode;

  if ( ( index < 0) || (index >= num_events )) return PAPI_ENOEVNT;

  strncpy( info->symbol, _vmware_native_table[index].name,
           sizeof(info->symbol));

  strncpy( info->long_descr, _vmware_native_table[index].description,
           sizeof(info->symbol));

  strncpy( info->units, _vmware_native_table[index].units,
           sizeof(info->units));

  return PAPI_OK;
}

_vmware_ntv_code_to_name()

int _vmware_ntv_code_to_name	(	unsigned int	EventCode,
		char *	name,
		int	len
	)

Takes a native event code and passes back the name

Parameters

EventCode	is the native event code
name	is a pointer for the name to be copied to
len	is the size of the string

Definition at line 998 of file vmware.c.

{
    int index = EventCode;

    if ( index >= 0 && index < num_events ) {
       strncpy( name, _vmware_native_table[index].name, len );
    }
    return PAPI_OK;
}

_vmware_ntv_enum_events()

int _vmware_ntv_enum_events	(	unsigned int *	EventCode,
		int	modifier
	)

Enumerate Native Events

Parameters

EventCode	is the event of interest
modifier	is one of PAPI_ENUM_FIRST, PAPI_ENUM_EVENTS

Definition at line 943 of file vmware.c.

{

    switch ( modifier ) {
            /* return EventCode of first event */
        case PAPI_ENUM_FIRST:
             if (num_events==0) return PAPI_ENOEVNT;
             *EventCode = 0;
             return PAPI_OK;
             break;
            /* return EventCode of passed-in Event */
        case PAPI_ENUM_EVENTS:{
             int index = *EventCode;

             if ( index < num_events - 1 ) {
            *EventCode = *EventCode + 1;
            return PAPI_OK;
             } else {
            return PAPI_ENOEVNT;
             }
             break;
        }
        default:
             return PAPI_EINVAL;
    }
    return PAPI_EINVAL;
}

_vmware_read()

int _vmware_read	(	hwd_context_t *	ctx,
		hwd_control_state_t *	ctl,
		long_long **	events,
		int	flags
	)

Triggered by PAPI_read()

Definition at line 1080 of file vmware.c.

{

    struct _vmware_context *context;
    struct _vmware_control_state *control;

    (void) flags;
    int i;

    context=(struct _vmware_context *)ctx;
    control=(struct _vmware_control_state *)ctl;

    _vmware_hardware_read( context, 0 );

    for (i=0; i<control->num_events; i++) {

      if (_vmware_native_table[
              _vmware_native_table[control->which_counter[i]].which_counter].
             report_difference) {
         control->value[i]=context->values[control->which_counter[i]]-
                           context->start_values[control->which_counter[i]];
      } else {
         control->value[i]=context->values[control->which_counter[i]];
      }
      //      printf("%d %d %lld-%lld=%lld\n",i,control->which_counter[i],
      // context->values[control->which_counter[i]],
      //     context->start_values[control->which_counter[i]],
      //     control->value[i]);

    }

    *events = control->value;

    return PAPI_OK;
}

Here is the call graph for this function:

_vmware_reset()

int _vmware_reset	(	hwd_context_t *	ctx,
		hwd_control_state_t *	ctl
	)

Triggered by PAPI_reset

Definition at line 1135 of file vmware.c.

{
    (void) ctx;
    (void) ctl;

    return PAPI_OK;
}

_vmware_set_domain()

int _vmware_set_domain	(	hwd_control_state_t *	ctl,
		int	domain
	)

This function has to set the bits needed to count different domains In particular: PAPI_DOM_USER, PAPI_DOM_KERNEL PAPI_DOM_OTHER By default return PAPI_EINVAL if none of those are specified and PAPI_OK with success PAPI_DOM_USER is only user context is counted PAPI_DOM_KERNEL is only the Kernel/OS context is counted PAPI_DOM_OTHER is Exception/transient mode (like user TLB misses) PAPI_DOM_ALL is all of the domains

Definition at line 1212 of file vmware.c.

{
    (void) ctl;

    int found = 0;
    SUBDBG( "_vmware_set_domain..." );
    if ( PAPI_DOM_USER & domain ) {
        SUBDBG( " PAPI_DOM_USER " );
        found = 1;
    }
    if ( PAPI_DOM_KERNEL & domain ) {
        SUBDBG( " PAPI_DOM_KERNEL " );
        found = 1;
    }
    if ( PAPI_DOM_OTHER & domain ) {
        SUBDBG( " PAPI_DOM_OTHER " );
        found = 1;
    }
    if ( PAPI_DOM_ALL & domain ) {
        SUBDBG( " PAPI_DOM_ALL " );
        found = 1;
    }
    if ( !found ) {
        return ( PAPI_EINVAL );
    }
    return PAPI_OK;
}

_vmware_shutdown_component()

int _vmware_shutdown_component

(

void

)

Triggered by PAPI_shutdown()

Definition at line 1170 of file vmware.c.

{

#ifdef VMGUESTLIB
    if (dlclose(dlHandle)) {
        fprintf(stderr, "dlclose failed\n");
        return EXIT_FAILURE;
    }
#endif

    return PAPI_OK;
}

_vmware_shutdown_thread()

int _vmware_shutdown_thread

(

hwd_context_t *

ctx

)

Shutting down a context

Definition at line 1145 of file vmware.c.

{
    (void) ctx;

#ifdef VMGUESTLIB
        VMGuestLibError glError;
    struct _vmware_context *context;

    context=(struct _vmware_context *)ctx;

    if (use_guestlib) {
           glError = GuestLib_CloseHandle(context->glHandle);
           if (glError != VMGUESTLIB_ERROR_SUCCESS) {
               fprintf(stderr, "Failed to CloseHandle: %s\n",
               GuestLib_GetErrorText(glError));
               return PAPI_ECMP;
       }
    }
#endif

    return PAPI_OK;
}

_vmware_start()

int _vmware_start	(	hwd_context_t *	ctx,
		hwd_control_state_t *	ctl
	)

Triggered by PAPI_start()

Definition at line 1051 of file vmware.c.

{
    struct _vmware_context *context;
    (void) ctl;

    context=(struct _vmware_context *)ctx;

    _vmware_hardware_read( context, 1 );

    return PAPI_OK;
}

Here is the call graph for this function:

_vmware_stop()

int _vmware_stop	(	hwd_context_t *	ctx,
		hwd_control_state_t *	ctl
	)

Triggered by PAPI_stop()

Definition at line 1065 of file vmware.c.

{

    struct _vmware_context *context;
    (void) ctl;

    context=(struct _vmware_context *)ctx;

    _vmware_hardware_read( context, 0 );

    return PAPI_OK;
}

Here is the call graph for this function:

_vmware_update_control_state()

int _vmware_update_control_state	(	hwd_control_state_t *	ctl,
		NativeInfo_t *	native,
		int	count,
		hwd_context_t *	ctx
	)

Triggered by eventset operations like add or remove

Definition at line 1026 of file vmware.c.

{
    (void) ctx;

    struct _vmware_control_state *control;

    int i, index;

    control=(struct _vmware_control_state *)ctl;

    for ( i = 0; i < count; i++ ) {
        index = native[i].ni_event;
        control->which_counter[i]=_vmware_native_table[index].which_counter;
        native[i].ni_position = i;
    }
    control->num_events=count;

    return PAPI_OK;
}

_vmware_write()

int _vmware_write	(	hwd_context_t *	ctx,
		hwd_control_state_t *	ctrl,
		long_long	events[]
	)

Triggered by PAPI_write(), but only if the counters are running

Definition at line 1121 of file vmware.c.

{
    (void) ctx;
    (void) ctrl;
    (void) events;
    SUBDBG( "_vmware_write... %p %p", ctx, ctrl );
    /* FIXME... this should actually carry out the write, though     */
    /*  this is non-trivial as which counter being written has to be */
    /*  determined somehow.                                          */
    return PAPI_OK;
}

LoadFunctions()

static int LoadFunctions ( void  )

static

Definition at line 203 of file vmware.c.

{

#ifdef VMGUESTLIB
    /*
     * First, try to load the shared library.
     */

    /* Attempt to guess if we were statically linked to libc, if so bail */
    if ( _dl_non_dynamic_init != NULL ) {
        strncpy(_vmware_vector.cmp_info.disabled_reason, "The VMware component does not support statically linking of libc.", PAPI_MAX_STR_LEN);
        return PAPI_ENOSUPP;
    }

    char const *dlErrStr;
    char filename[BUFSIZ];

    sprintf(filename,"%s","libvmGuestLib.so");
    dlHandle = dlopen(filename, RTLD_NOW);
    if (!dlHandle) {
       dlErrStr = dlerror();
       fprintf(stderr, "dlopen of %s failed: \'%s\'\n", filename,
           dlErrStr);

       sprintf(filename,"%s/lib/lib64/libvmGuestLib.so",VMWARE_INCDIR);
       dlHandle = dlopen(filename, RTLD_NOW);
       if (!dlHandle) {
          dlErrStr = dlerror();
          fprintf(stderr, "dlopen of %s failed: \'%s\'\n", filename,
           dlErrStr);

          sprintf(filename,"%s/lib/lib32/libvmGuestLib.so",VMWARE_INCDIR);
          dlHandle = dlopen(filename, RTLD_NOW);
          if (!dlHandle) {
             dlErrStr = dlerror();
             fprintf(stderr, "dlopen of %s failed: \'%s\'\n", filename,
              dlErrStr);
         return PAPI_ECMP;
          }
       }
    }

    /* Load all the individual library functions. */
    LOAD_ONE_FUNC(GuestLib_GetErrorText);
    LOAD_ONE_FUNC(GuestLib_OpenHandle);
    LOAD_ONE_FUNC(GuestLib_CloseHandle);
    LOAD_ONE_FUNC(GuestLib_UpdateInfo);
    LOAD_ONE_FUNC(GuestLib_GetSessionId);
    LOAD_ONE_FUNC(GuestLib_GetCpuReservationMHz);
    LOAD_ONE_FUNC(GuestLib_GetCpuLimitMHz);
    LOAD_ONE_FUNC(GuestLib_GetCpuShares);
    LOAD_ONE_FUNC(GuestLib_GetCpuUsedMs);
    LOAD_ONE_FUNC(GuestLib_GetHostProcessorSpeed);
    LOAD_ONE_FUNC(GuestLib_GetMemReservationMB);
    LOAD_ONE_FUNC(GuestLib_GetMemLimitMB);
    LOAD_ONE_FUNC(GuestLib_GetMemShares);
    LOAD_ONE_FUNC(GuestLib_GetMemMappedMB);
    LOAD_ONE_FUNC(GuestLib_GetMemActiveMB);
    LOAD_ONE_FUNC(GuestLib_GetMemOverheadMB);
    LOAD_ONE_FUNC(GuestLib_GetMemBalloonedMB);
    LOAD_ONE_FUNC(GuestLib_GetMemSwappedMB);
    LOAD_ONE_FUNC(GuestLib_GetMemSharedMB);
    LOAD_ONE_FUNC(GuestLib_GetMemSharedSavedMB);
    LOAD_ONE_FUNC(GuestLib_GetMemUsedMB);
    LOAD_ONE_FUNC(GuestLib_GetElapsedMs);
    LOAD_ONE_FUNC(GuestLib_GetResourcePoolPath);
    LOAD_ONE_FUNC(GuestLib_GetCpuStolenMs);
    LOAD_ONE_FUNC(GuestLib_GetMemTargetSizeMB);
    LOAD_ONE_FUNC(GuestLib_GetHostNumCpuCores);
    LOAD_ONE_FUNC(GuestLib_GetHostCpuUsedMs);
    LOAD_ONE_FUNC(GuestLib_GetHostMemSwappedMB);
    LOAD_ONE_FUNC(GuestLib_GetHostMemSharedMB);
    LOAD_ONE_FUNC(GuestLib_GetHostMemUsedMB);
    LOAD_ONE_FUNC(GuestLib_GetHostMemPhysMB);
    LOAD_ONE_FUNC(GuestLib_GetHostMemPhysFreeMB);
    LOAD_ONE_FUNC(GuestLib_GetHostMemKernOvhdMB);
    LOAD_ONE_FUNC(GuestLib_GetHostMemMappedMB);
    LOAD_ONE_FUNC(GuestLib_GetHostMemUnmappedMB);
#endif
    return PAPI_OK;
}

Here is the caller graph for this function:

rdpmc()

uint64_t rdpmc ( int  c )

inline

Definition at line 93 of file vmware.c.

{
  uint32_t low, high;
  __asm__ __volatile__("rdpmc" : "=a" (low), "=d" (high) : "c" (c));
  return (uint64_t)high << 32 | (uint64_t)low;
}

Here is the caller graph for this function:

Variable Documentation

_dl_non_dynamic_init

void(* _dl_non_dynamic_init) (void)

(

void

)

Structure that stores private information for each event

< Signifies which counter slot is being used

< Indexed from 1 as 0 has a special meaning

Definition at line 70 of file vmware.c.

                        {
    unsigned int selector;
};

_vmware_native_table

struct _vmware_native_event_entry* _vmware_native_table

static

This table contains the native events

Definition at line 288 of file vmware.c.

_vmware_vector

papi_vector_t _vmware_vector

Vector that points to entry points for our component

Definition at line 67 of file vmware.c.

num_events

int num_events = 0

static

number of events in the table

Definition at line 290 of file vmware.c.

use_guestlib

int use_guestlib =0

static

Definition at line 292 of file vmware.c.

use_pseudo

int use_pseudo =0

static

Definition at line 291 of file vmware.c.
