example_basic.c File Reference

This file is a very simple example test and Makefile that acat as a guideline on how to add tests to components. The papi configure and papi Makefile will take care of the compilation of the component tests (if all tests are added to a directory named 'tests' in the specific component dir). See components/README for more details. More...

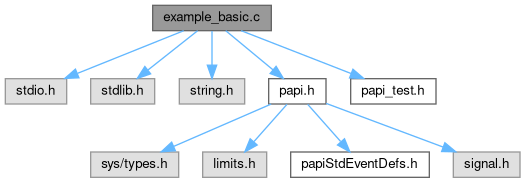

Include dependency graph for example_basic.c:

Go to the source code of this file.

Macros

#define NUM_EVENTS   3


Functions

int main (int argc, char **argv)


Detailed Description

Author
Vince Weaver vweav.nosp@m.er1@.nosp@m.eecs..nosp@m.utk..nosp@m.edu test case for Example component

Definition in file example_basic.c.

Macro Definition Documentation

◆ NUM_EVENTS

#define NUM_EVENTS   3

Definition at line 28 of file example_basic.c.

Function Documentation

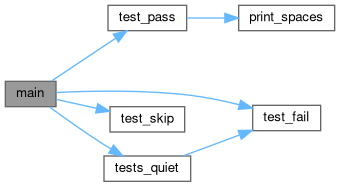

◆ main()

int main ( int  argc,
char **  argv
)

Definition at line 30 of file example_basic.c.

31{
32
33 int retval,i;
34 int EventSet = PAPI_NULL;
35 long long values[NUM_EVENTS];
36 const PAPI_component_info_t *cmpinfo = NULL;
37 int numcmp,cid,example_cid=-1;
38 int code,maximum_code=0;
39 char event_name[PAPI_MAX_STR_LEN];
40 PAPI_event_info_t event_info;
41 int quiet=0;
42
43 /* Set TESTS_QUIET variable */
44 quiet=tests_quiet( argc, argv );
45
46 /* PAPI Initialization */
47 retval = PAPI_library_init( PAPI_VER_CURRENT );
48 if ( retval != PAPI_VER_CURRENT ) {
49 test_fail(__FILE__, __LINE__,"PAPI_library_init failed\n",retval);
50 }
51
52 if (!quiet) {
53 printf( "Testing example component with PAPI %d.%d.%d\n",
54 PAPI_VERSION_MAJOR( PAPI_VERSION ),
55 PAPI_VERSION_MINOR( PAPI_VERSION ),
56 PAPI_VERSION_REVISION( PAPI_VERSION ) );
57 }
58
59 /* Find our component */
60
61 numcmp = PAPI_num_components();
62 for( cid=0; cid<numcmp; cid++) {
63 if ( (cmpinfo = PAPI_get_component_info(cid)) == NULL) {
64 test_fail(__FILE__, __LINE__,
65 "PAPI_get_component_info failed\n", 0);
66 }
67 if (!quiet) {
68 printf("\tComponent %d - %d events - %s\n", cid,
69 cmpinfo->num_native_events,
70 cmpinfo->name);
71 }
72 if (strstr(cmpinfo->name,"example")) {
73 /* FOUND! */
74 example_cid=cid;
75 }
76 }
77
78
79 if (example_cid<0) {
80 test_skip(__FILE__, __LINE__,
81 "Example component not found\n", 0);
82 }
83
84 if (!quiet) {
85 printf("\nFound Example Component at id %d\n",example_cid);
86 printf("\nListing all events in this component:\n");
87 }
88
89 /**************************************************/
90 /* Listing all available events in this component */
91 /* Along with descriptions */
92 /**************************************************/
93 code = PAPI_NATIVE_MASK;
94
95 retval = PAPI_enum_cmp_event( &code, PAPI_ENUM_FIRST, example_cid );
96
97 while ( retval == PAPI_OK ) {
98 if (PAPI_event_code_to_name( code, event_name )!=PAPI_OK) {
99 printf("Error translating %#x\n",code);
100 test_fail( __FILE__, __LINE__,
101 "PAPI_event_code_to_name", retval );
102 }
103
104 if (PAPI_get_event_info( code, &event_info)!=PAPI_OK) {
105 printf("Error getting info for event %#x\n",code);
106 test_fail( __FILE__, __LINE__,
107 "PAPI_get_event_info()", retval );
108 }
109
110 if (!quiet) {
111 printf("\tEvent %#x: %s -- %s\n",
112 code,event_name,event_info.long_descr);
113 }
114
115 maximum_code=code;
116
117 retval = PAPI_enum_cmp_event( &code, PAPI_ENUM_EVENTS, example_cid );
118
119 }
120 if (!quiet) printf("\n");
121
122 /**********************************/
123 /* Try accessing an invalid event */
124 /**********************************/
125
126 retval=PAPI_event_code_to_name( maximum_code+10, event_name );
127 if (retval!=PAPI_ENOEVNT) {
128 test_fail( __FILE__, __LINE__,
129 "Failed to return PAPI_ENOEVNT on invalid event", retval );
130 }
131
132 /***********************************/
133 /* Test the EXAMPLE_ZERO event */
134 /***********************************/
135
136 retval = PAPI_create_eventset( &EventSet );
137 if ( retval != PAPI_OK ) {
138 test_fail( __FILE__, __LINE__,
139 "PAPI_create_eventset() failed\n", retval );
140 }
141
142 retval = PAPI_event_name_to_code("EXAMPLE_ZERO", &code);
143 if ( retval != PAPI_OK ) {
144 test_fail( __FILE__, __LINE__,
145 "EXAMPLE_ZERO not found\n",retval );
146 }
147
148 retval = PAPI_add_event( EventSet, code);
149 if ( retval != PAPI_OK ) {
150 test_fail( __FILE__, __LINE__,
151 "PAPI_add_events failed\n", retval );
152 }
153
154 retval = PAPI_start( EventSet );
155 if ( retval != PAPI_OK ) {
156 test_fail( __FILE__, __LINE__,
157 "PAPI_start failed\n",retval );
158 }
159
160 retval = PAPI_stop( EventSet, values );
161 if ( retval != PAPI_OK ) {
162 test_fail( __FILE__, __LINE__, "PAPI_stop failed\n", retval);
163 }
164
165 if (!quiet) printf("Testing EXAMPLE_ZERO: %lld\n",values[0]);
166
167 if (values[0]!=0) {
168 test_fail( __FILE__, __LINE__, "Result should be 0!\n", 0);
169 }
170
171 retval = PAPI_cleanup_eventset(EventSet);
172 if (retval != PAPI_OK) {
173 test_fail( __FILE__, __LINE__, "PAPI_cleanup_eventset!\n", retval);
174 }
175
176 retval = PAPI_destroy_eventset(&EventSet);
177 if (retval != PAPI_OK) {
178 test_fail( __FILE__, __LINE__, "PAPI_destroy_eventset!\n", retval);
179 }
180
181 EventSet=PAPI_NULL;
182
183
184 /***********************************/
185 /* Test the EXAMPLE_CONSTANT event */
186 /***********************************/
187
188 retval = PAPI_create_eventset( &EventSet );
189 if ( retval != PAPI_OK ) {
190 test_fail( __FILE__, __LINE__,
191 "PAPI_create_eventset() failed\n", retval );
192 }
193
194 retval = PAPI_event_name_to_code("EXAMPLE_CONSTANT", &code);
195 if ( retval != PAPI_OK ) {
196 test_fail( __FILE__, __LINE__,
197 "EXAMPLE_CONSTANT not found\n",retval );
198 }
199
200 retval = PAPI_add_event( EventSet, code);
201 if ( retval != PAPI_OK ) {
202 test_fail( __FILE__, __LINE__,
203 "PAPI_add_events failed\n", retval );
204 }
205
206 retval = PAPI_start( EventSet );
207 if ( retval != PAPI_OK ) {
208 test_fail( __FILE__, __LINE__,
209 "PAPI_start failed\n",retval );
210 }
211
212 retval = PAPI_stop( EventSet, values );
213 if ( retval != PAPI_OK ) {
214 test_fail( __FILE__, __LINE__, "PAPI_stop failed\n", retval);
215 }
216
217 if (!quiet) printf("Testing EXAMPLE_CONSTANT: %lld\n",values[0]);
218
219 if (values[0]!=42) {
220 test_fail( __FILE__, __LINE__, "Result should be 42!\n", 0);
221 }
222
223 retval = PAPI_cleanup_eventset(EventSet);
224 if (retval != PAPI_OK) {
225 test_fail( __FILE__, __LINE__, "PAPI_cleanup_eventset!\n", retval);
226 }
227
228 retval = PAPI_destroy_eventset(&EventSet);
229 if (retval != PAPI_OK) {
230 test_fail( __FILE__, __LINE__, "PAPI_destroy_eventset!\n", retval);
231 }
232
233 EventSet=PAPI_NULL;
234
235
236
237 /***********************************/
238 /* Test the EXAMPLE_AUTOINC event */
239 /***********************************/
240
241 retval = PAPI_create_eventset( &EventSet );
242 if ( retval != PAPI_OK ) {
243 test_fail( __FILE__, __LINE__,
244 "PAPI_create_eventset() failed\n", retval );
245 }
246
247 retval = PAPI_event_name_to_code("EXAMPLE_AUTOINC", &code);
248 if ( retval != PAPI_OK ) {
249 test_fail( __FILE__, __LINE__,
250 "EXAMPLE_AUTOINC not found\n",retval );
251 }
252
253 retval = PAPI_add_event( EventSet, code);
254 if ( retval != PAPI_OK ) {
255 test_fail( __FILE__, __LINE__,
256 "PAPI_add_events failed\n", retval );
257 }
258
259 if (!quiet) printf("Testing EXAMPLE_AUTOINC: ");
260
261 for(i=0;i<10;i++) {
262
263 retval = PAPI_start( EventSet );
264 if ( retval != PAPI_OK ) {
265 test_fail( __FILE__, __LINE__,
266 "PAPI_start failed\n",retval );
267 }
268
269 retval = PAPI_stop( EventSet, values );
270 if ( retval != PAPI_OK ) {
271 test_fail( __FILE__, __LINE__, "PAPI_stop failed\n", retval);
272 }
273
274 if (!quiet) printf("%lld ",values[0]);
275
276 if (values[0]!=i) {
277 test_fail( __FILE__, __LINE__, "Result wrong!\n", 0);
278 }
279 }
280
281 if (!quiet) printf("\n");
282
283
284 /***********************************/
285 /* Test multiple reads */
286 /***********************************/
287
288 retval = PAPI_start( EventSet );
289 if ( retval != PAPI_OK ) {
290 test_fail( __FILE__, __LINE__,
291 "PAPI_start failed\n",retval );
292 }
293
294 for(i=0;i<10;i++) {
295
296 retval=PAPI_read( EventSet, values);
297 if ( retval != PAPI_OK ) {
298 test_fail( __FILE__, __LINE__, "PAPI_read failed\n", retval);
299 }
300 if (!quiet) printf("%lld ",values[0]);
301 }
302
303 retval = PAPI_stop( EventSet, values );
304 if ( retval != PAPI_OK ) {
305 test_fail( __FILE__, __LINE__, "PAPI_stop failed\n", retval);
306 }
307 if (!quiet) printf("%lld\n",values[0]);
308
309 // if (values[0]!=i) {
310 // test_fail( __FILE__, __LINE__, "Result wrong!\n", 0);
311 //}
312
313 /***********************************/
314 /* Test PAPI_reset() */
315 /***********************************/
316
317 retval = PAPI_reset( EventSet);
318 if ( retval != PAPI_OK ) {
319 test_fail( __FILE__, __LINE__,
320 "PAPI_reset() failed\n",retval );
321 }
322
323 retval = PAPI_start( EventSet );
324 if ( retval != PAPI_OK ) {
325 test_fail( __FILE__, __LINE__,
326 "PAPI_start failed\n",retval );
327 }
328
329 retval = PAPI_reset( EventSet);
330 if ( retval != PAPI_OK ) {
331 test_fail( __FILE__, __LINE__,
332 "PAPI_reset() failed\n",retval );
333 }
334
335 retval = PAPI_stop( EventSet, values );
336 if ( retval != PAPI_OK ) {
337 test_fail( __FILE__, __LINE__, "PAPI_stop failed\n", retval);
338 }
339
340
341 if (!quiet) printf("Testing EXAMPLE_AUTOINC after PAPI_reset(): %lld\n",
342 values[0]);
343
344 if (values[0]!=0) {
345 test_fail( __FILE__, __LINE__, "Result not zero!\n", 0);
346 }
347
348 retval = PAPI_cleanup_eventset(EventSet);
349 if (retval != PAPI_OK) {
350 test_fail( __FILE__, __LINE__, "PAPI_cleanup_eventset!\n", retval);
351 }
352
353 retval = PAPI_destroy_eventset(&EventSet);
354 if (retval != PAPI_OK) {
355 test_fail( __FILE__, __LINE__, "PAPI_destroy_eventset!\n", retval);
356 }
357
358 EventSet=PAPI_NULL;
359
360
361 /***********************************/
362 /* Test multiple events */
363 /***********************************/
364
365 if (!quiet) printf("Testing Multiple Events: ");
366
367 retval = PAPI_create_eventset( &EventSet );
368 if ( retval != PAPI_OK ) {
369 test_fail( __FILE__, __LINE__,
370 "PAPI_create_eventset() failed\n", retval );
371 }
372
373 retval = PAPI_event_name_to_code("EXAMPLE_CONSTANT", &code);
374 if ( retval != PAPI_OK ) {
375 test_fail( __FILE__, __LINE__,
376 "EXAMPLE_CONSTANT not found\n",retval );
377 }
378
379 retval = PAPI_add_event( EventSet, code);
380 if ( retval != PAPI_OK ) {
381 test_fail( __FILE__, __LINE__,
382 "PAPI_add_events failed\n", retval );
383 }
384
385 retval = PAPI_event_name_to_code("EXAMPLE_GLOBAL_AUTOINC", &code);
386 if ( retval != PAPI_OK ) {
387 test_fail( __FILE__, __LINE__,
388 "EXAMPLE_GLOBAL_AUTOINC not found\n",retval );
389 }
390
391 retval = PAPI_add_event( EventSet, code);
392 if ( retval != PAPI_OK ) {
393 test_fail( __FILE__, __LINE__,
394 "PAPI_add_events failed\n", retval );
395 }
396
397 retval = PAPI_event_name_to_code("EXAMPLE_ZERO", &code);
398 if ( retval != PAPI_OK ) {
399 test_fail( __FILE__, __LINE__,
400 "EXAMPLE_ZERO not found\n",retval );
401 }
402
403 retval = PAPI_add_event( EventSet, code);
404 if ( retval != PAPI_OK ) {
405 test_fail( __FILE__, __LINE__,
406 "PAPI_add_events failed\n", retval );
407 }
408
409
410 retval = PAPI_start( EventSet );
411 if ( retval != PAPI_OK ) {
412 test_fail( __FILE__, __LINE__,
413 "PAPI_start failed\n",retval );
414 }
415
416 retval = PAPI_stop( EventSet, values );
417 if ( retval != PAPI_OK ) {
418 test_fail( __FILE__, __LINE__, "PAPI_stop failed\n", retval);
419 }
420
421 if (!quiet) {
422 for(i=0;i<3;i++) {
423 printf("%lld ",values[i]);
424 }
425 printf("\n");
426 }
427
428 if (values[0]!=42) {
429 test_fail( __FILE__, __LINE__, "Result should be 42!\n", 0);
430 }
431
432 if (values[2]!=0) {
433 test_fail( __FILE__, __LINE__, "Result should be 0!\n", 0);
434 }
435
436 retval = PAPI_cleanup_eventset(EventSet);
437 if (retval != PAPI_OK) {
438 test_fail( __FILE__, __LINE__, "PAPI_cleanup_eventset!\n", retval);
439 }
440
441 retval = PAPI_destroy_eventset(&EventSet);
442 if (retval != PAPI_OK) {
443 test_fail( __FILE__, __LINE__, "PAPI_destroy_eventset!\n", retval);
444 }
445
446 EventSet=PAPI_NULL;
447
448 /***********************************/
449 /* Test writing to an event */
450 /***********************************/
451
452 if (!quiet) printf("Testing Write\n");
453
454 retval = PAPI_create_eventset( &EventSet );
455 if ( retval != PAPI_OK ) {
456 test_fail( __FILE__, __LINE__,
457 "PAPI_create_eventset() failed\n", retval );
458 }
459
460 retval = PAPI_event_name_to_code("EXAMPLE_CONSTANT", &code);
461 if ( retval != PAPI_OK ) {
462 test_fail( __FILE__, __LINE__,
463 "EXAMPLE_CONSTANT not found\n",retval );
464 }
465
466 retval = PAPI_add_event( EventSet, code);
467 if ( retval != PAPI_OK ) {
468 test_fail( __FILE__, __LINE__,
469 "PAPI_add_events failed\n", retval );
470 }
471
472 retval = PAPI_event_name_to_code("EXAMPLE_GLOBAL_AUTOINC", &code);
473 if ( retval != PAPI_OK ) {
474 test_fail( __FILE__, __LINE__,
475 "EXAMPLE_GLOBAL_AUTOINC not found\n",retval );
476 }
477
478 retval = PAPI_add_event( EventSet, code);
479 if ( retval != PAPI_OK ) {
480 test_fail( __FILE__, __LINE__,
481 "PAPI_add_events failed\n", retval );
482 }
483
484 retval = PAPI_event_name_to_code("EXAMPLE_ZERO", &code);
485 if ( retval != PAPI_OK ) {
486 test_fail( __FILE__, __LINE__,
487 "EXAMPLE_ZERO not found\n",retval );
488 }
489
490 retval = PAPI_add_event( EventSet, code);
491 if ( retval != PAPI_OK ) {
492 test_fail( __FILE__, __LINE__,
493 "PAPI_add_events failed\n", retval );
494 }
495
496
497 retval = PAPI_start( EventSet );
498 if ( retval != PAPI_OK ) {
499 test_fail( __FILE__, __LINE__,
500 "PAPI_start failed\n",retval );
501 }
502
503 retval = PAPI_read ( EventSet, values );
504 if ( retval != PAPI_OK ) {
505 test_fail( __FILE__, __LINE__,
506 "PAPI_read failed\n",retval );
507 }
508
509 if (!quiet) {
510 printf("Before values: ");
511 for(i=0;i<3;i++) {
512 printf("%lld ",values[i]);
513 }
514 printf("\n");
515 }
516
517 values[0]=100;
518 values[1]=200;
519 values[2]=300;
520
521 retval = PAPI_write ( EventSet, values );
522 if ( retval != PAPI_OK ) {
523 test_fail( __FILE__, __LINE__,
524 "PAPI_write failed\n",retval );
525 }
526
527 retval = PAPI_stop( EventSet, values );
528 if ( retval != PAPI_OK ) {
529 test_fail( __FILE__, __LINE__, "PAPI_stop failed\n", retval);
530 }
531
532 if (!quiet) {
533 printf("After values: ");
534 for(i=0;i<3;i++) {
535 printf("%lld ",values[i]);
536 }
537 printf("\n");
538 }
539
540
541 if (values[0]!=42) {
542 test_fail( __FILE__, __LINE__, "Result should be 42!\n", 0);
543 }
544
545 if (values[1]!=200) {
546 test_fail( __FILE__, __LINE__, "Result should be 200!\n", 0);
547 }
548
549 if (values[2]!=0) {
550 test_fail( __FILE__, __LINE__, "Result should be 0!\n", 0);
551 }
552
553 retval = PAPI_cleanup_eventset(EventSet);
554 if (retval != PAPI_OK) {
555 test_fail( __FILE__, __LINE__, "PAPI_cleanup_eventset!\n", retval);
556 }
557
558 retval = PAPI_destroy_eventset(&EventSet);
559 if (retval != PAPI_OK) {
560 test_fail( __FILE__, __LINE__, "PAPI_destroy_eventset!\n", retval);
561 }
562
563 EventSet=PAPI_NULL;
564
565
566 /************/
567 /* All Done */
568 /************/
569
570 if (!quiet) printf("\n");
571
572 test_pass( __FILE__ );
573
574 return 0;
575}
i
int i
Definition: PAPI_get_virt_cyc.c:10
PAPI_add_event
add PAPI preset or native hardware event to an event set
PAPI_cleanup_eventset
Empty and destroy an EventSet.
PAPI_create_eventset
Create a new empty PAPI EventSet.
PAPI_destroy_eventset
Empty and destroy an EventSet.
PAPI_enum_cmp_event
Enumerate PAPI preset or native events for a given component.
PAPI_event_code_to_name
Convert a numeric hardware event code to a name.
PAPI_event_name_to_code
Convert a name to a numeric hardware event code.
PAPI_get_component_info
get information about a specific software component
PAPI_get_event_info
Get the event's name and description info.
PAPI_library_init
initialize the PAPI library.
PAPI_num_components
Get the number of components available on the system.
PAPI_read
Read hardware counters from an event set.
PAPI_reset
Reset the hardware event counts in an event set.
PAPI_start
Start counting hardware events in an event set.
PAPI_stop
Stop counting hardware events in an event set.
PAPI_write
Write counter values into counters.
event_name
char event_name[2][PAPI_MAX_STR_LEN]
Definition: data_range.c:29
NUM_EVENTS
#define NUM_EVENTS
Definition: example_basic.c:28
PAPI_VER_CURRENT
#define PAPI_VER_CURRENT
Definition: f90papi.h:54
PAPI_ENUM_EVENTS
#define PAPI_ENUM_EVENTS
Definition: f90papi.h:224
PAPI_VERSION
#define PAPI_VERSION
Definition: f90papi.h:193
PAPI_OK
#define PAPI_OK
Definition: f90papi.h:73
PAPI_ENUM_FIRST
#define PAPI_ENUM_FIRST
Definition: f90papi.h:85
PAPI_NULL
#define PAPI_NULL
Definition: f90papi.h:78
PAPI_ENOEVNT
#define PAPI_ENOEVNT
Definition: f90papi.h:139
PAPI_MAX_STR_LEN
#define PAPI_MAX_STR_LEN
Definition: f90papi.h:77
EventSet
static int EventSet
Definition: init_fini.c:8
values
static long long values[NUM_EVENTS]
Definition: init_fini.c:10
event_info
static struct counter_info * event_info
Definition: linux-stealtime.c:52
PAPI_NATIVE_MASK
#define PAPI_NATIVE_MASK
Definition: papiStdEventDefs.h:30
PAPI_VERSION_REVISION
#define PAPI_VERSION_REVISION(x)
Definition: papi.h:221
PAPI_VERSION_MAJOR
#define PAPI_VERSION_MAJOR(x)
Definition: papi.h:219
PAPI_VERSION_MINOR
#define PAPI_VERSION_MINOR(x)
Definition: papi.h:220
tests_quiet
int tests_quiet(int argc, char **argv)
Definition: test_utils.c:376
test_fail
void PAPI_NORETURN test_fail(const char *file, int line, const char *call, int retval)
Definition: test_utils.c:491
test_pass
void PAPI_NORETURN test_pass(const char *filename)
Definition: test_utils.c:432
test_skip
void PAPI_NORETURN test_skip(const char *file, int line, const char *call, int retval)
Definition: test_utils.c:584
quiet
int quiet
Definition: rapl_overflow.c:19
PAPI_component_info_t
Definition: papi.h:626
PAPI_component_info_t::num_native_events
int num_native_events
Definition: papi.h:641
PAPI_component_info_t::name
char name[PAPI_MAX_STR_LEN]
Definition: papi.h:627
PAPI_event_info_t
Definition: papi.h:957
retval
int retval
Definition: zero_fork.c:53
Here is the call graph for this function:
