pchbrdt.c File Reference
#include "common.h"
#include <lapacke.h>

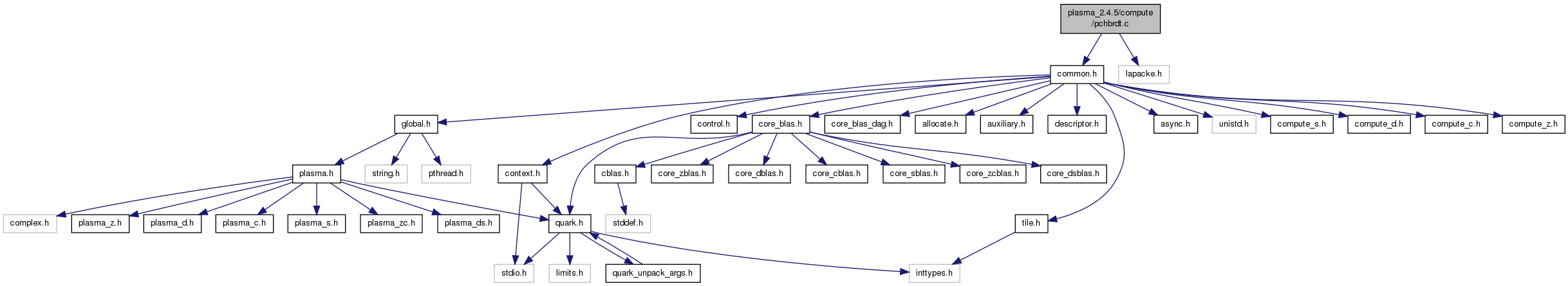

Include dependency graph for pchbrdt.c:

Go to the source code of this file.

Macros

#define COMPLEX
#define DEP(m)   &(DEP[m])
#define A(_m, _n)   (PLASMA_Complex32_t *)plasma_geteltaddr(&A, (_m), (_n), eltsize)

Functions

void plasma_pchbrdt_quark (PLASMA_enum uplo, PLASMA_desc A, float *D, float *E, PLASMA_desc T, PLASMA_sequence *sequence, PLASMA_request *request)

Detailed Description

PLASMA auxiliary routines PLASMA is a software package provided by Univ. of Tennessee, Univ. of California Berkeley and Univ. of Colorado Denver

Version:
2.4.5
Author:
Azzam Haidar
Hatem Ltaief
Mathieu Faverge
Date:
2011-05-15 c Tue Nov 22 14:35:43 2011

Definition in file pchbrdt.c.

Macro Definition Documentation

#define A (   _m,
  _n
)    (PLASMA_Complex32_t *)plasma_geteltaddr(&A, (_m), (_n), eltsize)

Definition at line 24 of file pchbrdt.c.

#define COMPLEX

Definition at line 21 of file pchbrdt.c.

#define DEP (   m)    &(DEP[m])

Definition at line 23 of file pchbrdt.c.

Function Documentation

void plasma_pchbrdt_quark ( PLASMA_enum  uplo,
PLASMA_desc  A,
float *  D,
float *  E,
PLASMA_desc  T,
PLASMA_sequence *  sequence,
PLASMA_request *  request
)

Parallel Reduction from BAND tridiagonal to the final condensed form - dynamic scheduler

Definition at line 28 of file pchbrdt.c.

References A, C, cabsf(), DEP, plasma_desc_t::dtyp, lapack_const, plasma_desc_t::lm, plasma_desc_t::m, plasma_desc_t::mb, min, plasma_context_self(), plasma_element_size(), plasma_sequence_flush(), plasma_shared_alloc(), plasma_shared_free(), PLASMA_SUCCESS, PlasmaComplexFloat, PlasmaInteger, PlasmaLower, plasma_context_struct::quark, QUARK_Barrier(), QUARK_CORE_ctrdalg(), plasma_sequence_t::quark_sequence, QUARK_Task_Flag_Set(), Quark_Task_Flags_Initializer, plasma_sequence_t::status, and TASK_SEQUENCE.

{
plasma_context_t *plasma;
Quark_Task_Flags task_flags = Quark_Task_Flags_Initializer;
#ifdef COMPLEX
static PLASMA_Complex32_t zone = (PLASMA_Complex32_t) 1.0;
static float dzero = (float) 0.0;
PLASMA_Complex32_t ztmp;
float absztmp;
#endif
PLASMA_Complex32_t *C, *S;
int N, NB, INgrsiz, INthgrsiz, BAND;
int myid, grsiz, shift=3, stt, st, ed, stind, edind;
int blklastind, colpt, PCOL, ACOL, MCOL;
int stepercol, mylastid, grnb, grid;
int *DEP,*MAXID;
int i, j, m;
int thgrsiz, thgrnb, thgrid, thed;
size_t eltsize = plasma_element_size(A.dtyp);
plasma = plasma_context_self();
if (sequence->status != PLASMA_SUCCESS)
return;
QUARK_Task_Flag_Set(&task_flags, TASK_SEQUENCE, (intptr_t)sequence->quark_sequence);
N = A.m;
NB = A.mb;
/* Quick return */
if (N == 0){
return;
}
if (NB == 0) {
memset(D, 0, N*sizeof(float));
memset(E, 0, (N-1)*sizeof(float));
#ifdef COMPLEX
for (i=0; i<N; i++)
D[i] = cabsf(*A(i,i));
#else
for (i=0; i<N; i++)
D[i] = *A(i,i);
#endif
return;
}
/*
* Barrier is used because the bulge have to wait until
* the reduction to band has been finish.
* otherwise, I can remove this BARRIER when I integrate
* the function dependencies link inside the reduction to
* band. Keep in min the case when NB=1, where no bulge-chasing.
*/
/***************************************************************/
QUARK_Barrier(plasma->quark);
/***************************************************************/
/*
* Case NB=1 ==> matrix is already Bidiagonal. no need to bulge.
* Make diagonal and superdiagonal elements real, storing them in
* D and E. if PlasmaLower, first transform lower bidiagonal form
* to upper bidiagonal by applying plane rotations/ Householder
* from the left, overwriting superdiagonal elements then make
* elements real of the resulting upper Bidiagonal. if PlasmaUpper
* then make its elements real. For Q, PT: ZSCAL should be done
* in case of WANTQ.
*/
if (NB == 1){
memset(D, 0, N *sizeof(float));
memset(E, 0, (N-1)*sizeof(float));
#ifdef COMPLEX
if(uplo==PlasmaLower){
for (i=0; i<N; i++)
{
D[i] = crealf( *A(i, i) ); /* diag value */
if( i < (N-1)) { /* lower off-diag value */
ztmp = *A((i+1),i);
absztmp = cabsf(ztmp);
*A((i+1),i) = absztmp;
E[i] = absztmp;
if(absztmp != dzero)
ztmp = (PLASMA_Complex32_t) (ztmp / absztmp);
else
ztmp = zone;
if(i<(N-2)) *A((i+2),(i+1)) = *A((i+2),(i+1)) * ztmp;
/* for Q: ZSCAL should be done in case of WANTQ */
}
}
} else { /* PlasmaUpper */
for (i=0; i<N; i++)
{
D[i] = crealf( *A(i,i) ); /* diag value*/
if(i<(N-1)) { /* lower off-diag value */
ztmp = *A(i, (i+1));
absztmp = cabsf(ztmp);
*A(i,(i+1)) = absztmp;
E[i] = absztmp;
if(absztmp != dzero)
ztmp = (PLASMA_Complex32_t) (ztmp / absztmp);
else
ztmp = zone;
if(i<(N-2)) *A((i+1),(i+2)) = *A((i+1),(i+2)) * ztmp;
/* for Q: ZSCAL should be done in case of WANTQ. HERE NEED THE multiply by CONJ(T) */
}
}
} /* end PlasmaUpper*/
#else
if( uplo == PlasmaLower ){
for (i=0; i < N-1; i++) {
D[i] = *A(i, i);
E[i] = *A(i+1, i);
}
D[i] = *A(i, i);
} else {
for (i=0; i < N-1; i++) {
D[i] = *A(i, i );
E[i] = *A(i, i+1);
}
D[i] = *A(i, i);
}
#endif
return;
}
/* Case N<NB ==> matrix is very small and better to call lapack XHETRD. */
if( N <= 0 ) /* this will be removed we don t need it. */
{
PLASMA_Complex32_t *work, *TTau;
int info, ldwork = N*N;
work = (PLASMA_Complex32_t *) plasma_shared_alloc(plasma, ldwork, PlasmaComplexFloat);
TTau = (PLASMA_Complex32_t *) plasma_shared_alloc(plasma, N, PlasmaComplexFloat);
info = LAPACKE_chetrd_work(LAPACK_COL_MAJOR, lapack_const(uplo), N,
A(0,0), A.lm, D, E, TTau, work, ldwork);
plasma_shared_free(plasma, (void*) work);
plasma_shared_free(plasma, (void*) TTau);
if( info == 0 )
sequence->status = PLASMA_SUCCESS;
else
plasma_sequence_flush(plasma->quark, sequence, request, info);
return;
}
/* General case NB > 1 && N > NB */
DEP = (int *) plasma_shared_alloc(plasma, N+1, PlasmaInteger );
MAXID = (int *) plasma_shared_alloc(plasma, N+1, PlasmaInteger );
C = (PLASMA_Complex32_t *) plasma_shared_alloc(plasma, N, PlasmaComplexFloat);
S = (PLASMA_Complex32_t *) plasma_shared_alloc(plasma, N, PlasmaComplexFloat);
memset(MAXID,0,(N+1)*sizeof(int));
/***************************************************************************
* START BULGE CHASING CODE
**************************************************************************/
/*
* Initialisation of local parameter. those parameter should be
* input or tuned parameter.
*/
INgrsiz = 1;
if( NB > 160 ) {
INgrsiz = 2;
}
else if( NB > 100 ) {
if( N < 5000 )
INgrsiz = 2;
else
INgrsiz = 4;
} else {
INgrsiz = 6;
}
INthgrsiz = N;
BAND = 0;
grsiz = INgrsiz;
thgrsiz = INthgrsiz;
if( grsiz == 0 ) grsiz = 6;
if( thgrsiz == 0 ) thgrsiz = N;
i = shift/grsiz;
stepercol = i*grsiz == shift ? i:i+1;
i = (N-2)/thgrsiz;
thgrnb = i*thgrsiz == (N-2) ? i:i+1;
for (thgrid = 1; thgrid<=thgrnb; thgrid++){
stt = (thgrid-1)*thgrsiz+1;
thed = min( (stt + thgrsiz -1), (N-2));
for (i = stt; i <= N-2; i++){
ed=min(i,thed);
if(stt>ed)break;
for (m = 1; m <=stepercol; m++){
st=stt;
for (j = st; j <=ed; j++){
/* PCOL: dependency on the ID of the master of the group of the previous column. (Previous Column:PCOL). */
/* ACOL: dependency on the ID of the master of the previous group of my column. (Acctual Column:ACOL). (it is 0(NULL) for myid=1) */
/* MCOL: OUTPUT dependency on the my ID, to be used by the next ID. (My Column: MCOL). I am the master of this group. */
myid = (i-j)*(stepercol*grsiz) +(m-1)*grsiz + 1;
mylastid = myid+grsiz-1;
PCOL = mylastid+shift-1; /* to know the dependent ID of the previous column. need to know the master of its group */
MAXID[j] = myid;
PCOL = min(PCOL,MAXID[j-1]); /* for the last columns, we might do only 1 or 2 kernel, so the PCOL will be wrong. this is to force it to the last ID of the previous col.*/
grnb = PCOL/grsiz;
grid = grnb*grsiz == PCOL ? grnb:grnb+1;
PCOL = (grid-1)*grsiz +1; /* give me the ID of the master of the group of the previous column. */
ACOL = myid-grsiz;
if(myid==1)ACOL=0;
MCOL = myid;
QUARK_CORE_ctrdalg(
plasma->quark, &task_flags,
uplo, N, NB,
&A, C, S, i, j, m, grsiz, BAND,
DEP(PCOL), DEP(ACOL), DEP(MCOL) );
if(mylastid%2 ==0){
blklastind = (mylastid/2)*NB+1+j-1;
}else{
colpt = ((mylastid+1)/2)*NB + 1 +j -1 ;
stind = colpt-NB+1;
edind = min(colpt,N);
if( (stind>=edind-1) && (edind==N) )
blklastind=N;
else
blklastind=0;
}
if(blklastind >= (N-1)) stt=stt+1;
} /* END for j=st:ed */
} /* END for m=1:stepercol */
} /* END for i=1:MINMN-2 */
} /* END for thgrid=1:thgrnb */
/*
* Barrier used only for now, to be sure that everything
* is done before copying the D and E and free workspace.
* this will be removed later when D and E are directly filled
* during the bulge process.
*/
QUARK_Barrier(plasma->quark);
plasma_shared_free(plasma, (void*) DEP);
plasma_shared_free(plasma, (void*) MAXID);
plasma_shared_free(plasma, (void*) C);
plasma_shared_free(plasma, (void*) S);
/*
* STORE THE RESULTING diagonal/off-diagonal in D AND E
*/
memset(D, 0, N *sizeof(float));
memset(E, 0, (N-1)*sizeof(float));
/* Make diagonal and superdiagonal elements real,
* storing them in D and E
*/
/* In complex case, the off diagonal element are
* not necessary real. we have to make off-diagonal
* elements real and copy them to E.
* When using HouseHolder elimination,
* the ZLARFG give us a real as output so, all the
* diagonal/off-diagonal element except the last one are already
* real and thus we need only to take the abs of the last
* one.
* */
#ifdef COMPLEX
if(uplo==PlasmaLower){
for (i=0; i < N-1 ; i++)
{
D[i] = crealf( *A(i,i) );
/*
* Alternative for Householder case, all off-diag
* are real except the last off-diag, where we
* have to take the abs
*/
if(i<(N-2))
E[i] = crealf(*A(i+1, i));
else
E[i] = cabsf( *A(i+1, i));
}
D[i] = crealf( *A(i, i) );
} else { /* PlasmaUpper */
for (i=0; i<N-1; i++)
{
D[i] = crealf( *A(i,i) );
/*
* Alternative for Householder case, all off-diag
* are real except the last off-diag, where we
* have to take the abs
*/
if( i < (N-2) )
E[i] = crealf(*A(i, (i+1)));
else
E[i] = cabsf(*A(i, (i+1)));
}
D[i] = crealf( *A(i, i) );
} /* end PlasmaUpper */
#else
if( uplo == PlasmaLower ){
for (i=0; i < N-1; i++) {
D[i] = *A(i, i);
E[i] = *A(i+1, i);
}
D[i] = *A(i, i);
} else {
for (i=0; i < N-1; i++) {
D[i] = *A(i, i );
E[i] = *A(i, i+1);
}
D[i] = *A(i, i);
}
#endif
} /* END FUNCTION */

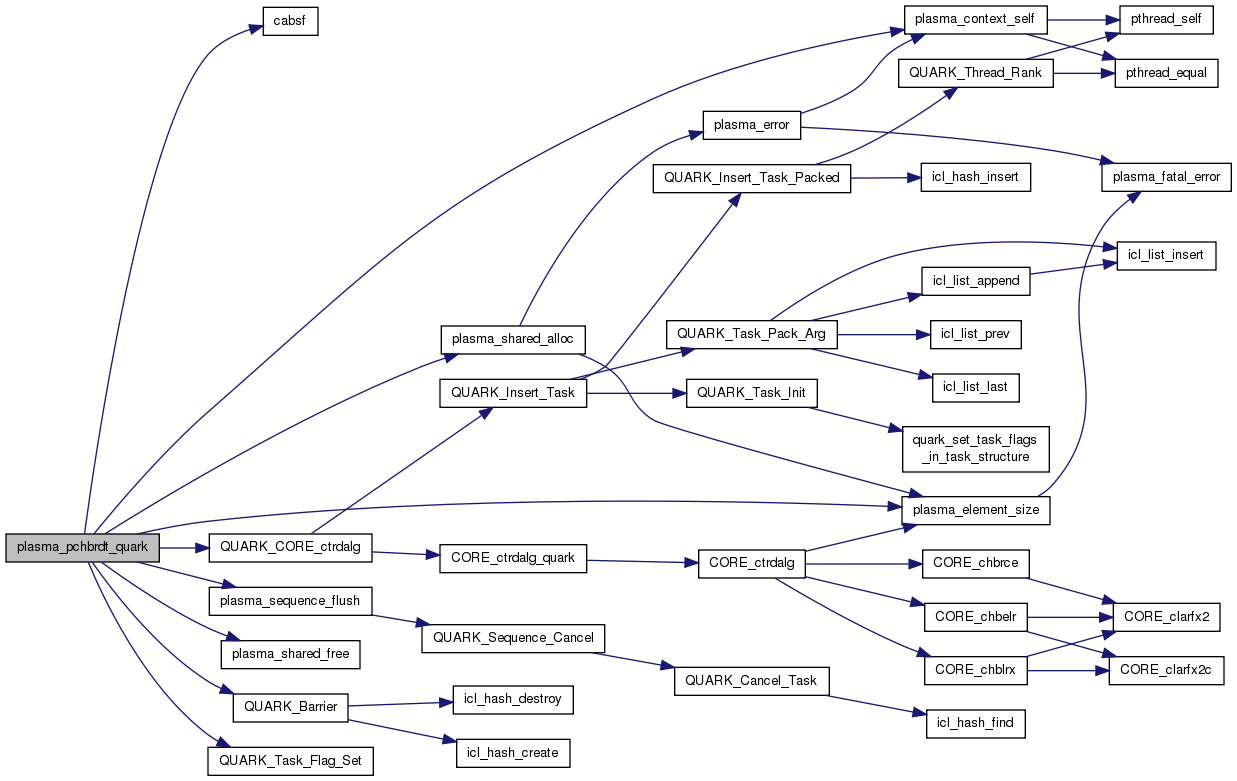

Here is the call graph for this function:
