#include <lapacke.h>
#include "common.h"

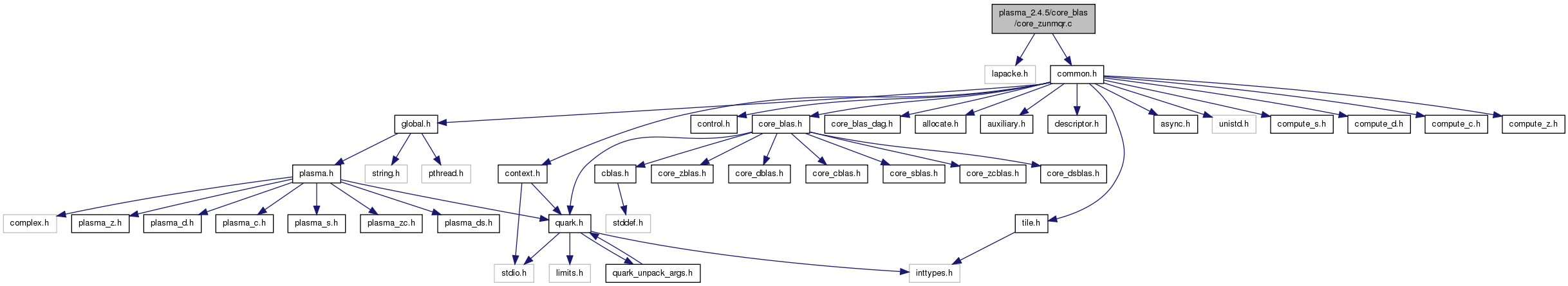

Include dependency graph for core_zunmqr.c:

Functions
int	CORE_zunmqr (int side, int trans, int M, int N, int K, int IB, PLASMA_Complex64_t A, int LDA, PLASMA_Complex64_t T, int LDT, PLASMA_Complex64_t C, int LDC, PLASMA_Complex64_t WORK, int LDWORK)
void	QUARK_CORE_zunmqr (Quark quark, Quark_Task_Flags task_flags, int side, int trans, int m, int n, int k, int ib, int nb, PLASMA_Complex64_t A, int lda, PLASMA_Complex64_t T, int ldt, PLASMA_Complex64_t *C, int ldc)
void	CORE_zunmqr_quark (Quark *quark)

Detailed Description

PLASMA core_blas kernel PLASMA is a software package provided by Univ. of Tennessee, Univ. of California Berkeley and Univ. of Colorado Denver

Version:: 2.4.5

Author:: Hatem Ltaief; Mathieu Faverge; Jakub Kurzak

Date:: 2010-11-15 normal z -> c d s

Definition in file core_zunmqr.c.

Function Documentation

int CORE_zunmqr	(	int	side,
		int	trans,
		int	M,
		int	N,
		int	K,
		int	IB,
		PLASMA_Complex64_t *	A,
		int	LDA,
		PLASMA_Complex64_t *	T,
		int	LDT,
		PLASMA_Complex64_t *	C,
		int	LDC,
		PLASMA_Complex64_t *	WORK,
		int	LDWORK
	)

CORE_zunmqr overwrites the general complex M-by-N tile C with

              SIDE = 'L'     SIDE = 'R'

TRANS = 'N': Q * C C * Q TRANS = 'C': Q**H * C C * Q**H

where Q is a complex unitary matrix defined as the product of k elementary reflectors

Q = H(1) H(2) . . . H(k)

as returned by CORE_zgeqrt. Q is of order M if SIDE = 'L' and of order N if SIDE = 'R'.

Parameters:

[in]	side	PlasmaLeft : apply Q or QH from the Left; PlasmaRight : apply Q or QH from the Right.
[in]	trans	PlasmaNoTrans : No transpose, apply Q; PlasmaConjTrans : Transpose, apply Q**H.
[in]	M	The number of rows of the tile C. M >= 0.
[in]	N	The number of columns of the tile C. N >= 0.
[in]	K	The number of elementary reflectors whose product defines the matrix Q. If SIDE = PlasmaLeft, M >= K >= 0; if SIDE = PlasmaRight, N >= K >= 0.
[in]	IB	The inner-blocking size. IB >= 0.
[in]	A	Dimension: (LDA,K) The i-th column must contain the vector which defines the elementary reflector H(i), for i = 1,2,...,k, as returned by CORE_zgeqrt in the first k columns of its array argument A.
[in]	LDA	The leading dimension of the array A. If SIDE = PlasmaLeft, LDA >= max(1,M); if SIDE = PlasmaRight, LDA >= max(1,N).
[out]	T	The IB-by-K triangular factor T of the block reflector. T is upper triangular by block (economic storage); The rest of the array is not referenced.
[in]	LDT	The leading dimension of the array T. LDT >= IB.
[in,out]	C	On entry, the M-by-N tile C. On exit, C is overwritten by QC or QTC or CQT or CQ.
[in]	LDC	The leading dimension of the array C. LDC >= max(1,M).
[in,out]	WORK	On exit, if INFO = 0, WORK(1) returns the optimal LDWORK.
[in]	LDWORK	The dimension of the array WORK. If SIDE = PlasmaLeft, LDWORK >= max(1,N); if SIDE = PlasmaRight, LDWORK >= max(1,M).

Returns:

Return values:

PLASMA_SUCCESS	successful exit
<0	if -i, the i-th argument had an illegal value

Definition at line 108 of file core_zunmqr.c.

References coreblas_error, lapack_const, max, min, PLASMA_SUCCESS, PlasmaColumnwise, PlasmaConjTrans, PlasmaForward, PlasmaLeft, PlasmaNoTrans, and PlasmaRight.

{
    int i, kb;
    int i1, i3;
    int nq, nw;
    int ic = 0;
    int jc = 0;
    int ni = N;
    int mi = M;
    /* Check input arguments */
    if ((side != PlasmaLeft) && (side != PlasmaRight)) {
        coreblas_error(1, "Illegal value of side");
        return -1;
    }
    /*
     * NQ is the order of Q and NW is the minimum dimension of WORK
     */
    if (side == PlasmaLeft) {
        nq = M;
        nw = N;
    }
    else {
        nq = N;
        nw = M;
    }
    if ((trans != PlasmaNoTrans) && (trans != PlasmaConjTrans)) {
        coreblas_error(2, "Illegal value of trans");
        return -2;
    }
    if (M < 0) {
        coreblas_error(3, "Illegal value of M");
        return -3;
    }
    if (N < 0) {
        coreblas_error(4, "Illegal value of N");
        return -4;
    }
    if ((K < 0) || (K > nq)) {
        coreblas_error(5, "Illegal value of K");
        return -5;
    }
    if ((IB < 0) || ( (IB == 0) && ((M > 0) && (N > 0)) )) {
        coreblas_error(6, "Illegal value of IB");
        return -6;
    }
    if ((LDA < max(1,nq)) && (nq > 0)) {
        coreblas_error(8, "Illegal value of LDA");
        return -8;
    }
    if ((LDC < max(1,M)) && (M > 0)) {
        coreblas_error(12, "Illegal value of LDC");
        return -12;
    }
    if ((LDWORK < max(1,nw)) && (nw > 0)) {
        coreblas_error(14, "Illegal value of LDWORK");
        return -14;
    }
    /* Quick return */
    if ((M == 0) || (N == 0) || (K == 0))
        return PLASMA_SUCCESS;
    if (((side == PlasmaLeft) && (trans != PlasmaNoTrans))
        || ((side == PlasmaRight) && (trans == PlasmaNoTrans))) {
        i1 = 0;
        i3 = IB;
    }
    else {
        i1 = ( ( K-1 ) / IB )*IB;
        i3 = -IB;
    }
    for(i = i1; (i >- 1) && (i < K); i+=i3 ) {
        kb = min(IB, K-i);
        if (side == PlasmaLeft) {
            /*
             * H or H' is applied to C(i:m,1:n)
             */
            mi = M - i;
            ic = i;
        }
        else {
            /*
             * H or H' is applied to C(1:m,i:n)
             */
            ni = N - i;
            jc = i;
        }
        /*
         * Apply H or H'
         */
        LAPACKE_zlarfb_work(LAPACK_COL_MAJOR,
            lapack_const(side),
            lapack_const(trans),
            lapack_const(PlasmaForward),
            lapack_const(PlasmaColumnwise),
            mi, ni, kb,
            &A[LDA*i+i], LDA,
            &T[LDT*i], LDT,
            &C[LDC*jc+ic], LDC,
            WORK, LDWORK);
    }
    return PLASMA_SUCCESS;
}

Here is the caller graph for this function:

void CORE_zunmqr_quark ( Quark * quark )

Definition at line 257 of file core_zunmqr.c.

References A, C, CORE_zunmqr(), quark_unpack_args_14, side, T, and trans.

{
    int side;
    int trans;
    int m;
    int n;
    int k;
    int ib;
    PLASMA_Complex64_t *A;
    int lda;
    PLASMA_Complex64_t *T;
    int ldt;
    PLASMA_Complex64_t *C;
    int ldc;
    PLASMA_Complex64_t *WORK;
    int ldwork;
    quark_unpack_args_14(quark, side, trans, m, n, k, ib,
                         A, lda, T, ldt, C, ldc, WORK, ldwork);
    CORE_zunmqr(side, trans, m, n, k, ib,
                A, lda, T, ldt, C, ldc, WORK, ldwork);
}

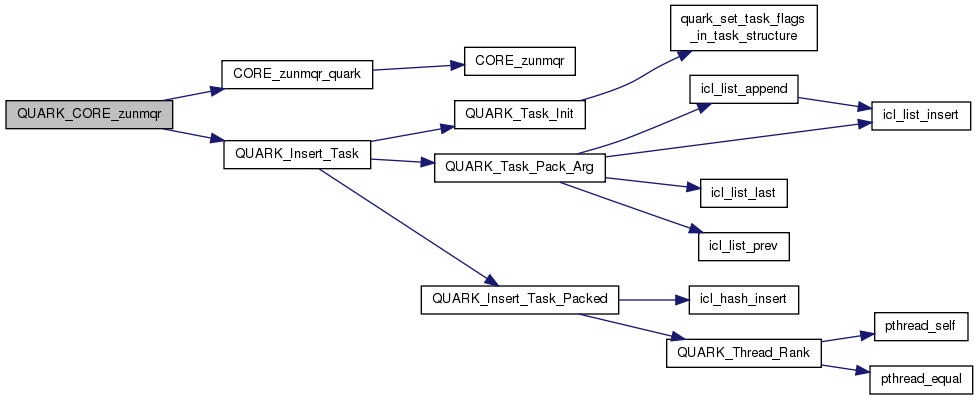

Here is the call graph for this function:

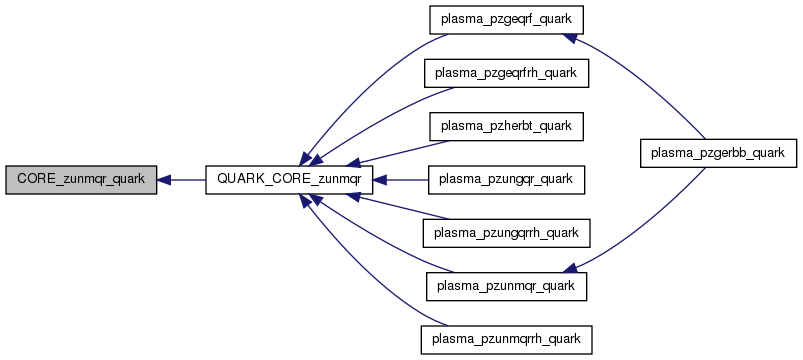

Here is the caller graph for this function:

void QUARK_CORE_zunmqr	(	Quark *	quark,
		Quark_Task_Flags *	task_flags,
		int	side,
		int	trans,
		int	m,
		int	n,
		int	k,
		int	ib,
		int	nb,
		PLASMA_Complex64_t *	A,
		int	lda,
		PLASMA_Complex64_t *	T,
		int	ldt,
		PLASMA_Complex64_t *	C,
		int	ldc
	)

Definition at line 224 of file core_zunmqr.c.

References CORE_zunmqr_quark(), DAG_CORE_UNMQR, INOUT, INPUT, QUARK_Insert_Task(), QUARK_REGION_L, SCRATCH, and VALUE.

{
    DAG_CORE_UNMQR;
    QUARK_Insert_Task(quark, CORE_zunmqr_quark, task_flags,
        sizeof(PLASMA_enum),                &side,  VALUE,
        sizeof(PLASMA_enum),                &trans, VALUE,
        sizeof(int),                        &m,     VALUE,
        sizeof(int),                        &n,     VALUE,
        sizeof(int),                        &k,     VALUE,
        sizeof(int),                        &ib,    VALUE,
        sizeof(PLASMA_Complex64_t)*nb*nb,   A,      INPUT | QUARK_REGION_L,
        sizeof(int),                        &lda,   VALUE,
        sizeof(PLASMA_Complex64_t)*ib*nb,   T,      INPUT,
        sizeof(int),                        &ldt,   VALUE,
        sizeof(PLASMA_Complex64_t)*nb*nb,   C,      INOUT,
        sizeof(int),                        &ldc,   VALUE,
        sizeof(PLASMA_Complex64_t)*ib*nb,   NULL,   SCRATCH,
        sizeof(int),                        &nb,    VALUE,
        0);
}

Here is the call graph for this function:

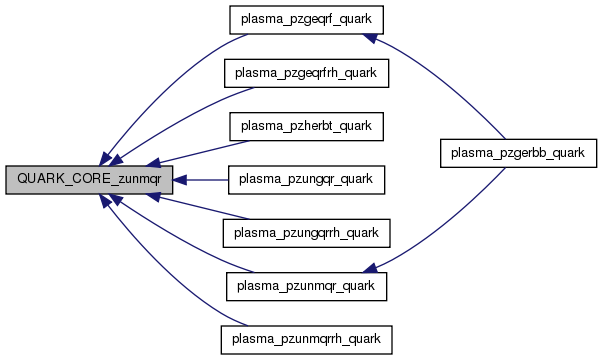

Here is the caller graph for this function:
