#include <lapacke.h>
#include "common.h"

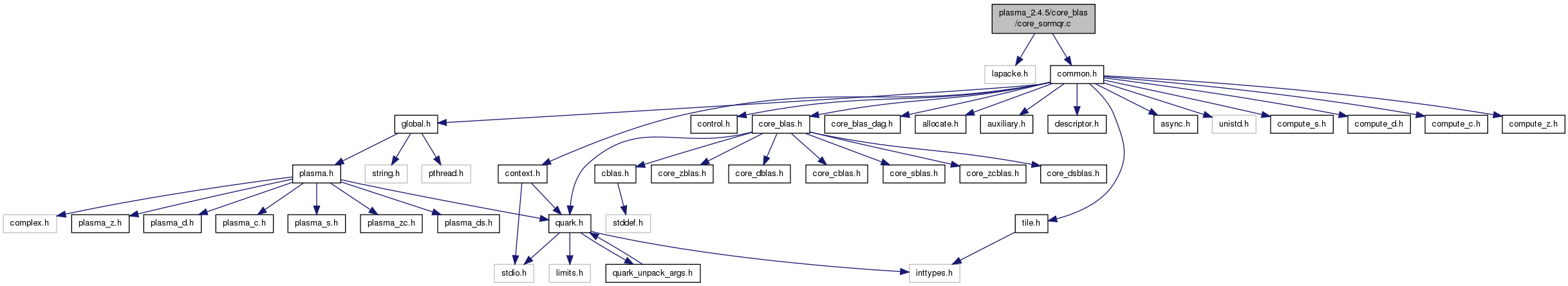

Include dependency graph for core_sormqr.c:

Functions
int	CORE_sormqr (int side, int trans, int M, int N, int K, int IB, float A, int LDA, float T, int LDT, float C, int LDC, float WORK, int LDWORK)
void	QUARK_CORE_sormqr (Quark quark, Quark_Task_Flags task_flags, int side, int trans, int m, int n, int k, int ib, int nb, float A, int lda, float T, int ldt, float *C, int ldc)
void	CORE_sormqr_quark (Quark *quark)

Detailed Description

PLASMA core_blas kernel PLASMA is a software package provided by Univ. of Tennessee, Univ. of California Berkeley and Univ. of Colorado Denver

Version:: 2.4.5

Author:: Hatem Ltaief; Mathieu Faverge; Jakub Kurzak

Date:: 2010-11-15 s Tue Nov 22 14:35:20 2011

Definition in file core_sormqr.c.

Function Documentation

int CORE_sormqr	(	int	side,
		int	trans,
		int	M,
		int	N,
		int	K,
		int	IB,
		float *	A,
		int	LDA,
		float *	T,
		int	LDT,
		float *	C,
		int	LDC,
		float *	WORK,
		int	LDWORK
	)

CORE_sormqr overwrites the general complex M-by-N tile C with

              SIDE = 'L'     SIDE = 'R'

TRANS = 'N': Q * C C * Q TRANS = 'C': Q**T * C C * Q**T

where Q is a complex unitary matrix defined as the product of k elementary reflectors

Q = H(1) H(2) . . . H(k)

as returned by CORE_sgeqrt. Q is of order M if SIDE = 'L' and of order N if SIDE = 'R'.

Parameters:

[in]	side	PlasmaLeft : apply Q or QT from the Left; PlasmaRight : apply Q or QT from the Right.
[in]	trans	PlasmaNoTrans : No transpose, apply Q; PlasmaTrans : Transpose, apply Q**T.
[in]	M	The number of rows of the tile C. M >= 0.
[in]	N	The number of columns of the tile C. N >= 0.
[in]	K	The number of elementary reflectors whose product defines the matrix Q. If SIDE = PlasmaLeft, M >= K >= 0; if SIDE = PlasmaRight, N >= K >= 0.
[in]	IB	The inner-blocking size. IB >= 0.
[in]	A	Dimension: (LDA,K) The i-th column must contain the vector which defines the elementary reflector H(i), for i = 1,2,...,k, as returned by CORE_sgeqrt in the first k columns of its array argument A.
[in]	LDA	The leading dimension of the array A. If SIDE = PlasmaLeft, LDA >= max(1,M); if SIDE = PlasmaRight, LDA >= max(1,N).
[out]	T	The IB-by-K triangular factor T of the block reflector. T is upper triangular by block (economic storage); The rest of the array is not referenced.
[in]	LDT	The leading dimension of the array T. LDT >= IB.
[in,out]	C	On entry, the M-by-N tile C. On exit, C is overwritten by QC or QTC or CQT or CQ.
[in]	LDC	The leading dimension of the array C. LDC >= max(1,M).
[in,out]	WORK	On exit, if INFO = 0, WORK(1) returns the optimal LDWORK.
[in]	LDWORK	The dimension of the array WORK. If SIDE = PlasmaLeft, LDWORK >= max(1,N); if SIDE = PlasmaRight, LDWORK >= max(1,M).

Returns:

Return values:

PLASMA_SUCCESS	successful exit
<0	if -i, the i-th argument had an illegal value

Definition at line 108 of file core_sormqr.c.

References coreblas_error, lapack_const, max, min, PLASMA_SUCCESS, PlasmaColumnwise, PlasmaForward, PlasmaLeft, PlasmaNoTrans, PlasmaRight, and PlasmaTrans.

{
    int i, kb;
    int i1, i3;
    int nq, nw;
    int ic = 0;
    int jc = 0;
    int ni = N;
    int mi = M;
    /* Check input arguments */
    if ((side != PlasmaLeft) && (side != PlasmaRight)) {
        coreblas_error(1, "Illegal value of side");
        return -1;
    }
    /*
     * NQ is the order of Q and NW is the minimum dimension of WORK
     */
    if (side == PlasmaLeft) {
        nq = M;
        nw = N;
    }
    else {
        nq = N;
        nw = M;
    }
    if ((trans != PlasmaNoTrans) && (trans != PlasmaTrans)) {
        coreblas_error(2, "Illegal value of trans");
        return -2;
    }
    if (M < 0) {
        coreblas_error(3, "Illegal value of M");
        return -3;
    }
    if (N < 0) {
        coreblas_error(4, "Illegal value of N");
        return -4;
    }
    if ((K < 0) || (K > nq)) {
        coreblas_error(5, "Illegal value of K");
        return -5;
    }
    if ((IB < 0) || ( (IB == 0) && ((M > 0) && (N > 0)) )) {
        coreblas_error(6, "Illegal value of IB");
        return -6;
    }
    if ((LDA < max(1,nq)) && (nq > 0)) {
        coreblas_error(8, "Illegal value of LDA");
        return -8;
    }
    if ((LDC < max(1,M)) && (M > 0)) {
        coreblas_error(12, "Illegal value of LDC");
        return -12;
    }
    if ((LDWORK < max(1,nw)) && (nw > 0)) {
        coreblas_error(14, "Illegal value of LDWORK");
        return -14;
    }
    /* Quick return */
    if ((M == 0) || (N == 0) || (K == 0))
        return PLASMA_SUCCESS;
    if (((side == PlasmaLeft) && (trans != PlasmaNoTrans))
        || ((side == PlasmaRight) && (trans == PlasmaNoTrans))) {
        i1 = 0;
        i3 = IB;
    }
    else {
        i1 = ( ( K-1 ) / IB )*IB;
        i3 = -IB;
    }
    for(i = i1; (i >- 1) && (i < K); i+=i3 ) {
        kb = min(IB, K-i);
        if (side == PlasmaLeft) {
            /*
             * H or H' is applied to C(i:m,1:n)
             */
            mi = M - i;
            ic = i;
        }
        else {
            /*
             * H or H' is applied to C(1:m,i:n)
             */
            ni = N - i;
            jc = i;
        }
        /*
         * Apply H or H'
         */
        LAPACKE_slarfb_work(LAPACK_COL_MAJOR,
            lapack_const(side),
            lapack_const(trans),
            lapack_const(PlasmaForward),
            lapack_const(PlasmaColumnwise),
            mi, ni, kb,
            &A[LDA*i+i], LDA,
            &T[LDT*i], LDT,
            &C[LDC*jc+ic], LDC,
            WORK, LDWORK);
    }
    return PLASMA_SUCCESS;
}

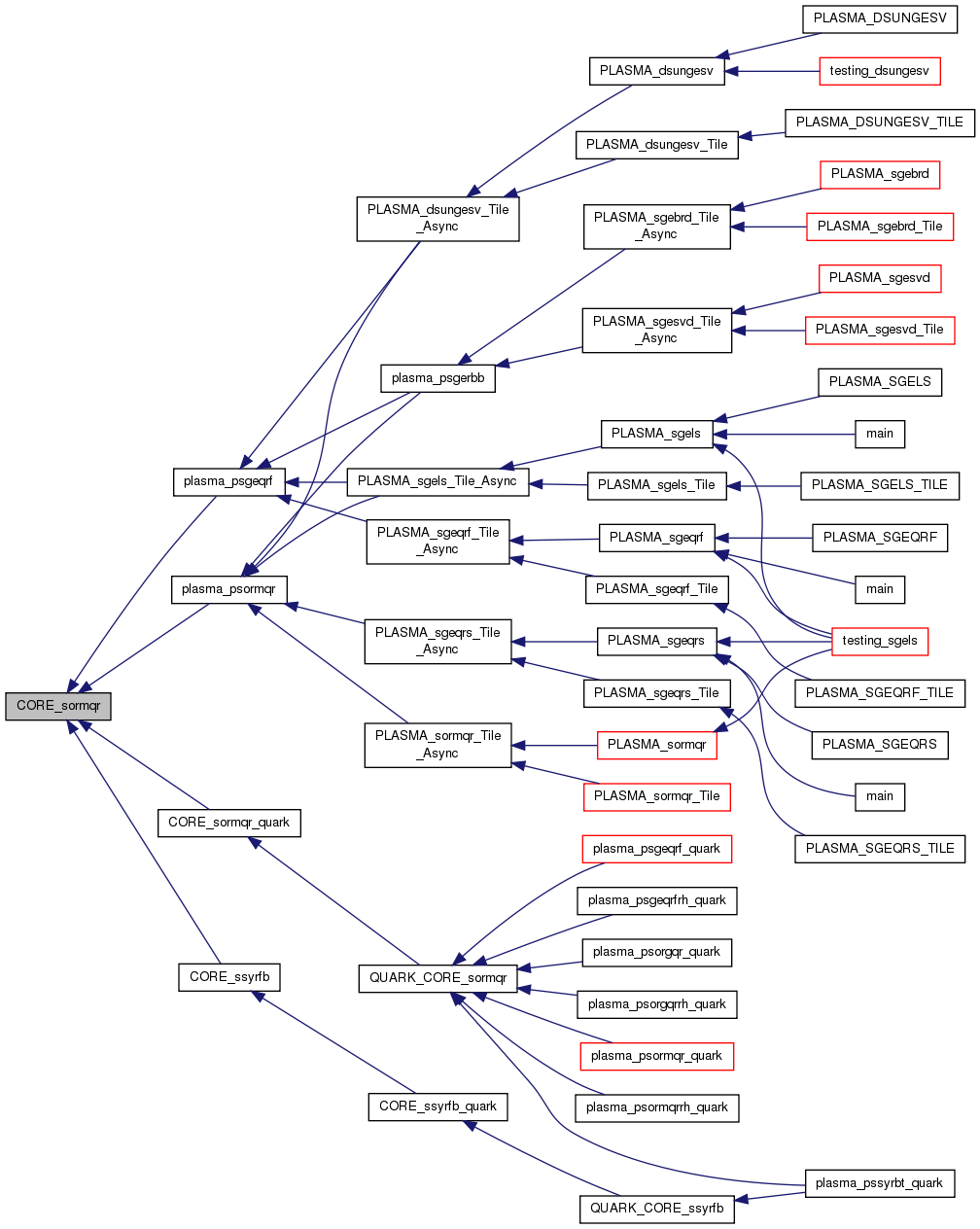

Here is the caller graph for this function:

void CORE_sormqr_quark ( Quark * quark )

Definition at line 257 of file core_sormqr.c.

References A, C, CORE_sormqr(), quark_unpack_args_14, side, T, and trans.

{
    int side;
    int trans;
    int m;
    int n;
    int k;
    int ib;
    float *A;
    int lda;
    float *T;
    int ldt;
    float *C;
    int ldc;
    float *WORK;
    int ldwork;
    quark_unpack_args_14(quark, side, trans, m, n, k, ib,
                         A, lda, T, ldt, C, ldc, WORK, ldwork);
    CORE_sormqr(side, trans, m, n, k, ib,
                A, lda, T, ldt, C, ldc, WORK, ldwork);
}

Here is the call graph for this function:

Here is the caller graph for this function:

void QUARK_CORE_sormqr	(	Quark *	quark,
		Quark_Task_Flags *	task_flags,
		int	side,
		int	trans,
		int	m,
		int	n,
		int	k,
		int	ib,
		int	nb,
		float *	A,
		int	lda,
		float *	T,
		int	ldt,
		float *	C,
		int	ldc
	)

Definition at line 224 of file core_sormqr.c.

References CORE_sormqr_quark(), DAG_CORE_UNMQR, INOUT, INPUT, QUARK_Insert_Task(), QUARK_REGION_L, SCRATCH, and VALUE.

{
    DAG_CORE_UNMQR;
    QUARK_Insert_Task(quark, CORE_sormqr_quark, task_flags,
        sizeof(PLASMA_enum),                &side,  VALUE,
        sizeof(PLASMA_enum),                &trans, VALUE,
        sizeof(int),                        &m,     VALUE,
        sizeof(int),                        &n,     VALUE,
        sizeof(int),                        &k,     VALUE,
        sizeof(int),                        &ib,    VALUE,
        sizeof(float)*nb*nb,   A,      INPUT | QUARK_REGION_L,
        sizeof(int),                        &lda,   VALUE,
        sizeof(float)*ib*nb,   T,      INPUT,
        sizeof(int),                        &ldt,   VALUE,
        sizeof(float)*nb*nb,   C,      INOUT,
        sizeof(int),                        &ldc,   VALUE,
        sizeof(float)*ib*nb,   NULL,   SCRATCH,
        sizeof(int),                        &nb,    VALUE,
        0);
}

Here is the call graph for this function:

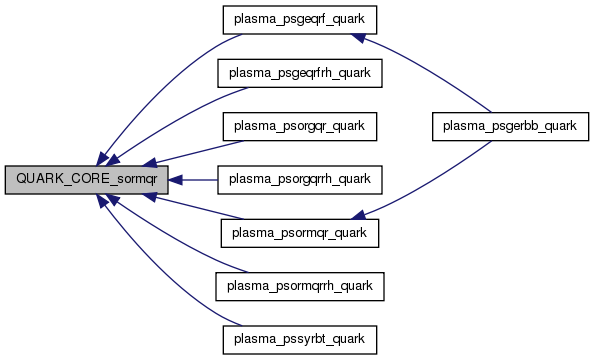

Here is the caller graph for this function:
