Functions

gs_agent_sensor.c File Reference

#include <sys/types.h>
#include <sys/socket.h>
#include <sys/time.h>
#include <sys/un.h>
#include <stdio.h>
#include <string.h>
#include <stdlib.h>
#include <errno.h>
#include <unistd.h>
#include "comm_encode.h"
#include "comm_basics.h"
#include "utility.h"
#include "mfork.h"
#include "icl_list.h"
#include "agent.h"
#include "gs_storage.h"

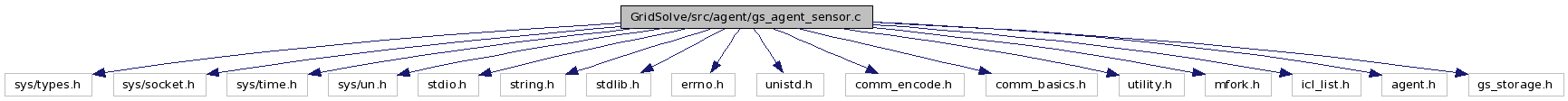

Include dependency graph for gs_agent_sensor.c:

Go to the source code of this file.

Functions

int gs_sensor_handle_serverlist (int)
static void gs_sensor_generic_signal_handler (int sig)
int gs_sensor_update_all (gs_agent_conn_t *clients, char *msg)
int gs_write_int_nl (int sock, int num)
int gs_write_nl (int sock, char *msg)
int gs_sensor_get_line (int myfd, char *s, int max)
void gs_sensor_send_list (int socket)
int gs_sensor_handle_connection (int sensorsock, int *fd)
int gs_sensor_handle_disconnect (int myfd, gs_agent_conn_t *connections)
int gs_sensor_handle_ping (int myfd)
int gs_sensor_process_agent_message (gs_agent_conn_t *connections, int myfd)
int gs_sensor_process_request (int myfd, gs_agent_conn_t *connections)
int gs_agent_sensor_process_messages (int agentsock, int sensorsock)
void gs_agent_sensor_run (void **args)
void gs_agent_sensor_pre (void **args)
void gs_agent_sensor_post (void **args)
void gs_agent_sensor_exit (void **args)

Function Documentation

void gs_agent_sensor_exit ( void **  args  )

Function to be called by mfork upon terminating.

Parameters:
args -- mfork args array. args[0] contains a pipe fd where the parent waits for the sensor to notify it that it's ready to accept a connection.

Definition at line 744 of file gs_agent_sensor.c.

{
  unlink(GRIDSOLVE_SENSOR_USOCK);
}

Here is the call graph for this function:

Here is the caller graph for this function:

void gs_agent_sensor_post ( void **  args  )

Function to be called by mfork after the fork.

Parameters:
args -- mfork args array. args[0] contains a pipe fd where the parent waits for the sensor to notify it that it's ready to accept a connection.

Definition at line 712 of file gs_agent_sensor.c.

{
  int *pfds, i;
  char junk;

  if(!args || !args[0]) {
    ERRPRINTF("error waiting for sensor: NULL args.\n");
    return;
  }

  pfds = (int *)args[0];

  close(pfds[1]);

  if((i = read(pfds[0], &junk, 1)) < 0) {
    ERRPRINTF("Error waiting for sensor to start.\n");
    return;
  }
  DBGPRINTF("read returned %d.\n", i);

  close(pfds[0]);
}

Here is the caller graph for this function:

void gs_agent_sensor_pre ( void **  args  )

Function to be called by mfork before the fork.

Parameters:
args -- mfork args array. args[0] is allocated 2 bytes to store a pipe fd where the parent waits for the sensor to notify it that it's ready to accept a connection. args[1] points to the agent structure.

Definition at line 681 of file gs_agent_sensor.c.

{
  int *pfds;

  if(!args)
    return;

  pfds = (int *)malloc(2 * sizeof(int));

  if(!pfds) {
    ERRPRINTF("out of memory.\n");
    return;
  }

  if(pipe(pfds) < 0) {
    ERRPRINTF("Cannot create pipe.\n");
    return;
  }

  args[0] = pfds;
}

Here is the caller graph for this function:

int gs_agent_sensor_process_messages ( int  agentsock,
int  sensorsock
)

Loops forever (or until some catastrophic failure occurs) processing messages from the agent and monitor clients.

Parameters:
agentsock -- socket connected to the agent
sensorsock -- socket listening on sensor port
Returns:
0 on success, -1 on failure.

Definition at line 457 of file gs_agent_sensor.c.

{
  int maxfd, nready, myfd;
  fd_set allset, rset;
  struct timeval tv;
  gs_agent_conn_t conns;

  gs_agent_init_conns(&conns);

  /*
   * Listen for connections and service requests
   */
  DBGPRINTF("AGENT SENSOR RUNNING. PID: %d\n", (int)getpid());
  while(1) {
    gs_agent_setup_fd_sets(&conns, sensorsock, agentsock, &allset, &maxfd);
    rset = allset;
    tv.tv_sec = 1;
    tv.tv_usec = 0;
    myfd = -1;

    nready = select(maxfd + 1, &rset, NULL, NULL, &tv);

    if((nready < 0) && (errno == EINTR))
      continue;

    if(nready < 0) {
      ERRPRINTF("select failed.. aborting.\n");
      break;
    }

    if(nready == 0) {
      if(!mfork_check_parent()) {
        ERRPRINTF("Parent died, so I am exiting\n");
        break;
      }
      continue;
    }
    DBGPRINTF("FDs ready: %d.\n", nready);

    /*
    ** Handle new connection.
    **/
    if(FD_ISSET(sensorsock, &rset)) {
      if(gs_sensor_handle_connection(sensorsock, &myfd) < 0) {
        ERRPRINTF("Error handling connection on sensor socket.\n");
        continue;
      }

      if(gs_agent_add_conn(&conns, myfd) < 0) {
        ERRPRINTF("Could not add connection for fd %d.\n", myfd);
        close(myfd);
        continue;
      }

      DBGPRINTF("Accepted Connection on fd %d.\n", myfd);
      continue;
    }
    else if(FD_ISSET(agentsock, &rset)) {
      gs_sensor_process_agent_message(&conns, agentsock);
      continue;
    }
    else {
      int i;
      myfd = -1;

      /*
       * Find the FD that's ready
       */
      for(i=0;i<=conns.maxfd;i++) {
        if(conns.fd[i]) {
          if(FD_ISSET(i, &rset)) {
            myfd = i;
            DBGPRINTF("FD %d is ready to be read.\n", myfd);
            break;
          }
        }
      }
    }

    /*
     * Just in case we had an accept error above.
     */
    if(myfd < 0) {
      DBGPRINTF("Accept failed or couldn't find fd: %d.\n", myfd);
      continue;
    }

    DBGPRINTF("MyFD = %d.\n", myfd);

    if(gs_sensor_process_request(myfd, &conns) < 0) {
      gs_agent_del_conn(&conns, myfd);
      close(myfd);
    }
  }

  return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

void gs_agent_sensor_run ( void **  args  )

This is the entry point for the sensor server, intended to be started using mfork().

Parameters:
args -- mfork args array. args[0] contains a pipe fd where the parent waits for the sensor to notify it that it's ready to accept a connection. args[1] contains a pointer to the agent struct.

Definition at line 566 of file gs_agent_sensor.c.

{
  int *notification_pipe, dump, len, sensorsock, agentsock, tmpsock;
  struct sockaddr_un mysaddr;
  struct sockaddr_in sclient;
  char junk = 'x';
  in_port_t port;

  if(!args || !args[0] || !args[1]) {
    ERRPRINTF("NULL args.. aborting.\n");
    _exit(-1);
  }

  DBGPRINTF("In sensor.\n");
  notification_pipe = (int *)args[0];

  /* handle all signals except SIGINT.  if the agent is running in
   * console mode, we only want the parent to get SIGINT, so that all
   * the children will realize the parent is dead via mfork_check_parent()
   * and cleanly terminate.  having all processes catch SIGINT causes
   * mfork to try to restart them, depending on whether they catch it
   * before or after the parent.
   */
  gs_setup_signal_handlers(gs_sensor_generic_signal_handler);
  signal (SIGINT, SIG_IGN);

  /*
   * Setup Client Socket
   */
  port = getenv_int("GRIDSOLVE_SENSOR_PORT", GRIDSOLVE_SENSOR_PORT_DEFAULT);

  sensorsock = gs_establish_socket(&port, 0);
  if(sensorsock < 0) {
    ERRPRINTF("Could not open sensor socket.\n");
    _exit(-1);
  }
  gs_listen_on_socket(sensorsock);
  DBGPRINTF("Sensor Listening Socket Created on %d.\n", port);

  /*
   * Connect to DB manager.
   */
  if(gs_storage_init(args[1]) < 0) {
    ERRPRINTF("Sensor could not connect to DB.\n");
    _exit(-1);
  }
  DBGPRINTF("Sensor Connected to DB Manager.\n");

  /*
   * setup Unix Domain Socket
   */
  tmpsock = socket(PF_UNIX, SOCK_STREAM, 0);
  if(tmpsock < 0) {
    ERRPRINTF("Could not create agent<->sensor socket.\n");
    perror("socket");
    _exit(-1);
  }

  memset(&mysaddr, 0x0, sizeof(struct sockaddr_un));
  mysaddr.sun_family = PF_UNIX;
  strcpy(mysaddr.sun_path, GRIDSOLVE_SENSOR_USOCK);
  unlink(mysaddr.sun_path);

  if(bind(tmpsock, (struct sockaddr *) &mysaddr,
          sizeof(struct sockaddr_un)) < 0 ) {
    ERRPRINTF("Could not bind sensor UDS.\n");
    perror("bind");
    _exit(-1);
  }

  if(listen(tmpsock, GRIDSOLVE_AGENT_MAX_CONNECTIONS) < 0) {
    ERRPRINTF("Could not listen on sensor UDS.\n");
    perror("listen");
    _exit(-1);
  }

  /* don't check for errors on the write() here because in the
   * event that this is restarted by mfork, the other end of
   * this pipe will be closed already.
   */
  DBGPRINTF("Writing 1.\n");
  dump = write(notification_pipe[1], &junk, 1);
  DBGPRINTF("Write returned %d.\n", dump);
  close(notification_pipe[1]);
  close(notification_pipe[0]);

  /* wait for agent to connect. */
  len = sizeof(struct sockaddr_in);
  agentsock = accept(tmpsock, (struct sockaddr *) &sclient,
      (socklen_t *)&len);
  if(agentsock < 0) {
    ERRPRINTF("Could not accept connection from agent to sensor.\n");
    perror("accept");
    _exit(-1);
  }
  DBGPRINTF("Agent<->Sensor Socket Created.\n");
  close(tmpsock);

  gs_agent_sensor_process_messages(agentsock, sensorsock);

  close(agentsock);
  close(sensorsock);
  unlink(GRIDSOLVE_SENSOR_USOCK);
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void gs_sensor_generic_signal_handler ( int  sig  )  [static]

Signal handler for various signals. Exit with normal status.

Parameters:
sig -- the signal that was caught

Definition at line 30 of file gs_agent_sensor.c.

{
  /* pass along SIGHUP to parent */
  if(sig == SIGHUP) {
    kill(getppid(), SIGHUP);
    return;
  }

  ERRPRINTF("Sensor terminating on signal %d.\n", sig);
  unlink(GRIDSOLVE_SENSOR_USOCK);
  _exit(0);
}

Here is the call graph for this function:

Here is the caller graph for this function:

int gs_sensor_get_line ( int  myfd,
char *  s,
int  max
)

Reads up to max-1 characters from the specified socket, stores into the buffer and null terminates it.

Parameters:
myfd -- socket on which to read
s -- the buffer in which to store the string. should have at least max bytes allocated.
max -- size of the buffer
Returns:
0 on success, -1 on error.

Definition at line 125 of file gs_agent_sensor.c.

{
  int len;

  if(!s) {
    ERRPRINTF("Invalid args: null buffer\n");
    return -1;
  }

  len = proxy_read_timeout(myfd, s, max-1, PROXY_TIMEOUT_DEFAULT);

  if(len <= 0)
    return -1;
  else if (len <= max)
    s[len] = '\0';

  return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

int gs_sensor_handle_connection ( int  sensorsock,
int *  fd
)

Handles acceptance of a new monitor connection on the sensor socket.

Parameters:
sensorsock -- the listening socket
fd -- upon return, contains the accepted socket descriptor
Returns:
0 on success, -1 on failure.

Definition at line 204 of file gs_agent_sensor.c.

{
  struct sockaddr_in sclient;
  int myfd, len;
  char *tok;
  char s[GS_SENSOR_MAX_LINE];

  if(!fd) {
    ERRPRINTF("Invalid arg: null fd\n");
    return -1;
  }

  DBGPRINTF("Received new connection from Agent.\n");
  len = sizeof(struct sockaddr_in);
  myfd = accept(sensorsock, (struct sockaddr *) &sclient,
     (socklen_t *)&len);
  if(myfd < 0) {
    if(errno == EINTR) {
      return -1;
    }
    else {
      perror("accept");
      return -1;
    }
  }

  /* send sensor version */
  gs_write_nl(myfd, "1.3");

  /*
  ** Handle message.
  */
  if(gs_sensor_get_line(myfd, s, GS_SENSOR_MAX_LINE) < 0) {
    close(myfd);
    return -1;
  }

  DBGPRINTF("READ: %s\n", s);
  tok = strtok(s, " \n\r");

  if(!tok) {
    DBGPRINTF("Badly formed request.\n");
    close(myfd);
    return -1;
  }

  if(!strcmp(tok, "NS_SERVERLIST"))
    gs_sensor_handle_serverlist(myfd);
  else {
    DBGPRINTF("Unknown request.\n");
    close(myfd);
    return -1;
  }

  *fd = myfd;
  return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

int gs_sensor_handle_disconnect ( int  myfd,
gs_agent_conn_t *  connections
)

Handles a DISCONNECT message from a client.

Parameters:
myfd -- descriptor connected to the client
connections -- list of all open connections
Returns:
0 on success, -1 on failure.

Definition at line 272 of file gs_agent_sensor.c.

{
  char s[GS_SENSOR_MAX_LINE];

  if(!connections) {
    ERRPRINTF("Invalid arg: null connections ptr\n");
    return -1;
  }

  DBGPRINTF("DISCONNECT\n");
  gs_write_nl(myfd, "DISCONNECTING");

  if(gs_sensor_get_line(myfd, s, GS_SENSOR_MAX_LINE) < 0) {
    close(myfd);
    return -1;
  }

  /* remove connection */
  gs_agent_del_conn(connections, myfd);
  close(myfd);

  DBGPRINTF("Sensor removed client %d.\n", myfd);

  return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

int gs_sensor_handle_ping ( int  myfd  )

Handles a PING message from a client. sends back a "PONG" response.

Parameters:
myfd -- descriptor connected to the client
Returns:
0 on success, -1 on failure.

Definition at line 349 of file gs_agent_sensor.c.

{
  DBGPRINTF("PING\n");

  return gs_write_nl(myfd, "PONG") < 0 ? -1 : 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

int gs_sensor_handle_serverlist ( int  myfd  )

Handles a SERVERLIST message from a client. sends list of all GridSolve servers.

Parameters:
myfd -- descriptor connected to the client
Returns:
0 on success, -1 on failure.

Definition at line 308 of file gs_agent_sensor.c.

{
  char s[GS_SENSOR_MAX_LINE];

  DBGPRINTF("NS_SERVERLIST\n");

  /* send md5 hash */
  gs_write_nl(myfd, "00000000000000000000000000000000");

  /* get response (ignored) */
  if(gs_sensor_get_line(myfd, s, GS_SENSOR_MAX_LINE) < 0) {
    close(myfd);
    return -1;
  }

  gs_write_nl(myfd, "ACCEPT");
  gs_write_int_nl(myfd, myfd);

  /* send sensor version */
  gs_write_nl(myfd, "-2");
  gs_write_nl(myfd, "1.3");
  gs_write_nl(myfd, "3.0");

  /* send server list */
  gs_sensor_send_list(myfd);

  DBGPRINTF("BACK FROM gs_sensor_send_list.\n");

  return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

int gs_sensor_process_agent_message ( gs_agent_conn_t *  connections,
int  myfd
)

Gets a message sent by the agent and forwards it to all the monitor clients currently connected.

Parameters:
connections -- list of all open connections
myfd -- descriptor connected to the agent
Returns:
0 on success, -1 on failure.

Definition at line 367 of file gs_agent_sensor.c.

{
  char s[GS_SENSOR_MAX_LINE];

  if(!connections) {
    ERRPRINTF("Invalid arg: null connections ptr\n");
    return -1;
  }

  DBGPRINTF("Processing request on fd %d\n", myfd);

  /*
   * Handle message.
   */
  if(gs_sensor_get_line(myfd, s, GS_SENSOR_MAX_LINE) < 0) {
    close(myfd);
    return -1;
  }

  DBGPRINTF("READ: %s\n", s);

  return gs_sensor_update_all(connections, s);
}

Here is the call graph for this function:

Here is the caller graph for this function:

int gs_sensor_process_request ( int  myfd,
gs_agent_conn_t *  connections
)

Handles a request made by a monitor client (server list, disconnect, etc).

Parameters:
myfd -- descriptor connected to the client
connections -- list of all open connections
Returns:
0 on success, -1 on failure.

Definition at line 402 of file gs_agent_sensor.c.

{
  /* to keep purify quiet... ugh. */
  char tmp_svlist[] = {"NS_SERVERSIST"}, tmp_ping[] = {"PING"},
     tmp_dis[] = {"DISCONNECT"}, tmp_0900[] = {"0900"};
  char s[GS_SENSOR_MAX_LINE], *tok;

  if(!connections) {
    ERRPRINTF("Invalid arg: null connections ptr\n");
    return -1;
  }

  DBGPRINTF("Processing request on fd %d\n", myfd);

  /*
   * Handle message.
   */
  if(gs_sensor_get_line(myfd, s, GS_SENSOR_MAX_LINE) < 0) {
    close(myfd);
    return -1;
  }

  DBGPRINTF("READ: %s\n", s);

  tok = strtok(s, " \n\r");
  if(!tok)
    return -1;

  DBGPRINTF("request tok = '%s'\n", tok);

  if(!strcmp(tok, tmp_svlist))
    return gs_sensor_handle_serverlist(myfd);
  else if(!strcmp(tok, tmp_ping))
    return gs_sensor_handle_ping(myfd);
  else if(!strcmp(tok, tmp_dis))
    return gs_sensor_handle_disconnect(myfd, connections);
  else if(!strcmp(tok, tmp_0900))
    return 0;
  else
    ERRPRINTF("Unknown message type, tok = %s\n", tok);

  return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

void gs_sensor_send_list ( int  socket  )

Sends server list over the socket.

Parameters:
socket -- the socket on which to send the list

Definition at line 151 of file gs_agent_sensor.c.

{
  int cnt, i;
  gs_server_t **servers;
  char temp_cid[CID_LEN * 2 + 1];

  if(gs_get_all_servers(NULL, &servers, &cnt) < 0)
  {
    ERRPRINTF("Sensor can't get server list.\n");

    /*
    ** send empty list to client
    */
    cnt = -1;
  }

  DBGPRINTF("CNT: %d. SOCKET: %d\n", cnt, socket);

  /*
  ** send server list to client
  */
  i = gs_write_int_nl(socket, cnt);
  for(i = 0; i < cnt; i++)
  {
    struct in_addr tmpaddr;

    gs_write_nl(socket, servers[i]->hostname);
    proxy_cid_to_str(temp_cid, servers[i]->componentid);
    gs_write_nl(socket, temp_cid);
    tmpaddr.s_addr = servers[i]->ipaddress;
    gs_write_nl(socket, inet_ntoa(tmpaddr));
    gs_write_int_nl(socket, servers[i]->port);
    gs_write_int_nl(socket, servers[i]->workload);
    gs_write_nl(socket, "standard");
    gs_write_nl(socket, "0");
    gs_write_nl(socket, "0");
  }

  for(i = 0; i < cnt; i++)
    gs_server_free(servers[i]);
  FREE(servers);
}

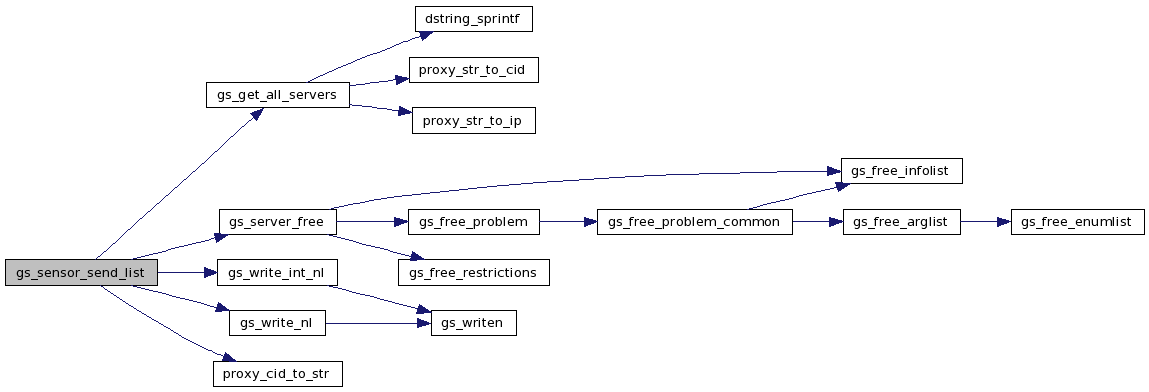

Here is the call graph for this function:

Here is the caller graph for this function:

int gs_sensor_update_all ( gs_agent_conn_t *  clients,
char *  msg
)

Sends the specified string to all listening clients.

Parameters:
clients -- list of connected clients
msg -- string to send to the clients
Returns:
0 on success, -1 on failure.

Definition at line 53 of file gs_agent_sensor.c.

{
  int i;

  if(!clients || !msg) {
    ERRPRINTF("Invalid args\n");
    return -1;
  }

  for(i=0;i<=clients->maxfd;i++)
    if(clients->fd[i])
      gs_writen(i, msg, strlen(msg));

  return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

int gs_write_int_nl ( int  sock,
int  num
)

Write an integer (represented as a string followed by newline) on the specified socket.

Parameters:
sock -- socket on which to write the message
num -- the integer to be sent
Returns:
0 on success, -1 on error.

Definition at line 80 of file gs_agent_sensor.c.

{
  char s[256];
  sprintf(s, "%d\n", num);
  return gs_writen(sock, s, strlen(s)) < 0 ? -1 : 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

int gs_write_nl ( int  sock,
char *  msg
)

Appends a newline to the specified string and writes it on the socket.

Parameters:
sock -- socket on which to write the message
msg -- the string to be sent
Returns:
0 on success, -1 on error.

Definition at line 98 of file gs_agent_sensor.c.

{
  if(!msg) {
    ERRPRINTF("Invalid arg: null msg\n");
    return -1;
  }

  if(gs_writen(sock, msg, strlen(msg)) < 0 ||
     gs_writen(sock, "\n", 1) < 0)
    return -1;

  return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Generated on Mon May 10 2010 11:10:11 for GridSolve by  doxygen 1.6.3-20100507
