#include <windows.h>

Include dependency graph for quarkwinthread.h:

This graph shows which files directly or indirectly include this file:

Data Types
struct	pthread_s
struct	pthread_cond_s

Macros
#define	PTHREAD_MUTEX_INITIALIZER ((pthread_mutex_t) -1)
#define	PTHREAD_SCOPE_SYSTEM 1
#define	QUARK_DLLPORT
#define	QUARK_CDECL __cdecl

Typedefs
typedef struct pthread_s	pthread_t
typedef HANDLE	pthread_mutex_t
typedef int	pthread_mutexattr_t
typedef int	pthread_attr_t
typedef int	pthread_condattr_t
typedef struct pthread_cond_s	pthread_cond_t

Functions/Subroutines
QUARK_DLLPORT pthread_t QUARK_CDECL	pthread_self (void)
QUARK_DLLPORT int QUARK_CDECL	pthread_mutex_init (pthread_mutex_t mutex, const pthread_mutexattr_t attr)
QUARK_DLLPORT int QUARK_CDECL	pthread_mutex_destroy (pthread_mutex_t *mutex)
QUARK_DLLPORT int QUARK_CDECL	pthread_mutex_lock (pthread_mutex_t *mutex)
QUARK_DLLPORT int QUARK_CDECL	pthread_mutex_trylock (pthread_mutex_t *mutex)
QUARK_DLLPORT int QUARK_CDECL	pthread_mutex_unlock (pthread_mutex_t *mutex)
QUARK_DLLPORT int QUARK_CDECL	pthread_attr_init (pthread_attr_t *attr)
QUARK_DLLPORT int QUARK_CDECL	pthread_attr_destroy (pthread_attr_t *attr)
QUARK_DLLPORT int QUARK_CDECL	pthread_attr_setscope (pthread_attr_t *attr, int scope)
QUARK_DLLPORT int QUARK_CDECL	pthread_create (pthread_t tid, const pthread_attr_t attr, void (start)(void ), void arg)
QUARK_DLLPORT int QUARK_CDECL	pthread_cond_init (pthread_cond_t cond, const pthread_condattr_t attr)
QUARK_DLLPORT int QUARK_CDECL	pthread_cond_destroy (pthread_cond_t *cond)
QUARK_DLLPORT int QUARK_CDECL	pthread_cond_wait (pthread_cond_t cond, pthread_mutex_t mutex)
QUARK_DLLPORT int QUARK_CDECL	pthread_cond_broadcast (pthread_cond_t *cond)
QUARK_DLLPORT int QUARK_CDECL	pthread_join (pthread_t thread, void **value_ptr)
QUARK_DLLPORT int QUARK_CDECL	pthread_equal (pthread_t thread1, pthread_t thread2)
QUARK_DLLPORT int QUARK_CDECL	pthread_setconcurrency (int)
QUARK_DLLPORT unsigned int QUARK_CDECL	pthread_self_id (void)

Detailed Description

This file handles the mapping from pthreads calls to windows threads QUARK is a software package provided by Univ. of Tennessee, Univ. of California Berkeley and Univ. of Colorado Denver

Version:: 2.4.5

Author:: Piotr Luszczek

Date:: 2010-11-15

Note : this file is a copy of a PLASMA file for use of QUARK in a standalone library updated by Asim YarKhan

Definition in file quarkwinthread.h.

Macro Definition Documentation

#define PTHREAD_MUTEX_INITIALIZER ((pthread_mutex_t) -1)

Definition at line 47 of file quarkwinthread.h.

#define PTHREAD_SCOPE_SYSTEM 1

Definition at line 49 of file quarkwinthread.h.

#define QUARK_CDECL __cdecl

Definition at line 52 of file quarkwinthread.h.

#define QUARK_DLLPORT

Definition at line 51 of file quarkwinthread.h.

Typedef Documentation

typedef int pthread_attr_t

Definition at line 35 of file quarkwinthread.h.

typedef struct pthread_cond_s pthread_cond_t

typedef int pthread_condattr_t

Definition at line 36 of file quarkwinthread.h.

typedef HANDLE pthread_mutex_t

Definition at line 33 of file quarkwinthread.h.

typedef int pthread_mutexattr_t

Definition at line 34 of file quarkwinthread.h.

typedef struct pthread_s pthread_t

Function/Subroutine Documentation

QUARK_DLLPORT int QUARK_CDECL pthread_attr_destroy ( pthread_attr_t * attr )

Definition at line 127 of file quarkwinthread.c.

Here is the caller graph for this function:

QUARK_DLLPORT int QUARK_CDECL pthread_attr_init ( pthread_attr_t * attr )

Definition at line 122 of file quarkwinthread.c.

Here is the caller graph for this function:

QUARK_DLLPORT int QUARK_CDECL pthread_attr_setscope	(	pthread_attr_t *	attr,
		int	scope
	)

Definition at line 132 of file quarkwinthread.c.

References PTHREAD_SCOPE_SYSTEM.

                                                                                     {
  if (*attr != 1)
    return -1;
  if (scope != PTHREAD_SCOPE_SYSTEM)
    return -1;
  return 0;
}

Here is the caller graph for this function:

QUARK_DLLPORT int QUARK_CDECL pthread_cond_broadcast ( pthread_cond_t * cond )

Definition at line 239 of file quarkwinthread.c.

References pthread_cond_s::cs, pthread_cond_s::hEvt, pthread_cond_s::hSem, and pthread_cond_s::waitCount.

                                                                           {
  int more_waiters = 0;
  /* This is needed to ensure exclusive access to "waitCount" */
  EnterCriticalSection (&cond->cs);
  if (cond->waitCount > 0) {
    /* always are broadcasting - no need for pthread_cond_singal() case */
    more_waiters = 1;
  }
  if (more_waiters) {
    /* this will wake up all the waiters atomically at once. */
    ReleaseSemaphore(cond->hSem, cond->waitCount, 0);
    LeaveCriticalSection(&cond->cs);
    /* Wait for all the awakened threads to acquire the counting semaphore. */
    WaitForSingleObject(cond->hEvt, INFINITE);
  } else
    LeaveCriticalSection(&cond->cs);
  return 0;
}

QUARK_DLLPORT int QUARK_CDECL pthread_cond_destroy ( pthread_cond_t * cond )

Definition at line 197 of file quarkwinthread.c.

References pthread_cond_s::cs, pthread_cond_s::hEvt, and pthread_cond_s::hSem.

                                                                         {
  DeleteCriticalSection( &cond->cs );
  CloseHandle( cond->hSem );
  CloseHandle( cond->hEvt );
  return 0;
}

QUARK_DLLPORT int QUARK_CDECL pthread_cond_init	(	pthread_cond_t *	cond,
		const pthread_condattr_t *	attr
	)

Definition at line 183 of file quarkwinthread.c.

References pthread_cond_s::cs, FALSE, pthread_cond_s::hEvt, pthread_cond_s::hSem, and pthread_cond_s::waitCount.

                                                                                                      {
  InitializeCriticalSection( &cond->cs );
  cond->hSem = CreateSemaphore( NULL, /* no security attributes */
    0, /* initial count */
    LONG_MAX, /* maximum count*/
    NULL ); /* unnamed semaphore */
  cond->hEvt = CreateEvent( NULL, /* no security attributes */
    FALSE, /* reset to not-singaled automatically */
    FALSE, /* set initial status to not-signaled */
    NULL ); /* unnamed event */
  cond->waitCount = 0;
  return 0;
}

Here is the caller graph for this function:

QUARK_DLLPORT int QUARK_CDECL pthread_cond_wait	(	pthread_cond_t *	cond,
		pthread_mutex_t *	mutex
	)

Definition at line 204 of file quarkwinthread.c.

References pthread_cond_s::cs, FALSE, pthread_cond_s::hEvt, pthread_cond_s::hSem, PTHREAD_MUTEX_INITIALIZER, and pthread_cond_s::waitCount.

                                                                                              {
  int last;
  if ( *mutex == PTHREAD_MUTEX_INITIALIZER ) pthread_mutex_check_for_static_initialization( mutex );
  /* Avoid race condition on waiting thread counter. */
  EnterCriticalSection(&cond->cs);
  cond->waitCount++;
  LeaveCriticalSection(&cond->cs);
  /* Releases _atomically_ the mutex and wait on the semaphore until
     pthread_cond_signal() or pthread_cond_broadcast() are called (by another thread). */
  SignalObjectAndWait(*mutex, cond->hSem, INFINITE, FALSE);
  /* Avoid race condition on waiting thread counter. */
  EnterCriticalSection(&cond->cs);
  cond->waitCount--; /* this thread doesn't wait any more */
  /* if this is the last thread to have waited */
  last = cond->waitCount == 0;
  LeaveCriticalSection(&cond->cs);
  /* If this thread is the last waiter thread during this particular broadcast
     then let all the other threads proceed. */
  if (last)
    /* This call ensures that two things happen atomically: signaling the hEvt event and
       waiting until "mutex" can be acquired. */
    SignalObjectAndWait(cond->hEvt, *mutex, INFINITE, FALSE);
  else
    WaitForSingleObject(*mutex, INFINITE); /* Upon return, this thread has to own "mutex". */
  return 0;
}

QUARK_DLLPORT int QUARK_CDECL pthread_create	(	pthread_t *	tid,
		const pthread_attr_t *	attr,
		void ()(void *)	start,
		void *	arg
	)

Definition at line 152 of file quarkwinthread.c.

References pthread_s::hThread, QUARK_realThStart, QUARK_winThStart(), and pthread_s::uThId.

                                                                                                                                {
  /* this assumes that the threads call the same function, always; it also assumes there
     is no race condition while assigning a pointer and using it from within threads
     (this assumption is fulfilled by creating the new thread in suspended state) */
  QUARK_realThStart = start;
  thread->hThread = (HANDLE)_beginthreadex(
    NULL, /* default security */
    0, /* stack size: use the size of calling thread */
    QUARK_winThStart,
    arg,
    CREATE_SUSPENDED,
    /*0,*/   /* the thread will run immedietally (rather than get suspended) */
    &thread->uThId );
  /* We need to make sure that _beginthreadex() returns to the parent thread first
     so we can safely fill up the members of the pthread_t structure without possible
     race conditions. If the new thread is created in supsended state we eliminate
     the race condition but now we have to resume the new thread. */
  ResumeThread( thread->hThread );
  return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

QUARK_DLLPORT int QUARK_CDECL pthread_equal	(	pthread_t	thread1,
		pthread_t	thread2
	)

Definition at line 42 of file quarkwinthread.c.

References pthread_s::uThId.

                                                                                  {
  if (thread1.uThId == thread2.uThId) // && thread1.hThread == thread2.hThread)
    return 1;
  return 0;
}

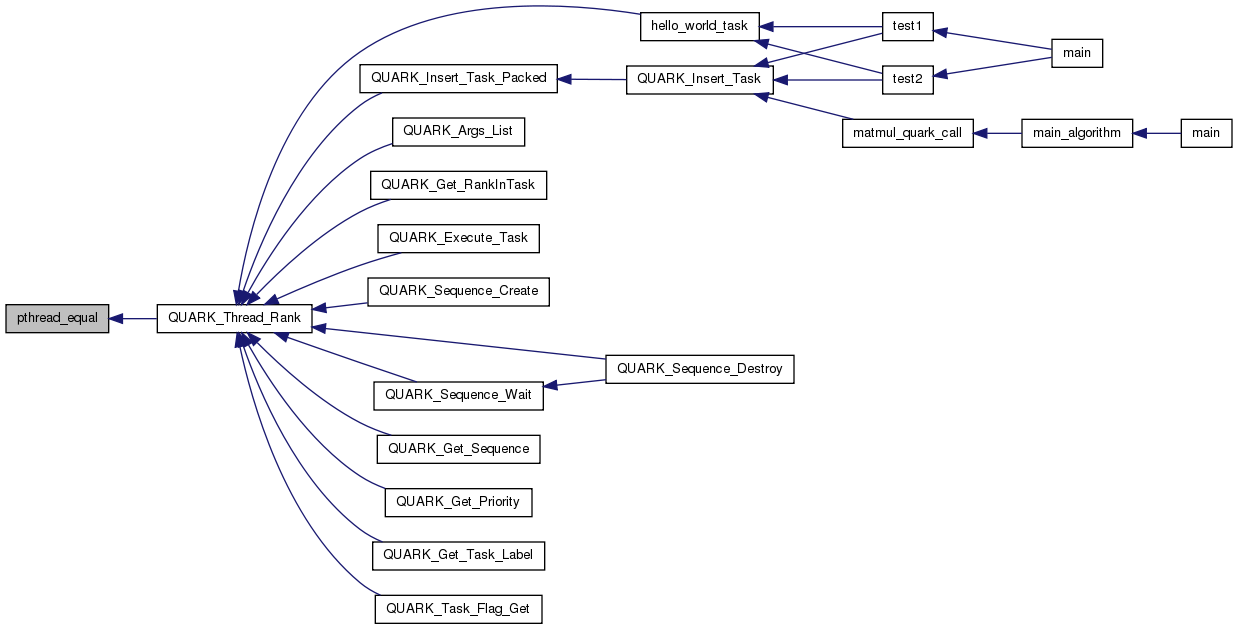

Here is the caller graph for this function:

QUARK_DLLPORT int QUARK_CDECL pthread_join	(	pthread_t	thread,
		void **	value_ptr
	)

Definition at line 177 of file quarkwinthread.c.

References pthread_s::hThread.

                                                                               {
  WaitForSingleObject( thread.hThread, INFINITE );
  CloseHandle( thread.hThread );
  return 0;
}

Here is the caller graph for this function:

QUARK_DLLPORT int QUARK_CDECL pthread_mutex_destroy ( pthread_mutex_t * mutex )

Definition at line 117 of file quarkwinthread.c.

                                                                            {
  CloseHandle( *mutex );
  return 0;
}

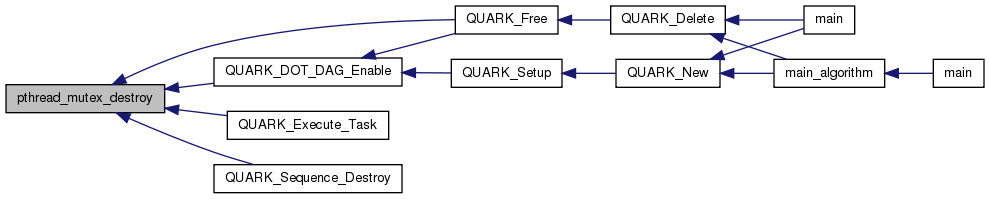

Here is the caller graph for this function:

QUARK_DLLPORT int QUARK_CDECL pthread_mutex_init	(	pthread_mutex_t *	mutex,
		const pthread_mutexattr_t *	attr
	)

no security atributes

not owned (initialy) by the creating thread

no name provided: cannot be shared between processes

Definition at line 48 of file quarkwinthread.c.

References FALSE.

                                                                                                           {
  *mutex =
  CreateMutex( NULL,
               FALSE,
               NULL
  );
  return 0;
}

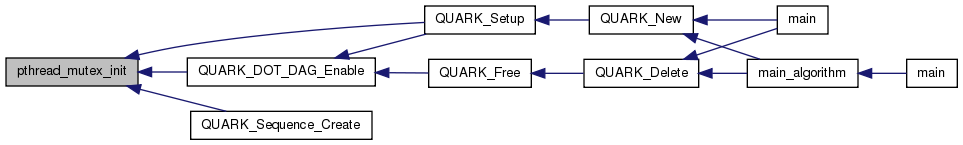

Here is the caller graph for this function:

QUARK_DLLPORT int QUARK_CDECL pthread_mutex_lock ( pthread_mutex_t * mutex )

the wait was succesful

the wait failed

thread killed during the wait

impossible because of INFINITE

Definition at line 72 of file quarkwinthread.c.

References PTHREAD_MUTEX_INITIALIZER.

                                                                         {
  DWORD rv;
  if ( *mutex == PTHREAD_MUTEX_INITIALIZER ) pthread_mutex_check_for_static_initialization( mutex );
  rv = WaitForSingleObject( *mutex, INFINITE );
  switch (rv) {
    case WAIT_OBJECT_0:
      return 0;
    case WAIT_FAILED:
      return -1;
    case WAIT_ABANDONED:
      return -1;
    case WAIT_TIMEOUT:
      return -1;
    default:
      return -1;
  }
}

Here is the caller graph for this function:

QUARK_DLLPORT int QUARK_CDECL pthread_mutex_trylock ( pthread_mutex_t * mutex )

the wait was succesful

the wait failed

thread killed during the wait

impossible because of INFINITE

Definition at line 91 of file quarkwinthread.c.

References PTHREAD_MUTEX_INITIALIZER.

                                                                            {
  DWORD rv;
  if ( *mutex == PTHREAD_MUTEX_INITIALIZER ) pthread_mutex_check_for_static_initialization( mutex );
  rv = WaitForSingleObject( *mutex, 0 );
  switch (rv) {
    case WAIT_OBJECT_0:
      return 0;
    case WAIT_FAILED:
      return -1;
    case WAIT_ABANDONED:
      return -1;
    case WAIT_TIMEOUT:
      return -1;
    default:
      return -1;
  }
}

QUARK_DLLPORT int QUARK_CDECL pthread_mutex_unlock ( pthread_mutex_t * mutex )

Definition at line 110 of file quarkwinthread.c.

                                                                           {
  if (! ReleaseMutex( *mutex ))
    return -1;
  return 0;
}

Here is the caller graph for this function:

QUARK_DLLPORT pthread_t QUARK_CDECL pthread_self ( void )

Definition at line 34 of file quarkwinthread.c.

References pthread_s::hThread, and pthread_s::uThId.

                                                       {
  pthread_t pt;
  pt.hThread = GetCurrentThread();
  pt.uThId = GetCurrentThreadId();
  return pt;
}

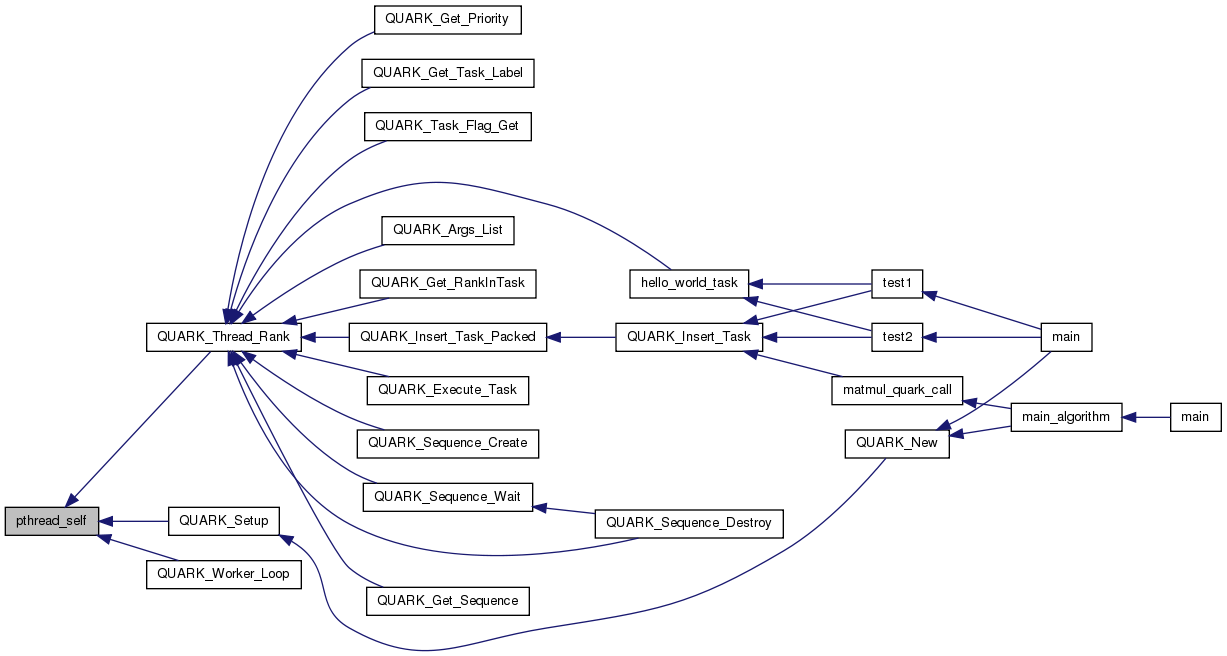

Here is the caller graph for this function:

QUARK_DLLPORT unsigned int QUARK_CDECL pthread_self_id ( void )

Definition at line 30 of file quarkwinthread.c.

                                                             {
  return GetCurrentThreadId();
}

QUARK_DLLPORT int QUARK_CDECL pthread_setconcurrency ( int )

Definition at line 266 of file quarkwinthread.c.

                                                                 {
  pthread_conclevel = level;
  return 0;
}
