papi_mem_info.c File Reference

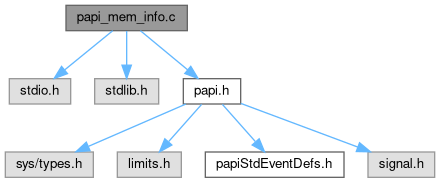

Include dependency graph for papi_mem_info.c:

Go to the source code of this file.

Functions
int	main (int argc, char **argv)

Function Documentation

main()

int main	(	int	argc,
		char **	argv
	)

Definition at line 37 of file papi_mem_info.c.

{
    const PAPI_hw_info_t *meminfo = NULL;
    PAPI_mh_level_t *L;
    int i, j, retval;

    (void)argc;
    (void)argv;

    retval = PAPI_library_init( PAPI_VER_CURRENT );
    if ( retval != PAPI_VER_CURRENT ) {
        fprintf(stderr,"Error! PAPI_library_init\n");
        return retval;
    }

    meminfo = PAPI_get_hardware_info(  );
    if (meminfo == NULL ) {
        fprintf(stderr,"Error! PAPI_get_hardware_info");
        return 2;
    }

    printf( "Memory Cache and TLB Hierarchy Information.\n" );
    printf( "------------------------------------------------------------------------\n" );

    /* Extract and report the tlb and cache information */
    L = ( PAPI_mh_level_t * ) & ( meminfo->mem_hierarchy.level[0] );
    printf( "TLB Information.\n  There may be multiple descriptors for each level of TLB\n" );
    printf( "  if multiple page sizes are supported.\n\n" );
    /* Scan the TLB structures */
    for ( i = 0; i < meminfo->mem_hierarchy.levels; i++ ) {
        for ( j = 0; j < PAPI_MH_MAX_LEVELS; j++ ) {
            switch ( PAPI_MH_CACHE_TYPE( L[i].tlb[j].type ) ) {
                case PAPI_MH_TYPE_UNIFIED:
                    printf( "L%d Unified TLB:\n", i + 1 );
                    break;
                case PAPI_MH_TYPE_DATA:
                    printf( "L%d Data TLB:\n", i + 1 );
                    break;
                case PAPI_MH_TYPE_INST:
                    printf( "L%d Instruction TLB:\n", i + 1 );
                    break;
            }
            if ( L[i].tlb[j].type ) {
                if ( L[i].tlb[j].page_size )
                    printf( "  Page Size:         %6d KB\n",
                            L[i].tlb[j].page_size >> 10 );
                printf( "  Number of Entries: %6d\n",
                        L[i].tlb[j].num_entries );
                switch ( L[i].tlb[j].associativity ) {
                    case 0: /* undefined */
                        break;
                    case 1:
                        printf( "  Associativity:      Direct Mapped\n\n" );
                        break;
                    case SHRT_MAX:
                        printf( "  Associativity:       Full\n\n" );
                        break;
                    default:
                        printf( "  Associativity:     %6d\n\n",
                                L[i].tlb[j].associativity );
                        break;
                }
            }
        }
    }

    /* Scan the Cache structures */
    printf( "\nCache Information.\n\n" );
    for ( i = 0; i < meminfo->mem_hierarchy.levels; i++ ) {
        for ( j = 0; j < 2; j++ ) {
            switch ( PAPI_MH_CACHE_TYPE( L[i].cache[j].type ) ) {
                case PAPI_MH_TYPE_UNIFIED:
                    printf( "L%d Unified Cache:\n", i + 1 );
                    break;
                case PAPI_MH_TYPE_DATA:
                    printf( "L%d Data Cache:\n", i + 1 );
                    break;
                case PAPI_MH_TYPE_INST:
                    printf( "L%d Instruction Cache:\n", i + 1 );
                    break;
                case PAPI_MH_TYPE_TRACE:
                    printf( "L%d Trace Buffer:\n", i + 1 );
                    break;
                case PAPI_MH_TYPE_VECTOR:
                    printf( "L%d Vector Cache:\n", i + 1 );
                    break;
            }
            if ( L[i].cache[j].type ) {
                printf( "  Total size:        %6d KB\n  Line size:         %6d B\n  Number of Lines:   %6d\n  Associativity:     %6d\n\n",
                          ( L[i].cache[j].size ) >> 10, L[i].cache[j].line_size,
                          L[i].cache[j].num_lines,
                          L[i].cache[j].associativity );
            }
        }
    }

    return 0;
}
