papi_br_msp.c File Reference

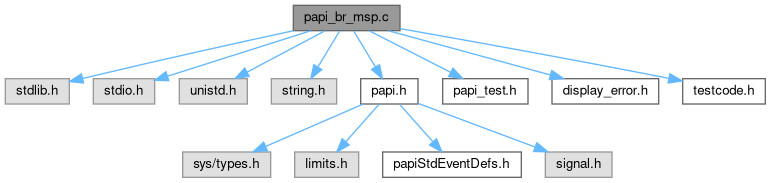

Include dependency graph for papi_br_msp.c:

Go to the source code of this file.

Functions
int	main (int argc, char **argv)

Function Documentation

main()

int main	(	int	argc,
		char **	argv
	)

Definition at line 20 of file papi_br_msp.c.

                                {

    int num_runs=100,i;
    int num_random_branches=500000;
    long long high=0,low=0,average=0,expected=1500000;

    long long count,total=0;
    int quiet=0,retval,ins_result;
    int total_eventset=PAPI_NULL,miss_eventset=PAPI_NULL;

    quiet=tests_quiet(argc,argv);

    if (!quiet) {
        printf("\nTesting the PAPI_BR_MSP event.\n");
    }

    /* Init the PAPI library */
    retval = PAPI_library_init( PAPI_VER_CURRENT );
    if ( retval != PAPI_VER_CURRENT ) {
        test_fail( __FILE__, __LINE__, "PAPI_library_init", retval );
    }

    /* Create total eventset */
    retval=PAPI_create_eventset(&total_eventset);
    if (retval!=PAPI_OK) {
        test_fail( __FILE__, __LINE__, "PAPI_create_eventset", retval );
    }

    retval=PAPI_add_named_event(total_eventset,"PAPI_BR_INS");
    if (retval!=PAPI_OK) {
        if (!quiet) printf("Could not add PAPI_BR_INS\n");
        test_skip( __FILE__, __LINE__, "adding PAPI_BR_INS", retval );
    }

    /* Create miss eventset */
    retval=PAPI_create_eventset(&miss_eventset);
    if (retval!=PAPI_OK) {
        test_fail( __FILE__, __LINE__, "PAPI_create_eventset", retval );
    }

    retval=PAPI_add_named_event(miss_eventset,"PAPI_BR_MSP");
    if (retval!=PAPI_OK) {
        test_fail( __FILE__, __LINE__, "adding PAPI_BR_MSP", retval );
    }

    if (!quiet) {
        printf("\nPart 1: Testing that easy to predict loop has few misses\n");
        printf("Testing a loop with %lld branches (%d times):\n",
            expected,num_runs);
        printf("\tOn a simple loop like this, "
            "miss rate should be very small.\n");
    }

    for(i=0;i<num_runs;i++) {

        PAPI_reset(miss_eventset);
                PAPI_start(miss_eventset);

        ins_result=branches_testcode();

        retval=PAPI_stop(miss_eventset,&count);

        if (ins_result==CODE_UNIMPLEMENTED) {
            fprintf(stderr,"\tCode unimplemented\n");
            test_skip( __FILE__, __LINE__, "unimplemented", 0);
        }

        if (retval!=PAPI_OK) {
            test_fail( __FILE__, __LINE__,
                "reading PAPI_TOT_INS", retval );
        }

        if (count>high) high=count;
        if ((low==0) || (count<low)) low=count;
        total+=count;
    }

    average=(total/num_runs);

    if (!quiet) printf("\tAverage number of branch misses: %lld\n",average);

    if (average>1000) {
        if (!quiet) printf("Branch miss rate too high\n");
        test_fail( __FILE__, __LINE__, "Error too high", 1 );
    }

    /*******************/

    if (!quiet) {
        printf("\nPart 2\n");
    }

    high=0; low=0; total=0;

    for(i=0;i<num_runs;i++) {
        PAPI_reset(total_eventset);
                PAPI_start(total_eventset);

        ins_result=random_branches_testcode(num_random_branches,1);

        retval=PAPI_stop(total_eventset,&count);

        if (ins_result==CODE_UNIMPLEMENTED) {
            fprintf(stderr,"\tCode unimplemented\n");
            test_skip( __FILE__, __LINE__, "unimplemented", 0);
        }

        if (retval!=PAPI_OK) {
            test_fail( __FILE__, __LINE__,
                "reading PAPI_TOT_INS", retval );
        }

        if (count>high) high=count;
        if ((low==0) || (count<low)) low=count;
        total+=count;
    }

    average=total/num_runs;

    expected=average;
    if (!quiet) {
        printf("\nTesting a function that branches "
            "based on a random number\n");
        printf("   The loop has %lld branches\n",expected);
        printf("   %d are random branches.\n",num_random_branches);
    }

    high=0; low=0; total=0;

    for(i=0;i<num_runs;i++) {
        PAPI_reset(miss_eventset);
                PAPI_start(miss_eventset);

        ins_result=random_branches_testcode(num_random_branches,1);

        retval=PAPI_stop(miss_eventset,&count);

        if (ins_result==CODE_UNIMPLEMENTED) {
            fprintf(stderr,"\tCode unimplemented\n");
            test_skip( __FILE__, __LINE__, "unimplemented", 0);
        }

        if (retval!=PAPI_OK) {
            test_fail( __FILE__, __LINE__,
                "reading eventset", retval );
        }

        if (count>high) high=count;
        if ((low==0) || (count<low)) low=count;
        total+=count;
    }

    average=total/num_runs;

    if (!quiet) {
                double rate = 100.0*(double)average/(double)num_random_branches;
        printf("\nOut of %d random branches %lld were mispredicted,\n",num_random_branches,average);
        printf("resulting in a misprediction rate = %.1lf%%.\n",rate);
        printf("Assuming a good random number generator and no freaky luck\n");
        printf("the misprediction rate should be around 50%%, and the\n");
                printf("mispredicts should at least be between %d and %d.\n",
            num_random_branches/4,(num_random_branches/4)*3);
    }

    if ( average < (num_random_branches/4)) {
        if (!quiet) printf("Mispredicts too low\n");
        test_fail( __FILE__, __LINE__, "Error too low", 1 );
    }

    if (average > (num_random_branches/4)*3) {
        if (!quiet) printf("Mispredicts too high\n");
        test_fail( __FILE__, __LINE__, "Error too high", 1 );
    }

    if (!quiet) printf("\n");

    test_pass( __FILE__ );

    PAPI_shutdown();

    return 0;

}

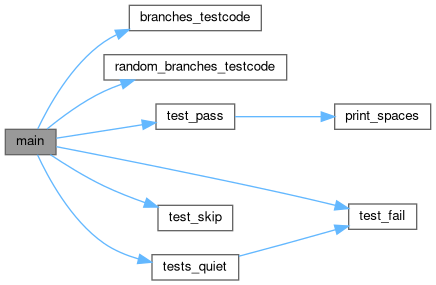

Here is the call graph for this function:
