multiattach.c File Reference

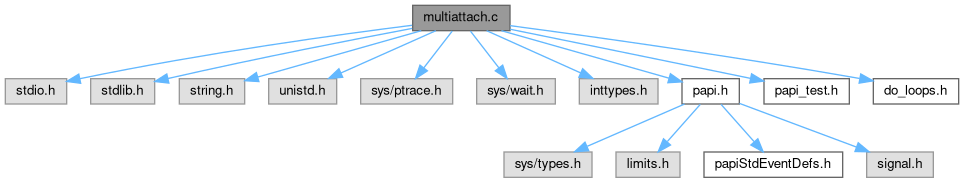

Include dependency graph for multiattach.c:

Go to the source code of this file.

Macros

#define MULTIPLIER   5


Functions

static int wait_for_attach_and_loop (int num)

int main (int argc, char **argv)


Macro Definition Documentation

◆ MULTIPLIER

#define MULTIPLIER   5

Definition at line 39 of file multiattach.c.

Function Documentation

◆ main()

int main ( int  argc,
char **  argv
)

Definition at line 51 of file multiattach.c.

52{
53 int status, retval, num_tests = 2, tmp;
54 int EventSet1 = PAPI_NULL, EventSet2 = PAPI_NULL;
55 int PAPI_event, PAPI_event2, mask1, mask2;
56 int num_events1, num_events2;
57 long long **values;
58 long long elapsed_us, elapsed_cyc, elapsed_virt_us, elapsed_virt_cyc;
59 char event_name[PAPI_MAX_STR_LEN], add_event_str[PAPI_2MAX_STR_LEN];
60 const PAPI_component_info_t *cmpinfo;
61 pid_t pid, pid2;
62 double ratio1,ratio2;
63
64 /* Set TESTS_QUIET variable */
65 tests_quiet( argc, argv );
66
67 /* Initialize the library */
68 retval = PAPI_library_init( PAPI_VER_CURRENT );
69 if ( retval != PAPI_VER_CURRENT ) {
70 test_fail( __FILE__, __LINE__, "PAPI_library_init", retval );
71 }
72
73 /* get the component info and check if we support attach */
74 if ( ( cmpinfo = PAPI_get_component_info( 0 ) ) == NULL ) {
75 test_fail( __FILE__, __LINE__, "PAPI_get_component_info", 0 );
76 }
77
78 if ( cmpinfo->attach == 0 ) {
79 test_skip( __FILE__, __LINE__,
80 "Platform does not support attaching", 0 );
81 }
82
83 /* fork off first child */
84 pid = fork( );
85 if ( pid < 0 ) {
86 test_fail( __FILE__, __LINE__, "fork()", PAPI_ESYS );
87 }
88 if ( pid == 0 ) {
89 exit( wait_for_attach_and_loop( 1 ) );
90 }
91
92 /* fork off second child, does twice as much */
93 pid2 = fork( );
94 if ( pid2 < 0 ) {
95 test_fail( __FILE__, __LINE__, "fork()", PAPI_ESYS );
96 }
97 if ( pid2 == 0 ) {
98 exit( wait_for_attach_and_loop( MULTIPLIER ) );
99 }
100
101 /* add PAPI_TOT_CYC and one of the events in
102 PAPI_FP_INS, PAPI_FP_OPS or PAPI_TOT_INS,
103 depending on the availability of the event
104 on the platform */
105 EventSet1 = add_two_events( &num_events1, &PAPI_event, &mask1 );
106 EventSet2 = add_two_events( &num_events2, &PAPI_event2, &mask2 );
107
108 if ( cmpinfo->attach_must_ptrace ) {
109 if ( ptrace( PTRACE_ATTACH, pid, NULL, NULL ) == -1 ) {
110 perror( "ptrace(PTRACE_ATTACH)" );
111 return 1 ;
112 }
113 if ( waitpid( pid, &status, 0 ) == -1 ) {
114 perror( "waitpid()" );
115 exit( 1 );
116 }
117 if ( WIFSTOPPED( status ) == 0 ) {
118 test_fail( __FILE__, __LINE__,
119 "Child process didnt return true to WIFSTOPPED", 0 );
120 }
121
122 if ( ptrace( PTRACE_ATTACH, pid2, NULL, NULL ) == -1 ) {
123 perror( "ptrace(PTRACE_ATTACH)" );
124 return 1;
125 }
126 if ( waitpid( pid2, &status, 0 ) == -1 ) {
127 perror( "waitpid()" );
128 exit( 1 );
129 }
130 if ( WIFSTOPPED( status ) == 0 ) {
131 test_fail( __FILE__, __LINE__,
132 "Child process didnt return true to WIFSTOPPED", 0 );
133 }
134 }
135
136 retval = PAPI_attach( EventSet1, ( unsigned long ) pid );
137 if ( retval != PAPI_OK ) {
138 test_fail( __FILE__, __LINE__, "PAPI_attach", retval );
139 }
140
141 retval = PAPI_attach( EventSet2, ( unsigned long ) pid2 );
142 if ( retval != PAPI_OK ) {
143 test_fail( __FILE__, __LINE__, "PAPI_attach", retval );
144 }
145
146 strcpy(event_name, "PAPI_TOT_INS");
147 sprintf( add_event_str, "PAPI_add_event[%s]", event_name );
148
149 /* num_events1 is greater than num_events2 so don't worry. */
150
151 values = allocate_test_space( num_tests, num_events1 );
152
153 /* Gather before values */
154 elapsed_us = PAPI_get_real_usec( );
155 elapsed_cyc = PAPI_get_real_cyc( );
156 elapsed_virt_us = PAPI_get_virt_usec( );
157 elapsed_virt_cyc = PAPI_get_virt_cyc( );
158
159 /* Wait for the SIGSTOP. */
160 if ( cmpinfo->attach_must_ptrace ) {
161 if ( ptrace( PTRACE_CONT, pid, NULL, NULL ) == -1 ) {
162 perror( "ptrace(PTRACE_CONT)" );
163 return 1;
164 }
165 if ( waitpid( pid, &status, 0 ) == -1 ) {
166 perror( "waitpid()" );
167 exit( 1 );
168 }
169 if ( WIFSTOPPED( status ) == 0 ) {
170 test_fail( __FILE__, __LINE__,
171 "Child process didn't return true to WIFSTOPPED", 0 );
172 }
173 if ( WSTOPSIG( status ) != SIGSTOP ) {
174 test_fail( __FILE__, __LINE__,
175 "Child process didn't stop on SIGSTOP", 0 );
176 }
177
178 if ( ptrace( PTRACE_CONT, pid2, NULL, NULL ) == -1 ) {
179 perror( "ptrace(PTRACE_CONT)" );
180 return 1;
181 }
182 if ( waitpid( pid2, &status, 0 ) == -1 ) {
183 perror( "waitpid()" );
184 exit( 1 );
185 }
186 if ( WIFSTOPPED( status ) == 0 ) {
187 test_fail( __FILE__, __LINE__,
188 "Child process didn't return true to WIFSTOPPED", 0 );
189 }
190 if ( WSTOPSIG( status ) != SIGSTOP ) {
191 test_fail( __FILE__, __LINE__,
192 "Child process didn't stop on SIGSTOP", 0 );
193 }
194 }
195
196 /* start measuring in first child */
197 retval = PAPI_start( EventSet1 );
198 if ( retval != PAPI_OK ) {
199 test_fail( __FILE__, __LINE__, "PAPI_start", retval );
200 }
201
202 /* start measuring in second child */
203 retval = PAPI_start( EventSet2 );
204 if ( retval != PAPI_OK ) {
205 test_fail( __FILE__, __LINE__, "PAPI_start", retval );
206 }
207
208 /* Start first child and Wait for the SIGSTOP. */
209 if ( cmpinfo->attach_must_ptrace ) {
210 if ( ptrace( PTRACE_CONT, pid, NULL, NULL ) == -1 ) {
211 perror( "ptrace(PTRACE_ATTACH)" );
212 return 1;
213 }
214 if ( waitpid( pid, &status, 0 ) == -1 ) {
215 perror( "waitpid()" );
216 exit( 1 );
217 }
218 if ( WIFSTOPPED( status ) == 0 ) {
219 test_fail( __FILE__, __LINE__,
220 "Child process didn't return true to WIFSTOPPED", 0 );
221 }
222 if ( WSTOPSIG( status ) != SIGSTOP ) {
223 test_fail( __FILE__, __LINE__,
224 "Child process didn't stop on SIGSTOP", 0 );
225 }
226
227 /* Start second child and Wait for the SIGSTOP. */
228 if ( ptrace( PTRACE_CONT, pid2, NULL, NULL ) == -1 ) {
229 perror( "ptrace(PTRACE_ATTACH)" );
230 return 1;
231 }
232 if ( waitpid( pid2, &status, 0 ) == -1 ) {
233 perror( "waitpid()" );
234 exit( 1 );
235 }
236 if ( WIFSTOPPED( status ) == 0 ) {
237 test_fail( __FILE__, __LINE__,
238 "Child process didn't return true to WIFSTOPPED", 0 );
239 }
240 if ( WSTOPSIG( status ) != SIGSTOP ) {
241 test_fail( __FILE__, __LINE__,
242 "Child process didn't stop on SIGSTOP", 0 );
243 }
244 }
245
246 elapsed_virt_us = PAPI_get_virt_usec( ) - elapsed_virt_us;
247 elapsed_virt_cyc = PAPI_get_virt_cyc( ) - elapsed_virt_cyc;
248 elapsed_us = PAPI_get_real_usec( ) - elapsed_us;
249 elapsed_cyc = PAPI_get_real_cyc( ) - elapsed_cyc;
250
251 /* stop measuring and read first child */
252 retval = PAPI_stop( EventSet1, values[0] );
253 if ( retval != PAPI_OK ) {
254 printf( "Warning: PAPI_stop returned error %d, probably ok.\n",
255 retval );
256 }
257
258 /* stop measuring and read second child */
259 retval = PAPI_stop( EventSet2, values[1] );
260 if ( retval != PAPI_OK ) {
261 printf( "Warning: PAPI_stop returned error %d, probably ok.\n",
262 retval );
263 }
264
265 /* close down the measurements */
266 remove_test_events( &EventSet1, mask1 );
267 remove_test_events( &EventSet2, mask2 );
268
269 /* restart events so they can end */
270 if ( cmpinfo->attach_must_ptrace ) {
271 if ( ptrace( PTRACE_CONT, pid, NULL, NULL ) == -1 ) {
272 perror( "ptrace(PTRACE_CONT)" );
273 return 1;
274 }
275 if ( ptrace( PTRACE_CONT, pid2, NULL, NULL ) == -1 ) {
276 perror( "ptrace(PTRACE_CONT)" );
277 return 1;
278 }
279 }
280
281 if ( waitpid( pid, &status, 0 ) == -1 ) {
282 perror( "waitpid()" );
283 exit( 1 );
284 }
285 if ( WIFEXITED( status ) == 0 ) {
286 test_fail( __FILE__, __LINE__,
287 "Child process didn't return true to WIFEXITED", 0 );
288 }
289
290 if ( waitpid( pid2, &status, 0 ) == -1 ) {
291 perror( "waitpid()" );
292 exit( 1 );
293 }
294 if ( WIFEXITED( status ) == 0 ) {
295 test_fail( __FILE__, __LINE__,
296 "Child process didn't return true to WIFEXITED", 0 );
297 }
298
299 /* This code isn't necessary as we know the child has exited, */
300 /* it *may* return an error if the component so chooses. You */
301 /* should use read() instead. */
302
303 if (!TESTS_QUIET) {
304 printf( "Test case: multiple 3rd party attach start, stop.\n" );
305 printf( "-----------------------------------------------\n" );
306 tmp = PAPI_get_opt( PAPI_DEFDOM, NULL );
307 printf( "Default domain is: %d (%s)\n", tmp,
308 stringify_all_domains( tmp ) );
309 tmp = PAPI_get_opt( PAPI_DEFGRN, NULL );
310 printf( "Default granularity is: %d (%s)\n", tmp,
311 stringify_granularity( tmp ) );
312 printf( "Using %d iterations of c += a*b\n", NUM_FLOPS );
313 printf( "-------------------------------------------------------------------------\n" );
314
315 sprintf( add_event_str, "(PID %jd) %-12s : \t", ( intmax_t ) pid,
316 event_name );
317 printf( TAB1, add_event_str, values[0][1] );
318 sprintf( add_event_str, "(PID %jd) PAPI_TOT_CYC : \t",
319 ( intmax_t ) pid );
320 printf( TAB1, add_event_str, values[0][0] );
321 sprintf( add_event_str, "(PID %jd) %-12s : \t", ( intmax_t ) pid2,
322 event_name );
323 printf( TAB1, add_event_str,values[1][1] );
324 sprintf( add_event_str, "(PID %jd) PAPI_TOT_CYC : \t",
325 ( intmax_t ) pid2 );
326 printf( TAB1, add_event_str, values[1][0] );
327 printf( TAB1, "Real usec : \t", elapsed_us );
328 printf( TAB1, "Real cycles : \t", elapsed_cyc );
329 printf( TAB1, "Virt usec : \t", elapsed_virt_us );
330 printf( TAB1, "Virt cycles : \t", elapsed_virt_cyc );
331
332 printf( "-------------------------------------------------------------------------\n" );
333
334 printf("Verification: pid %d results should be %dx pid %d\n",
335 pid2,MULTIPLIER,pid );
336 }
337
338 /* FLOPS ratio */
339 ratio1=(double)values[1][0]/(double)values[0][0];
340
341 /* CYCLES ratio */
342 ratio2=(double)values[1][1]/(double)values[0][1];
343
344 if (!TESTS_QUIET) {
345 printf("\tFLOPS ratio %lld/%lld = %lf\n",
346 values[1][0],values[0][0],ratio1);
347 }
348
349 double ratio1_high,ratio1_low,ratio2_high,ratio2_low;
350
351 ratio1_high=(double)MULTIPLIER *1.10;
352 ratio1_low=(double)MULTIPLIER * 0.90;
353
354 if ((ratio1 > ratio1_high ) || (ratio1 < ratio1_low)) {
355 printf("Ratio out of range, should be ~%lf not %lf\n",
356 (double)MULTIPLIER, ratio1);
357 test_fail( __FILE__, __LINE__,
358 "Error: Counter ratio not two", 0 );
359 }
360
361 if (!TESTS_QUIET) {
362 printf("\tCycles ratio %lld/%lld = %lf\n",
363 values[1][1],values[0][1],ratio2);
364 }
365
366 ratio2_high=(double)MULTIPLIER *1.20;
367 ratio2_low=(double)MULTIPLIER * 0.80;
368
369 if ((ratio2 > ratio2_high ) || (ratio2 < ratio2_low )) {
370 printf("Ratio out of range, should be ~%lf, not %lf\n",
371 (double)MULTIPLIER, ratio2);
372 test_fail( __FILE__, __LINE__,
373 "Known issue: Counter ratio not two", 0 );
374 }
375
376 test_pass( __FILE__ );
377
378 return 0;
379}
tmp
double tmp
Definition: PAPI_get_virt_cyc.c:11
wait_for_attach_and_loop
static int wait_for_attach_and_loop(void)
Definition: attach2.c:41
PAPI_attach
Attach PAPI event set to the specified thread id.
PAPI_get_component_info
get information about a specific software component
PAPI_get_opt
Get PAPI library or event set options.
PAPI_get_real_cyc
get real time counter value in clock cycles Returns the total real time passed since some arbitrary s...
PAPI_get_real_usec
get real time counter value in microseconds
PAPI_get_virt_cyc
get virtual time counter value in clock cycles
PAPI_get_virt_usec
get virtual time counter values in microseconds
PAPI_library_init
initialize the PAPI library.
PAPI_start
Start counting hardware events in an event set.
PAPI_stop
Stop counting hardware events in an event set.
PAPI_event
int PAPI_event[2]
Definition: data_range.c:30
event_name
char event_name[2][PAPI_MAX_STR_LEN]
Definition: data_range.c:29
PAPI_VER_CURRENT
#define PAPI_VER_CURRENT
Definition: f90papi.h:54
PAPI_OK
#define PAPI_OK
Definition: f90papi.h:73
PAPI_NULL
#define PAPI_NULL
Definition: f90papi.h:78
PAPI_DEFGRN
#define PAPI_DEFGRN
Definition: f90papi.h:26
PAPI_MAX_STR_LEN
#define PAPI_MAX_STR_LEN
Definition: f90papi.h:77
PAPI_ESYS
#define PAPI_ESYS
Definition: f90papi.h:136
PAPI_2MAX_STR_LEN
#define PAPI_2MAX_STR_LEN
Definition: f90papi.h:180
PAPI_DEFDOM
#define PAPI_DEFDOM
Definition: f90papi.h:188
values
static long long values[NUM_EVENTS]
Definition: init_fini.c:10
MULTIPLIER
#define MULTIPLIER
Definition: multiattach.c:39
TESTS_QUIET
int TESTS_QUIET
Definition: test_utils.c:18
tests_quiet
int tests_quiet(int argc, char **argv)
Definition: test_utils.c:376
stringify_all_domains
char * stringify_all_domains(int domains)
Definition: test_utils.c:293
stringify_granularity
char * stringify_granularity(int granularity)
Definition: test_utils.c:353
TAB1
#define TAB1
Definition: papi_test.h:98
test_fail
void PAPI_NORETURN test_fail(const char *file, int line, const char *call, int retval)
Definition: test_utils.c:491
allocate_test_space
long long ** allocate_test_space(int num_tests, int num_events)
Definition: test_utils.c:46
test_pass
void PAPI_NORETURN test_pass(const char *filename)
Definition: test_utils.c:432
add_two_events
int add_two_events(int *num_events, int *papi_event, int *mask)
Definition: test_utils.c:640
test_skip
void PAPI_NORETURN test_skip(const char *file, int line, const char *call, int retval)
Definition: test_utils.c:584
remove_test_events
int remove_test_events(int *EventSet, int mask)
Definition: test_utils.c:201
EventSet2
int EventSet2
Definition: rapl_overflow.c:17
NUM_FLOPS
#define NUM_FLOPS
Definition: sdsc-mpx.c:24
pid
static int pid
Definition: solaris-niagara2.c:111
PAPI_component_info_t
Definition: papi.h:626
PAPI_component_info_t::attach
unsigned int attach
Definition: papi.h:658
PAPI_component_info_t::attach_must_ptrace
unsigned int attach_must_ptrace
Definition: papi.h:659
EventSet1
int EventSet1
Definition: zero_fork.c:47
num_events1
int num_events1
Definition: zero_fork.c:49
mask1
int mask1
Definition: zero_fork.c:48
elapsed_cyc
long long elapsed_cyc
Definition: zero_fork.c:50
elapsed_us
long long elapsed_us
Definition: zero_fork.c:50
num_tests
int num_tests
Definition: zero_fork.c:53
retval
int retval
Definition: zero_fork.c:53
Here is the call graph for this function:

◆ wait_for_attach_and_loop()

static int wait_for_attach_and_loop ( int  num)
static

Definition at line 42 of file multiattach.c.

43{
44 kill( getpid( ), SIGSTOP );
45 do_flops( NUM_FLOPS * num );
46 kill( getpid( ), SIGSTOP );
47 return 0;
48}
do_flops
void do_flops(int n)
Definition: multiplex.c:23
kill
int kill(__pid_t __pid, int __sig) __attribute__((__nothrow__
Here is the call graph for this function:
