Data Structures | Macros | Functions | Variables
overflow_twoevents.c File Reference
Include dependency graph for overflow_twoevents.c:

Go to the source code of this file.

Data Structures

struct  ocount_t


Macros

#define OVER_FMT   "handler(%d) Overflow at %p! vector=%#llx\n"

#define OUT_FMT   "%-12s : %18lld%18lld%18lld\n"

#define VEC_FMT   " at vector %#llx, event %-12s : %6d\n"


Functions

static void handler (int mode, void *address, long long overflow_vector, void *context)

static void handler_batch (int EventSet, void *address, long long overflow_vector, void *context)

static void handler_interleaf (int EventSet, void *address, long long overflow_vector, void *context)

int main (int argc, char **argv)


Variables

static ocount_t overflow_counts [2][3]

static int total_unknown = 0


Macro Definition Documentation

◆ OUT_FMT

#define OUT_FMT   "%-12s : %18lld%18lld%18lld\n"

Definition at line 21 of file overflow_twoevents.c.

◆ OVER_FMT

#define OVER_FMT   "handler(%d) Overflow at %p! vector=%#llx\n"

Definition at line 20 of file overflow_twoevents.c.

◆ VEC_FMT

#define VEC_FMT   " at vector %#llx, event %-12s : %6d\n"

Definition at line 22 of file overflow_twoevents.c.

Function Documentation

◆ handler()

static void handler ( int  mode,
void *  address,
long long  overflow_vector,
void *  context
)
static

Definition at line 38 of file overflow_twoevents.c.

39{
40 ( void ) context; /*unused */
41 int i;
42
43 if ( !TESTS_QUIET ) {
44 fprintf( stderr, OVER_FMT, mode, address, overflow_vector );
45 }
46
47 /* Look for the overflow_vector entry */
48
49 for ( i = 0; i < 3; i++ ) {
50 if ( overflow_counts[mode][i].mask == overflow_vector ) {
51 overflow_counts[mode][i].count++;
52 return;
53 }
54 }
55
56 /* Didn't find it so add it. */
57
58 for ( i = 0; i < 3; i++ ) {
59 if ( overflow_counts[mode][i].mask == ( long long ) 0 ) {
60 overflow_counts[mode][i].mask = overflow_vector;
61 overflow_counts[mode][i].count = 1;
62 return;
63 }
64 }
65
66 /* Unknown entry!?! */
67
68 total_unknown++;
69}
i
int i
Definition: PAPI_get_virt_cyc.c:10
TESTS_QUIET
int TESTS_QUIET
Definition: test_utils.c:18
OVER_FMT
#define OVER_FMT
Definition: overflow_twoevents.c:20
overflow_counts
static ocount_t overflow_counts[2][3]
Definition: overflow_twoevents.c:33
total_unknown
static int total_unknown
Definition: overflow_twoevents.c:35
stderr
FILE * stderr
ocount_t::count
int count
Definition: overflow_index.c:24
ocount_t::mask
long long mask
Definition: overflow_index.c:23
Here is the caller graph for this function:

◆ handler_batch()

static void handler_batch ( int  EventSet,
void *  address,
long long  overflow_vector,
void *  context
)
static

Definition at line 72 of file overflow_twoevents.c.

74{
75 ( void ) EventSet; /*unused */
76 handler( 0, address, overflow_vector, context );
77}
EventSet
static int EventSet
Definition: init_fini.c:8
handler
static void handler(int mode, void *address, long long overflow_vector, void *context)
Definition: overflow_twoevents.c:38
Here is the call graph for this function:
Here is the caller graph for this function:

◆ handler_interleaf()

static void handler_interleaf ( int  EventSet,
void *  address,
long long  overflow_vector,
void *  context
)
static

Definition at line 80 of file overflow_twoevents.c.

82{
83 ( void ) EventSet; /*unused */
84 handler( 1, address, overflow_vector, context );
85}
Here is the call graph for this function:
Here is the caller graph for this function:

◆ main()

int main ( int  argc,
char **  argv
)

Definition at line 89 of file overflow_twoevents.c.

90{
91 int EventSet = PAPI_NULL;
92 long long ( values[3] )[2];
93 int retval;
94 int PAPI_event, k, idx[4];
95 char event_name[3][PAPI_MAX_STR_LEN];
96 int num_events1;
97 int threshold = THRESHOLD;
98 int quiet;
99
100 /* Set TESTS_QUIET variable */
101 quiet=tests_quiet( argc, argv );
102
103 retval = PAPI_library_init( PAPI_VER_CURRENT );
104 if (retval != PAPI_VER_CURRENT ) {
105 test_fail( __FILE__, __LINE__, "PAPI_library_init", retval );
106 }
107
108 retval = PAPI_create_eventset( &EventSet );
109 if (retval != PAPI_OK ) {
110 test_fail( __FILE__, __LINE__, "PAPI_create_eventset", retval );
111 }
112
113 /* decide which of PAPI_FP_INS, PAPI_FP_OPS or PAPI_TOT_INS to add,
114 depending on the availability and derived status of the event on
115 this platform */
116 if ( ( PAPI_event = find_nonderived_event( ) ) == 0 ) {
117 if (!quiet) printf("No events found!\n");
118 test_skip( __FILE__, __LINE__, "no PAPI_event", 0 );
119 }
120
121 if ( ( retval = PAPI_add_event( EventSet, PAPI_event ) ) != PAPI_OK )
122 test_fail( __FILE__, __LINE__, "PAPI_add_event", retval );
123 if ( ( retval = PAPI_add_event( EventSet, PAPI_TOT_CYC ) ) != PAPI_OK )
124 test_fail( __FILE__, __LINE__, "PAPI_add_event", retval );
125
126 retval = PAPI_start( EventSet );
127 if ( retval != PAPI_OK )
128 test_fail( __FILE__, __LINE__, "PAPI_start", retval );
129
130 do_flops( NUM_FLOPS );
131
132 if ( ( retval = PAPI_stop( EventSet, values[0] ) ) != PAPI_OK )
133 test_fail( __FILE__, __LINE__, "PAPI_stop", retval );
134
135 /* Set both overflows after adding both events (batch) */
136 retval = PAPI_overflow( EventSet, PAPI_event, threshold, 0,
137 handler_batch );
138 if (retval != PAPI_OK ) {
139 test_fail( __FILE__, __LINE__, "PAPI_overflow", retval );
140 }
141
142 retval = PAPI_overflow( EventSet, PAPI_TOT_CYC, threshold, 0,
143 handler_batch );
144 if (retval != PAPI_OK ) {
145 test_fail( __FILE__, __LINE__, "PAPI_overflow", retval );
146 }
147
148 if ( ( retval = PAPI_start( EventSet ) ) != PAPI_OK )
149 test_fail( __FILE__, __LINE__, "PAPI_start", retval );
150
151 do_flops( NUM_FLOPS );
152
153 retval = PAPI_stop( EventSet, values[1] );
154 if ( retval != PAPI_OK )
155 test_fail( __FILE__, __LINE__, "PAPI_stop", retval );
156
157 num_events1 = 1;
158 retval =
159 PAPI_get_overflow_event_index( EventSet, 1, &idx[0], &num_events1 );
160 if ( retval != PAPI_OK ) {
161 printf( "PAPI_get_overflow_event_index error: %s\n",
162 PAPI_strerror( retval ) );
163 }
164
165 num_events1 = 1;
166 retval =
167 PAPI_get_overflow_event_index( EventSet, 2, &idx[1], &num_events1 );
168 if ( retval != PAPI_OK ) {
169 printf( "PAPI_get_overflow_event_index error: %s\n",
170 PAPI_strerror( retval ) );
171 }
172
173 if ( ( retval = PAPI_cleanup_eventset( EventSet ) ) != PAPI_OK )
174 test_fail( __FILE__, __LINE__, "PAPI_cleanup_eventset", retval );
175
176 /* Add each event and set its overflow (interleaved) */
177 if ( ( retval = PAPI_add_event( EventSet, PAPI_event ) ) != PAPI_OK )
178 test_fail( __FILE__, __LINE__, "PAPI_add_event", retval );
179 if ( ( retval =
180 PAPI_overflow( EventSet, PAPI_event, threshold, 0,
181 handler_interleaf ) ) != PAPI_OK )
182 test_fail( __FILE__, __LINE__, "PAPI_overflow", retval );
183 if ( ( retval = PAPI_add_event( EventSet, PAPI_TOT_CYC ) ) != PAPI_OK )
184 test_fail( __FILE__, __LINE__, "PAPI_add_event", retval );
185 if ( ( retval =
186 PAPI_overflow( EventSet, PAPI_TOT_CYC, threshold, 0,
187 handler_interleaf ) ) != PAPI_OK )
188 test_fail( __FILE__, __LINE__, "PAPI_overflow", retval );
189
190 if ( ( retval = PAPI_start( EventSet ) ) != PAPI_OK )
191 test_fail( __FILE__, __LINE__, "PAPI_start", retval );
192
193 do_flops( NUM_FLOPS );
194
195 if ( ( retval = PAPI_stop( EventSet, values[2] ) ) != PAPI_OK )
196 test_fail( __FILE__, __LINE__, "PAPI_stop", retval );
197
198 num_events1 = 1;
199 retval =
200 PAPI_get_overflow_event_index( EventSet, 1, &idx[2], &num_events1 );
201 if ( retval != PAPI_OK ) {
202 printf( "PAPI_get_overflow_event_index error: %s\n",
203 PAPI_strerror( retval ) );
204 }
205
206 num_events1 = 1;
207 retval = PAPI_get_overflow_event_index( EventSet, 2, &idx[3],
208 &num_events1 );
209 if ( retval != PAPI_OK ) {
210 printf( "PAPI_get_overflow_event_index error: %s\n",
211 PAPI_strerror( retval ) );
212 }
213
214 if ( ( retval = PAPI_cleanup_eventset( EventSet ) ) != PAPI_OK )
215 test_fail( __FILE__, __LINE__, "PAPI_cleanup_eventset", retval );
216
217 retval = PAPI_event_code_to_name( PAPI_event, event_name[0] );
218 if (retval != PAPI_OK ) {
219 test_fail( __FILE__, __LINE__, "PAPI_event_code_to_name", retval );
220 }
221
222 retval = PAPI_event_code_to_name( PAPI_TOT_CYC, event_name[1] );
223 if (retval != PAPI_OK ) {
224 test_fail( __FILE__, __LINE__, "PAPI_event_code_to_name", retval );
225 }
226
227 strcpy( event_name[2], "Unknown" );
228
229 if (!TESTS_QUIET) {
230 printf( "Test case: Overflow dispatch of both events in set with 2 events.\n" );
231 printf( "---------------------------------------------------------------\n" );
232 printf( "Threshold for overflow is: %d\n", threshold );
233 printf( "Using %d iterations of c += a*b\n", NUM_FLOPS );
234 printf( "-----------------------------------------------\n" );
235
236 printf( "Test type : %18s%18s%18s\n", "1 (no overflow)", "2 (batch)",
237 "3 (interleaf)" );
238 printf( OUT_FMT, event_name[0], ( values[0] )[0], ( values[1] )[0],
239 ( values[2] )[0] );
240 printf( OUT_FMT, event_name[1], ( values[0] )[1], ( values[1] )[1],
241 ( values[2] )[1] );
242 printf( "\n" );
243
244 printf( "Predicted overflows at event %-12s : %6d\n", event_name[0],
245 ( int ) ( ( values[0] )[0] / threshold ) );
246 printf( "Predicted overflows at event %-12s : %6d\n", event_name[1],
247 ( int ) ( ( values[0] )[1] / threshold ) );
248
249 printf( "\nBatch overflows (add, add, over, over):\n" );
250 for ( k = 0; k < 2; k++ ) {
251 if ( overflow_counts[0][k].mask ) {
252 printf( VEC_FMT, ( long long ) overflow_counts[0][k].mask,
253 event_name[idx[k]], overflow_counts[0][k].count );
254 }
255 }
256
257 printf( "\nInterleaved overflows (add, over, add, over):\n" );
258 for ( k = 0; k < 2; k++ ) {
259 if ( overflow_counts[1][k].mask )
260 printf( VEC_FMT,
261 ( long long ) overflow_counts[1][k].mask,
262 event_name[idx[k + 2]],
263 overflow_counts[1][k].count );
264 }
265
266 printf( "\nCases 2+3 Unknown overflows: %d\n", total_unknown );
267 printf( "-----------------------------------------------\n" );
268 }
269
270 if ( overflow_counts[0][0].count == 0 || overflow_counts[0][1].count == 0 )
271 test_fail( __FILE__, __LINE__, "a batch counter had no overflows", 1 );
272
273 if ( overflow_counts[1][0].count == 0 || overflow_counts[1][1].count == 0 )
274 test_fail( __FILE__, __LINE__,
275 "an interleaved counter had no overflows", 1 );
276
277 if ( total_unknown > 0 )
278 test_fail( __FILE__, __LINE__, "Unknown counter had overflows", 1 );
279
280 test_pass( __FILE__ );
281
282 return 0;
283}
count
static long count
Definition: child_overflow.c:33
PAPI_add_event
add PAPI preset or native hardware event to an event set
PAPI_cleanup_eventset
Empty and destroy an EventSet.
PAPI_create_eventset
Create a new empty PAPI EventSet.
PAPI_event_code_to_name
Convert a numeric hardware event code to a name.
PAPI_get_overflow_event_index
converts an overflow vector into an array of indexes to overflowing events
PAPI_library_init
initialize the PAPI library.
PAPI_overflow
Set up an event set to begin registering overflows.
PAPI_start
Start counting hardware events in an event set.
PAPI_stop
Stop counting hardware events in an event set.
PAPI_strerror
Returns a string describing the PAPI error code.
PAPI_event
int PAPI_event[2]
Definition: data_range.c:30
event_name
char event_name[2][PAPI_MAX_STR_LEN]
Definition: data_range.c:29
THRESHOLD
#define THRESHOLD
Definition: earprofile.c:37
PAPI_VER_CURRENT
#define PAPI_VER_CURRENT
Definition: f90papi.h:54
PAPI_OK
#define PAPI_OK
Definition: f90papi.h:73
PAPI_NULL
#define PAPI_NULL
Definition: f90papi.h:78
PAPI_TOT_CYC
#define PAPI_TOT_CYC
Definition: f90papi.h:308
PAPI_MAX_STR_LEN
#define PAPI_MAX_STR_LEN
Definition: f90papi.h:77
values
static long long values[NUM_EVENTS]
Definition: init_fini.c:10
threshold
static int threshold
Definition: krentel_pthreads.c:18
do_flops
void do_flops(int n)
Definition: multiplex.c:23
VEC_FMT
#define VEC_FMT
Definition: overflow_twoevents.c:22
OUT_FMT
#define OUT_FMT
Definition: overflow_twoevents.c:21
handler_interleaf
static void handler_interleaf(int EventSet, void *address, long long overflow_vector, void *context)
Definition: overflow_twoevents.c:80
handler_batch
static void handler_batch(int EventSet, void *address, long long overflow_vector, void *context)
Definition: overflow_twoevents.c:72
tests_quiet
int tests_quiet(int argc, char **argv)
Definition: test_utils.c:376
test_fail
void PAPI_NORETURN test_fail(const char *file, int line, const char *call, int retval)
Definition: test_utils.c:491
test_pass
void PAPI_NORETURN test_pass(const char *filename)
Definition: test_utils.c:432
find_nonderived_event
int find_nonderived_event(void)
Definition: test_utils.c:98
test_skip
void PAPI_NORETURN test_skip(const char *file, int line, const char *call, int retval)
Definition: test_utils.c:584
quiet
int quiet
Definition: rapl_overflow.c:19
long
long long int long long
Definition: sde_internal.h:85
NUM_FLOPS
#define NUM_FLOPS
Definition: sdsc-mpx.c:24
num_events1
int num_events1
Definition: zero_fork.c:49
retval
int retval
Definition: zero_fork.c:53

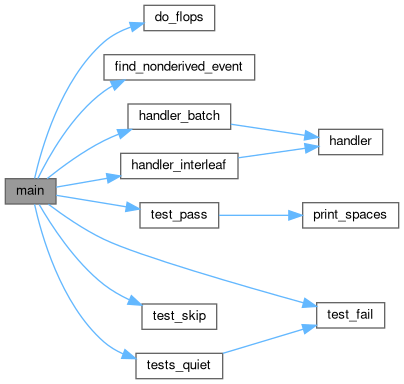

Here is the call graph for this function:

Variable Documentation

◆ overflow_counts

ocount_t overflow_counts[2][3]
static
Initial value:
=
{ {{0, 0}, {0, 0}, {0, 0}}, {{0, 0}, {0, 0}, {0, 0}} }

Definition at line 33 of file overflow_twoevents.c.

◆ total_unknown

int total_unknown = 0
static

Definition at line 35 of file overflow_twoevents.c.
