papi_tot_ins.c File Reference

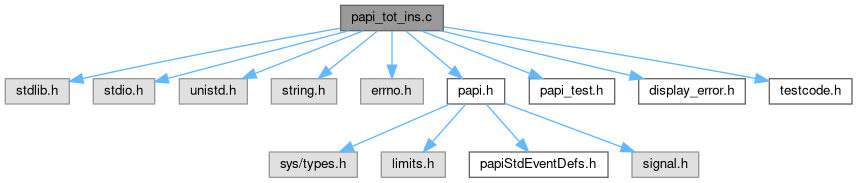

Include dependency graph for papi_tot_ins.c:

Go to the source code of this file.

Macros

#define NUM_RUNS   100


Functions

static void test_million (int quiet)

static void test_fldcw (int quiet)

static void test_rep (int quiet)

int main (int argc, char **argv)


Macro Definition Documentation

◆ NUM_RUNS

#define NUM_RUNS   100

Definition at line 23 of file papi_tot_ins.c.

Function Documentation

◆ main()

int main ( int  argc,
char **  argv
)

Definition at line 226 of file papi_tot_ins.c.

226 {
227
228 int retval;
229 int quiet=0;
230
231 (void)argc;
232 (void)argv;
233
234 quiet=tests_quiet(argc,argv);
235
236 if (!quiet) {
237 printf("\nThis test checks that the \"PAPI_TOT_INS\" generalized "
238 "event is working.\n");
239 }
240
241 /* Init the PAPI library */
242 retval = PAPI_library_init( PAPI_VER_CURRENT );
243 if ( retval != PAPI_VER_CURRENT ) {
244 test_fail( __FILE__, __LINE__, "PAPI_library_init", retval );
245 }
246
247 test_million(quiet);
248 test_fldcw(quiet);
249 test_rep(quiet);
250
251 if (!quiet) printf("\n");
252
253 test_pass( __FILE__ );
254
255 PAPI_shutdown();
256
257 return 0;
258}
PAPI_library_init
initialize the PAPI library.
PAPI_shutdown
Finish using PAPI and free all related resources.
PAPI_VER_CURRENT
#define PAPI_VER_CURRENT
Definition: f90papi.h:54
tests_quiet
int tests_quiet(int argc, char **argv)
Definition: test_utils.c:376
test_fail
void PAPI_NORETURN test_fail(const char *file, int line, const char *call, int retval)
Definition: test_utils.c:491
test_pass
void PAPI_NORETURN test_pass(const char *filename)
Definition: test_utils.c:432
test_fldcw
static void test_fldcw(int quiet)
Definition: papi_tot_ins.c:99
test_rep
static void test_rep(int quiet)
Definition: papi_tot_ins.c:165
test_million
static void test_million(int quiet)
Definition: papi_tot_ins.c:31
quiet
int quiet
Definition: rapl_overflow.c:19
retval
int retval
Definition: zero_fork.c:53

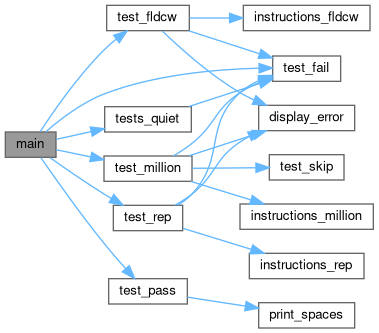

Here is the call graph for this function:

◆ test_fldcw()

static void test_fldcw ( int  quiet)
static

Definition at line 99 of file papi_tot_ins.c.

99 {
100
101 (void)quiet;
102
103#if defined(__i386__) || (defined __x86_64__)
104 int i,result,ins_result;
105 int eventset=PAPI_NULL;
106
107 long long count,high=0,low=0,total=0,average=0;
108 double error;
109
110 if (!quiet) {
111 printf("\nTesting a fldcw loop of 900,000 instructions (%d times):\n",
112 NUM_RUNS);
113 }
114
115 result=PAPI_create_eventset(&eventset);
116 if (result!=PAPI_OK) {
117 test_fail( __FILE__, __LINE__, "PAPI_create_eventset", result );
118 }
119
120 result=PAPI_add_named_event(eventset,"PAPI_TOT_INS");
121 if (result!=PAPI_OK) {
122 test_fail( __FILE__, __LINE__, "adding PAPI_TOT_INS", result );
123 }
124
125 for(i=0;i<NUM_RUNS;i++) {
126
127 PAPI_reset(eventset);
128 PAPI_start(eventset);
129
130 ins_result=instructions_fldcw();
131
132 result=PAPI_stop(eventset,&count);
133
134 if (ins_result==CODE_UNIMPLEMENTED) {
135 test_fail( __FILE__, __LINE__, "Code unimplemented", 1 );
136 }
137
138 if (result!=PAPI_OK) {
139 test_fail( __FILE__, __LINE__, "Unexpected error on read", 1 );
140 }
141
142 if (count>high) high=count;
143 if ((low==0) || (count<low)) low=count;
144 total+=count;
145 }
146
147 average=total/NUM_RUNS;
148
149 error=display_error(average,high,low,900000ULL,quiet);
150
151 if ((error > 1.0) || (error<-1.0)) {
152
153 if (!quiet) {
154 printf("On Pentium 4 machines, the fldcw instruction counts as 2.\n");
155 printf("This will lead to an overcount of 22%%\n");
156 }
157 test_fail( __FILE__, __LINE__, "Error too high", 1 );
158 }
159#endif
160}
result
volatile int result
Definition: Lib_With_Created_Counter.c:21
i
int i
Definition: PAPI_get_virt_cyc.c:10
count
static long count
Definition: child_overflow.c:33
PAPI_add_named_event
add PAPI preset or native hardware event by name to an EventSet
PAPI_create_eventset
Create a new empty PAPI EventSet.
PAPI_reset
Reset the hardware event counts in an event set.
PAPI_start
Start counting hardware events in an event set.
PAPI_stop
Stop counting hardware events in an event set.
display_error
double display_error(long long average, long long high, long long low, long long expected, int quiet)
Definition: display_error.c:7
PAPI_OK
#define PAPI_OK
Definition: f90papi.h:73
PAPI_NULL
#define PAPI_NULL
Definition: f90papi.h:78
instructions_fldcw
int instructions_fldcw(void)
Definition: instructions_testcode.c:92
NUM_RUNS
#define NUM_RUNS
Definition: papi_tot_ins.c:23
total
static int total
Definition: rapl_overflow.c:9
CODE_UNIMPLEMENTED
#define CODE_UNIMPLEMENTED
Definition: testcode.h:2
Here is the call graph for this function:
Here is the caller graph for this function:

◆ test_million()

static void test_million ( int  quiet)
static

Definition at line 31 of file papi_tot_ins.c.

31 {
32
33 int i,result,ins_result;
34
35 long long count,high=0,low=0,total=0,average=0;
36 double error;
37 int eventset=PAPI_NULL;
38
39 if (!quiet) {
40 printf("\nTesting a loop of 1 million instructions (%d times):\n",
41 NUM_RUNS);
42 }
43
44 result=PAPI_create_eventset(&eventset);
45 if (result!=PAPI_OK) {
46 test_fail( __FILE__, __LINE__, "PAPI_create_eventset", result );
47 }
48
49 result=PAPI_add_named_event(eventset,"PAPI_TOT_INS");
50 if (result!=PAPI_OK) {
51 if (!quiet) printf("Could not add PAPI_TOT_INS\n");
52 test_skip( __FILE__, __LINE__, "adding PAPI_TOT_INS", result );
53 }
54
55 for(i=0;i<NUM_RUNS;i++) {
56
57 PAPI_reset(eventset);
58 PAPI_start(eventset);
59
60 ins_result=instructions_million();
61
62 result=PAPI_stop(eventset,&count);
63
64 if (ins_result==CODE_UNIMPLEMENTED) {
65 fprintf(stderr,"\tCode unimplemented\n");
66 test_skip( __FILE__, __LINE__, "unimplemented", 0);
67 }
68
69 if (result!=PAPI_OK) {
70 test_fail( __FILE__, __LINE__,
71 "reading PAPI_TOT_INS", result );
72 }
73
74 if (count>high) high=count;
75 if ((low==0) || (count<low)) low=count;
76 total+=count;
77 }
78
79 average=total/NUM_RUNS;
80
81 error=display_error(average,high,low,1000000ULL,quiet);
82
83 if ((error > 1.0) || (error<-1.0)) {
84
85#if defined(__PPC__)
86
87 if(!quiet) {
88 printf("If PPC is off by 50%%, this might be due to\n"
89 "\"folded\" branch instructions on PPC32\n");
90 }
91#endif
92 test_fail( __FILE__, __LINE__, "validation", result );
93
94 }
95}
instructions_million
int instructions_million(void)
Definition: instructions_testcode.c:8
stderr
FILE * stderr
test_skip
void PAPI_NORETURN test_skip(const char *file, int line, const char *call, int retval)
Definition: test_utils.c:584
Here is the call graph for this function:
Here is the caller graph for this function:

◆ test_rep()

static void test_rep ( int  quiet)
static

Definition at line 165 of file papi_tot_ins.c.

165 {
166
167 (void)quiet;
168
169#if defined(__i386__) || (defined __x86_64__)
170 int i,result,ins_result;
171 int eventset=PAPI_NULL;
172
173 long long count,high=0,low=0,total=0,average=0;
174 double error;
175
176 if(!quiet) {
177 printf("\nTesting a 16k rep loop (%d times):\n", NUM_RUNS);
178 }
179
180 result=PAPI_create_eventset(&eventset);
181 if (result!=PAPI_OK) {
182 test_fail( __FILE__, __LINE__, "PAPI_create_eventset", result );
183 }
184
185 result=PAPI_add_named_event(eventset,"PAPI_TOT_INS");
186 if (result!=PAPI_OK) {
187 test_fail( __FILE__, __LINE__, "adding PAPI_TOT_INS", result );
188 }
189
190 for(i=0;i<NUM_RUNS;i++) {
191
192 PAPI_reset(eventset);
193 PAPI_start(eventset);
194
195 ins_result=instructions_rep();
196
197 result=PAPI_stop(eventset,&count);
198
199 if (ins_result==CODE_UNIMPLEMENTED) {
200 fprintf(stderr,"\tCode unimplemented\n");
201 test_fail( __FILE__, __LINE__, "Code unimplemented", 1 );
202 }
203
204 if (result!=PAPI_OK) {
205 test_fail( __FILE__, __LINE__, "Unexpected error on read", 1 );
206 }
207
208 if (count>high) high=count;
209 if ((low==0) || (count<low)) low=count;
210 total+=count;
211 }
212
213 average=total/NUM_RUNS;
214
215 error=display_error(average,high,low,6002,quiet);
216
217 if ((error > 10.0) || (error<-10.0)) {
218 if (!quiet) {
219 printf("Instruction count off by more than 10%%\n");
220 }
221 test_fail( __FILE__, __LINE__, "Error too high", 1 );
222 }
223#endif
224}
instructions_rep
int instructions_rep(void)
Definition: instructions_testcode.c:124
Here is the call graph for this function:
Here is the caller graph for this function:
