reset_multiplex.c File Reference

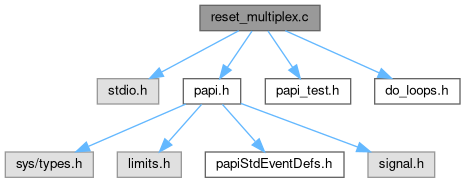

Include dependency graph for reset_multiplex.c:

Go to the source code of this file.

Functions

int main (int argc, char **argv)


Function Documentation

◆ main()

int main ( int  argc,
char **  argv
)

Definition at line 17 of file reset_multiplex.c.

18{
19 int retval, num_tests = 9, num_events, tmp, i;
20 long long **values;
21 int EventSet = PAPI_NULL;
22 int PAPI_event, mask;
23 char event_name[PAPI_MAX_STR_LEN], add_event_str[PAPI_2MAX_STR_LEN];
24 int quiet;
25
26 /* Set TESTS_QUIET variable */
27 quiet = tests_quiet( argc, argv );
28
29 /* Init the PAPI library */
30 retval = PAPI_library_init( PAPI_VER_CURRENT );
31 if ( retval != PAPI_VER_CURRENT ) {
32 test_fail( __FILE__, __LINE__, "PAPI_library_init", retval );
33 }
34
35 retval = PAPI_multiplex_init( );
36 if ( retval == PAPI_ENOSUPP) {
37 test_skip(__FILE__, __LINE__, "Multiplex not supported", 1);
38 }
39 else if ( retval != PAPI_OK ) {
40 test_fail( __FILE__, __LINE__, "PAPI_multiplex_init", retval );
41 }
42
43
44 /* add PAPI_TOT_CYC and one of the events in
45 PAPI_FP_INS, PAPI_FP_OPS or PAPI_TOT_INS,
46 depending on the availability of the event
47 on the platform */
48 EventSet = add_two_events( &num_events, &PAPI_event, &mask );
49
50 /* Set multiplexing on the eventset */
51
52 retval = PAPI_set_multiplex( EventSet );
53 if ( retval != PAPI_OK) {
54 test_fail(__FILE__, __LINE__, "Setting multiplex", retval);
55 }
56
57 retval = PAPI_event_code_to_name( PAPI_event, event_name );
58 if ( retval != PAPI_OK ) {
59 test_fail( __FILE__, __LINE__, "PAPI_event_code_to_name", retval );
60 }
61 sprintf( add_event_str, "PAPI_add_event[%s]", event_name );
62
63 values = allocate_test_space( num_tests, num_events );
64
65 /*===== Test 1: Start/Stop =======================*/
66
67 retval = PAPI_start( EventSet );
68 if ( retval != PAPI_OK ) {
69 test_fail( __FILE__, __LINE__, "PAPI_start", retval );
70 }
71
72 do_flops( NUM_FLOPS );
73
74 retval = PAPI_stop( EventSet, values[0] );
75 if ( retval != PAPI_OK ) {
76 test_fail( __FILE__, __LINE__, "PAPI_stop", retval );
77 }
78
79 /*===== Test 2 Start/Stop =======================*/
80
81 retval = PAPI_start( EventSet );
82 if ( retval != PAPI_OK ) {
83 test_fail( __FILE__, __LINE__, "PAPI_start", retval );
84 }
85
86 do_flops( NUM_FLOPS );
87
88 retval = PAPI_stop( EventSet, values[1] );
89 if ( retval != PAPI_OK ) {
90 test_fail( __FILE__, __LINE__, "PAPI_stop", retval );
91 }
92
93 /*===== Test 3: Reset/Start/Stop =======================*/
94
95 retval = PAPI_reset( EventSet );
96 if ( retval != PAPI_OK ) {
97 test_fail( __FILE__, __LINE__, "PAPI_reset", retval );
98 }
99
100 retval = PAPI_start( EventSet );
101 if ( retval != PAPI_OK ) {
102 test_fail( __FILE__, __LINE__, "PAPI_start", retval );
103 }
104
105 do_flops( NUM_FLOPS );
106
107 retval = PAPI_stop( EventSet, values[2] );
108 if ( retval != PAPI_OK ) {
109 test_fail( __FILE__, __LINE__, "PAPI_stop", retval );
110 }
111
112 /*===== Test 4: Start/Read =======================*/
113
114 retval = PAPI_start( EventSet );
115 if ( retval != PAPI_OK ) {
116 test_fail( __FILE__, __LINE__, "PAPI_start", retval );
117 }
118
119 do_flops( NUM_FLOPS / 2 );
120
121 retval = PAPI_read( EventSet, values[3] );
122 if ( retval != PAPI_OK ) {
123 test_fail( __FILE__, __LINE__, "PAPI_read", retval );
124 }
125
126 /*===== Test 5: Read =======================*/
127
128 do_flops( NUM_FLOPS / 2 );
129
130 retval = PAPI_read( EventSet, values[4] );
131 if ( retval != PAPI_OK ) {
132 test_fail( __FILE__, __LINE__, "PAPI_read", retval );
133 }
134
135 /*===== Test 6: Read/Accum =======================*/
136
137 do_flops( NUM_FLOPS / 2 );
138
139 retval = PAPI_read( EventSet, values[5] );
140 if ( retval != PAPI_OK ) {
141 test_fail( __FILE__, __LINE__, "PAPI_read", retval );
142 }
143
144 retval = PAPI_accum( EventSet, values[5] );
145
146 if ( retval != PAPI_OK ) {
147 test_fail( __FILE__, __LINE__, "PAPI_accum", retval );
148 }
149
150 /*===== Test 7: Read =======================*/
151
152 do_flops( NUM_FLOPS / 2 );
153
154 retval = PAPI_read( EventSet, values[6] );
155 if ( retval != PAPI_OK ) {
156 test_fail( __FILE__, __LINE__, "PAPI_read", retval );
157 }
158
159 /*===== Test 8 Reset/Stop =======================*/
160 retval = PAPI_reset( EventSet );
161 if ( retval != PAPI_OK ) {
162 test_fail( __FILE__, __LINE__, "PAPI_reset", retval );
163 }
164
165 do_flops( NUM_FLOPS / 2 );
166
167 retval = PAPI_stop( EventSet, values[7] );
168 if ( retval != PAPI_OK ) {
169 test_fail( __FILE__, __LINE__, "PAPI_stop", retval );
170 }
171
172 /*===== Test 9: Reset/Read =======================*/
173 retval = PAPI_reset( EventSet );
174 if ( retval != PAPI_OK ) {
175 test_fail( __FILE__, __LINE__, "PAPI_reset", retval );
176 }
177
178 retval = PAPI_read( EventSet, values[8] );
179 if ( retval != PAPI_OK ) {
180 test_fail( __FILE__, __LINE__, "PAPI_read", retval );
181 }
182
183 remove_test_events( &EventSet, mask );
184
185 if (!quiet) {
186 printf( "Test case: Start/Stop/Read/Accum/Reset.\n" );
187 printf( "----------------------------------------------------------------\n" );
188 tmp = PAPI_get_opt( PAPI_DEFDOM, NULL );
189 printf( "Default domain is: %d (%s)\n", tmp,
190 stringify_all_domains( tmp ) );
191 tmp = PAPI_get_opt( PAPI_DEFGRN, NULL );
192 printf( "Default granularity is: %d (%s)\n", tmp,
193 stringify_granularity( tmp ) );
194 printf( "Using %d iterations of c += a*b\n", NUM_FLOPS );
195 printf( "-------------------------------------------------------------------------\n" );
196
197 sprintf( add_event_str, "%s:", event_name );
198 printf( " PAPI_TOT_CYC %s\n", event_name );
199 printf( "1. start,ops,stop %10lld %10lld\n", values[0][0],
200 values[0][1] );
201 printf( "2. start,ops,stop %10lld %10lld\n", values[1][0],
202 values[1][1] );
203 printf( "3. reset,start,ops,stop %10lld %10lld\n", values[2][0],
204 values[2][1] );
205 printf( "4. start,ops/2,read %10lld %10lld\n", values[3][0],
206 values[3][1] );
207 printf( "5. ops/2,read %10lld %10lld\n", values[4][0],
208 values[4][1] );
209 printf( "6. ops/2,accum %10lld %10lld\n", values[5][0],
210 values[5][1] );
211 printf( "7. ops/2,read %10lld %10lld\n", values[6][0],
212 values[6][1] );
213 printf( "8. reset,ops/2,stop %10lld %10lld\n", values[7][0],
214 values[7][1] );
215 printf( "9. reset,read %10lld %10lld\n", values[8][0],
216 values[8][1] );
217 printf( "-------------------------------------------------------------------------\n" );
218 printf( "Verification:\n" );
219 printf( "Row 1 approximately equals rows 2 and 3 \n" );
220 printf( "Row 4 approximately equals 1/2 of row 3\n" );
221 printf( "Row 5 approximately equals twice row 4\n" );
222 printf( "Row 6 approximately equals 6 times row 4\n" );
223 printf( "Rows 7 and 8 approximately equal row 4\n" );
224 printf( "Row 9 equals 0\n" );
225 printf( "%% difference between %s 1 & 2: %.2f\n", "PAPI_TOT_CYC",
226 100.0 * ( float ) values[0][0] / ( float ) values[1][0] );
227 printf( "%% difference between %s 1 & 2: %.2f\n", add_event_str,
228 100.0 * ( float ) values[0][1] / ( float ) values[1][1] );
229 }
230
231 for ( i = 0; i <= 1; i++ ) {
232 if ( !approx_equals
233 ( ( double ) values[0][i], ( double ) values[1][i] ) )
234 test_fail( __FILE__, __LINE__,
235 ( ( i == 0 ) ? "PAPI_TOT_CYC" : add_event_str ), 1 );
236 if ( !approx_equals
237 ( ( double ) values[1][i], ( double ) values[2][i] ) )
238 test_fail( __FILE__, __LINE__,
239 ( ( i == 0 ) ? "PAPI_TOT_CYC" : add_event_str ), 1 );
240 if ( !approx_equals
241 ( ( double ) values[2][i], ( double ) values[3][i] * 2.0 ) )
242 test_fail( __FILE__, __LINE__,
243 ( ( i == 0 ) ? "PAPI_TOT_CYC" : add_event_str ), 1 );
244 if ( !approx_equals
245 ( ( double ) values[2][i], ( double ) values[4][i] ) )
246 test_fail( __FILE__, __LINE__,
247 ( ( i == 0 ) ? "PAPI_TOT_CYC" : add_event_str ), 1 );
248 if ( !approx_equals
249 ( ( double ) values[5][i], ( double ) values[3][i] * 6.0 ) )
250 test_fail( __FILE__, __LINE__,
251 ( ( i == 0 ) ? "PAPI_TOT_CYC" : add_event_str ), 1 );
252 if ( !approx_equals
253 ( ( double ) values[6][i], ( double ) values[3][i] ) )
254 test_fail( __FILE__, __LINE__,
255 ( ( i == 0 ) ? "PAPI_TOT_CYC" : add_event_str ), 1 );
256 if ( !approx_equals
257 ( ( double ) values[7][i], ( double ) values[3][i] ) )
258 test_fail( __FILE__, __LINE__,
259 ( ( i == 0 ) ? "PAPI_TOT_CYC" : add_event_str ), 1 );
260 if ( values[8][i] != 0LL )
261 test_fail( __FILE__, __LINE__,
262 ( ( i == 0 ) ? "PAPI_TOT_CYC" : add_event_str ), 1 );
263 }
264
265 test_pass( __FILE__ );
266
267 return 0;
268}
tmp
double tmp
Definition: PAPI_get_virt_cyc.c:11
i
int i
Definition: PAPI_get_virt_cyc.c:10
PAPI_accum
Accumulate and reset counters in an EventSet.
PAPI_event_code_to_name
Convert a numeric hardware event code to a name.
PAPI_get_opt
Get PAPI library or event set options.
PAPI_library_init
initialize the PAPI library.
PAPI_multiplex_init
Initialize multiplex support in the PAPI library.
PAPI_read
Read hardware counters from an event set.
PAPI_reset
Reset the hardware event counts in an event set.
PAPI_set_multiplex
Convert a standard event set to a multiplexed event set.
PAPI_start
Start counting hardware events in an event set.
PAPI_stop
Stop counting hardware events in an event set.
PAPI_event
int PAPI_event[2]
Definition: data_range.c:30
event_name
char event_name[2][PAPI_MAX_STR_LEN]
Definition: data_range.c:29
PAPI_VER_CURRENT
#define PAPI_VER_CURRENT
Definition: f90papi.h:54
PAPI_OK
#define PAPI_OK
Definition: f90papi.h:73
PAPI_NULL
#define PAPI_NULL
Definition: f90papi.h:78
PAPI_DEFGRN
#define PAPI_DEFGRN
Definition: f90papi.h:26
PAPI_ENOSUPP
#define PAPI_ENOSUPP
Definition: f90papi.h:244
PAPI_MAX_STR_LEN
#define PAPI_MAX_STR_LEN
Definition: f90papi.h:77
PAPI_2MAX_STR_LEN
#define PAPI_2MAX_STR_LEN
Definition: f90papi.h:180
PAPI_DEFDOM
#define PAPI_DEFDOM
Definition: f90papi.h:188
EventSet
static int EventSet
Definition: init_fini.c:8
values
static long long values[NUM_EVENTS]
Definition: init_fini.c:10
num_events
static int num_events
Definition: linux-coretemp.c:37
do_flops
void do_flops(int n)
Definition: multiplex.c:23
tests_quiet
int tests_quiet(int argc, char **argv)
Definition: test_utils.c:376
stringify_all_domains
char * stringify_all_domains(int domains)
Definition: test_utils.c:293
stringify_granularity
char * stringify_granularity(int granularity)
Definition: test_utils.c:353
approx_equals
int approx_equals(double a, double b)
Definition: test_utils.c:33
test_fail
void PAPI_NORETURN test_fail(const char *file, int line, const char *call, int retval)
Definition: test_utils.c:491
allocate_test_space
long long ** allocate_test_space(int num_tests, int num_events)
Definition: test_utils.c:46
test_pass
void PAPI_NORETURN test_pass(const char *filename)
Definition: test_utils.c:432
add_two_events
int add_two_events(int *num_events, int *papi_event, int *mask)
Definition: test_utils.c:640
test_skip
void PAPI_NORETURN test_skip(const char *file, int line, const char *call, int retval)
Definition: test_utils.c:584
remove_test_events
int remove_test_events(int *EventSet, int mask)
Definition: test_utils.c:201
quiet
int quiet
Definition: rapl_overflow.c:19
NUM_FLOPS
#define NUM_FLOPS
Definition: sdsc-mpx.c:24
num_tests
int num_tests
Definition: zero_fork.c:53
retval
int retval
Definition: zero_fork.c:53

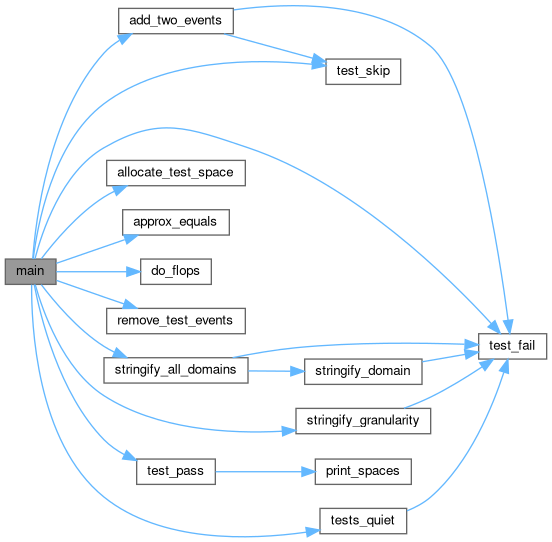

Here is the call graph for this function:
