Include dependency graph for GPUMetricInterface.h:

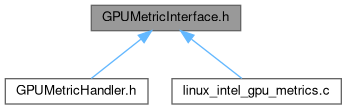

This graph shows which files directly or indirectly include this file:

Data Structures
struct	MetricInfo

struct	DeviceInfo

struct	DataEntry

struct	MetricData

struct	MetricNode

Macros
#define	MAX_STR_LEN 256

#define	TIME_BASED 0

#define	EVENT_BASED 1

#define	M_ACCUMULATE 0x0

#define	M_AVERAGE 0x1

#define	M_RAW 0x2

#define	DRV_BITS 4

#define	DEV_BITS 4

#define	SDEV_BITS 4

#define	IDX_BITS 16

#define	DMASK 0xf

#define	DCODE_MASK 0xfff

#define	IDX_MASK 0xffff

#define	CreateDeviceCode(drv, dev, sdev)

#define	CreateIdxCode(devcode, idx) ((((devcode)&DCODE_MASK)<<IDX_BITS)\|((idx)&IDX_MASK))

#define	GetDeviceCode(handle) (((handle) >> IDX_BITS) & DCODE_MASK)

#define	GetIdx(handle) ((handle) & IDX_MASK)

#define	GetSDev(handle) (((handle) >> IDX_BITS) & DMASK)

#define	GetDev(handle) (((handle) >> (IDX_BITS+SDEV_BITS)) & DMASK)

#define	GetDrv(handle) (((handle) >> (IDX_BITS+SDEV_BITS+DEV_BITS)) & DMASK)

#define	IsDeviceHandle(devcode, handle) ((devcode) == (((handle)>>IDX_BITS)&DCODE_MASK))

#define	METRIC_BITS 8

#define	METRIC_GROUP_MASK 0xff00

#define	METRIC_MASK 0x00ff

#define	CreateGroupCode(mGroupId) (((mGroupId+1)<<METRIC_BITS) & METRIC_GROUP_MASK)

#define	CreateMetricCode(mGroupId, mId) ((CreateGroupCode(mGroupId)) \| ((mId+1)&METRIC_MASK))

#define	GetGroupIdx(code) (((code) & METRIC_GROUP_MASK) >> METRIC_BITS)

#define	GetMetricIdx(code) ((code) & METRIC_MASK)

#define	MAX_METRICS 128

#define	MAX_NUM_REPORTS 20

#define	METRIC_SAMPLE 0x1

#define	METRIC_SUMMARY 0x2

#define	METRIC_RESET 0x4

Typedefs
typedef int	DEVICE_HANDLE

typedef char	NAMESTR[MAX_STR_LEN]

Functions
MetricInfo *	GPUAllocMetricInfo (uint32_t count)

void	GPUFreeMetricInfo (MetricInfo *info, uint32_t count)

MetricData *	GPUAllocMetricData (uint32_t count, uint32_t numSets, uint32_t numMetrics)

void	GPUFreeMetricData (MetricData *data, uint32_t count)

void	strncpy_se (char dest, size_t destSize, char src, size_t count)

int	GPUDetectDevice (DEVICE_HANDLE *handle, uint32_t numDevice)
	Detect the named device which has performance monitoring feature availale.

int	GPUGetDeviceInfo (DEVICE_HANDLE handle, MetricInfo *data)
	Get the device properties, which is mainly in <name, value> format.

int	GPUPrintDeviceInfo (DEVICE_HANDLE handle, FILE *stream)
	Get the device properties, which is mainly in <name, value> format.

int	GPUGetMetricGroups (DEVICE_HANDLE handle, uint32_t mtype, MetricInfo *data)
	list available metric groups for the selected type

int	GPUGetMetricList (DEVICE_HANDLE handle, char groupName, uint32_t mtype, MetricInfo data)
	list available metrics in the named group. If name is "", list all available metrics in all groups

int	GPUEnableMetricGroup (DEVICE_HANDLE handle, char *metricGroupName, uint32_t metricGroupCode, uint32_t mtype, uint32_t period, uint32_t numReports)

int	GPUEnableMetrics (DEVICE_HANDLE handle, char **metricNameList, uint32_t numMetrics, uint32_t mtype, uint32_t period, uint32_t numReports)

int	GPUDisableMetricGroup (DEVICE_HANDLE handle, uint32_t mtype)

int	GPUStart (DEVICE_HANDLE handle)
	start collection

int	GPUStop (DEVICE_HANDLE handle)

MetricData *	GPUReadMetricData (DEVICE_HANDLE handle, uint32_t mode, uint32_t *reportCounts)
	read metric data

int	GPUSetMetricControl (DEVICE_HANDLE handle, uint32_t mode)
	set control for metric data collection

void	GPUFreeDevice (DEVICE_HANDLE handle)
	free the resouce related this device handle

Macro Definition Documentation

◆ CreateDeviceCode

#define CreateDeviceCode	(	drv,
		dev,
		sdev
	)

Value:

                  ((((drv)&DMASK)<<(SDEV_BITS+DEV_BITS)) |          \
          (((dev)&DMASK)<<SDEV_BITS) |                              \
          ((sdev)&DMASK))

Definition at line 117 of file GPUMetricInterface.h.

◆ CreateGroupCode

#define CreateGroupCode ( mGroupId ) (((mGroupId+1)<<METRIC_BITS) & METRIC_GROUP_MASK)

Definition at line 141 of file GPUMetricInterface.h.

◆ CreateIdxCode

#define CreateIdxCode	(	devcode,
		idx
	)	((((devcode)&DCODE_MASK)<<IDX_BITS)\|((idx)&IDX_MASK))

Definition at line 125 of file GPUMetricInterface.h.

◆ CreateMetricCode

#define CreateMetricCode	(	mGroupId,
		mId
	)	((CreateGroupCode(mGroupId)) \| ((mId+1)&METRIC_MASK))

Definition at line 142 of file GPUMetricInterface.h.

◆ DCODE_MASK

#define DCODE_MASK 0xfff

Definition at line 114 of file GPUMetricInterface.h.

◆ DEV_BITS

#define DEV_BITS 4

Definition at line 110 of file GPUMetricInterface.h.

◆ DMASK

#define DMASK 0xf

Definition at line 113 of file GPUMetricInterface.h.

◆ DRV_BITS

#define DRV_BITS 4

Definition at line 109 of file GPUMetricInterface.h.

◆ EVENT_BASED

#define EVENT_BASED 1

Definition at line 43 of file GPUMetricInterface.h.

◆ GetDev

#define GetDev ( handle ) (((handle) >> (IDX_BITS+SDEV_BITS)) & DMASK)

Definition at line 130 of file GPUMetricInterface.h.

◆ GetDeviceCode

#define GetDeviceCode ( handle ) (((handle) >> IDX_BITS) & DCODE_MASK)

Definition at line 127 of file GPUMetricInterface.h.

◆ GetDrv

#define GetDrv ( handle ) (((handle) >> (IDX_BITS+SDEV_BITS+DEV_BITS)) & DMASK)

Definition at line 131 of file GPUMetricInterface.h.

◆ GetGroupIdx

#define GetGroupIdx ( code ) (((code) & METRIC_GROUP_MASK) >> METRIC_BITS)

Definition at line 143 of file GPUMetricInterface.h.

◆ GetIdx

#define GetIdx ( handle ) ((handle) & IDX_MASK)

Definition at line 128 of file GPUMetricInterface.h.

◆ GetMetricIdx

#define GetMetricIdx ( code ) ((code) & METRIC_MASK)

Definition at line 144 of file GPUMetricInterface.h.

◆ GetSDev

#define GetSDev ( handle ) (((handle) >> IDX_BITS) & DMASK)

Definition at line 129 of file GPUMetricInterface.h.

◆ IDX_BITS

#define IDX_BITS 16

Definition at line 112 of file GPUMetricInterface.h.

◆ IDX_MASK

#define IDX_MASK 0xffff

Definition at line 115 of file GPUMetricInterface.h.

◆ IsDeviceHandle

#define IsDeviceHandle	(	devcode,
		handle
	)	((devcode) == (((handle)>>IDX_BITS)&DCODE_MASK))

Definition at line 132 of file GPUMetricInterface.h.

◆ M_ACCUMULATE

#define M_ACCUMULATE 0x0

Definition at line 46 of file GPUMetricInterface.h.

◆ M_AVERAGE

#define M_AVERAGE 0x1

Definition at line 47 of file GPUMetricInterface.h.

◆ M_RAW

#define M_RAW 0x2

Definition at line 48 of file GPUMetricInterface.h.

◆ MAX_METRICS

#define MAX_METRICS 128

Definition at line 147 of file GPUMetricInterface.h.

◆ MAX_NUM_REPORTS

#define MAX_NUM_REPORTS 20

Definition at line 149 of file GPUMetricInterface.h.

◆ MAX_STR_LEN

#define MAX_STR_LEN 256

Definition at line 38 of file GPUMetricInterface.h.

◆ METRIC_BITS

#define METRIC_BITS 8

Definition at line 137 of file GPUMetricInterface.h.

◆ METRIC_GROUP_MASK

#define METRIC_GROUP_MASK 0xff00

Definition at line 138 of file GPUMetricInterface.h.

◆ METRIC_MASK

#define METRIC_MASK 0x00ff

Definition at line 139 of file GPUMetricInterface.h.

◆ METRIC_RESET

#define METRIC_RESET 0x4

Definition at line 154 of file GPUMetricInterface.h.

◆ METRIC_SAMPLE

#define METRIC_SAMPLE 0x1

Definition at line 152 of file GPUMetricInterface.h.

◆ METRIC_SUMMARY

#define METRIC_SUMMARY 0x2

Definition at line 153 of file GPUMetricInterface.h.

◆ SDEV_BITS

#define SDEV_BITS 4

Definition at line 111 of file GPUMetricInterface.h.

◆ TIME_BASED

#define TIME_BASED 0

Definition at line 42 of file GPUMetricInterface.h.

Typedef Documentation

◆ DEVICE_HANDLE

typedef int DEVICE_HANDLE

Definition at line 50 of file GPUMetricInterface.h.

◆ NAMESTR

typedef char NAMESTR[MAX_STR_LEN]

Definition at line 52 of file GPUMetricInterface.h.

Function Documentation

◆ GPUAllocMetricData()

MetricData * GPUAllocMetricData	(	uint32_t	count,
		uint32_t	numSets,
		uint32_t	numMetrics
	)

◆ GPUAllocMetricInfo()

MetricInfo * GPUAllocMetricInfo ( uint32_t count )

◆ GPUDetectDevice()

int GPUDetectDevice	(	DEVICE_HANDLE **	handle,
		uint32_t *	numDevice
	)

Parameters

OUT	handle - a array of handle, each for an instance of the device

Returns: 0 – success, otherwise, error code

Here is the caller graph for this function:

◆ GPUDisableMetricGroup()

int GPUDisableMetricGroup	(	DEVICE_HANDLE	handle,
		uint32_t	mtype
	)

Here is the caller graph for this function:

◆ GPUEnableMetricGroup()

int GPUEnableMetricGroup	(	DEVICE_HANDLE	handle,
		char *	metricGroupName,
		uint32_t	metricGroupCode,
		uint32_t	mtype,
		uint32_t	period,
		uint32_t	numReports
	)

Here is the caller graph for this function:

◆ GPUEnableMetrics()

int GPUEnableMetrics	(	DEVICE_HANDLE	handle,
		char **	metricNameList,
		uint32_t	numMetrics,
		uint32_t	mtype,
		uint32_t	period,
		uint32_t	numReports
	)

◆ GPUFreeDevice()

void GPUFreeDevice ( DEVICE_HANDLE handle )

Parameters

IN	handle - handle to the selected device

Returns: 0 – success, otherwise, error code

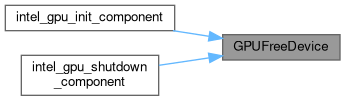

Here is the caller graph for this function:

◆ GPUFreeMetricData()

void GPUFreeMetricData	(	MetricData *	data,
		uint32_t	count
	)

Here is the caller graph for this function:

◆ GPUFreeMetricInfo()

void GPUFreeMetricInfo	(	MetricInfo *	info,
		uint32_t	count
	)

◆ GPUGetDeviceInfo()

int GPUGetDeviceInfo	(	DEVICE_HANDLE	handle,
		MetricInfo *	data
	)

Parameters

IN	handle - handle to the selected device
OUT	data - the property data

Returns: 0 – success, otherwise, error code

◆ GPUGetMetricGroups()

int GPUGetMetricGroups	(	DEVICE_HANDLE	handle,
		uint32_t	mtype,
		MetricInfo *	data
	)

Parameters

IN	handle - handle to the selected device
IN	mtype - metric group type
OUT	data - metric data

Returns: 0 – success, otherwise, error code

◆ GPUGetMetricList()

int GPUGetMetricList	(	DEVICE_HANDLE	handle,
		char *	groupName,
		uint32_t	mtype,
		MetricInfo *	data
	)

Parameters

IN	handle - handle to the selected device
IN	groupName - metric group name. "" means all groups.
In	mtype - metric type <TIME_BASED, EVENT_BASED>
OUT	data - metric data

Returns: 0 – success, otherwise, error code

Here is the caller graph for this function:

◆ GPUPrintDeviceInfo()

int GPUPrintDeviceInfo	(	DEVICE_HANDLE	handle,
		FILE *	stream
	)

Parameters

IN	handle - handle to the selected device
IN	stream - IO stream to print

Returns: 0 – success, otherwise, error code

◆ GPUReadMetricData()

Metricdata * GPUReadMetricData	(	DEVICE_HANDLE	handle,
		uint32_t	mode,
		uint32_t *	reportCounts
	)

Parameters

IN	handle - handle to the selected device
IN	mode - collection mode (sample, summary, reset)
OUT	reportCounts - returned metric data array size

Returns: data - returned metric data array

Here is the caller graph for this function:

◆ GPUSetMetricControl()

Metricdata * GPUSetMetricControl	(	DEVICE_HANDLE	handle,
		uint32_t	mode
	)

Parameters

IN	handle - handle to the selected device
IN	mode - collection mode (sample, summary, reset)

Returns: 0 – success, otherwise, error code

Here is the caller graph for this function:

◆ GPUStart()

int GPUStart ( DEVICE_HANDLE handle )

Parameters

IN	handle - handle to the selected device

Returns: 0 – success, otherwise, error code

◆ GPUStop()

int GPUStop ( DEVICE_HANDLE handle )

◆ strncpy_se()

void strncpy_se	(	char *	dest,
		size_t	destSize,
		char *	src,
		size_t	count
	)

Here is the caller graph for this function:

Data Structures

Macros

Typedefs

Functions

Macro Definition Documentation

◆ CreateDeviceCode

◆ CreateGroupCode

◆ CreateIdxCode

◆ CreateMetricCode

◆ DCODE_MASK

◆ DEV_BITS

◆ DMASK

◆ DRV_BITS

◆ EVENT_BASED

◆ GetDev

◆ GetDeviceCode

◆ GetDrv

◆ GetGroupIdx

◆ GetIdx

◆ GetMetricIdx

◆ GetSDev

◆ IDX_BITS

◆ IDX_MASK

◆ IsDeviceHandle

◆ M_ACCUMULATE

◆ M_AVERAGE

◆ M_RAW

◆ MAX_METRICS

◆ MAX_NUM_REPORTS

◆ MAX_STR_LEN

◆ METRIC_BITS

◆ METRIC_GROUP_MASK

◆ METRIC_MASK

◆ METRIC_RESET

◆ METRIC_SAMPLE

◆ METRIC_SUMMARY

◆ SDEV_BITS

◆ TIME_BASED

Typedef Documentation

◆ DEVICE_HANDLE

◆ NAMESTR

Function Documentation

◆ GPUAllocMetricData()

◆ GPUAllocMetricInfo()

◆ GPUDetectDevice()

◆ GPUDisableMetricGroup()

◆ GPUEnableMetricGroup()

◆ GPUEnableMetrics()

◆ GPUFreeDevice()

◆ GPUFreeMetricData()

◆ GPUFreeMetricInfo()

◆ GPUGetDeviceInfo()

◆ GPUGetMetricGroups()

◆ GPUGetMetricList()

◆ GPUPrintDeviceInfo()

◆ GPUReadMetricData()

◆ GPUSetMetricControl()

◆ GPUStart()

◆ GPUStop()

◆ strncpy_se()
