overflow.c File Reference

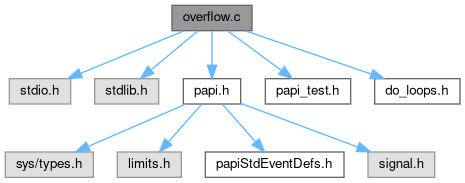

Include dependency graph for overflow.c:

Go to the source code of this file.

Macros

#define OVER_FMT   "handler(%d ) Overflow at %p! bit=%#llx \n"

#define OUT_FMT   "%-12s : %16lld%16lld\n"


Functions

void handler (int EventSet, void *address, long long overflow_vector, void *context)

int main (int argc, char **argv)


Variables

static int total = 0


Macro Definition Documentation

◆ OUT_FMT

#define OUT_FMT   "%-12s : %16lld%16lld\n"

Definition at line 31 of file overflow.c.

◆ OVER_FMT

#define OVER_FMT   "handler(%d ) Overflow at %p! bit=%#llx \n"

Definition at line 30 of file overflow.c.

Function Documentation

◆ handler()

void handler ( int  EventSet,
void *  address,
long long  overflow_vector,
void *  context
)

Definition at line 37 of file overflow.c.

38{
39 ( void ) context;
40
41 if ( !TESTS_QUIET ) {
42 fprintf( stderr, OVER_FMT, EventSet, address, overflow_vector );
43 }
44 total++;
45}
EventSet
static int EventSet
Definition: init_fini.c:8
TESTS_QUIET
int TESTS_QUIET
Definition: test_utils.c:18
OVER_FMT
#define OVER_FMT
Definition: overflow.c:30
total
static int total
Definition: overflow.c:33
stderr
FILE * stderr
Here is the caller graph for this function:

◆ main()

int main ( int  argc,
char **  argv
)

Definition at line 48 of file overflow.c.

49{
50 int EventSet = PAPI_NULL;
51 long long ( values[2] )[2];
52 long long min, max;
53 int num_flops = NUM_FLOPS, retval;
54 int PAPI_event, mythreshold = THRESHOLD;
55 char event_name1[PAPI_MAX_STR_LEN];
56 const PAPI_hw_info_t *hw_info = NULL;
57 int num_events, mask;
58 int quiet;
59
60 /* Set TESTS_QUIET variable */
61 quiet = tests_quiet( argc, argv );
62
63 /* Init PAPI */
64 retval = PAPI_library_init( PAPI_VER_CURRENT );
65 if ( retval != PAPI_VER_CURRENT ) {
66 test_fail( __FILE__, __LINE__, "PAPI_library_init", retval );
67 }
68
69 /* Get hardware info */
70 hw_info = PAPI_get_hardware_info( );
71 if ( hw_info == NULL ) {
72 test_fail( __FILE__, __LINE__, "PAPI_get_hardware_info", 2 );
73 }
74
75 /* add PAPI_TOT_CYC and one of the events in */
76 /* PAPI_FP_INS, PAPI_FP_OPS or PAPI_TOT_INS, */
77 /* depending on the availability of the event on */
78 /* the platform */
79 EventSet = add_two_nonderived_events( &num_events, &PAPI_event, &mask );
80
81 if (num_events==0) {
82 if (!quiet) printf("Trouble adding event!\n");
83 test_skip(__FILE__,__LINE__,"Event add",1);
84 }
85
86 if (!quiet) {
87 printf("Using %#x for the overflow event\n",PAPI_event);
88 }
89
90 if ( PAPI_event == PAPI_FP_INS ) {
91 mythreshold = THRESHOLD;
92 }
93 else {
94#if defined(linux)
95 mythreshold = ( int ) hw_info->cpu_max_mhz * 20000;
96#else
97 mythreshold = THRESHOLD * 2;
98#endif
99 }
100
101 /* Start the run calibration run */
102 retval = PAPI_start( EventSet );
103 if ( retval != PAPI_OK )
104 test_fail( __FILE__, __LINE__, "PAPI_start", retval );
105
106 do_flops( NUM_FLOPS );
107
108 /* stop the calibration run */
109 retval = PAPI_stop( EventSet, values[0] );
110 if ( retval != PAPI_OK )
111 test_fail( __FILE__, __LINE__, "PAPI_stop", retval );
112
113
114 /* set up overflow handler */
115 retval = PAPI_overflow( EventSet, PAPI_event, mythreshold, 0, handler );
116 if ( retval != PAPI_OK ) {
117 test_fail( __FILE__, __LINE__, "PAPI_overflow", retval );
118 }
119
120 /* Start overflow run */
121 retval = PAPI_start( EventSet );
122 if ( retval != PAPI_OK ) {
123 test_fail( __FILE__, __LINE__, "PAPI_start", retval );
124 }
125
126 do_flops( num_flops );
127
128 /* stop overflow run */
129 retval = PAPI_stop( EventSet, values[1] );
130 if ( retval != PAPI_OK )
131 test_fail( __FILE__, __LINE__, "PAPI_stop", retval );
132 retval = PAPI_overflow( EventSet, PAPI_event, 0, 0, handler );
133 if ( retval != PAPI_OK )
134 test_fail( __FILE__, __LINE__, "PAPI_overflow", retval );
135
136 if ( !TESTS_QUIET ) {
137 retval = PAPI_event_code_to_name( PAPI_event, event_name1 );
138 if (retval != PAPI_OK ) {
139 test_fail( __FILE__, __LINE__, "PAPI_event_code_to_name", retval );
140 }
141
142 printf( "Test case: Overflow dispatch of 2nd event in set with 2 events.\n" );
143 printf( "---------------------------------------------------------------\n" );
144 printf( "Threshold for overflow is: %d\n", mythreshold );
145 printf( "Using %d iterations of c += a*b\n", num_flops );
146 printf( "-----------------------------------------------\n" );
147
148 printf( "Test type : %16d%16d\n", 1, 2 );
149 printf( OUT_FMT, event_name1, ( values[0] )[1], ( values[1] )[1] );
150 printf( OUT_FMT, "PAPI_TOT_CYC", ( values[0] )[0], ( values[1] )[0] );
151 printf( "Overflows : %16s%16d\n", "", total );
152 printf( "-----------------------------------------------\n" );
153 }
154
155 retval = PAPI_cleanup_eventset( EventSet );
156 if ( retval != PAPI_OK )
157 test_fail( __FILE__, __LINE__, "PAPI_cleanup_eventset", retval );
158
159 retval = PAPI_destroy_eventset( &EventSet );
160 if ( retval != PAPI_OK )
161 test_fail( __FILE__, __LINE__, "PAPI_destroy_eventset", retval );
162
163 if ( !TESTS_QUIET ) {
164 printf( "Verification:\n" );
165#if defined(linux) || defined(__ia64__) || defined(_POWER4)
166 num_flops *= 2;
167#endif
168 if ( PAPI_event == PAPI_FP_INS || PAPI_event == PAPI_FP_OPS ) {
169 printf( "Row 1 approximately equals %d %d\n", num_flops,
170 num_flops );
171 }
172 printf( "Column 1 approximately equals column 2\n" );
173 printf( "Row 3 approximately equals %u +- %u %%\n",
174 ( unsigned ) ( ( values[0] )[1] / ( long long ) mythreshold ),
175 ( unsigned ) ( OVR_TOLERANCE * 100.0 ) );
176 }
177/*
178 min = (long long)((values[0])[1]*(1.0-TOLERANCE));
179 max = (long long)((values[0])[1]*(1.0+TOLERANCE));
180 if ( (values[0])[1] > max || (values[0])[1] < min )
181 test_fail(__FILE__, __LINE__, event_name, 1);
182*/
183
184 min =
185 ( long long ) ( ( ( double ) values[0][1] * ( 1.0 - OVR_TOLERANCE ) ) /
186 ( double ) mythreshold );
187 max =
188 ( long long ) ( ( ( double ) values[0][1] * ( 1.0 + OVR_TOLERANCE ) ) /
189 ( double ) mythreshold );
190 if (!quiet) {
191 printf( "Overflows: total(%d) > max(%lld) || "
192 "total(%d) < min(%lld) \n", total, max, total, min );
193 }
194 if ( total > max || total < min ) {
195 test_fail( __FILE__, __LINE__, "Overflows", 1 );
196 }
197
198 test_pass( __FILE__ );
199 return 0;
200
201}
hw_info
static const PAPI_hw_info_t * hw_info
Definition: byte_profile.c:28
PAPI_cleanup_eventset
Empty and destroy an EventSet.
PAPI_destroy_eventset
Empty and destroy an EventSet.
PAPI_event_code_to_name
Convert a numeric hardware event code to a name.
PAPI_get_hardware_info
get information about the system hardware
PAPI_library_init
initialize the PAPI library.
PAPI_overflow
Set up an event set to begin registering overflows.
PAPI_start
Start counting hardware events in an event set.
PAPI_stop
Stop counting hardware events in an event set.
mythreshold
static long long mythreshold
Definition: ctests/overflow_pthreads.c:48
min
#define min(x, y)
Definition: darwin-common.h:4
PAPI_event
int PAPI_event[2]
Definition: data_range.c:30
OVR_TOLERANCE
#define OVR_TOLERANCE
Definition: do_loops.h:14
THRESHOLD
#define THRESHOLD
Definition: earprofile.c:37
PAPI_VER_CURRENT
#define PAPI_VER_CURRENT
Definition: f90papi.h:54
PAPI_OK
#define PAPI_OK
Definition: f90papi.h:73
PAPI_NULL
#define PAPI_NULL
Definition: f90papi.h:78
PAPI_FP_INS
#define PAPI_FP_INS
Definition: f90papi.h:366
PAPI_MAX_STR_LEN
#define PAPI_MAX_STR_LEN
Definition: f90papi.h:77
PAPI_FP_OPS
#define PAPI_FP_OPS
Definition: f90papi.h:319
values
static long long values[NUM_EVENTS]
Definition: init_fini.c:10
num_events
static int num_events
Definition: linux-coretemp.c:37
do_flops
void do_flops(int n)
Definition: multiplex.c:23
handler
void handler(int EventSet, void *address, long long overflow_vector, void *context)
Definition: overflow.c:37
OUT_FMT
#define OUT_FMT
Definition: overflow.c:31
tests_quiet
int tests_quiet(int argc, char **argv)
Definition: test_utils.c:376
add_two_nonderived_events
int add_two_nonderived_events(int *num_events, int *papi_event, int *mask)
Definition: test_utils.c:671
test_fail
void PAPI_NORETURN test_fail(const char *file, int line, const char *call, int retval)
Definition: test_utils.c:491
test_pass
void PAPI_NORETURN test_pass(const char *filename)
Definition: test_utils.c:432
test_skip
void PAPI_NORETURN test_skip(const char *file, int line, const char *call, int retval)
Definition: test_utils.c:584
quiet
int quiet
Definition: rapl_overflow.c:19
int
int
Definition: sde_internal.h:89
long
long long int long long
Definition: sde_internal.h:85
NUM_FLOPS
#define NUM_FLOPS
Definition: sdsc-mpx.c:24
PAPI_hw_info_t
Hardware info structure.
Definition: papi.h:774
PAPI_hw_info_t::cpu_max_mhz
int cpu_max_mhz
Definition: papi.h:790
retval
int retval
Definition: zero_fork.c:53

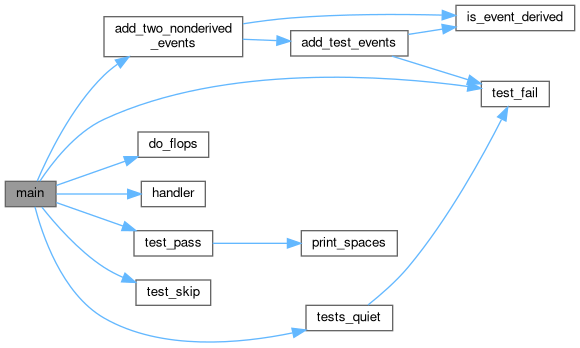

Here is the call graph for this function:

Variable Documentation

◆ total

int total = 0
static

Definition at line 33 of file overflow.c.
