multiattach2.c File Reference

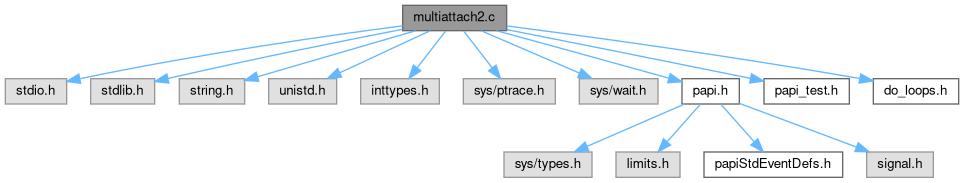

Include dependency graph for multiattach2.c:

Go to the source code of this file.

Functions

int wait_for_attach_and_loop (int num)

int main (int argc, char **argv)


Function Documentation

◆ main()

int main ( int  argc,
char **  argv
)

Definition at line 50 of file multiattach2.c.

51{
52 int status, retval, num_tests = 2, tmp;
53 int EventSet1 = PAPI_NULL, EventSet2 = PAPI_NULL;
54 int PAPI_event, PAPI_event2, mask1, mask2;
55 int num_events1, num_events2;
56 long long **values;
57 long long elapsed_us, elapsed_cyc, elapsed_virt_us, elapsed_virt_cyc;
58 char event_name[PAPI_MAX_STR_LEN], add_event_str[PAPI_2MAX_STR_LEN];
59 const PAPI_component_info_t *cmpinfo;
60 pid_t pid;
61
62 /* Set TESTS_QUIET variable */
63 tests_quiet( argc, argv );
64
65 /* init the library */
66 retval = PAPI_library_init( PAPI_VER_CURRENT );
67 if ( retval != PAPI_VER_CURRENT ) {
68 test_fail( __FILE__, __LINE__, "PAPI_library_init", retval );
69 }
70
71 /* get component info */
72 if ( ( cmpinfo = PAPI_get_component_info( 0 ) ) == NULL ) {
73 test_fail( __FILE__, __LINE__, "PAPI_get_component_info", 0 );
74 }
75
76 /* see if we support attach */
77 if ( cmpinfo->attach == 0 ) {
78 test_skip( __FILE__, __LINE__,
79 "Platform does not support attaching",0 );
80 }
81
82 /* fork! */
83 pid = fork( );
84 if ( pid < 0 ) {
85 test_fail( __FILE__, __LINE__, "fork()", PAPI_ESYS );
86 }
87
88 /* if child, wait_for_attach_and_loop */
89 if ( pid == 0 ) {
90 exit( wait_for_attach_and_loop( 2 ) );
91 }
92
93 /* add PAPI_TOT_CYC and one of the events in
94 PAPI_FP_INS, PAPI_FP_OPS or PAPI_TOT_INS,
95 depending on the availability of the event
96 on the platform */
97 EventSet1 = add_two_events( &num_events1, &PAPI_event, &mask1 );
98 EventSet2 = add_two_events( &num_events2, &PAPI_event2, &mask2 );
99
100 if ( cmpinfo->attach_must_ptrace ) {
101 if ( ptrace( PTRACE_ATTACH, pid, NULL, NULL ) == -1 ) {
102 perror( "ptrace(PTRACE_ATTACH)" );
103 return 1;
104 }
105 if ( waitpid( pid, &status, 0 ) == -1 ) {
106 perror( "waitpid()" );
107 exit( 1 );
108 }
109 if ( WIFSTOPPED( status ) == 0 ) {
110 test_fail( __FILE__, __LINE__,
111 "Child process didnt return true to WIFSTOPPED", 0 );
112 }
113 }
114
115 retval = PAPI_attach( EventSet2, ( unsigned long ) pid );
116 if ( retval != PAPI_OK ) {
117 test_fail( __FILE__, __LINE__, "PAPI_attach", retval );
118 }
119
120 strcpy(event_name,"PAPI_TOT_INS");
121 sprintf( add_event_str, "PAPI_add_event[%s]", event_name );
122
123 /* num_events1 is greater than num_events2 so don't worry. */
124
125 values = allocate_test_space( num_tests, num_events1 );
126
127 /* get before values */
128 elapsed_us = PAPI_get_real_usec( );
129 elapsed_cyc = PAPI_get_real_cyc( );
130 elapsed_virt_us = PAPI_get_virt_usec( );
131 elapsed_virt_cyc = PAPI_get_virt_cyc( );
132
133 /* Wait for the SIGSTOP. */
134 if ( cmpinfo->attach_must_ptrace ) {
135 if ( ptrace( PTRACE_CONT, pid, NULL, NULL ) == -1 ) {
136 perror( "ptrace(PTRACE_CONT)" );
137 return 1;
138 }
139 if ( waitpid( pid, &status, 0 ) == -1 ) {
140 perror( "waitpid()" );
141 exit( 1 );
142 }
143 if ( WIFSTOPPED( status ) == 0 ) {
144 test_fail( __FILE__, __LINE__,
145 "Child process didn't return true to WIFSTOPPED", 0 );
146 }
147 if ( WSTOPSIG( status ) != SIGSTOP ) {
148 test_fail( __FILE__, __LINE__,
149 "Child process didn't stop on SIGSTOP", 0 );
150 }
151 }
152
153 retval = PAPI_start( EventSet1 );
154 if ( retval != PAPI_OK ) {
155 test_fail( __FILE__, __LINE__, "PAPI_start", retval );
156 }
157
158 retval = PAPI_start( EventSet2 );
159 if ( retval != PAPI_OK ) {
160 test_fail( __FILE__, __LINE__, "PAPI_start", retval );
161 }
162
163 /* Wait for the SIGSTOP. */
164 if ( cmpinfo->attach_must_ptrace ) {
165 if ( ptrace( PTRACE_CONT, pid, NULL, NULL ) == -1 ) {
166 perror( "ptrace(PTRACE_ATTACH)" );
167 return 1;
168 }
169 if ( waitpid( pid, &status, 0 ) == -1 ) {
170 perror( "waitpid()" );
171 exit( 1 );
172 }
173 if ( WIFSTOPPED( status ) == 0 ) {
174 test_fail( __FILE__, __LINE__,
175 "Child process didn't return true to WIFSTOPPED", 0 );
176 }
177 if ( WSTOPSIG( status ) != SIGSTOP ) {
178 test_fail( __FILE__, __LINE__,
179 "Child process didn't stop on SIGSTOP", 0 );
180 }
181 }
182
183 elapsed_virt_us = PAPI_get_virt_usec( ) - elapsed_virt_us;
184 elapsed_virt_cyc = PAPI_get_virt_cyc( ) - elapsed_virt_cyc;
185 elapsed_us = PAPI_get_real_usec( ) - elapsed_us;
186 elapsed_cyc = PAPI_get_real_cyc( ) - elapsed_cyc;
187
188 retval = PAPI_stop( EventSet1, values[0] );
189 if ( retval != PAPI_OK ) {
190 printf( "Warning: PAPI_stop returned error %d, probably ok.\n",
191 retval );
192 }
193
194 retval = PAPI_stop( EventSet2, values[1] );
195 if ( retval != PAPI_OK ) {
196 printf( "Warning: PAPI_stop returned error %d, probably ok.\n",
197 retval );
198 }
199
200 remove_test_events( &EventSet1, mask1 );
201 remove_test_events( &EventSet2, mask2 );
202
203 if ( cmpinfo->attach_must_ptrace ) {
204 if ( ptrace( PTRACE_CONT, pid, NULL, NULL ) == -1 ) {
205 perror( "ptrace(PTRACE_CONT)" );
206 return 1;
207 }
208 }
209
210 if ( waitpid( pid, &status, 0 ) == -1 ) {
211 perror( "waitpid()" );
212 exit( 1 );
213 }
214 if ( WIFEXITED( status ) == 0 ) {
215 test_fail( __FILE__, __LINE__,
216 "Child process didn't return true to WIFEXITED", 0 );
217 }
218
219 /* This code isn't necessary as we know the child has exited,
220 it *may* return an error if the component so chooses.
221 You should use read() instead. */
222
223 if (!TESTS_QUIET) {
224 printf( "Test case: multiple 3rd party attach start, stop.\n" );
225 printf( "-----------------------------------------------\n" );
226 tmp = PAPI_get_opt( PAPI_DEFDOM, NULL );
227 printf( "Default domain is: %d (%s)\n", tmp, stringify_all_domains( tmp ) );
228 tmp = PAPI_get_opt( PAPI_DEFGRN, NULL );
229 printf( "Default granularity is: %d (%s)\n", tmp,
230 stringify_granularity( tmp ) );
231 printf( "Using %d iterations of c += a*b\n", NUM_FLOPS );
232 printf( "-------------------------------------------------------------------------\n" );
233
234 sprintf( add_event_str, "(PID self) %-12s : \t",
235 event_name );
236 printf( TAB1, add_event_str, values[0][1] );
237 sprintf( add_event_str, "(PID self) PAPI_TOT_CYC : \t" );
238 printf( TAB1, add_event_str, values[0][0] );
239 sprintf( add_event_str, "(PID %jd) %-12s : \t", ( intmax_t ) pid,
240 event_name );
241 printf( TAB1, add_event_str, values[1][1] );
242 sprintf( add_event_str, "(PID %jd) PAPI_TOT_CYC : \t",
243 ( intmax_t ) pid );
244 printf( TAB1, add_event_str, values[1][0] );
245 printf( TAB1, "Real usec : \t", elapsed_us );
246 printf( TAB1, "Real cycles : \t", elapsed_cyc );
247 printf( TAB1, "Virt usec : \t", elapsed_virt_us );
248 printf( TAB1, "Virt cycles : \t", elapsed_virt_cyc );
249
250 printf( "-------------------------------------------------------------------------\n" );
251
252 printf( "Verification: none\n" );
253
254 }
255
256 test_pass( __FILE__ );
257
258 return 0;
259}
tmp
double tmp
Definition: PAPI_get_virt_cyc.c:11
wait_for_attach_and_loop
static int wait_for_attach_and_loop(void)
Definition: attach2.c:41
PAPI_attach
Attach PAPI event set to the specified thread id.
PAPI_get_component_info
get information about a specific software component
PAPI_get_opt
Get PAPI library or event set options.
PAPI_get_real_cyc
get real time counter value in clock cycles Returns the total real time passed since some arbitrary s...
PAPI_get_real_usec
get real time counter value in microseconds
PAPI_get_virt_cyc
get virtual time counter value in clock cycles
PAPI_get_virt_usec
get virtual time counter values in microseconds
PAPI_library_init
initialize the PAPI library.
PAPI_start
Start counting hardware events in an event set.
PAPI_stop
Stop counting hardware events in an event set.
PAPI_event
int PAPI_event[2]
Definition: data_range.c:30
event_name
char event_name[2][PAPI_MAX_STR_LEN]
Definition: data_range.c:29
PAPI_VER_CURRENT
#define PAPI_VER_CURRENT
Definition: f90papi.h:54
PAPI_OK
#define PAPI_OK
Definition: f90papi.h:73
PAPI_NULL
#define PAPI_NULL
Definition: f90papi.h:78
PAPI_DEFGRN
#define PAPI_DEFGRN
Definition: f90papi.h:26
PAPI_MAX_STR_LEN
#define PAPI_MAX_STR_LEN
Definition: f90papi.h:77
PAPI_ESYS
#define PAPI_ESYS
Definition: f90papi.h:136
PAPI_2MAX_STR_LEN
#define PAPI_2MAX_STR_LEN
Definition: f90papi.h:180
PAPI_DEFDOM
#define PAPI_DEFDOM
Definition: f90papi.h:188
values
static long long values[NUM_EVENTS]
Definition: init_fini.c:10
TESTS_QUIET
int TESTS_QUIET
Definition: test_utils.c:18
tests_quiet
int tests_quiet(int argc, char **argv)
Definition: test_utils.c:376
stringify_all_domains
char * stringify_all_domains(int domains)
Definition: test_utils.c:293
stringify_granularity
char * stringify_granularity(int granularity)
Definition: test_utils.c:353
TAB1
#define TAB1
Definition: papi_test.h:98
test_fail
void PAPI_NORETURN test_fail(const char *file, int line, const char *call, int retval)
Definition: test_utils.c:491
allocate_test_space
long long ** allocate_test_space(int num_tests, int num_events)
Definition: test_utils.c:46
test_pass
void PAPI_NORETURN test_pass(const char *filename)
Definition: test_utils.c:432
add_two_events
int add_two_events(int *num_events, int *papi_event, int *mask)
Definition: test_utils.c:640
test_skip
void PAPI_NORETURN test_skip(const char *file, int line, const char *call, int retval)
Definition: test_utils.c:584
remove_test_events
int remove_test_events(int *EventSet, int mask)
Definition: test_utils.c:201
EventSet2
int EventSet2
Definition: rapl_overflow.c:17
NUM_FLOPS
#define NUM_FLOPS
Definition: sdsc-mpx.c:24
pid
static int pid
Definition: solaris-niagara2.c:111
PAPI_component_info_t
Definition: papi.h:626
PAPI_component_info_t::attach
unsigned int attach
Definition: papi.h:658
PAPI_component_info_t::attach_must_ptrace
unsigned int attach_must_ptrace
Definition: papi.h:659
EventSet1
int EventSet1
Definition: zero_fork.c:47
num_events1
int num_events1
Definition: zero_fork.c:49
mask1
int mask1
Definition: zero_fork.c:48
elapsed_cyc
long long elapsed_cyc
Definition: zero_fork.c:50
elapsed_us
long long elapsed_us
Definition: zero_fork.c:50
num_tests
int num_tests
Definition: zero_fork.c:53
retval
int retval
Definition: zero_fork.c:53

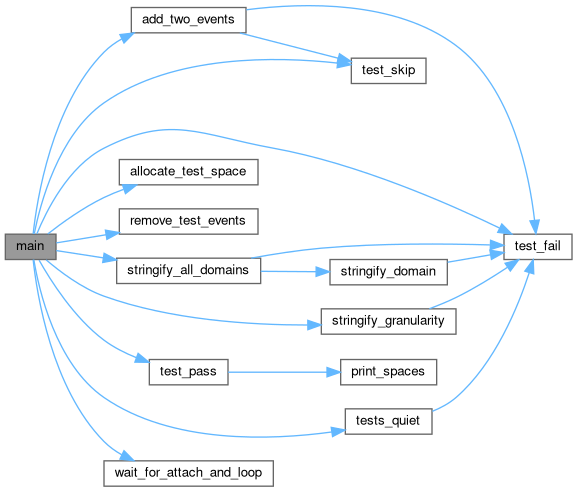

Here is the call graph for this function:

◆ wait_for_attach_and_loop()

int wait_for_attach_and_loop ( int  num)

Definition at line 41 of file multiattach2.c.

42{
43 kill( getpid( ), SIGSTOP );
44 do_flops( NUM_FLOPS * num );
45 kill( getpid( ), SIGSTOP );
46 return 0;
47}
do_flops
void do_flops(int n)
Definition: multiplex.c:23
kill
int kill(__pid_t __pid, int __sig) __attribute__((__nothrow__
Here is the call graph for this function:
