#include <stdlib.h>
#include <sys/types.h>
#include "common.h"

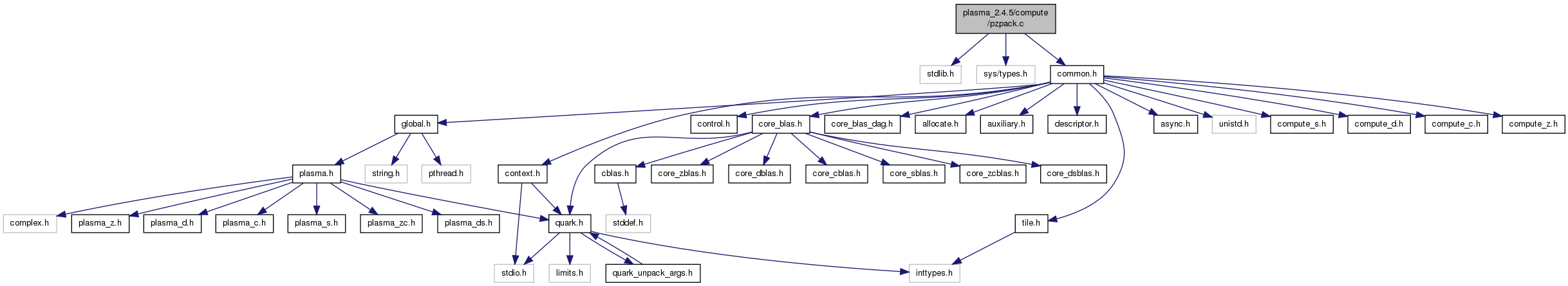

Include dependency graph for pzpack.c:

Functions
void	plasma_pzpack (plasma_context_t *plasma)
void	plasma_pzunpack (plasma_context_t *plasma)

Detailed Description

PLASMA InPlaceTransformation module PLASMA is a software package provided by Univ. of Tennessee, Univ. of California Berkeley and Univ. of Colorado Denver

This work is the implementation of an inplace transformation based on the GKK algorithm by Gustavson, Karlsson, Kagstrom and its fortran implementation.

Version:: 2.4.5

Author:: Mathieu Faverge

Date:: 2010-11-15

normal z -> c d s

Definition in file pzpack.c.

Function Documentation

void plasma_pzpack ( plasma_context_t * plasma )

plasma_pzpack pack all extra elements at the end of the matrix

 +&mdash;&mdash;&mdash;&mdash;&mdash;+
 |               |
 |               |
 |     A11       |
 |               |
 |               |
 +&mdash;&mdash;&mdash;&mdash;&mdash;+
 |     A21       |
 +&mdash;&mdash;&mdash;&mdash;&mdash;+

This matrix is initially stored as (example of Column Major, it's the same for row major. We just consider the transpose matrix) : A11(:,0), A21(:,0), A11(:,1), A21(:,1), ...

On exit, it's stored as follow. A11(:,:), A12(:,:)

Parameters:

[in]	plasma	Plasma context
[in]	m	Number of rows in matrix A
[in]	n	Number of columns in matrix A
[in,out]	A	Matrix A to pack. (see above for entry and exit format)
[in]	m0	Number of rows of A21

Definition at line 65 of file pzpack.c.

References A, CORE_zlacpy(), min, plasma_barrier(), plasma_private_alloc(), plasma_private_free(), PLASMA_RANK, PLASMA_SIZE, PLASMA_SUCCESS, plasma_unpack_args_6, PlasmaComplexDouble, PlasmaUpperLower, plasma_sequence_t::status, and W.

{
    PLASMA_Complex64_t *A, *W, *Wl;
    PLASMA_sequence *sequence;
    PLASMA_request *request;
    int m, n, m0;
    int i, m1, size, rank, start, end, bs, mod;
    plasma_unpack_args_6(m, n, A, m0, sequence, request);
    if (sequence->status != PLASMA_SUCCESS)
        return;
    /* Quick return */
    if ( n <= 1 )
      return;
    m1 = m - m0;
    size = PLASMA_SIZE;
    rank = PLASMA_RANK;
    mod   = (n-1) % size;
    bs    = (n-1) / size;
    start = rank * bs;
    if ( rank < mod ) {
        bs++;
    }
    start += min( mod, rank );
    W  = (PLASMA_Complex64_t*)plasma_private_alloc(plasma, (m0*bs), PlasmaComplexDouble);
    Wl = (PLASMA_Complex64_t*)plasma_private_alloc(plasma, m1,      PlasmaComplexDouble);
    /* Save leftover pieces that are otherwise going to be overwritten */
    CORE_zlacpy( PlasmaUpperLower, m0, bs, &(A[(int64_t)start*m+m1]), m, W, m0 );
    /* Pack A */
    end = ((n-1) / size) * size + 1;
    for(i=rank+1; i<end; i+=size) {
        memcpy( Wl, &(A[i*m]), m1*sizeof(PLASMA_Complex64_t));
        plasma_barrier(plasma);
        memcpy( &(A[i*m1]), Wl, m1*sizeof(PLASMA_Complex64_t));
    }
    if ( rank < (n - end)) {
        i = end + rank;
        memcpy( Wl, &(A[i*m]), m1*sizeof(PLASMA_Complex64_t));
        plasma_barrier(plasma);
        memcpy( &(A[i*m1]), Wl, m1*sizeof(PLASMA_Complex64_t));
    }
    else
        plasma_barrier(plasma);
    /* Restore leftover pieces */
    CORE_zlacpy( PlasmaUpperLower, m0, bs, W, m0, &(A[(int64_t)m1*n+start*m0]), m0 );
    plasma_private_free(plasma, W);
    plasma_private_free(plasma, Wl);
}

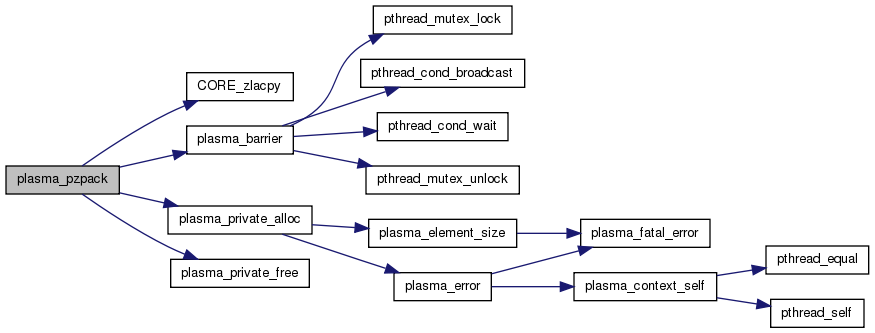

Here is the call graph for this function:

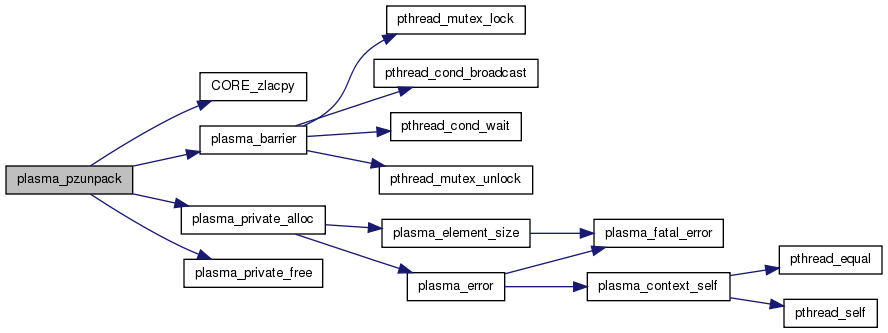

Here is the caller graph for this function:

void plasma_pzunpack ( plasma_context_t * plasma )

plasma_pzunpack unpack all extra elements from the end of the matrix

 +&mdash;&mdash;&mdash;&mdash;&mdash;+
 |               |
 |               |
 |     A11       |
 |               |
 |               |
 +&mdash;&mdash;&mdash;&mdash;&mdash;+
 |     A21       |
 +&mdash;&mdash;&mdash;&mdash;&mdash;+

This matrix is initially stored as (example of Column Major, it's the same for row major. We just consider the transpose matrix) : A11(:,:), A12(:,:)

On exit, it's stored as follow. A11(:,0), A21(:,0), A11(:,1), A21(:,1), ...
